Siemens WP07R152 Operating Instructions

Washing machine
Instruction manual
Read these instructions before operating the washing machine.
en
2
Contents
In addition, the following symbols indicate:
safety measures (for you, the machine or the laundry) that must be carried out without fail,
electrical danger,
tips and important information.
Page
Safety instructions .................................................................................................... 4
Protection of the environment/Hints and tips........................................................ 4
Disposal information .................................................................................................. 4
Introducing your washing machine ........................................................................ 5
1 - Installation instructions
Transportation protection devices .......................................................................... 6 and 7
Moving the washing machine .................................................................................. 7
Connections - Water-inlet .......................................................................................... 8
Connections - Water drainage .................................................................................. 8
Electrical connections .............................................................................................. 9
Replacement of mains cable .................................................................................... 9
Installation .................................................................................................................. 9
2 - Operating instructions
International laundry care symbols.......................................................................... 10
Before the first wash .................................................................................................. 10
Treating stubborn stains............................................................................................ 11
Preparing the laundry ................................................................................................ 12
Loading the laundry.................................................................................................... 13

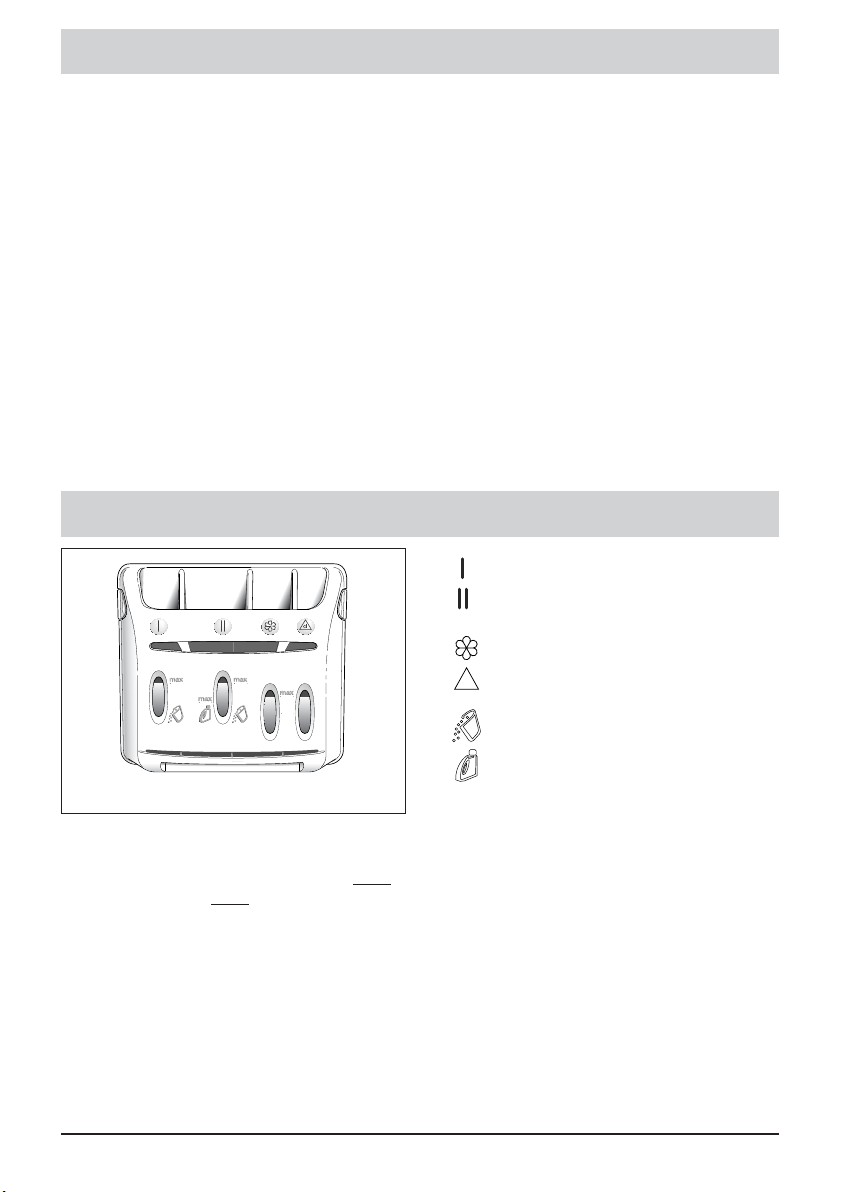

Putting in detergent.................................................................................................... 13
Setting the programme / Adding wash + Changing programme........................ 14
and 15
Choosing programme ................................................................................................ 16
Spin speed selector.................................................................................................... 17
Additional function buttons ...................................................................................... 18
Safety features ............................................................................................................ 19
3 - Cleaning and care
Cabinet ........................................................................................................................ 20
Control panel, base, etc. interior components ...................................................... 20

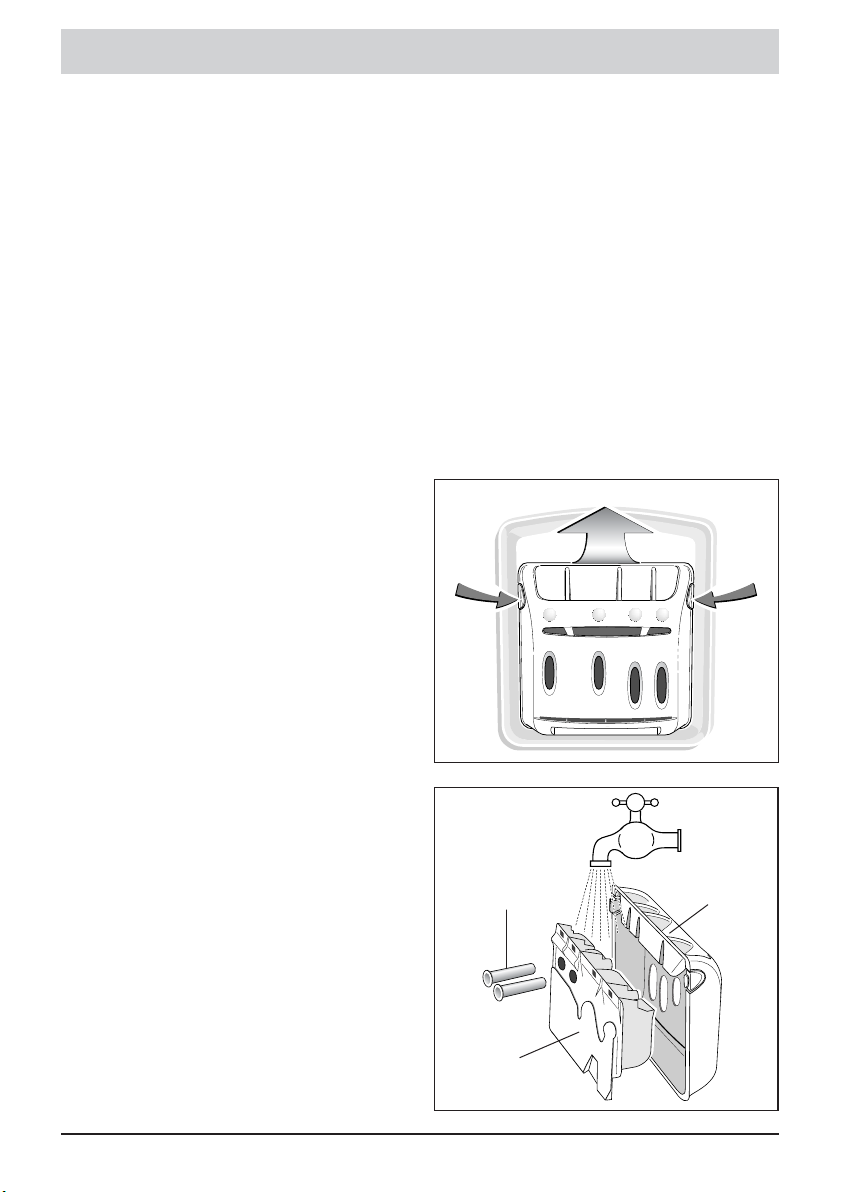

Detergent dispenser .................................................................................................. 20
Cleaning the filter........................................................................................................ 21
and 22
4 - Display lights.............................................................................................................. 23
5 - What to do if .............................................................................................................. 25
6 - Customer Service .................................................................................................... 26
7 - Programme chart ...................................................................................................... 28
3
The new washing machine that you have just purchased is a modern, high-quality household appliance.
Your washing machine is distinguished by its economical consumption of energy, water and detergent.
Every washing machine that leaves our factory is carefully checked to ensure that it is functioning properly and is free of defects. If there are any questions - especially in regards to installing and connecting your washing machine - please do not hesitate to contact our Customer Service department.
For further information about products, accessories, spare parts and services visit our web site www.siemens-home.com or contact our after-sales service centres.
Please read and follow these operating and installation instructions and all other information supplied.
Differences in installation and operating instructions for different models are noted in the appropriate places.
Retain all documentation for subsequent use or for the next owner of the appliance.
4
Safety Instructions
Intended Use
Introducing your washing machine
for household use only,
for washing machine-washable fabrics in a detergent and water solution,
operation with cold tap water and commercially available detergents and cleaning products which are suitable for use in washing machines.
Safety Instructions
Do not leave children unsupervised near the washing machine. Keep pets away from the washing machine. Do not insert/pull out the mains plug with wet hands. Do not pull out the mains plug by tugging on the cable.
Caution when draining hot water. Do not climb onto the washing machine. Follow the set up instructions.
Danger of suffocation!
Keep children away from shipping carton and packaging components. Danger of suffocation from folding cartons and plastic film.
Danger of fatal injury!
On out-of-service appliances, unplug mains plug. Cut off power chord and discard with mains plug. Break the lock on the lid as this will prevent children from locking themselves in and suffocating.
Packaging and discarded appliances
Environmentally friendly disposal
• Dispose of packaging in an environmentally friendly manner.
• This appliance meets European guideline 2002/96/EG for discarded electrical and electronic appliances (waste electrical and electronic equipment - WEEE).
• The guideline provides an EU wide valid framework for recycling of discarded appliances.
Protection of the environment/Hints and tips
Your washing machine uses water, energy and detergent efficiently. This protects our environment and reduces your household costs. To use your washing machine in an efficient and environmentally friendly manner:
Do not exceed recommended loads.
Cottons and Coloureds ....................5.5 kg
Easy Care............................................2.5 kg
Delicates/Silk......................................1.0 kg
Woollens..............................................1.5 kg
Automatic load sensing reduces the water and energy consumption, as well as the programme duration, for smaller loads.
Instead of ”Cottons 90°C”, select the ”60°C” programme + the ”Intensive”* pushbutton. The extended washing time of this 60°C programme achieves a cleaning result comparable to that of the 90°C programme, but uses considerably less energy.
Do not use Prewash* for lightly to normally soiled washing.
Use detergent according to Pollution index, amount of laundry and water hardness and follow the manufacturer's directions.
* Depending upon the model.
5
Introducing your washing machine
Control panel
Lid handle (remains locked during the programme)
Unlocking of detergent
dispenser
Removable detergent dispenser
Button for opening the drum lids
Locking lever (depending upon the model)
Water drainage hose
Water inlet hose (not connected)
Mains connection with plug
Securing bar for transport
Identification plate
(appliance and production number)
click!
Properly close drum lids!
YYYYEEEESS
SS
NNNNOO
OO
6
Removing the transportation protection devices
Figure 2.1
Figure 2.3
13
1
1
2
2
1 Remove the machine from the transport
base. Remove
wedge
(
Figure
1
).
2
Remove the 4 screwswith a screwdriver
(Figure
2.1
).
3 Remove transportation protection devices
C: Both bolts are for this purpose
(Figure
2.2)remove with a 10 mm or 13
mm spanner (depending upon model).
Check to see that both plastic inserts on the connecting carrier have also been removed.
Refasten the screwsat their original locations.
4
Both holes must be covered with the
caps provided
(found in the accessories
package)
(
Figure 2.3
)!
Before the machine is used for the first time, all transportation protection devices from the back of the appliance must be removed and stored for any later transport (i.e., relocation)!
Figure 2.2
Figure 1
A
7
Removing the transportation protection devices
a
b
a
b
Figure 4
We suggest saving all transportation protection devices because these must be reinstalled in case of possible later transport.
Before leaving the factory, this appliance was carefully checked
.
There may be some water in the tub or in the detergent compartments because of testing that took place.
(depending upon model)
If the machine is fitted with hidden castors, it can easily be moved.
To set the machine on the castors, turn the lever below the appliance to the left until it encounters a stop (
Figure
5).
The appliance must always be stood
firmly on its feet before it is used for washing (lever to the right)!
Figure 5
Moving the appliance
Figure 3
F
G
5
Remove theprotection devices
(Figure 3)
.
To do this:
- Lift the lid on the machine
- Remove wedge
- Remove wedge
- Release the drum doors, locked in the
lower position, by pressing down on both eaves simultaneously.
6
Remove hose retainers➀and cover
the holes with the caps provided
(found
in the accessories package)
(Figure 4)
.
8
Connections
Figure 6
Figure 7.1
Figure 7.2
Drain
Mount drain hose with the supplied elbow, connect to a vented drain
(Figure 7.1/7.2)
. The elbow must be between 65 and 90 cm above the floor.
Secure drain hose against slipping off.
Replacing the water-inlet hose
After replacement, check to ensure connections are tight and that there are seals on both ends.
Regularly check the condition of the water-inlet and drain hose Replace damaged hoses only with original replacement parts which are available through Customer Service.
Cold water supply
Connect water-inlet hose
(Figure 6)
- Minimum water pressure: 0.1 MPa or 1 bar
- Maximum water pressure: 1 MPa or 10 bar
min. 10 mm
3/4”
9
Connections
Electrical connections
Connect the washing machine only to
alternating current via a properly installed earthed socket.
The mains voltage must correspond to the voltage specification on the washing machine (nameplate).
Connection specifications as well as the required fuses are stipulated on the appliance nameplate.
Ensure that:
the mains plug and socket are compatible,
• the cable cross-section is adequate,
• the earthing system has been installed correctly.
Do not use multiple plugs/sockets or extension cables. In the event that an earth-leakage circuit breaker is to be used, only use types marked with the following symbol:
.
Only this symbol can guarantee compliance with all current regulations. Do not insert/pull out the mains plug with wet hands. Do not pull out the mains plug by tugging the cable.
Installation
Safety Instructions
Risk of Injury!
The washing machine is very heavy. Take care when lifting it.
Frozen hoses may tear or burst. Do not
install the washing machine in an area where there is a risk of freezing or
outdoors. Do not lift the washing machine by any projecting parts (e.g., lid handle). The washing machine may be damaged.
In addition to the safety information listed here, the local water and electricity supplier may have special requirements.
If in doubt, have the appliance connected by a specialist.
Installation surface
Stability is important so that the washing machine does not ”wander“ during the spin cycles. Surfaces used for installation must be solid and even. Soft floor coverings, e.g. carpets or floor coverings with a foam backing are not suitable.
Adjustable feet:
(depending upon model)
Some appliances have two adjustable feet available at the front with can be used to correct for surface unevenness. Level and stabilise the machine in the following manner:
- Tip the washing machine gently backwards.
- Depending upon the condition of the floor, either turn out or screw in the foot or feet
(Figure 8)
.
- Check the stability of the washing machine.
Figure 8
Changing the mains lead
For reasons of safety, the mains lead is only to be replaced by Customer Service which is authorised to do so.
