Programme selector for switching the machine on and off and for selecting the programme. Can be turned in either direction.
Switching off
Turn the programme selector to Off.
Not required for AquaStop models
aInstallation instructions, page 7.
Removing the washing
Open the washing machine door and remove the washing.
If Rinse Hold (no final spin) is active: turn the programme
selector to Drain or Spin. Select the spin speed if necessary. Select Start/Reload.
– Remove any foreign objects - risk of rusting. – Leave the washing machine door and detergent drawer
open so that any residual water can evaporate.
Programme finished when ...
... Finished, Remove washing appears on the display panel.
If the display panel lighting is off, press any button
aEnergy saving mode, page 1.
Cancelling the programme
Programmes at high temperatures:
Cool laundry: Select Rinse. – Select Start/Reload.
Programmes at low temperatures:
Select Spin or Drain.Select Start/Reload.
Changing the programme, if...
... you have selected the wrong programme by mistake: – Reselect the programme. – Select Start/Reload. The new programme starts from the beginning.
Adding laundry ... a
page 6
... if Start/Reload is selected and Top-up appears in the display panel.
– Do not leave the washing machine door open for too long as
water from the washing could leak out.
– Load display not active when reloading.
Select Start/Reload.
Sorting the laundry
Follow the manufacturer's care information.
According to the information on the care labels.
According to type, colour, soiling and temperature.
Do not exceed the maximum load apage 7.
Observe the important information apage 9.
Detergents and care products
Measure accordingly:
Amount of laundry, level of soiling, water hardness (ask your water supply company) and
manufacturer's instructions.
Models without insert for liquid detergent:
Pour liquid detergent into the appropriate dispenser and place in the drum.
During operation: Open the detergent drawer with care.
Programmes
Detailed programme overview apage 7.
Temperature and spin speed can be selected individually, depending on the selected programme and programme progress.
Cottons/Coloureds Hard-wearing fabrics Easy-Care Easy-care fabrics Mixed Fabrics Different types of laundry Delicates/Silk Delicate washable fabrics
dWool
Hand/machine-washable wool
Rinse Extra rinse with spin
Spin Extra spin with selectable spin speed
Drain Empty the rinsing water with Rinse Hold
(no final spin)
Low Spin Extra spin with reduced spin speed
Rapid 15’ Super-short programme Outdoor Fabrics
Waterproofing
All-weather, sportswear and outdoor clothing
apage 9
Shirts/Blouses Non-iron shirts Lingerie Lingerie programme
Memory 1 Personalised programme apage 6
Memory 2 Personalised programme apage 6
– –, 20° - 90° Temperature
Select the temperature (–
– = cold)
0, 400 - 1600* Spin
cccccc(* model-dependent) (0 = no spin during the
programme sequence)
Programme selector Display panel/
menu buttons/change buttons
Start/
Reload
Individual settings
ʑ
Personalised programme
You can store a programme and all its settings under Memory 1 and Memory 2: – Set the programme selector to Memory 1 or Memory 2.
– Select the desired programme using the Ø buttons.
Select the desired option using the d/buttons, and change the setting using the Øbuttons if necessary.
Select the desired settings with the Temperature and Spin buttons.Press the Start/Reload button.
Select stain
The correct treatment for every stain
Do not let stains dry. Remove any solid residue beforehand. Sort items of laundry as usual and load the washing machine. Select a type of stain (cannot be combined).
ʑ
A total of 16 different stains can be selected. The washing machine adjusts the washing temperature, drum movement and soaking time to suit the type of stain. Hot or cold water, gentle or intensive washing control (thanks to the new drum structure) and a long or short soaking time ensure that the wash programme has a special sequence for each type of stain.
ʑ
Using thedMenubutton, select [ Select stain; using the Change Øbuttons, select the stain.
ʑ
Stains
Baby food Blood Chocolate Coffee Cosmetics Dirty socks
Egg Grass Grease + oil Orange Red wine Soil + sand
Strawberry Sweat Tea Tomatoes
ʑ
2 stain programmes explained in detail (examples)
Egg Soaked in lukewarm water, selected wash cycle with a higher water level and
additional rinse cycles to remove particles
Blood Blood is first “loosened” in cold water, then the selected wash programme
starts.
For the other types of stain, we have formulated comparable solutions in our intensive studies.
Reload
If you want to add additional items of laundry after the programme has started, choose Start/Reload. The machine checks whether topping up laundry is possible. Follow the instructions in the display panel.
For safety reasons, the washing machine door remains locked when the water level and/or temperature is high, or while the drum is rotating. To continue the programme, press the Start/Reload button.
Insert for liquid detergent (depending on model), page 10
Compartment II: detergent for main wash,
water softener, bleach, stain remover
Your washing machine
Congratulations ä you have chosen a modern, high-quality domestic appliance
manufactured by Siemens. A distinctive feature of the washing machine is its economical water and energy consumption.
Each machine that leaves our factory is inspected thoroughly to ensure that it functions properly and is in perfect condition.
For more information on our products, accessories, replacement parts and services, see our website www.siemens-home.com or contact our after-sales service centres.
Intended use
Preparation
Before washing for the first time
Run a wash cycle without any laundryapage 9
Open the door / set the programme*
1
2
Washing
Compartment ~: fabric softener, starch
Compartment I: Detergent for pre-wash
ʔFor domestic use only
ʔFor machine-washable fabrics and hand-washable wool in detergent
solution
ʔTo be operated with cold drinking water and commercially-available
detergents and care products that are suitable for use in washing machines
– Do not leave children unattended near the washing machine. – The washing machine is not to be used by children or persons
not familiar with the operating instructions.
– Keep pets away from the washing machine.

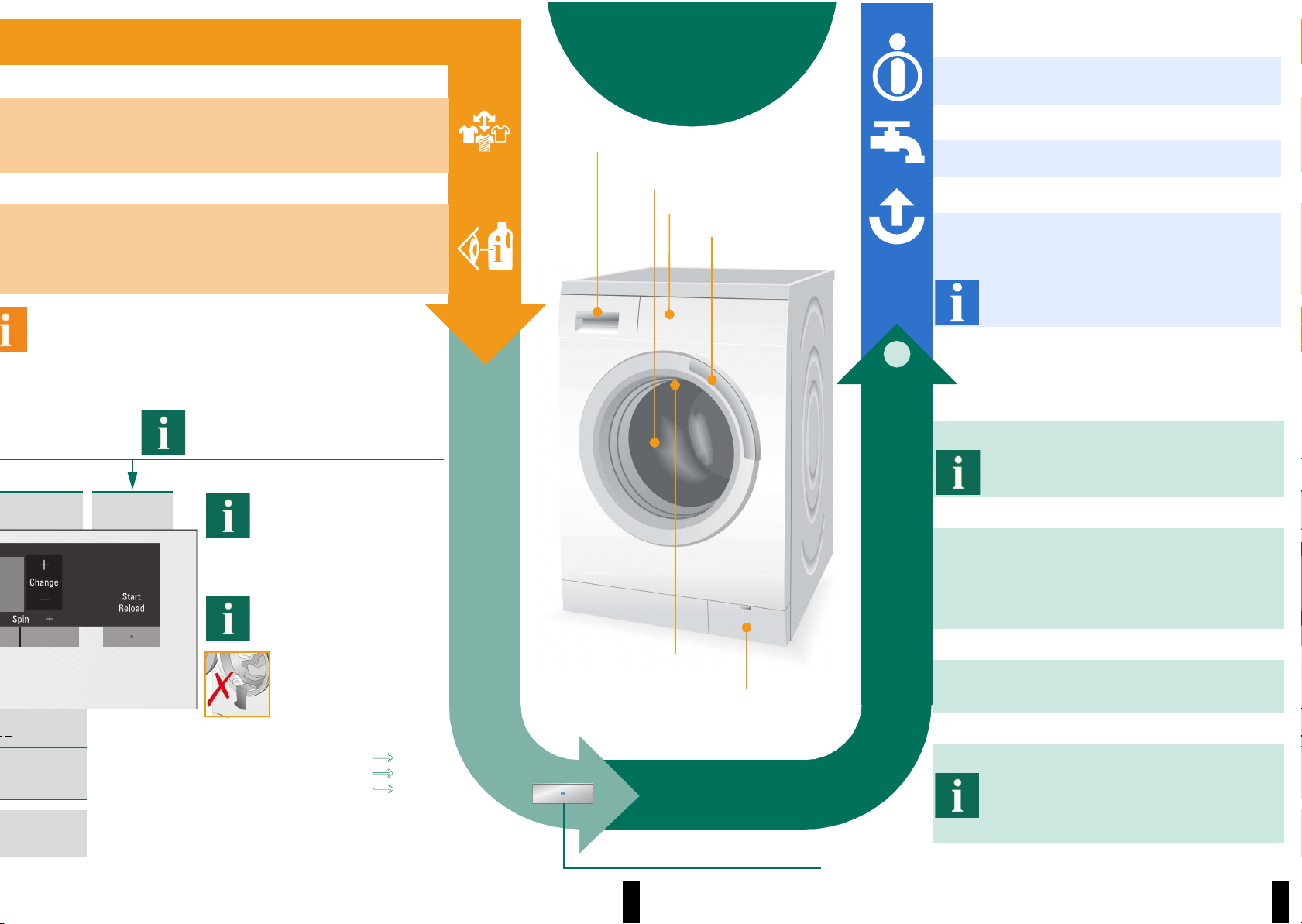

Detergent drawer
with compartments I, II, ~
Control panel
Washing machine door handle
Service flap
Washing machine door
Install correctly, according to the separate Installation instructions.
Check the machine
– Never use a damaged machine. – Inform the after-sales service.
Connect the mains plug
Make sure your hands are dry. Take hold of the plug only.
Turn the tap on
*If the childlock is active aDeactivate, page 5.
Follow the instructions in the display panel.
Washing
Individual settings
ʑ
Options asee also the Overview of programmes
varioPerfect
*
ispeedPerfect - Standard -
jecoPerfect
speedPerfect: For washing in a shorter time with a washing outcome comparable
to that of the standard programme. Maximum load aOverview of programmes,
page 7.
ecoPerfect: For saving energy with a washing performance comparable to that of the standard programme.
End time
*
When you select the programme, the respective time to the end of the programme is displayed. It can be adjusted to a maximum of 24 hours in 1-hour increments.
Press the Change Ø button repeatedly until the desired number of hours is
display (h=hour). It is not possible to make adjustments once the programme has started.
cPre-wash
off - on
For heavily soiled items. Prewash at max. 30 °C
 Less Ironing
off - on
Special spin sequence with subsequent fluffing. Gentle final spin at reduced speed. Residual moisture in the laundry is increased slightly.
3Signal
*
Select the volume of the information signals.
off ä quiet ä medium ä loud ä very loud
Button signal
*
Select the volume of the button signals.
off ä quiet ä medium ä loud ä very loud
Language*
Select the language of the display texts.
hydroRinse
off - on
Increased water level. Gentler treatment of the laundry.
Rinse Hold
off - on
After the final rinse, the laundry remains in the water.
2 Extra rinse
*
max. +3 rinse cycles
Extra rinsing. Prolonged programme duration. Recommended use: for particularly sensitive skin and/or in areas with very soft water.
[ Select stain
*
Automatic treatment of tough stains aPage 6.
ʑ
Display symbols
Childlock/appliance lock
off - on #
You can lock the washing machine to prevent the functions you have set from being changed inadvertently.
To activate: Press and hold the Menu button for 5 seconds.
The #symbol lights up.
To deactivate: Press and hold the Menu button for 5 seconds.
– If the programme selector is adjusted after the appliance has started:
The #symbol flashes.
First, reset the programme selector to the original programme, then deactivate.
– The childlock can remain activated until you start the next programme, even
after the machine has been switched off (the name of the last programme run appears on the display panel).
Then you can deactivate the childlock before starting the programme and activate it again as necessary once the programme has started.
3Foam detection Too much foam in the washing machine. Foam detection system active -
special programme sequence to reduce foam.
Select Menu d/
Change settings Ø
available depending on the selected programme
* If the buttons are held for longer, the appliance automatically scrolls through the subsequent setting options
6
Load indicator/ recommended dosage
To activate, first open the door, set the programme and then load the items of laundry.
Load laundry
Observe the load display on the dis-
play panel apage 9
4
Close the washing
machine door
Select individual settings apage 5.
Stain selection a
page 6.
Set temperature / spin speed a page 2.
5
Press Start/Reload
All buttons are sensitive and need only to be touched lightly.
Dilute thick fabric softener and care products with water. This prevents blockages.
3
Add detergent and
care products
Observe the dosage recommenda­tion for detergent on the display
panel apage 9
Information on programme sequence; with progress or load bar, as appropriate
Drum interior light (depending on model) comes on when the door is opened or closed, or when a programme is started; goes out automatically.
Contents Page
ʔIntended use ..........................................................................................................................1
ʔProgrammes ...........................................................................................................................1
ʔSetting and adjusting the programme .............................................................................3
ʔWashing ............................................................................................................................. 3/4
ʔAfter washing .........................................................................................................................4
ʔIndividual settings ............................................................................................................ 5/6
ʔOverview of programmes ....................................................................................................7
ʔSafety instructions ................................................................................................................8
ʔConsumption values .............................................................................................................8
ʔImportant information ..........................................................................................................9
ʔInsert for liquid detergent ................................................................................................10
ʔCare .......................................................................................................................................10
ʔInformation on the display panel ....................................................................................10
ʔInstructions for blockages ............................................................................................... 11
ʔWhat to do if... ...............................................................................................................12/13
ʔEmergency release............................................................................................................. 13
ʔAfter-sales service...............................................................................................................13
Environmental protection / conservation tips
– Always fill the washing machine with a maximum amount of laundry for the relevant
programme.
– Wash laundry with normal soiling without a pre-wash.
Instead of Cottons/Coloureds 90 °C, select the programme Cottons/
Coloureds 60 °C and the jecoPerfect option.
Comparable cleaning result with significantly lower energy consumption.
– Measure the detergent according to the manufacturer's instructions and water
hardness.
– Energy saving mode: The display panel lighting goes out after a few minutes;
Start/Reload flashes. Press any button to turn the light back on.
– If the laundry is then to be dried in the tumble dryer, select the appropriate spin
speed according to the instructions from the dryer manufacturer
.
Automatic stain removal
Automatic treatment of 16 different types of stain possible. No pretreatment of stains
required - the washing machine automatically adapts the washing process apage 6.
7
Overview of programmes
a
Check the consumption values table on page 8 and the instructions on page 9.
* Reduced load for ispeedPerfect option.
Mixed Fabrics 40 °C with maximum spin speed is ideal as a short programme.
Programmes without pre-wash - add detergent to compartment II, programmes with pre-wash - divide the detergent between compartments I and II.
Programmes
°C
(– – = cold)
max.
Type of laundry
Options; information
Cottons/Coloureds – – ... 90 °C
8 kg/
5 kg*
Hard-wearing fabrics, heat-resistant fabrics
made of cotton or linen
ispeedPerfect*, jecoPerfect , Pre-wash, cLess Ironing,
hydroRinse, 2Extra rinse, [Select stain, cRinse Hold
Easy-Care – – ... 60 °C
3.5 kg
Easy-care fabrics made of cotton, linen, syn-
thetic fibres or blended fabrics
ispeedPerfect, jecoPerfect , Pre-wash, cLess Ironing,
hydroRinse, 2Extra rinse, [Select stain, cRinse Hold
Mixed Fabrics – – ... 40 °C Fabrics made of cotton and easy-care fabrics
ispeedPerfect, jecoPerfect , Pre-wash, cLess Ironing,
hydroRinse, 2Extra rinse, [Select stain, cRinse Hold;
different types of laundry can be washed together
Shirts/Blouses – – ... 60 °C
2 kg
Non-iron shirts made of cotton, linen, synthetic
fibres or blended fabrics
ispeedPerfect, jecoPerfect , Pre-wash, cLess Ironing,
hydroRinse, 2Extra rinse, [Select stain, cRinse Hold;
spin only, hang up to drip dry
Delicates/Silk – – ... 40 °C
For delicate, washable fabrics, e.g. made of silk,
satin, synthetic fibres or blended fabrics (e.g.
curtains)
ispeedPerfect, jecoPerfect , Pre-wash, cLess Ironing,
hydroRinse, 2Extra rinse, [Select stain, cRinse Hold;
spin between the rinse cycles only
dWool – – ... 40 °C
Hand or machine-washable fabrics made of
wool or containing wool
cRinse Hold;
Particularly gentle wash programme to prevent shrinkage of laundry.
Longer programme breaks (fabrics rest in the detergent solution)
Rapid 15’ – – ... 40 °C
Easy-care fabrics made of cotton, linen, syn-
thetic fibres or blended fabrics
cRinse Hold;
Short programme, approx. 15 minutes, suitable for lightly soiled laundry
Lingerie – – ... 40 °C
1 kg
Dessous
ispeedPerfect, jecoPerfect , hydroRinse, 2Extra rinse,
[Select stain, cRinse Hold
Outdoor Fabrics
Waterproofing
– – ... 40 °C
Washing with subsequent waterproofing of all-
weather, sportswear and outdoor clothing, and
clothing with a weatherproof membrane, water-
proof fabrics
ispeedPerfect, jecoPerfect , hydroRinse, 2Extra rinse,
[Select stain;
More information about the textile guard function a page 9,
reduced final spin at intervals
Additional programmes Rinse, Spin, Drain, Low Spin
0810 / 9000583611
*583611*
WM16S741AU
Siemens Electrogeräte GmbH
Carl-Wery-Str. 34
81739 München / Deutschland
8
Safety instructions
– Read the Instruction manual and Installation instructions and all other information enclosed with the washing
machine and act accordingly.
– Retain the documents for subsequent use.
Risk of electric shock – Never pull the cable to disconnect the mains plug
– Only insert/pull out the mains plug with dry hands.
Danger to life For appliances that have reached the end of their service life:
– Disconnect the mains plug. – Sever the mains cable and discard along with the plug. – Destroy the lock on the washing machine door. This will prevent children from
locking themselves in and risking their lives.
Danger of suffocation – Keep packaging, film and packaging parts out of the reach of children.
Risk of poisoning – Keep detergents and care products out of the reach of children.
Risk of explosion – Items of laundry pretreated with cleaning agents containing solvents, e.g. stain
remover/cleaning solvent may cause an explosion after being loaded into the washing machine. Rinse items of laundry thoroughly by hand beforehand.
Risk of injury – The washing machine door can become very hot.
– Be careful when draining hot detergent solution. – Do not climb onto the washing machine. – Do not lean on the open washing machine door. – Do not reach into the drum if it is still rotating.
Consumption values
Programme Option Load
Electricity
consumption
***
Water***
Programme duration***
Cottons/Coloureds 30 °C** 8 kg 0.35 kWh 57 l 2:06 h
Cottons/Coloureds 40 °C** 8 kg 0.97 kWh 57 l 2:16 h
Cottons/Coloureds 60 °C** 8 kg 1.36 kWh 57 l 2:26 h
Cottons/Coloureds 60 °C j ecoPerfect* 8 kg 0.87 kWh 57 l 4:00 h
Cottons/Coloureds 90 °C 8 kg 2.34 kWh 68 l 2:16 h
Mixed Fabrics 40 °C** 3.5 kg 0.47 kWh 37 l 0:53 h
Easy-Care 40 °C** 3.5 kg 0.55 kWh 41 l 1:35 h
Delicates/Silk – – (cold) 2 kg 0.04 kWh 35 l 0:41 h
Delicates/Silk 30 °C 2 kg 0.14 kWh 35 l 0:41 h
d Wool – – (cold)
2 kg 0.06 kWh 40 l 0:40 h
d Wool 30 °C
2 kg 0.16 kWh 40 l 0:40 h
* Programme setting for testing and energy labelling in accordance with EU Directive 92/75/EEC. ** Programme setting for testing in accordance with applicable standard EN60456.
Note on comparative tests: When testing the test programmes, wash the specified load using the maximum spin speed. As a short programme for coloureds, select the programme Mixed Fabrics 40 °C and the maximum spin speed.
*** The values may deviate from the indicated values depending on water pressure, water hardness, and water inlet tempera-
ture, ambient temperature, type, amount and soiling of the laundry, detergent used, fluctuations in the power supply and selected additional functions.
9
Important information
Before washing for the first time
Do not put any laundry in the machine. Turn the tap on. Pour into compartment II: – approx. 1 litre water – detergent (dosage according to the manufacturer's instructions for light soiling and according to water hardness) Set the programme selector to Easy-Care 60 °C and press Start/Reload. At the end of the programme, turn the programme selector to Off.
Protecting the laundry and the machine
– Empty pockets. – Look out for metal items (paperclips, etc.). – Wash delicates in a laundry bag (tights, curtains, underwired bras). – Fasten zips, do up any buttons. – Brush sand out of pockets and collars. – Remove curtain fittings or place in the laundry bag.
Loading laundry
– For optimum spin behaviour, load large and small items of laundry together. – Individual items may lead to considerable imbalances. – Take care not to trap items of laundry between the washing machine door and the rubber seal.
Soaking Load laundry of the same colour.
Pour detergent into compartment II in accordance with the manufacturer's instructions. Set the programme selector to Cottons/Coloureds 30 °C and press Start/Reload. After approx. 10 minutes, press Start/Reload to stop the pro-
gramme. Once the required soaking time has elapsed, press Start/Reload again to continue the programme, or select a different programme.
Starching Laundry must not be treated with fabric softener
Starching is possible in all wash programmes if liquid starch is used. Pour starch into the ~fabric softener
compartment in accordance with the manufacturer's instructions (rinse first if necessary).
Dyeing / bleaching
Dye should only be used in normal household quantities. Salt may damage stainless steel. Always follow the dye manufacturer's instructions. Do not use the washing machine for bleaching clothes.
Load display
The load sensor detects how heavily the washing machine is loaded. The laundry is not weighed.
Recommended dosage
Based on the selected programme and the detected load, the recommended dosage function provides a recommen­dation for the detergent dosage in %. The % figure refers to the recommendation of the detergent manufacturer.
Automatic load sensing
Independently of the load display, the automatic load sensing function uses additional sensors to adapt the water and power consumption ideally to each programme, depending on the type of fabric and the load.
Outdoor Fabrics Laundry must not be treated with fabric softener. Waterproofing Clean the detergent drawer thoroughly to remove fabric softener residue.
Special detergent and waterproofing agent suitable for machine washing are available from sports shops. Dosage according to the manufacturer's instructions:
1. Place the special detergent for outdoor clothing in compartment II and
2. pour impregnating agent (max. 170 ml) into the ~compartment.
Set the programme selector to Outdoor Fabrics Waterproofing. Set the temperature. Press Start/Reload. Final treatment of the laundry in accordance with the manufacturer's instructions.
10

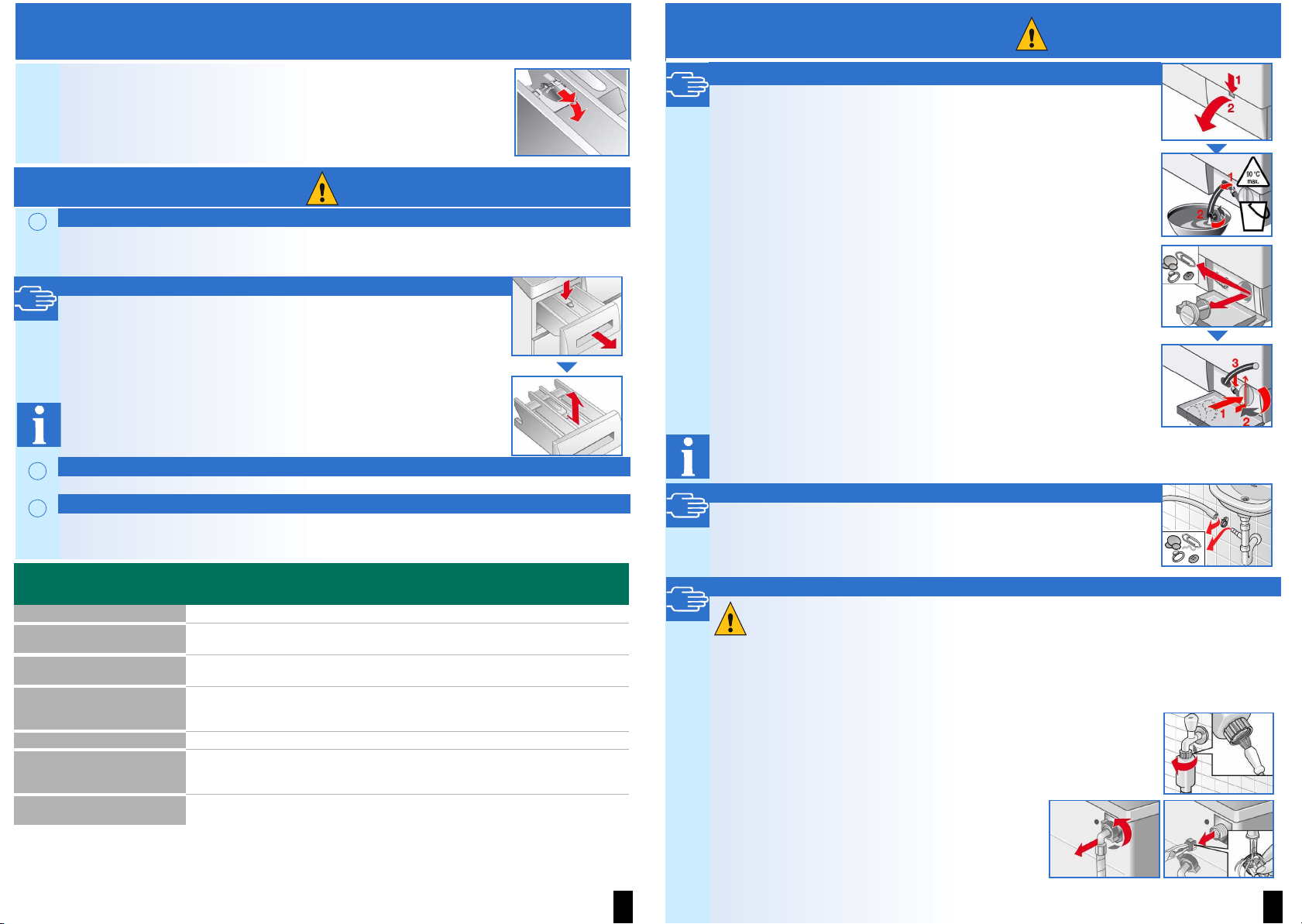

Insert for liquid detergent depending on model
Position the insert for dispensing liquid detergent:
– Remove the detergent drawer completely apage 10.
– Slide the insert forwards. Do not use the insert (slide upwards):
– for gel detergents and washing powder
– for programmes with Pre-wash and the End time option.
Care
ʑ
Machine housing, control panel
– Remove detergent residue immediately. – Wipe with a soft, damp cloth. – Do not clean with a jet of water.
Cleaning the detergent drawer ...
... if it contains detergent or fabric softener residues.
1. Pull out, press the insert down, remove the drawer completely.
2. To remove the insert: press the insert upwards from below with your finger.
3. Clean the detergent dispenser tray and insert with water and a brush and dry it.
4. Fit the insert and engage (connect the cylinder to the guide pin).
5. Push in the detergent drawer.
Leave the detergent drawer open so that any residual water can evaporate.
ʑ
Drum
Use chlorine-free cleaning agent, not steel wool.
ʑ
Descaling No laundry in the machine.
This should not be necessary if the detergent is measured out correctly. If it does become necessary, however, proceed according to the descaling agent manufacturer's instructions. Suitable descalers can be obtained via our website or from our after-sales service (page 13).
Information on the display panel depending on model
Door open? Close the washing machine door properly; laundry may be caught.
Tap closed? Open the tap completely, supply hose kinked or trapped; Clean the filter a page 11,
water pressure too low.
Pump blocked! Detergent solution pump blocked; Clean the detergent solution pump a page 11.
Drainage hose/waste pipe blocked; Clean the drainage hose at the siphon apage 11.
Pause no Top-up; Water level too high or Temperature too high
Not possible to add laundry. To continue, press the Start/Reload button.
F: 23 Water in the base tub, appliance leaking. Call the after-sales service. F: 34 Washing machine door cannot be locked. Open the washing machine door and close it so
that you hear it "click"; switch the appliance off and on again; set the programme and make your settings; start the programme.
Other displays Switch off the appliance, wait for 5 seconds and switch it back on. If the display appears
again, call the after-sales service apage 13.
Risk of electric shock. Disconnect the mains plug.Risk of explosion. No solvents.
11
Information about blockages
Detergent solution pump
Turn the programme selector to Off and disconnect the mains plug.
1. Open and remove the service flap.
2. Take the drainage hose out of the retainer.
Remove the sealing cap, allow the detergent solution to flow out. Push the sealing cap back on.
3. Unscrew the pump cover carefully (residual water).
4. Clean the interior, pump cover thread and pump housing (the impeller in the detergent
solution pump must be able to rotate).
5. Replace the pump cover and screw it on tightly. The handle points upright. Replace the drainage hose in the holder.
6. Refit the service flap and close it.
To prevent unused detergent from flowing straight into the drain during the next wash: Pour 1 litre of water into compartment II and start the Drain programme.
Drainage hose at the siphon
Turn the programme selector to Off and disconnect the mains plug.
1. Loosen the hose clamp, remove the drainage hose carefully (residual water).
2. Clean the drainage hose and siphon connecting piece.
3. Reattach the drainage hose and secure the connection with the hose clamp.
Filter in the water supply
Risk of electric shock
Do not immerse the HydroSafe safety device in water (it contains an electric valve).
Reduce the water pressure in the supply hose:
1. Turn off the tap.
2. Select any programme (except Spin / Drain).
3. Select Start/Reload. Let the programme run for approximately
40 seconds.
4. Turn the programme selector to Off. Disconnect the mains plug.
5. Clean the filter:
Disconnect the hose from the tap. Clean the filter with a small brush.
and/or for Standard and Aqua-Secure models: Remove the hose from the rear of the appliance. Remove the filter with pliers and clean.
6. Connect the hose and check for leaks.
Risk of scalding.
Allow the detergent solution to cool down.
– Turn off the tap.
12
What to do if...
ʑ
...Water is escaping: – Attach/replace the drainage hose correctly.
– Tighten the screw connection of the supply hose.
ʑ
...No water is entering the drum: – Start/Reload not selected?
– Tap not turned on?
– Filter blocked? Clean the filter apage 11.
– Supply hose kinked or trapped?
ʑ
...Washing machine door cannot be opened:
Safety function active. Programme stopped? apage 4.
Rinse Hold (no final spin) selected? apage 3,4.
Can be opened by emergency release only? apage 13.
ʑ
...Programme does not start: Start/Reload or End time selected?
– Washing machine door closed?
– Childproof lock active? Deactivate apage 5.
ʑ
...Detergent solution does not empty.
Rinse Hold (no final spin) selected? apage 3,4.
Clean the detergent solution pump apage 11.
– Clean the waste pipe and/or drainage hose.
ʑ
...Water not visible in the drum: – Not a fault - water below the visible area.
ʑ
Unsatisfactory spin result. Laundry wet/too damp.
– Not a fault - the unbalanced-load detection system interrupted spinning, uneven
laundry distribution. Distribute large and small items of laundry evenly in the drum.
Less Ironing selected? apage 5.
Speed selected too low? a page 5.
ʑ
...The progr. duration changes during the washing cycle:
– Not a fault - the programme sequence is optimised for the relevant washing pro-
cess. This can cause changes in the programme duration in the display panel.
ʑ
...Spinning is restarted several times:
– Not a fault - unbalanced-load detection system is adjusting the imbalance.
ʑ
...Residual water in the ~com-
partment for care products:
– Not a fault - the action of the care product is not affected.
– Clean the insert if necessary a page 10.
ʑ
...Odours build up in the washing machine:
– Run the Cottons/Coloureds 90 °C programme without laundry. Use standard
detergent.
ʑ
...The 3status display
lights up: Foam may be escaping from the detergent drawer:
– Too much detergent used?
Mix 1 tablespoon of fabric softener with ½ litre of water and pour into compartment II (not for outdoor or down fabrics).
– Reduce the detergent dosage for the next wash cycle.
ʑ
...Loud spinning, vibrations and “walking” during the spin cycle:
– Are the appliance feet fixed?
Secure appliance feet aInstallation instructions.
– Transportation safety devices removed?
Remove transportation safety devices a Installation instructions.
ʑ
...Noises emitted during spinning and emptying:
– Clean the detergent solution pump a page 11.
ʑ
...Display panel/indicator lamps do not function during operation:
– Power cut? – Circuit breakers tripped or fuses blown? Reset the circuit breakers or change the
fuses.
– Energy saving mode active? apage 1.
– If the fault occurs repeatedly, call the after-sales service.
ʑ
...Programme sequence longer than usual:
– Not a fault - unbalanced-load detection system is adjusting the imbalance by
repeatedly redistributing the laundry.
– Not a fault - foam detection system active - several rinse cycles are added.
ʑ
...There is detergent residue on the laundry:
– Occasionally, detergent powder contains water-insoluble residues. – Select the Rinse programme or brush out laundry. – Use liquid detergent
13
What to do if ...
ʑ
in Reload mode, Start/Reload flashes very quickly and an audible signal sounds:
– Water level too high. Close the washing machine door immediately. – To continue, press the Start/Reload button.
If you cannot correct a fault yourself (switching on/off) or a repair is required:
Turn the programme selector to Off and remove the mains plug from the socket.
Turn off the water supply and call the after-sales service apage 13.
Emergency release e.g. in the event of a power cut
The programme continues when the power supply is restored. However, if the laundry has to be removed, the washing machine door can be opened as follows:
Risk of scalding
The detergent solution and laundry may be hot. If possible, leave to cool down. Do not reach into the drum if it is still rotating. Do not open the washing machine door if water can be seen through the glass.
1. Turn the programme selector to Off and disconnect the mains plug.
2. Drain the detergent solution a page 11.
3. Pull the emergency release downwards with a tool and release.
The washing machine door can then be opened.
After-sales service
ʑ
If you cannot remedy the fault yourself (What to do if ..., apage 12, 13), contact our after-sales service. We will always
find a suitable solution to avoid unnecessary visits by repair personnel.
ʑ
The contact details of your nearest after-sales service can be found here or in the after-sales service directory (model-dependent).
ʑ
Please give the after-sales service the product number (E-Nr.) and the production (FD) number of the appliance.
Product number Production number
This information can be found: on the inside of the washing machine door*/opened service flap* and rear of the appliance. *model-dependent
ʑ
Trust the manufacturer's competence. Turn to us. You will thereby ensure that the repairs are performed by trained service personnel equipped with original repair parts.
Instruction manual
Washing machine
Observe the safety instructions on page 8.
Read these instructions and the separate Installation instructions before operating the washing machine.
en
1 2
Programme selector for switching the machine on and off and for selecting the programme. Can be turned in either direction.
Programmes
Detailed programme overview apage 7.
Temperature and spin speed can be selected individually, depending on the selected programme and programme progress.
Cottons/Coloureds Hard-wearing fabrics Easy-Care Easy-care fabrics Mixed Fabrics Different types of laundry Delicates/Silk Delicate washable fabrics
dWool
Hand/machine-washable wool
Rinse Extra rinse with spin
Spin Extra spin with selectable spin speed
Drain Empty the rinsing water with Rinse Hold
(no final spin)
Low Spin Extra spin with reduced spin speed
Rapid 15’ Super-short programme Outdoor Fabrics
Waterproofing
All-weather, sportswear and outdoor clothing
apage 9
Shirts/Blouses Non-iron shirts Lingerie Lingerie programme
Memory 1 Personalised programme apage 6
Memory 2 Personalised programme apage 6
– –, 20° - 90° Temperature
Select the temperature (–
0, 400 - 1600* Spin
cccccc(* model-dependent) (0 = no spin during the
programme sequence)
Programme selector Display panel/
menu buttons/change buttons
Insert for liquid detergent (depending on model), page 10
Compartment II: detergent for main wash,
water softener, bleach, stain remover
Your washing machine
Congratulations ä you have chosen a modern, high-quality domestic appliance
manufactured by Siemens. A distinctive feature of the washing machine is its economical water and energy consumption.
Each machine that leaves our factory is inspected thoroughly to ensure that it functions properly and is in perfect condition.
For more information on our products, accessories, replacement parts and services, see our website www.siemens-home.com or contact our after-sales service centres.
Intended use
Preparation
Before washing for the first time
Run a wash cycle without any laundryapage 9
Compartment ~: fabric softener, starch
Compartment I: Detergent for pre-wash
ʔFor domestic use only
ʔFor machine-washable fabrics and hand-washable wool in detergent
solution
ʔTo be operated with cold drinking water and commercially-available
detergents and care products that are suitable for use in washing machines
– Do not leave children unattended near the washing machine. – The washing machine is not to be used by children or persons
not familiar with the operating instructions.
– Keep pets away from the washing machine.
Install correctly, according to the separate Installation instructions.
Check the machine
– Never use a damaged machine. – Inform the after-sales service.
Connect the mains plug
Make sure your hands are dry. Take hold of the plug only.
Turn the tap on
All buttons are sensitive and need only to be touched lightly.
Contents Page
ʔIntended use ..........................................................................................................................1
ʔProgrammes ...........................................................................................................................1
ʔSetting and adjusting the programme .............................................................................3
ʔWashing ............................................................................................................................. 3/4
ʔAfter washing .........................................................................................................................4
ʔIndividual settings ............................................................................................................ 5/6
ʔOverview of programmes ....................................................................................................7
ʔSafety instructions ................................................................................................................8
ʔConsumption values .............................................................................................................8
ʔImportant information ..........................................................................................................9
ʔInsert for liquid detergent ................................................................................................10
ʔCare .......................................................................................................................................10
ʔInformation on the display panel ....................................................................................10
ʔInstructions for blockages ...............................................................................................11
ʔWhat to do if... ...............................................................................................................12/13
ʔEmergency release.............................................................................................................13
ʔAfter-sales service...............................................................................................................13
Environmental protection / conservation tips
– Always fill the washing machine with a maximum amount of laundry for the relevant
programme.
– Wash laundry with normal soiling without a pre-wash.
Instead of Cottons/Coloureds 90 °C, select the programme Cottons/
Coloureds 60 °C and the jecoPerfect option.
Comparable cleaning result with significantly lower energy consumption.
– Measure the detergent according to the manufacturer's instructions and water
hardness.
– Energy saving mode: The display panel lighting goes out after a few minutes;
Start/Reload flashes. Press any button to turn the light back on.
– If the laundry is then to be dried in the tumble dryer, select the appropriate spin
speed according to the instructions from the dryer manufacturer
.
Automatic stain removal
Automatic treatment of 16 different types of stain possible. No pretreatment of stains
required - the washing machine automatically adapts the washing process apage 6.
Loading...
+ 7 hidden pages
