SIEMENS TQ507RX3 Instruction Manual [fr]
en
Table of contents
Safety ...............................................8
General information ...........................8
Intended use......................................8
Restriction on user group...................8
Safety information ..............................9
Environmental protection and
saving energy .................................12
Disposing of packaging ...................12
Tips for saving energy......................12
Installation and connection ............12
Scope of supply...............................12
Installing and connecting the ap-
pliance.............................................12
Familiarising yourself with your
appliance ........................................13
Appliance ........................................13
Controls...........................................13
Display ............................................13
Drinks overview..............................14
Accessories....................................15
Before using for the first time.........15
Perform the initial start-up ................15
Fill the water tank.............................15
Fill coffee bean container.................15
Setting the language........................16
Setting the water hardness...............16
General information .........................16
Basic operation ..............................17
Switching the appliance on and
off....................................................17
Dispensing drinks ............................17
Dispensing a coffee drink made
from fresh beans .............................18
Dispensing a coffee drink made
from ground coffee ..........................18
Dispensing drinks with milk..............18
Using the milk container ..................19
Dispensing coffee drink with milk.....19
Dispensing special drinks ................20
Dispensing milk froth .......................20
Dispensing hot water .......................20
Drink settings...................................20
Water filter .......................................22
Childproof lock...............................22
Activating the childproof lock ...........23
Deactivating the childproof lock .......23
Cup heater1.....................................23
Basic settings.................................23
Overview of the basic settings .........23
Changing the basic settings.............24
Cleaning and servicing...................24
Dishwasher-safe components ..........24
Cleaning agent ................................25
Cleaning the appliance ....................25
Cleaning the drip tray and coffee
dregs container ...............................26
Cleaning the ground coffee com-
partment ..........................................26
Cleaning the milk system .................26
Cleaning the milk container..............27
Cleaning brewing unit ......................28
Service programmes........................28
Troubleshooting .............................32
Information on display panel ............32
Malfunctions ....................................34
Problem with results ........................35
Transportation, storage and dis-
posal...............................................38
Activate frost protection ...................38
Disposing of old appliance ..............38
1
Depending on the appliance specifications
6
Customer Service ...........................38
Product number (E-Nr.) and pro-
duction number (FD)........................39
Warranty conditions .........................39
Technical specifications.................39
en
7
en Safety
Safety
Please read the safety information to ensure that you use the appliance safely.
General information
You can find general information about this instruction manual
here.
¡ Read this instruction manual carefully. Only this will ensure you
use the appliance safely and efficiently.
¡ This manual is intended for the user of the appliance.
¡ Follow the safety instructions and warnings.
¡ Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡ Check the appliance after unpacking it. Do not connect the ap-
pliance if it has been damaged in transit.
Intended use
Please read the information on intended use to ensure you use
the appliance correctly and safely.
Only use this appliance:
¡ As specified in this instruction manual.
¡ for preparing hot drinks.
¡ In private households and in enclosed spaces in a domestic en-
vironment.
¡ Up to an altitude of max. 2000m above sea level.
Disconnect the appliance from the power supply when:
¡ cleaning the appliance.
Restriction on user group
Avoid risks to children and vulnerable persons.
8
Familiarising yourself with your appliance en
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2. Place the appliance on a level, wa-
ter-resistant surface that is capable
of bearing its weight.
3. Using the mains plug, connect the
appliance to an earthed socket that
has been correctly installed.
Familiarising yourself
with your appliance
Familiarise yourself with the parts of
your appliance.
Appliance
You can find an overview of the parts
of your appliance here.
Note:Individual details and colours
may differ, depending on the appliance
model.
2
→Fig.
Water tank
Cover for water tank
Cup heater
Aroma lid
Bean container
Ground coffee compartment
1
Brewing chamber door
Rating plate
Drip tray
Milk container
1
Depending on the appliance specifications
Controls
Here you can find an overview of the
symbols on your appliance. Press the
symbols to make a selection, start the
dispensing process or make/adjust a
setting.
Symbol Explanation
Switch appliance on/off
Open menu/leave menu
Note:The menu buttons are only
visible when the menu is open.
Navigate upwards in the menu
Navigate downwards in the menu
Confirm/save in the menu
Go back in the menu
Dispense two cups
Select coffee strength
Adjusting the amount
Start/stop
Display
Control panel
Cup lighting
Cover
Milk system
Outlet system
1
Depending on the appliance specifications
1
Display
The display shows the selected drinks,
settings and setting options, as well as
messages about the appliance’s operating status.
The display shows additional information and action steps. The information
is hidden after a short period, or by
pressing a button. The action steps are
hidden when they have been completed.
13
en Before using for the first time
1. Open the lid.
2. Fill with the coffee beans.
The appliance will adjust to the coffee beans with the next dispensing
process.
3. Close the lid.
Tip:To keep the coffee beans at their
best, store them in a sealed container
in a cool place.
You can keep the coffee beans in the
bean container for a number of days
without them losing their aroma.
Setting the language
1. Press to switch the appliance on.
a The display will show the language
that is preset.
2. Press or until the display
shows the desired language.
3. Press .
Tip:You can change the language at
any time.
→"Overview of the basic settings",
Page23
Setting the water hardness
It is important to set the water hardness
correctly, so that the appliance indicates in good time that it needs descaling. You can use the enclosed test strip
to determine the water hardness, or
ask your local water company.
1. Briefly dip the test strip in fresh tap
water.
2. Allow the water to drip off the test
strip.
a The test strip will indicate the water
hardness after 1minute.
3. If a water softening system is in-
stalled in your house, select "Softening system".
4. Press or until the display
shows the desired water hardness.
The table shows the allocation of the
levels to the different degrees of water hardness:
Level German de-
grees in °dH
Total hardness in
(mmol/l)
1 1-7 0.18 - 1.25
2 8-14 1.42 - 2.49
3 15-21 2.67 - 3.74
1
4
1
Factory setting (may vary according to
22-30 3.92 - 5.34
model)
5. Press .
6. Check whether the bean container
has been filled.
7. Press .
a The appliance now rinses itself.
a When the symbols for drink selection
and the buttons light up on the operating panel, the appliance is ready
for use.
Tip:You can change the water hardness at any time.
→"Overview of the basic settings",
Page23
General information
Please bear this information in mind so
that you can get the best out of your
appliance.
Notes
¡ The appliance has been pro-
grammed at the factory with standard settings for optimum operation.
¡ The grinder has been factory-set for
optimum operation. If coffee is only
dispensed drop by drop or is too
thin with too little crema, you can adjust the grinding level when the
grinder is running.
→"Adjusting the grinding level",
Page21
16
en Childproof lock
Grinding level Setting
Fine grinding level
for dark-roasted
Turn rotary selector
counter-clockwise.
beans.
Coarse grinding
level for light-roas-
Turn rotary selector
clockwise.
ted beans.
The setting only has an effect after
the second cup of coffee.
Tip:If the coffee is only dispensed
drop by drop, set a coarser grinding
level.
If the coffee is too thin with too little
crema, set a finer grinding level.
Water filter
You can use a water filter to minimize
limescale deposits and reduce impurities in the water.
Insert water filter
ATTENTION!
Possible damage to the appliance due
to limescale build-up.
▶
Change the water filter in good time.
▶
Change the water filter after
2months at the latest.
Note:If "Replace water filter" is shown
on the display, replace the water filter.
If you are not inserting a new filter, select "No filter" and follow the instructions on the display.
1. Immerse the water filter in a glass of
water until the air escapes.
3
→Fig.
2. Press .
3. Press or "Water filter" and .
4. Use or to select "New filter"
or "Replace water filter" and press
.
5. Note:If you are not inserting a new
filter, select "No filter" in the menu
settings.
Push the water filter firmly into the
water tank and press .
4
→Fig.
6. Fill the water tank up to the "max"
mark and press .
7. Remove the milk container on the
left of the appliance.
8. Place a container with a capacity of
1litre under the outlet system and
press .
a The filter will be rinsed and the fol-
lowing message displayed: "Rinsing
complete.".
a The appliance is ready to use.
Tips
¡ You should also change your water
filter for reasons of hygiene.
¡ With a water filter you need to de-
scale your appliance less frequently.
¡ If your appliance has not been used
for a long period, for example if you
were on holiday, you should rinse
the water filter before use by dispensing a cup of hot water.
¡ The water filter can be purchased
from retailers or Customer Service.
→"Accessories", Page15
¡ Learn how to insert the water filter.
→"Insert water filter", Page22
Childproof lock
You can lock the appliance, to protect
children against scalding and burns.
22
en Cleaning and servicing
Setting Selection Description
Coffee temp. normal
high
max.
Set the temperature for coffee
drinks.
Note:The setting is effective for
all preparation types.
Languages See options on the appliance. Set menu language.
Changes are immediately displayed.
Autom. switch-off See options on the appliance. Set how long the appliance
should wait after preparing the
last drink before automatically
switching itself off.
Water hardness 1 (soft)
2 (medium)
3 (hard)
4 (very hard)
2
Set the appliance to the local water hardness.
→"Setting the water hardness",
Page16
Water-softening system
Key tones Key tones on
2
Switch the button tones on or off.
Key tones off
Factory settings Full reset?
Continue: OK
Cancel: ←
Restore settings to the factory
settings.
Note:All individual settings will
be deleted and reset to the factory settings.
1
Depending on the appliance specifications
2
Factory setting (may vary according to model)
Changing the basic settings
1. Press .
2. Use or to select the desired
basic setting and press .
a The display will show the setting op-
tions and the navigation symbols will
light up. The display indicates the
current setting.
3. Use or to make the desired
selection and press .
a The setting is now saved.
4. Use to go back.
5. Press to exit the menu.
24

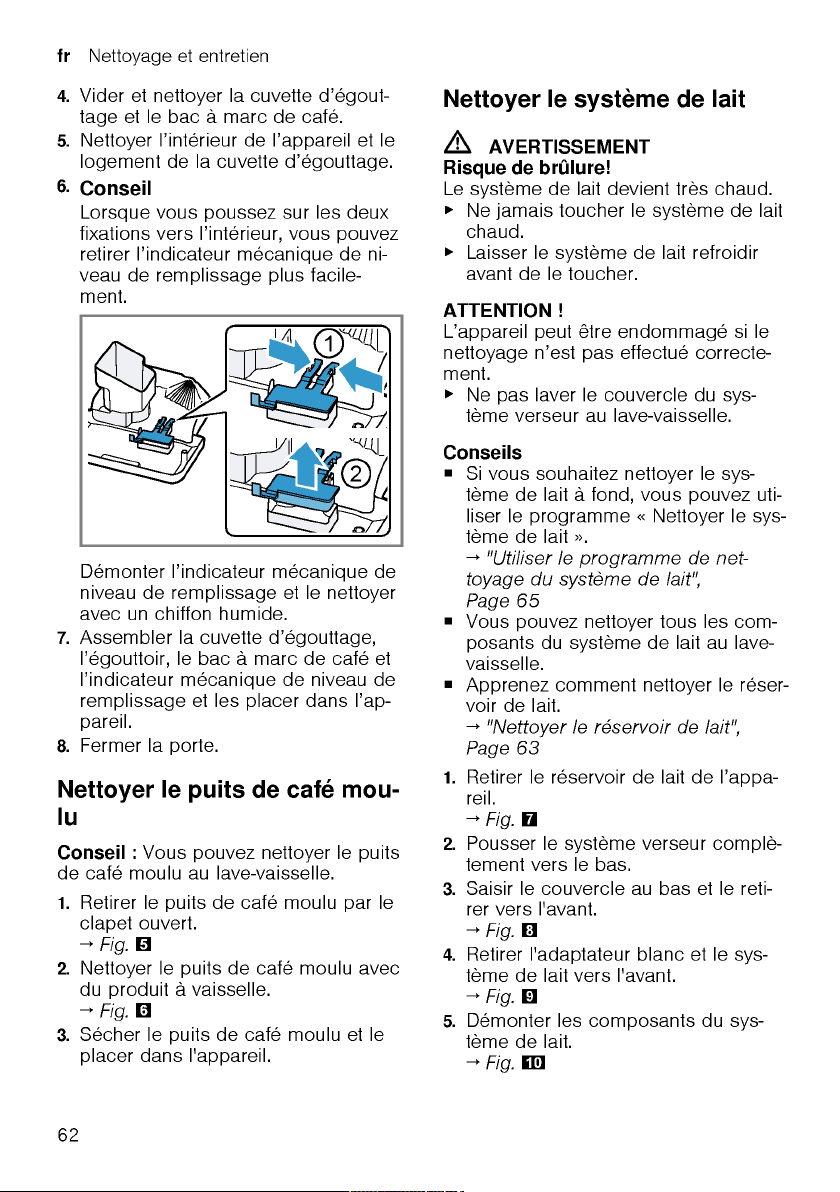

Cleaning and servicing
To keep your appliance working efficiently for a long time, it is important to
clean and maintain it carefully.
Dishwasher-safe components
Find out which components can be
cleaned in the dishwasher.
ATTENTION!
Some components are sensitive to heat
and may be damaged if they are
cleaned in a dishwasher.
▶
Follow the operating instructions of
the dishwasher.
Cleaning and servicing en
¡ If your appliance is not descaled in
good time, the display will show the
following message: "Descaling overdue. Appliance is locked. Please
press menu for 3 sec.".
¡ If your appliance has been locked,
you can only operate it again once
the descaling process has been carried out.
¡ If you accidentally interrupt the ser-
vice programme, you must reset it.
→"Resetting service programmes",
Page29
Tips
¡ If you use a water filter, this prolongs
the time interval until a service programmes needs to be performed.
¡ You can combine the cleaning and
descaling programmes using the
calc'nClean service programme.
→"Using calc'nClean", Page30
¡ Clean your appliance with a soft,
damp cloth immediately after a service programme to remove any descaling solution residues and prevent corrosion.
Resetting service programmes
Perform the following steps if a service
programme is interrupted, e.g. due to a
power failure.
1. Rinse out the water tank.
2. Fill the water tank with fresh, non-
carbonated water up to the "max"
marking.
3. Press .
a The appliance will rinse itself for ap-
prox.2minutes.
4. Empty and clean the drip tray.
5. Insert the drip tray and close the
door.
6. Restart the service programme.
Using the milk system cleaning
programme
Rinse the milk system with water, if necessary. The rinsing process takes approx. 1minute.
1. Press .
2. Use and to select "Cleaning
and care" and press .
3. Use and to select "Milk sys-
tem" and press .
4. To start the programme, press .
a The display will guide you through
theprogramme.
5. Remove and empty the milk con-
tainer.
6. Clean the milk container, milk tube
and suction pipe.
7. Fit the components and insert the
milk container.
8. Place an empty glass under the out-
let system and press .
The milk system will now clean itself
automatically.
a The program has ended and the ap-
pliance is ready for operation.
Tip:If you want to clean the milk system particularly thoroughly, clean it regularly by hand.
→"Cleaning the milk system", Page26
Using the descaling programme
Run the descaling programme when
your appliance prompts you. The process takes approx.30minutes.
Requirement:The brewing unit is
cleaned.
→"Cleaning brewing unit", Page28
1. Press .
2. Use and to select "Cleaning
and care" and press .
3. Use and to select "Descale"
and press .
29
en Cleaning and servicing
4. To start the programme, press .
a The display will guide you through
theprogramme.
5. Empty and insert the drip tray.
6. Remove and empty the milk con-
tainer.
7. Clean the milk container, milk tube
and suction pipe.
8. Fit the components and insert the
milk container.
9. If there is a water filter, remove it.
10.Press .
11.Empty the water tank.
12.Fill a container with 0.5l lukewarm
water.
13.Add a Siemens descaling tablet to
the water and stir until the tablet is
fully dissolved.
14.Pour the descaling solution into the
water tank up to the calc mark and
press .
15.Place the empty container under the
outlet system and press .
a The descaling programme will run
for approx.20minutes.
16.Rinse the water tank.
17.Press .
18.If there is a water filter, insert the wa-
ter filter.
→"Insert water filter", Page22
19.Press .
20.Fill the tank with fresh water up to
the "max" mark.
21.Press .
a The descaling programme takes ap-
prox.1minute and rinses the appliance.
22.Empty and insert the drip tray.
23.Remove and empty the milk con-
tainer.
24.Clean the milk container, milk tube
and suction pipe.
25.Fit the components and insert the
milk container.
a The program has ended and the ap-
pliance is ready for operation.
Using the cleaning programme
Run the cleaning programme when
your appliance prompts you. The process takes approx.9minutes.
Requirement:The brewing unit is
cleaned.
→"Cleaning brewing unit", Page28
1. Press .
2. Use and to select "Cleaning
and care" and press .
3. Use and to select "Clean"
and press .
4. To start the programme, press .
a The display will guide you through
theprogramme.
5. Empty and insert the drip tray.
6. Open the ground coffee compart-
ment.
7. Place one Siemens cleaning tablet
into the ground coffee compartment.
8. Close the ground coffee compart-
ment and press .
9. Place a container with a capacity of
min. 0.5l under the outlet system
and press .
a The cleaning programme takes ap-
prox. 7minutes.
10.Empty and insert the drip tray.
a The program has ended and the ap-
pliance is ready for operation.
Using calc'nClean
You can combine the cleaning and descaling programmes using the
calc'nClean service programme. Run
the calc'nClean programme when your
appliance prompts you. The process
takes approx.43minutes.
Requirement:The brewing unit is
cleaned.
→"Cleaning brewing unit", Page28
30
Loading...
