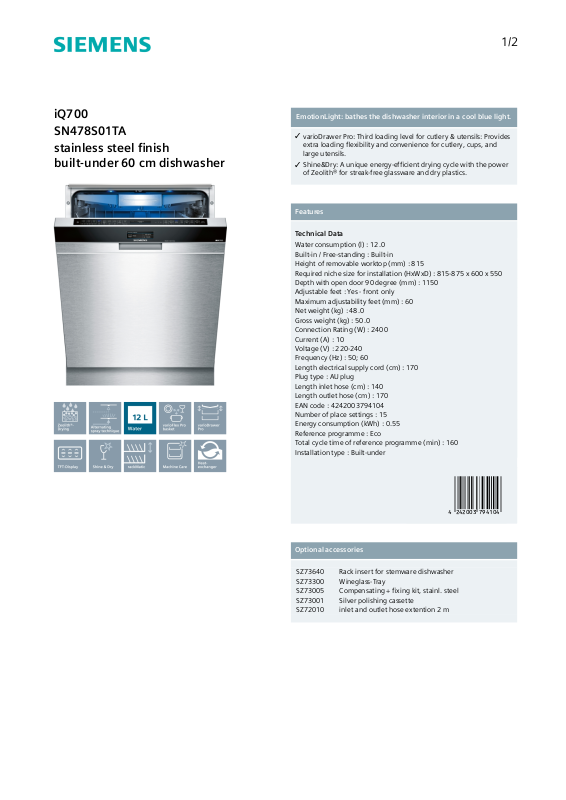

Siemens SN478S01TA Specifications Sheet
1/2
EmotionLight: bathes the dishwasher interior in a cool blue light.
✓
varioDrawer Pro: Third loading level for cutlery & utensils: Provides
extra loading flexibility and convenience for cutlery, cups, and
large utensils.
✓
Shine&Dry: A unique energy-efficient drying cycle with the power
of Zeolith® for streak-free glassware and dry plastics.
Features
Technical Data
Water consumption (l) : 12.0
Built-in / Free-standing : Built-in
Height of removable worktop (mm) : 815
Required niche size for installation (HxWxD) : 815-875 x 600 x 550
Depth with open door 90 degree (mm) : 1150
Adjustable feet : Yes - front only
Maximum adjustability feet (mm) : 60
Net weight (kg) : 48.0
Gross weight (kg) : 50.0
Connection Rating (W) : 2400
Current (A) : 10
Voltage (V) : 220-240
Frequency (Hz) : 50; 60
Length electrical supply cord (cm) : 170
Plug type : AU plug
Length inlet hose (cm) : 140
Length outlet hose (cm) : 170
EAN code : 4242003794104
Number of place settings : 15
Energy consumption (kWh) : 0.55
Reference programme : Eco
Total cycle time of reference programme (min) : 160
Installation type : Built-under
'!2E20AD-hjebae!
Optional accessories
SZ73640 Rack insert for stemware dishwasher
SZ73300 Wineglass-Tray
SZ73005 Compensating + fixing kit, stainl. steel
SZ73001 Silver polishing cassette
SZ72010 inlet and outlet hose extention 2 m
iQ700
SN478S01TA
stainless steel finish
built-under 60 cm dishwasher
iQ700
SN478S01TA
stainless steel finish
built-under 60 cm dishwasher
Features
2/2
Capacity
●
15 international place settings
Consumption rates
●
4.5 Star energy rating, 5 Star WELS water rating
●
12 litres water consumption per wash and 205kWh energy
consumption, based on Eco 45°C program
Design
●
built-under dishwasher - 60 cm wide
●
stainless steel finish
●
stainless steel interior tub
●
servo lock for effortless door closing
●
SoftTouch buttons
●
integrated control buttons at the top of the door panel
Wash Programs & Options
●
8 programs:
Auto, 65-75°C
Auto, 35-45°C
Auto, 45-65°C
Eco, 45°C
Night Wash 40dB(A), 50°C
Quick Wash, 60 minutes, 65°C
Quick Wash, 29 minutes, 45°C
Pre-Rinse
●
6 special options:
Machine Care
VarioSpeed
Half Load
Intensive Zone
HygienePlus
Shine & Dry
Performance
●
Zeolith® Drying Technology - Unique ground-breaking technology
activated with the Shine & Dry wash option; absorbs water
molecules to dry dishes quicker with ultimate energy efficiency,
especially good for drying plastics and glassware
●
advanced 3 stage self-cleaning filter system
●
dosageAssist detergent system
●
iQdrive: The quietest, fastest, & most durable brushless motor ever
built by Siemens
●
hydroSensor: Automatic water turbidity detection
loadSensor: Automatic water level optimisation
●
automatic detergent aware system
●
hydroDry hygienic drying
●
3 stage self-cleaning filter system
●
alternating spray technique
●
5 spray levels for complete coverage
Flexibility
●
varioDrawer Pro: Third loading level for cutlery & utensils
●
varioFlex Pro basket system with blue coloured touchpoints
●
6 foldable plate racks in top basket
●
8 foldable plate racks in bottom basket
●
2 foldable cup shelves in top basket
●
2 foldable cup shelves in bottom basket
●
rackMatic Plus: 3 stage height-adjustable upper basket
●
variable position cutlery basket
●
tall glass/champagne glass racks
●
large item spray head
vapor barrier plate
Convenience
●
superSilence: Operates at a low noise level of 42dB
●
emotionLight: Bathes your sparkling clean glassware in a cool blue
illumination when you open the door
●
TFT Display in full colour on the front door panel
●
TFT Display in full colour integrated into the top of the inner door
●
Audible signal at end of program
●
Real time clock actual time display
●
Time delay start (1-24 hours)
●
Electronic rinse aid/refill indicator
●
Last program used memory function
Safety
●
hydroSafe anti-flood protection
●
Child door lock
●
10 year rust-through warranty for the inner tub
●
5 year warranty
Dimensions
●
815-875 mm x 598 mm x 573 mm
