Silicon Pressure Sensor Module
Features
•Silicon piezoresistive technology
•High stability
•Excellent linearity
•Temperature compensated span and offset voltages
•Rugged stainless-steel housing
•Threaded pressure connection port
•Full scale 5 V output signal
•Open collector output
KPY 41-MR |
KPY 46-MA/MR |

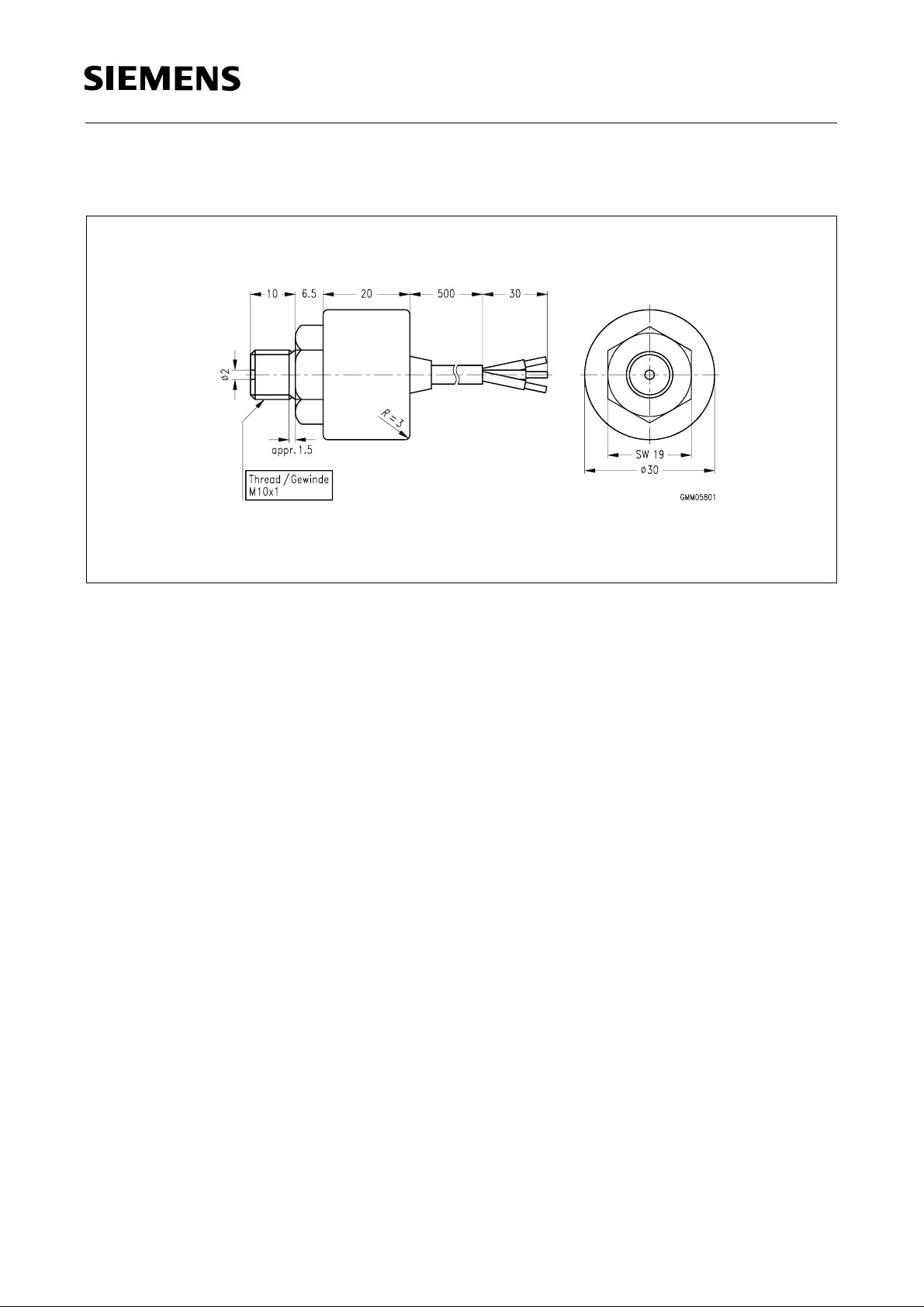

Stainless Steel Package |
Type and |
Rated Pressure |
Over Pressure |
Unit |
Ordering Code |
|
Marking |
Range |
|
|
|
|
|
P0 ¼ PN |
PMAX |
|
|
|
KPY 41-MR |
0 |
¼ 0.250 |
2 |
bar |
Q62705-K ¼1) |
KPY 42-MA |
0 |
¼ 0.6 |
6 |
|
Q62705-K323 |
|
|
|
|
|
|
KPY 42-MR |
0 |
¼ 0.6 |
6 |
|
Q62705-K324 |
|
|
|
|
|
|
KPY 43-MA |
0 |
¼ 1.6 |
10 |
|
Q62705-K325 |
|
|
|
|
|
|
KPY 43-MR |
0 |
¼ 1.6 |
10 |
|
Q62705-K326 |
|
|
|
|
|
|
KPY 44-MA |
0 |
¼ 4 |
16 |
|
Q62705-K ¼1) |
KPY 44-MR |
0 |
¼ 4 |
16 |
|
Q62705-K ¼1) |
KPY 45-MA |
0 |
¼ 10 |
30 |
|
Q62705-K327 |
|
|
|
|
|
|
KPY 45-MR |
0 |
¼ 10 |
30 |
|
Q62705-K328 |
|
|
|
|
|
|
KPY 46-MA |
0 |
¼ 25 |
40 |
|
Q62705-K ¼1) |
KPY 46-MR |
0 |
¼ 25 |
40 |
|
Q62705-K ¼1) |
1) delivery on request
Wire Configuration
+ VIN |
brown |
|
|
Gnd |
blue |
|
|
VOUT |
black |
For absolute pressure sensors, |
P0 |
= vacuum |
For relative pressure sensors, |
P0 |
= atmospheric pressure |
|
PN = rated pressure |
|
Semiconductor Group |
|
1 |
02.97 |
KPY 41-MR
KPY 46-MA/MR
Absolute Maximum Ratings
Parameter |
|
|
Symbol |
Limit Values |
Unit |
|
|
||||
|
|
|
|
|
|
|
|
|
|
||
Operating temperature range |
|
TA |
- 20 ¼ + 85 |
˚C |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
||
Storage temperature range |
|
Tstg |
- 40 ¼ + 100 |
˚C |
|
|
|||||
Supply voltage |
|
|
VIN |
12 ¼ 20 |
V |
|
|
||||
Electrical Characteristics |
|
|
|
|
|
|
|
|
|
||
at TA = 25 ˚C and VIN = 12 V |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Parameter |
|
|
|
Symbol |
|
|
Limit Values |
Unit |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
min. |
|
typ. |
max. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Sensitivity 0 ... PN |
KPY 41-MR |
|
|
|
- |
|
20.0 |
- |
V/bar |
||
|
|
|
|
|
|
|
|||||
|
KPY 42-MA/R |
|
|
|
- |
|
8.3 |
- |
|
|
|
|
KPY 43-MA/R |
|
|
|
- |
|
3.1 |
- |
|
|
|
|
KPY 44-MA/R |
|
|
|
- |
|
1.25 |
- |
|
|
|
|
KPY 45-MA/R |
|
|
|
- |
|
0.5 |
- |
|
|
|
|
KPY 46-MA/R |
|
|
|
- |
|
0.2 |
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Output voltage |
KPY 41 ¼ 46-MA/R |
VOUT |
|
|
|
|
|
V |
|||
P = PN |
|
|
5.95 |
|
6 |
6.05 |
|
|
|||
Offset voltage |
KPY 41 ¼ 46-MA/R |
V0 |
|
|
|
|
|
V |
|||
P0 |
|
|
0.95 |
|
1.0 |
1.05 |
|
|
|||
Linearity error (Best fit straight line) |
|
|
|
|
|
|
|
% VFS |
|||
|
KPY 41 ¼ 46-MA/R |
|
|
- |
|
- |
± 0.25 |
|
|
||
|
|
|
|
|
|
|
|
|
|
||
Repeatability and pressure hysteresis |
|
|
|
|
|
|
|
% VFS |
|||
|
KPY 41 ¼ 46-MA/R |
|
|
- |
|
± 0.1 |
- |
|
|
||
|
|
|
|
|
|
|
|
|
|
||
Temperature error of span and offset |
|
TCVOUT |
|
|
|
|
|
% VFS |
|||
voltage (- 20°C ¼ + 85 °C) |
|
|
|
|
|
|
|
|
|
||
|
KPY 41 ¼ 46-MA/R |
|
|
- |
|
± 0.1 |
- |
|
|
||
|
|
|
|
|
|
|
|
|
|
||
Temperature hysteresis |
|
TH |
|
|
|
|
|
% VFS |
|||
|
KPY 41 ¼ 46-MA/R |
|
|
- |
|
± 0.1 |
- |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Response time |
|
|
|
|
|
|
|
|
|
ms |
|
|
KPY 41 ¼ 46-MA/R |
|
|
- |
|
< 0.1 |
- |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Supply current |
|
|
|
|
|
|
|
|
|
mA |
|
|
KPY 41 ¼ 46-MA/R |
|
|
- |
|
- |
24.0 |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
