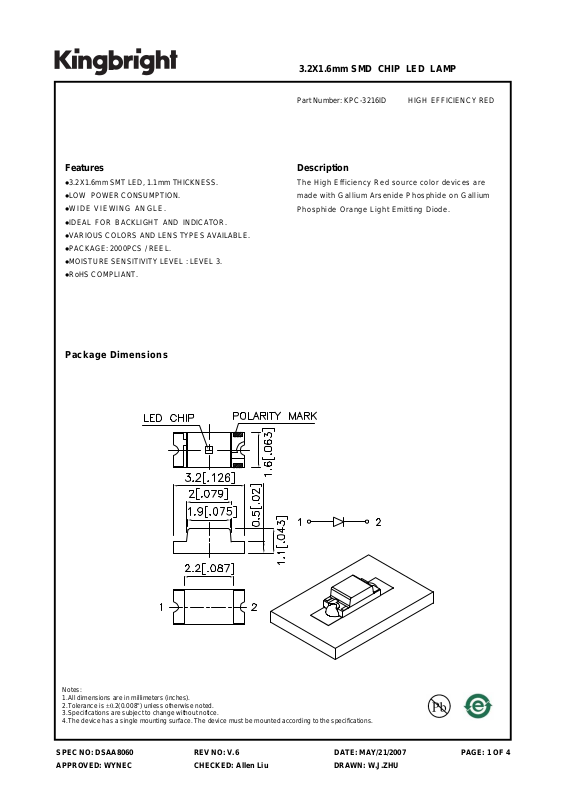

3.2X1.6mm SMD CHIP LED LAMP

Part Number: KPC-3216ID HIGH EFFICIENCY RED

Features

z3.2X1.6mm SMT LED, 1.1mm THICKNESS.
zLOW POWER CONSUMPTION.
zWIDE VIEWING ANGLE.
zIDEAL FOR BACKLIGHT AND INDICATOR.
zVARIOUS COLORS AND LENS TYPES AVAILABLE.
zPACKAGE: 2000PCS / REEL.
zMOISTURE SENSITIVITY LEVEL : LEVEL 3.
zRoHS COMPLIANT.

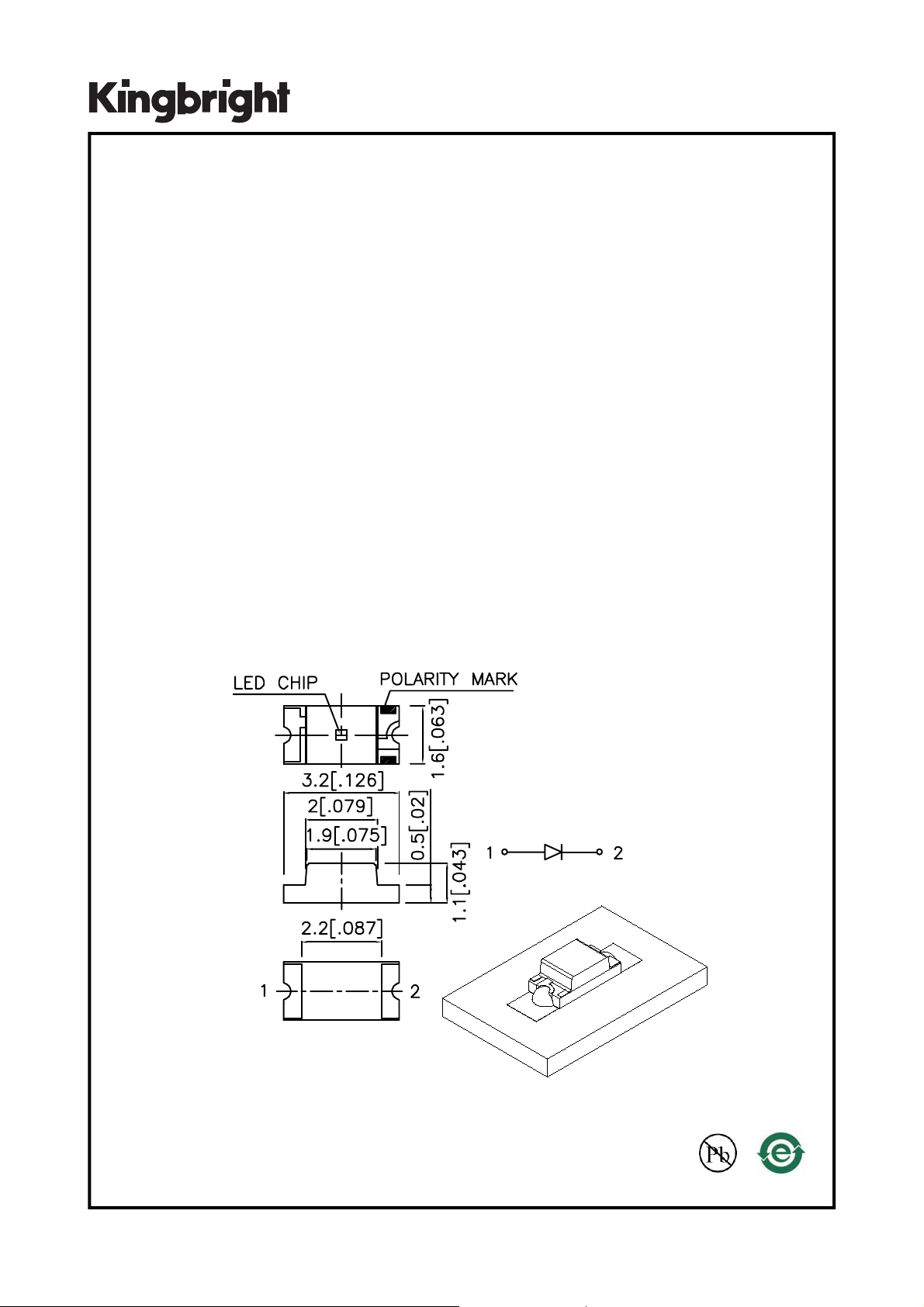

Package Dimensions

Description

The High Efficiency Red source color devices are
made with Gallium Arsenide Phosphide on Gallium
Phosphide Orange Light Emitting Diode.

Notes:

1.All dimensions are in millimeters (inches).

2.Tolerance is ±0 .2(0.008") unless otherwise noted.

3.Specifications are subject to change without notice.

4.The device has a single mounting surface. The device must be mounted according to the specifications.

SPEC NO: DSAA8060 REV NO: V.6 DATE: MAY/21/2007 PAGE: 1 OF 4
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: W.J.ZHU

Selection Guide

V

Iv (mcd) [2]

Part No.

KPC-3216ID HIGH EFFICIENCY RED (GaAsP/GaP) RED DIFFUSED

Notes:

1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

2. Luminous Intensity / Luminous Flux: +/-15%.

Dice Lens Type

@ 20mA

Min. Typ.

4 10

Electrical / Optical Characteristics at TA=25°C

Symbol Parameter Device Typ. Max. Test Conditions Units

λpeak

λD [1]

Δλ1/2

C Capacitance High Efficiency Red 15 pF VF=0V;f=1MHz

VF [2] Forward Voltage High Efficiency Red 2.0 2.5 V IF=20mA

Peak Wavelength High Efficiency Red 627 nm IF=20mA

Dominant Wavelength High Efficiency Red 625 nm IF=20mA

Spectral Line Half-width High Efficiency Red 45 nm IF=20mA

iewing

Angle [1]

2θ1/2

120°

IR Reverse Current High Efficiency Red 10 uA VR = 5V

Notes:

1. Wavelength: +/-1nm.

2. Forward Voltage: +/-0.1V.

Absolute Maximum Ratings at T

Parameter High Efficiency Red Units

Power dissipation 75 mW

DC Forward Current 30 mA

Peak Forward Current [1] 160 mA

Reverse Voltage 5 V
Operating / Storage Temperature -40°C To +85°C

Note:

1. 1/10 Duty Cycle, 0.1ms Pulse Width.

A=25°C

SPEC NO: DSAA8060 REV NO: V.6 DATE: MAY/21/2007 PAGE: 2 OF 4
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: W.J.ZHU

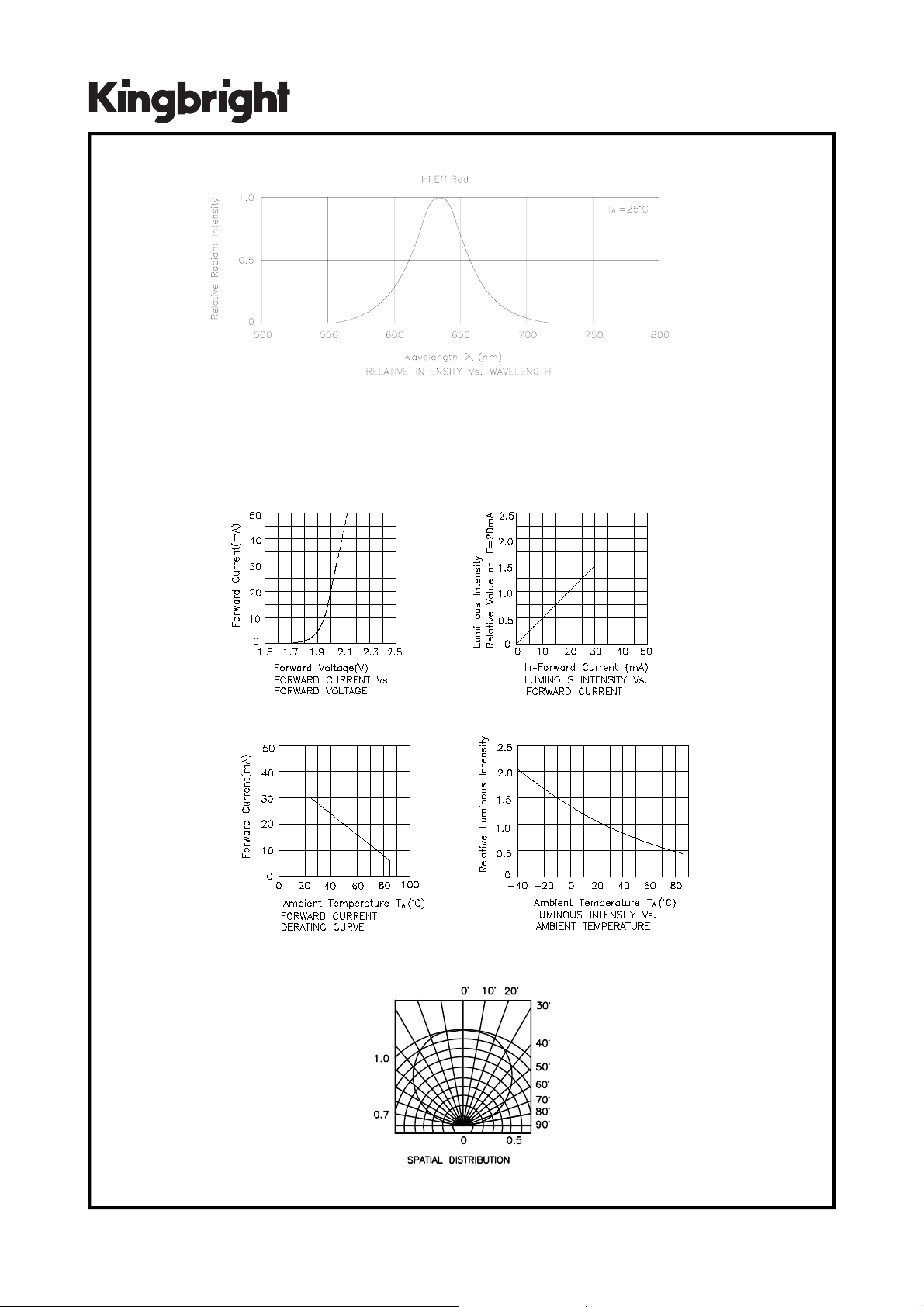

High Efficiency Red KPC-3216ID

SPEC NO: DSAA8060 REV NO: V.6 DATE: MAY/21/2007 PAGE: 3 OF 4
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: W.J.ZHU

KPC-3216ID

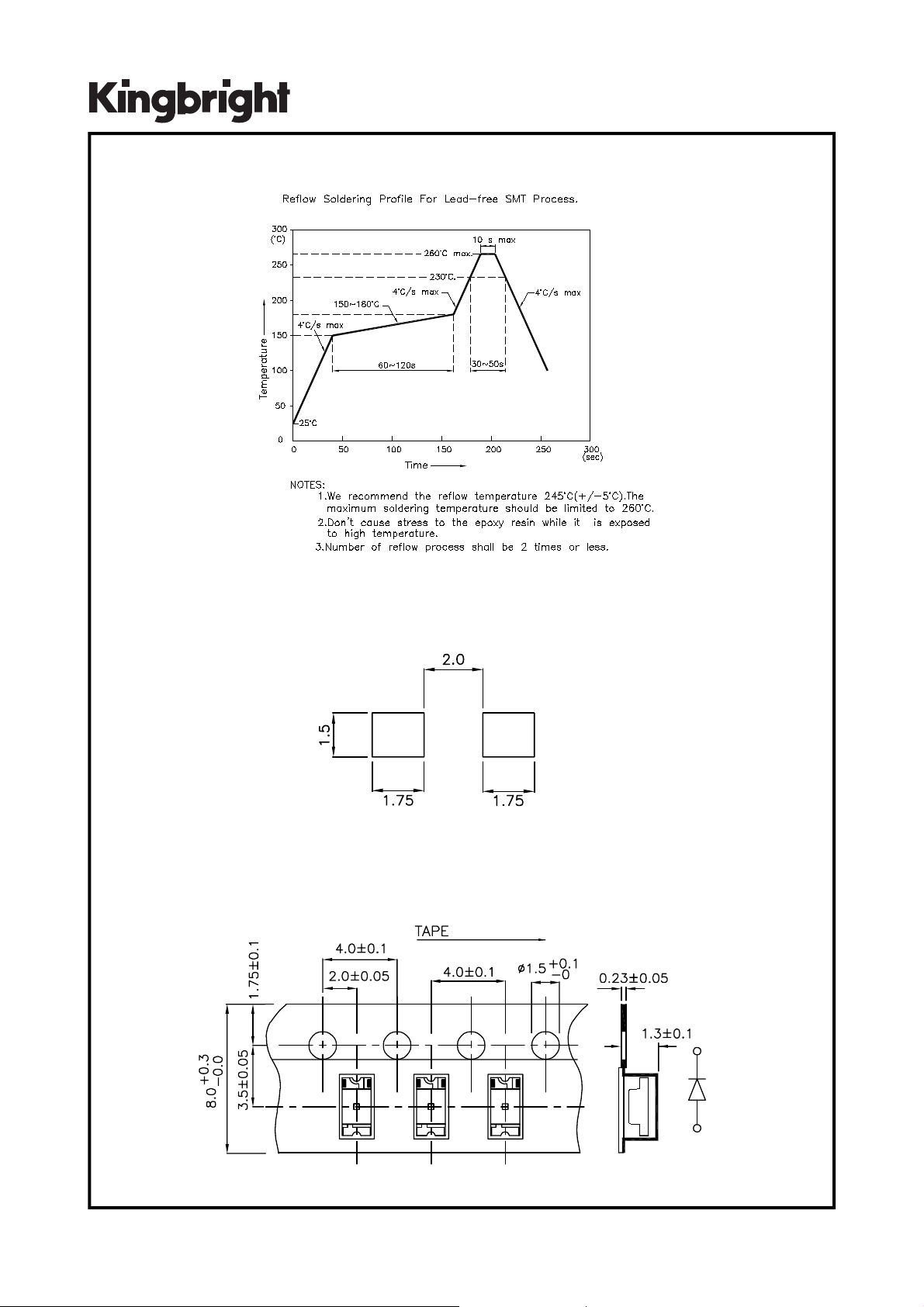

Recommended Soldering Pattern
(Units : mm; Tolerance: ±0.1)

Tape Specifications
(Units : mm)

SPEC NO: DSAA8060 REV NO: V.6 DATE: MAY/21/2007 PAGE: 4 OF 4
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: W.J.ZHU
