SCALANCE W760/W720

___________________

SIMATIC NET

Industrial Wireless LAN SCALANCE W760/W720

Operating Instructions

07/2013

C79000

Information on the Internet

Introduction

Description

Mounting

Connection

Technical data

Approvals

-G89xx-C322-01

Siemens AG Industry Sector Postfach 48 48 90026 NÜRNBERG GERMANY

Order number: C79000-G89xx-C322-01

Ⓟ

Legal information Warning notice system

DANGER

indicates that death or severe personal injury will result if proper precautions are not taken.

WARNING

indicates that death or severe personal injury may result if proper precautions are not taken.

CAUTION

indicates that minor personal injury can result if proper precautions are not taken.

NOTICE

indicates that property damage can result if proper precautions are not taken.

Qualified Personnel

personnel qualified

Proper use of Siemens products

WARNING

Siemens products may only be used for the applications described in the catalog and in the relevant technical

re required to ensure that the products operate safely and without any problems. The permissible

ambient conditions must be complied with. The information in the relevant documentation must be observed.

Trademarks

Disclaimer of Liability

This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are graded according to the degree of danger.

If more than one degree of danger is present, the warning notice representing the highest degree of danger will be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to property damage.

The product/system described in this documentation may be operated only by task in accordance with the relevant documentation, in particular its warning notices and safety instructions. Qualified personnel are those who, based on their training and experience, are capable of identifying risks and avoiding potential hazards when working with these products/systems.

Note the following:

for the specific

documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance a

All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.

We have reviewed the contents of this publication to ensure consistency with the hardware and software described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the information in this publication is reviewed regularly and any necessary corrections are included in subsequent editions.

07/2013 Technical data subject to change

1 Information on the Internet ...................................................................................................................... 5

2 Introduction ............................................................................................................................................. 7

3 Description .............................................................................................................................................. 9

4 Mounting ............................................................................................................................................... 13

5 Connection ........................................................................................................................................... 17

6 Technical data ...................................................................................................................................... 27

7 Approvals .............................................................................................................................................. 31

2.1 Information on the Operating Instructions ...................................................................................... 7

2.2 Structure of the type designation ................................................................................................... 8

2.3 Security information ....................................................................................................................... 8

3.1 Components of the product ............................................................................................................ 9

3.2 LED display .................................................................................................................................... 9

3.3 Reset button ................................................................................................................................. 11

4.1 Access restriction due to high housing temperature .................................................................... 13

4.2 Installing on a DIN rail / removing ................................................................................................ 14

5.1 Lightning protection, power supply and grounding ...................................................................... 17

5.2 Power supply ................................................................................................................................ 21

5.3 Ethernet ........................................................................................................................................ 22

5.4 Suitable cables for power supply and Ethernet ........................................................................... 23

5.5 Antenna connectors ..................................................................................................................... 24

5.6 Suitable antenna cables and antennas ........................................................................................ 25

6.1 Technical specifications ............................................................................................................... 27

6.2 Dimensional drawing .................................................................................................................... 29

7.1 National approvals ....................................................................................................................... 37

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Contents

SCALANCE W760/W720

4 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Bitte beachten Sie die Warnhinweise und zusätzlichen Informationen in der Kompaktbetriebsanleitung in Ihrer Sprache im Internet: http://support.automation.siemens.com/ww/view/at/10806097 http://support.automation.siemens.com/ww/view/ch/10806097 http://support.automation.siemens.com/ww/view/de/10806097 http://support.automation.siemens.com/ww/view/li/10806097 http://support.automation.siemens.com/ww/view/lu/10806097

Please observe the warnings and additional information in the compact operating instructions in your language in the Internet: http://support.automation.siemens.com/ww/view/au/10806097 http://support.automation.siemens.com/ww/view/ca/10806097 http://support.automation.siemens.com/ww/view/gb/10806097 http://support.automation.siemens.com/ww/view/ie/10806097 http://support.automation.siemens.com/ww/view/us/10806097 http://support.automation.siemens.com/ww/view/za/10806097

Veuillez tenir compte des avertissements et informations supplémentaires de la notice de service dans votre langue sur Internet: http://support.automation.siemens.com/ww/view/be/10806097 http://support.automation.siemens.com/ww/view/ch/10806097 http://support.automation.siemens.com/ww/view/fr/10806097 http://support.automation.siemens.com/ww/view/lu/10806097

Si prega di tenere conto delle avvertenze e ulteriori informazioni nell’istruzione operativa compatta nella relativa lingua in Internet: http://support.automation.siemens.com/ww/view/it/10806097

Se ruega tener en cuenta las advertencias y las informaciones complementarias contenidas en las instrucciones de servicio (resumen) en español en Internet: http://support.automation.siemens.com/ww/view/cl/10806097 http://support.automation.siemens.com/ww/view/es/10806097

Dbejte prosím na výstražné pokyny a doplňkové informace v kompaktním návodu k obsluze ve vašem jazyce na internetu: http://support.automation.siemens.com/ww/view/cz/10806097

Vær venligst opmærksom på de advarselsanvisninger og ekstra informationer der findes på dit sprog i kompaktdriftsvejledningen på internettet: http://support.automation.siemens.com/ww/view/dk/10806097

Noudata lyhyen käyttöoppaan sisältämiä varoituksia ja huomio sen muutkin tiedot. Oman kielisesi käyttöoppaan löydät internetistä osoitteesta: http://support.automation.siemens.com/ww/view/fi/10806097

Λάβετε υπόψη τις υποδείξεις προειδοποίησης και τις πρόσθετες πληροφορίες των συνοπτικών οδηγιών χρήσης που παρέχονται στη γλώσσα σας στο Διαδίκτυο:

http://support.automation.siemens.com/ww/view/gr/10806097

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Information on the Internet

请注意互联网上精编版操作说明相应语言版本中的警告提示和附加信息： http://support.automation.siemens.com/ww/view/cn/10806097 http://support.automation.siemens.com/ww/view/hk/10806097 http://support.automation.siemens.com/ww/view/sg/10806097

Kérjük, vegye figyelembe az interneten található, az Ön anyanyelvén íródott kompakt használati útmutatóban található figyelmeztetéseket és további információkat: http://support.automation.siemens.com/ww/view/hu/10806097

Skoðið vel viðvaranir og aðrar upplýsingar í notkunarleiðbeiningunum á ykkar tungumáli á internetinu: http://support.automation.siemens.com/ww/view/is/10806097

インターネットサイトにある各言語の注意事項および追加情報を参照してください: http://support.automation.siemens.com/ww/view/jp/10806097

사이트에 있는 귀하의 언어로 된 콤팩트 사용 설명서에 명시된 경고 지침 및 추가 정보를 준수하십시오:

http://support.automation.siemens.com/ww/view/kr/10806097

http://support.automation.siemens.com/ww/view/kw/10806097

Neem goed nota van de waarschuwingen en extra informatie in de compacte gebruiksaanwijzing in uw taal op internet: http://support.automation.siemens.com/ww/view/be/10806097 http://support.automation.siemens.com/ww/view/nl/10806097

Vennligst følg advarslene og annen informasjon i den kompakte bruksanvisningen, som du finner på ditt språk på internett: http://support.automation.siemens.com/ww/view/no/10806097

Proszę zwrócić uwagę na ostrzeżenia oraz dodatkowe informacje w kompaktowej instrukcji obsługi, dostępnej w odpowiednim języku w internecie: http://support.automation.siemens.com/ww/view/po/10806097

Observera varningshänvisningarna och extrainformationerna i kompaktbruksanvisningen som finns på ditt språk på internet: http://support.automation.siemens.com/ww/view/se/10806097

İnternette kendi dilinizdeki kompakt işletim kılavuzunda yer alan uyarı notlarına ve ek bilgilere lütfen dikkat edin:

http://support.automation.siemens.com/ww/view/tr/10806097

SCALANCE W760/W720

6 Operating Instructions, 07/2013, C79000-G89xx-C322-01

2.1

Information on the Operating Instructions

Validity of the Operating Instructions

Order no.

Order no. of the US version:

Access point

SCALANCE W761-1 RJ-45

6GK5761-1FC00-0AA0

6GK5761-1FC00-0AB0

Ethernet client modules

(iFeatures)

SCALANCE W721-1 RJ-45

6GK5721-1FC00-0AA0

6GK5721-1FC00-0AB0

Purpose of the Operating Instructions

Documentation on the accompanying CD

PH_SCALANCE-W760-W720-WBM_76.pdf and PH_SCALANCE-W760-W720-CLI_76.pdf

Note

Make sure that you read th

These operating instructions cover the following products:

SCALANCE W722-1 RJ-45

These operating instructions apply to the following software version:

● SCALANCE W760/W720 firmware as of Version 3.0

Using the Operating Instructions, you will be able to install and connect the SCALANCE W760/W720 correctly. The configuration and the integration of the device in a WLAN are not described in these instructions.

You will find detailed information about configuration in the SCALANCE W700 configuration manuals on the accompanying SIMATIC NET IWLAN CD under the file name:

6GK5722-1FC00-0AA0 6GK5722-1FC00-0AB0

e explanations and instructions in the README.txt file

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Introduction

2.2

Structure of the type designation

2.3

Security information

2.2 Structure of the type designation

The type designation of the device is made up of several parts that have the following meaning:

Siemens provides automation and drive products with industrial security functions that support the secure operation of plants or machines. They are an important component in a holistic industrial security concept. With this in mind, our products undergo continuous development. We therefore recommend that you keep yourself informed with respect to our product updates. Please find further information and newsletters on this subject at: http://support.automation.siemens.com.

To ensure the secure operation of a plant or machine it is also necessary to take suitable preventive action (e.g. cell protection concept) and to integrate the automation and drive components into a state-of-the-art holistic industrial security concept for the entire plant or machine. Any third-party products that may be in use must also be taken into account. Please find further information at: http://www.siemens.com/industrialsecurity

SCALANCE W760/W720

8 Operating Instructions, 07/2013, C79000-G89xx-C322-01

3.1

Components of the product

3.2

LED display

Information on operating status and data transfer

The following components are supplied with the product:

● SCALANCE W761 or SCALANCE W722 or SCALANCE W721

● 1 protective cap for the antenna socket

● 1 connector for the power supply

● SIMATIC NET Industrial Wireless LAN CD

Please check that the consignment you have received is complete. If the consignment is incomplete, contact your supplier or your local Siemens office.

On the front of the housing, several LEDs provide information on the operating status of the device:

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Description

LED

Color

Meaning

Green

Power supply L1.

Flashing yellow

Data transfer via the Ethernet interface.

Green

There is a connection via the Ethernet interface (Link).

Flashing yellow

Data transfer over the WLAN interface.

There is a connection via the WLAN interface.

The client is searching for a connection to an access point.

the "MAC mode" parameter and is connected to no access point.

short, 1 x long

the "MAC mode" parameter and is connected to an access point.

same time

simultaneously.

Note Primary user (radar) on all enabled channels (only when DFS is enabled)

If the device detects a primary user (for example radar signals) on all enabled channels of the WLAN interface, the LED F next 30 minutes primary user still exists. If no primary user is detected, data traffic is possible again.

The wait time of 30 minutes is necessary due to legal requirements and cannot be shortened eve

3.2 LED display

Green SCALANCE W760 in access point mode:

The WLAN interface is initialized and ready for operation. SCALANCE W760 in client mode or SCALANCE W720:

Flashing green SCALANCE W760 in client mode or SCALANCE W720:

Green flashing briefly

Green flashing 3 x

F Red An error occurred during operation with the device.

Red R1 flashing green at the

P1 R1

Flashing yellow and green

SCALANCE W760 in access point mode: With 802.11h, the channel is scanned for one minute for primary users before the channel can be used for data traffic.

SCALANCE W760 in client mode or SCALANCE W720: The client waits for the MAC address due to the setting "Automatic" for

A primary user was detected on all enabled channels. (only when DFS is enabled or according to IEEE 802.11h)

"Flashing" enabled using SIMATIC NET Primary Setup Tool (PST).

is lit and R1 flashes. No data traffic is then possible for the

. After this time, the device runs the scan again and checks whether a

n by restarting the device.

SCALANCE W760/W720

10 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Description

3.3

Reset button

Functions of the reset button

3.3 Reset button

The reset button (position ①) is on the front of the housing:

The reset button has the following functions:

● Restart of the device

● Loading new firmware

● Restoring the default parameters (factory defaults)

You will find more detailed information in the configuration manual SCALANCE W760/W720 WBM.

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Description

3.3 Reset button

SCALANCE W760/W720

12 Operating Instructions, 07/2013, C79000-G89xx-C322-01

4.1

Access restriction due to high housing temperature

WARNING

General notes on use according to ATEX

WARNING

If a device is operated in an ambient temperature of more than 50 °C, the temperature of the device housing may be higher than 70 °C. The device must therefore be installed so that it is only accessible to service personnel or users that are aware of the reason for restricted access and the required safety measures at an ambient temperature higher than 50 °C.

When used in hazardous environments corresponding to Class I, Division 2 or Class I, Zone 2, the device must be installed in a cabinet or a suitable enclosure.

To comply with EU Directive 94/9 (ATEX95), this enclosure must meet the requirements of at least IP54 in compliance with EN 60529.

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Mounting

4.2

Installing on a DIN rail / removing

Procedure for installation

4.2 Installing on a DIN rail / removing

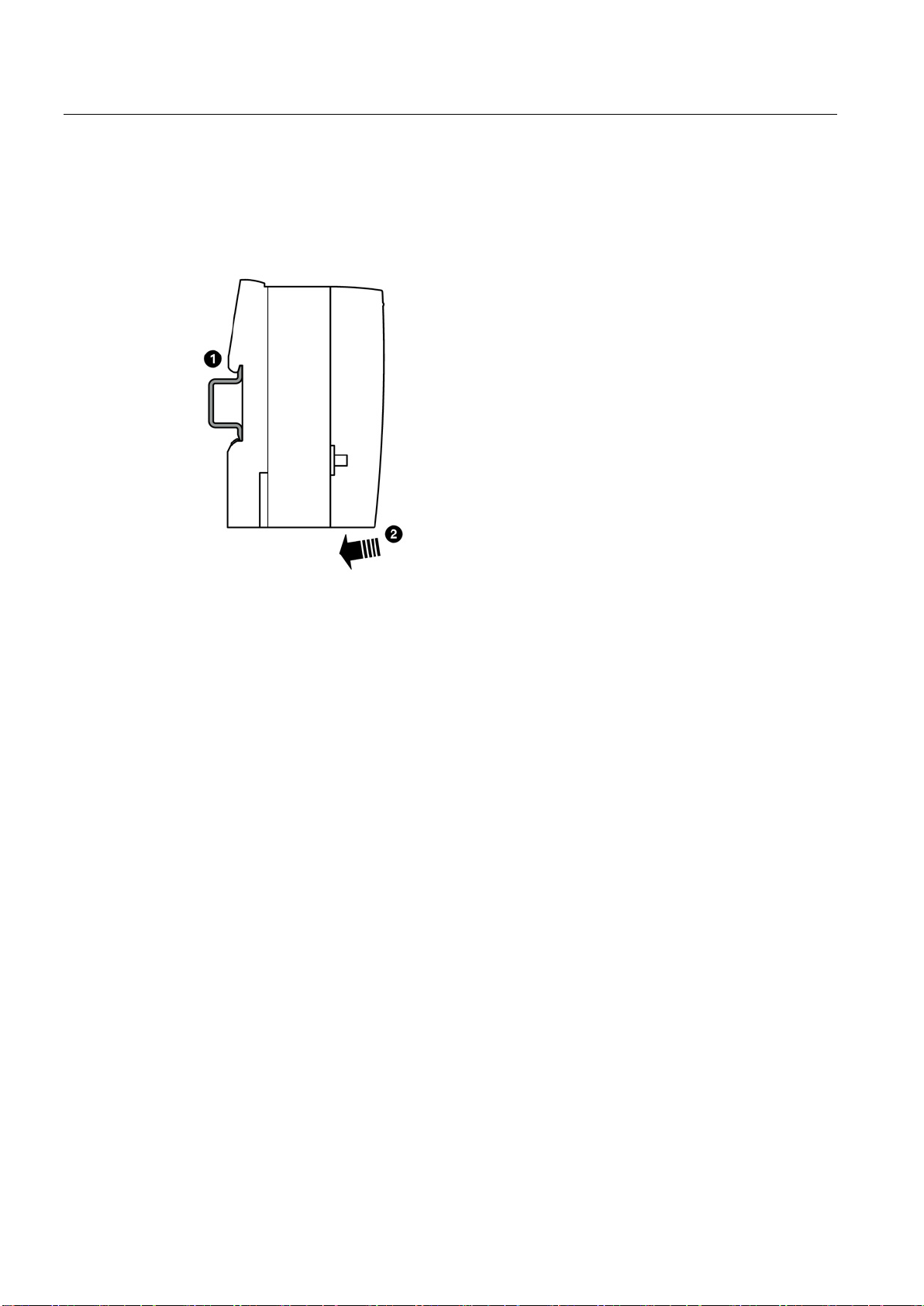

Follow the steps below to fit the SCALANCE W760/W720 to a DIN rail:

1. Place the device on the upper edge of the DIN rail as shown in the figure.

2. Press the device against the DIN rail until the DIN rail slider catch locks in place.

SCALANCE W760/W720

14 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Mounting

Procedure when removing

4.2 Installing on a DIN rail / removing

Follow the steps below to remove the SCALANCE W760/W720 from a DIN rail:

1. Press the release button on the top of the device to release the DIN rail catch.

2. Tilt the SCALANCE W760/W720 forward and remove the device from the DIN rail.

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Mounting

4.2 Installing on a DIN rail / removing

SCALANCE W760/W720

16 Operating Instructions, 07/2013, C79000-G89xx-C322-01

5.1

Lightning protection, power supply and grounding

Notes on lightning protection

WARNING

Danger due to lightning strikes

Note

We recommend that you use the maintenance

Exception: When there is also DC power is supplied via the antenna cable. In this case, only the lightning protector LP798

WARNING

Danger due to lightning strikes

Antennas installed outdoors must be within the area covered by a lightning protection system. Make sure that all conducting systems entering from outdoors can be protected by a lightning protection potential equalization system.

When implementing your lightning protection concept, make sure you adhere to the VDE 0182 or IEC 62305 standard.

Suitable lightning protectors are available in the range of accessories of SIMATIC NET Industrial WLAN:

● Lightning protector LP798-1N (order no. 6GK5798-2LP00-2AA6)

● Lightning protector LP798-2N (order no. 6GK5798-2LP10-2AA6)

-free lightning protector LP798-2N.

-1N can be used.

Installing this lightning protector between an antenna and a SCALANCE W700 is not adequate protection against a lightning strike. The LP798-1N lightening protector only works within the framework of a comprehensive lightning protection concept. If you have questions, ask a qualified specialist company.

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Connection

Note

The requirements of EN61000 when a Blitzductor is used with 12 to 24 VDC:

12 to 24 VDC: VT AD 24V type no. 918 402

Vendor: DEHN+SÖ

Safety extra low voltage

WARNING

Danger to life from overvoltage, fire hazard

5.1 Lightning protection, power supply and grounding

-4-5, surge immunity tests on power supply lines, are met only

HNE GmbH+Co.KG, Hans Dehn Str. 1, Postfach 1640, D -

92306 Neumarkt, Germany

SCALANCE W700 devices are designed for operation with a directly connectable safety extra-low voltage or with the power supply adapters available as accessories (available only for the SCALANCE W786 device). Therefore only safety extra-low voltage (SELV) with limited power source (LPS) complying with IEC950/EN60950/VDE0805 may be connected to the power supply terminals (exception: Power supply adapter for 100 - 240 VAC for the SCALANCE W786).

Take measures to prevent transient overvoltage of more than 40% of the rated voltage. This criterion is fulfilled, if devices are operated solely with SELV (Safety Extra-Low Voltage).

The power supply unit to supply the SCALANCE W700 must comply with NEC Class 2 (requirements of class 2 for power supply units of the "National Electrical Code, table 11 (b)") or SELV with LPS (Limited Power Source) EN 60950-1. If the power supply is designed redundantly (two separate power supplies), both power supplies must meet these requirements.

Exception: Power supply with PELV (according to VDE 0100-410 or IEC 60364-4-41) is also possible if the generated rated voltage does not exceed the voltage limits 25 VAC or 60 VDC.

SCALANCE W760/W720

18 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Connection

Grounding

NOTICE

Damage to the device due to potential differences

WARNING

EXPLOSION HAZARD

WARNING

EXPLOSION HAZARD

General notes on use according to ATEX

WARNING

EXPLOSION HAZARD

5.1 Lightning protection, power supply and grounding

To fully eliminate the influence of electromagnetic interference, the device must be grounded. There must be no potential difference between the following parts, otherwise the device or other connected device could be severely damaged:

• Housing of the SCALANCE W700 and the ground potential of the antenna.

• Housing of the SCALANCE W700 and the ground potential of a device connected over

Ethernet.

• Housing of the SCALANCE W700 and the shield contact of the connected Ethernet cable.

Connect both grounds to the same foundation earth or use an equipotential bonding cable.

If it is used outdoors, the device must always be connected to protective earth.

SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2 OR ZONE 2.

DO NOT OPEN WHEN ENERGIZED.

DO NOT CONNECT OR DISCONNECT EQUIPMENT WHEN A FLAMMABLE OR COMBUSTIBLE ATMOSPHERE IS PRESENT.

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Connection

General notes on use in hazardous areas according to UL-HazLoc

WARNING

EXPLOSION HAZARD

5.1 Lightning protection, power supply and grounding

DO NOT DISCONNECT WHILE CIRCUIT IS LIVE UNLESS AREA IS KNOWN TO BE NON-HAZARDOUS.

This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D or nonhazardous locations only.

This equipment is suitable for use in Class I, Zone 2, Group IIC or non-hazardous locations only.

SCALANCE W760/W720

20 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Connection

5.2

Power supply

Socket

Assignment

L+

+24 VDC

5.2 Power supply

The power is supplied to the SCALANCE W760/W720 via the three-pin socket.

The three-pin socket has the following pin assignment:

M Ground

Grounding

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Connection

5.3

Ethernet

5.3 Ethernet

The SCALANCE W760/W720 has two Ethernet interfaces located on the underside of the device (position

①).

SCALANCE W760/W720

22 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Connection

5.4

Suitable cables for power supply and Ethernet

Cable specification

Application

Specification

UL listing: Type PLTC or ITC (the three named types have this approval)

WARNING

Only use cables suitable for high temperatures!

5.4 Suitable cables for power supply and Ethernet

The following table lists the requirements for a cable depending on the application.

Direct 24 VDC supply

Ethernet

• Round cable cross-section with 6 to 8 mm diameter. Two-wire cable with 0.5 to 1.5 mm per wire.

• Permitted tensile load at least 100 N.

• UL listing: Type PLTC or ITC

1. IE FC TP standard cable GP 2 x 2 (type A) Order no.: 6XV1 840-2AH10

2. IE TP torsion cable 2 x 2 (type C) Order no.: 6XV1 870-2F

3. IE FC TP trailing cable 2 x 2 (type C) Order no.: 6XV1 840 3AH10

cross-section

If temperatures in excess of 70 °C occur on the cable or at the housing socket, or the temperature at the branching points of the cables exceeds 80 °C, special measures need to be taken.

If the equipment is operated in an air ambient at 45 - 60 °C, only use cables with admitted maximum operating temperature of at least 90 °C.

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Connection

5.5

Antenna connectors

Procedure

Note Cabinet installation

When installing the SCALANCE W760/720 in a cabinet, you need to use a detached antenna. Suitable connecting cables for a connection between SCALANCE W760/720 and a detached antenna are available from SIMATIC NET. You will find detailed information in the f

5.5 Antenna connectors

The SCALANCE W760/W720 has an antenna connector R1 A1 of the type R-SMA located on the front of the device (position

①).

Follow the steps below to connect a cable for an external antenna to a SCALANCE W760/720:

1. Insert the connector on the antenna cable into the R-SMA socket R1 A1 (position tighten the retainer nut on the socket (key size SW8, tightening torque 0.6 Nm).

ollowing section.

①) and

SCALANCE W760/W720

24 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Connection

5.6

Suitable antenna cables and antennas

N-Connect/R-SMA connecting cable

Length

Order number

10 m

6XV1875-5CN10

5.6 Suitable antenna cables and antennas

To connect an antenna with an N-Connector, the following cables are suitable:

0.3 m 1 m 2 m 5 m

6XV1875-5CE30 6XV1875-5CH10 6XV1875-5CH20 6XV1875-5CH50

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Connection

Suitable antennas

Note

When you select an antenna, keep in mind the national approvals for your device.

Type

Properties

Order number

2.4 GHz, N-Connect female

5 GHz, N-Connect female

2.4 GHz, N-Connect female

5 GHz, 2 x N-Connect female

5 GHz, N-Connect female

2.4 GHz and 5 GHz, N-Connect female

5 GHz, 2 x N-Connect female

2.4 GHz and 5 GHz, N-Connect female

180°.

female.

GHz PE 1/2"

2.400 - 2.485 GHz, N-Connect female.

GHz PE 1/2"

5.150 - 5.875 GHz, N-Connect female.

5.6 Suitable antenna cables and antennas

ANT792-6MN Omni antenna, mast/wall mounting, 6 dBi

ANT793-6MN Omni antenna, mast/wall mounting, 5 dBi

ANT792-8DN Directional antenna, mast/wall mounting,

14 dBi

ANT793-8DJ Directional antenna, mast/wall mounting,

18 dBi 5 GHz, 2 x N-Connect female

ANT793-8DK Directional antenna, mast/wall mounting,

23 dBi

ANT793-8DP Directional antenna, mast/wall mounting,

13 dBi

ANT795-6DC Wide angle antenna, mast/

wall mounting, 9 dBi

ANT793-6DG Wide angle antenna, mast/

wall mounting, 9 dBi

ANT795-6MN Omni antenna, mounted on roof/vehicle,

6/8 dBi

6GK5 792-6MN00-0AA6

6GK5 793-6MN00-0AA6

6GK5 792-8DN00-0AA6

6GK5 793-8DJ00-0AA0

6GK5 793-8DK00-0AA0

6GK5793-8DP00-0AA0

6GK5 795-6DC00-0AA0

6GK5 793-6DG00-0AA0

6GK5 795-6MN10-0AA6

ANT795-4MA Omni antenna, 3/5 dBi

2.4 GHz and 5 GHz, IP30, R-SMA connector male for direct mounting on the device, connector angle adjustable 0° to

ANT792-4DN RCoax helical antenna, circular

polarization, 4 dBi, 2.4 GHz, N-connect

ANT793-4MN RCoax λ5/8 antenna with vertical

polarization, 6 dBi, 5 GHz, N-connect

IWLAN RCoax cable 2.4

IWLAN RCoax cable 5

Omni antenna, 0 dBi

6GK5 795-4MA00-0AA3

6GK5 792-4DN00-0AA6

6GK5 793-4MN00-0AA6

6XV1875-2A

6XV1875-2D

SCALANCE W760/W720

26 Operating Instructions, 07/2013, C79000-G89xx-C322-01

6.1

Technical specifications

SCALANCE W761/W722/W721

Attachment to Industrial Ethernet

Quantity

Design

RJ-45 jack

autosensing, floating

Transmission speed

10 / 100 Mbps

Permitted cable lengths (Ethernet)

(Alternative combinations per length range) *

Wireless interface

Quantity

Design

R-SMA female

Impedance

50 Ω nominal

4920 ... 5875 MHz

Properties 10/100BASE-T, IEEE 802, half duplex/full duplex, autocrossover, autonegotiation,

0 ... 55 m

0 ... 85 m

0 ... 100 m

Antenna connector

• Max. 55 m IE TP Torsion Cable with IE FC RJ45 Plug 180

• Max. 45 m IE TP Torsion Cable with IE FC RJ45 + 10 m TP Cord via IE FC RJ45 Outlet

• Max. 85 m IE FC TP Marine/Trailing/Flexible/FRNC/Fe stoon/Food Cable with IE FC RJ45 Plug 180

• Max. 75 m IE FC TP Marine/Trailing/Flexible/FRNC/Fe stoon/Food Cable + 10 m TP Cord via IE FC RJ45 Outlet

• Max. 100 m IE FC TP Standard Cable with IE FC RJ45 Plug 180

• Max. 90 m IE FC TP Standard Cable + 10 m TP Cord via IE FC RJ45 Outlet

Frequency range 2412 ... 2500 MHz

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Technical data

SCALANCE W761/W722/W721

Electrical data

Supply voltage

24 VDC Safe Extra Low Voltage (SELV)

Permitted range

19.2 to 28.8 VDC

Design

Terminal block, 3 terminals

Properties

Electrically isolated, non-redundant design

Fusing

2.5 A / 24 VDC

Typical

150 mA

Maximum

150 mA

Typical

3.6 W

Maximum

3.6 W

Permitted ambient conditions

installed horizontally

installed vertically

During operation

-40 ℃ to +70 ℃

During storage

-40 ℃ to +70 ℃

During transportation

-40 ℃ to +70 ℃

Relative humidity

During operation

≤ 95% at 25 °C, no condensation

ambient temperature

Contaminant concentration

According to IEC 60721

Design, dimensions and weight

Degree of protection

IP20

Weight

125 g

Dimensions (W x H x D)

72 x 133 x 50 mm

Installation options

Installation on a DIN rail

Other properties

MTBF

6.1 Technical specifications

Power supply

Current consumption

Power loss at 24 VDC

Ambient temperature During operation with the rack

During operation with the rack

Operating altitude During operation ≤ 2,000 m above sea level at max. 60 °C

0 ℃ to +55 ℃

SCALANCE W760/W720

28 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Technical data

6.2

Dimensional drawing

6.2 Dimensional drawing

Dimensions are given in [mm].

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Technical data

6.2 Dimensional drawing

SCALANCE W760/W720

30 Operating Instructions, 07/2013, C79000-G89xx-C322-01

CE conformity

The products

SIMATIC NET SCALANCE W761-1 RJ-45 SIMATIC NET SCALANCE W722-1 RJ-45 SIMATIC NET SCALANCE W721-1 RJ-45 in the version put into circulation by Siemens AG conform to the regulations of the following European directive:

● 99/5/EC Directive of the European Parliament and of the Council on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity with the basic requirement of the directive is attested by adherence to the following standards:

● EN 60950-1 Information technology equipment - Safety - Part 1: General requirements

● EN 301489-1 V1.9.2 Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic compatibility for radio equipment and services - Part 1 : Common technical requirements (V1.8.1).

● EN 301489-17 V2.2.1 Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic compatibility for radio equipment and services - Part 17: Specific conditions for 2.4 GHz broadband transmission systems and 5 GHz high performance RLAN equipment

● EN 300328 V1.7.1 Electromagnetic Compatibility and Radio Spectrum Matters (ERM); — Broadband transmission systems — Data transmission equipment operating in the 2.4 GHz ISM band and using spread spectrum modulation techniques — Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

● EN 301893 V1.7.1 Broadband Radio Access Networks (BRAN) - 5 GHz high performance RLAN Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive

● EN 62311 Assessment of electronic and electrical equipment related to human exposure restrictions for electro-magnetic fields (0 Hz – 300 GHz)

● 1999/519/EC Council recommendation on the limitation of exposure of the general public to electromagnetic fields (0 Hz to 300 GHz)

Devices connected to the system must meet the relevant safety regulations.

The EC Declaration of Conformity is available for the responsible authorities according to the above-mentioned EC Directive at the following address:

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Approvals

Note

The specified approvals apply only when the correspondi

Certification ID

Type

Certification ID

Order number US variant

W761-1 RJ-45

ELN-W1-RJ-E1

6GK5761-1FC00-0AB0

W722-1 RJ-45

ELN-W1-RJ-E1

6GK5722-1FC00-0AB0

W721-1 RJ-45

ELN-W1-RJ-E1

6GK5721-1FC00-0AB0

Siemens Aktiengesellschaft Industry Sector Postfach 4848 D-90026 Nürnberg

This declaration certifies compliance with the directives named above, but does not guarantee any specific properties.

ng mark is printed on the product.

The following table shows the product names and the corresponding certification ID:

Order number

6GK5761-1FC00-0AA0

6GK5722-1FC00-0AA0

6GK5721-1FC00-0AA0

SCALANCE W760/W720

32 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Approvals

ATEX (explosion protection directive)

WARNING

A5E00352937

When using SIMATIC NET products in hazardous area zone 2, make absolutely sure that the associated conditions in the following document are adhered to:

"Use of subassemblies/modules in a Zone 2 Hazardous Area".

This document can be found on the CD that ships with the device or on the Internet at the following URL:

http://support.automation.siemens.com/WW/

> Product Support > Industrial Communication

Enter the document identification number

as the search term.

SIMATIC NET products meet the requirements of the EC directive:94/9/EC "Equipment and Protective Devices for Use in Potentially Explosive Atmospheres".

ATEX classification:

II 3 G Ex nA IIC T4 Gc

KEMA 07ATEX0145 X

The products meet the requirements of the following standards:

● EN 60079-15: 2010 (electrical apparatus for potentially explosive atmospheres; Type of protection "n")

● EN 60079-0: 2009 (Explosive atmospheres - Part 0: Equipment - General requirements)

The product meets the requirements of the standards:

● Factory Mutual Approval Standard Class Number 3611

● FM Hazardous (Classified) Location Electrical Equipment:

Non Incendive / Class I / Division 2 / Groups A,B,C,D / T4 and Non Incendive / Class I / Zone 2 / Group IIC / T4

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Approvals

cULus Approval Hazardous Location

cULus Listed I. T. E. FOR HAZ. LOC.

Underwriters Laboratories Inc. complying with

● UL 60950-1 (Information Technology Equipment)

● ANSI/ISA 12.12.01-2007

● CSA C22.2 No. 213-M1987

Approved for use in Cl. 1, Div. 2, GP A, B, C, D T4 Cl. 1, Zone 2, GP IIC T4

Report no. E240480

SCALANCE W760/W720

34 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Approvals

FCC approval

Notice

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Professional Installation Notice:

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

___________________________________________________________________________

Changes or modifications made to this equipment not expressly approved by SIEMENS may void the FCC authorization to operate this equipment. ___________________________________________________________________________

IEEE 802.11b or g operation of this product in the USA is firmware-limited to channels 1 through 11.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

● Consult the dealer or an experienced radio/TV technician for help.

___________________________________________________________________________

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.

___________________________________________________________________________

To comply with FCC part 15 rules in the United States, the system must be professionally installed to ensure compliance with the Part 15 certification. It is the responsibility of the operator and professional installer to ensure that only certified systems are deployed in the United States. The use of the system in any other combination (such as co-located antennas transmitting the same information) is expressly forbidden.

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Approvals

CSA Information Technology Equipment

CSA Certification Mark

Canadian Standard Association CSA C22.2 No. 60950-1-03

RSS-210 of Industry Canada

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This radio transmitter (IC: 267AAoperat

e with the antenna types listed in section 5.6 wit

required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

That the device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems.

Users should also be cautioned to take note that high power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz and these radars could cause interference and/or damage to LE-LAN devices.

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

ELN1V1) has been approved by Industry Canada to

h the maximum permissible gain and

C-TICK

The product meets the requirements of the AS/NZS 2064 standard (Class A).

SCALANCE W760/W720

36 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Approvals

7.1

National approvals

Column

Meaning

Country

Mode

IEEE 802.11 standard and the TPC and / or DFS functionality, where required

Channel

MHz

Frequency

PWR (EIRP)

Maximum permitted effective isotropic radiated power

Use

Permitted use indoors and / or outdoors

7.1 National approvals

The following table lists the countries in which the SCALANCE W700 product is approved. The diamond symbol (♦) identifies all countries for which there was no approval at the time these operating instructions were written.

The current status of the approvals can be found on the Internet at the following address:

http://www.siemens.com/funkzulassungen

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Approvals

Country

Mode

MHz

PWR (EIRP)

Use

2472

5240

5320

116

5580

7.1 National approvals

Belgium Bulgaria Denmark Germany Estonia Finland France Greece Great Britain Ireland Iceland Italy Croatia Latvia Liechtenstein Lithuania Luxembourg Malta Macedonia Netherlands Norway Austria Poland Portugal Romania Sweden Switzerland Serbia Slovakia Slovenia Spain Czech Republic Turkey Hungary Cyprus

11g 11n 1

11a 11n

TPC

11h 11n

DFS + TPC

100

132

140

2412

5180

5260

5500

5660

5700

100 mW Indoor + outdoor

200 mW Indoor only

1000 mW Indoor + outdoor

SCALANCE W760/W720

38 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Approvals

Country

Mode

MHz

PWR (EIRP)

Use

2472

5240

5320

165

5825

2472

5320

140

5700

165

5825

2472

165

5825

7.1 National approvals

Australia

Brazil 11g 11n 1

11g 11n 1

11a 11n

TPC

11h 11n

DFS + TPC

11a 11n

TPC

11a 11n

TPC

11a 11n

TPC

149

100

2412

5180

5260

5745

2412

5180

5500

100 mW Indoor + outdoor

200 mW Indoor only

400 mW Indoor + outdoor

4000 mW Indoor + outdoor

200 mW Indoor only

1000 mW Indoor + outdoor

149

China 11g 11n 1

11a 11n

TPC

149

5745

2412

5745

4000 mW Indoor + outdoor

100 mW Indoor + outdoor

2000 mW Indoor + outdoor

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Approvals

Country

Mode

MHz

PWR (EIRP)

Use

2472

5040

5060

5080

5240

5320

140

5799

196

4980

2412

100 mW

Indoor + outdoor

2457

2462

100 mW

Indoor + outdoor

5240

165

5825

7.1 National approvals

Japan

Canada Peru Puerto Rico USA

11g 11n 1

11a

TPC

11a 11n 36

11h 11n

DFS + TPC

11a

TPC

11g 11n

100

184

2412

5180

5260

5500

4920

2417

200 mW Indoor + outdoor

200 mW Indoor only

200 mW Indoor + outdoor

11a 11n

TPC

149

5180

5745

200 mW Indoor only

400 mW Indoor + outdoor

SCALANCE W760/W720

40 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Index

SCALANCE W760/W720 Operating Instructions, 07/2013, C79000-G89xx-C322-01

Siemens ELN1V1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SCALANCE W760/W720

Contents

Information on the Operating Instructions

Security information

2.2 Structure of the type designation

Components of the product

LED display

3.3 Reset button

Access restriction due to high housing temperature

4.2 Installing on a DIN rail / removing

Lightning protection, power supply and grounding

5.2 Power supply

5.3 Ethernet

5.4 Suitable cables for power supply and Ethernet

5.5 Antenna connectors

5.6 Suitable antenna cables and antennas

Technical specifications

6.2 Dimensional drawing

7.1 National approvals
