Products & Accessories Catalogue 2008
Outdoor mo
tion
detection & tracking
Video switching
Digital recording
V
ideo output
LAN
SISTORE CX EDS
Up to 8 surveillance channels
SIMATRIX 164
16 video inputs 4 video outputs IVM interface
16 alarm inputs RS232
SIMATRIX 648
Expandable up to 64 video inputs 8 video outputs IVM interface
Max. 64 alarm inputs RS232
SIMATRIX SYS
Expandable up to 255 video inputs 64 video outputs IVM interface
Max. 256 alarm inputs RS232
SISTORE AX
4/9/16 video inputs, up to 200 ips Up to 4 audio channels PTZ control Export via DVD writer IVM connection
SISTORE MX Hybrid video recorder
4~32 video inputs Up to 32 IP camera inputs Up to 200 ips 2/4 monitor outputs 1 audio channel PTZ control Export via DVD writer IVM connection
SISTORE CX
Real-time video codec 4/8 video inputs, 200 ips (8 x 25 ips) 2/4 monitor outputs PTZ control IVM connection
SIMATRIX NEO
Expandable up to 224 video inputs 32 video outputs Modular and scalable system Simultaneous multi-protocol-telemetry Ethernet connection IVM interface
Max. 256 alarm inputs RS232
Video input
Video input
Video input
Video input
Video input
TFT LCD display monitor
DVR remote access software
Interactive Video Management software

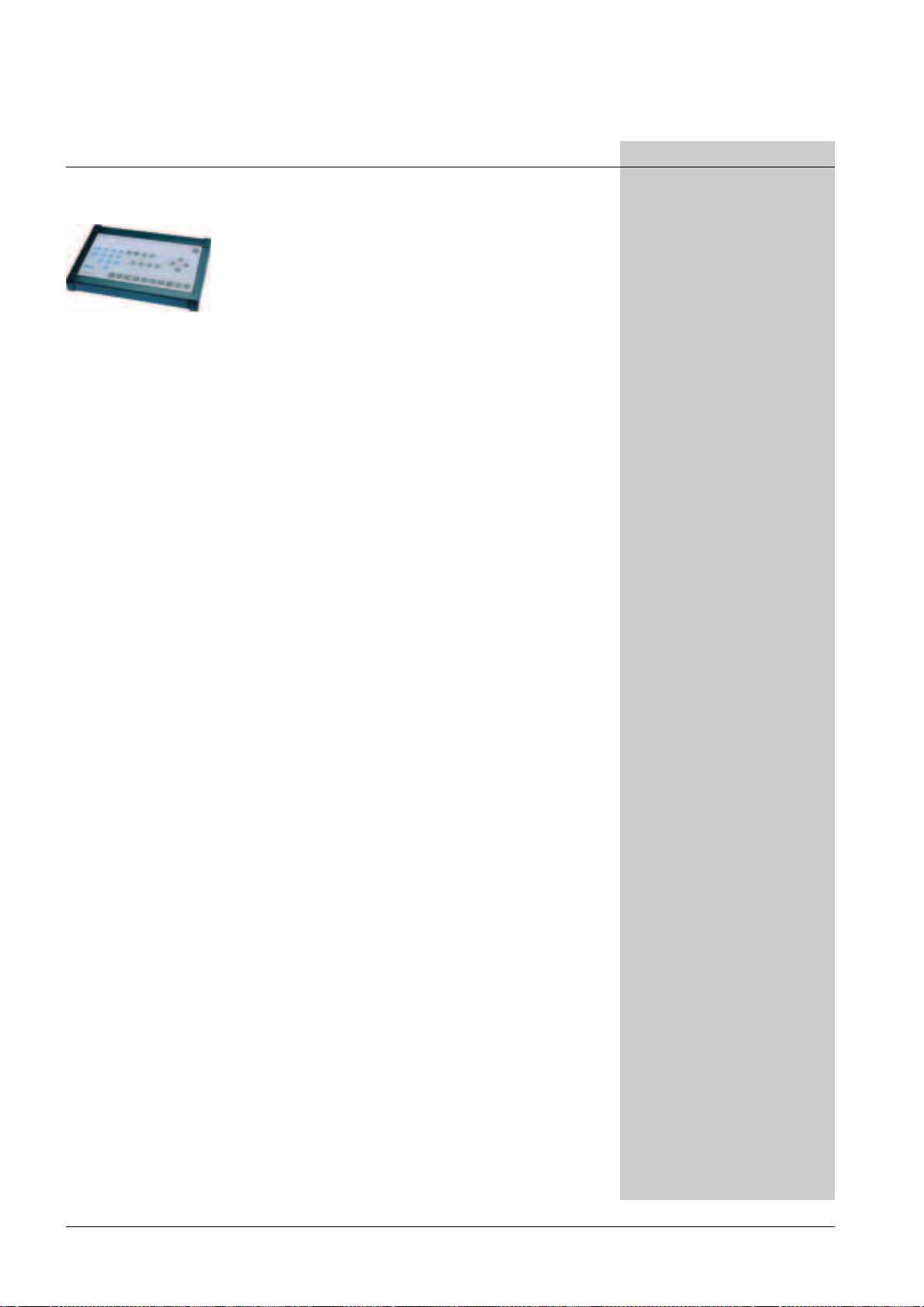

Remote keyboard CKA3210
Remote keyboard CKA4820
Monit
oring and control
Video input
Video input
IP input
Video input
LAN
Video (transmitted)
Table of Contents
Cameras and Domes............................................................................................................. 1-1
Cameras Overview ........................................................................................................... 1-2
Monochrome Cameras ..................................................................................................... 1-4
Colour Cameras ............................................................................................................... 1-6
Day-Night Cameras ........................................................................................................ 1-14
Camera Mounts ............................................................................................................. 1-20
Fixed Domes Overview................................................................................................... 1-22
Fixed Domes .................................................................................................................. 1-24
Speed Domes Overview ................................................................................................. 1-35
Functional Domes .......................................................................................................... 1-36
Dome Mounts and Accessories ....................................................................................... 1-41
PIR Cameras................................................................................................................... 1-51
IP Camera Overview ....................................................................................................... 1-54
IP Cameras..................................................................................................................... 1-55
Accessories Cameras and Domes .................................................................................... 1-59
Lenses .................................................................................................................................. 2-1
Fixed Focal Length Lenses ................................................................................................ 2-2
Varifocal Length Lenses ................................................................................................... 2-5
Zoom Lenses ................................................................................................................... 2-9
Housings and Mounts .......................................................................................................... 3-1
Outdoor Housings............................................................................................................ 3-2
Housing Mounts .............................................................................................................. 3-8
Spares Housings and Mounts ......................................................................................... 3-12
Accessories Housings and Mounts .................................................................................. 3-13
Pan/Tilt and Telemetry Equipment....................................................................................... 4-1
Pan/Tilt Telemetry Controller ............................................................................................ 4-2
Pan/Tilt Heads ..................................................................................................................4-4
Pan/Tilt Telemetry Receivers/Drivers ................................................................................. 4-7
Pan/Tilt Mounts.............................................................................................................. 4-13
Accessories Pan/Tilt and Telemetry Equipment................................................................ 4-15
Spare Parts Pan/Tilt and Telemetry Equipment ................................................................ 4-16
Illumination .......................................................................................................................... 5-1
LED Lighting ....................................................................................................................5-2
Accessories Illumination ................................................................................................... 5-3
Explosion-Proof Housings and Mounts ................................................................................ 6-1
Explosion-Proof Housings................................................................................................. 6-2
Explosion-Proof Pan/Tilt Units........................................................................................... 6-6
Receivers ......................................................................................................................... 6-9
Accessories Mounts....................................................................................................... 6-10
Video Transmission ..............................................................................................................7-1
Twisted Pair/Coax............................................................................................................. 7-2
Accessories Video Transmission........................................................................................ 7-4
Video Motion Detection ....................................................................................................... 8-1
Video Motion Detection ................................................................................................... 8-2
Quads‚ Split Screens and Video Distribution ........................................................................ 9-1
Monochrome and Colour Quads....................................................................................... 9-2
Amplifiers ........................................................................................................................ 9-3
Matrix Switching Systems .................................................................................................. 10-1
Matrix Switchers ............................................................................................................ 10-2
Accessories Matrix Switching Systems .......................................................................... 10-12
Recording Systems ............................................................................................................. 11-1
Digital Video Recorders .................................................................................................. 11-2
Accessories Recording Systems .................................................................................... 11-13
Network Video ............................................................................................................. 11-15
1© Siemens Building Technologies Group
Table of Contents
Monitors‚ Displays and Mounts .......................................................................................... 12-1
TFT Monitors Overview .................................................................................................. 12-2
CRT Monitors Overview .................................................................................................. 12-3
Monochrome Monitors .................................................................................................. 12-4
Colour Monitors ............................................................................................................. 12-5
LCD-Displays .................................................................................................................. 12-7
Monitor Mounts ........................................................................................................... 12-11
Video Software ................................................................................................................... 13-1
IVM Software ................................................................................................................. 13-2
SISTORE MX NVS Network Video Software ...................................................................... 13-3
System Diagrams ................................................................................................................ 14-1
Hints and Tips ..................................................................................................................... 15-1
Glossary .............................................................................................................................. 16-1
2 © Siemens Building Technologies Group
Cameras and Domes
Attractive, powerful cameras for any area of application…
Only a camera optimally adjusted to prevailing light conditions can deliver clear, crisp images. Siemens has met this challenge at the highest level and created a range of cameras and fixed domes to cover all customer needs. The cameras have been designed to meet every application, for indoor and outdoor, from simple monochrome cameras to high-performance colour cameras, as well as specialised Wide Dynamic day-night cameras. Cameras by Siemens can be used for monitoring in public areas, for traffic monitoring, in tunnels, casinos, train stations, airports and many other applications. With their uniformly attractive design, the cameras offer the sharpest image in any environment.
Cameras for all applications Complete range of fixed domes Models include 1/4”, 1/3” and 1/2” cameras Remote software setup available on selected models Day-night, colour and monochrome models
Cameras and Domes
Cameras Overview
1-2 © Siemens Building Technologies Group
Cameras and Domes
Cameras Overview
1
1-3© Siemens Building Technologies Group
Cameras and Domes

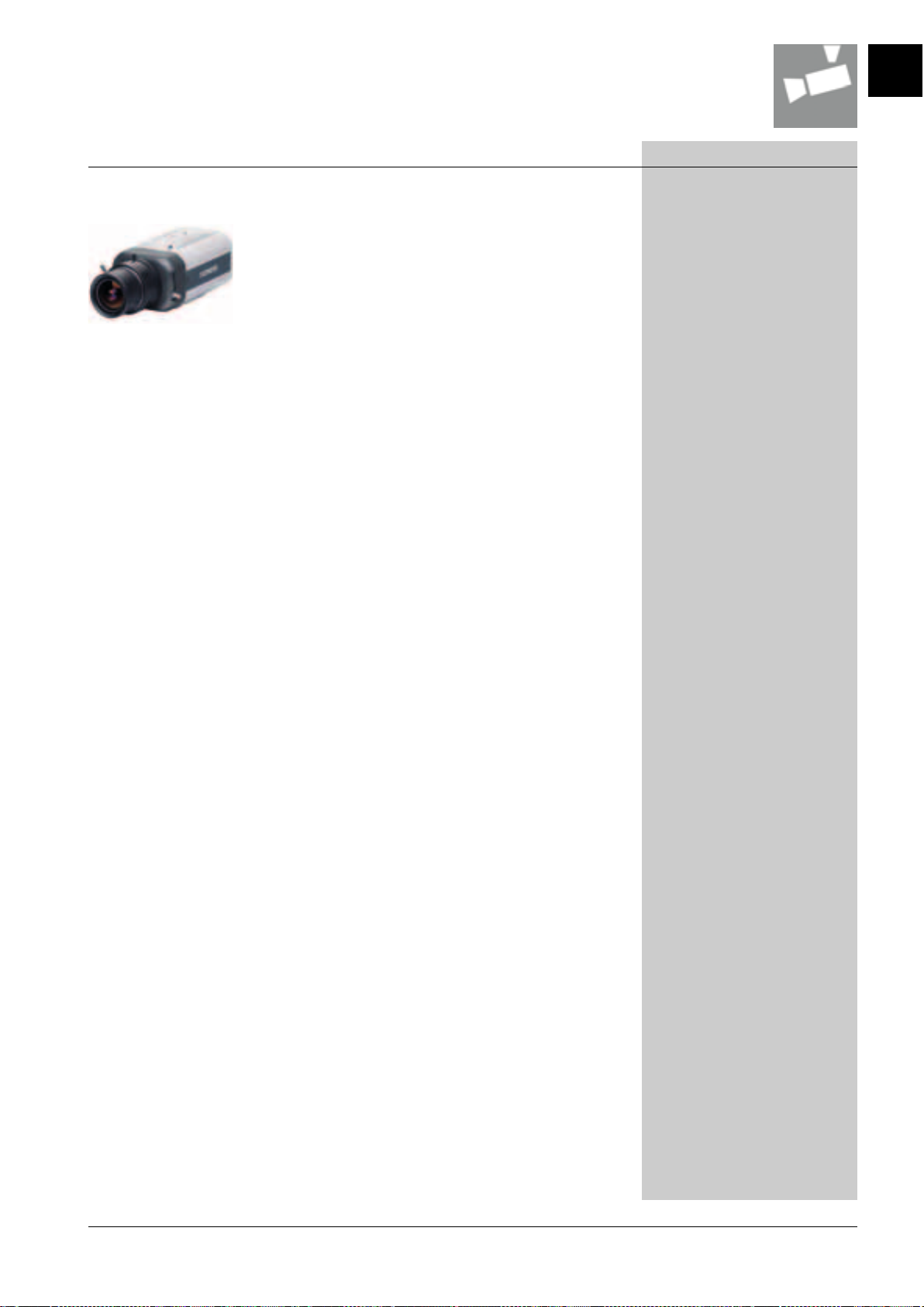

Monochrome Cameras
Type Order No.
CCBB1225-LC
1/2" DSP Monochrome Wide Dynamic OSD Camera 580 TVL‚ CCIR‚ 12 V DC / 24 V AC
High resolution 1/2" monochrome camera including all features of the newest camera and chip technology with improved infrared sensitivity. Advanced features include 49-zone programmable back-light compen­sation‚ wide dynamic‚ peak-white inversion and adjustable electronic shutter‚ ensuring the best images all the time. The camera includes a built-in ID system for addressing (via RS485 or TTL) and setup is via on­screen display menu‚ or via remote setup software. An alarm input trig­gers up to 4 digital images‚ stored in the camera and remotely accessi­ble. Supplied with operation and parameterisation software.
Television standard CCIR: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally) Pixels 752 (H) x 582 (V) Synchronisation Internal: crystal
External: line-lock‚ video - or HD/VD Horizontal resolution 580 TV lines Minimum illumination 0.0037 Lux
(F1.2‚ AGC 39 dB) at 50 IRE S/N ratio > 50 dB Dynamic range 60 dB Gain control Selectable (ON/OFF)‚
gain (up to 36 dB) Electronic shutter Automatic: 1/50 s - 1/100000 s
Fixed: 8 s - 1/30000 s
Off: 1/50 s Infrared sensitive Up to 880 nm Back-light compensation Selectable (ON/OFF); up to 49 win-
dows Camera titles 24 characters Lens mount CS (C-mount adapter supplied) Auto-iris lens control Direct drive or Video drive Dimensions (W x H x D) 74 x 60 x 125 mm Power requirements 12 V DC / 24 V AC‚ 50 Hz Power consumption 5 W Weight 0.40 kg
2GF1081-8EA
1-4 © Siemens Building Technologies Group
Cameras and Domes
Monochrome Cameras
Type Order No.
1
CCBB1345..
1/3" DSP Monochrome DIP Switch Camera 580 TVL
CCBB1345 is a high resolution monchrome camera using the latest CCD technology and advanced digital signal processing techniques to pro­vide crisp‚ aperture corrected images for surveillance applications requiring high resolution images. Setup is via DIP switches.
Television standard CCIR: 625 lines‚ 50 fields/s‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Synchronisation Internal: crystal
External: line-lock Pixels 752 (H) x 582 (V) Horizontal resolution 580 TV lines Minimum illumination 0.15 Lux (F1.2‚ AGC 38 dB) at 50 IRE S/N ratio > 50 dB Gain control Max. 38 dB Infrared sensitive Up to 880 nm Back-light compensation Selectable (ON/OFF) Lens mount CS (C-mount adapter supplied) Auto-iris lens control Direct drive or Video drive Electronic shutter Automatic: 1/50 s - 1/100000 s
Off: 1/50 s Dimensions (W x H x D) 72 x 63 x 122 mm Power consumption 3 W Weight 0.45 kg
2GF1081-8EA
CCBB1345-LC
CCBB1345-MC
CCBB1345-LE
1/3" DSP Monochrome DIP Switch Camera 580 TVL‚ CCIR‚ 12 V DC / 24 V AC
As CCBB1345.. for technical details‚ but with the following differences:
Power requirements 12 V DC / 24 V AC‚ 50 Hz Weight 0.45 kg
1/3" DSP Monochrome DIP Switch Camera 580 TVL‚ CCIR‚ 90 D 260 V AC
As CCBB1345.. for technical details‚ but with the following differences:
Power requirements 90 V AC D 260 V AC‚ 50 Hz Weight 0.55 kg
1/3" DSP Monochrome DIP Switch Camera 580 TVL‚ EIA‚ 12 V DC / 24 V AC
As CCBB1345.. for technical details‚ but with the following differences:
Television standard EIA: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally) Pixels 768 (H) x 494 (V) Electronic shutter Automatic: 1/60 s - 1/100000 s
Off: 1/60 s Power requirements 12 V DC / 24 V AC‚ 60 Hz Weight 0.45 kg
2GF1083-8GA
2GF1083-8GA
2GF1083-8GC
1-5© Siemens Building Technologies Group
Cameras and Domes
Colour Cameras
Type Order No.
CCBC1225-LP
1/2" DSP Colour Wide Dynamic OSD Camera 480 TVL‚ PAL‚ 12 V DC / 24 V AC
High resolution 1/2" colour camera with advanced features including 49-zone programmable back-light compensation‚ wide dynamic‚ peak­white inversion and adjustable electronic shutter‚ ensuring the best images all the time. The camera includes a built-in ID system for addressing (via RS485 or TTL) and setup is via on-screen display menu‚ or via remote setup software. An alarm input triggers up to 4 digital images‚ stored in the camera and remotely accessible. Supplied with operation and parameterisation software.
Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally) Pixels 752 (H) x 582 (V) Synchronisation Internal: crystal
External: line-lock‚ video - or HD/VD Horizontal resolution 480 TV lines Minimum illumination 0.11 Lux (F1.2‚ AGC 39 dB) at 50 IRE S/N ratio > 50 dB Dynamic range 60 dB Gain control Selectable (ON/OFF)‚
gain (up to 36 dB) Electronic shutter Automatic: 1/50 s - 1/100000 s
Fixed: 8 s - 1/30000 s
Off: 1/50 s Back-light compensation Selectable (ON/OFF)‚
up to 49 windows Camera titles 24 characters Lens mount CS (C-mount adapter supplied) Auto-iris lens control Direct drive or Video drive Dimensions (W x H x D) 74 x 60 x 125 mm Power requirements 12 V DC / 24 V AC‚ 50 Hz Power consumption 5 W Weight 0.45 kg
2GF1181-8EA
1-6 © Siemens Building Technologies Group
Cameras and Domes
Colour Cameras
Type Order No.
1
CCBC1320..
1/3" DSP Colour OSD Camera 330 TVL
CCBC1320 is a cost effective standard resolution colour camera for gen­eral surveillance applications. Auto-white balance control coupled with an automatic electronic shutter and automatic gain control ensures good quality images in normal lighting conditions. Features also include camera titles‚ colour to monochrome switchover and all setup is via intuitive on-screen display menus.
Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Synchronisation Internal: crystal
External: Line-lock Pixels 500 (H) x 582 (V) Horizontal resolution 330 TV lines Minimum illumination 0.4 Lux (F1.2‚ AGC On) at 50 IRE S/N ratio > 50 dB Gain control 5 levels selectable: OFF / 12 dB / 18
dB / 24 dB / 30 dB / 38 dB (sens-up) White balance control Auto‚ 2500z9500° K‚
2000z18‚000° K Back-light compensation 6 zones selectable Camera titles 16 characters Lens mount CS (C-mount adapter supplied) Auto-iris lens control Direct drive or Video drive Electronic shutter Manual: 1 of 8 steps 1/50 to
1/10‚000 s‚ Auto: AES 1/50 to
1/100‚000 s Dimensions (W x H x D) 70 x 58 x 117 Power consumption 3.8 W
CCBC1320..
CCBC1320-LP
CCBC1320-MP
1/3" DSP Colour OSD Camera 330 TVL‚ PAL‚ 12 V DC / 24 V AC
As CCBC1320.. for technical details‚ but with the following differences:
Power requirements 12 V DC / 24 V AC‚ 50 Hz Weight 0.60 kg
1/3" DSP Colour OSD Camera 330 TVL‚ PAL‚ 90 V AC D 260 V AC
As CCBC1320.. for technical details‚ but with the following differences:
Power requirements 90 V AC D 260 V AC‚ 50 Hz Weight 0.70 kg
2GF1183-8AA
2GF1183-8CA
1-7© Siemens Building Technologies Group
Cameras and Domes
Colour Cameras
Type Order No.
CCBC1320-LN
CCBC1325..
1/3" DSP Colour OSD Camera 330 TVL‚ NTSC‚ 12 V DC / 24 V AC
As CCBC1320.. for technical details‚ but with the following differences:
Television standard NTSC: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally) Pixels 510 (H) x 492 (V) Electronic shutter Manual: 1 of 8 steps 1/60 to
1/10‚000 s‚ Auto: AES 1/60 to
1/100‚000 s Power requirements 12 V DC / 24 V AC‚ 60 Hz Weight 0.41 kg
1/3" DSP Colour OSD Camera 480 TVL
CCBC1325 is a full-featured high resolution colour camera using the lat­est CCD technology and advanced digital signal processing techniques to provide crisp‚ aperture corrected images for surveillance applications requiring high resolution images. Features also include camera titles‚ colour to monochrome switchover and all setup is via intuitive on­screen display menus.
Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Synchronisation Internal: crystal
External: Line-lock Horizontal resolution 480 TV lines Minimum illumination 0.6 Lux (F1.2‚ AGC On) at 50 IRE S/N ratio > 50 dB Gain control 5 levels selectable: OFF / 12 dB / 18
dB / 24 dB / 30 dB / 38 dB (sens-up) White balance control Auto‚ 2500z9500° K‚
2000z18‚000° K Back-light compensation 6 zones selectable Camera titles 16 characters Lens mount CS (C-mount adapter supplied) Auto-iris lens control Direct drive or Video drive Electronic shutter Manual: 1 of 8 steps 1/50 to
1/10‚000 s‚ Auto: AES 1/50 to
1/100‚000 s Dimensions (W x H x D) 70 x 58 x 117 mm Power consumption 3.8 W
2GF1183-8AB
CCBC1325..
CCBC1325-LP
CCBC1325-MP
1-8 © Siemens Building Technologies Group
1/3" DSP Colour OSD Camera 480 TVL‚ PAL‚ 12 V DC / 24 V AC
As CCBC1325.. for technical details‚ but with the following differences:
Power requirements 12 V DC / 24 V AC‚ 50 Hz Weight 0.60 kg
1/3" DSP Colour OSD Camera 480 TVL‚ PAL‚ 90 V AC D 260 V AC
As CCBC1325.. for technical details‚ but with the following differences:
Power requirements 90 V AC D 260 V AC‚ 50 Hz Weight 0.70 kg
2GF1183-8BA
2GF1183-8DA
Cameras and Domes
Colour Cameras
Type Order No.
1
CCBC1325-LN
CCBC1337..
1/3" DSP Colour OSD Camera 480 TVL‚ NTSC‚ 12 V DC / 24 V AC
As CCBC1325.. for technical details‚ but with the following differences:
Television standard NTSC: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally) Pixels 768 (H) x 492 (V) Electronic shutter Manual: 1 of 8 steps 1/60 to
1/10‚000 s‚ Auto: AES 1/60 to
1/100‚000 s Power requirements 12 V DC / 24 V AC‚ 60 Hz Weight 0.41 kg
1/3" DSP Colour DIP Switch Camera 540 TVL
CCBC1337 is a super high resolution colour camera using the latest CCD technology and advanced digital signal processing techniques to pro­vide crisp‚ aperture corrected images for surveillance applications requiring the highest resolution images. All camera adjustments are performed via easy-to-use DIP switches located behind a discrete side panel.
Television standard PAL: 625 lines‚ 50 fields/s‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Synchronisation Internal: crystal
External: Line-lock Pixels 752 (H) x 582 (V) Horizontal resolution 540 TV lines Minimum illumination 0.5 Lux (F1.4‚ AGC 30 dB) at 50 IRE S/N ratio > 50 dB Gain control normal / 30 dB (TURBO) White balance control Auto Back-light compensation 6 windows selectable: center 1‚
center 2‚ up half‚ low half‚ door low‚
door high Lens mount CS (C-mount adapter supplied) Auto-iris lens control Direct drive or Video drive Electronic shutter Automatic: 1/50 s - 1/100000 s
Off: 1/50 s Dimensions (W x H x D) 72 x 63 x 122 mm
2GF1183-8BB
CCBC1337..
CCBC1337-LP
CCBC1337-MP
1/3" DSP Colour DIP Switch Camera 540 TVL‚ PAL‚ 12 V DC / 24 V AC
As CCBC1337.. for technical details‚ but with the following differences:
Power requirements 12 V DC / 24 V AC‚ 50 Hz Power consumption 3.5 W Weight 0.45 kg
1/3" DSP Colour DIP Switch Camera 540 TVL‚ PAL‚ 90 V AC D 260 V AC
As CCBC1337.. for technical details‚ but with the following differences:
Power requirements 90 V AC D 260 V AC‚ 50 Hz Power consumption 4.5 W Weight 0.55 kg
2GF1183-8EC
2GF1183-8EB
1-9© Siemens Building Technologies Group
Cameras and Domes
Colour Cameras
Type Order No.
CCBC1345..
CCBC1345-LP
1/3" DSP Colour DIP Switch Camera 480 TVL
CCBC1345 is a high resolution colour camera using the latest CCD tech­nology and advanced digital signal processing techniques to provide crisp‚ aperture corrected images for surveillance applications requiring high resolution images. Setup is via DIP switches.
Television standard PAL: 625 lines‚ 50 fields/s‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Synchronisation Internal: crystal
External: Line-lock Pixels 752 (H) x 582 (V) Horizontal resolution 480 TV lines Minimum illumination 0.6 Lux (F1.2‚ AGC 38 dB) at 50 IRE S/N ratio > 50 dB Gain control Max 38 dB White balance control Auto Back-light compensation Selectable (ON/OFF) Lens mount CS (C-mount adapter supplied) Auto-iris lens control Direct drive or Video drive Electronic shutter Automatic: 1/50 s - 1/100000 s
Off: 1/50 s Dimensions (W x H x D) 72 x 63 x 122 mm Power consumption 4 W
1/3" DSP Colour DIP Switch Camera 480 TVL‚ PAL‚ 12 V DC / 24 V AC
As CCBC1345.. for technical details‚ but with the following differences:
CCBC1345..
2GF1183-8GA
CCBC1345-MP
CCBC1345-LN
Power requirements 12 V DC / 24 V AC‚ 50 Hz Weight 0.45 kg
1/3" DSP Colour DIP Switch Camera 480 TVL‚ PAL‚ 90 V AC D 260 V AC
As CCBC1345.. for technical details‚ but with the following differences:
Power requirements 90 V AC / 24 V AC‚ 50 Hz Weight 0.55 kg
1/3" DSP Colour DIP Switch Camera 480 TVL‚ NTSC‚ 12 V DC / 24 V AC
As CCBC1345.. for technical details‚ but with the following differences:
Television standard NTSC: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15‚734 Hz (horizontally) Pixels 768 (H) x 494 (V) Electronic shutter Automatic: 1/60 s - 1/100000 s
Off: 1/60 s Power requirements 12 V DC / 24 V AC‚ 60 Hz Weight 0.45 kg
2GF1183-8GB
2GF1183-8GC
1-10 © Siemens Building Technologies Group
Cameras and Domes
Colour Cameras
Type Order No.
1
CCWC1345..
1/3" CMOS PIXIM Ultra Wide Dynamic Colour OSD Camera
CCWC1345 is a 500 TVL high resolution colour camera using the latest CMOS Image sensor and 32 Bit DPS (Digital Pixel System‚ PIXIM D2500) techniques to provide crisp‚ aperture corrected images for surveillance applications requiring detailed images even under extreme or difficult illumination conditions.
Television standard PAL: 2:1 interlace V: 50 Hz‚
H: 15.625 Hz NTSC: 2:1 interlace V: 59.94 Hz‚ H: 15.734 Hz
Image sensor 1/3” CMOS‚ PIXIM* D2500‚
720 x 540 active pixels
Synchronisation Internal/line lock selectable (AC
only)
Horizontal resolution > 500 TV lines (horizontal) @ Y/C TV
lines
Minimum illumination 0.5 lux @F=1.4
(AGC 30 dB‚ 50 IRE video output) S/N ratio > 50 dB Dynamic range 120 dB Gain control Selectable 0‚ 6‚ 12‚ 18‚
24 up to 30 dB White balance control AUTO: range depending on preset
mode.
Manual: 40 steps by push button for
R and B Back-light compensation 6 areas selectable Operating temperature range -10° C to +55° C Dimensions (W x H x D) 72 x 63 x 122 mm
CCWC1345..
CCWC1345-LX
CCWC1345-MX
1/3" CMOS PIXIM Ultra Wide Dynamic OSD Colour Camera‚ 500 TVL‚ PAL/NTSC‚ 12 V DC / 24 V AC
As CCWC1345.. for technical details‚ but with the following differences:
Power requirements 12 V DC / 24 V AC Power consumption 4 W Weight 0.55 kg
1/3" CMOS PIXIM Ultra Wide Dynamic OSD Colour Camera‚ 500 TVL‚ PAL/NTSC‚ 90 D 260 V AC
As CCWC1345.. for technical details‚ but with the following differences:
Power requirements 100 D 240 V AC ± 10%‚ 50/60 Hz Power consumption 4.5 W Weight 0.55 kg
2GF1183-8HA
2GF1183-8HB
1-11© Siemens Building Technologies Group
Cameras and Domes
Colour Cameras
Type Order No.
CCAC1415-LPI
1/4" CCD High Resolution Colour OSD Camera PAL‚ Indoor Use‚ 480 TVL‚ 22x Optical Zoom‚ Auto-focus‚ 12 V DC / 24 V AC
The CCAC1415-LPI is a high resolution colour camera with built-in auto focus zoom lens with max. 242 x zoom. The camera is designed for indoor use under variable lighting conditions.
Television standard PAL: 625 lines‚ 50 fields/s‚
50 Hz (vertically)‚
15.625 Hz (horizontally) Pixels 795 (H) x 596 (V) Image sensor 1/4" SONY Super HAD CCD Synchronisation Internal/external (line lock) Horizontal resolution 480 TV lines Minimum illumination 1.0 lux @ F=1.6 (AGC on‚ 30 IRE vid-
eo output) / Slow-Shutter: 0.02 lux
Zoom Optical zoom x22‚ digital zoom x11
(video AF) Focal length 3.9 D 85.8 mm Maximum relative aperture F1.6 (wide) D F3.7 (tele) Slow speed shutter x2 D x60 S/N ratio 52 dB (AGC off) Operating temperature range -10° C to +50° C Dimensions (W x H x D) 72 x 74 x 121.4 mm Power consumption 6.5 W Weight 0.40 kg
2GF1182-8AD
CCAC1415-LPO
1/4" CCD High Resolution Colour OSD Camera PAL‚ Outdoor Use‚ 480 TVL‚ 22x Optical Zoom‚ Auto-focus‚ 12 V DC / 24 V AC
The CCAC1415-LPO is a high resolution colour camera with built-in auto focus zoom lens with max. 242 x zoom. The camera is designed for outdoor use under variable lighting conditions.
Television standard PAL: 625 lines‚ 50 fields/s‚
50 Hz (vertically)‚
15.625 Hz (horizontally) Pixels 795 (H) x 596 (V) Image sensor 1/4" SONY Super HAD CCD Synchronisation Internal/external (line lock) Horizontal resolution 480 TV lines Minimum illumination 1.0 lux @ F=1.6 (AGC on‚ 30 IRE vid-
eo output) / Slow-Shutter: 0.02 lux
Zoom Optical zoom x22‚ digital zoom x11
(video AF) Focal length 3.9 D 85.8 mm Maximum relative aperture F1.6 (wide) D F3.7 (tele) Slow speed shutter x2 D x60 S/N ratio 52 dB (AGC off) Operating temperature range -10° C to +50° C Power consumption 6.5 W Dimensions (W x H x D) 120 x 120 x 185 mm Weight 1.50 kg
2GF1182-8AF
1-12 © Siemens Building Technologies Group
Camera features…
SHUTTER 1/50 BLC ON SYNC INT LEVEL IRIS LEVEL CONFIGURE CAM TITLE TITLE WHITE BAL ATW/MTW/SET
Slow / fast shutter speed
Too bright Too dark
Perfect view with Wide Dynamic On
EXIT CANCEL DEFAULT
On screen display menu
-
One screw easy back focus adjustment
Menu allows programming of six different modes of back light compensation
-
…for all applications.
Lens cable tray included top and bottom
Cameras and Domes
Day-Night Cameras
Type Order No.
CCBS1225-LP
1/2" DSP Day-Night Wide Dynamic OSD Camera 480 TVL‚ PAL‚ 12 V DC / 24 V AC
High resolution day-night camera with mechanical infrared cut filter‚ providing crisp aperture corrected and low-smear images 24 hours a day. In night mode the camera is infrared sensitive and can be used with infrared illumination. In night mode the camera is infrared sensi­tive and can be used with infrared illumination. Advanced features include 49-zone programmable back-light compensation‚ wide dynam­ic‚ peak-white inversion and adjustable electronic shutter‚ ensuring the best images all the time. The camera includes a built-in ID system for addressing (via RS485 or TTL) and setup is via on-screen display menu‚ or via remote setup software. An alarm input triggers up to 4 digital images‚ stored in the camera and remotely accessible. Supplied with operation and parameterisation software.
Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally) Pixels 752 (H) x 582 (V) Synchronisation Internal: crystal
External: line-lock‚ video - or HD/VD Horizontal resolution 480 TV lines Minimum illumination Colour mode: 0.045 Lux
(F1.2‚ AGC 39 dB) at 50 IRE
Mono: 0.008 Lux
(F1.2‚ AGC 39 dB) at 50 IRE S/N ratio >50 dB Dynamic range 60 dB Gain control Selectable (ON/OFF)‚
gain (up to 36 dB) White balance control Manual / auto Back-light compensation Selectable (ON/OFF);
up to 49 windows Infrared sensitive 880 nm‚ monochrome mode Camera titles 24 characters Lens mount CS (C-mount adapter supplied) Auto-iris lens control Direct drive or Video drive Dimensions (W x H x D) 74 x 60 x 125 mm Power requirements 12 V DC / 24 V AC‚ 50 Hz Power consumption 5 W Weight 0.45 kg
2GF1118-8EA
1-14 © Siemens Building Technologies Group
Cameras and Domes
Day-Night Cameras
Type Order No.
1
CCBS1337..
1/3" DSP Day-Night OSD Camera 540 TVL
CCBS1337 is a super high resolution day-night camera using the latest CCD technology and advanced digital signal processing techniques to provide crisp‚ aperture corrected images for surveillance applications requiring the highest resolution images. This camera has a mechanical infrared cut filter‚ providing crisp aperture corrected and low-smear images 24 hours a day. In night mode the camera is infrared sensitive and can be used with infrared illumination.
Television standard PAL: 625 lines‚ 50 fields/s‚
50 Hz (vertically)‚
15.625 Hz (horizontally) Pixels 752 (H) x 582 (V) Horizontal resolution 540 TV lines Minimum illumination Colour mode: 0.4 Lux
(F1.4‚ AGC 30 dB) at 50 IRE Mono: 0.08 Lux
(F1.4‚ AGC 30 dB) at 50 IRE S/N ratio > 50 dB Gain control Selectable (ON/TURBO/OFF)‚
gain up to 30 dB Electronic shutter Automatic: 1/50 s - 1/100000 s
Manual: 1/50 s ... 1 / 10000 s
selectable
Off: 1/50 s White balance control Manual / auto / one push Back-light compensation 6 windows selectable: center 1‚
center 2‚ up half‚ low half‚ door low‚
door high Camera titles 16 characters Infrared sensitive 880 nm‚ monochrome mode Lens mount CS (C-mount adapter supplied) Auto-iris lens control Direct drive or Video drive Gamma 0.45 / 1.0 selectable Image sensor 1/3-inch interline CCD Tripod thread A(1/4)‚ 1/4 inch on bottom and top Dimensions (W x H x D) 72 x 63 x 122 mm Power consumption 5 W‚ 8 W (incl. IR-cut filter move-
ment)
CCBS1337..
CCBS1337-LP
CCBS1337-MP
1/3" DSP Day-Night OSD Camera 540 TVL‚ PAL‚ 12 V DC / 24 V AC
As CCBS1337.. for technical details‚ but with the following differences:
Power requirements 12 V DC / 24 V AC‚ 50 Hz Weight 0.45 kg
1/3" DSP Day-Night OSD Camera 540 TVL‚ PAL‚ 90 V AC D 260 V AC
As CCBS1337.. for technical details‚ but with the following differences:
Power requirements 90 V AC D 260 V AC‚ 50 Hz Weight 0.55 kg
2GF1118-8FA
2GF1118-8FB
1-15© Siemens Building Technologies Group
Cameras and Domes
Day-Night Cameras
Type Order No.
CCWC1335..
1/3" DSP Day-Night‚ Wide Dynamic OSD Camera 480 TVL
CCWC1337 is a high resolution Wide Dynamic colour camera using the latest CCD technology and advanced digital signal processing tech­niques to provide crisp‚ aperture corrected images for surveillance applications requiring the highest resolution images. The use of wide dynamic technology ensures clear viewing in any bright back-lit scenes. This camera has a mechanical infrared cut filter‚ providing crisp aper­ture corrected‚ low-smear images 24 hours a day. In night mode the camera is infrared sensitive and should be used with infrared illumina­tion.
Television standard PAL: 625 lines‚ 50 fields/s‚
50 Hz (vertically)‚
15.625 Hz (horizontally) Pixels 752 (H) x 582 (V) Horizontal resolution > 480 TV lines Minimum illumination Colour: 0.4 Lux
(F1.4‚ AGC 30 dB) at 50 IRE Mono: 0.08 Lux
(F1.4‚ AGC 30 dB) at 50 IRE S/N ratio > 50 dB Dynamic range 60 dB Gain control Selectable (ON/TURBO/OFF)‚
gain up to 30 dB Electronic shutter Automatic: between 1/50 and
1/100‚000 sec
Manual: 1/50s‚ 1/120‚ 1/250‚ 1/400‚
1/1K‚ 1/2K‚ 1/5K‚ 1/10K White balance control Manual / auto / one push Back-light compensation 6 windows selectable: center 1‚
center 2‚ up half‚ low half‚ door low‚
door high Camera titles 16 characters Infrared sensitive 880 nm‚ monochrome mode Lens mount CS (C-mount adapter supplied) Auto-iris lens control Direct drive or Video drive Gamma 0.45 / 1.0 selectable Image sensor 1/3-inch interline CCD Tripod thread A(1/4)‚ 1/4 inch on bottom and top Dimensions (W x H x D) 72 x 63 x 122 mm Power consumption 5 W‚ 8 W (incl. IR-cut filter move-
ment)
CCWC1335..
CCWC1335-LP
CCWC1335-MP
1-16 © Siemens Building Technologies Group
1/3" DSP Day-Night‚ Wide Dynamic OSD Camera 480 TVL‚ 12 V DC / 24 V AC
As CCWC1335.. for technical details‚ but with the following differences:
Power requirements 12 V DC / 24 V AC‚ 50 Hz Weight 0.45 kg
1/3" DSP Day-Night‚ Wide Dynamic OSD Camera 480 TVL‚ 90 V AC D 260 V AC
As CCWC1335.. for technical details‚ but with the following differences:
Power requirements 90 V AC to 260 V AC‚ 50 Hz Weight 0.55 kg
2GF1183-8FC
2GF1183-8FB
Cameras and Domes
Day-Night Cameras
Type Order No.
1
CCBS1345..
1/3" DSP High Resolution DIP Switch Day-Night Camera
CCBS1345 is equipped with a mechanical IR filter that provides good picture quality 24 hours a day in colour and monochrome mode. The switch-over from colour to monochrome can be performed automati­cally depending on ambient light conditions (3 levels selectable) or by an external signal using the switch input of the camera.
Television standard PAL: 625 lines‚ 50 fields/s‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Horizontal resolution 480 TVL colour / 540 TVL Mono TV
lines
Minimum illumination Colour: 0.3 Lux @ F=1.4
(AGC 30 dB‚ 50IRE Video Output) Mono: 0.08 Lux @ F=1.4
(AGC 30 dB‚ 50IRE Video Output) S/N ratio > 50 dB Electronic shutter On: Automatic between 1/50 and
1/100‚000 sec
Off: 1/50 s Back-light compensation Selectable (ON/OFF) Gamma 0.45 Image sensor 1/3-inch interline CCD‚ 752 x 582
active pixels Tripod thread A (1/4); 1/4 inch on bottom and top Dimensions (W x H x D) 72 x 63 x 122 mm
CCBS1345..
CCBS1345-LP
CCBS1345-MP
1/3" DSP High Resolution DIP Switch Day-Night Camera, 480 TVL‚ PAL‚ 12 V DC / 24 V AC‚ 50 Hz
As CCBS1345.. for technical details‚ but with the following differences:
Power requirements 12 V DC / 24 V AC Power consumption 4 W Weight 0.45 kg
1/3" DSP High Resolution DIP Switch Day-Night Camera, 480 TVL‚ PAL‚ 90 D 260 V AC‚ 50 Hz
As CCBS1345.. for technical details‚ but with the following differences:
Power requirements 100 D 240 V AC ± 10% Power consumption 4.5 W Weight 0.55 kg
2GF1118-8GA
2GF1118-8GB
1-17© Siemens Building Technologies Group
Cameras and Domes
Day-Night Cameras
Type Order No.
CCAS1415-LPO
1/4" CCD High Resolution Day-Night OSD Camera PAL‚ Outdoor Use‚ 480 TVL‚ 22x Optical Zoom‚ Auto Focus‚ 12 V DC / 24 V AC
The CCAS1415-LPO is a high resolution (480/530 TVL) day-night cam­era with built-in auto focus zoom lens with max. 242 x zoom. The cam­era is designed for outdoor use under variable lighting conditions. It is built into a compact and attractively styled weatherproof housing with sunshade incorporated. As a result of the day-night function‚ the cam­era offers optimum picture quality both under varying daylight condi­tions and also when used at night with infrared light.
Television standard PAL: 625 lines‚ 50 fields/s‚ 50 Hz
(vertically)‚
15.625 Hz (horizontally) Pixels 795 (H) x 596 (V) Image sensor 1/4" SONY Super HAD CCD Synchronisation Internal/external (Line Lock) Horizontal resolution 480 TV lines Minimum illumination Colour: 0.5 lux @ F=1.6
(AGC on‚ 50 IRE video output) Mono: 0.5 lux Slow-Shutter: 0.001 lux
Zoom Optical zoom x22‚ digital zoom x11
(video AF) Focal length 3.9 D 85.8 mm Maximum relative aperture F1.6 (wide) D F3.7 (tele) Slow speed shutter x 2 D x 60 S/N ratio 52 dB (AGC off) Operating temperature range -10° C to +50° C Dimensions (W x H x D) 120 x 120 x 185 mm Power consumption 9 W Weight 1.50 kg
2GF1182-8AJ
1-18 © Siemens Building Technologies Group

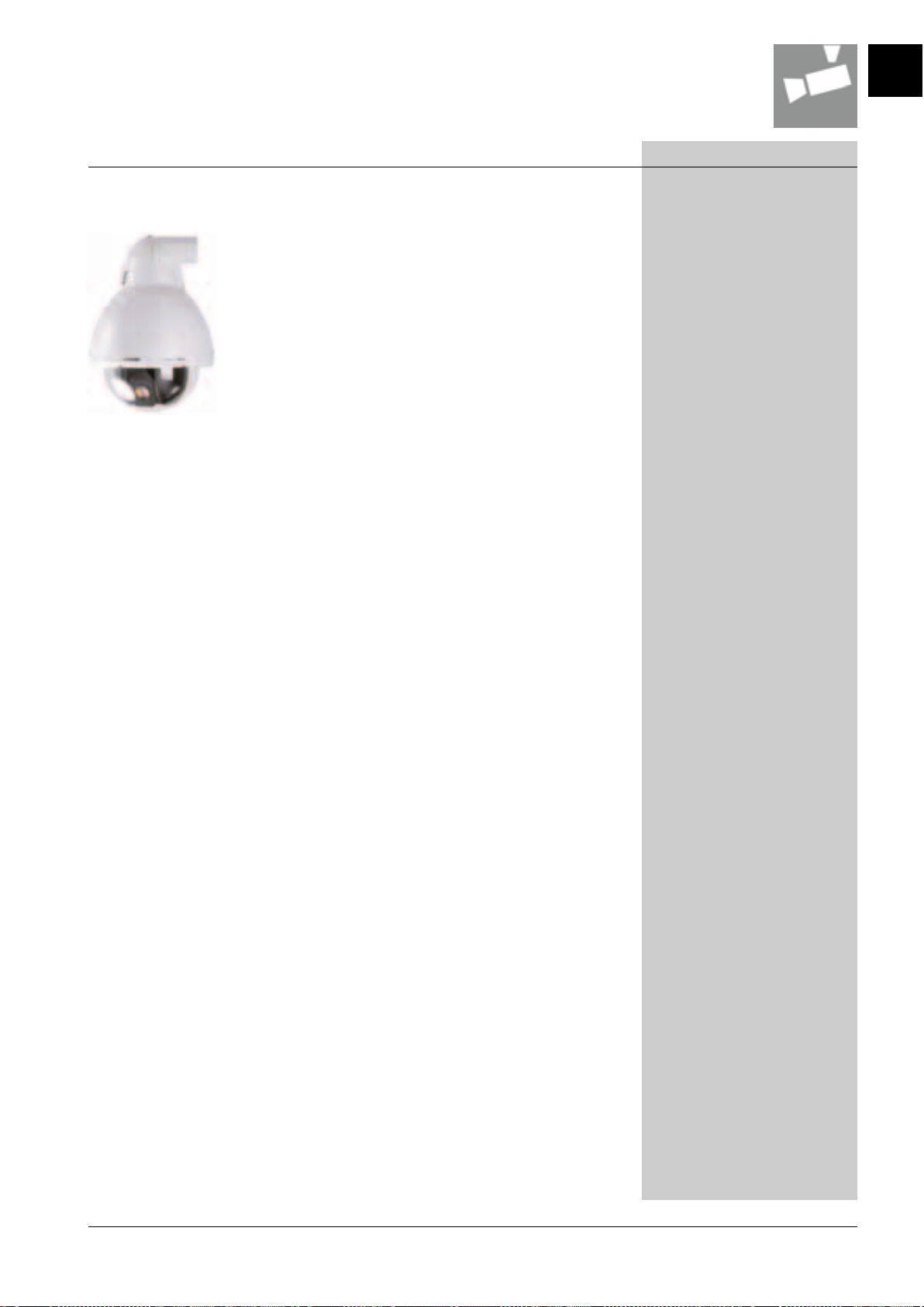

“All-in-one” auto focus camera
Up to 22x optical zoom
...out of the box and
ready to mount.
Cameras and Domes
Camera Mounts
Type Order No.
CWCB140
CWCB210
CWCB210-310
Universal Camera Mount 140 mm
Easily adjusted‚ universal camera mount suitable for wall or ceiling mounting of cameras
Installation Wall or ceiling Colour Silver (RAL9006) Loading capacity Approx. 2 kg Dimensions (dia. x l) 56 x 140 mm Weight 0.12 kg
Universal Camera Mount 210 mm
Easily adjusted‚ universal camera mount suitable for wall or ceiling mounting of cameras
Installation Wall or ceiling Colour Grey (RAL7032) Loading capacity Approx. 2 kg Dimensions (dia. x l) 54 x 210 mm Weight 0.16 kg
Universal Camera Mount 210-310 mm
Easily adjusted‚ universal camera mount suitable for wall or ceiling mounting of cameras
Installation Wall or ceiling Colour Grey (RAL7032) Loading capacity Approx. 2 kg Dimensions (dia. x l) 54 x 210-310 mm Weight 0.21 kg
2GF1710-8BC
2GF1710-8AP
2GF1710-8AQ
CCCB210
CCCB210-310
Ceiling Camera Bracket 210 mm
Easily adjusted‚ universal camera mount suitable for ceiling mounting of cameras
Installation Ceilling Colour Grey (RAL7032) Loading capacity Approx. 2 kg Dimensions (dia. x l) 54 x 210 mm Weight 0.44 kg
Ceiling Camera Bracket 210-310 mm
For installation of a camera without protective housing on a ceiling.
Colour Grey (RAL7032) Loading capacity Approx. 2 kg Dimensions (dia. x l) 54 x 210-310 mm Weight 0.44 kg
2GF1710-8AR
2GF1710-8AS
1-20 © Siemens Building Technologies Group
Cameras and Domes
Camera Mounts
Type Order No.
1
CAB1420
CAB1920
VCM910-HD
Universal Camera Mount 140 mm
Easily adjusted‚ universal camera mount suitable for wall‚ ceiling or shelf mounting of cameras.
Installation Wall or ceiling Colour Silver and black Finish Epoxy powder-coat Dimensions (dia. x l) 56 x 140 mm Weight 0.25 kg
Universal Camera Mount 190 mm
Easily adjusted‚ universal camera mount suitable for wall‚ ceiling or shelf mounting of cameras.
Installation Wall or ceiling Colour Silver and black Finish Epoxy powder-coat Dimensions (dia. x l) 56 x 190 mm Weight 0.24 kg
Heavy-Duty Camera Wall or Ceiling Mount 170 mm
Easily adjusted‚ heavy-duty camera mount suitable for wall or ceiling mounting of cameras.
Colour Off-white (RAL9002) Installation Wall or ceiling Load rating 5 kg Arm length 170 mm Weight 0.20 kg
2GF1710-8BD
2GF1710-8BE
GBQ:A5571550001
1-21© Siemens Building Technologies Group
Cameras and Domes
Fixed Domes Overview
1-22 © Siemens Building Technologies Group
Cameras and Domes
Fixed Domes Overview
1
1-23© Siemens Building Technologies Group
Cameras and Domes
Fixed Domes
Type Order No.
CFFB1310..
CFFB1310-LC

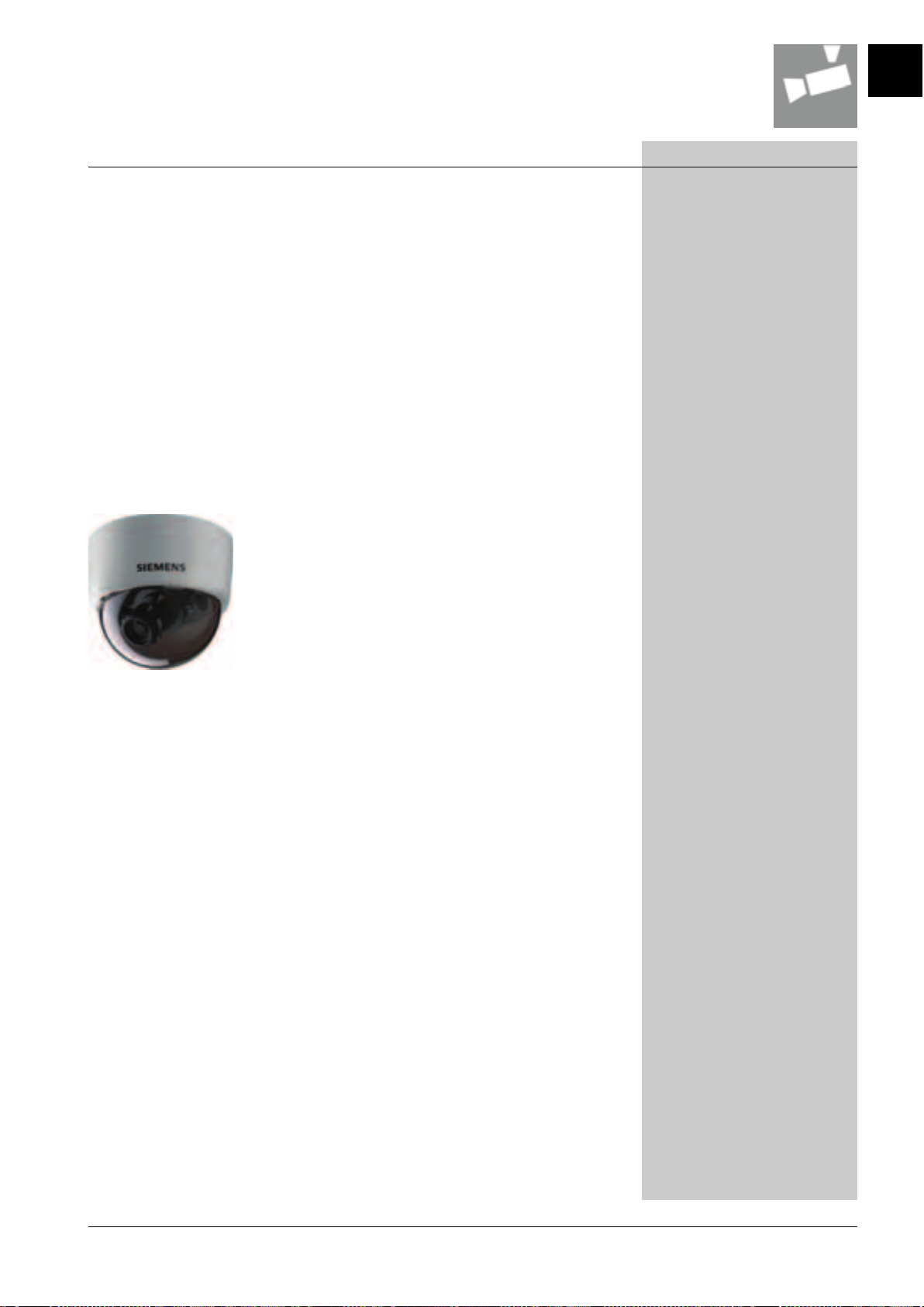

1/3" CCD 3.7 mm Monochrome Fixed Dome
Attractive‚ standard resolution‚ ceiling-mount monochrome dome cam­era complete with clear protective bubble. Includes service monitor connection and cable for local‚ easy setup. Designed for indoor applica­tions where discreet‚ unobtrusive surveillance is demanded.
Horizontal resolution 400 TV lines Minimum illumination 0.13 Lux (F2.0 @50IRE) Gain control AGC (ON/OFF) S/N ratio > 50 dB Lens 3.7 mm‚ F2.0 Electronic shutter (AES) Autom 1/50 to 1/100K s Horizontal angle of view 70° Minimum object distance 0.2 m Bubble type Clear Backlight compensation (ON/OFF) Local service monitor connector 2-pin (1 m BNC cable included) Dimensions (Ø x H) 112 x 97.5 mm Power requirements 12 V DC / 24 V AC Power consumption 3 W Weight 0.29 kg
1/3" CCD 3.7 mm Monochrome Fixed Dome 400 TVL‚ CCIR
As CFFB1310.. for technical details‚ but with the following differences:
Television standard CCIR: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Pixels 500 (H) x 582 (V)
CFFB1310..
2GF1084-8AC
CFFB1310-LE
1/3" CCD 3.7 mm Monochrome Fixed Dome 400 TVL‚ EIA
As CFFB1310.. for technical details‚ but with the following differences:
Television standard EIA: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally)
Pixels 510 (H) x 492 (V)
2GF1084-8AD
1-24 © Siemens Building Technologies Group
Cameras and Domes
Fixed Domes
Type Order No.
1
CFFB1315..
CFFB1315-LC
1/3" Monochrome Fixed Dome 580 TVL‚ 12 V DC / 24 V AC
Attractive‚ high resolution‚ ceiling-mount monochrome dome camera complete with clear protective bubble. Includes service monitor con­nection and cable for local‚ easy setup. Designed for indoor applications where discreet‚ unobtrusive surveillance is demanded.
Horizontal resolution 580 TV lines Minimum illumination 0.2 Lux (F2.0 @50IRE) Gain control AGC (ON/OFF) S/N ratio > 50 dB Lens 3.7 mm‚ F2.0 Electronic shutter (AES) Autom 1/50 to 1/100K s Horizontal angle of view 70° Minimum object distance 0.2 m Bubble type Clear Backlight compensation (ON/OFF) Local service monitor connector 2-pin (1 m cable included) Dimensions (Ø x H) 112 x 97.5 mm Power requirements 12 V DC / 24 V AC Power consumption 3 W Weight 0.29 kg
1/3" Monochrome Fixed Dome 580 TVL‚ CCIR‚ 12 V DC / 24 V AC
As CFFB1315.. for technical details‚ but with the following differences:
CFFB1315..
2GF1084-8AA
CFFB1315-LE
Television standard CCIR: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Pixels 752 (H) x 582 (V)
1/3" CCD 3.7 mm Monochrome Fixed Dome 580 TVL‚ EIA‚ 12 V DC / 24 V AC
As CFFB1315.. for technical details‚ but with the following differences:
Television standard EIA: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally)
Pixels 768 (H) x 494 (V)
2GF1084-8AB
1-25© Siemens Building Technologies Group
Cameras and Domes
Fixed Domes
Type Order No.
CFFC1310..
CFFC1310-LP
1/3" CCD 3.7 mm Colour Fixed Dome 330 TVL
Attractive‚ standard resolution‚ ceiling-mount colour dome camera complete with clear protective bubble. Includes service monitor con­nection and cable for local‚ easy setup. Designed for indoor applications where discreet‚ unobtrusive surveillance is demanded.
Horizontal resolution 330 TV lines Minimum illumination 0.31 Lux (F2.0 @50IRE) Gain control AGC (ON/OFF) S/N ratio > 50 dB Lens 3.7 mm‚ F2.0 Electronic shutter (AES) Autom 1/50 to 1/100K s Horizontal angle of view 70° Minimum object distance 0.2 m Bubble type Clear Backlight compensation (ON/OFF) Local service monitor connector 2-pin (1 m cable included) Dimensions (Ø x H) 112 x 97.5 mm Power requirements 12 V DC / 24 V AC Power consumption 3.5 W Weight 0.29 kg
1/3" CCD 3.7 mm Colour Fixed Dome 330 TVL‚ PAL
As CFFC1310.. for technical details‚ but with the following differences:
Pixels 500 (H) x 582 (V) Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
CFFC1310..
2GF1184-8AC
CFFC1310-LN
CFFC1315..
1/3" CCD 3.7 mm Colour Fixed Dome 330 TVL‚ NTSC
As CFFC1310.. for technical details‚ but with the following differences:
Pixels 510 (H) x 492 (V) Television standard NTSC: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally)
1/3" CCD 3.7 mm Colour Fixed Dome 480 TVL
Attractive‚ high resolution‚ ceiling-mount colour dome camera com­plete with clear protective bubble. Includes service monitor connection and cable for local‚ easy setup. Designed for indoor applications where discreet‚ unobtrusive surveillance is demanded.
Horizontal resolution 480 TV lines Minimum illumination 0.56 Lux (F2.0 @50IRE) Gain control AGC (ON/OFF) Electronic shutter (AES) Autom 1/50 to 1/100K s Bubble type Clear Backlight compensation (ON/OFF) Local service monitor connector 2-pin (1 m cable included) S/N ratio > 50 dB White balance control Auto Dimensions (Ø x H) 112 x 97.5 mm Power requirements 12 V DC / 24 V AC Power consumption 3.5 W Weight 0.29 kg
2GF1184-8AD
CFFC1315..
1-26 © Siemens Building Technologies Group
Cameras and Domes
Fixed Domes
Type Order No.
1
CFFC1315-LP
CFFC1315-LN
CFVB1415..
1/3" CCD 3.7 mm Colour Fixed Dome 480 TVL‚ PAL
As CFFC1315.. for technical details‚ but with the following differences:
Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Pixels 752 (H) x 582 (V)
1/3" CCD 3.7 mm Colour Fixed Dome 480 TVL‚ NTSC
As CFFC1315.. for technical details‚ but with the following differences:
Television standard NTSC: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally)
Pixels 768 (H) x 494 (V)
1/4" CCD 2.8-5.8 mm Monochrome Varifocal Dome 580 TVL‚ 12 V DC / 24 V AC
Attractive‚ 1/4'' high resolution‚ ceiling-mount monochrome‚ varifocal dome camera complete with tinted protective bubble. Includes service monitor connection and cable for local‚ easy setup. Designed for indoor applications where discreet‚ unobtrusive surveillance is demanded.
Horizontal resolution 580 TV lines Minimum illumination 0.2 Lux (F1.4 @50IRE) Gain control AGC (ON/OFF) S/N ratio > 50 dB Lens 2.8 D 5.8 mm‚ DD auto-iris Electronic shutter (AES) Autom 1/50 to 1/100K s Horizontal angle of view 38.2 D 76.7º Minimum object distance 0.2 m Bubble type Tinted Backlight compensation (ON/OFF) Local service monitor connector 2-pin (1 m cable included) Dimensions (Ø x H) 112 x 97.5 mm Power requirements 12 V DC / 24 V AC Power consumption 3 W Weight 0.29 kg
2GF1184-8AA
2GF1184-8AB
CFVB1415..
CFVB1415-LC
CFVB1415-LE
1/4" CCD 2.8-5.8 mm Monochrome Varifocal Dome 580 TVL‚ CCIR‚ 12 V DC / 24 V AC
As CFVB1415.. for technical details‚ but with the following differences:
Television standard CCIR: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Pixels 752 (H) x 582 (V)
1/4" CCD 2.8-5.8 mm Monochrome Varifocal Dome 580 TVL‚ EIA‚ 12 V DC / 24 V AC
As CFVB1415.. for technical details‚ but with the following differences:
Television standard EIA: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally)
Pixels 768 (H) x 494 (V)
2GF1184-8AG
2GF1184-8AH
1-27© Siemens Building Technologies Group
Cameras and Domes
Fixed Domes
Type Order No.
CFVC1415..
CFVC1415-LP
1/4" CCD 2.8-5.8 mm Colour Varifocal Dome 480 TVL‚ 12 V DC / 24 V AC
Attractive‚ 1/4'' high resolution‚ ceiling-mount colour‚ varifocal dome camera complete with tinted protective bubble. Includes service moni­tor connection and cable for local‚ easy setup. Designed for indoor applications where discreet‚ unobtrusive surveillance is demanded.
Horizontal resolution 480 TV lines Minimum illumination 0.6 Lux (F1.4 @50IRE) Gain control AGC (ON/OFF) S/N ratio > 50 dB Lens 2.8 D 5.8 mm‚ DD auto-iris Electronic shutter (AES) Autom 1/50 to 1/100K s Horizontal angle of view 38.2 D 76.7º Minimum object distance 0.2 m Bubble type Tinted Backlight compensation (ON/OFF) Local service monitor connector 2-pin (1 m cable included) Dimensions (Ø x H) 112 x 97.5 mm Power consumption 3.5 W Power requirements 12 V DC / 24 V AC Weight 0.29 kg
1/4" CCD 2.8-5.8 mm Colour Varifocal Dome 480 TVL‚ PAL‚ 12 V DC / 24 V AC
As CFVC1415.. for technical details‚ but with the following differences:
CFVC1415..
2GF1184-8AE
CFVC1415-LN
Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Pixels 752 (H) x 582 (V)
1/4" CCD 2.8-5.8 mm Colour Varifocal Dome 480 TVL‚ NTSC‚ 12 V DC / 24 V AC
As CFVC1415.. for technical details‚ but with the following differences:
Television standard NTSC: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally)
Pixels 752 (H) x 582 (V)
2GF1184-8AF
1-28 © Siemens Building Technologies Group
Cameras and Domes
Fixed Domes
Type Order No.
1
CFVS1415..
CFVS1415-LP
1/4" CCD 2.8-5.8 mm‚ Day-Night Varifocal Dome‚ 480 TVL‚ 12 V DC / 24 V AC
Attractive‚ 1/4'' high resolution‚ ceiling-mount day-night‚ varifocal dome camera complete with tinted protective bubble. Includes service moni­tor connection and cable for local‚ easy setup. Designed for indoor applications where discreet‚ unobtrusive surveillance is demanded.
Horizontal resolution 480 TV lines Minimum illumination Colour: 0.34 Lux (F1.4 @50IRE)
Mono: 0.15 Lux (F1.4 @50IRE) Gain control AGC (ON/OFF) S/N ratio > 50 dB Lens 2.8 D 5.8 mm‚ DD auto-iris Electronic shutter (AES) Autom 1/50 to 1/100K s Horizontal angle of view 35.9 D 74.7º Minimum object distance 0.2 m Bubble type Tinted Backlight compensation (ON/OFF) Local service monitor connector 2-pin (1 m cable included) Dimensions (Ø x H) 112 x 97.5 mm Power consumption 3.5 W Power requirements 12 V DC / 24 V AC Weight 0.29 kg
1/4" CCD 2.8-5.8 mm‚ Day-Night Varifocal Dome‚ 480L‚ PAL‚ 12 V DC / 24 V AC
As CFVS1415.. for technical details‚ but with the following differences:
CFVS1415..
2GF1184-8AJ
CFVS1415-LN
Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Pixels 752 (H) x 582 (V)
1/4" CCD 2.8-5.8 mm‚ Day-Night Varifocal Dome‚ 480L‚ NTSC‚ 12 V DC / 24 V AC
As CFVS1415.. for technical details‚ but with the following differences:
Television standard NTSC: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally)
Pixels 768 (H) x 494 (V)
2GF1184-8AK
1-29© Siemens Building Technologies Group
Cameras and Domes
Fixed Domes
Type Order No.
CVVB1315..
1/3" CCD 3-8 mm Monochrome Vandal Resistant Varifocal Dome‚ 580 TVL‚ 12 V DC / 24 V AC
Attractive‚ vandal resistant‚ high resolution‚ monochrome camera with IP66 protection rating‚ for either ceiling or wall mount‚ complete with 1000 kg impact-resistant‚ polycarbonate protective bubble. Specifically designed to withstand the type of physical abuse and random vandal­ism encountered in public areas‚ both outdoor‚ and indoor‚ and includes service monitor connection and cable for local‚ easy setup and external‚ anti-tamper fixing screws.
Horizontal resolution 580 TV lines Minimum illumination 0.05 Lux (F1.0 @50IRE) Gain control AGC (ON/OFF) S/N ratio > 50 dB Lens 3 D 8 mm‚ DD auto-iris‚ aspherical Electronic shutter (AES) Autom 1/50 to 1/100K s Horizontal angle of view 36 D 91º Minimum object distance 0.2 m Bubble type Tinted Backlight compensation (ON/OFF) Local service monitor connector 2-pin (1 m cable included) Dimensions (W x H) 140 x 112 mm Power consumption 3.5 W Power requirements 12 V DC / 24 V AC Weight 1.7 kg
CVVB1315..
CVVB1315-LC
CVVB1315-LE
1/3" CCD 3-8 mm Monochrome Vandal Resistant Varifocal Dome‚ 580 TVL‚ CCIR‚ 12 V DC / 24 V AC
As CVVB1315.. for technical details‚ but with the following differences:
Television standard CCIR: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Pixels 752 (H) x 582 (V)
1/3" CCD 3-8 mm Monochrome Vandal Resistant Varifocal Dome‚ 580 TVL‚ EIA‚ 12 V DC / 24 V AC
As CVVB1315.. for technical details‚ but with the following differences:
Television standard EIA: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally)
Pixels 768 (H) x 494 (V)
2GF1085-8AC
2GF1085-8AD
1-30 © Siemens Building Technologies Group
Cameras and Domes
Fixed Domes
Type Order No.
1
CVVC1315..
1/3" CCD 3-8 mm Colour Vandal Resistant Varifocal Dome‚ 480 TVL‚ 12 V DC / 24 V AC
Attractive‚ vandal resistant‚ high resolution colour camera with IP66 protection rating‚ for either ceiling or wall mount‚ complete with 1000 kg impact-resistant‚ polycarbonate protective bubble. Specifically designed to withstand the type of physical abuse and random vandal­ism encountered in public are as‚ both outdoor‚ and indoor‚ and includes service monitor connection and cable for local‚ easy setup and external‚ anti-tamper fixing screws.
Horizontal resolution 480 TV lines Minimum illumination 0.47 Lux (F1.0 @50IRE) Gain control AGC (ON/OFF) S/N ratio > 50 dB Lens 3 D 8 mm‚ DD auto-iris‚ aspherical Electronic shutter (AES) Autom 1/50 to 1/100K s Horizontal angle of view 36 D 91º Minimum object distance 0.2 m Bubble type Tinted Backlight compensation (ON/OFF) Local service monitor connector 2-pin (1 m cable included) Dimensions (W x H) 140 x 112 mm Power consumption 3.5 W Power requirements 12 V DC / 24 V AC Weight 1.7 kg
CVVC1315..
CVVC1315-LP
CVVC1315-LN
1/3" CCD Colour Vandal Resistant Varifocal Dome‚ 480 TVL PAL‚ 12 V DC / 24 V AC
As CVVC1315.. for technical details‚ but with the following differences:
Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Pixels 752 (H) x 582 (V)
1/3" CCD Colour Vandal Resistant Varifocal Dome‚ 480 TVL NTSC‚ 12 V DC / 24 V AC
As CVVC1315.. for technical details‚ but with the following differences:
Television standard NTSC: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally)
Pixels 768 (H) x 494 (V)
2GF1185-8AA
2GF1185-8AB
1-31© Siemens Building Technologies Group
Cameras and Domes
Fixed Domes
Type Order No.
CVVS1415..
1/4" CCD 3-8 mm Day-Night Vandal Resistant Varifocal Dome 480 TVL‚ 12 V DC / 24 V AC
Attractive‚ vandal resistant‚ high resolution‚ day-night camera including mechanical IR cut filter with IP66 protection rating‚ for either ceiling or wall mount‚ complete with 1000 kg impact-resistant‚ polycarbonate protective bubble. Specifically designed to withstand the type of phys­ical abuse and random vandalism encountered in public areas‚ both outdoor‚ and indoor‚ and includes service monitor connection and cable for local‚ easy setup and external‚ anti-tamper fixing screws.
Horizontal resolution 480 TV lines Minimum illumination Colour: 0.34 Lux (F1.4 @50IRE)
Gain control AGC (ON/OFF) S/N ratio > 50 dB Lens 2.8 D 5.8 mm‚ DD auto-iris Electronic shutter (AES) Autom 1/50 to 1/100K s Horizontal angle of view 35.9 D 74.7 Minimum object distance 0.2 m Maximum relative aperture F1.4 z360 Bubble type Tinted Backlight compensation (ON/OFF) Local service monitor connector 2-pin (1 m cable included) Remote setup 10-pin for PC connection (cable &
Protection rating IP66 White balance control Auto Dimensions (W x H) 140 x 112 mm Power consumption 3.5 W Power requirements 12 V DC / 24 V AC Weight 1.70 kg
Mono: 0.15 Lux (F1.4 @50IRE)
0
software included)
CVVS1415..
CVVS1415-LP
CVVS1415-LN
1/4" CCD 3-8 mm Day-Night Vandal Resistant Varifocal Dome 480 TVL‚ PAL‚ 12 V DC / 24 V AC
As CCDA1435.. for technical details‚ but with the following differences:
Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally)
Pixels 752 (H) x 582 (V)
1/4" CCD 3-8 mm Day-Night Vandal Resistant Varifocal Dome 480 TVL‚ NTSC‚ 12 V DC / 24 V AC
As CCDA1435.. for technical details‚ but with the following differences:
Television standard NTSC: 525 lines‚ 60 fields‚
60 Hz (vertically)‚
15.734 Hz (horizontally)
Pixels 768 (H) x 494 (V)
2GF1185-8AE
2GF1185-8AF
1-32 © Siemens Building Technologies Group
Cameras and Domes
Fixed Domes
Type Order No.
1
CVAC1415
CVAS1415
High Resolution‚ Auto-focus Colour Dome Camera with 22x Optical Zoom‚ in Vandal-Resistant Housing
The CVAC1415 is a high resolution colour camera with built-in auto­focus zoom lens with max. 242x zoom. The camera is designed for out­door use under variable lighting conditions. It is built into a compact and attractively styled vandal-resistant housing.
Pixels 795 (H) x 596 (V) Image sensor 1/4" SONY Super HAD CCD Synchronisation Internal: crystal/external: Line Lock Minimum illumination 1.0 lux @ F=1.6
(AGC on‚ 50 IRE video output) 0.02
lux (Mono) Slow speed shutter x2 D x60 S/N ratio > 50 dB (AGC off) Operating temperature range -10° C to +50° C Dimensions (Ø x H) 140.5 x 112.0 mm Power requirements 12 V DC / 24 V AC Power consumption 6 W Weight 1.10 kg
High Resolution‚ Auto-focus Day-Night Dome Camera with 22x Optical Zoom‚ in Vandal-Resistant Housing
The CVAS1415 is a high resolution day-night camera with built-in auto­focus zoom lens with max. 242x zoom. The camera is designed for out­door use under variable lighting conditions. It is built into a compact and attractively styled vandal resitant dome housing.
2GF1182-8AM
2GF1182-8AN
Pixels 795 (H) x 596 (V) Image sensor 1/4" SONY Super HAD CCD Synchronisation Internal: crystal/external: Line Lock Minimum illumination 0.5 lux (colour) @ F=1.6 (AGC on‚
50 IRE video output)‚ 0.05 lux (B/W)‚
0.001 lux (slow shutter) Slow speed shutter x2 D x60 S/N ratio > 50 dB (AGC off) Operating temperature range -10° C to +50° C Dimensions (Ø x H) 140.5 x 112.0 mm Power requirements 12 V DC / 24 V AC Power consumption 6 W Weight 1.10 kg
1-33© Siemens Building Technologies Group
Vandal dome features…
Day-night model automatically changes from colour pictures by day, to monochrome images at night – true 24 hour surveillance!
36°
91°
Greater viewing angle for colour and mono models
F1.4
F1.0 offers twice the amount of light avail­able than F1.4, available on both colour and mono models
1000 kg impact resistant and IP66 protection rating
F1.0
Remote setup for both day-night and colour models
Software allows programming of six different modes of back light compensation
-
…for varying applications.
Cameras and Domes

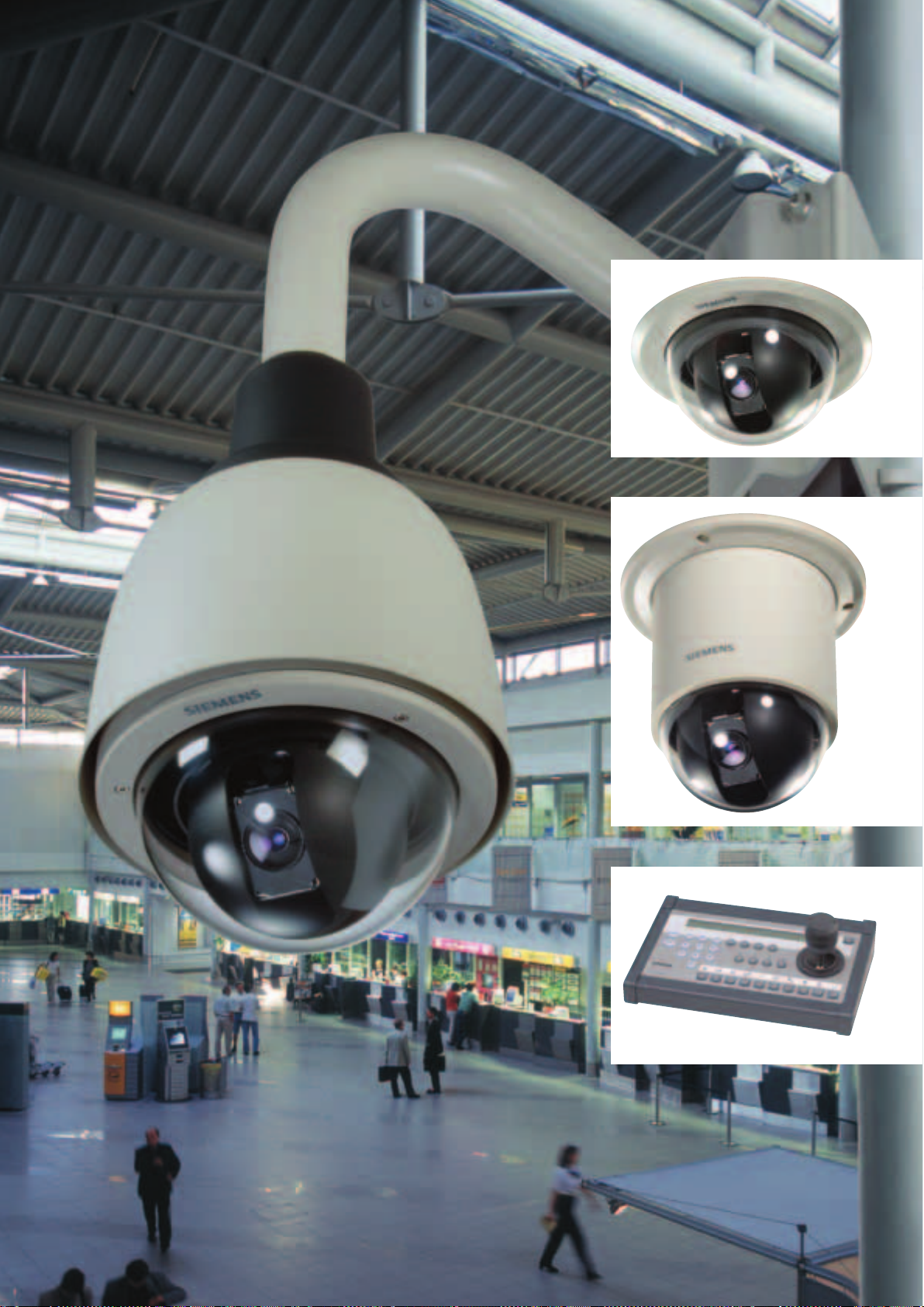

Speed Domes Overview
1
1-35© Siemens Building Technologies Group
Cameras and Domes
Functional Domes
Type Order No.
CCDA1435..
1/4'' CCD High-Speed Dome‚ Indoor 24 V AC
The CCDA1435 dome range delivers the standard features of a pro­grammable dome‚ but is priced comparably to a PTZ. This provides an alternative for customers who prefer the convenience and programma­bility of a dome camera‚ but previously considered domes to be price­prohibitive. Choose from several innovative mounting options‚ includ­ing hard ceiling and flush mount ceiling brackets‚ wall mount brackets and different bubble colours. As The dome contains all the necessary installation components‚ so installation is fast - just 15 minutes from box to ceiling for the hard ceiling mount. The dome‘s power-on diag­nostics and functional tests assist with fault isolation during installation and service. The dome accommodates a variety of protocols‚ including the Siemens protocol. The dome is available as a simple colour camera‚ light-sensitive low-light camera or flexible‚ day-night camera with 18 x and 26 x optical zoom and 480 TV lines resolution‚ providing a quality‚ high resolution picture. The dome also provides user-programmable presets and patterns‚ one alarm input‚ an auxiliary output and auto-flip feature.
Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally) Pixels 752 (H) x 582 (V) Synchronisation Internal / Line-Lock;
phase adjustable Horizontal resolution 480 TV lines Iris control Auto S/N ratio > 50 dB Electronic shutter Auto: 1/1-1/10.000 s
Manual: 22 steps On-screen display menus (OSD) English Alarms 4 Alarm in Gain control AGC Pan speed 0.1-90°/s
0.1°/s: max. digital zoom
0.4°/s: max. optical zoom
Tilt speed 0.1-45°/s
0.1°/s: max. digital zoom
0.4°/s: max. optical zoom
Preset Speed Pan: max. 400°/s
Tilt: max. 200°/ s Pan travel Continuous Tilt travel Indoor: 85°
Outdoor: 92° Password protection Alphanumerical Dome OSD setup
protection White balance control ATW (2000-10.000° K)‚ auto (3000-
7500° K); one push Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally) Presets 64 Privacy zones 8 Programmable patterns 4 Zoom 18 x optical‚ 12 x digital Lens 4.1-73.8 mm‚ auto focus Dimensions (Ø x H) 134 x 219.9 mm Power requirements 20 W Weight 1.75 kg
CCDA1435..
1-36 © Siemens Building Technologies Group
Cameras and Domes
Functional Domes
Type Order No.
1
CCDA1435-ST
CCDA1435-LL
CCDA1435-DN
CCDA1435-DNX
1/4'' CCD High-Speed Colour Dome‚ 480 TVL‚ PAL‚ Indoor 24 V AC
As CCDA1435.. for technical details‚ but with the following differences:
Minimum illumination 1.0 lux (F1.4‚ 1/50s)
1/4'' CCD High-Speed Low-Light Colour Dome‚ 480 TVL‚ PAL‚ Indoor 24 V AC
As CCDA1435.. for technical details‚ but with the following differences:
Minimum illumination 0.7 Lux (F1.4‚ 1/50s)
0.05 Lux (F1.4‚ 1/3s)
1/4'' CCD High-Speed Day-Night Dome‚ 480 TVL‚ PAL‚ Indoor 24 V AC
As CCDA1435.. for technical details‚ but with the following differences:
Minimum illumination Colour: 0.7 Lux (F1.4‚ 1/50s)
B&W: 0.01 Lux (F1.4‚ 1/3s)
1/4'' CCD High-Speed Day-Night Dome‚ 480 TVL‚ PAL‚ Indoor 24 V AC
As CCDA1435.. for technical details‚ but with the following differences:
2GF1193-8AA
2GF1193-8AB
2GF1193-8AC
2GF1193-8AD
Lens 3.5-91 mm‚ auto focus Minimum illumination Colour: 1 Lux (F1.6‚ 1/50 s)
Mono: 0.01 Lux (F1.6 1/3 s)
Zoom 26 x optical‚ 12 x digital
1-37© Siemens Building Technologies Group
Cameras and Domes
Functional Domes
1-38 © Siemens Building Technologies Group
Cameras and Domes
Functional Domes
Type Order No.
1

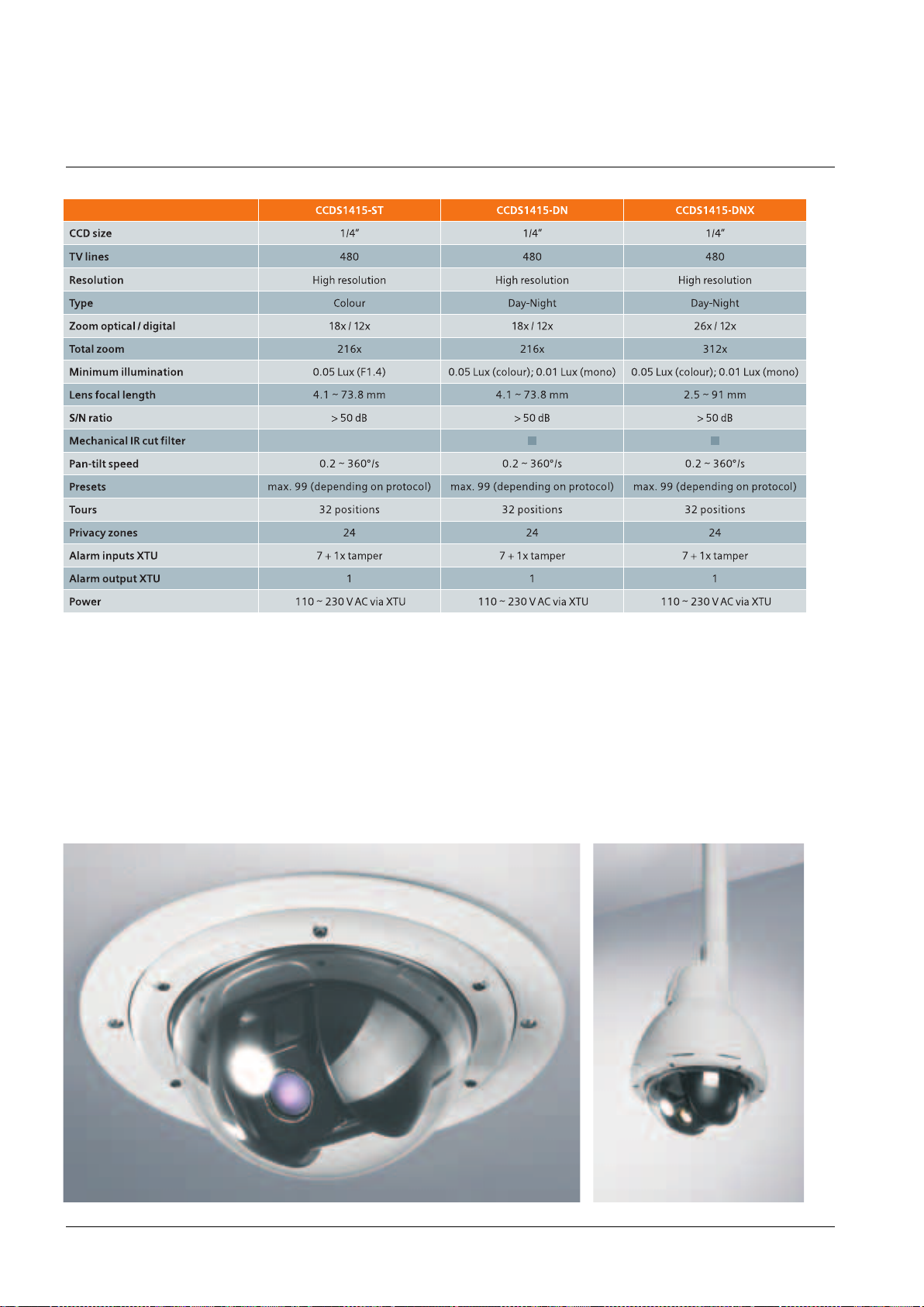

CCDS1415..
Solaris™ Colour High-Speed Dome
Solaris™ offers accuracy‚ speed‚ reliability and high quality images. With its unique split concept‚ External Termination Unit (XTU) and camera Head Unit (HU)‚ Solaris™ has proven to be the solution of choice for installers and end-users around the world. From shops to holiday resorts‚ hospitals to commercial premises‚ with perfect picture quality‚ Solaris™ ensures security is kept at its highest. These new developments in dome technology now bring you more fea­tures than ever before.
Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally) Horizontal resolution 480 TV lines S/N ratio M 50 dB Electronic shutter 1/10000 s‚ 22 steps Gain control Auto (-3 to 28 dB‚ 2 dB steps) Pan speed 0.2 D 360°/sec Tilt speed 0.2 D 360°/sec Pan travel 360° continuous Tilt travel +10° and -100° White balance control Auto/One Push Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally) Presets Max. 99 (depending on protocol
and controller) Dimensions (Ø x H) 245 x 354 mm Power requirements 18 D 24 V DC @ 2 A‚ supplied from
the XTU via the Cat-5 cable
CCDS1415..
CCDS1415-ST
CCDS1415-DN
Solaris™ 1/4" High-Speed Dome‚ 24 Privacy Zones‚ 18x Zoom‚ Col­our‚ Smoked Bubble‚ IP67‚ Supplied with 110 D 230 V AC XTU
As CCDS1415.. for technical details‚ but with the following differences:
Minimum illumination 0.05 lux Lens 18 x optical‚ 12 x digital
4.1 to 73.8 mm (F1.4 to F3.0)
Weight 5.6 kg
Solaris™ 1/4" High-Speed Dome‚ 24 Privacy Zones‚ x18 Zoom‚ Day­Night‚ Clear Bubble‚ IP67‚ Supplied with 110 D 230 V AC XTU
As CCDS1415.. for technical details‚ but with the following differences:
Minimum illumination 0.05 lux (colour)
0.01 lux (mono)
Lens 18 x optical‚ 12 x digital
4.1 to 73.8 mm (F1.4 to F3.0)
Weight 5.6 kg
2GF1194-8AA
2GF1194-8AC
1-39© Siemens Building Technologies Group
Cameras and Domes
Functional Domes
Type Order No.
CCDS1415-DNX
Solaris™ 1/4" High Resolution Dome‚ 24 Privacy Zones‚ 26x Zoom‚ Day-Night‚ Clear Bubble‚ IP67‚ Supplied with 110 D 230 V AC XTU
As CCDS1415.. for technical details‚ but with the following differences:
Minimum illumination 0.05 lux (colour)
0.01 lux (mono)
Lens 26 x optical‚ 12 x digital
3.5 mm to 91 mm (F1.6 to F3.8)
Weight 5.6 kg
2GF1194-8AD
1-40 © Siemens Building Technologies Group
Cameras and Domes
Dome Mounts and Accessories
Type Order No.
1
CFFA-TD
CFFA-CD
CVVA-CD

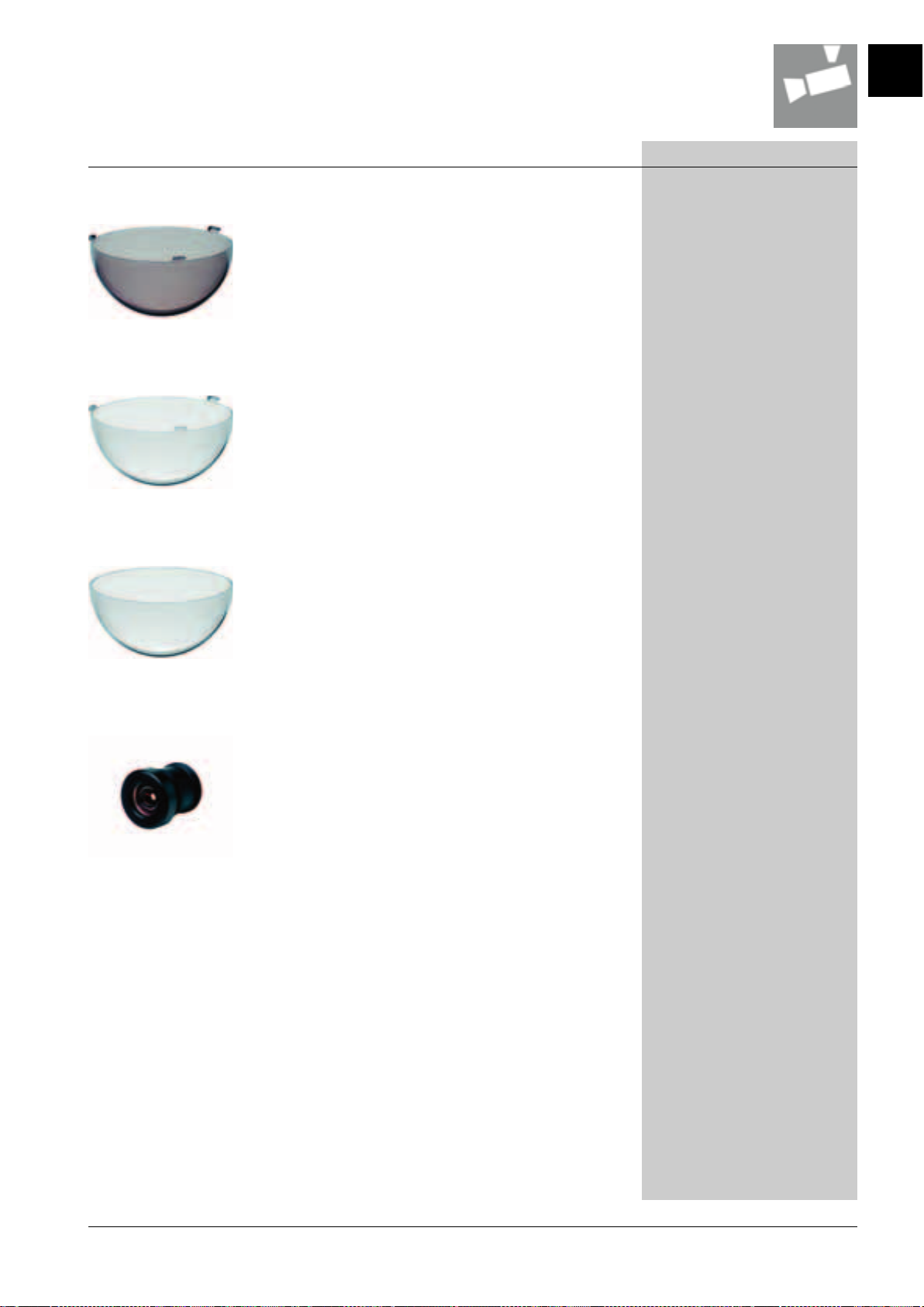

Tinted Bubble for CFxx Fixed Dome Series
Tinted bubble for exchange with the standard clear bubble that is deliv­ered with the CFFB1310‚ CFFB1315‚ CFFC1310‚ CFFC1315 indoor‚ fixed­focal or replacement of the tinted bubble that is delivered with CFVB1415‚ CFVC1415‚ CFVS1415 indoor varifocal domes.
Weight 0.05 kg
Clear Bubble CFxx Fixed Dome Series
Clear bubble for exchange with the standard tinted bubble that is deliv­ered with the CFVB1415‚ CFVC1415‚ CFVS1415 indoor varifocal domes or replacement of the clear bubble that is delivered with CFFB1310‚ CFFB1315‚ CFFC1310‚ CFFC1315 indoor fixed-focal.
Weight 0.05 kg
Clear Lower Dome CVxx Vandal Dome Series
Clear lower dome for exchange with the standard tinted bubble that is delivered with the vandal-resistant dome.
Weight 0.05 kg
2GF1086-8AA
2GF1086-8AG
2GF1086-8AH
CFFA-IC..
CFFA-IC29
CFFA-IC37
CFFA-IC60
CFFA-IC12
Replacement Lens for Fixed Dome CFxx Series
Replacement lenses for exchange with the standard lenses for CFFB1310‚ CFFB1315‚ CFFC1310‚ CFFC1315 internal fixed domes.
Replacement Lens 2.9 mm for CF Series
Weight 0.15 kg
Replacement Lens 3.7 mm for CF Series
Weight 0.20 kg
Replacement Lens 6.0 mm for CF Series
Weight 0.15 kg
Replacement Lens 12 mm for CF Series
CFFA13..
2GF1086-8AB
2GF1086-8AK
2GF1086-8AF
2GF1086-8AE
Weight 0.15 kg
1-41© Siemens Building Technologies Group
Cameras and Domes
Dome Mounts and Accessories

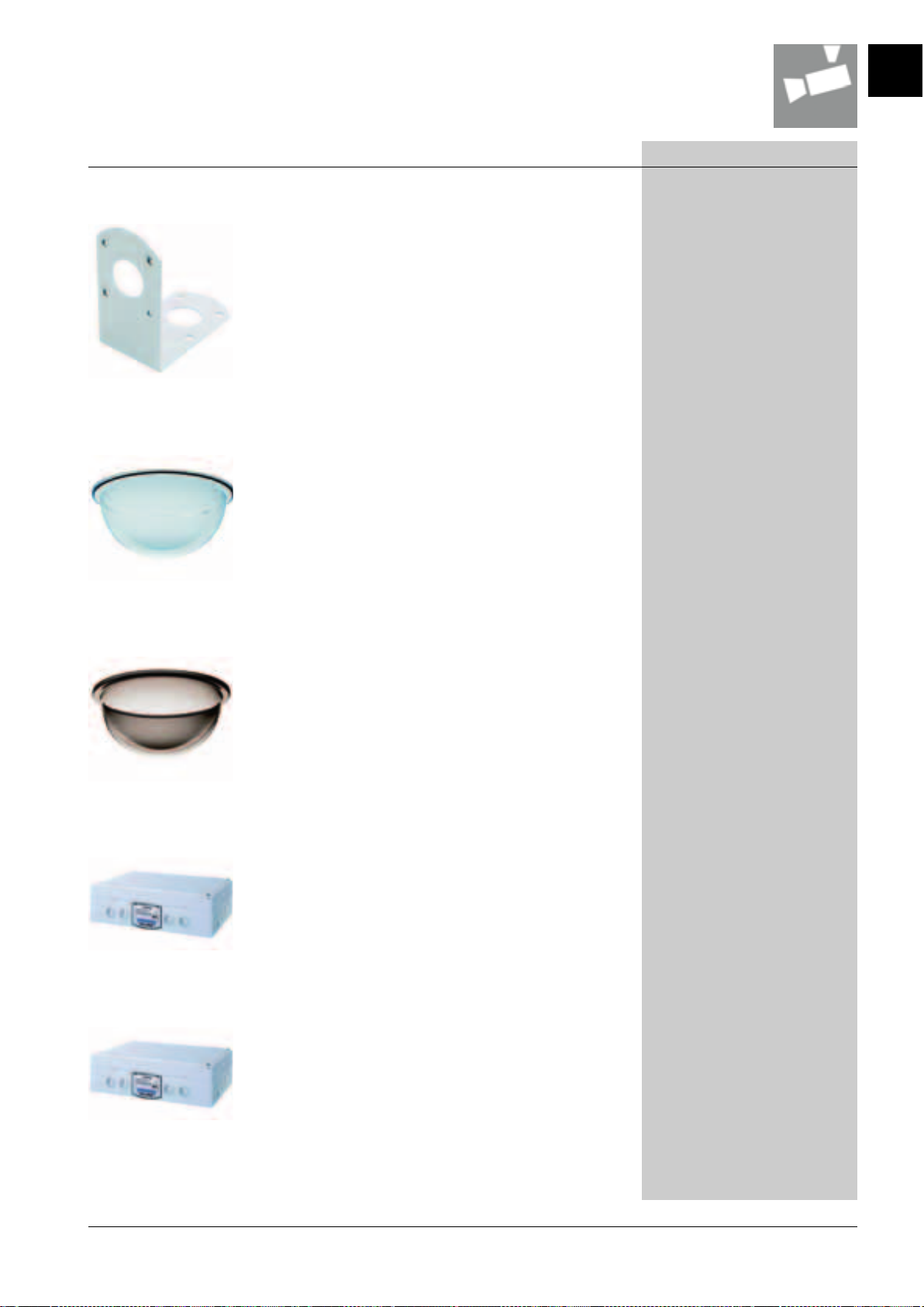

Type Order No.
CVVA-FMIP
CVVA-WMIP
CFVA-BA

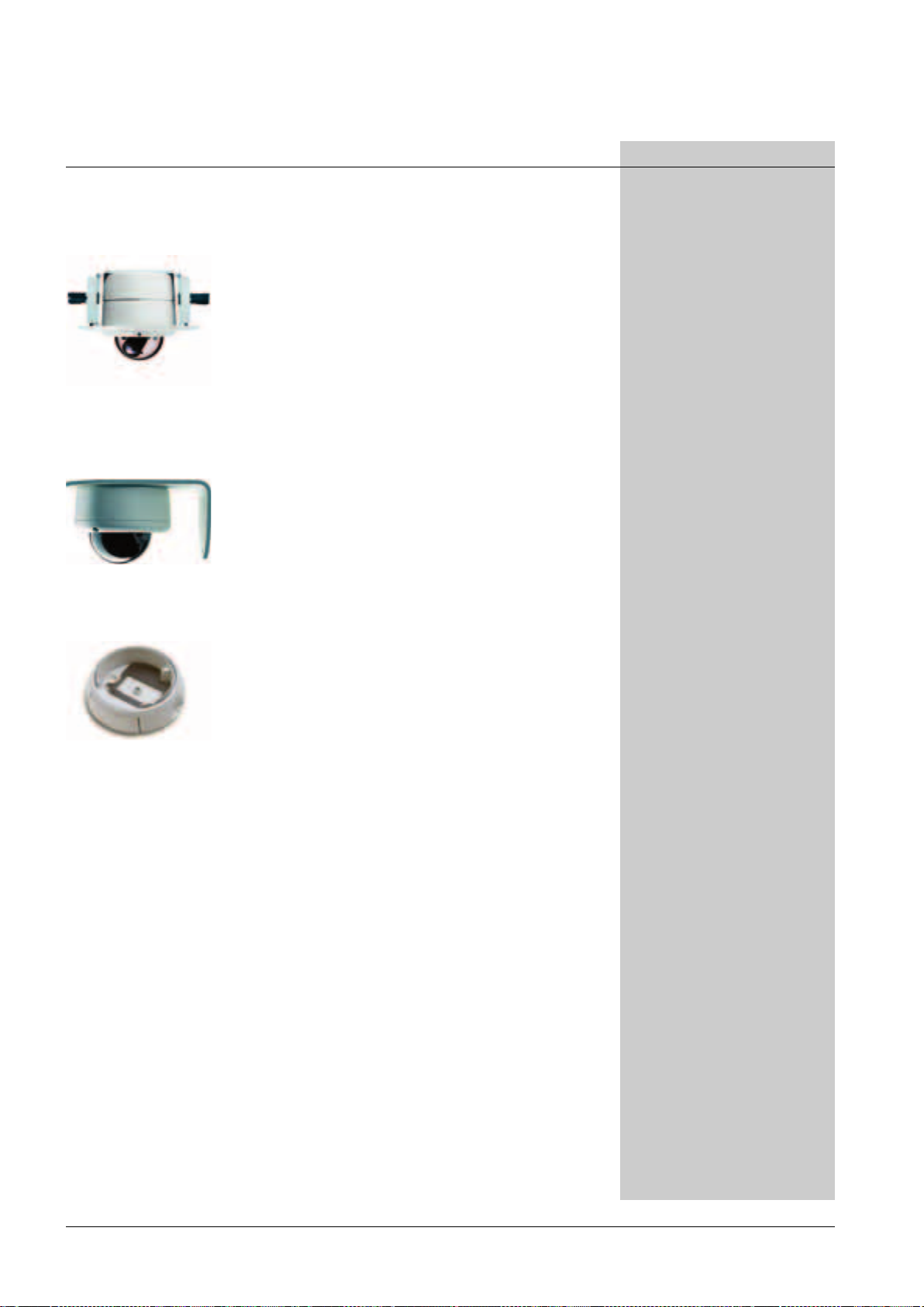

Indoor Flush Mount for Usage with Indoor Dome Series CFxx and Vandal Dome Series CVxx with or without Optional IP Modules CFVA-IP or CVVA-IP.
This indoor‚ flush ceiling-mount includes a clear bubble that will pre­vent the ingress of dust when the indoor domes CFxx or vandal domes CVxx are installed indoors. It is suitable for mounting with or without the optional IP modules CFVA-IP or CVVA-IP. The flush mount enables the indoor dome series CFxx and vandal dome series CVxx to be recessed into a hole cut into the ceiling.
Dimensions (Ø x H) 225 x 120 mm Weight 1.30 kg
Wall Bracket for Usage with Vandal Dome Series CVxx with or with­out Optional IP Module CVVA-IP
This wall mount attaches directly to a flat upright wall. It enables a mount of the vandal dome series with or without the optional IP mod­ule CVVA-IP.
Weight 0.50 kg

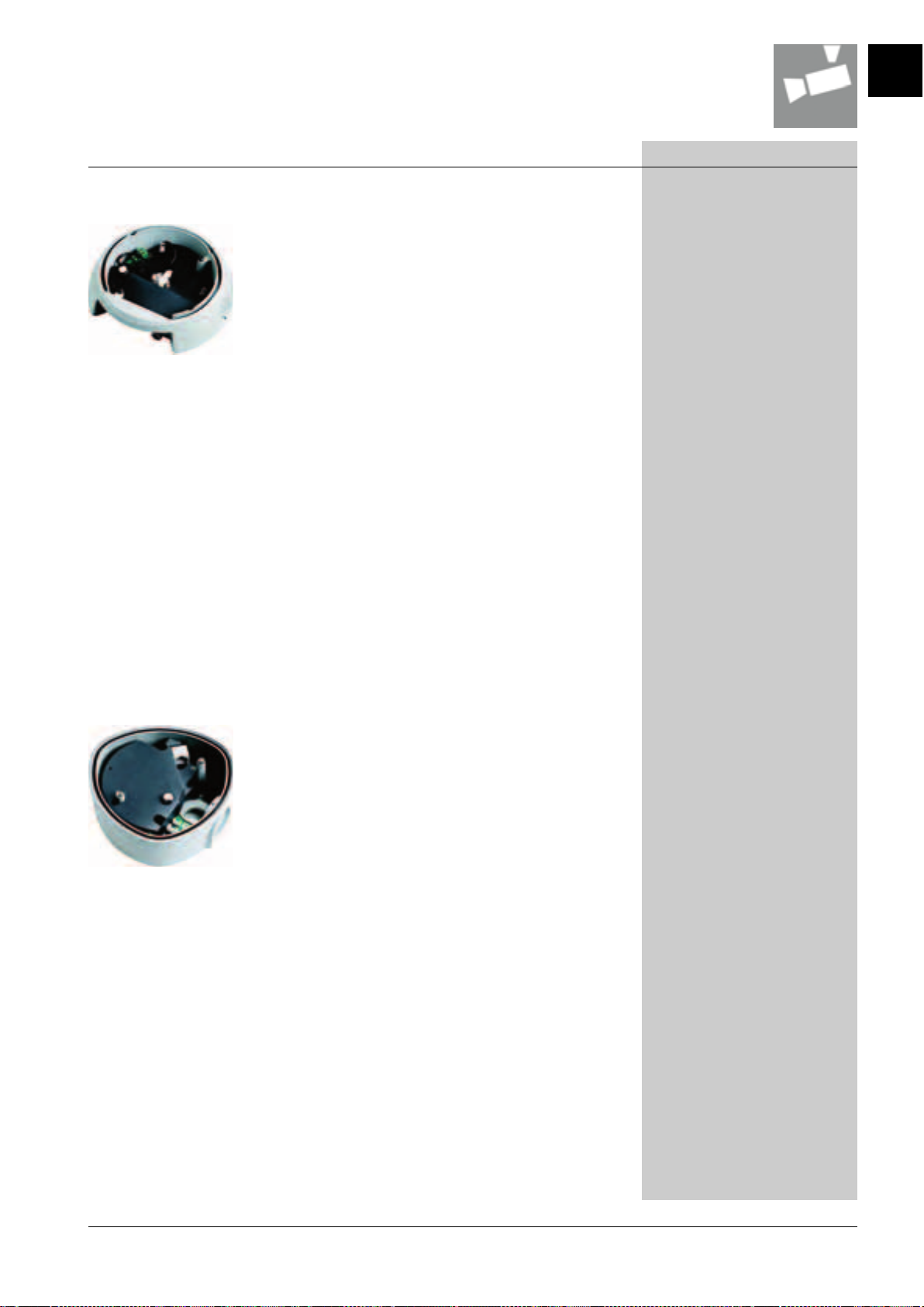

Indoor Dome Base CFVA-BA
The dome base provides additional installation space to hide the ca­bling inside the base. It is is only designed for installation indoors and only for use in conjunction with following dome camera: CFFB1310‚ CFFB1315‚ CFFC1310‚ CFFC1315‚ CFVB1415‚ CFVC1415 and CFVS1415. Additionally‚ the indoor dome base supports the installation of an optional twisted pair transmitter module CTTT0111 (2GF1714-8WN). When the twisted pair transmitter is used‚ the unit including the dome camera can be used with operation voltage of 12 V DC only!
2GF1086-8AM
2GF1086-8AN
2GF1086-8AP
Dimensions (Ø x H) 140 x 35.3 mm Weight 0.40 kg
1-42 © Siemens Building Technologies Group
Cameras and Domes
Dome Mounts and Accessories
Type Order No.
1

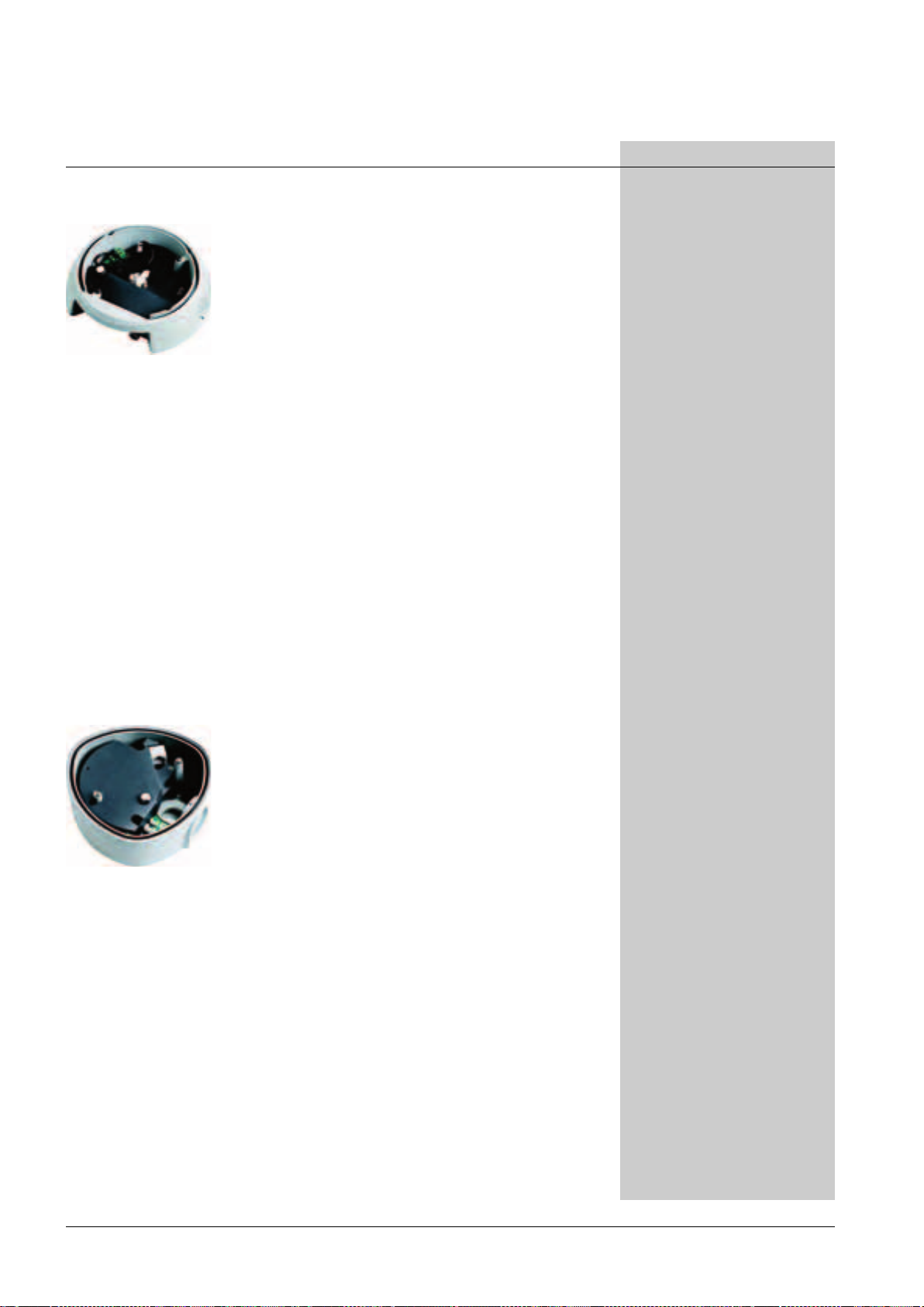

CFVA-IP
MJPEG IP Module for Indoor Fixed Domes
The IP module CFVA-IP is especially designed for use with the indoor dome cameras CFFB1310‚ CFFB1315‚ CFFC1310‚ CFFC1315‚ CFVB1415‚ CFVC1415 and CFVS1415. Existing dome camera systems can easily be upgraded to latest IP technology. The integrated Web Server allows MJPEG compressed live images to be viewed using an http browser (Microsoft Internet Explorer from version 5.5 with Java plug-in or Mozil­la or Netscape from version 7.0). A live player for stand-alone solutions is supplied with the IP module. The live video images supplied by the device can be embedded in dedicated HTML pages without difficulty. The digital video streams can be saved directly using the digital video recorder SISTORE MX (from version V2.50).
Picture format QCIF (176 x 144)
CIF (352 x 288)
4CIF (704 x 576) (interlaced) Network connections 10baseT Ethernet or 100baseTX
Fast Ethernet‚ auto-sensing‚
full / half duplex Security separate passwords for image
access and system configuration Protocols ARP‚ BOOTP/DHCP‚ TCP/IP‚ HTTP‚
ICMP‚ SNMP‚ FTP and DNS Installation IP address configurable via ARP‚
BOOTP/DHCP‚ connection to twist-
ed-pair RJ45 Ethernet. Weight 0.40 kg Power requirements 12 V DC / 24 V AC‚ 50 Hz Power consumption 6 W
2GF1086-8AL
CVVA-IP
MJPEG IP Module for Indoor Vandal Resistant Domes
The IP module CVVA-IP is especially designed for use with the vandal­proof dome cameras CVVB1315‚ CVVC1315‚ CVVS1415. Existing fixed­dome camera systems can be easily upgraded to the latest IP technolo­gy. The integrated Web Server allows MJPEG compressed live images to be viewed using an http browser (Microsoft Internet Explorer from ver­sion 5.5 with Java plug-in or Mozilla or Netscape from version 7.0). A live player for stand-alone solutions is supplied with the IP module. The live video images supplied by the device can be embedded in dedicated HTML pages without difficulty. The digital video streams can be saved directly using the digital video recorder SISTORE MX (from version V2.50).
Picture format QCIF (176 x 144)
CIF (352 x 288)
4CIF (704 x 576) (interlaced) Network connections 10baseT Ethernet or 100baseTX
Fast Ethernet‚ auto-sensing‚
full / half duplex Security Separate passwords for image
access and system configuration Protocols ARP‚ BOOTP/DHCP‚ TCP/IP‚ HTTP‚
ICMP‚ SNMP‚ FTP and DNS Installation IP address configurable via ARP‚
BOOTP/DHCP‚ connection to twist-
ed-pair RJ45 Ethernet. Weight 0.62 kg Power requirements 12 V DC or 24 V AC‚ 50 Hz Power consumption 6 W
2GF1185-8AG
1-43© Siemens Building Technologies Group
Cameras and Domes
Dome Mounts and Accessories
Type Order No.
CCDA1425-WPH
CCDA1425-VRH
Weatherproof Housing for CCDA1425 or CCDA1435
This weatherproof housing enables the outdoor installation of the CCDA1425/CCDA1435 Speed Domes. Including a heater and fan‚ the housing is weatherproof according to IP66. Incorporating a tempera­ture-management. The outdoor housing is designed for operation in temperatures ranging from -30 °C to +50 °C.
Protection rating IP66 Relative humidity 0 D 90% Operating temperature range -30 °C to +50 °C Storage temperature -40 °C to +60 °C Dimensions (Ø x H) 240 x 350 mm Power consumption 26 VA housing only Weight 4.0 kg
CCDA1425-VRH
Vandal-Resistant dome outdoor housing
Power requirements 24 V AC Power consumption 26 VA Dimensions (Ø x H) 240 mm x 345 mm Operating temperature range -30 to +50 °C Storage temperature -40 D + 60 °C Relative humidity 0 D 90% Weight 4.0 kg
2GF1192-8BA
2GF1192-8CA
CCDA1425-SM
CCDA1425-FM
Indoor Surface Mount for CCDA1425 or CCDA1435
This indoor ceiling mount includes a clear bubble that will prevent the ingress of dust when the CCDA1425/CCDA1435 Speed Dome is installed indoors. This ceiling mount attaches directly to the surface of a flat ceiling.
Storage temperature -20° C to +60° C Relative humidity 0 D 90% Dimensions (Ø x H) 165 x 228 mm Weight 1.20 kg
Indoor Flush Mount for CCDA1425 or CCDA1435
This indoor‚ flush ceiling-mount includes a clear bubble that will pre­vent the ingress of dust when the CCDA1425/CCDA1435 Speed Dome is installed indoors. This flush mount housing enables the CCDA1425/CCDA1435 Speed Domes to be recessed into a hole cut into the ceiling.
Storage temperature -20° C to +60° C Relative humidity 0 D 90% Dimensions (Ø x H) 177 x 232 mm Weight 1.40 kg
2GF1192-8BB
2GF1192-8BC
1-44 © Siemens Building Technologies Group
Cameras and Domes
Dome Mounts and Accessories
Type Order No.
1
CCDA1425-PMA
CCDA1425-WM
Pole Mount Adapter For CCDA1425-WM or -WMJ
This pole mount adapter is used to fix the wall mount CCDA1425-WM or CCDA1425-WMJ onto a pole (max. pole diameter 150 mm).
Storage temperature -20° C to +60° C Relative humidity 0 D 90% Dimensions (W x H x D) 180 x 240 x 60 mm Weight 0.8 kg
Outdoor Wall Mount for CCDA1425-WPH/-VRH
This outdoor wall mount attaches directly to a flat‚ upright wall and includes a mounting flange with a standard 1 1/2 inch NTP threaded pipe. This simple wall mount is compatible with the weatherproof out­door housing CCDA1425-WPH/-VRH.
Storage temperature -20° C to +60° C Relative humidity 0 D 90% Dimensions (W x H x D) 154 x 270 x 315 mm Weight 3.40 kg
2GF1192-8BD
2GF1192-8BE
CCDA1425-WMJ
CCDA1425-PM
Wall Mount with Junction Box for CCDA1425-WPH/-VRH
This wall mount attaches directly to a flat‚ upright wall and includes a mounting flange with a standard 1 1/2 inch NTP threaded pipe. The integrated junction box provides perfect cable connectivity and servic­ing / maintenance capability. The "internal" cabling to the dome camera is established via a system cable that is delivered together with the weatherproof housing. This pendant ceiling mount is compatible with the weatherproof outdoor housing CCDA1425-WPH/-VRH.
Storage temperature -20° C to +60° C Relative humidity 0 D 90% Dimensions (W x H x D) 427 x 172 x 338 mm Weight 4.8 kg
Pendant Mount for CCDA1425-WPH/-VRH
This ceiling-pendant mount is a perfect solution for any wood‚ metal‚ plaster‚ drywall‚ or other hard ceiling installation. The mounting assem­bly includes a ceiling flange and a standard 1 1/2 inch NTP threaded pipe. The assembly can be used in beam/pendant installations. This pendant ceiling mount is compatible with the weatherproof outdoor housing CCDA1425-WPH/-VRH.
Storage temperature -20° C to +60° C Relative humidity 0 D 90% Dimensions (W x H x D) 154 x 356 x 208 mm Weight 3.0 kg
2GF1192-8BF
2GF1192-8BG
1-45© Siemens Building Technologies Group
Cameras and Domes
Dome Mounts and Accessories
Type Order No.
CCDA1425-EP
CCDA1425-CMA
Extension Pole for CCDA1425-WM‚ CCDA1425-WMJ and CCDA1425-PM
The extension pole increases the length of wall and pendant mount by
0.5 m. For use with CCDA1425-WM‚ CCDA1425-WMJ and CCDA1425-PM.
Storage temperature -20° C to +60° C Relative humidity 0 D 90% Dimensions (Ø x H) 62 x 535 mm Weight 1.0 kg
Corner Mount Adapter for CCDA1425-WM or -WMJ
This corner mount adapter can be used to fix the wall mounts CCDA1425-WM or CCDA1425-WMJ on a right angled wall corner.
Storage temperature -20° C to +60° C Relative humidity 0 D 90% Dimensions (W x H x D) 180 x 210 x 308 mm Weight 1.0 kg
2GF1192-8BJ
2GF1192-8BH
CCDA1425-FMSB
CCDA1425-SMSB
Bubble Smoked for CCDA1425-FM
Tinted/smoked bubble for exchange with the standard clear bubble that is delivered with the indoor ceiling flush mount CCDA1425-FM
Weight 0.30 kg
Bubble Smoked for CCDA1425-SM
Tinted/smoked bubble for exchange with the standard clear bubble that is delivered with the indoor ceiling surface mount CCDA1425-SM.
Weight 0.30 kg
2GF1192-8BK
2GF1192-8BL
1-46 © Siemens Building Technologies Group
Cameras and Domes
Dome Mounts and Accessories
Type Order No.
1
CCDA1425-WPHSB
CCDA1425-VRHSB
CCDA1425-VRHCB
Bubble Smoked for CCDA1425-WPH
Tinted/smoked bubble for exchange with the standard clear bubble that is delivered with the weatherproofed outdoor housing CCDA1425­WPH.
Weight 0.60 kg
Exchange Bubble Smoked
Tinted / smoked exchange bubble for CCDA1425-VRH
Dimensions (Ø x H) 220 mm x 110 mm Storage temperature -20 D +60 °C Relative humidity 0 D 90% Weight 0.60 kg
Exchange Bubble Clear
Clear exchange bubble for CCDA1425-VRH
Dimensions (Ø x H) 220 mm x 110 mm Storage temperature -20 D +60 °C Relative humidity 0 D 90% Weight 0.60 kg
2GF1192-8BM
2GF1192-8CB
2GF1192-8CC
CCDA1425-PMI
CCDA1425-WMI
CCDS1415-DH
Indoor Pendant Mount Adapter for CCDA1425-PM and CCDA1425-SM
This indoor pendant mount adapter enables the usage of the pendant mount CCDA1425-PM together with the suface mount CCDA1425-SM to be used for indoor pendant mounting of CCDA1425/1435 domes.
Dimensions (Ø x H) 233 x 53 mm Weight 0.63 kg
Indoor Wall Mount CCDA1425-WMI
This indoor wall mount attaches directly to a flat upright wall. It is to be used together with the indoor surface mount CCDA1425-SM and CCDA1425/1435 for indoor wall mount solutions.
Dimensions (W x H x D) 230 x 266 x 140 mm Weight 1.3 kg
Solaris™ Dummy Dome
The Solaris Dummy Dome looks just like the real thing. It is an ideal‚ low­cost solution wherever offenders are to be discouraged and where vid­eo information is not actually required.
Dimension (Ø x H) 245 x 355 mm Weight 2.0 kg
2GF1192-8BN
2GF1192-8BQ
2GF1194-8BA
1-47© Siemens Building Technologies Group
Cameras and Domes
Dome Mounts and Accessories
Type Order No.
CCDS1415-CH
CCDS1415-WM
CCDS1415-FM
Solaris™ Dome Housing for Camera
This camera housing in the Solaris dome design allows a compact sur­veillance camera (e.g. CCAC1415-LPI) to be fitted into a dome housing. The housing includes a support allowing the camera to be manually adjusted to the optimal viewing angle in vertical and horizontal posi­tion.
Weight 4.0 kg
Solaris™ Wall Mount
This wall mount can be used to mount a Solaris dome camera to a flat‚ upright wall. The wall mount has four holes. These holes are serve to pass continuous banding through the mounting plate to attach it to a pole. The banding is not within the scope of supply.
Weight 2.0 kg
Solaris™ Recessed Ceiling Tile Mount
This recessed ceiling tile enables the CCDS1415 Solaris dome camera to be installed in a standard false ceiling tile. A bezel concealing the edge of the ceiling cut-out is included in the delivery.
2GF1194-8BB
2GF1194-8CD
2GF1194-8CB
CCDS1415-SN
CCDS1415-CMA
Dimension (Ø x H) 126 x 530 mm Weight 2.0 kg
Solaris™ Swan Neck Bracket
The swan neck bracket can be mounted a for instance behind a projec­tion on a wall. It is made of uncoated metal.
Weight 6.10 kg
Solaris™ Corner Mount Adapter
This corner mount adapter can be used to fix the wall mount CCDS1415-WM on a right angled wall corner.
Weight 5.0 kg
2GF1194-8CC
2GF1194-8CE
1-48 © Siemens Building Technologies Group
Cameras and Domes
Dome Mounts and Accessories
Type Order No.
1
CCDS1415-BM
CCDS1415-BC
CCDS1415-BS
Solaris™ Parapet Mount Adapter
This parapet mount adapter can be used to fix the wall mount CCDS1415-WM on a parapet.
Dimension (Ø x H) 216 x 103 mm Weight 1.0 kg
Solaris™ Clear Bubble for CCDS1415
Clear bubble for exchange with the bubble that is delivered with the dome camera.
Dimension (Ø x H) 216 x 103 mm Weight 1.0 kg
Solaris™ Smoked Bubble for CCDS1415
Smoked bubble for exchange with the bubble that is delivered with the dome camera.
2GF1194-8CF
2GF1194-8BD
2GF1194-8BE
CCDS1415-XTU
CCDS1415-RTU
Weight 1.0 kg
Solaris™ External Termination Unit
Optional control unit (XTU) for preparation of the subsequent installa­tion of a Solaris dome for applications where a Solaris dome is to be exchanged against a dummy dome at regular intervals.
Dimensions (W x H x D) 250 x 75 x 175 mm Weight 2.0 kg
Solaris™ Remote Termination Unit
Remote termination unit for local power supply of the Solaris dome camera. The RTU allows the XTU to be installed at a distance of up to 300 m from the dome camera.
Dimensions (W x H x D) 250 x 75 x 175 mm Input voltage 110 to 230 V AC‚ 50/60 Hz Weight 1.30 kg
2GF1194-8BC
2GF1194-8CG
1-49© Siemens Building Technologies Group
Cameras and Domes
Dome Mounts and Accessories
Type Order No.
CCDS1415-BHC
CCDS1415-WHC
CCDS1415-NHC
Solaris™ Dome Custom Cover
Black heritage cover for Solaris™
Dimensions (Ø x H) Excl. bubble: 300 x 405 mm
Incl. bubble: 400 x 405 mm Finish Polyester powder coated black Weight 1.25 kg
Solaris™ Dome Custom Cover
White heritage cover for Solaris™
Dimensions (Ø x H) Excl. bubble: 300 x 405 mm
Incl. bubble: 400 x 405 mm Finish Polyester powder coated white Weight 1.25 kg
Solaris™ Dome Custom Cover
Natural heritage cover for Solaris™
Dimensions (Ø x H) Excl. bubble: 300 x 405 mm
Incl. bubble: 400 x 405 mm Finish Polyester powder coated unpainted Weight 1.25 kg
2GF1194-8BG
2GF1194-8BH
2GF1194-8BJ
CCDS1415-SS
Solaris™ Dome Sun & Rain Shield
Dimensions (Ø x H) 360 mm x 12 mm Weight 0.50 kg
2GF1194-8BL
1-50 © Siemens Building Technologies Group
Features of
PIRCAM
Camera
PIR
High false alarm rate – the PIR angle of view is different to the camera view, so nothing would appear on the monitor
PIRCAM
No false alarms – both PIR and camera viewing angle are the same so the intruder always appears on the monitor
Snap-in Technology Screw the base to the wall, connect the terminals and “snap” in the housing – simple!
Reliable performance with 52 zone black mirror optics filtering white light interference – combining world beating intrusion technology with high quality CCTV camera images from Siemens
Cameras and Domes
PIR Cameras
Type Order No.
VCD120-12
1/3" CCD Monochrome Camera 420 TVL with PIR-Detector‚ CCIR‚ 12 V DC
The discrete‚ high-quality monochrome camera with a working PIR in a standard Siemens detector housing is suitable for installations requir­ing CCTV surveillance and reliable motion detection. The detection range of the PIR has the same surveillance range as the camera - ideal for remote transmission systems. A wall mounting bracket is included.
Television standard CCIR: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally) Pixels 500 (H) x 582 (V) Horizontal resolution > 420 TV lines Minimum illumination 0.8 Lux (F2.0 @ 50IRE) Horizontal angle of view 90° Lens 3.0 mm‚ F2.0 S/N ratio > 45 dB Synchronisation Internal or external Gain control Automatic White balance control Auto Detection range 12 m Electronic shutter Auto (1/50 to 1/120‚000 s) Electronic shutter (AES) Autom. 1/50 to 1/100K s Back-light compensation Automatic Optical sy stem Black infrared mirror 12 m /52 zones Alarm output contact rating Opens on alarm‚ 30 V DC‚ 100 mA Tamper output contact rating 30 V DC‚ 100 mA Sensitivity evaluation mode 3 settings Max. pet weight Max. 10 kg with optional pet clip Maximum relative aperture F2.0 Protection rating IP41 Dimensions (W x H x D) 50 x 115 x 65 mm Power requirements 12 V DC‚ 110 mA Power consumption 1.5 W Weight 0.10 kg
2GF1082-8EA
1-52 © Siemens Building Technologies Group
Cameras and Domes
PIR Cameras
Type Order No.
1
VCD320-12
1/3" CCD Colour Camera 380 TVL with PIR-Detector‚ PAL‚ 12 V DC
The discrete‚ high-quality colour camera with a working PIR in a stand­ard Siemens detector housing is suitable for installations requiring CCTV surveillance and reliable motion detection. the PIR has the same surveillance range as the camera - ideal for remote transmission systems. A wall mounting bracket is included.
Television standard PAL: 625 lines‚ 50 fields‚
50 Hz (vertically)‚
15.625 Hz (horizontally) Pixels 500 (H) x 582 (V) Horizontal resolution > 380 TV lines TV lines Minimum illumination 1.2 Lux (F2.0) at 50 IRE Horizontal angle of view 90° Lens 3.0 mm‚ F2.0 S/N ratio > 51dB Synchronisation Internal or external Gain control Automatic White balance control Automatic Detection range 12 m Electronic shutter Auto (1/50 to 1/120‚000 s) Electronic shutter (AES) Autom. 1/50 to 1/100K s Back-light compensation Automatic Optical system Black infrared mirror 12 m /52 zones Alarm output contact rating Opens on alarm‚ 30 V DC‚ 100 mA Tamper output contact rating 30 V DC‚ 100 mA Sensitivity evaluation mode 3 settings Max. pet weight Max. 10 kg with optional pet clip Maximum relative aperture F2.0 Protection rating IP41 Dimensions (W x H x D) 50 x 115 x 65 mm Power requirements 12 V DC Power consumption 1.5 W Weight 0.10 kg
The detection range of
2GF1182-8EA
IRMC104
Pet clip
Mirror clip for outstanding pet immunity.
Delivery unit 4 pieces per package Max. pet weight IR120: 40 kg
IR100: 20 kg
Weight 0.005 kg
BPZ:5623150001
1-53© Siemens Building Technologies Group
Cameras and Domes

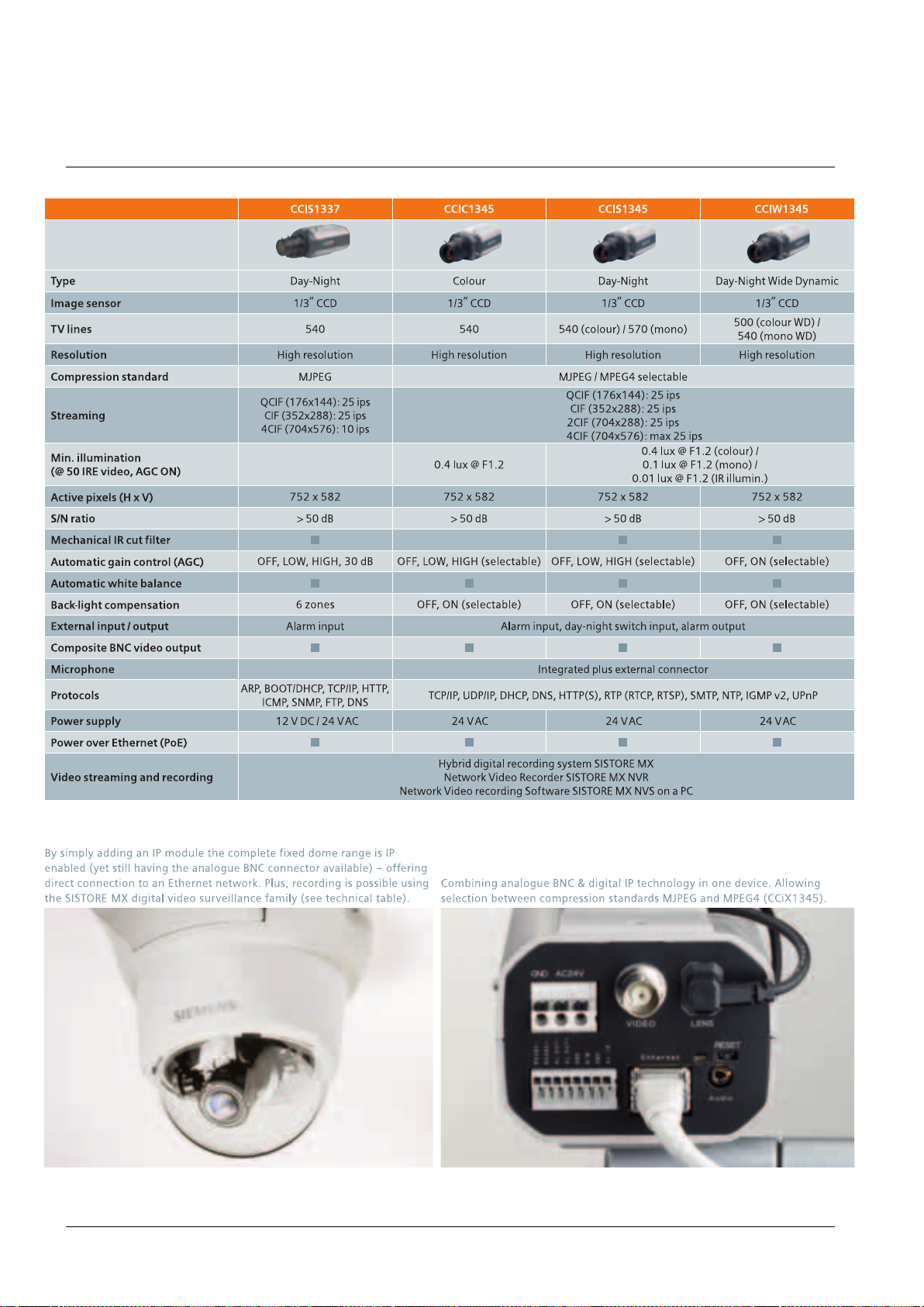

IP Camera Overview
1-54 © Siemens Building Technologies Group
Cameras and Domes
IP Cameras
Type Order No.
1
CCIS1337-LP
1/3" DSP Super High Resolution Day-Night MJPEG IP camera 540 TVL
CCIS1337-LP is a super high resolution day-night IP camera which pro­vides up to 570 TV lines of resolution. The integrated Web Server allows the camera to be configured individually and video images to be viewed using an http browser. The IP camera uses the latest CCD/DSP technology to provide crisp images 24 hours a day even in unsatisfac­tory lighting conditions. CCIS1337-LP is equipped with a mechanical IR filter. The switch-over from colour to mono can be performed automat­ically depending on ambient light conditions or by an external signal using the switch input of the camera. The camera supports the PoE function. In conjunction with the appropriate network components (e.g. hub‚ switch‚ etc.) the operating voltage for the camera can be sup­plied directly over the network cable.
Television standard PAL: 625 lines‚ 50 fields‚ 50 Hz (ver-
tically)‚ 15.625 Hz (horizontally) Image sensor 1/3-inch interline CCD Pixels 752 (H) x 582 (V) Synchronisation Internal: crystal / External: Line-lock Picture format QCIF (176 x 144): 25 ips
CIF (352 x 288): 25 ips
4CIF (704 x 576): 10 ips Horizontal resolution Colour: 540 TVL
Mono: 570 TVL @ Y/C Minimum illumination Colour: 0.4 Lux
Mono: 0.08 Lux
F1.4‚ AGC 30 dB at 50 IRE S/N ratio > 50 dB Gain control ON/TURBO/OFF‚ gain to 30 dB Electronic shutter Automatic: 1/50 s - 1/100000 s
Manual: 1/50 s ... 1 / 10000 s
Off: 1/50 s White balance control ATW1: (2500z6500 ° K); ATW2:
(2500z10000 ° K)
Manual: (2500z10000 ° K) Back-light compensation Centre 1‚ Centre 2‚ Up Half‚ Down
Half‚ Door Low‚ Door High Camera titles 16 characters Lens mount CS (C-mount adapter supplied) Auto-iris lens control Direct or video drive; 2 sockets:
front section of side panel/rear Infrared sensitive 880 nm‚ monochrome mode Network connections 10baseT Ethernet or 100baseTX
Fast Ethernet‚ auto-sensing‚ full/half
duplex Compression MJPG Protocols ARP‚ BOOTP/DHCP‚ TCP/IP‚ HTTP‚
ICMP‚ SNMP‚ FTP and DNS Security Separate passwords for image
access and system configuration Tripod thread A(1/4); ¼ inch on bottom and top Dimensions (W x H x D) 72 x 63 x 122 mm Operating temperature range -10° C to +40° C‚ Humidity 95% max‚
no condensation Weight 0.50 kg Power requirements 12 V DC / 24 V AC‚ 50 Hz‚
Power over Ethernet (PoE) Power consumption Normal operation 9.66 W
With moving IR filter (< 1 sec) 13 W
2GF1186-8AB
1-55© Siemens Building Technologies Group
Cameras and Domes
IP Cameras
Type Order No.
CFVA-IP
MJPEG IP Module for Indoor Fixed Domes
The IP module CFVA-IP is especially designed for use with the indoor dome cameras CFFB1310‚ CFFB1315‚ CFFC1310‚ CFFC1315‚ CFVB1415‚ CFVC1415 and CFVS1415. Existing dome camera systems can easily be upgraded to latest IP technology. The integrated Web Server allows MJPEG compressed live images to be viewed using an http browser (Microsoft Internet Explorer from version 5.5 with Java plug-in or Mozil­la or Netscape from version 7.0). A live player for stand-alone solutions is supplied with the IP module. The live video images supplied by the device can be embedded in dedicated HTML pages without difficulty. The digital video streams can be saved directly using the digital video recorder SISTORE MX (from version V2.50).
Picture format QCIF (176 x 144)
CIF (352 x 288) 4CIF (704 x 576) (interlaced)
Network connections 10baseT Ethernet or 100baseTX
Fast Ethernet‚ auto-sensing‚ full / half duplex
Security Separate passwords for image
access and system configuration
Protocols ARP‚ BOOTP/DHCP‚ TCP/IP‚ HTTP‚
ICMP‚ SNMP‚ FTP and DNS
Installation IP address configurable via ARP‚
BOOTP/DHCP‚ connection to twist-
ed-pair RJ45 Ethernet. Weight 0.40 kg Power requirements 12 V DC / 24 V AC‚ 50 Hz Power consumption 6 W
2GF1086-8AL
CVVA-IP
MJPEG IP Module for Indoor Vandal Resistant Domes
The IP module CVVA-IP is especially designed for use with the vandal­proof dome cameras CVVB1315‚ CVVC1315‚ CVVS1415. Existing fixed­dome camera systems can be easily upgraded to the latest IP technolo­gy. The integrated Web Server allows MJPEG compressed live images to be viewed using an http browser (Microsoft Internet Explorer from ver­sion 5.5 with Java plug-in or Mozilla or Netscape from version 7.0). A live player for stand-alone solutions is supplied with the IP module. The live video images supplied by the device can be embedded in dedicated HTML pages without difficulty. The digital video streams can be saved directly using the digital video recorder SISTORE MX (from version V2.50).
Picture format QCIF (176 x 144)
CIF (352 x 288)
4CIF (704 x 576) (interlaced) Network connections 10baseT Ethernet or 100baseTX
Fast Ethernet‚ auto-sensing‚
full / half duplex Security Separate passwords for image
access and system configuration Protocols ARP‚ BOOTP/DHCP‚ TCP/IP‚ HTTP‚
ICMP‚ SNMP‚ FTP and DNS Installation IP address configurable via ARP‚
BOOTP/DHCP‚ connection to twist-
ed-pair RJ45 Ethernet. Weight 0.62 kg Power requirements 12 V DC or 24 V AC‚ 50 Hz Power consumption 6 W
2GF1185-8AG
1-56 © Siemens Building Technologies Group
Cameras and Domes
IP Cameras
Type Order No.
1
CCIx1345..
1/3" Super High Resolution MJPEG / MPEG-4 IP Streaming Cameras
The CCIx1345 range is a true CCTV IP Security Camera range that com­bines the requirements of classic analogue CCTV cameras with the high performance‚ flexibility and IT-security of a modern Video-over-IP device. Thanks to hybrid technology‚ this camera range allows the upgrade of existing video installations to state-of-the-art IP systems. Features like Activity (Motion) detection‚ PTZ control‚ privacy zones‚ the integrated firewall‚ the 128 MB alarm image memory and email notifi­cation turn this IP camera into a true video security device.
Television standard 2:1 PAL interlace
50 Hz (vertically)
15.625 Hz (horizontally) Pixels 752 (H) x 582 (V) Synchronisation Internal: crystal
External: line lock (AC only)
Picture format QCIF (176 x 144): max 25 ips
CIF (352 x 288): max 25 ips 2CIF (704 x 288): max 25 ips 4CIF (704 x 576): max 25 ips
S/N ratio 50 dB (weighted‚ AGC switched off‚
aperture low)
Electronic shutter Automatic: 1/50 s z 1/100000 sec.
max. White balance control AUTO (2500z10000 °K)‚ HOLD Camera titles max. 24 characters Lens mount CS-mount Network connections 10 BaseT Ethernet or 100 BaseTX
Fast Ethernet‚ auto-sensing‚ full/half
duplex Compression MJPEG/MPEG-4 Protocols TCP/IP‚ UDP/IP‚ DHCP‚ DNS‚ HTTP(S)‚
RTP (RTCP‚ RTSP)‚ SMTP‚ NTP‚ IGMP
v2‚ UPnP Security Separate passwords for image
access and system configuration Tripod thread A(1/4); ¼ inch on bottom and top
(depth: 7mm) Dimensions (W x H x D) 121.3 x 76 x 62.6 mm Operating temperature range -10° C to +50° C Weight 0.50 kg Power requirements 24 V AC‚ 50 Hz‚
Power over Ethernet (PoE)
max. 500 mA
CCIx1345-LP..
CCIS1345-LP
1/3" Super High Resolution MJPEG / MPEG-4 Day-Night IP Streaming Camera
As CCIx1345.. for technical details‚ but with the following differences:
Image sensor 1/3-inch CCD Horizontal resolution Colour: 540 lines Minimum illumination 0.4 lux at F=1.2 (AGC on‚ 50 IRE
video) Gain control Selectable: OFF‚ LOW‚ HIGH Back-light compensation Selectable: OFF‚ ON
(AE mode) Power consumption Normal operation 6.0 W
2GF1118-8HA
1-57© Siemens Building Technologies Group
Cameras and Domes
IP Cameras
Type Order No.
CCIC1345-LP
CCIW1345-LP
1/3" Super High Resolution MJPEG / MPEG-4 Color IP Streaming Camera
As CCIx1345.. for technical details‚ but with the following differences:
Image sensor 1/3-inch CCD Horizontal resolution Colour: 540 lines
Mono: 570 lines
Minimum illumination Colour: 0.4 lux at F=1.2 (AGC on‚ 50
IRE video) Mono: 0.1 lux at F=1.2 (AGC on‚ 50 IRE video)
0.01 lux at F=1.2 (AGC on‚ 50 IRE
video‚ IR-Illumination) Gain control Selectable: OFF‚ LOW‚ HIGH Back-light compensation Selectable: OFF‚ ON
(AE mode) Power consumption Normal operation 6.5 W
1/3" Super High Resolution MJPEG / MPEG-4 Day-Night Wide Dynamic IP Streaming Camera
As CCIx1345.. for technical details‚ but with the following differences:
Image sensor 1/3-inch Sony Double Density CCD Horizontal resolution Colour (WD): 500 lines
Mono (WD): 540 lines Minimum illumination Colour: 0.4 lux at F=1.2 (AGC on‚ 50
IRE video)
Mono: 0.1 lux at F=1.2 (AGC on‚ 50
IRE video)
0.01 lux at F=1.2 (AGC on‚ 50 IRE
video‚ IR-Illumination) Gain control Selectable: OFF‚ ON Back-light compensation Selectable: OFF‚ ON
(AE mode) Infrared sensitive In night mode: 850-1000 nm Power consumption Normal operation 7.0 W
2GF1183-8KA
2GF1118-8HB
1-58 © Siemens Building Technologies Group
Cameras and Domes
Accessories Cameras and Domes
Type Order No.
1

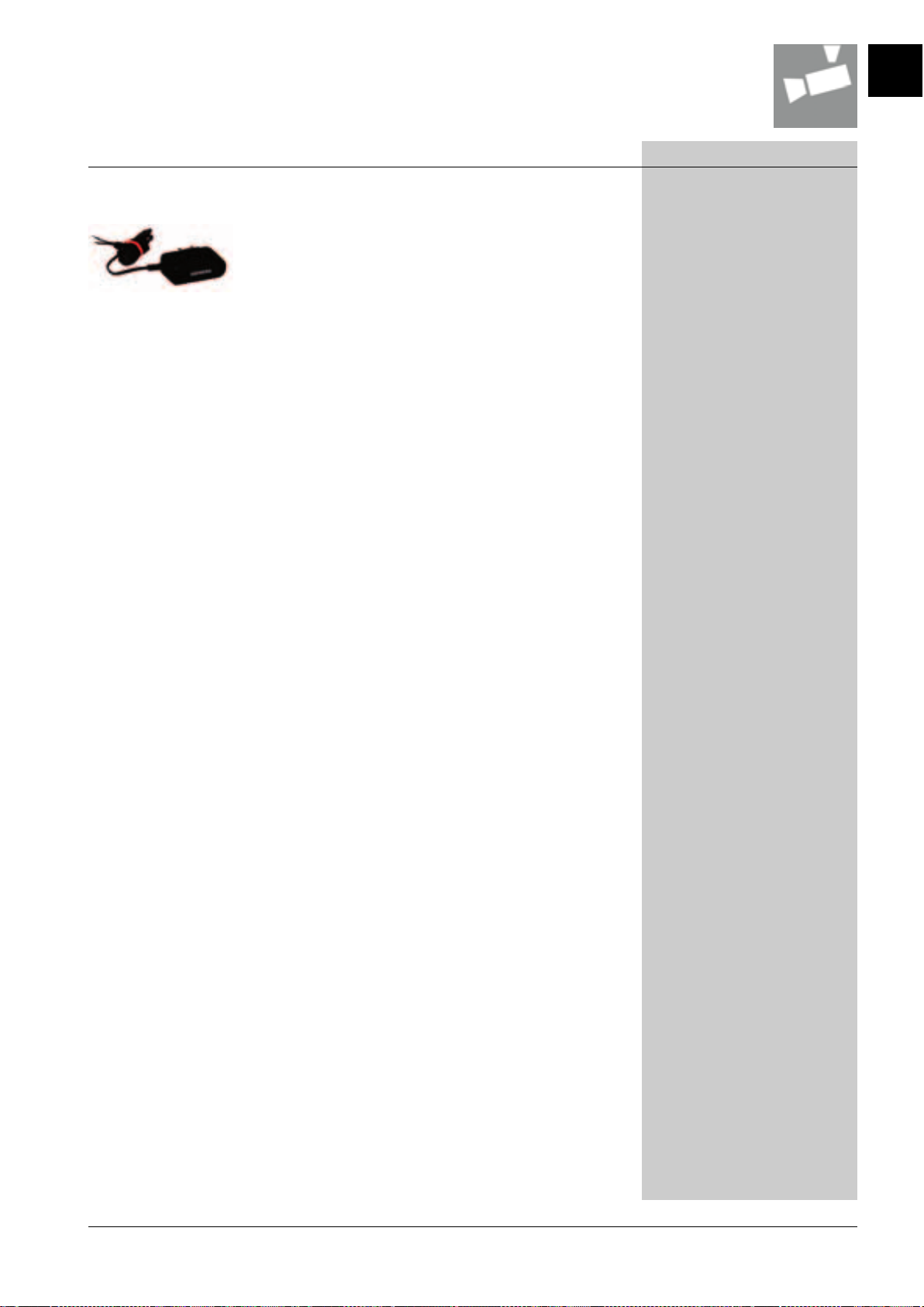

PSU230-12
CAPA2410-P230
CAPA2415-C230
Plug Type Power Supply 230 V AC / 12 V DC
Step-down plug type power supply 230 V AC‚ 12 V DC. Supplied with 2 m DC cable with open end.
Input voltage 230 V AC‚ 50 Hz Output voltage 12 V DC‚ 640 mA Connections Input: European plug‚ output: open
end Number of Pins 2 Weight 0.40 kg
Plug Type Power Supply 230 V AC / 24 V AC
Plug type power supply 230 V AC‚ 24 V AC‚ 500 mA. Supplied with 2 m DC cable with open end.
Input voltage 230 V AC‚ 50 Hz Output voltage 24 V AC‚ 500 mA Connections Input: European plug‚ output: open
end Number of Pins 2 Weight 0.30 kg
Indoor Power Supply 230 V AC / 24 V AC
Indoor power supply 230 V AC‚ 24 V AC‚ 60 W. Supplied with 1.5 m mains power cable with European plug and screw terminal for 24 V AC output.
2GF1800-8BE
2GF1800-8BJ
2GF1800-8BK
CAPA2415-W230
WJB-12
Input voltage 230 V AC‚ 50 Hz Output voltage 24 V AC‚ 2.5 A Connections Input: 1.5 m cable with European
plug‚ output: screw terminal Number of Pins 2 Weight 1.90 kg
Outdoor Power Supply 230 V AC / 24 V AC
Outdoor power supply 230 V AC‚ 24 V AC‚ 60 W with IP 67 weather­proof rated‚ plastic outdoor housing. Cable entry via cable glands: mains power‚ 24 V AC (4 x M16).
Input voltage 230 V AC‚ 50 Hz Output voltage 24 V AC Connections Input: 3 pin spring type terminal‚
output: 3 x 2 pin spring type termi-
nal Weight 2.40 kg
Weatherproof Junction Box IP65
For compact cameras‚ as transition-‚ junction- and distribution box. 2 x 3 power clips for control lines and video test connector (BNC)‚ fitted in a weatherproof plastic housing. Power supply not included.
Connections 6 (2 x 3) BNC junction connections Protection rating IP65 Weight 1.65 kg
2GF1800-8BL
2GF1803-8AC
1-59© Siemens Building Technologies Group
Cameras and Domes
Accessories Cameras and Domes
Type Order No.
CFFA-RS
PSU12D
TX-CONTROL
Remote Setup Kit for Fixed Domes CFxx and Vandal Domes CVxx including Remote Setup Software and Remote Adapter 0.5 m
This remote setup kit is used for comfortable remote setup of all fixed and vandal domes that support a remote setup feature.
PSU12D
Additional or replacement power supply unit‚ suitable for powering remote keyboards. Available in three input voltages to suit various sup­ply conditions.
Power requirements 230 V AC Output voltage 12 V DC‚ 500 mA Number of Pins 2 Weight 0.52 kg
TX-CONTROL Control Interface for Bewator Telemetry Products
This product allows the control of Molynx Protocol telemetry products from an RS232 device‚ such as a PC. Molynx telemetry protocol is designed to be a high speed‚ real-time protocol‚ and many RS232 devic­es cannot meet the specifications required. The TX-Control provides an interface between‚ for example‚ a PC and a telemetry controlled prod­uct‚ by translating the Molynx protocol into a simplified protocol for the PC.
2GF1086-8AJ
BPZ:80-194
BPZ:80-223
Power requirements 100 D 240 V AC‚ 50/60 Hz‚ 300 mA Protection rating Indoor use only Weight 1.30 kg
1-60 © Siemens Building Technologies Group
Lenses
The front of any CCTV system is a lens, often overlooked but a very important part of any system…
Provide the right view in a variety of security surveillance situations with these professional lenses that are easy to adjust. Focal-length and focus adjustments have screw-locks to ensure views remain as initially set.
Manual iris CS-mount lenses for use in applications with stable illumination levels. Also ideal for use with modern 1/3” CCD cameras featuring automatic electronic shuttering (AES).
Auto-iris CS-mount lenses direct drive (DC-type) suitable for use with modern cameras featuring internal auto-iris drive circuits. Particularly suitable for use with cameras surveying outdoor scenes or in situations where widely varying illumina­tion levels are likely to occur.
Zoom lenses feature accurate multi-turn potentiometers; for use in conjunction with pan/tilt heads and controllers that support “preset” automatic positioning
Varifocal models include aspherical lenses, offering a compact size Specific range of varifocal lenses for use with day-night cameras
Lenses
Fixed Focal Length Lenses
Type Order No.
CLFM13..
CLFM1212/12
CLFM1314/2.8
Manual iris
Lens with high-performance glass optics and manual iris mechanism. Professional lenses with screw locks to ensure images remain sharply focused. The technical details of these lenses are listed below:
12.0 mm F1.2‚ 1/2" C
Focal length 12.0 mm Maximum relative aperture F1.2 Horizontal angle of view 29.7° Minimum object distance 0.3 m Focus type Adjustable Format 1/2" C-mount Weight 0.0745 kg
2.8 mm F1.4‚ 1/3" CS
Focal length 2.8 mm Maximum relative aperture F1.4 Horizontal angle of view 95.6º Minimum object distance 0.2 m Focus type Adjustable Format 1/3" CS-mount Weight 0.0545 kg
CLFM13..
2GF1640-8AH
2GF1661-8AL
CLFM1312/4
CLFM1312/6
4.0 mm F1.2‚ 1/3 CS
Focal length 4.0 mm Maximum relative aperture F1.2 Horizontal angle of view 70.6º Minimum object distance 0.25 m Focus type Adjustable Format 1/3" CS-mount Weight 0.0504 kg
6.0 mm F1.2‚ 1/3" CS
Focal length 6.0 mm Maximum relative aperture F1.2 Horizontal angle of view 48.1° Minimum object distance 0.3 m Focus type Adjustable Format 1/3" CS-mount Weight 0.0417 kg
2GF1661-8AM
2GF1661-8AN
2-2 © Siemens Building Technologies Group
Lenses
Fixed Focal Length Lenses
Type Order No.
2
CLFM1312/8
CLFM1316/16
CLFD13..
8.0 mm F1.2‚ 1/3" CS
Focal length 8.0 mm Maximum relative aperture F1.2 Horizontal angle of view 36.5º Minimum object distance 0.3 m Focus type Adjustable Format 1/3" CS-mount Weight 0.0411 kg
16 mm F1.6‚ 1/3" CS
Focal length 16.0 mm Maximum relative aperture F1.6 Horizontal angle of view 17.6° Minimum object distance 0.7 m Focus type Adjustable Format 1/3" CS-mount Weight 0.0395 kg
Auto-Iris‚ Direct Drive
Lens with high-performance glass optics‚ galvanometric direct drive‚ auto-iris mechanism and ND spot-filter - ideal for outdoor applications. Screw lock ensures images remain sharply focused. Supplied with fitted plug. The technical details of these lenses are listed below:
2GF1661-8AP
2GF1661-8AQ
CLFD13..
CLFD1214/12
CLFD1314/2.8
12.0 mm F1.4‚ 1/2" C
Focal length 12.0 mm Focus type Adjustable Maximum relative aperture F1.4 Horizontal angle of view 29.7° Minimum object distance 0.2 m Format 1/2" C-mount Weight 0.0825 kg
2.8 mm F1.4‚ 1/3" CS
Focal length 2.8 mm Maximum relative aperture F1.4 Horizontal angle of view 95.6º Minimum object distance 0.2 m Format 1/3" CS-mount Weight 0.0633 kg
2GF1642-8AT
2GF1663-8AN
2-3© Siemens Building Technologies Group
Lenses
Fixed Focal Length Lenses
Type Order No.
CLFD1312/4
CLFD1312/6
CLFD1312/8
4.0 mm F1.2‚ 1/3" CS
Focal length 4.0 mm Maximum relative aperture F1.2 Horizontal angle of view 70.6º Minimum object distance 0.25 m Format 1/3" CS-mount Weight 0.0644 kg
6.0 mm F1.2‚ 1/3" CS
Focal length 6.0 mm Maximum relative aperture F1.2 Horizontal angle of view 48.1° Minimum object distance 0.3 m Format 1/3" CS-mount Weight 0.0498 kg
8.0 mm F1.2‚ 1/3" CS
Focal length 8.0 mm Maximum relative aperture F1.2 Horizontal angle of view 36.5º Minimum object distance 0.3 m Format 1/3" CS-mount Weight 0.0495 kg
2GF1663-8AP
2GF1663-8AQ
2GF1663-8AR
CLFD1316/16
16 mm F1.6‚ 1/3" CS
Focal length 16.0 mm Maximum relative aperture F1.6 Horizontal angle of view 17.6° Minimum object distance 0.7 m Focus type Adjustable Format 1/3" CS-mount Weight 0.0475 kg
2GF1663-8AS
2-4 © Siemens Building Technologies Group
Lenses
Varifocal Length Lenses
Type Order No.
2
CLVM13..
CLVM1314/3.5-8
CLVM1314/2.5-10
Manual Iris
Lens with high-performance glass optics for compact size with manual iris. Focal length and focus adjustments have screw-locks to ensure views remain as initially set. Supplied with fitted plug. The technical details of these lenses are listed below:
3.5 D 8 mm F1.4 1/3 CS
Format 1/3" CS-mount Focal length 3.5 D 8 mm Focus type Adjustable Maximum relative aperture F1.4 Horizontal angle of view 35 D 73.8° Minimum object distance 0.3 m Weight 0.0898 kg
2.5 D 10 mm F1.4 1/3 CS
Format 1/3" CS-mount Focal length 2.5 D 10 mm Focus type Adjustable Maximum relative aperture F1.4 Horizontal angle of view 28.3 D 105.8° Minimum object distance 0.3 m Weight 0.0808 kg
CLVM13..
2GF1664-8AG
2GF1664-8AK
CLVM1325/5-50
CLVM1318/7-70
Manual Iris
Focal length 5 D 50 mm Focus type Adjustable Maximum relative aperture F1.4 D C Horizontal angle of view 5.6 D 53.6° Minimum object distance 0.3 m Weight 0.20 kg
7 D 70 mm F1.8 1/3" CS
Format 1/3" CS-mount Focal length 7 D 70 mm Focus type Adjustable Maximum relative aperture F1.8 Horizontal angle of view 4.2 D 40.1° Minimum object distance 0.3 D 1.0 m Weight 0.1995 kg
2GF1664-8AN
2GF1664-8AJ
2-5© Siemens Building Technologies Group
Lenses
Varifocal Length Lenses
Type Order No.
CLVD13..
CLVD1314/3.5-8
CLVD1314/2.5-10
Auto-Iris‚ Direct Drive
Lens with high-performance glass optics for compact size‚ galvanomet­ric direct‚ drive auto-iris mechanism. Focal length and focus adjust­ments have screw-locks to ensure views remain as initially set. Supplied with fitted plug. The technical details of these lenses are listed below:
3.5 D 8 mm F1.4 1/3" CS
Format 1/3" CS-mount Focal length 3.5 D 8 mm Focus type Adjustable Horizontal angle of view 35 D 73.8° Minimum object distance 0.3 m Weight 0.0766 kg
2.5 D 10 mm F1.4 1/3'' CS
Format 1/3" CS-mount Focal length 2.5 D 10 mm Focus type Adjustable Horizontal angle of view 28.3 D 105.8° Minimum object distance 0.3 m Weight 0.0805 kg
CLVD13..
2GF1667-8AJ
2GF1667-8AM
CLVD1325/5-50
CLVD1318/7-70
Auto-Iris‚ Direct Drive
Focal length 5 D 50 mm Focus type Adjustable Maximum relative aperture F1.4 D C Horizontal angle of view 5.6 D 53.6° Minimum object distance 0.3 m Weight 0.20 kg
7 D 70 mm F1.8 1/3" CS
Format 1/3" CS-mount Focal length 7 D 70 mm Focus type Adjustable Aperture Horizontal angle of view 4.2 D 40.1° Minimum object distance 0.3 D 1.0 m Weight 0.2015 kg
2GF1667-8AU
2GF1667-8AL
2-6 © Siemens Building Technologies Group
Lenses
Varifocal Length Lenses
Type Order No.
2
CLVD1318..
CLVD1218/4-12
CLVD1218/10-40
Auto-Iris‚ Direct Drive for Use with Day-Night Cameras
Lens with high-performance aspherical glass optics for compact size‚ galvanometric direct drive‚ auto-iris mechanism and infrared correction
- ideal for outdoor applications and designed for use with day-night cameras to ensure there is no focal shift when switching from colour by day‚ to monochrome by night. Focal length and focus adjustments have screw-locks to ensure views remain as initially set. Supplied with fitted plug. The technical details of these lenses are listed below:
4 D 12 mm F1.2 1/2" VF‚ AS‚ IR
Format 1/2" CS-mount Focus type Adjustable Focal length 4 D 12 mm Horizontal angle of view 31.2 D 93.6° Maximum relative aperture F1.2 D 360 Minimum object distance 0.3 m Weight 0.065 kg
10 D 40 mm F1.4 1/2" VF‚ AS‚ IR
Format 1/2" CS-mount Focus type Adjustable Focal length 10 D 40 mm Horizontal angle of view 9.2 D 37.5° Maximum relative aperture F1.4 D 360 Minimum object distance 0.5 m Weight 0.087 kg
CLVD1318..
2GF1651-8AB
2GF1651-8AA
CLVD1318/3-8
3 D 8 mm F1.0 1/3" VF‚ AS‚ IR
Format 1/3" CS-mount Focal length 3 D 8 mm Horizontal angle of view 36.2 D 90.8° Maximum relative aperture F1.0 D 360 Minimum object distance 0.2 m Weight 0.047 kg
2GF1667-8AQ
2-7© Siemens Building Technologies Group
Lenses
Varifocal Length Lenses
Type Order No.
CLVD1318/2.8-11
CLVD1318/10-40
2.8 D 11 mm F1.4 1/3" VF‚ AS‚ IR
Format 1/3" CS-mount Focal length 2.8 D 11 mm Horizontal angle of view 26.2 D 97.4° Maximum relative aperture F1.4 D 360 Minimum object distance 0.3 m Weight 0.087 kg
10 D 40 mm F1.4 1/3" VF‚ AS‚ IR
Format 1/3" CS-mount Focal length 10 D 40 mm Horizontal angle of view 7.0 D 27.5° Maximum relative aperture F1.4 D 360 Minimum object distance 0.5 m Weight 0.077 kg
2GF1667-8AR
2GF1667-8AS
2-8 © Siemens Building Technologies Group
Lenses
Zoom Lenses
Type Order No.
2
CLPD1312/6-72
CLZD13..
CLZD1314/6-36
Auto-Iris‚ Direct Drive‚ Presets‚ 6 D 72 mm F 1.2 1/3" CS
CS-mount‚ motor zoom lens with 5K Ohm zoom and focus feedback potentiometers for use as presets‚ high-performance glass optics‚ galva­nometric direct drive‚ auto-iris mechanism and ND spot-filter. Supplied with fitted iris plug.
Format 1/3" CS-mount Focal length 6 D 72 mm Focus type Adjustable Horizontal angle of view 43.7° Minimum object distance 1.5 m Weight 0.57 kg
Auto-Iris‚ Direct Drive
CS-mount‚ motor zoom lens with zoom and focus drives‚ high-perfor­mance glass optics‚ galvano metric direct drive‚ auto-iris mechanism and ND spot-filter. Supplied with fitted iris plug. The technical details of these lenses are listed below:
Auto-Iris‚ Direct Drive 6 D 36 mm F 1.2 1/3" CS
Format 1/3" CS-mount Focus type Adjustable Focal length 6 D 36 mm Horizontal angle of view 43.6° Minimum object distance 1.3 m Weight 0.302 kg
2GF1666-8AD
CLZD13..
2GF1665-8AF
CLZD1312/6-72
Auto-Iris‚ Direct Drive 6 D 72 mm F 1.2 1/3" CS
Format 1/3" CS-mount Focus type Adjustable Focal length 6 D 72 mm Horizontal angle of view 43.7° Minimum object distance 1.5 m Weight 0.57 kg
2GF1665-8AG
2-9© Siemens Building Technologies Group
How can I get into my office at this time of night?
Using interoperable access control, intrusion detection and video surveillance systems
Access control rights allow you in, then the CCTV cameras trigger to start recording as you walk through, the PIR zones are also deactivated in just the area you have access – all displayed and controlled via one screen.
www.siemens.com/interoperability
Housings and Mounts
For all seasons, a range of camera housings…
A complete range of IP66 camera housings together with a full range of accessories, brackets and spare parts tailored to the customer’s need. All of these items adhere to high quality and reliability standards to support a safe and easy installation.
High performance aluminium camera housings complete with sunshield. Ideal for cameras fitted with either fixed, varifocal or zoom lenses. Suitable for static or pan-tilt mounting. The outer body of the housing is easily removed allowing in-situ adjustment of camera, lens and cabling.
The protective housing is suited for permanent mounting with the available wall arms or for direct mounting on a pan and tilt head. The housing cover is easy to remove, facilitating on-site installation and cabling of the camera with lens. Space is provided in the housing for installation of a twisted pair transmitter or fibrer optic module.
Housings and Mounts
Outdoor Housings
Type Order No.
CHSM2510
CHSL2610
Camera Housing 300 mm‚ IP66‚ 1xM12‚ 1x M16‚ 1x M20
A stylish-looking‚ general purpose aluminium camera housing com­plete with anti-reflective ABS polymer sunshield‚ plexi-glass face-plate with polycarbonate front and rear. Ideal for any Siemens camera fitted with any Siemens monofocal or varifocal lens. Three cable entries pro­vide for power‚ video‚ control cable (RS485 for camera etc.) or system cable. The outer body of the housing is easily removed‚ allowing in-situ adjustment of camera‚ lens and cabling. Included is a board for easy connecting on all cable and a twisted pair transmitters. Supplied‚ as standard‚ with a positive temperature coefficient heater element and thermostat. Does not include power supply.
Heater rating 110 D 230 V AC‚ 40 W Heater turn-on 14° C ± 3° C Heater turn-off 20° C ± 3° C Cable entry 1 x M12‚ 1 x M16‚ 1 x M20 Finish Centre section: extruded and die-
cast aluminium‚ front and rear sec-
tions: robust plastic Colour Silver (RAL9006) Protection rating IP66 Usable volume (W x H x D) 77 x 67 x 250 mm Dimensions (W x H x D) 137 x 129 x 466 mm Weight 3.20 kg
Camera Housing 320 mm‚ IP66‚ 1xM12‚ 1x M16‚ 1x M20
A stylish-looking‚ general purpose complete all-aluminium camera housing with aluminium sunshield and glass face plate. Ideal for any Siemens camera fitted with any Siemens monofocal‚ varifocal or zoom lens. Three cable entries provide for power‚ video‚ control cable (zoom lens‚ RS485 for camera etc.) or system cable. The outer body of the housing is easily removed‚ allowing in-situ adjustment of camera‚ lens and cabling. Included is a connection board for easy connecting on all cable and a twisted pair transmitters and a bracket for easy mounting of a fibre optic transmitter. Supplied‚ as standard‚ with a positive temperature coefficient heater element and thermostat. Does not include power supply.
2GF1705-8NA
2GF1705-8PA
Heater rating 110 D 230 V AC‚ 40 W Heater turn-on 14° C ± 3° C Heater turn-off 20° C ± 3° C Cable entry 1 x M12‚ 1 x M16‚ 1 x M20 Finish Extruded and die-cast aluminium Colour Silver (RAL9006) Protection rating IP66 Usable volume (W x H x D) 90 x 85 x 260 mm Dimensions (W x H x D) 144 x 141 x 470 mm Weight 3.20 kg
3-2 © Siemens Building Technologies Group
Housings and Mounts
Outdoor Housings
Type Order No.

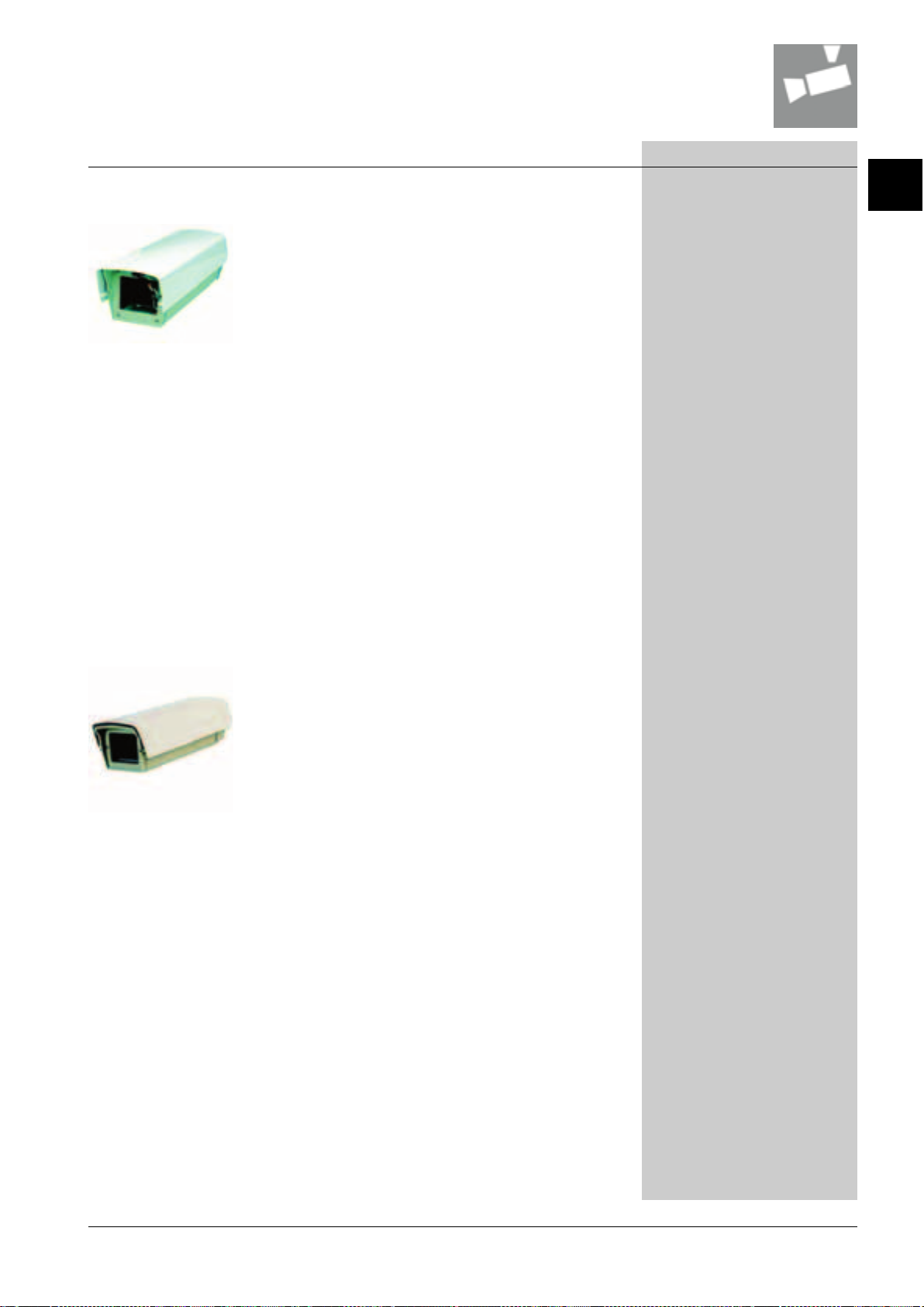

CHM
CHH Camera Housing 320 mm‚ IP66‚ Quick Connector
Camera Housing 320 mm‚ IP66‚ 2 x PG9; 1x PG16
Suitable for indoor and outdoor mounting. Includes sunshield with gut­ter‚ 3 PG screwed glands‚ camera mounting plate with anti-slip surface‚ and thermostatic switch. Does not include power supply.
Heater rating 110 D 265 V AC‚ 7 W Heater turn-on 16° C ± 3° C Heater turn-off 20° C ± 3° C Cable entry 2 x PG9‚ 1 x PG16 Finish Centre section: extruded and die-
cast aluminium‚ front and rear sec-
tions: robust plastic Colour Off-white (RAL9002) Protection rating IP66 Dimensions (W x H x D) 133 x 124.6 x 473 mm Weight 2.80 kg
Suitable for indoor and outdoor mounting. Includes sunshield with gut­ter‚ 3 PG screwed glands‚ camera mounting plate with anti-slip surface‚ and thermostatic switch. With internal distribution board and internal multipoint connector. Service and maintenance is simplified signifi­cantly and the housing is much more mobile. Does not include power supply.
Heater rating 110 D 265 V AC‚ 7 W Heater turn-on 16° C ± 3° C Heater turn-off 20° C ± 3° C Cable entry 2 x PG9‚ 1 x PG16 Finish Centre section: extruded and die-
cast aluminium‚ front and rear sec-
tions: robust plastic Colour Off-white (RAL9002) Protection rating IP66 Dimensions (W x H x D) 133 x 124.6 x 473 mm Weight 2.90 kg
2GF1705-8EA
2GF1705-8FA
3
ECH-M
Camera Housing 300 mm‚ IP66‚ 2 x PG9
Suitable for indoor and outdoor mounting. Robust aluminium housing with attractive design. Two PG9 cable glands. Removable carriage for simple maintenance of camera in operating position. Integrated gutter at front of sunshield. Supplied‚ as standard‚ with a positive temperature coefficient heater element and thermostat. Various brackets are availa­ble to suit mounting requirements. Does not include power supply.
Heater rating 110 D 230 V AC‚ 40 W Heater turn-on 14° C ± 3° C Heater turn-off 20° C ± 3° C Cable entry 2 x PG9 Finish Extruded and die-cast aluminium Colour Off-white (RAL9002) Protection rating IP66 Dimensions (W x H x D) 105 x 95 x 355 mm Weight 1.90 kg
2GF1705-8JA
3-3© Siemens Building Technologies Group
Housings and Mounts
Outdoor Housings
Type Order No.
ECH-B
HS01
Camera Housing 320 mm‚ IP66‚ 3 x PG9
Suitable for indoor and outdoor mounting. Robust aluminium housing with attractive design. Two PG9 cable glands. Removable carriage for simple maintenance of camera in operating position. Integrated gutter at front of sunshield. Supplied‚ as standard‚ with a positive temperature coefficient heater element and thermostat. Various brackets are availa­ble to suit mounting requirements. Does not include power supply.
Heater rating 110 D 230 V AC‚ 40 W Heater turn-on 14° C ± 3° C Heater turn-off 20° C ± 3° C Cable entry 1 x PG11‚ 2 x PG9 Finish Extruded and die-cast aluminium Colour Off-white (RAL9002) Protection rating IP66 Usable volume (W x H x D) 90 x 85 x 260 mm Dimensions (W x H x D) 144 x 141 x 470 mm Weight 3.20 kg
Large Connoisseur Housing 230 V AC
Ideal for most applications‚ especially for larger length cameras and lenses. Suitable for outdoor use. Extruded aluminium section construc­tion. Sunshield is adjustable along the length of the housing body. Hinge retained body allows easy access for maintenance. Adjustable mounting plate to suit most camera/lens assemblies. Demister & sun­shield fitted as standard‚ optional wiper available.
2GF1705-8KA
BPZ:80-142
Power requirements 230 V AC‚ 50/60 Hz Colour Housing body: Polyester powder-
Cable entry 1 x M25
Dimensions (W x H x D) Housing: 155 x 148 x 627 mm
Usable volume (W x H x D) 125 x 100 x 400 mm Finish Aluminium extrusion (housing body
Heater turn-on 14 °C Heater turn-off 20 °C Heater rating 7 Watt nominal‚ 25 Watts max. PTC
Protection rating IP66 Weight 6.0 kg
coat RAL7032 leatherette full gloss. Sunshield: Polyester powdercoat hipca white smooth full gloss.
2 x PG 13‚5 1 x M16
Sunshield: 560 x 168 mm
& sunshield)‚ glass filled polyester thermoset (front & rear caps)
resistor heating element.
3-4 © Siemens Building Technologies Group
Housings and Mounts
Outdoor Housings
Type Order No.
HS01/L
Large Connoisseur Housing 24 V AC
Ideal for most applications‚ especially for larger length cameras and lenses. Suitable for outdoor use. Extruded aluminium section construc­tion. Sunshield is adjustable along the length of the housing body. Hinge retained body allows easy access for maintenance. Adjustable mounting plate to suit most camera/lens assemblies. Demister & sun­shield fitted as standard‚ optional wiper available.
Power requirements 24 V AC‚ 50/60 Hz Colour Housing body: Polyester powder-
coat RAL7032 leatherette full gloss.
Sunshield: Polyester powdercoat
hipca white smooth full gloss. Dimensions (W x H x D) Housing: 155 x 148 x 627 mm
Sunshield: 560 x 168 mm Usable volume (W x H x D) 125 x 100 x 400 mm Finish Aluminium extrusion (housing body
& sunshield)‚ glass filled polyester
thermoset (front & rear caps) Heater turn-on 14 °C Heater turn-off 20 °C Heater rating 7 W nominal‚ 25 W max. PTC resistor
heating element. Protection rating IP66 Weight 6.0 kg
BPZ:80-143
3
HS02
Compact Connoisseur 230 V AC
An addition to the Connoisseur range‚ the Compact Connoisseur offers attractive styling with attractive features. Enables mounting with a bracket or with pan/tilt heads.
Power requirements 230 V AC ‚ 50/60 Hz Colour Housing Body: Polyester Powder-
coat RAL7032 Leatherette Full
Gloss.
Sunshield: Polyester Powdercoat
Hipca White Full Gloss. Cable entry 2 x M16
1 x PG 13‚5 Dimensions (W x H x D) Housing: 133 x 125 x 454 mm Usable volume (W x H x D) 85 x 80 x 225 mm Finish Pressure die-cast aluminium with
extruded aluminium body and sun-
shield. Heater turn-on 14 °C Heater turn-off 20 °C Heater rating 7 W nominal‚ 25 W max. PTC resistor
heating element. Protection rating IP67 Weight 2.52 kg
BPZ:80-148
3-5© Siemens Building Technologies Group
Housings and Mounts
Outdoor Housings
Type Order No.
HS02B
HS02B/L
Compact Connoisseur with Integral Bracket 230 V AC
An addition to the Connoisseur range‚ the Compact Connoisseur offers attractive styling with attractive features. The taperlock positional adjustment system‚ and integral cable management system make this the only real choice where style and ease of installation are concerned.
Power requirements 230 V AC‚ 50/60 Hz Colour Housing Body & Bracket: Polyester
Powdercoat RAL7032 Leatherette Finish Full Gloss. Sunshield: Polyester Powdercoat Hipca White Smooth Finish Full Gloss.
Dimensions (W x H x D) Housing: 133 x 125 x 458 mm
Bracket: 133 x 194 x 169 mm Usable volume (W x H x D) 85 x 80 x 225 mm Finish Pressure die-cast aluminium with
extruded aluminium body and sun-
shield. Heater turn-on 14 °C Heater turn-off 20 °C Heater rating 7 W nominal‚ 25 W max. PTC resistor
heating element. Protection rating IP67 Weight 3.54 kg
Compact Connoisseur with Integral Bracket 12/24 V AC
An addition to the Connoisseur range‚ the Compact Connoisseur offers attractive styling with attractive features. The taperlock positional adjustment system‚ and integral cable management system make this the only real choice where style and ease of installation are concerned.
BPZ:80-149
BPZ:80-150
Power requirements 12 / 24 V AC Colour Housing Body & Bracket: Polyester
Powdercoat RAL7032 Leatherette
Finish Full Gloss.
Sunshield: Polyester Powdercoat
Hipca White Smooth Finish Full
Gloss. Dimensions (W x H x D) Housing: 133 x 125 x 458 mm
Bracket: 133 x 194 x 169 mm Usable volume (W x H x D) 85 x 80 x 225 mm Finish Pressure die-cast aluminium with
extruded aluminium body and sun-
shield. Heater turn-on 14 °C Heater turn-off 20 °C Heater rating 7 W nominal‚ 25 W max. PTC resistor
Protection rating IP67 Weight 3.54 kg
heating element.
3-6 © Siemens Building Technologies Group
Housings and Mounts
Outdoor Housings
Type Order No.
HS03B
HS03B/L
Small Connoisseur with BH15 Bracket‚ 100 - 230 V AC
The smallest version of the HS housing range for compact installation. Supplied with the new BH15 wall bracket.
Power requirements 230 V AC‚ 50/60 Hz Colour Housing Body: Polyester Powder-
coat RAL7032 Leatherette Full Gloss. Sunshield: Polyester Powder­coat Hipca White Full Gloss.
Cable entry 1 x cable gland (PG 13‚5)‚ 2 x cable
glands (M16)
Dimensions (W x H x D) 133 x 125 x 454 mm
Glass: 76 x 66 mm Usable volume (W x H x D) 85 x 80 x 180 mm Finish Pressure die-cast aluminium with
extruded aluminium body and sun-
shield. Heater turn-on 14 °C Heater turn-off 20 °C Heater rating 7 W nominal‚ 25 W max. PTC resistor
heating element. Protection rating IP67 Weight 2.52 kg
Small Connoisseur with BH15 Bracket‚ 12 - 24 V AC
The smallest version of the HS housing range for compact installation. Supplied with the new BH15 wall bracket.
BPZ:80-153
BPZ:80-154
3
Power requirements 24 V AC‚ 50/60 Hz Colour Housing Body: Polyester Powder-
Cable entry 1 x cable gland (PG 13‚5)‚ 2 x cable
Dimensions (W x H x D) 133 x 125 x 454 mm
Usable volume (W x H x D) 85 x 80 x 180 mm Finish Pressure die-cast aluminium with
Heater turn-on 14 °C Heater turn-off 20 °C Heater rating 7 W nominal‚ 25 W max. PTC resistor
Protection rating IP67 Weight 2.52 kg
coat RAL7032 Leatherette Full
Gloss. Sunshield: Polyester Powder-
coat Hipca White Full Gloss.
glands (M16)
Glass: 76 x 66 mm
extruded aluminium body and sun-
shield.
heating element.
3-7© Siemens Building Technologies Group
Housings and Mounts
Housing Mounts
Type Order No.
CHBC2010
CHBS2310
CHBA0111
Cable Management Bracket for CHSL2610/CHSM2510
Aluminium wall mount with integral swivel-tilt joint. The housing posi­tion is secured with a single clamping/adjustment bolt.
Arm length 204 mm Dimensions (W x H x D) 204 x 80 x 120 mm Colour Silver (RAL9006) Finish Epoxy powder-coat Load rating 25 kg Weight 0.60 kg
Bracket for CHSL2610/CHSM2510
Aluminium wall mount with integral swivel-tilt joint. The housing posi­tion is secured with a single clamping/adjustment bolt.
Arm length 227 mm Dimensions (W x H x D) 227 x 75.4 x 86 mm Colour Silver (RAL9006) Finish Epoxy powder-coat Load rating 25 kg
Corner-Adapter for CHBC2010/CHBS2310 Mounts
Aluminium adapter to enable the CHBC2010 and CHBS2310 housing wall-mount to be fitted to a corner. Provided complete with stainless­steel fixtures tures to attach the adapter to a corner and the mount to the adapter.
2GF1705-8LF
2GF1705-8LE
2GF1705-8LG
CHBA0211
Dimensions (W x H x D) 120 x 130 x 215 mm Colour Silver (RAL9006) Finish Epoxy powder-coat Load rating 25 kg Weight 1.1 kg
Pole-Adapter for CHBC2010/CHBS2310 Mounts
Aluminium adapter to enable the CHBC2010 and CHBS2310 housing wall-mount to be fitted to round poles and posts. Provided complete with stainless-steel fixtures to attach the adapter to a pole and the mount to the adapter.
Dimensions (W x H) 110 x 175 mm Colour Silver (RAL9006) Finish Epoxy powder-coat Load rating 25 kg Weight 1.1 kg
2GF1705-8LH
3-8 © Siemens Building Technologies Group
Housings and Mounts
Housing Mounts
Type Order No.
CHBP1810
WMB-HM-HH
Pedestal-Mount for CHSM2510/CHSL2610
Aluminium pedestal for mounting housings on the top of poles or building parapets. The integrated joint enables the top-mounted hous­ing to be rotated and tilted. Four fixing holes on the base enable stable mounting on flat surfaces. Provided complete with stainless-steel fix­tures to attach the housing to the mount.
Arm length 185 mm Dimensions (W x H x D) 121 x 121 x 185 mm Colour Silver (RAL9006) Finish Epoxy powder-coat Load rating 25 kg Weight 1.0 kg
Wall Mount Bracket for CHM‚ CHH
For mounting a CHM/CHH housing on a vertical surface.
Arm length 226 mm Dimensions (W x H x D) 150 x 355 x 205 mm Colour Off-white (RAL9002) Finish Cast aluminium Load rating 8 kg Weight 1.50 kg
2GF1705-8LJ
2GF1705-8GB
3
WMB-S-M-B
HMB-PH
Bracket for ECH-B / ECH-M
Aluminium wall mount with integral swivel-tilt joint and internal cable channel for secure cabling from the wall‚ directly into the camera hous­ing through the bracket‚ ensuring no visible cables. The housing posi­tion is secured with a single clamping/adjustment bolt.
Arm length 227 mm Dimensions (W x H x D) 227 x 75.4 x 86 mm Colour Off-white (RAL9002) Finish Epoxy powder-coat Load rating 25 kg Weight 0.50 kg
Mounting Block
For installation of a protective housing on a horizontal or inclined sur­face‚ on a wall bracket or pole bracket.
Dimensions (W x H x D) 58 x 70 x 61 mm Colour Matt black Finish Cast aluminium Load rating 30 kg Weight 0.25 kg
2GF1705-8LB
2GF1710-8AW
3-9© Siemens Building Technologies Group
Housings and Mounts
Housing Mounts
Type Order No.
VCH910
VCH992
Ceiling Mount Bracket for ECH-B/ECH-M
Aluminium ceiling mount with internal cable channel and integral housing‚ swivel-tilt joint. The housing position is secured with a single fixture. Three fixing holes on the base-plate enable stable mounting on flat surfaces. Provided complete with stainless-steel fixtures to attach the housing to the mount.
Arm length 390 mm Dimensions (W x H x D) 170 x 255 x 390 mm Colour Off-white (RAL9002) Finish Epoxy powder-coat Load rating 25 kg Weight 1.78 kg
Pedestal-Mount ECH-B/ECH-M
Aluminium pedestal for mounting housings on the top of poles or building parapets. The integrated joint enables the top-mounted hous­ing to be rotated and tilted. Four fixing holes on the base enable stable mounting on flat surfaces. Provided complete with stainless-steel fix­tures to attach the housing to the mount.
Arm length 185 mm Dimensions (W x H x D) 121 x 121 x 185 mm Colour Off-white (RAL9002) Finish Epoxy powder-coat Load rating 25 kg Weight 0.63 kg
GBQ:A5383360001
GBQ:A5383490001
VCH990
BH15
Pole-Adapter for VCH900‚ VPT900 Mounts
Aluminium adapter to enable the WMB-S-M-B housing wall-mount and VPT900 pan-tilt‚ wall-mount to be fitted to round poles and posts. Pro­vided complete with stainless-steel fixtures to attach the adapter to a pole and the mount to the adapter.
Dimensions (W x H) 110 x 175 mm Colour Off-white (RAL9002) Finish Epoxy powder-coat Load rating 50 kg Weight 1.28 kg
BH15 Swivel Bracket 15 kg Rated
Fits onto the HS01 & HS02 Camera Housings. This bracket utilises the extrusion features of the housing to provide a slide and lock mounting to the bracket.
Dimensions (W x H x D) 50 x 85 x 280 mm Load rating Max. Load 15 kg Finish Die-cast aluminium Weight 0.70 kg
GBQ:A5383520001
BPZ:80-105
3-10 © Siemens Building Technologies Group

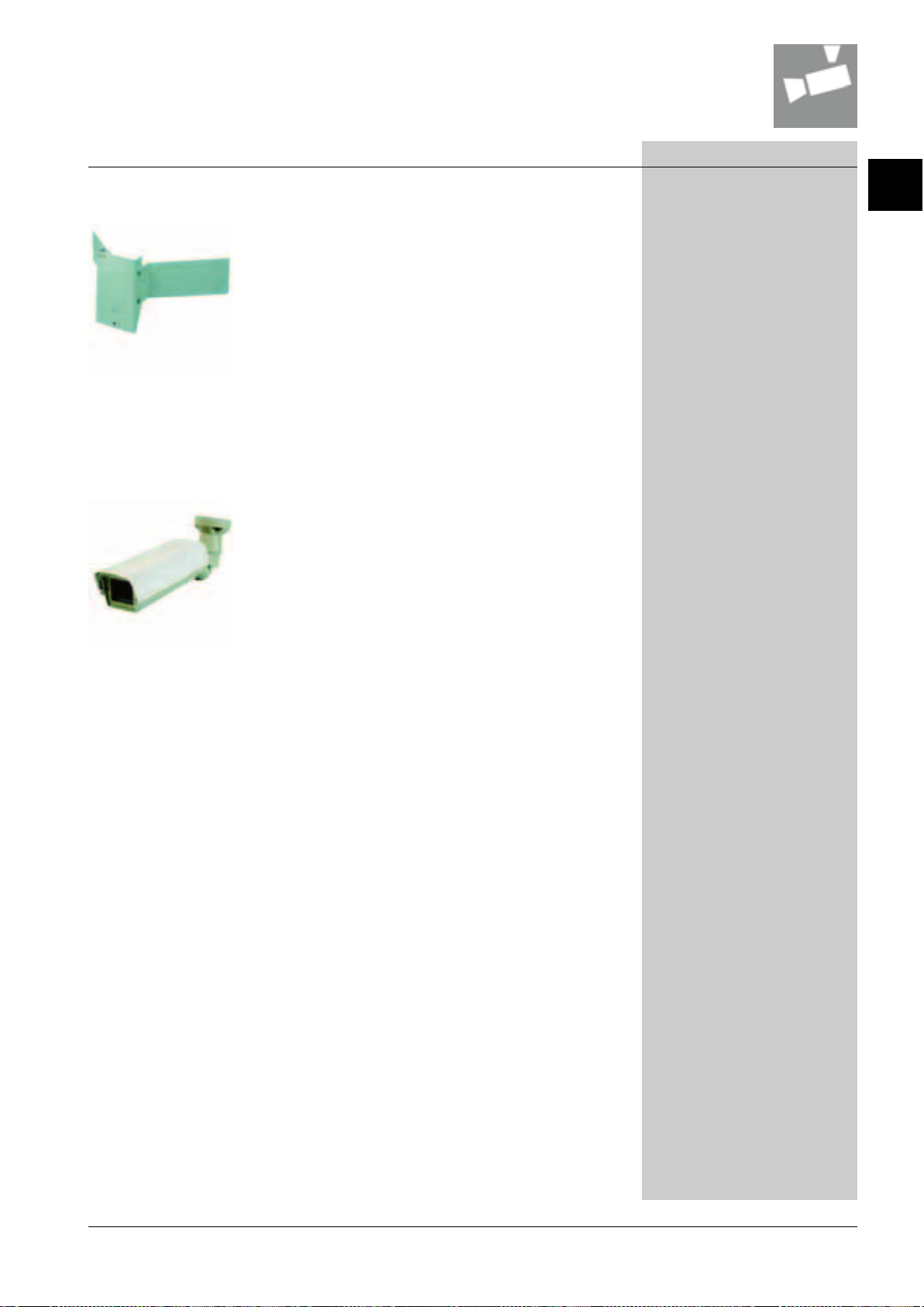

Housings and Mounts
Housing Mounts
Type Order No.
BA01C
BHC02
BA01C Corner Mount Adaptor
A corner mount adaptor which allows the standard fixed brackets to be mounted on the corner of buildings. The design of the adaptor spreads the load over a large area. A typical brackets which can be mounted to this adaptor is e.g. the BP40. The unobtrusive and simple design allows the simple and effective installation of CCTV equipment on the corner of buildings. Corner mounting allows an excellent viewpoint to be achieved from a CCTV installation.
Colour Polyester powdercoat RAL7032
leatherette full gloss Dimensions (Ø x H) Load rating 75 kg Finish 10 SWG mild steel Weight 1.70 kg
BHC02 Ceiling Mount Bracket for HS02
A ceiling mount bracket casting which can be used with the HS02B and HS02B/L camera housing. The casting replaces the standard casting and is bought as an after market add-on. The bracket is suitable for indoor and outdoor use.
Colour Painted polyester powdercoat
RAL7032 leatherette full gloss Finish Cast aluminium Weight 0.60 kg
BPZ:80-100
BPZ:80-107
3
3-11© Siemens Building Technologies Group
Housings and Mounts
Spares Housings and Mounts
Type Order No.
WI01AB
WI01AB Spare Wiper
Spare wiper arm and blade for HS01 and FH07 housings.
Protection rating IP66 Weight 0.1 kg
BPZ:80-242
3-12 © Siemens Building Technologies Group
Housings and Mounts
Accessories Housings and Mounts
Type Order No.
CHPA2410
CHPD1210
PSU12-CHM/CHH PSU 12 V DC Inside Housing for CHM/CHH
Power Supply 24 V AC‚ 400 mA for CHSM2510/CHSL2610/ECH-B
Step-down power supply designed to be mounted within CHSM2510 and CHSL2610 housings to provide 24 V AC power to the camera.
Input rating 230 V AC ± 5% Output rating 9.6 VA Frequency 50 Hz Input voltage 230 V AC ± 5% Output voltage 24 V AC ± 5% Ambient temperature‚ storage 45° C Weight 0.40 kg
Power Supply 12 V DC‚ mA for CHSM2510/CHSL2610/ECH-B
Step-down power supply designed to be mounted within CHSM2510 and CHSL2610 housings to provide 12 V DC power to the camera.
Frequency 50-60 Hz Fuse Short circuit protection Input voltage 90 D 265 V AC Weight 0.14 kg
Step-down power supply designed to be mounted within CHM and CHH housings to provide 12 V DC power to the camera.
2GF1705-8GH
2GF1705-8GG
2GF1705-8GA
3
PSU24-CHM/CHH
PSU12/24-CHM/CHH
Input rating 230 V AC Output rating 12 V DC‚ 600 mA stabilized Heating connection 230 V AC‚ 100 mA max. Dimensions (W x H x D) 96 x 97.5 x 49 mm Weight 0.03 kg
PSU 24 V AC Inside Housing CHM/CHH
Step-down power supply designed to be mounted within CHM and CHH housings to provide 24 V DC power to the camera.
Input rating 230 V AC Output rating 24 V AC Heating connection 230 V AC / 100 mA max. Dimensions (W x H x D) 96 x 72 x 41 mm Weight 0.20 kg
PSU 12 V DC‚ 24 V AC Inside Housing CHM/CHH
Step-down power supply designed to be mounted within CHM and CHH housings to provide 12 V DC power to the camera.
Dimensions (W x H x D) Input rating 230 V AC Output rating 12 V DC‚ 600 mA‚ 24 V AC‚ 100 mA Heating connection 230 V AC‚ 100 mA max. Weight 0.30 kg
2GF1705-8GE
2GF1705-8GF
3-13© Siemens Building Technologies Group
Housings and Mounts
Accessories Housings and Mounts
Type Order No.
PSU12-ECH/S/M
PSU24-ECH/S/M
MT2WT-ECH
PSU 12 V DC Inside Housing for ECH-S/M
Step-down power supply designed to be mounted within ECH­S/M‚VCH200/210 housings to provide 12 V DC power to the camera.
Input rating 230 V AC Output rating 12 V DC‚ 400 mA Weight 0.08 kg
PSU 24 V DC Inside Housing for ECH-S/ECH-M
Step-down power supply designed to be mounted within ECH­S/M‚VCH200/210 housings to provide 12 V DC power to the camera.
Input rating 230 V AC Output rating 24 V AC‚ 400 mA Weight 0.20 kg
Mounting 2WT 2-Wire Transmitter ECH-M/B
Mounting set for fitting the SMD two-wire transmitter in the camera to the protective housing ECH-M / ECH-B.
2GF1705-8LA
2GF1705-8LD
2GF1705-8LC
CHHA2410
CHHM2310
VCH993-230
Weight 0.03 kg
Replacement Heater Kit 24 V AC
Heater Kit for CHSM2510 & CHSL2610 housings.
Weight 0.11 kg
Replacement Heater Kit 230 V AC
Heater Kit for CHSM2510 & CHSL2610 housings.
Weight 0.11 kg
Replacement Heater for ECH M‚ ECH S‚ 230 V AC
Positive temperature coefficient heater element with thermostat for VCH200/210 housings.
Heater turn-off 20° C ± 3° C Heater turn-on 14° C ± 3° C Heater rating 110 D 230 V AC‚ 40 W Weight 0.10 kg
2GF1705-8GJ
2GF1705-8GK
GBQ:A5572360001
3-14 © Siemens Building Technologies Group
Housings and Mounts
Accessories Housings and Mounts
Type Order No.
VCH993-24
VCH994-230
VCH994-24
Replacement Heater for ECH M‚ ECH S‚ 24 V AC
Positive temperature coefficient heater element with thermostat for VCH400 housing.
Heater turn-off 20° C ± 3° C Heater turn-on 14° C ± 3° C Heater rating 12 / 24 V DC‚ V AC‚ 20 W Weight 0.10 kg
Replacement Heater Kit for ECH-B‚ 230 V AC
Positive temperature coefficient heater element with thermostat for VCH400 housing.
Heater turn-off 20° C ± 3° C Heater turn-on 14° C ± 3° C Heater rating 110 D 230 V AC‚ 40 W Weight 0.10 kg
Replacement Heater Kit for ECH-B‚ 24 V AC
Positive temperature coefficient heater element with thermostat for VCH400 housing.
Heater turn-off 20° C ± 3° C Heater turn-on 14° C ± 3° C Heater rating 12 / 24 V DC‚ V AC‚ 20 W Weight 0.10 kg
GBQ:A5572490001
GBQ:A5572520001
GBQ:A5572650001
3
WI01/L
WI01
WI01/L Wiper Kit for HS01/L Housing‚ 24 V AC
Wiper kit for the HS01/L Super Connoisseur camera housings. These kits can be used to convert housings without wipers. They can also be used as replacement parts for HS01/L Super Connoisseur Wiper units.
Power requirements 24 V AC‚ 50 Hz Power consumption 200 mA Protection rating IP66 Weight 0.70 kg
WI01 Wiper Kit for HS01 Housing‚ 230 V AC
Wiper kit for the HS01 Super Connoisseur camera housings. These kits can be used to convert housings without wipers. They can also be used as replacement parts for HS01 Super Connoisseur Wiper units.
Power requirements 230 V AC‚ 50 Hz Power consumption 20 mA Protection rating IP66 Weight 0.74 kg
BPZ:80-241
BPZ:80-240
3-15© Siemens Building Technologies Group
Speed domes…
…for the best 360˚ view.
Pan-tilt and Telemetry Equipment
Telemetry equipment designed for buildings
A complete range of telemetry receivers connecting to pan-tilt head devices, operat­ing at fixed or variable speeds and offering different maximum loads. The range is designed for both internal and external use. Models allow simple connection and control via matrix switching systems and keyboards, including setting and calling preset positions, and variable speed control.
Pan/Tilt and Telemetry Equipment
Pan/Tilt Telemetry Controller
Type Order No.
CKA3210
Fixed Speed PTZ Controller‚ No Joystick
The CKA3210 control unit is a stand-alone control and parameterisa­tion unit for video surveillance systems. The varied interfaces and func­tions result in made versatile system applications possible. The unit can be used as an external control unit for the SIMATRIX 164‚ 648‚ Neo and SYS video matrix units or for controlling several domes‚ cameras or oth­er PTZ modules with telemetry capability in a point-to-point or star con­figuration. The CKA3210 control unit can control peripheral units according to the SCU or CCDA protocol. Parameterisation using the con­trol unit is possible for peripheral units with on-screen display function. The unit features user-friendly operation‚ and has a compact design.
Control Fixed speed telemetry functions‚ 35
keys on membrane keyboard Display elements Multi-color LED (red‚ orange‚ green) Function keys 10 Serial interfaces 1 x control unit interface with two
physical connections
1 x telemetry interface with one
physical connection Addressing Selectable using DIP switches Protocols Selectable using DIP switches Connections COM1A - RS232 (9-pin Sub-D)
COM1B - TTY modified (9-pin Sub-
D) COM2 - RS485/TTY modified (9-
pin Sub-D) 2-pin power supply con-
nector Housing Aluminium‚ painted RAL7016 with
plastic side panels Protection rating IP40 Dimensions (W x H x D) 255 x 50 x 170 mm Power requirements 12 to 13.2 V DC Power consumption 2.4 W Weight 0.90 kg
2GF2400-8EA
4-2 © Siemens Building Technologies Group

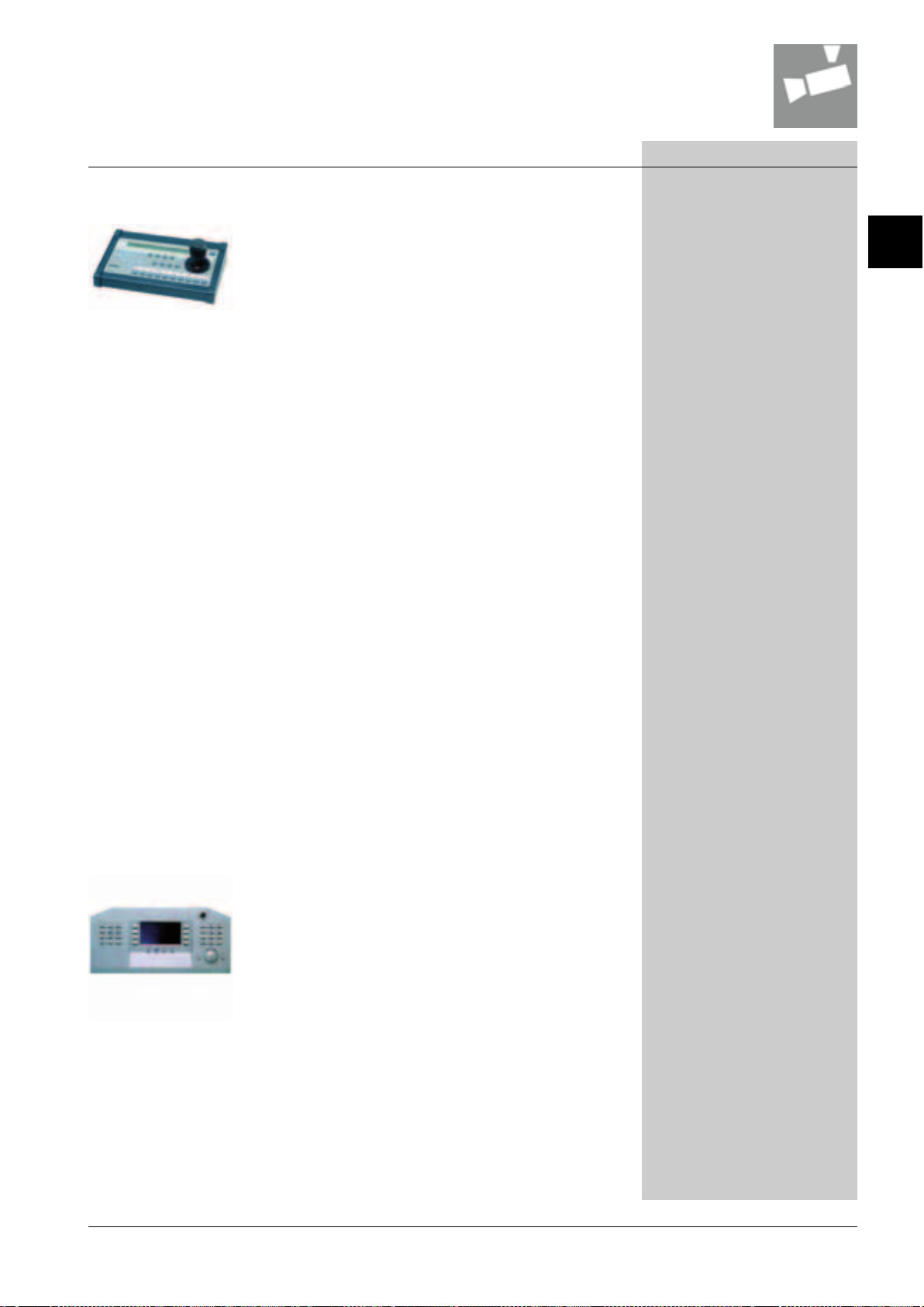

Pan/Tilt and Telemetry Equipment
Pan/Tilt Telemetry Controller
Type Order No.
CKA4820
Variable Speed PTZ Controller‚ with Joystick
The CKA4820 keyboard is a stand-alone control and parameterisation unit for video surveillance systems with the comfort of an LCD display for setup and a proportional‚ variable-speed joystick for pan‚ tilt and zoom control. The varied interfaces and functions result in make versa­tile system applications possible. The unit can be used as remote key­board for the SIMATRIX 164‚ 648‚ Neo and SYS video matrix‚ SISTORE AX and for controlling several PTZ or speed domes in a point-to-point or star configuration. The CKA4820 keyboard can control peripheral units according to the SCU or CCDA protocol. Parameterisation using the durable rubber keys on the keyboard is possible for peripheral units with on-screen display function. The unit features user-friendly opera­tion‚ and has a compact design. The unit comes without a power supply.
Control Variable speed joystick (3 axis)‚ 31
keys on keyboard
Display elements 2 Line LCD display with backlight‚
Multi-color LED (red‚ orange‚ green) Function keys 10 Serial interfaces 1 x control unit interface with two
physical connections
1 x telemetry interface with one
physical connection Addressing Via menus or DIP switches Protocols Selectable using DIP switches Connections COM1A - RS232 (9-pin Sub-D)
COM1B - TTY modified (9-pin Sub-
D) COM2 - RS485/TTY modified (9-
pin Sub-D) 2-pin power supply con-
nector Housing Aluminium‚ painted RAL7016 with
plastic side panels Protection rating IP40 Dimensions (W x H x D) (excl. joystick) 255 x 50 x 170 mm Power requirements 12 to 13.2 V DC Power consumption 2.4 W Weight 1.05 kg
2GF2400-8EC
4
V-K
V-K Keyboard for Visilynx Systems V3
The Visilynx keyboard is a high spec video control system. It has a range of features and functions‚ allowing full configurability for almost any installation. The on-screen menus and commands are easy to use and understand. The Visilynx keyboard gives operators the ability to select cameras and camera pre-set positions by meaningful names rather than meaningless numbers.
Power requirements 12 V DC‚ 350 mA Weight 4.0 kg
BPZ:80-235
4-3© Siemens Building Technologies Group
Pan/Tilt and Telemetry Equipment
Pan/Tilt Heads
Type Order No.
P25/D
P25T/D
P25/D Pan & Tilt Head‚ 24 V DC
A robust‚ high-performance side mount DC Pan-Tilt unit. Allows reliable and accurate control of medium-heavy loads up to 25 kg‚ with thermo­static heater. Includes pre-wired cables (2 m long).
Power requirements 24 V DC Colour Painted Polyester Powdercoat
RAL7032 Leatherette Full Gloss
Dimensions (W x H x D) Side mount:
380 x 230 x 184 mm Plug connection 7-pin plug (power supply) Pan speed 24°/s Tilt speed 12°/s Load rating 25 kg (Side mount) Presets No Protection rating IP66 Weight 7.0 kg
P25T/D Pan & Tilt head‚ 24 V DC
A robust‚ high-performance over-the-top mount DC Pan-Tilt unit (side mount optional). Allows reliable and accurate control of medium-heavy loads from 16 kg‚ with thermostatic heater. Includes pre-wired cables (2 m long).
Power requirements 24 V DC Colour Painted Polyester Powdercoat
RAL7032 Leatherette Full Gloss Dimensions (W x H x D) Side mount:
380 x 230 x 184 mm
Over the top mount:
221 x 252 x 184 mm
BPZ:80-185
BPZ:80-350
Plug connection 7-pin plug (power supply) Pan speed 48°/s Tilt speed 24°/s Load rating 16 kg (Over the Top) or
16 kg (Side mount) Presets No Protection rating IP66 Weight 7.0 kg
4-4 © Siemens Building Technologies Group
Pan/Tilt and Telemetry Equipment
Pan/Tilt Heads
Type Order No.
P25T-P/L
P25T-P
P25T-P/L Pan & Tilt head‚ 24 V AC
A robust‚ high-performance over-the-top mount AC Pan-Tilt unit (side mount optional). Allows relia ble and accurate control of medium-heavy loads from 16 to 25 kg‚ with thermostatic heater and heavy-duty pre­sets as standard. Includes pre-wired cables (2 m long).
Power requirements 24 V AC Colour Painted Polyester Powdercoat
RAL7032 Leatherette Full Gloss
Dimensions (W x H x D) Side mount:
380 x 230 x 184 mm Over the top mount: 221 x 252 x 184 mm
Plug connection 7-pin plug (power supply)
4-pin plug (presets) Pan speed 6°/s Tilt speed 3°/s Load rating 16 kg (Over the Top) or
25 kg (Side mount) Potentiometer on both axis yes Presets Yes Protection rating IP66 Weight 7.0 kg
P25T-P Pan & Tilt head‚ 230 V AC
A robust‚ high-performance over-the-top mount AC Pan-Tilt unit (side mount optional). Allows relia ble and accurate control of medium-heavy loads from 16 to 25 kg‚ with thermostatic heater and heavy-duty pre­sets as standard. Includes pre-wired cables (2 m long).
BPZ:80-352
4
BPZ:80-351
Power requirements 230 V AC Colour Painted Polyester Powdercoat
Dimensions (W x H x D) Side mount:
Plug connection 7-pin plug (power supply)
Pan speed 6°/s Tilt speed 12°/s Load rating 16 kg (Over the Top) or
Potentiometer on both axis yes Presets Yes Protection rating IP66 Weight 7.0 kg
RAL7032 Leatherette Full Gloss
380 x 230 x 184 mm
Over the top mount:
221 x 252 x 184 mm
4-pin plug (presets)
25 kg (Side mount)
4-5© Siemens Building Technologies Group
Pan/Tilt and Telemetry Equipment
Pan/Tilt Heads
Type Order No.
PT40 Pot
CDD2410
Pan-Tilt‚ Fixed-Speed‚ 20 kg‚ IP66‚ 24 V AC‚ Presets
Pan-tilt to allow the remote control of panning and tilting CCTV camer­as‚ suitable for mounting both indoors and outdoors. Separate pan and tilt drive units with low-voltage motors and self-locking gears; adjusta­ble pan and tilt ranges; aluminium housing with drive shafts made of high quality stainless steel and with potentiometers for position con­trol to allow the programming of presets.
Pan travel 360° Pan speed 6°/s Tilt travel ± 90° Tilt speed 3°/s Travel limits Internally adjustable pan and tilt
limits Load rating 20 kg Plug connection 13 pin Shell construction Extruded aluminium body Colour RAL7032 (light grey) Potentiometer on both axis 5 kOhm Dimensions (W x H x D) Weight 6.50 kg Protection rating IP66 Power requirements 24 V AC Power consumption 2 x 6.8 W
Pan-Tilt‚ Prog. Speed‚ 12 kg‚ IP66‚ 24 V AC‚ Presets‚ Built in Receiver
Pan-tilt to allow the remote control of panning and tilting CCTV camer­as with variable speed‚ suitable for mounting both indoors and out­doors. Separate pan and tilt drive units with low-voltage motors and self-locking gears; adjustable pan and tilt ranges; aluminium housing with drive shafts made of high quality stainless steel and with potenti­ometers for position control to allow the programming of presets. The pan-tilt head contains a built-in receiver-driver‚ which enables the con­trol of pan and tilt functions‚ a motorized lens with zoom‚ focus‚ and iris functions without an additional telemetriey receiver directly by the SIMATRIX via the TTY interface. In addition‚ the CDD2410 can be pro­grammed for presets and also features a user-definable sequence capa­bility.
2GF1708-8AS
2GF1708-8EA
Pan travel 360° Pan speed 32°/s Tilt travel ± 90° Tilt speed 16°/s Load rating 12 kg Plug connection 13 pin / 24 pin Potentiometer on both axis 5 kOhm Presets 50 positions Colour C31 / RAL7032 (light grey) Weight 6.50 kg Protection rating IP66 Dimensions (W x H x D) Power requirements 24 V AC Power consumption 90 W
4-6 © Siemens Building Technologies Group
Pan/Tilt and Telemetry Equipment
Pan/Tilt Telemetry Receivers/Drivers
Type Order No.
CDC0501
CDC0502
Telemetry Receiver for Control Pan-Tilt Heads
Weatherproof telemetry receiver for control pan-tilt units and motor­driven zoom lenses. 3 auxilliary contacts are available to trigger exter­nal devices. The drivers can be controlled either via a SIMATRIX SYS‚ Neo‚ 648 or 164 video matrix or from the CKA3210 and CKA4820 con­trol keyboards directly. The control unit is designed for operating pan­and-tilt heads with a power supply of 230 V AC‚ 115 V AC or 24 V AC. Up to 99 addresses can be selected using DIP switches. 6 x M16‚ 2 x M20 and 1 x M26 glands are provided for cabling.
Address codes 99 Power requirements 230 V AC / 115 V AC‚ 50/60 Hz Dimensions (W x H x D) 280 x 190 x 130 mm Auxiliary relays 3 Compatible with CKA3210‚ CKA4820‚ SIMATRIX Protection rating IP66 Telemetry formats TTY 20 mA‚ RS232‚ RS422 / RS485 Auxiliary contact rating 250 V AC‚ 1 A
30 V DC‚ 2.5 A Baud rate (2400 to 19200 bps selectable) Data outputs (camera control) TTL‚ RS422 / RS485 Weight 2.85 kg
Telemetry Receiver for Control Pan-Tilt Heads‚ Potentiometers
Weatherproof telemetry receiver for control pan-tilt units and motor­driven zoom lenses. The drivers can be controlled either via a SIMATRIX SYS‚ Neo‚ 648 or 164 video matrix or from the CKA3210 and CKA4820 control keyboards directly. The control unit is designed for operating pan-and-tilt heads with a power supply of 230 V AC‚ 115 V AC or 24 V AC. Up to 99 addresses can be selected using DIP switches. Also with position control for zoom/focus and pan/tilt for 64 stored preset posi­tions. 6 x M16‚ 2 x M20 and 1 x M26 glands are provided for cabling.
S24245-B5015-A1
4
S24245-B5017-A1
Address codes 99 Power requirements 230 V AC‚ 115 V AC‚ 50/60 Hz Dimensions (W x H x D) 280 x 190 x 130 mm Auxiliary relays 3 Compatible with CKA3210‚ CKA4820‚ SIMATRIX Protection rating IP66 Telemetry formats TTY 20 mA‚ RS232‚ RS422 / RS485 Auxiliary contact rating 250 V AC‚ 1 A
Baud rate (2400 to 19200 bps selectable) Data outputs (camera control) TTL‚ RS422 / RS485 Presets 64 Weight 2.85 kg
30 V DC‚ 2.5 A
4-7© Siemens Building Technologies Group
Pan/Tilt and Telemetry Equipment
Pan/Tilt Telemetry Receivers / Drivers
Type Order No.
RX210
RX210-24
10 Function Telemetry Receiver
For fixed-speed AC systems with pan‚ tilt and auto-iris zoom lenses. Compatible with all telemetry controllers using Molynx protocol. Sup­plied as standard in a weatherproof box according to IP66.
Power requirements 230 D 240 V AC‚ 50/60 Hz Power consumption 20 W P/T head control voltage 230 V AC Address codes 256 Dimensions (W x H x D) 168 x 86 x 220 mm Telemetry formats C Type (Coax) or
D Type (RS485‚ Molynx protocol) Baud rate 9600 bps Cable entry 2 x 20 mm
3 x 13 mm MTBF At 25° C 30‚000 h Dimensions (W x H x D) 168 x 86 x 220 mm Protection rating IP66 Control functions 10 Compatible with Controllers / matrix switchers with
Molynx protocol Operating temperature range -20° C to +40° C Weight PCB: 0.80 kg
Box: 1.50 kg
10 Function Telemetry Receiver
For fixed-speed AC systems with pan‚ tilt and auto-iris zoom lenses. Compatible with all telemetry controllers using Molynx protocol. Sup­plied as standard in a weatherproof box according to IP66.
BPZ:80-199
BPZ:80-200
Power requirements 230 D 240 V AC‚ 50/60 Hz Power consumption 20 W P/T head control voltage 24 V AC Address codes 256 Dimensions (W x H x D) 102 x 30 x 100 mm Telemetry formats C Type (Coax) or
Baud rate 9600 bps Cable entry 2 x 20 mm
MTBF At 25° C 30‚000 h Dimensions (W x H x D) 102 x 30 x 100 mm Protection rating IP66 Control functions 10 Compatible with Controllers / matrix switchers with
Operating temperature range -20° C to +40° C Weight PCB: 0.80 kg
D Type (RS485‚ Molynx protocol)
3 x 13 mm
Molynx protocol
Box: 1.50 kg
4-8 © Siemens Building Technologies Group
Pan/Tilt and Telemetry Equipment
Pan/Tilt Telemetry Receivers / Drivers
Type Order No.
RX210-HS01
RX210-PCBCD/D12
A RX210‚ but Suitable for HS01 Mounting
RX210 board mounted on a chassis to install in a HS01 housings.
Power requirements 230 D 240 V AC‚ 50/60 Hz Power consumption 20 W P/T head control voltage 230 V AC Address codes 256 Dimensions (W x H x D) 102 x 30 x 100 mm Telemetry formats C Type (Coax) or
D Type (RS485‚ Molynx protocol) Baud rate 9600 bps MTBF At 25° C 30‚000 h Dimensions (W x H x D) 102 x 30 x 100 mm Control functions 10 Compatible with Controllers / matrix switchers with
Molynx protocol Operating temperature range -20° C to +40° C Weight PCB: 0.80 kg
Box: 1.50 kg
10 Function Telemetry Receiver Board
RX210 board only‚ for use in applications where a customer-specific enclosure or other installation is to be used.
Power requirements 12 V DC Power consumption 20 W P/T head control voltage User preferency (24 V AC‚ 230 V AC) Address codes 256 Dimensions (W x H x D) 102 x 30 x 100 mm Telemetry formats C Type (Coax) or
D Type (RS485‚ Molynx protocol) Baud rate 9600 bps MTBF At 25° C 30‚000 h Dimensions (W x H x D) 102 x 30 x 100 mm Control functions 10 Compatible with Controllers / matrix switchers with
Molynx protocol Operating temperature range -20° C to +40° C Weight 0.26 kg
BPZ:80-201
4
BPZ:80-202
4-9© Siemens Building Technologies Group
Pan/Tilt and Telemetry Equipment
Pan/Tilt Telemetry Receivers / Drivers
Type Order No.
RX217
RX217-24
17 Function Telemetry Receiver
Offers preset positioning capability‚ for fixed-speed AC systems with pan‚ tilt and zoom. Also gives iris control and auxiliary functions. Com­patible with all RX telemetry controllers. Supplied as standard‚ built into a weatherproof box according to IP66. Can accept C or D telemetry. Supports up to 99 presets. Automatic home positioning. UK mains socket.
Power requirements 220 D 230 V AC‚ 50/60 Hz Power consumption 20 W P/T head control voltage 230 V AC Address codes 256 Baud rate 9600 bps Control functions 17 Compatible with Controllers / matrix switchers with
Molynx protocol Operating temperature range -20° C to +40° C Telemetry formats C Type (Coax) or
D Type (RS485‚ Molynx protocol) MTBF At 25° C 30‚000 h Dimensions (W x H x D) 164 x 135 x 254 mm Weight PCB: 0.50 kg
BOX: 1.75 kg
17 Function Telemetry Receiver
Offers preset positioning capability‚ for fixed-speed AC systems with pan‚ tilt and zoom. Also gives iris control and auxiliary functions. Com­patible with all RX telemetry controllers. Supplied as standard‚ built into a weatherproof box according to IP66. Can accept C or D telemetry. Supports up to 99 presets. Automatic home positioning. UK mains socket.
BPZ:80-203
BPZ:80-204
Power requirements 220 D 230 V AC‚ 50/60 Hz Power consumption 20 W P/T head control voltage 24 V AC Address codes 256 Baud rate 9600 bps Control functions 17
Compatible with Controllers / matrix switchers with
Operating temperature range -20° C to +40° C Telemetry formats C Type (Coax) or
MTBF At 25° C 30‚000 h Dimensions (W x H x D) 164 x 135 x 254 mm Weight PCB: 0.50 kg
Molynx protocol
D Type (RS485‚ Molynx protocol)
BOX: 1.75 kg
4-10 © Siemens Building Technologies Group
Loading...
