2 About this document
2.1 Content of document
This document contains information on the configuration of the product.
2.2 Meaning of symbols
Orientation guide
[-> 3] Cross-reference
Save Button
<Ctrl> Key
Tips and information
About this document
2
Contact
6
Siemens AG A6V10334028
20.12.2011
2.3 Contact
Contact information
If you have questions or suggestions regarding the product or this documentation,
please contact our Technical Competence Center.
Intranet: http://
Email Phone/Fax/Mobile
International sp.support.de@siemens.com Tel.: +49 89 9221 8000
Fax: +49 89 6367 2000
Germany,
Switzerland,
Austria
sp.support.de@siemens.com Tel.: +49 89 9221 8000
Fax: +49 89 6367 2000
France sp.support.fr@siemens.com Tel.: +33 89 9708 324
United Kingdom sp.support.uk@siemens.com Tel.: +44 12 9143 7920
Sweden support@bewator.de Tel.: +46 8 6290 300
Norway Tel.: +47 22 6336 25
Tel.: +47 22 6321 70
Mobile: +47 9826 7140
Mobile: +47 9287 3010
Denmark Tel.: +45 46 33 82 14
Finland Tel.: +35 85 0361 3909
Siemens AG provides training courses for all products.
2.4 Target group
Commissioning personnel z Configure the product at the
place of installation according to
customer-specific requirements.
z Check the product operability
and release the product for use
by the operator.
z Searches for and corrects
malfunctions.
z Has obtained suitable specialist training for the
function and for the products.
z Has attended the training courses for
commissioning personnel.
Operating personnel z Performs the procedures for
proper operation of the
product.
z No particular qualification required.
z Has received instruction from the operational
startup personnel.
Safety
General safety percautions
3
7
Siemens AG
A6V10334028
20.12.2011
3 Safety
3.1 General safety percautions
z Read the general safety precautions before installing/configuring/operating the
device.
z Follow all warnings and instructions marked on the device.
z Keep this document for reference purposes.
z This document must always accompany the product.
Liability claim
z Use only spare parts and accessories that have been approved by the
manufacturer.
3.2 Transport
z Keep the packaging material for future transportation.
z Do not expose the device to mechanical vibrations or shocks.
3.3 Installation
z It is recommended that all preparatory work (e.g. fitting of accessories) be
carried out in a workshop prior to final installation.
z The environmental conditions recommended by the manufacturer must be
observed. See section 'technical data'.
z Do not operate the device close to sources of powerful electromagnetic
radiation.
z The device should only be used for indoor applications.
z The mounting surface must be solid and non-combustible.
Danger of electrical shock/fire hazard/damage to the device due to
incorrect connection
z Connect the device only to a power source that complies with SELV
requirements and with the Limited Power Source requirements to EN 60950-1.
3.4 Maintenance
z Do not attempt to service or modify this device yourself. Refer this work to
qualified service personnel.
z Do not use liquid cleaners or sprays that contain alcohol, spirit or ammonia.
3.5 Sensor characteristics
The following conditions may be observed when using a CMOS camera. These are
inherent in the design and do not stem from any fault in the camera itself.
Safety
3
Sensor characteristics
8
Siemens AG A6V10334028
20.12.2011
z Vertical smear:
This phenomenon occurs when viewing a very bright object.
z Patterned noise:
This is a fixed pattern, which may appear over the entire monitor screen when
the camera is operated at a high temperature or in a low luminance
environment.
z Jagged picture:
When viewing stripes, straight lines, or similar patterns, the image on the
screen may appear jagged.
EU-directives
4
9
Siemens AG
A6V10334028
20.12.2011
4 EU-directives
This product complies with the requirements of the following European directives.
The EU declaration of conformity is available to the responsible agencies at:
Siemens AG
Industry Sector
Building Technologies
76181 Karlsruhe
Germany
European Directive 2004/108/EC „Electromagnetic Compatibility”
Compliance with the European Directive 2004/108/EC has been proven by testing
according to the following standards:
Emitted interference: EN 61000-6-3
Interference resistance: EN 50130-4
Technical data
5
10
Siemens AG A6V10334028
20.12.2011
5 Technical data
Model CFMS2025
Type 2 Megapixel, Day/Night IP Fix Dome
Image sensor 1/3” 1080p HD CMOS image sensor OV2715
Effective pixels 1920 (H) X 1080 (V)
Image compression method H.264 / MPEG4 / MJPEG (Triple streaming)
Image frame rate H.264 1080p @12 fps
720P, SXGA, VGA 25 fps
Service monitor CVBS @ 25 fps for PAL
Electrical
Synchronisation Internal
Signal/noise ratio > 50 db
Lens type Varifocal 3 mm (W) - 9mm (T)
Horizontal viewing angle 93.0 - 31.7°
IR cut filter Yes
Sensitivity Colour: 0.5 lux (F1.2) 50 IRE
B/W: 0.3 lux (F1.2) 50 IRE
White balance ATW/Manual
Electric shutter AES 1/25-1/10000 sec
Back-light compensation (BLC) 6 zones
Automatic gain control (AGC) Yes
Audio codec G.711
Audio feature Two-way mono audio; full duplex
Alarm Yes; 3x Alarm In & 1x Alarm Out
Motion detection Yes; 1 MD window & 3 sensitivity levels
Privacy zone 8
Image enhancement 2 DNR
Power supply
Power requirement DC 12 V / AC 24 / PoE
Power consumption 5.5 W
Power connector Terminal block
Environment
Enfironmental operating temperature 0 – 50ºC
Operating humidity 0 – 80% RH
Storage temperature -20 to +60ºC
Network
Web broswer IE 6.0 above/ Firefox, Safari with VLC plug-in
(VLC version 0.9.6 or above)
Security Firewall / forbidden protocol / 802.1x
Ethernet 1 x 10/100 base-T Ethernet connection for LAN
Internet protocol TCP/IP, UDP, HTTP, HTTPs, SMTP, SNMP,
DNS, DHCP, NTP, ARP, ICMP, FTPc, FTPs,
DDNS, RTSP (RTP, RTCP), IGMP v3, UpnP,
CIFS, NFS, IEC802.1x, ONVIF
Technical data
5
11
Siemens AG
A6V10334028
20.12.2011
Network
Connections RJ-45 for Ethernet 10BaseT/100BaseTX (PoE)
Power connector (terminal block type)
Terminal block for 3 alarm inputs, 1 output
I/O Connector
Network port RJ45 with LED’s
Audio IN/OUT Spring type
Video output 2-pin connector
Mechanical
Protection rating NA
Resistance to shock NA
Dimensions (DxH) 126 mm x 115 mm
Weight 480 g
Details for ordering
6
Package contents
12
Siemens AG A6V10334028
20.12.2011
6 Details for ordering
Type Order No. Designation
CFMS2025 S54561-C93-A5 1/3'' IP Fix Dome, 2 MP, Day / Night
Further products and accessories can be found in the internet:
www.siemens.com/securityproducts
6.1 Package contents
z IP camera
z Video cable
z 2 anchors
z 2 screws
z Template
z 2 GB SD card (in box)
z Installation instruction
z Utilities CD (including software and documentation)
Camera part and connector defintion
Camera part defintion
7
13
Siemens AG
A6V10334028
20.12.2011
7 Camera part and connector defintion

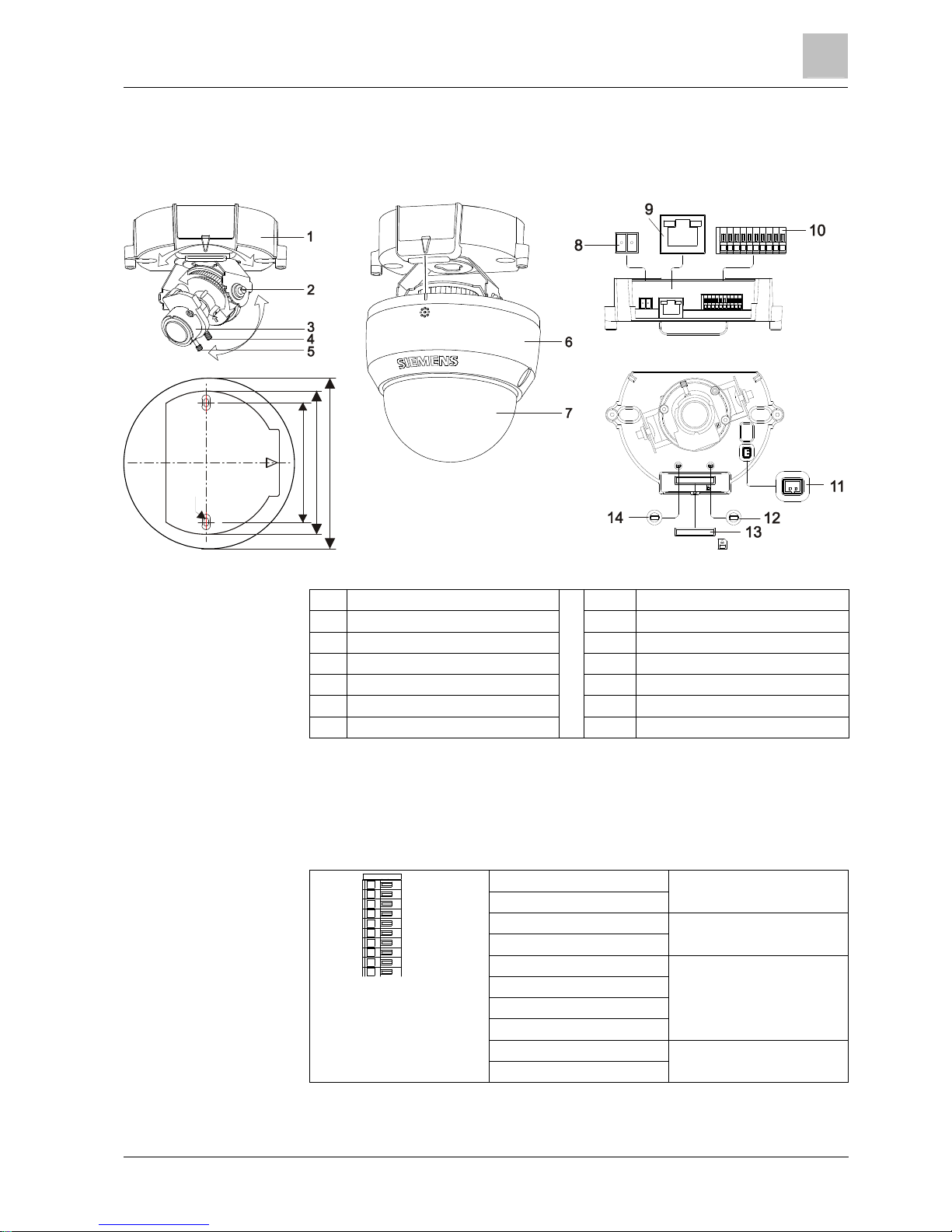

7.1 Camera part defintion
SD CARD
SD CARD
DEFAULT
RESET
DEFAULT RESET
VIDEO OUT
VIDEO OUT PC
DC12V
A
C24V
+ --
~ ~
DC12V
AC24V
+ - ~ ~
Ethernet
Ethernet
Au. IN
GND
Au. OUTGND
Al. IN 3
Al. IN 2
Al. IN 1
GND
COM
Al. OUT
Au. IN
GND
Aú. OUT
GND
Al. IN 3
Al. IN 2
Al. IN 1
GND
COM
Al. OUT
Unit: mm
87.0
126.0
105.7
5 x 10
Logo
1 Camera base 8 Power supply port
2 Adjusting mechanism 9 Ethernet connector
3 Lens 10 I/O terminal
4 Focal length ring 11 Video output
5 Focus ring 12 Reset button
6 Camera housing 13 SD card
7 Dome cover
14 Default button
7.2 Connector pin definition
7.2.1 Digital I/O terminal
Au.IN
GND
Audio in
Au.OUT
GND
Audio out
AI.IN3
AI.IN2
AI.IN1
GND
Alarm in
AI.COM
Au. IN
GND
Au. OUT
GND
Al. IN 3
Al. IN 2
Al. IN 1
GND
Al. COM
Al. OUT
AI.OUT
Alarm out
Camera part and connector defintion
7
Connector pin definition
14
Siemens AG A6V10334028
20.12.2011

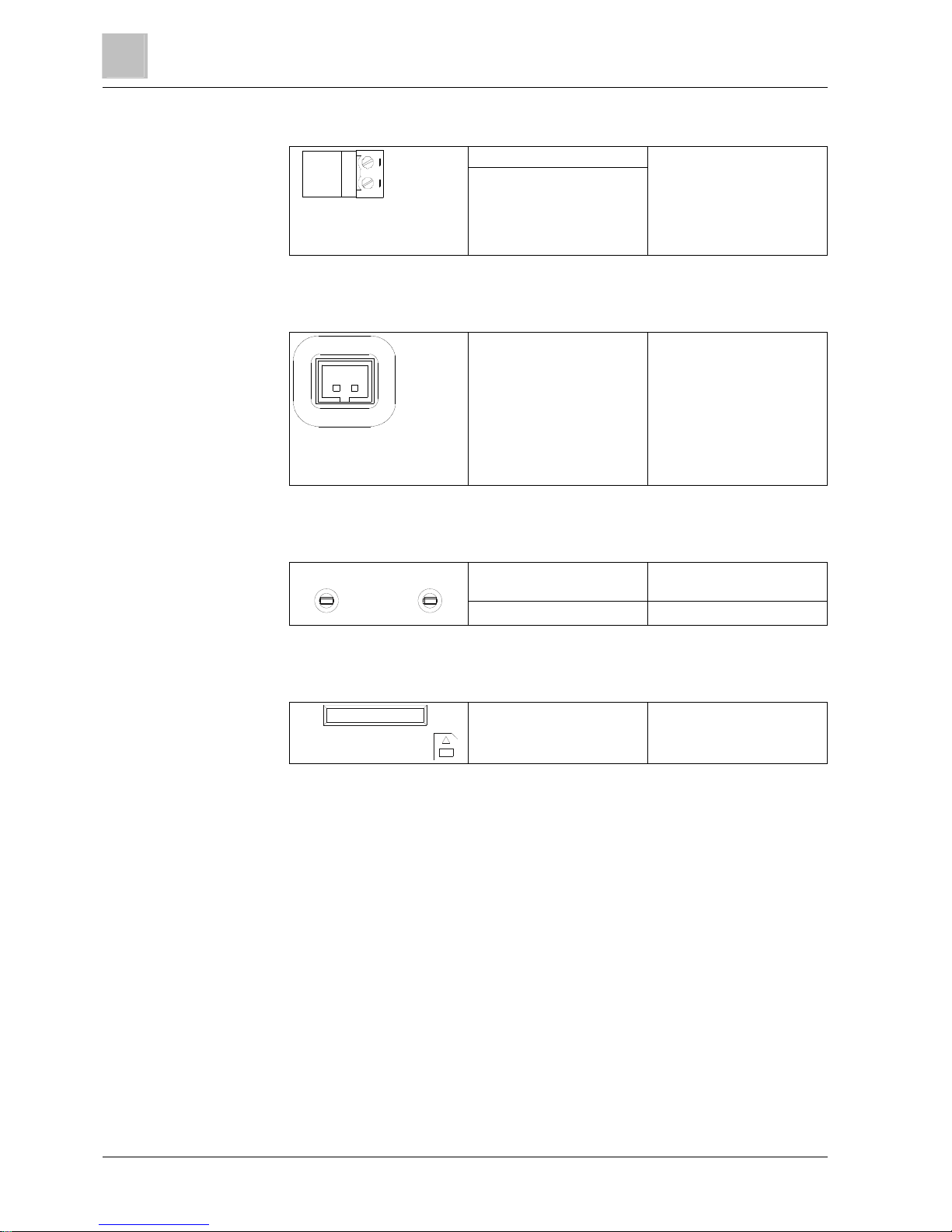

7.2.2 Power terminal
White: Power -
Black: Power +
DC 12 V / AC 24 V power
terminal
7.2.3 Video out connector
Video Signal Output Composite video output
7.2.4 Default/Reset buttons
DEFAULT Return to factory default by
pressing button (after 5 Sec)
DEFAULT
RESE
T
RESET System restart
7.2.5 SD card
SD CARD
SD CARD To record images when alarm
events happen.
Installing the camera
Precautions
8
15
Siemens AG
A6V10334028
20.12.2011
8 Installing the camera
8.1 Precautions
8.1.1 SD memory card
NOTICE
Please install the SD memory card before switching on the camera.
The system cannot detect an SD card that is inserted during operation.
z The camera supports SD and SDHC cards.
z Physical interface: Part 1. Physical Layer Specification; Version 1.01.
z Images may not be recorded or read correctly if an unsupported SD card is
used with the camera.
z A SD card can be used for loop recording of images. The life-span (number of
re-writes possible) of a SD card depends on its capacity. For loop recording, it
is rec-ommended to use a large-capacity SD card.
z Do not use a card containing the data recorded by another device with the
camera as this may result in the camera not functioning correctly.
z Do not modify or overwrite the data, or change the folder name of a SD card.
This may result in the camera not functioning correctly.
z Data recorded with the camera does not comply with the image file format Exif
and the DCF standard. If the SD card is to be removed to play images, use a
personal com-puter for this purpose. Other devices may not be capable of
displaying the images.
z Use only new SD cards that were delivered by the manufacturer.
8.1.2 Power supply
Be sure to use only a suitable power adapter. Using the wrong type of power
adapter may cause the camera to malfunction, heat up, or catch fire. Before using
the power adapter, carefully read and observe the Work safety information and the
notes below.
z Do not allow the connectors on the power adapter to come into contact with
any other metal objects as this may result in short-circuit.
z To connect the power adapter, firmly insert the plug end of the cable into the
power terminal. Do not insert the plug into other jacks as this may cause
malfunctioning.
z When removing the connection cable, disconnect it by pulling the plug. Do not
pull on the cable.
z Do not drop the power adapter or subject it to strong impact.
z Do not use the power adapter in hot and humid places.
z Temperature increase on the surface of the adapter is normal. Before moving
the adapter to another location, unplug it from the wall outlet, and wait until its
temperature decreases.
z Buzzing noises may come from inside. This does not indicate malfunction.
z Using the power adapter near a radio, TV, or cell phone may cause
interference. Use the adapter at sufficient distances from these devices.
Installing the camera
8
Concept of the network camera
16
Siemens AG A6V10334028
20.12.2011
8.2 Concept of the network camera
The network camera can deliver video images and audio in real time using the
Internet or an intranet. The camera is equipped with Ethernet (RJ-45) 10BASET/100BASE-TX network interfaces.
It can be used in various indoor environments.
Switch
PC
Ether net
8.3 Setting network camera environment
Items needed for network camera monitoring system
z Administrator's personal computer
The personal computer that is given all authorities for setting, operating,
monitoring and other functions with the network cameras is called the
"administrator's personal computer" in this manual.
z PC requirements
– Windows Vista or XP as OS
– Internet Explorer Version 6.0 (or higher) or Safari or Mozilla FireFox
– CPU: Intel Pentium 4,2 GHz or higher
– Memory: 1 GB or more
z Network camera
Please purchase the appropriate number of cameras required for your
application.
z Connection equipment such as a hub and router suiting the network system
environment, as well as a LAN cable ( Cat 5e cable is recommended).
z Camera search application "Webcam IP-Finder"
Install this application from the CD-ROM supplied as an accessory.
1. Double-click "ipfinder_Setup.exe" in the CD-ROM
2. install the application following the instructions on the screen
8.4 Connecting the camera and personal computer via
network
IP address
To connect to the network, the administrator needs to set the network camera IP
address.
There are two options to set the IP address.
z Entering an IP address manually (factory default)
Installing the camera
Connecting the camera and personal computer via network
8
17
Siemens AG
A6V10334028
20.12.2011
z Obtaining an IP address automatically from the DHCP server
Entering the IP address manually.
Your camera is set to this mode at the factory with IP address 192.168.0.10, so you
need to enter this IP address manually to access the camera for the first time.
Obtaining an IP address automatically from the DHCP server
If your network uses a DHCP server, you do not need to change the IP address of
the camera. To activate this function, the option DHCP must be selected in the
"Network/Basic Settings".
The IP address of the network camera can be changed from time to time when
the DHCP server is used. For this reason, it may not be possible to connect a
network camera due to an IP address change if the network camera is accessed
using the previously set IP address.
To enable accessing the network camera in this case, a fixed IP address needs to
be assigned manually to the network camera. Make sure to read the instruction
manuals for the network equipment, as well as the manuals for the router, hub
and modem.
To manually select the basic network settings, "Manual" must be selected and the
IP address, subnet mask, default gateway, primary DNS and secondary DNS
have to be entered.
Connection configuration
There are two configuration options for connecting network cameras:
z Crossover connection
z Connection via a hub, switch, or router
You do not need to assign an IP address to a hub.
The default IP address of your camera is 192.168.0.10. Set the IP address of your
personal computer in the same subnet. (The network segment must be the same
segment when directly connecting using a cross-over cable or connecting via the
hub). When connecting more than one camera, connect the cameras one by one
and assign an unused IP address to each one.
You can also use the LAN port of your broadband router. However, when using
the broadband router while the DHCP server function is enabled, turn on the
power after connecting the camera to the router. The camera gets the IP address
from the router's DHCP server. The IP address will not be 192.168.0.10.
For more information, refer to the user documentation for your computer.
Connecting camera and personal computer
1. Connecting the LAN cable
Connect the LAN cable (straight cable) to the camera and to the hub.
Alternatively, connect the camera to a personal computer using the LAN cable
(cross-over cable).
2. Turning Power on
Connect AC 24 V to the power terminal.
Setting the IP address of the personal computer.
z Use a free IP address (other than 192.168.0.10, which is the camera's IP
address).
z For example., set the IP address to 192.168.0.20 (and the subnet mask to
255.255.255.0).
Installing the camera
8
Using the camera search application "Webcam IP Manager"
18
Siemens AG A6V10334028
20.12.2011
z For details on the procedure, refer to the user guide for the personal computer.
Testing the camera connection using ping.
z Start a command prompt. Type "ping 192.168.0.10" and press "Enter".
D If the "Reply from..." message appears, the connection is correctly established.
Search for the camera using the "Webcam IP Manager" and view a camera image.
See Section 6.5.
1. Start "Webcam IP Manager" and click "Search".
2. Check whether the camera name "nwcam05" is displayed in the camera list.
3. Click "nwcam05" to select the camera.
D The camera name, IP address and HTTP port number are displayed in the
"Network Camera Lists" field.
4. Double-click the camera you wish to log in to in the camera list.
D The screen for entering the user name and password will appear.
5. Enter the administrator log-in ID and password. See "Login dialog".
D A camera image screen of the network camera will appear.
To view images without using "Webcam IP Manager," launch the Internet
browser, enter URL http://192.168.0.10/ in the address box and press "ENTER."
It takes about 10 seconds to activate the camera.
If a port number other than "80" is set, enter the port number after ":" as in
http://192.168.0.10:88.
8.5 Using the camera search application "Webcam IP
Manager"
The "Webcam IP Manager" is an application for searching for network cameras
that can currently be viewed from the administrator's personal computer or a user's
personal computer.
Setting up "Webcam IP Manager"
1. Insert the CD in the CD-ROM drive of the personal computer.
2. Double-click the "ipfinder_Setup" file in the CD-ROM and install "Webcam IP
Manager" in accordance with the instructions on the screen.
IMPORTANT
"Webcam IP Manager " is compatible only with Windows Vista and Windows XP.
Glitches may occur on your personal computer if it is run with another operating
system. Do not install "Webcam IP Manager " with other operating systems.
Using "Webcam IP Manager " to search for a camera
Set the personal computer to “Administrator authorization“ when using “Webcam
IP Manager”.
1. Select "Start" > "Programs" > "Webcam IP-Finder".
Installing the camera
Using the camera search application "Webcam IP Manager"
8
19
Siemens AG
A6V10334028
20.12.2011
2. Start "Webcam IP Manager" and click "Search".
D All the cameras currently connected to the network will be displayed. To
exit the program, click "Exit".
3. Select the camera you want to log in to in the list of cameras and double-click
it.
D The selected camera name and IP address are displayed in the network
camera login fields.
4. Log in to the selected camera as an administrator. (See "Login dialog")
To exit without logging in, click "Exit".
SSDP (Simple Service Discovery Protocol / network protocol)
Z Prerequisite:
The Web-Cam IP Manager and all devices are located in the same network
segment. If a device and the Web-Cam IP Manager are not located in the same
network segment, you must ensure that the associated gateway (router)
passes the SSDP multicast messages sent by the Web-Cam IP Manager on to
the network segment where the device is located.
1. Start the Web-Cam IP Manager by loading IP Manager.exe. This application is
found on the CD included with delivery.
D The Web-Cam IP Manager program window will open:
Installing the camera
8
Login dialog
20
Siemens AG A6V10334028
20.12.2011
2. Click "Start".
D The Web-Cam IP Manager program window will now display a list of all the
devices available for communication along with their IP and MAC
addresses. Each device's IP address or MAC address is unique.
3. Select the camera whose home page you want to access.
4. Click "Home page of selected device".
D The home page of the selected camera will appear. See Section 6.8
Components of the unit home page.
8.6 Login dialog
The content of the following chapters is based on the assumption that Microsoft
Internet Explorer IE 6.0 or higher has been installed.
A person who has logged in as an administrator can perform all functions.
Administrator login
1. Search for the camera using the "Webcam IP-Finder", double-click the camera
you wish to log in to.
D The login dialog will appear.
Installing the camera
Viewing and listening
8
21
Siemens AG
A6V10334028
20.12.2011
2. Enter the administrator login ID and password in the "Name" and "Password"
fields, respectively and click "Login".
The administrator login ID and password are "admin" and "admin" by default.
D The camera image screen will appear.
IMPORTANT
The administrator login allows rewriting of all settings. Make sure to change the
de-fault administrator login ID and password to ensure camera security. Keep the
new administrator login ID and password handy for future use. Information on
how to change the administrator login ID and password can be found in Section
"Access protection”.
8.7 Viewing and listening
Images of the network camera can be viewed using the Internet browser of your
personal computer.
Z Preparations before displaying
Enable cookies
Set "Browser setting when proxy server is used".
Change "Security" in the Internet options as follows.
1. Click “Tools” on Toolbar
2. Click "Internet Options"
3. Select the "Security" tab.
4. Click on "Intranet" if the camera to be operated is inside the intranet, click on
"Internet" if the camera is on the Internet.
5. Click "Level customize."
6. Activate the following radio buttons in the list displayed:
- "Enable" for "ActiveX control and plug in execute"
- "Enable" for "Execution of script of ActiveX control marked safe even when
script is executed"
- "Enable" for "Download of signed ActiveX control "
7. Click "OK."
8. Login to the camera.
D Your browser will be launched and the camera login screen will appear.
See Section "Login dialog" for the login method.
When the security warning screen (VeriSign) appears on the first use of the
system, click "Yes."
Administrator authorization is needed to install "Active-X control." Install "Active-X
control" after changing the personal computer setting to "Administrator
authorization."
Browser settings when proxy server is used
If a proxy server is used, setting the browser to bypass the proxy server during
communication with the network camera is recommended.
Loading...
