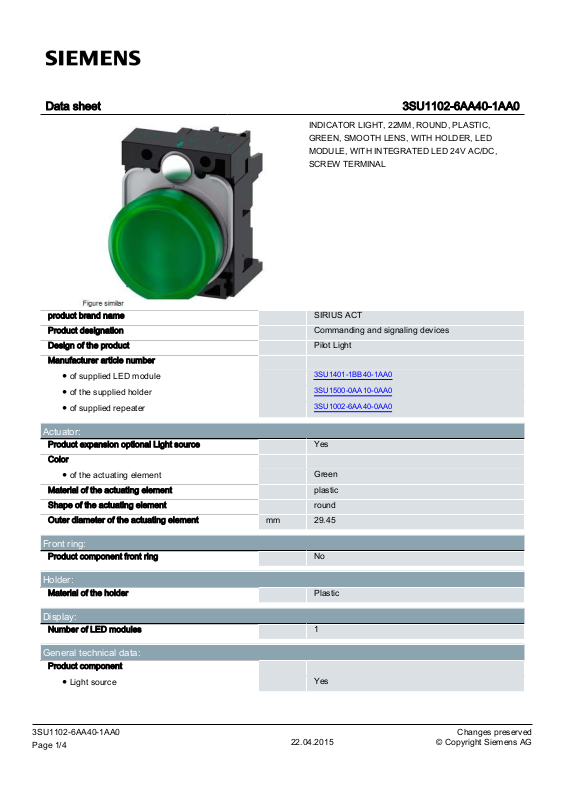

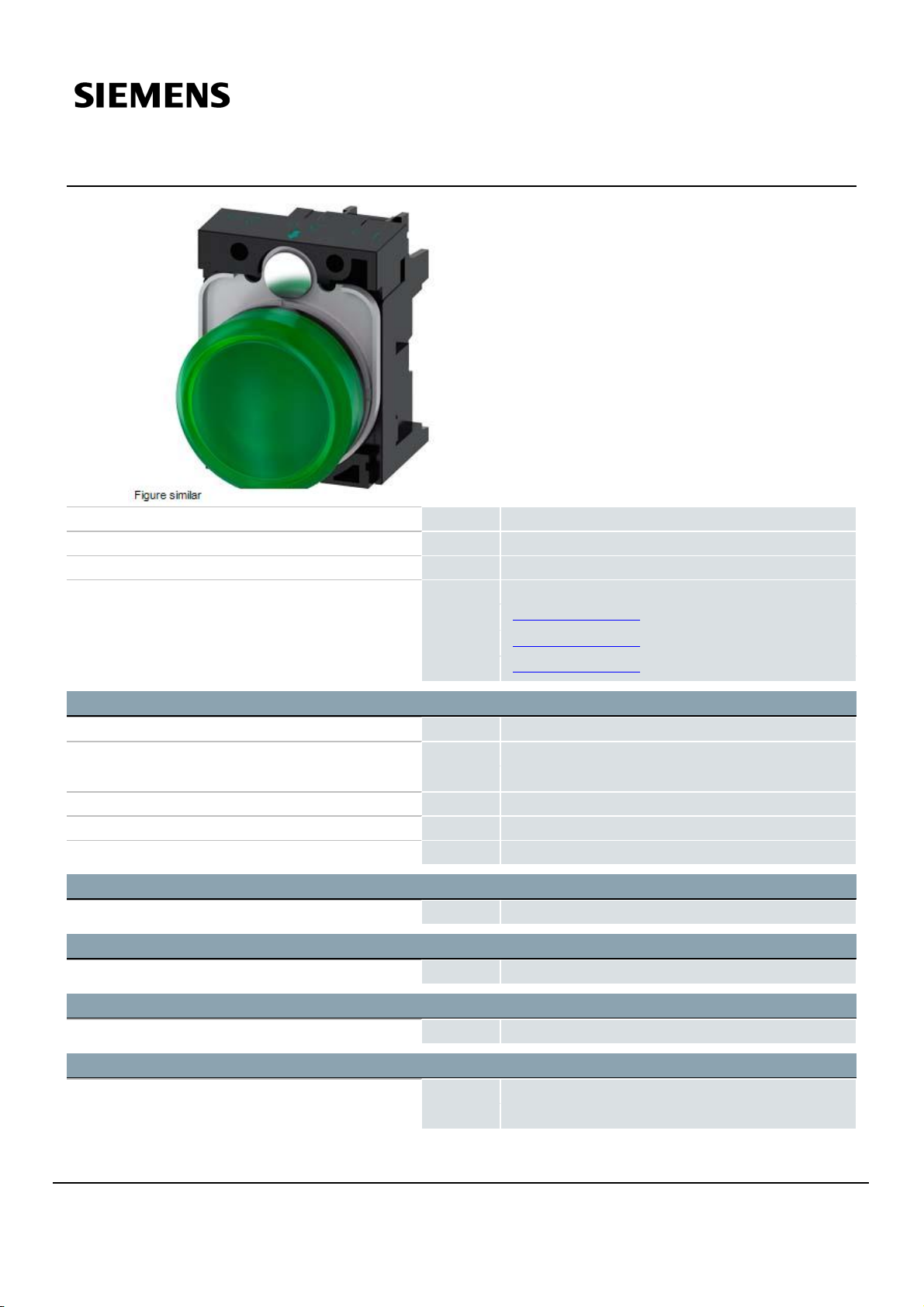

Data sheet 3SU1102-6AA40-1AA0
4
INDICATOR LIGHT, 22MM, ROUND, PLASTIC,
GREEN, SMOOTH LENS, WITH HOLDER, LED
MODULE, WITH INTEGRATED LED 24V AC/DC,
SCREW TERMINAL
product brand name SIRIUS ACT
Product designation Commanding and signaling devices
Design of the product Pilot Light
Manufacturer article number
● of supplied LED module
● of the supplied holder
● of supplied repeater
3SU1401-1BB40-1AA0
3SU1500-0AA10-0AA0
3SU1002-6AA40-0AA0
Actuator:
Product expansion optional Light source Yes
Color
● of the actuating element
Material of the actuating element plastic
Shape of the actuating element round
Outer diameter of the actuating element mm 29.45
Green
Front ring:
Product component front ring No
Holder:
Material of the holder Plastic
Display:
Number of LED modules 1
General technical data:
Product component
● Light source
Yes
3SU1102-6AA40-1AA0 Changes preserved
Page 1/
22.04.2015 © Copyright Siemens AG
Page 2
Insulation voltage
4
● Rated value
Type of voltage
● of the operating voltage
Degree of pollution 3
Shock resistance
● acc. to IEC 60068-2-27
Vibration resistance
● acc. to IEC 60068-2-6
Surge voltage resistance Rated value kV 4
Protection class IP IP66, IP67, IP69(IP69K)
● of the terminal
Equipment marking
● acc. to DIN EN 61346-2
● acc. to DIN EN 81346-2
Operating voltage
● Rated value
Relative positive tolerance of the operating voltage % 20
Relative negative tolerance of the operating voltage % 20
V 320
AC/DC
Sinusoidal half-wave 50 g / 11 ms
10 ... 500 Hz: 5g
IP20
P
P
V 24
Auxiliary circuit:
Number of NC contacts
● for auxiliary contacts
Number of NO contacts
● for auxiliary contacts
Number of CO contacts
● for auxiliary contacts
Connections/ Terminals:
Type of electrical connection
● of modules and accessories
Type of connectable conductor cross-section
● solid with core end processing
● solid without core end processing
● finely stranded with core end processing
● finely stranded without core end processing
● for AWG conductors
Tightening torque
● with screw-type terminals
0
0
0
Screw-type terminal
2x (0.5 ... 0.75 mm²)
2x (1.0 ... 1.5 mm²)
2x (0.5 ... 1.5 mm²)
2x (1,0 ... 1,5 mm²)
2x (18 ... 14)
N·m 0.8...0.9
Lamp:
Type of light source LED
Color of the light source green
Ambient conditions:
3SU1102-6AA40-1AA0 Changes preserved
Page 2/
22.04.2015 © Copyright Siemens AG
Page 3
Ambient temperature
4
● during operation
● during storage
°C -25...+70
°C -40...+80

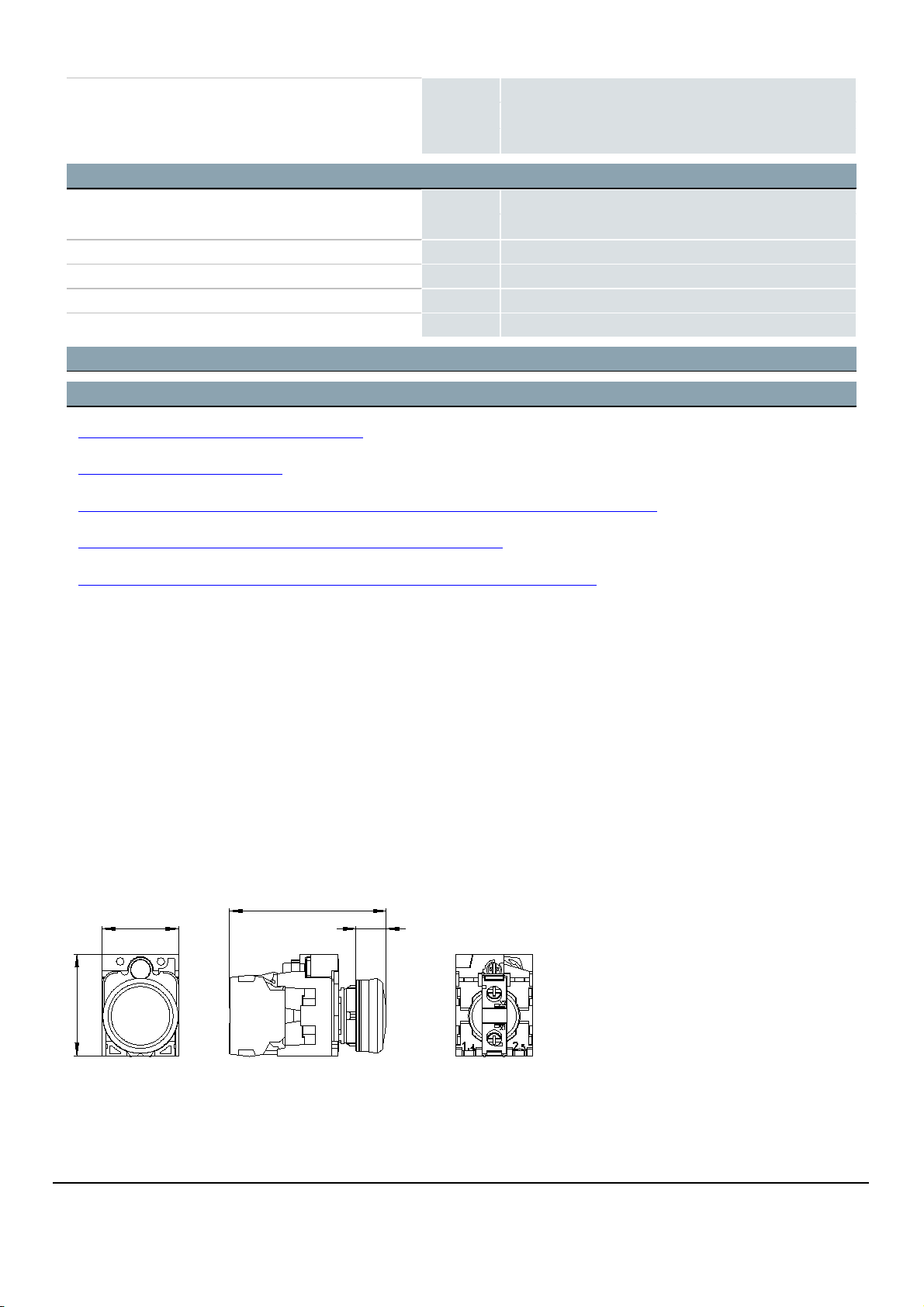

Installation/ mounting/ dimensions:
Mounting type front panel mounting
● of modules and accessories
Front plate mounting
Height mm 40
Width mm 30
Shape of the installation opening round
Mounting diameter mm 22
Certificates/ approvals:
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
http://www.siemens.com/industrial-controls/catalogs
Industry Mall (Online ordering system)
http://www.siemens.com/industrymall
Cax online generator
http://support.automation.siemens.com/WW/CAXorder/default.aspx?lang=en&mlfb=3SU11026AA401AA0
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
http://support.automation.siemens.com/WW/view/en/3SU11026AA401AA0/all
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
http://www.automation.siemens.com/bilddb/cax_de.aspx?mlfb=3SU11026AA401AA0&lang=en
61.5
30
40
11.8
3SU1102-6AA40-1AA0 Changes preserved
Page 3/
22.04.2015 © Copyright Siemens AG
Page 4

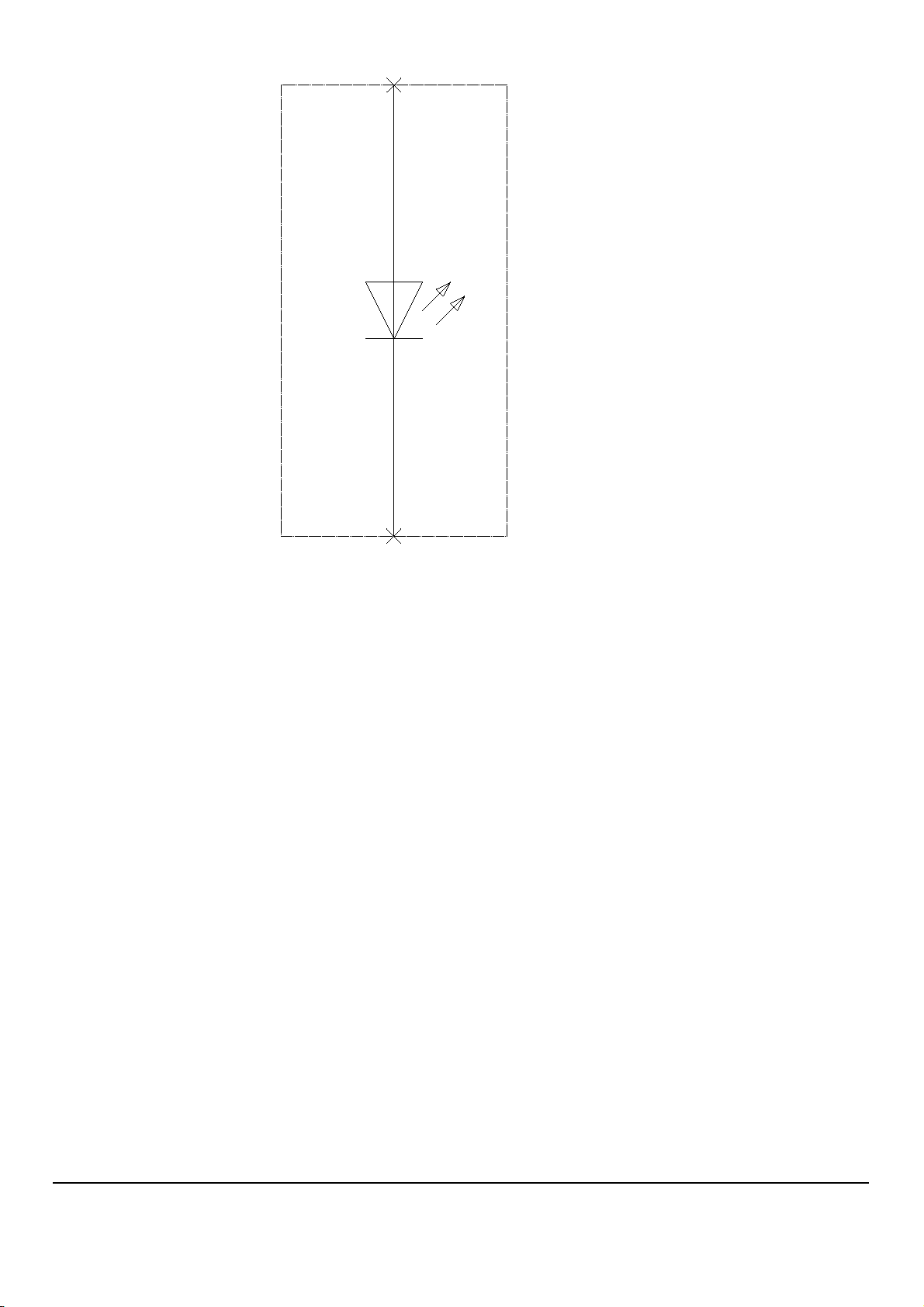

-P
4
X1
24 V AC/DC
X2
last modified: 20.04.2015
