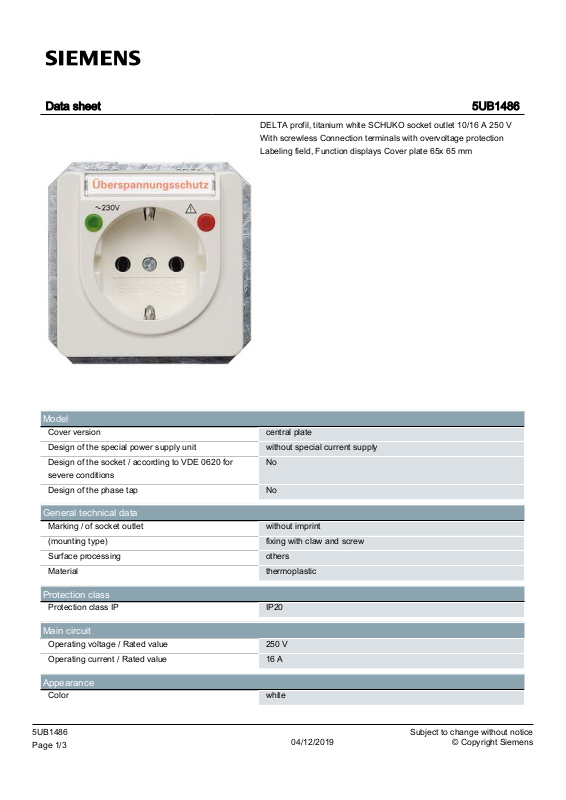

Siemens 5UB1486 data sheet

Data sheet 5UB1486

3

DELTA profil, titanium white SCHUKO socket outlet 10/16 A 250 V

With screwless Connection terminals with overvoltage protection

Labeling field, Function displays Cover plate 65x 65 mm

Model

Cover version central plate

Design of the special power supply unit without special current supply

Design of the socket / according to VDE 0620 for

severe conditions

Design of the phase tap No

No

General technical data

Marking / of socket outlet without imprint

(mounting type) fixing with claw and screw

Surface processing others

Material thermoplastic

Protection class

Protection class IP IP20

Main circuit

Operating voltage / Rated value 250V

Operating current / Rated value 16A

Appearance

Color white
