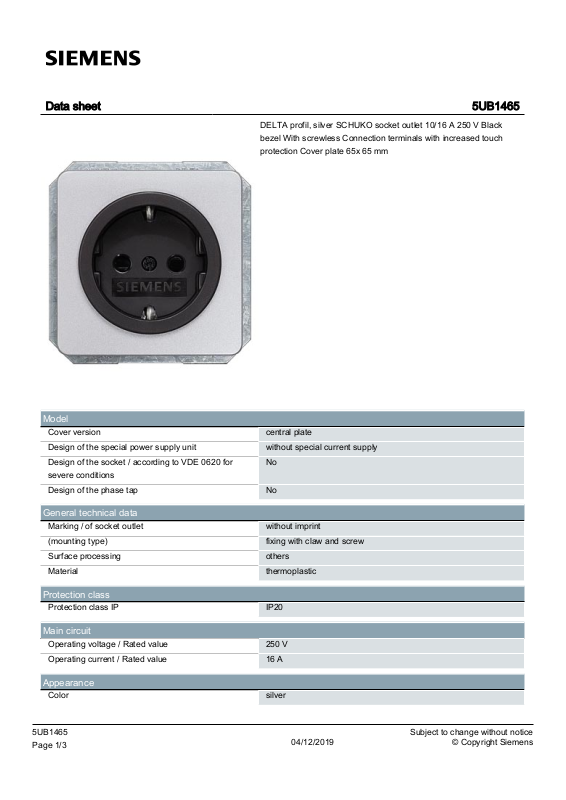

Siemens 5UB1465 data sheet
Data sheet 5UB1465
3
DELTA profil, silver SCHUKO socket outlet 10/16 A 250 V Black
bezel With screwless Connection terminals with increased touch
protection Cover plate 65x 65 mm
Model
Cover version central plate
Design of the special power supply unit without special current supply
Design of the socket / according to VDE 0620 for
severe conditions
Design of the phase tap No
No
General technical data
Marking / of socket outlet without imprint
(mounting type) fixing with claw and screw
Surface processing others
Material thermoplastic
Protection class
Protection class IP IP20
Main circuit
Operating voltage / Rated value 250V
Operating current / Rated value 16A
Appearance
Color silver
5UB1465 Subject to change without notice
Page 1/
04/12/2019 © Copyright Siemens
Product details
3
Product component
● Ejection equipment
● Labeling field
● Increased touch protection
● Fault current protection
● miniature fuse
● Integrated / functional lighting
● Integrated / Light source
● Integrated / orientation lighting
● Hinged lid
Product feature
● lockable
● halogen-free
● transparent
Product function
Product function
● Socket selectable
● Overvoltage protection
No
No
Yes
No
No
No
No
No
No
No
Yes
No
No
No
Number
Number of units 1
Number of sockets / switchable 0
Connections
Arrangement of contacts / diagonal No
Type of electrical connection plug terminal
Mechanical Design
(height) 70mm
Width 70mm
Depth 45mm
(mounting type) flush mounted
Material / of the enclosure plastic
Certificates
General Product Approval Test Certificates
Type Test
Certificates/Test Report
Miscellaneous
Further information
5UB1465 Subject to change without notice
Page 2/
04/12/2019 © Copyright Siemens
