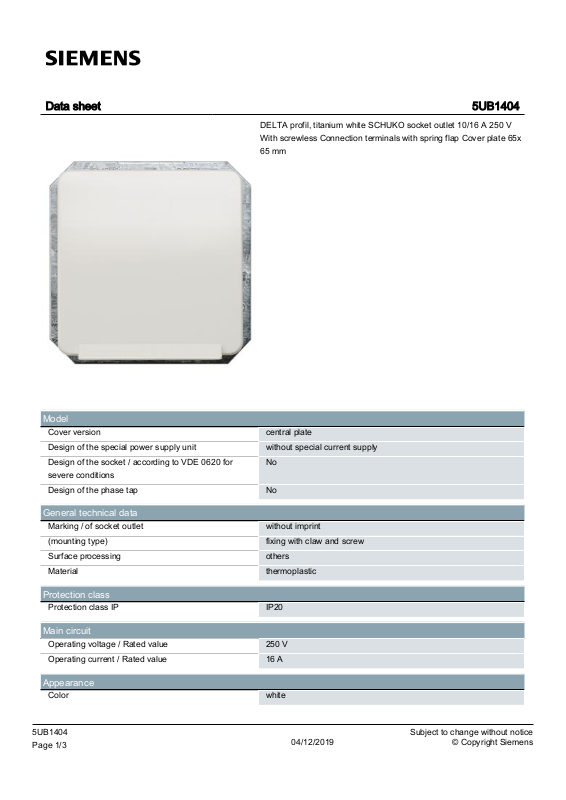

Siemens 5UB1404 data sheet
Data sheet |
5UB1404 |
DELTA profil, titanium white SCHUKO socket outlet 10/16 A 250 V With screwless Connection terminals with spring flap Cover plate 65x 65 mm
Model
Cover version
Design of the special power supply unit
Design of the socket / according to VDE 0620 for severe conditions
Design of the phase tap
central plate
without special current supply
No
No
General technical data
Marking / of socket outlet
(mounting type)
Surface processing
Material
without imprint
fixing with claw and screw
others
thermoplastic
Protection class
Protection class IP |
IP20 |
|
|
Main circuit
Operating voltage / Rated value |
250 V |
|
|
Operating current / Rated value |
16 A |
|
|
Appearance
|
Color |
white |
|
|
|
|
|
||
5UB1404 |
04/12/2019 |
Subject to change without notice |
||
Page 1/3 |
© Copyright Siemens |
|||
|
|
|
||
Product details
Product component |
|
● Ejection equipment |
No |
|
|
● Labeling field |
No |
● Increased touch protection |
No |
● Fault current protection |
No |
● miniature fuse |
No |
● Integrated / functional lighting |
No |
|
|
● Integrated / Light source |
No |
● Integrated / orientation lighting |
No |
● Hinged lid |
Yes |
|
|
Product feature |
|
● lockable |
No |
● halogen-free |
Yes |
|
|
● transparent |
No |
|
|
Product function
Product function
● Socket selectable |
No |
● Overvoltage protection |
|
No |
Number
Number of units |
1 |
|
|
Number of sockets / switchable |
0 |
|
|
Connections
Arrangement of contacts / diagonal |
No |
|
plug terminal |
Type of electrical connection |
|
|
|
Mechanical Design
(height)
Width
Depth
(mounting type)
Material / of the enclosure
70 mm
70 mm
45 mm
flush mounted
plastic
Certificates
General Product Approval |
Test Certificates |
|
|
|
|
||
|
|
Miscellaneous |
|
Type Test |
|||
|
|
|
|
|
|
|
|
|
|
|
|
Certificates/Test Report |
|
||
Further information
5UB1404 |
04/12/2019 |
Subject to change without notice |
Page 2/3 |
© Copyright Siemens |
|
|
|
