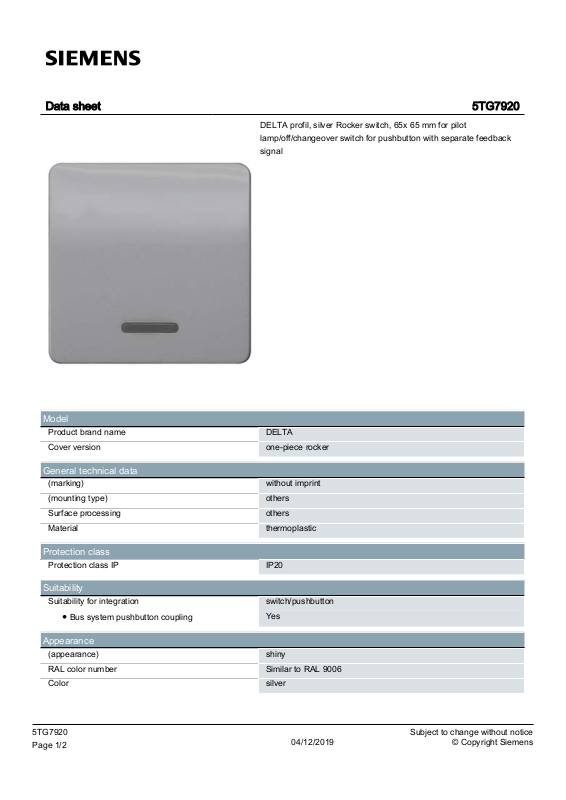

Siemens 5TG7920 data sheet

Data sheet 5TG7920

2

DELTA profil, silver Rocker switch, 65x 65 mm for pilot

lamp/off/changeover switch for pushbutton with separate feedback

signal

Model

Product brand name DELTA

Cover version one-piece rocker

General technical data

(marking) without imprint

(mounting type) others

Surface processing others

Material thermoplastic

Protection class

Protection class IP IP20

Suitability

Suitability for integration switch/pushbutton

● Bus system pushbutton coupling

Yes

Appearance

(appearance) shiny

RAL color number Similar to RAL 9006

Color silver

5TG7920 Subject to change without notice

Page 1/

04/12/2019 © Copyright Siemens

Product details

2

Product feature / Control window Yes

Product component

● Replaceable lens

● Labeling field

No

No

Product feature / halogen-free Yes

Mechanical Design

Material / of cover for switch pushbutton dimmer plastic

Further information

Information- and Downloadcenter (Catalogs, Brochures,…)

http://www.siemens.com/lowvoltage/catalogs

Industry Mall (Online ordering system)

https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=5TG7920

Service&Support (Manuals, Certificates, Characteristics, FAQs,...)

https://support.industry.siemens.com/cs/ww/en/ps/5TG7920

Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)

http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=5TG7920

CAx-Online-Generator

http://www.siemens.com/cax

Tender specifications

http://www.siemens.com/specifications
