Siemens 5TG7815 data sheet

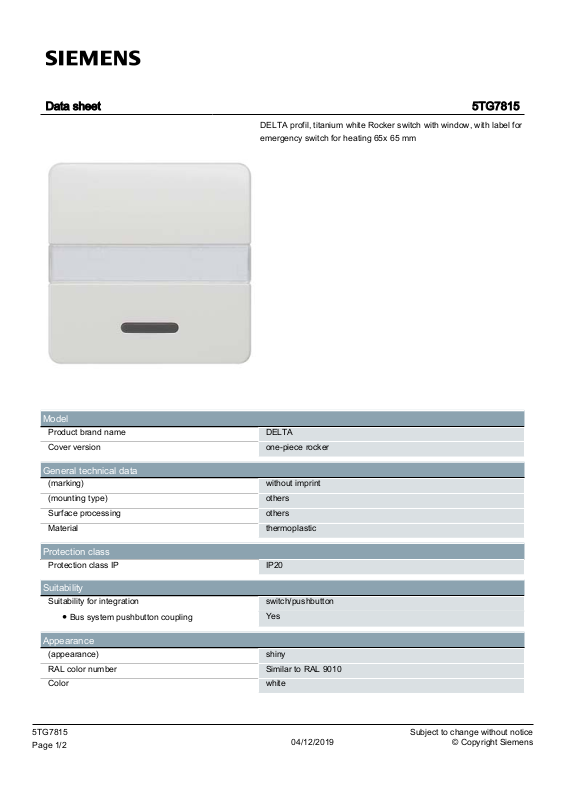

Data sheet 5TG7815

DELTA profil, titanium white Rocker switch with window, with label for

emergency switch for heating 65x 65 mm

Model

Product brand name DELTA

Cover version one-piece rocker

General technical data

(marking) without imprint

(mounting type) others

Surface processing others

Material thermoplastic

Protection class

Protection class IP IP20

Suitability

Suitability for integration switch/pushbutton

● Bus system pushbutton coupling

Yes

Appearance

(appearance) shiny

RAL color number Similar to RAL 9010

Color white

5TG7815 Subject to change without notice

Page 1/

04/12/2019 © Copyright Siemens

Product details

Product feature / Control window Yes

Product component

● Replaceable lens

● Labeling field

Yes

Product feature / halogen-free Yes

Mechanical Design

Material / of cover for switch pushbutton dimmer plastic

Further information

Information- and Downloadcenter (Catalogs, Brochures,…)

http://www.siemens.com/lowvoltage/catalogs

Industry Mall (Online ordering system)

https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=5TG7815

Service&Support (Manuals, Certificates, Characteristics, FAQs,...)

https://support.industry.siemens.com/cs/ww/en/ps/5TG7815

Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)

http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=5TG7815

CAx-Online-Generator

http://www.siemens.com/cax

Tender specifications

http://www.siemens.com/specifications
