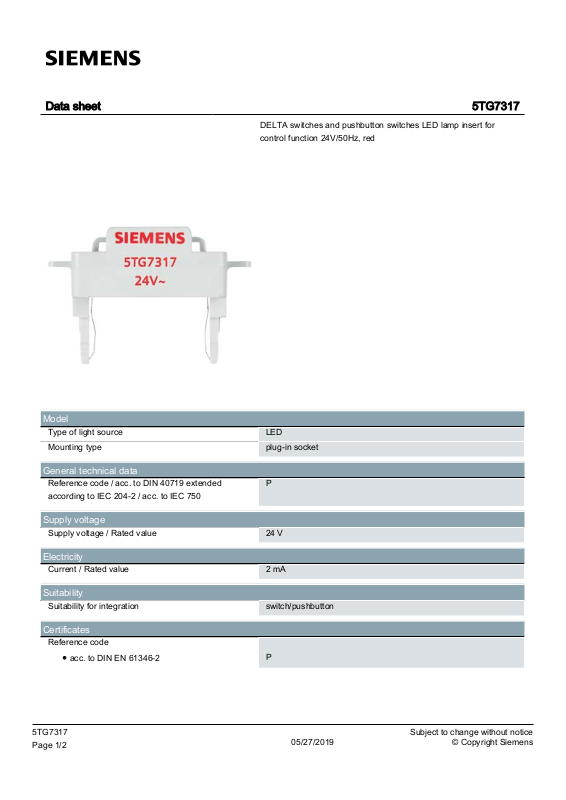

Siemens 5TG7317 data sheet

Data sheet

5TG7317

DELTA switches and pushbutton switches LED lamp insert for

control function 24V/50Hz, red

Model

Type of light source	LED
	plug-in socket
Mounting type

General technical data

Reference code / acc. to DIN 40719 extended	P
according to IEC 204-2 / acc. to IEC 750

Supply voltage

Supply voltage / Rated value	24 V

Electricity

Current / Rated value	2 mA

Suitability

Suitability for integration	switch/pushbutton

Certificates

Reference code
● acc. to DIN EN 61346-2	P

5TG7317	05/27/2019	Subject to change without notice
Page 1/2		© Copyright Siemens

Declaration of Conformity

Further information

Informationand Downloadcenter (Catalogs, Brochures,…)

http://www.siemens.com/lowvoltage/catalogs

Industry Mall (Online ordering system) https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=5TG7317

Service&Support (Manuals, Certificates, Characteristics, FAQs,...) https://support.industry.siemens.com/cs/ww/en/ps/5TG7317

Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...) http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=5TG7317

CAx-Online-Generator

http://www.siemens.com/cax

Tender specifications

http://www.siemens.com/specifications
