Shuttle SG45H7 User guide

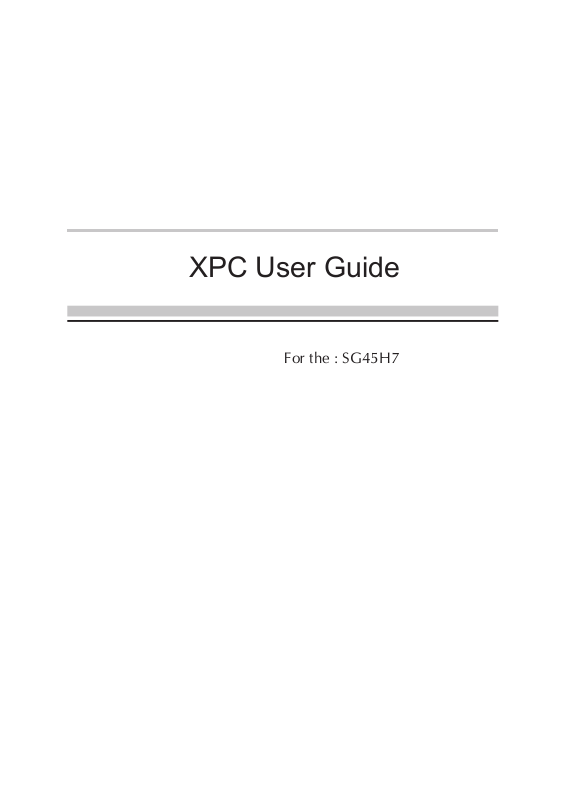

XPC User Guide
For the : SG45H7
Shuttle®
XPC Installation Guide
Copyright
©2008 by Shuttle® Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,
translated into any language, or transmitted in any form or by any means such as electronic,
mechanical, magnetic, optical, chemical, photocopy, manual, or otherwise, without prior
written permission from Shuttle® Inc.
Other brands and product names used herein are for identification purposes only and may
be trademarks of their respective owners.
Disclaimer
Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
Shuttle® Inc. makes no representation or warranty regarding the contents of this manual. Information in this manual had been carefully checked for accuracy;however, no
guarantee is given as to the correctness of the contents. For continuing product improvement, Shuttle® Inc. reserves the right to revise the manual or make changes to the specifications of this product at any time without notice and obligation to any person or entity
regarding such change. The information contained in this manual is provided for general
use by customers.
This device complies to Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must withstand any background interference including those that may
cause undesired operation.
Trademarks
Shuttle is a registered trademark of Shuttle Inc.
Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 is a registered trademark of IBM Corporation.
AWARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
General Notice
Other brand and product names used herein are for identification purposes only and
may be trademarks of their respective owners.
Safety Information
Read the following precautions before setting up a Shuttle XPC.
CAUTION
Incorrectly replacing the battery may damage this computer. Replace only
with the same or equivalent as recommended by Shuttle. Dispose of used
batteries according to the manufacturer's instructions.
Laser compliance statement
The optical disc drive in this server is a laser product. The drive's
classication label is lacated on the drive.
CLASS 1 LASER PRODUCT
CAUTION： INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
Installation Notices
Do not place this device
underneath heavy loads
or in an unstable position.
Do not use or expose this device
around magnetic elds as magnetic
interference may affect the
performance of the device.
Do not expose this device to
high levels of direct sunlight,
high-humidity or wet conditions.
Do not block the air vents
to this device or impede the
airow in any way.
TABLE OF CONTENTS
Driver and Software Installation...................................................................................1
Mainboard Driver DVD ...........................................................................................1
Install Mainboard Software .............................................................................2
Appendix......................................................................................................................3
Enter the BIOS ........................................................................................................3
The Main Menu .......................................................................................................4
Standard CMOS Features ..............................................................................6
Advanced BIOS Features ...............................................................................9
Integrated Peripherals .................................................................................12
Power Management Setup ...........................................................................15
PnP/PCI Congurations ............................................................................... 17
PC Health Status ..........................................................................................19
Frequency/Voltage Control ...........................................................................21
Load Default Settings ...................................................................................24
Set Supervisor/User Password .....................................................................24
Save & Exit Setup .........................................................................................25
Exit Without Saving ......................................................................................25
Driver and Software Installation
Motherboard Driver DVD
Note : The DVD contents attached in SG45H7 motherboard are subject to
change without notice. The product's specifications will depend
upon the actually shipping product.
The Motherboard Driver DVD contains all the motherboard drivers necessary to
optimize the performance of this XPC in a Windows® OS. Install these drivers after
installing Microsoft® Windows®.
Navigation Bar Description :
Install Motherboard Drivers - Install Intel Chipset Driver
Install Realtek Audio Driver
Install Intel VGA Driver
Install Marvell Gigabit LAN Driver
Install Intel IAA Driver
Install Utilities - Install Adobe Reader 8.1
Install Symantec Norton 2008 Software
User Manuals -
SG45 Manual,SG45 Quick Guide in PDF format.
English
Link to Shuttle Website - Link to shuttle website homepage.
Browse this DVD - Allows you to see contents of this DVD.
1
English
Installing Motherboard Software
Insert the attached DVD into your DVD-ROM drive. The DVD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on Autorun
icon in My Computer to bring up Shuttle Mainboard Software Setup screen.
Click the “Install Motherboard Drivers“ bar. Individually install the following drivers.
Install Intel Chipset Driver
Install Realtek Audio Driver
Install Intel VGA Driver
Install Marvell Gigabit LAN Driver
Install Intel IAA Driver
2
Appendix
BIOS Settings
The SG45H7 BIOS ROM has a built-in Setup program that allows users to modify
basic system configuration. This information is stored in battery-backed RAM so that
it retains Setup information even if the system power is turned off.
The system BIOS manages and executes variety of hardware related functions including:
System date and time
Hardware execution sequence
Power management functions
Allocation of system resources
Enter the BIOS
To enter the BIOS (Basic Input / Output System) utility, follow these steps:
Step1. Power on the computer. The system will perform its POST (Power-On
Self Test) routine checks.
English
Step2. Press the <Del> key immediately, or at the following message:
Press DEL to enter SETUP, or simultaneously press <Ctrl>,<Alt>,
<Esc> keys
1. If you miss wordings mentioned in step2 (the message disappears
before you can respond) and you still wish to enter BIOS Setup,
restart the system and try again by turning the computer OFF and
ON again or by pressing the <RESET> switch located at the
computer’s front-panel. You may also reboot by simultaneously
pressing the <Ctrl>,<Alt>, <Del> keys simultaneously.
2. If you do not press the keys in time and system does not boot, the
screen will prompt an error message, and you will be given the
following options:
"Press F1 to Continue, DEL to Enter Setup”
Step3. When you enter the BIOS program, the CMOS Setup Utility will display the
Main Menu, as shown in the next section.
3
English
The Main Menu
Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to select
from several setup functions and two exit choices. Use the arrow keys
to select among the items and press <Enter> to accept and enter the
sub-menu.
Note that a brief description of each highlighted selection appears at
the bottom of the screen.
Setup Items
The main menu includes the following main setup categories.
Recall that some systems may not include all entries.
Standard CMOS Features
Use this menu for basic system configuration.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and
optimize your system's performance.Integrated Peripherals.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your power management settings.
4
PnP / PCI Congurations
This entry appears if your system supports PnP / PCI.
PC Health Status
This entry displays the current system temperature, Voltage, and FAN
settings.
Frequency/Voltage Control
Use this menu to specify your settings for frequency/voltage control.
Load Default Settings
Use this menu to load the BIOS default values that are factory-set for
optimal system operation. While Award has designed the custom BIOS
to maximize performance, the factory has the right to change these defaults to meet users' needs.
Set Supervisor / User Password
Use this menu to change, set, or disable password protection. This allows
you to limit access to the system and Setup, or only to Setup.
English
Save & Exit Setup
Save CMOS value changes in CMOS and exit from setup.
Exit Without Saving
Abandon all CMOS value changes and exit from setup.
5
