WIRELESS SYSTEM
®
ULX-D
USER GUIDE
©2015 Shure Incorporated
27A29881 (Rev. 1)
Printed in U.S.A.
ULX-D Digital Wireless Microphone System
Système de microphone sans fil numérique ULX-D
Digitales drahtloses Mikrofonsystem ULX-D
Sistema de micrófonos inalámbricos digitales ULX-D
Sistema radiomicrofonico digitale ULX-D
Sistema de Microfone Sem Fio Digital ULX-D
Цифровая беспроводная микрофонная система ULX-D
ULX-D Digital Wireless-systemen
FREQUENCIES FOR EUROPEAN COUNTRIES
ULXD-G51 470 - 534 MHz, max. 20 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, B, BG, CH, CY, CZ, D, EST 470 - 534 MHz *
F, GB, GR, H, I, IS, L, LT 470 - 534 MHz *
NL, P, PL, S, SK, SLO 470 - 534 MHz *
DK, FIN, M, N *
HR, E, IRL, LV, RO, TR *
All other countries *
ULXD-H51 534 - 598 MHz, max. 20 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, B, BG, CH, CY, CZ, D, EST 534 - 598 MHz *
F, GB, GR, H, I, IS, L, LT 534 - 598 MHz *
NL, P, PL, S, SK, SLO 534 - 598 MHz *
DK, FIN, M, N *
HR, E, IRL, LV, RO, TR *
All other countries *
ULXD-K51 606 - 670 MHz, max. 20 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, B, BG, CH, CY, CZ, D, EST 606 - 670 MHz *
F, GB, GR, H, I, IS, L, LT 606 - 670 MHz *
NL, P, PL, S, SK, SLO 606 - 670 MHz *
RO 646-647; 654-655; 662-663 MHz*
DK, E, FIN, HR, IRL, LV, M, N, TR *
All other countries *
ULXD-P51 710 - 782 MHz, max. 20 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, B, BG, CH, CY, CZ, D, EST, F, GB, 710 - 782 MHz *
GR, H, I, IS, L, LT, NL, P, PL, S, SK, SLO 710 - 782 MHz *
RO 718-719; 726-727; 734-743;
DK, E, FIN, HR, IRL, LV, M, N, TR *
All other countries *
750-751; 758-759 MHz*
ULXD-Q51 794 - 806 MHz, max. 20 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, B, BG, CH, CY, CZ, D, DK, E, EST *
F, FIN, GB, GR, H, HR, I, IRL, IS, L, LT *
LV, M, N, NL, P, PL, S, SK, SLO, TR *
All other countries *
ULXD-R51 800 - 810 MHz, max. 20 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
N 800 - 810 MHz*
A, B, BG, CH, CY, CZ, D, DK, E, EST *
F, FIN, GB, GR, H, HR, I, IRL, IS, L, LT *
LV, M, N, NL, P, PL, S, SK, SLO, TR *
All other countries *
ULXD-V51 174 - 216 MHz, max. 20 mW
Country Code Frequency Range
Code de Pays Gamme de frequences
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, B, BG, CH, CY, CZ, D, DK, E, EST *
F, FIN, GB, GR, H, HR, I, IRL, IS, L, LT *
LV, M, N, NL, P, PL, S, SK, SLO, TR *
All other countries *
NOTE:
*
This Radio equipment is intended for use in musical professional entertainment and similar applications. This Radio apparatus may be capable of operating on
some frequencies not authorized in your region. Please contact your national authority to obtain information on authorized frequencies and RF power levels for wireless
microphone products.
REMARQUE : Ce matériel radio est prévu pour une utilisation en spectacles mu-
*
sicaux professionnels et applications similaires. Il est possible que cet appareil radio
soit capable de fonctionner sur certaines fréquences non autorisées localement. Se
mettre en rapport avec les autorités compétentes pour obtenir les informations sur les
fréquences et niveaux de puissance HF autorisés pour les systèmes de microphones
sans fil.
*
HINWEIS:
Diese Funkausrüstung ist zum Gebrauch bei professionellen
Musikveranstaltungen und ähnlichen Anwendungen vorgesehen. Dieses Gerät kann
möglicherweise auf einigen Funkfrequenzen arbeiten, die in Ihrem Gebiet nicht
zugelassen sind. Wenden Sie sich bitte an die zuständige Behörde, um Informationen
über zugelassene Frequenzen und erlaubte Sendeleistungen für drahtlose
Mikrofonprodukte zu erhalten.
*
NOTA:
Este equipo de radio está destinado para uso en presentaciones musicales
profesionales y usos similares. Este aparato de radio puede ser capaz de funcionar
en algunas frecuencias no autorizadas en su región. Por favor comuníquese con
las autoridades nacionales para información sobre las frecuencias autorizadas y los
niveles de potencia de radiofrecuencia para micrófonos inalámbricos.
*
NOTA:
questo apparecchio radio è concepito per l'intrattenimento musicale a livello
professionale ed applicazioni simili. Questo apparecchio radio può essere in grado di
funzionare a frequenze non autorizzate nel Paese in cui si trova l'utente. Rivolgetevi
alle autorità competenti per ottenere le informazioni relative alle frequenze ed ai livelli
di potenza RF autorizzati nella vostra regione per i prodotti radiomicrofonici.
OPMERKING:
*
Deze radioapparatuur is bedoeld voor gebruik bij professionele
muzikale amusementsproducties en soortgelijke toepassingen. Dit radioapparaat
kan mogelijk werken op bepaalde frequenties die niet zijn toegestaan in uw regio.
Raadpleeg de autoriteiten in uw land voor informatie over goedgekeurde frequenties
en RF-vermogensniveaus voor draadloze microfoons.
*
ПРИМЕЧАНИЕ.
Данная радиоаппаратура предназначается для
использования в профессиональных музыкальных представлениях и
аналогичных приложениях. Может оказаться, что эта радиоаппаратура в
состоянии работать на некоторых частотах, не разрешенных в вашем регионе.
За информацией о разрешенных частотах и уровнях РЧ мощности для
беспроводных микрофонных систем обращайтесь в национальные органы
власти.
3
ULX-D® Digital Wireless Microphone System
IMPORTANT SAFETY INSTRUCTIONS
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Allow sufficient distances for adequate
ventilation and install in accordance with the manufacturer’s instructions.
8. DO NOT install near any heat sources such as open flames, radiators,
heat registers, stoves, or other apparatus (including amplifiers) that pro-
duce heat. Do not place any open flame sources on the product.
9. DO NOT defeat the safety purpose of the polarized or grounding type plug.
A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wider blade or the
third prong are provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. UNPLUG this apparatus during lightning storms or
when unused for long periods of time.
14. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as
power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. DO NOT expose the apparatus to dripping and splashing. DO NOT
put objects filled with liquids, such as vases, on the apparatus.
16. The MAINS plug or an appliance coupler shall remain readily operable.
17. The airborne noise of the Apparatus does not exceed 70dB (A).
18. Apparatus with CLASS I construction shall be connected to a
MAINS socket outlet with a protective earthing connection.
19. To reduce the risk of fire or electric shock, do not ex-
pose this apparatus to rain or moisture.
20. Do not attempt to modify this product. Doing so could re-
sult in personal injury and/or product failure.
21. Operate this product within its specified operating temperature range.
This symbol indicates that dangerous voltage constituting a risk
of electric shock is present within this unit.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this
unit.
WARNING: Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all
servicing to qualified service personnel. The safety certifications do not apply when the operating voltage
is changed from the factory setting.
Important Product Information
LICENSING INFORMATION
Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Changes or modifications
not expressly approved by Shure Incorporated could void your authority to operate the
equipment. Licensing of Shure wireless microphone equipment is the user’s responsibility,
and licensability depends on the user’s classification and application, and on the selected
frequency. Shure strongly urges the user to contact the appropriate telecommunications
authority concerning proper licensing, and before choosing and ordering frequencies.
Information to the user
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation of
this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en comprom-
ettre le fonctionnement.
WARNING: Danger of explosion if battery incorrectly replaced. Operate only with Shure
compatible batteries.
Note: Use only with the included power supply or a Shure-approved equivalent.
WARNING
• Battery packs may explode or release toxic materials. Risk of fire or burns. Do not
open, crush, modify, disassemble, heat above 140°F (60°C), or incinerate.
• Follow instructions from manufacturer
• Only use Shure charger to recharge Shure rechargeable batteries
• WARNING: Danger of explosion if battery incorrectly replaced. Replace only with same
or equivalent type.
• Never put batteries in mouth. If swallowed, contact your physician or local poison con-
trol center
• Do not short circuit; may cause burns or catch fire
• Do not charge or use battery packs other than Shure rechargeable batteries
• Dispose of battery packs properly. Check with local vendor for proper disposal of used
battery packs.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat
such as sunshine, fire or the like
WARNING: This product contains a chemical known to the State of California to cause cancer and birth
defects or other reproductive harm.
4
on
n
o
2DXLU
on
ULXD1
ULXD1
on
ULXD2
EXIT
SCAN
EXIT
SCAN
EXIT
SCAN
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Quickstart Instructions
Instructions de mise en oeuvre rapide
Kurzanleitung
1 2
Instrucciones de arranque rápido
Istruzioni di avviamento rapido
Instruções para Início Rápido
Краткое руководство
ク イッ ク ス タート 操 作 ガ イド
빠른 시작 설명서
快速入門說明
Petunjuk Memulai Cepat
b
gainaudio
control
RF
A B
OL
OL
ENTER
EXIT
SCAN
push
1-G: 01CH:03 TxOn
2-G: 01CH:06 TxOn
3-G: 01CH:08 TxOn
4-G: 01CH:12 TxOn
a
gainaudio
control
RF
A B
OL
OL
ENTER
EXIT
SCAN
push
GROUP SCAN
sync
a
45°
150 mA
line
line
mic
mic
line
mic
A
line
mic
sync
power
b
line
line
mic
mic
line
line
mic
mic
Select RX TO SCAN
1 Receiver
2 Receiver
3 Receiver
SCAN COMPLETE
GROUP: 01
OPEN FREQ: 70
RX CHAN FOUND: 4
c
CHANNEL SCAN
line
line
mic
mic
line
line
mic
mic
CROUP SCAN
Deploy Completed
4 of 4
Channels Set
SYNC TX NOW
3
4
RX1
sync
a
a
b
95A15842
c
ULXD2
on
AA SB900
65A15224
b
control
RF
RX1 RX2 RX3 RX4
A B
ULXD4Q
Digital Wireless Receiver
gainaudio
RF
A B
OL
OL
2
D
X
L
U
n
o
<15 cm (6 in.)
ENTER
EXIT
SCAN
OL
OL
push
gainaudio
gainaudio
gainaudio
RF
RF
A B
A B
OL
OL
OL
OL
gainaudio
RF
power
A B
OL
OL
5
Full Manual Online
This is the quick-reference version of the user guide.
For information on the following topics, visit www.shure.com to download the comprehensive manual:
• High Density mode
• Frequency Diversity
• Audio Summing
• Encryption
• Dante digital audio
• Multiple systems setup
• RF and hardware presets
• Networking details
• Warning Messages
• AMX and Crestron connections
• Firmware updates
• Troubleshooting
• Product specifications and wiring diagrams
• Compatible frequencies chart
General Description
Shure ULX-D™ Digital Wireless offers uncompromising audio quality and RF performance, with intelligent, encryption-enabled hardware, flexible receiver options, and advanced rechargeability options for professional sound reinforcement.
A breakthrough in wireless audio quality, Shure digital processing enables ULX-D to deliver the purest reproduction of source material ever available in a wireless system, with a wide
selection of trusted Shure microphones to choose from. Extended 20 Hz – 20 KHz frequency range and totally flat response captures every detail with clarity, presence, and incredibly accurate low end and transient response. At greater than 120 dB, ULX-D delivers wide dynamic range for excellent signal-to-noise performance. For added convenience, proprietary Shure
Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments.
In RF performance, ULX-D sets the bar for spectral efficiency and signal stability. The intermodulation performance of ULX-D is an incredible advancement in wireless performance,
enabling a dramatic increase in the number of simultaneous active transmitters on one TV channel. Rock-solid RF signal with no audio artifacts extends over the entire 100-meter line-ofsight range, even using standard dipole antennas. For applications where secure transmission is required, ULX-D offers Advanced Encryption Standard (AES) 256-bit encrypted signal for
unbreachable privacy.
For scalability and modular flexibility, ULX-D receivers come in dual and quad channel versions providing rack-ready conveniences such as RF cascade, internal power supply, audio output channel summing, and DANTE™ digital networking, which delivers multi-channel audio over Ethernet. All receivers offer High-Density mode for closer-range applications where high
channel counts are needed, greatly increasing the amount of simultaneous channels possible over one frequency band.
Advanced Lithium-ion rechargeability provides extended transmitter battery life over alkaline batteries, battery life metering in hours and minutes accurate to within 15 minutes, and detailed tracking of battery health status.
Combined with the suite of features and benefits ULX-D™ Digital Wireless Systems offer, the ULXD4D and ULXD4Q receivers are truly generations ahead of any other digital receivers in
their class, and bring a new level of performance to professional sound reinforcement.
Dual and Quad Receiver Models
The ULXD4 receiver is available in dual channel and quad channel models. Both models share the same feature set and functionality, but differ in the number of channels available and
the number of audio outputs.
The descriptions and procedures in this guide are applicable to either the dual or the quad receiver.
ULXD4D Dual Receiver
Supports 2 channels of wireless audio.
6
ULXD4Q Quad Receiver
Supports 4 channels of wireless audio.
Receiver
ULXD4Q
Digital Wireless Receiver
push
control
ENTER
EXIT
SCAN
power
RF
A B
OL
OL
gainaudio
RF
A B
OL
OL
gainaudio
RF
A B
OL
OL
gainaudio
RF
A B
OL
OL
gainaudio
RX1 RX2 RX3 RX4
IR
sync
sync sync sync
1
7
8
12
14
9
10
11
3
2
5
6
13
4
SEL
SEL SEL
SEL
2
3
7 864
1
5
4 5 4
5
4
5
9
2
3
line
mic
line
mic
line
mic
line
mic
B
A
output 1output 2output 3output 4
PrimarySecondary
Front Panel
① Infrared (IR) Sync Window
Sends IR signal to the transmitter for sync.
② Network Icon
Illuminates when the receiver is connected with other Shure devices on the network.
IP Address must be valid to enable networked control.
③ Encryption Icon
Illuminates when AES-256 encryption is activated.
④ LCD Panel
Displays settings and parameters.
⑤ Scan Button
Press to find the best channel or group.
⑥ Menu Navigation Buttons
Use to navigate and select parameter menus.
⑦ Control Wheel
- Push to select a channel or menu item
- Turn to scroll through menu items or to edit a parameter value
⑧ Channel Select Button
Press to select a channel.
⑨ Sync Button
Press the sync button while the receiver and transmitter IR windows are aligned to
transfer settings from the receiver to the transmitter.
⑩ RF Diversity LEDs
Indicate antenna status:
- Blue = normal RF signal between the receiver and transmitter
- Red = interference detected
- Off = No RF connection between the receiver and transmitter
Note: the receiver will not output audio unless one blue LED is illuminated.
⑪ RF Signal Strength LEDs
Indicate the RF signal strength from the transmitter:
- Amber = Normal (-90 to -70 dBm)
- Red = Overload (greater than -25 dBm)
⑫ Audio LEDs
Indicate average and peak audio levels:
LED Audio Signal Level Description
Red (6) -0.1 dBFS Overload/ limiter
Yellow (5) -6 dBFS
Yellow (4) -12 dBFS
Normal peaks
Green (3) -20 dBFS
Signal PresentGreen (2) -30 dBFS
Green (1) -40 dBFS
Note: In Frequency Diversity mode, simultaneous blinking of the red and yellow audio
LEDs indicates that diversity audio has been routed to this channel.
⑬ Gain Buttons
Press the ▲▼ gain buttons on the front of the receiver to incrementally adjust gain
from -18 to +42 dB.
⑭ Power Switch
Powers the unit on or off.
Back Panel
① AC Power Input
IEC Connector, 100 - 240 V AC.
② RF Antenna Diversity Input Jack (2)
For antenna A and antenna B.
③ RF Cascade Jack (2)
Passes the RF signal from Antenna A and
Antenna B to one additional receiver.
④ Mic/Line Switch (one per channel)
Applies a 30 dB pad in mic position.
⑤ Balanced XLR Audio Output (one per channel)
⑥ Network Status LED (Green)
⑦ Ethernet/Dante Network Secondary Port
Connect to a mic or line level input.
One per network port.
- Off = no link
- On = network link
- Flashing = network link active
Connect to an Ethernet network to enable remote
device control via WWB6 software. Also carries Dante
digital audio and control signals for audio distribution,
monitoring, and recording - see Dante Network topic.
⑧ Network Speed LED (Amber)
One per network port.
- Off = 10/100 Mbps
- On = 1 Gbps
⑨ Ethernet/Dante Network Primary Port
Connect to an Ethernet network to enable remote
device control via WWB6 software. Also carries
Dante digital audio and control signals for audio
distribution, monitoring, and recording - see Dante
Network topic.
7
Receiver Home Screen
1 G:01 CH:01 TxOn
2 G:01 CH:02 TxOn
3 G:01 CH:03 TxOn
4 G:01 CH:04 TxOn
௪
௧
௦
௩
௨
௦
The home screen displays the following information for each receiver channel:
• Group and Channel
• Transmitter Status: NoTx or TxOn, battery
icon/remaining battery life
Press the SEL button to access a channel
menu screen.

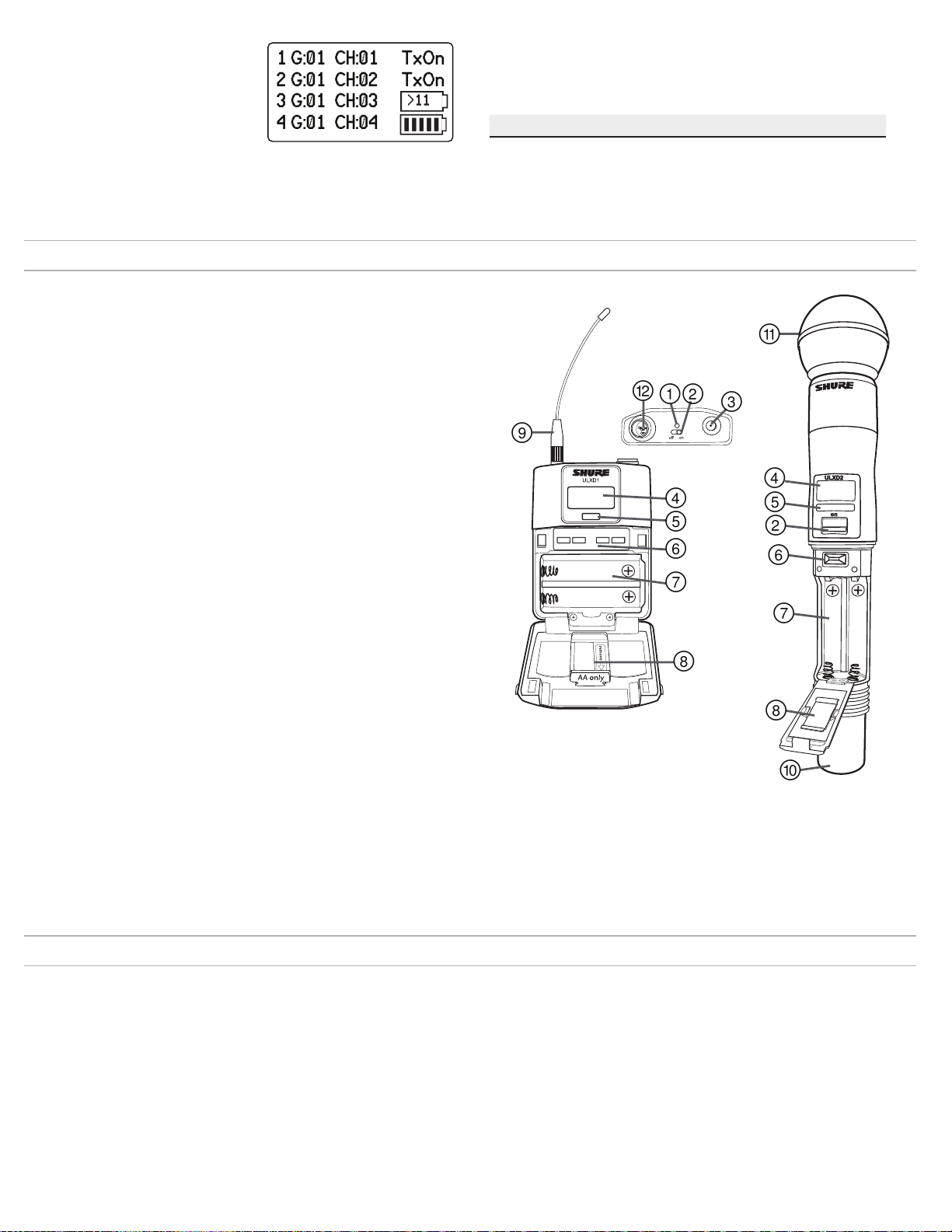

Transmitters
① Power LED
- Green = unit is powered on
- Red = low battery or battery error (see Troubleshooting)
- Amber = power switch is disabled
② On/Off Switch
Powers the unit on or off.
③ SMA Connector
Connection point for RF antenna.
④ LCD Display:
View menu screens and settings. Press any control button to activate the backlight.
⑤ Infrared (IR) Port
Align with the receiver IR port during an IR Sync for automated transmitter
programming.
Receiver Output Level
The following table describes the typical total system gain from the audio input to the receiver outputs:
Receiver Output Gain
Output Jack System Gain (gain control = 0dB)
XLR (line setting) +24 dB
XLR (mic setting) -6 dB*
*This setting matches a typical wired SM58 audio signal level.
⑥ Menu Navigation Buttons
Use to navigate through parameter menus and change values.
exit
enter
▼▲
⑦ Battery Compartment
Requires Shure SB900 rechargeable battery or 2 AA batteries.
⑧ AA Battery Adapter
- Handheld: rotate and store in the battery compartment to use a Shure SB900
battery
- Bodypack: remove to accommodate a Shure SB900 battery
⑨ Bodypack Antenna
For RF signal transmission.
Acts as a 'back' button to return to previous menus or parameters
without confirming a value change
Enters menu screens and confirms parameter changes
Use to scroll through menu screens and to change parameter
values
Locking Controls and Settings
Use the LOCK feature to prevent accidental or unauthorized changes to the hardware.
Receiver
Menu path: DEVICE UTILITIES > LOCK
Use the control wheel to select and lock any of the following receiver functions.
• MENU: All menu paths are inaccessible
• GAIN: Gain adjustment is locked
• POWER: Power switch is disabled
• SCN/SYC: Cannot perform a Scan and Sync
Tip: To unlock, press the EXIT button, turn the control wheel to select UNLOCKED, and
then press ENTER to save.
8
⑩ Integrated Antenna
For RF signal transmission.
⑪ Microphone Cartridge
See Optional Accessories for a list of compatible cartridges.
⑫ TA4M Input Jack
Connects to a 4-Pin Mini Connector (TA4F) microphone or instrument cable.
Transmitter
Menu path: UTILITY > LOCK
Use the transmitter controls to select and lock any of the following transmitter functions.
• MENU LOCK: All menu paths are inaccessible.
• POWER LOCK: Power switch is disabled
Quick-Lock Option: To turn on the transmitter with its power and menu navigation buttons locked, press and hold the ▲ button during power-on until the locked message is
displayed.
Tip: To unlock the MENU LOCK, press the ENTER button 4 times to pass through the follow-
ing screens: UTILITY > LOCK > MENU UNLOCK
To unlock the POWER LOCK, set the power switch to the off position, then press and hold
the ▲ button while resetting the power switch to the on position.

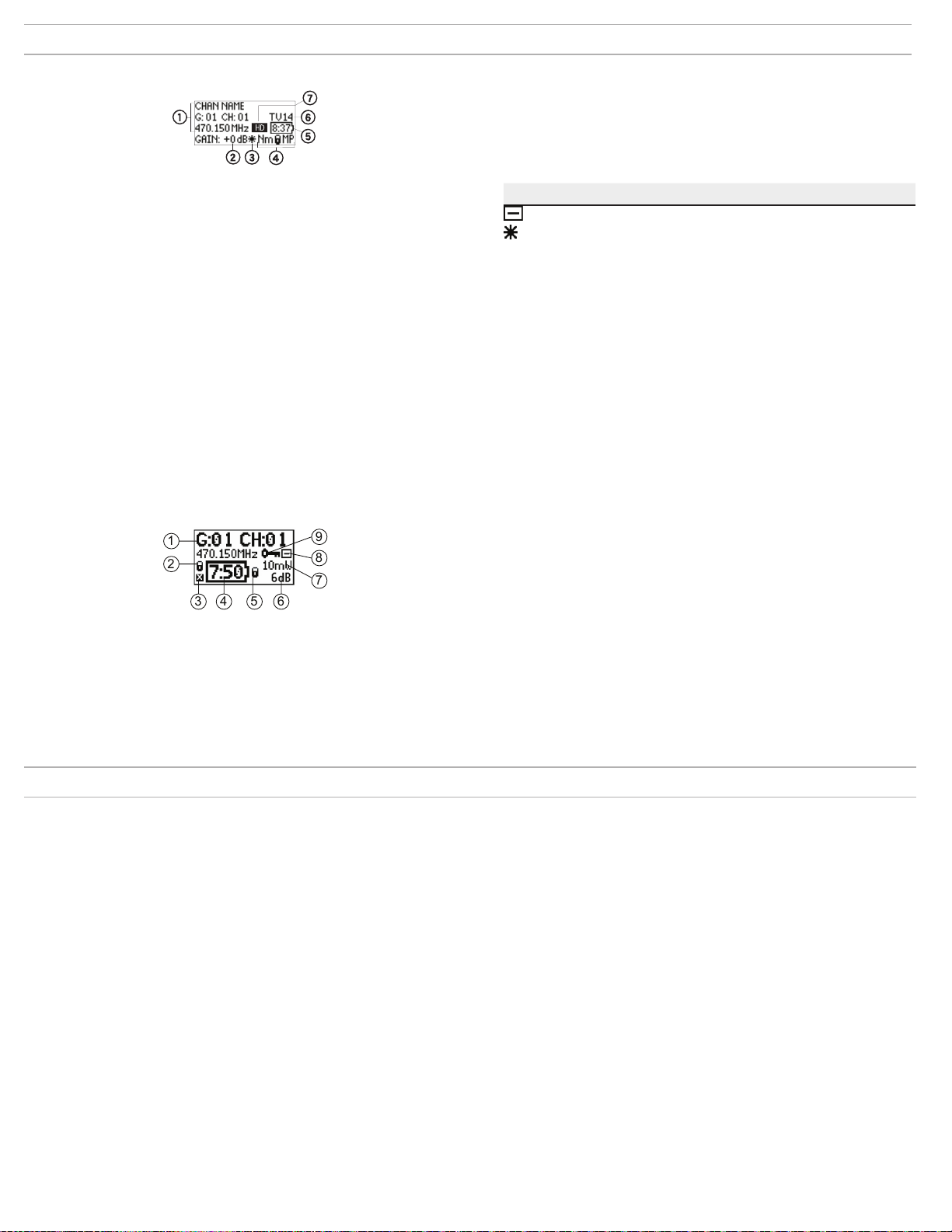

Menu Screens
[
1
2
3 4 5 6
7
8
9
Receiver Channel
① Receiver Information
Use DEVICE UTILITIES > HOME INFO to change the home screen display.
② Gain Setting
−18 to +42 dB, or Mute.
③ Mic. Offset Indicator
Indicates offset gain is added to the transmitter.
④ Transmitter Settings
The following information cycles when a transmitter is tuned to the receiver's
frequency:
- Transmitter Type
- Input Pad (Bodypack only)
- RF Power Level
- Transmitter Lock Status
- Transmitter Mute Status
⑤ Battery Runtime Indicator
Shure SB900 battery: runtime is displayed in minutes remaining.
AA batteries: runtime is displayed with a 5-bar indicator.
Transmitter
⑥ TV Channel
Displays the TV channel that contains the tuned frequency.
⑦ High Density Mode Icon
Displayed when High Density mode is enabled.
Transmitter Status
The following text or icons report transmitter status to the receiver screen:
Display Icon Transmitter Status
Bodypack input is attenuated 12 dB
Offset gain is added to the transmitter
Lo
Nm
Hi
M
P
TxMuted
-No Tx-
④ Battery Runtime Indicator
- Shure SB900 battery: runtime is displayed in hours:minutes remaining
- AA Batteries: runtime is displayed with a 5-bar indicator
⑤ Menu Lock Indicator
Indicates menu navigation buttons are disabled
1 mW RF power level
10 mW RF power level
20 mW RF power level
Menu is locked
Power is locked
Displayed when the transmitter audio is set to off using the
MUTE MODE feature
No RF connection between a receiver and transmitter or transmitter OFF
⑥ Mic. Offset
Displays microphone offset gain value
① Transmitter Information
Scroll ▲▼ at the home screen to change the display
② Power Lock Indicator
Indicates power switch is disabled
③ Transmitter Audio Muted Indicator
Displayed when the transmitter audio is set to off using the MUTE MODE feature.
⑦ RF Power
Displays RF power setting
⑧ Bodypack Input Pad
The input signal is attenuated 12 dB
⑨ Encryption Icon
Indicates encryption is enabled on the receiver and has been transferred to the
transmitter from a sync
Audio Signal Encryption
When encryption is enabled, the receiver generates a unique encryption key which is shared with a the transmitter during an IR sync. Transmitters and receivers that share an encryption
key form a protected audio path, preventing unauthorized access from other receivers.
Encrypting a Single Transmitter to a Single Receiver
1. From the receiver menu: DEVICE UTILITIES > ENCRYPTION > ON (Auto)
2. Press ENTER.
3. Perform an IR Sync to share the encryption key with the selected transmitter.
Encrypting Multiple Transmitters to a Single
Receiver
Multiple transmitters can share the same encryption key, allowing them access to a single
receiver. Use this method if you have multiple instruments or wish to use a combination of
handheld and bodypack transmitters.
1. From the receiver menu: DEVICE UTILITIES >
ENCRYPTION > ON (Manual) > KEEP KEYS.
2. Press ENTER.
3. Perform an IR Sync to share the encryption key with the first transmitter.
4. Turn off the transmitter and perform an IR Sync to
share the key additional transmitters.
Caution! Make sure only one transmitter is turned on during an IR sync or a performance to avoid causing cross interference between transmitters.
Regenerating Encryption Keys
Periodically regenerating the encryption key maintains security for transmitters and receiv-
ers that are paired for extended periods.
1. From the receiver menu: DEVICE UTILITIES > ENCRYPTION
> ON (Manual) > REGENERATE KEYS.
2. Press ENTER.
3. Perform an IR Sync to share the encryption key with the first transmitter.
4. Turn off the transmitter and perform an IR Sync to
share the key additional transmitters.
Caution! Make sure only one transmitter is turned on during an IR sync or a performance to avoid causing cross interference between transmitters.
Removing Encryption
1. From the receiver menu: DEVICE UTILITIES ENCRYPTION OFF
2. Press ENTER.
3. IR Sync the transmitter and receiver to clear the encryption key.
Note: If multiple transmitters are encrypted to a single receiver, each transmitter must be
IR synced to clear the encryption key.
9
ULXD Specifications
Working Range
100 m (330 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
Audio Frequency Response
ULXD1 20 – 20 kHz (±1 dB)
ULXD2 Note: Dependent on micro-
Audio Dynamic Range
System Gain @ +10
>120 dB, A-weighted, typical
System Audio Polarity
Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin
3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
Operating Temperature Range
-18°C (0°F) to 50°C (122°F)
Note: Battery characteristics may limit this range.
Housing
ULXD4D/ULXD4Q ULXD1 ULXD2
Steel; Extruded aluminum Cast aluminum Machined aluminum
ULXD4 Power Requirements
ULXD4D 100 to 240 V AC, 50-60 Hz,
ULXD4Q 100 to 240 V AC, 50-60 Hz,
Battery Type
Shure SB900 Rechargeable Li-Ion or LR6 AA batteries 1.5 V
Battery Life
SB900 alkaline
1/10 mW 20 mW 1/10 mW 20 mW
470 to 940 11 hours 7 hours 11 hours 5:30 hours
174 to 216 9:50 hours 7 hours 9 hours 5:45 hours
1240 to 1260 8:40 hours 6:45 hours 7:30 hours 5:30 hours
phone type
0.26 A max.
0.32 Amax.
Frequency Range and Transmitter Output Power
Band
Frequency Range
( MHz)
G50 470 to 534 1/10/20
G51 470 to 534 1/10/20
G52 479 to 534 1/10
H50 534 to 598 1/10/20
H51 534 to 598 1/10/20
H52 534 to 565 1/10
J50 572 to 636 1/10/20
J51 572 to 636 1/10/20
K51 606 to 670 1/10
L50 632 to 696 1/10/20
L51 632 to 696 1/10/20
L53 632 to 714 1/10/20
P51 710 to 782 1/10/20
R51 800 to 810 1/10/20
JB (Tx only) 806 to 810 1/10
AB (Rx and Tx) 770 to 810
Q51 794 to 806 1/10/20
V50 174 to 216 1/10/20
V51 174 to 216 1/10/20
X50 925 to 932 1/10
X51 925 to 937.5 10
X52 902 to 928 0.25/10/20
X53
902 to 907.500, 915
to 928
X54 915 to 928 0.25/10/20
Z16 1240 to 1260 1/10/20
Power ( mW RMS)
(Lo/Nm/Hi)
'A' Band (770-805): 1/10/20
'B' Band (806-809): 1/10
0.25/10/20
The values in this table are typical of fresh, high quality batteries. Battery runtime varies depending on the manufacturer and age of the battery.
ULXD1, ULXD2, ULXD4D, ULXD4Q
This product meets the Essential Requirements of all relevant European directives and
is eligible for CE marking.
ULXD1, ULXD2
Certified under FCC Part 74.
Certified by IC in Canada under RSS-102 and RSS-210.
IC: 616A-ULXD1 G50, 616A-ULXD1 H50, 616A-ULXD1 J50, 616A-ULXD1 L50;
616A-ULXD2 G50, 616A-ULXD2 H50, 616A-ULXD2 J50, 616A-ULXD2 L50.
FCC: DD4ULXD1G50, DD4ULXD1H50, DD4ULXD1J50, DD4ULXD1L50;
DD4ULXD2G50, DD4ULXD2H50, DD4ULXD2J50, DD4ULXD2L50.
IC: 616A-ULXD1X52, 616A-ULXD2X52
FCC: DD4ULXD1X52, DD4ULXD2X52
IC: 616A-ULXD1V50, 616A-ULXD2V50
FCC: DD4ULXD1V50, DD4ULXD2V50
ULXD4D, ULXD4Q
Approved under the Declaration of Conformity (DoC) provision of FCC Part 15.
Conforms to electrical safety requirements based on IEC 60065.
Note: Frequency bands might not be available for sale or authorized for use in all
countries or regions.
The CE Declaration of Conformity can be obtained from: www.shure.com/europe/
compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: 49-7262-92 49 0
Fax: 49-7262-92 49 11 4
Email: info@shure.de
Australia Warning for Wireless
This device operates under an ACMA class licence and must comply with all the conditions of that licence including operating frequencies. Before 31 December 2014, this
device will comply if it is operated in the 520-820 MHz frequency band. WARNING:
After 31 December 2014, in order to comply, this device must not be operated in the
694-820 MHz band.
10
