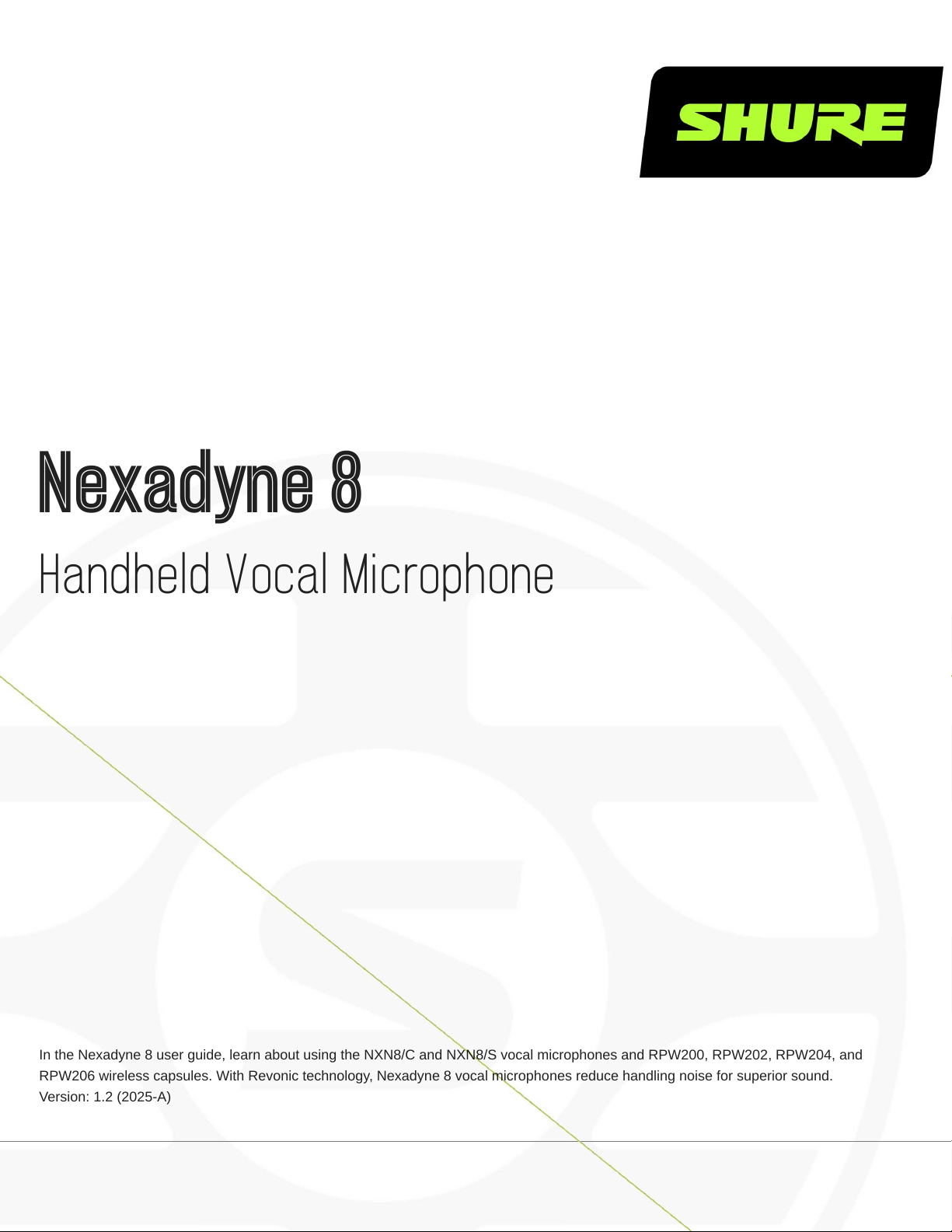

Shure Nexadyne 8 User guide

Nexadyne 8

Handheld Vocal Microphone

In the Nexadyne 8 user guide, learn about using the NXN8/C and NXN8/S vocal microphones and RPW200, RPW202, RPW204, and

RPW206 wireless capsules. With Revonic technology, Nexadyne 8 vocal microphones reduce handling noise for superior sound.

Version: 1.2 (2025-A)

Table of Contents

Nexadyne 8 Handheld Vocal Microphone 3

General Description 3

What is Revonic™ Transducer Technology? 3

Placement 3

Load Impedance 4

Shure Incorporated

Specifications 4

Furnished Accessories 6

Important Safety Instructions for Passive Microphones 6

SAFETY PRECAUTIONS 6

Environmental Regulatory Information 6

Certifications 7

2/7

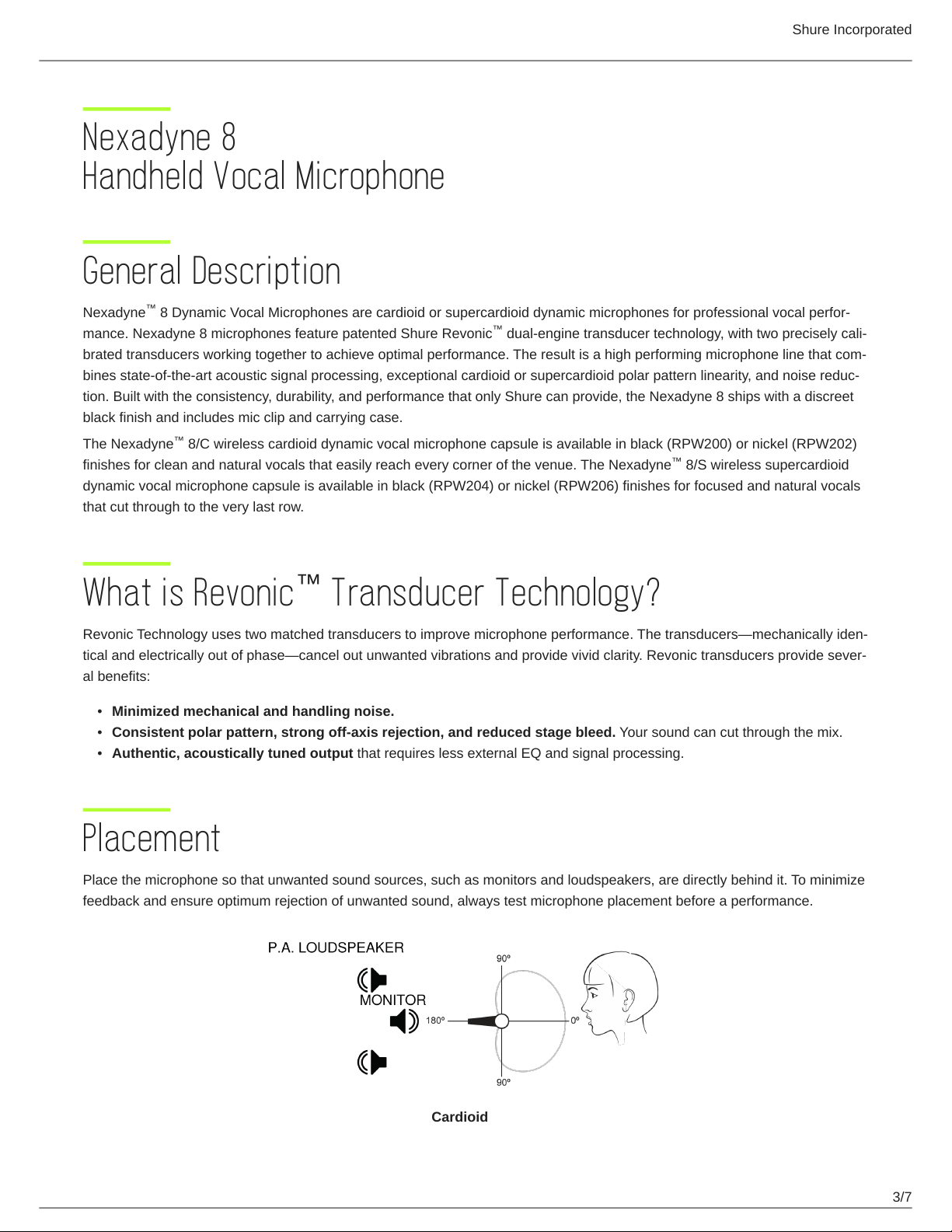

Nexadyne 8 
Handheld Vocal Microphone

General Description

Shure Incorporated

Nexadyne 8DynamicVocalMicrophonesarecardioidorsupercardioiddynamicmicrophonesforprofessionalvocalperfor

mance. Nexadyne 8 microphones feature patented Shure Revonic dualenginetransducertechnology,withtwopreciselycali

bratedtransducersworkingtogethertoachieveoptimalperformance.Theresultisahighperformingmicrophonelinethatcom

binesstateoftheartacousticsignalprocessing,exceptionalcardioidorsupercardioidpolarpatternlinearity,andnoisereduc

tion. Built with the consistency, durability, and performance that only Shure can provide, the Nexadyne 8 ships with a discreet

black finish and includes mic clip and carrying case.

The Nexadyne 8/C wireless cardioid dynamic vocal microphone capsule is available in black (RPW200) or nickel (RPW202)

finishes for clean and natural vocals that easily reach every corner of the venue. The Nexadyne 8/S wireless supercardioid

dynamic vocal microphone capsule is available in black (RPW204) or nickel (RPW206) finishes for focused and natural vocals

that cut through to the very last row.

™

™

™

™

™

What is Revonic Transducer Technology?

RevonicTechnologyusestwomatchedtransducerstoimprovemicrophoneperformance.Thetransducers—mechanicallyiden

ticalandelectricallyoutofphase—canceloutunwantedvibrationsandprovidevividclarity.Revonictransducersprovidesever

al benefits:

•

Minimized mechanical and handling noise.

•

Consistent polar pattern, strong off-axis rejection, and reduced stage bleed. Your sound can cut through the mix.

•

Authentic, acoustically tuned output that requires less external EQ and signal processing.

Placement

Place the microphone so that unwanted sound sources, such as monitors and loudspeakers, are directly behind it. To minimize

feedback and ensure optimum rejection of unwanted sound, always test microphone placement before a performance.

Cardioid

3/7

Supercardioid

Shure Incorporated

Load Impedance

Forthemicrophone'ssignaltotransferwell,theload/inputimpedanceofyourpreamplifiershouldbeatleast1000Ω.Most

modern microphone preamplifiers meet this requirement.

Specifications

Type

Dynamic (moving coil)

Polar Pattern

NXN8/C: Cardioid

NXN8/S: Supercardioid

RPW200 and RPW202 Cardioid

RPW204 and RPW206 Supercardioid

Frequency Response

50to20,000Hz

Output Impedance

NXN8/C 300Ω

NXN8/S 450Ω

Sensitivity

open circuit voltage, @ 1 kHz, typical

NXN8/C –54.0dBV/Pa[1]

4/7

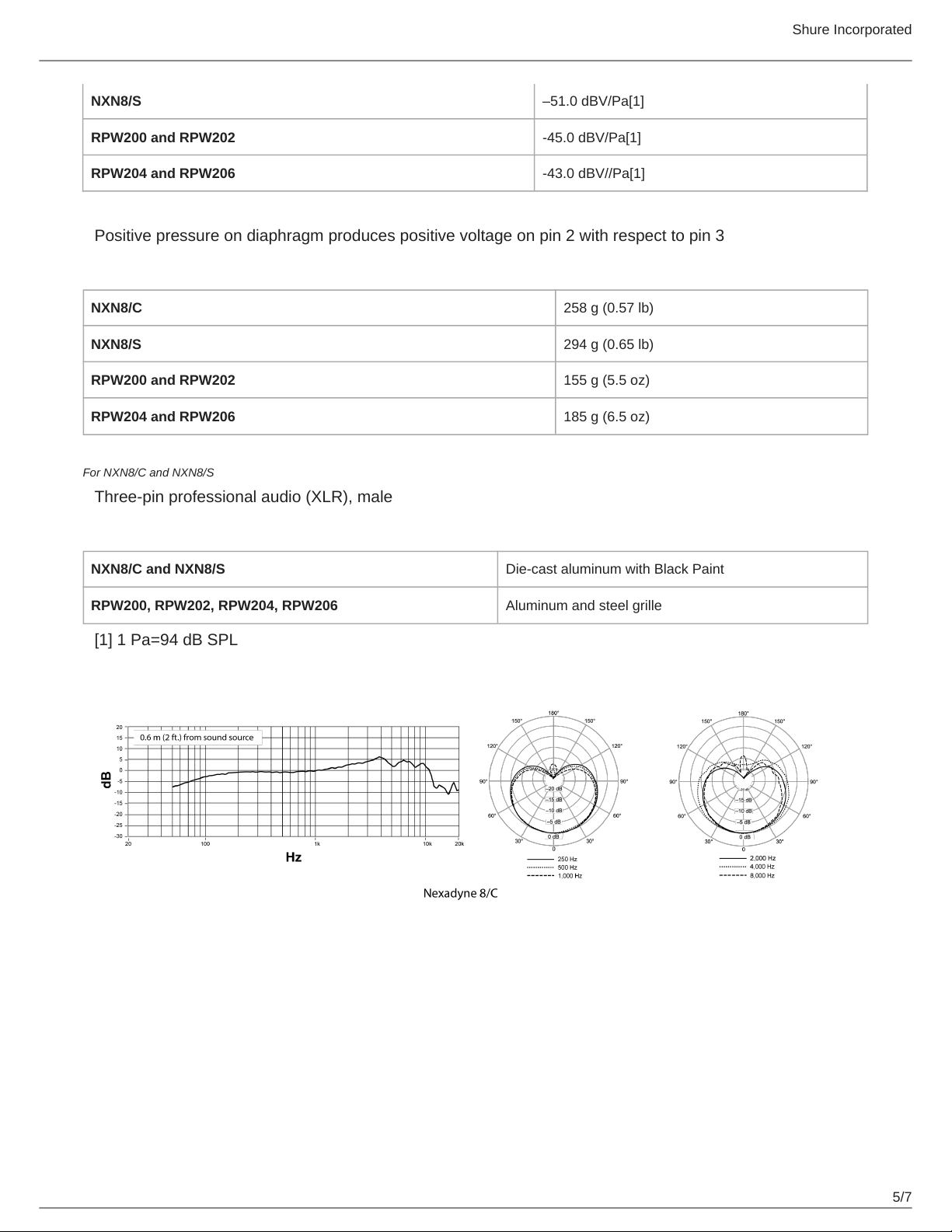

NXN8/S –51.0dBV/Pa[1]

RPW200 and RPW202 -45.0 dBV/Pa[1]

RPW204 and RPW206 -43.0 dBV//Pa[1]

Polarity

Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Weight

NXN8/C 258 g (0.57 lb)

NXN8/S 294 g (0.65 lb)

RPW200 and RPW202 155 g (5.5 oz)

RPW204 and RPW206 185 g (6.5 oz)

Connector

For NXN8/C and NXN8/S

Three-pin professional audio (XLR), male

Shure Incorporated

Housing

NXN8/C and NXN8/S Die-cast aluminum with Black Paint

RPW200, RPW202, RPW204, RPW206 Aluminum and steel grille

[1] 1 Pa=94 dB SPL

5/7

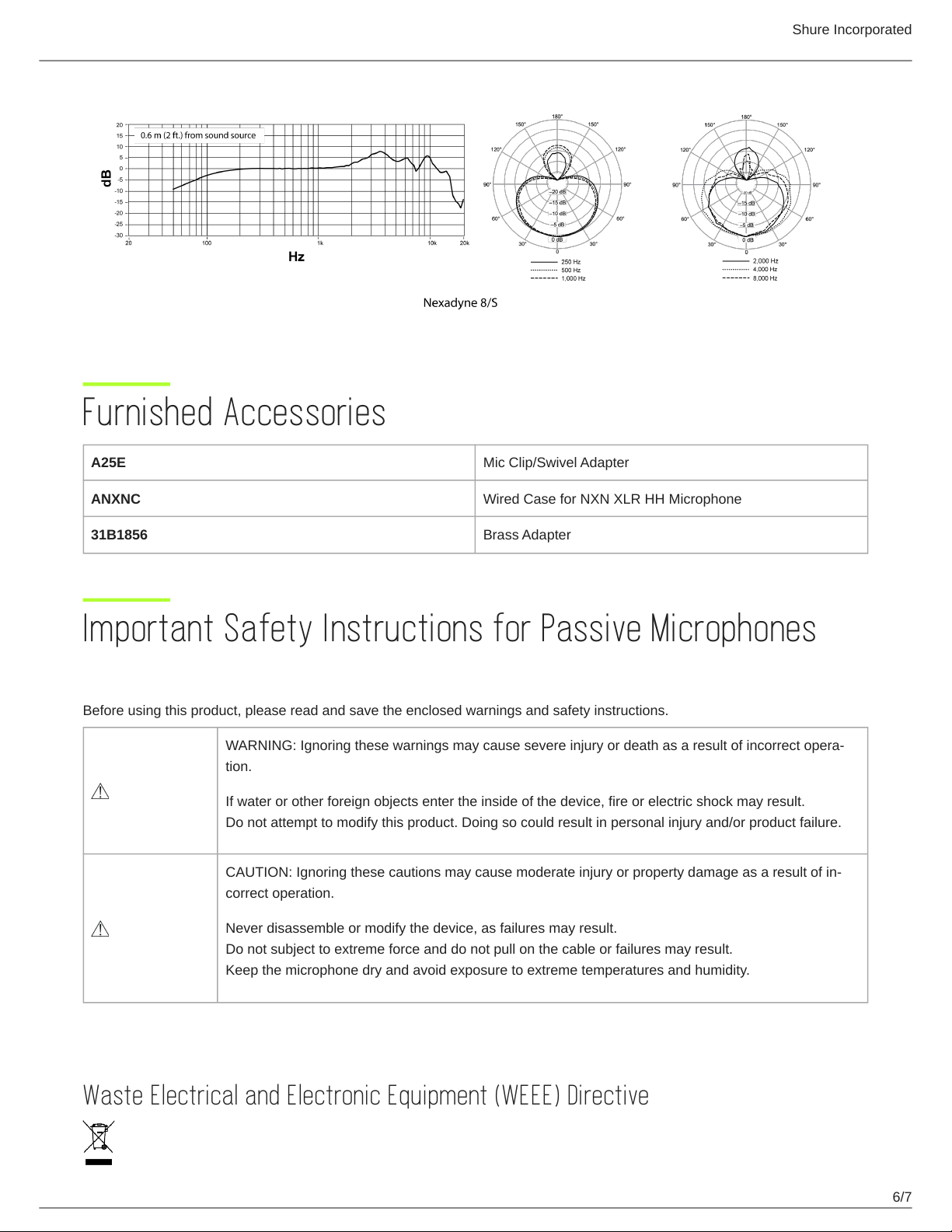

Furnished Accessories

A25E Mic Clip/Swivel Adapter

Shure Incorporated

ANXNC Wired Case for NXN XLR HH Microphone

31B1856 Brass Adapter

Important Safety Instructions for Passive Microphones

SAFETY PRECAUTIONS

Before using this product, please read and save the enclosed warnings and safety instructions.

WARNING:Ignoringthesewarningsmaycausesevereinjuryordeathasaresultofincorrectopera

tion.

If water or other foreign objects enter the inside of the device, fire or electric shock may result.

Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.

CAUTION:Ignoringthesecautionsmaycausemoderateinjuryorpropertydamageasaresultofin

correct operation.

Never disassemble or modify the device, as failures may result.

Do not subject to extreme force and do not pull on the cable or failures may result.

Keep the microphone dry and avoid exposure to extreme temperatures and humidity.

Environmental Regulatory Information

Waste Electrical and Electronic Equipment (WEEE) Directive

6/7

Shure Incorporated

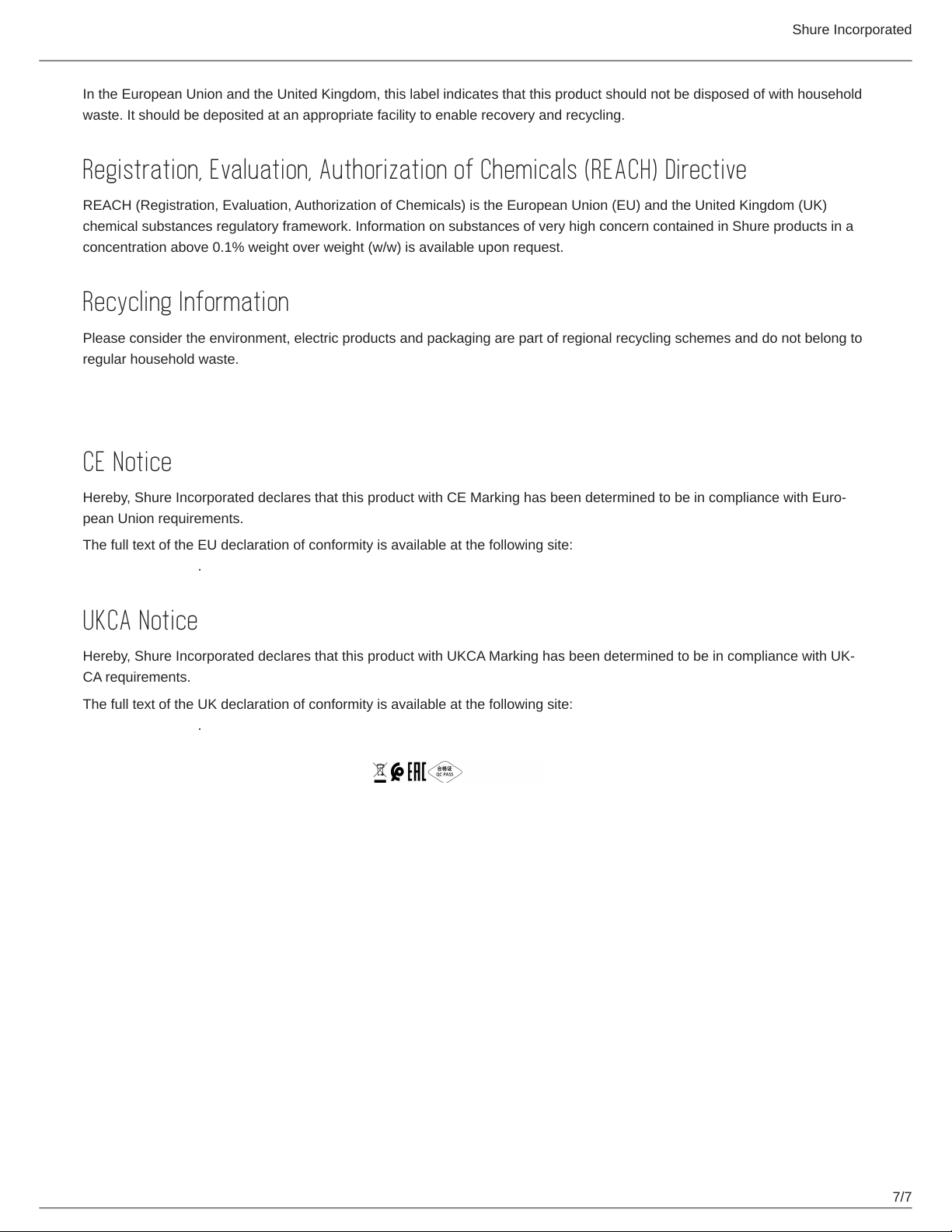

In the European Union and the United Kingdom, this label indicates that this product should not be disposed of with household

waste. It should be deposited at an appropriate facility to enable recovery and recycling.

Registration, Evaluation, Authorization of Chemicals (REACH) Directive

REACH (Registration, Evaluation, Authorization of Chemicals) is the European Union (EU) and the United Kingdom (UK)

chemical substances regulatory framework. Information on substances of very high concern contained in Shure products in a

concentration above 0.1% weight over weight (w/w) is available upon request.

Recycling Information

Please consider the environment, electric products and packaging are part of regional recycling schemes and do not belong to

regular household waste.

Certifications

CE Notice

Hereby,ShureIncorporateddeclaresthatthisproductwithCEMarkinghasbeendeterminedtobeincompliancewithEuro

pean Union requirements.

The full text of the EU declaration of conformity is available at the following site: https://www.shure.com/enEU/support/declara

tions-of-conformity.

UKCA Notice

Hereby,ShureIncorporateddeclaresthatthisproductwithUKCAMarkinghasbeendeterminedtobeincompliancewithUK

CA requirements.

The full text of the UK declaration of conformity is available at the following site: https://www.shure.com/enGB/support/declara

tions-of-conformity.

7/7
