Your shipment i ncludes:
• Showtec Juno
• 1 mounting bracket
• Pro power connector cable 1,5 m
• 2 mounting screws
• User manual
Warning
Unpacking Instructions
Imm ediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
show s signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for low er
operational temperatures. This m ay include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
• be qualified
• follow the instructions of this manual
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and w arning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
3
Ordercode: 45052
Juno
This device contains no user-serviceable parts. Refer to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
• Never let the power cord come into contact with other cables! Handle the pow er cord and all
connections with the mains with particular caution!
• Never remove warning or informative labels from the unit.
• Never use anything to cover the ground contact.
• Never lift the fixture holding it by the projector-head, as the mechanics may be dam aged.
Always hold the fixture by the transport handles.
• Never place any material over the lens.
• Never look directly into the light source.
• Never leave any cables lying around.
• Never loosen the screws of the gobo, otherwise you risk opening of the ball bearing .
• Do not insert objects into air vents.
• Do not connect this device to a dimmerpack.
• Do not switch the device on and off in short intervals, as this will reduce the device’s life.
• Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
• Do not shake the device. Avoid brute force w hen installing or operating the device.
• Only use the device indoors, avoid contact with water or other liquids.
• Only operate the fixture after hav ing checked if the housing is firmly closed and all screws are tightly
fastened.
• Only operate the device after having familiarized with its functions.
• Avoid flames and do not put close to flammable liquids or gases.
• Always keep the case closed w hile operating.
• Always allow a free air space of at least 50 cm around the unit for ventilation.
• Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
• Make sure that the device is not exposed to extreme heat, moisture or dust.
• Make sure that the available voltage is not higher than stated on the rear panel.
• Make sure t hat the power cord is never crimped or damaged. Check the device and the pow er
cord from time to time.
• If the lens is obviously damaged, it has to be replaced.
• If device w as dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
• If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device.
Leave the device switched off until it has reached room temperature.
• If your Show tec device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing m aterial), and return it to your Show tec dealer for service.
• For adult use only. The m oving head must be installed beyond the reach of children. Never leave the
unit running unattended.
• Never attempt to bypass the thermostatic switch or fuses.
• For replacement use fuses of same type and rating only.
• The user is responsible for correct positioning and operating of the Juno. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
• This device falls under protection class I. Therefore it is essential to connect the yellow /green
conductor to earth.
• During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
• Repairs, servicing and electric connection must be carried out by a qualified technician.
• WARRANTY: Till one year after date of purchase.
4
Ordercode: 45052
Juno
Operating Determinations
• This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time witho ut defects.
• The minimum distance betw een light output and the illum inated surface must be bigger than 1
meter.
• The maximum ambient temperature t
• The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
• If this device is operated in any other w ay than the one described in this manual, the product may
suffer damages and the w arranty becomes void.
• Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
= 40°C must never be exceeded.
a
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other safety
issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer!
Procedure:
• If the projector is low ered from the ceiling or high joists, professional trussing systems have to be used.
• Use a clamp to mount the projector, w ith the mounting bracket, to the trussing system.
• The projector must never be fixed swinging freely in the room.
• The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
• When rigging, de-rigging or servicing the projector, always make sure, that the area below the
installation site is secured and that there are not any unauthorized people around.
The Juno can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
5
Ordercode: 45052
Juno
Internati onal
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
Mounting a clamp to the underside of the Juno moving head
Improper installation can cause serious injuries t o people and/or damage of property !
Connection with the mains
Connect the device to the mains w ith the pow er plug.
Always check if the right color cable is connected to the right place.
Make sure that the device is always properly connected to the earth!
Improper inst allation can cause serious injuries t o people and/or damage of propert y!
6
Ordercode: 45052
Juno
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA num ber). Products returned
without an RMA num ber w ill be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is alw ays a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods imm ediately upon delivery for any short comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post -paid at all tim es. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non -prepaid return shipments will be refused, unless
otherwise agreed in writing.
Com plaints against us must be made know n in writing or by fax w ithin 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Com plaints will only then be considered if the client has so far complied w ith all parts of the agreement,
regardless of the agreement of w hich the obligation is resulting.
7
Ordercode: 45052
Juno
Description of the device
Features
The Show tec Juno is a moving head fixture w ith high output and great effects.
6 razor sharp beams that can be twisted and turned by the rotating the lens dish.
This creates new spectacular visual effects. Once the beams are all combined, they will create a
strong fat beam.
This hybrid moving head effect is ideal to create a beam show as w ell as visual effects w ith only one
fixture.
Special light pipe optic system to realize smooth color mixing in separate beams modus or all 6
beams combined.
Com pact housing
Easily rigged with only one clamp.
Output Lux @ 2m: 15500 lux
Beam Angle: 4.5°
Light Source: 6x 12W RGBW LEDs
Drive current: 1000mA
Input Voltage: 100-240 VAC
Pow er consumption: 120W max. at full output
On-Board: 16 Digit LCD Display
Mode: DMX-512, Manual, Master/Slave, Sound, Built-in Programs
Control Protocol: DMX512
Control Personality: 9, 14, 17 Channels
Dimmer: 0-100%
Strobe: 0-20Hz
Dimmer curves: Linear, Square, I-Square, S curve
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 14 bit
Color: Black
Housing: Metal & Flame-retardant plastic
Data Connections: XLR 3p Data IN/OUT
Pow er Connections: IEC IN/OUT
Fuse: T2L/250V

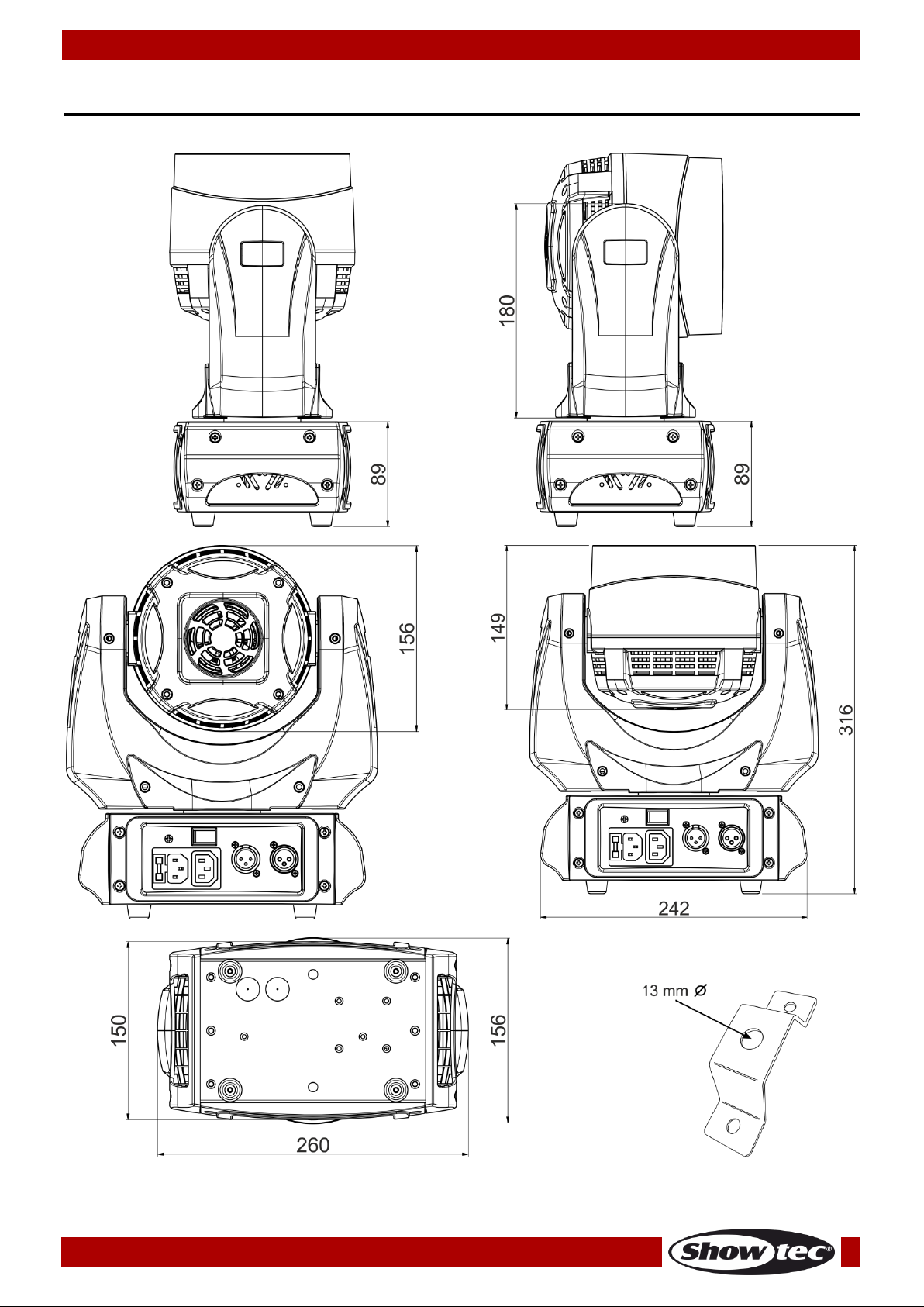

Dimensions: 260 x 150 x 316 mm (LxWxH)
Weight: 5,2 kg
8
Ordercode: 45052
Juno
Fig. 01
Backside
Fig. 02
Overview
01) LCD Display + control buttons
02) Ground/earth connection
03) IEC Power connector (IN) + Fuse T2L / 250V
04) IEC Power connector (OUT)
05) Power switch ON/OFF
06) 3-pin DMX signal connector IN
07) 3-pin DMX signal connector OUT
9
Ordercode: 45052
Juno
There are 5 modes:
Manual mode
Sound-controlled
Built-in Program s
Master/Slave
DMX-512 (9CH, 14CH, 17CH)
Installation
Remove all packing materials from the Juno. Check that all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected pr operly.
Always disconnect fr om electric mains power supply before cleaning or servicing.
Damages caused by non-observance ar e not subject to warranty.
Set Up and Operation
Follow the directions below , as they pertain to your preferred operation mode.
Before plugging the unit in, alw ays make sure that the pow er supply m atches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Control Modes
One Juno (Manual)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 m eter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Juno is not connected with a DMX cable, it functions as a stand-alone device.
05) Please see page 17 for more information about the Manual mode.
One Juno (Sound-controlled)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 m eter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Juno is not connected w ith a DMX cable, it functions as a stand-alone device.
05) Please see page 18 for more information about the Sound-controlled mode.
One Juno (Built-in Progr ams)
06) Fasten the effect light onto firm trussing. Leave at least 0,5 m eter on all sides for air circulation.
07) Always use a safety cable (ordercode 70140 / 70141).
08) Plug the end of the electric mains pow er cord into a proper electric power supply socket.
09) When the Juno is not connected w ith a DMX cable, it functions as a stand-alone device.
10) Please see page 18 for more information about the Sound-controlled mode.
10
Ordercode: 45052
Juno
The pins:
01) Earth
02) Signal (-)
03) Signal (+ )
Fig. 03
Multipl e Juno’s (Master/Slave Mode)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 m eter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin XLR cable to connect the Juno’s.
05) Link the units as show n in Fig. 03, connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can
use the same functions on the master device as described on pages 16 and 17 (Manua, Built-in
Programs or Sound-controlled). This means on the master device you can set your desired operation
mode and all slave devices w ill react the same as the master device.
Multipl e Juno’s Master/Slave Set Up
11
Ordercode: 45052
Juno
Multipl e Juno’s DMX Set Up
Fig. 04
Multipl e Juno’s (DMX Control)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains pow er cord into a proper electric power supply socket.
04) Use a 3-p XLR cable to connect the Juno’s and other devices.
05) Link the units as shown in Fig. 04, Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
06) Supply electric power: Plug electric mains pow er cords into each unit's IEC socket, then plug the
other end of the mains power cord into proper electric power supply sockets, starting with the first
unit. Do not supply power before the whole system is set up and connected properly.
12
Ordercode: 45052
Juno
Important:
Fixtures on a serial data link must be daisy-chained in a single line. To comply with the
EIA-485 standard, no more than 30 devices should be connected on one data link.
Connecting m ore than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended num ber of fixtures on a DMX data link: 30 fixtures
Maximum recommended num ber of fixtures on a power link: 15 @ 110V
Maximum recommended num ber of fixtures on a power link: 30 @ 240V
Fixture Linking
You will need a serial data link to run light show s of one or more fixtures using a DMX-512 controller or to
run synchronized shows of tw o or more fixtures set to a master/slave operating m ode. The combined
number of channels required by all the fixtures on a serial data link determines the num ber of fixtures the
data link can support.
Data Cabling
To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your ow n cable. If you choose to create your own cable,
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio DMX Data Cabl es
• DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin. Ordercode
FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m ), FL0115 (15 m), FL0120 (20 m).
• DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
• DAP Audio cable for the demanding user w ith exceptional audio -qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
• DAP Audio cable for the demanding user w ith exceptional audio -qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
• DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m ), FL0915 (15 m), FL0920 (20 m).
• DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30.
13
Ordercode: 45052
Juno
A) LCD display
B) MODE button
C) SETUP button
D) UP button
E) DOWN button
Fig. 05
Control Panel
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller w ill display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allow s you to assign the DMX fixture address, which is the
first channel from w hich the Juno will respond to the controller.
Please note when you use the controller, the unit has 17 channels.
When using multiple Juno’s, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Juno should be 1(001); the DMX address of the second Juno
should be 1+17=18 (018); the DMX address of the third Juno should be 18+17=35 (035), etc.
Please, make sure that you do not have any overlapping channels in order to control each Juno
correctly.
If two or more Juno’s are addressed similarly, they will work similarly.
Controlling:
After having addressed all Juno fixtures, you may now start operating these via your lighting controller.
Note: After sw itching on, the Juno w ill automatically detect whether DMX-512 data is received or not. If
there is no data received at the DMX-input, the “LED“ on the control panel w ill not flash.
The problem may be:
• The XLR cable from the controller is not connected w ith the input of the Juno.
• The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
14
Ordercode: 45052
Juno

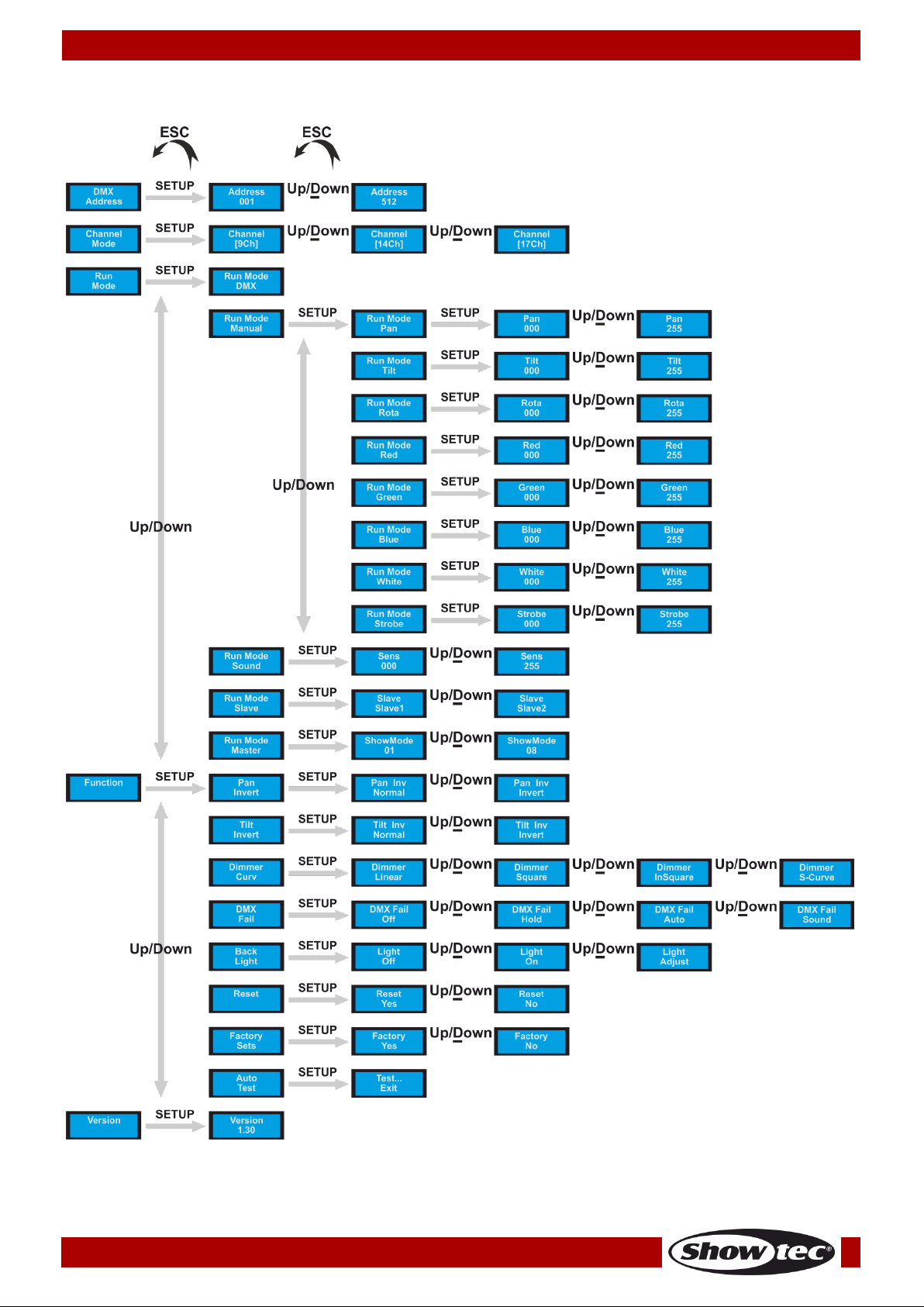

Menu Overview
15
Ordercode: 45052
Juno
DMX-512 Mode
Channel Mode (9CH, 14, 17CH)
Run Mode
Function mode
Version
9 Channels
14 Channels
17 Channels
DMX Mode
Manual Mode
Sound Mode
Slave Mode
Master Mode
Main Menu Options
The Juno will only show its entire version number at start-up !
1. DMX-512 Mode
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to enter the menu.
03) Press the UP and DOWN buttons to set the DMX address between .
04) Press the SETUP button to confirm the address.
2. Channel Mode
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to enter the menu.
03) Press the UP and DOWN buttons to choose betw een 3 options:
04) Press the SETUP button to confirm your choice.
3. Run Mode
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to enter the menu.
03) Press the UP and DOWN buttons to choose betw een 5 options:
04) Press the SETUP button to confirm your choice.
16
Ordercode: 45052
Juno
Pan
Tilt
Lens Rotation
Red Color
Green Color
Blue Color
White Color
Strobe
3.1 DMX-512 Mode
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to choose this menu.
03) Your Juno is now DMX controlled. Be sure to select the proper DMX address and DMX channel Mode.

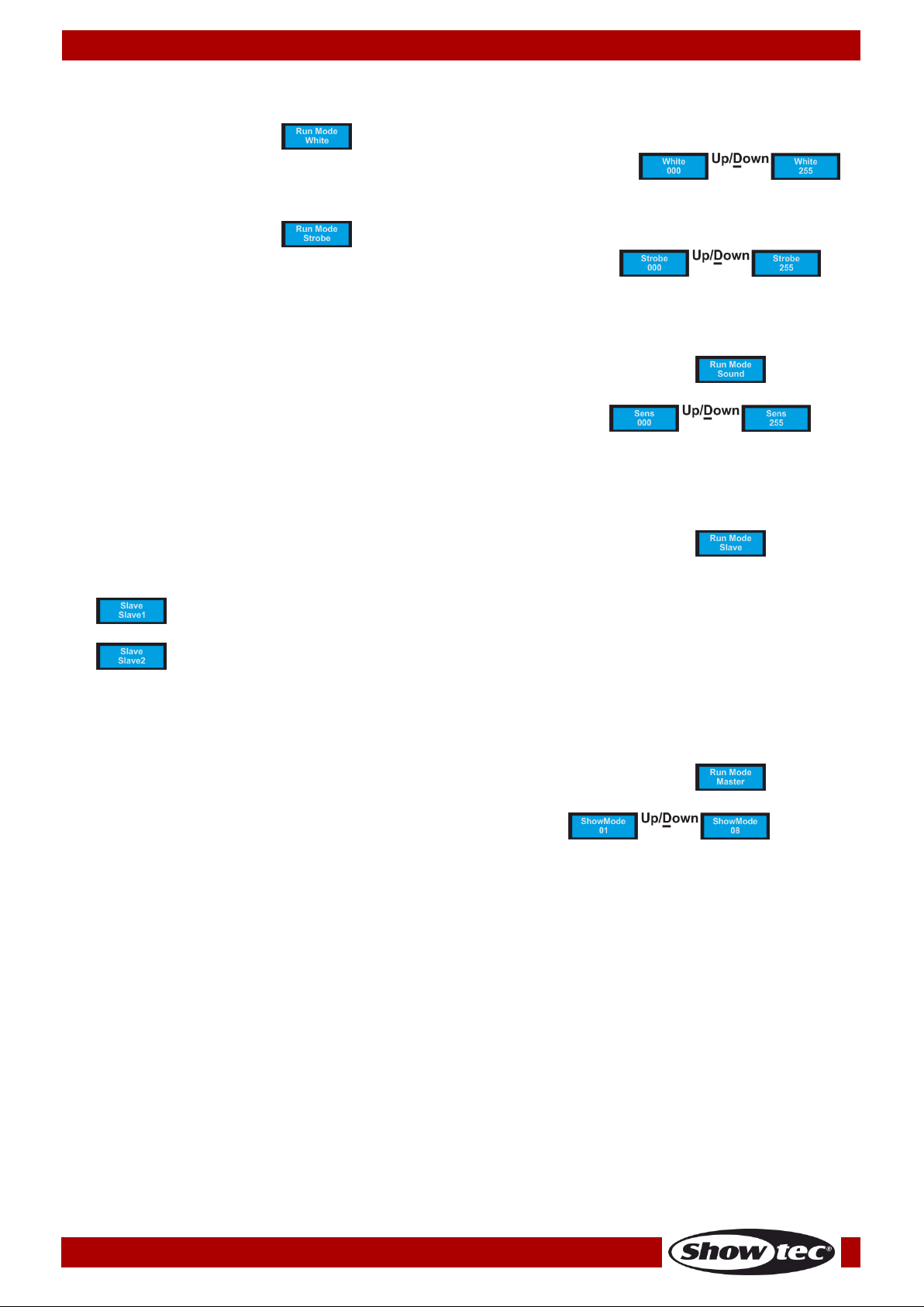

3.2 Manual Control Mode
In this menu it is possible to manually adjust the device’s settings.
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to enter the menu.
03) Press the UP and DOWN buttons to toggle betw een the follow ing settings:
04) When the display show s , press the SETUP button to enter the menu.
Subsequently, press the UP and DOWN buttons to adjust the pan movement settings between
. The values correspond w ith their DMX counterparts.
05) Press the SETUP button to store the changes.
06) When the display show s , press the SETUP button to enter the menu.
Subsequently, press the UP and DOWN buttons to adjust the tilt movement settings betw een
. The values correspond w ith their DMX counterparts.
07) Press the SETUP button to store changes.
08) When the display show s , press the SETUP button to enter the menu.
09) Press the UP and DOWN buttons to set the lens rotation between .
10) Press the SETUP button to store changes.
11) When the display show s , press the SETUP button to enter the menu.
12) Press the UP and DOWN buttons to set the red color intensity betw een .
0 = off, 255 = full on.
13) Press the SETUP button to store changes.
14) When the display show s , press the SETUP button to enter the menu.
15) Press the UP and DOWN buttons to set the green color intensity between .
0 = off, 255 = full on.
16) Press the SETUP button to store changes.
17) When the display show s , press the SETUP button to enter the menu.
18) Press the UP and DOWN buttons to set the blue color intensity between .
17
Ordercode: 45052
Juno
Normal slave mode
Mirror slave mode
0 = off, 255 = full on.
19) Press the SETUP button to store changes.
20) When the display show s , press the SETUP button to enter the menu.
21) Press the UP and DOWN buttons to set the w hite color intensity between .
0 = off, 255 = full on.
22) Press the SETUP button to store changes.
23) When the display show s , press the SETUP button to enter the menu.
24) Press the UP and DOWN buttons to set the strobe frequency between .
25) Press the SETUP button to store changes.
3.3 Sound-controll ed Mode
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to enter the sound sensitivity menu.
03) Press the UP and DOWN buttons to set the sound sensitivity between .
0 = Off, 255 = very sensitive.
04) Press the SETUP button to store changes.
3.4 Master/Slave Mode
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to enter the menu.
03) Press the UP and DOWN buttons to toggle between the follow ing slave modes:
04) Press the SETUP button to confirm your choice.
3.5 Bui lt-in auto progr ams
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to enter the menu.
03) Press the UP and DOWN buttons to choose betw een 8 options: .
04) Press the SETUP button to confirm your choice.
18
Ordercode: 45052
Juno
Pan Invert
Tilt Invert
Dimmer Curves
DMX Fail
Back Light
Reset
Factory Sets
Auto Test

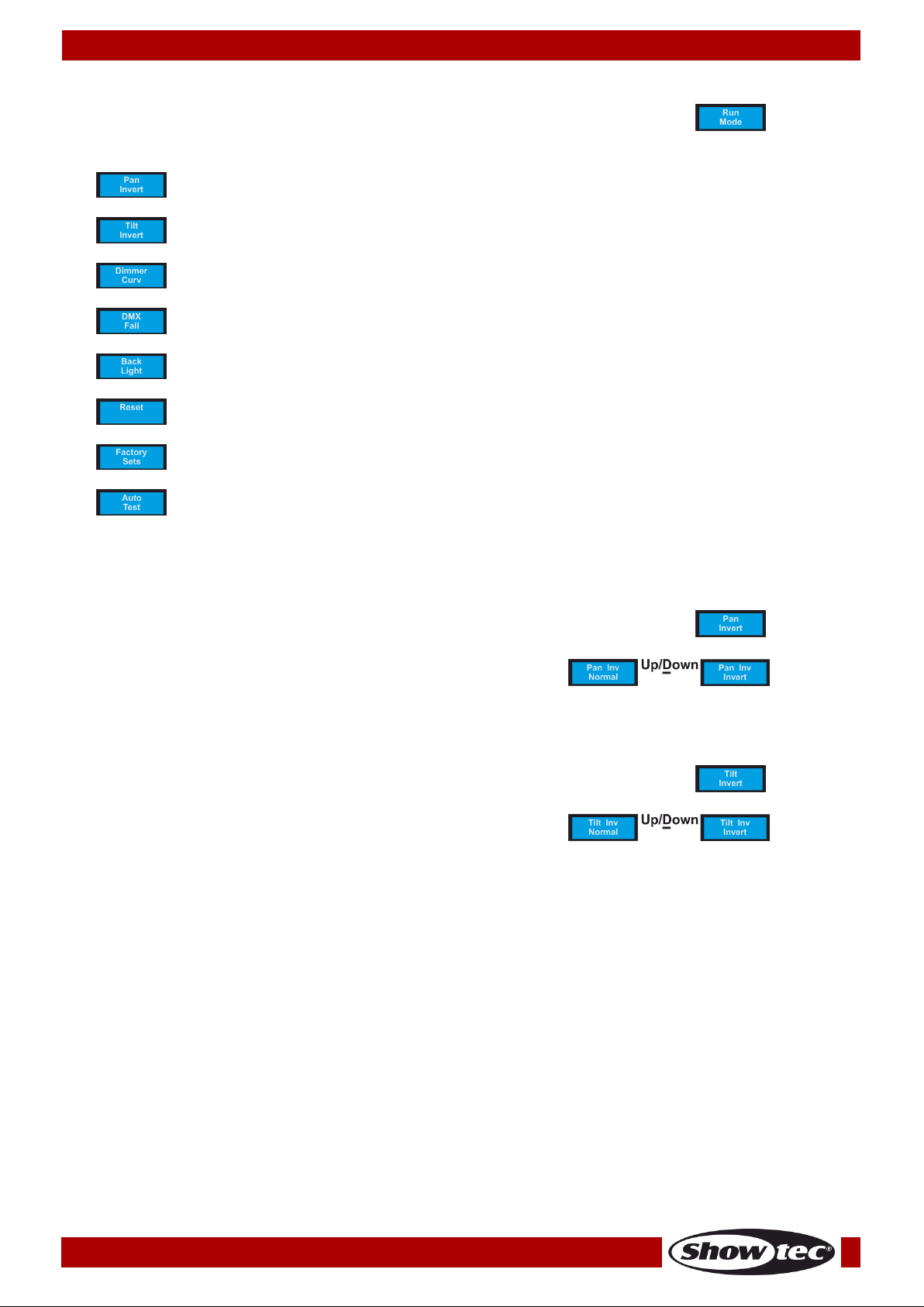

4. Function Mode
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to enter the menu.
03) Press the UP and DOWN buttons to choose betw een 8 options:
04) Press the SETUP button to confirm your choice.
4.1 Pan Reverse Mode
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to enter the menu.
03) Press the UP and DOWN buttons to choose betw een 2 options: .
04) Press the SETUP button to store changes.
4.2 Tilt Reverse Mode
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to enter the menu.
03) Press the UP and DOWN buttons to choose betw een 2 options: .
04) Press the SETUP button to store changes.
19
Ordercode: 45052
Juno
Off (DMX signal lost, device stops)
Hold (DMX signal lost, device will remember the last successfully received
DMX signal and will continue using it until DMX signal reception is restored)
Auto (DMX signal lost, device starts an auto program)
Sound (DMX signal lost, device becomes sound active)

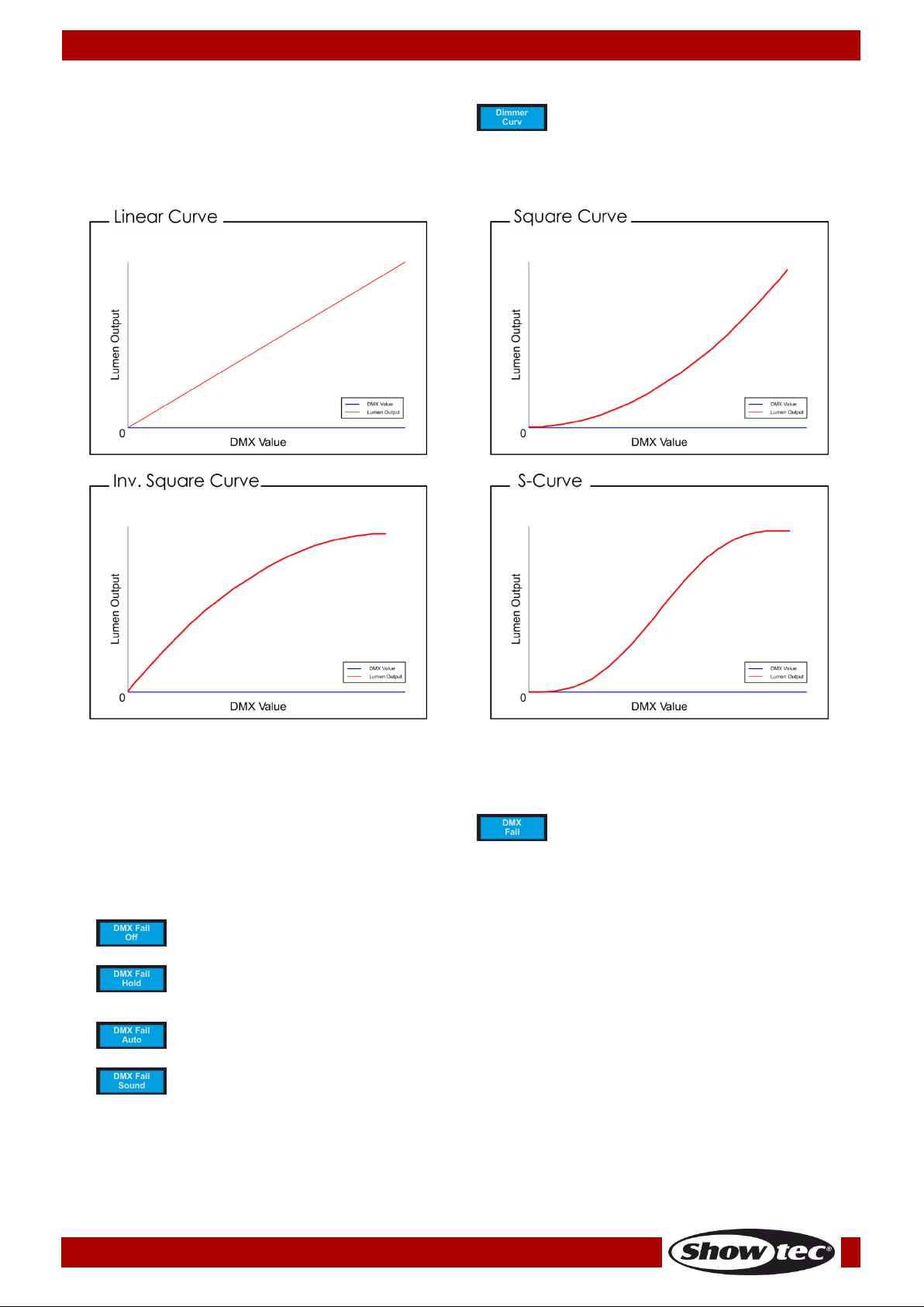

4.3 Dimming curves
01) Press the UP/DOWN buttons until the display show s .
02) Press the SETUP button to open the menu.
03) Press the UP/DOWN buttons to choose one of the 4 dimming curves: linear, square, inverted square
and S-type.
04) Press the SETUP button to store changes.
4.4 DMX Fail
01) Press the UP/DOWN buttons until the display show s .
02) Press the SETUP button to open the menu. Now you can set the device’s behaviour in case of a DMX
signal error.
03) Press the UP/DOWN buttons to toggle between the 4 available modes:
20
Ordercode: 45052
Juno
Display always ON
Display OFF after 10 seconds.
When a DMX failure occurs, the display w ill light up, indicating an error has
occurred.
Display brightness

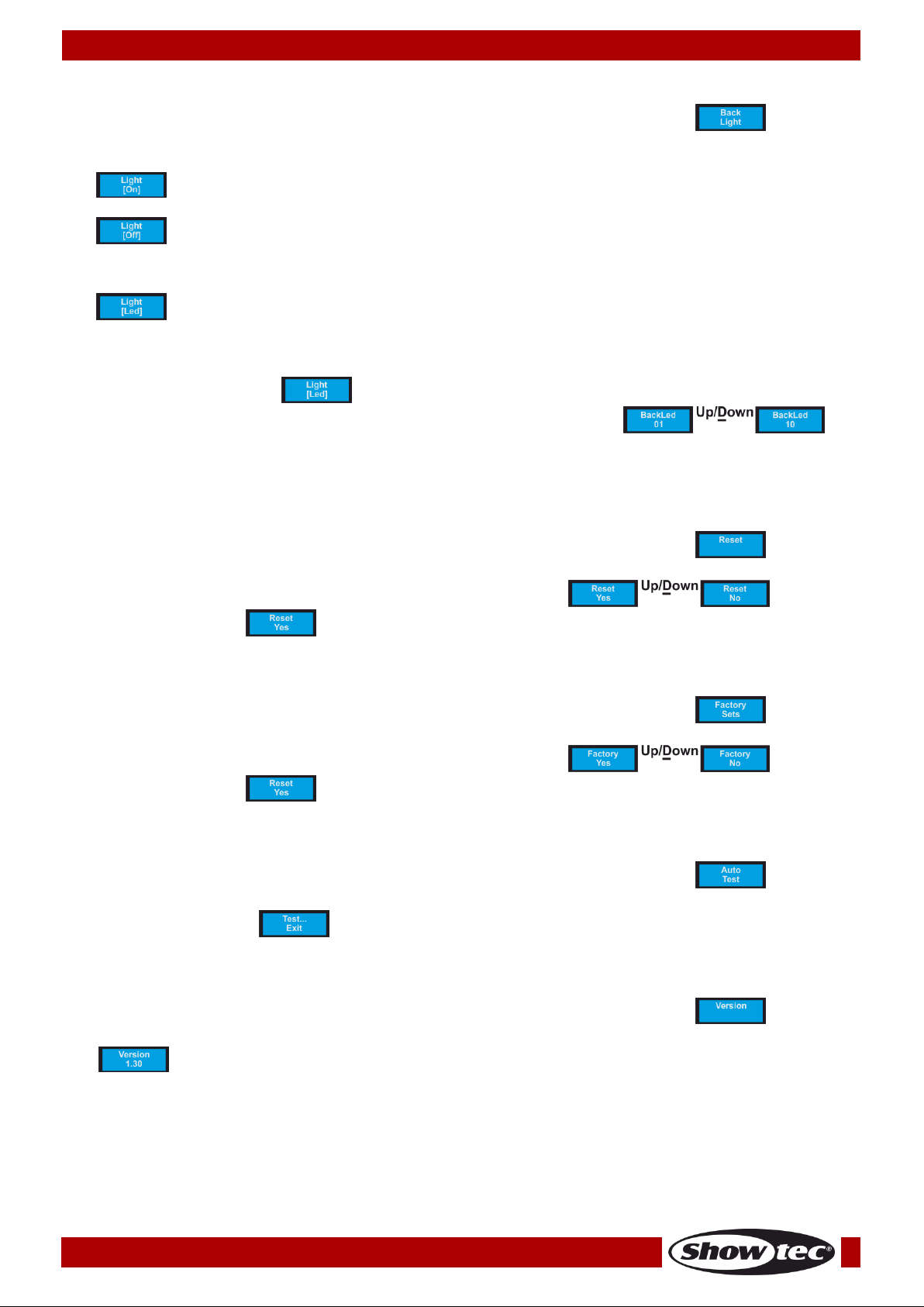

4.5 Backlight
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to enter the menu.
03) Press the UP and DOWN buttons to toggle betw een the follow ing options:
04) Press the SETUP button to confirm your choice.
05) When the display show s , press the SETUP button to enter the display brightness menu.
06) Press the UP and DOWN buttons to set the display brightness betw een .
01 = dark, 10 = very bright.
07) Press the SETUP button to store changes.
4.6 Setting Reset
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to enter the menu.
03) Press the UP and DOWN buttons to choose betw een 2 options: .
04) If the display shows , press the SETUP button to start resetting.
4.7 Restoration of Factory Settings
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to enter the menu.
03) Press the UP and DOWN buttons to choose betw een 2 options: .
04) If the display shows , press the SETUP button to start restoring the factory settings.
4.8 Auto Test Mode
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to run the automatic test of all the available features.
03) The display w ill show: .
5. Softwar e version
01) While in the main menu, press the UP and DOWN buttons until the display show s .
02) Press the SETUP button to see the currently installed softw are version.
21
Ordercode: 45052
Juno

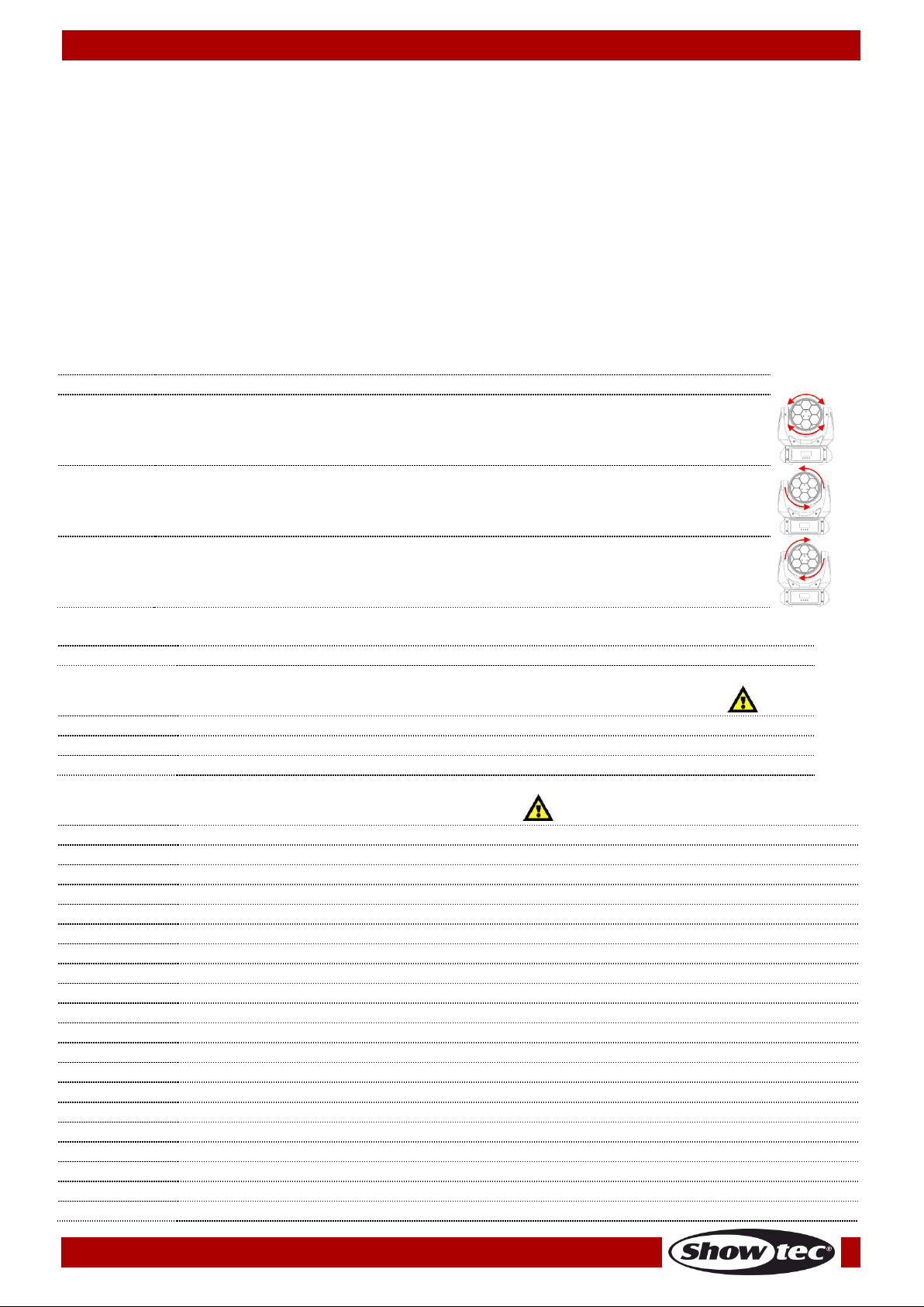

0-63
Lens-indexing
64-127
Lens bouncing (Cw+CCW) from fast to slow
128-191
Counter-clockw ise rotation (CCW) from fast to slow
192-255
Clockwise rotation (CW) from slow to fast
Channel 4 – Dimmer
0-255
Dimmer intensity, From dark to brightest
Channel 5 – Strobe effect (CH4 must be set between 001-255 and CH6 between 008-255 )
0-10
Strobe OFF
11-128
Random strobe intensity, from slow to fast
129-255
Linear strobe intensity, from slow to fast
Channel 6 – Color Macro (CH4 must be set between 001-255 )
0-7
No function
8-13
Color1(R255, G000, B000, W000)
14-20
Color2(R255, G000, B000, W100)
21-27
Color3(R255, G000, B000, W200)
28-34
Color4(R255, G050, B000, W000)
35-41
Color5(R255, G150, B000, W000)
42-48
Color6(R255, G255, B000, W000)
49-55
Color7(R255, G255, B000, W075)
56-62
Color8(R000, G255, B000, W255)
63-69
Color9(R000, G255, B000, W150)
70-76
Color10(R000, G255, B000, W050)
77-83
Color11(R000, G255, B000, W000)
84-90
Color12(R000, G255, B050, W000)
91-97
Color13(R000, G255, B150, W000)
98-104
Color14(R000, G255, B255, W000)
105-111
Color15(R000, G255, B255, W075)
112-118
Color16(R000, G255, B255, W150)
119-125
Color17(R000, G100, B255, W255)
126-132
Color18(R000, G000, B255, W100)
133-139
Color19(R000, G000, B255, W050)
DMX Channels
9 channels
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you w ish.
Channel 2 – Vertical movement (Ti l t)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you w ish.
Channel 3 – Lens Rotation
22
Ordercode: 45052
Juno
140-146
Color20(R000, G000, B255, W000)
147-153
Color21(R075, G000, B255, W000)
154-160
Color22(R160, G000, B255, W000)
161-167
Color23(R255, G000, B255, W000)
168-174
Color24(R255, G000, B175, W000)
175-181
Color25(R255, G000, B100, W000)
182-188
Color26(R255, G000, B100, W050)
189-195
Color27(R255, G000, B025, W050)
196-202
Color28(R255, G000, B025, W025)
203-209
Color29(R255, G000, B025, W000)
210-216
Color30(R000, G000, B000, W255)
217-223
Color31(R075, G075, B000, W255)
224-230
Color32(R000, G000, B100, W255)
231-255
Color33(R255, G255, B255, W255)
Channel 7 – Color Flow (CH4 must be set between 001-255 )
0-15
No function
16-31
Color Jump1
32-47
Color Jump2
48-63
Color Jump3
64-79
Color Jump4
80-95
Color Jump5
96-111
Color Jump6
112-127
Color Jump7
128-143
Color Jump8
144-159
Color Fade1
160-175
Color Fade2
176-191
Color Fade3
192-207
Color Fade4
208-223
Color Fade5
224-239
Color Fade6
240-255
Color Fade7
Channel 8 – Color Flow Speed (CH4 must be set between 001-255 and CH7 between 016-255 )
0-255
From slow to fast
Channel 9 – Functions
0-5
No function
6-10
Show1
11-20
Show2
21-30
Show3
31-40
Show4
41-50
Show5
51-60
Show6
61-70
Show7
71-80
Show8
81-90
Slave1
91-96
Slave2
97-160
Sound sensitivity from low sensitivity to high sensitivity
161-170
Pan invert
171-180
Tilt invert
181-190
Pan normal
191-200
Tilt norm al
201-220
Black out during pan/ tilt movement
221-240
Reset (after 5 seconds)
241-255
No function
23
Ordercode: 45052
Juno
Channel 5 – PAN/TILT Speed
0-255
From Max Speed (0) to Min. Speed (255)

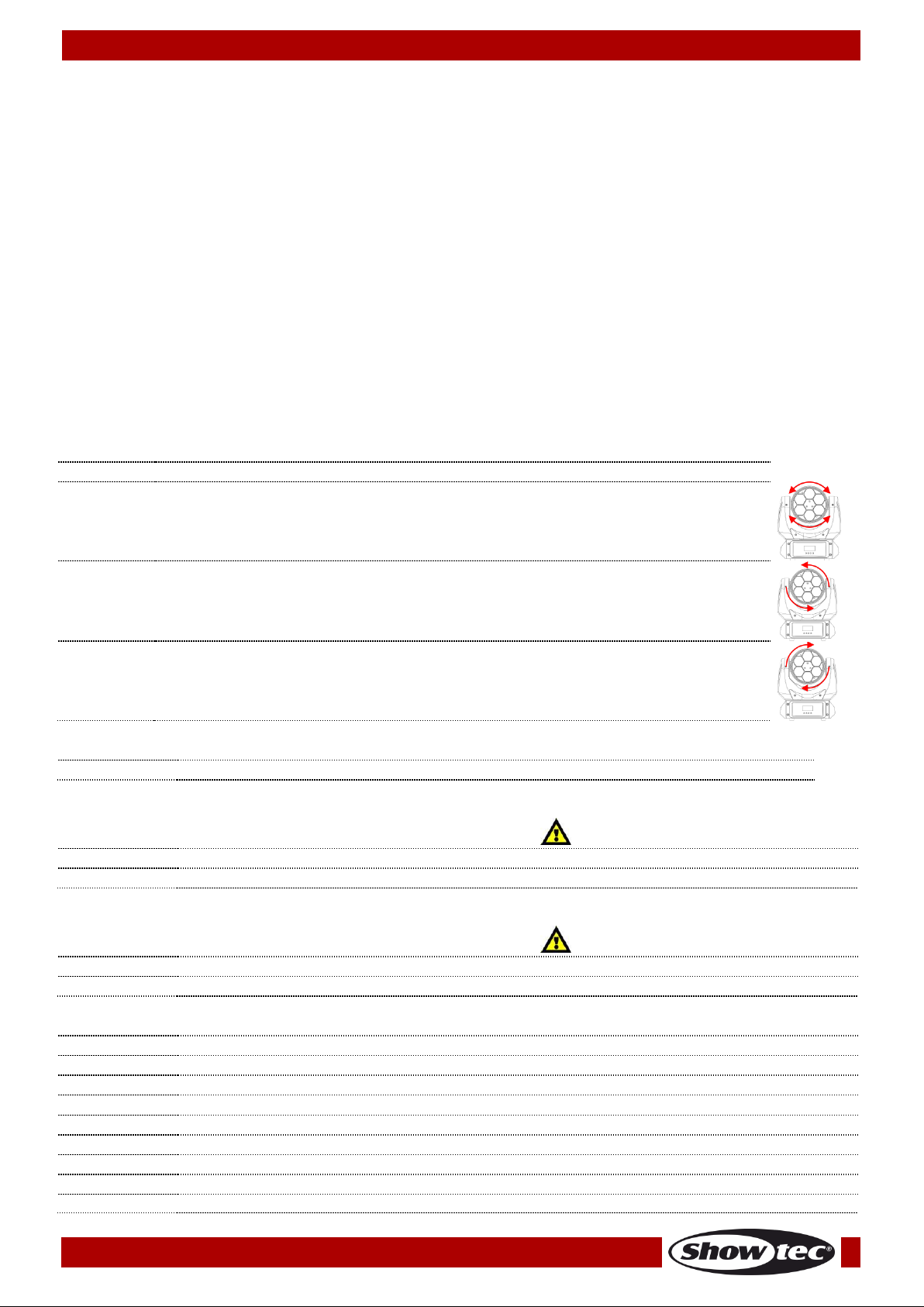

0-63
Lens-indexing
64-127
Lens bouncing (Cw+CCW) from fast to slow
128-191
Counter-clockw ise rotation (CCW) from fast to slow
192-255
Clockwise rotation (CW) from slow to fast
Channel 7 – Dimmer
0-255
Dimmer intensity, From dark to brightest
Channel 8 – Linear Strobe
(CH7, CH11, CH12, CH13 or CH14 must be set between 001-255 )
0-10
Off
11-255
Strobe intensity, from slow to fast
Channel 9 – Random Strobe
(CH7, CH11, CH12, CH13 or CH14 must be set between 001-255 )
0-10
Off
11-255
Strobe intensity, from slow to fast
Channel 10 – Functions
0-5
No function
6-10
Show1
11-20
Show2
21-30
Show3
31-40
Show4
41-50
Show5
51-60
Show6
61-70
Show7
71-80
Show8
14 channels
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you w ish.
Channel 2 – Pan fi ne 16 bit
Channel 3 – Vertical movement (Ti l t)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you w ish.
Channel 4 – Tilt fine 16 bit
Channel 6 – Lens Rotation
24
Ordercode: 45052
Juno
81-90
Slave1
91-96
Slave2
97-160
Sound sensitivity from low sensitivity to high sensitivity
161-170
Pan invert
171-180
Tilt invert
181-190
Pan normal
191-200
Tilt norm al
201-220
Black out during pan/ tilt movement
221-240
Reset (after 5 seconds)
241-255
No function
Channel 11 – Red color intensity (CH7 must be set between 001-255 )
0-255
Gradual adjustment Red from 0 – 100)
Channel 12 – Green color intensi ty (CH7 must be set between 001-255 )
0-255
Gradual adjustment Green from 0 – 100)
Channel 13 – Blue color intensity (CH7 must be set between 001-255 )
0-255
Gradual adjustment Blue from 0 – 100)
Channel 14 – White color intensi ty (CH7 must be set between 001-255 )
0-255
Gradual adjustment White from 0 – 100)
25
Ordercode: 45052
Juno
Channel 5 – PAN/TILT Speed
0-255
From Max Speed (0) to Min. Speed (255)
0-63
Lens-indexing
64-127
Lens bouncing (Cw+CCW) from fast to slow
128-191
Counter-clockw ise rotation (CCW) from fast to slow
192-255
Clockwise rotation (CW) from slow to fast
Channel 7 – Dimmer
0-255
Dimmer intensity, From dark to brightest
Channel 8 – Linear Strobe
(CH7, CH14, CH15, CH16 or CH17 must be set between 001-255 )
0-10
Off
11-255
Strobe intensity, from slow to fast
Channel 9 – Random Strobe
(CH7, CH14, CH15, CH16 or CH17 must be set between 001-255 )
0-10
Off
11-255
Strobe intensity, from slow to fast
Channel 10 – Color Macro (CH7 must be set between 001-255 )
0-7
No function
8-13
Color1(R255, G000, B000, W000)
14-20
Color2(R255, G000, B000, W100)
21-27
Color3(R255, G000, B000, W200)
28-34
Color4(R255, G050, B000, W000)
35-41
Color5(R255, G150, B000, W000)
42-48
Color6(R255, G255, B000, W000)
49-55
Color7(R255, G255, B000, W075)
17 channels
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you w ish.
Channel 2 – Pan fi ne 16 bit
Channel 3 – Vertical movement (Ti l t)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you w ish.
Channel 4 – Tilt fine 16 bit
Channel 6 – Lens Rotation
26
Ordercode: 45052
Juno
56-62
Color8(R000, G255, B000, W255)
63-69
Color9(R000, G255, B000, W150)
70-76
Color10(R000, G255, B000, W050)
77-83
Color11(R000, G255, B000, W000)
84-90
Color12(R000, G255, B050, W000)
91-97
Color13(R000, G255, B150, W000)
98-104
Color14(R000, G255, B255, W000)
105-111
Color15(R000, G255, B255, W075)
112-118
Color16(R000, G255, B255, W150)
119-125
Color17(R000, G100, B255, W255)
126-132
Color18(R000, G000, B255, W100)
133-139
Color19(R000, G000, B255, W050)
140-146
Color20(R000, G000, B255, W000)
147-153
Color21(R075, G000, B255, W000)
154-160
Color22(R160, G000, B255, W000)
161-167
Color23(R255, G000, B255, W000)
168-174
Color24(R255, G000, B175, W000)
175-181
Color25(R255, G000, B100, W000)
182-188
Color26(R255, G000, B100, W050)
189-195
Color27(R255, G000, B025, W050)
196-202
Color28(R255, G000, B025, W025)
203-209
Color29(R255, G000, B025, W000)
210-216
Color30(R000, G000, B000, W255)
217-223
Color31(R075, G075, B000, W255)
224-230
Color32(R000, G000, B100, W255)
231-255
Color33(R255, G255, B255, W255)
Channel 11 – Color Flow (CH7 must be set between 001-255 )
0-15
No function
16-31
Color Jump1
32-47
Color Jump2
48-63
Color Jump3
64-79
Color Jump4
80-95
Color Jump5
96-111
Color Jump6
112-127
Color Jump7
128-143
Color Jump8
144-159
Color Fade1
160-175
Color Fade2
176-191
Color Fade3
192-207
Color Fade4
208-223
Color Fade5
224-239
Color Fade6
240-255
Color Fade7
Channel 12 – Color Flow Speed (CH7 must be set between 001-255 and CH11 between 016-255 )
0-255
From slow to fast
Channel 13 – Functions
0-5
No function
6-10
Show1
11-20
Show2
21-30
Show3
31-40
Show4
41-50
Show5
51-60
Show6
61-70
Show7
27
Ordercode: 45052
Juno
71-80
Show8
81-90
Slave1
91-96
Slave2
97-160
Sound sensitivity from low sensitivity to high sensitivity
161-170
Pan invert
171-180
Tilt invert
181-190
Pan normal
191-200
Tilt norm al
201-220
Black out during pan/ tilt movement
221-240
Reset (after 5 seconds)
241-255
No function
Channel 14 – Red color intensi ty (CH7 must be set between 001-255 )
0-255
Gradual adjustment Red from 0 – 100)
Channel 15 – Green color intensi ty (CH7 must be set between 001-255 )
0-255
Gradual adjustment Green from 0 – 100)
Channel 16 – Blue color intensi ty (CH7 must be set between 001-255 )
0-255
Gradual adjustment Blue from 0 – 100)
Channel 17 – White color intensity (CH7 must be set between 001-255 )
0-255
Gradual adjustment White from 0 – 100)
Maintenance
The Show tec Juno requires almost no maintenance. How ever, you should keep the unit clean. Otherwise,
the fixture’s light -output will be significantly reduced.
Disconnect the mains power supply and then w ipe the cover w ith a damp cloth. Wipe the front glass
panel clean w ith glass cleaner and a soft cloth. Do not use alcohol or solvents. The front glass panel w ill
require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light-output very quickly.
Do not imm erse in liquid.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipm ent or supplying
electric power.
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric pow er supply cables must not show any damages or material fatigue.
Replacing the Fuse
Pow er surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out.
If the fuse burns out, the product w ill not function whatsoever. If this happens, foll ow the directions below :
01) Unplug the unit from electric pow er source.
02) Insert a screwdriver into the slot in the fuse cover. Gently pry up the fuse cov er. The fuse w ill come
out.
03) Remove the used fuse. If brow n or unclear, it is burned out.
04) Insert the replacement fuse into the holder. Reinsert the fuse cov er. Be sure to use a fuse of the same
type and specification. See the product specification label for details.
28
Ordercode: 45052
Juno
Troubleshooting
This troubleshooting guide is meant to help solv e simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is fou nd. Once the unit
operates properly, do not carry out follow ing steps.
No Light
If the light effect does not operate properly, refer servicing to a technician.
Response: Suspect four potential problem areas as: factory reset, the power supply, the LEDs, the fuse.
01) First try to reset the device to its original factory default settings (3 -Settings Menu 4.7 see page 21).
02) Power supply. Check if the unit is plugged into an appropriate pow er supply.
03) The LEDs. Return the Juno to your Showtec dealer.
04) The fuse. Replace the fuse. See page 28 for replacing the fuse.
05) If all of the above appears to be O.K., plug the unit in again.
06) If you are unable to determine the cause of the problem, do not open the Juno, as this may
damage the unit and the w arranty wil l become void.
07) Return the device to your Showtec dealer.
No Response to DMX
Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card
malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine w hether the controller or light effect is at fault. Does the controller operate properly w ith
other DMX products? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
29
Ordercode: 45052
Juno
Problem
Probable cause(s)
Solution
One or m ore
fixtures do not
function at all
No pow er to the fixture
• Check if power is switched on and
cables are plugged in
Primary fuse blown
• Replace fuse
Fixtures reset
correctly, but all
respond
erratically or not
at all to the
controller
The controller is not connected.
• Connect controller.
3-pin XLR Out of the controller
does not match XLR Out of the first
fixture on the link (i.e. signal is
reversed)
• Install a phase reversing cable
between the controller and the
first fixture on the link
Fixtures reset
correctly, but
some respond
erratically or not
at all to the
controller
Poor data quality
• Check data quality. If much lower
than 100 percent, the problem
may be a bad data link
connection, poor quality or
broken cables, missing termination
plug, or a defective fixture
disturbing the link
Bad data link connection
• Inspect connections and cables.
Correct poor connections. Repair
or replace damaged cables
Data link not terminated with 120
Ohm termination plug
• Insert termination plug in output
jack of the last fixture on the link
Incorrect addressing of the fixtures
• Check address setting
One of the fixtures is defective and
disturbs data transm ission on the
link
• Bypass one fixture at a time until
normal operation is restored:
unplug both connectors and
connect them directly together.
• Have the defective fixture
serviced by a qualified technician
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed)
• Install a phase-reversing cable
between the fixtures or sw ap pin 2
and 3 in the fixture that behaves
erratically
No light or lamp
cuts out
intermittently
Fixture is too hot
• Allow the fixture to cool down
• Clean the fan
• Make sure air v ents in control
panel and the front lens are not
blocked
• Turn up the air conditioning
LEDs dam aged
• Disconnect the fixture and return it
to your dealer
The power supply settings do not
match local AC voltage and
frequency
• Disconnect fixture. Check settings
and correct if necessary
30
Ordercode: 45052
Juno
Model
Showtec Juno
Input Voltage:
100~240VAC 50/60Hz
Pow er consumption:
120W max. at full output
Drive current:
1000mA
Fuse:
T2L/250V
Dimensions:
Dimensions: 260 x 150 x 316 mm (LxWxH)
Weight:
5,2 Kg
Operation and Programming
Signal pin OUT:
pin 1 earth, pin 2 (-), pin 3 (+)
Set Up and Addressing:
16 Digit LCD Display
Pan/Tilt resolution:
14 bit
DMX Channels:
9, 14, 17
Pow er Connections:
IEC IN/OUT
Signal input and output:
3-pin XLR male IN
3-pin XLR female OUT
Electro-mechani cal effects
● Light Source: 6x 12W RGBW LEDs
● Output Lux @ 2m: 15500 lux
● DMX-control via standard DMX-controller
● Reverse Pan / Tilt movement
● Special: Pan / Tilt movement
● Pan 0º -- 540°, Tilt 0º -- 270º
● Control modes: DMX-512, Manual, Master/Slave, Sound, Built-in Programs
● Dimmer curves: Linear, Square, I-Square, S curve
● Rotation: Bi-directional lenses
● Beam Angle: 4.5°
● Dimmer: 0-100%
● Strobe: 0-20Hz
● Housing: Black Metal & Flame-retardant plastic
Max. ambient temperature ta:
40°C; Max. housing temperature tB: 80°C
Cooling:
Cooling fan
Motor:
high quality stepping-motor controlled by
microprocessors
Minimum distance
Minimum distance from flammable surfaces:
0.5 m
Minimum distance to lighted object:
1.3 m
Product Specifications
Design and product specifications are subject to change w ithout prior notice
Website: w w w.Show tec.info
Email: service@highlite.nl
31
Ordercode: 45052
Juno
Dimensions
32
Ordercode: 45052
Juno
Notes
33
Ordercode: 45052
Juno
34
©2016 Showtec
Loading...
