Infinity iB-2R
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 41531
MANUAL
ENGLISH
Ordercode: 41531
Infinity iB-2R
Table of contents
Warning ............................................................................................................................................................................... 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 4
Rigging ............................................................................................................................................................................ 4
Connection with the mains......................................................................................................................................... 6
Return Procedure .......................................................................................................................................................... 6
Claims .............................................................................................................................................................................. 6
Description of the device ................................................................................................................................................. 7
Overview ........................................................................................................................................................................ 8
Backside ......................................................................................................................................................................... 8
Installation ........................................................................................................................................................................... 8
Set Up and Operation ....................................................................................................................................................... 8
Control Modes ............................................................................................................................................................... 8
One Infinity (Built-in Programs)................................................................................................................................. 8
Multiple Infinity’s (DMX Control) .............................................................................................................................. 9
Fixture Linking ...............................................................................................................................................................10
Data Cabling ...............................................................................................................................................................10
Control Panel ...............................................................................................................................................................11
Control Mode ..............................................................................................................................................................11
DMX Addressing ..........................................................................................................................................................11
Menu Overview ...........................................................................................................................................................12
Main Menu Options .................................................................................................................................................13
1. DMX Addressing ...................................................................................................................................................13
2. Edit Mode ..............................................................................................................................................................14

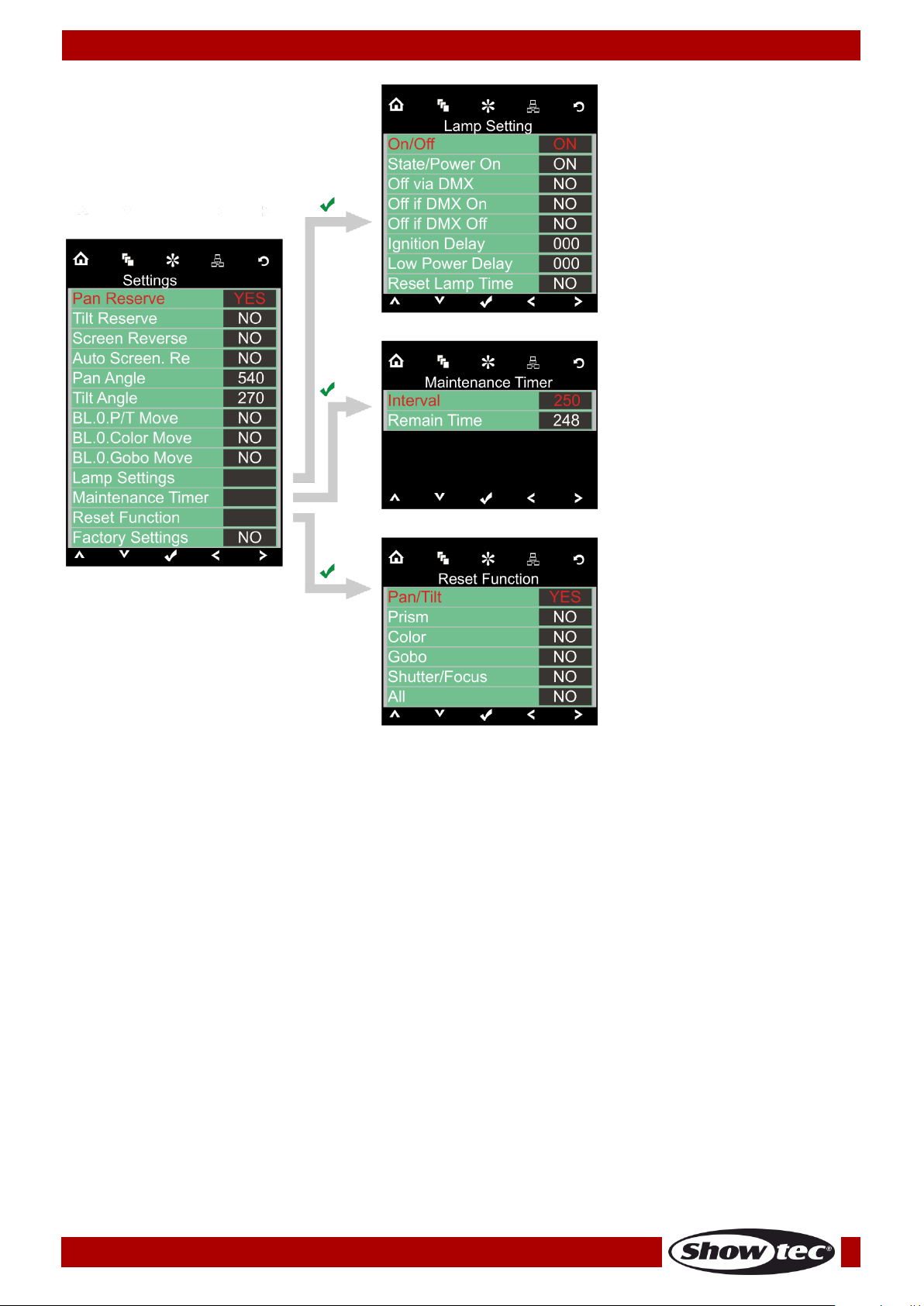

3. Settings Menu .......................................................................................................................................................14

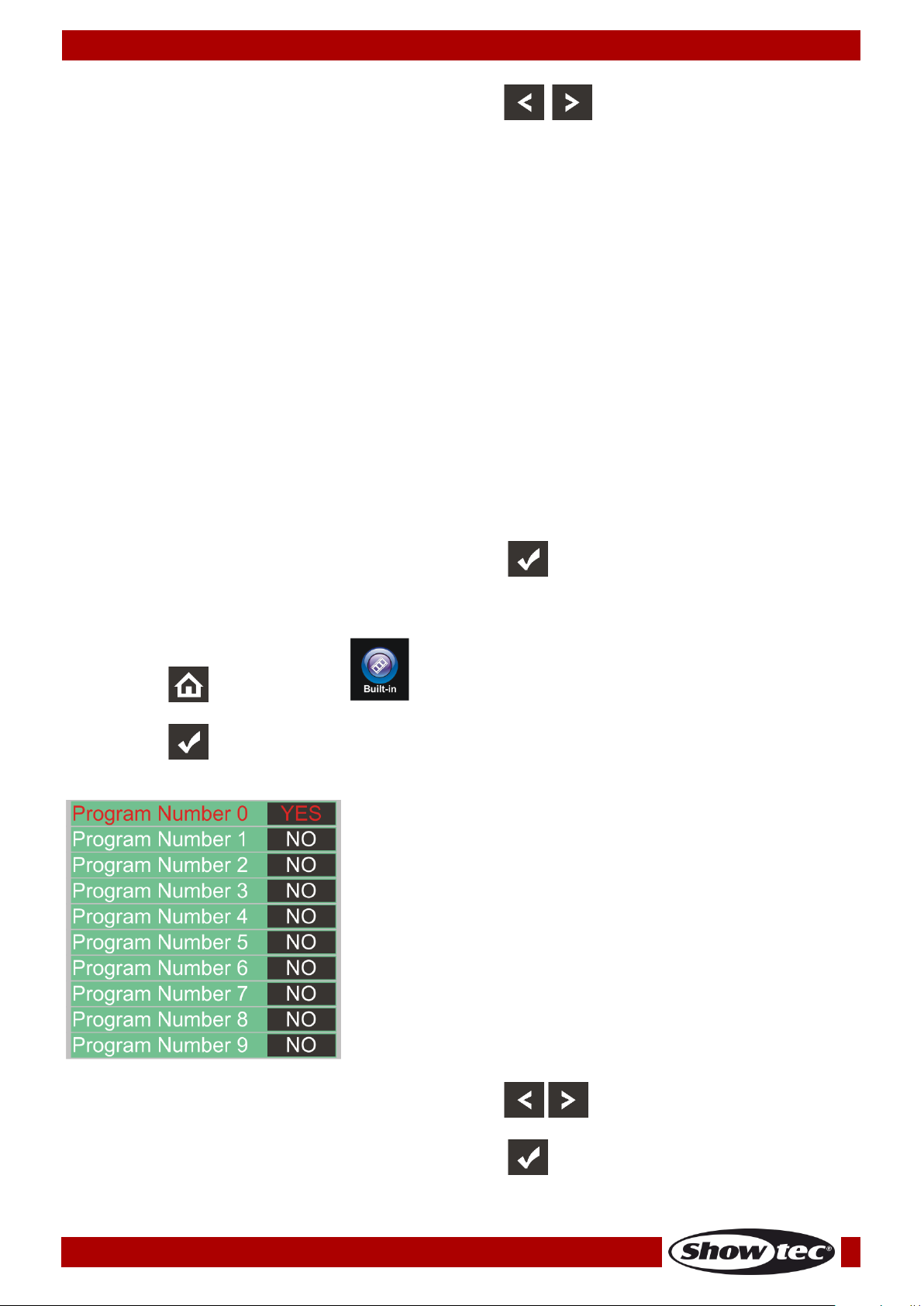

4. Built-in Programs ...................................................................................................................................................16

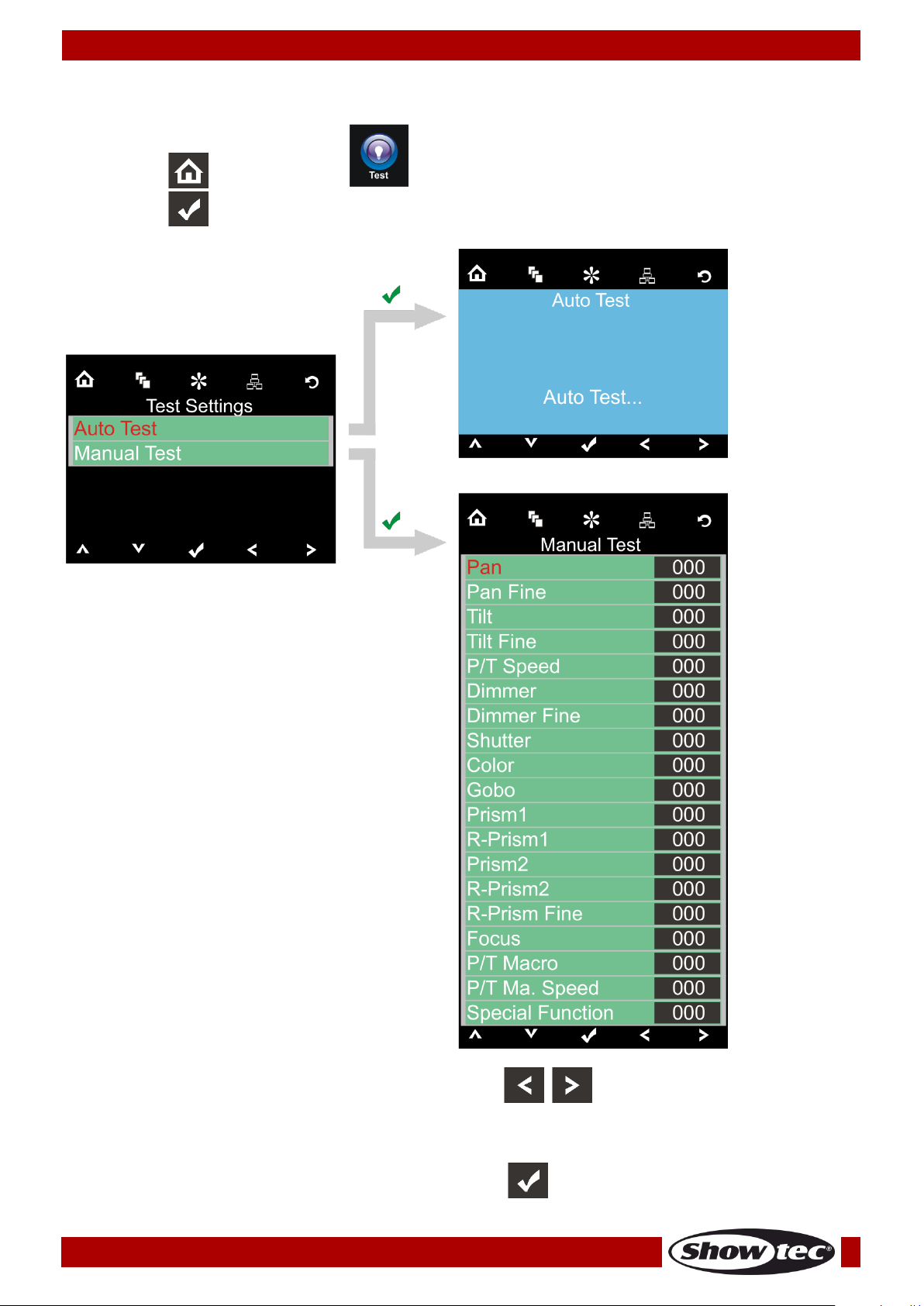

5. Test Menu ..............................................................................................................................................................17

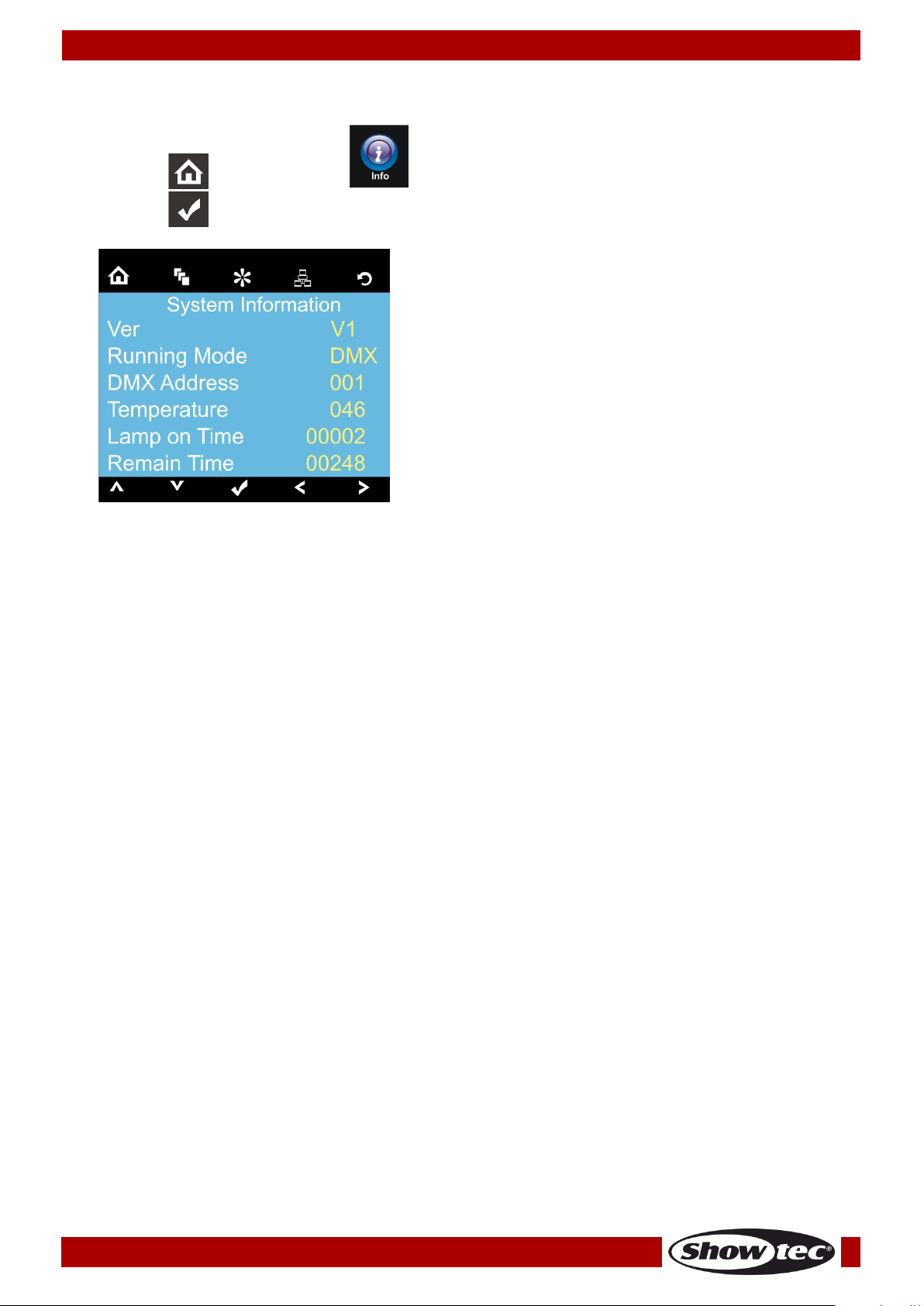

6. Information Menu ................................................................................................................................................18
DMX Channels .............................................................................................................................................................19
18 Channels (Advanced).......................................................................................................................................19
15 Channels (Advanced).......................................................................................................................................23
Channel settings .........................................................................................................................................................26
Maintenance ....................................................................................................................................................................26
Replacing a Fuse ........................................................................................................................................................26
Battery Replacement .................................................................................................................................................27
(must be carried out by a qualified technician!) .................................................................................................27
Troubleshooting ...............................................................................................................................................................28

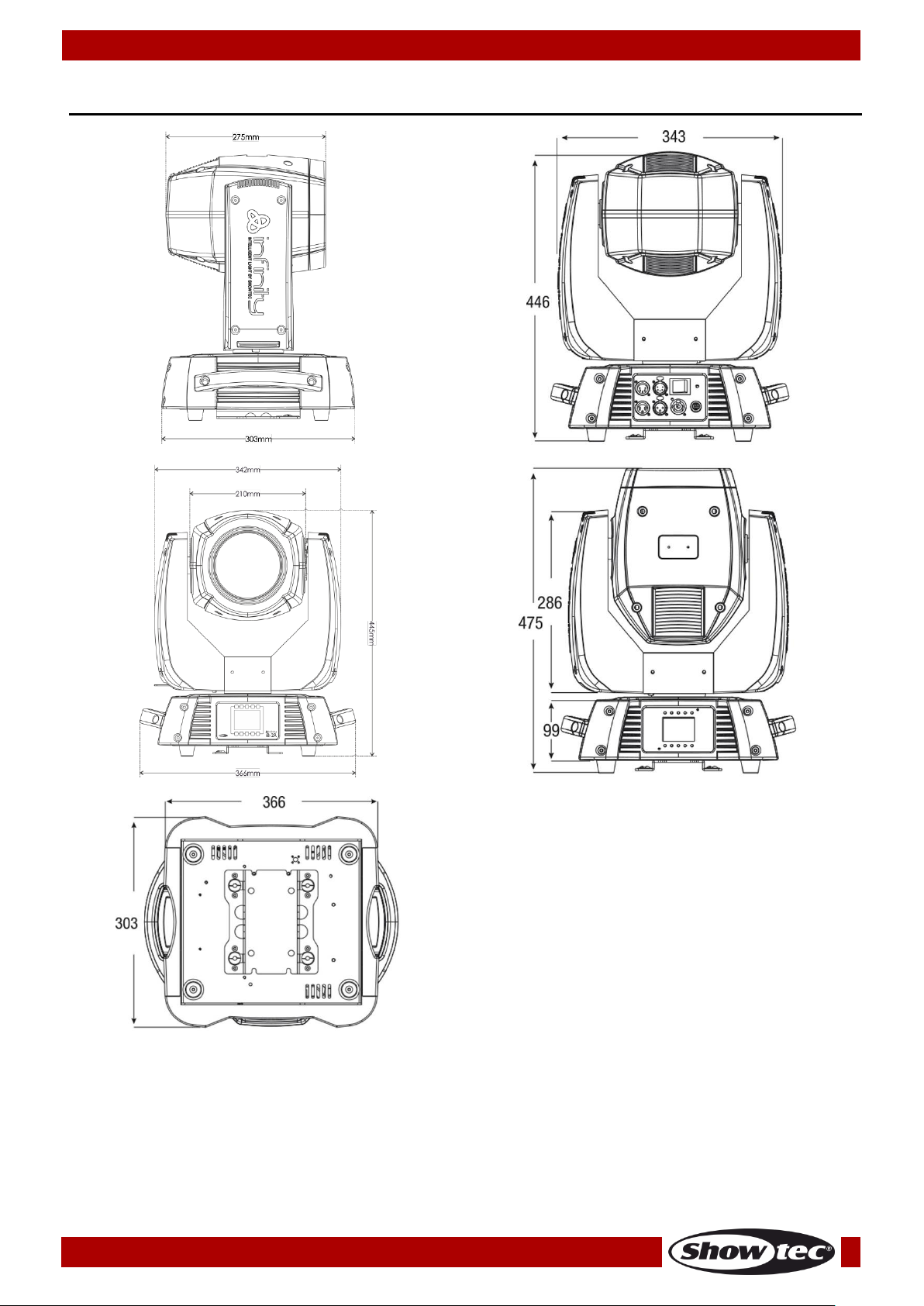

Product Specification .....................................................................................................................................................30
1
Ordercode: 41531
Infinity iB-2R
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
● Showtec Infinity iB-2R LED Spot with Powercon powercable 0,9m
● 2 brackets for truss mounting
● Safety eye
● User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving your lifespan expectancy is of a higher priority, place care in providing
for lower operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
● be qualified
● follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
2
Ordercode: 41531
Infinity iB-2R
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always
hold the fixture at the transport handles.
Never place any material over the lens.
Never look directly into the light source.
Never leave any cables lying around.
Never unscrew the screws of the rotating gobo, as the ball bearing will otherwise be opened.
Do not insert objects into air vents.
Do not connect this device to a dimmerpack.
Do not switch the device on and off in short intervals, as this would reduce the device’s life.
Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
Do not shake the device. Avoid brute force when installing or operating the device.
Only use device indoor, avoid contact with water or other liquids.
Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always keep case closed while operating.
Always allow free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power-cord by the plug. Never pull out the plug by tugging the power-cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged. Check the device and the power-
cord from time to time.
If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to
cracks or deep scratches.
If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. Movinghead must be installed out of the reach of children. Never leave the unit
running unattended.
Never attempt to bypass the thermostatic switch or fuses.
For replacement use fuses of same type and rating only.
The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
3
Ordercode: 41531
Infinity iB-2R
Operating Determinations
● This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
● The minimum distance between light-output and the illuminated surface must be more than 1 meter.
● The maximum ambient temperature ta = 45°C must never be exceeded.
● The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
● If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
● Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
● If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.
● Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.
● The projector must never be fixed swinging freely in the room.
● The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
● When rigging, derigging or servicing the projector, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
The Infinity can be placed on a flat stage floor or mounted to any kind of truss by a clamp.
4
Ordercode: 41531
Infinity iB-2R
Mounting a clamp to the underside of the Infinity moving head
Improper installation can cause serious damage to people and property !
5
Ordercode: 41531
Infinity iB-2R
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NULL
YELLOW/GREEN
GREEN
GREEN
EARTH
Return Procedure
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
Make sure that the device is always connected properly to the earth!
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
6
Ordercode: 41531
Infinity iB-2R
Description of the device
Features
The Showtec Infinity iB-2R is a moving-head with high output and great effects.
● Beam effect
● High torque motors
● Ultra-fast movements
● Quick lock screws on the covers
● On-Board: Battery powered full color display including gravity sensor
● On-Board: 16x2 Character display
● DMX-control via standard DMX-controller
● User-selectable Pan & Tilt ranges, 540° / 360° / 180° / 90°
● Reverse Pan / Tilt movement
● Special: Pan / Tilt movement, Color, Gobo change blackout
● Pan 0º -- 540º, Tilt 0º -- 270º
● Pan/Tilt resolution: 16 bit
● Control: DMX-512, Built-in Programs

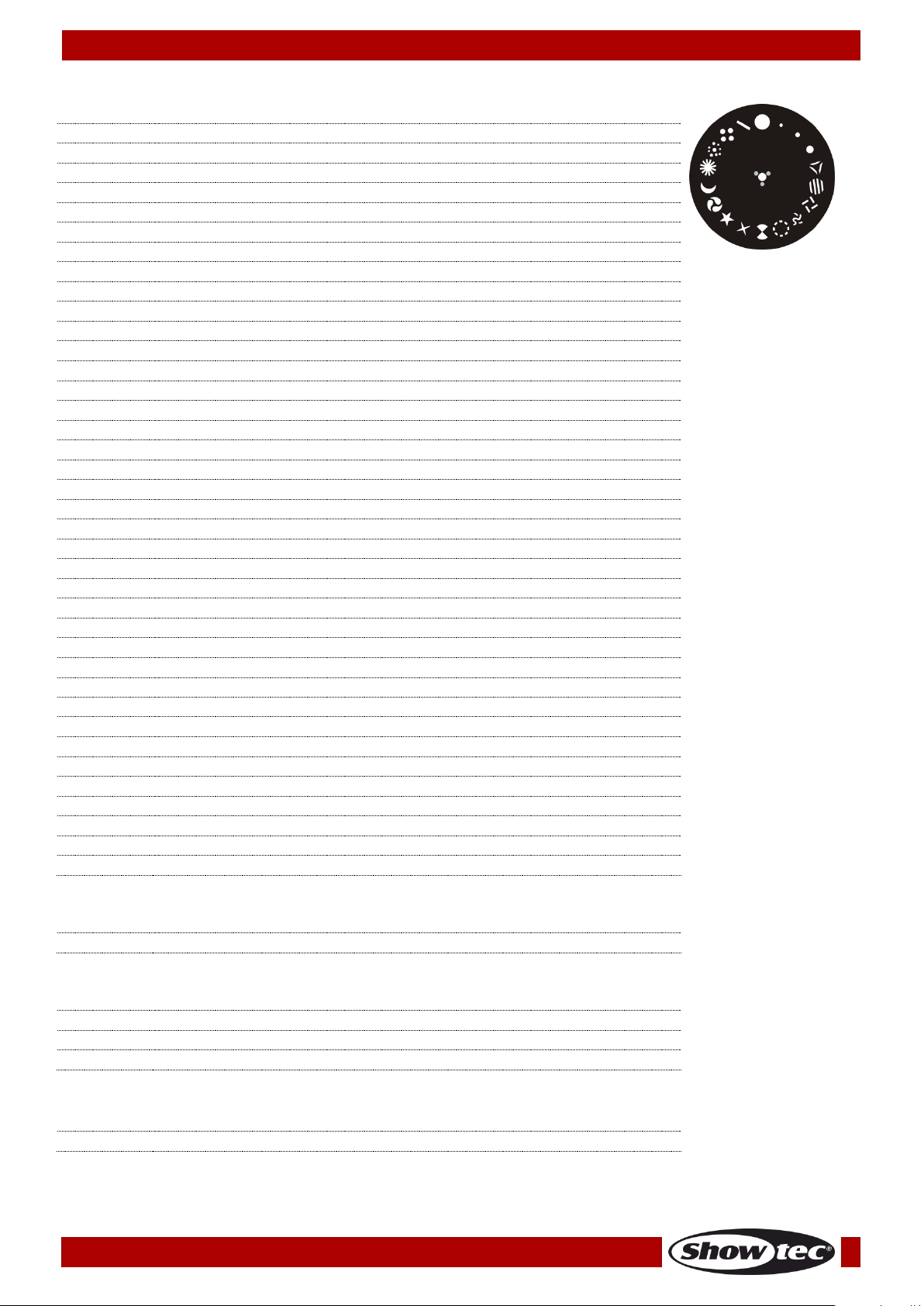

● Gobowheel: Static Gobowheel with 17 metal gobos and open
● Gobo functions: Gobo-flow effect, Gobo shake

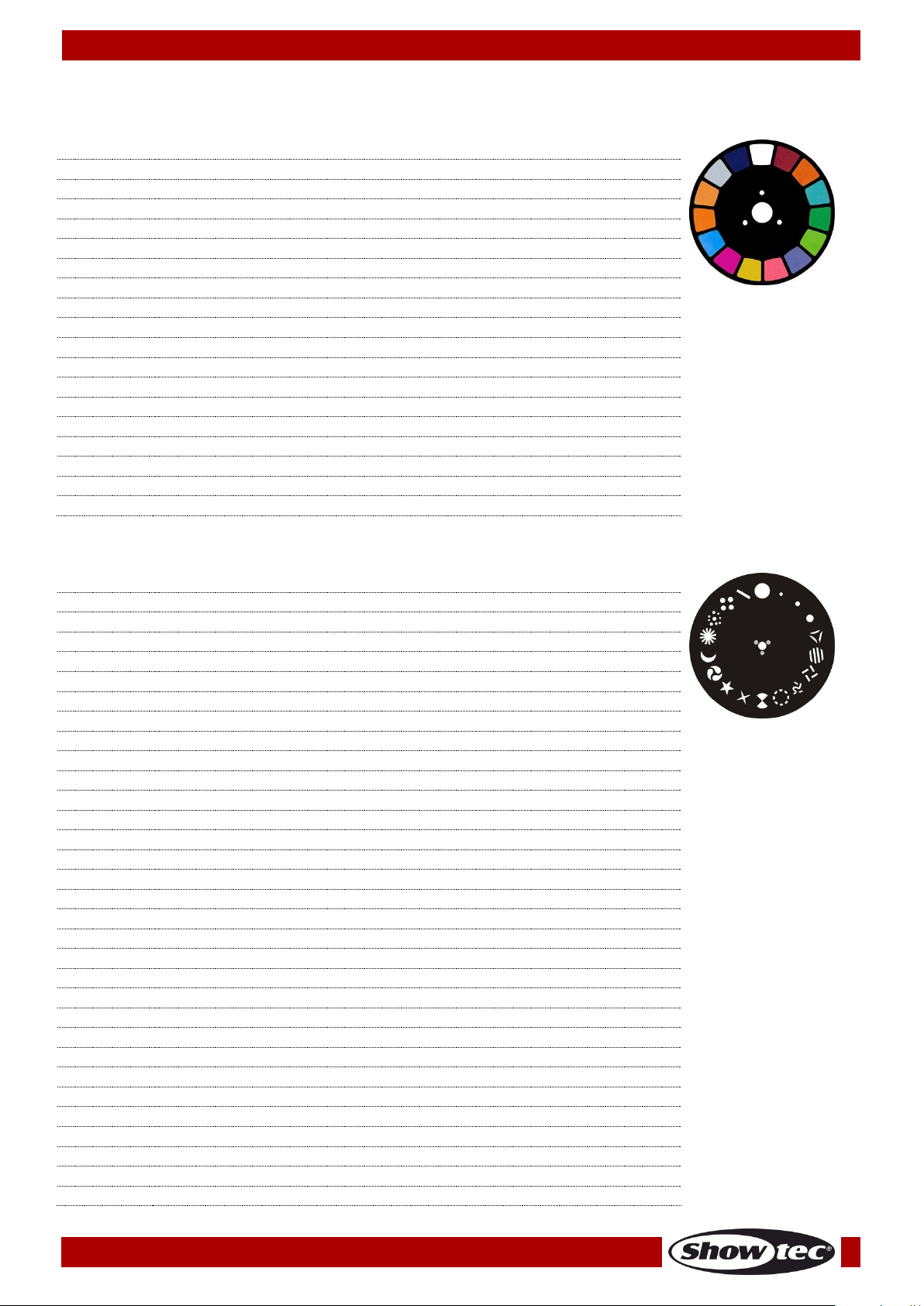

● Colorwheel: 14 dichroic-filters and white
● Color functions: Split colors, Rainbow-flow effect
● Rotation: Bi-directional
● Prismwheel 1: 5-facet rotating prism
● Prismwheel 2: 8-facet rotating prism
● 10 Built in programs selectable by DMX
● Light Source: Osram Sirius HRI 132W included
● Lamp socket: E19
● Color temp.: 9200K
● Beam Angle: 3°
● Input Voltage: 100-240 VAC
● Continuous Power 265W max. at full output
● Dimmer: 0-100%, mechanical
● Strobe: 0-20Hz
● Focus: Motorized
● Housing: Black Metal & Flame-retardant plastic
● Fixture Connection: XLR Data in/out (XLR 3-pin + XLR 5-pin)
● Neutrik Powercon IN
● User selectable Basic (15CH) or Advanced (19CH) operating modes
● Fuse F5A / 250V
● Dimensions: 303 x 366 x 475 mm (LxWxH)
● Weight: 17,78 kg
● Minimum distance to lighted objects: 6,5m
7
Ordercode: 41531
Infinity iB-2R
Overview
Backside
Fig. 01
Fig. 02
01) Lens
02) LCD Display
03) DMX signal connector (IN) 5-pin
04) DMX signal connector (OUT) 5-pin
05) DMX signal connector (IN) 3-pin
06) DMX signal connector (OUT) 3-pin
07) Neutrik Powercon IN
08) Fuse 5A/250V
09) ON/OFF
10) Earth connection
There are 2 modes:
Stand-alone (built-in programs)
DMX512 (15 or 19 Channels)
NOTE: Knowledge of DMX is required to fully utilize this unit.
Installation
Remove all packing materials from the Infinity iB-2R. Check that all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Control Modes
One Infinity (Built-in Programs)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Infinity is not connected by a DMX-cable, it functions as a stand-alone device.
05) Please see page 16 for more information about the built-in programs.
8
Ordercode: 41531
Infinity iB-2R
Multiple Infinity’s (DMX Control)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-p XLR cable to connect the Infinity’s and other devices.
05) Link the units as shown in (figure 03), Connect a DMX signal cable from the first unit's DMX "out" socket
to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
06) Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the
other end of the mains power cord into proper electric power supply sockets, starting with the first
unit. Do not supply power before the whole system is set up and connected properly.
Multiple Infinity’s DMX Set Up
9
Fig. 03
Note : Link all cables before connecting electric power
Ordercode: 41531
Infinity iB-2R
Important:
Fixtures on a serial data link must be daisy chained in one single line. To comply with the
EIA-485 standard no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of Infinitys on a DMX data link: 30 fixtures
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Data Cabling
To link fixtures together you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio Certified DMX Data Cables
• DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin.
Ordercode FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
• DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
• DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
The Infinity can be operated with a controller in control mode or without the controller in stand-alone
mode.
10
Ordercode: 41531
Infinity iB-2R
A)
B)
C)
D)
E)
F)
G)
H)
I)
J)
K)
Home button
Edit Menu button
Settings Mode Button
Address Setting Button
Infinity Logo Button
Up Button
Down Button
OK/ENTER
Left Button
Right Button
LCD Display
Fig. 04
Control Panel
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the Infinity will respond to the controller.
Please note when you use the controller, the unit has 19 channels.
When using multiple Infinity’s, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Infinity’s should be 1(001); the DMX address of the second Infinity
should be 1+19=20 (020); the DMX address of the third Infinity should be 20+19=39 (039), etc.
Please, be sure that you don’t have any overlapping channels in order to control each Infinity correctly.
If two or more Infinity’s are addressed similarly, they will work similarly.
Controlling:
After having addressed all Infinity fixtures, you may now start operating these via your lighting controller.
Note: After switching on, the Infinity will automatically detect whether DMX 512 data is received or not. If
there is no data received at the DMX-input, the “LED“ on the control panel will not flash.
The problem may be:
● The XLR cable from the controller is not connected with the input of the Infinity.
● The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
11
Ordercode: 41531
Infinity iB-2R
Menu Overview
12
Ordercode: 41531
Infinity iB-2R
DMX address
Edit Mode
Settings Menu
Built-in Programs
Test Mode
Info
Home
Up
Edit Menu
Down
Setting Mode
OK
Address Setting
Left
Infinity Logo
Right
Main Menu Options
1. DMX Addressing
With this menu you can set the DMX address.
01) Press the button and select .
02) Press the button, to confirm. You can choose 512 different DMX addresses.
Use the Left /Right / Up / Down buttons to select the required address from .
03) Once you have set the desired DMX address, press the button to store your DMX address.
13
Ordercode: 41531
Infinity iB-2R
2. Edit Mode
With this menu you can set your desired mode.
01) Press the button and select .
02) Press the button, to confirm. You can choose 3 different modes.
Use the Up / Down buttons to select the required mode:
03) Once you have selected the desired mode, press the buttons to change the value from
No to YES.
04) Once you have selected the desired setting, press the button to store your settings.
05) If the device has been set to master, all slave devices will follow the master movement.
06) If the device has been set to slave, it will react the same as its master device.
3. Settings Menu
With this menu you can set your desired mode.
01) Press the button and select .
02) Press the button, to confirm. You can choose 13 different modes.
Use the Up / Down buttons to select the required mode:
14
Ordercode: 41531
Infinity iB-2R
15
Ordercode: 41531
Infinity iB-2R
06) In the Lamp Setting menu you can set 8 options:
Lamp Setting On/Off [No/Yes]
State/Power On [No/Yes]
Off via DMX [No/Yes]
Off if DMX on [No/Yes]
Off if DMX off [No/Yes]
Ignition Delay [000-255]
Low Power Delay [000-255]
Reset Lamp Time [No/Yes]
07) In the Maintenance Timer menu you can set 2 options:
Interval [000-255]
Remain Time [000-255]
09) You can set 6 different reset options:
Pan/Tilt
Prism
Color
Gobo
Shutter/Focus
Reset All
03) Once you have selected the desired mode, press the buttons to change the value from
No to YES.
04) A couple of menus have more options, then your regular, yes or no function:
Pan Angle: 540°, 360°, 180°
Tilt Angle: 270°, 180°, 90°
05) If you press the OK button at the Lamp Setting menu, a new Menu will open.
08) If you press the OK button at the Reset function, a new Menu will open
10) Once you have selected the desired setting, press the button to store your settings.
4. Built-in Programs
With this menu you can set your desired mode.
01) Press the button and select .
02) Press the button, to confirm. You can choose 10 different modes.
Use the Up / Down buttons to select the required mode:
03) Once you have selected the desired mode, press the buttons to change the value from
No to YES.
04) Once you have selected the desired setting, press the button to store your settings.
16
Ordercode: 41531
Infinity iB-2R
5. Test Menu
With this menu you can set your desired mode.
01) Press the button and select .
02) Press the button, to confirm. You can choose 2 different modes.
Use the Up / Down buttons to select the required mode:
03) Once you have selected the desired mode, press the buttons to change the value from
000 to 255.
04) If you press the OK button at the Manual Test, a new Menu will open.
05) You can set 19 different Test options.
06) Once you have selected the desired setting, press the button to store your settings.
17
Ordercode: 41531
Infinity iB-2R
6. Information Menu
With this menu you can set your desired mode.
01) Press the button and select .
02) Press the button, to confirm.
03) You can only view 6 current settings, you cannot change anything
18
Ordercode: 41531
Infinity iB-2R
Channel 5 – PAN/TILT Speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 –Dimmer intensity (CH8 must be open )
0-255
From black to brightest
Channel 7 –Dimmer Fine (CH8 must be open )
0-255
From black to brightest
Channel 8 – Shutter / Strobe (CH6 must be open )
0-7
Close
8-15
Shutter open
16-131
Strobe effect, from slow to fast (0-10 flashes/sec.)
132-167
Fast close/shutter and slow opening, from slow to fast (0-10 flashes/sec.)
168-203
Slow close/shutter and fast opening, from slow to fast (0-10 flashes/sec.)
204-239
Pulse strobe effect, from slow to fast (0-10 flashes/sec.)
240-247
Random strobe effect, from slow to fast (0-10 flashes/sec.)
248-255
Shutter open
DMX Channels
19 Channels (Advanced)
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
19
Ordercode: 41531
Infinity iB-2R
Channel 9 – Colourwheel
Linear color change following the movement of the slider. Between 128-189 and 194-255, the color-wheel
rotates continuously the so-called “Rainbow” effect.
0-4
Open / White
5-8
Red
9-12
Deep Yellow/Orange
13-16
Turquoise
17-20
Green
21-24
Light Green/Yellow
25-28
Light Blue/Purple
29-32
Rose Red
33-36
Light Yellow
37-40
Pink
41-44
Blue
45-48
Warm White
49-52
½ CTO
53-56
Cool White
57-60
UV
61-127
Split Color
128-189
Clockwise rotation (CW) rainbow effect from fast to slow
190-193
Stop
194-255
Counter-clockwise rotation (CCW) rainbow effect from slow to fast
Channel 10 – Static Gobo-wheel + Gobo Shake
0-3
Open / White
4-6
Gobo 1
7-9
Gobo 2
10-12
Gobo 3
13-15
Gobo 4
16-18
Gobo 5
19-21
Gobo 6
22-24
Gobo 7
25-27
Gobo 8
28-30
Gobo 9
31-33
Gobo 10
34-36
Gobo 11
37-39
Gobo 12
40-42
Gobo 13
43-45
Gobo 14
46-48
Gobo 15
49-51
Gobo 16
52-55
Gobo 17
56-59
Open / White
60-63
Gobo Shake 1 from slow to fast
64-67
Gobo Shake 2 from slow to fast
68-71
Gobo Shake 3 from slow to fast
72-75
Gobo Shake 4 from slow to fast
76-79
Gobo Shake 5 from slow to fast
80-83
Gobo Shake 6 from slow to fast
84-87
Gobo Shake 7 from slow to fast
88-91
Gobo Shake 8 from slow to fast
92-95
Gobo Shake 9 from slow to fast
96-99
Gobo Shake 10 from slow to fast
100-103
Gobo Shake 11 from slow to fast
104-107
Gobo Shake 12 from slow to fast
108-111
Gobo Shake 13 from slow to fast
20
Ordercode: 41531
Infinity iB-2R
112-115
Gobo Shake 14 from slow to fast
116-119
Gobo Shake 15 from slow to fast
120-123
Gobo Shake 16 from slow to fast
124-127
Gobo Shake 17 from slow to fast
128-189
Clockwise rotation (CW) rainbow effect from fast to slow
190-193
Open
194-255
Counter-clockwise rotation (CCW) rainbow effect from slow to fast
Channel 11 – Prism 1
0-4
Open
5-255
5-facet Prism Effect
Channel 12 – Prism 1 rotation
0-127
Prism-indexing
128-189
Clockwise rotation (CW) from fast to slow
190-193
Stop
194-255
Counter-clockwise rotation (CCW) from slow to fast
Channel 13 – Prism 2
0-4
Open
5-255
8-facet Prism Effect
Channel 14 – Prism 2 rotation
0-127
Prism-indexing
128-189
Clockwise rotation (CW) from fast to slow
190-193
Stop
194-255
Counter-clockwise rotation (CCW) from slow to fast
Channel 15 – Prism Fine 16-bit
0-255
Prism-indexing fine
Channel 16 – Focus
0-255
Continuous adjustment from far to near
Channel 17 – Channel Functions
0-29
No Function
30-39
Regular Dim Mode
40-49
Linear Dim Mode
50-59
X/Y Fast Mode
60-69
X/Y Regular
70-79
Blackout during Pan/Tilt movement
80-89
Disable blackout during Pan/Tilt movement
90-99
Color wheel blackout during color wheel movement
100-109
Interrupt disabling shade
110-119
Design interruption allows
120-129
Interrupt disabling pattern
130-139
Open
140-149
Reset Pan/Tilt after 3 seconds
150-159
Reset Color wheel rotation after 3 seconds
160-169
Reset Gobo rotation after 3 seconds
170-179
Reset Shutter/Prism after 3 seconds
180-189
No Function
190-199
Reset Frost Effect / Focus
200-209
Reset All
210-219
Allows all interrupt
220-229
All interrupt disabling
230-239
Close
21
Ordercode: 41531
Infinity iB-2R
240-247
XY Smoothing model open
248-255
XY Smoothing model to shut down
Channel 18 – Built-in Programs (CH6 and CH8 must be open )
0-7
No Function
8-15
Built-in Program 1
16-23
Built-in Program 2
24-31
Built-in Program 3
32-39
Built-in Program 4
40-47
Built-in Program 5
48-55
Built-in Program 6
56-63
Built-in Program 7
64-71
Built-in Program 8
72-79
Built-in Program 9
80-87
Built-in Program 10
88-95
Built-in Program 11
96-103
Built-in Program 12
104-111
Built-in Program 13
112-119
Built-in Program 14
120-127
Built-in Program 15
128-135
Built-in Program 16
136-143
Built-in Program 17
144-151
Built-in Program 18
152-159
Built-in Program 19
160-167
Built-in Program 20
168-175
Built-in Program 21
176-183
Built-in Program 22
184-191
Built-in Program 23
192-199
Built-in Program 24
200-207
Built-in Program 25
208-215
Built-in Program 26
216-223
Built-in Program 27
224-231
Built-in Program 28
232-239
Built-in Program 29
240-247
Built-in Program 30
248-255
Built-in Program 31
Channel 19 – Built-in Speed; Use in combination with CH18
0-255
From slow to fastest
22
Ordercode: 41531
Infinity iB-2R
Channel 5 – PAN/TILT Speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 –Dimmer intensity (CH7 must be open )
0-255
From black to brightest
Channel 7 – Shutter / Strobe (CH6 must be open )
0-7
Close
8-15
Shutter open
16-131
Strobe effect, from slow to fast (0-10 flashes/sec.)
132-167
Fast close/shutter and slow opening, from slow to fast (0-10 flashes/sec.)
168-203
Slow close/shutter and fast opening, from slow to fast (0-10 flashes/sec.)
204-239
Pulse strobe effect, from slow to fast (0-10 flashes/sec.)
240-247
Random strobe effect, from slow to fast (0-10 flashes/sec.)
248-255
Shutter open
Channel 8 – Colourwheel
Linear color change following the movement of the slider. Between 128-189 and 194-255, the color-wheel
rotates continuously the so-called “Rainbow” effect.
0-4
Open / White
5-8
Red
9-12
Deep Yellow/Orange
13-16
Turquoise
17-20
Green
21-24
Light Green/Yellow
25-28
Light Blue/Purple
29-32
Rose Red
33-36
Light Yellow
37-40
Pink
41-44
Blue
45-48
Warm White
49-52
½ CTO
53-56
Cool White
57-60
UV
61-127
Split Color
128-189
Clockwise rotation (CW) rainbow effect from fast to slow
190-193
Stop
194-255
Counter-clockwise rotation (CCW) rainbow effect from slow to fast
15 Channels (Basic)
Channel 1 – Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
23
Ordercode: 41531
Infinity iB-2R
Channel 9 – Static Gobo-wheel + Gobo Shake
0-3
Open / White
4-6
Gobo 1
7-9
Gobo 2
10-12
Gobo 3
13-15
Gobo 4
16-18
Gobo 5
19-21
Gobo 6
22-24
Gobo 7
25-27
Gobo 8
28-30
Gobo 9
31-33
Gobo 10
34-36
Gobo 11
37-39
Gobo 12
40-42
Gobo 13
43-45
Gobo 14
46-48
Gobo 15
49-51
Gobo 16
52-55
Gobo 17
56-59
Open / White
60-63
Gobo Shake 1 from slow to fast
64-67
Gobo Shake 2 from slow to fast
68-71
Gobo Shake 3 from slow to fast
72-75
Gobo Shake 4 from slow to fast
76-79
Gobo Shake 5 from slow to fast
80-83
Gobo Shake 6 from slow to fast
84-87
Gobo Shake 7 from slow to fast
88-91
Gobo Shake 8 from slow to fast
92-95
Gobo Shake 9 from slow to fast
96-99
Gobo Shake 10 from slow to fast
100-103
Gobo Shake 11 from slow to fast
104-107
Gobo Shake 12 from slow to fast
108-111
Gobo Shake 13 from slow to fast
112-115
Gobo Shake 14 from slow to fast
116-119
Gobo Shake 15 from slow to fast
120-123
Gobo Shake 16 from slow to fast
124-127
Gobo Shake 17 from slow to fast
128-189
Clockwise rotation (CW) rainbow effect from fast to slow
190-193
Open
194-255
Counter-clockwise rotation (CCW) rainbow effect from slow to fast
Channel 10 – Prism 1
0-4
Open
5-255
5-facet Prism Effect
Channel 11 – Prism 1 rotation
0-127
Prism-indexing
128-189
Clockwise rotation (CW) from fast to slow
190-193
Stop
194-255
Counter-clockwise rotation (CCW) from slow to fast
Channel 12 – Prism 2
0-4
Open
5-255
8-facet Prism Effect
24
Ordercode: 41531
Infinity iB-2R
Channel 13 – Prism 2 rotation
0-127
Prism-indexing
128-189
Clockwise rotation (CW) from fast to slow
190-193
Stop
194-255
Counter-clockwise rotation (CCW) from slow to fast
Channel 14 – Focus
0-255
Continuous adjustment from far to near
Channel 15 – Channel Functions
0-29
No Function
30-39
Regular Dim Mode
40-49
Linear Dim Mode
50-59
X/Y Fast Mode
60-69
X/Y Regular
70-79
Blackout during Pan/Tilt movement
80-89
Disable blackout during Pan/Tilt movement
90-99
Color wheel blackout during color wheel movement
100-109
Interrupt disabling shade
110-119
Design interruption allows
120-129
Interrupt disabling pattern
130-139
Open
140-149
Reset Pan/Tilt after 3 seconds
150-159
Reset Color wheel rotation after 3 seconds
160-169
Reset Gobo rotation after 3 seconds
170-179
Reset Shutter/Prism after 3 seconds
180-189
No Function
190-199
Reset Frost Effect / Focus
200-209
Reset All
210-219
Allows all interrupt
220-229
All interrupt disabling
230-239
Close
240-247
XY Smoothing model open
248-255
XY Smoothing model to shut down
25
Ordercode: 41531
Infinity iB-2R
Fig. 05
Channel settings
Maintenance
The Showtec Infinity iB-2R requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and
then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft
cloth. Do not use alcohol or solvents. The front glass panel will require weekly cleaning, as smoke-fluid
tends to build up residues, reducing the light-output very quickly. Do not immerse in liquid.
The cooling-fans, colour-wheel, the gobowheel, the gobos and the internal lenses should be cleaned
monthly with a soft brush.
Please clean internal components once a year with a light brush and vacuum cleaner.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
Replacing a Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below to do
so.
01) Unplug the unit from electric power source.
02) Insert a screwdriver into the slot in the fuse cover. Turn the screwdriver to the left, at the same time
gently push a bit (Turn and Push). The fuse will come out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to
use a fuse of the same type and specification. See the product specification label for details.
26
Ordercode: 41531
Infinity iB-2R
Fig. 06
Battery Replacement
(must be carried out by a qualified technician!)
01) Unplug the unit from the electric power source.
02) Remove the 6 screws on the front side of the Infinity.
03) Gently pull the front cover from the device.
04) Disconnect the plug from the PCB.
05) Remove the 2 screws holding the battery pack in place.
06) Replace the old battery pack with a new one.
07) Replace the maintenance cap and fasten all screws.
27
Ordercode: 41531
Infinity iB-2R
Troubleshooting
No Light
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
If the light effect does not operate properly, refer servicing to a technician.
Response: Suspect four potential problem areas as: factory reset, the power supply, the LED, the fuse.
01) First try to reset the device to its original factory default settings (3-Settings Menu see page 16).
02) Power supply. Check that the unit is plugged into an appropriate power supply.
03) The LEDs. Return the Infinity to your Showtec dealer.
04) The fuse. Replace the fuse. See page 26 for replacing the fuse.
05) If all of the above appears to be O.K., plug the unit in again.
06) If you are unable to determine the cause of the problem, do not open the Infinity, as this may
damage the unit and the warranty will become void.
07) Return the device to your Showtec dealer.
No Response to DMX
Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card
malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products ? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
See next page for more problem solving.
28
Ordercode: 41531
Infinity iB-2R
Problem
Probable cause(s)
Remedy
One or more
fixtures are
completely dead.
No power to the fixture.
● Check that power is switched on and
cables are plugged in.
Primary fuse blown.
● Replace fuse.
Fixtures reset
correctly, but all
respond erratically
or not at all to the
controller.
The controller is not connected.
● Connect controller.
3-pin XLR Out of the controller does
not match XLR Out of the first fixture
on the link (i.e. signal is reversed).
● Install a phase reversing cable between
the controller and the first fixture on the
link.
Fixtures reset
correctly, but some
respond erratically
or not at all to the
controller.
Poor data quality
● Check data quality. If much lower than
100 percent, the problem may be a
bad data link connection, poor quality
or broken cables, missing termination
plug, or a defective fixture disturbing
the link.
Bad data link connection
● Inspect connections and cables.
Correct poor connections. Repair or
replace damaged cables.
Data link not terminated with 120
Ohm termination plug.
● Insert termination plug in output jack of
the last fixture on the link.
Incorrect addressing of the fixtures.
● Check address setting.
One of the fixtures is defective and
disturbs data transmission on the
link.
● Bypass one fixture at a time until normal
operation is regained: unplug both
connectors and connect them directly
together.
● Have the defective fixture serviced by a
qualified technician.
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed).
● Install a phase-reversing cable between
the fixtures or swap pin 2 and 3 in the
fixture, that behaves erratically.
Shutter closes
suddenly
The color wheel, gobowheel or a
gobo has lost its index position and
the fixture is resetting the effect.
● Contact a technician for servicing the
problem persists.
No light or lamp
cuts out
intermittently
Fixture is too hot.
● Allow fixture to cool.
● Clean fan.
● Make sure air vents at control panel
and front lens are not blocked.
● Turn up the air conditioning .
LEDs damaged
● Disconnect fixture and return to your
dealer.
The power supply settings do not
match local AC voltage and
frequency.
● Disconnect fixture. Check settings and
correct if necessary.
29
Ordercode: 41531
Infinity iB-2R
Model:
Showtec Infinity iB-2R
Input Voltage:
100-240 VAC
Continuous Power:
265W max. at full output
Fuse:
F5A / 250V
Dimensions:
303 x 366 x 475 mm (LxWxH)
Weight:
17,78 kg
Operation and Programming
Signal pin OUT:
pin 1 earth, pin 2 (-), pin 3 (+)
Set Up and Addressing:
LED control panel
Pan/Tilt resolution:
8-16 bit
DMX Channels:
19 or 15
Signal input:
3-pin and 5-pin XLR male
Signal output:
3-pin and 5-pin XLR female
Electro-mechanical effects
On-Board: Battery powered full color display including gravity sensor
Beam effect
High torque motors
Ultra-fast movements
On-Board: 16x2 Character display
DMX-control via standard DMX-controller
User-selectable Pan & Tilt ranges, 540° / 360° / 180° / 90°
Reverse Pan / Tilt movement
Special: Pan / Tilt movement, Color, Gobo blackout
Pan 0º -- 540º, Tilt 0º -- 270º
Pan/Tilt resolution: 16 bit
Control: DMX-512, Built-in Programs
10 Built in programs selectable by DMX
Gobowheel: Static Gobowheel with 17 metal gobos and open
Gobo functions: Gobo-flow effect, Gobo shake
Colorwheel: 14 dichroic-filters and white
Color functions: Split colors, Rainbow-flow effect
Rotation: Bi-directional
Prismwheel 1+2: 5-facet and 8-facet prism
Frost filter: Yes
Color temp.: 9200K
Light Source: Osram Sirius HRI 132W included; Lamp socket: E19
Beam Angle: 3° Electronic adjustment
Dimmer: 0-100%, mechanical
Strobe: 0-20Hz
Focus: Motorized focus
Housing: Black Metal & Flame-retardant plastic
Neutrik Powercon IN
Gobos
Colourwheel:
heat-resistant and intensify glass; dichroic glas coating
Max. ambient temperature ta:
40°C; Max. housing temperature tB: 80°C
Motor:
high quality stepping-motor controlled by microprocessors
Minimum distance:
Minimum distance from flammable surfaces:
0.5m
Minimum distance to lighted object:
6,5m
Product Specification
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
Email: service@highlite.nl
30
Ordercode: 41531
Infinity iB-2R
Dimensions
31
Ordercode: 41531
Infinity iB-2R

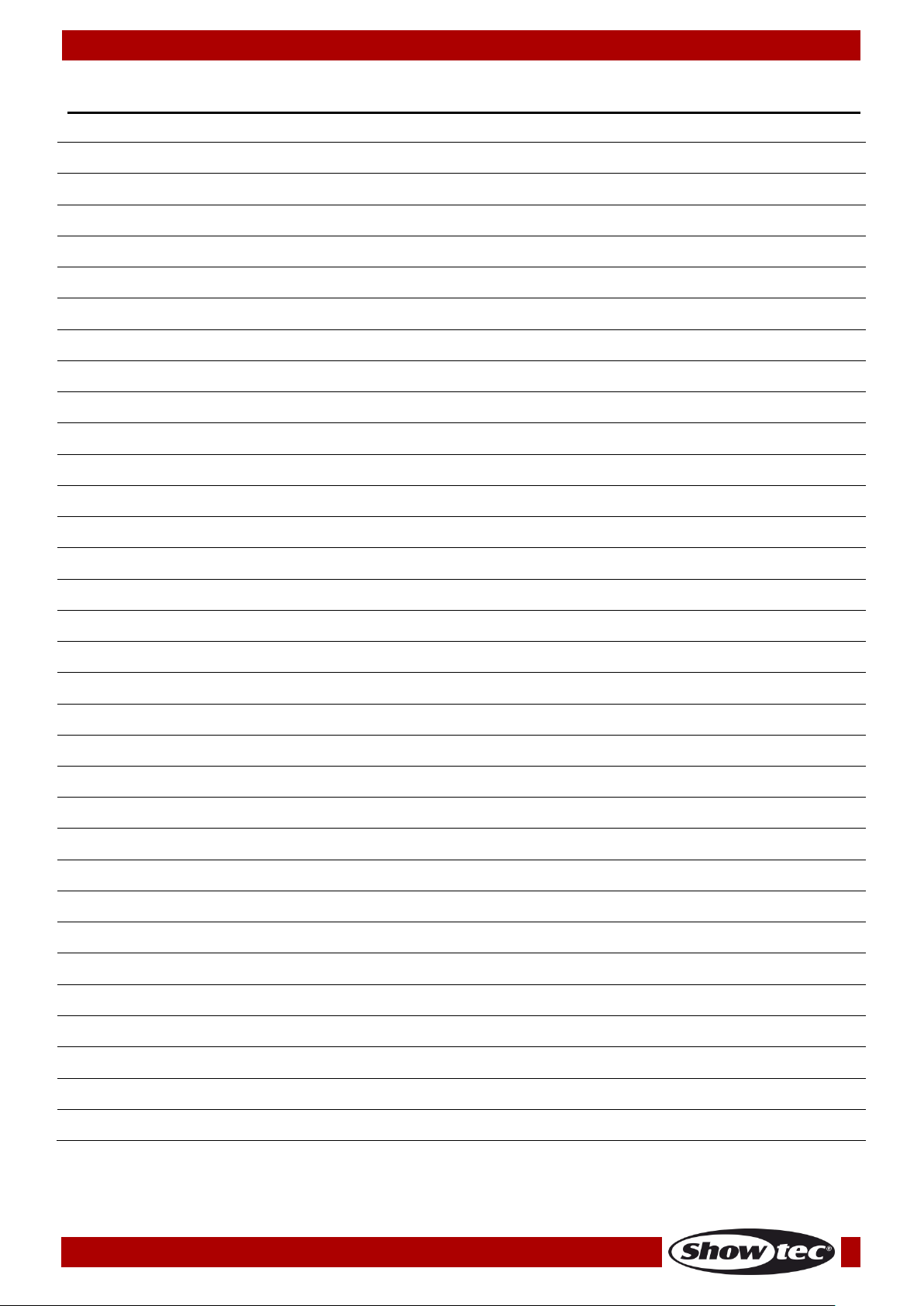

Notes
32
Ordercode: 41531
Infinity iB-2R
33
Ordercode: 41531
Infinity iB-2R
34
©2015 Showtec
Loading...
