Galactic G300 V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 51332
MANUAL
ENGLISH
Ordercode: 51332
Galactic G300
Table of contents
Warning ............................................................................................................................................................................... 2
Unpacking Instructions ................................................................................................................................................. 2
Safety Instructions ......................................................................................................................................................... 3
Operating Determinations .......................................................................................................................................... 4
Rigging ............................................................................................................................................................................ 6
Connection with the mains......................................................................................................................................... 7
Return Procedure .......................................................................................................................................................... 8
Claims .............................................................................................................................................................................. 8
Description of the device ................................................................................................................................................. 9
Overview ........................................................................................................................................................................ 9

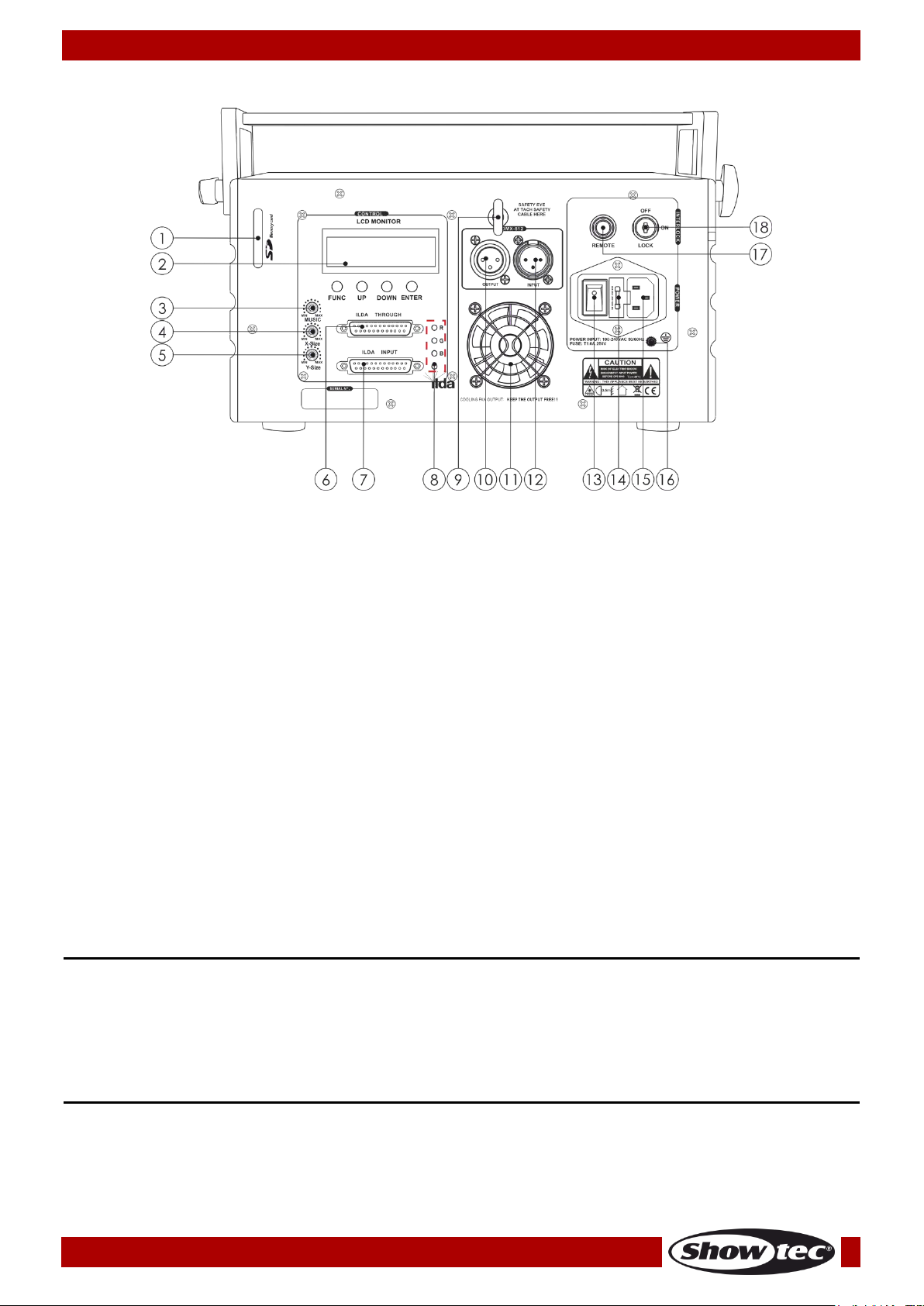

Backside .......................................................................................................................................................................10
Installation .........................................................................................................................................................................10
Set Up and Operation .....................................................................................................................................................10
Control Modes .............................................................................................................................................................12
One Galactic (Autoshow 1+2) ..............................................................................................................................12
One Galactic (Sound-controlled Musicshow 1+2) ............................................................................................12
Multiple Galactics (Master/Slave Mode) ............................................................................................................12
Multiple Galactics (DMX Control) .........................................................................................................................13
Fixture Linking ...............................................................................................................................................................14
Data Cabling ...............................................................................................................................................................14

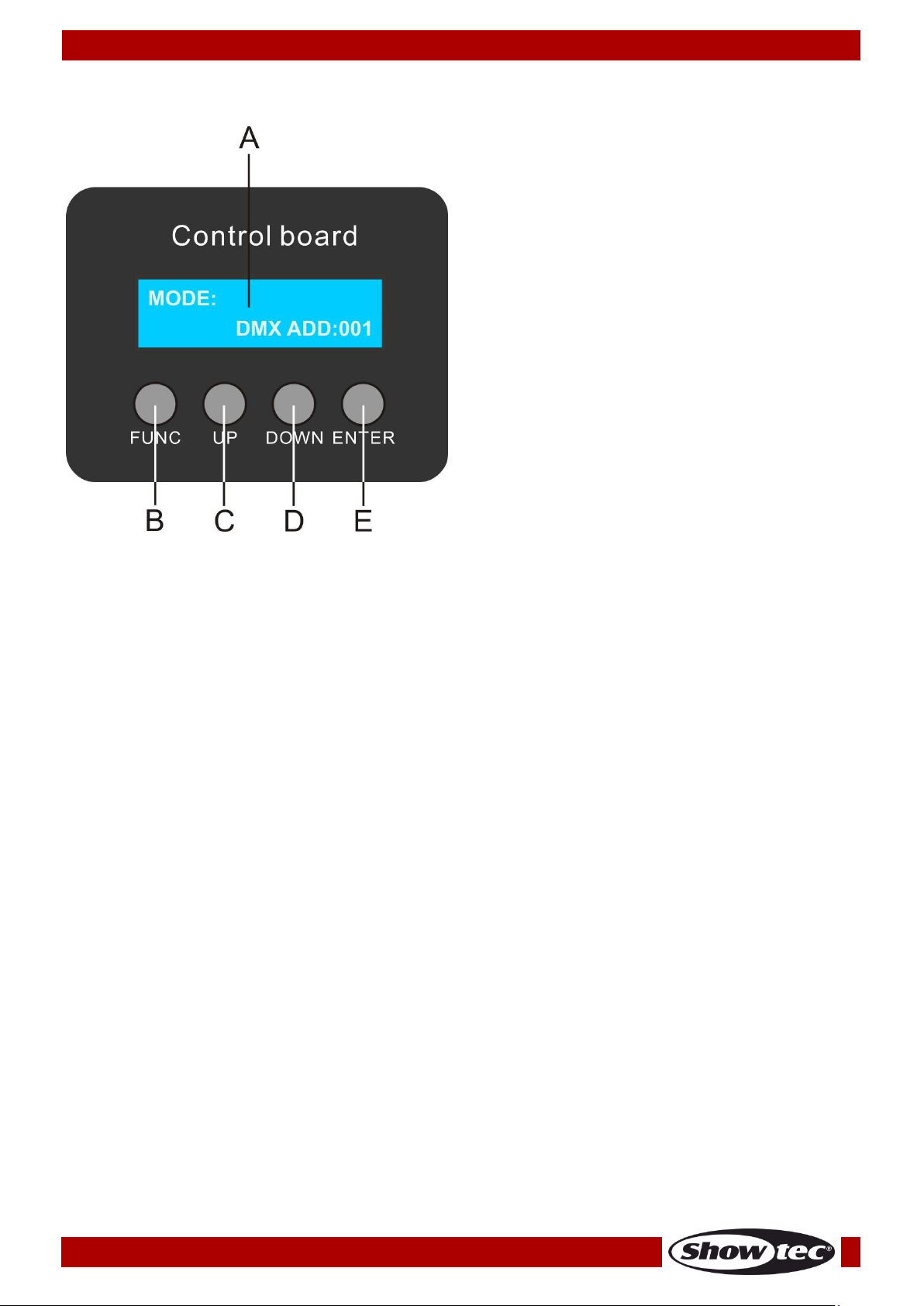

Control Panel ...............................................................................................................................................................15
Control Mode ..............................................................................................................................................................15
DMX Addressing ..........................................................................................................................................................15

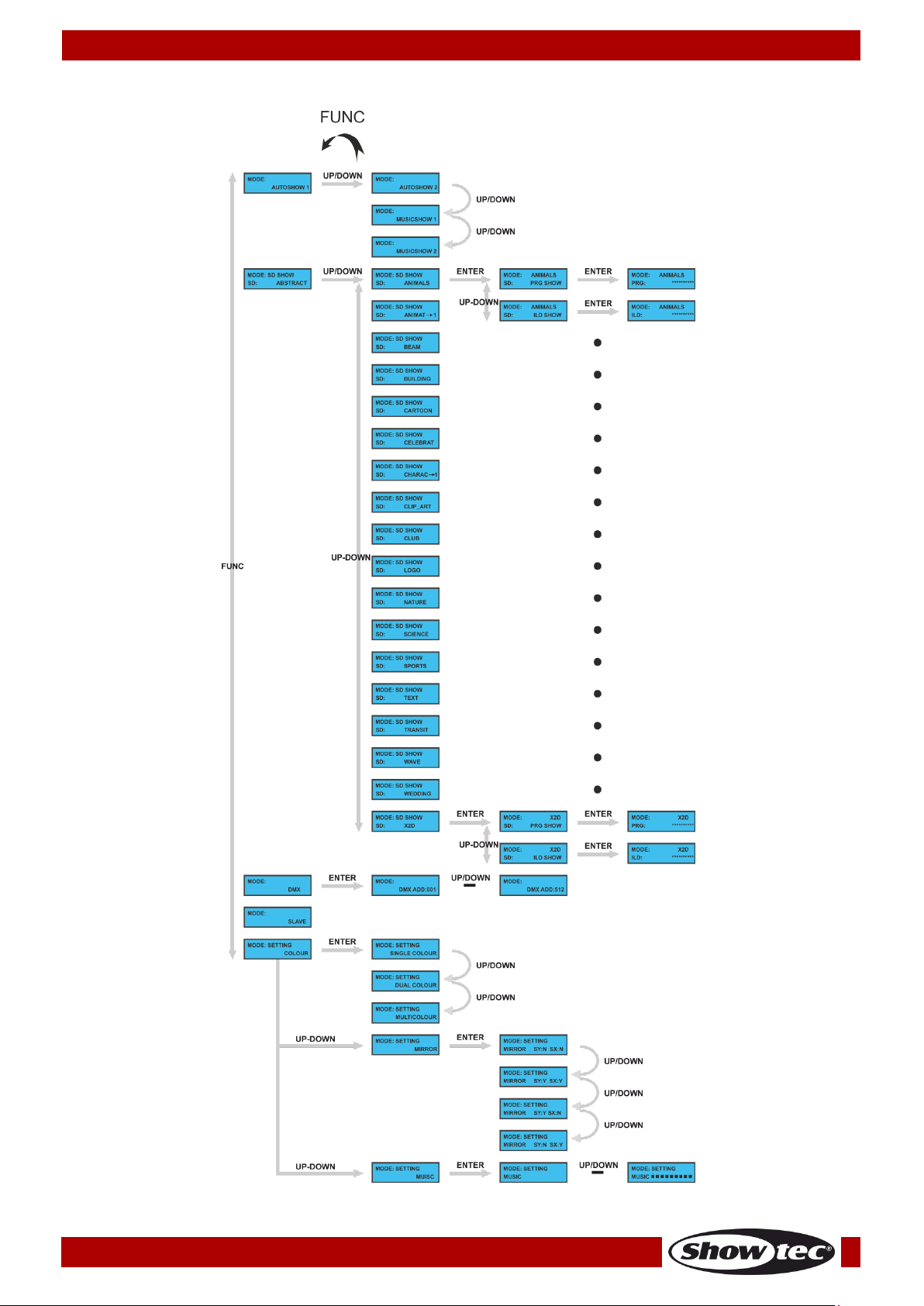

Menu Overview ...........................................................................................................................................................16

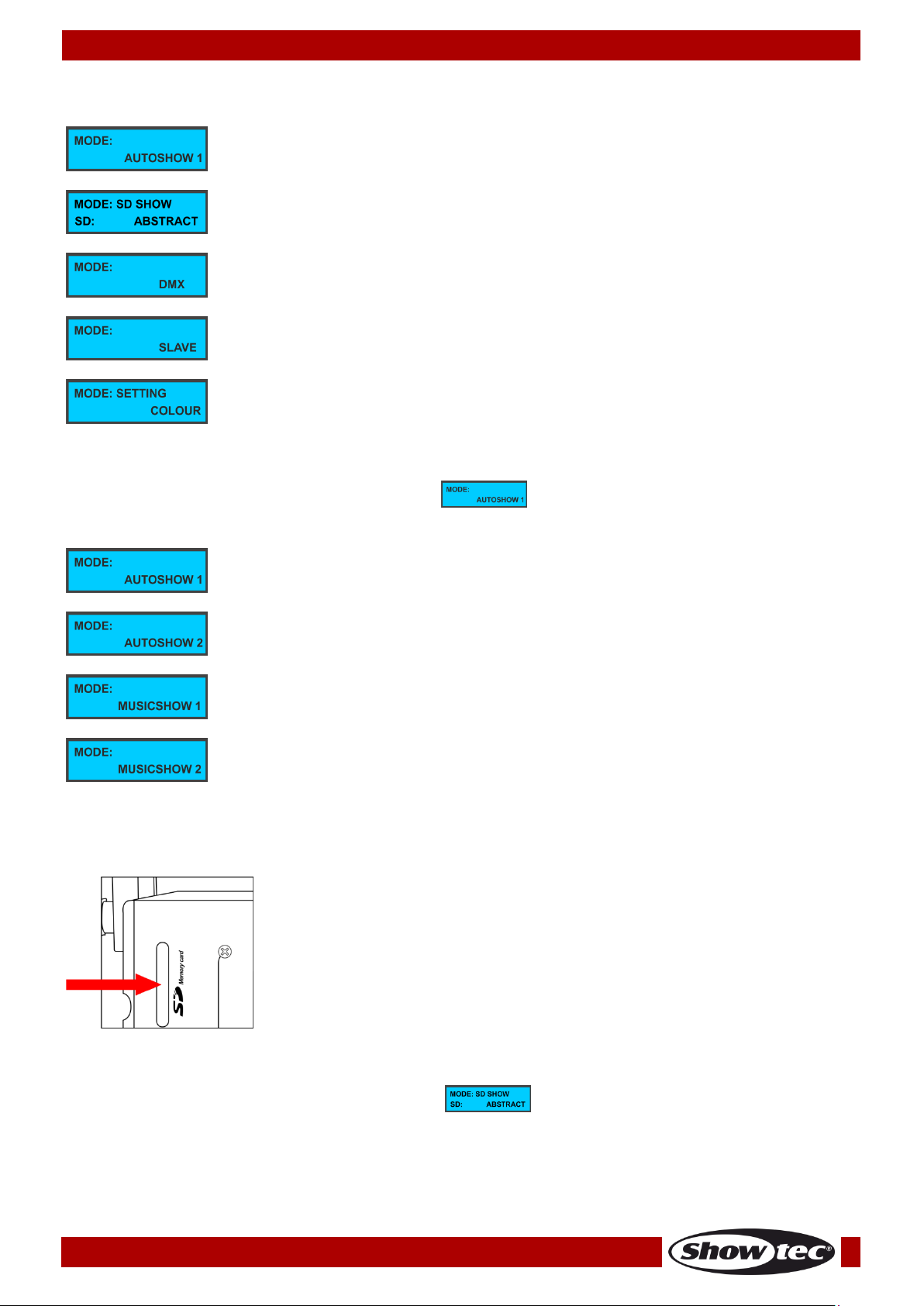

Main Menu Options ....................................................................................................................................................17
1. Automatic / Sound-controlled Show ...............................................................................................................17
2. SD Show .................................................................................................................................................................17

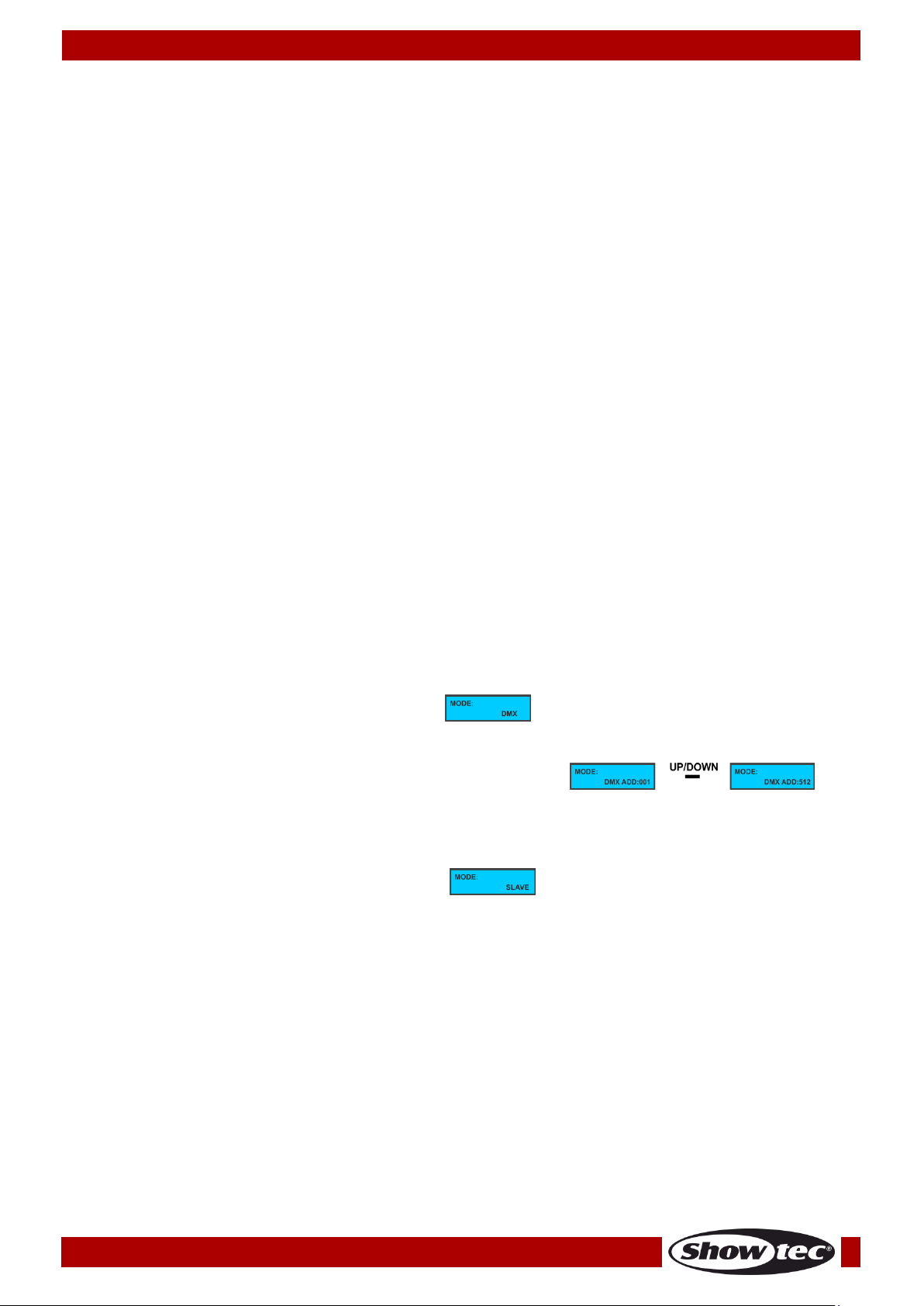

3. DMX Mode ............................................................................................................................................................19
4. Master/Slave Mode .............................................................................................................................................19

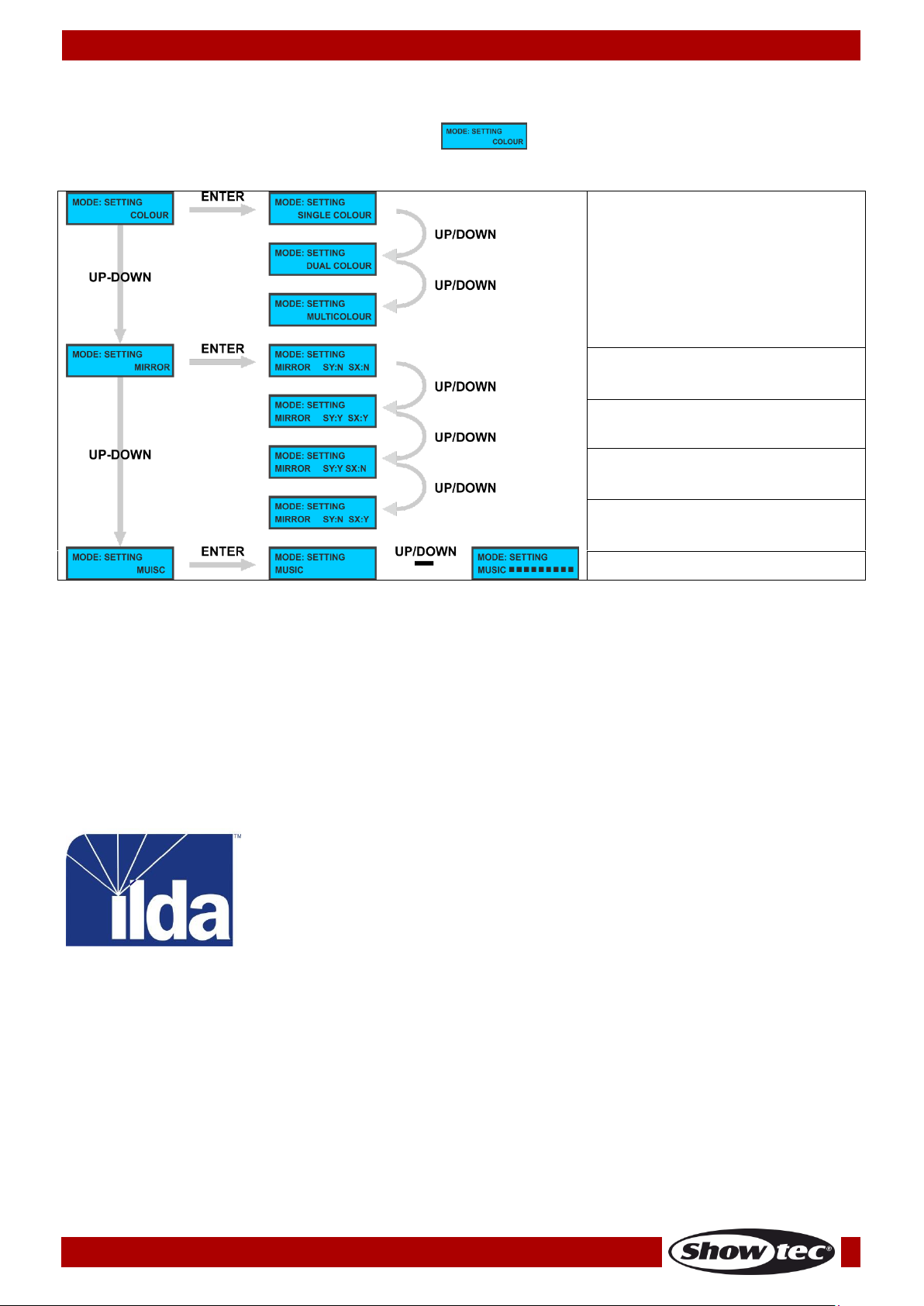

5. Settings Mode.......................................................................................................................................................20
DMX Channels .............................................................................................................................................................21
13 channels ...............................................................................................................................................................21

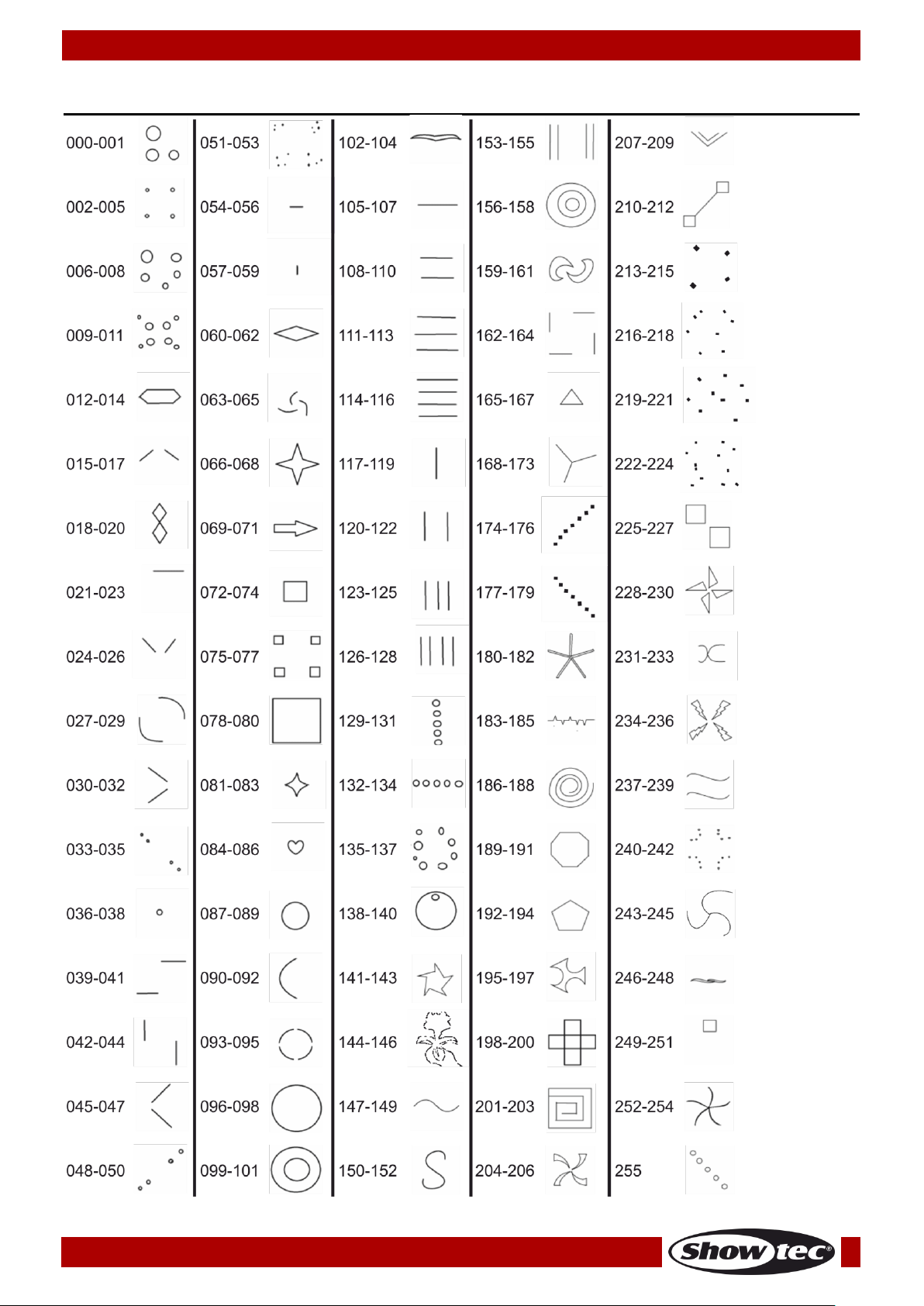

Patterns ..............................................................................................................................................................................23
ILD and PRG files ..............................................................................................................................................................24
Maintenance ....................................................................................................................................................................27
Replacing the Fuse .....................................................................................................................................................27
Troubleshooting ...............................................................................................................................................................27
No Light .........................................................................................................................................................................27
No Response to DMX..................................................................................................................................................27
Product Specifications ....................................................................................................................................................29
Dimensions ........................................................................................................................................................................30
1
Ordercode: 51332
Galactic G300
Your shipment includes:
● Showtec Galactic G300
● IEC power cable – 1,75 m
● Remote control plug
● 2 interlock keys
● User manual
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
2
Ordercode: 51332
Galactic G300
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
● be qualified
● follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
• Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
• Never remove warning or informative labels from the unit.
• Never use anything to cover the ground contact.
• Never place any material over the lens.
• Never look directly into the light source.
• Never leave any cables lying around.
• Never aim the laser beam at people or animals!
• Never use the device during thunderstorms, unplug the device immediately.
• Never point a laser at aircraft, this is a federal offense.
• Never point un-terminated laser beams into the sky.
• Never open the laser housing. The high laser power levels inside of the protective housing can start
fires, burn skin and will cause instant eye injury.
• Do not insert objects into air vents.
• Do not connect this device to a dimmerpack.
• Do not open the device and do not modify the device.
• Do not point lasers at highly reflective surfaces such as windows, mirrors and shiny metal. Even laser
reflections can be hazardous.
• Do not expose the output optic (aperture) to cleaning chemicals.
• Do not use laser if the laser appears to be emitting only one or two beams.
• Do not use laser if housing is damaged or open, or if optics appear damaged in any way.
• Do not operate laser without first reading and understanding all safety and technical data in this
manual. Never look into the laser aperture or laser beams.
• Do not switch the device on and off in short intervals, as this would reduce the device’s life.
• Do not shake the device. Avoid brute force when installing or operating the device.
• After set up and prior to public use, test laser to ensure proper function. Do not use the laser if any
defect is detected. Do not use, if the laser emits only one or two laser beams rather than
dozens/hundreds, as this could indicate damage to the diffraction grating optic, and could allow
emission of higher laser levels.
• Only use device indoor, avoid contact with water or other liquids.
• Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
• Only operate the device after having familiarized with its functions.
• Avoid flames and do not put close to flammable liquids or gases.
• Always check the regulations when using a class IIIB laser product.
3
Ordercode: 51332
Galactic G300
• Always check and position the laser before anybody enters the room, when the laser is facing an
area with people.
• Always keep case closed while operating.
• Always allow free air space of at least 50 cm around the unit for ventilation.
• Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord by the plug. Never pull out the plug by tugging the power cord.
• Make sure that the device is not exposed to extreme heat, moisture or dust.
• Make sure that the available voltage is not higher than stated on the rear panel.
• Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
• If the external cable is damaged, it has to be replaced by a qualified technician.
• If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to
cracks or deep scratches.
• If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
• If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
• If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
• For adult use only. Device must be installed out of the reach of children. Never leave the unit running
unattended.
• Never attempt to bypass the thermostatic switch or fuses.
• For replacement use fuses of same type and rating only.
• The operation of a class 4 laser show laser is only allowed if the show is controlled by a skilled and
well-trained operator familiar with the data included in this manual.
• The user is responsible for correct positioning and operating of the Galactic G300. The manufacturer
will not accept liability for damages caused by the misuse or incorrect installation of this device.
• This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
• The laser will only work between 15-35ºC.
• After 3 hours working, you must shut off the laser and let the laser diode cool off for 30 minutes,
otherwise the laser could be damaged and the warranty becomes void.
• Repairs, servicing and electric connection must be carried out by a qualified technician.
• WARRANTY: Till one year after date of purchase.
Operating Determinations
● This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
● The minimum distance between light-output and the illuminated surface must be more than 1 meter.
● The maximum ambient temperature ta = 35°C must never be exceeded.
● The relative humidity must not exceed 50 % with an ambient temperature of 30° C.
● If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
● Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
4
Ordercode: 51332
Galactic G300
CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with laser
light. Never intentionally expose your eyes or others to direct laser radiation.
Laser Classification
Class IIIB
Cooling
TE Cooling and Cooling fan
Laser medium
wavelength 532 nm / Green (DPSS), 40mW
Output
300mW Green
Beam Diameter
<5mm at aperture
Scanning ILDA Standard
20Kpps
Divergence (each beam)
<2 mrad
Divergence (total light)
<90 degrees
Laser Light is different from any other light source with which you may be familiar. The light from this
product can potentially cause instant eye injury if not set up and used properly.
Laser light is thousands of times more concentrated than light from any other kind of light source. This
concentration of light power can cause instant eye injuries, primarily by burning the retina (the light
sensitive portion at the back of the eye). Even if you cannot feel “heat” from a laser beam, it can still
potentially injure or blind you or your audience.
Even very small amounts of laser light are potentially hazardous even at long distances. Laser eye injuries
can happen quicker than you can blink.
It is incorrect to think that because these laser products split the laser into hundreds of beams or the laser
beam is scanned out in high speed, that an individual laser beam is safe for eye exposure. This laser
product uses dozens of milliWatts of laser power (Class 3B levels internally). Many of the individual beams
are potentially hazardous to the eyes.
It is also incorrect to assume that because the laser light is moving, it is safe. This is not true. Nor, do the
laser beams always move. Since eye injuries can occur instantly, it is critical to prevent the possibility of
any direct eye exposure. According to the laser safety regulation, it is not legal to aim Class 3B lasers in
areas which people can get exposed. This is true even if it is aimed below people’s faces, such as on a
dance floor.
Compliance Statement
Your Galactic Laser has been designed to comply with FDA and IEC Standards for it classification.
The Galactic is a Class IIIB laser product.
Laser Safety and Compliance Information
The Galactic is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and
Drug Administration (FDA) Standards Listed under FDA Document 21 CFR 1040 and subsequent laser
notices.
Product Classification and Manufacturing Label Identification
The legal requirements for using laser entertainment products vary from country to country. The user is
responsible for the legal requirements at the location/country of use.
Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard
“For Safe Use of Lasers”, available from www.laserinstitute.org. Many local governments, corporations,
agencies, military and others, require all lasers to be used under the guidelines of ANSI Z136.1. Laser
Display guidance can be obtained via the International Laser Display Association, www.laserist.org.
CAUTION: The use of corrective eye wear or optics for viewing at distances such as telescopes or
binoculars within a distance of 100mm may pose an eye hazard.
5
Ordercode: 51332
Galactic G300
This laser product is a Class IIIB laser and has an Interlocked
housing.
There are no user serviceable parts inside. Tampering or
removing warranty seals will void your products limited
warranty.
Combo label with the Product Model Number, Serial Number,
Date of Manufacturing, Laser Light Warning Label, Warranty
Void Label and Interlocked Housing Label
According to FDA Regulations you
should operate this product as stated on
the left.
Proper Usage Safety and Compliance Information
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
● If the Galactic is lowered from the ceiling or high joists, professional trussing systems have to be used.
● Use a clamp to mount the Galactic, with the mounting-bracket, to the trussing system.
● The Galactic must never be fixed swinging freely in the room.
● The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
● When rigging, derigging or servicing the Galactic, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
6
Ordercode: 51332
Galactic G300
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
The Galactic can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
Improper installation can cause serious damage to people and property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
Make sure that the device is always connected properly to the earth!
Improper installation can cause serious damage to people and property!
7
Ordercode: 51332
Galactic G300
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
8
Ordercode: 51332
Galactic G300
Fig. 01
Description of the device
Features
The Showtec Galactic G300 is a laser effect with high output and great effects.
• Green is the most impressive color for laser shows and because of the 300mW laser module this unit
creates powerful beam shows
• If you like to create a more impressive show you can combine the G300 with the Showtec B1000
(51331).
• When using multiple units together, you can make a great and cost effective beam-show
• Create your own designs and shows, with any kind of ILDA laser software
• Equipped with a 20K scanner pair which makes faster and bigger projections possible with less flickering
• For rental solutions you can use the SD card slot to run pre-programmed shows without any controller
• Power Input: AC 100-240V, 50/60Hz
• Power Consumption: 38 Watt
• Scan Speed: 20K
• Beam Diameter <5mm at aperture
• Laser Class: 3B
• Laser Modulation: TTL
• Laser Safety: EN/IEC 60825-1 Ed 2, 2007-03
• Laser Power: 300mW 532nm Green
• Scan Angle: +/-40˚
• 2 x Auto Show + 2 x Music Show
• 85 Animated Graphic Show Patterns
• Auto Detected ILDA Signal Interface
• Beam, Wave, Text, Animation, Logo
• Control Modes: Auto, Sound, Master/Slave, DMX, ILDA, SD-Card
• Divergence (each beam) <2 mrad; Divergence (total light) <90 degrees
• 3-pin DMX In and 3-pin DMX Out, Sub-D 25 Pole
• Clear LCD display for all settings
• Compact strong metal housing
• Music-controlled via built-in microphone
• 13 DMX Channels
• Safety Features: Key switch, Interlock, Safety eye
• Fuse 1,6 A / 250V
• Dimensions: 385 x 310 x 165mm (LxWxH excl. bracket); Weight: 8,60 Kg
• Accessories: 2 Keys, Interlock test connector, flightcase, ILDA cable, 2Gb SD card
Overview
9
Ordercode: 51332
Galactic G300
Backside
Fig. 02
01) SD Slot
02) LED display + control buttons + LED indicators
03) Music Sensitivity
04) X-Size
05) Y-size
06) ILDA Through
07) ILDA Input
08) RGB + ILDA LED
09) Safety Eye
10) 3-pin DMX signal connector OUT
11) Cooling Fan
12) 3-pin DMX signal connector IN
13) ON/OFF
14) Fuse 1,6A
15) IEC Powerconnector
16) Ground/Earth connection
17) Remote Interlock safety connection
18) Lock On/Off
Red ILDA LED = connection
Green ILDA LED = disconnection
Installation
Remove all packing materials from the Galactic. Check if all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply. The device can be sound-controlled as it is equipped
with a built-in microphone.
10
Ordercode: 51332
Galactic G300
They should be kept with the Galactic laser !!!
The following safety precautions should be followed:
● The remote control plug should be placed on the backside (17)
of your Galactic laser.
● The keys should be put into the lock (8) of your Galactic laser.
Warning
The Interlock plug/remote plug and safety keys are included in the box.
The interlock is the “included-in-the-box” successor for the optional remote interlock (51316)
Exclusion of liability
Be aware that in some countries, there are additional regulations, regarding the use of laser devices.
Therefore, we strongly advise you to verify your national laws with your authorities: We do not take any
responsibility for eventual discrepancies, changes or adaptions regarding lawful use of laser devices.
11
Ordercode: 51332
Galactic G300
There are 4 modes:
•
Autoshow 1 Autoshow 2
• Musicshow 1 + Musicshow 2
• Master/Slave
• DMX-512 (13CH)
The pins:
01) Earth
02) Signal (-)
03) Signal (+)
Fig. 03
Control Modes
One Galactic (Autoshow 1+2)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Galactic is not connected by a DMX-cable, it functions as a stand-alone device.
05) Please see page 14 for more information about the Autoshow effects.
One Galactic (Sound-controlled Musicshow 1+2)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Galactic is not connected with a DMX-cable, it functions as a stand-alone device.
05) Please see page 14 for more information about the Sound-controlled mode.
Multiple Galactics (Master/Slave Mode)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin XLR cable to connect the Galactics.
05) Link the units as shown in Fig. 03, connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can
use the same functions on the master device as described on page 18 (Built-in or Sound-controlled).
This means on the master device you can set your desired operation mode and all slave devices will
react the same as the master device.
Multiple Galactics Master/Slave Set Up
12
Ordercode: 51332
Galactic G300
Fig. 04
Multiple Galactics (DMX Control)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-p XLR cable to connect the Galactics and other devices.
05) Link the units as shown in Fig. 04, Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
06) Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the
other end of the mains power cord into proper electric power supply sockets, starting with the first
unit. Do not supply power before the whole system is set up and connected properly.
Multiple Galactics DMX Set Up
13
Note: Link all cables before connecting electric power
Ordercode: 51332
Galactic G300
Important:
Fixtures on a serial data link must be daisy chained in one single line. To comply with the
EIA-485 standard no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of fixtures on a DMX data link: 30 fixtures
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Data Cabling
To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio Certified DMX Data Cables
• DAP Audio cable for all-round use. bal. XLR/M 3 p. > XLR/F 3 p.
Ordercode FL01150 (1,5m.), FL013 (3m.), FL016 (6m.), FL0110 (10m.), FL0115 (15m.), FL0120 (20m.).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5m.), FL713 (3m.), FL716 (6m.), FL7110 (10m.).
The Galactic can be operated with a controller in control mode or without the controller in stand-alone
mode.
14
Ordercode: 51332
Galactic G300
A) LED display
B) FUNC button
C) UP button
D) DOWN button
E) ENTER button
Fig. 05
Control Panel
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the Galactic will respond to the controller.
Please note when you use the controller, the unit has 13 channels.
When using multiple Galactics, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Galactics should be 1(001); the DMX address of the second
Galactic should be 1+13=14 (014); the DMX address of the third Galactic should be 14+13=27 (027), etc.
Please, make sure that you do not have any overlapping channels in order to control each Galactic
correctly.
If two or more Galactics are addressed similarly, they will work similarly.
Controlling:
After having addressed all Galactic fixtures, you may now start operating these via your lighting
controller.
Note: After switching on, the Galactic will automatically detect whether DMX-512 data is received or not.
If there is no data received at the DMX-input, the “LED“ on the control panel will not flash.
The problem may be:
• The XLR cable from the controller is not connected with the input of the Galactic.
• The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
15
Ordercode: 51332
Galactic G300
Menu Overview
16
Ordercode: 51332
Galactic G300
Automatic / Sound-controlled Show
SD Show
DMX address
Master/Slave Mode
Setting Menu: Colours, Mirror, Sensitivity
is a fast and exhilarating show, which is better suited for disco applications
is a slow and relaxing show, which is better suited for lounge applications
is a fast and exhilarating show, which is better suited for disco applications
is a slow and relaxing show, which is better suited for lounge applications
Main Menu Options
1. Automatic / Sound-controlled Show
01) Press the FUNC button, until the display shows .
02) Use the Up / Down buttons to scroll through the entire menu.
03) Use the ENTER button to store your setting.
Attention: When there is no sound/AUDIO/MIC signal for 3 seconds the laser will be OFF. As soon as the
music is turned on again, the laser will go on.
2. SD Show
01) Make sure the SD card is placed into the slot on the back of the device.
02) Press the FUNC button, until the display shows: .
03) Use the Up / Down buttons to scroll through the entire menu.
04) Each folder name has to be 8 characters including letter or numbers. Any folder name with more
than 8 characters cannot be shown on the LCD display.
17
Ordercode: 51332
Galactic G300
18
Ordercode: 51332
Galactic G300
05) Press ENTER to open a specific folder.
06) Press Up / Down buttons to choose your show mode: ILDA single show.
PRG preprogrammed show
07) Press ENTER to confirm the desired laser show.
08) Use the Up / Down buttons to scroll through the entire file menu.
Attention: Please ONLY put ILD-format laser shows on the SD card.
DO NOT save any other files on it.
The SD Card supports max. 100 folders with less than 255 files in each folder.
The SD Card has to be a FAT32 format system.
One of the PRG preprogrammed shows on the SD card is located in the folder ANIMATION.
To play a PRG preprogrammed show, a TXT file (with a WINDOW PC) has to be made in the same folder.
Once the file is created and saved, the TXT file has to be renamed to *.PRG
Create your own show
01) In the folder ANIMA folder, there are 3 ILD-files, they are ANIMA1.ild, ANIMA2.ild, ANIMA3.ild.
02) If you want to create your own preprogrammed show with these 3 files, you should create a TXT files
with the following contents: ANIMA1.ild,12,3
ANIMA2.ild,20,1
ANIMA3.ild,18,4
03) Save this TXT file with name ANIMA.TXT.
04) Change the extension of the file name from ANIMA.TXT to ANIMA.PRG
Explanation: ANIMA1.ild,12,3
ANIMA1.ild is the ILD show name, 12 is the scanner speed, 3 is how many times you want this show to be
repeated.
3. DMX Mode
With this menu you can set the DMX address.
01) When the laser is connected with DMX controlled device or if a DMX signal is present, the DMX LED
on the front panel will light up RED.
02) Press the FUNC button, until the display shows: .
03) Press ENTER to open this menu.
04) You can choose 512 different DMX addresses.
05) Use the Up / Down buttons to select the required address from
06) Use the ENTER button to store your setting.
4. Master/Slave Mode
In this menu you can set the fixture as a slave device.
01) Press the FUNC button, until the display shows .
02) Use the ENTER button to store your setting.
03) The device is now operating in slave mode. It means that it will react the same as the master device.
19
Ordercode: 51332
Galactic G300
Since this is a Blue laser, these 3
options have no function.
This product will only show a blue
laser.
Normal image
Image Y-axis mirror, X-axis mirror
Image Y-axis mirror, X-axis normal
Image Y-axis mirror, X-axis normal
Audio sensitivity
5. Settings Mode
With this menu you are able to create a special setup.
01) Press the FUNC button, until the display shows .
02) Use the Up / Down buttons to choose between 3 main menus: Colour, Mirror or Music.
03) Press ENTER to open a specific menu.
04) Use the ENTER button to store your setting.
ILDA Control Mode
This laser has an ILDA DB25 port, meaning it can be controlled by the PC.
There is an auto transform set in the unit’s inside to transform the ILDA and preprogrammed shows. When
connecting the 25 pin cable, the unit will be controlled by a PC. When you disconnect the unit, it will
return to its preprogrammed program control.
In theory, as long as the ILDA B25 connector is connected, a PC can control this laser unit. But in reality,
some software programs cannot control this unit, because pin 4 and 17 of the output card are not
connected. In fact this is an easy to solve problem. As long as you connect them, you can control this
unit.
20
Ordercode: 51332
Galactic G300
Channel 1 – Built-in Programs / Sound-controlled Mode
0-73
Laser OFF
74-110
PRG Show only via the SD card
111-147
ILD Show only via the SD card
148-165
Auto Show 1
166-184
Auto Show 2
185-202
Music-controlled Show 1
203-221
Music-controlled Show 2
222-255
DMX MODE (CH2-13 activated)
Channel 2 – Folders on SD Card in PRG/ ILD Mode, only when CH1 is set between 74-147
0-255
Folders
Channel 2 – Shows on SD Card in PRG or ILD Mode, only when CH1 is set between 74-147
0-255
Shows
CH2-CH13 will only function, when CH1 is set between 222-255
Channel 2 – 85 patterns
0-255
85 Individual patterns (For exact values see page 20)
Channel 3 – Strobe
0-5
Laser OFF
6-10
Laser ON, but no strobe
11-199
Strobe from slow to fast
200-255
Sound-controlled Strobe
Channel 4 – X-axis Moving
0-125
125 different fixed positions on X Axis
126-185
Moving from slow to fast
186-225
Moving with random speed
226-245
Random Position
246-255
Sound-controlled to random position
Channel 5 – Y-axis Moving
0-125
125 different fixed positions on Y Axis
126-185
Moving from slow to fast
186-225
Moving with random speed
226-245
Random Position
246-255
Sound-controlled to random position
Channel 6 – Zoom
0-10
Original Size
11-100
Fixed Size (if angle <1°, the laser will shut down to prevent danger
101-150
Zooming Out from slow to fast
151-200
Zooming In from slow to fast
201-255
Zooming Out and In from slow to fast
DMX Channels
13 channels
21
Ordercode: 51332
Galactic G300
Channel 7 – Y-axis Rolling
0-10
No Rolling
11-110
0-359 degree fixed Y Axis rolling
111-255
Rolling from slow to fast
Channel 8 – X-axis Rolling
0-10
No Rolling
11-110
0-359 degree fixed X Axis rolling
111-255
Rolling from slow to fast
Channel 9 – X-axis Rolling
0-1
No Rolling
1-180
0-359 degree fixed Z Axis rolling
181-217
Rolling Counter-clockwise from slow to fast
218-255
Rolling Clockwise from slow to fast
Channel 10 – Clipping
0-10
Original Pattern
11-74
Fixed Clipping (drawing the images)
75-104
Clipping Out from slow to fast (drawing clockwise)
105-144
Clipping In from slow to fast (drawing counterclockwise)
145-184
Clipping Out and In from slow to fast
185-224
Clipping On from slow to fast (showing image and then erasing CCW)
225-255
Clipping Off from slow to fast (showing image and then erasing CW)
Channel 11 – Wave
0-10
Original Pattern from slow to fast
11-199
Wave Effect in pattern with speed control from slow to fast
200-255
Wave Effect in pattern with amplitude control from slow to fast
Channel 13 – Patterns
0-63
Original pattern
64-127
Pattern with bright points
128-191
Pattern blanking
192-255
Points to make a pattern
Channel 12 – No Function
22
Ordercode: 51332
Galactic G300
Patterns
23
Ordercode: 51332
Galactic G300
Abstract DinRin.ild plough.ild glass.ild Citsloet.ild
abs01.ild Dog.ild RHINO2.ild LA^TERNR.ild Dizzy.ild
abs02.ild dragfire.ild Roo.ild PLANKS.ild Dwntown.ild
abs03.ild dragon1.ild runrab.ild set2.ild easterI.ild
abs04.ild dragon2.ild sardine.ild skullrot.ild easteri1.ild
abs05.ild eagle.ild Seamonst.ild tregrow.ild easterIL.ild
abs06.ild eagle1f.ild shark.ild wkinlite.ild Factory.ild
abs08.ild Eaglee.ild Shark1a.ild zipper.ild Flyover.ild
abs09.ild eleph.ild sharkatt.ild GCoast.ild
abs10.ild Elepha.ild sheep.ild Beam Ggate.ild
ABSTRAC1.ILD fisbite1.ild singlion.ild 8_circle.ild ggate1.ild
Abstract.PRG fisch.ild slion.ild 8_flower.ild glassoff.ild
Aurora1.ild fish1.ild snake.ild 9pm.ild GTwallo.ild
Aurora100.ild fishbig.ild snake2.ild AYAG.ild halrotat.ild
Aurora6.ild fishbite.ild spider.ild Barry.ild henge.ild
Aurora7.ild FISHEAT.ild squak.ild Beam.PRG HydroEle.ild
Auroraa1.ild fishlil.ild tdaktyl.ild beat.ild Lighthou.ild
Beam_Fr.ild fishswim.ild trex.ild cir_roat.ild litehous.ild
SPRT2.ild fishtrmp.ild tronto.ild cir_zoom.ild Ltower.ild
SWIRL.ild FISHY2.ild walrus.ild c_cirle.ild Malaysia.ild
SWIRLB.ild FLY.ild wolf.ild c_Line.ild Observat.ild
SWIRLY.ild Flying.ild wombat.ild d_circle.ild oldhouse.ild
WAVLG.ild ghofer.ild fan.ild pyramids.ild
x3.ild ghound.ild Animation Feelup.ild spcity.ild
Heron.ild Animation.PRG flying.ild Sphinxx.ild
Animals hippo.ild arro3f.ild GRIDDOTS.ild sphinxxx.ild
3D2DRudy.ild horse3.ild Balaim.ild KLF.ild sydneop.ild
3monkey.ild hound.ild banaroll.ild launch.ild uluru2.ild
abird.ild ilddolf.ild blindsHZ.ild lines.ild
Animals.PRG kangaroo.ild bonerot.ild Line_cir.ild C artoon
Batfl.ild koala.ild boom.ild line_x.ild Auroraa2.ild
batfly.ild kroo.ild Brkthru.ild Lovely.ild bacter1.ild
BELUGAS.ild kroo1.ild broom.ild mainsho.ild bear.ild
bigcat.ild lion1.ild celuloid.ild Moby.ild bizmon.ild
bird1.ild lion2.ild circwipe.ild p_cross.ild brain.ild
birdsil.ild lion3.ild claww.ild radiance.ild BUGSb.ild
birdy.ild liontmp.ild closing.ild rect.ild Cartoon.PRG
Bpanther.ild lionwlk.ild comet.ild spat3.ild cow_.ild
bugfly.ild MINGO.ild curl.ild Sun.ild Dickdas.ild
bullpen.ild octypus2.ild diamdizz.ild turbine.ild fakir1.ild
camel.ild octypuss.ild dissolv.ild x_circle.ild goat_.ild
carp.ild octyrun.ild fire.ild Goofy.ild
cateyes1.ild octywave.ild fire1.ild Building ham_nail.ild
catfish.ild ORCA.ild fire2.ild acencity.ild hippo1.ild
chchuk.ild OSTRIH.ild flag1.ild ArcD.ild kitty.ild
Cheeta.ild owl.ild flag2.ild bagdad.ild lion.ild
chorsetk.ild parott.ild flowerop.ild barn1.ild Magoo.ild
clam.ild PeaceDo.ild floweroq.ild beltwer1.ild moose.ild
coka2.ild Pelican.ild ghost2f.ild Building.PRG newsboy.ild
crabrun.ild pitbull.ild GHOSTY.ild chur360.ild nova2.ild
ILD and PRG files
24
Ordercode: 51332
Galactic G300
nova3e.ild cardgive.ild Deckchr.ild Led.ild falls1.ild
npaper.ild chainsa.ild fishskel.ild mmann.ild falls2.ild
Oscar.ild Character.PRG flower.ild NEON.ild falls3.ild
pencil.ild Chef.ild FRANKN.ild notemv.ild grassmv.ild
pinky&B.ild Coolie.ild ghost.ild ohmike.ild grfire.ild
sweeper.ild demon.ild Goul.ild PIANO.ild h20splsh.ild
zippy.ild eskimo.ild Griffin.ild piano2.ild lightnin.ild
eyeblnk.ild Iguana.ild strip.ild Nature.PRG
Celebrat Facemorf.ild lizz.ild taenzer.ild Oaktree.ild
beer.ild fistslam.ild LovArro.ild Telefon.ild ovthhil1.ild
candle.ild gradg.ild morff.ild tomtom.ild RAIN.ild
Celebrat.PRG handle.ild mumhead.ild Vbearid.ild rain1.ild
clap.ild jogger.ild optical.ild WOODDOOR.ild sea.ild
Clapping.ild king&Q.ild pagerip1.ild SEAROLL.ild
confetti.ild kite.ild redstar.ild Logo seashore.ild
count.ild mageye.ild skull1.ild Audi.ild waterfal.ild
creeping.ild maggymay.ild unicorn.ild belfas.ild wavcrash.ild
crowds.ild Mofsteel.ild yingyang.ild Benz.ild wavedraf.ild
Elf.ild moses.ild bmw.ild wavez.ild
elfrun.ild neptune.ild Club Cadillac.ild wavroll1.ild
FIREWKS1.ild ontheph.ild 2002count Coke.ild wavrush.ild
FIREWKS2.ild peek.ild ANI017.ild eagles.ild wfalani1.ild
FIREWKS3.ild Pirate1.ild ANI066.ild ferrari.ild wfalanim.ild
FIREWRK4.ild Pirate2.ild bass.ild FOOTYT.ild wfall.ild
Food.ild pullgun.ild bbcmic.ild Ford.ild wfallzom.ild
Games.ild rhood.ild behind.ild Harley.ild
North.ild runna.ild bells.ild Holden.ild Science
play.ild salute.ild blam.ild ILPLOGO.ild acog.ild
Presents.ild smann.ild brekdce.ild Jaguar.ild atemp.ild
Santa2.ild stepup.ild calnder.ild keno.ild bang.ild
Santaf.ild torchand.ild clapper.ild klm.ild belltel.ild
santapop.ild warrior.ild Club.PRG Logo.PRG book.ild
santlaf.ild witch1.ild clubber.ild mvworld.ild BOOKOP.ild
SantList.ild wizard1.ild clubbera.ild plez.ild CableJ.ild
santread.ild XTEMCLIF.ild conduct.ild qcon1.ild cameras.ild
sleigh.ild conduct1.ild redbull.ild cellph.ild
snoflake.ild CLIP_ART conga.ild ruski.ild cell_phs.ild
stremers.ild 2face.ild convict.ild Shell.ild circ_saw.ild
tree.ild alien1.ild count TAB.ild Claw.ild
treednce.ild Ark.ild dblbass.ild tabcorp.ild cog1.ild
xmas.ild Attache.ild flik.ild Toyota.ild coggbigg.ild
xmastree.ild bach.ild give.ild crash.ild
yes.ild ballons.ild gwalk.ild Nature cyberman.ild
batz.ild hamhitt.ild 3palms.ild e3dsimp.ild
Character bookop.ild heartbrk.ild bubbles.ild Earth3d.ild
alice.ild bug1.ild hiphop.ild cldown.ild earth60v.ild
Babyl.ild capsicum.ild Hiphop2.ild Cloudpan.ild evolu.ild
bazooka1.ild CLIP_ART.PRG instrum.ild clouds.ild gridpers.ild
bikini.ild corpse.ild keyb.ild Desert.ild lantern.ild
boss.ild curtains.ild keybord.ild falls.ild light.ild
25
Ordercode: 51332
Galactic G300
litehous.ild Sports.PRG.bak f11.ild PLASMA.ild
movcam.ild sprinter.ild formula1.ild SPIND.ild
oilderek.ild style.ild frigate.ild spiral.ild
ph.ild surfer2.ild gallsea.ild stargrid.ild
Phring.ild swingg.ild heli.ild SWIRL.ild
pliers.ild volball.ild helibig.ild tunnel.ild
plnetexp.ild windsur.ild hor&carr.ild wall.ild
pour.ild jeepdus1.ild WUERFEL.ild
reelcam.ild Text jeepdust.ild X2D.PRG
robofoot.ild Birthday.ild Jet.ild
robot1.ild Crazy.ild rikshaw.ild
saveth.ild Dance.ild skydive.ild
Science.PRG DANCE2.ild subpop.ild
ship.ild Disco.ild subway32.ild
shutter1.ild Good.ild tanker.ild
sparkx.ild Happy.ild train.ild
SPtank.ild HIPHOP.ild Transit.PRG
SSHIP1.ild ILOVEYOU.ild turrtgun.ild
sship2.ild Love.ild WIWil.ild
sship3.ild LOVE2.ild
sship4.ild Music.ild Wave
sshipA.ild Party.ild 2wave.ild
sshipb.ild Ready.ild circle_w.ild
starexpl.ild Start.ild dot_wave.ild
teargas.ild Stop.ild d_wave.ild
thermo.ild Text.PRG free.ild
Thank.ild m_wave.ild
Sports Welcome.ild swiming.ild
arotrget.ild Win.ild tri_wave.ild
athlete.ild Worldcup.ild Wave.PRG
bearer.ild Xmas.ild Wave.PRG.bak
Boarder.ild wave2.ild
bowling.ild Transit xwave.ild
BRONCO.ild 747.ild
cricket.ild amblance.ild Wedding
cyclist.ild balloon.ild 2heart.ild
Golfer.ild biplane.ild diamond.ild
golfswin.ild biplane1.ild diaring.ild
gymfloor.ild boat.ild fireworks.ild
gymnast.ild caddy.ild fireworks2.ild
hurdle.ild carbike.ild flower.ild
Jockey.ild carjump.ild rose.ild
Jockey1.ild chase.ild Valen.ild
lifter.ild Classic.ild Wedding.PRG
para.ild crane.ild
skirace.ild DAYBOAT.ild X2D
snoboard.ild driveby.ild 3Dcity.ild
snooker.ild express.ild 3_cube.ild
soccer.ild maze.ild
Sports.PRG molecule.ild
26
Ordercode: 51332
Galactic G300
Maintenance
The Showtec Galactic requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light-output will be significantly reduced.
Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass
panel clean with glass cleaner and a soft cloth. Do not use alcohol or solvents. The front glass panel will
require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light-output very quickly.
Do not immerse in liquid.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
Replacing the Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below.
01) Unplug the unit from electric power source.
02) Insert a screwdriver into the slot in the fuse cover. Gently pry up the fuse cover. The fuse will come
out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to
use a fuse of the same type and specification. See the product specification label for details.
Troubleshooting
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
No Light
If the light effect does not operate properly, refer servicing to a technician.
Response: Suspect three potential problem areas as: the power supply, the laser, the fuse.
01) Power supply. Check that the unit is plugged into an appropriate power supply.
02) The laser. Return the Galactic to your Showtec dealer.
03) The fuse. Replace the fuse. See page 27 for replacing the fuse.
04) If all of the above appears to be O.K., plug the unit in again.
05) If you are unable to determine the cause of the problem, do not open the Galactic, as this may
damage the unit and the warranty will become void.
06) Return the device to your Showtec dealer.
No Response to DMX
Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card
malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
27
Ordercode: 51332
Galactic G300
Problem
Probable cause(s)
Remedy
One or more
fixtures do not
function at all
No power to the fixture.
● Check that power is switched on and
cables are plugged in.
Primary fuse blown..
● Replace fuse.
Fixtures reset
correctly, but all
respond erratically
or not at all to the
controller.
The controller is not connected.
● Connect controller.
3-pin XLR Out of the controller does
not match XLR Out of the first fixture
on the link (i.e. signal is reversed).
● Install a phase reversing cable between
the controller and the first fixture on the
link.
Fixtures reset
correctly, but some
respond erratically
or not at all to the
controller.
Poor data quality
● Check data quality. If much lower than
100 percent, the problem may be a
bad data link connection, poor quality
or broken cables, missing termination
plug, or a defective fixture disturbing
the link.
Bad data link connection
● Inspect connections and cables.
Correct poor connections. Repair or
replace damaged cables.
Data link not terminated with 120
Ohm termination plug.
● Insert termination plug in output jack of
the last fixture on the link.
Incorrect addressing of the fixtures.
● Check address setting.
One of the fixtures is defective and
disturbs data transmission on the
link.
● Bypass one fixture at a time until normal
operation is regained: unplug both
connectors and connect them directly
together.
● Have the defective fixture serviced by a
qualified technician.
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed).
● Install a phase-reversing cable between
the fixtures or swap pin 2 and 3 in the
fixture, that behaves erratically.
Shutter closes
suddenly
The laser diode has lost its index
position and the fixture is resetting
the effect.
● Contact a technician for servicing the
problem persists.
No light or laser
cuts out
intermittently
Fixture is too hot.
● Allow fixture to cool.
● Make sure air vents at control panel
and front lens are not blocked.
● Turn up the air conditioning .
Laser damaged
● Disconnect fixture and return to your
dealer.
The power supply settings do not
match local AC voltage and
frequency.
● Disconnect fixture. Check settings and
correct if necessary.
28
Ordercode: 51332
Galactic G300
Model:
Galactic G300
Input Voltage:
AC 100-240V, 60/50Hz
Continuous Power:
38 Watt
Fuse:
1,6 A / 250V
Dimensions:
385 x 310 x 165mm (LxWxH excl. bracket)
Weight:
8,6 kg
Operation and Programming
Signal pin OUT:
pin 1 earth, pin 2 (-), pin 3 (+)
Set Up and Addressing:
Red LED display for all settings
DMX Channels:
13 channels
Signal input:
3-pin DMX signal connector IN
Signal output:
3-pin DMX signal connector OUT
Sub-D 25 Pole
Electro-mechanical effects
Laser Class:
3B
Laser Power:
300mW 532nm Green
Laser Modulation
TTL
Scan Angle
+/-40˚
Cooling:
Cooling fans and TE Cooling
Scan Speed
20K
Scanning ILDA Standard
20Kpps
Beam diameter:
<5mm at aperture
Divergence (each beam):
<2 mrad;
Divergence (total light):
<90 degrees
Safety Features:
Key switch, Interlock, Safety eye
DMX-control:
Via standard DMX-controller
Control Modes:
Auto, Sound, Master/Slave, DMX, ILDA, SD-Card
Housing:
Compact strong metal housing
Connections:
Dedicated IEC Power & Data connector
Clear LCD display for all settings
Music-controlled via built-in microphone
Beam, Wave, Text, Animation, Logo
2 x Auto Show + 2 x Music Show
85 Animated Graphic Show Patterns
Auto Detected ILDA Signal Interface
Accessories
2 Keys, Interlock test connector
Laser Safety:
EN/IEC 60825-1 Ed 2, 2007-03
Max. ambient temperature ta:
40°C
Minimum distance:
Minimum distance from flammable surfaces:
0.5m
Minimum distance to lighted object:
1m
Product Specifications
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
29
Email: service@highlite.nl
Ordercode: 51332
Galactic G300
Dimensions
30
©2015 Showtec
Loading...
