Showtec Galactic G40 MKII User manual
Galactic G40 MKII
ORDERCODE 51333
Highlite International B.V.
Vestastraat 2
6468 EX Kerkrade
The Netherlands
Phone: +31 45-5667700
Congratulations!
You have bought a great, innovative product from Showtec.
The Showtec Galactic brings excitement to any venue.
You can rely on Showtec, for more excellent lighting products.
We design and manufacture professional light equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: iwant@showtec.info
You can get some of the best quality, best priced products on the market from Showtec.
So next time, turn to Showtec for more great lighting equipment.
Always get the best -- with Showtec !
Thank you!
Showtec
Showtec Galactic G40™ Product Guide
Warning ............................................................................................................................................................................... 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 5
Rigging ............................................................................................................................................................................ 5
Return Procedure .......................................................................................................................................................... 6
Claims .............................................................................................................................................................................. 6
Description of the device ................................................................................................................................................. 7
Overview ........................................................................................................................................................................ 7
Backside ......................................................................................................................................................................... 8
Remote Control Operation ......................................................................................................................................... 9
Installation ......................................................................................................................................................................... 10
Set Up and Operation .................................................................................................................................................... 10
Control Modes ............................................................................................................................................................. 11
One Galactic (Auto run visual effects) .............................................................................................................. 11
One Galactic (Sound-control) ............................................................................................................................ 11
Multiple Galactics (Master/Slave control)......................................................................................................... 11
Multiple Galactic (DMX Control) ......................................................................................................................... 12
Fixture Linking ............................................................................................................................................................... 12
Data Cabling ............................................................................................................................................................... 12
Control Panel ............................................................................................................................................................... 13
Control Mode .............................................................................................................................................................. 13
DMX Addressing .......................................................................................................................................................... 13
Menu Overview ........................................................................................................................................................... 14
Main Menu Options .................................................................................................................................................... 14
1. DMX Mode .......................................................................................................................................................... 14
2. Slave Mode ......................................................................................................................................................... 14
3. Remote Mode .................................................................................................................................................... 15
4. Run Test ................................................................................................................................................................ 15
5. Built-in Programs Mode / Sound Mode .......................................................................................................... 15
6. Sensitivity Mode .................................................................................................................................................. 15
DMX Channels ............................................................................................................................................................. 16
8 Channels ............................................................................................................................................................... 16
Patterns .............................................................................................................................................................................. 17
Maintenance .................................................................................................................................................................... 18
Replacing a Fuse ........................................................................................................................................................ 18
Troubleshooting ............................................................................................................................................................... 18
No Light ......................................................................................................................................................................... 18
No Response to DMX.................................................................................................................................................. 18
Product Specification ..................................................................................................................................................... 20
1
Warning
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!
CAUTION ! EYEDAMAGES !!!
NEVER LOOK DIRECTLY INTO THE LIGHTSOURCE !!!
NEVER PROJECT A SINGLE LASER POINT !!!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
• Galactic with IEC powercable 1,75m
• Infrared Remote Control

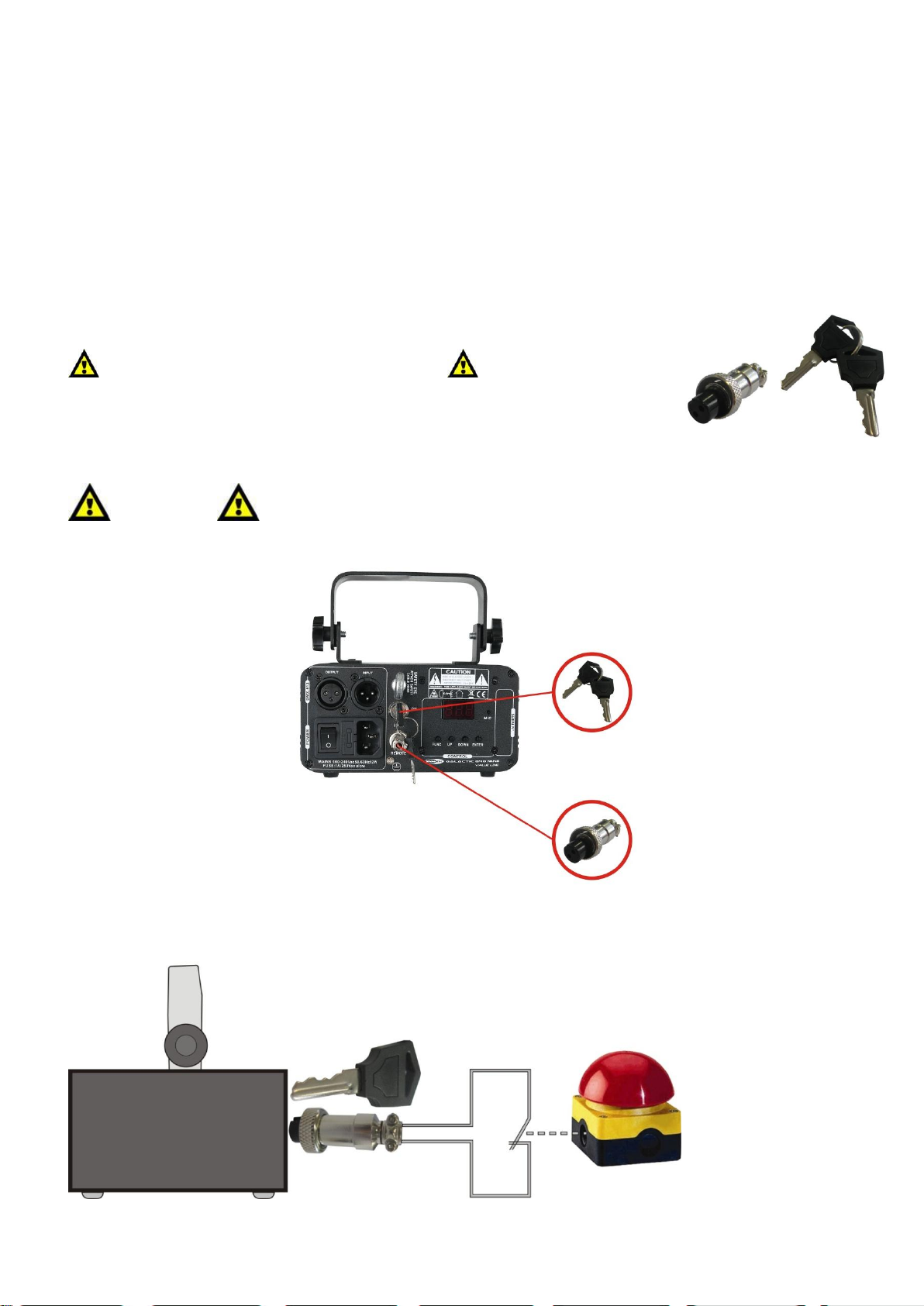

• Remote plug and 2 keys
• User manual
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
Safety Instructions
Every person involved with the installation, operation and maintenance of this device have to:
- be qualified
- follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty. This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
BEFORE YOUR INITIAL START-UP!
2
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the nonobservance of this manual or any unauthorized modification to the device.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never leave any cables lying around.
Do not insert objects into air vents.
Do not connect this device to a dimmerpack.
Do not open the device and do not modify the device.
Never aim the laser beam at people or animals!
Never use the device during thunderstorms, unplug the device immediately.
Never look directly into the light source.
Do not switch the device on and off in short intervals, as this would reduce the system’s life.
Do not shake the device. Avoid brute force when installing or operating the device.
Only use device indoor, avoid contact with water or other liquids.
Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
Avoid flames and do not put close to flammable liquids or gases.
Always check the regulations when using a class IIIB laser product.
Always check and position the laser before anybody enters the room, when the laser is facing an
area with people.
Always allow free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only
handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged. Check the device and the power-
cord from time to time.
If the external cable is damaged, it has to be replaced by a qualified technician.
If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due
to cracks or deep scratches.
If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do
not switch it on immediately. The arising condensation water might damage your device. Leave
the device switched off until it has reached room temperature.
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. Light effect must be installed out of the reach of children. Never leave the unit
running unattended.
For replacement use fuses of same type and rating only.
The user is responsible for correct positioning and operating of the Galactic. The manufacturer will
not accept liability for damages caused by the misuse or incorrect installation of this device.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
The laser will only work between 15-35ºC.
After 3 hours working, you must shut off the laser and let the laser diode cool off for 30 minutes,
otherwise the laser could be damaged and the warranty becomes void.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
3
CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with laser
light. Never intentionally expose your eyes or others to direct laser radiation.
Compliance Statement
Your Galactic Laser has been designed to comply with FDA and IEC Standards for it classification.
The Galactic is a Class IIIB laser product.
Laser Safety and Compliance Information
The Galactic is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and
Drug Administration (FDA) Standards Listed under FDA Document 21 CFR 1040 and subsequent laser
notices.
Product Classification and Manufacturing Label Identification
Laser Classification: Class IIIB
Cooling: TE Cooling
Laser medium: DPSS Nd:YVO4, wavelength 532 nm / Green
Output: 40mW
Beam Diameter <5mm at aperture
Pulse Data All pulses < 4Hz (>0.25sec)
Divergence (each beam) <2 mrad
Divergence (total light) <40 degrees
CAUTION: The use of corrective eye wear or optics for viewing at distances such as telescopes or
binoculars within a distance of 100mm may pose an eye hazard.
This laser product is a Class IIIB laser and has
an Interlocked housing.
There are no user serviceable parts inside. Tampering or
removing warranty seals will void your products limited
warranty.
Combo label with the Product Model Number, Serial
Number, Date of Manufacturing, Laser Light Warning Label,
Warranty Void Label and Interlocked Housing Label
4
Proper Usage Safety and Compliance Information
According to FDA Regulations you
should operate this product as stated on
the left.
Operating Determinations
• This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
• The minimum distance between light-output and the illuminated surface must be more than 0.5 meter.
• The maximum ambient temperature t
• The relative humidity must not exceed 50 % with an ambient temperature of 35° C.
• If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
• Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other
safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
If the Galactic is lowered from the ceiling or high joists, professional trussing systems have to be
used.
Use a clamp to mount the Galactic, with the mounting-bracket, to the trussing system.
The Galactic must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net
or safety-cable.
When rigging, derigging or servicing the device, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
Improper installation can cause serious damage to people and property !
= 45°C must never be exceeded.
a
5
