Galactic FX RGB-1000 V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 51343
MANUAL
ENGLISH
Ordercode: 51343
Galactic FX RGB-1000
Table of contents
Warning ............................................................................................................................................................................... 2
Unpacking Instructions ................................................................................................................................................. 2
Safety Instructions ......................................................................................................................................................... 3
Operating Determinations .......................................................................................................................................... 4
Laser safety for a Class 4 Laser Product ................................................................................................................... 5
Rigging ............................................................................................................................................................................ 6
Connection with the mains......................................................................................................................................... 7
Return Procedure .......................................................................................................................................................... 8
Claims .............................................................................................................................................................................. 8
Description of the device ................................................................................................................................................. 9
Overview ........................................................................................................................................................................ 9
Backside .......................................................................................................................................................................10
Installation .........................................................................................................................................................................10
Set Up and Operation .....................................................................................................................................................10
Control Modes .............................................................................................................................................................12
One Galactic (Stand-alone) .................................................................................................................................12
One Galactic (Sound-controlled) ........................................................................................................................12
Multiple Galactics (Master/Slave Mode) ............................................................................................................12
Multiple Galactics (DMX Control) .........................................................................................................................13
Fixture Linking ...............................................................................................................................................................14
Data Cabling ...............................................................................................................................................................14
Control Panel ...............................................................................................................................................................15
Control Mode ..............................................................................................................................................................15
DMX Addressing ..........................................................................................................................................................15
Menu Overview ...........................................................................................................................................................16
Main Menu Options ....................................................................................................................................................17
1. Built-in Auto Effects ..............................................................................................................................................17
2. Sound Sensitivity ...................................................................................................................................................17
3. DMX Mode ............................................................................................................................................................17
4. Master/Slave Mode .............................................................................................................................................17
5. Horizontal/Mirror Flip Mode ................................................................................................................................18
DMX Channels .............................................................................................................................................................19
6 channels (Basic) ....................................................................................................................................................19
18 channels (Advanced) .......................................................................................................................................20
Patterns ..............................................................................................................................................................................22
Maintenance ....................................................................................................................................................................23
Replacing the Fuse .....................................................................................................................................................23
Troubleshooting ...............................................................................................................................................................23
No Light .........................................................................................................................................................................23
No Response to DMX..................................................................................................................................................23
Product Specifications ....................................................................................................................................................25
Dimensions ........................................................................................................................................................................26
1
Ordercode: 51343
Galactic FX RGB-1000
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
● Showtec Galactic FX RGB-1000
● IEC power cable – 1,75m
● Remote control plug and 2 keys
● User manual
2
Ordercode: 51343
Galactic FX RGB-1000
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
● be qualified
● follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
• Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
• Never remove warning or informative labels from the unit.
• Never use anything to cover the ground contact.
• Never place any material over the lens.
• Never look directly into the light source.
• Never leave any cables lying around.
• Never aim the laser beam at people or animals!
• Never use the device during thunderstorms, unplug the device immediately.
• Never point a laser at aircraft, this is a federal offense.
• Never point un-terminated laser beams into the sky.
• Never open the laser housing. The high laser power levels inside of the protective housing can start
fires, burn skin and will cause instant eye injury.
• Do not insert objects into air vents.
• Do not connect this device to a dimmerpack.
• Do not open the device and do not modify the device.
• Do not point lasers at highly reflective surfaces such as windows, mirrors and shiny metal. Even laser
reflections can be hazardous.
• Do not expose the output optic (aperture) to cleaning chemicals.
• Do not use laser if the laser appears to be emitting only one or two beams.
• Do not use laser if housing is damaged or open, or if optics appear damaged in any way.
• Do not operate laser without first reading and understanding all safety and technical data in this
manual. Never look into the laser aperture or laser beams.
• Do not switch the device on and off in short intervals, as this would reduce the device’s life.
• Do not shake the device. Avoid brute force when installing or operating the device.
• After set up and prior to public use, test laser to ensure proper function. Do not use the laser if any
defect is detected. Do not use, if the laser emits only one or two laser beams rather than
dozens/hundreds, as this could indicate damage to the diffraction grating optic, and could allow
emission of higher laser levels.
• Only use device indoor, avoid contact with water or other liquids.
• Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
• Only operate the device after having familiarized with its functions.
• Avoid flames and do not put close to flammable liquids or gases.
• Always check the regulations when using a class 4 laser product.
3
Ordercode: 51343
Galactic FX RGB-1000
• Always check and position the laser before anybody enters the room, when the laser is facing an
area with people.
• Always keep case closed while operating.
• Always allow free air space of at least 50 cm around the unit for ventilation.
• Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord by the plug. Never pull out the plug by tugging the power cord.
• Make sure that the device is not exposed to extreme heat, moisture or dust.
• Make sure that the available voltage is not higher than stated on the rear panel.
• Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
• If the external cable is damaged, it has to be replaced by a qualified technician.
• If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to
cracks or deep scratches.
• If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
• If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
• If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
• For adult use only. Device must be installed out of the reach of children. Never leave the unit running
unattended.
• Never attempt to bypass the thermostatic switch or fuses.
• For replacement use fuses of same type and rating only.
• The operation of a class 4 laser show laser is only allowed if the show is controlled by a skilled and
well-trained operator familiar with the data included in this manual.
• The user is responsible for correct positioning and operating of the Galactic FX RGB-1000. The
manufacturer will not accept liability for damages caused by the misuse or incorrect installation of
this device.
• This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
• The laser will only work between 15-35ºC.
• After 3 hours working, you must shut off the laser and let the laser diode cool off for 30 minutes,
otherwise the laser could be damaged and the warranty becomes void.
• Repairs, servicing and electric connection must be carried out by a qualified technician.
• WARRANTY: Till one year after date of purchase.
Operating Determinations
● This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
● The minimum distance between light-output and the illuminated surface must be more than 1 meter.
● The maximum ambient temperature ta = 35°C must never be exceeded.
● The relative humidity must not exceed 50 % with an ambient temperature of 30° C.
● If this device is operated in any other way, than the one described in this manual, the product may
suffer damages and the warranty becomes void.
● Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
4
Ordercode: 51343
Galactic FX RGB-1000
CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with laser
light. Never intentionally expose your eyes or others to direct laser radiation.
Laser Classification
Class 4
Cooling
TE Cooling and Cooling fan
Laser medium
wavelength 450 nm / Blue (DPSS), 920mW
wavelength 532 nm / Green (DPSS), 110mW
wavelength 638 nm / Red (Laser Diode), 190mW
Output
1220 mW
Beam Diameter
<20mm at aperture
Pulse Data All pulses
< 4Hz (>0.25sec)
Divergence (each beam)
<2 mrad
Divergence (total light)
<160 degrees
This laser product is a Class 4 laser and has an Interlocked
housing.
Laser safety for a Class 4 Laser Product
This product is a Class 4 laser with 1220 mW visible output.
Class 4 is the highest and most dangerous class of laser, including all lasers that exceed the Class 3B AEL.
By definition, a class 4 laser can burn the skin, or cause devastating and permanent eye damage as a
result of direct, diffuse, specular reflections or indirect beam viewing.
These lasers may ignite combustible materials, and thus may represent a fire risk.
These hazards may also apply to indirect or non-specular reflections of the beam, even from apparently
matte surfaces—meaning that great care must be taken to control the beam path.
Class 4 lasers must be equipped with a key switch and a safety interlock.
CAUTION! Only Laser Safety Officers who are officially certified by a regulatory body or authorized
training organization are allowed to use class 4 lasers in public. The Laser Safety Officer is responsible for
all aspects when using this laser, including following all locally applicable safety laws and regulations. The
manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this
laser.
Compliance Statement
Your Galactic Laser has been designed to comply with FDA and IEC Standards for it classification.
The Galactic is a Class 4 laser product.
Laser Safety and Compliance Information
The Galactic is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and
Drug Administration (FDA) Standards Listed under FDA Document 21 CFR 1040 and subsequent laser
notices.
Product Classification and Manufacturing Label Identification
The legal requirements for using laser entertainment products vary from country to country. The user is
responsible for the legal requirements at the location/country of use.
Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard
―For Safe Use of Lasers‖, available from www.laserinstitute.org. Many local governments, corporations,
agencies, military and others, require all lasers to be used under the guidelines of ANSI Z136.1. Laser
Display guidance can be obtained via the International Laser Display Association, www.laserist.org.
CAUTION: The use of corrective eye wear or optics for viewing at distances such as telescopes or
binoculars within a distance of 100mm may pose an eye hazard.
5
Ordercode: 51343
Galactic FX RGB-1000
There are no user serviceable parts inside. Tampering or
removing warranty seals will void your products limited
warranty.
Combo label with the Product Model Number, Serial Number,
Date of Manufacturing, Laser Light Warning Label, Warranty
Void Label and Interlocked Housing Label
According to FDA Regulations you
should operate this product as stated on
the left.
Proper Usage Safety and Compliance Information
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
● If the Galactic is lowered from the ceiling or high joists, professional trussing systems have to be used.
● Use a clamp to mount the Galactic, with the mounting-bracket, to the trussing system.
● The Galactic must never be fixed swinging freely in the room.
● The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
● When rigging, derigging or servicing the Galactic, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
6
Ordercode: 51343
Galactic FX RGB-1000
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
The Galactic can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
Improper installation can cause serious damage to people and property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
Make sure that the device is always connected properly to the earth!
Improper installation can cause serious damage to people and property!
7
Ordercode: 51343
Galactic FX RGB-1000
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
8
Ordercode: 51343
Galactic FX RGB-1000
Fig. 01
Description of the device
Features
The Showtec Galactic FS RGB-1000 is a laser effect with high output and great effects.
● Power Input: AC 100-240V, 60/50Hz
● Power Consumption: 70 Watt
● Beam Diameter <20mm at aperture
● Laser Class: 4
● Laser Modulation: TTL
● Laser Safety: EN/IEC 60825-1 Ed 2, 2007-03
● Laser Color: Red, Green, Yellow, Blue, Purple, Cyan, White
● Laser Power: 1220mW: wavelength 450 nm / Blue (DPSS), 920mW
wavelength 532 nm / Green (DPSS), 110mW
wavelength 638 nm / Red (Laser Diode), 190mW
● Scan Angle: +/-80°
● Control Modes: Auto, Sound, Master/Slave, DMX
● Divergence (each beam) <2 mrad; Divergence (total light) <160 degrees
● 3-pin DMX In and 3-pin DMX Out
● 3-digit LED Display
● Compact strong metal housing
● Sound-controlled via built-in microphone
● 18 DMX Channels
● Safety Features: Key switch, Interlock
● Fuse 1,6AL/250V
● Dimensions: 290 x 260 x 205 mm (LxWxH)
● Weight: 4 kg
● Accessories: 2 Keys, Interlock remote plug

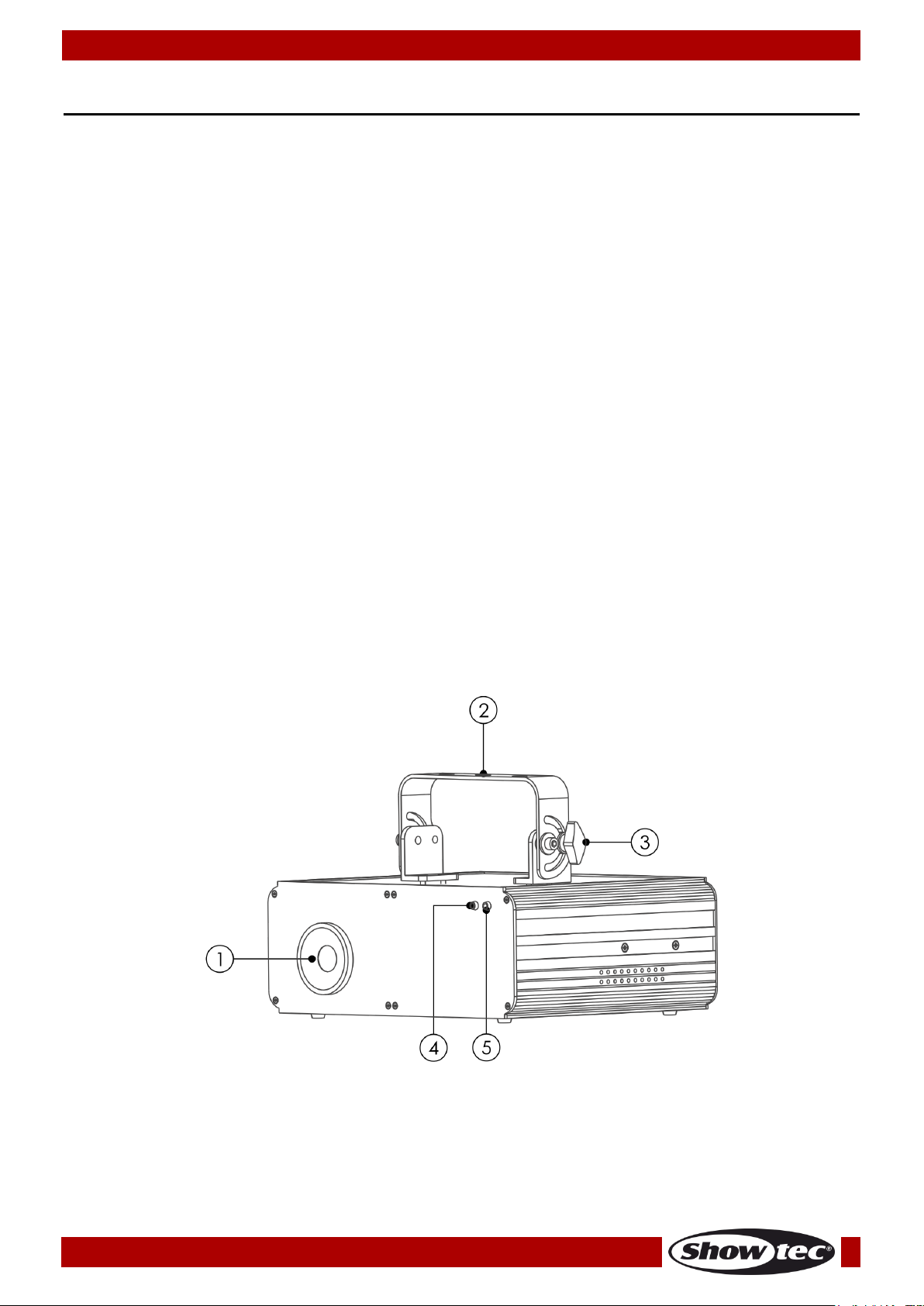

Overview
01) Lens
02) Mounting bracket
03) Adjustment screw
04) LED power indicator
05) LED sound control indicator
9
Ordercode: 51343
Galactic FX RGB-1000
Backside
Fig. 02
06) Cooling fan
07) Safety eye
08) ILDA Input
09) ILDA Through
10) LED Display + control buttons
11) Built-in microphone
12) 3-pin DMX signal connector (IN)
13) Ground/Earth connection
14) 3-pin DMX signal connector (OUT)
15) IEC Power connector 100-240VAC
16) Fuse 1,6AL/250V
17) Power switch ON/OFF
18) Interlock
19) Remote control plug
NOTE: Knowledge of DMX is required to fully utilize this unit.
Installation
Remove all packing materials from the Galactic. Check if all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply. The device can be sound-controlled as it is equipped
with a built-in microphone.
10
Ordercode: 51343
Galactic FX RGB-1000
They should be kept with the Galactic laser !!!
The following safety precautions should be followed:
● The interlock plug should be placed on the backside (19) of your
Galactic laser.
● The keys should be put into the lock (18) of your Galactic laser.
Warning
The Interlock plug/remote plug and safety keys are included in the box.
The interlock is the ―included-in-the-box‖ successor for the optional remote interlock (51316)
Exclusion of liability
Be aware that in some countries, there are additional regulations, regarding the use of laser devices.
Therefore, we strongly advise you to verify your national laws with your authorities: We do not take any
responsibility for eventual discrepancies, changes or adaptions regarding lawful use of laser devices.
11
Ordercode: 51343
Galactic FX RGB-1000
There are 4 modes:
Built-in programs (stand-alone)
Sound-controlled
Master/Slave
DMX-512 (18CH)
The pins:
01) Earth
02) Signal (-)
03) Signal (+)
Fig. 03
Control Modes
One Galactic (Stand-alone)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Galactic is not connected by a DMX-cable, it functions as a stand-alone device.
05) Please see page 17 for more information about the Built-in auto programs.
One Galactic (Sound-controlled)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Galactic is not connected with a DMX-cable, it functions as a stand-alone device.
05) Please see page 17 for more information about the Sound-controlled mode.
Multiple Galactics (Master/Slave Mode)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin XLR cable to connect the Galactics.
05) Link the units as shown in Fig. 03, connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can
use the same functions on the master device as described on page 17 (Built-in or Sound-controlled).
This means on the master device you can set your desired operation Mode and all slave devices will
react the same as the master device.
Multiple Galactics Master/Slave Set Up
12
Ordercode: 51343
Galactic FX RGB-1000
Fig. 04
Multiple Galactics (DMX Control)
01) Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-p XLR cable to connect the Galactics and other devices.
05) Link the units as shown in Fig. 04, Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
06) Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the
other end of the mains power cord into proper electric power supply sockets, starting with the first
unit. Do not supply power before the whole system is set up and connected properly.
Multiple Galactics DMX Set Up
13
Note: Link all cables before connecting electric power
Ordercode: 51343
Galactic FX RGB-1000
Important:
Fixtures on a serial data link must be daisy chained in one single line. To comply with the
EIA-485 standard no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of fixtures on a DMX data link: 30 fixtures
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Data Cabling
To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio Certified DMX Data Cables
• DAP Audio cable for all-round use. bal. XLR/M 3 p. > XLR/F 3 p.
Ordercode FL01150 (1,5m.), FL013 (3m.), FL016 (6m.), FL0110 (10m.), FL0115 (15m.), FL0120 (20m.).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5m.), FL713 (3m.), FL716 (6m.), FL7110 (10m.).
The Galactic can be operated with a controller in control mode or without the controller in stand-alone
mode.
14
Ordercode: 51343
Galactic FX RGB-1000
A) LED display
B) FUNC button
C) UP button
D) DOWN button
E) ENTER button
Fig. 05
Control Panel
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the Galactic will respond to the controller.
Please note when you use the controller, the unit has 18 channels.
When using multiple Galactics, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Galactics should be 1(001); the DMX address of the second
Galactic should be 1+18=19 (019); the DMX address of the third Galactic should be 19+18=37 (037), etc.
Please, make sure that you do not have any overlapping channels in order to control each Galactic
correctly.
If two or more Galactics are addressed similarly, they will work similarly.
Controlling:
After having addressed all Galactic fixtures, you may now start operating these via your lighting
controller.
Note: After switching on, the Galactic will automatically detect whether DMX-512 data is received or not.
If there is no data received at the DMX-input, the ―LED― on the control panel will not flash.
The problem may be:
• The XLR cable from the controller is not connected with the input of the Galactic.
• The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
15
Ordercode: 51343
Galactic FX RGB-1000
Menu Overview
16
Ordercode: 51343
Galactic FX RGB-1000
Built-in auto and sound-controlled effects
Sound Sensitivity
DMX Mode
Master/Slave Mode
Horizontal/Mirror Flip Mode
Main Menu Options
You can only change a certain setting when the display is blinking.
If you cannot change a certain value, please press the FUNC button once and then change the value.
1. Built-in Auto Effects
01) Press the FUNC button until one of the following names appears on the screen:
02) While the display is blinking, press the Up and Down buttons to choose the desired effect.
03) Press the ENTER button to confirm your choice.
The software will now run a pre-programmed laser show. There are 9 built-in auto effects + 9 of their
sound-controlled counterparts.
2. Sound Sensitivity
In this menu you can set sound sensitivity of the device.
01) Press the FUNC button until the display shows .
02) Press the Up and Down buttons to increase or decrease the sound sensitivity value.
0 = off, 1-9 = from low to high sound sensitivity.
03) Press the ENTER button to save changes.
3. DMX Mode
In this menu you can set the DMX address.
01) Press the FUNC button until the display shows .
02) Use the Up and Down buttons to select the required address between .
04) Press the ENTER button to save changes.
4. Master/Slave Mode
01) Press the FUNC button until the display shows .
02) Press the ENTER button to confirm.
03) The device is now operating in Slave mode and it will react the same as the master device.
17
Ordercode: 51343
Galactic FX RGB-1000
Horizontal Flip
Horizontal Flip + Mirror Flip
Normal View
Normal View + Mirror Flip
5. Horizontal/Mirror Flip Mode
In this menu you can choose the way in which your laser show is going to be displayed.
01) Press the FUNC button until one of the following names appears on the display:
02) Press the Up and Down buttons you to choose your preferred display setting.
03) Press the ENTER button to confirm your choice.
18
Ordercode: 51343
Galactic FX RGB-1000
Channel 1 – Control modes Only when Ch 1 is set between 235-244, Ch 2-6 will function.
0-18
Laser off
19-30
Auto shows
31-42
3D Auto shows
43-54
Auto beam show
55-66
Lumia effect
67-78
Effect 1
79-90
Effect 2
91-102
Effect 3
103-114
Effect 4
115-126
Effect 5
127-138
Auto shows, sound-controlled
139-150
3D Auto show, sound-controlled
151-162
Auto beam show, sound-controlled
163-174
Lumia effect, sound-controlled
175-186
Effect 1, sound-controlled
187-198
Effect 2, sound-controlled
199-210
Effect 3, sound-controlled
211-222
Effect 4, sound-controlled
223-234
Effect 5, sound-controlled
235-244
Manual effect 1
245-255
Manual effect 2
Channel 2 – Rotation
0-127
Counterclockwise rotation, from slow to fast
128-133
Static
134-255
Clockwise rotation, from slow to fast
Channel 3 – Color
0-7
Multicolor
8-15
Red
16-23
Green
24-31
Red and Green
32-39
Blue
40-47
Blue and Red
48-55
Blue and Green
56-65
Red, Green and Blue
66-207
Sequential color change, from slow to fast
208-255
Strobe, from slow to fast
Channel 4 – Horizontal movement
0-127
Manual adjustment, from right to left
128-255
Auto movement, from right to left
Channel 5
Channel 6 – Vertical movement
0-127
Manual adjustment
128-255
Auto vertical movement
DMX Channels
6 channels (Basic)
Not functional
19
Ordercode: 51343
Galactic FX RGB-1000
Channel 1 – Control modes Only when Ch 1 is set between 245-255, Ch 2-18 will function.
0-18
Laser off
19-30
Auto shows
31-42
3D Auto shows
43-54
Auto beam show
55-66
Lumia effect
67-78
Effect 1
79-90
Effect 2
91-102
Effect 3
103-114
Effect 4
115-126
Effect 5
127-138
Auto shows, sound-controlled
139-150
3D Auto show, sound-controlled
151-162
Auto beam show, sound-controlled
163-174
Lumia effect, sound-controlled
175-186
Effect 1, sound-controlled
187-198
Effect 2, sound-controlled
199-210
Effect 3, sound-controlled
211-222
Effect 4, sound-controlled
223-234
Effect 5, sound-controlled
235-244
Manual effect 1
245-255
Manual effect 2
Channel 2 – Pattern progression
0-51
Basic form
52-103
2nd form
104-155
3rd form
156-207
4th form
208-255
5th form
Channel 3 – Patterns Ch 2 and Ch 3 are connected to each other.
Channel 4 – Laser show effects
0-31
3D shape
32-63
Multicolor
64-95
Water effect
96-127
Multiplication effect
128-159
Multicolor
160-191
Multiplication (pattern in the middle + circular multiplication)
192-255
Multicolor (bright)
Channel 5 – 3D Rotation effect Ch 4 needs to be set between 0-31 for Ch 5 to work.
0-4
Static
5-127
Counterclockwise rotation, from slow to fast
128-133
Static
134-255
Clockwise rotation, from slow to fast
Channel 6 – Color
0-7
Purple
8-15
Red
18 channels (Advanced)
The full pattern chart (see page 22).
Choose your preferred pattern by adjusting the value of Channel 3. Subsequently, adjust the value of
Channel 2 to gain access to secondary patterns.
20
Ordercode: 51343
Galactic FX RGB-1000
16-23
Green
24-31
Yellow
32-39
Blue
40-47
Purple
48-55
Cyan
56-63
White
64-159
Sequential color change, from slow to fast
160-207
Progressive color change, from slow to fast
208-255
Strobe, from slow to fast
Channel 7 – Line drawing effect
0-123
Manual drawing
124-127
Blackout
128-255
Auto drawing, from slow to fast
Channel 8 – Zoom
0-127
Manual zoom out
128-144
Fast auto zoom out
145-209
Fast auto zoom in
210-255
Fast zoom in and zoom out
Channel 9
Channel 10 – X-axis rotation
0-127
Manual rotation
128-255
Automatic rotation
Channel 11
Channel 12 – Y-axis rotation
0-127
Manual rotation
128-255
Automatic rotation
Channel 13
Channel 14 – Clockwise rotation
0-127
Manual rotation
128-255
Automatic rotation
Channel 15
Channel 16 – Horizontal movement, from left to right
0-127
Manual adjustment
128-255
Automatic movement
Channel 17
Channel 18 – Vertical movement, from the bottom to the top
0-127
Manual adjustment
128-255
Automatic movement
Not functional
Not functional
Not functional
Not functional
Not functional
21
Ordercode: 51343
Galactic FX RGB-1000
Patterns
22
Ordercode: 51343
Galactic FX RGB-1000
Maintenance
The Showtec Galactic requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light-output will be significantly reduced.
Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass
panel clean with glass cleaner and a soft cloth. Do not use alcohol or solvents. The front glass panel will
require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light-output very quickly.
Do not immerse in liquid.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
Replacing the Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below.
01) Unplug the unit from electric power source.
02) Insert a screwdriver into the slot in the fuse cover. Gently pry up the fuse cover. The fuse will come
out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to
use a fuse of the same type and specification. See the product specification label for details.
Troubleshooting
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
No Light
If the light effect does not operate properly, refer servicing to a technician.
Response: Suspect three potential problem areas as: the power supply, the laser, the fuse.
01) Power supply. Check that the unit is plugged into an appropriate power supply.
02) The laser. Return the Galactic to your Showtec dealer.
03) The fuse. Replace the fuse. See page 23 for replacing the fuse.
04) If all of the above appears to be O.K., plug the unit in again.
05) If you are unable to determine the cause of the problem, do not open the Galactic, as this may
damage the unit and the warranty will become void.
06) Return the device to your Showtec dealer.
No Response to DMX
Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card
malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
23
Ordercode: 51343
Galactic FX RGB-1000
Problem
Probable cause(s)
Remedy
One or more
fixtures do not
function at all
No power to the fixture.
● Check that power is switched on and
cables are plugged in.
Primary fuse blown..
● Replace fuse.
Fixtures reset
correctly, but all
respond erratically
or not at all to the
controller.
The controller is not connected.
● Connect controller.
3-pin XLR Out of the controller does
not match XLR Out of the first fixture
on the link (i.e. signal is reversed).
● Install a phase reversing cable between
the controller and the first fixture on the
link.
Fixtures reset
correctly, but some
respond erratically
or not at all to the
controller.
Poor data quality
● Check data quality. If much lower than
100 percent, the problem may be a
bad data link connection, poor quality
or broken cables, missing termination
plug, or a defective fixture disturbing
the link.
Bad data link connection
● Inspect connections and cables.
Correct poor connections. Repair or
replace damaged cables.
Data link not terminated with 120
Ohm termination plug.
● Insert termination plug in output jack of
the last fixture on the link.
Incorrect addressing of the fixtures.
● Check address setting.
One of the fixtures is defective and
disturbs data transmission on the
link.
● Bypass one fixture at a time until normal
operation is regained: unplug both
connectors and connect them directly
together.
● Have the defective fixture serviced by a
qualified technician.
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed).
● Install a phase-reversing cable between
the fixtures or swap pin 2 and 3 in the
fixture, that behaves erratically.
Shutter closes
suddenly
The laser diode has lost its index
position and the fixture is resetting
the effect.
● Contact a technician for servicing the
problem persists.
No light or laser
cuts out
intermittently
Fixture is too hot.
● Allow fixture to cool.
● Make sure air vents at control panel
and front lens are not blocked.
● Turn up the air conditioning .
Laser damaged
● Disconnect fixture and return to your
dealer.
The power supply settings do not
match local AC voltage and
frequency.
● Disconnect fixture. Check settings and
correct if necessary.
24
Ordercode: 51343
Galactic FX RGB-1000
Model:
Galactic FX RGB-1000
Input Voltage:
AC 100-240V, 60/50Hz
Continuous Power:
70 Watt
Fuse:
1.6AL/250V
Dimensions:
290 x 260 x 205 mm (LxWxH)
Weight:
4 kg
Operation and Programming
Signal pin OUT:
pin 1 earth, pin 2 (-), pin 3 (+)
Set Up and Addressing:
Red LED display for all settings
DMX Channels:
6 and 18 channels
Signal input:
3-pin DMX signal connector IN
Signal output:
3-pin DMX signal connector OUT
Electro-mechanical effects
Laser Class:
4
Laser Power:
1220mW (190mW 638nm Red, 110mW 532nm Green,
920mW 450nm Blue)
Light Source:
1 x 5W LED
Strobe:
0-20Hz
Cooling:
Cooling fans and TE Cooling
Beam diameter:
<20mm at aperture
Pulse Data, All Pulses:
<4Hz (>0.25 sec)
Divergence (each beam):
<2 mrad;
Divergence (total light):
<160 degrees
Safety Features:
Key switch, Interlock
DMX-control:
Via standard DMX-controller
Control Modes:
Built-in Programs, Manual, Master/Slave, Sound
Housing:
Black Metal & Flame-retardant plastic
Connections:
Dedicated IEC Power & Data connector
Laser Safety:
EN/IEC 60825-1 Ed 2, 2007-03
Max. ambient temperature ta:
40°C
Minimum distance:
Minimum distance from flammable surfaces:
0.5m
Minimum distance to lighted object:
1m
Product Specifications
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
Email: service@highlite.nl
25
Ordercode: 51343
Galactic FX RGB-1000
Dimensions
26
©2015 Showtec
Loading...
