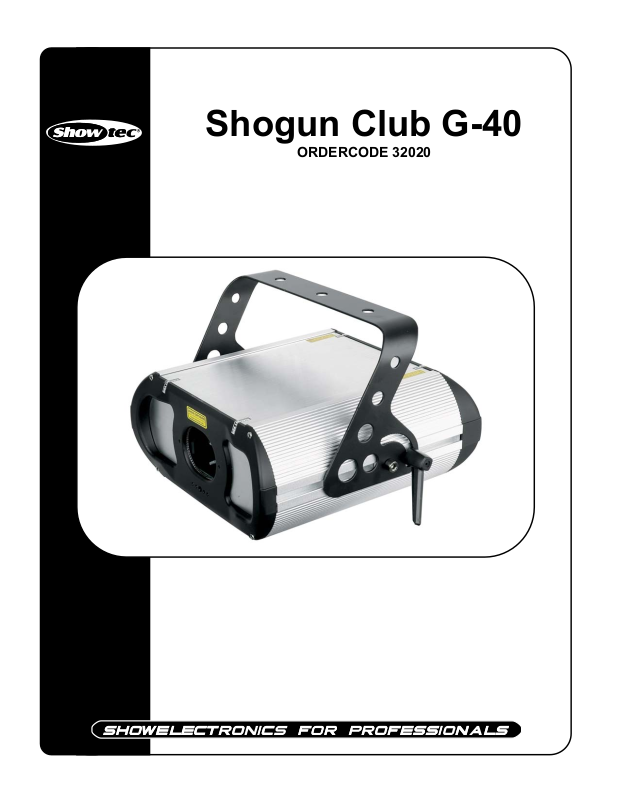

Shogun Club G-40
ORDERCODE 32020
SHOGUN Club G-40
DMX-Kanalzuordnung und Werte
Kanal 1 Kanal 3
Betriebsmodus
Wert Funktion Wert Funktion Wert
0-63 Aus 0-63 Normal 0 Text WELCOME
64-127 Auto Durchlauf 64-127 Schnell Unterbrochen 1 Muster Stern in Strichkreis
128-255 DMX manual conrol 128-191 Nie Unterbrochen 2 Muster Ying-Yang Strichkreis
192-255 Laser aus 3 Muster Rechteck mit Raute
Kanal 4
Drehen Z-Achse & Zeichenfrequenz
Wert Funktion Wert Funktion 8 Muster Propeller 6 Flügel
0-63 Normal 0-63 Normal 9 Muster Propeller 8 Flügel
64-127 Drehen 64-127 Y-Achse 10 Muster Karo
128-191 Punkt-Modus 128-191 X-Achse 11 Muster Boomerang links
192-255 Drehen & Punkt-Modus 192-255 X/Y-Achse 12 Muster Malteserkreuz
Kanal 6
Stauchen/Strecken X/Y-Achse
Wert Funktion Wert Funktion 16 Muster Schnecke 1
0-63 Normal 0-63 Normal 17 Muster Schnecke 2
64-127 Y-Achse 64-127 Y-Achse 18 Muster Schnecke 3
128-191 X-Achse 128-191 X-Achse 19 Muster 2 Quadrate nebeneinander
192-255 X/Y-Achse 192-255 X/Y-Achse 20 Muster 6 Quadrate 3 x 2
Kanal 8 Kanal 9
Geschwindigkeit Zeichen Geschwindigkeit
Wert Funktion Wert Funktion 24 Muster 6 Eck
0-22 Normal 0-22 Normal 25 Muster 7 Eck
23-45 Langsam 23-45 Langsam 26 Muster 8 Eck
46-68 46-68 27 Muster Pentagramm
69-91 69-91 28 Muster Hexagramm
92-114 92-114 29 Muster Heptagramm
115-137 115-137 30 Muster Oktagramm
138-160 138-160 31 Muster Dekagramm
161-183 161-183 32 Muster Stern 5 Zacken
184-206 184-206 33 Muster Schnecke 4
207-229 207-229 34 Muster Stern 3 Zacken
230-252 230-252 35 Muster Stern 4 Zacken
253-255 Schnell 253-255 Schnell 36 Muster Stern 6 Zacken
Kanal 10
Zoom verkleinern
Wert Funktion 40 Muster Strich Stern 5
0-10 Normal 41 Muster Strich Stern 6
11-21 Normal 42 Muster Strich Stern 7
22-32 43 Muster Zick-Zack 1
33-43 44 Muster Zick-Zack 2
44-54 45 Muster Zick-Zack 3
55-65 46 Muster Oktagramm 2
66-76 47 Muster Strich Quer
77-87 48 Muster Strich Quer oben/unten
88-98 49 Muster Strich Quer unterbrochen oft
99-109 50 Muster Strich Quer unterbrochen 3 mal
110-120 51 Muster Strich Quer unterbrochen 1 mal
121-153 Kleines Bild 52 Muster Kreis unterbrochen oft 1
154-164 53 Muster Kreis unterbrochen oft 2
165-175 54 Muster Kreis unterbrochen oft 3
176-186 55 Muster Kreis unterbrochen 6 mal
187-197 56 Muster Quadrat unterbrochen 8 mal
198-208 57 Muster Quadrat
209-219 58 Muster Quadrat unterbrochen oben & unten
220-230 59 Muster Quadrat unterbrochen 12 mal
231-241 60 Muster Quadrat unterbrochen 4 mal Ecken
242-252 61 Muster Quadrat unterbrochen 12 mal
253-255 Normal 62 Muster Quadrat unterbrochen 4 mal Mitte
Kanal 2
Strahlmodus
Kanal 5
Drehen
Kanal 7
Bewegen
Muster/Bilder/Texte Auswahl
Funktion
4 Muster 3 Quadrate
5 Muster Rechteck eingedrückt
6 Muster 8 Kreise im Kreis
7 Muster Propeller 4 Flügel
13 Muster Dreieck-Oszillogramm
14 Muster 4 Rauten
15 Muster Pyramide
21 Muster 9 Quadrate 3 x 3
22 Muster 25 Quadrate 5 x 5
23 Muster 5 Eck
37 Muster Stern 8 Zacken
38 Muster Strich Stern 3
39 Muster Strich Stern 4
63 Muster Dreieck
64 Muster Dreieck unterbrochen 9 mal
Seite 1 von 3
SHOGUN Club G-40
DMX-Kanalzuordnung und Werte
Muster/Bilder/Texte Auswahl
Wert Wert
Funktion
65 Muster Dreieck unterbrochen oft 130 Bild Maus 3
66 Muster Dreieck unterbrochen 18 mal 131 Bild Maus 4
67 Muster Dreieck unterbrochen 3 mal Mitte 132 Bild Adler 1
68 Muster Dreieck unterbrochen 3 mal Ecken 133 Bild Adler 2
69 Muster Bogen 134 Bild Adler 3
70 Muster Bogen unterbrochen oft 135 Text SQUALE
71 Muster Bogen unterbrochen 11 mal 136 Text THANK YOU
72 Muster Bogen unterbrochen 2 mal 137 Text END
73 Muster Bogen unterbrochen 1 mal 138 Text SHOW
74 Muster Rechteck offen unten 139 Text YOU LOOSE
75 Muster Rechteck offen unten unterbrochen oft 140 Text YOU WIN
76 Muster Rechteck offen unten unterbrochen 11 mal 141 Text FAILURE
77 Muster Rechteck offen unten unterbrochen 3 mal 142 Text VICTORY
78 Muster Rechteck offen unten unterbrochen 2 mal 143 Text STOP
79 Muster Elipse 144 Text NICE
80 Muster Quadrat Eken gerundet 145 Text GOOD
81 Muster 5 Eck 2 146 Text GO
82 Muster Zack Stern 147 Text START
83 Muster Stern 8 Zacken 2 148 Text ONE
84 Muster Stern 12 Zacken 149 Text TWO
85 Muster Stern 12 Zacken Explosion 1 150 Text THREE
86 Muster Stern 12 Zacken Explosion 2 151 Text READY
87 Muster Stern 12 Zacken Explosion 3 152 Text I LOVE YOU
88 Muster Sonne 153 Text I LOVE MUSIC
89 Muster Sonne Explosion 154 Text MUSIC
90 Muster Stern 5 Zacken verbogen 155 Text DANCE
91 Muster Sonne 2 156 Text PARTY
92 Muster Kreuz ausgefranst 157 Text HAPPY BIRTHDAY
93 Muster Blumen Blätter 158 Text WELCOME
94 Muster Stern 8 Zacken 2 159 Text HAPPY NEW YEAR
95 Muster Stern 8 Zacken 3 160 Text MERRY CHRISTMAS
96 Muster Stern 8 Zacken 4 161 Muster Strich Keuz unterbrochen
97 Muster Stern 8 Zacken mit Kreisen 162 Bild Kerze
98 Muster Stern 8 Zacken im 8 Eck 163 Bild Haus
99 Muster Pentagramm 2 164 Bild Umschlag
100 Muster Kleeblatt 165 Bild UFO
101 Muster 5 Kreise im Kreis 166 Bild Kugel
102 Muster Blume 1 167 Bild Schüssel
103 Muster Sonne im Kreis 168 Bild Ziffer 9
104 Muster Halbkreis geschlossen 169 Bild Ziffer 8
105 Muster Mondsichel 170 Bild Ziffer 7
106 Muster Boomerang links 2 171 Bild Ziffer 6
107 Muster 2 Kreise nebeneinander 172 Bild Ziffer 5
108 Muster 3 Kreise im Dreieck 173 Bild Ziffer 4
109 Muster 4 Kreise im Viereck 174 Bild Ziffer 3
110 Muster 2 Quadrate nebeneinander 2 175 Bild Ziffer 2
111 Muster Rechteck 2 176 Bild Ziffer 1
112 Muster Rechteck 3 177 Bild Kreis
113 Muster Wellen 178 Bild Ziffer 9 im Kreis
114 Muster Opal 179 Bild Ziffer 8 im Kreis
115 Bild Hubschrauber 180 Bild Ziffer 7 im Kreis
116 Bild Auto 181 Bild Ziffer 6 im Kreis
117 Muster Sinus 182 Bild Ziffer 5 im Kreis
118 Bild Wal 183 Bild Ziffer 4 im Kreis
119 Muster Kreuz unterbrochen 184 Bild Ziffer 3 im Kreis
120 Muster 2 Wellenlinien oben/unten 185 Bild Ziffer 2 im Kreis
121 Muster 2 Wellenlinien unterbrochen 186 Bild Ziffer 1 im Kreis
122 Muster Pik unterbrochen 187 Muster Bewegtes Muster 1
123 Muster 8 Eck in 8 Eck 188 Muster Bewegtes Muster 2
124 Muster Würfel 189 Muster Bewegtes Muster 3
125 Muster 8 Linien untereinander 190 Muster Bewegtes Muster 4
126 Bild Vogel 191 Muster Bewegtes Muster 5
127 Muster Olympia Ringe unterbrochen 192 Muster Bewegtes Muster 6
128 Bild Maus 1 193 Muster Bewegtes Muster 7
129 Bild Maus 2 194 Muster Konfuss
Kanal 3
Muster/Bilder/Texte Auswahl
Funktion
Kanal 3
Seite 2 von 3
SHOGUN Club G-40
DMX-Kanalzuordnung und Werte
Muster/Bilder/Texte Auswahl
Wert
Funktion
195 Muster Mini Stern 1
196 Muster Mini Stern 2
197 Muster Explosion 1
198 Muster Explosion 2
199 Muster Rotor
200 Muster Kreis groß unterbrochen oft
201 Bild Dancing Girl 1
202 Bild Dancing Girl 2
203 Bild Dancing Girl 3
204 Bild Dancing Girl 4
205 Bild Dancing Girl 5
206 Bild Dancing Girl 6
207 Bild Dancing Girl 7
208 Bild Dancing Girl 8
209 Bild Dancing Girl 9
210 Bild Dancing Girl 10
211 Bild Dancing Girl 11
212 Bild Dancing Girl 12
213 Bild Dancing Girl 13
214 Bild Dancing Girl 14
215 Bild Dancing Girl 15
216 Bild Dancing Girl 16
217 Bild Dancing Girl 17
218 Bild Dancing Girl 18
219 Bild Dancing Girl 19
220 Bild Dancing Girl 20
221 Bild Dancing Girl 21
222 Bild Dancing Girl 22
223 Bild Dancing Girl 23
224 Bild Dancing Girl 24
225 Bild Dancing Girl 25
226 Bild Dancing Girl 26
227 Bild Dancing Girl 27
228 Bild Dancing Girl 28
229 Bild Dancing Girl 29
230 Bild Dancing Girl 30
231 Bild Dancing Girl 31
232 Bild Dancing Girl 32
233 Bild Dancing Girl 33
234 Bild Dancing Girl 34
235 Bild Dancing Girl 35
236 Bild Dancing Girl 36
237 Bild Dancing Girl 37
238 Bild Dancing Girl 38
239 Bild Dancing Girl 39
240 Bild Dancing Girl 40
241 Bild Elefant 1
242 Bild Elefant 2
243 Bild Elefant 3
244 Bild Elefant 4
245 Bild Olympia Ringe mit Läufer
246 Muster Punkt-Kreis
247 Muster Strich oben/unten
248 Muster Punkt-Strich oben/unten
249 Muster Punkt-Strich oben/unten
250 Muster Punkt-Strich oben/unten
251 Muster Punkt-Strich oben/unten
252 Muster Punkt-Strich oben/unten
253 Muster Punkt-Strich oben/unten
254 Muster Punkt-Strich oben/unten
255 Muster Punkt-Strich oben/unten
Kanal 3
Seite 3 von 3
Congratulations!
You have bought a great, innovative product from Showtec.
The Showtec Shogun Club G-40 brings excitement to any venue. Whether you want simple plug-&-play
action or a sophisticated DMX show, this product provides the effect you need.
You can rely on Showtec, for more excellent lighting products.
We design and manufacture professional light equipment for the entertainment industry.
New products are being launched regularly.
You can get some of the best quality, best priced products on the market from Showtec.
So next time, turn to Showtec for more great lighting equipment.
Always get the best -- with Showtec !
Thank you!
Showtec
Showtec Shogun Club G-40™ Product Guide
Warning..…...................................................................................…………………………………………..
Safety-instructions………………………………………………………………………………………….….
Operating Determinations…………………………………………………………………………………….
Rigging………………………………………………………………………………………………………….
Description..…..............................................................................……….…………………………………
Features and Overview ………………………………...….……………….………….………………….….
Backside…………………………………………………...…...….……………….…………………...….….
Set Up and Operation.....................................................................……..……………………………….…
One Shogun G-40 Stand-alone mode.................................……………..………………………………..
One Shogun G-40 Sound-Active.………..........…..................………………………………………….….
One Shogun G-40 Auto Mode.…………...….........................………………………………………….….
Multiple Shoguns G-40 Master-Slave...........….........………………………………………......………….
Multiple Shoguns G-40 DMX Control................….……………………………………......…………….…
DMX Dipswitch setting.........................………………………………………………………………………
DMX Quick Reference Chart………………………………………………………………………………….
DMX Channels.........................……………………………………………………………………………….
Maintenance...................................................................................………..………….…….………………
Replacing the Fuse........................................................................…………………….…………………
Troubleshooting............................................................................………………….………………….…..
No Light.…………………………………...........................................………………….…………………..
No Response to DMX ....................................................................………………….…………………..
2
2
4
5
6
6
7
7
8
8
8
8
9
10
11
12
13
13
14
14
14
Product Specifications.................................................................……………….…….…………………..
15
1
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
CAUTION ! EYEDAMAGES !!!
NEVER LOOK DIRECTLY INTO THE LIGHTSOURCE !!!
NEVER PROJECT A SINGLE LASER POINT !!!
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
BEFORE YOUR INITIAL START-UP!
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this device has to:
- be qualified
- follow the instructions of this manual
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow
the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
• Never unscrew the housing!
• Never aim the laser beam at people or animals!
• Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
• Never remove warning or informative labels from the unit.
• Never use anything to cover the ground contact.
• Never look directly into the light source.
2
• Never leave any cables lying around.
• Do not insert objects into air vents.
• Do not connect this device to a dimmerpack.
• Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.
• Do not shake the device. Avoid brute force when installing or operating the device.
• Only use device indoor, avoid contact with water or other liquids.
• Only operate the device after having familiarized with its functions.
• Avoid flames and do not put close to flammable liquids or gases.
• Always check the regulations when using a class IIIB laser product.
• Always check and position the laser before anybody enters the room, when the laser is facing an
area with people.
• Always allow free air space of at least 50 cm around the unit for ventilation.
• Always disconnect power from the mains, when device is not used, before cleaning! Only handle the
power-cord by the plug. Never pull out the plug by tugging the power-cord.
• Make sure that the device is not exposed to extreme heat, moisture or dust.
• Make sure that the available voltage is not higher than stated on the rear panel.
• Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord
from time to time.
• If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
• If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
• If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
• For adult use only. Lighteffect must be installed out of the reach of children. Never leave the unit
running unattended.
• For replacement use fuses of same type and rating only.
• The user is responsible for correct positioning and operating of the laser. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this laser.
• This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
• The laser will only work between 15-35ºC.
• After 3 hours working, you must shut off the laser and let the laser diode cool off for 30 minutes,
otherwise the laser could be damaged and the warranty becomes void.
• Repairs, servicing and electric connection must be carried out by a qualified technician.
• WARRANTY: Till one year after date of purchase.
CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with laser
light. Never intentionally expose your eyes or others to direct laser radiation.
Compliance Statement
Your Shogun Laser has been designed to comply with FDA and IEC Standards for it classification.
The Shogun is a Class IIIB laser product.
Laser Safety and Compliance Information
The Shogun is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and Drug
Administrations (FDA) Standards Listed under FDA Document 21 CFR 1040 and subsequent laser notices.
3
Product Classification and Manufacturing Label Identification
Laser Classification: Class IIIB
Laser medium: wavelength 532 nm / Green
Output: 40mW
Cooling: TE Cooling
CAUTION: The use of corrective eye wear or optics for viewing at distances such as telescopes or
binoculars within a distance of 100mm may pose an eye hazard.
This laser product is a Class IIIB laser and has an
Interlocked housing.
There are no user serviceable parts inside. Tampering or
removing warranty seals will void your products limited
warranty.
Combo label with the Product Model Number, Serial
Number, Date of Manufacturing, Laser Light Warning
Label, Warranty Void Label and Interlocked Housing
Label
OPERATING DETERMINATIONS
This device is not designed for permanent operation. Consistent operation breaks will ensure that the device
will serve you for a long time without defects.
The minimum distance between light-output and the illuminated surface must be more than 0.8 meter.
The maximum ambient temperature t
If this device is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.
You endanger your own safety and the safety of others!
must never be exceeded.
a
4
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
• If the laser is lowered from the ceiling or high joists, professional trussing systems have to be used.
• Use a clamp to mount the laser, with the mounting-bracket, to the trussing system.
• The laser must never be fixed swinging freely in the room.
• The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
• When rigging, derigging or servicing the laser, always make sure, that the area below the installation
place is blocked and staying in the area is forbidden.
Improper installation can cause serious damage to people and property !
Proper Usage Safety and Compliance Information
According to FDA Regulations you should
operate this product as stated on the left.
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
Cable Pin International
BROWN FASE L
BLUE NUL N
YELLOW/GREEN EARTH
Make sure that the device is always connected properly to the earth!
5
Description of the device
Features
The Showtec Shogun Club G-40 is a laser effect with a high output and great effects.
• 40 mW green laser (532nm)
• DMX-control via standard DMX-controller
• 64 Patterns
• 10K closed loop scanning pair
• 10 DMX-control channels required
• 12 channels RGY and RGB units
• RGY / RGY TTL modulation
• Sound-controlled via built-in microphone
• Fuse 2A / 250V
Overview
Frontside
1) Power LED
2) Laser indicator LED
3) Microphone
4) Sound Active LED
5) DMX indicator LED
Fig. 1
Fig. 2
6
Backside
Fig. 3
6) Dip Switches 10) Power ON/OFF
7) Remote Interlock Connector 11) DMX signal connector (OUT)
8) Sound Sensitivity control 12) IEC Power Connector / Fuse 2A / 250V
9) Key System 13) DMX signal connector (IN)
Remote Interlock Connector: Use a DB9 connector to connect to the Remote Interlock, which stops the
beam being emitted once the connection loop has been opened.
Key System: When the key is locked, the unit stops emitting the laserbeam but keeps the power on, and
the steppers keep working. Only when the key is turned, after 15 seconds, the projector
starts emitting the laserbeam. 5 seconds before emitting, there is a rattling sound.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Remove the protection cover from the front of the laser. When the laser is not in use, please replace the
cover to protect the laser.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
The laser will only work between 15-35ºC.
After 3 hours working, you must shut off the laser and let the laser diode cool off for 30 minutes,
otherwise the laser could be damaged and the warranty becomes void.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
7
One Shogun G-40 (Stand-alone)
There are 4 possibilities: Stand Alone
Sound-active mode (Master)
Auto Mode (Master)
DMX
1. Fasten the Shogun onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
2. Plug the cord into a proper electric power supply socket.
FUNCTION DMX DIPSWITCH CHART
123456789101112
Sound Active --- --- --- --- --- --- --- --- --- --- --- --Auto Mode --- --- --- --- --- --- --- --- --- --- --- ON
Master Sound --- --- --- --- --- --- --- --- --- --- ON --Master Auto --- --- --- --- --- --- --- --- --- --- ON ON
Slave --- --- --- --- --- --- --- --- --- ON --- --DMX Mode Set DMX ADDRESS ON --- ON
Test Mode --- --- --- --- --- --- --- --- --- ON ON ---
Sound-Active
Turn on the music. If Dip switches are all set to 0, then the fixture will react to the beat of the music.
See page 10 for Dipswitch settings. After every new dipswitch setting you have to disconnect the power,
and then turn the power on to activate the new dipswitch setting. You can use the Audio sensitivity knob on
the back of the Shogun, to adjust the sensitivity reaction to the music.
Auto Mode
If Dip switches are set to 1000000000, then the fixture will play all pre-programmed patterns.
Multiple Shoguns G-40 (Master-Slave)
1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp fastened onto the
Shogun ). Leave at least 1 meter on all sides for air circulation.
2. Use a 3-p XLR cable to connect the Shoguns and other devices.
The pins:
1. Earth
2. Signal -
3. Signal +
3. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
4. Set DMX dip switches as follows (See Dip Switch setting page 10).
Shogun G-40 DMX Dip Switches "ON"
Unit 1 (Master) Either Sound Active (All dipswitches OFF)
or Auto Mode Dipswitch #12 ON
Unit 2 (Slave) Dipswitch #10 ON
Unit 3 (Slave) Dipswitch #10 ON
Unit 4 (Slave) Dipswitch #10 ON
5. Supply electric power: Plug the end of the mains power cord into proper electric power supply sockets.
8
Multiple Shoguns G-40 (DMX Control)
1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp bolted onto the Showtec
Shogun bracket). Leave at least 0,5 meter on all sides for air circulation.
2. Use a 3-p XLR cable to connect the Shoguns and other devices.
The pins:
1. Earth
2. Signal -
3. Signal +
3. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
4. Set DMX dip switches as follows (See Dip Switch setting page 10).
Shogun G-40 Address Value DMX Dip Switches "ON"
Unit 1 1 #1 and for DMX # 10 and # 12.
Unit 2 11 #1, #2, #4 and for DMX # 10 and # 12.
Unit 3 21 #1, #3, #5 and for DMX # 10 and # 12.
Unit 4 31 #1, #2, #3, #4, #5 and for DMX # 10 and # 12.
5. Supply electric power: Plug the end of the mains power cord into proper electric power supply sockets.
Do so for all units and the controller. You can control up to 32 Shogun devices in Master-Slave Mode.
DMX-Set up
Master/Slave Set up
Fig. 4
Note : Link all DMX cables and set dip switches before connecting electric power
6. Do not supply power before the whole system is set up and connected properly.
Design your show according to your DMX controller functions. After every new dipswitch setting you have
to disconnect the power, and then turn the power on to activate the new dipswitch setting.
9
DMX Dip Switch Setting
DMX products must have their own "address" to receive DMX signals.
Addresses on the Showtec Shogun Club G-40 are set by flipping the appropriate DMX dip switches.
A standard DMX address for a Showtec Shogun G-40, which has 10 channels is as follow:
Shogun G-40 Address Value DMX Dip Switches "ON"
Unit 1 1 #1 and for DMX # 10 and # 12.
Unit 2 11 #1, #2, #4 and for DMX # 10 and # 12.
Unit 3 21 #1, #3, #5 and for DMX # 10 and # 12.
Unit 4 31 #1, #2, #3, #4, #5 and for DMX # 10 and # 12.
Explanation: Since each unit has 10 channels, each address advances 10 values (See Address Value
above).
Once address values are determined, set the appropriate DMX dip switches on each unit.
Example:
1. If you want to give a Shogun DMX address133, you first have to find the number 133 in the DMX Chart.
2. Then look at the left side (Dip Switches #1-#5) horizontally from 133.
In the Table you’ll see #1=ON, #2=OFF, #3=ON, #4=OFF, #5=OFF.
3. Finally look at the upper side of the table (Dip Switches #6-#9) vertically from 133.
In the Table you’ll see #6=OFF, #7=OFF, #8=ON, #9=OFF.
DMX Address Quick Reference Chart
DMX DIP SWITCH SET
0=OFF
1=ON
#1 #2 #3 #4 #5
00000 326496128160
10000 1336597129161
01000 2346698130162
11000 3356799131163
00100 43668100132164
10100 53769101133165
01100 63870102134166
#9000000
#8000011
#7001100
#6010101
10
DMX Address Quick Reference Chart
DMX DIP SWITCH SET
0=OFF
1=ON
#1 #2 #3 #4 #5
00000 326496128160192224256288320352384416448480
10000 1336597129161193225257289321353385417449481
01000 2346698130162194226258290322354386418450482
11000 3356799131163195227259291323355387419451483
00100 43668100132164196228260292324356388420452484
10100 53769101133165197229261293325357389421453485
01100 63870102134166198230262294326358390422454486
11100 73971103135167199231263295327359391423455487
00010 84072104136168200232264296328360392424456488
10010 94173105137169201233265297329361393425457489
01010 104274106138170202234266298330362394426458490
11010 114375107139171203235267299331363395427459491
00110 124476108140172204236268300332364396428460492
10110 134577109141173205237269301333365397429461493
01110 144678110142174206238270302334366398430462494
11110 154779111143175207239271303335367399431463495
00001 164880112144176208240272304336368400432464496
10001 174981113145177209241273305337369401433465497
01001 185082114146178210242274306338370402434466498
11001 195183115147179211243275307339371403435467499
00101 205284116148180212244276308340372404436468500
10101 215385117149181213245277309341373405437469501
01101 225486118150182214246278310342374406438470502
11101 235587119151183215247279311343375407439471503
00011 245688120152184216248280312344376408440472504
10011 255789121153185217249281313345377409441473505
01011 265890122154186218250282314346378410442474506
11011 275991123155187219251283315347379411443475507
00111 286092124156188220252284316348380412444476508
10111 296193125157189221253285317349381413445477509
01111 306294126158190222254286318350382414446478510
11111 316395127159191223255287319351383415447479511
Dip Switch Position DMX Address
#90000000011111111
#80000111100001111
#70011001100110011
#60101010101010101
Dip Switch Position
11
DMX Channels
Channel 1 –Mode
0-63 DMX Control Sound Active
64-127 DMX Control Auto Run
128-191 Manual Select Sound Active
192-255 Manual Select Auto Run
Channel 2 –Close Laser
0-63 Close Beam
64-127 Fast cut Beam
128-191 No cut Beam
192-255 Close Laser
Channel 3 –Pattern Select
0-255 64 Patterns
Channel 4 –Dot and Turn
0-63 No Dot
64-127 Turn
128-191 Dot
192-255 Dot and Turn
Channel 5 –Turn
0-63 No Turn
64-127 X Coordinate Turn
128-191 Y Coordinate Turn
192-255 X & Y Coordinate Turn
Channel 6 –Partition
0-63 No Partition
64-127 Partition On X Coordinate
128-191 Partition On Y Coordinate
192-255 Partition On X & Y Coordinate
Channel 7 –Static Patterns Pattern Size
0-63 No Partition
64-127 Partition On X Coordinate
128-191 Partition On Y Coordinate
192-255 Partition On X & Y Coordinate
Channel 8 –Speed
0-255 0-255/23= 0-11 Different speeds
Channel 9 –Draw Speed
0-255 0-255/23= 0-11 Different speeds
Channel 10 –Draw Speed
0-255 255/23= 0-11 Different speeds
0 = original size, 1-11 = Zoom In, 12-23 = Zoom Out-
12
Maintenance
The Showtec Shogun Club G-40 requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and
then wipe the cover with a damp cloth. Do not immerse in liquid. Carefully wipe both mirrors clean with glass
cleaner and a soft cloth. Do not use alcohol or solvents.
The mirrors will require regular cleaning, as smoke-fluid tends to build up residues, reducing the lightoutput quickly.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections with a
damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.
The following points have to be considered during the inspection:
1. All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
2. There may not be any deformations on housings, fixations and installation spots.
3. The electric power supply cables must not show any damages or material fatigue.
Replacing the Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the fuse
burns out, the product will not function whatsoever. If this happens, follow the directions below to do so.
1. Unplug the unit from electric power source.
2. Insert a screwdriver into the slot in the fuse cover. Turn the screwdriver to the left, at the same time gently
push a bit (Turn and Push). The fuse will come out.
3. Remove the used fuse. If brown or unclear, it is burned out.
4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to
use a fuse of the same type and specification. See the product specification label for details.
13
Troubleshooting
No Light
This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps
below in sequence until a solution is found. Once the unit operates properly, do not carry out following
steps.
If the light effect does not operate properly, refer servicing to a technician.
Response: Suspect three potential problem areas: the power supply, the laser, the fuse.
1. Power supply. Check that the unit is plugged into an appropriate power supply.
2. The laser. Return the device to your Showtec dealer.
3. The fuse. See page 13 for replacing the fuse.
No Response to DMX
Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card
malfunction.
1. Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. Try
your DMX control again.
2. Determine whether the controller or laser effect is at fault. Does the controller operate properly with
other DMX products ? If not, take the controller in for repair. If so, take the DMX cable and the light effect
to a qualified technician.
14
Product Specification
Model: Showtec Shogun Club G-40
Voltage: 240V-50Hz (CE)
Fuse: 2A / 250V
Dimensions: 390x285x135mm (LxWxH)
Weight: 5 kg
Operation and Programming
DMX Channels: 10
Signal input 3-pin XLR male
Signal output 3-pin XLR female
DMX-control via standard DMX-controller
Laser
40 mW green Laser (532nm)
Minimum distance:
Minimum distance from flammable surfaces: 0.5m
Minimum distance to lighted object: 0.8m
Design and product specifications are subject to change without prior notice.
15
20 06
Showtec.
Loading...
