Page 1
EventSpot 1600 Q4 V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 44051
MANUAL
ENGLISH
Page 2
1
Ordercode: 44051
EventSpot 1600 Q4
Table of contents
Warning ............................................................................................................................................................................... 3
Safety Instructions ......................................................................................................................................................... 3
Operating Determinations .......................................................................................................................................... 5
Rigging ............................................................................................................................................................................ 5
Connection with the mains ......................................................................................................................................... 6
Return Procedure .......................................................................................................................................................... 7
Claims .............................................................................................................................................................................. 7
Description of the device ................................................................................................................................................. 8
Optional accessories .................................................................................................................................................... 8
Overview ........................................................................................................................................................................ 9
Bottom ............................................................................................................................................................................. 9
Backside .......................................................................................................................................................................10
Installation .........................................................................................................................................................................10
Set Up and Operation .....................................................................................................................................................10
Charging the built-in battery ....................................................................................................................................10
Control Modes .............................................................................................................................................................11
One EventSpot (Manual) .......................................................................................................................................11
One EventSpot (Auto program) ...........................................................................................................................11
One EventSpot (Built-in programs) .......................................................................................................................11
Multiple EventSpots (Master/Slave control) ........................................................................................................12
Multiple EventSpots (DMX Control) ......................................................................................................................13

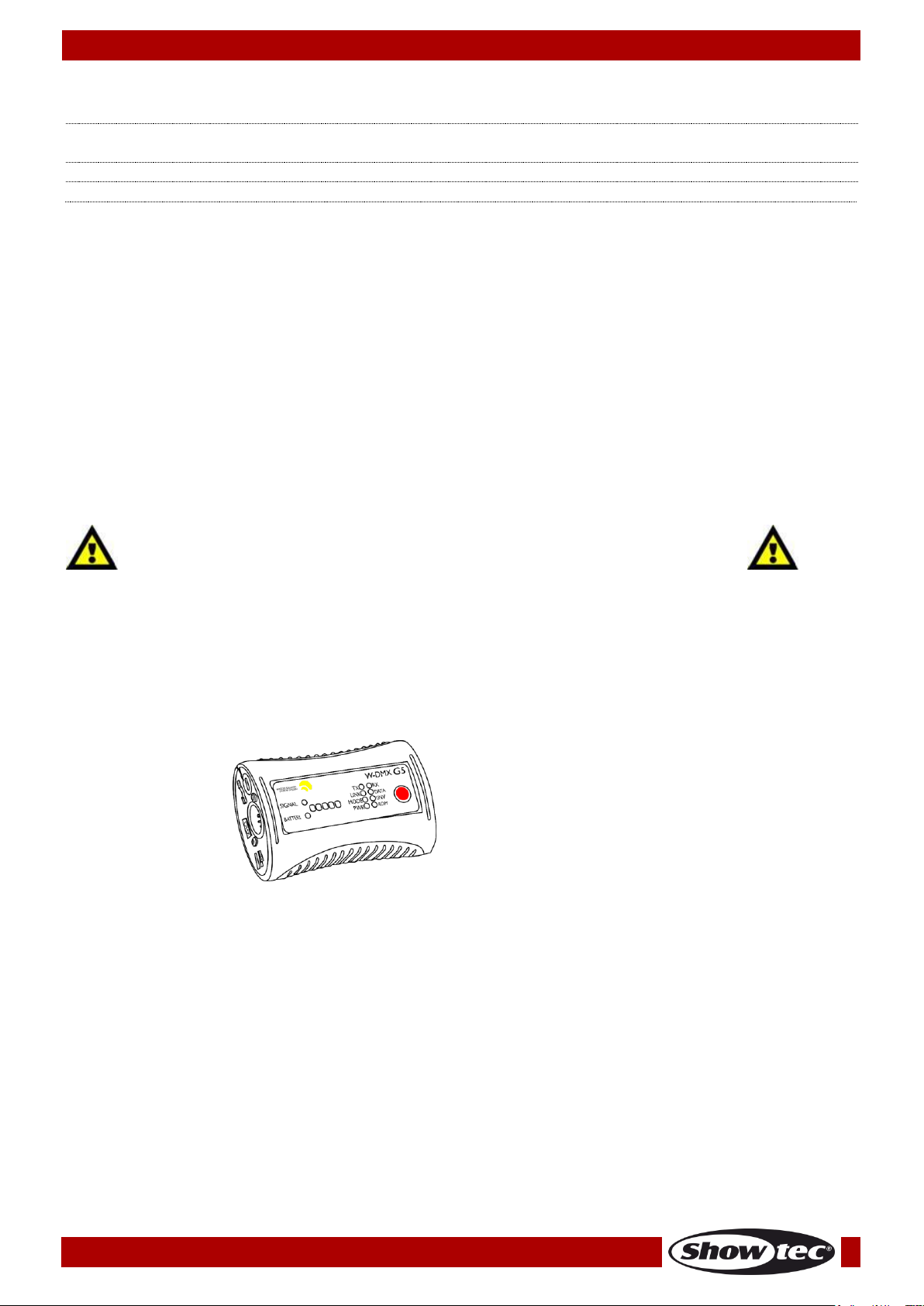

Multiple EventSpots (Wireless DMX Control) .......................................................................................................14
Connect the EventSpot 1600 Q4 to the Wireless DMX signal transmitter .....................................................15
Disconnect from the Wireless DMX signal transmitter .......................................................................................15
Fixture Linking ...............................................................................................................................................................16
Data Cabling ...............................................................................................................................................................16
Control Panel ...............................................................................................................................................................17
DMX Control Mode .....................................................................................................................................................17
DMX Addressing ..........................................................................................................................................................17
Menu overview ............................................................................................................................................................18
Main Menu Options ....................................................................................................................................................19
1. DMX Address/ DMX Configuration/DMX signal .............................................................................................19
2. Manual...................................................................................................................................................................20
3. Auto program .......................................................................................................................................................20
4. Built-in programs ..................................................................................................................................................20

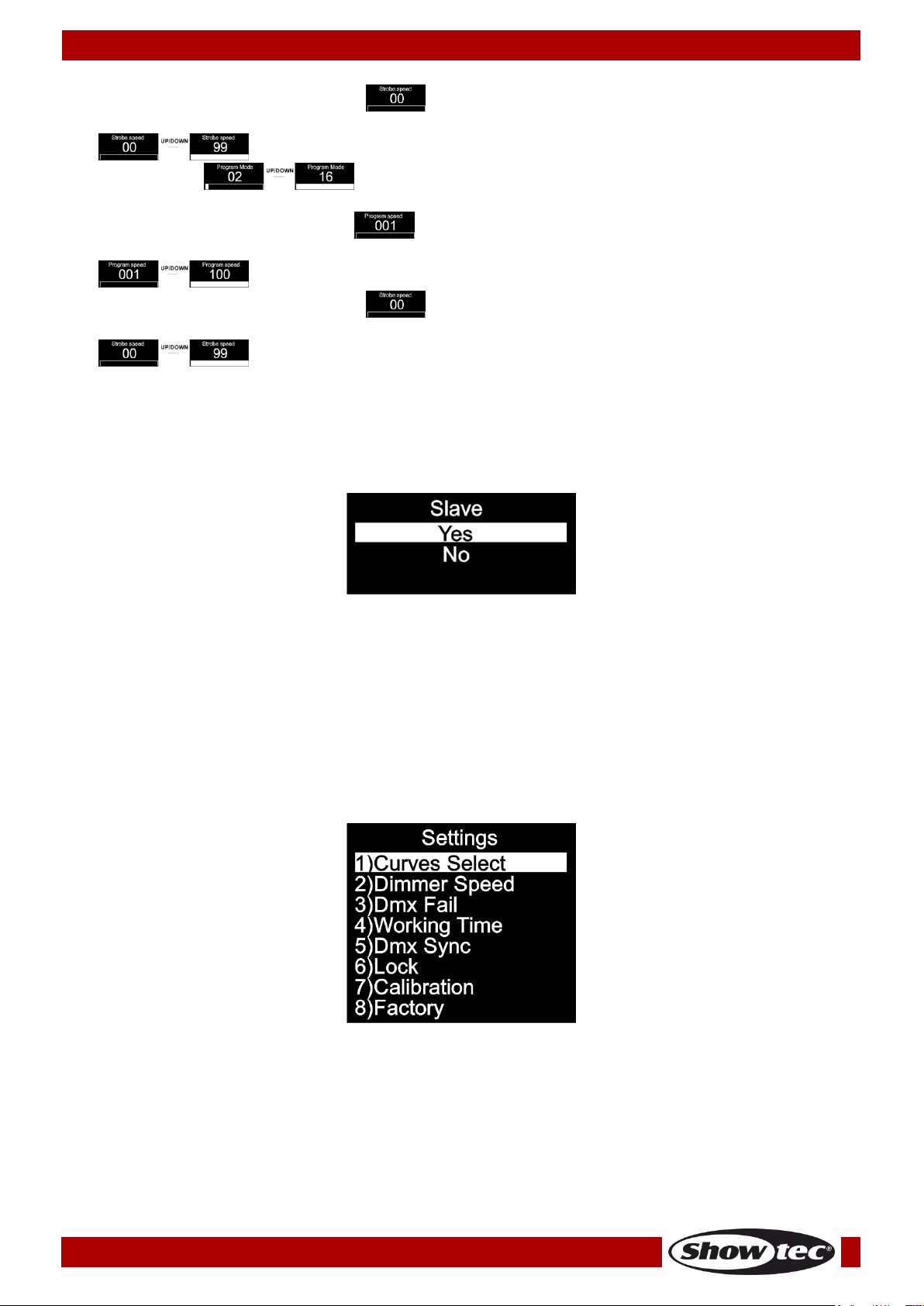

5. Master/slave .........................................................................................................................................................21
6. Settings ...................................................................................................................................................................21

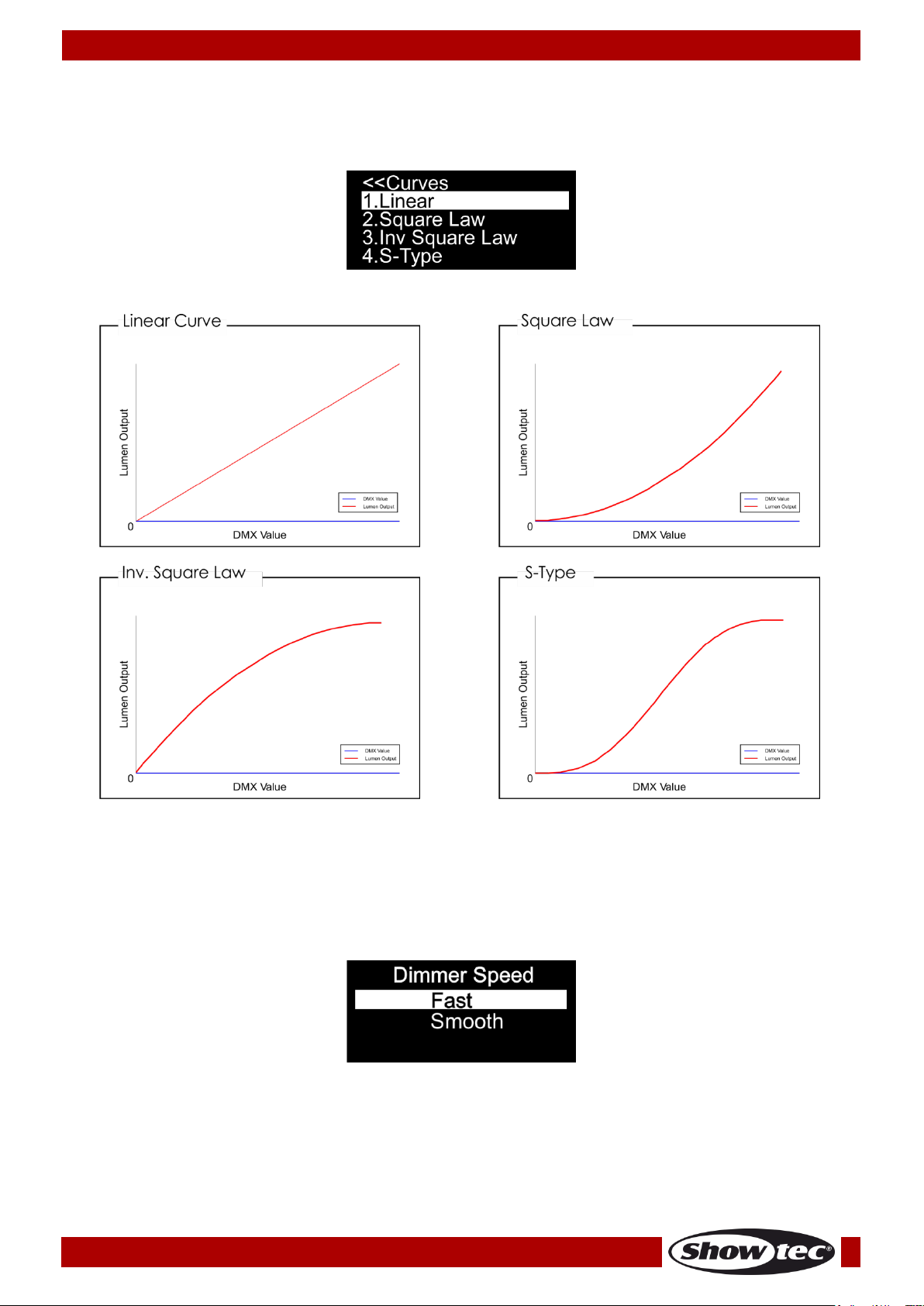

6.1. Curves Select ....................................................................................................................................................22
6.2. Dimmer Speed ..................................................................................................................................................22
6.3. DMX Fail ..............................................................................................................................................................23
6.4. Working Time .....................................................................................................................................................23
6.5. DMX Sync ...........................................................................................................................................................23
6.6. Lock .....................................................................................................................................................................24
6.7. Calibration .........................................................................................................................................................24
6.8. Factory ................................................................................................................................................................24
7. Information ............................................................................................................................................................25

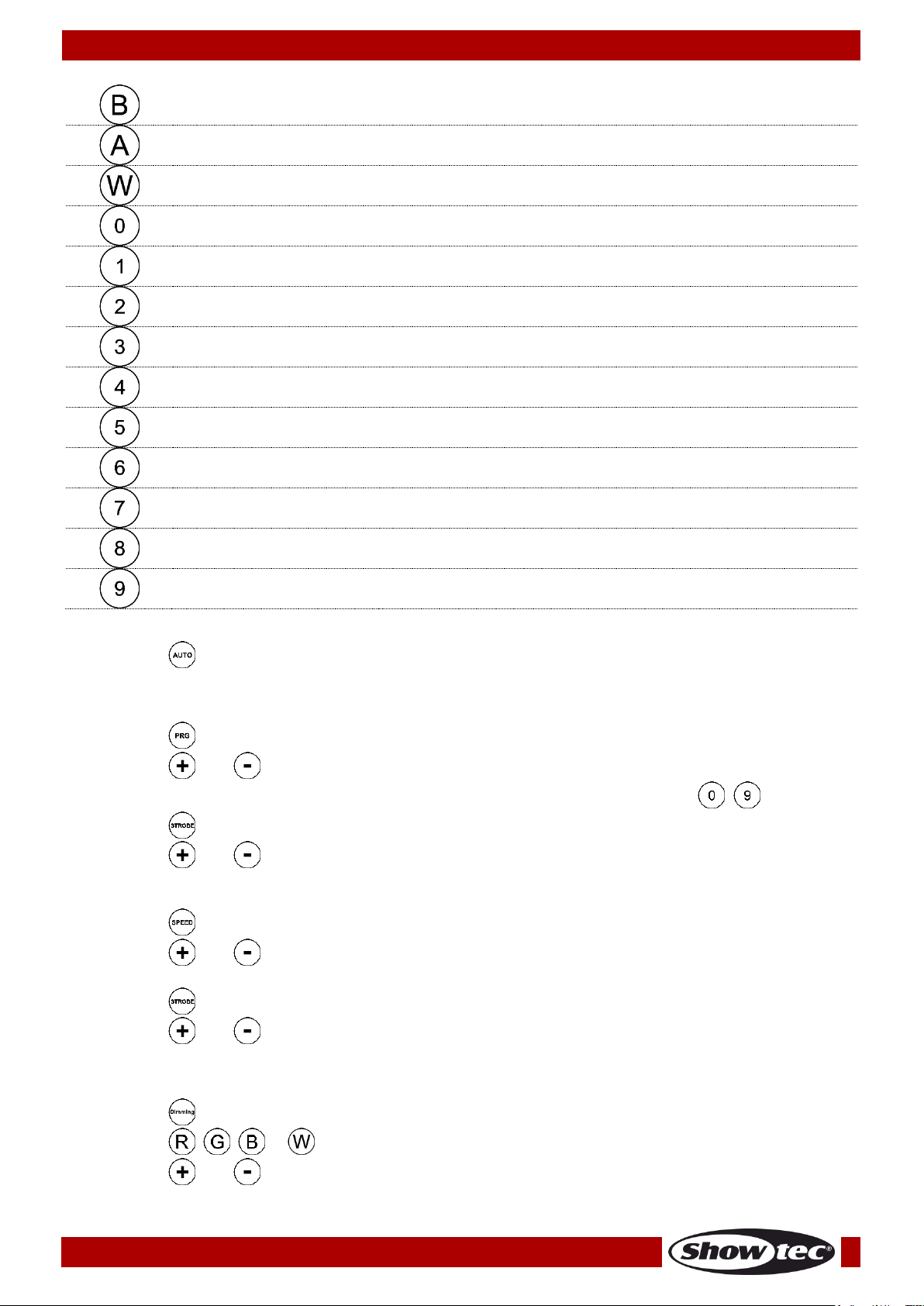

Optional remote control ...........................................................................................................................................25
Auto program ...........................................................................................................................................................26
Built-in programs .......................................................................................................................................................26
Manual mode ...........................................................................................................................................................26
DMX Channels .............................................................................................................................................................27
4 Channels ................................................................................................................................................................27
6 Channels ................................................................................................................................................................27
10 Channels ..............................................................................................................................................................27
Page 3
2
Ordercode: 44051
EventSpot 1600 Q4
Maintenance ....................................................................................................................................................................29
Troubleshooting ...............................................................................................................................................................30
No Light .........................................................................................................................................................................30
No Response to DMX ..................................................................................................................................................30
Product Specifications ....................................................................................................................................................32
Dimensions ........................................................................................................................................................................33
Notes ..................................................................................................................................................................................34
Page 4
3
Ordercode: 44051
EventSpot 1600 Q4
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear to be damaged from shipping or the carton
itself shows signs of mishandling. Save the carton and all packing materials. In the event that the fixture
must be returned to the factory, it is important that the fixture be returned in the original factory box and
packing.
Your shipment includes:
● EventSpot 1600 Q4
● User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
● be qualified
● follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
Page 5
4
Ordercode: 44051
EventSpot 1600 Q4
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
● Never remove warning or informative labels from the unit.
● Never use anything to cover the ground contact.
● Never place any material over the lens.
● Never look directly into the light source.
● Never leave any cables lying around.
● Do not insert objects into air vents.
● Do not connect this device to a dimmerpack.
● Do not switch the device on and off in short intervals, as this would reduce the device’s lifespan.
● Do not touch the device’s housing bare-handed during its operation. Allow the fixture to cool for at
least 5 minutes before handling.
● Do not shake the device. Avoid brute force when installing or operating the device.
● Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
● Only operate the device after having familiarized with its functions.
● Avoid flames and do not put close to flammable liquids or gases.
● Always keep case closed while operating.
● Always allow free air space of at least 50 cm around the unit for ventilation.
● Make sure that the device is not exposed to extreme heat, moisture or dust.
● Make sure that the available voltage is not higher than stated on the rear panel.
● If the lens is obviously damaged, it has to be replaced to prevent its functions from being impaired,
due to cracks or deep scratches.
● If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
● If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
● If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
● For adult use only. Device must be installed out of reach of children. Never leave the unit running
unattended.
● Never attempt to bypass the thermostatic switch or fuses.
● For replacement, use fuses of same type and rating only.
● The user is responsible for correct positioning and operating of the Showtec EventSpot 1600 Q4. The
manufacturer will not accept liability for damages caused by the misuse or incorrect installation of
this device.
● This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
● Repairs, servicing and electrical connection must be carried out by a qualified technician.
● WARRANTY: Till one year after date of purchase.
● WARRANTY: on batteries is only 6 months after date of purchase.
When your battery remains dead after fully charging or it doesn’t function or doesn’t charge
anymore, you can order a new battery. The spare part number for the battery is on request.
Page 6
5
Ordercode: 44051
EventSpot 1600 Q4
Operating Determinations
● This device is not designed for permanent operation. Regular operation breaks will ensure that the
device will serve you for a long time without defects.
● The minimum distance between light-output and the illuminated surface must be bigger than 0,5
meter.
● In order to eliminate wear and improve the device’s lifespan, during periods of non-use, completely
disconnect from power source via breaker or by unplugging.
● The maximum ambient temperature ta = 40°C must never be exceeded.
● The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
● If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
● Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself!
Always let the installation be carried out by an authorized dealer!
Procedure:
● If the device is lowered from the ceiling or high joists, professional trussing systems have to be used.
● Use a clamp to mount the device, with the mounting-bracket, to the trussing system.
● The device must never be fixed swinging freely in the room.
● The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
● When rigging, derigging or servicing the device, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
Page 7
6
Ordercode: 44051
EventSpot 1600 Q4
The EventSpot 1600 Q4 can be placed on a flat surface or fitted to any kind of truss with a clamp.
Improper installation can cause serious damage to people and property!
Connection with the mains
Connect the device to the mains with the power plug.
Always check if the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE
GROUND
Make sure that the device is always connected properly to the earth!
Improper installation can cause serious damage to people and property!
Page 8
7
Ordercode: 44051
EventSpot 1600 Q4
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the
fixture. Be prepared to provide the model number, serial number and a brief description of the cause of
the return. Be sure to properly pack fixture as any shipping damage resulting from inadequate packaging
is the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name.
02) Your address.
03) Your phone number.
04) A brief description of the symptoms.
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that the fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period, complaints will not be handled anymore.
Complaints will only be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
Page 9
8
Ordercode: 44051
EventSpot 1600 Q4
Description of the device
Features
The EventSpot 1600 Q4 is a wireless LED Eventspot from Showtec.
● Long battery life
● Eco mode for extended batterylife
● IP-54 for outdoor use
● Wireless DMX by Wireless Solutions Sweden
● Input Voltage: 100~240V AC, 50/60Hz
● Batttery storage: 15,6Ah
● Light source: 4 x 12W RGBW LEDs
● Drive current: 650mA
● Refresh rate: 12KHz
● Liminus flux: 1580
● Lux@2m: 15000
● Operating time at Full On: 8 hours at full RGBW on
● Charging time: 6 hours
● Battery type: Litium ion
● Voltage: 18,5V
● Spare battery: On request
● OLED display for easy setup
● Control Protocol: DMX512 via wireless/ DMX512
● DMX channels: 4, 6 or 10 channels
● Control modes: Built-in programs, Auto, Manual, Master/Slave, DMX, W-DMX
● Beam angle: 10°
● Dimmer: 0-100%
● Strobe: 0-15Hz
● Housing: Black aluminum and iron
● IP rating: IP54
● Connections: Dedicated 3-pin XLR IN/OUT IP54
● Cooling: Aluminum heatsink
● Operation Temperature: -10°C ~40°C
● Dimensions: 180 x 180 x 280 mm (LxWxH)
● Weight: 5,0 Kg
Note: Knowledge of DMX is required to fully utilize this unit.
Optional accessories
44002 – Showtec UR-5 Universal IR Remote
44052 – Charger for EventSpot 1600 Q4
44053 – Beamshaper for Eventspot 1600 Q4 (40°)
44054 – Beamshaper for Eventspot 1600 Q4 (15° x 60°)
44055 – Beamshaper for Eventspot 1600 Q4 (20°)
50175 – W-DMX MicroBox F-1 G5 Transceiver
Page 10
9
Ordercode: 44051
EventSpot 1600 Q4
Overview
Fig. 01
01) Adjustment knob
02) 4 x 12W RGBW LEDs
03) OLED display + control buttons
Bottom
Fig. 02
04) Dedicated 3-pin DMX signal connector IN IP54
05) Main power button ON/OFF
06) Dedicated 3-pin DMX signal connector OUT IP54
07) Quick lock mounting hole
08) Battery charger socket
Page 11
10
Ordercode: 44051
EventSpot 1600 Q4
Backside
Fig. 03
09) Wireless DMX receiving antenna
Installation
Remove all packing materials from the EventSpot 1600 Q4. Check that all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Charging the built-in battery
01) In order to charge the battery you need the optional charger 44052 (is not included!).
02) Turn off the power.
03) Connect the EventSpot to the charger (fig 04).
04) Please make sure that the battery socket from the EventSpot covers the socket from the
charger (fig 04).
05) Connect the charger to a powerCON to Schuko power cable.
06) Then plug the other end of the powerCON to Schuko power cable into a proper electric power
supply socket.
07) Charge the battery within 6 hours.
08) The four LED indicators from the charger will light up green when the EventSpot is fully charged.
Page 12
11
Ordercode: 44051
EventSpot 1600 Q4
Fig. 04
Important!
● Do not charge for more than 24 hours.
● Recharge within 3 days of use.
● Press the Main power button (05) to off at the underside when storing for more than 7 days.
● Store in an upright position.
Control Modes
There are 6 modes:
Manual (stand alone)
Auto program (stand alone)
Built-in programs (stand alone)
Master/Slave
DMX512
Wireless DMX (W-DMX)
One EventSpot (Manual)
When the EventSpot is not connected by a DMX-cable and Wireless DMX is switched off, it functions as
a stand-alone device. See page 20 for more information about the Manual mode.
One EventSpot (Auto program)
When the EventSpot is not connected by a DMX-cable and Wireless DMX is switched off, it functions as a
stand-alone device. See page 20 for more information about the Auto program.
One EventSpot (Built-in programs)
When the EventSpot is not connected by a DMX-cable and Wireless DMX is switched off, it functions as a
stand-alone device. See pages 20-21 for more information about the Built-in programs.
Page 13
12
Ordercode: 44051
EventSpot 1600 Q4
Multiple EventSpots (Master/Slave control)
01) Use a 3-p XLR cable to connect the EventSpots and other devices.
The pins:
1. Earth
2. Signal (-)
3. Signal (+)
02) Link the units as shown in (Fig. 05), connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third and fourth units. You can
use the same functions on the master device as described on pages 20-21 (Manual, Auto program
or Built-in programs). This means you can set your desired operation mode on the master device and
all slave devices will react the same as the master device.
Multiple EventSpots (Master/Slave control)
Fig. 05
Page 14
13
Ordercode: 44051
EventSpot 1600 Q4
Multiple EventSpots (DMX Control)
01) Leave at least 0,5 meter on all sides for air circulation
02) Use a 3-p XLR cable to connect the EventSpots and other devices.
03) Link the units as shown in (figure 06), connect a DMX signal cable from the first unit's DMX "out"
socket to the second unit's "in" socket. Repeat this process to link the second, third and fourth units.
Multiple EventSpots DMX Set Up
Fig. 06
Page 15
14
Ordercode: 44051
EventSpot 1600 Q4
Multiple EventSpots (Wireless DMX Control)
01) Place the EventSpots at the desired position (see page 15 for maximum WiFi distance).
02) When the W-DMX LED indicator (C) is blinking (green), the device is searching for a connection.
03) Connect the transmitter with multiple EventSpots. In order to create a Wireless match, please check
the manual of your wireless signal transmitter.
04) When there is a connection, the W-DMX LED indicator (C) from the EventSpot will light up green.
05) Use a DMX-cable to link the transmitter with a suitable lightcontroller.
Setup example wireless DMX
Fig. 07
Page 16
15
Ordercode: 44051
EventSpot 1600 Q4
Sweden 2.4GHz Wireless communication module
Communication distance:
Depending on the transmitting power or transmitter module
Test conditions:
W-DMX TRx Transmitter module, 2dBi Antenna, transmitting power
20dBm (100mW)
Range indoor:
60m (approx. through three concrete walls)
Range outdoor:
250m
Wireless DMX connection
The wireless receiving module “Pico G4 Receiver, 2.4GHz”, provided by Swedish WIRELESS SOLUTION, only
has a 2.4 GHz wireless signal receiving function. In order to match the wireless signal, please use the 50175
W-DMX MicroBox F-1 G5 Transceiver by WIRELESS SOLUTION. To control the status of the wireless
communication, please look at the green LED indicator on the control panel of the fixture.
Wi-fi Problems:
01) No emitter/sender matching.
The LED Indicator dims for a long period of time.
02) Matching signal with one emitter, but loss of signal communication.
The LED Indicator light will light up for 100ms and then dim for 100ms; The LED will flicker quickly.
03) Communication with an emitter, but no DMX data.
The LED Indicator will light up for 900ms and then dim for 100ms; The LED will flicker slowly.
When the wireless DMX communication is normal, the LED indicator will always be on.
The EventSpot 1600 Q4 cannot receive a wireless DMX signal and a DMX
cable signal at the same time
When the device is in manual, auto program or built-in program, please ensure that the matching 2.4GHz
wireless signal transmitter is OFF.
Connect the EventSpot 1600 Q4 to the Wireless DMX signal transmitter
The EventSpot 1600 Q4 cannot actively match a random wireless signal transmitter.
In order to create a Wireless match, please check the manual of your wireless signal transmitter.
We advise you to use the W-DMX MicroBox F-1 G5 Transceiver (50175) by WIRELESS SOLUTION (Fig. 08).
Ordercode: 50175
Fig. 08
Disconnect from the Wireless DMX signal transmitter
The EventSpot 1600 Q4 can be disconnected from the wireless DMX signal transmitter.
You can turn off/unlink the W-DMX if you press the W-DMX button (H) for 3 seconds.
The EventSpot will be disconnected.
Page 17
16
Ordercode: 44051
EventSpot 1600 Q4
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Important:
Fixtures on a serial data link must be daisy chained in one single line. To comply with the
EIA-485 standard no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of EventSpots on a DMX data link: 30 fixtures
Data Cabling
To link fixtures together you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio DMX Data Cables
● DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin. Ordercode
FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
● DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
● DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
● DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
● DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
● DAP Audio data cable FL08 DMX/AES-EBU, XLR/M 5-pin > XLR/F 5-pin. Ordercode FL08150 (1,5 m),
FL083 (3 m), FL086 (6 m), FL0810 (10 m), FL0820 (20 m).
● DAP Audio DMX adapter: 5-pin > 3-pin. Ordercode FLA29.
● DAP Audio DMX adapter: 3-pin > 5-pin. Ordercode FLA30.
● DAP Audio DMX Terminator 3-pin. Ordercode FLA42.
● DAP Audio DMX Terminator 5-pin. Ordercode FLA43.
The EventSpot 1600 Q4 can be operated with a controller in control mode or without the controller in
stand-alone mode.
Page 18
17
Ordercode: 44051
EventSpot 1600 Q4
Control Panel
A)
B)
C)
D)
E)
F)
G)
H)
I)
OLED display
IR-remote sensor
W-DMX LED indicator
MODE button
UP button
SET button
Power button on/off
W-DMX button
DOWN button
Fig.09
DMX Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address, next time.)
DMX Addressing
The control panel on the back side of the device allows you to assign the DMX fixture address, which is
the first channel from which the EventSpot will respond to the controller. Please note when you use the
controller, the unit has up to 10 channels.
When using multiple EventSpots, make sure you set the DMX addresses right. Therefore, the DMX address
of the first EventSpot should be 1(001); the DMX address of the second EventSpot should be 1+10=11
(011); the DMX address of the third EventSpot should be 11+10=21 (021), etc. Please, be sure that you
don’t have any overlapping channels in order to control each EventSpot correctly. If two or more
EventSpots are addressed similarly, they will work similarly.
Controlling: After having addressed all EventSpots, you may now start operating these via your lighting
controller.
Note: After switching on, the EventSpot will automatically detect whether DMX 512 data is received or
not. If there is no data received at the DMX-input, the problem may be:
● The XLR cable from the controller is not connected with the input of the EventSpot.
● The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
Display Off after 60 seconds
When no button is pressed for 60 seconds, the display will turn off.
To light up the display, you have to press the MODE, SET, UP or DOWN button.
Once you have pressed the button, the display will light up.
Page 19
18
Ordercode: 44051
EventSpot 1600 Q4
Menu overview
Page 20
19
Ordercode: 44051
EventSpot 1600 Q4
First press the main power button (5) and then hold the power button (G) for at least 3 sec. to activate the
EventSpot! The EventSpot will show the current software version, battery energy level, actual temperature
and type of DMX signal at start-up !
Main Menu Options
01) Press the MODE or SET button to open the main menu.
02) Press the UP/DOWN buttons to scroll through the menu. The display will show:
03) Press the SET button to open the desired menu.
04) Press the MODE button to return to the previous menu.
1. DMX Address/ DMX Configuration/DMX signal
In this menu you can set the device’s DMX starting address, choose a DMX channel mode or choose
between the DMX signal options.
01) While in main menu, press the UP/DOWN buttons until the display shows DMX.
02) Press the SET button to open the menu, the display will show:
03) Press the UP/DOWN buttons to set the DMX address, the desired configuration and activate DMX or
W-DMX mode.
04) If you choose the DMX address , press the SET button to open the submenu.
05) Press the UP/DOWN buttons to set the desired address. The adjustment range is between
.
06) If you choose the DMX configuration , press the SET button to open the submenu.
07) Press the UP/DOWN buttons to choose between:
4 Channels
6 Channels
10 Channels
08) If you choose Signal, press the SET button to open the submenu:
09) Press the UP/DOWN buttons to select normal DMX or wireless DMX mode.
10) Press the SET button to confirm your choice.
Page 21
20
Ordercode: 44051
EventSpot 1600 Q4
2. Manual
In this menu you can individually set the static colors.
01) While in main menu, press the UP/DOWN buttons until the display shows Manual.
02) Press the SET button to open the menu, the display will show:
03) Press the UP/DOWN buttons to scroll between the static colors Red, Green, Blue and White.
04) If you choose the desired color, press the SET button to adjust the color intensity.
05) Press the UP/DOWN buttons to set the intensity from the desired colors, the adjustment ranges are
between:
Red
Green
Blue
White
3. Auto program
In this menu you can activate the Auto program.
01) While in main menu, press the UP/DOWN buttons until the display shows Auto.
02) Press the SET button to open the menu, the display will show:
03) Press the UP/DOWN buttons to choose between Yes or No.
04) If you choose Yes, the EventSpot will immediately start the Auto program.
05) If you choose No, the EventSpot doesn’t start the Auto program and the output will blackout.
06) Press the SET button to confirm your choice.
4. Built-in programs
In this menu you can set the built-in programs.
01) While in main menu, press the UP/DOWN buttons until the display shows Program.
02) Press the SET button to open the menu, the display will show:
03) Press the SET button to open the menu and use the UP/DOWN buttons to choose between the built-
in programs. The adjustment range is between .
04) If you choose , press the UP/DOWN buttons to choose the desired color or set the strobe
frequency.
05) If you choose the color , press the SET button to open the submenu.
06) Press the UP/DOWN buttons to choose one of the 33 available preset colors .
Page 22
21
Ordercode: 44051
EventSpot 1600 Q4
07) If you choose the strobe frequency , press the SET button to open the submenu.
08) Press the UP/DOWN buttons to set the desired strobe frequency. The adjustment range is between
, from OFF to high strobe frequency.
09) If you choose , press the UP/DOWN buttons to set the program speed and
strobe frequency.
10) If you choose the program speed , press the SET button to open the submenu.
11) Press the UP/DOWN buttons to set the desired program speed. The adjustment range is between
, from slow to fast.
12) If you choose the strobe frequency , press the SET button to open the submenu.
13) Press the UP/DOWN buttons to set the desired strobe frequency. The adjustment range is between
, from OFF to high strobe frequency.
5. Master/slave
In this menu you can set the device as a slave.
01) While in main menu, press the UP/DOWN buttons until the display shows Slave.
02) Press the SET button to open the menu, the display will show:
03) If you choose Yes, the device will become a slave.
04) All slave devices will follow the master movement. If the device has been set to slave, it will react the
same as its master device.
05) If you choose No, it is automatically classified as a master device.
06) Press the SET button to confirm your choice.
6. Settings
In this menu you can set several settings of the device.
01) While in main menu, press the UP/DOWN buttons until the display shows Settings.
02) Press the SET button to open the menu, the display will show:
03) Press the UP/DOWN buttons to scroll between the following menus: Curves Select, Dimmer Speed,
DMX Fail, Working Time, DMX Sync, Lock, Calibration and Factory.
Page 23
22
Ordercode: 44051
EventSpot 1600 Q4
6.1. Curves Select
In this menu you can adjust the dimming of the device by choosing a dimming curve.
01) Press the UP/DOWN buttons until the display shows Curves Select.
02) Press the SET button to open the menu, the display will show:
03) Press the UP/DOWN buttons to choose the desired dimming curve out of the 4 available options:
04) Press the SET button to confirm your choice.
6.2. Dimmer Speed
In this menu you can adjust the dimming speed of the device.
01) Press the UP/DOWN buttons until the display shows Dimmer Speed.
02) Press the SET button to open the menu, the display will show:
03) Press the UP/DOWN buttons to choose between Fast or Smooth.
04) Press the SET button to confirm your choice.
Page 24
23
Ordercode: 44051
EventSpot 1600 Q4
6.3. DMX Fail
In this menu you can adjust the behaviour of the device in case of a DMX signal error.
01) Press the UP/DOWN buttons until the display shows Dmx Fail.
02) Press the SET button to open the menu, the display will show:
03) Press the UP/DOWN buttons to choose between the 4 options.
04) If you choose Off, the output will blackout when a DMX signal error occurs.
05) If you choose Hold, the device will fall back on the last properly working DMX signal from before the
DMX signal error, which ensures undisrupted performance.
06) If you choose Manual, the device will fall back on the last setting in the Manual mode before the
DMX signal error.
07) If you choose Program, the device will fall back on the last setting in the Program mode before the
DMX signal error.
08) Press the SET button to confirm your choice.
6.4. Working Time
In this menu you can increase the operating time of the battery.
01) Press the UP/DOWN buttons until the display shows Working Time.
02) Press the SET button to open the menu, the display will show:
03) Press the UP/DOWN buttons to choose between or .
04) If you choose , the EventSpot 1600 Q4 will have maximum output, this is the normal mode.
05) If you choose , you can set the working time from 1-15, the output will reduce but
the operating time will increase to a maximum of 15Hr.
06) Press the SET button to confirm your choice.
6.5. DMX Sync
In this menu you can set the DMX synchronisation of the device.
01) Press the UP/DOWN buttons until the display shows Dmx Sync.
02) Press the SET button to open the menu, the display will show:
03) Press the UP/DOWN buttons to select On or Off.
04) The Sync option is a tool which helps to keep multiple fixtures synchronized, when using them in
master slave mode.
05) If you choose On, the synchronization function is activated, this is recommended.
06) If you choose Off, the synchronization function is not activated.
07) Press the SET button to confirm your choice.
Page 25
24
Ordercode: 44051
EventSpot 1600 Q4
6.6. Lock
In this menu you can select whether the safety lock is active or not.
01) Press the UP/DOWN buttons until the display shows Lock.
02) Press the SET button to open the menu, the display will show:
03) Press the UP/DOWN buttons to select Yes or No.
04) If you choose Yes and confirm it with the SET button, the device will be in Lock mode. You will need
to insert the password in order to access the main menu. Simultaneously press the MODE and SET
button for 3 seconds and you will be able to access the main menu.
05) If you choose No, the main menu will remain unlocked.
06) Press the SET button to confirm your choice.
6.7. Calibration
In this menu you can set the white color calibration.
01) Press the UP/DOWN buttons until the display shows Calibration.
02) Press the SET button to open the menu, the display will show:
03) Press the UP/DOWN buttons to scroll between the static colors Red, Green, Blue and White.
04) If you choose the desired color, press the SET button to adjust the color intensity.
05) Press the UP/DOWN buttons to set the intensity from the desired colors, the adjustment ranges are
between:
Red
Green
Blue
White
6.8. Factory
In this menu you can reset to the default settings.
01) Press the UP/DOWN buttons until the display shows Factory.
02) Press the SET button to open the menu, the display will show:
03) Press the UP/DOWN buttons to select Yes or No.
04) If you choose Yes and confirm it with the SET button, the device will reset to its factory default
settings.
05) If you choose No, the device will keep current settings.
Page 26
25
Ordercode: 44051
EventSpot 1600 Q4
7. Information
In this menu you can view several info from the device.
01) In main menu, press the UP/DOWN buttons until the display shows Information.
02) Press the SET button to open the menu, the display will show:
03) You can view the currently installed software version, actual temperature, type of DMX signal and life
time.
Optional remote control
Button
Function
Description On / Off
Switch the device ON or OFF
Auto
Activates the Auto program
Program
Activates the Built-in programs
No function
Speed
Activates the Program speed mode
Strobe
Activates the Strobe frequency mode
Dimming
Activates the Manual Color mode
Plus
Increase button
Minus
Decrease button
Red
Activates the Red color
Green
Activates the Green color
Page 27
26
Ordercode: 44051
EventSpot 1600 Q4
Blue
Activates the Blue color
No function
White
Activates the White color
Green
Activates the Green color
Purple
Activates the Purple color
Purplish red
Activates the Purplish red color
Orange
Activates the Orange color
White
Activates the White color
Bright pink
Activates the Bright pink color
Light green
Activates the Light green color
Water blue
Activates the Water blue color
Yellow
Activates the Yellow color
Warm white
Activates the Warm white color
Auto program
01) Press the button to activate Auto program.
02) The EventSpot 1600 Q4 will immediately start with its built-in program.
Built-in programs
01) Press the button to activate the Built-in programs mode.
02) Press the and buttons to choose between program 01-16.
03) If you choose program 01, you can set the desired color preset with the buttons - .
04) Press the button to set the strobe frequency of the preset colors.
05) Press the and buttons to increase/decrease the strobe frequency. The adjustment range is
between 0-15Hz, from OFF to high strobe frequency.
06) If you choose program 02-16, you can set the program speed and strobe frequency.
07) Press the button to set the program speed.
08) Press the and buttons to to increase/decrease the program speed. The adjustment range is
between 01-100, from slow to fast.
09) Press the button to set the strobe frequency.
10) Press the and buttons to increase/decrease the strobe frequency. The adjustment range is
between 0-15Hz, from OFF to high strobe frequency.
Manual mode
01) Press the button to activate the manual mode.
02) Press the , , or button to choose one of the RGBW colors.
03) Press the and buttons to set the intensity of the individual colors between 0-255.
04) In this mode you can create your desired color.
Page 28
27
Ordercode: 44051
EventSpot 1600 Q4
DMX Channels
4 Channels
Channel 1 – Red Dimmer intensity
0-255
Gradual adjustment Red from 0-100%
Channel 2 – Green Dimmer intensity
0-255
Gradual adjustment Green from 0-100%
Channel 3 – Blue Dimmer intensity
0-255
Gradual adjustment Blue from 0-100%
Channel 4 – White Dimmer intensity
0-255
Gradual adjustment White from 0-100%
6 Channels
Channel 1 – Master Dimmer intensity
0-255
Gradual adjustment, from dark to brightest 0-100%
Channel 2 – Strobe (CH1 and CH3, CH4, CH5 or CH6 must be set between 1-255 )
0-10
Closed
11-128
Random strobe, from slow to fast
129-255
Strobe flash frequency, from low to high frequency (0-15 Hz)
Channel 3 – Red Dimmer intensity (CH1 must be set between 1-255 )
0-255
Gradual adjustment Red from 0-100%
Channel 4 – Green Dimmer intensity (CH1 must be set between 1-255 )
0-255
Gradual adjustment Green from 0-100%
Channel 5 – Blue Dimmer intensity (CH1 must be set between 1-255 )
0-255
Gradual adjustment Blue from 0-100%
Channel 6 – White Dimmer intensity (CH1 must be set between 1-255 )
0-255
Gradual adjustment White from 0-100%
10 Channels
Channel 1 – Master Dimmer intensity
0-255
Gradual adjustment, from dark to brightest 0-100%
Channel 2 – Strobe (CH1 and CH3, CH4, CH7, CH8, CH9 or CH10 must be set between 1-255 )
0-10
Closed
11-128
Random strobe, from slow to fast
129-255
Strobe flash frequency, from low to high frequency (0-15 Hz)
Page 29
28
Ordercode: 44051
EventSpot 1600 Q4
Channel 3 – Color presets (CH1 must be set between 1-255 )
0-7
No function
8-13
Color 1 (R255, G000, B000, W000)
14-20
Color 2 (R255, G000, B000, W100)
21-27
Color 3 (R255, G000, B000, W200)
28-34
Color 4 (R255, G050, B000, W000)
35-41
Color 5 (R255, G150, B000, W000)
42-48
Color 6 (R255, G255, B000, W000)
49-55
Color 7 (R255, G255, B000, W075)
56-62
Color 8 (R000, G255, B000, W255)
63-69
Color 9 (R000, G255, B000, W150)
70-76
Color 10 (R000, G255, B000, W050)
77-83
Color 11 (R000, G255, B000, W000)
84-90
Color 12 (R000, G255, B050, W000)
91-97
Color 13 (R000, G255, B150, W000)
98-104
Color 14 (R000, G255, B255, W000)
105-111
Color 15 (R000, G255, B255, W075)
112-118
Color 16 (R000, G255, B255, W150)
119-125
Color 17 (R000, G100, B255, W255)
126-132
Color 18 (R000, G000, B255, W100)
133-139
Color 19 (R000, G000, B255, W050)
140-146
Color 20 (R000, G000, B255, W000)
147-153
Color 21 (R075, G000, B255, W000)
154-160
Color 22 (R160, G000, B255, W000)
161-167
Color 23 (R255, G000, B255, W000)
168-174
Color 24 (R255, G000, B175, W000)
175-181
Color 25 (R255, G000, B100, W000)
182-188
Color 26 (R255, G000, B100, W050)
189-195
Color 27 (R255, G000, B025, W050)
196-202
Color 28 (R255, G000, B025, W025)
203-209
Color 29 (R255, G000, B025, W000)
210-216
Color 30 (R000, G000, B000, W255)
217-223
Color 31 (R075, G075, B000, W255)
224-230
Color 32 (R000, G000, B100, W255)
231-255
Color 33 (R255, G255, B255, W255)
Channel 4 – Built-in programs (CH1 must be set between 1-255 )
0-15
No function
16-31
Jump 1
32-47
Jump 2
48-63
Jump 3
64-79
Jump 4
80-95
Jump 5
96-111
Jump 6
112-127
Jump 7
128-143
Jump 8
144-159
Fade 1
160-175
Fade 2
176-191
Fade 3
192-207
Fade 4
208-223
Fade 5
224-239
Fade 6
240-255
Fade 7
Channel 5 – Speed Built-in programs (CH4 must be set between 16-255 )
0-255
Speed adjustment, from fast to slow
Page 30
29
Ordercode: 44051
EventSpot 1600 Q4
Channel 6 – Control functions (Hold DMX value for at least 2 sec. before the function will be activated)
0-15
No function
16-45
Dimmer fast
46-75
Dimmer slow
76-105
Linear curve
106-135
Square curve
136-165
Inv. Square curve
166-195
S-type curve
Channel 7 – Red Dimmer intensity (CH1 must be set between 1-255 )
0-255
Gradual adjustment Red from 0-100%
Channel 8 – Green Dimmer intensity (CH1 must be set between 1-255 )
0-255
Gradual adjustment Green from 0-100%
Channel 9 – Blue Dimmer intensity (CH1 must be set between 1-255 )
0-255
Gradual adjustment Blue from 0-100%
Channel 10 – White Dimmer intensity (CH1 must be set between 1-255 )
0-255
Gradual adjustment White from 0-100%
Maintenance
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and
must not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
The EventSpot 1600 Q4 requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and
then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and
a soft cloth. Do not use alcohol or solvents.
The front lens will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the lightoutput very quickly.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
Page 31
30
Ordercode: 44051
EventSpot 1600 Q4
Troubleshooting
No Light
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, follow the steps below in sequence until a solution is found. Once the unit operates
properly, do not carry out the following steps.
If the light effect does not operate properly, refer servicing to a technician.
Suspect three potential problem areas: the battery, the LEDs, the internal fuse.
01) Battery. Check if the battery is fully charged.
02) The LEDs. Return the EventSpot 1600 Q4 to your Showtec dealer.
03) The internal fuse. Return the EventSpot 1600 Q4 to your Showtec dealer.
04) If all of the above appears to be in order, switch the unit on again.
05) If you are unable to determine the cause of the problem, do not open the EventSpot 1600 Q4, as this
may damage the unit and the warranty will become void.
06) Return the device to your Showtec dealer.
No Response to DMX
Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card
malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is to blame. Does the controller operate properly with
other DMX products? If not, take the controller in for repair. If it does, take the DMX cable and the
light effect to a qualified technician.
Page 32
31
Ordercode: 44051
EventSpot 1600 Q4
Problem
Probable cause(s)
Solution
One or more
fixtures do not
function at all
No power to the fixture
• Check that power is switched on
and the battery is charged
Internal fuse blown
• Return the device to your local
Showtec dealer
Fixtures reset
correctly, but all
respond
erratically or not
at all to the
controller
The controller is not connected
• Connect controller
3-pin XLR Out of the controller
does not match XLR Out of the first
fixture on the link (i.e. signal is
reversed)
• Install a phase reversing cable
between the controller and the
first fixture on the link
Fixtures reset
correctly, but
some respond
erratically or not
at all to the
controller
Poor data quality
• Check data quality. If much lower
than 100 percent, the problem
may be a bad data link
connection, poor quality or
broken cables, missing termination
plug, or a defective fixture
disturbing the link
Bad data link connection
• Inspect connections and cables.
Correct poor connections. Repair
or replace damaged cables
Data link not terminated with 120
Ohm termination plug
• Insert termination plug in output
jack of the last fixture on the link
Incorrect addressing of the fixtures
• Check address setting
One of the fixtures is defective and
disturbs data transmission on the
link
• Bypass one fixture at a time until
normal operation is restored:
unplug both connectors and
connect them directly together.
• Have the defective fixture
serviced by a qualified technician
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed)
• Install a phase-reversing cable
between the fixtures or swap pin 2
and 3 in the fixture that behaves
erratically
No light or LEDs
cuts out
intermittently
Fixture is too hot
• Allow the fixture to cool down
• Clean the fan
• Make sure air vents in control
panel and the front lens are not
blocked
• Turn up the air conditioning
LEDs damaged
• Disconnect the fixture and return it
to your dealer
The power supply settings do not
match local AC voltage and
frequency
• Disconnect fixture. Check settings
and correct if necessary
Page 33
32
Ordercode: 44051
EventSpot 1600 Q4
Product Specifications
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
Email: service@highlite.com
Model:
Showtec EventSpot 1600 Q4
Input Voltage:
100-240V AC, 50/60 Hz
Drive current:
650mA
Refresh rate:
12KHz
Battery storage:
15,6Ah
Operating time at full RGBW:
8 hours
Operation temperature:
-10°to +40°
Battery type:
Litium ion
Charging time:
6 hours
Voltage:
18,5V
Spare battery:
On request
Protection rate:
IP54
Dimensions:
180 x 180 x 280 mm (LxWxH)
Weight:
5,0 kg
Operating and Programming:
Signal pin OUT:
Pin 1 (earth), pin 2 (-), pin 3 (+)
DMX Mode:
4, 6 or 10 channels
Signal input:
3-pin DMX IN
Signal output:
3-pin DMX OUT
Electro-mechanical effects:
LED Quantity:
4 x 12W RGBW LEDs
Color mixing:
RGBW
Beam angle:
10°
Liminus flux:
1580
Lux@2m:
15000
Dimmer:
0-100%
Strobe:
0-15Hz
Housing:
Black aluminum and iron
DMX-control:
DMX512 via wireless/ DMX512
On Board:
OLED display for easy setup
Control:
Built-in programs, Auto, Manual, Master/Slave,
DMX, W-DMX
Connections:
Dedicated 3-pin XLR IN/OUT IP54
Cooling:
Aluminum heatsink
Max. ambient temperature ta:
40°C
Max. housing temperature tB:
80°C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m
Minimum distance to lighted object:
1 m
Page 34
33
Ordercode: 44051
EventSpot 1600 Q4
Dimensions
Page 35
34
Ordercode: 44051
EventSpot 1600 Q4
Notes
Page 36
©2018 Showtec
Loading...
