Energetic V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 43165
MANUAL
ENGLISH
1
Ordercode: 43165
Energetic
Table of contents
Warning ............................................................................................................................................................................... 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 5
Laser safety for a Class 3R Laser Product ................................................................................................................. 5
Rigging ............................................................................................................................................................................ 7
Connection with the mains ......................................................................................................................................... 7
Return Procedure .......................................................................................................................................................... 8
Claims .............................................................................................................................................................................. 8
Description of the device ................................................................................................................................................. 9
Overview ........................................................................................................................................................................ 9
Frontside ........................................................................................................................................................................10
Backside .......................................................................................................................................................................10
Installation .........................................................................................................................................................................11
Set Up and Operation .....................................................................................................................................................11
Control Modes .............................................................................................................................................................12
One Energetic (Built-in programs, Static Color, Manual) .................................................................................12
One Energetic (Sound-controlled) .......................................................................................................................12
Multiple Energetics (Master/Slave control) .........................................................................................................13
Multiple Energetics (DMX Control) .......................................................................................................................14
Fixture Linking ...............................................................................................................................................................15
Data Cabling ...............................................................................................................................................................15
Control Panel ...............................................................................................................................................................16
Control Mode ..............................................................................................................................................................16
DMX Addressing ..........................................................................................................................................................16
Menu Overview ...........................................................................................................................................................17
Main Menu Options ....................................................................................................................................................17
1. 2-channel mode ..................................................................................................................................................18
2. 9-channel mode ..................................................................................................................................................18
3. Static Colors ..........................................................................................................................................................18
4. Built-in Programs ...................................................................................................................................................18
5. Built-in Program Speed .......................................................................................................................................18
6. Sound-controlled Mode .....................................................................................................................................18
7. Manual...................................................................................................................................................................19
8. IR Remote Control Settings ................................................................................................................................19
Remote Control ...........................................................................................................................................................20
DMX Channels .............................................................................................................................................................21
2 channels .................................................................................................................................................................21
9 channels .................................................................................................................................................................21
Maintenance ....................................................................................................................................................................23
Replacing the Fuse .....................................................................................................................................................23
Troubleshooting ...............................................................................................................................................................24
No Light .........................................................................................................................................................................24
No Response to DMX ..................................................................................................................................................24
Product Specifications ....................................................................................................................................................26
Dimensions ........................................................................................................................................................................27
Notes ..................................................................................................................................................................................28
2
Ordercode: 43165
Energetic
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing .
Your shipment includes:
● Showtec Energetic
● IEC power cable (1,5 m)

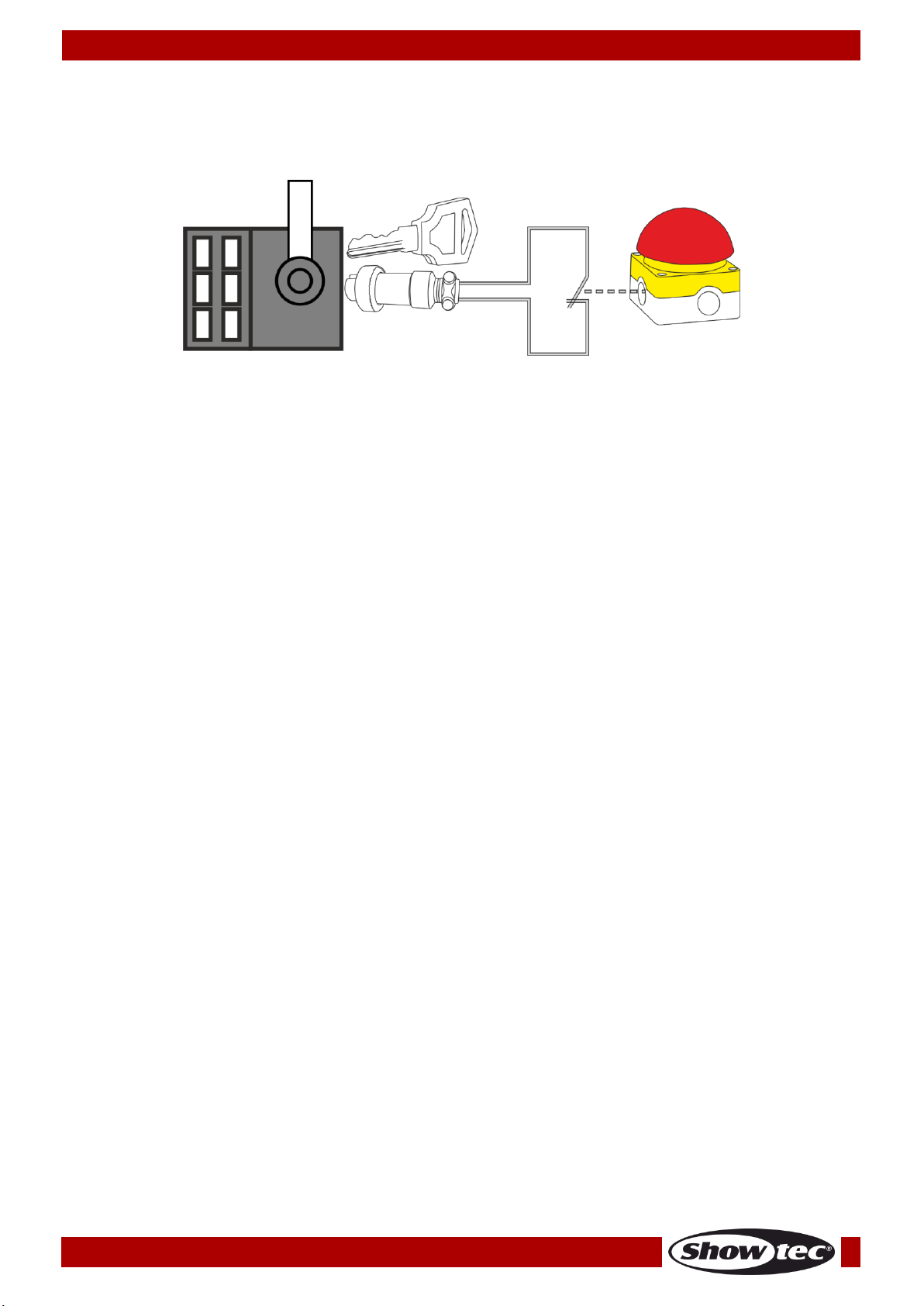

● 2 keys for the interlock
● Remote control plug
● IR remote control
● User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
● be qualified
● follow the instructions of this manual
3
Ordercode: 43165
Energetic
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
● Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
● Never modify, bend, mechanically strain, put pressure on, pull or heat up the power cord.
● Never strain the cable insert or the female part in the device. There must always be sufficient cable
going to the device. Otherwise, the cable will be damaged, which can cause serious damage.
● Never remove warning or informative labels from the unit.
● Never use anything to cover the ground contact.
● Never lift the device holding it by the projector-head, as the mechanics may be damaged. Always
hold the device by the transport handles.
● Never place any material over the LEDs or lens.
● Never look directly into the light source.
● Never leave any cables lying around.
● Never use the device during thunderstorms, unplug the device immediately.
● Never leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach, as they are potential sources of danger.
● Never aim the laser beam at people or animals!
● Never point a laser at aircraft, this is a federal offense.
● Never point unterminated laser beams into the sky.
● Never open the laser housing. The high laser power levels inside of the protective housing can start
fires, burn skin and will cause instant eye injury.
● Do not insert objects into air vents.
● Do not connect this device to a dimmer pack.
● Do not open the device and do not modify the device.
● Do not point lasers at highly reflective surfaces such as windows, mirrors and shiny metal. Even laser
reflections can be hazardous.
● Do not expose the output optic (aperture) to cleaning chemicals.
● Do not use the laser if the laser appears to be emitting only one or two beams.
● Do not use the laser if housing is damaged or open, or if optics appear damaged in any way.
● Do not operate laser without first reading and understanding all safety and technical data in this
manual. Never look into the laser aperture or laser beams.
● Do not switch the device on and off in short intervals, as this will reduce the device’s life.
● Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the device to cool for at least 5 minutes before handling.
● Do not shake the device. Avoid brute force when installing or operating the device.
● After set up and prior to public use, test laser to ensure proper function. Do not use the laser if any
defect is detected. Do not use, if the laser emits only one or two laser beams rather than
dozens/hundreds, as this could indicate damage to the diffraction grating optic, and could allow
emission of higher laser levels.
● Only use the device indoors, avoid contact with water or other liquids.
● Only operate the device after having checked if the housing is firmly closed and all screws are tightly
fastened.
● Only operate the device after having familiarized with its functions.
● Always check the regulations when using a class 3R laser product.
● Always check and position the laser before anybody enters the room, when the laser is facing an
area with people.
4
Ordercode: 43165
Energetic
● Avoid flames and do not put close to flammable liquids or gases.
● Always keep the case closed while operating.
● Always allow a free air space of at least 50 cm around the unit for ventilation.
● Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
● Make sure that the device is not exposed to extreme heat, moisture or dust.
● Make sure that the available voltage is not higher than stated on the rear panel.
● Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
● Make sure that the core diameter of extension cords and power cords is sufficient for the required
power consumption of the device.
● If the external cable is damaged, it has to be replaced by a qualified technician.
● If the lens or LEDs are obviously damaged, it has to be replaced to prevent its functions from being
impaired, due to cracks or deep scratches.
● If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
● If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
● For adult use only. The device must be installed beyond the reach of children. Never leave the unit
running unattended.
● Never attempt to bypass the thermostatic switch or fuses.
● For replacement use fuses of same type and rating only.
● The operation of a class 3R laser show laser is only allowed if the show is controlled by a skilled and
well-trained operator familiar with the data included in this manual.
● The user is responsible for correct positioning and operating of the device. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
● This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
● The laser will only work between 10-35ºC.
● After 3 hours working, you must shut off the laser and let the laser diode cool off for 30 minutes,
otherwise the laser could be damaged and the warranty becomes void.
● Repairs, servicing and electric connection must be carried out by a qualified technician.
● WARRANTY: Till one year after date of purchase.
5
Ordercode: 43165
Energetic
Operating Determinations
● This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
● The minimum distance between light output and the illuminated surface must be bigger than 1
meter. (This distance may differ depending on the model. The exact minimum distance will be
mentioned in the corresponding manual.)
● To eliminate wear and improve lifespan, during periods of non-use, completely disconnect from
power via breaker or by unplugging.
● The maximum ambient temperature t
a
= 35°C must never be exceeded.
● The relative humidity must not exceed 50 % with an ambient temperature of 35°C.
● If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
● Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
Laser safety for a Class 3R Laser Product
Laser Light is different from any other light source with which you may be familiar with. This laser is less
dangerous than a higher class laser such as an 3B or 4. The light from this product is safe for unintentional
(<1/4 sec) unaided eye exposure. However this device is potentially hazardous if viewed with certain
optical instruments such as binoculars or eye loupe.
Laser light is thousands of times more concentrated than light from any other kind of light source. This
concentration of light power can cause instant eye injuries, primarily by burning the retina (the light
sensitive portion at the back of the eye). Even if you cannot feel “heat” from a laser beam, it can still
potentially injure or blind you or your audience.
Even very small amounts of laser light are potentially hazardous even at long distances. Laser eye injuries
can happen quicker than you can blink.
It is incorrect to think that because these laser products split the laser into hundreds of beams or the laser
beam is scanned out in high speed, that an individual laser beam is safe for eye exposure. This laser
product uses dozens of milliwatts of laser power (Class 3R levels internally). Many of the individual beams
are potentially hazardous to the eyes.
It is also incorrect to assume that because the laser light is moving, it is safe. This is not true. Nor, do the
laser beams always move. Since eye injuries can occur instantly, it is critical to prevent the possibility of
any direct eye exposure. According to the laser safety regulation, it is not legal to aim Class 3R lasers in
areas which people can get exposed. This is true even if it is aimed below people’s faces, such as on a
dance floor.
CAUTION! Only Laser Safety Officers who are officially certified by a regulatory body or authorized
training organization are allowed to use class 3R lasers in public. The Laser Safety Officer is responsible for
all aspects when using this laser, including following all locally applicable safety laws and regulations.
The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of
this laser.
CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with laser
light. Never intentionally expose your eyes or others to direct laser
radiation.
Compliance Statement
Your Energetic laser has been designed to comply with FDA and IEC Standards for its classification.
The Energetic is a Class 3R laser product.
Laser Safety and Compliance Information
The Energetic is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and
Drug Administration (FDA) Standards Listed under FDA Document 21 CFR 1040 and subsequent laser
notices.
6
Ordercode: 43165
Energetic
Product Classification and Manufacturing Label Identification
Laser Classification
Class 3R
Cooling
Cooling fans and TE Cooling
Laser medium
Wavelength 650 nm / Red (Laser Diode) ; Output >100mW
Wavelength 532 nm / Green (Laser Diode); Output >30mW
Output
130mW
The legal requirements for using laser entertainment products vary from country to country. The user is
responsible for the legal requirements at the location/country of use.
Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard
“For Safe Use of Lasers”, available from www.lia.org/. Many local governments, corporations, agencies,
military and others, require all lasers to be used under the guidelines of ANSI Z136.1. Laser Display
guidance can be obtained via the International Laser Display Association, www.ilda.com/index.htm.
CAUTION: The use of corrective eye wear or optics for viewing at distances such as telescopes or
binoculars within a distance of 100mm may pose an eye hazard.
This laser product is a Class 3R laser and has an interlocked
housing.
There are no user serviceable parts inside. Tampering or
removing warranty seals will void your products limited
warranty.
Combo label with the Product Model Number, Serial
Number, Date of Manufacturing, Laser Light Warning Label,
Warranty Void Label and Interlocked Housing Label
Proper Usage Safety and Compliance Information
According to FDA Regulations you should
operate this product as stated on the left.
7
Ordercode: 43165
Energetic
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
● If the Energetic is lowered from the ceiling or high joists, professional trussing systems have to be used.
● Use a clamp to mount the Energetic, with the mounting bracket, to the trussing system.
● The Energetic must never be fixed swinging freely in the room.
● The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
● When rigging, derigging or servicing the Energetic, always make sure, that the area below the
installation site is secured and that there are not any unauthorized people around.
The Energetic can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
Improper installation can cause serious injuries and/or damage of property!
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE
GROUND
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!
8
Ordercode: 43165
Energetic
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause of the
return. Be sure to properly pack fixture as any shipping damage resulting from inadequate packaging is
the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name.
02) Your address.
03) Your phone number.
04) A brief description of the symptoms.
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that the fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period, complaints will not be handled anymore.
Complaints will only be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
9
Ordercode: 43165
Energetic
Description of the device
Features
The Energetic is a light effect with high output and great effects. It is equipped with laser, strobe and LED
effects.
● Input voltage: 100-240V AC, 50/60Hz
● Power consumption: 30W
● DMX channels: 2 or 9 channels
● 4-digit LED display for easy setup
● Control modes: Built-in programs, Static Color, Manual, Sound-controlled, Master/Slave, DMX
● Control protocol: DMX-512
● Protection rate: IP20
● Housing: Die-cast black aluminum
● Cooling: Cooling fan
● Connections: IEC connectors IN/OUT, 3-pin XLR IN/OUT
● Fuse: T1L/250V
● Dimensions: 260 x 190 x 188 mm (LxWxH)
● Weight: 1,8 kg
LED effect
● Light source: 1 x 3W Red LED, 1 x 3W Green LED, 1 x 3W Blue LED, 1 x 3W White LED
Laser effect
● Laser Color: Red, Green
● Laser Power: 130mW (100mW 650nm Red, 30mW 532nm Green)
● Laser Class: 3R
● Safety Features: Key switch, Interlock, Safety eye
● Laser Safety: EN/IEC 60825-1 Ed 2, 2007-03
Strobe effect
● Light source: 16 x 0,5W White 5730 LEDs
Note: Knowledge of DMX is required to fully utilize this unit.
Optional accessories
51316 - Remote Interlock
Overview
Fig. 01
10
Ordercode: 43165
Energetic
Frontside
Fig. 02
01) Mounting bracket
02) Cooling fan
03) Strobe
04) LEDs
05) Laser
06) Adjustment screw
Backside
Fig. 03
07) Sound sensitivity control
08) Safety eye
09) Ground/earth connection
10) IEC power connector OUT
11) IEC power connector IN + Fuse T1L/250V
12) 3-pin DMX signal connector OUT
13) 3-pin DMX signal connector IN
14) Remote control plug
15) Interlock
16) LED display + control buttons + LED indicators
11
Ordercode: 43165
Energetic
Installation
Remove all packing materials from the Energetic. Check if all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply. The device can be sound-controlled as it is equipped
with a built-in microphone.
The Interlock plug/remote plug and safety keys are included in the box.
The interlock is the “included-in-the-box” successor for the optional remote interlock (51316).
They should be kept with the Energetic !!!
The following safety precautions should be followed:
● The remote control plug should be placed on the backside (14)
of your Energetic.
● The keys should be put into the lock (15) of your Energetic.
Warning
If the plug is not connected, your laser will not function.
If the key is not set to ON, your laser will not function.
Fig. 04
12
Ordercode: 43165
Energetic
Exclusion of liability
Be aware that in some countries, there are additional regulations, regarding the use of laser devices.
Therefore, we strongly advise you to verify your national laws with your authorities: We do not take any
responsibility for eventual discrepancies, changes or adaptions regarding lawful use of laser devices.
Fig. 05
Control Modes
There are 6 modes:
● Built-in programs
● Static Color
● Manual
● Sound-controlled
● Master/slave
● DMX-512 (2CH, 9CH)
One Energetic (Built-in programs, Static Color, Manual)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Energetic is not connected with a DMX cable, it functions as a stand-alone device.
Please see pages 18 and 19 for more information about Built-in programs, Static Color and Manual
modes.
One Energetic (Sound-controlled)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Turn on the music. If the device is set to sound-control, then the Energetic will react to the beat of
the music. Please see page 18 for more information about the sound-control options.
13
Ordercode: 43165
Energetic
Multiple Energetics (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-p XLR cable to connect the Energetics and other devices.
The pins:
1. Earth
2. Signal (-)
3. Signal (+)
04) Link the units as shown in Fig. 06, connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second and third units. You can use the
same functions on the master device as described on pages 18 and 19 (Built-in programs, Static
Color, Manual). This means you can set your desired operation mode on the master device and all
slave devices will react the same as the master device.
Multiple Energetics (Master/Slave control)
Fig. 06
Note: Link all cables before connecting electric power
14
Ordercode: 43165
Energetic
Multiple Energetics (DMX Control)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-pin XLR cable to connect the Energetics and other devices.
04) Link the units as shown in Fig. 07. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX signal cable. Repeat this process to link the second and third units.
05) Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the
other end of the mains power cord into proper electric power supply sockets, starting with the first
unit. Do not supply power before the whole system is set up and connected properly.
Multiple Energetics DMX Set Up
Fig. 07
Note: Link all cables before connecting electric power
15
Ordercode: 43165
Energetic
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Important:
Fixtures on a serial data link must be daisy-chained in a single line. To comply with the
EIA-485 standard, no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX
optically isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of fixtures on a DMX data link: 30 fixtures
Maximum recommended number of fixtures on a power link @110V: 30 fixtures
Maximum recommended number of fixtures on a power link @240V: 61 fixtures
Data Cabling
To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable,
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio DMX Data Cables
● DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin. Ordercode
FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
● DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
● DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
● DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
● DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
● DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30.
The Energetic can be operated with a controller in control mode or without the controller in stand-alone
mode.
16
Ordercode: 43165
Energetic
Control Panel
A) DMX LED indicator
B) LED display
C) Slave LED indicator
D) Auto LED indicator
E) MODE button
F) UP button
G) DOWN button
H) ENTER button
I) Sound LED indicator
Fig. 08
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address, next time.)
DMX Addressing
The control panel on the backside of the device allows you to assign DMX fixture addresses, which is the
first channel with which the Energetic will respond to the controller.
Please note, when you use the controller, the unit has 9 channels.
When using multiple Energetics, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Energetic should be 1 (001); the DMX address of the second
Energetic should be 1+9=10 (010); the DMX address of the third Energetic should be 10+9=19 (019), etc.
Please, be sure that you do not have any overlapping channels in order to control each Energetic
correctly. If two or more Energetics are addressed similarly, they will work similarly.
Controlling:
After having addressed all Energetic fixtures, you may now start operating these via your lighting
controller.
Note: After switching on, the Energetic will automatically detect whether DMX 512 data is received or
not. If there is no data received at the DMX-input, the “LED “ on the control panel will not flash.
If not, the problem may be:
● The XLR cable from the controller is not connected with the input of the Energetic.
● The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
17
Ordercode: 43165
Energetic
Menu Overview
The Energetic will only show its version number at start-up !
Main Menu Options
2-channel mode
9-channel mode
Static colors
Built-in programs
Program speed
Sound-controlled
Manual
IR remote control settings
18
Ordercode: 43165
Energetic
1. 2-channel mode
With this menu you can choose a DMX personality and set the DMX address.
01) Press the MODE button until the display shows .
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to set the desired DMX address. The adjustment range is between
.
04) Press the ENTER button to save changes.
2. 9-channel mode
With this menu you can choose a DMX personality and set the DMX address.
01) Press the MODE button until the display shows .
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to set the desired DMX address. The adjustment range is between
.
04) Press the ENTER button to save changes.
3. Static Colors
With this menu you can set the desired static color.
01) Press the MODE button until the display shows .
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to choose one of the 15 static colors: .
04) Press the ENTER button to confirm your choice.
4. Built-in Programs
With this menu you can set the built-in programs.
01) Press the MODE button until the display shows .
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to choose one of the 7 built-in programs: .
04) Press the ENTER button to confirm your choice.
05) The device will now run the desired built-in program.
5. Built-in Program Speed
With this menu you can set the built-in program speed.
01) Press the MODE button until the display shows .
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to set the program speed.
The adjustment range is between , from slow to fast.
04) Press the ENTER button to save changes.
6. Sound-controlled Mode
With this menu you can set Sound-controlled programs.
01) Press the MODE button until the display shows .
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to choose one of the 7 sound-controlled programs:
.
04) Press the Enter button to confirm your choice.
05) Turn the sound sensitivity control (07) to the left, to decrease, or to the right, to increase the sound
sensitivity.
06) The device will now react to the beat of the background music.
19
Ordercode: 43165
Energetic
7. Manual
With this menu you can manually set the desired colors.
01) Press the MODE button until the display shows .
02) Press the ENTER button to open the menu.
03) Press the ENTER button to toggle through the available options:
Gradual adjustment red intensity(0-255)
Gradual adjustment green intensity (0-255)
Gradual adjustment blue intensity (0-255)
Gradual adjustment white intensity (0-255)
Strobe speed from slow to fast
04) Press the UP/DOWN buttons to change the values.
05) Press the ENTER button to save changes/proceed.
8. IR Remote Control Settings
With this menu you can activate the IR sensor.
01) Press the MODE button until the display shows .
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to choose between .
04) Choose ON, to activate, or OFF to deactivate the IR sensor.
05) Press the ENTER button to confirm your choice.
20
Ordercode: 43165
Energetic
Remote Control
Note: buttons and have no function
Button
Function
Description
On / Off
Press the ON/OFF button for 2 seconds to activate the
different modes except the Slave mode.
Auto program mode
Press the button to activate the Auto program.
Sound-controlled mode
Press the button to activate Sound-controlled program, if
the device receives a sound signal, the Music LED indicator
at the backside will blink (Green LED).
LED auto mode
Press the button to activate/deactivate the LED program
Strobe auto mode
Repeatedly press the button to activate/deactivate the
strobe programs
Strobe ON/OFF
Press the button to activate/deactivate the strobe
Pause
Press the button to pause the built-in programs or color
change
Speed
Press one of the buttons to adjust the built-in program
speed. 0 = slowest, 9 = fastest
Color settings
Press the buttons to choose the desired built-in LED color
21
Ordercode: 43165
Energetic
DMX Channels
2 channels
Channel 1 – Built-in Programs
0-9
Not functional
10-44
LEDs/laser/strobe
45-79
LEDs/strobe
80-114
LEDs/laser
115-149
Laser/strobe
150-184
LEDs
185-219
Strobe
220-255
Laser
Channel 2 – Built-in Program Speed Programs CH1 must be set between 10-255
0-250
Gradual speed adjustment, from slow to fast
251-255
Sound-controlled
9 channels
Channel 1 – Built-in Programs
0-9
Not functional
10-44
LEDs/laser/strobe
45-79
LEDs/strobe
80-114
LEDs/laser
115-149
Laser/strobe
150-184
LEDs
185-219
Strobe
220-255
Laser
Channel 2 – Built-in Program Speed Programs CH1 must be set between 10-255
0-250
Gradual speed adjustment, from slow to fast
251-255
Sound-controlled
Channel 3 – Static Colors CH1 must be set between 0-9
0-5
Not functional
6-20
Red
21-35
Green
36-50
Blue
51-65
White
66-80
Red+Green
81-95
Red+Blue
96-110
Red+White
111-125
Green+Blue
126-140
Green+White
141-155
Blue+White
156-170
Red+Green+Blue
171-185
Red+Green+White
186-200
Green+Blue+White
201-215
Red+Green+Blue+White
216-230
4-color chase
231-255
7-color chase
22
Ordercode: 43165
Energetic
Channel 4 – Strobe CH3 must be set between 6-255
0-5
Not functional
6-255
Strobe flash frequency, from low to high frequency
Channel 5 – Motor Rotation
0
Not functional
1-127
Motor indexing
128-255
Rotation speed, from slow to fast
Channel 6 – Strobe Patterns
0-9
Not functional
10-19
Pattern 1, from slow to fast
20-29
Pattern 2, from slow to fast
30-39
Pattern 3, from slow to fast
40-49
Pattern 4, from slow to fast
50-59
Pattern 5, from slow to fast
60-69
Pattern 6, from slow to fast
70-79
Pattern 7, from slow to fast
80-89
Pattern 8, from slow to fast
90-99
Pattern 9, from slow to fast
100-109
Pattern 10, from slow to fast
110-119
Pattern 11, from slow to fast
120-129
Pattern 12, from slow to fast
130-139
Pattern 13, from slow to fast
140-149
Pattern 14, from slow to fast
150-159
Pattern 15, from slow to fast
160-169
Pattern 16, from slow to fast
170-179
Pattern 17, from slow to fast
180-255
Strobe FULL ON
Channel 7 – Laser Colors If CH7 is set between 130-255, then CH8 must be set between 10-255
0-9
Not functional
10-49
Red laser on
50-89
Green laser on
90-129
Red + Green laser on
130-169
Red laser on + Green laser flashes
170-209
Red laser flashes + Green laser on
210-255
Red + Green laser flash
Channel 8 – Strobe Laser
0-9
Not functional
10-254
Strobe flash frequency, from low to high frequency
255
Sound-activated strobe
Channel 9 – Laser Rotation CH7 must be set between 10-255
0-4
Not functional
5-127
Clockwise rotation, from slow to fast
128-133
Stop
134-255
Counterclockwise rotation, from slow to fast
23
Ordercode: 43165
Energetic
Maintenance
The Energetic requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and
then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and
a soft cloth. Do not use alcohol or solvents.
The front lens will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light
output very quickly.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and
must not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
Replacing the Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out.
If the fuse burns out, the product will not function whatsoever. If this happens, follow the directions below:
01) Unplug the unit from electric power source.
02) Insert a flat-headed screwdriver into a slot in the fuse cover. Gently pry up the fuse cover.
the fuse will come out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder. Reinsert the fuse cover. Be sure to use a fuse of the
same type and specification. See the product specification label for details.
24
Ordercode: 43165
Energetic
Troubleshooting
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
No Light
If the light effect does not operate properly, refer servicing to a technician.
Suspect four potential problem areas as: the power supply, the laser, LEDs, the fuse.
01) Power supply. Check that the unit is plugged into an appropriate power supply.
02) The laser. Return the Energetic to your Showtec dealer.
03) The LEDs and strobe LEDs. Return the Energetic to your Showtec dealer.
04) The fuse. Replace the fuse. See page 23 for replacing the fuse.
05) If all of the above appears to be O.K., plug the unit in again.
06) If you are unable to determine the cause of the problem, do not open the Energetic, as this may
damage the unit and the warranty will become void.
07) Return the device to your Showtec dealer.
No Response to DMX
Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
The fixture does not work, no laser and the fan does not work
01) Check the connected power and main fuse.
02) Check the mains voltage on the main connector.
The fixture is on, but the laser does not work
01) Check the laser aperture cover.
02) Check the key switch.
03) Check the remote interlock or interlock connector.
04) Wait for at least 30 minutes to warm up in low temperature.
05) Check whether it is in music mode without sound signal.
06) Check whether it is in slave mode.
07) Check whether it is in DMX mode, without a DMX signal being present.
The laser effect power is very weak
01) Wait for at least 30 minutes to warm up in low temperature.
02) Clean the scanner mirror with alcohol.
03) Clean the aperture glass with alcohol.
04) Check whether it is in DMX mode with a high strobe frequency.
The laser is on, but the pattern is not moving
01) Check to see whether it is in sound-controlled mode without detecting sound signal.
02) Check to see whether it is in DMX mode.
03) Try to change the fixture to another mode.
04) Try to control the fixture via DMX to see the laser effect system.
25
Ordercode: 43165
Energetic
Problem
Probable cause(s)
Solution
One or more
fixtures do not
function at all
No power to the fixture
• Check if power is switched on and
cables are plugged in
Primary fuse blown.
• Replace fuse.
Fixtures reset
correctly, but all
respond
erratically or not
at all to the
controller
The controller is not connected.
• Connect controller.
3-pin XLR Out of the controller
does not match XLR Out of the first
fixture on the link (i.e. signal is
reversed)
• Install a phase reversing cable
between the controller and the
first fixture on the link
Fixtures reset
correctly, but
some respond
erratically or not
at all to the
controller
Poor data quality
• Check data quality. If much lower
than 100 percent, the problem
may be a bad data link
connection, poor quality or
broken cables, missing termination
plug, or a defective fixture
disturbing the link
Bad data link connection
• Inspect connections and cables.
Correct poor connections. Repair
or replace damaged cables
Data link not terminated with 120
Ohm termination plug
• Insert termination plug in output
jack of the last fixture on the link
Incorrect addressing of the fixtures
• Check address setting
One of the fixtures is defective and
disturbs data transmission on the
link
• Bypass one fixture at a time until
normal operation is restored:
unplug both connectors and
connect them directly together.
• Have the defective fixture
serviced by a qualified technician
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed)
• Install a phase-reversing cable
between the fixtures or swap pin 2
and 3 in the fixture that behaves
erratically
Shutter closes
suddenly
The laser diode has lost its index
position and the fixture is resetting
the effect.
• Contact a technician for servicing
the problem persists.
No light or LEDs or
laser cuts out
intermittently
Fixture is too hot
• Allow the fixture to cool down
• Clean the fan
• Make sure air vents and the front
lens are not blocked
• Turn up the air conditioning
LEDs or laser damaged
• Disconnect the fixture and return it
to your dealer
The power supply settings do not
match local AC voltage and
frequency
• Disconnect fixture. Check settings
and correct if necessary
26
Ordercode: 43165
Energetic
Product Specifications
Model:
Showtec Energetic
Input voltage:
100-240V AC, 50/60Hz
Power consumption:
30W (full output)
DMX linking:
30 pcs
Power linking @110V
30 pcs
Power linking @240V
61 pcs
Fuse:
T1L/250V
Dimensions:
260 x 190 x 188 mm (LxWxH)
Weight:
1,8 kg
Operating and Programming:
Signal pin OUT:
Pin 1 (earth), pin 2 (-), pin 3 (+)
DMX Mode:
2, 9 channels
Signal input:
3-pin DMX IN
Signal output:
3-pin DMX OUT
Electro-mechanical effects:
LED effect:
1 x 3W Red LED, 1 x 3W Green LED, 1 x 3W Blue LED, 1 x 3W
White LED
Laser effect:
Colors: Red, Green
Laser Power: 130mW (100mW 650nm Red, 30mW 532nm Green)
Laser Class: 3R
Safety Features: Key switch, Interlock, Safety eye
Laser Safety: EN/IEC 60825-1 Ed 2, 2007-03
Strobe effect:
16 x 0,5W White 5730 LEDs
Housing:
Die-cast black aluminum
DMX-control:
via standard DMX-controller
On Board:
4-digit LED display for easy setup
Control:
Built-in programs, Static Color, Manual, Sound-controlled,
Master/Slave, DMX
Connections:
IEC connectors IN/OUT, 3-pin XLR IN/OUT
Cooling:
Cooling fan
IP rating:
IP20
Max. ambient temperature ta:
35°C
Max. housing temperature tB:
80°C
Minimum distance:
Minimum distance from flammable
surfaces:
0,5 m
Minimum distance to lighted object:
1 m
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
Email: service@highlite.nl
27
Ordercode: 43165
Energetic
Dimensions
28
Ordercode: 43165
Energetic
