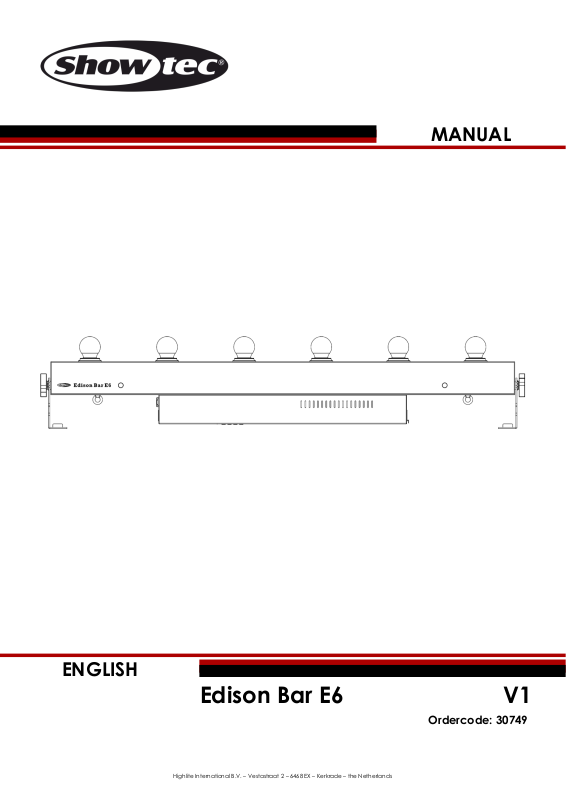

Edison Bar E6 V1

Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Ordercode: 30749

MANUAL

ENGLISH

Ordercode: 30749

Edison Bar E6

Table of contents

Warning ............................................................................................................................................................................... 2

Safety Instructions ......................................................................................................................................................... 2

Operating Determinations .......................................................................................................................................... 4

Rigging ............................................................................................................................................................................ 4

Return Procedure .......................................................................................................................................................... 6

Claims .............................................................................................................................................................................. 6

Description of the device ................................................................................................................................................. 7

Front ................................................................................................................................................................................. 7

Back ................................................................................................................................................................................. 8

Installation ........................................................................................................................................................................... 8

Setup and Operation ........................................................................................................................................................ 9

Installing the Lamp ........................................................................................................................................................ 9

Control Modes .............................................................................................................................................................10

One Edison (Auto and Manual) ............................................................................................................................10

One Edison (Sound-controlled) .............................................................................................................................10

Multiple Edisons (Master/Slave control)...............................................................................................................10

Multiple Edisons (DMX Control) .............................................................................................................................11

Fixture Linking ...............................................................................................................................................................12

Data Cabling ...............................................................................................................................................................12

Control Panel ...............................................................................................................................................................13

Control Mode ..............................................................................................................................................................13

DMX Addressing ..........................................................................................................................................................13

Menu Overview ...........................................................................................................................................................14

Main Menu Options ....................................................................................................................................................14

1. Run Mode ..............................................................................................................................................................14

1.1. DMX Mode .........................................................................................................................................................15

1.2. Sound-controlled Mode ..................................................................................................................................15

1.3. Auto Mode ........................................................................................................................................................15

1.4. Manual ...............................................................................................................................................................15

2. Pixel Inversion ........................................................................................................................................................15

3. DMX Fail .................................................................................................................................................................16

4. Reset .......................................................................................................................................................................16

5. DMX Addressing ...................................................................................................................................................16

DMX Channels .............................................................................................................................................................16

1 Channel ..................................................................................................................................................................16

6 Channels ................................................................................................................................................................16

Maintenance ....................................................................................................................................................................17

Changing the Lamp ...................................................................................................................................................17

Replacing the Fuse .....................................................................................................................................................17

Troubleshooting ...............................................................................................................................................................17

No Light .........................................................................................................................................................................17

No Response to DMX..................................................................................................................................................18

Product Specifications ....................................................................................................................................................19

Dimensions ........................................................................................................................................................................20

Notes ..................................................................................................................................................................................21

Ordercode: 30749

Edison Bar E6

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

● Showtec Edison Bar E6

● Pro power cable (1,3 m)

● 2 x mounting bracket

● User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

● be qualified

● follow the instructions of this manual

Before the initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes contained in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Ordercode: 30749

Edison Bar E6

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.

● Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

● Never remove warning or informative labels from the unit.

● Never use anything to cover the ground contact.

● Never place any material over the lamp.

● Never run the device without lamp!

● Never look directly into the light source.

● Never leave any cables lying around.

● Do not insert objects into air vents.

● Do not connect this device to a dimmer pack.

● Do not switch the device on and off in short intervals, as this will reduce the device’s life.

● Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Allow the fixture to cool for at least 5 minutes before handling.

● Do not shake the device. Avoid brute force when installing or operating the device.

● Only use the device indoors, avoid contact with water or other liquids.

● Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly

fastened.

● Only operate the device after having familiarized with its functions.

● Avoid flames and do not put close to flammable liquids or gases.

● Always replace the lamp, when it is damaged or deformed due to the heat.

● Always allow a free air space of at least 50 cm around the unit for ventilation.

● Always disconnect power from the mains, when device is not used or before cleaning or when

replacing lamp! Only handle the power cord holding it by the plug. Never pull out the plug by tugging the power cord.

● Make sure that the device is not exposed to extreme heat, moisture or dust.

● Make sure that the available voltage is not higher than stated on the rear panel.

● Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

● If device was dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

● If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

● For adult use only. The fixture must be installed beyond the reach of children. Never leave the unit

running unattended.

● Never attempt to bypass the thermostatic switch or fuses.

● For replacement use lamps and fuses of same type and rating only.

● The user is responsible for correct positioning and operating of the Edison. The manufacturer will not

accept liability for damages caused by the misuse or incorrect installation of this device.

● Allow time to cool down, before replacing lamp.

● This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

● Repairs, servicing and electric connection must be carried out by a qualified technician.

● WARRANTY: Till one year after date of purchase.

Ordercode: 30749

Edison Bar E6

Operating Determinations

● This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

● The minimum distance between light output and the illuminated surface must be bigger than

1 meter.

● In order to eliminate wear and improve the device’s lifespan, during periods of non-use, completely

disconnect from power source via breaker or by unplugging.

● The maximum ambient temperature t

= 40 °C must never be exceeded.

● The relative humidity must not exceed 50 % with an ambient temperature of 40 °C.

● If this device is operated in any other way than the one described in this manual, the product may

suffer damages and the warranty becomes void.

● Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer !

Procedure:

● If the Edison is lowered from the ceiling or high joists, professional trussing systems have to be used.

● Use a clamp to mount the Edison, with the mounting bracket, to the trussing system.

● The Edison must never be fixed swinging freely in the room.

● The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety cable.

● When rigging, derigging or servicing the Edison, always make sure, that the area below the

installation site is secured and that there are not any unauthorized people around.

Ordercode: 30749

Edison Bar E6

The Edison can be placed on a flat stage floor or be mounted to any kind of truss with quick locks and a clamp.

Improper installation can cause serious injuries and/or damage of property!

Connection with the mains

Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries and/or damage of property!

Ordercode: 30749

Edison Bar E6

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is

the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be reported to the carrier upon receipt of merchandise. It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is damaged due to shipping. Transportation damage has to be reported to us within one day after receipt of the delivery. Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless agreed otherwise in writing. Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of the invoice. After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement from which the obligation is resulting.

Ordercode: 30749

Edison Bar E6

Description of the device

Features

The Edison Bar E6 is a light effect with high output.

● Input voltage: 230 V AC, 50 Hz

● Power consumption: 130 W

● Light source: 6 x LED bulb (not included); Use only dimmable LED bulbs.

● Lamp socket: E27

● Control modes: Auto, Manual, Sound-controlled, Master/Slave, DMX-512

● DMX channels: 1, 6 channels

● Onboard: LCD display for easy setup

● Housing: Metal & flame retardant plastic

● Connections: Pro power connector IN(Blue)/OUT(Gray), 3-pin DMX IN/OUT

● Color: Black

● Fuse: T2AL/250V

● Dimensions: 1041 x 135 x 170 mm (LxWxH)

● Weight: 5 kg

Optional accessories:

75150 – Quicklock Bracket 83260 – LED Filament Bulb E27 (4 W) 83261 – LED Filament Bulb E27 (5 W) 83262 – LED Filament Bulb E27 (5 W) 83264 – LED Filament Bulb E27 (5 W) 83266 – LED Filament Bulb T9, Crossed Filament (300 mm) 83267 – LED Filament Bulb T9, Crossed Filament (225 mm) 83268 – LED Filament Bulb T9, Crossed Filament (185 mm) 83269 – LED Filament Bulb T9, Straight Filament (300 mm)

83270 – LED Filament Bulb T9, Straight Filament (225 mm) 83271 – LED Filament Bulb T9, Straight Filament (185 mm) 83275 – LED Filament Bulb BT180 (6 W) 83276 – LED Filament Bulb BT118 (6 W) 83277 – LED Filament Bulb G200 (6 W) 83278 – LED Filament Bulb PS52 (6 W) 83279 – LED Filament Bulb PS35 (6 W) 83280 – LED Filament Bulb BTT80 (6 W) 83281 – LED Filament Bulb R160 (6 W)

Front

Fig. 01

01) LED bulb (not included)

02) Adjustment screw

03) Mounting bracket

Ordercode: 30749

Edison Bar E6

Back

Fig. 02

04) Safety eye

05) 3-pin DMX signal connector OUT

06) 230 V pro power connector OUT (Gray)

07) Ground/earth connection

08) Built-in microphone

09) LCD display + control buttons

10) LED DMX indicator

11) LED power indicator

12) 3-pin DMX signal connector IN

13) Fuse T2AL/250V

14) 230 V pro power connector IN (Blue)

15) Power switch ON/OFF

16) Safety eye

Installation

Remove all packing materials from the Edison Bar E6. Check if all foam and plastic padding is removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty.

Ordercode: 30749

Edison Bar E6

Setup and Operation

Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connect the device to the main power supply.

Installing the Lamp

The Showtec Edison Bar E6 uses the following LED bulbs:

83260 – LED Filament Bulb E27 (4 W) 83261 – LED Filament Bulb E27 (5 W) 83262 – LED Filament Bulb E27 (5 W) 83264 – LED Filament Bulb E27 (5 W) 83266 – LED Filament Bulb T9, Crossed Filament (300 mm) 83267 – LED Filament Bulb T9, Crossed Filament (225 mm) 83268 – LED Filament Bulb T9, Crossed Filament (185 mm) 83269 – LED Filament Bulb T9, Straight Filament (300 mm) 83270 – LED Filament Bulb T9, Straight Filament (225 mm)

83271 – LED Filament Bulb T9, Straight Filament (185 mm) 83275 – LED Filament Bulb BT180 (6 W) 83276 – LED Filament Bulb BT118 (6 W) 83277 – LED Filament Bulb G200 (6 W) 83278 – LED Filament Bulb PS52 (6 W) 83279 – LED Filament Bulb PS35 (6 W) 83280 – LED Filament Bulb BTT80 (6 W) 83281 – LED Filament Bulb R160 (6 W)

Use only the appropriate lamp for your unit. Note that product versions that use other lamps, may be offered in the future. Check your product specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat. Do not install lamps of higher wattage! Lamps of higher wattage generate temperatures which the device was not designed for.

Damages caused by non-observance are not subject to warranty.

01) Disconnect the Edison from power before installing the lamp.

02) Remove the lamp from the box and hold it by the base. Read lamp instructions. If you touch the bulb

glass, wipe it off with a clean, lint free towel and rubbing alcohol.

03) Insert the lamp into the housing and turn it clockwise to secure it in position.

Fig. 03

Ordercode: 30749

Edison Bar E6

Control Modes

There are 5 modes:

● Auto

● Manual

● Sound-controlled

● Master/Slave

● DMX-512 (1CH, 6CH)

One Edison (Auto and Manual)

01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Plug the end of the electric mains power cord into a proper electric power supply socket.

04) When the Edison is not connected with a DMX cable, it functions as a stand-alone device.

Please see page 15 for more information about Auto mode and Manual mode.

One Edison (Sound-controlled)

01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Plug the end of the electric mains power cord into a proper electric power supply socket.

04) Turn on the music. If the device is set to sound-control, then the Edison will react to the beat of the

music. Please see page 15 for more information about the sound-control options.

Multiple Edisons (Master/Slave control)

01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Use a 3-pin XLR cable to connect the Edison.

The pins:

01) Earth

02) Signal -

03) Signal +

04) Link the units as shown in Fig. 04. Connect the first unit's DMX "out" socket with the second unit's "in"

socket, using a DMX signal cable. Repeat this process to link the second, third and fourth units. You can use the same functions on the master device as described on page 15 (Auto or Soundcontrolled mode). This means that you can set your desired operation mode on the master device and all slave devices will react the same as the master device.

Multiple Edisons (Master/Slave control)

Fig. 04

Ordercode: 30749

Edison Bar E6

Multiple Edisons (DMX Control)

01) Fasten the effect light to a firm trussing or mount it on flat surface. Leave at least 0,5 meter on all

sides for air circulation.

02) Always use a safety cable (ordercode 70140 / 70141).

03) Use a 3-pin DMX cable to connect the Edison and other devices.

04) Link the units as shown in Fig. 05. Connect a light controller to the first unit's DMX "in" socket, using a

DMX cable. Connect the first unit’s "out" socket with the second unit's "in" socket, using a DMX cable. Repeat this process to link the rest of the units.

05) Supply electric power: Plug electric mains power cords into each unit's pro power IN socket, then

plug the other end of the mains power cord into proper electric power supply sockets, starting with the first unit. Do not supply power before the whole system is set up and connected properly.

Fig. 05

Note : Link all cables before connecting electric power

Ordercode: 30749

Edison Bar E6

Fixture Linking

You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.

Important:

Fixtures on a serial data link must be daisy-chained in a single line. To comply with the EIA-485 standard, no more than 30 devices should be connected on one data link. Connecting more than 30 fixtures on one serial data link without the use of a DMX optically isolated splitter may result in deterioration of the digital DMX signal.

Maximum recommended DMX data link distance: 100 meters Maximum recommended number of fixtures on a DMX data link: 30 fixtures Maximum recommended number of fixtures on a power link @ 120V: 12 fixtures Maximum recommended number of fixtures on a power link @ 230V: 27 fixtures

Data Cabling

To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable, please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.

DAP Audio DMX Data Cables

● DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin.

Order code FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).

● DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Order code FLX0175 (0,75 m),

FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).

● DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by

Neutrik®. Order code FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).

● DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by

Neutrik®. Order code FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).

● DAP Audio 110 Ohm cable with digital signal transmission. Order code FL0975 (0,75 m),

FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).

● DAP Audio data cable FL08 DMX/AES-EBU, XLR/M 5-pin > XLR/F 5-pin. Order code FL08150 (1,5 m),

FL083 (3 m), FL086 (6 m), FL0810 (10 m), FL0820 (20 m).

● DAP Audio DMX adapter: 5-pin/3-pin. Order code FLA29.

● DAP Audio DMX adapter: 3-pin/5-pin. Order code FLA30.

● DAP Audio DMX Terminator 3-pin. Order code FLA42.

● DAP Audio DMX Terminator 5-pin. Order code FLA43.

Ordercode: 30749

Edison Bar E6

The Edison Bar E6 can be operated with a controller in control mode or without the controller in standalone mode.

Control Panel

A) LCD display B) MENU button C) UP button D) DOWN button E) ENTER button

Fig. 06

Control Mode

The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address, next time.)

DMX Addressing

The control panel on the front side of the base allows you to assign DMX fixture addresses, which is the first channel with which the Edison will respond to the controller. Please note, when you use the controller, the unit has 6 channels. When using multiple Edisons, make sure you set the DMX addresses right. Therefore, the DMX address of the first Edison should be 1(001); the DMX address of the second Edison should be 1+6=7 (007); the DMX address of the third Edison should be 7+6=13 (013), etc. Please, be sure that you do not have any overlapping channels in order to control each Edison correctly. If two or more Edisons are addressed similarly, they will work similarly.

Controlling:

After having addressed all Edison fixtures, you may now start operating these via your lighting controller. Note: After switching on, the Edison will automatically detect whether DMX 512 data is received or not. If there is no data received at the DMX input, the “LED“ on the control panel will not flash. If not, the problem may be:

● The XLR cable from the controller is not connected with the input of the Edison Bar E6.

● The controller is switched off or defective, the cable or connector is detective, or the signal wires are

swapped in the input connector.

Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure proper transmission on the DMX data link.

Display Off after 10 seconds

When no button is pressed for 10 seconds, the display will turn off. To light up the display, you have to press the MENU, UP, DOWN or ENTER button. Once you have pressed the button, the display will light up.

Ordercode: 30749

Edison Bar E6

Menu Overview

Main Menu Options

Upon start-up, the device will show the current software version . After 10 seconds, the display will show the main menu.

Run Mode

Pixel Inversion

DMX Fail

Reset

DMX Addressing

1. Run Mode

In this menu you can set the desired operation mode.

01) In main menu, press the MENU button until the display shows .

02) Press the ENTER button to open the menu.

03) Press the UP/DOWN buttons to choose one of the 4 operation modes:

DMX mode

Sound-controlled mode

Auto mode

Manual mode

04) Press the ENTER button to open the desired menu.

Ordercode: 30749

Edison Bar E6

1.1. DMX Mode

In this menu you can select the desired channel mode and control the device with a DMX controller.

01) Press the UP/DOWN buttons to choose one of the 2 channel modes:

1-channel mode

6-channel mode

02) Press the ENTER button to confirm.

1.2. Sound-controlled Mode

In this menu the device will react to the beat of the background music.

01) Press the UP/DOWN buttons to choose one of the 16 sound-controlled programs.

02) Press the ENTER button to confirm your choice.

03) The device will now react to the beat of the background music by means of the built-in

microphone.

1.3. Auto Mode

In this menu you can run the desired built-in programs.

01) Press the UP/DOWN buttons to choose one of the 16 built-in programs.

02) Press the ENTER button to confirm.

03) Press the UP/DOWN buttons to choose one of the 2 menus:

Program choice

Program speed

04) Press the ENTER button to open the desired menu.

● If you have opened , press the UP/DOWN buttons to choose one of the 16 built-in

programs.

● If you have opened , press the UP/DOWN buttons to set the program speed.

The adjustment range is 1–99, from slow to fast.

05) Press the ENTER button to confirm/save changes.

1.4. Manual

In this menu you can manually set the LED bulb brightness.

01) Press the UP/DOWN buttons to set the LED bulb brightness. The adjustment range is 0–255, from dark

to brightest.

02) Press the ENTER button to save changes.

2. Pixel Inversion

In this menu you can invert the order in which the LED bulbs light up.

01) In main menu, press the MENU button until the display shows .

02) Press the ENTER button to open the menu.

03) Press the UP/DOWN buttons to choose between NO and YES.

04) Press the ENTER button to confirm.

05) If you have chosen YES, the LED bulb order will be inverted.

Ordercode: 30749

Edison Bar E6

3. DMX Fail

In this menu you can set the behavior of the device in case of a DMX signal error.

01) In main menu, press the MENU button until the display shows .

02) Press the ENTER button to open the menu.

03) Press the UP/DOWN buttons to choose one of the 2 options:

The device will black out the light output.

The device will use last properly received DMX signal, ensuring undisrupted performance.

04) Press the ENTER button to confirm.

4. Reset

In this menu you can restore the default factory settings.

01) In main menu, press the MENU button until the display shows .

02) Press the ENTER button to open the menu.

03) Press the UP/DOWN buttons to choose between NO and YES.

04) Press the ENTER button to confirm.

05) If you have chosen YES, the default factory settings will be restored.

5. DMX Addressing

In this menu you can set the DMX address.

01) In main menu, press the MENU button until the display shows .

02) Press the ENTER button to open the menu.

03) Press the UP/DOWN buttons to select the required address. The adjustment range is 001–512.

04) Press the ENTER button to save changes.

DMX Channels

1 Channel

Channel 1 – Dimmer (LED bulbs 1–6)

0–255
