Showtec Dynamica User Manual
Dynamica V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 43162
MANUAL
ENGLISH
1
Ordercode: 43162
Dynamica
Table of contents
Warning ............................................................................................................................................................................... 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 5
Laser safety for a Class 2M Laser Product ................................................................................................................ 5
Rigging ............................................................................................................................................................................ 7
Connection with the mains ......................................................................................................................................... 8
Return Procedure .......................................................................................................................................................... 8
Claims .............................................................................................................................................................................. 8
Description of the device ................................................................................................................................................. 9
Optional accessories .................................................................................................................................................... 9
Frontside ........................................................................................................................................................................10
Backside .......................................................................................................................................................................10
Installation .........................................................................................................................................................................11
Set Up and Operation .....................................................................................................................................................11
Control Modes .............................................................................................................................................................12
One Dynamica (Auto Programs) ..........................................................................................................................12
One Dynamica (Sound-controlled) .....................................................................................................................12
Multiple Dynamicas (Master/Slave control) .......................................................................................................13
Multiple Dynamicas (DMX Control) ......................................................................................................................13
Fixture Linking ...............................................................................................................................................................14
Data Cabling ...............................................................................................................................................................14

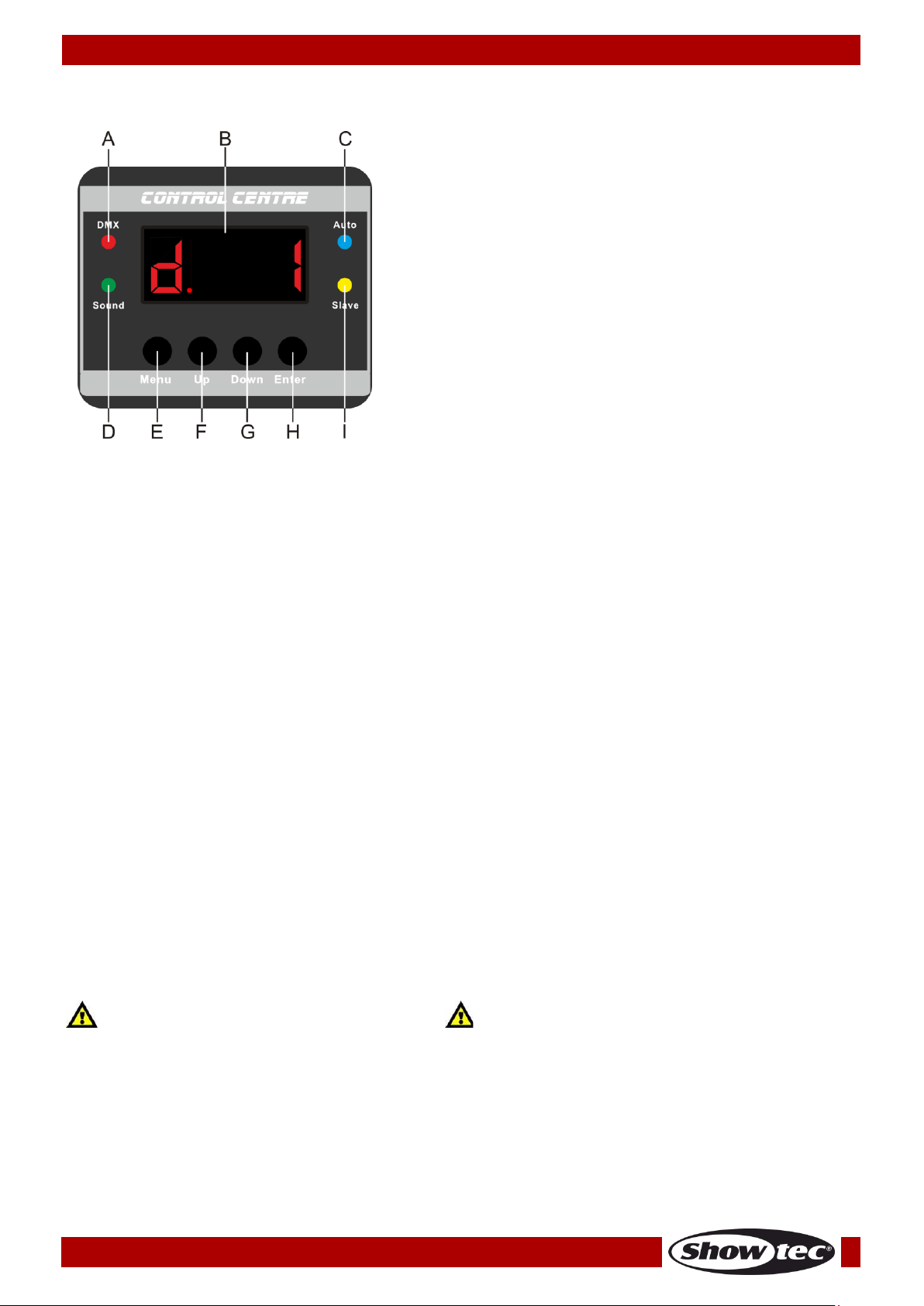

Control Panel ...............................................................................................................................................................15
Control Mode ..............................................................................................................................................................15
DMX Addressing ..........................................................................................................................................................15

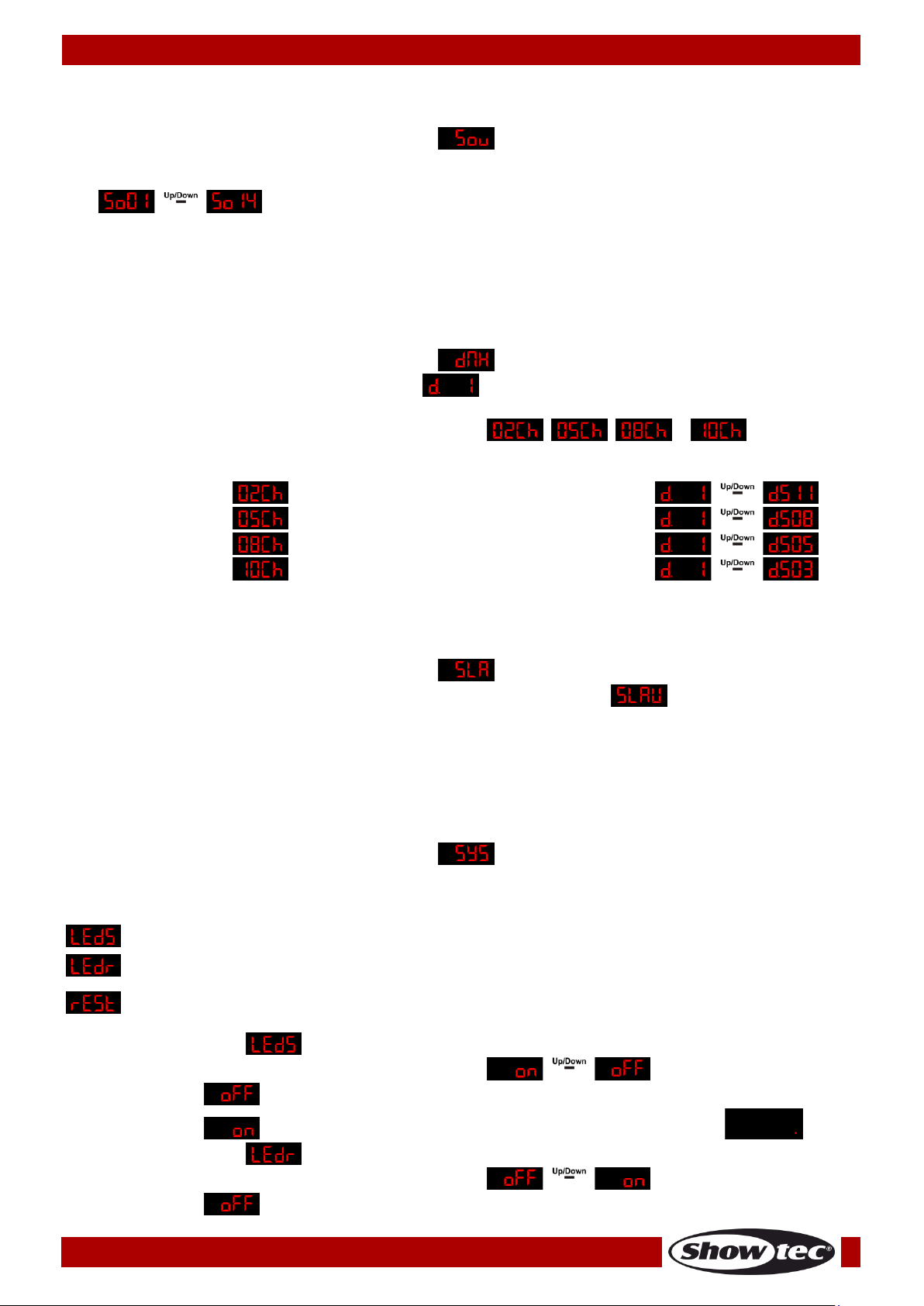

Menu Overview ...........................................................................................................................................................16
Main Menu Options ....................................................................................................................................................16
1. Auto Run Programs..............................................................................................................................................16
2. Sound-controlled Mode .....................................................................................................................................17
3. DMX Address / DMX Channels ..........................................................................................................................17
4. Slave mode ...........................................................................................................................................................17
5. System Settings .....................................................................................................................................................17

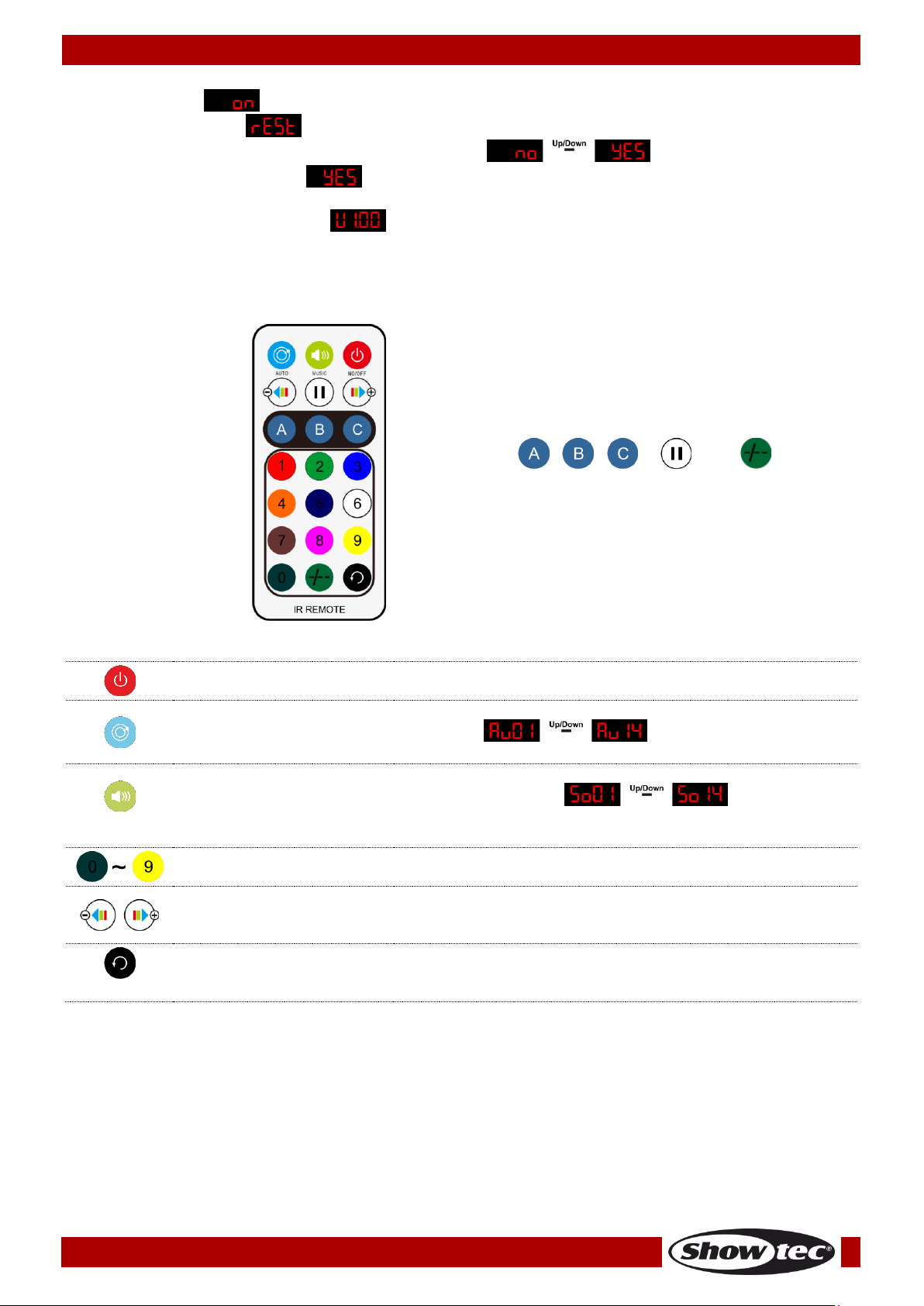

Remote Control ...........................................................................................................................................................18
DMX Channels .............................................................................................................................................................19
2 channels .................................................................................................................................................................19
5 channels .................................................................................................................................................................19
8 channels .................................................................................................................................................................21
10 channels ...............................................................................................................................................................23
Maintenance ...............................................................................................................................................................25
Replacing the Fuse .....................................................................................................................................................25
Troubleshooting ...............................................................................................................................................................25
No Light .........................................................................................................................................................................25
No Response to DMX ..................................................................................................................................................26
Product Specifications ....................................................................................................................................................28
Dimensions ........................................................................................................................................................................29
Notes ..................................................................................................................................................................................30
2
Ordercode: 43162
Dynamica
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
● Showtec Dynamica
incl. mounting bracket
● IEC Power cable (1,5 m)
● 2 keys for the interlock
● Remote control plug
● IR Remote control
● User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
● be qualified
● follow the instructions of this manual
3
Ordercode: 43162
Dynamica
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
● Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
● Never modify, bend, mechanically strain, put pressure on, pull or heat up the power cord.
● Never strain the cable insert or the female part in the device. There must always be sufficient cable
going to the device. Otherwise, the cable will be damaged, which can cause serious damage.
● Never remove warning or informative labels from the unit.
● Never use anything to cover the ground contact.
● Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always
hold the fixture by the transport handles.
● Never place any material over the lens or LEDs.
● Never look directly into the light source.
● Never leave any cables lying around.
● Never use the device during thunderstorms, unplug the device immediately.
● Never leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach, as they are potential sources of danger.
● Never aim the laser beam at people or animals!
● Never point a laser at aircraft, this is a federal offense.
● Never point unterminated laser beams into the sky.
● Never open the laser housing. The high laser power levels inside of the protective housing can start
fires, burn skin and will cause instant eye injury.
● Do not insert objects into air vents.
● Do not open the device and do not modify the device.
● Do not connect this device to a dimmerpack.
● Do not point lasers at highly reflective surfaces such as windows, mirrors and shiny metal. Even laser
reflections can be hazardous.
● Do not expose the output optic (aperture) to cleaning chemicals.
● Do not use laser if the laser appears to be emitting only one or two beams.
● Do not use laser if housing is damaged or open, or if optics appear damaged in any way.
● Do not operate laser without first reading and understanding all safety and technical data in this
manual. Never look into the laser aperture or laser beams.
● Do not switch the device on and off in short intervals, as this will reduce the device’s life.
● Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
● Do not shake the device. Avoid brute force when installing or operating the device.
4
Ordercode: 43162
Dynamica
● After set up and prior to public use, test laser to ensure proper function. Do not use the laser if any
defect is detected. Do not use, if the laser emits only one or two laser beams rather than
dozens/hundreds, as this could indicate damage to the diffraction grating optic, and could allow
emission of higher laser levels.
● Only use the device indoors, avoid contact with water or other liquids.
● Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly
fastened.
● Only operate the device after having familiarized with its functions.
● Avoid flames and do not put close to flammable liquids or gases.
● Always check the regulations when using a class 2M laser product.
● Always check and position the laser before anybody enters the room, when the laser is facing an
area with people.
● Always keep the case closed while operating.
● Always allow a free air space of at least 50 cm around the unit for ventilation.
● Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
● Make sure that the device is not exposed to extreme heat, moisture or dust.
● Make sure that the available voltage is not higher than stated on the rear panel.
● Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
● Make sure that the core diameter of extension cords and power cords is sufficient for the required
power consumption of the device.
● If the external cable is damaged, it has to be replaced by a qualified technician.
● If the lens or LEDs are obviously damaged, it has to be replaced. So that its functions are not
impaired, due to cracks or deep scratches.
● If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
● If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
● For adult use only. The fixture must be installed beyond the reach of children. Never leave the unit
running unattended.
● Never attempt to bypass the thermostatic switch or fuses.
● For replacement use fuses of same type and rating only.
● The operation of a class 2M laser show laser is only allowed if the show is controlled by a skilled and
well-trained operator familiar with the data included in this manual.
● The user is responsible for correct positioning and operating of the Dynamica. The manufacturer will
not accept liability for damages caused by the misuse or incorrect installation of this device.
● This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
● The laser will only work between 10-35ºC.
● After 3 hours working, you must shut off the laser and let the laser diode cool off for 30 minutes,
otherwise the laser could be damaged and the warranty becomes void.
● Repairs, servicing and electric connection must be carried out by a qualified technician.
● WARRANTY: Till one year after date of purchase.
5
Ordercode: 43162
Dynamica
Operating Determinations
● This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
● The minimum distance between light output and the illuminated surface must be bigger than 1
meter.
● The maximum ambient temperature t
a
= 40°C must never be exceeded.
● The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
● If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
● Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
Laser safety for a Class 2M Laser Product
Laser Light is different from any other light source with which you may be familiar with. This laser is less
dangerous than a higher class laser such as an 3B or 4. The light from this product is safe for unintentional
(<1/4 sec) unaided eye exposure. However this device is potentially hazardous if viewed with certain
optical instruments such as binoculars or eye loupe.
Laser light is thousands of times more concentrated than light from any other kind of light source. This
concentration of light power can cause instant eye injuries, primarily by burning the retina (the light
sensitive portion at the back of the eye). Even if you cannot feel “heat” from a laser beam, it can still
potentially injure or blind you or your audience.
Even very small amounts of laser light are potentially hazardous even at long distances. Laser eye injuries
can happen quicker than you can blink.
It is incorrect to think that because these laser products split the laser into hundreds of beams or the laser
beam is scanned out in high speed, that an individual laser beam is safe for eye exposure. This laser
product uses dozens of milliwatts of laser power (Class 2M levels internally). Many of the individual beams
are potentially hazardous to the eyes.
It is also incorrect to assume that because the laser light is moving, it is safe. This is not true. Nor, do the
laser beams always move. Since eye injuries can occur instantly, it is critical to prevent the possibility of
any direct eye exposure. According to the laser safety regulation, it is not legal to aim Class 2M lasers in
areas which people can get exposed. This is true even if it is aimed below people’s faces, such as on a
dance floor.
CAUTION! Only Laser Safety Officers who are officially certified by a regulatory body or authorized
training organization are allowed to use class 2M lasers in public. Whether a Laser Safety Officer is
required depends on national legislation. The Laser Safety Officer is responsible for all aspects when using
this laser, including following all locally applicable safety laws and regulations. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this laser.
CAUTION: AVOID EXPOSURE TO BEAM: Avoid direct eye contact with laser
light. Never intentionally expose your eyes or others to direct laser
radiation.
6
Ordercode: 43162
Dynamica
Compliance Statement
Your Dynamica Laser has been designed to comply with FDA and IEC Standards for its classification.
The Dynamica is a Class 2M laser product.
Laser Safety and Compliance Information
The Dynamica is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and
Drug Administration (FDA) Standards Listed under FDA Document 21 CFR 1040 and subsequent laser
notices.
Product Classification and Manufacturing Label Identification
Laser Classification
Class 2M
Cooling
Cooling fans and TE Cooling
Laser medium
wavelength 650 nm / Red (Laser Diode GaAIAs) ; Output >2x100mW
wavelength 532 nm / Green (DPSS Nd: YVO4); Output >2x30mW
Output
260mW
Beam Diameter
<5mm at aperture
Pulse Data All pulses
< 4Hz (>0.25sec)
Divergence (each beam)
<2 mrad
Divergence (total light)
<160 degrees
The legal requirements for using laser entertainment products vary from country to country. The user is
responsible for the legal requirements at the location/country of use.
Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard
“For Safe Use of Lasers”, available from www.lia.org/. Many local governments, corporations, agencies,
military and others, require all lasers to be used under the guidelines of ANSI Z136.1. Laser Display
guidance can be obtained via the International Laser Display Association, www.ilda.com/index.htm.
CAUTION: The use of corrective eye wear or optics for viewing at distances such as telescopes or
binoculars within a distance of 100mm may pose an eye hazard.
This laser product is a Class 2M laser and has an interlocked
housing.
There are no user serviceable parts inside. Tampering or
removing warranty seals will void your products limited
warranty.
Combo label with the Product Model Number, Serial
Number, Date of Manufacturing, Laser Light Warning Label,
Warranty Void Label and Interlocked Housing Label
Proper Usage Safety and Compliance Information
7
Ordercode: 43162
Dynamica
According to FDA Regulations you should
operate this product as stated on the left.
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
● If the Dynamica is lowered from the ceiling or high joists, professional trussing systems have to be
used.
● Use a clamp to mount the Dynamica, with the mounting bracket, to the trussing system.
● The Dynamica must never be fixed swinging freely in the room.
● The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
● When rigging, derigging or servicing the Dynamica, always make sure, that the area below the
installation site is secured and that there are not any unauthorized people around.
The Dynamica can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
Improper installation can cause serious injuries and/or damage of property!
8
Ordercode: 43162
Dynamica
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE
GROUND
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause of the
return. Be sure to properly pack fixture as any shipping damage resulting from inadequate packaging is
the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name.
02) Your address.
03) Your phone number.
04) A brief description of the symptoms.
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that the fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period, complaints will not be handled anymore.
Complaints will only be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
9
Ordercode: 43162
Dynamica
Description of the device
Features
The Showtec Dynamica is an all-in-one light effect. It combines RGBWA LED beam effects with 2 RG
grating lasers, UV wash and 2 SMD strobe arrays. It has 2, 5, 8 and 10 channel DMX modes to offer basic
operation and full control of all individual effects. On board built-in programs both combined and
alternating effects can be applied in sound or auto mode. Multiple units can be daisy chained with both
DMX and IEC power linking, and controlled in master slave mode. The Dynamica has an extreme wide
floor coverage and is the ideal all in one solution for Musicians, DJ’s, Clubs and Mobile applications.
● 4-in-1 light effect
● Duel RG Laser Grating effects
● RGBWA LED Pattern beams
● Strobe arrays & UV
● Input voltage: 100-240V AC, 50/60Hz
● Power consumption: 40W (full output)
● DMX channels: 2, 5, 8 or 10 channels
● 4-digit LED display for easy setup
● Control modes: Auto, Sound-controlled, Master/Slave, DMX
● Control protocol: DMX-512
● Protection rate: IP-20
● Housing: Die-cast black aluminum
● Cooling: Fans/Convection
● Connections: IEC connectors (IN/OUT), 3-pin XLR (IN/OUT)
● Fuse: T1.6L/250V
● Dimensions: 770 x 175 x 225 mm (LxWxH) (incl. bracket)
● Weight: 5,5 kg
LED Beam effect
● Colors: RGBWA
● Light source: 192 x 0,12W LEDs
Laser effect
● Laser Color: 2xRed, 2xGreen
● Laser Power: 260mW (2x100mW 650nm Red, 2x30mW 532nm Green)
● Laser Class: 2M
● Safety Features: Key switch, Interlock, Safety eye
● Laser Safety: EN/IEC 60825-1 Ed 2, 2007-03
Strobe effect
● Light source: 18 x 0,5W Cool white LEDs
UV effect
● Light source: 2 x 3W LEDs
Note: Knowledge of DMX is required to fully utilize this unit.
Optional accessories
51316 Remote Interlock
Loading...
