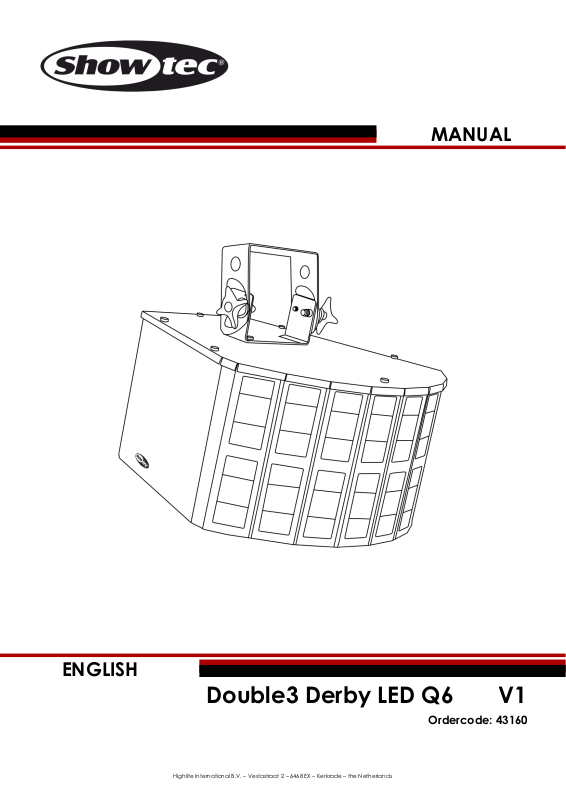

Showtec Double3 derby LED Q6 User manual

Double3 Derby LED Q6 V1

Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Ordercode: 43160

MANUAL

ENGLISH

1

Ordercode: 43160

Double3 Derby LED Q6

Table of contents

Warning ............................................................................................................................................................................... 2

Unpacking Instructions ................................................................................................................................................. 2

LED Expected Lifespan ................................................................................................................................................ 2

Safety Instructions ......................................................................................................................................................... 2

Operating Determinations .......................................................................................................................................... 4

Rigging ............................................................................................................................................................................ 4

Connection with the mains......................................................................................................................................... 5

Return Procedure .......................................................................................................................................................... 5

Claims .............................................................................................................................................................................. 5

Description of the device ................................................................................................................................................. 6

Overview ........................................................................................................................................................................ 6

Backside ......................................................................................................................................................................... 7

Installation ........................................................................................................................................................................... 7

Set Up and Operation ....................................................................................................................................................... 7

Sound-controlled .......................................................................................................................................................... 7

Maintenance ...................................................................................................................................................................... 8

Replacing the Fuse ....................................................................................................................................................... 8

Troubleshooting ................................................................................................................................................................. 8

No Light ........................................................................................................................................................................... 8

Product Specifications ...................................................................................................................................................... 9

Dimensions ........................................................................................................................................................................10

2

Ordercode: 43160

Double3 Derby LED Q6

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

● Showtec Double3 Derby LED Q6

● IEC Power cable (1,0 m)

● User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

● be qualified

● follow the instructions of this manual

Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes contained in this manual.

Please consider that damages caused by manual modifications to the device are not subject to
warranty. This device contains no user-serviceable parts. Refer to qualified technicians only.

3

Ordercode: 43160

Double3 Derby LED Q6

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.

● Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

● Never remove warning or informative labels from the unit.

● Never use anything to cover the ground contact.

● Never lift the fixture holding it by the projector-head, as the mechanics may be damaged.

Always hold the fixture by the transport handles.

● Never place any material over the lens.

● Never look directly into the light source.

● Never leave any cables lying around.

● Never loosen the screws of the gobo, otherwise you risk opening of the ball bearing.

● Do not insert objects into air vents.

● Do not connect this device to a dimmerpack.

● Do not switch the device on and off in short intervals, as this will reduce the device’s life.

● Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Allow the fixture to cool for at least 5 minutes before handling.

● Do not shake the device. Avoid brute force when installing or operating the device.

● Only use the device indoors, avoid contact with water or other liquids.

● Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly

fastened.

● Only operate the device after having familiarized with its functions.

● Avoid flames and do not put close to flammable liquids or gases.

● Always keep the case closed while operating.

● Always allow a free air space of at least 50 cm around the unit for ventilation.

● Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord holding it by the plug. Never pull out the plug by tugging the power cord.

● Make sure that the device is not exposed to extreme heat, moisture or dust.

● Make sure that the available voltage is not higher than stated on the rear panel.

● Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

● If the lens is obviously damaged, it has to be replaced.

● If device was dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

● If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device.
Leave the device switched off until it has reached room temperature.

● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

● For adult use only. The moving head must be installed beyond the reach of children. Never leave the

unit running unattended.

● Never attempt to bypass the thermostatic switch or fuses.

● For replacement use fuses of same type and rating only.

● The user is responsible for correct positioning and operating of the Double3 Derby LED Q6. The

manufacturer will not accept liability for damages caused by the misuse or incorrect installation of
this device.

● This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

● Repairs, servicing and electric connection must be carried out by a qualified technician.

● WARRANTY: Till one year after date of purchase.
