Compact Disc Player
Compact Disc-Spieler
Lettore compact disc
Reproductor de Discos Compactos
CD-5090C/R
OPERATING INSTRUCTIONS
BEDIENUNGSANLEITUNG
ISTRUZIONI PER L’USO
MANUAL DE INSTRUCCIONES
ENGLISH
UNPACKING AND INSTALLATIONUNPACKING AND INSTALLATION
Introduction Introduction
This symbol is intended to alert the
user to the presence of uninsulated
"dangerous voltage" within the
product's enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
CAUTION
Invisible laser radiation when the unit is open. Do
not stare into beam.
CAUTION : USE OF ANY CONTROLS, ADJUSTMENTS,
OR PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE
.
WARNING
Congratulations on your purchase!
Your new high fidelity Compact Disc Player is designed to deliver maximum enjoyment and years of trouble
free service.
Please take a few moments to read this manual thoroughly. It will explain the features and operation of your unit
and help ensure a trouble free installation.
Please unpack your unit carefully. We recommend that you save the carton and packing material. They will be
helpful if you ever need to move your unit and may be required if you ever need to return it for service. Your
unit is designed to be placed in a horizontal position and it is important to allow at least two inches of space
behind your unit for adequate ventilation and cabling convenience.
To avoid early damage, never place the unit near radiators, in front of heating vents, in direct sunlight, in
excessively humid or dusty locations or near sources of strong magnetic fields. Connect your complementary
components as illustrated in the following section.
CAUTION : TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
CLASS 1
LASER PRODUCT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
2
Introduction
ENGLISH
READ THIS BEFORE OPERATING YOUR UNIT
Units shipped to the U.S.A. and Canada are
designed for operation on 120 V AC only.
Safety precaution with use of a polarized AC plug.
However, some products may be supplied with a
nonpolarized plug.
CAUTION : To prevent electric shock, match wide
blade of plug to wide slot, fully insert.
ATTENTION : Pour eviter les choc electriques,
introduire la lame la plug large de la borne
correspondante de la prise et poussre jusqu’au
fond.
FOR U.S.A.
FCC INFORMATION
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following
measures :
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio TV
technician for help.
CAUTION : Any changes or modifications in
construction of this device which are not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
FOR U.S.A. AND CANADA 120 V
Units shipped to Australia are designed for
operation on 240 V AC only.
To ensure safe operation the three-pin plug
supplied must be inserted only into a standard
three-pin power point which is effectively earthed
through the normal household wiring. Extension
cords used with the equipment must be three-core
and be correctly wired to provide connection to
earth. Improper extension cords are a major cause
of fatalities.
The fact that the equipment operates satisfactorily
does not imply that the power point is earthed and
that the installation is completely safe. For your
safety, if in any doubt about the effective earthing
of the power point, consult a qualified electrician.
PAN-EUROPEAN UNIFIED VOLTAGE
All units are suitable for use on supplies 230 - 240 V
AC.
FOR EUROPE AND AUSTRALIA 230 V/240 V
FOR YOUR SAFETY
FOR YOUR SAFETY
Units shipped to countries other than the above
countries are equipped with an AC voltage selector
switch on the rear panel. Refer to the following
paragraph for the proper setting of this switch.
AC VOLTAGE SELECTION
This unit operates on 110 - 220 V AC. The AC
voltage selector switch on the rear panel is set to
the voltage that prevails in the area to which the
unit is shipped.
Before connecting the power cord to your AC outlet,
make sure that the setting position of this switch
matches your line voltage. If not, it must be set to
your voltage in accordance with the following
direction.
FOR OTHER COUNTRIES 110 V/ 220 V
FOR YOUR SAFETY
AC voltage selector switch
Move switch lever to match your line voltage
with a small screwdriver or other pointed tool.
AC 110 V AC 220 V
3
Introduction
UNPACKING AND INSTALLATION 2
READ THIS BEFORE OPERATING YOUR UNIT 3
System Connections 5
Controls 6

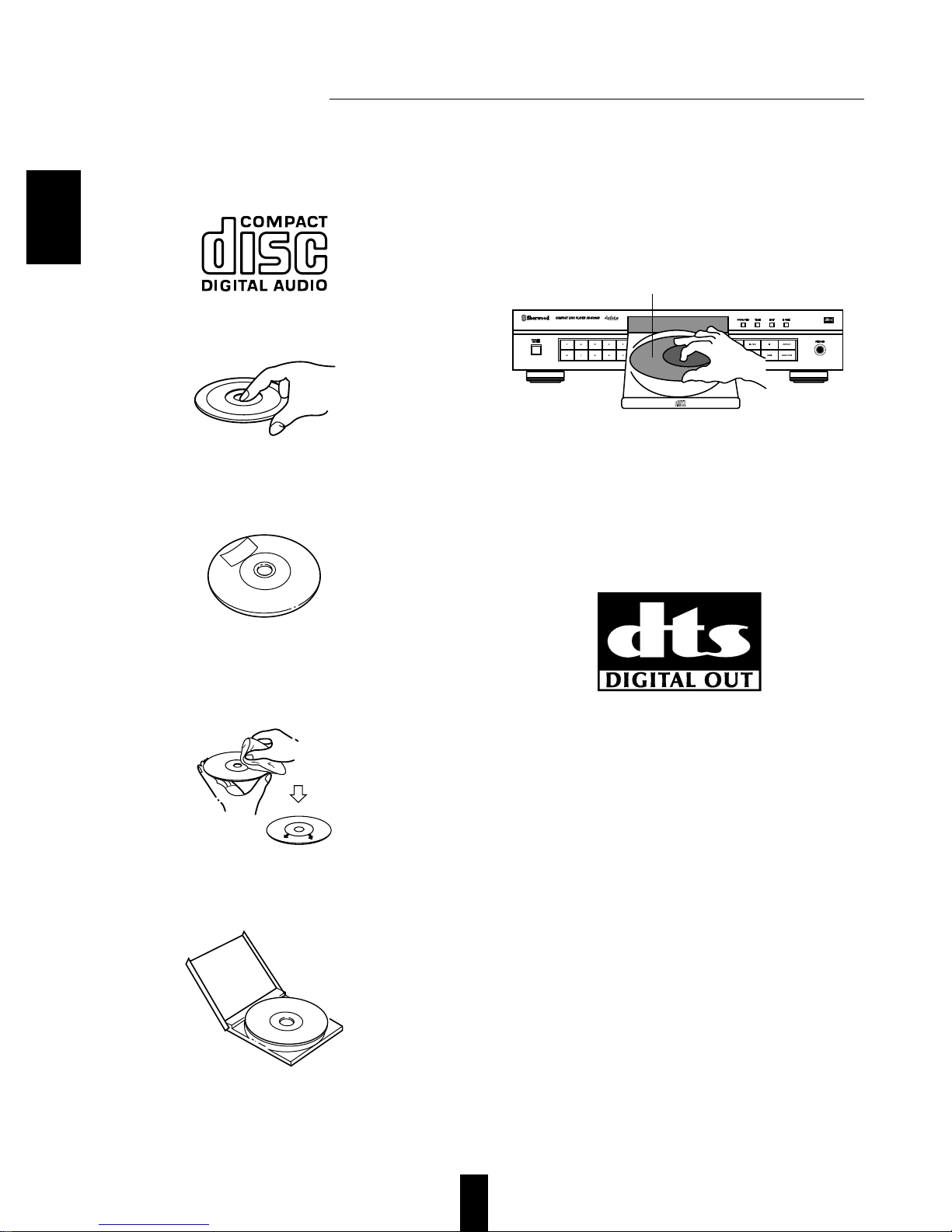

Before Operation 10
Operations

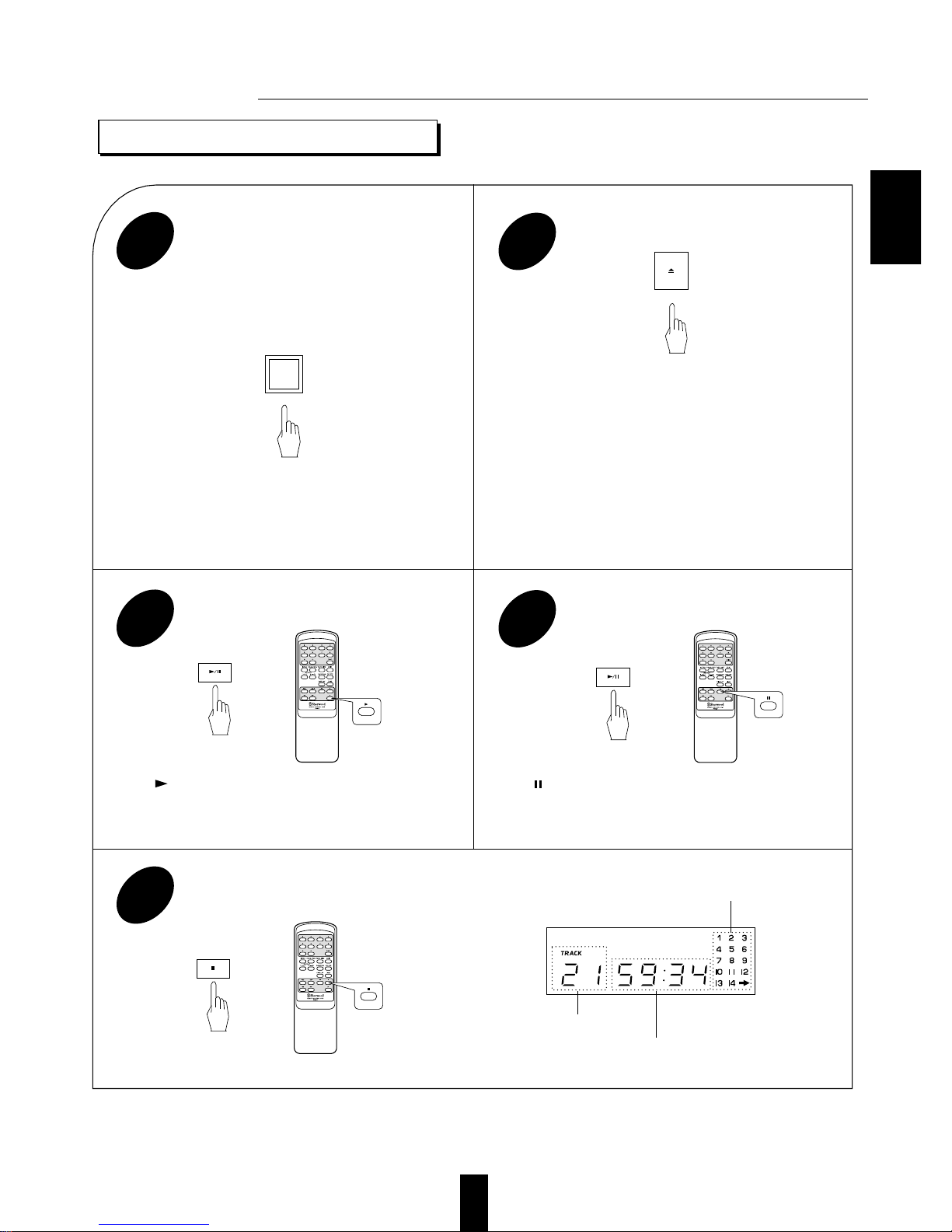

PLAYING A DISC 11

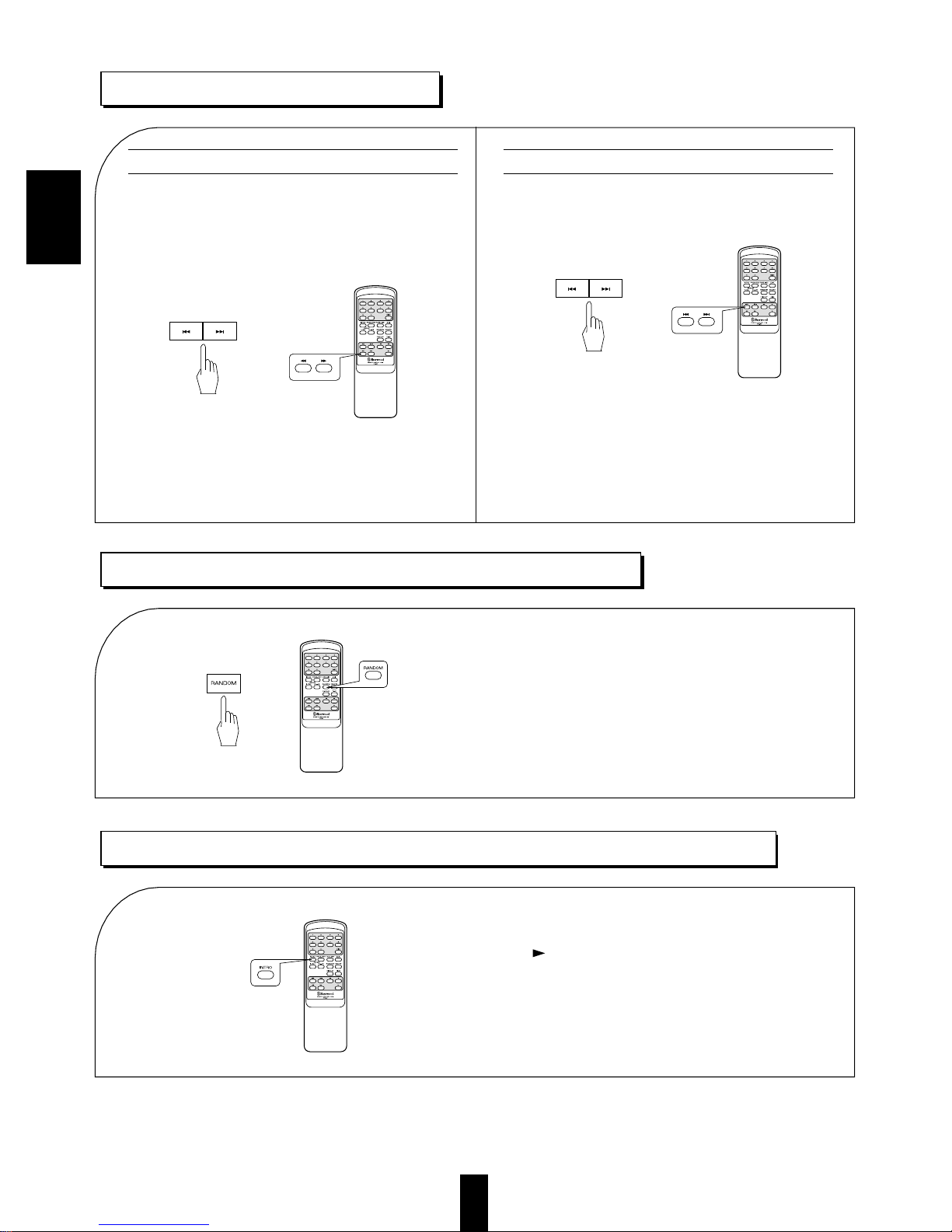

SEARCH AND SKIP PLAY 12
PLAYING A DISC IN RANDOM SEQUENCE (RANDOM PLAY) 12
PLAYING THE FIRST 10 SECONDS OF EACH TRACK (INTROSCAN PLAY) (ONLY FOR CD-5090R) 12

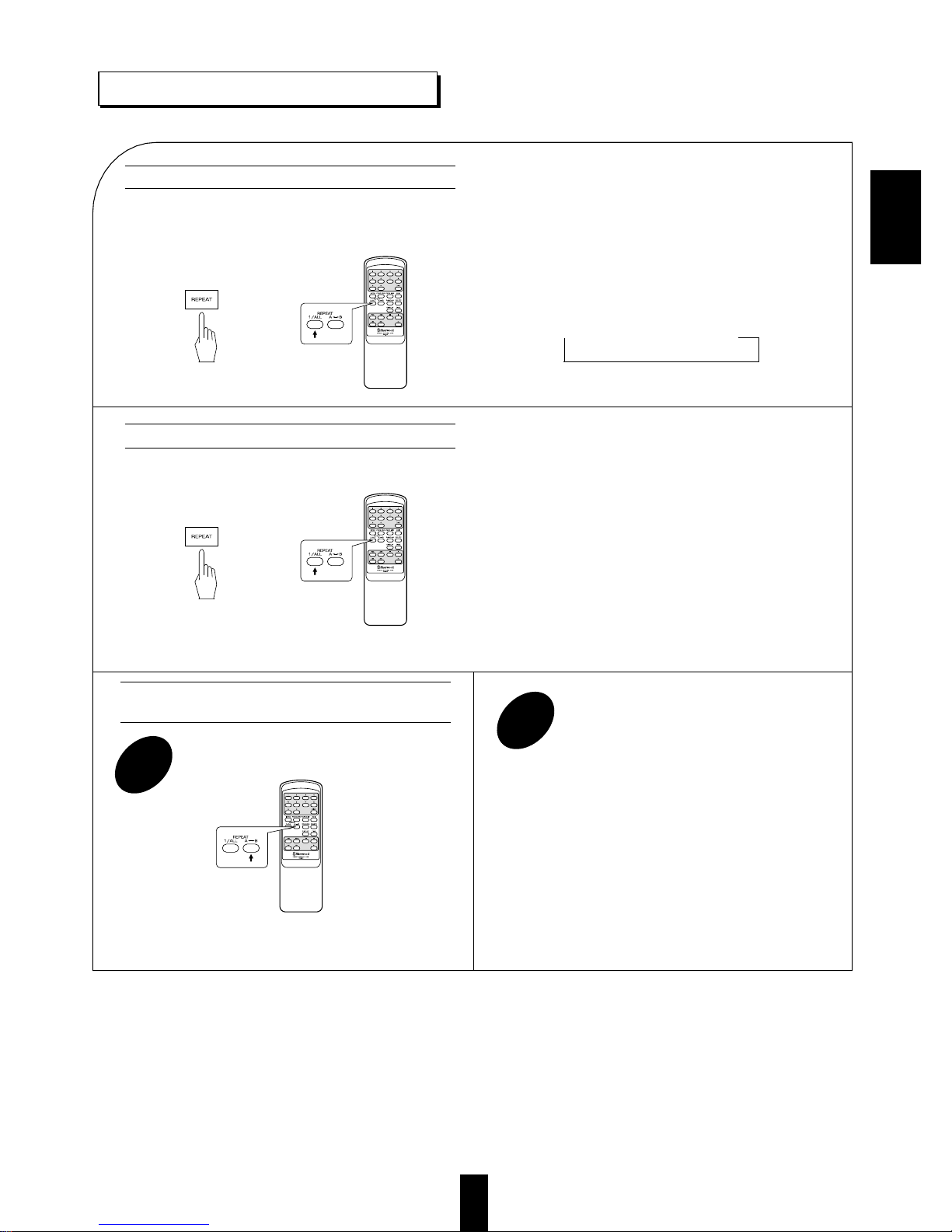

REPEAT PLAY 13

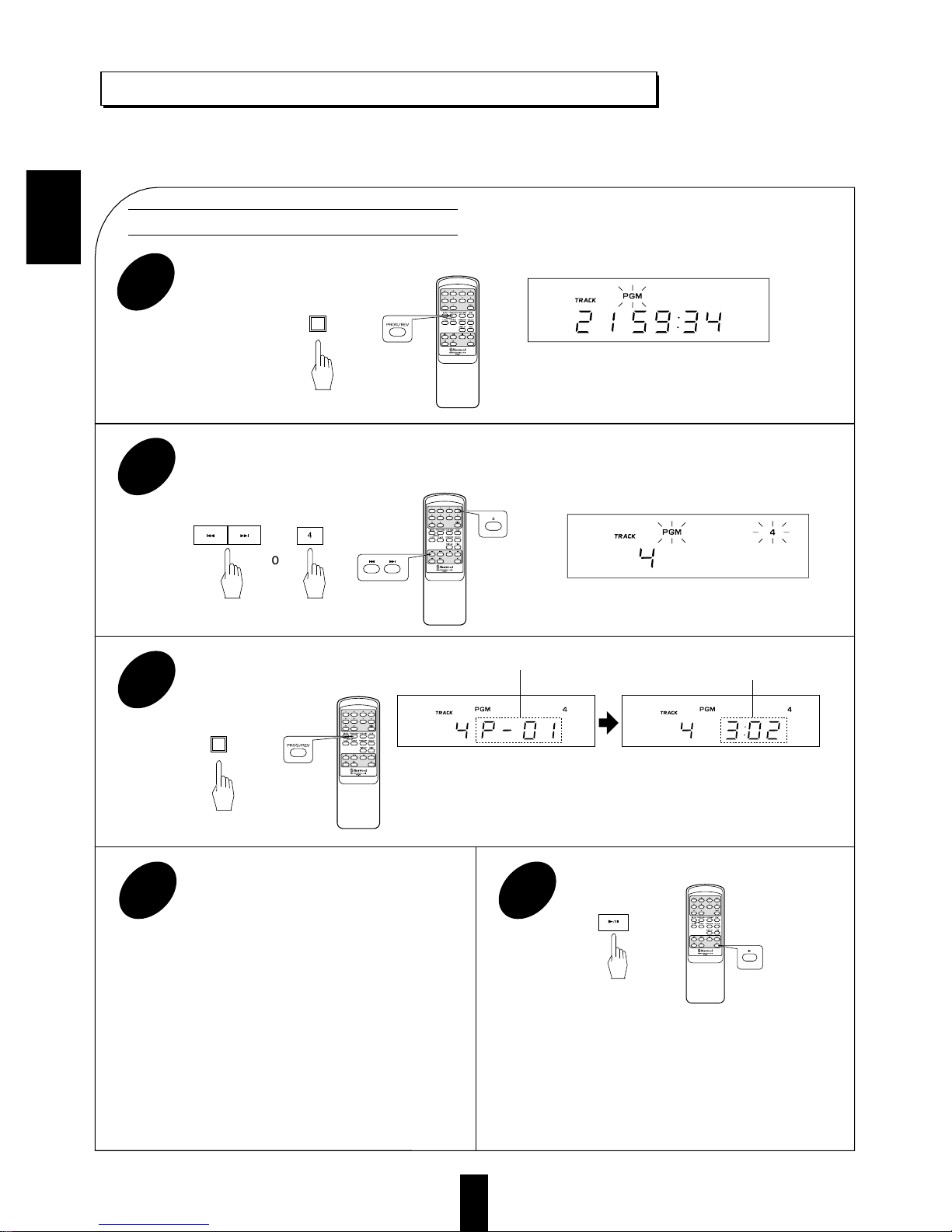

PLAYING TRACKS IN ANY SEQUENCE (PROGRAMMED PLAY) 14

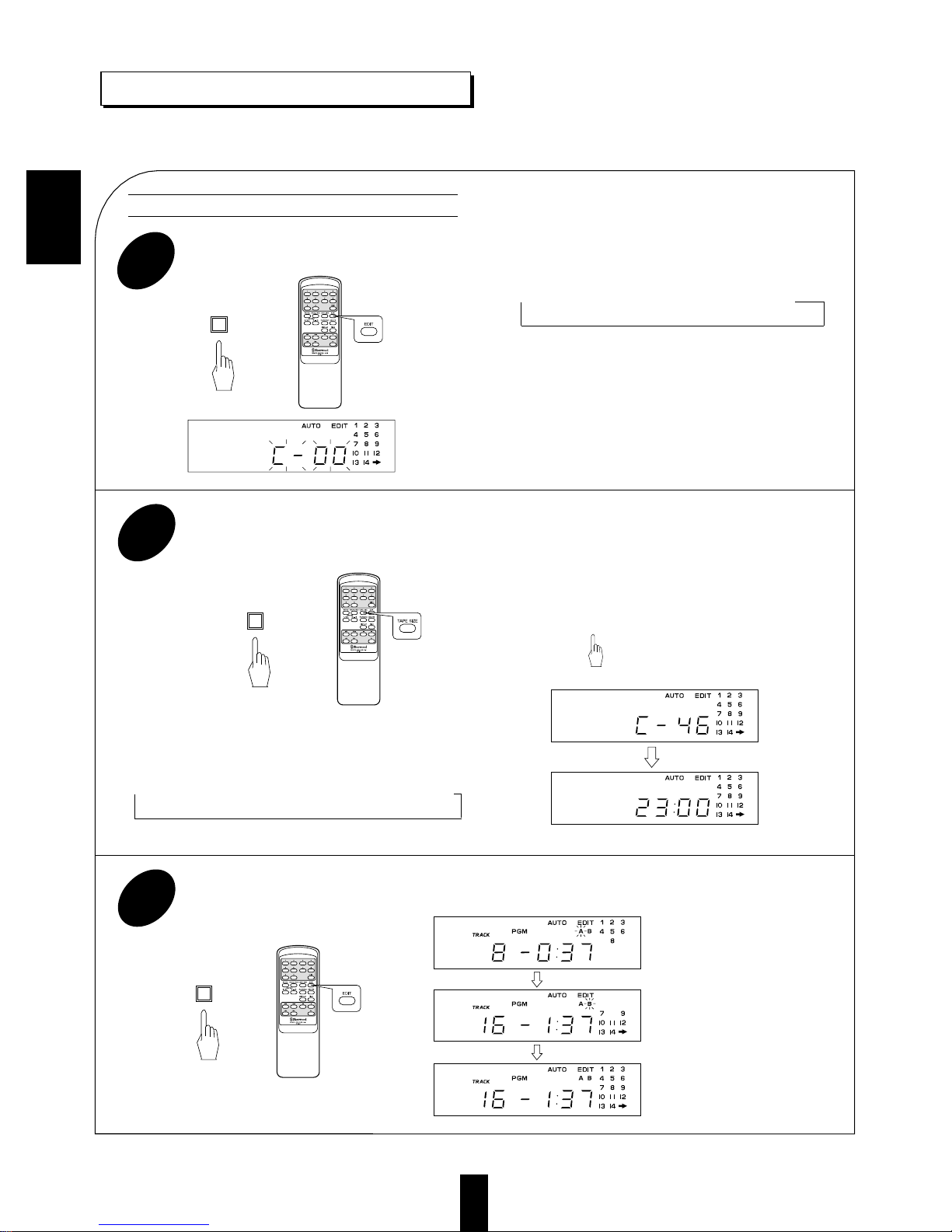

EDITING FOR RECORDING 16

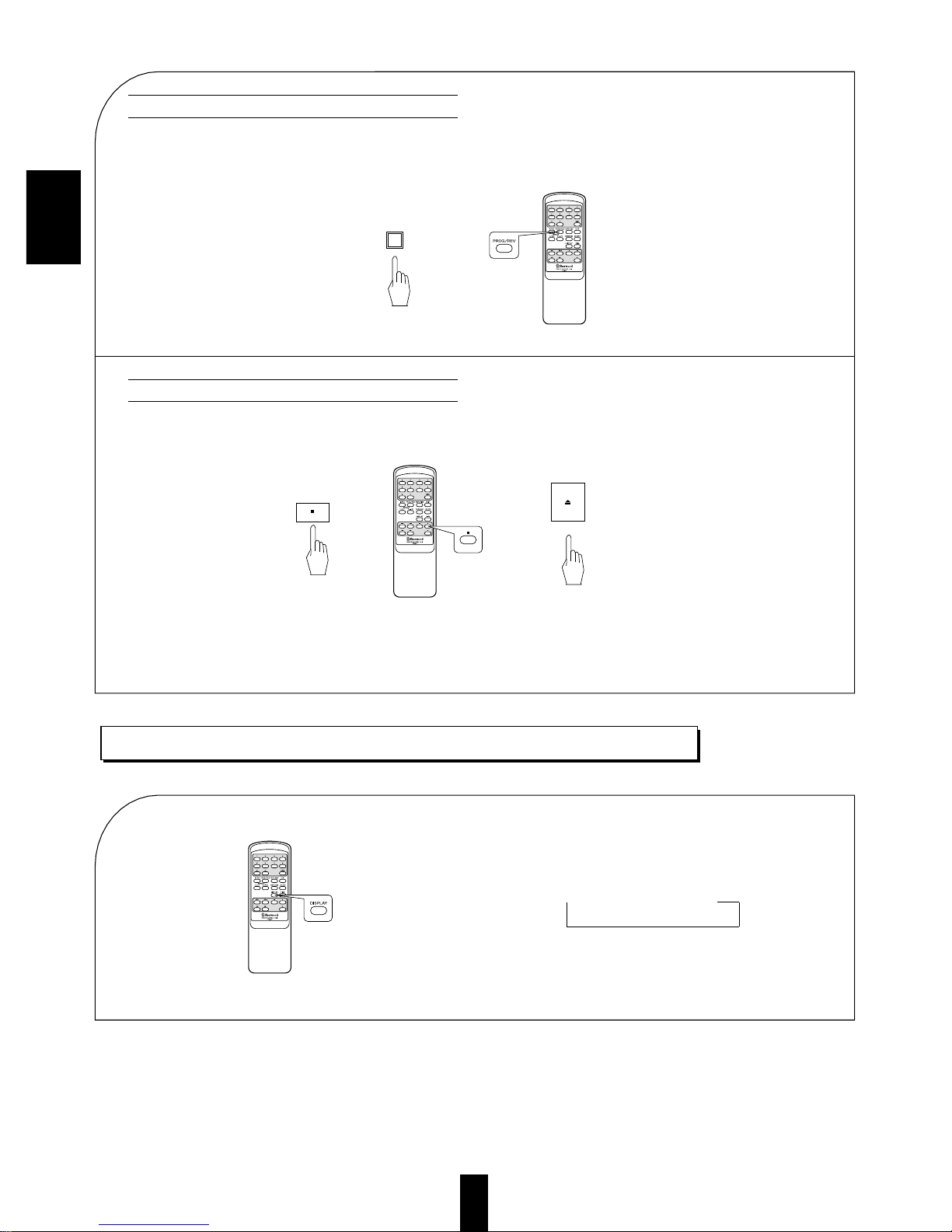

SELECTING A BRIGHTNESS OF THE DISPLAY (ONLY FOR CD-5090R) 18
SELECTING A TIME DISPLAY 19
USING THE HEADPHONES 19
Troubleshooting Guide 20
Specifications 21
Introduction
CONTENTS
ENGLISH
4
System Connections
ENGLISH
CD
L
R
AC INPUT
230V~50Hz
12W
SER. NO.
COMPACT DISC PLAYER
MODEL NO. CD-5090R
DIGI LINK
R
L
OUTPUT
DIGITAL OUTPUT
DESIGNED IN USA
ASSEMBLED IN KOREA
CAUTION:
TO PREVENT ELECTRIC
SHOCK, DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS
INSIDE.REFER-SERVICING TO
QUALIFIED SERVICE PERSONNEL.
STEREO INTEGRATED AMPLIFIER AX-5090R
POWER
ON/OFF
PHONES
BASS
A
B
SPEAKER
CD
REMOTE SENSOR
-10 10+
TREBLE
-10 10+
BALANCE
VOLUME
DIRECT
LOUDNESS
LEFT RIGHT
MIN MAX
TUNER TAPE 1/MD PHONO TAPE 2 MONITER
DIGI LINK
① OUTPUT JACKS
Connect these jacks to the CD(or AUX) input jacks of your amplifier such as AX-5090R or receiver.
② DIGI LINK III JACKS
Connect this jack to the DIGI LINK jack of Sherwood amplifier such as AX-5090R bearing the DIGI LINK III or
II mark to control this unit remotely by DIGI LINK System.
③ AC INPUT CORD
Plug this cord into a house hold AC outlet or the switched AC outlet of amplifier such as AX-5090R.
④ DIGITAL OUTPUT
Digital output should be connected to digital input of amplifier or receiver to enjoy live digital sound.
You can record digital sound by connecting digital input of Mini Disc Recorder to this jack.
When making OPTICAL DIGITAL connection, do it after removing cap.
Insert cap when not using the OPTICAL DIGITAL jack.
①
Do not plug the AC input cord into the AC outlet when making connections.
Be sure to connect the white plugs to the L(Left) and the red plugs to the R(Right) jacks when making connections
with the supplied cords.
Refer to the connecting diagram in the operating instructions of AMPLIFIER/RECEIVER.
②
③
④
AMPLIFIER/RECEIVER
5
Controls
ENGLISH
FRONT PANEL CONTROLS
REMOTE CONTROLS(ONLY FOR CD-5090R)
ENGLISH
⑪
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑫⑬⑭⑮
⒃
⒗
⒖
6
⑪
⑬
⑩
ⓒ
⒔⑭
⑨
ⓔ
⑮
⑧
⑫
⒕
ⓑ
⑤
ⓐ
ⓓ
ⓕ
① POWER SWITCH
Press this switch to turn the power on and press again
to turn the power off.
For system operation, plug the AC input cord into the
switched AC outlet on amplifier or receiver, keep the
POWER swith ON and control power ON/OFF with
the power operation on the amplifier or receiver.
② DISC TRAY
Load a compact disc on the disc tray.
③ OPEN/CLOSE BUTTON( )
Press this button to open or close the disc tray.
④ PLAY/PAUSE BUTTON( )
ⓐPress this button to start play in the stop or pause
mode.
ⓑPress this button to interrupt play temporarily and
press again to restart play.
⑤ STOP/CLEAR BUTTON( )
Press this button to stop play, clear the programmed
tracks.
⑥ BACKWARD SKIP/SEARCH BUTTON( )
ⓒPress this button to replay from the beginning of
the current track or return to a previous track.
ⓓPress and hold down this button search for a
specific passage in fast backward.
⑦ FORWARD SKIP/SEARCH BUTTON( )
ⓔPress this button to play from the beginning of a
next track.
ⓕPress and hold down this button to search for a
specific passage in fast forward.
⑧ RANDOM PLAY BUTTON
Press this button to play tracks on a CD in random
sequence.
⑨ REPEAT 1/ALL BUTTON
Press this button to play a track or all tracks repeatedly.
⑩ REPEAT A↔B BUTTON
Press this button to play a specific passage repeatedly.
ENGLISH
⑪ NUMERIC BUTTONS
Press the corresponding button when selecting tracks
for play or programming, then the selected track is
played or programmed directly without the use of the
PLAY or PROGRAM/REVIEW button.
⑫ TIME BUTTON
Press this button to display the elapsed or remaining
playing time of the current track or remaining playing
time of the disc.
⑬ PROGRAM/REVIEW BUTTON
Press this button to program your favorite tracks or
review the programmed tracks.
⑭ EDIT BUTTON
Press this button to edit the tracks to be recorded onto
the tape.
⑮ TAPE SIZE BUTTON
Use this button to select the tape length.
⒃ HEADPHONE JACK
Stereo headphones can be plugged into this jack for
private listening.
⒔ INTROSCAN BUTTON
Press this button to play the first 10 seconds of each
track on a CD.
⒕ DISPLAY BUTTON
Press this button to change the brightness of the
display.
⒖ REMOTE SENSOR(ONLY FOR CD-5090R)
This receives the signals from the remote control.
⒗ FLUORESCENT DISPLAY
For details, refer to the next page.
■Note
On the remote control, the DISC and DELETE buttons
are not available for this unit.
7
ENGLISH
FLUORESCENT DISPLAY
TIME DISPLAY
TRACK NUMBER DISPLAY
PLAY INDICATOR
PAUSE INDICATOR
REPEAT PLAY INDICATORS
PROGRAM INDICATOR
EDIT DISPLAY
RANDOM PLAY INDICATOR
MUSIC CALENDAR DISPLAY
※DIGI LINK SYSTEM REMOTE CONTROL
※This unit can be remotely controlled with Sherwood DIGI LINK III amplifier such as AX-5090R or receiver.
For available functions, refer to the compatible unit’s operating instructions.
To listen to a CD by DIGI LINK system, first make DIGI LINK connection between this unit and the Sherwood
compatible amplifier such as AX-5090R or receiver.
8
ENGLISH

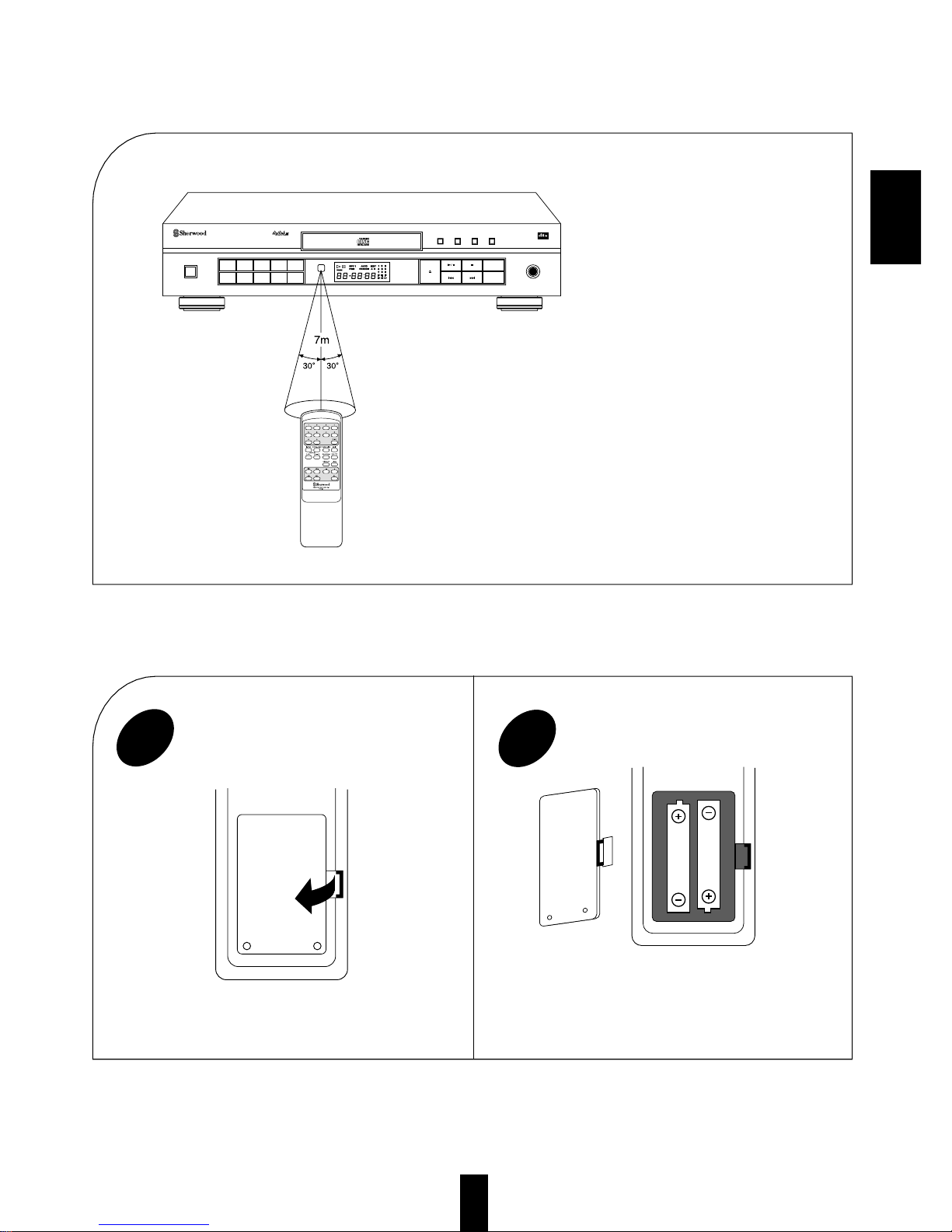

REMOTE CONTROL OPERATION RANGE (ONLY FOR CD-5090R)
COMPACT DISC PLAYER CD-5090R
ON/OFF
POWER
PROG/REV
PHONES
TIME EDIT T. SIZE
REPEAT
RANDOM
12345
67890
R
LOADING BATTERIES
(ONLY FOR CD-5090R)
Use the remote control unit within a range of
about 7 meters (23 feet) and angles of up to 30
degrees aiming at the remote sensor.
Remove the batteries when they are not used
for a long time.
Do not use the rechargeable batteries (Ni-Cd
type).
Remove the cover.
1
Load two size “AA” batteries matching
the polarity.
2
9
Before Operation
ENGLISH
Only compact discs bearing this mark can be
reproduced.
Notes
Do not expose discs to direct sunlight, high
humidity or high temperature for a long time.
When loading or unloading a disc in the disc
tray, always place it with the printed side up.
The DTS logo on the front means that the CD
encoded with the DTS signal can be heard in
DTS mode when this digital out is connected
to the digital input of the amplifier with the
DTS decoder, etc..
“DTS” and “DTS Digital Surround” are
trademarks of Digital Theater Systems, Inc.
In handling a disc, hold it carefully with edges.
Do not stick paper or write anything on the
printed surface.
Fingermarks and dust on the recorded surface
should be carefully wiped off with a soft cloth.
Wipe straight from the inside to the outside of
the disc.
Always keep the discs in their cases after use
to protect them from dust and scratches.
Printed side
10
Operations
PLAYING A DISC
ENGLISH
“” indicator lights up when the number of
tracks is more than 14.
When the CD door is kept opened, if it elapsed
over 60 seconds, the CD door will be closed
automatically.
8 cm(3 inch) CDs can be loaded on the inside
circle of the tray, too.
Notes
Do not open or close the tray by force.
Doing so may damage it.
“ ” indicator lights up.
Press this button again to restart play.
“ ” indicator lights up.
The unit plays from the first track to the last
track.
Turn the power on.
1
Load a disc and close the tray.
2
To start play.
3
To stop play.
5
To interrupt play temporarily.
4
Music calendar
Total playing time
Stop mode
Total tracks
ON/OFF
POWERWER
or
or
or
11
SEARCH AND SKIP PLAY
ENGLISH
Press and hold down these buttons until the
desired passage is reached.
Press the button momentarily and repeatedly
until the desired track is selected.
When using the NUMERIC buttons on the
remote control or on the front pannel.
Example) When selecting “9” : 9
When selecting “22” : 2 → 2
within 2 sec.
Searching for a passage during play
Selecting a track during play
PLAYING A DISC IN RANDOM SEQUENCE (RANDOM PLAY)
“RANDOM” indicator lights up.
The unit automatically selects and plays tracks
on the disc in random sequence.
Press again to cancel random play.
PLAYING THE FIRST 10 SECONDS OF EACH TRACK (INTROSCAN PLAY) (ONLY FOR CD-5090R)
“ ” indicator is flickering.
The unit plays the first 10 seconds of each
track.
Press again to cancel the introscan play.
or
or
or
12
RPT RPT 1 OFF
ENGLISH
REPEAT PLAY
If this button is pressed once, all tracks are
played repeatedly.
Press again to cancel the repeat play.
“RPT” indicator lights up and “A” indicator is
flickering.
At the desired track, press again in the repeat all mode.
Each time this button is pressed, the repeat
mode changes as follows ;
Press again to cancel the repeat play.
Repeating all tracks during play
Repeating a single track during play
Repeating a specific passage during play
(Only for CD-5090R)
At the beginning of the desired passage,
press this button.
1
At the end of the desired passage, press
this button again, then “B” indicator
lights up and the desired passage is
played repeatedly.
2
or
or
13
ENGLISH
PLAYING TRACKS IN ANY SEQUENCE(PROGRAMMED PLAY)
Up to 20 tracks can be programmed to play in any desired sequence.
The track number greater than 99 can not be memorized.
During the programmed play, when the
NUMERIC button is pressed, normal play will
start from the selected track without clearing your
programmed tracks.
To return to the program mode (meaning “PGM”
lights up in the stop mode), press the
PROGRAM/REVIEW button in the stop mode.
When selecting a track with the NUMERIC buttons, the
selected track is stored automatically without pressing the
PROGRAM/REVIEW button.
Programming the tracks on a CD
In the stop mode, enter the program mode.
1
Select the desired track.
Example) When selecting track 4.
2
Store the selected track in the memory.
3
Repeat the above steps 2 and 3 until the
desired program is completed.
4
Start the programmed play.
5
PROG/REV
or
PROG/REV
or
4
or or
or
or
Programmed sequence
Total playing time of the
programmed tracks
program mode
14
ENGLISH
Checking the programmed tracks
Clearing the programmed tracks
Rectifying any wrong programmed track
Each time the PROGRAM/REVIEW button is
pressed in the program mode (meaning
“PGM” lights up in the stop mode), the
programmed tracks will appear in the
programmed sequence.
Example) When track 5, 9 and 7 are programmed
and you want to replace track 9 with
track 10.
1
Select track 10.
2
Store the desired track in the memory.
3
To clear one by one
Each time this button is pressed in the program
mode, the programmed tracks are cleared one by
one in the opposite sequence.
To clear a specific track.
Find the desired track and clear it in the program
mode.
To clear all programmed tracks.
Press this button for more than 4 seconds in the
program mode.
Or press OPEN/CLOSE button( ).
When selecting a track with the NUMERIC
buttons, the selected track is stored automatically
without the PROGRAM/REVIEW button.
PROG/REV
or
PROG/REVPROG/REV
or
PROG/REV
or
PROG/REVPROG/REV
or
or
or
within 2 sec
within 2 sec
or
Find track 9 in the program mode.
or
or
or
15
ENGLISH
EDITING FOR RECORDING
Up to 20 tracks for auto and manual edit can be edited according to the tape length.
You can select the tape length at your option
with the NUMERIC buttons.
Example) When the tape length of each side is
23 minutes.
Each time this button is pressed, the edit mode
changes as follows ;
In the edit mode, the auto space function,
leaving a 4 second blank space between the
tracks, is automatically activated for the
automatic music search function on the
Sherwood DIGI-LINK III casette deck such as
DD-5090C.
The auto edit is
completed.
The edited tracks on the
side B.
The edited tracks on the
side A.
Each time this button is pressed, the tape
length changes as follows ;
Making auto edit
In the stop mode, select the auto edit
mode.
1
Select the desired tape length.
Example) When the tape length is 46
minutes.
2
Edit the tracks to be recorded.
3
AUTO EDIT MANUAL EDIT OFF
C-46 C-54 C-60 C-74 C-90 C 120
2 3 0 0
EDIT
or
or
EDIT
or
T.SIZE
T.SIZE
16
ENGLISH
Notes
During manual edit, if the “-” indicator in the
time display disappears and “” flickers, it
means that the total time of the edited tracks
exceeds the tape length. So you should edit again.
When a track with a number greater than 30 is edited,
the time display may show “---:--”.
If the PLAY button is pressed after editing the
tracks, play starts from the first track of the side A
for recording.
If all tracks of the side A have been played, press
the PLAY button to start play from the first track of
the side B for recording.
When this unit is connected to Sherwood
compatible cassette deck such as DD-5090C
controlled remotely by DIGI LINK system, if using
the CD synchro record function on the DD-5090C,
recording a CD is easier. (refer to the DD-5090C’s
operating instruction)
Making manual edit
Press the EDIT button to start editing for
the side B.
5
Edit the tracks for the side B in the same
manner.
6
Press the PROGRAM/REVIEW button
to manually edit the tracks to be
recorded.
3
Edit the tracks for the side A repeating
steps 2 and 3 in “PLAYING TRACKS IN
ANY SEQUENCE(PROGRAMMED
PLAY)” procedure on page 14.
4
In the stop mode, select the manual edit
mode.
1
Select the tape length like the auto edit.
2
EDITEDIT
or
EDIT
or
PROG/REV
or
17
SELECTING A BRIGHTNESS OF THE DISPLAY (ONLY FOR CD-5090R)
ENGLISH
ON DIM OFF
In the edit mode, check as you do the programmed tracks. (refer to “Checking the programmed tracks” on
page 15)
In the edit mode, press the STOP/CLEAR button for more than 4 seconds or open the tray.
In the manual edit mode only, you can clear or rectify the edited tracks like “Rectifying any
wrong programmed tracks” or “Clearing the programmed tracks” on page 15.
Each time this button is pressed, the brightness
of the display changes as follows ;
In the display OFF mode, pressing any button
will restore the display ON mode.
Checking the edited tracks
Clearing all edited tracks
PROG/REV
or
or or
18
SELECTING A TIME DISPLAY
USING THE HEADPHONES
ENGLISH
Each time this button is pressed during play, time display changes as follows ;
During random play, etc., the time display may show “---:--”.
When a track of which numer is greater than 30 is programmed, edited or being played, the time display
may show “---:--”.
Remaining playing time of the
disc.
Remaining playing time of the
current track.
Elapsed playing time of the
current track.
For private listening, insert a plug of the headphone into the PHONES jack.
TIME
or
19
Troubleshooting Guide
ENGLISH
If your unit does not perform as expected, consult the table below to see if the problem can be corrected before
seeking help from your dealer or our service organization.
PROBLEM
POSSIBLE CAUSE REMEDY
No power
The AC input cord is disconnected.
The POWER switch is not pressed
correctly.
Connect the cord securely.
Press the POWER switch ON.
No sound
Incorrect connections.
Incorrect operation of the amplifier.
The “ ” indicator lights up.
Make connections correctly.
Operate the amplifier correctly.
Press the “ ” button to cancel
the pause mode.
Poor or distorted sound
The unit is connected to the PHONO
input jacks of the amplifier.
Poor connections.
Make connections correctly.
Check the connections and connect
all cords securely.
Sound skips
Defective or deeply scratched disc.
This unit is placed on a surface that is
subject to vibration or physical shock.
Play another disc.
Place this unit on a stable surface.
Programming does not
perform.
The disc is dirty or badly scratched.
The programming procedure is not
correct.
The number of the programmed tracks is
20.
Try again with a scratch-free disc.
Try again.
Check the number of the
programmed tracks.
No play
The disc is loaded upside down.
Dirty disc.
Defective or deeply scratched disc.
Reload the disc with the printed side
up.
Clean the disc.
Load another disc.
20
ENGLISH
SYSTEM Compact Disc Digital Audio
TYPICAL AUDIO PERFORMANCES
Number of channels 2
Frequency range, 20 - 20,000 Hz ± 0.5 dB
Signal to noise ratio, A Wtd. 110 dB
Dynamic range 95 dB
Total harmonic distortion, 1 kHz 0.005 %
Wow and flutter Quartz crystal precision
Audio output level 2 V RMS
Digital output
Optical, wavelength 660 nm - 15 ~ -20 dBm
OPTICAL READOUT SYSTEM
LASER Semiconductor AlGaAs
Wave length 760 - 800 nm
Numerical aperture 0.45
SIGNAL FORMAT
Sampling Frequency 44.1 kHz
D/A Conversion 1 bit P.L.M. D/A Conversion
Oversampling 8 times
GENERAL
Power supply 230 V, 50 Hz
Power Consumption 12 W
Dimension (W x H x D) 440 x 95 x 250 mm
(17-5/16x3-3/4x9-13/16 inches)
Weight(NET) 3.5 Kg (7.8 lbs)
Note : Design and specifications are subject to change without notice for improvements.
Specifications
21
5707-04710-002-0
Loading...
