Sherwood BDP-5004 User Manual

BDP-5004

OPERATING INSTRUCTIONS

BDP-5004

BLU-RAY DISC PLAYER

Please read this User Manual carefully to ensure proper use of this product and keep this manual for future reference.

Content

Important Safety Instructions

1. Overview

2. Front Panel and Rear Panel Illustration

. Output Illustration

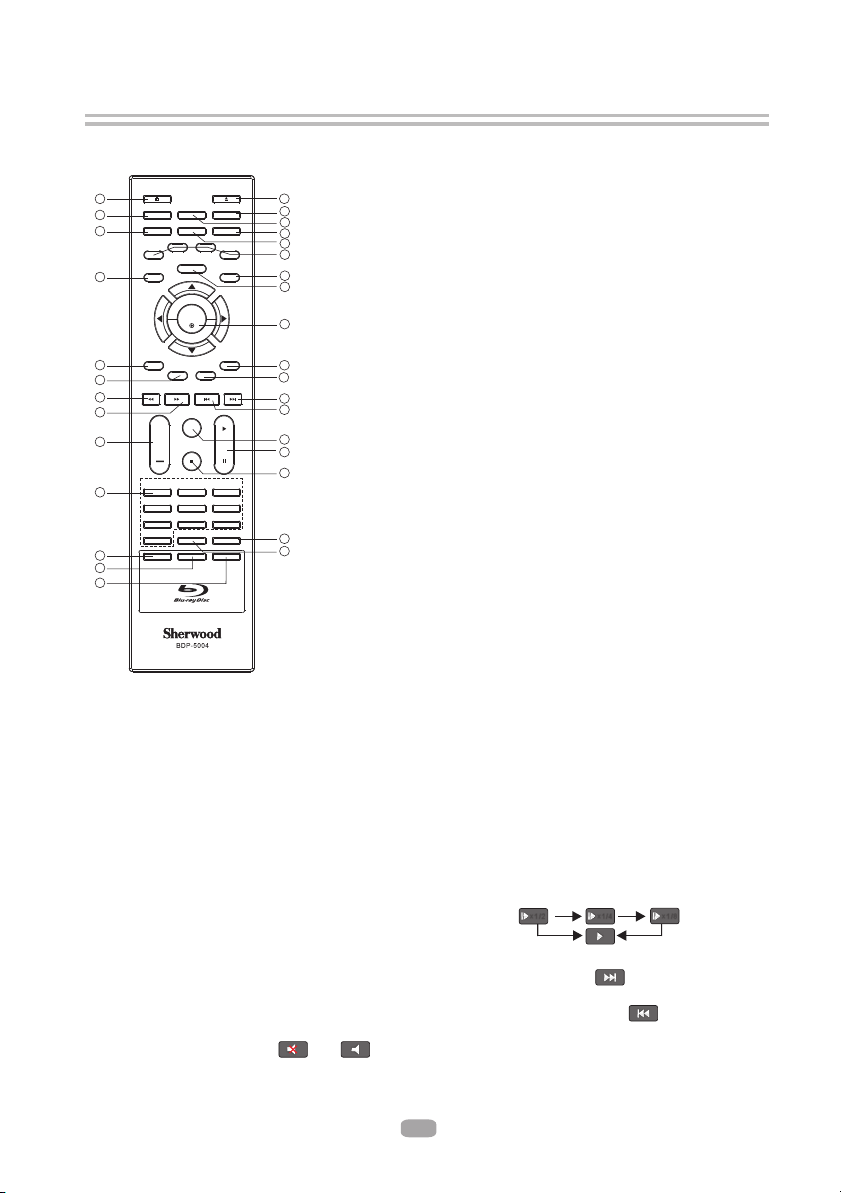

. Remote Control

5.System Setting

6. Audio, Video, Picture files on disk or USB devices

7. BD-Live Operation

8. Trouble shooting

9. Specifications

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, install in accordance with the instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Unplug this apparatus during lightening storms or when unused for long periods of time.

13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.

16) No naked flame sources, such as lighted candles, should be placed on the apparatus.

17) Attention should be drawn to the environmental aspects of battery disposal.

18) The use of apparatus in moderate climate.

19)Portable Cart Warning A product and cart combination should be moved with care. Quick stop, excessive force, and uneven surface may cause the product and cart combination to overturn.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. WARNING: The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

This symbol indicates that this product incorporates double insulation between hazardous main voltage and user accessible parts. When servicing use only identical replacement parts.

1. OVERVIEW

This BD player has the capability of providing high-definition, cinema-like pictures and multi-channel audio. Soundtracks in more than one language are usually included on the disk, and subtitles in more languages are often included as well.

1.1 PLAYABLE DISK TYPES

The following types of disks can play in the REF player:

Blu-Ray Disks

DVD Video Disks

DVD-RW

DVD-R

(DVD-ROM)

Audio CDs

DTS-CD

(CDDA)

VCD

MP3/WMA/JPEG Data CD

NOTES:

For writeable DVD disks ( DVD-RW, DVD-R)

Only DVD-RW/-R recorded with UDF or ISO9660 format can be played back.

The disks must be finalized, VR-mode.

Playback may not work for some types of disks, or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the disks is written in detail on the box. Please refer to this if necessary.

Some DVD-VR disks will be playable but not all features are available.

For writeable CD disks

Only CD-R/-RW media recorded with UDF or ISO9660 format can be played, and they must be finalized.

1.2 REGION CODE

If the Region number of a BD or DVD disk does not correspond to the region number of this Blu-ray disk player, the BD player cannot play the disk. The region code is printed on the rear panel of the BD Player.

2. Front Panel and Rear Panel Illustration

2.1 Front panel

BDP-5004

1 2 3 4 5 6 7 8 9

POWER

CABIN DOOR

BD LIGHT

DISPLAY

2.2 Rear panel

CEN

Pr SW

ANALOG AUDIO OUTPUT

COMPONENT

VIDEO OUT

COAXIAL

AUDIO OUT

CEN

ANALOG AUDIO OUTPUT

10 11

VIDEO OUT

COAXIAL

NEXT BUTTON

USB

HDMI OUT(1080P)

LAN USB

SENSOR PREV BUTTON

OPEN/CLOSE BUTTON

PLAY/PAUSE BUTTON

STOP BUTTON

HDMI OUT(1080P)

LAN USB

AUDIO OUT

3 4 5 6 7 8

Component Video output (Y, Pb, Pr)

Audio output (SR,SL,RR,RL,SW,CEN)

Audio output(FR,FL)

Digital Audio COAXIAL output

HDMI output

LAN

USB

COMPOSITE VIDEO output

2.3 TV Set Connections

HDMI

VIDEO

AUDIO IN

HDMI IN

LAN USB

COMPONENT IN

W R B G

(Audio) Red White Red Blue Green

R L

YPbPr IN

CEN

COMPONENT

ANALOG AUDIO OUTPUT

AUDIO IN

VIDEO IN

AUDIO OUT

VIDEO OUT

COAXIAL

HDMI OUT(1080P)

2.3.1 CONNECT BD PLAYER TO TV SET BY AV CABLE

Connect the BD player s FL and FR jack to the audio input jack on the TV. Connect the BD player s video out jack to the video input jack of TV.

2.3.2 CONNECT THE BD PLAYER TO TV SET USING THE Y/Pb/Pr JACKS

Use the COMPONENT Cable(not supplied) to connect BD player to your TV. Connect the BD player s Audio output L and R jack to the audio input jack on the TV.

2.3.3CONNECT THE BD PLAYER TO TV SET USING THE HDMI OUTPUT

Use the HDMI cable (not supplied) to connect BD player to your TV.

2.3.4 Connecting to an AV Amplifier with Digital Audio Input

AUDIO OUT

VIDEO OUT

COAXIAL

HDMI OUT(1080P)

LAN USB

Ananlog Amplifier or Speaker

Front-R

Coaxial cable

CEN

COMPONENT

ANALOG AUDIO OUTPUT

Front-L

Sur-R

Sur-L

Rear-R

Rear-L

CEN

Coaxial

Digital Amplifier

Notes:

1. Select the Coaxial digital audio output.

2. Set the digital Amplifier to the AV input connected to the BD player.

3. Output Illustration

3.1 Video Output Capabilities

Each of the video outputs are capable of different levels of functionality, as described in the table below. Actual output will depend on setup menu settings and TV capabilities for HDMI televisions.

BD Player

Video Output

HDMI

Component Video

Composite Videov

Resolutions Supported

(NTSC Models)

1080p 60/50/30/25/24 1080i 60 720p 60/30/24 420p 60/30/24 480i

1080i 60/48 720p 60/30/24 576p 60/30/24 480p 60/30/24 NTSC SD (480i)

NTSC SD (480i)

Resolutions Supported

(PAL Models)

1080p 60/50/30/25/24 1080i 50 720p 50/30/24 576p 60/30/24 576i 50

1080i 60/48 720p 60/30/24 576p 60/30/24 480p 60/30/24 PAL SD (576i)

PAL SD (576i)

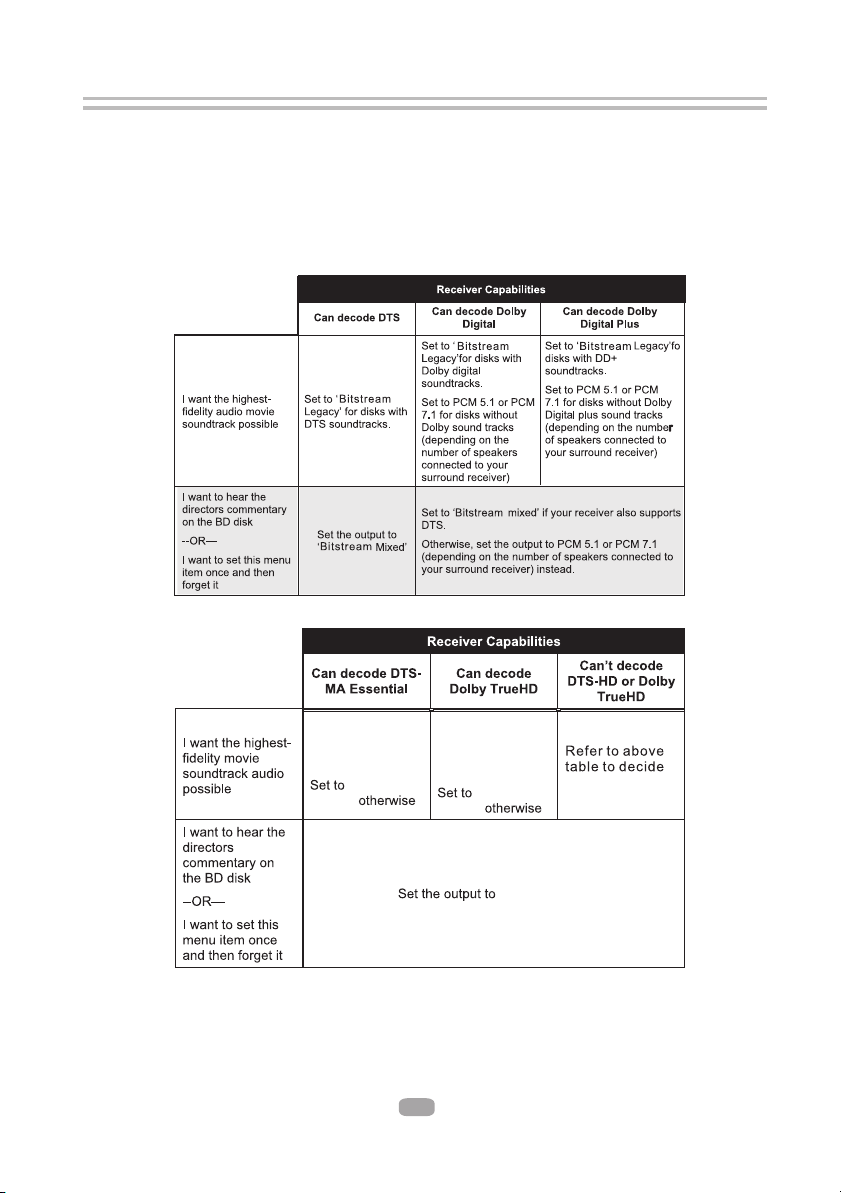

3.2 Audio Output Capabilities

Each of the audio outputs are capable of different levels of functionality, as described in the table below. Actual output will depend on BD player setup menu settings,

What types of audio tracks are encoded on the disk, and,

Surround sound receiver capabilities (for BD players connected to a surround sound system through HDMI or SPDIF)

BD Player

Audio Output

HDMI

SPDIF

7.1 Analog Outputs

Audio tracks that can be sent directly to output

Dolby TrueHD Dolby Digital Plus DTS-HD High-Resolution Audio

Dolby Digital DTS PCM (From mono up to 7.1 channels @96 Khz)

Dolby Digital DTS PCM (stereo only, up to 96 Khz)

Any selected digital track will be decoded, mixed with effects and secondary channel, and converted to analog.
