Sharp WA-MP100H, WA-MP110H User Manual

PORTABLER DIGITAL AUDIO PLAYER BALADEUR MÉMOIRE FLASH REPRODUCTOR DE AUDIO DIGITAL PORTÁTIL PORTABELT DIGITAL AUDIOSPELARE LETTORE AUDIO DIGITALE E PORTATILE DRAAGBARE DIGIT ALE AUDIOSPELER EQUIPAMENTO DE ÁUDIO DIGITAL PORTÁTIL PORTABLE DIGITAL AUDIO PLAYER

MIC

NAVI

MODELL MODÈLE MODELO MODELL

MODELLO MODEL MODELO MODEL

WA-MP100H WA-MP110H

BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUAL DE MANEJO BRUKSANVISNING

WA-MP100_110H TINSZA068SJZZ

MANUALE DI ISTRUZIONI GEBRUIKSAANWIJZING MANUAL DE OPERAÇÃO OPERATION MANUAL

DEUTSCH FRANÇAIS ESPAÑOL SVENSKA ITALIANO NEDERLANDS PORTUGUÊS ENGLISH

05/5/30

Siehe Seiten i bis x und

....

D-1 bis D-50. Se reporter aux pages i à x et

....

F-1 à F-50. Consulte las páginas i a x y

....

S-1 a S-50. Hänvisa till sidorna i till x och

....

V-1 till V-50. Leggere le pagine i a x e

....

I-1 a I-50. Raadpleeg de bladzijden i t/m x en

....

N-1 t/m N-50. Favor consultar as páginas i a x e

....

P-1 a P-50. Please refer to pages i to x and

....

E-1 to E-50.

WA-MP100_110H_SEEG_Front.fm

BESONDERE ANMERKUNGEN REMARQUES SPÉCIALES NOTAS ESPECIALES SÄRSKILDA ANMÄRKNINGAR NOTE PARTICOLARI BIJZONDERE OPMERKINGEN NOTAS ESPECIAIS SPECIAL NOTES

Audio-visuelles Material kann Urheberrechte umfassen, die ohne Genehmigung des Eigentümers dieser Urheberrechte nicht aufgenommen werden dürfen. Siehe die entsprechenden nationalen Gesetze.

Le matériel audio-visuel peut comporter des oeuvres faisant l’objet de droits d’auteur qui ne peuvent être enregistrées sans l’autorisation du possesseur du droit d’auteur, veuillez vous référer aux réglementations nationales en vigueur.

El material audiovisual puede consistir en trabajos que tengan derechos de autor y que no deben grabarse sin la autorización del poseedor de dichos derechos de autor. Sírvase consultar las leyes aplicables en su país.

Audiovisuellt material kan innehålla upphovsrättsarbete som inte skall mångfaldigas utan tillstånd av copyrightinnehavaren. Se den tillämpliga lagen i ditt land.

Il materiale audio-visivo che fosse soggetto a copyright non può essere registrato senza l’autorizzazione del possessore del copyright. Si prega di attenersi alle leggi in vigore sul territorio nazionale.

Audio-visueel materiaal kan worden beschermd door auteursrechten, in welk geval het niet mag worden opgenomen zonder de toestemming van de auteursrechthouder. Zie voor nadere informatie de betreffende wetten in het land van gebruik.

Os materiais audiovisuais podem ter exclusividade de direitos e não podem ser gravados sem a devida autorização do proprietário dos direitos. Favor verificar as leis relacionadas no seu país.

Audio-visual material may consist of copyrighted works which must not be recorded without the authority of the owner of the copyright. Please refer to relevant law in your country.

ønsker man at tilslutte en DC-adaptor så skal def vaere en godkendt type med indbygget sikring.

Vid anslutning till yttre likspänningskälla skall det alltid finnas en säkring i kretsen.

Käytettäessä akkua tai mutta ulkopuolista tasajännitelähdettä on laitteen ja jännitelähteen välillä boltava sulakkeella varustettu adaptori.

When connecting the appliance to an external DC-source, ensure that there is a fuse protection in the circuit.

DENNA APPARAT ÄR ANSLUTEN TILL 230 V VÄXELSTRÖM NÄR STICKPROPPEN ÄR INSKJUTEN I VÄGGUTTAGET. FÖR ATT FULLSTÄNDIGT KOPPLA IFRÅN APPARATEN V.G. DRAG UT STICKPROPPEN.

0211

0103

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_common.fm

Dieses Gerät entspricht den Anforderungen der EGRichtlinien 89/336/EWG und 73/23/EWG mit Änderung 93/68/EWG.

Ce matériel répond aux exigences contenues dans les directives 89/336/CEE et 73/23/CEE modifiées par la directive 93/68/CEE.

Este aparato satisface las exigencias de las Directivas 89/336/CEE y 73/23/CEE, modificadas por medio de la

Dette udstyr overholder kravene i direktiv nr. 89/336/EEC og 73/23/EEC med tillaeg nr. 93/68/EEC.

Dette produktet oppfyller betingelsene i direktivene 89/336/ EEC og 73/23/EEC i endringen 93/68/EEC.

Tämä laite täyttää direktiivien 89/336/EEC ja 73/23/EEC vaatimukset, joita on muutettu direktiivillä 93/68/EEC.

93/68/CEE.

Denna utrustning uppfyller kraven enligt riktlinjerna 89/336/ EEC och 73/23/EEC så som kompletteras av 93/68/EEC.

Quest’ apparecchio è conforme ai requisiti delle direttive

89/336/EEC e 73/23/EEC, come emendata dalla direttiva 93/68/EEC.

Dichiarazione di conformità

La società SHARP ELECTRONICS EUROPE GmbH

0103

dichiara che il prodotto SHARP LETTORE AUDIO DIGITALE

E PORTATILE WA-MP100H/WA-MP110H è costruito in conformità alle prescrizioni del D.M.n˚548 del 28/8/95, pubblicato sulla G.U.n˚301 del 28/12/95 ed in particolare è conforme a quanto indicato nell’art. 2, comma 1 dello stesso decreto.

Dit apparaat voldoet aan de eisen van de richtlijnen 89/ 336/EEG en 73/23/EEG, gewijzigd door 93/68/EEG.

Este equipamento obedece às exigências das directivas 89/336/CEE e 73/23/CEE, na sua versão corrigida pela

0103

directiva 93/68/CEE.

TINSZA068SJZZ

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

0103

WA-MP100_110H TINSZA068SJZZ

05/5/30

WA-MP100_110H_SEEG_common.fm

Vorsicht:

Das Gerät weder Tropf- noch Spritzwasser aussetzen. Ansonsten besteht die Gefahr eines Brandes oder elektrischen Schlages. Es dürfen keine mit Flüssigkeiten gefüllten Gegenstände wie Vasen auf dem Gerät abgestellt werden.

Attention:

Pour éviter un incendie ou une secousse électrique, mettre l’appareil à l’abri d’eau (éclaboussure, goutte). Ne pas poser sur l’appareil un récipient contenant du liquide.

Advertencia:

Para evitar incendios y descargas eléctricas, no exponga el aparato a goteo o salpicadura de líquidos. No deberán ponerse encima del aparato objetos que estén llenos de líquido, como por ejemplo un florero.

Varning:

Utsätt inte enheten för dropp eller stänk för att förhindra brand eller elektriska stötar. Inga vätskefyllda föremål såsom vaser får placeras på enheten.

Attenzione:

Per prevenire incendi o scosse elettriche, non fare gocciolare nessun liquido sull’apperecchio e non bagnarlo. Non collocarvi sopra nessun oggetto riempito d’acqua, come per esempio vasi.

Waarschuwing:

Stel het toestel niet bloot aan druipend of spattend water om brand en elektrische schokken te voorkomen. Met vloeistoffen gevulde voorwerpen, zoals vazen, mogen niet op het toestel geplaatst worden.

Cuidado:

Para evitar incêndio ou choque eléctrico, não exponha este aparelho a gotejamento ou salpicamento de água. Não coloque objetos com água como, por exemplo, um vaso de flores, em cima do aparelho.

Warning:

To prevent fire or shock hazard, do not expose this appliance to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.

Advarsel:

Til at forbygge ild og stød risiko, lad vaere med at undsaette denne indretning for drypning eller overstaenkning. Der må ikke anbringes nogen genstande fyldt med vand, som for eksempel vaser, på dette apparat.

Advarsel:

For å unngå brann eller kortslutning, utsett ikke produktet for vann eller fuktighet. Gjenstander som inneholder væske, feks. en blomstervase, må ikke plasseres oppå apparatet.

Varoitus:

Älä vie laitetta sateeseen tai kosteisiin tiloihin. Jos laite on kostunut, anna sen kuivua ennen kuin käytät sitä verkkovirralla. Nestettä sisältäviä astioita kuten esim. kukkamaljakoita ei saa asettaa laitteen päälle.

iii

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_common.fm

VORSICHT:

Längeres Abspielen einer tragbaren Stereoanlage mit voller Leistung kann das Gehör des Benutzers beschädigen. Im Falle der Verwendung mit dem SHARP Ohrhörer (Modellnummer: RPHOHA002SJSA oder RPHOHA002SJSB) entspricht das Modell dem Gesetz. Bestellen Sie richtigen Ohrhörer, wenn es zur Beschädigung kommt.

ATTENTION:

A pleine puissance, l’écoute prolongée du baladeur peut endommager l’oreille de l’utilisateur. Le produit est en conformité avec la loi quand il est utilisé avec les écouteurs SHARP (modèle n˚ RPHOHA002SJSA ou RPHOHA002SJSB). Si ceux-ci venaient à être endommagés, remplacez-les par des écouteurs appropriés.

PRECAUCIÓN:

La audición prolongada a alta potencia de un equipo estér- eo personal puede causar daños en los oídos del usuario. El modelo satisface la ley relacionada con el empleo de los auriculares SHARP (número de modelo RPHOHA002SJSA o RPHOHA002SJSB). En caso de avería, pida unos auriculares adecuados.

VARNING:

Lyssna till personlig stereo med full volym under längre tid kan skada hörseln. Modellen överenstämmer med lagstadgade bestämmelser för användning med SHARP hörlurar (RPHOHA002SJSA eller RPHOHA002SJSB). Vid skador beställ riktiga hörlurar.

AVVERTENZA:

L’ascolto prolungato ad alto volume di uno stereo personal può danneggiare l’udito. ll modello è in conformità di legge se usato con gli auricolari SHARP (numero di modello RPHOHA002SJSA o RPHOHA002SJSB). Ordinare nuovi auricolari se quelli forniti si guastano.

LET OP:

Langdurig luisteren naar een stereo-geluidsinstallatie met een hoog volume kan het gehoor beschadigen. Dit model voldoet aan de legale vereisten bij gebruik met de SHARP hoofdtelefoon (modelnummer RPHOHA002SJSA of RPHOHA002SJSB). Vervang de bijgeleverde hoofdtelefoon indien beschadigd door een voor dit toestel geschikte hoofdtelefoon.

ATENÇÃO:

A audição prolongada em alto volume do aparelho estéreo individual pode danificar o ouvido do usuário. O modelo está conforme a lei em caso de usá-lo com auriculares SHARP (modelo número RPHOHA002SJSA ou RPHOHA002SJSB). Encomende auriculares apropriados caso aqueles que acompanham o aparelho se danificarem.

CAUTION:

At full power prolonged listening to a personal stereo may damage the user’s hearing. The model is in compliance with the law in case of using it with the SHARP earphones (model number RPHOHA002SJSA or RPHOHA002SJSB). Order proper earphones if the supplied ones become damaged.

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_common.fm

Warnung:

Im mitgelieferten Netzadapter sind keine vom Benutzer wartbare Teile vorhanden. Niemals Abdeckungen entfernen, außer wenn Sie dafür qualifiziert sind. Darin sind gefährliche Spannungen vorhanden. Vor Ausführung von irgendwelchen Kundendienstarbeiten oder bei längerer Nichtverwendung stets den Netzstecker aus der Netzsteckdose ziehen.

Attention:

L’adaptateur CA livré avec l’appareil contient des organes nonréparables par l’utilisateur. À moins d’être qualifié, on ne démontera pas l’appareil qui renferme des organes portés à haute tension. Débrancher l’appareil avant toute réparation ou en période de non-emploi prolongée.

Advertencia:

El adaptador de CA suministrado no contiene partes que pueda reparar el usuario. Ni saque nunca las cubiertas a menos que esté cualificado para ello. Contiene tensiones peligrosas. Desenchufe siempre la clavija de alimentación del tomacorriente antes de cualquier operación de servicio y cuando no se proponga utilizar el aparato durante períodos prolongados.

Observera:

Medföljande nätadapter innehåller inga delar som kan åtgärdas av användaren.

Tag aldrig bort höljet utan behörig kompetens. Det har farliga spänningar. Dra alltid ur stickproppen från nätuttaget före underhållsarbeten eller när apparaten inte ska användas under längre tid.

Avvertenza:

L’adattatore CA fornito in dotazione non contiene parti idonee al servizio da parte dell’utente. Non rimuovere mai le coperture se non si è qualificati a farlo. All’interno dell’adattatore è presente un voltaggio che può essere pericoloso. Rimuovere sempre la spina del cavo di alimentazione dalla presa di rete prima di eseguire qualsiasi operazione di assistenza tecnica o quando si prevede di non utilizzare l’apparecchiatura per un lungo periodo di tempo.

Waarschuwing:

De bijgeleverde netadapter bevat geen onderdelen die door de gebruiker kunnen worden gerepareerd. Verwijder nooit de behuizing. Dit mag alleen door erkend onderhoudspersoneel worden gedaan. Het inwendige van het toestel staat onder gevaarlijke spanning. Ontkoppel altijd de stekker van het netsnoer alvorens onderhoud aan het toestel uit te voeren of indien u het toestel voor langere tijd niet gebruikt.

Cuidado:

O adaptador de CA fornecido não contém peças que possam ser consertadas pelo usuário. Não remova as tampas a menos que você tenha qualificação para tal. O aparelho contêm potências perigosas. Assim, sempre retire o plugue principal da tomada de saída principal para efectuar quaisquer serviços ou quando o aparelho ficar fora de uso por um período prolongado.

Warning:

The supplied AC adaptor contains no user serviceable parts. Never remove covers unless qualified to do so. It contains dangerous voltages, always remove mains plug from the main outlet socket before any service operation or when not in use for a long period.

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_common.fm

Die Buchstaben in den in der Modellnummer enthaltenen Klammern zeigen nur die Farbe des Produktes an. Bedienungsschritte und technische Daten sind unbeeinflußt.

Les lettres mises en parenthèses du numéro de modèle indiquent la couleur du produit concerné. Le fonctionnement et les caractéristiques ne varient pas selon la couleur du modèle.

Las letras entre corchetes contenidas en el número del modelo indican el color del producto solamente. El funcionamiento y las especificaciones no quedan afectados.

Bokstäver inom parantes i modellnumret anger endast produktfärgen. Handhavande och tekniska data påverkas inte.

Le lettere tra parentesi contenute nel numero di modello indicano solo il colore del prodotto. Il funzionamento e i dati tecnici rimangono invariati.

De tussen haakjes aangegeven letters van het modelnummer tonen uitsluitend de kleur van het product. De bediening en werking zijn hetzelfde.

As letras entre colchetes que se encontram no número do modelo indicam apenas a cor do produto. A operação e as especificações não são afetadas.

The letters in brackets contained in the model number indicate the colour of the product only. Operation and specifications are unaffected.

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_common.fm

Entsorgungsinformationen

A. Entsorgungsinformationen für Benutzer aus

Privathaushalten

1. In der Europäischen Union

Achtung: Werfen Sie dieses Gerät zur Entsorgung bitte nicht in den normalen Hausmüll ! Gemäß einer neuen EU-Richtlinie, die die ordnungsgemäße Rücknahme, Behandlung und Verwertung von gebrauchten Elektro- und Elektronikgeräten vorschreibt, müssen elektrische und elektronische Altgeräte getrennt entsorgt werden. Nach der Einführung der Richtlinie in den EU-Mitgliedstaaten

können Privathaushalte ihre gebrauchten Elektro- und Achtung: Ihr Produkt trägt dieses Symbol. Es besagt, dass Elektro- und Elektronikgeräte nicht mit dem Haushaltsmüll entsorgt, sondern einem getrennten Rücknahmesystem zugeführt werden sollten.

vii

Elektronikgeräte nun kostenlos an ausgewiesenen

Rücknahmestellen abgeben*.

In einigen Ländern* können Sie Altgeräte u.U. auch

kostenlos bei Ihrem Fachhändler abgeben, wenn Sie ein

vergleichbares neues Gerät kaufen.

Weitere Einzelheiten erhalten Sie von Ihrer

Gemeindeverwaltung. Wenn Ihre gebrauchten Elektro- und Elektronikgeräte Batterien oder Akkus enthalten, sollten diese vorher entnommen und gemäß örtlich geltenden Regelungen getrennt entsorgt werden. Durch die ordnungsgemäße Entsorgung tragen Sie dazu bei, dass Altgeräte angemessen gesammelt, behandelt und verwendet werden. Dies verhindert mögliche schädliche Auswirkungen auf Umwelt und Gesundheit durch eine unsachgemäße Entsorgung.

2. In anderen Ländern außerhalb der EU

Bitte erkundigen Sie sich bei Ihrer Gemeindeverwaltung nach dem ordnungsgemäßen Verfahren zur Entsorgung dieses Geräts. Für die Schweiz: Gebrauchte Elektro- und Elektronikgeräte können kostenlos beim Händler abgegeben werden, auch wenn Sie kein neues Produkt kaufen. Weitere Rücknahmesysteme finden Sie auf der Homepage von www.swico.ch oder www.sens.ch.

B. Entsorgungsinformationen für gewerbliche

Nutzer

1. In der Europäischen Union

Wenn Sie dieses Produkt für gewerbliche Zwecke genutzt haben und nun entsorgen möchten:

Bitte wenden Sie sich an Ihren SHARP Fachhändler, der Sie über die Rücknahme des Produkts informieren kann. Möglicherweise müssen Sie die Kosten für die Rücknahme und Verwertung tragen. Kleine Produkte (und kleine Mengen) können möglicherweise bei Ihrer örtlichen Rücknahmestelle abgegeben werden. Für Spanien: Bitte wenden Sie sich an das vorhandene Rücknahmesystem oder Ihre Gemeindeverwaltung, wenn Sie Fragen zur Rücknahme Ihrer Altgeräte haben.

2. In anderen Ländern außerhalb der EU

Bitte erkundigen Sie sich bei Ihrer Gemeindeverwaltung nach dem ordnungsgemäßen Verfahren zur Entsorgung dieses Geräts.

WEEE_0502_D

Informations sur la mise au rebut correcte

A. Informations sur la mise au rebut à l'intention

des utilisateurs privés (ménages)

1. Au sein de l'Union européenne

Attention : si vous souhaitez mettre cet appareil au rebut, ne le jetez pas dans une poubelle ordinaire ! Les appareils électriques et électroniques usagés doivent être traités séparément et conformément aux lois en vigueur en matière de traitement, de récupération et de recyclage adéquats de ces appareils. Suite à la mise en oeuvre de ces dispositions dans les Etats membres, les ménages résidant au sein de l'Union européenne peuvent désormais ramener gratuitement*

Attention : votre produit comporte ce symbole. Il signifie que les produits électriques et électroniques usagés ne doivent pas être mélangés avec les déchets ménagers généraux. Un système de collecte séparé est prévu pour ces produits.

leurs appareils électriques et électroniques usagés sur des sites de collecte désignés. Dans certains pays*, votre détaillant reprendra également gratuitement votre ancien produit si vous achetez un produit neuf similaire. *) Veuillez contacter votre administration locale pour plus

de renseignements. Si votre appareil électrique ou électronique usagé comporte des piles ou des accumulateurs, veuillez les mettre séparément et préalablement au rebut conformément à la législation locale en vigueur. En veillant à la mise au rebut correcte de ce produit, vous contribuerez à assurer le traitement, la récupération et le recyclage nécessaires de ces déchets, et préviendrez ainsi les effets néfastes potentiels de leur mauvaise gestion sur l'environnement et la santé humaine.

2. Pays hors de l'Union européenne

Si vous souhaitez mettre ce produit au rebut, veuillez contacter votre administration locale qui vous renseignera sur la méthode d'élimination correcte de cet appareil. Suisse : les équipements électriques ou électroniques usagés peuvent être ramenés gratuitement au détaillant, même si vous n'achetez pas un nouvel appareil. Pour obtenir la liste des autres sites de collecte, veuillez vous reporter à la page d'accueil du site www.swico .ch ou www.sens.ch .

B. Informations sur la mise au rebut à l'intention

des entreprises

1. Au sein de l'Union européenne

Si ce produit est utilisé dans le cadre des activités de votre entreprise et que vous souhaitiez le mettre au rebut : Veuillez contacter votre revendeur SHARP qui vous informera des conditions de reprise du produit. Les frais de reprise et de recyclage pourront vous être facturés. Les produits de petite taille (et en petites quantités) pourront être repris par vos organisations de collecte locales. Espagne : veuillez contacter l'organisation de collecte existante ou votre administration locale pour les modalités de reprise de vos produits usagés.

2. Pays hors de l'Union européenne

Si vous souhaitez mettre ce produit au rebut, veuillez contacter votre administration locale qui vous renseignera sur la méthode d'élimination correcte de cet appareil.

WEEE_0502_F

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_common.fm

Información sobre la eliminación

A. Información sobre eliminación para usuarios

particulares

1. En la Unión Europea

Atención: si quiere desechar este equipo, ¡por favor no utilice el cubo de la basura habitual! Los equipos eléctricos y electrónicos usados deberían tratarse por separado de acuerdo con la legislación que requiere un tratamiento, una recuperación y un reciclaje adecuados de los equipos eléctricos y electrónicos usados. Tras la puesta en práctica por parte de los estados miembros, los hogares de particulares dentro de los estados de la Unión Europea pueden devolver sus

Atención: su producto está marcado con este símbolo. Significa que los productos eléctricos y electrónicos usados no deberían mezclarse con los residuos domésticos generales. Existe un sistema de recogida independiente para estos productos.

equipos eléctricos y electrónicos a los centros de recogida designados sin coste alguno *. En algunos países* es posible que también su vendedor local se lleve su viejo producto sin coste alguno si Ud. compra uno nuevo similar . *) Por favor, póngase en contacto con su autoridad local

para obtener más detalles. Si sus equipos eléctricos o electrónicos usados tienen pilas o acumuladores, por favor deséchelos por separado con antelación según los requisitos locales. Al desechar este producto correctamente, ayudará a asegurar que los residuos reciban el tratamiento, la recuperación y el reciclaje necesarios, previniendo de esta forma posibles efectos negativos en el medio ambiente y la salud humana que de otra forma podrían producirse debido a una manipulación de residuos inapropiada.

2. En otros países fuera de la Unión Europea

Si desea desechar este producto, por favor póngase en contacto con las autoridades locales y pregunte por el método de eliminación correcto. Para Suiza: Los equipos eléctricos o electrónicos pueden devolverse al vendedor sin coste alguno, incluso si no compra ningún nuevo producto. Se puede encontrar una lista de otros centros de recogida en la página principal de www.swico.ch o www.sens.ch.

B. Información sobre Eliminación para

empresas usuarias

1. En la Unión Europea

Si el producto se utiliza en una empresa y quiere desecharlo: Por favor póngase en contacto con su distribuidor SHARP, quien le informará sobre la recogida del producto. Puede ser que le cobren los costes de recogida y reciclaje. Puede ser que los productos de tamaño pequeño (y las cantidades pequeñas) sean recogidos por sus centros de recogida locales. Para España: por favor, póngase en contacto con el sistema de recogida establecido o con las autoridades locales para la recogida de los productos usados.

2. En otros países fuera de la Unión Europea

Si desea desechar este producto, por favor póngase en contacto con sus autoridades locales y pregunte por el método de eliminación correcto.

WEEE_0502_S

Information om återvinning

A. Information om återvinning av elektrisk

utrustning för hushåll

1. EU-länder

OBS! Kasta inte denna produkt i soporna! Förbrukad elektrisk utrustning måste hanteras i enlighet

med gällande miljölagstiftning och återvinningsföreskrifter. I enlighet med gällande EU-regler ska hushåll ha möjlighet att lämna in elektrisk utrustning till återvinningsstationer utan kostnad.* I vissa länder* kan

OBS! Produkten är märkt med symbolen ovan. Denna symbol indikerar att elektroniska produkter inte ska kastas i det vanliga hushållsavfallet eftersom det finns ett separat avfallshanteringssystem för dem.

det även hända att man gratis kan lämna in gamla produkter till återförsäljaren när man köper en ny liknande enhet. *) Kontakta kommunen för vidare information.

Om utrustningen innehåller batterier eller ackumulatorer ska dessa först avlägsnas och hanteras separat i enlighet med gällande miljöföreskrifter.

Genom att hantera produkten i enlighet med dessa föreskrifter kommer den att tas om hand och återvinnas på tillämpligt sätt, vilket förhindrar potentiella negativa hälso- och miljöeffekter.

2. Länder utanför EU

Kontakta de lokala myndigheterna och ta reda på gällande sorterings- och återvinningsföreskrifter om du behöver göra dig av med denna produkt.

B. Information om återvinning för företag

1. EU-länder

Gör så här om produkten ska kasseras: Kontakta SHARPs återförsäljare för infor mation om hur

man går till väga för att lämna tillbaka produkten. Det kan hända att en avgift för transport och återvinning tillkommer. Mindre skrymmande produkter (om det rör sig om ett fåtal) kan eventuellt återlämnas till lokala återvinningsstationer.

2. Länder utanför EU

Kontakta de lokala myndigheterna och ta reda på gällande sorterings- och återvinningsföreskrifter om du behöver göra dig av med denna produkt.

WEEE_0502_V

viii

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_common.fm

Informazioni per un corretto smaltimento

A. Informazioni sullo smaltimento per gli utenti

(privati)

1. Nell'Unione europea

Attenzione: Per smaltire il presente dispositivo, non utilizzare il normale bidone della spazzatura! Le apparecchiature elettriche ed elettroniche usate devono essere gestite a parte e in conformità alla legislazione che richiede il trattamento, il recupero e il riciclaggio adeguato dei suddetti prodotti. In seguito alle disposizioni attuate dagli Stati membri, i privati residenti nella UE possono conferire gratuitamente

Attenzione: Il dispositivo è contrassegnato da questo simbolo, che segnala di non smaltire le apparecchiature elettriche ed elettroniche insieme ai normali rifiuti domestici. Per tali prodotti è previsto un sistema di raccolta a parte.

le apparecchiature elettriche ed elettroniche usate a centri di raccolta designati*. In alcuni paesi*, anche il rivenditore locale può ritirare gratuitamente il vecchio prodotto se l'utente acquista un altro nuovo di tipologia simile. *) Per maggiori informazioni si prega di contattare

l'autorità locale competente. Se le apparecchiature elettriche o elettroniche usate hanno batterie o accumulatori, l'utente dovrà smaltirli a parte preventivamente in conformità alle disposizioni locali. Lo smaltimento corretto del presente prodotto contribuirà a garantire che i rifiuti siano sottoposti al trattamento, al recupero e al riciclaggio necessari prevenendone il potenziale impatto negativo sull'ambiente e sulla salute umana, che potrebbe derivare da un'inadeguata gestione dei rifiuti.

2. In paesi che non fanno parte dell'UE

Se si desidera eliminare il presente prodotto, contattare le autorità locali e informarsi sul metodo di smaltimento corretto. Per la Svizzera: Le apparecchiature elettriche o elettroniche usate possono essere restituite gratuitamente al rivenditore, anche se non si acquista un prodotto nuovo. Altri centri di raccolta sono elencati sulle homepage di www.swico.ch o di www.sens.ch.

B. Informazioni sullo smaltimento per gli utenti

commerciali

1. Nell'Unione europea

Se il prodotto è impiegato a scopi commerciali, procedere come segue per eliminarlo. Contattare il proprio rivenditore SHARP che fornirà informazioni circa il ritiro del prodotto. Potrebbero essere addebitate le spese di ritiro e riciclaggio. Prodotti piccoli (e quantitativi ridotti) potranno essere ritirati anche dai centri di raccolta locali. Per la Spagna: Contattare il sistema di raccolta ufficiale o l'ente locale preposto al ritiro dei prodotti usati.

2. In paesi che non fanno parte dell'UE

Se si desidera eliminare il presente prodotto, contattare le autorità locali e informarsi sul metodo di smaltimento corretto.

WEEE_0502_I

Informatie over verantwoorde verwijdering

A. Informatie over afvalverwijdering voor

gebruikers (particuliere huishoudens)

1. In de Europese Unie

Let op: Deze apparatuur niet samen met het normale huisafval weggooien! Afgedankte elektrische en elektronische apparatuur moet gescheiden worden ingezameld conform de wetgeving inzake de verantwoorde verwerking, terugwinning en recycling van afgedankte elektrische en elektronische apparatuur. Na de invoering van de wet door de lidstaten mogen particuliere huishoudens in de lidstaten van de Europese Unie hun afgedankte elektrische en elektronische

Let op: Uw product is van dit merkteken voorzien. Dit betekent dat afgedankte elektrische en elektronische apparatuur niet samen met het normale huisafval mogen worden weggegooid. Er bestaat een afzonderlijk inzamelingssysteem voor deze producten.

apparatuur kosteloos* naar hiertoe aangewezen inzamelingsinrichtingen brengen*. In sommige landen* kunt u bij de aanschaf van een nieuw apparaat het oude product kosteloos bij uw lokale distributeur inleveren. *) Neem contact op met de plaatselijke autoriteiten voor

verdere informatie. Als uw elektrische of elektronische apparatuur batterijen of accumulatoren bevat dan moet u deze afzonderlijk conform de plaatselijke voorschriften weggooien. Door dit product op een verantwoorde manier weg te gooien, zorgt u ervoor dat het afval de juiste verwerking, terugwinning en recycling ondergaat en potentiële negatieve effecten op het milieu en de menselijke gezondheid worden voorkomen die anders zouden ontstaan door het verkeerd verwerken van het afval.

2. In andere landen buiten de Europese Unie

Als u dit product wilt weggooien, neem dan contact op met de plaatselijke autoriteiten voor informatie omtrent de juiste verwijderingsprocedure. Voor Zwitserland: U kunt afgedankte elektrische en elektronische apparatuur kosteloos bij de distributeur inleveren, zelfs als u geen nieuw product koopt. Aanvullende inzamelingsinrichtingen zijn vermeld op de startpagina van www.swico.ch of www.sens.ch.

B. Informatie over afvalverwijdering voor

bedrijven

1. In de Europese Unie

Als u het product voor zakelijke doeleinden heeft gebruikt en als u dit wilt weggooien: Neem contact op met uw SHARP distributeur die u inlichtingen verschaft over de terugname van het product. Het kan zijn dat u een afvalverwijderingsbijdrage voor de terugname en recycling moet betalen. Kleine producten (en kleine hoeveelheden) kunnen door de lokale inzamelingsinrichtingen worden verwerkt. Voor Spanje: Neem contact op met de inzamelingsinr ichting of de lokale autoriteiten voor de terugname van uw afgedankte producten.

2. In andere landen buiten de Europese Unie

Als u dit product wilt weggooien, neem dan contact op met de plaatselijke autoriteiten voor informatie omtrent de juiste verwijderingsprocedure.

WEEE_0502_N

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_common.fm

Informação sobre Eliminação de Produtos

A. Informações sobre a Eliminação de Produtos

para os Utilizadores (particulares)

1. Na União Europeia

Atenção: Se quiser eliminar este equipamento, não o deve fazer juntamente com o lixo doméstico comum! O equipamento eléctrico e electrónico deve ser tratado separadamente e ao abrigo da legislação aplicável que obriga a um tratamento, recuperação e reciclagem adequados de equipamentos eléctricos e electrónicos usados. Após a implementação desta legislação por parte dos Estados-membros, todos os cidadãos residentes na

União Europeia poderão entregar o seu equipamento Atenção: O seu produto está identificado com este símbolo. Significa que os produtos eléctricos e electrónicos não devem ser misturados com o lixo doméstico comum. Existe um sistema de recolhas específi-

para estes pro-

co dutos.

eléctrico e electrónico usado em estações de recolha

específicas a título gratuito*.

Em alguns países* o seu revendedor local também pode

recolher o seu equipamento usado a título gratuito na

compra de um novo equipamento.

*) Contacte as entidades locais para mais informações.

Se o seu equipamento eléctrico e electrónico usado

funcionar a pilhas ou baterias, deverá eliminá-las em

separado, conforme a legislação local, e antes de

entregar o seu equipamento.

Ao eliminar este produto correctamente estará a contribuir

para que o lixo seja submetido aos processos de tratamento,

recuperação e reciclagem adequados. Desta forma é possível

evitar os efeitos nocivos que o tratamento inadequado do lixo

poderia provocar no ambiente e na saúde.

2. Em outros Países fora da UE

Se quiser eliminar este produto, contacte as entidades

locais e informe-se sobre o método correcto para

proceder à sua eliminação.

Na Suíça: O equipamento eléctrico e electrónico é aceite,

a título gratuito, em qualquer revendedor, mesmo que

não tenha adquirido um novo produto. Poderá encontrar

uma lista das estações de recolha destes equipamentos

na página da Web www.swicho.ch ou www.sens.ch.

B. Informações sobre a Eliminação de Produtos

para Utilizadores-Empresas

1. Na União Europeia

Se o produto for usado para fins comerciais e quiser

eliminá-lo:

Contacte o seu revendedor SHARP que irá informá-lo

sobre a melhor forma de eliminar o produto. Poderá ter de

pagar as despesas resultantes da recolha e reciclagem do

produto. Alguns produtos mais pequenos (e em pequenas

quantidades) poderão ser recolhidos pelas estações locais.

Na Espanha: Contacte o sistema de recolhas público ou

as entidades locais para mais informações sobre a

recolha de produtos usados.

2. Em outros Países fora da UE

Se quiser eliminar este produto, contacte as entidades

locais e informe-se sobre o método correcto para

proceder à sua eliminação.

WEEE_0502_P

Information on Proper Disposal

A. Information on Disposal for Users (private

households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment. Following the implementation by member states, private

households within the EU states may return their used Attention: Y our product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

electrical and electronic equipment to designated

collection facilities free of charge*. In some countries*

your local retailer may also take back your old product

free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has

batteries or accumulators, please dispose of these

separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure

that the waste undergoes the necessary treatment,

recovery and recycling and thus prevent potential

negative effects on the environment and human health

which could otherwise arise due to inappropriate waste

handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your

local authorities and ask for the correct method of

disposal.

For Switzerland: Used electrical or electronic equipment

can be returned free of charge to the dealer, even if you

don't purchase a new product. Further collection facilities

are listed on the homepage of www.swico.ch or

www.sens.ch.

B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you

want to discard it:

Please contact your SHARP dealer who will inform you

about the take-back of the product. You might be charged

for the costs arising from take-back and recycling. Small

products (and small amounts) might be taken back by

your local collection facilities.

For Spain: Please contact the established collection

system or your local authority for take-back of your used

products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your

local authorities and ask for the correct method of

disposal.

WEEE_0502_E

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_common.fm

WA-MP100H WA-MP110H

ENGLISH

Introduction

Thank you for purchasing this SHARP product. For the best performance, read this manual carefully. It will guide you in operating your SHARP product.

This product uses Windows Media Player 9 Series or 10 to transfer audio data from a PC to the unit. If Windows Media Player is not installed on the PC or if its version is earlier, visit M icrosoft Web site to download the programme. http://www.microsoft.com

Special Notes

Genera l In formation

E-1

! Trademarks

" IBM and P C/AT are registered t rademarks of Interna-

tional Business Machines Corporation.

" Macintosh is a trademark of Apple Computer, Inc.,

registered in the United States and other countries.

" Microsoft, Windows and Windows Media are regis-

tered trademarks of Microsoft Corporation in the United States and/or other countries.

" All brand names and product names are trademarks

or registered trademarks of their respective owners.

! Audio data

-Introduction/Special Notes-

" Back up your audio data stored on this product period-

ically in case of accidental loss or alteration.

" SHARP shall not be liable for any damages or loss of

audio data resulting from defects in this product or your computer.

WA-MP100_110H TINSZA068SJZZ

! Note

Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue-generating streaming applications (via Internet, intranets and/or other networks), other revenue-generating content distribution systems (pay-audio or audio-on-demand applications and the like) or on revenue-generating physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

05/5/27

WA-MP100_110H_SEEG_E.fm

Contents

! General Information

Outline of th e un it . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Controls and indicators . . . . . . . . . . . . . . . . . . . . . 6, 7

System requirements . . . . . . . . . . . . . . . . . . . . . . . . . 7

! Preparation for Use

Charging the r e ch a rg e a ble battery . . . . . . . . . . . 8, 9

Turning the unit on/off . . . . . . . . . . . . . . . . . . . . . . . 10

Hold functi on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Changing t he display language . . . . . . . . . . . . . . . 1 1

Installing a US B dr iver . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting the unit to a PC . . . . . . . . . . . . . . . . . . 13

! Windows Media Player

Ripping tracks from audio CD to PC . . . . . . . . 14, 15

Transferring audio data from PC to the unit

Deleting au dio data stored on t h e unit . . . . . . . . . 20

! Playback

Disconnecting the unit . . . . . . . . . . . . . . . . . . . . . . 21

Playing trans ferred audio data . . . . . . . . . . . . 22 - 26

Advanced playback. . . . . . . . . . . . . . . . . . . . . . . 27, 28

Playing to all data recorded with the unit . . . . . . . . 29

Playing selecte d da ta . . . . . . . . . . . . . . . . . . . . . . . . 3 0

Page

. . . 16 - 19

! FM Radio

Page

Listening to t he FM radio . . . . . . . . . . . . . . . . . 31 - 34

! Recording

Recording with the built-in microphone . . . . . . . . . 35

Recording from the external equipment . . . . . 36 - 38

Recording from the FM radio . . . . . . . . . . . . . . . . . . 38

Changing file size and sound quality for

recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39, 40

Deleting selected data. . . . . . . . . . . . . . . . . . . . . . . . 41

! Advanced Features

Changing de fault settings. . . . . . . . . . . . . . . . . 42 - 44

Checking mem o ry status . . . . . . . . . . . . . . . . . . . . . 44

Sleep operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

To us e a s a USB storage device . . . . . . . . . . . . . . . . 45

! References

Firmware update . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

About the rec ha rgeable battery . . . . . . . . . . . . . . . . 49

Specificat ions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 49, 50

WA-MP100H WA-MP110H

ENGLISH

Genera l In formation

-Contents-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-2

WA-MP100H WA-MP110H

ENGLISH

Genera l In formation

Outline of the unit

Transfer audio data to the unit before use.

Preparation of the unit:

Charge the rechargeable battery (see page 8).

LINE IN

Preparation of audio data:

Convert tracks on audio CDs to audio data using Windows Media Player 9 Series or 10 (see pages 14, 15). For procedures, refer to the Windows Media Player Users Guide.

Windows

Media Player

-Outline of the unit-

Windows Media Player

Use Windows Media Player 9 Series or 10 to transfer audio data from a PC to the unit. This operation manual describes how to rip audio data from audio CDs to a PC and how to transfer the audio data from the PC to the unit. For more details, refer to the Windows Media Player Users Guide.

Transferring audio da t a:

Connect the unit to a PC (see page 13), and transfer audio data to the unit using Windows Media Player 9 Series or 10 (see pages 17, 18).

Windows

Media Player

If you use a PC running Windows 98 Second Edition, install a USB driver from the supplied CD-ROM (see page 12).

Playing audio data on the unit (see pages 22, 23).

" Sample screens , proced ures or operations may vary

by the environment of your PC or version/settings of Windows Media Player.

" Windows Media Player 10 is designed exclusively for

Windows XP Home Edition/Professional.

" If necessary, download Windows Media Player from

the Microsoft Web site and install it to your PC beforehand.

" For details, refer to the Microsoft Web site.

E-3

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

Accessories

Earphones x 1 Rechargeable Nickel-Metal Hydride

battery (AD-N55BT) x 1

AC Adaptor (RADPAA005SJZZ) x 1 Audio cable x 1 Neck strap x 1

Battery carrying case x 1

WA-MP100H WA-MP110H

ENGLISH

USB Cable x 1 USB Adaptor x 1 CD-ROM x 1

Warning:

" The AC adaptor supplied with the WA-MP100H/WA-

MP110H must not be used with other equipment.

" Never use an AC adaptor other than the one specified.

Otherwise, problems or serious hazards may be created.

WA-MP100_110H TINSZA068SJZZ

" If you use a PC running Windows

98 Second Edition, install a USB driver from this supplied CDROM (see page 12).

Notes:

" Only the above accessories are included. " The AC adaptor and the USB cable may differ from

illustrations shown above.

" Use the supplied earphones only. " Use the supplied USB cable only. " Use the supplied audio cable. If you use commercially

available audio cables, they should be shorter than 3 m.

05/5/27

WA-MP100_110H_SEEG_E.fm

Genera l In formation

E-4

-Accessories-

WA-MP100H WA-MP110H

ENGLISH

Genera l In formation

E-5

Precautions

! Important

" Do not wear your earphones when you are crossing

streets or near traffic.

" Do not use earphones whilst driving a ve-

hicle since it may b e illega l or cre ate a traffic hazard. Always follow safety regulations in your area.

" Do not play the unit at a high volume.

Hearing experts advise against extended listening at high volume levels.

" If you experience ringing in your ears, reduce the volume

or discontinue use.

" No naked flame sources, such as lig hted candles, should

be placed on the apparatus.

" Attention should be drawn to the enviro nmental aspec ts of

battery disposal.

" The apparatus is designed for use in moderate climate. " In case of an electrical storm, unplug the AC adaptor for

safety.

" This unit should only be used within the range of 5°C -

40°C (41°F - 104°F).

-Precautions-

To avoid accidental electric shock or other possible problems, observe the precautions listed below.

" Do not disass em bl e or m od i fy the unit. " Do not drop or subject the unit to shock. " Do not use the unit near open flames. " Do not spill li q uid on the unit. " To avoid damage to the unit, never use an AC adaptor

other than the one specified.

" SHARP is not responsible for damage due to improper

use. Refer all s ervicing to a SHARP aut hor ised service centre.

Caution:

" When recording important selections, make a preliminary

test to ensure that the desired material is properly recorded.

" SHARP is not liable for damage or loss of your recording

arising from malfunction of this unit.

! Storing the unit

Avoid using or leaving the unit in the following places.

" Places exposed to direct sunlight for many hours (espe-

cially in cars with the doors and windows closed) or near heaters. (The cabinet may deform, change colour or the unit may malfunc tion.)

" Places exposed to excessive dust. " Places exposed to water. " Places where temperatures are excessively high or low. " Places (bathrooms) where the humidity is extremely high. " Places with strong magnetic fields such as TVs or loud-

speakers.

" Places exposed to vibration. " Places where sand can easily enter the inside of the unit

(beaches etc.).

" If the unit is used near radio tuners or TVs, noise and/or

picture interference may result. If you experience these problems, move the unit away from such devices.

It is not recommended to put this unit into a rear pocket, as this may damage the product when sitting.

Using this unit near mobile phones may cause noise pickup. If it occurs, move it away from them.

! Copyright

Copyright laws protect sounds, images, computer programmes, databases, other materials and copyr ight holders. Duplicated material is limited to private use only. Use of materials beyond this limit or without permission of copyright holders may constitute copyright infringement, and be subject to criminal punishment.

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

Controls and indicators

1 2

LINE IN

OPEN

910

Note:

To protect the USB port, cover it with the USB cap when not in use.

3456 8

012-001-00:03 File name1 Artist name1

MIC

NAVI

POWER

1.Line Input Socket . . . . . . . . . . . . . . . . . . . . . . . . 36

2.US B Port / D C Input Socket . . . . . . . . . . . . 8, 13, 45

3.Play Mode/Time/Info rma tion Indicator . . . . . . . 22

4.Battery Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5.Menu Button . . . . . . . . . . . . . . . . . . . . . . . . 7, 11, 24

6.Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

7.Earphones Socket . . . . . . . . . . . . . . . . . . . . . . . . 22

8.Neck Strap Hole . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

9.Battery Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

10.Character/Information Indicator . . . . . . . 10, 11, 22

HOLD

The display varies depending on the operation.

11. Play/Pause/Stop/Power But ton . . . . . . . . . . 1 0 , 23

12.Hold Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

! Attaching the neck strap

Push

Pull

Push

Reference page

WA-MP100H WA-MP110H

ENGLISH

Genera l In formation

-Controls and indicators-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-6

WA-MP100H WA-MP110H

ENGLISH

Genera l In formation

! About menu button

Various operations are perfor med by moving the menu button on the unit all around or pressing it.

4 5

If you move the menu button toward +...

Volume up, switching FM search/preset stations, se-

lecting a menu, etc.

If you move the menu button toward ...

Fast reverse, tuning, recalling a station, selecting a

menu, etc.

If you move the menu button toward ...

Fast forward, tuning, recalling a station, selecting a

menu, etc.

-System requirements-

If you move the menu button toward -...

Volume down, switching FM search/preset stations,

selecting a menu, etc.

If you press the menu button...

Opening a menu, setting A-B repeat play, executing

functions, etc. If you hold down the menu button... Opening/closing a menu.

System requirements

The following hardware and software are required to transfer audio data from a PC to the unit.

Hardware and software requirement s *1

Computer IBM PC/AT-compatible (not operable with

OS Microsoft Windows 98 Second Edition/

Software Windows Media Player 9 Series or 10 Drive CD-ROM drive Interface Available USB port (USB 2.0/1.1)

*1 Operation is not guaranteed on all the compatible

computers.

*2 Operation is not guaranteed on computers running up-

graded OS or multiple OS with dual-boot.

Macintosh)

Millennium Edition/2000 Professional/XP Professional/XP Home Edition standard installation *2

E-7

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

Charging the rechargeable battery

When the rechargeable battery is used for the first time

Do not force the battery cover open too far.

Insert the side.

OPEN

or when you want to use it after a long period of disuse, be sure to charge it fully.

Insert the rechargeable battery.

A rechargeable battery other than the AD-N55BT cannot be charged.

Plug the AC adaptor into the wall socket.

Open the USB port cover.

Connect the AC adaptor to the DC input socket on

the unit.

WA-MP100H WA-MP110H

ENGLISH

Cancel the hold function beforehand (see page 10).

To the wall socket

AC 110 - 240 V, 50/60 Hz

WA-MP100_110H TINSZA068SJZZ

Charging......

HOLD

Release

MIC

NAVI

! To check charging progress

Charging....... ... Charging is in progress.

Battery is full. ... Charging is complete.

! About charging time

The battery fully charges in approx. 5 hours.

Notes:

" The battery is also rechargeable by connecting the

unit to a PC with the USB cable. The charging time is almost the same as when the AC adaptor is used.

" When charging, the ventilation should not be impeded

by covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.

Scrolling

Preparation for Use

-Charging the rechargeable battery-

Battery removal:

Open the battery cover and pull the battery.

05/5/30

WA-MP100_110H_SEEG_E.fm

E-8

WA-MP100H WA-MP110H

ENGLISH

Preparation for Use

Charging the rechargeable battery (continued)

Notes:

" Charge the battery within the range of 5°C - 35°C (41°F

- 95°F).

" After the rechargeable battery is charged or used, it will

get slightly warm. This is normal.

" When charging battery for the first time or after a long

period of disuse, battery life may be shorter. Repeat charge/discharge cycle 4 to 5 times to restore the full capacity.

" The unit can be left in the charging state after it is com-

pleted.

" Do not replace the battery during operation. " Installing the battery incorrectly may cause the unit to

malfunction.

" When the unit is not in use for extended periods, dis-

connect the AC adaptor.

" Carry the battery in the supplied

case. Apply the case on the end.

Caution:

" Use the specified battery AD-N55BT on ly. Do not charge a

battery (nickel-cadmium, alkaline, etc.) other than that specified.

-Charging the rechargeable battery-

" Do not remove the outer cover of the r e-

chargeable battery. It may cause heat generation, fire, or explosion.

" Do not dip the battery in water, do not dis-

pose of it in a fire, and do not take it apart.

" Do not disassemble the battery.

! Checking the remaining amount of battery

level

The battery level is shown by the battery indicator during operation.

" When the batter y is completely discharged, the bat-

tery indicator will flash. Recharge the battery.

" When the batter y has run out completely, "Low Bat-

tery! Shut Down..." will appear . Then, the po w er will be disconnected automatically.

Notes:

" If you use the battery which you stopped charging

halfway, " " may appear. It does not mean that the battery is completely charged.

" The battery indicator will not correctly display the

remaining capacity for approximately 10 seconds after the power has been turned on.

" When the AC adaptor is used, the battery indicator will

not be shown.

" The number of bars shown in the battery indicator may

increase or decrease, depending on the operation being performed. This is normal.

Battery indicator

When the battery level is high

When the battery level is very low

TINSZA068SJZZ

E-9

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

Turning the unit on/off

! To turn on the unit

Press the POWER button.

012-001-00:03

POWER

File name1 Artist name1

Hold function

When the hold function is turned on, all buttons on the unit will be inactive. To make changes to the operation of the unit, turn the HOLD switch off.

Move the HOLD switch to the safety position (direction indicated by the arrow).

MIC

! To turn off the unit

NAVI

WA-MP100H WA-MP110H

ENGLISH

In the play or pause mode 1 Press the (POWER) button for 0.5 seconds or

more to exit the mode.

2 Hold down the POWER button for 2 sec onds or

more.

POWER

In the stop, m e nu or FM mode

Power Off

Hold down the POWER button for 2 seconds or more.

The display language can be changed (default: English). For details, see page 11.

TINSZA068SJZZ

Hold

Release

HOLD

Release

HOLD

Hold

Note:

If the hold function is active when the unit is turned off, the unit cannot be turned on by mistake and the battery will not be drained.

HOLD

Preparation for Use

-Turning the unit on/off/Hold function-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-10

WA-MP100H WA-MP110H

ENGLISH

Preparation for Use

Changing the display language

You can see information in a selected language.

English (*) Deutsch Français Español Português

(*) indicates default setting.

Press the POWER button to turn the power on

(see page 10).

POWER

Hold down the menu button for 0.5 seconds or

more.

Hold down the menu button for 0.5 seconds or more to return to the play mode.

-Changing the display language-

Within 10 seconds, move the menu button t oward

or to select "SETUP", and press it.

Italiano Nederlands Svenska

SOUND

SETUP

Within 10 seconds, move the menu button toward

+ or - to select "System", and press it.

SETUP

System

Check Memory

Within 10 seconds, move the menu button toward

+ or - to select "Language", and press it.

System Sleep

Language

RESTORE

Within 10 seconds, move the menu button to-

ward + or - to select the desired language, and press it.

Language English

Deutsch

Francais

" The setting is completed. " The playback screen returns after 10 seconds.

Note:

The display language setting is retained even af ter the unit is turned off.

E-11

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

Installing a USB driver

If you use a PC running Windows 98 Second Edition, install a USB driver from the supplied CD-ROM. " The installation is not necessary for a PC running Win-

dows Millennium Edition, Windows 2000 Professional, Windows XP Professional or Windows XP Home Edition.

Insert the supplied CD-ROM into your CD-ROM

drive. Open the "wa-mp100_50" folder on the CD-ROM

and double-click "setup". Install the driver following the on-screen instruc-

tions.

Click the "Next" button.

Click the "Yes" button.

Click the "Next" button.

Click the "Finish" button.

WA-MP100H WA-MP110H

ENGLISH

Preparation for Use

-Installing a USB driver-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-12

WA-MP100H WA-MP110H

ENGLISH

Preparation for Use

Connecting the unit to a PC

Connect the unit to a PC to transfer audio data.

LINE IN

NAVI

-Connecting the unit to a PC-

To the USB port

USB cable

Open the USB port cover.

Connect the unit to a PC with

the USB cable.

Whilst the unit is connected to the PC, the message shown on the

MIC

right appears on the unit.

Caution:

" Do not disconnect the USB cable whilst transferring

audio data from a PC. Audio data on the unit may become corrupted.

" Operation is not guaranteed if the PC is connected to

two or more USB devices.

" Connect the US B cable to the PC's USB por t. If con-

nected via a USB hub, operation cannot be guaranteed.

" We do not guarantee operation of the unit with self-

built PCs or PCs with modified motherboards.

" Make sure to use the supplied USB cable. Use of

other cables (two-way cables, extension cables, etc.) degrades the quality of connection and may cause a malfunction.

Notes:

" The buttons on the unit do not work if it is connected to

a PC. Disconnect the PC to operate on the unit (see page 21).

" You can connect the unit to a PC with the supplied

USB adaptor.

READ Y

MIC

NAVI

E-13

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

Ripping tracks from audio CD to PC

Using Windows Media Player, rip tracks from your favourite audio CDs to a PC. Ripped tracks are stored on PC as audio data. You can enjoy music on the unit by transferring audio data from the PC.

! For Windows Media Player 9 Series

Launch Windows Media Player.

Example: Start All Programs Windows Media Player

On the "Tools" menu, click "Options..." and then

"Copy Music", and select "Copy protect music". Click "OK".

Insert an audio CD into the PC.

The audio CD may play automatically depending on settings on the PC. In this case, stop playback.

Click "Copy from CD" on the taskbar to show

tracks on the audio CD. Select the check boxes of tracks to rip.

Click "Copy Music" to start ripping.

Note:

For details on Windows Media Player, refer to its Users Guide.

WA-MP100H WA-MP110H

ENGLISH

Windows Media Player

-Ripping tracks from audio CD to PC-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-14

WA-MP100H WA-MP110H

ENGLISH

Windows Media Player

Ripping tracks from audio CD to PC (continued)

! For Windows Media Player 10

Launch Windows Media Player.

Example: Start All Programs Windows Media Player

On the "Tools" menu, click "Options..." and then

"Rip Music", and select "Copy protect music". Click "OK".

Insert an audio CD into the PC.

The audio CD may play automatically depending on settings on the PC. In this case, stop playback.

Click "Rip" on the taskbar to show tracks on the

audio CD. Select the check boxes of tracks to rip.

Click "Rip Music" to start ripping.

Note:

For details on Windows Media Player, refer to its Users Guide.

-Ripping tracks from audio CD to PC-

E-15

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

Transferring audio data from PC to the unit

! Folders ! About folder tree

When using Windows Media Player 9 Series, select the desired folder to transfer audio data.

Note:

You can create subfolders if necessary (refer to the Windows Media Player Users Guide). Create them in the level indicated in "About folder tree".

When using Windows Media Player 10, create the "MUSIC" folder befo rehand to cr eate subfolders with an artist or album name automatically.

Note:

To create subfolders with an artist or album name automatically, click to display properties and select "Create folder hierarchy on device".

Click this to display properties.

Windows Media Player 9 Series

Root

WA-MP100H/ WA-MP110H

Music

Transfer audio data.

Windows Media Player 10

Root

MUSIC

WA-MP100H/ WA-MP110H

Transfer audio data to subfolders in the "MUSIC" folder.

This product supports:

" Up to 50 folders (including the "VOICE", "FM", "LINE-

IN" and "MIC" folders).

" Up to 550 files. " Up to 30 characters as a folder name. " Up to 30 characters as a file name.

Music

WA-MP100H WA-MP110H

ENGLISH

Music

Windows Media Player

-Transferring audio data from PC to the unit-

E-16

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

WA-MP100H WA-MP110H

ENGLISH

Transferring audio data from PC to the unit (continued)

You can enjoy music on the unit by transferring audio data from the PC.

Windows Media Player

E-17

! For Windows Media Player 9 Series

Connect the unit to a PC (see page 13).

Launch Windows Media Player.

Example: Start All Programs Windows Media Player

Click "Copy to CD or Device" on the taskbar.

-Transferring audio data from PC to the unit-

From the drop-down list of "Items to Copy" win-

dow, select a list with desired audio data.

WA-MP100_110H TINSZA068SJZZ

Select the check boxes of audio data to transfer.

Set the unit as a destination.

Select a folder.

For folders, refer to page 16.

Click the "Copy" button to start transfer.

05/5/27

WA-MP100_110H_SEEG_E.fm

WA-MP100H WA-MP110H

ENGLISH

7 4

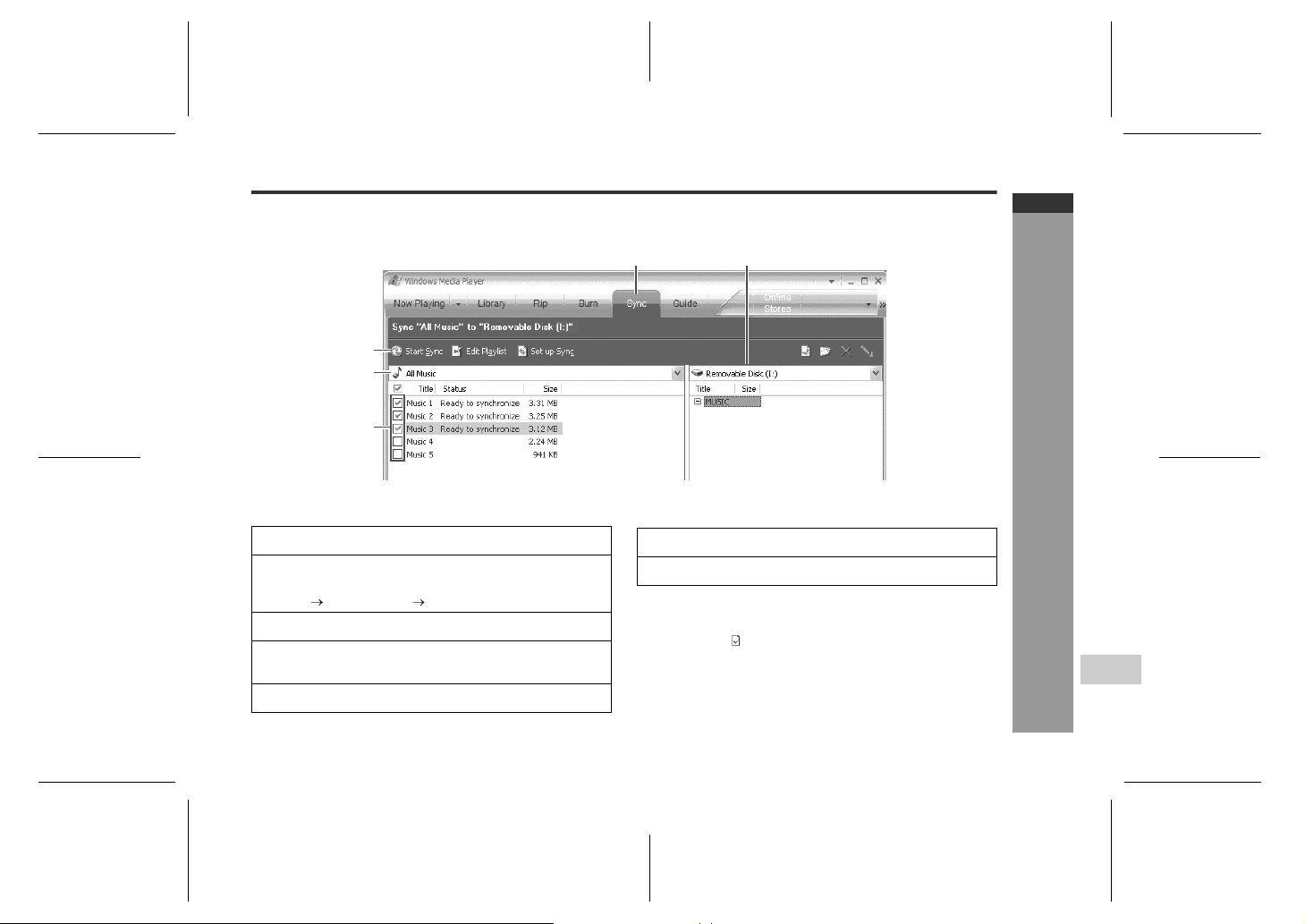

! For Windows Media Player 10

Connect the unit to a PC (see page 13).

Launch Windows Media Player.

Example: Start All Programs Windows Media Player

Click "Sync" on the taskbar.

From the drop-down list of "All Mu sic", select a

list with desired audio data. Select the check boxes of audio data to transfer.

3 6

Set the unit as a destination.

Click the "Start Sync" button to start transfer.

Caution:

To create subfolders with an artist or album name automatically, click to display properties and select "Create folder hierarchy on device".

Windows Media Player

E-18

-Transferring audio data from PC to the unit-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

WA-MP100H WA-MP110H

ENGLISH

Windows Media Player

Transferring audio data from PC to the unit (continued)

Caution:

" Audio data on the unit is replaced by newly transferred

audio data if their file names are the same.

" Refer to "Connecting the unit to a PC" or "Disconnect -

ing the unit" when you connect/disconnect the unit to/ from a PC.

" Do not disconnect the unit from the PC during transfer .

Notes:

" For details on Windows Media Player, refer to its

Users Guide.

" The drive letter for the unit may change depending on

the environment of the connected PC.

MP3 (MPEG-1 Audi o Layer 3):

MPEG is an international standard developed by Moving Picture Experts Group, a working group of ISO.

WMA (Windows Media Audio):

WMA is an audio compression format developed by Microsoft Corporation.

WAV (PCM):

An audio format widely used in Windows.

-Transferring audio data from PC to the unit-

About DRM (Digital Rights Management)

" This product suppor ts Windows Media Digital Rights

Management 9 Series. Using Windows Media Player 9 Series or 10, you can transfer licensed WMA files to the unit for playback.

" Some WMA files may not be playable/transferable

onto this product due to their license agreements with copyright holders.

" Some audio data may not be playable on this product.

File format of transferred audio data

" Depending on the setting of Windows Media Player,

audio data may be converted automatically for playback on portable devices.

" On Windows Media Player 10, you can change this

setting and transfer audio data without conversion. To do so, click and selec t "Quality" to uncheck "Convert files as required by this device (recommended)".

" If you transfer WAV files without conversion, it may

take more time to transfer, and use more memory space on the unit.

" For details on Windows Media Player, refer to its

Users Guide.

E-19

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

Deleting audio data stored on the unit

Use Windows Media Player to delete audio data stored on the unit.

Windows Media Player 9 Series

4 5

Windows Media Player 10

Connect the unit to a PC (see page 13).

Launch Windows Media Player.

Windows Media Player 9 Series:

Click "Copy to CD or Device" on the taskbar. Windows Media Player 10:

Click "Sync" on the taskbar. Select the drive letter of the unit from the drop-

down list. Select audio data and delete it.

Caution:

A WMPInfo.xml file and files with extensions of .TBL and .LMM are created automatically. Never edit, move or delete these files since they are necessary for the unit and Windows Media Player.

WA-MP100H WA-MP110H

ENGLISH

WA-MP100_110H TINSZA068SJZZ

Windows Media Player

4 5

-Deleting audio data stored on the unit-

E-20

05/5/27

WA-MP100_110H_SEEG_E.fm

WA-MP100H WA-MP110H

ENGLISH

Playback

Disconnecting the unit

Make sure to exit Windows Media Player before disconnecting the USB cable.

For details, refer to the operation manual for the PC.

! Windows 98 Second Edition

1 Click "Safely remove hardware" on the taskbar. 2 Click "Safely remove USB Mass Storage Device -

Drives(*:)".

3 "Safely remove hardware" appears. Click the "OK"

button and disconnect the USB cable from the PC.

! Windows Millennium Edition

1 Click "Unplug or Eject Hardware" on the taskbar. 2 Click "Stop USB Disk - Drive(*:)". 3 "Safe To Remove Hardware" appe ars. Click the "OK"

button and disconnect the USB cable from the PC.

-Disconnecting the unit-

! Windows 2000 Prof es sional

1 Click "Unplug or Eject Hardware" on the taskbar. 2 Click "Stop USB Disk - Drive(*:)". 3 "Safe To Remove Hardware" appears. Click the "OK"

button and disconnect the USB cable from the PC.

! Windows XP Home Edition/Professional

1 Click "Safely Remove Hardware" on the taskbar. 2 Click "Safely remove USB Mass Storage Device -

Drive(*:)".

3 "Safe to Remove Hardware" appears. Click the mes-

sage and disconnect the USB cable from the PC.

(*:) Drive letter of this unit

Notes:

" After the above operation, the USB connection display

still remains on the unit (the display changes when you disconnect the USB cable).

" If you cannot cancel the USB connect ion, tr y again or

restart the PC.

E-21

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

Playing transferred audio data

You can also play audio data stored and arranged in folders created by using Windows Media Player.

Left channel

MIC

NAVI

Right channel

Cancel the hold function beforehand (see page 10).

HOLD

Release

! Playing audio data

Notes:

" The unit will restar t the FM radio o r the data rec orded

" See page 24 to adjust the volume level and sound

Press the POWER button to turn the power on (see page 10).

POWER

Playback starts automatically.

Playback stops after the last audio data is played.

with this unit which you were listening to last time. To listen to the transferred audio data, see page 23.

quality.

012-001-00:03 File name1 Artist name1

WA-MP100H WA-MP110H

ENGLISH

Playback

-Playing transferred audio data-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-22

WA-MP100H WA-MP110H

ENGLISH

Playing transferred audio data (continued)

When listening to the FM radio or data recorded with the unit, you can listen to all the transferred audio data as follows:

1 Hold down the menu button for 0.5 seconds or more.

FM TUNER

Hold down the menu button for 0.5 seconds or more to return to the play mode.

2 Within 10 seconds, move the menu button toward

or to select "SOUND", and press it.

To interrupt playback:

Press the butt on. To resume playback, press the button again.

To stop playback:

Hold down the button for 0.5 seconds or more. When you press the button again, the last played audio data plays from the beginning.

Resume play:

When you turn off the unit and turn it back on, playback starts from the beginning of the audio data which was stopped.

Playback

E-23

SOUND

3 Within 10 seconds, move the menu button toward +

or - to select "MUSIC", and press it.

-Playing transferred audio data-

Playback starts automatically.

WA-MP100_110H TINSZA068SJZZ

SOUND

MUSIC

VOICE

05/5/27

WA-MP100_110H_SEEG_E.fm

! To locate the beginning of audio data

To move to the begi nning of the n ext audio data:

Move the menu button toward .

To replay the current audio data:

Move the menu button toward .

Note:

To skip some data at one time, move the menu butt on toward or repeatedly until the desired audio data appears.

! To locate the desired portion

For fast forward:

Hold the menu button toward .

For fast reverse:

Hold the menu button toward .

Note:

Normal playback will resume when the menu button is released.

! Volume control

Whilst the playback screen is open, hold the menu button toward + or - to increase or decrease the volume.

012-001-00:03 File name1 Artist name1

At extra loud volumes, other people may be able to hear sounds coming from the earphones which could be disturbing to others. Please use caution when playing the unit at loud volumes.

012-001-00:22 File name1 Artist name1

Volume level indi-

cator

WA-MP100H WA-MP110H

ENGLISH

Playback

-Playing transferred audio data-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-24

WA-MP100H WA-MP110H

ENGLISH

Playback

Playing transferred audio data (continued)

! Equaliser setting

Hold down the menu button for 0.5 seconds or

more.

Hold down the menu button for 0.5 seconds or more to return to the play mode.

Within 10 seconds, move the menu button t oward

or to select "SETUP", and press it.

Within 10 seconds, move the menu button t oward

+ or - to select "Playback", and press it.

-Playing transferred audio data-

SOUND

SETUP

Playback

RECORD FM

Note:

Distortion may occur depending on the equaliser setting. In this case, change the type or turn down the volume.

Within 10 seconds, move the menu button toward + or - to select "EQ", and press it.

Playback REPEAT

Within 10 seconds, move the menu button toward + or - to select an equaliser setting, and press it.

EQ Normal

Rock

Jazz

Normal: The sound is not modified. Rock: For rock music. Jazz: Classical: For classical music. Pop: For pop music. Bass: The bass is emphasised. User: Sound quality can be customised (see

" The setting is completed. " The playback screen returns after 10 seconds.

For jazz.

page 26).

TINSZA068SJZZ

E-25

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

WA-MP100H

16K

WA-MP110H

ENGLISH

Playback

-Playing transferred audio data-

! Customising sound quality

Perform steps 1 - 4 on page 25.

Within 10 seconds, move the menu button toward

+ or - to select "User", and press it.

User

Within 10 seconds, move the menu button toward

or to select the frequency.

250

+10

62: Bass setting 250: 1K: Midrange setting 4K: 16K: Treble setting

1K 4K

16K

Within 10 seconds, move the menu button toward

+ or - to increase or decrease the gain level.

250

1K 4K

+10

Repeat steps 3 and 4 to adjust each frequency.

Within 10 seconds, press the menu button.

" The setting is completed. " The playback screen returns after 10 seconds.

Note:

The "User" settings will remain in the memory after you switch to another equaliser mode.

TINSZA068SJZZ

E-26

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

WA-MP100H WA-MP110H

ENGLISH

Playback

Advanced playback

! Repeat play or shuffle play

Hold down the menu button for 0.5 seconds or

more.

SOUND

Hold down the menu button for 0.5 seconds or more to return to the play mode.

Within 10 seconds, move the menu button t oward

or to select "SETUP", and press it.

SETUP

Within 10 seconds, move the menu button t oward

+ or - to select "Playback", and press it.

-Advanced playback-

Within 10 seconds, move the menu button t oward

+ or - to select "REPEAT", and press it.

SETUP

Playback

RECORD FM

Playback

REPEAT

Within 10 seconds, move the menu button toward

+ or - to select a play mode, and press it.

REPEAT Normal

Repeat T rack

Repeat All

Normal: Normal playback. Repeat Track: Repeat one data. Repeat All: Repeat all data. IntroScan: Play all data for a set time period

Shuffle: Play all data at random. Shuffle Repeat:Repeat all data at random.

" The setting is completed. " The playback screen returns after 10 seconds.

(see page 28).

To return to normal playback

After steps 1 - 4, select "Normal" in step 5.

Notes:

" In shuffle play, the unit selects and plays data auto-

matically. After playing all the data once, the unit stops automatically.

" Repeat play continues until playback stops.

E-27

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

! Intro scan

! A - B repeat play

WA-MP100H WA-MP110H

ENGLISH

Perform steps 1 - 4 on page 27.

Within 10 seconds, move the menu button toward

+ or - to select "IntroScan", and press it.

REPEAT

IntroScan

Shuffle Shuffle Repeat

Within 10 seconds, move the menu button toward

or to select a time period, and press it.

IntroScan 10 Second

10 - 30 Second: The unit plays each data for a set

" The setting is completed. " The playback screen returns after 10 seconds.

time period.

To return to normal playback

After steps 1 - 4 on page 27, select "Normal" in step 5.

Press the menu button to enter the start point (A)

during playback.

012-001-00:12 File name1 Artist name1

A-

Press the menu button again to enter the end

point (B).

012-001-00:28 File name1 Artist name1

A-B

Playback starts from the point A and ends at the point B.

In the following cases, A - B repeat play may not be set or may be set to the beginning or the end of dat a.

" Beginning or end of data " Small data " Short interval between A and B

To return to normal playback

Press the menu button.

Note:

A - B repeat is possible only within a single data.

Playback

E-28

-Advanced playback-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

WA-MP100H WA-MP110H

ENGLISH

Playback

Playing to all data recorded with the unit

You can listen to all data recorded with the unit. (For the recording procedure, see pages 35, 36 and 38.)

Press the POWER button to turn the power on

(see page 10).

POWER

Hold down the menu button for 0.5 seconds or

more.

SOUND

Hold down the menu button for 0.5 seconds or more to return to the play mode.

Within 10 seconds, move the menu button t oward

or to select "SOUND", and press it.

SOUND

-Playing to all data recorded with the unit-

Within 10 seconds, move the menu button toward

+ or - to select "VOICE", and press it.

Playback starts automatically.

To interrupt playback:

Press the butt on. To resume playback, press the button again.

To stop playback:

Hold down the button for 0.5 seconds or more. When you press the button again, the last played data plays from the beginning.

Resume play:

When you turn off the unit and turn it back on, playback starts from the beginning of the data which was stopped.

SOUND

MUSIC

VOICE

E-29

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

Playing selected data

You can select and play audio data transferred from a PC or data recorded with the unit. (For the recording procedure, see pages 35, 36 and 38.)

Press the POWER button to turn the power on

(see page 10).

Within 10 seconds, press the button.

012-002-00:03

File name2 Artist name2

WA-MP100H WA-MP110H

ENGLISH

POWER

Hold down the menu button for 0.5 seconds or more.

SOUND

Hold down the menu button for 0.5 seconds or more to return to the play mode.

Within 10 seconds, move the menu button toward

or to select "FOLDER", and press it.

FOLDER

Within 10 seconds, select data.

Root

VOICE

File name1

File name2

+ or -: S elect a folder or data.

: Open the selected folder. : Return to the previous lev-

el.

WA-MP100_110H TINSZA068SJZZ

... folder ... data

! About folder tree

Root

WA-MP100H/ WA-MP110H

FMVOICE

LINE-IN

MIC

Recorded FM radio programmes

Data recorded via LINE IN

Data recorded with the microphone

This product supports:

" Up to 50 folders (including the "VOICE", "FM", "LINE-

IN" and "MIC" folders).

" Up to 550 files. " Up to 30 characters as a folder name. " Up to 30 characters as a file name.

Note:

05/5/27

WA-MP100_110H_SEEG_E.fm

Playback

E-30

-Playing selected data-

WA-MP100H WA-MP110H

ENGLISH

FM Radio

E-31

Listening to the FM radio

! Tuning

FM aerial:

The earphone lead works as an FM aerial. Keep it as straight as possible.

Changing the FM area:

The tuner is set to receive frequencies for broadcasting in Europe when shipped from the factory. You can change the FM area to USA (see page 34).

Press the POWER button to turn the power on

(see page 10).

POWER

Hold down the menu button for 0.5 seconds or

more.

-Listening to the FM radio-

Hold down the menu button for 0.5 seconds or more to return to the play mode.

Within 10 seconds, move the menu button t oward

or to select "FM TUNER", and press it.

SOUND

FM TUNER

Move the menu button toward + or - to select

"Searching".

Searching

87.50MHz

Stereo

MIC

NAVI

Move the menu button toward or to tune in

to the desired station.

Searching

98.80MHz

Stereo

Manual tuni ng:

Move the menu button toward or as many times as required to tune in to desired station.

Auto tuning:

When the menu button is held toward or for more than 0.5 seconds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.

Notes:

" When FM radio interference occurs, auto scan tuning

may stop automatically at that point.

" Auto scan tuning will skip weak signal stations. " To stop auto tu ning, move the menu button toward

or again.

After use:

Hold down the POWER button for 2 seconds to enter the power stand-by mode.

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

! Memorising a station

You can store 30 FM stations in memor y and recall them at the push of a button. (Preset tuning)

Tune in to the desired station. (Perform step s 1 -

5 in "Tuning" on page 31.) Press the menu button to enter the preset tuning

saving mode.

Searching

Save Channel

P02 98.80MHz

Stereo

Within 5 seconds, move the menu button toward

or to select the preset channel number.

Searching

Save Channel

P07 98.80MHz

Stereo

Preset channel number

Within 5 seconds, press the menu button to store

that station in memory.

Searching

98.80MHz

Stereo

Repeat steps 1 - 4 to set other preset stations, or

to change a preset station.

When a new station is stored in memory, the station previously memorised will be erased.

! To recall a memorised station

Perform steps 1 - 3 in "Tuning" on page 31.

Move the menu button toward + or - to select

"Preset".

Preset

P01 87.50MHz

Stereo

Preset channel

Move the menu button toward or to select

the desired station.

Preset

P07 98.80MHz

Stereo

Deleting stored stations:

1 Display a station to delete and press the menu but-

ton.

2 Move the menu button toward or to select

"Yes", and press it.

WA-MP100H WA-MP110H

ENGLISH

FM Radio

E-32

-Listening to the FM radio-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

WA-MP100H WA-MP110H

ENGLISH

FM Radio

Listening to the FM radio (continued)

! Storing stations automatically (auto scan)

With this function, the auto tuning memorises the received stations automatically. The unit will stop after scanning the full range of frequencies and storing stations.

Hold down the menu button for 0.5 seconds or

more.

SOUND

Hold down the menu button for 0.5 seconds or more to return to the play mode.

Within 10 seconds, move the menu button t oward

or to select "SETUP", and press it.

SETUP

-Listening to the FM radio-

Within 10 seconds, move the menu button t oward

+ or - to select "FM", and press it.

SETUP Playback RECORD

Within 10 seconds, move the menu button toward

+ or - to select "AutoRecord", and press it.

AutoRecord

FM Area

Within 10 seconds, move the menu button toward

or to select "On", and press it.

AutoRecord

On Off

" The setting is completed. " The playback screen returns after 10 seconds.

Perform steps 2 - 4 in "Tuning" on page 31.

Hold the menu button toward or for more

than 0.5 seconds.

" Scanning will start automatically and the tuner will

stop at the first receivable broadcast station.

" The unit receives and stores stations with strong

signals.

To cancel auto scan:

Perf orm steps 1 - 4 and select "Off" in step 5.

Note:

Select "Off" for normal tuning.

TINSZA068SJZZ

E-33

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

! Changing FM area

The tuner is set to receive frequencies for broadcasting in Europe when shipped from the factory. You can c hange the FM area to the USA.

Hold down the menu button for 0.5 seconds or

more.

SOUND

Hold down the menu button for 0.5 seconds or more

TINSZA068SJZZ

to return to the play mode.

Within 10 seconds, move the menu button toward

or to select "SETUP", and press it.

SETUP

Within 10 seconds, move the menu button toward

+ or - to select "FM", and press it.

SETUP Playback RECORD

Within 10 seconds, move the menu button toward

+ or - to select "FM Area", and press it.

FM AutoRecord

FM Area

Within 10 seconds, move the menu button toward

or to select an FM area, and press it.

FM Area

EUROPE And Oth

Range:87.5~108M

Step:50KHz

EUROPE And Other: 87.5 - 108.0 MHz U.S.A: 88 - 108 MHz

" The setting is completed. " The playback screen returns after 10 seconds.

WA-MP100H WA-MP110H

ENGLISH

FM Radio

-Listening to the FM radio-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-34

WA-MP100H WA-MP110H

ENGLISH

Recording with the built-in microphone

Check the memory status beforehand (see page 44). If the memory is low, move some data to a PC to make some room.

MIC

NAVI

MIC

Within 10 seconds, move the menu button toward

+ or - to select "RECORD MIC", and press it.

RECORD

RECORD MIC

RECORD LINE-IN

Recording

E-35

Note:

This microphone is monaural and omni-directional. However, it is recommended t o direct it toward the source for better recording.

Press the POWER button to turn the power on

(see page 10).

POWER

Hold down the menu button for 0.5 seconds or more.

SOUND

Hold down the menu button for 0.5 seconds or more to return to the play mode.

-Recording with the built-in microphone-

Within 10 seconds, move the menu button t oward

or to select "RECORD", and press it.

RECORD

WA-MP100_110H TINSZA068SJZZ

" Recording will be started. " If the memory is low, "Disk Is

Full! Can Not Record" appears (recording is not possible).

Remaining recording time

00:00:01 01:23:45

File name3

Recording...

To interrupt recording:

Press the menu button. To resume recording, press the menu button again.

To stop recording:

Press the butt on. Data will be saved.

Note:

Data recorded with the unit are named automatically as follows. FM radio recordings: F001.mp3, F002.mp3...F999.mp3 Line-in recordings: L001.mp3, L002.mp3...L999.mp3 Microphone r ecordings: M001.mp3, M002.mp3...M999.mp3 (Maximum number: 999) Newly saved files are numbered sequentially following the largest number among the existing file names. It is recommended to delete or move files from one with the largest number. To transfer data to a PC, see "To use as a USB storage device" on page 45.

05/5/27

WA-MP100_110H_SEEG_E.fm

Recording from the external equipment

Check the memor y status beforehand (see page 44). If the memory is low , move some data to a PC to make some room.

Audio cable (supplied)

Small sideBig side To audio input socket

LINE IN

Within 10 seconds, move the menu button toward

or to select "RECORD", and press it.

Within 10 seconds, move the menu button toward

+ or - to select "RECORD LINE-IN", and press it.

RECORD

RECORD MIC

RECORD LINE-IN

WA-MP100H WA-MP110H

ENGLISH

External equipment

! Manual recording

Connect the external equipment to the unit.

Press the POWER button to turn the power on

(see page 10).

POWER

Hold down the menu button for 0.5 seconds or

more.

SOUND

Hold down the menu button for 0.5 seconds or more to return to the play mode.

WA-MP100_110H TINSZA068SJZZ

" Recording will be started. " If the memory is low, "Disk Is

Full! Can Not Record" appears (recording is not possible).

Remaining recording time

Begin playback on the external equipment.

00:00:01 01:23:45 File name4 Recording...

To interrupt recording:

Press the menu button. To resume recording, press the menu button again.

To stop recording:

Press the butt on. Data will be saved.

05/5/27

WA-MP100_110H_SEEG_E.fm

Recording

E-36

-Recording from the external equipme nt-

WA-MP100H WA-MP110H

ENGLISH

Recording

Recording from the external equipment (continued)

! Playback sound-actuated recording

The unit starts recording when a signal from LINE IN socket is detected (Synchronised recording).

Connect the external equipment to the unit.

Press the POWER button to turn the power on

(see page 10).

POWER

Hold down the menu button for 0.5 seconds or

more.

SOUND

Hold down the menu button for 0.5 seconds or more to return to the play mode.

Within 10 seconds, move the menu button t oward

or to select "SETUP", and press it.

-Recording from the external equipme nt-

SETUP

Within 10 seconds, move the menu button toward

+ or - to select "RECORD", and press it.

Within 10 seconds, move the menu button toward

+ or - to select "Sync Record", and press it.

Within 10 seconds, move the menu button toward

or to select "On", and press it.

" The setting is completed. " The playback screen returns after 10 seconds.

Perform steps 3 - 5 in the "Manual recording" sec-

tion on page 36. Begin playback on the external equipment.

Recording starts.

SETUP Playback

RECORD

Record Settings

Sync Record

On Off

E-37

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

To interrupt recording:

" When the external equipment is stopped, the data

number increases by one and the unit will enter the synchronised recording pause mode. When playback is resumed, recording will also resume.

" If a s ilence last s for 3 secon ds or more, the data num-

ber increases by one and recording will be paused. When the unit receives sound again, recording automatically starts.

" A new data is created when recording resumes.

To stop recording:

Press the button.

To cancel synchronised recording:

After steps 3 - 6 on page 37, select "Off" in step 7.

Note:

Data recorded with the unit are named automatically as follows. FM radio recordings: F001.mp3, F002.mp3...F999.mp3 Line-in recordings: L001.mp3, L002.mp3...L999.mp3 Microphone recordings: M001.mp3, M002.mp3...M999.mp3 (Maximum number: 999) Newly saved files are numbered sequentially following the largest number among the existing file names. It is recommended to delete or move files from one with the largest number. To transfer data to a PC, see "To use as a USB storage device" on page 45.

Recording fr om the FM radio

Check the memory status beforehand (see page 44). If the memory is low, move some data to a PC to make some room.

MIC

NAVI

Tune in to the desired station. (Perform steps 1 -

5 in "Tuning" on page 31.) Press the button to start recording.

00:00:01 01:23:45

File name2

Recording...

Remaining recording time

If the memory is low, "Disk Is Full! Can Not Record" appears (recording is not possible).

To interrupt recording:

Press the butt on. To resume recording, press the button again.

To stop recording:

Press the menu button. Data will be saved.

WA-MP100H WA-MP110H

ENGLISH

Recording

E-38

-Recording from the FM radio-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

WA-MP100H WA-MP110H

ENGLISH

Recording

E-39

Changing file size and sound quality for recording

With this product, you can change the sampling frequency, mode and bit rate to control file size or sound quality. The following are the default values for microphone, FM radio and line-in recording.

Default settings for "Mic" "Sampling": 8,000 Hz, "Mode": Mono, "Encoder": PCM,

"BitRate": N/A Default settings for "FM" and "LineIn"

"Sampling": 44,100 Hz, "Mode": Stereo, "Encoder": MP3, "BitRate": 128 kbps

Hold down the menu button for 0.5 seconds or

more.

SOUND

Hold down the menu button for 0.5 seconds or more to return to the play mode.

Within 10 seconds, move the menu button t oward

or to select "SETUP", and press it.

SETUP

Within 10 seconds, move the menu button t oward

+ or - to select "RECORD", and press it.

-Changing file size and sound quality for recording-

SETUP Playback

RECORD

Within 10 seconds, move the menu button toward

+ or - to select "Record Settings", and press it.

Within 10 seconds, move the menu button toward

or to select "FM", "Mic" or "LineIn".

Within 10 seconds, move the menu button toward

+ or - to select encoder.

Within 10 seconds, move the menu button toward

or to select the file format.

RECORD

Record Settings

Synch Record

Source:

Mic

Sampling:

8000Hz

Mode: Mono Encoder:

PCM

Mode: Mono Encoder:

MP3

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

Repeat steps 6 - 7 for other setting.

For MP3:

Sampling Mode BitRate

For PCM:

Sampling Mode BitRate

(*1)"BitRate" cannot be set to 224 kbps when "Sam-

pling" is 48,000 Hz.

(*2)Available for "FM" and "LineIn".

Within 10 seconds, press the menu button.

" The setting is completed. " The playback screen returns after 10 seconds. " Settings are retained even after the power is

turned off.

32,000 - 48,000 Hz(*1) Stereo(*2) or Mono 96 - 224 kbps(*1)

8,000 - 32,000 Hz Stereo(*2) or Mono

Sampling:

Indicates the number of samples of a sound that are taken per second when digitising sound. As the sample rate increases, sound quality improves and data volume grows.

Mode:

Select stereo or mono. Mono only for microphone. Select stereo normally for FM radio or line-in recording.

BitRate:

Indicates the number of bits taken per second when compressing digital sound. As the bit rate decreases, data volume reduces and sound quality lowers.

MP3:

When recording, you can compress sound in MP3 format.

PCM:

When recording, the sound is digitised but not compressed.

WA-MP100H WA-MP110H

ENGLISH

Recording

-Changing file size and sound quality for recording-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-40

WA-MP100H WA-MP110H

ENGLISH

Deleting selected data

Recording

E-41

Hold down the menu button for 0.5 seconds or

more.

Hold down the menu button for 0.5 seconds or more to return to the play mode.

Within 10 seconds, move the menu button t oward

or to select "FOLDER", and press it.

Within 10 seconds, select data.

-Deleting selected data-

+ or -: Sele ct a folder or data.

: Open the selected folder. : Return to the previous level.

SOUND

FOLDER

Root

VOICE

File name1

File name2

Press the menu button.

File name1

Sure To Delete?

Yes No

Move the menu button toward or to select

"Yes", and press it.

File name1

Sure To Delete?

Yes No

" Select "No" to cancel. " The playback screen returns after 10 seconds.

Caution:

Deleted data cannot be restored.

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

Changing default settings

! About auto-power off

When the auto-power off is set, the unit turns o ff automatically after a time period in the stop mode. (The autopower off does not work when listening to the F M radio.)

Press the POWER button to turn the power on

(see page 10).

POWER

Hold down the menu button for 0.5 seconds or

more.

SOUND

Hold down the menu button for 0.5 seconds or more to return to the play mode.

Within 10 seconds, move the menu button toward

or to select "SETUP", and press it.

SETUP

Within 10 seconds, move the menu button to-

ward + or - to select "System", and press it.

SETUP

System

Check Memory

Within 10 seconds, move the menu button to-

ward + or - to select "Turn Off", and press it.

System

Contrast Backlight

T urn Off

Within 10 seconds, move the menu button to-

ward or to select a time period, and press it.

T urn Off

Minute

OFF: Auto-power off does not work. 1 - 5 Minute:In the stop mode, the unit turns off au-

" The setting is completed. " The playback screen returns after 10 seconds.

tomatically after a set time period.

WA-MP100H WA-MP110H

ENGLISH

Advanced Features

-Changing default settings-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-42

WA-MP100H WA-MP110H

ENGLISH

Changing default settings (continued)

! Changing the display contrast

You can change display contrast.

! Changing the backlight lighting time

You can change lighting time of the display backlight.

Perform steps 2 - 4 on page 42.

Within 10 seconds, move the menu button t oward

+ or - to select "Contrast", and press it.

Within 10 seconds, move the menu button t oward

or to adjust contrast, and press it.

" The setting is completed. " The playback screen returns after 10 seconds.

Advanced Features

-Changing default settings-

E-43

System

Contrast

Backlight T urn Off

20%

Perform steps 2 - 4 on page 42.

Within 10 seconds, move the menu button toward

+ or - to select "Backlight", and press it.

System Contrast

Backlight

T urn Off

Within 10 seconds, move the menu button toward

or to adjust the lighting time, and press it.

Backlight

Second

OFF: Backlight remains off. 2 - 20 Second:

ON: Backlight remains on.

" The setting is completed. " The playback screen returns after 10 seconds.

Backlight illuminates for a set time period.

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

! Restoring the default settings

You can restore all the default settings.

Perform steps 2 - 4 on page 42.

Within 10 seconds, move the menu button toward

+ or - to select "RESTORE", and press it.

System

Sleep Language

RESTORE

Within 10 seconds, move the menu button toward

or to select "Yes", and press it.

RESTORE

Yes No

" Select "No" to cancel. " The playback screen returns after 10 seconds.

Caution:

This function resets the following settings: language, volume, equaliser, repeat play, intro scan, FM station, FM auto scan, FM area, synchronised recording, record settings, auto-power off, contrast, backlight , and s leep operation.

Checking memory status

You can check the memory status before starting long hours of recording, etc.

Hold down the menu button for 0.5 seconds or

more.

SOUND

Hold down the menu button for 0.5 seconds or more to return to the play mode.

Within 10 seconds, move the menu button toward

or to select "SETUP", and press it.

SETUP

Within 10 seconds, move the menu button toward

+ or - to select "Check Memory", and press it.

SETUP

System

Check Memory

" Check the firmware version,

memory capacity, and free space.

" The playback screen returns af-

ter 10 seconds.

Check Memory

Version:

T otal:

Free:

xxxxx xxMB xxMB

WA-MP100H WA-MP110H

ENGLISH

-Checking memory status-

Advanced Features

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-44

WA-MP100H WA-MP110H

ENGLISH

Sleep operation

You will not forget t o turn off the FM radio if you use sleep operation.

Perform steps 2 - 4 on page 42.

Within 10 seconds, move the menu button t oward

+ or - to select "Sleep", and press it.

Within 10 seconds, move the menu button t oward

or to adjust the time, and press it.

1 - 3 Hour: The unit turns off after the set time OFF:

Advanced Features

" The setting is completed. " The playback screen returns after 10 seconds.

System

Sleep

Language

RESTORE

Sleep

Hour

elapses. Sleep operation does not work.

To use as a USB storage device

LINE IN

MIC

NAVI

USB cable

To the USB port

E-45

To cancel the sleep operation

Turn off the unit (see page 10). To cancel without turning off the un it, perform steps 1 - 2 and select "OFF" in step 3.

-Sleep operation/To use as a USB storage device-

Note:

After the sleep operation, the setting is cancelled.

WA-MP100_110H TINSZA068SJZZ

You can use the unit as a USB storage device as follows:

1 Connect the unit to a PC (see page 13). 2 Open "My Computer" and save the selected data

to the unit (indicated as "Removable Disk").

05/5/27

WA-MP100_110H_SEEG_E.fm

Firmware update

! Installing the update tool

If you use a PC running Windows Millennium Edition, Windows 2000 Professional, Windows XP Professional or Windows XP Home Edition, install the upgrade tool as follows. The installation is not necessary for Windows 98 Second Edition. (The upgrade tool is installed already.)

Insert the supplied CD-ROM into your CD-ROM

drive. Open the "wa-mp100_50" folder on the CD-ROM

and double-click "setup". Click the "Next" button.

The "License Agreement" screen appears.

Click the "Yes" button.

The "Choose Destination Location" screen appears.

Click the "Next" button.

The "Select Program Folder" screen appears.

Click the "Next" button.

When the installation is completed, the "InstallShield Wizard Complete" screen appears.

Click the "Finish" button.

! Updating the firmware

Visit our web site at

http://sharp-world.com/worldwide/index.html and download a firmware update file.

Decompress the downloaded file.

Replace the file in "C:\Program Files\SHARP\WA-

MP100_50" with the decompressed file. Connect the unit to a PC with the USB cable.

Start the update tool.

From the "Start" menu, click "All Programs", "WAMP100_50 Audio player", and then "Firmware Download".

Click the "Start" button.

" Check the box of "Format Data Area". All the data

will be deleted. Move important data to a PC before updating the firmware.

" Update starts.

WA-MP100H WA-MP110H

ENGLISH

References

-Firmware update-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-46

WA-MP100H WA-MP110H

ENGLISH

References

E-47

Troubleshooting

Many potential "problems" can be resolved by the owner wit hout calling a service tech nician. If something seems to be wrong with this product, check the following before calling your autho r ised SHARP deale r or s e rvice centre.

The unit does not turn on.

" Is the AC adaptor disconnected? " Is the battery exhausted? " Is the unit in the hold mode? " Has condensation formed inside the unit? " Is the unit being influenced by mec ha nical sho ck or by

static electricity?

No sound is heard from the earphones.

" Is the volume set too low? " Are the earphones correctly plugged in?

When the buttons are pressed, the un it does not respond.

" Is there playable audio data on the unit? " Is the unit in the hold mode? " Is the battery exhausted?

-Troubleshooting-

" Is the unit connected to a PC with the USB cable?

Sound skipping or loss.

" Is the battery exhausted?

The battery cannot be charged.

" Is the rechargeable battery in the unit?

The operation is unstable whilst the PC and the unit are connected.

" Are you using the U SB cable that was purchased sep-

arately?

" Is the unit correctly connect ed to the PC? (See page

13.)

The USB connection display does not appear.

" Is the unit correctly connected to the PC? (See page

13.)

The FM radio makes unusual noises continuously.

" Is a TV or compute r ne ar th e unit?

The display is difficult to see.

" Is the display contrast too low or too high? (See page

43.)

! Resetting the unit

If the unit does not work properly, reset it as follows. The unit may work properly.

1 Disconnect the AC adaptor or the USB cable. 2 Remove the battery. 3 Leave the unit completely unpowered for approxi-

mately 30 seconds. 4 Insert the battery. 5 Operate the unit.

If the unit still does not work properly, do as follows:

1 Disconnect the AC adaptor or the USB cable. 2 Remove the battery.

Holding down the POWER button, connect the unit to a PC.

3 4 Keep holding the POWER button and from the "Start"

menu, click "All Programs", "WA-MP100_50 Audio

player" and then "Firmware Download" to start the

update tool. 5 Release the POWER button. 6 Proceed to the firmware update procedure (see page

46). 7 Insert the battery. 8 Operate the unit.

WA-MP100_110H TINSZA068SJZZ

05/6/24

WA-MP100_110H_SEEG_E.fm

Error messages Maintenance

ERROR MESSAGES MEANING

Low Battery! Can Not Record

Disk Is Full! Can Not Record

Low Battery! Shut Down...

> HOLD < The HOLD switch is turned on.

Recording is impossible due to low battery. (Recharge the battery.)

Memory is full and recording is impossible. (Delete some data to make room.)

The battery has run out. (Recharge the battery.)

(Turn off the HOLD switch.)

! Cleaning

When the unit becomes dirty

Clean it with a soft cloth. When the unit is excessively dirty, use a soft cloth dampened in water (exter nal surfaces only).

Clean the plugs and the connecting sockets.

If the plugs or sockets are dirty, noise may be heard. Cleaning will prevent noise.

Caution:

" Do not use chemicals for cleaning (petrol, paint thin-

ner, etc.). It may damage the cabinet finish.

" Do not apply oil to the inside of the unit. It may cause

malfunctions.

WA-MP100H WA-MP110H

ENGLISH

References

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-48

-Error messages/Maintenance-

WA-MP100H WA-MP110H

ENGLISH

References

About the rec har geable ba ttery

" A rechargeable nickel-metal hydride battery is the only

kind that can be used. Even if the battery is not used, you should charge it at least once every three months because of the special quality of this battery.

" The rechargeable battery can be charged approxi-

mately 300 times.

" When the operating time is reduced to about half the

normal amount of time, even after a full charge is performed, replace the battery with a new one (ADN55BT).

" When the battery is charged for the first time or is

charged after not being used for a long period, the operating time may be shorter than normal. The battery life will recover with normal use (i.e. charging and discharging).

" To avoid shor tening the ser vice life of the battery only

recharge the battery after it is completely discharged.

" If the rechargeable battery is used in a cold environ-

ment, the operating time will be reduced.

" Do not carry the battery in your pocket or a bag

together with metal objects (keys, coins, jewelry, etc.). The battery may short out and generate significant amounts of heat.

" Do not shor t-circuit the term inals as they will become

very hot and will damage the battery.

" Do not drop or subject the battery to shock. " Do not insert objects (metal etc.) into the battery com-

partment of this product or int o the rechargeable battery.

-About the rechargeable battery/Specifications-

Specifications

As a part of our policy of continuous improv ement, SHARP reserves the right to mak e design and specificati on changes for product improvement without prior notice. The performance specification figur es indi cated are nominal v alues of production units. Ther e may be some devia tions fro m these values in individual units.

Power source: DC 1.2 V: Rechargeable nickel-

Dimensions: Width: 80 mm (3-3/16")

Weight: 35 g (1.28 oz.) without battery Sockets: Earphones (impedance: 32 ohms)

Frequency response:

Output power: Battery life: Continuous recording:

Frequency range: FM: 87.5 - 108 MHz

metal hydride battery (AD-N55BT) x 1 DC 5 V: AC adaptor (AC 110 - 240 V, 50/60 Hz) DC 5 V: USB bus power

Height: 50 mm (1-15/16") Depth: 9.7 mm (6/16")

USB port (mini type) Line-input socket (150 mV)

20 - 20,000 Hz 8 mW + 8 mW (earphones: 32 ohms)

(maximum output level) MIC: Approx. 9 hours

LINE-IN: Approx. 4 hours FM: Approx. 5 hours Continuous play: Approx. 18 hours

TINSZA068SJZZ

E-49

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

Storage media: 512 MB Flash Memory

Digital Rights Management:

Playback format: MP3 (MPEG-1/2 Audio Layer 3),

Recording format: MP3 (bit rate: 96 - 224 kbps,

PC interface: Compatible with USB 2.0 and USB System require-

ments:

(WA-MP100H) 1 GB Flash Memory (WA-MP110H)

Windows Media DRM 9

bit rate: 8 - 320 kbps WMA (Windows Media Audio), bit rate: 5 - 320 kbps

sampling frequency: 32 - 48 kHz) PCM (sampling frequency: 8 - 32 k Hz)

1.1 Pentium 133 MHz or higher

CD-ROM drive 10 MB free hard disk space Microsoft Windows 98 Second Edition/Millennium Edition/2000 Professional/XP Professional/XP Home Edition standard installation

Notes:

! A combination of sampling frequency and bit rate dif-

fers depending on audio format.

! Continuous playback:

At 64 kbps, in WMA format (earphone output: 5 mW + 5 mW, backlight: set to "OFF", equaliser: set to "Normal")

! Continuous recording:

Microphone recording (PCM), 8,000 Hz Line-in recording (MP3), 44,100 Hz, 128 kbps FM radio recording (MP3), 44,100 Hz, 128 kbps

! Actual battery life will vary with use. ! The values are the standard values when the unit is

used at an ambient temperature of 25°C (77°F).

WA-MP100H WA-MP110H

ENGLISH

References

-Specifications-

WA-MP100_110H TINSZA068SJZZ

05/5/27

WA-MP100_110H_SEEG_E.fm

E-50

SHARP CORPORATION

TINSZA068SJZZ

05E R YT 1

WA-MP100_110H TINSZA068SJZZ

05/5/21

WA-MP100_110H_SEEG_Back.fm

WA-MP100H/110H

PORTABLE DIGITAL AUDIO PLAYER

WA-MP100_110H TINSZA068SJZZ

05/5/21

WA-MP100_110H_SEEG_Spine.fm
