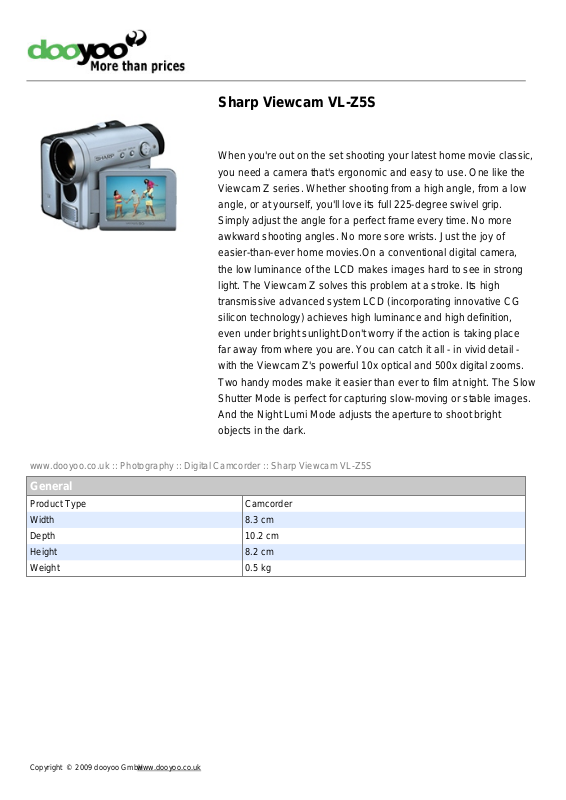

Sharp Viewcam VL-Z5S
When you're out on the set shooting your latest home movie classic,
you need a camera that's ergonomic and easy to use. One like the
Viewcam Z series. Whether shooting from a high angle, from a low
angle, or at yourself, you'll love its full 225-degree swivel grip.
Simply adjust the angle for a perfect frame every time. No more
awkward shooting angles. No more sore wrists. Just the joy of
easier-than-ever home movies.On a conventional digital camera,
the low luminance of the LCD makes images hard to see in strong
light. The Viewcam Z solves this problem at a stroke. Its high
transmissive advanced system LCD (incorporating innovative CG
silicon technology) achieves high luminance and high definition,
even under bright sunlight.Don't worry if the action is taking place
far away from where you are. You can catch it all - in vivid detail with the Viewcam Z's powerful 10x optical and 500x digital zooms.
Two handy modes make it easier than ever to film at night. The Slow
Shutter Mode is perfect for capturing slow-moving or stable images.
And the Night Lumi Mode adjusts the aperture to shoot bright
objects in the dark.
www.dooyoo.co.uk :: Photography :: Digital Camcorder :: Sharp Viewcam VL-Z5S
General
Product Type Camcorder
Width 8.3 cm
Depth 10.2 cm
Height 8.2 cm
Weight 0.5 kg
Copyright © 2009 dooyoo GmbHwww.dooyoo.co.uk
Page 2
Main Features
Camcorder Sensor Resolution 800 Kpix
Camcorder Effective Video Resolution 400 Kpix
Media Type Mini DV
Colour Support Colour
Optical Sensor Type CCD
Optical Sensor Size 1/4"
Min Illumination 2 lux
Analogue Video Format PAL
Digital Zoom 500 x
Recording Speed SP, LP
Shooting Modes Digital photo mode
Shooting Programs Slow shutter, party/indoor, dusk, sunlight, fireworks, spo
rts mode
Special Effects Solarisation, Black & White, Sepia, Negative Art
Faders Fade trigger
Image Stabiliser Electronic
Exposure Modes Programme, automatic, manual
White Balance Custom, automatic
Still Image Format JPEG
Remote Control Remote control - infrared
Memory / Storage
Flash Memory 1 x 8 MB Flash - SD Memory Card
Image Storage Fine JPEG 640 x 480 : 50 - with 8MB card ¦ Normal JPEG
640 x 480 : 90 - with 8MB card ¦ Economy JPEG 640 x 480 :
160 - with 8MB card
Lens System
Type Zoom lens - 3.8 mm - 38 mm - f/1.8
Focal Length 3.8 mm - 38 mm
Focus Adjustment Automatic, manual
Auto Focus TTL contrast detection
Lens Aperture F/1.8
Optical Zoom 10 x
Zoom Adjustment Motorised drive
Filter Size 30 mm
Copyright © 2009 dooyoo GmbHwww.dooyoo.co.uk
Page 3
Additional Features
DV input Yes
Self Timer Yes
Self Timer Delay 10 sec
Edit Functions Audio dubbing
Low Lux / Night Mode Yes
Digital Still Camera Function Yes
Search Modes Edit search, end search
Time Code Yes
Additional Features Built-in speaker, backlight compensation, auto power
save, DPOF support, analog to digital conversion with
pass through
Viewfinder
Viewfinder Type LCD monitor
Viewfinder Colour Support Colour
Display
Type LCD display - TFT active matrix - 2.5" - colour
Display Form Factor Rotating (225°)
Display Format 215,000 pixels
Microphone
Type Microphone - built-in
Microphone Technology Electret condenser
Microphone Operation Mode Stereo
Connections
Connector Type 1 x headphones ¦ 1 x USB ¦ 1 x IEEE 1394
(FireWire/i.LINK) ¦ 1 x composite video/audio (input/outpu
t) ¦ 1 x S-Video input / output ¦ 1 x DC power input
Expansion Slot(s) 1 x SD Memory Card
Software
Software Drivers & Utilities
Copyright © 2009 dooyoo GmbHwww.dooyoo.co.uk
Page 4
Miscellaneous
Included Accessories Lens cap
Cables Included 1 x A/V cable ¦ 1 x USB cable
Power
Power Device Power adapter - external
Battery
Supported Battery Details 1 x Li-ion rechargeable battery ( included )
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Copyright © 2009 dooyoo GmbHwww.dooyoo.co.uk
