Sharp VCM522HM User Manual

Download

●VPS/PDC

●AUTO SORTING & CLOCK SET

●LOW POWER FEATURE

● CHILD LOCK

●SHARP SUPER PICTURE

●POST CODE SECURITY

●NTSC SIMPLE PLAYBACK

VC-M522HM

VIDEO CASSETTE RECORDER

OPERATION MANUAL

VC-M522HM cover 14/6/99 4:36 pm Page 1

SAFETY WARNINGS

Observe all warnings for your safety and to ensure trouble free use of your VCR.

INFORMATION

Additional information complements instructions.

Dear SHARP Customer

Thank you for buying this SHARP VCR. Given proper care it will provide years of entertainment for the whole family. Please read this operation manual carefully before attempting to operate the VCR.

● Audio-visual material may consist of copyrighted works which must not be recorded

without the authority of the owner of the copyright. Please refer to the relevant laws in your country.

● No part of this publication may be reproduced, stored or transmitted in any form without

prior permission from SHARP Electronics (Europe) GmbH.

●

and PlusCode ®are registered trademarks of Gemstar Development

Corporation.

● system is manufactured under license from Gemstar Development Corporation.

THIS MANUAL COVERS A RANGE OF MODELS. ALL OF THE FEATURES MENTIONED MAY NOT NECESSARILY APPLY TO YOUR VCR.

(i)

VC-M522HM cover 14/6/99 4:36 pm Page 2

3. CHILD LOCK

15. VOLUME

MENU SET

CLEAR

DISPLAY

STANDBY

DPSS

INPUT SELECT

CHANNEL

VIDEO CASSETTE RECORDER

SLOW

SV/V+

/TIMER

MODE OSD

INPUT

SELECT

OPERATE VOL

VOL

TIMER

ON/OFF

AUDIO

OUT

SKIP

ZERO BACK

TAPE

SPEED

TV/VCR

REC

PAUSE/STILL

REW FF

PLAY / X2

STOP

231

AM/PM

21. MODE ON SCREEN DISPLA Y

23. CHANNEL

19. MENU SELECT

27 PAUSE/STILL

8. AM/PM or

26. PLAY/X2

22. DISPLAY

16. ZERO BACK

5.AUDIO OUT

(This button

has no function with this model.)

9. REWIND 25. FAST FORWARD

11.STOP

12. TAPE SPEED (SP/LP)

13. SLOW

28. DPSS

SLOW SPEED

2. INPUT SELECT

6. MENU

18. SET

20. CLEAR

10. RECORD

17. SKIP SEARCH

14. BASIC SHARP TV

CONTROLS

1. STANDBY

4. TIMER ON/OFF

7. SV/V+/TIMER

24. INPUT SELECT

29. TV/VCR

VCR REMOTE CONTROL

VCR FRONT PANEL/REMOTE CONTROL EQUIVALENT FUNCTIONS.

If you prefer, or if remote control batteries fail, you will need to use the VCR front panel controls. The only differences in function are shown below:

FUNCTION

OSD

Moving UP/DOWN menu Moving LEFT/RIGHT menu

OPERATION WITH REMOTE

CONTROL

[]buttons [ ] buttons

OPERATION WITH VCR

FRONT PANEL

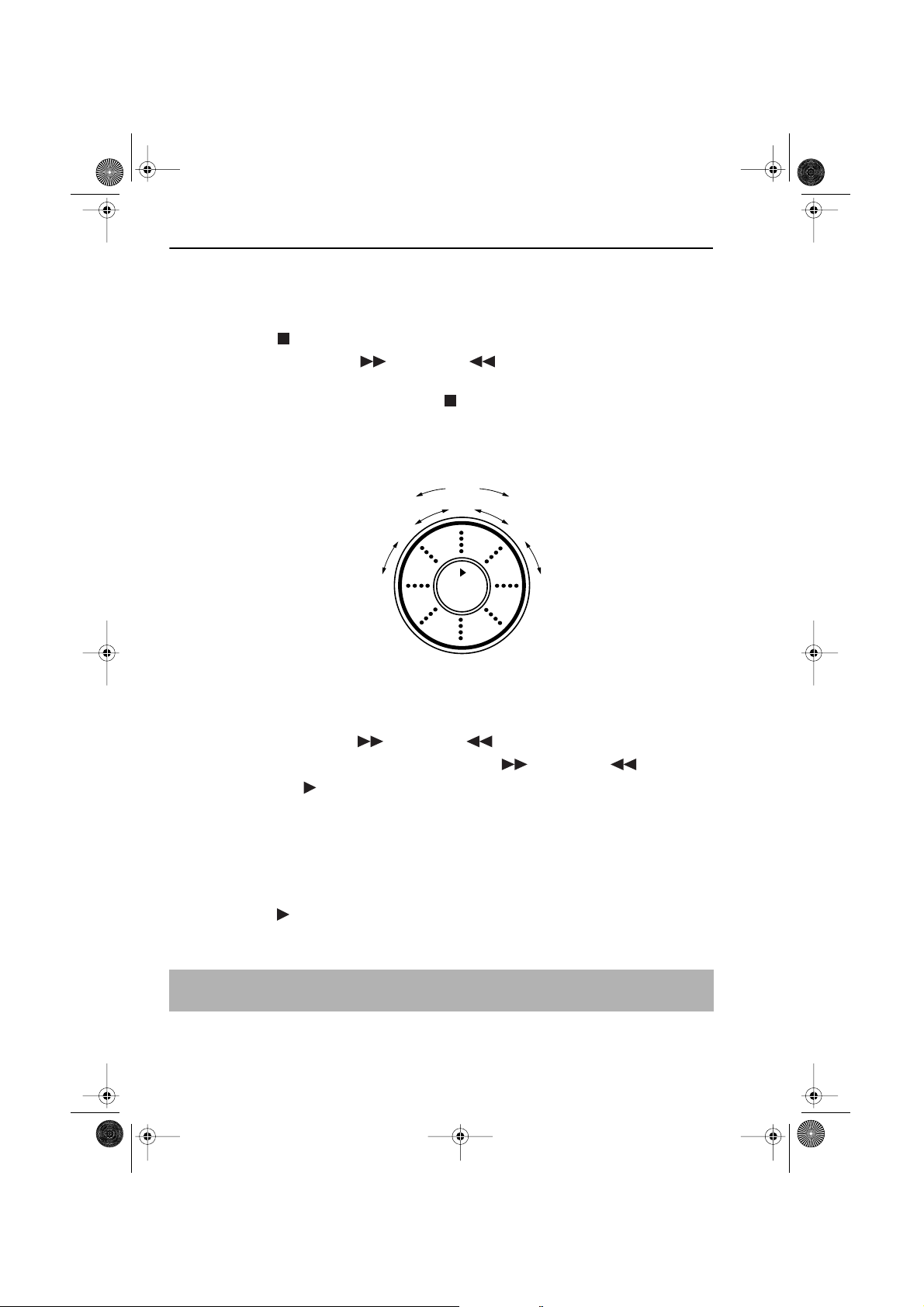

CHANNEL buttons. Rotate the shuttle dial COUNTER CLOCKWISE/CLOCKWISE

(ii)

VC-M522HM cover 14/6/99 4:36 pm Page 3

SHARP ELECTRONICS (U.K.) Ltd.

TINS-3584UMZZ

Printed in U.K.

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC

as amended by 93/68/EEC.

• Specifications are subject to change without notice as part of our policy of continuous improvement.

• No liability is accepted for any inaccuracies or omissions in this publication, although every possible care has been taken to make it complete and as accurate as possible.

● If you are unable to resolve a problem using the TROUBLESHOOTING guide, do not

remove the cabinet or attempt to service this VCR yourself.

● For service please contact your dealer. If this is not possible, please call our Customer

Information Centre for details of your nearest Sharp Service Centre.

● Please note that for repairs during the guarantee period, you will need to produce

proof of purchase.

● SCART leads can be obtained from the SHARP Parts Centre: Willow Vale Electronics

Limited Tel. Manchester 0161 682 1415/ Reading 01189 876444. Most credit/debit cards accepted.

SHARP Customer Helpline: Tel: 0990 274277

CALLING FOR SERVICE

VC-M522HM cover 14/6/99 4:36 pm Page 4

TINS-3584UMZZ VC-M522HM Page 1 Monday, June 14, 1999 2:46 PM

CONTENTS

BEFORE USING YOUR VCR

Important notes on your VCR .......................................................................................................2

Unpacking the accessories...........................................................................................................3

INSTALLING YOUR VCR

Connecting the cables ................................................................................................................. 4

Tuning the TV into the VCR............................................................................................................5

Auto installation..............................................................................................................................6

BASIC OPERATION

Important notes on your VCR and video tapes .........................................................................8

How to playback a video tape....................................................................................................8

Immediate recording................................................................................................................... 11

How to use to make a recording .............................................................................12

How to set a delayed recording ................................................................................................14

ADVANCED OPERATION

Playback of a video tape...........................................................................................................17

Digital Display................................................................................................................................19

Blue mute ......................................................................................................................................20

Colour ............................................................................................................................................20

Searching the video tape...........................................................................................................21

Recording from other equipment..............................................................................................22

Decoder switching operation.....................................................................................................23

SPECIAL FEATURES ON YOUR VCR

Post code security........................................................................................................................24

Low power feature.......................................................................................................................25

Child lock.......................................................................................................................................25

CUSTOMISED INSTALLATION

Manually tuning a channel.........................................................................................................26

Manually sorting channels...........................................................................................................27

Manually setting the clock..........................................................................................................30

MORE INFORMATION ABOUT YOUR VCR

VCR digital display .......................................................................................................................31

Selecting the output from the VCR............................................................................................31

On-screen display.........................................................................................................................32

Specifications................................................................................................................................33

Troubleshooting ............................................................................................................................34

VCR reset.......................................................................................................................................35

Guarantee ....................................................................................................................................36

Connecting to the mains ............................................................................................................37

Pausing and slow motion........................................................................................ 9

Fast forwarding/rewinding a video tape............................................................ 10

Checking, changing and cancelling a recording............................................16

Checking the amount of tape remaining..........................................................17

Playing back a video tape repeatedly..............................................................17

Playing back an NTSC tape .................................................................................18

Skip searching the video tape.............................................................................21

Digital programme search system (DPSS)...........................................................21

Sorting the channels into your preferred order..................................................27

Deleting channels..................................................................................................28

Re-naming channels............................................................................................. 29

GB-1

TINS-3584UMZZ VC-M522HM Page 2 Monday, June 14, 1999 2:46 PM

BEFORE USING YOUR VCR

IMPORTANT NOTES ON YOUR VCR

IDEAL VCR LOCATION

PLACE THE VCR..

• ... on a flat level surface away from radiators or other heat sources and out of direct sunlight.

• ... and video tapes away from magnetic sources such as speakers or microwave ovens.

• ... at least 8” (20cm) away from the TV.

• ... away from curtains, carpets or other materials and allow ventilation space around the VCR.

DO NOT...

• ... block the air-vent openings.

• ... expose the VCR to excessive dust, mechanical vibration or shock.

• ... place any heavy object or liquid on top of the VCR. If liquid drops inside the VCR unplug immediately and contact your SHARP dealer. Do not use the VCR.

• ... insert or drop anything into the tape compartment or through the air-vents, as this could result in serious damage, fire or an electric shock.

POWER SOCKETS

• To avoid overheating or even fire, insert the plug correctly into the socket.

DO NOT...

• ... overload power sockets, this may cause a fire or electric shock.

• ... pull the power cord to disconnect the plug from the mains.

• ... bind the power cords together.

• This VCR is not equipped with a mains power switch. Accordingly, nominal current to drive the clock is drawn at all times when the AC power cord is plugged into a wall socket. If the VCR is not to be used for an extended period be sure to unplug the cord.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-2

TINS-3584UMZZ VC-M522HM Page 3 Monday, June 14, 1999 2:46 PM

BEFORE USING YOUR VCR

UNPACKING THE ACCESSORIES

CHECK ALL THESE ACCESSORIES ARE SUPPLIED WITH YOUR VCR. CONTACT YOUR DEALER IF ANY ARE MISSING.

REMOTE

CONTROL

For a more

detailed

picture of your remote control refer to page (ii)..

To fit the batteries into the remote control

Remove the battery cover on the back of the remote control. Fit the batteries: to and to . terminals. Place the

battery cover back into position.

BATTERIES (X2)

for the remote control unit.

RF CONNECTION CABLE

connects the VCR to the TV.

Battery cover

Remote Control

• Remote Control must be pointed towards the VCR to operate.

• Do not expose to liquid or shock.

• May not function if the VCR is in direct sunlight or any other strong light.

• Replace both alkaline batteries (type AA/R6/UM3) if the remote control fails.

• Remove the batteries and keep in a safe place if you do not plan to use the VCR for several months.

• Remove and dispose of flat batteries safely and promptly.

• Incorrect use of batteries may cause them to leak or burst.

If problems persist contact the SHARP Helpline on tel: 0990-274277

(TYPE AA/R6/UM3)

GB-3

TINS-3584UMZZ VC-M522HM Page 4 Monday, June 14, 1999 2:46 PM

INSTALLING YOUR VCR

CONNECTING THE CABLES

Connect your existing aerial

cable to the socket on your VCR.

DECODER UNIT OR SATELLITE SYSTEM

ANTENNA IN

AERIAL OR CATV CABLE

LINE2(II) IN

/DECODER

CANAL PLUS

/L2(II)

LINE1(

I)IN

/OUT

SON/VIDEO

(L1/

EE A

RF OUT

SORTIE ANTENNE

Connect your TV to the VCR using the

supplied RF connection cable, i.e. connect the VCR the TV

AERIAL IN

Optional

have a scart lead connect it to your TV and

LINE 1 IN/OUT

- The advantage of a Scart connection is improved picture and sound quality during playback.

SCART (not supplied). If you

Connect the VCR to the mains.

RF OUT

socket.

socket on the VCR.

socket to

LINE2(II) IN /DECODER CANAL PLUS

/L2(II)

LIN

E1(

I)IN

/OUT

SON/VIDEO

(L1/

BACK OF TELEVISION

LINE2(II) IN

/DECODER

CANAL PLUS

/L2(II)

LINE1(

I)IN

/OUT

SON/VIDEO

(L1/

Optional:

Satellite receiver or decoder to the VCR using a scart lead to

LINE 2 IN/DECODER

socket on the VCR.

ANTENNA IN

ENTREE ANTEN

RF OUT

SORTIE ANTENNE

ANTENNA IN

ENTREE ANTENNE

RF OUT

SORTIE ANTENNE

Connect your

The VCR is correctly connected.

✔

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-4

TINS-3584UMZZ VC-M522HM Page 5 Monday, June 14, 1999 2:46 PM

INSTALLING YOUR VCR

TUNING THE TV INTO THE VCR

IMPORTANT NOTE: If is illuminated on the VCR display, the VCR is in STANDBY mode. If not the VCR is in LOW POWER mode. To change between LOW POWER and STANDBY mode press the STANDBY button.

Ensure your VCR is still in the STANDBY mode (not low power).

Switch on the TV.

Press and hold the for 3 seconds, (The VCR is now tuning itself in). The VCR will search and display an ideal RF channel. (Wait for the flashing channel number to appear in the VCR display.)

Select an unused preset channel on your TV for your VCR (there may be a dedicated video preset channel refer to your TV operation manual).

Tune the selected preset channel on your TV (refer to your TV manual) until the menu screen appears. Store this as your VCR preset channel.

SET

Press place the VCR back into STANDBY.

to store the RF channel and to

button on the VCR

Example:

preset 1 = BBC1 preset 2 = BBC2 preset 3 = ITV preset 4 = Channel 4 preset 5 = Channel 5 preset ? = VCR

MENU SCREEN

TIMER

MODE SET UP

쑿쑼 : SELECT SET :ENTER MENU :EXI T

NOTE:

• If you have a preferred channel, the RF channel can be set manually (21-69) after Step 3 using [ / ] keys.

The TV is tuned to the VCR.

✔

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-5

TINS-3584UMZZ VC-M522HM Page 6 Monday, June 14, 1999 2:46 PM

INSTALLING YOUR VCR

AUTO INSTALLATION

These models automatically tune the TV channels for your area, then using Teletext information sort the TV channels into a standard order and set the clock.

Turn the TV on and select the video channel . (As previously explained).

Press

Step through the on screen instructions by

pressing the a few minutes).

to switch on the VCR.

STOP

button. (Auto tune may take

SET

AUTO INSTALLAT ION

PRESS SET KEY TO START

SET : ENTER MENU:EX I T

Press the SET button.

PL EASE BE SURE T HE AER I AL / SCART CABLE I S CONNECT ED TO YOUR VCR .

SET : ENTER MENU:EX I T

Press the SET button.

AUTOMATIC SORTING. PL EASE WA I T .

SET : ENTER MENU:EX I T

1CH22

See next page to continue

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-6

TINS-3584UMZZ VC-M522HM Page 7 Monday, June 14, 1999 2:46 PM

INSTALLING YOUR VCR

AUTO INSTALLATION

On completion, the showing the standard channel order.

Press

the channel order, if not and you wish to change the order refer to

SORTING CHANNELS

If the clock is not automatically set, the clock screen will appear, refer to

MOVE MENU

to exit if you are happy with

MANUALLY

MANUALLY SETTING THE CLOCK

for help on setting the time and date.

will appear

1BBC1 7 13 2BBC2 8 14 3ITV 9 15 4CH4 10 16 5CH5 11 17

61218 S ELECTED : BBC1

쑿쑼 씱씰 : SELECTED

SET : ENTER MENU:EX I T

MOVE 1/5

NOTE:

• If the AUTO INSTALLATION screen doesn’t appear when you switch on your VCR or you wish to reset your VCR and start the installation again, refer to of the book.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-7

VCR RESET

at the back

TINS-3584UMZZ VC-M522HM Page 8 Monday, June 14, 1999 2:46 PM

BASIC OPERATION

IMPORTANT NOTES ON YOUR VCR AND VIDEO TAPES

VIDEO TAPES

• If you use only good quality video tapes, generally it will not be necessary to clean the video heads.

• If poor quality tapes are used, or if a tape is loaded after changing VCR location, oxide from the tape may "clog" the video heads. This will cause the playback picture to be "snowy", or even disappear.

• To remove minor contamination run a video tape in visual search mode. If this fails, you will need to have the heads cleaned by a SHARP Service Facility. Please note, if cleaning is necessary it is not covered by the guarantee.

• Use video tapes which carry the mark.

SECAMPAL

HOW TO PLAYBACK A VIDEO TAPE

BEFORE YOU PLAYBACK A VIDEO TAPE

Condensation forms in the VCR when it is moved out of or into a warm place. If you try to playback or record, the video tape and VCR may be damaged. Turn the VCR on and wait for about two hours until the VCR reaches room temperature before operating.

PLAYBACK

Switch on your TV and select the video channel.

Carefully push a pre-recorded video tape into the tape compartment. This will switch the VCR on.

• If the record-protection tab has been removed, the VCR will start playback as soon as the video tape has been loaded.

To start playback, press

().

PLAY/

Record protection tab

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-8

TINS-3584UMZZ VC-M522HM Page 9 Monday, June 14, 1999 2:46 PM

BASIC OPERATION

HOW TO PLAYBACK A VIDEO TAPE

SHARP SUPER PICTURE

normally set to ON. To turn VCR front panel.

• For double speed playback (without sound), press

• To revert to normal playback, press

• To stop the video tape, press

• To eject the tape press

should enhance the picture quality during playback. It is

SHARP SUPER PICTURE

STOP

EJECT

PLAY/X2

().

on the VCR.

( ) again.

on or off press

PLAY/X2

SUPER P.

( ) again.

on the

PICTURE DISTURBANCE DURING PLAYBACK

This VCR has an automatic tracking system which reduces picture disturbance when you start to playback a video tape. When auto-tracking is in operation flashes on the on-screen display. If the picture still has disturbance you may need to manually track the video tape:

During PLAYBACK of a video tape.

• Press

CHANNEL

Tracking)

CHANNEL

or to position picture interference off the TV screen. (Manual

and buttons together to start Auto Tracking.

PAUSING AND SLOW MOTION

• To minimise jitter whilst in pause mode press

• Press

PLAY/X2

Press To pause the video tape, press

PLAY/X2

To playback in slow motion (without sound) press motion speed can be adjusted using the or buttons next to the slow button. Picture disturbance can be improved by using the motion playback.

( ) to start the video tape playing.

PAUSE/STILL

()

CHANNEL

( ) to resume playback.

or .

SLOW on the remote control. Slow

CHANNEL or during slow

PLAY/X2 ( )to resume playback.

NOTES:

• There will be picture interference and possibly a change to black and white picture using Pause and Slow functions.

• PAUSE mode will disengage after about 5 minutes.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-9

TINS-3584UMZZ VC-M522HM Page 10 Monday, June 14, 1999 2:46 PM

BASIC OPERATION

HOW TO PLAYBACK A VIDEO TAPE

FAST FORWARDING/REWINDING A VIDEO TAPE

Press STOP ( ) to stop the video tape.

2. Press FAST FORWARD ()/REWIND ( ) on the remote control or rotate the

shuttle dial clockwise for Fast Forward and counter clockwise for Rewind then release.

3. To stop fast forward/rewind, press STOP ().

FORWARD/REVERSE VISUAL SEARCH

COUNTERCLOCKWISE CLOCKWISE

REVERSE VISUAL SEARCH x 3

REVERSE VISUAL SEARCH x 7

Visual Search can be operated during playback by either the Fast Forward/Rewind buttons on the remote control or by using the shuttle dial on the VCR front panel.

Remote Control Operation

(ANTI)

PLAYBACK

PLAY/X2

VISUAL SEARCH x 3

VISUAL SEARCH x 7

1. Press FAST FORWARD ()/REWIND ( ) during playback.

2. To decrease the speed, press FAST FORWARD ()/REWIND ( ) again.

3. Press PLAY/X2 ( ) to resume playback.

OR: Shuttle Dial Operation

As the Shuttle dial is rotated a soft click can be felt. During playback, rotating the dial one click clockwise will make the VCR enter Visual search x 3 mode. An additional click clockwise or counter clockwise will change the operation as illustrated above.

The start position shown above is only an example. The Shuttle dial can be operated from any position.

Press

PLAY/X2 ( ) to resume playback at any time, or rotate the shuttle dial clockwise/

counter clockwise until the playback function is selected.

NOTE:

• There will be picture interference and possibly a change to black and white picture using Visual Fast Forward/Rewind functions.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-10

TINS-3584UMZZ VC-M522HM Page 11 Monday, June 14, 1999 2:46 PM

BASIC OPERATION

IMMEDIATE RECORDING

SELECTION OF A CHANNEL

Select the channel by using the number buttons on the remote control, or select the next/previous channel by pressing

To change between single digit and 2-digit channel numbers, press For example, for channel 24, press

You can record the channel you are watching or a different channel.

1. Insert a video tape into your VCR.

2. Select the channel you wish to record on the VCR.

3. To start recording, press REC ().

4. To pause during recording, press PAUSE/STILL ().

5. To continue recording, press REC ().

6. To stop recording, press STOP ( ) once.

SIMPLE TIMED RECORDING:

1. To specify a stop time, press REC ().

2. Each additional press of REC ( ) will delay

the stop time by 10 minutes.

3. To stop recording at any time, press

STOP ( ) once.

CHANNEL [or].

AM/PM .

AM/PM then press 2 4.

STOP 15:30

NOTES:

• If the tape ends before the recording is complete the VCR will stop recording, rewind, eject the tape and place the VCR into Standby mode, or just eject the tape and place the VCR in Standby/timer mode if the VCR is in timer record mode.

• If the VCR ejects the video tape when you press protected. i.e. record protection tab has been removed.

If problems persist contact the SHARP Customer Helpline on tel: 0990-274277

GB-11

REC ( ) the tape is record

TINS-3584UMZZ VC-M522HM Page 12 Monday, June 14, 1999 2:46 PM

BASIC OPERATION

HOW TO USE TO MAKE A RECORDING

• If appears on the VCR display, press TIMER ON/OFF before starting.

• Check that the clock is displaying the correct time.

VIDEOPLUS+ allows you to program the VCR to record up to eight programmes using the VIDEOPLUS+ numbers published in TV listings...

1. Press [SV/V+] on the remote control

2. Enter the VIDEOPLUS+ number from the TV

listing using the

NUMBER BUTTONS.

NOTE:

• An ERROR message will appear if you have entered a number that is not a current VIDEOPLUS+ number. If this happens press and enter the correct VIDEOPLUS+ number

Press [ / ] to select ONCE, WEEKLY, DAILY

4. If you want to make additional recordings at the same time each day or week, then use

[ / ] to select the WEEKLY, or DAILY option as appropriate.

5. Press SET to confirm.. NOTE:

• Check that the menu list agrees with the times shown in the TV listing. If it does not press

CLEAR to return to the VIDEOPLUS+ menu, and re-enter the correct VIDEOPLUS+

number

PLUS CODE . -

→

ONCE WE E K L Y DA I L Y

CLEAR to delete the numbers as required

The first time that you use VIDEOPLUS+ to make a recording on each channel Preset, (PR) may be highlighted on the menu.

6. Enter the channel you wish to record using

the

NUMBER BUTTONS, for example if

you wish to record channel 2 press VCR will remember this for the future.

0 2. The

DATE PR START STOP 21/06 02 12:00 13:00 SP*

--/-- -- -:-- -:-- ---

PR : BBC2

씱씰 : SELECT 쑿쑼 : CHANGE

SET : ENTER MENU:EX I T

NOTES:

You may also access the VIDEOPLUS+ menu by the following procedure:

i. Press MENU. ii. The VIDEOPLUS+ option will be highlighted. Press SET to confirm.

Continue from step 2 above.

If problems persist contact the SHARP Customer Helpline on tel: 0990-274277

GB-12

1/2

TINS-3584UMZZ VC-M522HM Page 13 Monday, June 14, 1999 2:46 PM

BASIC OPERATION

HOW TO USE TO MAKE A RECORDING

7. If your VCR has long play facility and you wish

to change the the [ / ] to highlight SP. Press [ / ] to select standard play (SP) or long play (LP) as required.

8. [See NOTE below]. For VPS/ setting use

[ / ] to highlight the final column. Using the [ / ] will select VPS/PDC ON or OFF (

✱ = ON - = OFF).

9. Press SET to confirm the programme. The

VIDEOPLUS+ menu will reappear. If you wish to enter further VIDEOPLUS+ recordings repeat this procedure.

10. When you have completed entering timer

settings, press from the TV screen.

11. Press TIMER ON/OFF once to place the VCR

in TIMER STANDBY mode. will be shown on the display.

RECORDING SPEED, use

MENU to remove the menu

DATE PR START STOP 21/060212:0013:00SP*

--/-- -- -:-- -:-- ---

TAPE

SPEED :SP / LP 씱씰 : SELECT 쑿쑼 : CHANGE SET : ENTER MENU:EX I T

DATE PR START STOP 21/060212:0013:00SP-

--/-- -- -:-- -:-- ---

VPS/PDC ✱:ON - :OFF 씱씰 :SELECT 쑿쑼 : CHANGE SET : ENTER MENU:EX I T

1/2

NOTES:

• VPS/PDC is a signal broadcast by some TV stations which adjusts the start and stop time of your VCR recording. This ensures that if there is a change in broadcast time for your programme the VCR will still record the whole programme. It is essential that the start time as it appears in the TV listing is used to program the VCR, as this information is used to identify the VPS/PDC signal corresponding to your programme.

• If flashes a video tape has not been inserted into the VCR.

• If the video tape is ejected when the VCR tries to record the record protection tab has been removed.

• During recording, press recordings to be made, the VCR will return to TIMER STANDBY.

If problems persist contact the SHARP Customer Helpline on tel: 0990-274277

STOP ( ) to cancel the recording. If there are further

GB-13

TINS-3584UMZZ VC-M522HM Page 14 Monday, June 14, 1999 2:46 PM

BASIC OPERATION

HOW TO SET A DELAYED RECORDING

You can make a maximum of eight delayed recordings up to a year in advance. The example shown is for 24-hour clock operation. 12-hour clock operation can be selected

from the manual clock setting menu. 12-hour clock am/pm can be selected using the

• If appears on the VCR display, press

• Check that the clock is displaying the correct time.

SETTING A RECORDING

For example: Recording a programme on channel 3 from 21:05 to 22:30 on July 9th.

1. Press STOP ( ) to switch on the VCR.

2. Press MENU .

3. Press [ / ] to select TIMER. Press SET to

confirm.

4. The position which is initially highlighted is the

next available timer record entry. Press confirm this.

• The display will automatically show today's date. Either: If this is the date you wish to make the recording on, press Or: enter the recording date using the[ /

] or the digits for the day, then two for the month. For example for July 9th, press (July).

SET to confirm this.

NUMBER BUTTONS. Enter two

0 9 (9th), then 0 7

5. Then press SET to confirm.

6. If you want to make additional recordings at

the same time each day or week, use [ /

] or select D (daily) or W (weekly). Then press

SET to confirm.

7. Enter the channel using the [ / ] or the

NUMBER BUTTONS. For example to

record a programme on channel 3, press 0 3. Then press

SET to confirm.

AM/PM button on the remote control.

TIMER ON/OFF before starting.

MENU SCREEN

TIMER

MODE

SET to

SET UP

쑿쑼 : SELECT SET : ENTER MENU:EX I T

DATE PR START STOP

21/060212:0013:00SP*

9/07 -- -:-- -:-- ---

--/-- -- -:-- -:-- ---

DATE PR START STOP

21/060212:0013:00SP*

9/07D -- -:-- -:-- ---

--/-- -- -:-- -:-- ---

1/2

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-14

TINS-3584UMZZ VC-M522HM Page 15 Monday, June 14, 1999 2:46 PM

BASIC OPERATION

HOW TO SET A DELAYED RECORDING

8. Enter the start time using the [ / ] or the

NUMBER BUTTONS hours first then minutes

(when entering less than 10 minutes add a '0' before the number), for example for 21:05 start, press

2 1 0 5. Then press SET to confirm.

9. Enter the stop time, for example for 22:30 stop,

press

2 2 3 0.

10. If your VCR has long play facility and you wish to

change the [ / ] to highlight SP. Press [ / ] to select standard play (SP) or long play (LP) as required.

11. [See note below]. For VPS/PDC setting use the

[/] to highlight the final column. Using the

[ / ] will select VPS/PDC ON or OFF ( * = ON - = OFF).

12. Press SET to confirm.

• The MENU now shows all the timer settings you have entered. If you wish to make additional timer recordings, repeat this procedure.

13. When you have completed entering timer

settings, press from the TV screen.

14. Press TIMER ON/OFF once to place the VCR

in TIMER STAND-BY mode. will be shown on the display.

RECORDING SPEED, use the

MENU to remove the menu

DATE PR START STOP 21/060212:0013:00SP*

9/07D03 21:05 -:-- SP*

--/-- -- -:-- -:-- ---

DATE PR START STOP

21/060212:0013:00SP*

9/07D03 21:05 -:-- LP*

--/-- -- -:-- -:-- ---

DATE PR START STOP 21/060212:0013:00SP*

9/07D03 21:05 22:30 LP-

--/-- -- -:-- -:-- ---

1/2

NOTES:

• If flashes a video tape has not been inserted into the VCR.

• If the video tape is ejected when the VCR tries to record the record protection tab has been removed.

• During recording, press recordings to be made, the VCR will return to TIMER STANDBY.

If problems persist contact the SHARP Helpline on tel: 0990-274277

STOP ( ) to cancel the recording. If there are further

GB-15

TINS-3584UMZZ VC-M522HM Page 16 Monday, June 14, 1999 2:46 PM

BASIC OPERATION

HOW TO SET A DELAYED RECORDING

CHECKING, CHANGING AND CANCELLING A RECORDING

CHECKING A RECORDING

1. If in TIMER STANDBY mode, press

TIMER ON/OFF to exit.

2. Press STOP to switch on the VCR.

3. Press MENU.

4. Press [ / ] to select TIMER. Press SET to

confirm

• All the delayed recordings in the VCR’s memory will be shown.

• You can check the settings and change or cancel them.

CHANGING A RECORDING

1. Follow steps 1 to 4 of CHECKING A

RECORDING.

2. If you wish to change a delayed recording,

press [ / ] to highlight the recording, then press

SET.

3. Press [ / ] to highlight the setting to be

changed and correct it by using the[ / ]

NUMBER BUTTONS.

or the

4. When all corrections are complete press SET,

then press

CANCELLING A RECORDING

MENU.

1. Follow steps 1 to 4 of CHECKING A

RECORDING.

2. If you wish to cancel a delayed recording, press

[ / ] to highlight the recording to be cancelled, then press

CLEAR.

3. Press MENU.

MENU SCREEN

TIMER

MODE

SET UP

쑿쑼 : SELECT

SET : ENTER MENU:EX I T

DATE PR START STOP 21/060212:0013:00SP*

--/-- -- -:-- -:-- ---

DATE PR START STOP

21/060212:0013:00SP*

--/-- -- -:-- -:-- ---

1/2

NOTE:

• If there are some programmes to be recorded, do not forget to press TIMER ON/OFF

button to return the VCR to TIMER STAND-BY mode.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-16

C E

HSH

TINS-3584UMZZ VC-M522HM Page 17 Monday, June 14, 1999 2:46 PM

ADVANCED OPERATION

PLAYBACK OF A VIDEO TAPE

CHECKING THE AMOUNT OF TAPE REMAINING

When you load a video tape into the VCR it can calculate approximately the amount of video tape remaining in hours and minutes. This is useful in determining whether or not there is sufficient tape left to make a recording. When a video tape is playing, the amount of tape remaining is calculated for you automatically. To display the amount of video tape remaining:

1. Load the video tape into the VCR

2. Press DISPLAY on the remote control as many times as necessary until “R” appears on

the VCR display. The tape will wind forward and then return to its original position. The tape remaining will be shown on the VCR display in hours and minutes. By pressing the change between long play and standard play.

TAPE SPEED button on the remote control the remaining time will

For example, in standard play 1 hour 23 minutes is left on the tape:

in long play 2 hour 46 minutes is left on the tape:

REC TIMER

STOP

ETET

SPAMPM

REC TIMER

STOP

SPAMPM

NOTES:

• Do not interrupt the tape remaining calculation.

• If less than 5 minutes of tape remains the display will flash.

PLAYING BACK A VIDEO TAPE REPEATEDLY

You can set your VCR to automatically rewind at the end of playing a video tape and replay the entire tape again. REPEAT will appear on the on-screen display when selected.

To use this feature:

1. Press MENU to display the main menu on the

screen.

MODE MENU SCREEN

2. Press [ / ] to select MODE.

3. Press SET.

4. Press [ / ] to select REPEAT.

5. Press [ / ] to select ON.

6. Press SET.

7. Press MENU to return to normal screen.

BLUE MUTE AUTO OF F

➝REPEAT ON OF F

쑿쑼 : SELECT 씱씰 : CHANGE S E T : E N T ER M EN U : E X I T

PRP

A V

PRP

AV VC

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-17

TINS-3584UMZZ VC-M522HM Page 18 Monday, June 14, 1999 2:46 PM

ADVANCED OPERATION

PLAYBACK OF A VIDEO TAPE

PLAYING BACK AN NTSC TAPE

NTSC (National Television Standards Committee) is a different TV standard to PAL and is used in some Non-European Countries. Your VCR can playback pre-recorded NTSC tapes onto a PAL system TV, but cannot record an NTSC signal onto a video tape.

Note that..

• You cannot record NTSC signals or dub NTSC tapes onto other VCR’s from this VCR.

• You cannot use Slow speed, Still frame, Double Speed, Frame Advance or Tape Remaining with a pre-recorded NTSC tape.

• On some televisions, the picture may appear in black and white or there may be no picture. This does not indicate a fault with your VCR.

• On some televisions, the picture may shrink vertically causing black bands to appear at the top and bottom of your screen.

On some televisions, the played-back picture may roll vertically, this does not indicate a fault with your VCR.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-18

TINS-3584UMZZ VC-M522HM Page 19 Monday, June 14, 1999 2:46 PM

ADVANCED OPERATION

DIGITAL DISPLAY

TIME OF DAY

Shows current time of day, if the clock is set. Press

DISPLAY until the time of day appears. For

example, 21:20 appears:

Operation mode

Shows status of tape. Press DISPLAY until the display appears, for example:

TAPE COUNTER AND ZERO BACK

Tape counter measures the current position of the video tape in real time. ZERO BACK uses the tape counter to determine a specific point on a tape you may wish to return to.

PRPR

1. Press DISPLAY until tape counter appears, for

example:

2. To identify the current position on a video tape

press

CLEAR and the tape counter will appear:

When you wish to return to this position on the video tape, press

ZERO BACK. The tape will

rewind/advance to this point.

NOTE:

• The tape counter will only operate on recorded sections of tape.

PRPR

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-19

TINS-3584UMZZ VC-M522HM Page 20 Monday, June 14, 1999 2:46 PM

ADVANCED OPERATION

BLUE MUTE

The TV screen will be blue if a TV channel with no signal is selected, an unrecorded section of tape is played or the quality of the recording on the tape is poor. Select OFF to disable this feature.

1. Press MENU to display the main menu on the

screen.

2. Press [ / ] to select MODE.

3. Press SET.

MODE MENU SCREEN

COLOUR AUTO PAL BLUE MUTE AUTO OFF

4. Press [ / ] to select BLUE MUTE.

5. Press [ / ] to select OFF.

6. Press SET and then MENU to return to the

normal screen.

COLOUR

If the VCR is playing poor quality recording, the picture may turn black and white. Selecting PAL may improve this (depending on the recording), although coloured speckles may appear on black and white recordings.

1. Follow steps 1 to 3 from BLUE MUTE.

2. Press [ / ] to select COLOUR.

3. Press [ / ] to select AUTO/PAL.

4. Press SET and then MENU to return to the normal screen.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-20

TINS-3584UMZZ VC-M522HM Page 21 Monday, June 14, 1999 2:46 PM

ADVANCED OPERATION

SEARCHING THE VIDEO TAPE

SKIP SEARCHING THE VIDEO TAPE

You can search the tape in 30 second time intervals. To do this follow the procedure below:

1.Press PLAY/X2 ( ) to start the video tape playing.

2.Press SKIP SEARCH on the remote control.

The number of times you press determines the forward search time.

• After searching, normal playback will resume automatically

SKIP SEARCH

DIGITAL PROGRAMME SEARCH SYSTEM (DPSS)

Your VCR records a marker signal on the tape at the start of each recording. These signals can be used later to locate the starting point of a recording.

DPSS to locate a previous programme or the next programme.

Press For example,

1.Load the video tape into the VCR.

2.Press DPSS three times. A 3 will appear on the on-screen display, and the VCR will

fast forward to locate the third recording after the current one.

3.Press DPSS once. A -1 will appear on the on-screen display and the VCR will rewind

to locate the beginning of the current recording.

1 press = 30 seconds. 2 presses = 1 minute. 3 presses = 1 minute 30 seconds. 4 presses = 2 minutes.

DPSS Number

DPSS Signals

RECORDING 1

RECORDING 2

-1

Current tape position

RECORDING 3

RECORDING 4

Fast ForwardRewind

RECORDING 5

4.To cancel the search before it has finished, press STOP ( ) or PLAY/X2 ( ) .

NOTES:

• Recordings must be longer than 3 minutes.

• The starting point of playback may vary.

• This feature will only work with video tapes recorded on a VCR with the DPSS feature.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-21

/DECODER

/L2(II)

LINE IN 3

VIDEO

AUDIO

TINS-3584UMZZ VC-M522HM Page 22 Monday, June 14, 1999 2:46 PM

ADVANCED OPERATION

RECORDING FROM OTHER EQUIPMENT

You can record video and audio signals from various sources, for example a camcorder, onto a video tape using your VCR.

For example, recording from a camcorder connected to LINE 1 IN/OUT on your VCR:

Optional Scart connection (not supplied)

ANTENNA IN

ENTREE ANTENNE

F O

SORTIE A

NTENN

Mono/Stereo Camcorder

LINE2(II) IN

/DECODER

CANAL PLUS

/L2(II)

LINE1(

/OUT

SON/VIDEO

(L1/

I)IN

Load tape into the VCR.

Press

INPUT SELECT

until the VCR display shows

If you wish to record from a source connected to

LINE 1 IN/OUT, select

If you wish to record from a source connected

on the remote control

with audio phono leads to the sockets on the front of the VCR (if fitted), select

NOTE:

• There are many different ways of connecting external equipment to your VCR. Please refer to your equipment operation manuals for further information.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-22

TINS-3584UMZZ VC-M522HM Page 23 Monday, June 14, 1999 2:46 PM

ADVANCED OPERATION

DECODER SWITCHING OPERATION

If you connect a separate decoder to the VCR connected to L2 as previously shown, you will need to set the decoder function to ON watch it on your TV. Now, when the VCR receives a scrambled signal it is output via LINE 2 terminal to the decoder. The decoder then outputs the descrambled signal back to LINE 2 terminal and the signal can be recorded. The VCR outputs the descrambled signal to your TV through the LINE1 terminal and you can watch the descrambled picture.

When making recordings using a separate decoder connected as shown remember to leave the decoder function ON.

If you connect a decoder unit to the VCR, the decoder unit provides a switching signal which will automatically allow your TV to display the descrambled signal routed through the VCR. To use this feature make sure that the VCR is connected to both TV and decoder unit by SCART leads. Then:

• Press STANDBY to place the VCR in Stand-by mode, OR

• Press [TV/VCR] on the remote control to place the VCR in ‘VCR mode’. ‘VCR’ will appear on the display.

in order to record the descrambled signal and/or

If you switch the decoder function ON when connected to a decoder unit as shown you will NOT be able to watch the descrambled picture in TV mode or in VCR mode.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-23

TINS-3584UMZZ VC-M522HM Page 24 Monday, June 14, 1999 2:46 PM

SPECIAL FEATURES ON YOUR VCR

POST CODE SECURITY

This feature should allow the Police to identify you as the owner of the VCR if it is stolen. Each time the VCR is turned on your postcode will be displayed for 5 seconds. Your postcode cannot be changed or removed without first entering the correct PIN - number.

If you wish to use this function, follow the procedure below.

Press

Press [ / ] to select SET UP. Press confirm.

Press [ / ] to select POST CODE. Press

to confirm. Enter your desired PIN number using the

NUMBER BUTTONS

This must be a 4 digit number in the range 0000 - 9999.

Using the [ / / / ] key, enter your Postcode. Press

Record your PIN number in the box provided for future reference.

SET

to confirm.

SET

or the [ / ] key.

P I N NUMBER POST CODE

---- ---- ---

SELECT : 씱씰 CHANGE 쑿쑼 ENTER :SET EXI T:MENU

POST CODE

NOTE:

• Your Postcode can be changed at any time, but you must first enter your correct PIN number. If the wrong PIN number is entered, an ERROR message will appear. Re-enter the correct number.

If you wish to change your PIN number at any time:

Follow steps 1 to 3 above.

Enter your current PIN number. Press

Press to re-select PIN number. Enter your new PIN number. Press

SET

to confirm.

to confirm

IMPORTANT:- Please keep your Operation Manual separate from your VCR.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-24

TINS-3584UMZZ VC-M522HM Page 25 Monday, June 14, 1999 2:46 PM

SPECIAL FEATURES ON YOUR VCR

LOW POWER FEATURE

To meet new power regulations your VCR can be placed in LOW POWER mode. In LOW POWER mode the VCR power consumption is reduced to below 1 Watt.

LOW POWER MODE

Press

The VCR power consumption will now be below 1 Watt.

STAND BY

Press

STAND BY

display will appear blank.

DISENGAGING LOW POWER MODE

Either Or Press

Press

NOTES:

• With poor signal conditions an increase in noise may be observed on the screen in LOW POWER mode.

• When entering STANDBY, noise may be observed.

• If a signal is input from an AV source, the VCR may not go into true LOW POWER mode.

• When disengaging low power mode from the VCR press the Standby button.

( ) to place the VCR in STANDBY mode. ( ) again to place the VCR in LOW POWER mode. The VCR digital

STAND BY

( ) to return the VCR to STANDBY mode.

STOP ( ) to use the VCR.

CHILD LOCK

You can lock your VCR with this feature. It will work even when the VCR is in standby, preventing children from operating the VCR.

TO ENGAGE CHILD LOCK

Press and hold on the remote control for about 2 seconds.

flashes and then remains lit on the VCR display confirming that CHILD LOCK has been activated. Regardless of what other operating buttons are touched, the VCR will continue to operate in

its present mode. If CHILD LOCK is activated during playback, once the tape reaches its end, the VCR will automatically rewind the tape, eject it, and turn the power off.

TO DISENGAGE CHILD LOCK

Press and hold for about 2 seconds.

starts flashing and then disappears. CHILD LOCK is disengaged.

NOTES:

• If you attempt to change modes by pressing another button while CHILD LOCK is on, the indicator will flash on the VCR display.

• If power is interrupted for more than 60 seconds (due to power failure etc), CHILD LOCK may disengage.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-25

TINS-3584UMZZ VC-M522HM Page 26 Monday, June 14, 1999 2:46 PM

CUSTOMISED INSTALLATION

MANUALLY TUNING A CHANNEL

It should not be necessary to tune in a broadcast channel manually except in unusual circumstances such as poor signal.

To manually tune in a channel follow the procedure below.

1. Press MENU.

2. Press [ / ] to select SET UP. Press

SET to confirm.

3. CHANNEL PRESET will be

highlighted. Press

SET.

4. Press [ / ] to select CHANNEL.

5. Press [ / ] to start tuning in either

direction. Tuning will stop when a channel is received. If it is not the desired channel, press [ / ] to continue tuning.

6. Press [ / ] to select FINE

TUNING. Press and hold [ / ] until

the sharpest colour picture is obtained.

IMPORTANT NOTE:

7. If you connect an independent

decoder, you must press [ / ] to select DECODER, then select [ / ] to turn the decoder function ON.

➔

CHANNEL PRESET

CHANNEL SORT CLOCK

PRESET 1 CHANNEL CH21 FINE TUNING DECODER ON OFF SKIP ON OFF

▲

8. Press [ / ] to select SKIP.

The SKIP function determines whether the channel can be selected when using the

CHANNEL / instead of the NUMBER BUTTONS.

9. Press [ / ] to select ON or OFF for this

option.

10. Press SET to confirm.

11. Press MENU to leave this function.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-26

TINS-3584UMZZ VC-M522HM Page 27 Monday, June 14, 1999 2:46 PM

CUSTOMISED INSTALLATION

MANUALLY SORTING CHANNELS

SORTING THE CHANNELS INTO YOUR PREFERRED ORDER

When your VCR tunes in broadcast channels automatically it sorts them into a standard order using teletext information. You can change the order of the channels with the following procedure.

1. Press MENU.

2. Press [ / ] to select SET UP. Press SET to

confirm.

3. Press [ / ] to select CHANNEL SORT. Press

SET to confirm.

4. The MOVE position will be highlighted. Press

SET to confirm.

5. Press [ / / / ] to highlight the

channel to be moved. Press

SET to confirm.

6. Press [ / / / ] to highlight the new

position for the channel. Press

SET to confirm.

7. If any more channels are to be moved, repeat

procedure from step 5.

8. When all the channels are in your preferred

order, press function.

MENU to leave the MENU

MENU SCREEN2.

MODE

SET UP

1BBC1 7 13 2BBC2 8 14 3ITV 9 15 4CH4 10 16 5CH 5 11 17 61218

MOVE 1/5

1CH 5 713 2BBC 1 8 14 3BBC 2 9 15 4ITV 10 16 5CH4 11 17 61218

MOVE 1/5

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-27

TINS-3584UMZZ VC-M522HM Page 28 Monday, June 14, 1999 2:46 PM

CUSTOMISED INSTALLATION

MANUALLY SORTING CHANNELS

DELETING CHANNELS

If there is a channel you wish to delete from the VCR memory you can follow the procedure below.

1. Press MENU.

2. Press [ / ] to select SET UP. Press SET to

confirm.

3. Press [ / ] to select CHANNEL SORT. Press

SET to confirm.

4. Press [ / ] to select CANCEL. Press SET to

confirm.

5. Press [ / / / ] to highlight the

channel to be cancelled.

6. Press SET twice to cancel the channel.

7. When all the channels you wish have been

cancelled, press

MENU.

MENU SCREEN2.

TIMER MODE

SET UP

1BBC1 7 13 2BBC2 8 14 3CH 5 9 15 4ITV 10 16 5CH4 11 17 6 12 18

CANCE L 1 / 5

1BBC1 7 13 2BBC2 8 14 3ITV 9 15 4CH4 10 16 5 11 17 6 12 18

CANCE L 1 / 5

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-28

TINS-3584UMZZ VC-M522HM Page 29 Monday, June 14, 1999 2:46 PM

CUSTOMISED INSTALLATION

MANUALLY SORTING CHANNELS

RE-NAMING CHANNELS

When your VCR tunes in broadcast channels automatically, it names them using teletext information. You can change the name of a channel with the following procedure.

1. Press MENU.

2. Press [ / ] to select SET UP.

Press

SET to confirm.

3. Press [ / ] to select CHANNEL SORT.

Press

SET to confirm.

4. Press [ / ] to highlight NAME.

Press

SETto confirm.

5. Press [ / / / ] to highlight the

channel to be named. Press

SETto confirm.

6. Press [ / / / ) to rename the

channel. Press

SET to confirm.

7. If any more channels are to be renamed,

repeat procedure from step 5.

8. When all the channels are named correctly,

press

MENU to leave the MENU function.

MENU SCREEN2.

MODE

SET UP

1BBC1 7 2BBC2 8 3ITV 9 4CH 4 10 5CH5 11 6 12

1BBC1 7 2BBC2 8 3ITV 9 4CH 7 10 5CH5 11 6 12

NAME 1/5

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-29

TINS-3584UMZZ VC-M522HM Page 30 Monday, June 14, 1999 2:46 PM

CUSTOMISED INSTALLATION

MANUALLY SETTING THE CLOCK

The clock will normally be set using teletext information when your VCR automatically tunes in the broadcast channels. If for any reason teletext signals are not present your VCR will not be able to set the clock. This procedure will allow you to set the clock manually.

1. Press MENU. Press [ / ] to select SET UP.

Press

SET to confirm.

2. Press [ / ] to select CLOCK. Press SET to

confirm.

3. Press [ / ] to select either 12 or 24 hour

clock.

4. Press [ / ] to select TIME. Enter the time

using the [ / ]. If the minutes are less than 10, enter the leading 0. If using the 12 hour clock enter AM or PM by pressing on the remote control.

NUMBER BUTTONS or

5. Press [ / ] to select DATE. Enter the date

using the [ / ]. For example, for 1st April enter

01 04.

NUMBER BUTTONS or

6. Press [ / ] to select YEAR. Enter the last two

digits of the year using the

BUTTONS or [ / ]. For example, for

1999 enter

99. For the year 2000 enter 00.

NUMBER

7. Select * for AUTO CLOCK on/off (* is ON, - is

OFF). Then press SET to confirm.

MODE T I ME DAT E Y EAR

24H 0:00 1/01 00 *

MODE : 2 4H / 12H 씱씰 : SELECT 쑿쑼 : CHANGE

SET : ENTER MENU:EX I T

CLOCK

NOTE:

• If AUTO CLOCK is set to OFF (- is OFF) then you will need to update the clock for

daylight saving.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-30

TINS-3584UMZZ VC-M522HM Page 31 Monday, June 14, 1999 2:46 PM

MORE INFORMATION ABOUT YOUR VCR

VCR DIGITAL DISPLAY

12 3456

STOP

SPAMPM LP

1. AUDIO OUTPUT indicators.

2. TIMER indicator.

3. PLAY indicator.

4. RECORDING indicator.

5. STOP indicator.

6. VCR TAPE indicator.

7. PRESET indicator.

8. VCR mode indicator.

9. VIDEO PROGRAMMING SYSTEM/

PROGRAMME DELIVERY CONTROL indicator.

10. DECODER indicator.

11. LONG PLAY indicator.

12. STANDARD PLAY indicator.

13. CHILD LOCK indicator.

14. AM/PM indicators.

PR VCR

V PSPS P DCDC

DEC

NOTE:

• Some models do not have all the features shown, therefore, they will not appear on the display.

SELECTING THE OUTPUT FROM THE VCR

7 8

If your VCR is connected to your TV with a scart lead, when you start to play a video tape the VCR will automatically switch its output so that playback picture is shown on the TV.

In this case ‘VCR’ will appear on the VCR display. You can manually override this by pressing

broadcast channel will be seen on the TV screen and ‘VCR’ will disappear from the VCR display.

• Pressing

[TV/VCR] again will return the TV picture to the playback picture.

If problems persist contact the SHARP Helpline on tel: 0990-274277

[TV/VCR] on the remote control. Now the TV

GB-31

TINS-3584UMZZ VC-M522HM Page 32 Monday, June 14, 1999 2:46 PM

MORE INFORMATION ABOUT YOUR VCR

ON-SCREEN DISPLAY

All the information you need on the VCR status will be summarised on the on-screen display. If you are recording, playing back a tape or watching a broadcast on the video channel you can call up three standard on-screen displays. The display can be selected by pressing the

MODE OSD button on the remote control, 1,2,3 or 4 times.

1. AUTO, the current mode and channel

number will be displayed for 3 seconds when an operation or number button is pressed.

2. FULL., all the active features will also be shown

on screen.

Programme number and channel Tape Status

Tape speed

Tape remaining Time Date Tape counter

■ 1CH59

SUPER P . ON SP

22:00 REM1:05 9/07 99 0:00.00

3. COUNTER, this display will show the tape

counter and amount of tape remaining.

4. DISPLAY OFF, this will remove the display

from the screen.

REM 1:05

0:00.00

NOTES:

• The default time and date will not be displayed if the clock has not been set.

• The VCR will return to display

• If you are recording from this VCR to another, make sure you remove the display from the screen otherwise it will be recorded.

If problems persist contact the SHARP Helpline on tel: 0990-274277

1. each time it is switched on.

GB-32

TINS-3584UMZZ VC-M522HM Page 33 Monday, June 14, 1999 2:46 PM

MORE INFORMATION ABOUT YOUR VCR

SPECIFICATIONS

Format: VHS PAL standard Number of heads: Four heads Video signal system:: PAL colour or monochrome signal: 625 lines Maximum playing time: 480 min. with E-240 video cassette in Long Play

(LP) mode Tape width: 12.7 mm Tape speed: 23.39 mm/s Standard Play (SP): 11.70 mm/s

Long Play (LP) Antenna: 75 Ω unbalanced Reception channels: UHF channel 21-69 RF output signal: UHF channel 21-69 Power requirement: AC 230-240V, 50 Hz Power consumption: 17 W approx. (Low power consumption ≤ 1W) Operating temperature: 5 ˚C to 40 ˚C Storage temperature: -20 ˚C to 55 ˚C Video input: 1.0 Vp-p, 75 Ω Video output: 1.0 Vp-p, 75 Ω Audio input: Line1&2: -3.8 dBs, 10 kΩ, Line 3: -5.0 dBs, 47 kΩ Audio output: Line1&2: -3.8 dBs, 1 kΩ Dimensions: 430(W) x 300(D) x 91.5(H) mm Weight: 4.3 kg (approx.) Supplied accessories: 75 Ω RF Connection cable, operation manual,

remote control, AA/R6/UM3 battery (x2)

• Specifications are subject to change without notice as part of our policy of continuous improvement.

• No liability is accepted for any inaccuracies or omissions in this publication, although every possible care has been taken to make it complete and as accurate as possible.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-33

TINS-3584UMZZ VC-M522HM Page 34 Monday, June 14, 1999 2:46 PM

TROUBLESHOOTING

PROBLEM ANSWER

Display is not working. • Make sure the VCR is not in LOW POWER mode.

• Make sure the power cord is plugged in.

• Make sure the wall socket has power (plug another appliance in).

VCR will not operate - appears in VCR display.

• Press the TIMER ON/OFF button to disengage timer.

VCR will not respond to any commands.

• Check CHILD LOCK is not engaged.

• Safety device operating: unplug VCR for 2 hours.

Tape cannot be loaded. • Make sure there is no other tape in the VCR.

• Make sure you are loading the tape correctly.

VCR cannot be operated by remote control.

• Remote control is too far away from the main unit.

• Point the remote control at the VCR.

• Batteries are flat - replace both.

• Batteries have not been inserted correctly.

• VCR is positioned in strong light.

No picture appears. • Make sure TV is set to the video channel.

• Check all connecting cables.

Rewind is not possible. • Make sure tape is not at the start. Picture does not change

• Make sure VCR is not in timer or menu mode.

even though CHANNEL / buttons are pressed.

Desired channel position cannot be selected.

No colour or poor TV picture on normal viewing.

Playback picture is snowy.

• The channel position has been set to be skipped. Cancel the skip mode for that channel.

• Make sure all the cables are connected properly.

• Make sure VCR power cord is properly plugged in.

• Adjust the tracking using CHANNEL / buttons.

• Try another tape.

• The video heads may have been contaminated - refer to a SHARP Service Facility.

Tape is automatically

• The record-protection tab has been removed.

ejected when pressing

REC ( ) or TIMER ON/OFF buttons.

VIDEOPLUS+ does not record desired programme.

• Broadcast does not carry VPS/PDC signal which alters recording time.

• Check VPS/PDC mode is switched to ON.

• Ensure date and time are correctly set on the VCR.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-34

TINS-3584UMZZ VC-M522HM Page 35 Monday, June 14, 1999 2:46 PM

VCR RESET

1. Press STOP to switch on the VCR.

2. Press and hold MENU and CHANNEL buttons together on the front of the VCR

for 10 seconds.

3. The AUTO INSTALLATION screen should now be showing on your TV.

4. Follow the on-screen display to proceed with auto installation.

Refer to the CUSTOMISED INSTALLATION chapter if

• Your VCR could not tune automatically - due to for example poor reception.

• You wish to re-arrange the channel order.

• You wish to change the time on the clock or if the VCR could not set the time.

✔ All the programmes should now be correctly tuned in and the clock set.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-35

TINS-3584UMZZ VC-M522HM Page 36 Monday, June 14, 1999 4:09 PM

GUARANTEE

SHARP Electronics (UK) Ltd. (hereafter called Sharp) guarantee to provide for the repair, or at its option the replacement, of this product subject to the conditions listed below:

This guarantee shall only apply to faults which are due to inferior workmanship or materials. It does not cover faults or damage by accident, misuse, fair wear and tear, neglect, tampering with the product, or repair other than by a Service Facility appointed by SHARP.

As this product is intended for private domestic use only, the guarantee will not apply if the product is used in the course of a business, trade or profession.

To benefit from this guarantee, any fault which occurs must be notified to SHARP, or its appointed Service Facility within one year from the date this product was purchased. Proof of purchase must be provided.

The guarantee does not cover carriage costs, batteries or video tapes.

In the unlikely event of this product requiring repair, please contact the supplier from whom it was purchased. Where this is not possible, please contact the SHARP Helpline on the telephone number given below.

This guarantee is offered as an additional benefit to your statutory rights and does not affect these rights in any way.

No person has any authority to vary the terms or conditions of this guarantee.

If you have any difficulty operating this product, or would like information on other SHARP products, please telephone the SHARP Helpline on the number given below.

SHARP Helpline: Tel: 0990 274277

Please note that all calls are charged at local rate.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-36

TINS-3584UMZZ VC-M522HM Page 37 Monday, June 14, 1999 2:46 PM

CONNECTING TO THE MAINS

This VCR is suitable only for connection to UK mains. The unit is fitted with a moulded 3-pin mains plug with a 3-amp fuse. The VCR does not have a mains power switch. When connected to the mains, the unit will draw current at all times to power the clock. Be sure to unplug the VCR when it is not to be used for several months.

TO REPLACE THE FUSE:

You must use a 3-amp fuse, marked (ASTA) or (BSI) to BS-1362. Remove the fuse cover as shown. Replace the fuse and re-fit the fuse cover securely into the plug.

ASA

Never connect the plug to the mains without the fuse cover fitted.

TO REPLACE THE MAINS PLUG:

If the plug fitted is unsuitable for the mains socket in your home, cut off the plug, remove the fuse and dispose of the cut-off plug safely.

Severe electric shock may occur if you connect the cut-off plug to a mains socket. If a new plug is fitted, observe the wiring code supplied by the plug manufacturer (and given below.) If you have any doubt, consult a qualified electrician.

The wires in the mains cable are colour coded as follows: blue = neutral, brown = live. As the colours of the wires may not correspond with the terminals in your plug, connect the wires following plug manufacturer's guide:

• blue wire to the terminal marked N or coloured black or blue.

• brown wire to the terminal marked L or coloured red or brown.

• Ensure neither the brown nor the blue wire is connected to the earth terminal in your plug.

• Do not allow water to come into contact with the power supply cord or plug.

• A damaged power supply cord or loose plug may cause electric shock.

• Contact your SHARP dealer or a qualified electrician. Do not use the VCR.

If problems persist contact the SHARP Helpline on tel: 0990-274277

GB-37

Sharp VCM522HM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
