Sharp TM200 Service Manual

CONFIDENTIAL

q

SERVICE MANUAL

by Toko (toko@gsm-free.org)

DIGITAL MOBILE PHONE

MODEL

(INTERNAL MODEL NAME: TM200)

• In the interests of user-safety the set should be restored to its original condition and only parts identical to those specified should be used.

Caution:

Risk of explosion if battery i s repl aced by an i ncorre ct type , dispose of used batteries accordi ng to t he inst ructi on.

TM200

CONTENTS

SERVICING CONCERNS

CHAPTER 1.GENERAL DESCRIPTION

[1] Specifications . . . . . . . . . . . . . . . . . . . . . . . .1-1

[2] Names of parts. . . . . . . . . . . . . . . . . . . . . . .1-2

[3] Operation manual. . . . . . . . . . . . . . . . . . . . . 1-2

CHAPTER 2.

[1] SHARP Program Support Tool (SPST) . . . . 2-1

[2] Test points . . . . . . . . . . . . . . . . . . . . . . . . . 2-25

[3] Trouble shooting. . . . . . . . . . . . . . . . . . . . . 2-29

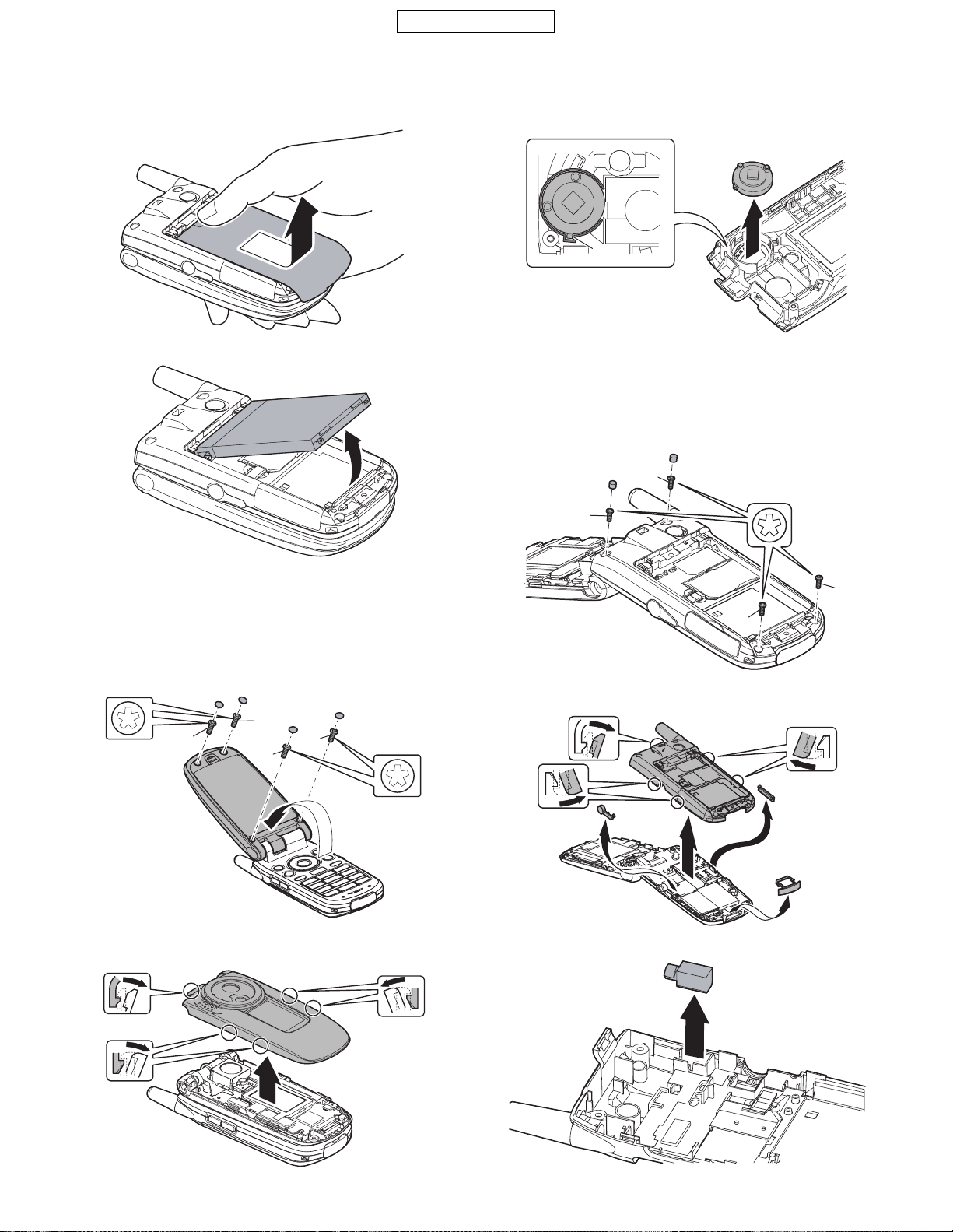

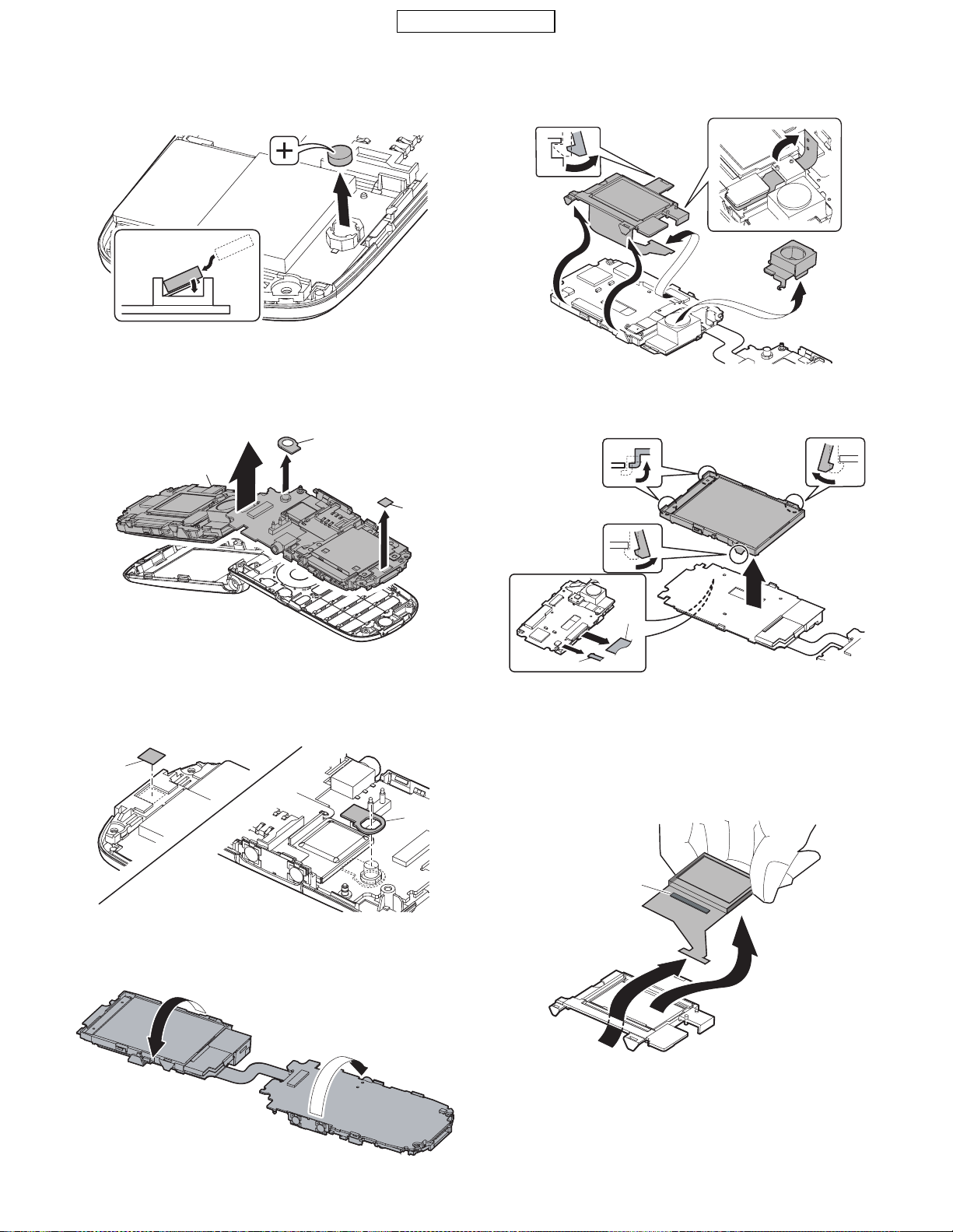

CHAPTER 3.DISASSEMBLY AND REASSEMBLY

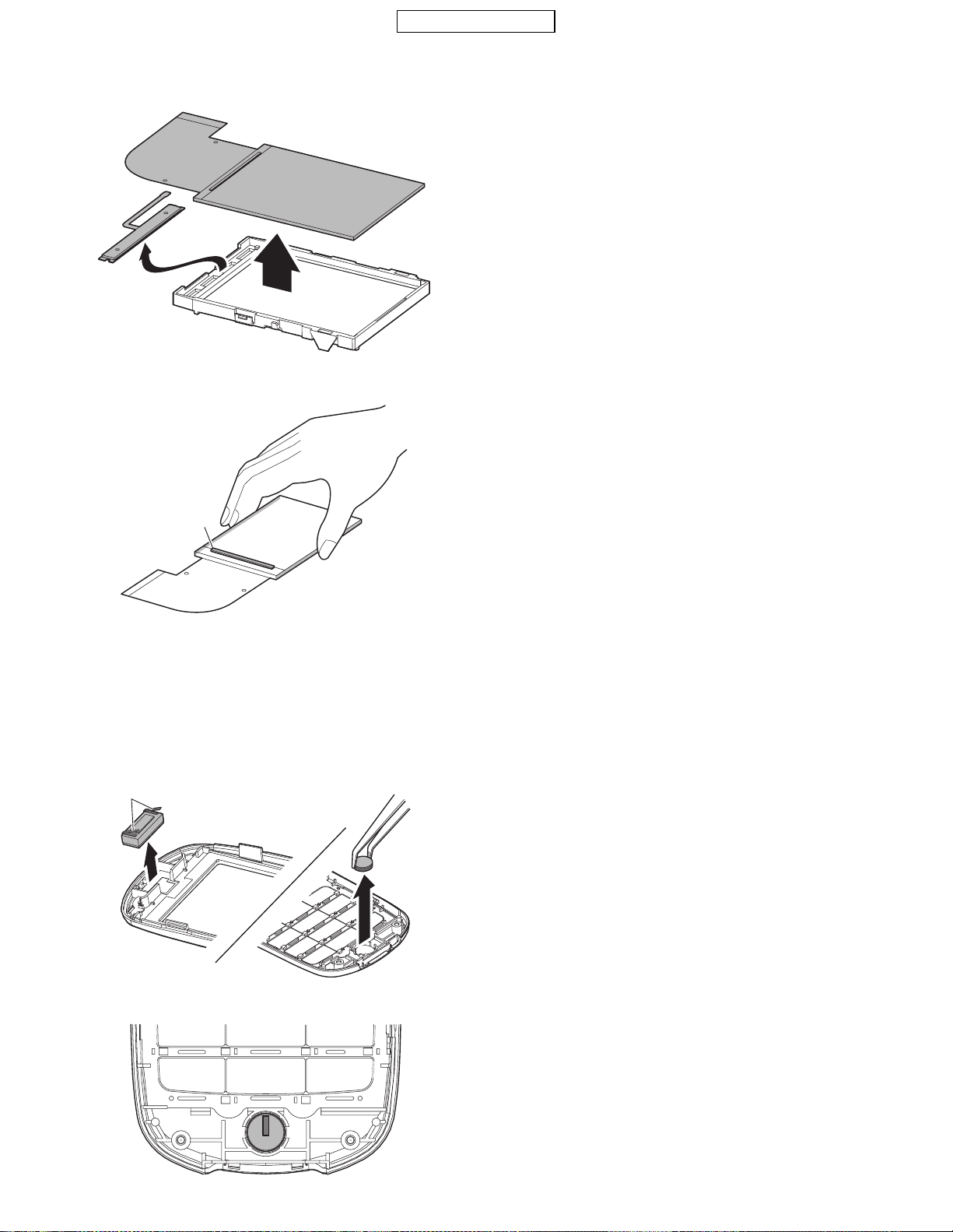

[1] Disassembly and reassembly. . . . . . . . . . . . 3-1

ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

CHAPTER 4. DIAGRAMS

[1] Block diagram . . . . . . . . . . . . . . . . . . . . . . . 4-1

CHAPTER 5. CIRCUIT DIAGRAM

[1] Notes on schematic diagram. . . . . . . . . . . . 5-1

[2] Types of transistor and LED . . . . . . . . . . . . 5-1

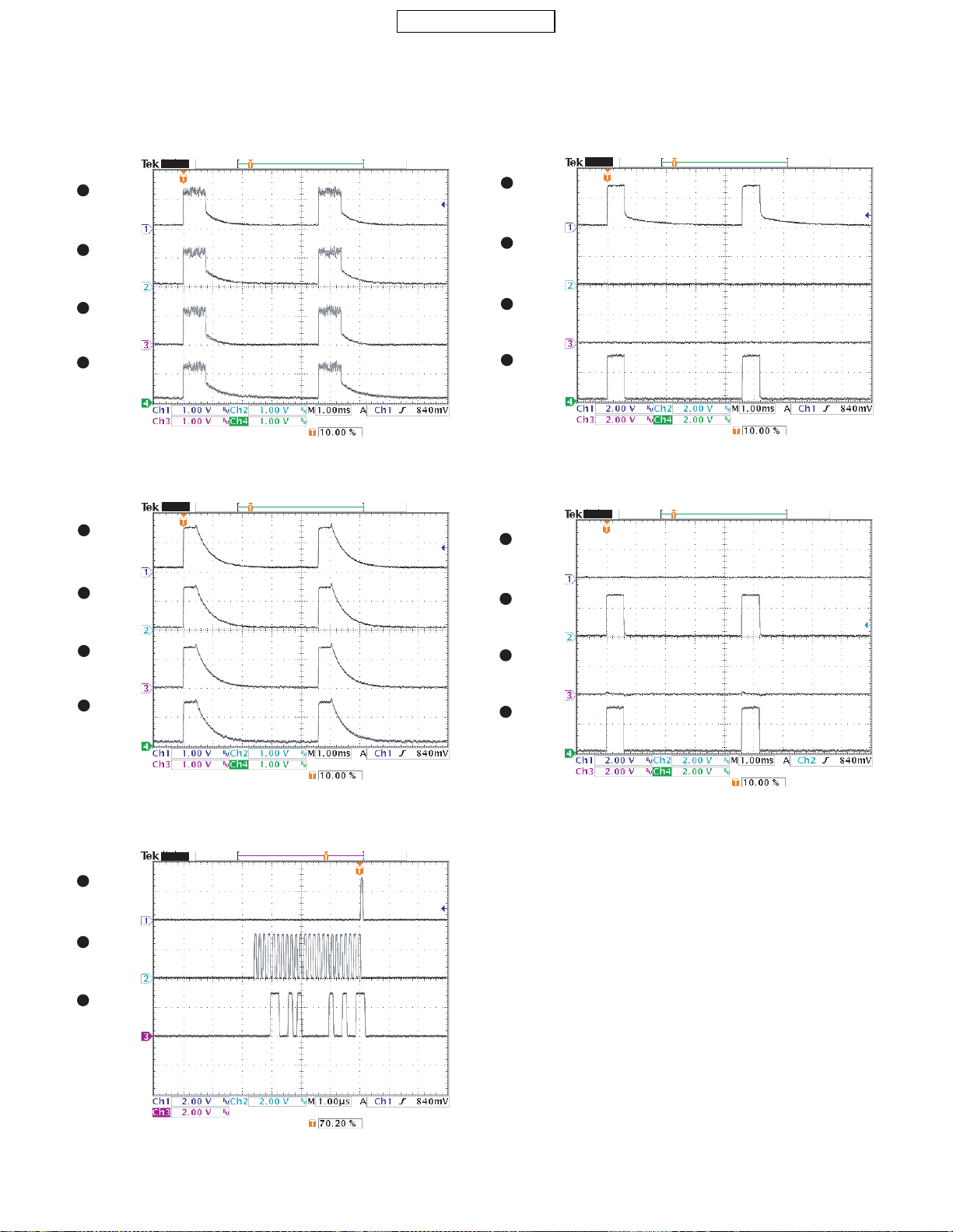

[3] Waveforms of circuit . . . . . . . . . . . . . . . . . . 5-2

[4] Schematic diagram/

Wiring side of P.W.Board. . . . . . . . . . . . . . . . . 5-5

CHAPTER 6. OTHERS

[1] Function table of IC. . . . . . . . . . . . . . . . . . . 6-1

Parts Guide

Parts mark ed w ith "!" are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

This document has been pub lished to be used

SHARP CORPORATION

for after sales service only. The contents are subject to change without notice.

CONFIDENTIAL

SERVICING CONCERNS

1. When requested, back up user’s handset data using SPST (SHARP Program Support Tool). Otherwise, before servicing, warn the user that data in the memory may be lost during repairs.

2. Upgrade the firmware to the latest version using SPST before returning the handset to the customer.

3. After repairs, inspect the handset according to the following flowchart.

Repairs are completed. (Fixed parts have been checked for proper operation.)

4

Check IMEI No./Operator code (Destination)/ Firmware version by Identity function of SPST.

4

Inspect each device using performance check adjustment function of SPST.

4

Carry out RF performance check with SPST.

4

All completed.

4. When storing or transporting a PWB, put it into a conductive bag or wrap it in aluminum foil. (C-MOS IC may be damaged by electrostatic charges.)

5. Do not leave fingerprints, etc. on ornamental parts including a cabinet, especially clear windows for main and sub displays. Wear fingerstalls to avoid this. Also, ensure not to leave fingerprints on the surface of main and external display panels.

6. To prevent oxidation which causes connection problems, do not touch any terminals on the electric board, microphone, vibrator, earpiece and speaker. When handling these parts, wear fingerstalls. Should you touch these parts, clean them with a soft dry cloth. Always wear fingerstalls when handling a shield case on the electric board. Otherwise oxidation may occur causing handset performance deterioration.

7. The FPC is a precision device. Handle it carefully to prevent any damages.

8. Do not expose the moisture sensor to liquids. If the sheet gets wet, red ink runs. In this case, replace the sheet with a new one. Be careful about your perspiration.

9. Before you disassemble or reassemble handset, make sure to remove the Li-Ion battery.

10. Be sufficiently careful with static electr ici ty of integr at ed circui ts and ot he r circuits . Wear sta tic el ectrici ty preven tion ba nds whi le ser vici ng.

TM200 SERVICING CONCERNS

i

CONFIDENTIAL

CHAPTER 1. GENERAL DES CRIPTION

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER TO THE OPERATION MANUAL.

1. SPECIFICATIONS

Camera Device 2 Megapixel CCD digital camera with LED flashlight

Autofocus Autofocus mode, Semi-autofocus mode, Manual focus mode Function Max. 8x Digital zoom, Delay timer, Continuous shot, ±2 exposure correction Image size Still : 2 Megapixel : 1,224 x 1,632 dots

1 Megapixel : 858 x 1,144 dots Large : 768 x 1,024 dots (XGA) Medium : 480 x 640 dots (VGA) Small : 240 x 320 dots (QVGA) Tiny : 120 x 160 dots (QQVGA)

Video : Large : 176 x 144 dots

Small : 128 x 96 dots

Main display Type 2.2 inch Transmissive System LCDs (CG-Silicon )

Colour depth 262k Resolution QVGA (240 x 320 dots)

External display Type 1.06 inch Semi-Transmissive system LCDs

Colour depth 65k colours

Resolution 96 x 64 dots Connections Bluetooth Sound Chords 40 chord polyphonic ringtones

Format AAC, MP3, SMAF, MIDI, i-melody, WA VE, AMR Contacts list (Phonebook) 500 entries Messaging SMS (Text message), MMS (Picture/Video messaging), E-mail with POP3 and

WAP Version 2.0 Browser Openwave 6.2.3

TM

JAVA

Version MIDP2.0

Max. application size 200KB Language Text input method T9, multi-tap Band Tri-Band (900/1800/1900MHz) GPRS Class B, Multislot Class10 Battery Li-Ion (840 mAh) Continuous standby time Approx. max. 220 hours Continuous talking time Approx. max. 200 minutes Weight Approx. 120g (TBD) Size (W x D x H) Approx. 49.2 x 96.3 x 27.1mm (with shell closed and excluding protrusions)

*1

colours

TM

, SD memory card slot

*2

, Earphone/MIC, USB (Ver.1.1), RF connector

SMTP supporting attachment

11 languages (English, German, Dutch, Czech, Hungarian, French, Spanish, Italian, Greek, Portuguese, Turkish)

*3

(TBD)

*3

(TBD)

1) For JPEG wallpaper display only.

*

2) SD memory card is not included.

*

3) It varies depending on the condition.

*

TM200 GENERAL DESC RI PT ION

1 – 1

CONFIDENTIAL

Powered by JBlend All right rights reserved. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countri es. JBlend and all JBlend-based trademarks and logos are trademar ks or registered trademarks of Aplix Co rpora tion in Japan an d other co untri es.

In this product, JBlend

TM

JBlend developed for implementing advanced performance and fast operation on small-memory systems. JBlend and JBlend logo are trademarks or registered trademarks of Aplix Corporation in Japan and other countries.

Licensed by Inter Digital Technology Corporation under one or more of the following United States Patents and/or their domestic or foreign counterparts and other patents pending, including U.S. Patents:4,675,863: 4,779,262: 4,785,450 & 4,811,420.

Licensed under U.S. Patent 4,558,302 and foreign counterparts.

CP8 PATENT

SD logo is a trademark.

is a Java execution environm ent that A plix

TM

is incorporated.

T9 Text Input is licensed under one or mor e of the following: U.S. Pat . Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Australian Pat. No . 727539; Canadian Pat. No.1,331,057;

United Kingdom Pat. No. 2238414B; Hong Kong Sandard Pat. No. HK0940329; Republic of Singa pore Pat. No.51 383; Euro. Pat. No 0 842 463 (96927260.8) DE/DK, FI, FR, IT, NL,PT.ES,SE,GB;

Republic of Korea Pat . Nos. KR20121 1B1 and KR2262 06B1; and additional patents are pending worldwide.

Use of this product in any manner that complies with the MPEG-4 Visual Standard is prohibited, except for use directly related to (a) data or information ( i ) generated by and obtained without charge from a consumer not ther eb y eng aged in a bu sin ess en ter pris e, and ( ii ) f or personal use only ; and (b) o ther use s specifically and separ ately licensed by MPEG LA, L.L.C.

Bluetooth is a trademark of the Bluetooth SIG, Inc. The Bluetooth word mark and logos are o wned by the B luetooth S IG, Inc. and any use of such marks by Sharp is under license. Other trademarks and trade names are those of their respective owners.

Please use discretion in privacy matters when taking photographs or sending images with a camera-equipped mobile phone. Design and specifications are subject to change without prior notice. The information contained in this sales manual is current as of December 2004 (product still under development). All screen images are simulated.

2. NAMES OF PARTS

4

1 2

3

No. Name

9

10

11

12

13

5 6

14 15 16

7

8

17

2-megapixel camera

1

LED flashlight

2

External display

3

Side-up/Side-down key

4

Camera/Music key

5

Voice mail key

6

Flashlight key

7

USB/charger connector

8

Earpiece

9

Main display

F

Handsfree earphones & microphone (stereo)

G

Navigation key (Up/Down/Left/Right)

H

You can programme the Navigation Key yourself. Centre key

I

Earphones connector

J

Font Zoom key

K

The t-zones Key also gives you direct access to the t-zones

L

Online Homepage. SD memory card slot

M

3. OPERATION MANUAL

(Page numbers refer to the user guide)

[OPTIONAL ACCESSORIES]

• USB data cable

The above accessories may not be available in all regions. For details, please contact your dealer.

TM200 GENERAL DESC RI PT ION

1 – 2

CONFIDENTIAL

CHAPTER 2. 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

SPST (SHARP Program Support Tool) allows you to adjust settings, conduct performance checks, and upgrade the firmware.

[1] SHARP PROGRAM SUPPORT TOOL (SPST)

1. SYSTEM REQUIREMENTS

• IBM PC compatible personal computer (standard COM1 115,200 bps serial port and USB required) Supported OS: Windows 98/98SE/2000/XP (except for Windows 95/ME/NT) (English, German, Italian, Spanish, French and Chinese versions)

• Data cable

• GSM tester: CMU150

• GPIB interface: National Instruments USB-GPIB cable (Model No.: NI GPIB-USB-B)

2. INTRODUCTION

2-1. FUNCTIONS

SPST offers seven key functions:

1) Firmware download

2) User data transfer (processes all data at once but not individually.)

3) RF calibration check and test

4) Default setting

5) Identification

6) Performance check and adjustment

7) User password reset

2. To change the password, enter the current password i n proce dure 1, and then click "Change Password".

To check the us age status of t ools , click " Show Repair Log" in proced ure 1.

3.

4. Click “Downloader for Emergency”.

2-2. INSTALLATION

1. Use Windows Explorer to execute the "setup.exe" file on the CDROM.

2. The SPST TM200 setup wizard appears. Follow the installation instructions.

3. After the installation is complete, shortcuts to SPST are created on the desktop and under the "Start"-"Programs"-"TM200" menu. Start SPST from the shortcuts.

2-3. STARTING UP

Connect TM200 to an operable serial port of the PC with the supplied data cable. Make sure that the battery is fully charged. Start SPST from the desktop.

1. The Input password dialog box appears. Enter the password, select a port where TM200 is connected from the list box, and click "OK". If you do not know SPC, click “Cancel” to exit.

200

The above screen appears. Select a model to use and execute the Downloader. (Use this to initialize the flash, etc.)

5. When the password is correct, a connection is established and the following screen appears.

Refer to the attachment 1 for the destination and operator name.

T-Mobile Germany

TM200

Software version: A02-006-0138-TM200

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 1

CONFIDENTIAL

Q Buttons

Default Set Refer to "4 -1 . D e fault settin g ". User Data Back-up Refer to "4-2. User data back-up". User Data Restore Refer to "4-3. User data restore". Downloader Refer to "4-4. Downloader". RF Cal i b r a t i o n & Ch e c k Refer to "4-5. RF calibration & check". RF Test Refer to "4 -6 . R F test tool". User Password Reset Refer to "4-7. Password reset". Performance check

adjustment **** mode release Refer to "4-9. ****mode release". Exit End SPST.

Refer to "4-8. Performance check and adjustment".

3. ADJUSTMENTS FOR TM200

1. Adjustments are required after replacing the following parts. ( F )

Parts TH101

TH701 Main display unit Camera unit

Temperature adjustment

(Camera)

u F uu

F uuu

uuF u uuuF

Temperature adjustment

(Battery)

Main display

flicker adjustment

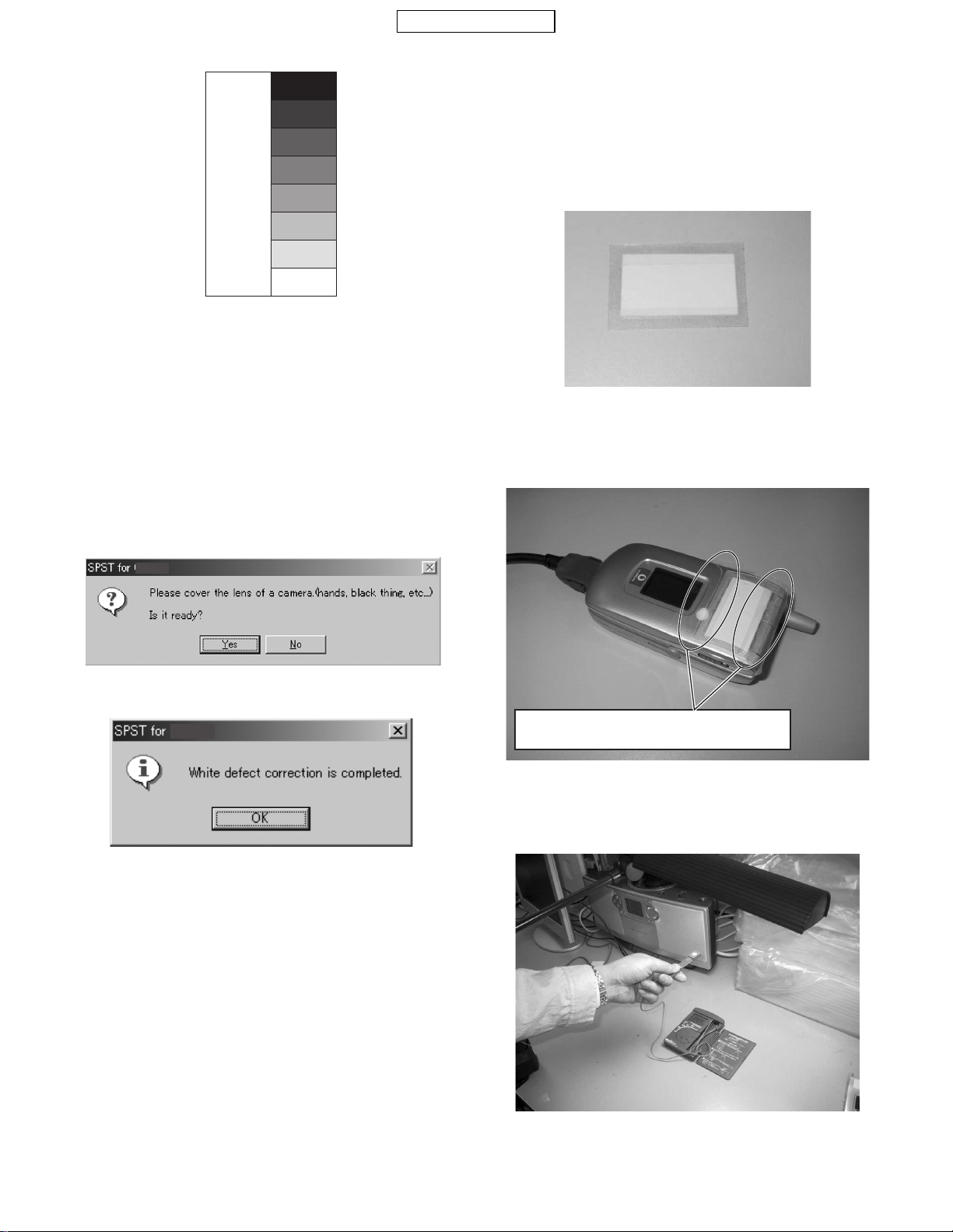

White defect correction

When replacing other parts in the RF section, carry out RF calibration.

2. Click the buttons on the SPST screen for adjustments. 3. The following screen appears.

200

PENDING

Temperature adjustment (Camera section)

1

RF calibration

To abjust the device, click this button (Performance check adjustment).

Temperature adjustment (Battery section)

2

Main display flicker adjustment

3

External display contrast adjustment

4

White defect correction

5

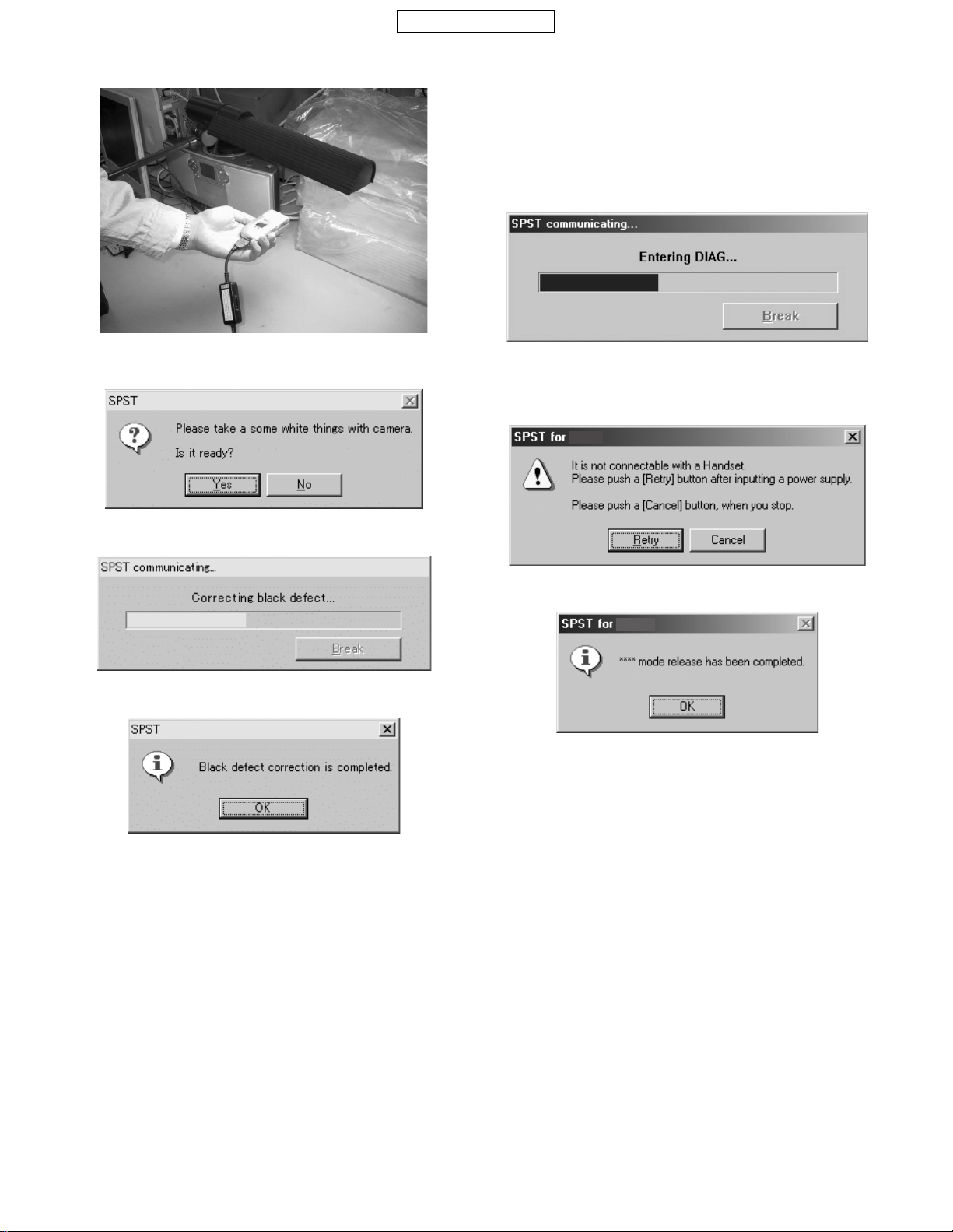

Black defect correction

6

1 2

3 4

5 6

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 2

4. FUNCTIONS

CONFIDENTIAL

4-1. DEFAULT SETTING

SPST can restore the factory settings. This function

1. Deletes all user data in the file system;

2. Restores all WAP settings to default; and

3. Restores the values set by the user to default; (MEP_LOCK settings and the destination and operator name do not change.)

1) Set the COM port on the SPST initial screen and click "Default Set".

2) Click "Yes" to proceed. Click "No" to exit.

TM200

3) Click "Yes" to back-up the MEPLOCK data. Click "No" to restore default settings.

TM200

4-2. USER DATA BACK-UP

SPST saves all the data stored on the handset.

1. Set the COM port on the SPST initial screen and click "User Data Back-up".

2. Specify the file name in the following dialog box and click "Save"

3. The communicating dialog box appears while processing.

TM200

4) Communication starts.

5) The following appears when you select "Yes" in step 3 and MEPLOCK data exists. Click "Yes" to restore the data.

TM200

6) After the handset is turned on, the initialization is complete.

TM200

4. When completed, the following message appears. Click "OK".

4-3. USER DATA RESTORE

SPST completely restores the backed up data.

1. Set the COM port on the SPST initial screen and click "User Data Restore".

2. Specify the file name in the following dialog box and click "Save".

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 3

CONFIDENTIAL

3. The communicating dialog box appears while processing.

4. When the restore is complete, click "OK".

TM200

4-4. DOWNLOADER

4-4-1. Introduction

Downloader allows you to upgrade the firmware.

1) System requirements

• Requirements for the upgrading tool: OS : Windows 98, 98 SE, 2000, or XP

Download file : Only the Motorola format is supported. Communication method : Asynchronous mode Data len g th : 8 bits Parity bit : None Stop bit length : 1 bit

• Requirements for Loading loader Handset : TM200

Communication method : Asynchronous mode Data len g th : 8 bi t s Parity bit : None Stop bit length : 1 bit

4-4-2. Getting started

This section describes how to install/uninstall the software and how to connect handset to a PC.

1) Installing/uninstalling the software [Installing the software]

Note: Downloader is installing/uninnstalling simultaneously with SPTP.

1. Double click the “setup.exe” icon in TM200 Install-E folder.

2. The Setup Wizard is activated. Click the "Next" button.

TM200

3. A location to install the software appears. To install in the default location, click the "Next" button. To change the location, click the "Browse" button, select a desired location and then click the "Next" button. (See the description in "* Changing the install location" below.)

TM200

2) Required devices

The following devices are required to rewrite MOT files using Communication Box.

Conversion connector (16-pin

10-pin)

3

This conversion connector is required to connect TM200 with Communication Box since the cable connector of Communicat ion Box has 16 pins .

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

TM200

2 – 4

CONFIDENTIAL

* Changing the install location

Click the "Browse" button in step 3 to browse folders. Click the "

" button, select a folder and click the "OK" button.

c

200

4. A confirmation message appears. Click the "Next" button.

TM200

6. The installation is completed. Click the "Close" button to close the Setup Wizard.

TM200

7. The shortcut icon shown left is created o n your desktop when the installation is completed.

200

TM200

5. Installtion starts. The progress is displayed.

TM200

Note:

• After installing the upgrading tool in Windows 98 or 98 SE, restart the operating system. While installing the upgrading tool in Windows 98, 98 SE, or ME, a message may appear prompting to restart the operating system. In this case, restart your operating system follwoing the instruction. Even if the message does not appear, restart your operating system after the installation. On Windows 98, if you start the upgradin g t ool wit hout restart ing t he operation system, the follow ing message may appea r. Restart the operating system to ensur e the proper operat i on of the up grad ing t ool .

• Uninstall the upgrading tool before installing the latest version or reinstalling the current version. Otherwise, the upgrading tool may not function properly. To ensure the proper operation, uninstall and then reinstall the upgrading tool.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 5

CONFIDENTIAL

[Uninstalling the software]

1. Double click "setup.exe" in TM200 Install-E folder.

2. The Setup Wizard is activated. Select "Remove The TM200 Upgrading Tool" and click the "Finish" button.

TM200

3. Uninstalltion starts. The progress is displayed.

TM200

2) Connecting handset to a PC A) Using a cable for upgrading

1. Connect the cable to a PC.

2. Connect the cable to handset.

3. The photo below shows handset connected to a PC.

B) Using Communication Box

1. Connect a PC to Communication Box via a serial cable.

2. Connect the AC charger to Communication Box and then plug it into the outlet. All SET POWER SW on Communication Box must be turned off.

3. Connect the conversion connector to Communica tion Box Cables. Connect the conversion connect or in the f ol lowing order, label si de up. From upper right end: Cable No. 1, 3, 5, 7, and 9. From lower right end: Cable No. 2, 4, 6, 8, and 10.

TM200

4. The uninstallation is completed. Click the "Close" button to close the Setup Wizard.

TM200

4. The photo below shows the conversion connector connected to Communication Box Cable 1.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 6

CONFIDENTIAL

5. Connect the other end of the conversion connector to handset.

6. The photo below shows handset, Communication Box and a PC (all connected). Make sure handset and Communication Box Cable 1 are connected via the conversion connector.

4-4-3. Rewriting MOT files

This section describes how to rewrite MOT files.

1) Downloader for Emergency

1. Click “Downloader for Emergency“.

2. The upgrading tool is activated.

Note:

• Handset must be turned off before making any connections. Press and hold the Power key to turn off handset. Do not turn off in other ways. Malfunction may occur and the MOT file rewrite operation may fail.

• M ake sure the handset battery is sufficiently charged. If the battery is low, the MOT file rewrite operation may fail. Charge the battery before the operation.

• Disco nnect the AC charger from a cable for upgrading. When rewriting MOT files using the upgrading tool, do not connect the AC charger to the cable. If you connect the cable connected to the AC charger to handset, charging starts and the MOT file rewrite operation is interrupted.

• All SET POWER SW on Communication Box must be turned off. If handset is connected with SET POWER SW turned on, charging starts and the MOT file rewrite operation is interrupted.

• Make sure handset and Communication Box Cable 1 are

connected via the conversion connector.

(When using Communication Box, the only handset connected to Cable 1 can be operated on the PC.)

200

Note: Disable the power saving mode before rewriting MOT files.

If the power saving mode is active, the rewrite operation may fail depending on the PC.

X.XX

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 7

CONFIDENTIAL

2) Sel e ct ing options and COM port

Uncheck the check box when using a cable for upgrading.

1

Leave it checked when using Communication Box. To initialize user area, check the File System Initialize check

2

box. (User data will be deleted and the handset status will return to the default.)

Click here and in the pull-down list, select a communications

3

port where the cable or Communication Box is connected.

TM200

1

X.XX

3

2

When using Communication Box, set Wait Time. Check the Communication Box check box to adjust Wait Time (default: 3 seconds). The time to delete t he program da ta varie s betwee n han dsets. Handsets wait for the set Wait Time until the whole process is completed. If an error occurs, increase the value.

You can shorten time for the MOT rewrite operation by selecting a smaller value for Wait Time. Example: Time to rewrite two MOT files at a time. At the default setting (3 seconds), rewrite time is approximately 40 minutes. If the value is set to 1, the rewrite time will be reduced to approximately 30 minutes. If an error occurs at 1, increase the value. The error screen will appear on handsets No. 2 to No.10. If this screen appears, increase Wait Time and retry.

Error screen

Flash Loader 5.02

CORRESPONDENCE_ERROR

When the File System Initialize check box is checked, a confirmation message appears.

[Notes for the Wait Time setting]

When the set value is smaller than the default (3), the message on the left appears alerting you a possible error.

Click the [OK] button to proceed, and click the [Cancel] button to change the value.

Click the [OK] button.

Note: When you check File System Initialize check box and click the

[OK] button, handset status returns to the default. In this case, user data is initialized after the MOT file rewrite operation. Uncheck the check box to avoid this.

3) Selecting a MOT file

1. Click the [Select File] button. The Open dialog box appears.

TM200

X.XX

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 8

CONFIDENTIAL

1

[Open dialog box]

Click the [c] button to open a desired folder.

1

A Motorola file (.mot) in the folder appears. Click a file to write in.

2

Click the [Open] button to open the file.

3

2

Note:

• Make sure to select a MOT file. If the File name field is blank, you cannot rewrite a MOT file.

1. "Press Power Button" appears. <When using a cable for upgrading> Hold down the Power key. <When using the Communication Box> Turn on Communication Box SW from No.10 down to No.1 (turn on only the handsets you are using).

TM200

3

2. "Keep Pressing Power Button" appears. <When using a cable for upgrading> Hold down the Power key until the "Keep Pressing Power Button" disappears. <When using the Communication Box> Leave the Communication Box SW turned on.

• Use MOT files in the hard disk. If the selected MOT file is stored in other locations, an error message appears and you cannot complete the rewrite operation.

To use MOT files on CDs or on the network, copy or download them to the hard disk first.

4) Rewriting a MOT file

Click the [Start Loading Flash] button to start rewriting.

TM200

X.XX

TM200

3. The MOT file rewrite operation starts. <When using a cable for upgrading> When "Keep Pressing Power Button" disappears, release the Power key. <When using the Communication Box> Leave the Communication Box SW turned on.

TM200

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 9

CONFIDENTIAL

4. When the rewrite operation starts, handset display screen shows the software version and process of communicat ions wit h the PC.

Flash Loader 5.02

XXXXXXXCommand

Canceling the ongoing rewr ite operation:

Click the [QU I T] button. To rewrite MOT files later, remove and install the battery first.

[Notes for the use of a cable for upgrading]

1. Disconnect the AC charger from the cable. Otherwise charging starts and the MOT file rewrite operation is interrupted.

2. Make sure the handset battery is sufficiently charged. If the battery is low, the rewrite operation may fail. Charge the battery before the operation.

3. If the ongoing rewrite operation is canceled, or interrupted by an error, remove and reinstall the battery and retry.

[Notes for the use of the Communication Box]

1. When "Press Po wer Button!" appears, t urn on Communication Box SW from No.10 down to No.1. If the communication BoxSW No.1 is first turned on, the rewrite on communication BoxSW No. 2 to No. 10 operation will fai l.

2. The time to delete the program data varies between handsets. If the process fails at the default Wait Time (3 seconds), increase the value. Consequently, this will increase the time to complete the rewrite operation.

5) Checking the value of SUM

When the rewrite operation is completed, a confirmation message appears with SUM.

SUM also appears on handset. <When using a cable for upgrading> After 8 seconds, SUM disappears. <When using Communication Box> When SET POWER SW is turned off, SUM disappears.

Flash Loader 5.02 SUM Check End SUM = 0xdb3d

Make sure SUM is the same between the PC and handset.

The same SUM means that the rewrite operation is completed properly. If the value is different, try again to ensure completion of the operation.

If the MOT file rewrite operation fails, an error message appears on handset.

The screen shot on the left shows an error in erasing Flash data.

*

[ADR] and [STR] appear only when an error occurs in the FLASHrelated operation. Start over the MOT file rewrite operation. <When other error messages appear> Find the message in 4-4-4. 2)Error messages for Loading loader, and follow the instructions.

Error screen

Flash Loader 5.02 FLASH_ERROR ERROR_ERASE ADR = 0x1000000 STR = 0xA0

6) After the operation

Disconnect the cable for upgrading from handset. When using the Communication Box, turn off SET POWER S W and then disconnect the cable from handset.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 10

CONFIDENTIAL

12 3

7) Initializing only the file system

Follow the instructions below to initialize only the file system. (User data will be deleted and the handset status will return to the default.)

Perform this procedure when the handset does not turn on.

*

Check the File System Initialize check box.

1

Leave the Load File text box blank.

2

Click the [Start Loading Flash] button.

3

TM200

For further operations, refer to [4-4-3. 4) Rewriting a MOT file] or [4-4-3. 5) Checking the value of SUM].

X.XX

4-4-4. Error message list

Below is the list of error messages for the upgr ading tool (on the PC side) and Loading loader (on the handset side).

1) Error messages for the upgrading tool (on the PC side)

No. Message Descriptions/Instructions

1 Select a file for Downloadi ng

or check the box of Initializing.

2 Unable to open file. Failed to open the MOT file.

3 You need to set the Wait Time! WaitTime (S) is not set.

4 The file you selected is

unsuitable for Upgrading.

5 Cannot Setup COM port. The selected COM port does not

6 RAM Loader not responding

to Commands.

7 RAM Loader responding

Parameter Error.

8 RAM Loader responding

Flash Error (XXXX).

9 Correspondence Error. Undefined response from Loading

Load File is not set. Select a MOT file.

Start over the rewrite operation.

Set WaitTime (S) value. The selected file cannot be rewrit-

ten for upgrading. Select an appropriate MOT file.

exist or is used for other operati ons. Select a COM port connected to the PC cable.

No response from Loading loader. Start over the rewrite operation.

Information sent from the PC is illegal. Reinstall the upgrading tool. Start over the rewrite operation.

Failed to initialize FLASH ROM in (XXXX). Start over the rewrite operation.

loader. Start over the rewrite operation.

2) Error messages for Loading loader (on the handset side) No.

1

2 ERROR_PARAM The upgrading tool is damaged.

3

4 ERROR_READ Failed to read Flash Rom data and the

5 ERROR_WRITE Failed to w rite to F lash Rom a nd the

6 ERROR_ERASE Failed to erase Flash Rom data and the

7 ERROR_VERIFY The rewrite operation was abort ed s ince

8

9 CORRESPONDENCE

10 ADR = XXXXXXXX Indicates the address of Flash

11 STR = XX Indicates the status of Flash

When No.1 occurs, handset screen shows error messages for No.2

*

to No.8 as well as the address (No.10) and status (No.11) of the error source at the same time.

Message Descriptions/Instructions

FLASH_ERROR An error in Flash Rom.

ERROR_WPROTECT

ERROR_RWE_TMOUT

_ERROR

Start over the rewrite operation.

Uninstall and reinstall the upgrading tool, and start over the rewrite operation.

Flash Rom is protected. Battery may be too low. Use a sufficiently charged battery and start over the rewrite operation.

operation was aborted. Start over the rewrite operation.

there was a mismatch between data written to Flash Rom and that written t o handset. Start over the rewrite operation.

Communication was terminated since there was no response from Flash Rom for a certain period of time. Start over the rewrite operation.

Communication was terminated since serial data communication failed. Start over the rewrite operation.

(the error source).

4-5. RF CALIBRATION & CHECK

Stabilized

power supply

Handset

Test battery

Data cable

4-5-1. Preparation

• Connect PC and GSM tester with a GPIB cable.

• Connect PC and handset with a Data cable. (Use a test battery or one close.)

• Connect a RF cable of GSM tester to handset.

RF cable

GSM tester

GPIB cable

PC

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 11

CONFIDENTIAL

4-5-2. Default setting for the program.

• Activate the program and set defaults.

TM200

1.2.0.0

the COMport.1) Select

2) Set the GPIB No.

3)

Select the test instrument.

4) Set theGPIBaddress.

Set the"Cable Offset" values.

5) For cables with connector UKOG-1031YCZZ (1.0m) UKOG-1032YCZZ (0.5m) the values as follows:

(1.0m) (0.5m)

GSM9 00 0.48 0.27 DCS1800 0.67 0.38 PCS1900 0.68 0.38

In case of an attenuator

*

addition state, 6 db addition to the value.

: : :

5. Make sure the handset is on and click "OK". (Adjustment starts.)

6. Click "OK".

7. The initial screen returns.

4-5-4. RF pe rformance check (Inse rt SIM card)

1. Apply 4 V using a stabilized power suppl y and turn on the ha ndset.

2. Start "RF calibration & check" on SPST and click "Calibration".

3. When initialization is complete, click "OK".

4-5-3. RF calibration (Remove SIM card)

1. Apply 4 V using a stabilized power supply and t urn on th e handset .

2. Start "RF calibration & check" on SPST and click "Calibration".

3. When initialization is complete, click "OK".

4. Apply 4 V using a stabilized power supply and turn on the handset. After the handset enters Standby mode, lower the voltage to 3.7 V.

5.Make sure the handset is in the idle mode and click "OK"..

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 12

CONFIDENTIAL

6. Press the keys 1, 2, 3 and Send and click "OK".

7. Make sure the terminal display is "In Call" and click "OK". (RF performance check starts.)

8. The following message appears during the check. Press the keys 1, 2, 3 and Send again and click "OK".

The following will be displayed in case of failure. See the attachment 2 for troubleshooting.

11. Click "OK".

9. Make sure the terminal display is "In Call" and click "OK".

10. RF performance check is complete. Click "Save As..." and name the file to save the result. Click "OK" to exit.

12. T he initial screen returns.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 13

CONFIDENTIAL

Attachment 2 Whole inspection list by RF performance check.

Band

GSM900 Tx 1 Burst Power 37CH PCL5

Sending/

Receive

No.

2 Burst Power 975CH PCL5 3 Burst Power 124CH PCL5 4 Burst Power 37CH PCL11 5 Burst Power 37CH PCL19 6 Frequency Error 37CH PCL5 7 Frequency Error 975CH PCL5 8 Frequency Error 124CH PCL5

9 P hase Error (RMS) 37CH PCL5 10 Phase Error (RMS) 975CH PCL5 11 Phase Error (RMS) 124CH PCL5 12 Phase Error (Peak) 37CH PCL5 13 Phase Error (Peak) 975CH PCL5 14 Phase Error (Peak) 124CH PCL5 15 Mod_spectrum -800 37CH PCL5 16 Mod_spectrum -600 37CH PCL5 17 Mod_spectrum -400 37CH PCL5 18 Mod_spectrum -250 37CH PCL5 19 Mod_spectrum -200 37CH PCL5 20 Mod_spectrum +200 37CH PCL5 21 Mod_spectrum +250 37CH PCL5 22 Mod_spectrum +400 37CH PCL5 23 Mod_spectrum +600 37CH PCL5 24 Mod_spectrum +800 37CH PCL5 25 Mod_spectrum -800 975CH PCL5 26 Mod_spectrum -600 975CH PCL5 27 Mod_spectrum -400 975CH PCL5 28 Mod_spectrum -250 975CH PCL5 29 Mod_spectrum -200 975CH PCL5 30 Mod_spectrum +200 975CH PCL5 31 Mod_spectrum +250 975CH PCL5 32 Mod_spectrum +400 975CH PCL5 33 Mod_spectrum +600 975CH PCL5 34 Mod_spectrum +800 975CH PCL5 35 Mod_spectrum -800 124CH PCL5 36 Mod_spectrum -600 124CH PCL5 37 Mod_spectrum -400 124CH PCL5 38 Mod_spectrum -250 124CH PCL5 39 Mod_spectrum -200 124CH PCL5 40 Mod_spectrum +200 124CH PCL5 41 Mod_spectrum +250 124CH PCL5 42 Mod_spectrum +400 124CH PCL5 43 Mod_spectrum +600 124CH PCL5 44 Mod_spectrum +800 124CH PCL5 45 Mod_spectrum -800 37CH PCL11 46 Mod_spectrum -600 37CH PCL11 47 Mod_spectrum -400 37CH PCL11

Item to be inspected

Channel PCL

Band

GSM900 Tx 48 Mod_spectrum -250 37CH PCL11

Sending/

Receive

No.

49 Mod_spectrum -200 37CH PCL11 50 Mod_spectrum +200 37CH PCL11 51 Mod_spectrum +250 37CH PCL11 52 Mod_spectrum +400 37CH PCL11 53 Mod_spectrum +600 37CH PCL11 54 Mod_spectrum +800 37CH PCL11 55 Mod_spectrum -800 37CH PCL19 56 Mod_spectrum -600 37CH PCL19 57 Mod_spectrum -400 37CH PCL19 58 Mod_spectrum -250 37CH PCL19 59 Mod_spectrum -200 37CH PCL19 60 Mod_spectrum +200 37CH PCL19 61 Mod_spectrum +250 37CH PCL19 62 Mod_spectrum +400 37CH PCL19 63 Mod_spectrum +600 37CH PCL19 64 Mod_spectrum +800 37CH PCL19 65 Switch_Spectrum -1800 37CH PCL5 66 Switch_Spectrum -1200 37CH PCL5 67 Switch_Spectrum -600 37CH PCL5 68 Switch_Spectrum -400 37CH PCL5 69 Switch_Spectrum +400 37CH PCL5 70 Switch_Spectrum +600 37CH PCL5 71 Switch_Spectrum +1200 37CH PCL5 72 Switch_Spectrum +1800 37CH PCL5 73 Switch_Spectrum -1800 975CH PCL5 74 Switch_Spectrum -1200 975CH PCL5 75 Switch_Spectrum -600 975CH PCL5 76 Switch_Spectrum -400 975CH PCL5 77 Switch_Spectrum +400 975CH PCL5 78 Switch_Spectrum +600 975CH PCL5 79 Switch_Spectrum +1200 975CH PCL5 80 Switch_Spectrum +1800 975CH PCL5 81 Switch_Spectrum -1800 124CH PCL5 82 Switch_Spectrum -1200 124CH PCL5 83 Switch_Spectrum -600 124CH PCL5 84 Switch_Spectrum -400 124CH PCL5 85 Switch_Spectrum +400 124CH PCL5 86 Switch_Spectrum +600 124CH PCL5 87 Switch_Spectrum +1200 124CH PCL5 88 Switch_Spectrum +1800 124CH PCL5 89 Switch_Spectrum -1800 37CH PCL11 90 Switch_Spectrum -1200 37CH PCL11 91 Switch_Spectrum -600 37CH PCL11 92 Switch_Spectrum -400 37CH PCL11

Item to be inspected

Channel PCL

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 14

CONFIDENTIAL

Band

GSM900 Tx 93 Switch_Spectrum +400 37CH PCL11

DCS Tx 115 Burst Power 699CH PCL0

Sending/

Receive

Rx 110 Rx Sensitivity 37CH PCL5

No.

94 Switch_Spectrum +600 37CH PCL11 95 Switch_Spectrum +1200 37CH PCL11 96 Switch_Spectrum +1800 37CH PCL11 97 Switch_Spectrum -1800 37CH PCL19 98 Switch_Spectrum -1200 37CH PCL19 99 Switch_Spectrum -600 37CH PCL19

100 Switch_Spectrum -400 37CH PCL19 101 Switch_Spectrum +400 37CH PCL19 102 Switch_Spectrum +600 37CH PCL19 103 Switch_Spectrum +1200 37CH PCL19 104 Switch_Spectrum +1800 37CH PCL19 105 Burst Timing 37CH PCL5 106 Burst Timing 975CH PCL5 107 Burst Timing 124CH PCL5 108 Burst Timing 37CH PCL11 109 Burst Timing 37CH PCL19

111 Rx Sensitivity 975CH PCL5 112 Rx Sensitivity 124CH PCL5 113 Usable Receiver Level 37CH PCL5 114 Rx Level Reports 37CH PCL5

116 Burst Power 512CH PCL0 117 Burst Power 855CH PCL0 118 Burst Power 699CH PCL5 119 Burst Power 699CH PCL15 120 Frequency Error 699CH PCL0 121 Frequency Error 512CH PCL0 122 Frequency Error 885CH PCL0 123 Phase Error (RMS) 699CH PCL0 124 Phase Error (RMS) 512CH PCL0 125 Phase Error (RMS) 885CH PCL0 126 Phase Error (Peak) 699 CH PCL0 127 Phase Error (Peak) 512 CH PCL0 128 Phase Error (Peak) 855 CH PCL0 129 Mod_spectrum -800 699CH PCL0 130 Mod_spectrum -600 699CH PCL0 131 Mod_spectrum -400 699CH PCL0 132 Mod_spectrum -250 699CH PCL0 133 Mod_spectrum -200 699CH PCL0 134 Mod_spectrum +200 699CH PCL0 135 Mod_spectrum +250 699CH PCL0 136 Mod_spectrum +400 699CH PCL0 137 Mod_spectrum +600 699CH PCL0 138 Mod_spectrum +800 699CH PCL0 139 Mod_spectrum -800 512CH PCL0

Item to be inspected

Channel PCL

Band

DCS Tx 140 Mod_spectrum -600 512CH PCL0

Sending/

Receive

No.

141 Mod_spectrum -400 512CH PCL0 142 Mod_spectrum -250 512CH PCL0 143 Mod_spectrum -200 512CH PCL0 144 Mod_spectrum +200 512CH PCL0 145 Mod_spectrum +250 512CH PCL0 146 Mod_spectrum +400 512CH PCL0 147 Mod_spectrum +600 512CH PCL0 148 Mod_spectrum +800 512CH PCL0 149 Mod_spectrum -800 885CH PCL0 150 Mod_spectrum -600 885CH PCL0 151 Mod_spectrum -400 885CH PCL0 152 Mod_spectrum -250 885CH PCL0 153 Mod_spectrum -200 885CH PCL0 154 Mod_spectrum +200 885CH PCL0 155 Mod_spectrum +250 885CH PCL0 156 Mod_spectrum +400 885CH PCL0 157 Mod_spectrum +600 885CH PCL0 158 Mod_spectrum +800 885CH PCL0 159 Mod_spectrum -800 699CH PCL5 160 Mod_spectrum -600 699CH PCL5 161 Mod_spectrum -400 699CH PCL5 162 Mod_spectrum -250 699CH PCL5 163 Mod_spectrum -200 699CH PCL5 164 Mod_spectrum +200 699CH PCL5 165 Mod_spectrum +250 699CH PCL5 166 Mod_spectrum +400 699CH PCL5 167 Mod_spectrum +600 699CH PCL5 168 Mod_spectrum +800 699CH PCL5 169 Mod_spectrum -800 699CH PCL15 170 Mod_spectrum -600 699CH PCL15 171 Mod_spectrum -400 699CH PCL15 172 Mod_spectrum -250 699CH PCL15 173 Mod_spectrum -200 699CH PCL15 174 Mod_spectrum +200 699CH PCL15 175 Mod_spectrum +250 699CH PCL15 176 Mod_spectrum +400 699CH PCL15 177 Mod_spectrum +600 699CH PCL15 178 Mod_spectrum +800 699CH PCL15 179 Switch_Spectrum -1800 699CH PCL0 180 Switch_Spectrum -1200 699CH PCL0 181 Switch_Spectrum -600 699CH PCL0 182 Switch_Spectrum -400 699CH PCL0 183 Switch_Spectrum +400 699CH PCL0 184 Switch_Spectrum +600 699CH PCL0 185 Switch_Spectrum +1200 699CH PCL0 186 Switch_Spectrum +1800 699CH PCL0 187 Switch_Spectrum -1800 512CH PCL0

Item to be inspected

Channel PCL

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 15

CONFIDENTIAL

Band

DCS Tx 188 Switch_Spectrum -1200 512CH PCL0

PCS Tx 229 Burst Power 661CH PCL0

Sending/

Receive

Rx 224 Rx Sensitivity 699CH PCL0

No.

189 Switch_Spectrum -600 512CH PCL0 190 Switch_Spectrum -400 512CH PCL0 191 Switch_Spectrum +400 512CH PCL0 192 Switch_Spectrum +600 512CH PCL0 193 Switch_Spectrum +1200 512CH PCL0 194 Switch_Spectrum +1800 512CH PCL0 195 Switch_Spectrum -1800 885CH PCL0 196 Switch_Spectrum -1200 885CH PCL0 197 Switch_Spectrum -600 885CH PCL0 198 Switch_Spectrum -400 885CH PCL0 199 Switch_Spectrum +400 885CH PCL0 200 Switch_Spectrum +600 885CH PCL0 201 Switch_Spectrum +1200 885CH PCL0 202 Switch_Spectrum +1800 885CH PCL0 203 Switch_Spectrum -1800 699CH PCL5 204 Switch_Spectrum -1200 699CH PCL5 205 Switch_Spectrum -600 699CH PCL5 206 Switch_Spectrum -400 699CH PCL5 207 Switch_Spectrum +400 699CH PCL5 208 Switch_Spectrum +600 699CH PCL5 209 Switch_Spectrum +1200 699CH PCL5 210 Switch_Spectrum +1800 699CH PCL5 211 Switch_Spectrum -1800 699CH PCL15 212 Switch_Spectrum -1200 699CH PCL15 213 Switch_Spectrum -600 699CH PCL15 214 Switch_Spectrum -400 699CH PCL15 215 Switch_Spectrum +400 699CH PCL15 216 Switch_Spectrum +600 699CH PCL15 217 Switch_Spectrum +1200 699CH PCL15 218 Switch_Spectrum +1800 699CH PCL15 219 Burst Timing 699CH PCL0 220 Burst Timing 512CH PCL0 221 Burst Timing 885CH PCL0 222 Burst Timing 699CH PCL5 223 Burst Timing 699CH PCL15

225 Rx Sensitivity 512CH PCL0 226 Rx Sensitivity 885CH PCL0 227 Usable Receiver Level 699CH P CL0 228 Rx Level Reports 699CH PCL0

230 Burst Power 512CH PCL0 231 Burst Power 810CH PCL0

Item to be inspected

Channel PCL

Band

PCS Tx 232 Burst Power 661CH PCL5

Sending/

Receive

No.

233 Burst Power 661CH PCL15 234 Frequency Error 661CH PCL0 235 Frequency Error 512CH PCL0 236 Frequency Error 810CH PCL0 237 Phase Error (RMS) 661CH PCL0 238 Phase Error (RMS) 512CH PCL0 239 Phase Error (RMS) 810CH PCL0 240 Phase Error (Peak) 661CH PCL0 241 Phase Error (Peak) 512CH PCL0 242 Phase Error (Peak) 810CH PCL0 243 Mod_spectrum -800 661CH PCL0 244 Mod_spectrum -600 661CH PCL0 245 Mod_spectrum -400 661CH PCL0 246 Mod_spectrum -250 661CH PCL0 247 Mod_spectrum -200 661CH PCL0 248 Mod_spectrum +200 661CH PCL0 249 Mod_spectrum +250 661CH PCL0 250 Mod_spectrum +400 661CH PCL0 251 Mod_spectrum +600 661CH PCL0 252 Mod_spectrum +800 661CH PCL0 253 Mod_spectrum -800 512CH PCL0 254 Mod_spectrum -600 512CH PCL0 255 Mod_spectrum -400 512CH PCL0 256 Mod_spectrum -250 512CH PCL0 257 Mod_spectrum -200 512CH PCL0 258 Mod_spectrum +200 512CH PCL0 259 Mod_spectrum +250 512CH PCL0 260 Mod_spectrum +400 512CH PCL0 261 Mod_spectrum +600 512CH PCL0 262 Mod_spectrum +800 512CH PCL0 263 Mod_spectrum -800 810CH PCL0 264 Mod_spectrum -600 810CH PCL0 265 Mod_spectrum -400 810CH PCL0 266 Mod_spectrum -250 810CH PCL0 267 Mod_spectrum -200 810CH PCL0 268 Mod_spectrum +200 810CH PCL0 269 Mod_spectrum +250 810CH PCL0 270 Mod_spectrum +400 810CH PCL0 271 Mod_spectrum +600 810CH PCL0 272 Mod_spectrum +800 810CH PCL0 273 Mod_spectrum -800 661CH PCL5 274 Mod_spectrum -600 661CH PCL5 275 Mod_spectrum -400 661CH PCL5 276 Mod_spectrum -250 661CH PCL5 277 Mod_spectrum -200 661CH PCL5 278 Mod_spectrum +200 661CH PCL5 279 Mod_spectrum +250 661CH PCL5 280 Mod_spectrum +400 661CH PCL5

Item to be inspected

Channel PCL

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 16

CONFIDENTIAL

Band

Sending/

Receive

No.

Item to be inspected

Channel PCL

PCS Tx 281 Mod_spectrum +600 661CH PCL5

282 Mod_spectrum +800 661CH PCL5 283 Mod_spectrum -800 661CH PCL15 284 Mod_spectrum -600 661CH PCL15 285 Mod_spectrum -400 661CH PCL15 286 Mod_spectrum -250 661CH PCL15 287 Mod_spectrum -200 661CH PCL15 288 Mod_spectrum +200 661CH PCL15 289 Mod_spectrum +250 661CH PCL15 290 Mod_spectrum +400 661CH PCL15 291 Mod_spectrum +600 661CH PCL15 292 Mod_spectrum +800 661CH PCL15 293 Switch_Spectrum -1800 661CH PCL0 294 Switch_Spectrum -1200 661CH PCL0 295 Switch_Spectrum -600 661CH PCL0 296 Switch_Spectrum -400 661CH PCL0 297 Switch_Spectrum +400 661CH PCL0 298 Switch_Spectrum +600 661CH PCL0 299 Switch_Spectrum +1200 661CH PCL0 300 Switch_Spectrum +1800 661CH PCL0 301 Switch_Spectrum -1800 512CH PCL0 302 Switch_Spectrum -1200 512CH PCL0 303 Switch_Spectrum -600 512CH PCL0 304 Switch_Spectrum -400 512CH PCL0 305 Switch_Spectrum +400 512CH PCL0 306 Switch_Spectrum +600 512CH PCL0 307 Switch_Spectrum +1200 512CH PCL0 308 Switch_Spectrum +1800 512CH PCL0 309 Switch_Spectrum -1800 810CH PCL0 310 Switch_Spectrum -1200 810CH PCL0 311 Switch_Spectrum -600 810CH PCL0 312 Switch_Spectrum -400 810CH PCL0 313 Switch_Spectrum +400 810CH PCL0 314 Switch_Spectrum +600 810CH PCL0 315 Switch_Spectrum +1200 810CH PCL0 316 Switch_Spectrum +1800 810CH PCL0 317 Switch_Spectrum -1800 661CH PCL5 318 Switch_Spectrum -1200 661CH PCL5 319 Switch_Spectrum -600 661CH PCL5 320 Switch_Spectrum -400 661CH PCL5 321 Switch_Spectrum +400 661CH PCL5 322 Switch_Spectrum +600 661CH PCL5 323 Switch_Spectrum +1200 661CH PCL5 324 Switch_Spectrum +1800 661CH PCL5

Band

Sending/

Receive

No.

Item to be inspected

Channel PCL

PCS Tx 325 Switch_Spectrum -1800 661CH PCL15

326 Switch_Spectrum -1200 661CH PCL15 327 Switch_Spectrum -600 661CH PCL15 328 Switch_Spectrum -400 661CH PCL15 329 Switch_Spectrum +400 661CH PCL15 330 Switch_Spectrum +600 661CH PCL15 331 Switch_Spectrum +1200 661CH PCL15 332 Switch_Spectrum +1800 661CH PCL15 333 Burst Timing 661CH PCL0 334 Burst Timing 512CH PCL0 335 Burst Timing 810CH PCL0 336 Burst Timing 661CH PCL5 337 Burst Timing 661CH PCL15

Rx 338 Rx Sensitivity 661CH PCL0

339 Rx Sensitivity 512CH PCL0 340 Rx Sensitivity 810CH PCL0 341 Usable Receiver Level 661CH P CL0 342 Rx Level Reports 661CH PCL0

Q Troubleshooting list

Test items

Tx

Burst Power IC802, IC803,

Frequency Error TCX801 TCX801 TCX801 Phase Erro r IC801 IC801 IC801 Mod_spectrum Switch_Spectrum IC801, IC802

Burst Timing IC802 IC802 IC802

Rx

Rx Sensitivity IC801, IC803,

Usable Receiver Level IC801 IC801 IC801 Rx Level Reports IC801, IC803,

Check parts for GSM900

FL905

IC801, TCX801 IC801, TCX801 IC801, TCX801

IC803

FL902, FL905

Check parts

for DCS

IC802, IC803, FL905

IC801, IC802 IC803

IC801, IC803, FL902, FL905

Check parts

for PCS

IC802, IC803, FL905

IC801, IC802, IC803

IC801, IC803, FL903, FL905

4-6. RF TEST TOOL

4-6-1. Requirements

For repairs, this test checks the condition of an electric board (especially the RF section).

• PC with COM port

• TM200 Data Cable

• PWB repair jig

• GSM Tester (CMU200)

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 17

CONFIDENTIAL

4-6-2. Setup

1. Set PWB and make connections as shown below. Make sure connections are correct at the points shown below.

Hook

PWB

Hook

2. Apply 4 V using a stabilized power supply and turn on the handset.

Hook

Push

Hook

3. Start RF test tool.

4. Sele ct a COM port to which Data Cable is connected.

5. Press the "Initialize & Read Data" button.

Points

PC

Black

Red

GSM Tester

(CMU 200)

Data Cable

PWB repair jig

6. The figre shown below appears (wait a few seconds).

7. Click "OK" to proceed.

4-6-3. Tests

1) BAND Select & Channel

Select a band and a channel to test. Settings are applied to all tests.

Band selection

[Procedure]

1. Se lect a band. (GSM900, DCS or PCS)

2. Sele ct or enter a channel using Channel bar or Input box.

Channel bar

Input box

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 18

2) TX test

Test burst transmission.

CONFIDENTIAL

TX frequency of selected channels

Current PCL (Read only)

Data patterns

PCL bar

This indicator appears during burst transmission.

TX ON/OFF button

[Procedure]

1. Select a band and channel. [See 4-6-13. 1)]

2. Select PCL (Power Control Level) using PCL bar.

3. Select Data pattern.

4. Click TX ON to start burst transmission. (You can check each part in this state.)

5. Click TX OFF to end burst transmission.

Data pattern (TSC 5) includes Training Sequence GSM 5, and other part is pseudo random data.

*

TM200 TX power Table (25°C, voltage: 3.7[V])

Q GSM900 Band Q DCS/PCS Band

PCL

GSM900

[dBm] 533 +/ 631 +/ 729 +/ 827 +/ 925 +/

10 23 +/ 11 21 +/ 12 19 +/ 13 17 +/ 14 15 +/ 15 13 +/ 16 11 +/ 17 9 +/ 18 7 +/ 19 5 +/

Tolerance

-

2 dB

-

3 dB

-

3 dB

-

3 dB

-

3 dB

-

3 dB

-

3 dB

-

3 dB

-

3 dB

-

3 dB

-

3 dB

-

5 dB

-

5 dB

-

5 dB

-

5 dB

DCS/PCS

PCL

030 +/− 2 dB 128 +/− 3 dB 226 +/− 3 dB 324 +/− 3 dB 422 +/− 3 dB 520 +/− 3 dB 618 +/− 3 dB 716 +/− 3 dB 814 +/− 3 dB

912 +/− 4 dB 10 10 +/− 4 dB 11 8 +/− 4 dB 12 6 +/− 4 dB 13 4 +/− 4 dB 14 2 +/− 5 dB 15 0 +/− 5 dB

[dBm]

Tolerance

3) RX test

The handset receives burst signals in this test.

RX frequency of selected channels

RX Gain Setting bar

Sniff ON/OFF

Current RX Gain (Read only)

This indicator appears while receiving burst signals.

RX ON/OFF button

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 19

CONFIDENTIAL

[Procedure]

1. Select a channel and band. [see 4-6-3.1)]

2. Select RX Gain using RX Gain Setting bar.

3. Choose Sniff ON or OFF.

4. Click "RX ON" to start receiving burst signals.

5. From GSM tester, send burst signals in the specified channel.

(You can check each part in this state.)

6. Click "RX OFF" to end receiving burst signals. In this test, the reception timing cannot be synchronized with burst

*

signals from Signal Generator or GSM tester. The standard RX Gain Setting is:

*

(Input power at the aerial conne ctor of the han dset) + (RX G ain) = -16 dBm Excessive Input power or RX Ga in may cause damage to the hand set.

4) RSSI Measure

The handset notifies you of input power value at the aerial connector.

4-7. Password reset

SPST resets the password (handset code is set to “0000”). <Operation>

1) Set the COM port on the S PST initial scre en and click “User Password Reset”. Click “Yes” to reset. Click “No” to exit.

TM200

2) When completed, the following appears.

TM200

Estimated Power

Input box

(Integeronly)

[Procedure]

1. Connect the handset and GSM tester (or Signal Generator) with RF cable.

2. Select a band and channel. [see 4-6-3. 1)]

3. Send signals (

4. Enter the value of input power from GSM tester in integers (from -10 to -110) considering RF cable loss.

5. Press the [Measure] button.

6. The result appears in Measured Power box.

The signal type from GSM tester must be either of two:

*

1. Continuous s ine wave (without modulation) with the frequency

as follows: (Frequency of the measured channel) + 67.708kHz. (Ex. channel: GSM 37ch Power: -110 to -10 dBm

2. BCCH signal of the measured channel

Power: -110 to -10 dBm

Result When the handset is properly calibrated, the error between "Estimated Power" and "Measured Power" is less than 3dB.

Measure button Measured power box

) from GSM tester.

*

the result: 942.467708 MHz)

3

4-8. Performance check and adjustment

With this function, SPST checks the performance of the handset and makes adjustments.

1) Set the COM port on the SPST initial screen and click "Performance check and adjustment". The following dialog box appears while processing.

2) When completed, the following is displayed. Click "Back to main menu" to exit.

PENDING

4-6-4. Termination

Turn off the handset to ensure proper operations.

4-6-5. Trouble information

When switching DCS and PCS, change the channel number as well. Or the band does not change properly.

Example: If you change DCS 512 CH to PCS 512 CH, the band

remains DCS.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

The functions of each button are described below.

2 – 20

CONFIDENTIAL

4-8-1. Main back light check

The main display backlight tu rns on and t he message ap pear s on the PC.

TM200

Check the backlight and press "OK".

• If a failure occurs, see "10. Back L ight does not turn on." in [3] Troubleshooting.

4-8-2. External back light check

The external display back light turns on and the message appears on the PC. Check the back light and press "OK".

• If a failure occurs, see "10. Back L ight does not turn on." in [3] Troubleshooting.

4-8-3. Key back light check

The keypad back light turns on and the message appears on the PC. Check the back light and press "OK".

4-8-8. Melody test

A message describes test items. Click "Yes" to proce ed and "N o" to exit. The order of the test items:

speaker

hands free 3 hands free (stereo) 3 speaker (analog melody)

3

4-8-4. LED check

The LED lights up in a specified color and the message appears on the PC. Check the LED and press "OK".

• If a failure occurs, see "15. Flash light does not w ork." in [3] Troubleshooting.

4-8-5. Battery voltage check

Click to display the current battery voltage.

• If a failure occurs, see "1. Power is not turned on." in [3] Troubleshooting.

4-8-6. SD read/write test

Insert an SD card (otherwise a message prompts you to do so and click the button to perform the SD card read/write test.

• If a failure occurs, see "17. SD (Memory) card is not recognized." in [3] Troubleshooting.

4-8-7. Vib rator test

Click to vibrate the handset. Click "OK" to exit.

• If a failure occurs, see "5. Vibrator does not work." in [3] Troubleshooting.

Trouble found by SPST

(1) Speaker

(2) Hands free Sound is heard in audio test.

No sound is heard in audio test.

(3) Handsfree (stereo) Sound is heard in audio test.

No sound is heard in audio test.

(4) Speaker (analog melody)

4-8-9. Audio test

The following appears.

Troubleshooting (basedon [3] Troubleshooting)

See "Speaker does not work."

Parts between IC105 pin 10 and IC103 pin 93 are defective, or IC103 is defective.

See "Hands free kit (monaural headset)" in the section "3. No voice is heard from the earpiece."

Parts between IC105 pin 10 and IC103 pin 93; IC105 pin 11 and IC103 pin 94 are defective. Otherwise IC103 is defective.

See "Hands free kit (stereo headset) - Option "in the section "No voice is heard from the earpiece."

See "Video/Voice Recorder playback is impossible." Otherwise parts between IC105 pin 10 and IC103 pin 93 are defective, or IC103 is defective.

Select a test item from Audio device. Check the output sound from the receiver by speaking to the microphone, etc. Click "Back to test menu" to return to the previous screen.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 21

CONFIDENTIAL

(1)

Handset microphone Handset receiver

(1) & (2): No voice is heard.

(3)

Hands free microphone Hands free receiver

4-8-10. Camera check

The following appears.

Trouble found by SPST

(2)

Handset microphone Hands free receiver

(4)

Hands free microphone Handset receiver

PENDING

(1) & (2): No voice is heard.

(1): Voiceis heard. (2): No voice is heard.

(1): No voice is heard. (2): Voiceis heard.

(3)& (4): No voice is heard.

(3): Voiceis heard. (4): No voice is heard.

(3): No voice is heard. (4): Voiceis heard.

Troubleshooting (based on [3] Troubleshooting)

See "Phone" in the section "2. Voice transmission/recording is impossible."

See "Hands free kit (monaural headset)" in the section "3. No voice is heard from the earpiece" or "Hands free kit (stereo headset)-Option" in the section "3. No voice is heard from th earpiece."

See "Phone" in the section "3. No voice is heard from the earpiece."

See "Hands free kit (headset)" in the section "2. Voice transmission/recording is impossible."

4-8-14. Main display flicker adjustmen t

The following is displayed.

Select a Camera mode from the pull-down menu. Click "Shutter" to check that the camera operates properly. Click "Back to performance check menu" to return to the previous screen.

• If a failure occurs, see "10. Pictures cannot be taken." in [3] Troubleshooting.

4-8-11. Memory check

Click "S-RAM" and "PSRAM" to see each test result. For "Check Sum", the calculation appears after the SPST communicating dialog box.

4-8-12. LCD test

Check that the specified color appears on the main display.

• If a failure occurs, see "12. The display does not appear on Main Display." and "13. The display does not appea r on External Display (in 65K color mode)." in [3] Troubleshooting.

4-8-13. Temperature adjustment

The following appears. Setting temp. indicates the current temperature. The relative temperature is displayed in the text box below. (Only the relative temperature i s adjust able. ) If displayed Setting temp. value differs from the current temperature, click [ or [

] to set a correction value in the range o f -99 to +99 and cl ick “Save”

c

Check a main display visually within a distance of 20 cm from a fluorescent light, and adjust the valu e to min imize fl icker on t he displ ay with the [ buttons. Click "Save" and con firm th at the main disp lay does no t fl icker . (Fine adjustment for DC volt age bet ween di spl ay elec trode s)

Enlarged view (A black line appears after each gradation line.)

8-level graduation pattern with alternate black and gradation lines (black and white)

4-8-15. External display contrast adjustment

Click the “External display contrast adjustment” button. The following screen appears.

]

b

] and [c]

b

Correction value = (Setting temp.)-(current temp.)+(displayed correction value)

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 22

CONFIDENTIAL

DEN: 075

8-level gradation pattern (black & white pattern)

Comparing with an adjusted handset, click “b“ or "c" to adjust the value so that the same gradation pattern is displayed. Click "Save" and confirm the pattern on the external display.

4-8-16. White defect correction

White defect correction:

*

Defective pixels in a camera light sensor appear as bright points in the display even when light is blocked completely (display is all black). Perform white defect correctio n to eli minat e errors in t he se pixels.

1.

Protect the handset camera from light completely with a black cover.

2. Click the "White defect correction" button. The following screen appears.

TM200

4-8-17. Black defect correction

Black defect correction:

*

Defective pixels in a camera light sensor appear a s black points in the d isplay even when a captured image is completely white (display is all white). Perform black defect correction to eliminate errors in these pixels.

1) Requirements

• Desk top type of fluorescent lamp

• Black defect correction sheet

• Illuminance meter

2) Procedure

1. Cove r the camera sec tion with the black de fect correction sheet as shown in Figure 96.

Click the "Yes" button and leave it for about 20 seconds. When completed, the following message appears.

TM200

When an error occurs, the corresponding message appears. Solve the problem according to "Solution".

• Error 1 Error message : "There are too many white cracks."

Cause :The light is not sufficiently blocked. Solution : Block the light completely and perform white

defect correction again.

• Error 2 Error message : "There are many white cracks."

Cause :The light is not sufficiently blocked. Solution : Block the light completely and perform white

defect correction again.

• Error 3 Error message : "There are too many white cracks cannot be

rectified." Cause :T here is a hardware error. Solution : Replace the camera unit.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

Attach the Black defect correction sheet to the handset firmly with clear scotch tape.

2. Check the distance from the fluorescent lamp by using an illuminance meter. In the proper position for black defect correction, illuminance is between 8,000 and 10,000 lux.

2 – 23

CONFIDENTIAL

3. Hold the handset in the proper position.

4. Click the "Black defect correction" button. The following message is displayed.

****

4-9.

When the handset does not turn on and enter the normal mode, use this function to change

1) Select the COM port on the SPST initial screen and click

2) If SPST cannot communicate with the handset, the following mes-

MODE RELEASE

****

mode to the normal mode.

****

"

mode release". The following dialog box appears.

sage is displayed. Make sure the handset is turned on and click "Retry". To exit, click "Cancel".

TM200

5. Click the "Yes" button. Communication starts.

6. The result is displayed within a minute as follows.

When an error occurs, the c orresponding me ssage appears. S olve the problem according to "Solution".

• Error 1 Error message : "There are too many black cracks."

Cause : The light is too weak or strong. Solution : At the proper distance from the light sourc e (8,000-

10,000 lux), perform black defect correction again.

3) When complete, the following message appears.

TM200

5. OTHER TESTS

SPST does not provide tests of Bluetooth/USB communication. Check them according to the following instructions.

5-1. USB

Connect TM200 and a PC with a USB cable. Check that TM200 is recognized as a device.

If the USB driver for TM200 (SHARP GSM GPRS USB Driver) is not installed on the PC, “Found New Hardware” window appears and “Found New Hardware Wizard“ starts (the handset is recognized).

• Error 2 Error message : "There are many black cracks."

Cause : The light is too weak or strong. Solution :

• Error 3 Error message : "There are too many black cracks cannot be rectified." Cause : There is a hardware error. Solution : Replace the camera unit.

At the proper distance from the light source (8,000 - 10,000 lux), perform black defect correction again.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

5-2. BLUETOOTH

Connect TM200 to the network and check that a conversation (talking and listening) is possible using a Bluetooth headset.

Recommended Bluetooth headset: JABRA BT200 PLANTRONICS M1000 PLANTRONICS M3000

2 – 24

[2] TEST POINTS

CONFIDENTIAL

MAIN PWB(FRONT SIDE

TA505

C167

TP136

C168

C188

C149

R139

R158

C152

C226

R278

R146

C157

TP115

R145

C148

C154

R142

TP114

R271

R291

R272

C724

R713

V508

R706

L839

C707

IC701

C723

L838

R813

R522

R702

Q503

R589

R753

R705

C706

R746

R747

D109

Q501

IC115

C229

C206

C230

Q103

D103

R133

C128

R197

R199

R198

R200

R203

GS

R286

R156

R131

R151

ZD106

C209

R249

C210

R196

ZD108

C216

R202

R195

R164

R250

C218

R163

C217

CN104

CN502

TA506

TA507

C231

R161

R160

C170

R159

C171

C169

IC105

R714

R720

V714

R719

V708

R718

D704

V713

R814

V715

R744

FL701

R742

R741

R727

C716

R723

C717

R722

D503

C507

R507

R509

R508

IC503

C511

R511

R282

C510

IC507

R540

R520

R284

R283

R518

R519

Q505

R285

R281

Q108

R157

C137

IC116

C236

R155

R201

C212

C187

R174

R279

V504

R745

R270

R269

R287

R588

R751

V507

C144

D

R264

R149

TP128

C189

R153

C160

Q101

)

TP116

L106

R168

R752

R750

Q508

TP508

CN501

IC802

L1871

TP519

TP517

TP518

IC803

TP112

CN503

TP111

R516

R543

R544

R546

R545

C1877

R515

R550

TP516

L1872

R549

TP529

IC506

R548

R189

C870

C873

C872

C881

TP530

R547

C138

C854

R812

C861 C862C863

L1873

C1876

TP533

R551

R210

SH801

R542

R136

R135

C522

TP532

L110

TP531

FL102

FL101

R514

R517

R552

C517

R273

R207

R527

C518

R274

R553

R101

C227

R275 R276

R204R205R206

R208

AN501

CN102

FL104

FL103

J801

FL905

L834

C882

C885

C883

R881

C884

C886

AT801

C182

C207

R255

R165

R172

R175

TA504

C185

C190

R289

C186

TP122

IC106

R162

R288

C174

R167

R749

Q507

V505

V506

R256

C166

R138

C159

R150

C165

R248

R265

R116

R120

C204

R152R254

R130

ZD107

C108

X101

V501

R169

R171

C181

C177

C178

C176

R177

V510

V511

C208

R144

R166

C145

C172

C146

R143

C153

C161

C151

IC103

R277

R126

R124

R299

R140

C133

R115

C147

R300

C116

C121

C122

C126

C134

R263

R125

R137

R147

R262

R129

C112

C113

C117

C127

C132

L108

R122

TP134

R180

R181

TP139

TP117

TP156

C173

C192

TP110

TP131

R257

R258

TP133

R179

TP106

R188

R209

R173

C184

V509

IC101

TP130

TP148

TP132

TP138

R187

TP137

TP145

TP143

R237

R170

C179

C180

C191

C224

R141

R128

C164

TH101

R148

C135

C141

R134

C140

C119

C150

R127

C118

C155

C163

C162

Q107

R280

L107

C115

C228

C120

TA501

R268

R267

C221

R266

C219

C211

C111

IC114

C222

IC110

R295

C220

C213

R293

R292

IC111

R294

C223

IC108

C158

C156

C205

Q106

C232

C214

R238

R239

TA502

TP141

C195

TP140

C198

TA503

R186

TP142

TP146

C200

C199

C835

C834

TCX801

C811 C812

C831

R802

C832

C833

C837

C840

R806

C841

JK101

ZD104

R244

L103

ZD103

L104

R245

R246

R132

C114

C10

3

R191R192

C106

R112

C107

C233

R804

C803

R811

R810

C836

C830

L821

C124C125

C105

V101

C104

C109

C110

C505

C234

IC804

C801

C802

C806

C807

C850

L801

L822

R807

C810

C851

IC801

R805

C842

C845

L802

C844

C843

L105

TP504

Q703

L823

C891

C852 C853

C142

C136

L113

V104

C139

R523

D105

IC109

C51

C143

2

IC505

TP505

C516

ZD105

TP534

C504

R501

TP522

TP520

TP501

FS502

FS501

R1205

Q704

R1206

C86

4

C867

C865

C866

C860

L893

C892

L891

L892

L803

L804

L805

L806

C1875

FL902

C858

C855

C856

FL903

C859

C857

C871

TP No. Signal name TP No. Signal name

TP111 VVIB TP505 DGND TP112 DGND TP520 BATT TP501 BATT TP522 POWONKEY TP504 DGND TP534 BATT_SENSE

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 25

CONFIDENTIAL

MAIN PWB-B(REAR SIDE

TP127

TP126

CN103

R227R228

R233

R224

R226

R212

R222

R231

R223

R235

R234

TP135

TP188

R221

R251

TP187

TP186

TP185

8

SW51

TP183

TP113

TP182

TP514

SW503 SW504

TP184

TP181

TP170

SW521

)

SW502

SW501

R105

TP502

TP503

SW505

LED105

SW522

SW520

TP163

LED104

R106

LED106

R104

SW524

SW519

SW523

LED103

R103

TP121

TP161

R113

TP144

TP147

SW515

R108

LED108

TP160

TP162

TP801

R107

TP802

TP123

TP168

SW511 SW512 SW513

TP528

TP527

LED107

SW507 SW508 SW509

TP179

R109

R119

TP154

TP174

LED112

SW516 SW517

TP167

TP155

LED111

R111

TP178

TP157

TP506

LED110

TP177

R110

TP164

TP165

LED109

R114

LED116

LED115

R118

LED114

R117

LED113

TP153

TP104

TP105

TP171

TP124

TP176

TP158

TP521

TP107

TP172

R211

LED120

LED119

R190

LED118

R178

LED117

R176

TP173

SW514

SW510

SW506

TP169

TP166

TP120

TP109

TP537

TP119

TP152 TP151 TP150 TP149

TP125

LED122

R232

R230

LED121

TP526

TP535

TP524

TP538

C194

ZD101

TP118

TP108

TP103

TP515

IC107

R182

C193

TP536

TP525

TP523

TP101 TP102

TP180

L102

C101

L101

C235

D106

TP No. Signal name TP No. Signal name TP103 USC [0] TP171 VCORE (1.8V) TP104 USC [1] TP172 VAPP TP105 USC [2] TP173 VINT (3V) TP107 USC [4] TP174 LIGHT3 (KEYLED) TP108 USC [5] TP176 VMIC TP109 USC [6] TP177 AUXADC1 TP113 VVIB TP178 TEMP TP118 USC [3] TP179 AUXADC1 TP119 MIC TP180 CHGIN_A (5.2V) TP120 AUDIO_IN TP181 Flexible PWB insert check terminal 1 TP121 JACK_L TP182 Flexible PWB insert check terminal 2 TP123 RESET TP183 Flexible PWB insert check terminal 3 TP124 PWRON TP184 Flexible PWB insert check terminal 4 TP126 SP1 TP502 VBAT TP127 SP2 TP503 VBAT TP144 Terminal for STACK MEMORY adhesion check 1 TP506 BATT_SE NSE TP147 Terminal for STACK MEMORY adhesion check 2 TP514 BT_VCC (3.0V) TP153 VPP Flash TP515 VBUS_IN TP157 Analog Power Supply IC INT TP521 P O WO NKE Y TP158 VINT (3V) TP523 USB D+ TP160 HEDSET_DET TP524 USB D

TP161 STEREO_SW TP525 RTS TP162 REMOTE_SW TP526 CTS TP163 JACK_R TP527 DGND TP164 VABB TP528 DGND TP165 VT (2.75V) TP535 Reserved TP166 VUSB TP536 ManufactUre Specific TP167 VRTC (1.8V) TP537 CHGIN TP168 VBACK (3V) TP801 VTCXO (2.9V) TP169 VSIM (2.85V) TP802 VRF (2.9V) TP170 VMEM (2.8V)

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 26

CONFIDENTIAL

LCD PWB(FRONT SIDE

TP703

TP704

)

C774

D709

C771

C776

TA704

C728

C746

C742

CN702

C791

C745

C752

C748

R727

C747

C744

C754

C729

R716

IC703

C749

R742

R756

R743

C718

L716

F701

C722

F

IC701

C726

TA703

R730

R728

R723

R729

C751

C750

CN703

R737

C777

R738

C775

C781

C783

C782

C779

C780

C753

D701

R706

C717

C757

C756

C755

D702

Q702

C724

R705

C719

C725

CN704

SH701

C720

L701

C704

C705

C708

IC705

C714

C709

C713

C707

C703

C706

D703

C701

C727

C702

L702

LED704

LED703

Q701

R702

C773

C784

R741

TP719

C772

C770

R740

C769

D710

R736

C761

C759

R714

C766

C732

R732

R748

C785

C786

C721

IC707

C710

CN705

IC706

IC708

C731

C730

R735

IC704

R746

R747

C787

R704

L711

L709

C723

R715

C736

R749

F702

C735

C738

L703

C711

C733

ZD703

R707

ZD704

L714

L715

C712

R708

R733R734

FL701

C739

R717

C734

C737

TP718

R750

C758

C760

L705

R701

L710

TP No. Signal name TP No. Signal name TP703 SP1 TP704 SP2

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 27

CONFIDENTIAL

LCD PWB(REAR SIDE

TP705

TP711

TP706

TP721

TP734

TP735

TP722

TP710

TP708

TP723

TP715

TP707

TP716

TP726

)

TP724

TP725

TP720

TP733

TP728

TP727

TP732

TA702

TA701

TP717

TP712

TP714

TP709

TP739

TP729

TP713

TP738

TP701

TP702

C788

C716

R703

C715

TH701

CN701

C789

L704

C743

C741

C740

TP No. Signal name TP No. Signal name

TP701 SP1 TP720 VDD2 TP702 SP2 TP721 RECIVER_OUT+ TP705 Backlight 4 TP722 RECIVER_OUT

-

TP706 Backlight 3 TP723 Terminal for LCDC adhesion check 3 TP707 Backlight 2 TP724 Terminal for LCDC adhesion check 4 TP708 Flash (LED-) TP725 Terminal for APPLICATION POWER adhesion check TP709 VLCD_INT (3.0V) TP726 Power supply for camera (

-

8V) TP710 Backlight & Flash (LED+) TP727 Power supply for camera (+15V) TP711 Backlight 1 TP728 VDD2 (3V) TP712 CAMCLK TP729 VBAT TP713 13MHzCLK TP733 VDD1 (1.8V) TP714 VLCD (1.8V) TP734 RECIVER_OUT+ TP715 Terminal for LCDC adhesion check 1 TP735 RECIVER_OUT

-

TP716 Terminal for LCDC adhesion check 2 TP738 VBAT TP717 VOUT (External Display)

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 28

[3] TROUBLESHOOTING

CONFIDENTIAL

1. Power is not turned on.

2. Voice transmission/recording is impossible.

3. No voice is heard from the earpiece.

4. Battery does not charge.

5. Vibrator does not work.

6. Clock Settings are reset.

7. Speaker does not work.

8. MP3 cannot be played.

9. Video/Voice Recorder playback is impossible.

11. Out of range and incoming/outgoing calls are impossible.

12. The display does not appear on Main Display.

13. Th e display does not appear on External Display (in 65K color mode).

14. Pictures cannot be taken.

15. AF does not move.

16. SIM card is not recognized.

17. SD (Memory) card is not recognized.

18. USB connection is impossible.

19. Bluetooth communication is impossible.

10. Back Light does not turn on.

1. POWER IS NOT TURNED ON.

Connect a battery of 4.0 V or more. Execute File System Initialization of Downloader in SPST

without loading a file. Does File System Initialize start properly Is the user area (file system) initialized by Flash Loader?

NO

YES

Does normal mode start?

NO

Is it possible to rewrite the firmware?

YES

Does normal mode start after restart?

NO YES

5-level stack memory (IC101) and IC106 are defective.

5-level stack memory (IC101) data is corrupted.

5-level stack memory (IC101) and IC106 are defective.

Program code of 5-level stack memory (IC101) is garbled.

NO

YES

NO

Is 3.6 V or more applied to BATT terminal (TP520)? Battery terminals are defective, connector terminal is dirty, or

YES

Is the voltage 1.2 V or lower on SENSE terminal (TP506)? The battery is defective or set improperly.

YES

Is there conduction through fuse (FS501)? Fuse (FS501) is blown.

YES

Is 5-level stack memory (IC101) installed properly 5-level s tack memory (IC106) is installed improperly.

YES

Is 2.8 V and 1.8 V applied to VMEM (TP170) and VCOR E (TP171) respectively?

YES

Is 3.0 V applied to VINT (TP173)?

YES

Is the waveform of signals from R169 connected to X101 (32 kHz) correct? Are R167, R169, C174, C176, X101, and IC106 good in appearance and mounted properly?

YES

Is the rectangular wave of 13 MHz properly sent to TP713?

NO

Is the triangular wave of 13 MHz sent from C833?

NO

Is 2.9 V supplied from VTCXO (TP801)? Power Supply (IC804) is defective.

YES

IC801 and peripheral circuits are defective.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

NO

YES

NO

soldering is improper.

IC103 is defective.

IC111 is defective.

X101 (32 kHz oscillator), R167, R169, C174, and C176 are defective or mounted improperly. Or oscillating circuit of IC106 is defective.

IC106, R179, and L110 are defective or mounted improperly. CN701 and CN102 are connected improperly.

C801 is defective.

2 – 29

CONFIDENTIAL

2. VOICE TRANSMISSION/RECORDING IS IMPOSSIBLE.

Phone

Replace the microphone. Is the problem solved?

NO

YES

The built-in microphone is defective or in a poor contact with the PWB.

L101, L102, and C101 are defective.

YES

Is 1.2 - 2.1 V applied to both ends of C101?

NO

Is 1.2 - 2.1 V applied to TP119?

NO

Is 2.4 - 2.5 V applied to TP176?

YES

NO

Is 2.4 - 2.5 V applied to IC103 pin 76?

NO

R125 is defective.

R115 and C108 are defective.

IC103 is defective.

Is approx. 1.7 V applied to IC103 pin 80? Is approx. 1.7 V applied to IC103 pin 96?

YES

NO

NO YES

R263 and R130 are defective. IC103 is defective.

Is 2.7 or more voltage applied to R192 (IC106 pin 89 side)? R192 is defective. (Headset mode is set.)

YES

Replace C126 or C133. Is the problem solved?

NO

YES

C126 or C133 is defective.

IC103 and IC106 are defective.

YES

Hands free kit (headset)

(The following procedure applies to both monaural and stereo headsets.)

Replace the hands free kit. Is the signal sent? Hands free kit is defective.

NO

Is 0.7 - 1.8 V applied to JK101 pin 2? Is 0.7 - 1.8 V applied to TP120?

YES

Is approx. 1.7 V applied to IC103 pin 79? Is approx. 1.7 V applied to IC103 pin 95?

YES

the voltage 0 V on R192 (IC106 pin 89 side) ?

Is

YES

Replace C127 or C134. Is the problem solved? C127 or C134 is defective.

NO

Replace JK101. Is the problem solved?

NO

IC103 and IC106 are defective.

YES

NO

YES

C104, R112, and V101 are defective.

YES

NO

Is 2.4 - 2.5 V applied to TP176?

NO

R122 is defective.

Is 2.4 - 2.5 V applied to IC103 pin 76?

NO

R115 and C108 are defective.

IC103 is defective.

NO YES

R262 and R129 are defective. IC103 is defective.

Jack JK101 is defective, or the jack plug is in a poor contact with hands free kit (Handset mode is set.)

JK101 is defective, or the jack plug pin 2 is in a poor contact with hands free kit.

YES

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 30

CONFIDENTIAL

3. NO VOICE IS HEARD FROM THE EARPIECE.

Phone

Is the signal sent to the contact terminal of the earpiece? The built-in earpiece is defective, or in a poor contact with

NO

Is the signal sent to CN103 pins 17 and 18? The camera relay FPC, CN103, or CN701 is defective. Or the

NO

Is the signal sent to vsGNDs at both ends of C132? L107, L108, C115, and C120 are defective.

NO

Is 2.7 or more voltage applied to R192 (IC106 pin 89 side)? R192 is defective. (Headset mode is set.)

YES

Is approx. 1.2 V applied to IC103 pins 59 and 63? IC103 is defective.

YES

IC103 or IC106 is defective.

YES

NO

TP734 or TP735.

camera is in a poor contact with CN103 and CN701.

Hands free kit (monaural headset)

Replace the hands free kit. Is the signal sent ? Hands free kit is defective.

NO

Is the signal sent to JK101 pin 3? Jack JK101 is defective, or the jack plug is in a poor contact

NO

he signal sent to TP121? L103 is defective.

Is t

NO

signal sent to the positive pole of C107?

Is the

NO

Is the signal sent to IC103 pin 60? R124 is defective.

NO

Is the voltage 0 V on R192 (IC106 pin 89 side) ? Jack JK 101 is defective, or the jack plug is in a poor contact

YES

Is approx. 1.2 V applied to IC103 pin 60? IC103 is defective.

YES

NO

with hands free kit.

C107, C103, and C106 are defective.

with hands free kit. (Handset mode is set.)

IC103 or IC106 is defective.

Hands free kit (stereo headset) - Option

The headset cannot be used. (It works as a monaural headset.)

Is the stereo headset the one specified by Sharp? Is the plug a 6 pole type with a ring?

YES

Is R-ch only the channel that does not send signals?

NO

Replace the hands free kit. Is the signal sent ? Hands free kit is defective.

NO

Is the signal sent to JK101 pin 3? Jack JK101 is defective, or the jack plug is in a poor contact

NO

YES

(NEXT PAGE)

B

NO

YES

with hands free kit.

NO

Is the signal sent to TP121? L103 is defective.

NO

Is the signal sent to the positive pole of C107? C107, C103, and C106 are defective.

NO

Is the signal sent to IC103 pin 60? R124 is defective.

NO

Is the voltage 0 V on R192 (IC106 pin 89 side)? Jack JK 101 is defective, or the jack plug is in a poor contact

YES

NO

with hands free kit. (Handset mode is set.)

YES

Is approx. 1.2 V applied to IC103 pin 60? IC103 is defective.

YES

NO

IC103 or IC106 is defective.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 31

(BACK PAGE)

B

CONFIDENTIAL

Is the signal sent to JK101 pin 1? Jack JK101 is defective, or the jack plug is in a poor contact

NO

Is the signal sent to TP163? L105 is defective.

NO

Is the signal sent to the positive pole of C110? C110, C105, and C109 are defective.

NO

Is the signal sent to IC103 pin 64? R126 is defective.

NO

Is the voltage 0.1 V or lower on R191 (IC106 pin 100 side)? Jack JK101 is defective, or the jack plug is in a poor contact

YES

Is approx. 1.2 V applied to IC103 pin 64? IC103 is defective.

YES

IC103 or IC106 is defective.

YES

with hands free kit.

YES

NO

with hands free kit. (Monaural mode is set.)

NO

4. BATTERY DOES NOT CHARGE.

Set a battery of 3.7-3.8V and connect charger.

NO

Is 1.2V applied to C224?

YES

Is 1.2V or 0V applied to TP178?

NO

Is 0V applied between Q108 (FET) 1pin and 2pin ?

NO

Is 0V applied between Q108 (FET) 3pin and 4pin ?

NO

IC116 or IC103 is defective

NO

YES

IC103 is defective

TH101 or R148 is defective

IC115 or R281 or R282 or R283 or C229 is defective.

Q101 or R286 is defective.

5. VIBRATOR DOES NOT WORK.

Are vibrator terminals in contact with the land? Are terminals and the land clean?

YES Is rectangular wave of 3 V sent to between Vibrator terminals in sync with the vibration pattern?

NO

YES

NO

Is VBAT voltage applied to IC109 pin 5? IC109 is soldered improperly.

NO

YES Is signal synchronized with the vibration pattern sent to IC109 pin 1?

YES

NO Is signal synchronized with the vibration pattern sent from IC105 pin 19?

YES

NO

Is approx. 3 V applied to IC105 pin 7? C167 and C168 good in appearance and mounted properly?

NO

YES YES

IC105 is defective, or the control signal line to IC106 is defective.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 32

Vibrator is deformed and defective. (When vibrator terminals and the land are dirty, clean or replace them.)

Vibrator is defective.

IC109 is defective.

IC105 is soldered improperly.

C167 and C168 are defective.

NO

CONFIDENTIAL

6. CLOCK SETTING ARE RESET.

The holder is installed improperly.

NO

Is 2.5 V or more applied to TP168 with a battery in the handset?

YES

Is 1.5 V or more applied to TP167 without a battery in the handset ?

YES

X101, R169, C174, and C176 are defective.

NO

Is back-up battery holder properly installed to SD/SIM FPC?

YES

• The remaining power of back-up battery is insufficient.

• Back-up battery is defective.

• Back-up battery holder is defective.

• SD/SIM FPC is broken, or CN104 is defective.

• R254 is defective.

IC103 is defective.

7. SPEAKER DOES NOT WORK.

* When ring tones sound, but keypad tones do not, “Keypad Tones” is set to Off. * When Ringer Volume is set to “Silent”:

· Voice Recorder playback sound is not produced.

· Playback sound of Video and MP3 can be heard by increasing the volume during playback.

Are speaker terminals in contact with the land? Speaker is defective.

YES

Is the impedance between speaker terminals approx. 8 ohms? Speaker is defective.

YES

Is the signal sent to TP701, TP702, or speaker contact pad? Speaker is defective.

NO

Is the signal sent to CN103 pins 3 and 4?

NO

Is VBAT voltage applied to IC105 pin 15? R139 is defective.

YES

Is approx. 3 V applied to IC105 pins 7 and 32? R158 is defective.

YES

Is the signal sent to IC105 pin 12? R145 and R146 are defective, or IC105 is defective.

NO

IC105 or the control line to IC106 is defective.

NO

YES

NO

YES

The camera relay FPC, CN103, or CN701 is defective. Or the

camera is in a poor contact with CN103 and CN701.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 33

CONFIDENTIAL

8. MP3 CANNOT BE PLAYED.

Speaker

Is Ringer Volume set to “Silent”? ancel “SC ilent”. Is sound produced?

NO

Is output of the video and voice recorder normal? Are keypad tones and ring tones normal?

YES

Insert an SD card with MP3 files recorded on a normal unit. Do they play?

NO

Is the SD card recognized?

YES

Is the signal sent to IC103 pin 60? Parts between IC103 pin 60 and IC105 pins 14 & 13 are

NO

IC103 is defective.

YES

NO

YES

NO

YES

Hands free kit (headset)

(The following procedure applies to both monaural and stereo headsets.)

Is sound normally produced from Speaker? Go to the section regarding Speaker.

YES

Replace the hands free kit. Is sound produced? Hands free kit is defective.

NO

Go to “Hands free kit (monaural headset)” in the section “No voice is heard from the earpiece.”

NO

YES

Not defective.

YES

NO

Go to the section “Video/Voice Recorder playback is impossible.”

YES

NO

Go to the section “Speaker does not work.”

Not defective.

Go to the section “SD (Memory) card is not recognized.”

defective or soldered improperly.

9. VIDEO/VOICE RECORDER PLAYBACK IS IMPOSSIBLE.

Speaker

Are keypad tones and ring tones normal? Go to the section “Speaker does not work.”

YES

In Playback window, does playback start normally and the capacity bar change?

YES

Is Ringer Volume set to "Silent"? Cancel “Silent”. Is sound produced?

NO

Is the signal sent to IC103 pin 60?

NO

IC103 is defective.

Hands free kit (headset)

* If R-ch is the only channel of stereo headset that does not send signals, see “Hands free kit (stereo headset)” in the section “No voice is heard from the earpiece.”

Replace the hands free kit. Is the signal sent?

NO

back window, does playback start normally and the

In Play capacity bar change?

YES

Is Ringer Volume set to "Silent"? Cancel "Silent". Is sound produced?

NO

Go to “Hands free kit (monaural headset)” in the section “No voice is heard from the earpiece.”

NO

YES

NO

YES

IC101 or IC106 is defective.

Not defective.

Parts between IC103 pin 60 and IC105 pins 14 & 13 are defective or soldered improperly.

Hands free kit is defective.

IC101 or

Not defective.

IC106 is defective.

YES

NO

YES

NO

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 34

CONFIDENTIAL

10. BACK LIGHT DOES NOT TURN ON.

F702 is mounted improperly, or the fuse is brown.

NO

Is VBAT voltage applied to C738? Is fuse (F702) in good appearance, mounted properly, and is

YES

Which back light does not turn on, Main or External?

Is back light setting for External Display set to On? Go to th e setting as follows and set it to On:

YES

Is CN705 in good appearance and mounted properly? CN705 is defectiv e.

YES

Is the contact point of back light FPC clean? Is back light FPC properly inserted to CN705?

YES

Is 3 - 6 V applied between TP710 and TP705? Is 3 - 6 V applied between TP710 and TP706? Is 3 - 6 V applied between TP710 and TP707? Is 3 - 6 V applied between TP710 and TP711?

NO

Are

C735, C791, C733, C738, C730, C731, R708 and R707

in good

appearance and mounted properly?

YES

IC708 are defective.

C

NO

External display only.

NO

YES

NO

there conduction?

YES

C733, C738, and L703 are defective.

C

Settings Phone Settings Main Display Back light

Does it turn on?

YES

Not defective.

Back light FPC or CN705 is defective.

NO

Clean back light FPC and insert it again. Does it turn on?

YES

Not defective.

Back light FPC is defective.

C735, C791, C733, C738, C730, C731, R708 and R707 are defective.

back light setting for Sub Display set to On? Go to the setting as follows and set it to On:

Is

YES

Is 3-6V applied between LED703 anode (A) terminal and LED704 cathode (K) terminal?

YES

LED703 and LED704 are defective.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

NO

2 – 35

ings

Sett Settings External Display Back light

Does it turn on?

Not defective.

IC708 is defective or mounted improperly.

Phon

e

YES

CONFIDENTIAL

11. OUT OF RANGE AND INCOMING/OUTGOING CALLS ARE IMPOSSIBLE.

[Checkpoint s in RF Test Tool ]

Is transmission possible using RF Test Tool?

YES

[Sender]

Is voltage (applox. 2.9 V) supplied to pin 6 of IC804? IC804 is defective.

Is IQ signal supplied to pins 23, 24, 25, and 26 of IC801? IC103, IC106, or PWB is defective.

NO

YES

NO

YES

Is frequency signal sent?

GSM900 bands ....................... IC801 pin 17

DCS1800/PCS1900 bands ...... IC801 pin 19

YES

Is frequency signal supplied?

GSM900 bands ....................... IC803 pin 16

DCS1800/PCS1900 bands ..... IC803 pin 14

YES

Is frequency signal supplied to pin 1 of FL905? IC803 is defective.

YES

Is frequency signal supplied to pin 1 of J801? FL905 is defective.

YES

J801 is defective.

[Receiver] –70 dBm input.

Is frequency signal supplied?

GSM900 bands ............. ............. . IC801 pins 9, 10

DCS1800 band ............................ IC801 pins 6, 7

PCS1900 band ............................ IC801 pins 3, 4

NO

YES

IC801 is defective.

IC802 is defective.

IC801 is defective.

Is frequency signal supplied?

GSM900 band ................................ FL902 pin 4

DCS1800 band ............................... FL902 pin 1

PCS1900 band ............................... FL903 pin 1

NO

Is frequency signal supplied to pin 10 of IC803 IC803 is defective.

NO

FL905 or J801 is defective.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

YES

2 – 36

FL902, or FL903 is defective.

CONFIDENTIAL

12. THE DISPAY DOES NOT APPEAR ON MAIN DISPLAY.

Is Main Display unit fully inserted to CN704? Improperly inserted to the connector.

YES

Clean the contact point of CN704 and insert the unit again. Does the display appear?

NO

Replace Main Display. Does the display appear?

NO

Is 3.6 or more voltage applied to VBAT terminal (FS701) Go to the section “Power is not turned on.”

YES

Is 2.8 ± 0.1 V applied to TP170? Go to the section “Power is not turned on.”

YES

Is 3.0 ± 0.1 V or more applied to TP173? Go to the section “Power is not turned on.”

YES

Is 1.8 ± 0.1 V or more applied to TP714? Is 3.0 ± 0.1 V applied to IC703 pin 1?

YES

NO

YES

NO

YES

The contact point of the connector is dirty.

Main Display unit is defective.

Regulator IC703 or R716 is defective.

NO

Are R743 and C728 good in appearance and mounted properly?

YES

Are CN701 and CN103 good in appearance and mounted properly?

NO

CN703 and CN103 are defective or mounted improperly. And FPC is defective.

Is 13 MHz applied to clock TP713? Go to the section “Power is not turned on.”

YES

Is 3.0 ± 0.1 V supplied from LCD_RST (R749)? Are R746, C736, C751, CN701, and CN703 good in appearance and mounted properly?

YES

Is 3.0 V ± 0.1 V applied to CN704 pins 34, 37, and 38? Are R736, R738, C774, and C775 good in appearance and mounted properly?

YES

Is 3.0 ± 0.1 V applied to the LCD reset (CN704 pin 33 and C766)? Is C766 good in appearance and mounted properly?

YES

Is the signal of approx. 62 Hz present on C760? Are C758, C759, C760, and C761 good in appearance and mounted properly?

YES

Is the following voltage applied to the terminal? TP720: approx. 10 V Are C771, C772, C773, C776, C777, C779, C780, C781, C782, and C783 good in appearance and mounted properly?

YES

Main Display unit is defective, or connector CN704 is mounted improperly.

NO

R746, C736, C751, CN701, and CN703 are defective or mounted improperly.

CN704, R737, R738, C774, and C775 are defective or mounted improperly.

Display controller IC (IC704) and C766 are defective or mounted improperly.

Display controller IC (IC704), C758, C759, C760, and C761 are defective or mounted improperly.

Main Display unit, CN704, C771, C772, C773, C776, C777, C779, C780, C781, C782, and C783 are defective.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 37

CONFIDENTIAL

13 . THE DISPLAY DOES NOT APPEAR ON EXTERNAL DISPLAY (IN 65K COLOR MODE).

Does the display appear on Main Display? Go to the section “Power is not turned on.”

YES

Is External Display On/Off setting set to On? Go to the setting as follows and set it to On

YES

Is External Display unit fully inserted to CN703? Improperly inserted to the connector.

YES

Clean the contact point of the connector CN703 and insert the unit again. Does the display appear?

NO

Is 3 ± 0.1 V applied to CN703 pin 9? Is R723 good in appearance and mounted properly?

YES

Are CN701 and CN103 good in appearance and mounted properly?

YES

Is 3.0 ± 0.1 V supplied from LCD_RST (CN703 pin 27 and C751)?

YES

Is R222 good in appearance and mounted properly? R222 is defective or mounted improperly.

YES

Are C755, C756, and C757 good in appearance and mounted properly? Is electric potential normal at both ends of C755, C756, and C757? Are rectangular waves sent? C755: rectangular wave of approx. 3 V C756: rectangular wave of approx. 6 V C757: rectangular wave of approx. 9 V

YES

Is approx. 11.8 V applied to CN703 pin 7 (TP717)? Are the following voltages applied to V0 - V4? V0 (C744): approx. 8.56 V V1 (C745): approx. 7.33 V V2 (C747): approx. 6.11 V V3 (C748): approx. 2.42 V V4 (C750): approx. 1.20 V

YES

External Display unit is defective.

NO

YES

NO

* After a period of time the back light turns off, the voltage on TP717 decreases to approx. 9 V.

Settings Phone Settings External Display Display On/Off

The contact point of the connector is dirty.

R723 is defective or mounted improperly.

CN703 and CN103 are defective or mounted improperly. And FPC is defective.

IC704, C736, C751, and R749 are defective or mounted improperly.

C755, C756, C757, and CN703 are defective, or External Display unit is defective.

C744, C745, C747, C748, C750, CN703, and IC704 are defective. The control signal line to IC704 or External Display unit is defective.

:

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 38

14. PICTURES CANNOT BE TAKEN.

CONFIDENTIAL

Replace camera relay FPC. Does camera work? Camera relay FPC is defective.

NO

Is 1.8 V applied to TP733? F701, R701, IC705, C714 is defective.

YES

Is 1.8 V applied to pin 61 of camera unit?

YES

Is 3.0 V applied to TP173? Regulator IC111, R239, R238 and C214 is defective.

YES

Is 3.0 V applied to pins 59 & 60 of camera module?

YES

Is 3.0 V applied to TP728? F701, R701, IC705, C713 is defective.

YES

Is 3.0 V applied to pin 74, 75 of camera module?

YES

Is 15 V applied to TP727?

YES

Is 15 V applied to pin 48 of camera module?

YES

Is -8 V applied to TP726?

YES

Is -8

V applied to pin 1 of camera module?

YES

Is signal properly sent from CAMCK (TP712)? IC704 and FL701 is defective.

YES

NO

CN702 is defective. Camera relay FPC is broken.

R101 and CN102 are defective. Camera relay FPC is broken.

CN702 is defective. Camera relay FPC is broken.

C709, F701, L701, D701, D702, R705, IC705 and R701 is defective.

CN701 is defective. Camera relay FPC is broken.

R704, IC707, IC705, R701, Q701, L702, D703, C720, C721 and C723 is defective.

CN701 is detective. Camera relay FPC is bloken.

YES

IC106, parts of the control signal line, CN102, CN701 and CN702 are defective.

15. AF DOES NOT MOVE

Is 3.6 V or more applied to TP729?

YES

Is 36V or more applied to pin7 of camera module?

YES

IC705 or Q702 is delective. Camera relay FPC is bloken.

NO

Go to the dection "Power is not turned on"

L716 and CN702 is defective.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 39

16. SIM CARD IS NOT RECOGNIZED.

CONFIDENTIAL

Replace the SIM card. Is it recognized? SIM card is defective or not the one specified.

NO

Is 2.85 V supplied from pins 1, 2, and 6 of the SIM card? And is periodic pulse wave (3.25 MHz) sent from pin 3 of the SIM card?

NO

Is 2.85 V supplied from CN104 pin 28?

YES

Is 2.85 V supplied from CN104 pin 30?

YES

Is periodic pulse wave sent from CN104 pin 31? Are R164 and C217 good in appearance and mounted prop-

YES

Is 2.85 V supplied from CN104 pin 27? Are R163, R249, and C218 good in appearance and mounted

YES

CN104 or SD/SIM FPC is defective. IC106 is defective.

YES

Hereafter, check the signal waveform of each SIM when the power is turned on without a SIM card inserted. (SIM signal waveform appears for approx. 70 ms after the power is turned on.)

YES

NO

The contact point of the SIM card connector is deformed or

Replace C210 or C159.

NO

Are C210 and C159 good in appearance and mounted properly?

YES

IC103 is defective.

Replace R195 or C216.

NO

Are R195 and C216 good in appearance and mounted properly?

YES

IC106 is defective.

Replace R164 or C217.

NO

erly?

YES

IC106 is defective.

Replace R163, R249, or C218.

NO

properly?

YES

dirty.

17. SD (MEMORY) CARD IS NOT RECOGNIZED.

Is the SD card checked for operation? Use an SD card that has been checked.

YES

Is the SD card recognized on PC, etc.?

YES

Is the card insertion detected? Is SD/SIM FPC properly inserted to CN104?

YES

Is 2.75 V or more applied to VAPP? IC103 or Q103 is defective.

YES

Can the SD card be formatted?

YES

After formatting, can the SD card be used? IC106 is defective or has come off.

YES

File system on the SD card is damaged.

NO

YES

Does the signal of SD_DET become “L” when the card is inserted?

YES

IC106 is defective. SD card socket and CN104

SD card socket and CN104 are in poor contact. SD_CLK, SD_CMD, and SD_DAT [3:0] on PWB are broken or short-circuited. IC106 is defective or has come off.

Reinsert SD/SIM FPC, and try again.

are in poor contact. Hardwiring on PWB is broken.

NO

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 40

18. USB CONNECTION IS IMPOSSIBLE.

CONFIDENTIAL

Connect a properly working handset to the Data/USB cable that is not recognized. Is it recognized?

NO

Reinstall the driver and replace the USB cable to connect the handset.

YES

Is a communication with the handset established via SPST for TM200?

NO

IC106, IC701, and FL701 are defective.

YES

Connect to a Data with the USB cable.

Is TP536 at “H”? The signal line from CN502 pin 8 to IC106 pin 90 is

NO

short-circuited with GND. Or R751 is has come off.

YES

Is 5 V or more applied to TP515? CN502 is connected improperly.

NO

YES

Is Q503 pin 3 at “L”?

NO

Q503 is defective.

YES

Is 3 V or more applied to TP166? IC103 or IC106 is defective.

NO

YES

IC106 and IC701 are defective.

19. BLUETOOTH COMMUNICATION IS IMPOSSIBLE.

A connection cannot be established via Bluetooth.

YES

Is 3 V supplied from IC505 pin 5? IC505 is defective.

YES

Is R514 (RESET signal side) always at “H”? IC106 is defective.

YES

Is waveform periodically sent from R516 (UARTTX signal side) ?

YES

Is waveform periodically sent from R547 (UARTRX signal side) ?

YES

IC506 is defective.

Handset can be connected to Bluetooth headset, but sound is not heard.

YES

Is waveform of PCMCLK signal (approx. 256 kHz clock) sent from R188?

YES

Is waveform of 8 kHz periodically sent from R550 (PCMSYNC signal side)?

YES

Is waveform of PCMIN signal periodically sent from TP508?

YES

Is waveform periodically sent from R515 (PCMOUT signalside)?

YES

IC506 is defective.

NO

IC506 is defective.

IC106 is defective.

IC506 is defective.

IC106 is defective.

TM200 1ADJUSTMENTS, PERFORMANCE CHECK, AND FIRMWARE UPGRADE

2 – 41

CONFIDENTIAL

CHAPTER 3. DISASSEMBLY AND REASSEMBLY

A. BATTERY REMOVAL

1) Remove the battery cover.

3) Remove the speaker from the cabinet B unit. When installing the speaker, fit the speaker projection (a) with

*

the concaved rib section.

(a)

2) Remove the battery.

B. SPEAKER REMOVAL

1) Open the display section. Remove the screw cover, and remove the special screw.

When removing the special screw, use the exclusive tool.

*

When tightening the screws, follow the tightening sequence of

*

(a), (b), (c), and (d).

(b)

(a)

(d)

(c)

C. VIBRATING MOTOR REMOVAL

1) Open the display section. Remove the screw cover, and remove the special screw.

When removing or installing the speci al screw, use the exclu sive too l.

*

When tightening the screws, follow the tightening sequence of (a),

*

(b), (c), and (d).

(c)

(a)

(b)

(d)

2) Disengage the pawls, and cabinet D unit. Remove the side key, the jack cover, and the external connector cover.

2) Close the display section. Disengage the pawls, and remove the cabinet B unit.

TM200 DISASSEMBLY AND REASSEMBLY

3) Remove the vibrating motor from the cabinet D unit.

3 – 1

CONFIDENTIAL

D. BACKUP BATTERY REMOVAL

1) Remove the backup battery from the main/LCD PWB unit. When installing the battery, be careful of the installing direction and

*

install it diagonally from the lower side of the battery holder spring.

E. MAIN/LCD PWB UNIT REMOVAL

1) Remove the ANT dust-proof sheet (a) and the submersion sheet (b), and remove the main/LCD PWB unit (c).

(a)

(c)

2) Remove the camera shield case unit from the main/LCD P WB unit, and remove the camera flexible unit. Disengage the pawl, and remove the sub LCD unit. Disconnect the connector.

3) Remove the connector (a). Disengage the pawl, and remove the main/LCD unit. Disconnect the connector (b).

(b)

When attaching the ANT dust-proof sheet (a), fit it with the RF external

*

antenna connector with the main/LCD PWB silk section as the reference.

When attaching the submersion sheet (b), attach it inside the bump area.

*

(b)

(a)

When attaching the PWB unit, rotate the main PWB and the LCD

*

PWB 180 degrees in the arrow direction to wind the flat cable.

(b)

(a)

F. SUB LCD REMOVAL

1) Remove the sub LCD from the sub LCD holder unit. Hold the both ends of the sub LCD as shown in the figure,

*

and never press TAB (a).

(a)

TM200 DISASSEMBLY AND REASSEMBLY

3 – 2

G. MAIN LCD, BL FLEXIBLE UNIT REMOVAL

1) Remove the main LCD from the main LCD holder unit. Remove the BL flexible unit.

Hold the both ends of the main LCD as shown in the figure, and

*

never press TAB (a).

CONFIDENTIAL

(a)

H. RECEIVER AND MIC REMOVAL

1) Remove the receiver and the mic from the cabinet A/C unit. When attaching the receiver, be sure to face the terminal (a) tip

*

toward the inside without covering over the rib. When handling the mic, use a pair of tweezers to hold the periph-

*

eral of the mic, and be careful not to touch the front and th e rear of the mic.

(a)

When attaching the mic, be sure to set the spring direction vertically

*

to the cabinet.

TM200 DISASSEMBLY AND REASSEMBLY

3 – 3

CHAPTER 4. DIAGRAMS

[1] Block diagram

[Main]

CONFIDENTIAL

TM200 DIAGRAM

4 - 1

TM200 DIAGRAM

4 - 2

[RF]

BS1 (D ) BS2 (D ) BS3 (D ) BS4 (D )

PA (A)

VBAT

TCXOEN (D)

Voltage

Regulator

IC804

CONFIDENTIAL

VRF

VTCXO

RX Line

TX Line

Control Line

(D): Digilal, (A): Analog

Loop

filter

CONFIDENTIAL

BS2 BS4

VBAT

BS1 BS2 BS3

IP (A)

IN (A)

QP (A)

QN (A)

TCXOOUT (D)

AFCDAC (A)

TCX801

VCTCXO

26MHz

Loop

filter

1/2

IF Synthesizer

I&Q

MOD

90deg

shift(½)

1/2

DPD

RF Synthesizer

1800 / 1900

900

Loop

filter

IC802

PA

(PF08141B)

APC

1800 / 1900

900

Antenna

IC803

Test Connector

J801

RFSW

SYNTHEN (D) SYNTHDATA (D) SYNTHCLK (D)

TM200 DIAGRAM

4 - 3

Srial data

interface

PGA

PGA Part

IC801

RFIC

(HD155155)

90deg

Shift (½)

90deg

Shift (½)

LNA

FL902

GSM 900 RX

SAW Filter

DCS RX

FL903

PCS RX

4

SAW Filter

TM200 DIAGRAM

4 - 4

CONFIDENTIAL

(1) Sound signal system

䇭

Speaker

Internal microphone

Receiver

YM762

Amplifier unit

Sound source unit

AIN1 OUT1

Monophonic

AIN3R

AIN3L

AD6535

(2) LCD & camera system

Flash LED

Backlight LED

LTC3205

OUT3R

OUT3L

AIN2

LCD

External headphone

External Microphone

External headphone External Microphone

(4) Interfac e

Interface SW

UART

Analog

Serial

UART

USB

BU7880

(5) Vibration Motor & LED Driver

LDOM

Vibration Motor

ON/OFF

I/F CN

Power

souceIC BD6020 +BD6030

1.8V

3.0V

15V

8V

CCD camera I/F

(3) Battery charge system

Constant voltage

Constant current

AC charger

VDT

reg

OVP

LCD controler

AD6535

I/F

㧗3.0V 㧗1.8V

Series

regulator

Lithium ion

Battery pack

(6) Sense Flip

Key

LED-Light

Flip Sense

TAPE SIDE Polar"S"

Upper CAB

Lower

CAB

YM762

AD6535

Typhoon

N

Magnet

S

Hall IC

EW6671

TM200 DIAGRAMS

4 – 5

AD6529 Hermes

CONFIDENTIAL

CHAPTER 5. SCHEMATIC DIAGRAM AND WIRING SIDE OF P.W.BOARD

[1] NOTES ON SCHEMATIC DIAGRAM

• Resistor: To differentiate the units of resistors, the symbols K an d M are used. The symbol K means 1000 ohm and the symbol M means 1000 kohm. The resistor without any symbol is an ohm resistor.

• Capacitor: To indicate the unit of capacitor, the symbol is used. The symbol P means pico-farad and the unit of the capacitor without such a symbol is microfarad. As to electrolytic capacitor, the expression “capacitance/withstand voltage” is used. (CH), (RH), (UJ) : Temperature compensation

(ML) : Mylar type (S) : Styrol type (PP) : Polypropylene type

[2] TYPES OF TRANSISTOR AND LED

B

(3)

(G)

E

(1)

(S)

TOP

VIEW

2SK3019 RT1N144 U

C (2) (D)

1

D

G

3

CPH6311

6

TOP

VIEW

4

1

S1

D

G1

D

S2

S

G2

4

TOP

VIEW

ECH8603

• The indicated voltage in each section is the one measured by Digital Multimeter between such a section and the chassis with no signal given.

• Conditions: SIM card inserted, power on, in stand-by mode (opened)

• S chematic diagram and Wiring Side of P.W. Board for this model are subject to change for improvement without prior notice.

• Parts marked with “ the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

8

D1

D2

5

1

(D)

2

(D)

3

(G)

” are important for maintaining the safety of

%

6

TOP

VIEW

MCH6413

(D)

5

(D)

4

(S)

PD

4

TOP

VIEW

3

EC4301 C

1

PG

PS

2

EC4401 C

TOP VIEW

1SS388 1SS405 RB160M30 RB521S30 RB551V30 RB520S30

TOP VIEW

YPY1105C FR1105C GM1BC35370AC

TOP VIEW

HN2S01FU

TOP VIEW TOP VIEW

NECW008A

TOP VIEW

RSB6.8S

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 1

[3] WAVEFORMS OF CIRCUIT

CONFIDENTIAL

IP

1

(talking) C811 (IC801 23pin)

IN

2

(talking) C811 (IC801 24pin)

QP

3

(talking) C812 (IC801 25pin)

IP

4

(talking) C812

(IC801 26pin)

IP

1

(talking) C811 (IC801 23pin)

IN

2

(talking) C811 (IC801 24pin)

QP

3

(talking) C812 (IC801 25pin)

IP

4

(talking) C812

(IC801 26pin)

RF Test Tool Tx test Data pattern TSC5

STOP

RF Test Tool Rx test

Channel_62,Gain 62dB,SniffOff

STOP

8

BS1E

(talking) C872

(IC803 6pin)

BS2E

9

(talking) C871 (IC803 7pin)

BS3

10

(talking) C870 (IC803 8pin)

BS4

11

(talking) C863

(IC802 16pin)

BS1E

8

(talking) C872 (IC803 6pin)

BS2E

9

(talking) C871 (IC803 7pin)

BS3

10

(talking) C870 (IC803 8pin)

11

BS4

(talking) C863 (IC802 16pin)

RF Test Tool Tx test GSM900 Band

STOP

RF Test Tool Tx test DCS1800,PCS1900 Band

STOP

5

SYSNTHEN (Stand-by)

IC801 29pin

6

SYNTHCLK (Stand-by) IC801 30pin

7

SYNTHDATA (Stand-by) IC801 32pin

RF Test Tool Rx test GSM900 Band (Channel 62)

STOP

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 2

BS1E

8

(talking) C872 (IC803 6pin)

BS2E

9

(talking) C871 (IC803 7pin)

BS3

10

(talking) C870 (IC803 8pin)

11

BS4

(talking) C863 (IC802 16pin)

RF Test Tool Rx test GSM900,DCS1800 Band

STOP

CONFIDENTIAL

13MHz IN (Point R261) To Digital Base Band LSI Pin142

12

BS1E

8

(talking) C872

(IC803 6pin)

BS2E

9

(talking) C871 (IC803 7pin)

10

BS3 (talking) C870 (IC803 8pin)

11

BS4 (talking)

C863 (IC802 16pin)

RF Test Tool

Rx test

PCS1900 Band

STOP

13MHz OUT (Point R166) from Digital Base Band LSI Pin84

13

32.768KHz IN (Point-R152) To Digtal Base Band LSI Pin49

14

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 3

DCLK (Point-R759 on LCDC_PCB) To LCD Unit pin26

15

VSYNC (Point-C760 on LCDC_PCB) To LCD Unit pin28

16

CONFIDENTIAL

TCXOEN (Point-IC804 pin 1) From Analog Base Band LSI Pin 2

17

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 4

CONFIDENTIAL

12345678

/CAM_RESET

LCD_RSP

3.0V

USC[3]

MC_CLK

MC_CMD

MC_DAT[0]

MC_DAT[1]

MC_DAT[2]

MC_DAT[3]

VAPP

RSB6R8S

C210

ZD106

3.0V

USC[3]

JTAGEN

TCK

TMS

TDI

TDO

MODESEL1

REMOTE_SW

VINT

0.1

RSB6R8S

R156 00

ZD108

KEYPADROW[0]

KEYPADROW[1]

KEYPADROW[2]

KEYPADROW[3]

KEYPADROW[4]

KEYPADCOL[0]

KEYPADCOL[1]

KEYPADCOL[2]

KEYPADCOL[3]

KEYPADCOL[4]

R287

***

R162

0

3.0V

VINT

G

C172

C173

VBACK

JTAGEN

TDI

TCK

VINT

GND

TMS

RESET

TDO

7.5K

KEYPADCOL[1]

KEYPADCOL[2]

KEYPADROW[0]

GND

R254

C209

***

RSB6R8S

20KR249

***R250

100

R149

R150

R152

KEYPADCOL[1]

KEYPADROW[0]

KEYPADCOL[2]

R163 0

SIMIO

196

SIMDATAIO

R164

SIMCLK

177

SIMCLK

0

SIMRST

195

GPIO_23

197

GPIO_24

157

GPIO_47

KEYPADROW[0]

40

KEYPADROW[1]

54

16

KEYPADROW[2]

53

KEYPADROW[3]

15

KEYPADROW[4]

KEYPADCOL[0]

67

14

KEYPADCOL[1]

33

KEYPADCOL[2]

32

KEYPADCOL[3]

13

KEYPADCOL[4] G BOOTCTRL1

R168

GPIO_55

51

470K

12

GPIO_56

R288

G BOOTCTRL0

***

148

USC[0]

146

USC[1]

R291

133

USC[2]

470K

145

USC[3]

134

USC[4]

125

USC[5]

131

USC[6]

R165 10K

178

JTAGEN

122

GPIO_18

198

GPIO_19

158

GPIO_20

199

GPIO_21

L106

97

MC_CLK

Z0370

MC_CMD

50

10

MC_DAT[0]

64

MC_DAT[1]

29

MC_DAT[2]

MC_DAT[3]

85

GPIO_22

11

176

DPLUS

121

DMINUS

27

GPO_00

48

GPO_01

TP106

200

GPO_02

NC

180

GPO_03

181

GPO_04

7

GPO_05

TP130

GPO_06

26

182

GPO_07

NC

202

GPO_08

203

GPO_09

NCNC

204

GPO_10

167

GPO_11

183

GPO_16

184

GPO_17

161

GPO_18

186

GPO_19

168

GPO_20

162

GPO_21

46

CSDO

96

CSFS

CSDI

25

BSDO

24

BSOFS

3

BSDI

2

BSIFS

23

ASDO

1

ASDI

19

ASFS

22

6

GPO_29

CLKOUT_GATE

47

R166

CLKOUT

84

0

GPIO_48

4

***

142

CLKIN

159

CLKON

TP124

PWRON

63

189

NRESET

1000P

OSCIN

49

R167

OSCOUT

28

20M

R169

0

X101 C0065

10M

C174

20P

C176

DGND SHIELD

VBACK

SIMRST

GND

SD_DET

VSIM

SIMIO

SIM_OP

SIMCLK

0

ZD107

R196

R202

R195

SIMIO

SIMRST

SIMCLK

12P

C217

C218

C216

27P

1.8V

VCORE

R170

0

C177

0.1 C178

0.1 C179

0.1 C180

0.1

31

98

120

62

82

VCC

[SIM RESET]

[Sound IC RESET]

Boot

Control 1

[Boot Control 1]

[Boot Control 0]

[Genie TX]

[RXD]

[TXD]

[Genie RX]

[RTS / Genie RX]

[CTS / Genie TX]

[GPIO_31 / Genie RX / (RTC monitor)]

[TCK]

[TMS]

[TDI]

[TDO]

[SD card] [SD card] [SD card] [SD card] [SD card] [SD card] [LCD RSP]

[USB D+] [USB D-]

[RXON] [TXON]

[WP contorl for Super-AND]

[HUM of Bluetooth] [MODESEL1] [ASM] [Not use]

[power on/off of Bluetotth]

[IrDA Power on/off] [BS3] [BUFOFF] [BS4] [BS1] [BS2] [SYNTHEN] [Modesel3 of Interface IC] [SYNTHDATA] [SYNTHCLK]

[Typhoon RESET]

[13MHz Output] [Remote control SW]

GND

39

SD_WP

23242526272829303132333435

12p/25V

130

VCC

High

Low

A

B

C

D

E

F

G

H

J

K

L

M

N

P

R

T

U

V

GND

52

0

R197

MC_DAT[1]

GND

SD_DAT1

SD_CLK

GND

VSD

SD_DAT0

0

R199

R203

0

R198

MC_DAT[0]

MC_CMD

MC_CLK

2.85V

3.0V

1.8V

VSIM

VINT

VRTC

R171

R172

R173

0

0.1

C181

C182

8

143

160

44

132

VCC

VSIM

VMEM

VDDRTC

[LCD controller RESET, Sub LCD RESET, Camera Power on]

Boot Control 0

High

Low

USB BOOT

(Internal

(External

referance clock)

UART BOOT

Flash BOOT

IC106 AD6529B

8

5

3

4

2

1

51

41 3

8

6

3

19

26

2422

27

21

25

23

37

39

38

48 50

45

43

44 54

46

47

60

58

62

61

57

59

175172 173169 170 179177 181 184183180176174 178171 182

189 196194 202192190 204200191 195 199193187 203188 198 201197

TOP View

GND

61

65

81

107

109

111

87

86

Genie_TX/USC[5]

Genie_RX_USC[3]

SD_CMD

Genie_TX/USC[0]

SD_DAT3

SD_DAT2

8

9

10111213141516171819202122

0

R200

R201

0

R255

(***)

MC_DAT[3]

MC_DAT[2]

USC[3]

JTAGEN

USC[0]

USC[5]

3.0V

VINT

R174

0

C184

0.1 C185

0.1 C186

0.1

41

68

79

128

170

173

66

VEXT

VMEM

[Headset SW detect from Headset Jack]

[Stereo / Mono detect of Headset Jack]

[PCM DATAOUT of Bluetooth]

[USB pullup control of Interface IC]

9

10

11 12 13 14 15 16 17 18

107

12

16

9

15

142

11

34

32

30628

33731

35

29

40

41

51 56

53

49

52

55

64

65 68 69 7066 67

63

7771 78767472 7573

8983 8479 90888582 8680 8781

10195 9691 1021009794 9892 9993

113107108103 114112109106 110104 111105

125119120115 126124121118 122116 123117

133127 134132130128 131129

147140141135 148146142138 143136 145139137 144

161154155149 162160156152 157150 159153151 158

166165163 164 168167

[WP control of Flash memory 1]

GND

123

137

147

153

201

144

129

[Camera Controller Interrupt]

[13MHz clock for LCDC and sound IC]

1234567

TP125

TP149

TDI

TMS

TCK

TDO

3.0V

1.8V

VUSB

VCORE

R175

R237

0

C187

0.1 C188

0.1

C191

0.1 C189

0.1 C190

0.1

5

166

110

179

194

VINT

VEXT

VDDUSB

[USB_CURRENT_CTL]

[BT_RTS]

[UART CTS of Bluetooth]

[SD card detect]

[LCD controller interrupt]

[MUM of Bluetooth]

[USB detect]

[Flip Switch Detection]

[PCM CLK of Bluetooth] [PCM DATAIN of Bluetooth] [PCM SYSNC of Bluetooth]

[UART RXD of Bluetooth] [UART TXD of Bluetooth]

[SD card WP]

[Modesel2 of Interface IC]

[Typhoon Interrupt]

[Sound IC Interrupt]

[Flash VPP]

[Sleep of SCRAM2]

[Flash_Memory_1 /CS]

[SCRAM1 /CS] [SCRAM2 /CS]

[Super-AND Flash /CS]

[CLE of Super-AND]

[LCD Controller /CS]

[Camera /CS]

[SRAM /CS]

[Sound_IC /CS]

[/UBS]

17

18

[/LBS]

20

[LCD Controller /Wait]

36

[ALE of Super-AND]

42

186185

VSSUSB

VSSRTC

9

156

@P_COD

CN104

3.0V

VINT

TP150

TP151

TP152

3.0V

VAPP

R177

0

0.1

C207

3.0V

30

VMC

VINT

R155

C208

BURSTCLK

DATA[10]

DATA[11]

DATA[12]

DATA[13]

DATA[14]

DATA[15]

ADD[10]

ADD[11]

ADD[12]

ADD[13]

ADD[14]

ADD[15]

ADD[16]

ADD[17]

ADD[18]

ADD[19]

ADD[20]

ADD[21]

ADD[22]

ADD[23]

GPIO_40

470K

C137

3.0V

VINT

R279

0.1

[IrDA Tx]

GPIO_00

[IrDA Rx]

GPIO_01

GPIO_02

GPIO_03

GPIO_04

GPIO_05

GPIO_06

GPIO_07

GPIO_08

GPIO_09

GPIO_10

GPIO_11

GPIO_12

GPIO_13

GPIO_14

GPIO_15

GPIO_16

GPIO_17

GPIO_33

GPIO_34

GPIO_35

GPIO_36

GPIO_37

GPIO_38

GPIO_39

GPO_22

GPO_23

NROMCS1

NRAMCS1

NRAMCS2

NGPCS1

NAUXCS1

GPIO_42

GPIO_43

GPIO_44

GPIO_45

GPIO_46

DATA[0]

DATA[1]

DATA[2]

DATA[3]

DATA[4]

DATA[5]

DATA[6]

DATA[7]

DATA[8]

DATA[9]

ADD[0]

ADD[1]

ADD[2]

ADD[3]

ADD[4]

ADD[5]

ADD[6]

ADD[7]

ADD[8]

ADD[9]

C194

3.0V

0.1

3.0V

VINT

R269

***

R270

100K

3.0V

VINT

R271

100K

R272

***

USB_CURRENT_CTL

USB_DET

R188

0

MODESEL2

USB_PU

100R180 100R181

47P

BT_PCMCLK

BT_PCMOUT

BT_PCMSYNC

BT_PCMIN

BT_TXD

BT_RXD

TP157

C193

BT_RTS

BT_CTS

0.1

/LCD_INT

/LCD_RESET

CAM_INT

/LCD_CS

/CAM_CS

/LCD_WAIT

VINT

R182 0

DATA[0-15]

DATA[0] DATA[1] DATA[2] DATA[3] DATA[4] DATA[5] DATA[6] DATA[7] DATA[8]

DATA[9] DATA[10] DATA[11] DATA[12] DATA[13] DATA[14] DATA[15]

13MHZ_CLK

IC107 EW6671

1

Vdd

2

Gnd

3

Out

D

3.0V

VINT

0

R101

TP181

CN102 WTL35

GND

35

C227

1/6.3V

12

1

9

R273

2

78

47

R207

3

6

10

4

5

N0024

12

1

9

R274

2

78

R206

47

3

6

10

4

5

N0024

12

1

9

R275

2

78

47

R205

3

6

10

4

5

N0024

12

1

9

R276

2

78

47

3

6

10

4

5

R204

N0024

REFOUT

G

TEMP1

R251

470K

G

RECIVER_OUTP

VBAT

3.0V

VINT

TP187

SP2-1

G

TP188

DATA[0]

DATA[1]

DATA[2]

DATA[3]

DATA[4]

DATA[5]

DATA[6]

DATA[7]

DATA[8]

DATA[9]

DATA[10]

DATA[11]

DATA[12]

DATA[13]

DATA[14]

DATA[15]

R186 00

C200

C198

0.1

0.1 R187 0

NC

C199

0.1

GND

34

VINT

33

32

VINT

31

D0

8

D1

30

7

29

D2

6

28

D3

5

27

D4

8

26

D5

7

D6

25

6

24

D7

5

23

D8

8

D9

22

7

D10

21

6

D11

20

5

D12

19

8

D13

18

7

17

D14

6

16

D15

5

15

RD

CAMCS

14

13

WE

CAMINT

12

A1

11

10

A2

A17

9

8

A18

A19

7

CAMRST

6

0

R210

GND

5

GND

4

L110

0

VBAT

R231

0

R212

0

R226

0

R224

0

R223

HW601

R222

0

R221

HW601

TP185

R234

0

R233

0

TP186

R235

0

R228

0

R227

0

3.0V

VINT

2.8V

VBACK

C

LCDCLK

3

GND

2

GND

1

TP182

TP183

CN103

WTL35

VBAT

35

VBAT

34

VBAT

33

32

VCORE

31

TEMP

30

REFOUT

29

VBAT

28

GND

27

26

BTRESET

GND

25

24

LCDRSP

23

LCDWAIT

LCDRESET

22

LCDINT

21

AGND

20

AGND

19

RECEIVER-

18

17

RECEIVER+

16

AGND

15

AGND

LCDCS

14

13

VBAT

12

VBAT

11

10

VINT

9

NC

8

GND

7

GND

6

GND

5

SP-

4

SP+

3

GND

2

B

1

GND

TP184

A

ADD[1] ADD[2] ADD[3] ADD[4] ADD[5] ADD[6] ADD[7] ADD[8]

ADD[9] ADD[10] ADD[11] ADD[12] ADD[13] ADD[14] ADD[15] ADD[16] ADD[17] ADD[18] ADD[19] ADD[20] ADD[21] ADD[22] ADD[23]

ADD[1]

HEDSET_DET

STEREO_SW

SCRAM1_/CS

ADD[1-23]

FL104

NA004

2

1

4

C138

***

R189

/CAM_CS

CAM_INT

FL101

NA004

2

3

1

4

FL102

change BK1608HW241-T

FL103

NA004

ADD[1]

ADD[2]

ADD[19]

ADD[18]

ADD[17]

GPIO_09

G

C195

***

828384

25

36

45

ADD[1]

81

ADD[2]

72

ADD[3]

71

ADD[4]

70

ADD[5]

80

ADD[6]

79

ADD[7]

69

ADD[8]

68

ADD[9]

15

ADD[10]

17

ADD[11]

16

ADD[12]

3

ADD[13]

7

ADD[14]

6

ADD[15]

5

ADD[16]

4

ADD[17]

14

ADD[18]

67

ADD[19]

66

ADD[20]

47

ADD[21]

2

ADD[22]

27

ADD[23]

37

46

WP#

OE#

A0

F-WE#

F-VPP

F-RST#

F1-CE#

A1

A2

A3

Nor-Flash Signal Super-AND Flash Signal SCRAM & SRAM Signal

A4

A5

A6

A7

IC101 LRS1B27

A8

A9

A

A10

A11

C

A12

A13

E

A14

F

A15

G

A16

H

A17

A18

A19

A20

A21

A22

NC

GND

1

8

35

TP142

2

3

1

4

8

1

9

7

2 R208 N0024

6

3

10

5

4

BT_POWER_ON

BT_PCMCLK

G

BT_PCMCLK

BT_PCMOUT

BT_PCMSYNC

G

BT_PCMSYNC

BT_PCMIN

BT_RXD

G

BT_RXD

BT_TXD

BT_CTS

G

BT_CTS

BT_RTS

BT_RESET

G

NC

26

F-RY/BY#

12 20191413 16

NC

101112

NC

TP146

77

13

78

24

44

54

65

ALE

CLE

SF-WE#

SF-CE#

SF-RE#

SF-WP#

SF-R/B#

1562553584575706697648639661065116812

1 234567891011

15 1817

2827

2625

3029 32313433

3635

44

NC

TP144

52514645 4847 5049

605954

61B62

67

71D72

79 8382 8676 84 8578 81 878077

NC

22

23

33

43

53

57

58

NCGNC

NC

NCNCNCNCNC

TP145

BT_POWER_ON

BT_PCMOUT

BT_PCMIN

BT_TXD

BT_RTS

73

SC1-CE1#

22212423

433837 4039 4241

53

7473 75

NC

63

TP147

DATA[15]

DATA[12]

3

DATA[10]

DATA[7]

DATA[4]

DATA[2]

470K

DATA[11]

DATA[8]

DATA[6]

DATA[0]

DATA[5]

DATA[9]

DATA[1]

DATA[14]

DATA[13]

DATA[3]

/CAM_RESET

G

G G

G

LCD_RSP

3.0V /LCD_WAIT

VINT

/LCD_RESET

/LCD_INT

R209

470K

RECIVER_OUTN

/LCD_CS

SP1-1

0

R258

R257

***

38

85

55

56

19

28

40

UB#NCLB#

S-CE1#

DQ0

61

S/SC-WE#

S/SC1-CE2

SC-CE2/NC

DQ1

62

51

DQ2

DQ3

NC

747576

52

DQ4

31

DQ5

32

DQ6

30

21

DQ7

DQ8

60

59

DQ9

50

DQ10

48

DQ11

39

DQ12

29

DQ13

20

DQ14

18

DQ15

SF/F/SC-VCC

34

SF/F/SC-VCC

42

49

SF/F/SC-VCC

S-VCC

41

9

VccIO/NC

NC

86

87

TP148

SC2-CE1#/NC(F2-CE#)

64

3.0V

VAPP

R157

R151

470K

1K

C128

***

TP158

470K

126

124

113

114

112

101

102

89

100

90

77

99

78

88

76

69

70

56

55

36

20

18

35

17

34

TP153

75

42

TP131

140

TP132

191

TP133

154

TP134

172

TP117

192

TP135

141

TP122

193

155

TP143

174

TP136

175

151

NRD

165

NWE

185

NHWR

187

NLWR

188

NWAIT

TP110

171

NADV

190

TP154

116

118

115

119

127

117

136

135

150

138

149

164

163

139

152

169

TP155

21

45

38

TP137

60

TP138

37

59

74

TP139

43

73

58

83

TP140

57

72

TP141

71

80

94

95

92

93

91

106

104

103

TP156

108

R179

105

27

C192

C226

R278

47000P

27K

C148

5

4

C147

47

86

VRTCIN

VUSBIN

KEYOUT

VBACKSEL VMEMSEL

VAPPGATE

ABBRESET

SGND

88

104

C214

R238

0.1

KEYON

CRST

VABB

VSIM VMEM VMEM VCORE VCORE VVCXO

VAPP

VUSB

VEXT

VRTC VBACK

IBIAS

LDOEN

TDO

TMS

RXON

TXON

ASM

CSDI CSFS CSDO

BSDI BSIFS BSDO

BSOFS

ASDI ASDO

ASFS

MCLKEN

MCLK

VCXOEN

RESET

REFIN

REFBB REFEN REFEN

DGND

70

R142

47000P

27K

R146

R145

18K

68K

C154

220P R139 00

C157

47000P

C152

0.1

4.7/6.3V

C149

17

18

SPOUT2

MTR

19

20

D7

D6

21

D5

22

D4

23

D3

24

D2

25

3.0V

R239

VINT

0

TP173

1/6.3V

1

R138 0

110

109

81

101

56

102

98

99

77

73

40

44

48

43

4

20

103

100

R140

1.2M

111

108

TP128

NC

33

NC

1

TDI

NC

17

NC

18

TCK

R141 100K

34

GPI

61

62

57

54

66

53

50

45

42

49

41

38

46

69

58

65

37

INT

2

87

97

31

C150

10

1/6.3V

16

36

3.0V

VINT

4

C212

1/6.3V

5

GND OUT

10111213141516

EQ3

EQ2

EQ1

SPVSS

SPVDD

HPOUT-R

9

VREFSPOUT1

8

VSS

HPOUT-L/MONO

7

VDD

6

PLLC

IC105

YMU762C

D1D0/WR

26272829303132

DATA[1]

DATA[0]

MODESEL2,MODESEL3,USB_CURRENT_CTL,USB_D+,USB_D-,USB_DET,USB_PU,USC[0-2,4-6]

POWONKEY POWONKEY

KEYPADROW[4]

C153

0.1/10V

C166

R144

0

C151

1000P

R143

330

IC108 BU4226FVE

CtVDD

SUB

5

N.C.

/RST

4

/IRQ

3

LED

2

CLK1

1

/CSA0/RD

IOVDD

C231

C204 ***

TP164

C158

2.2

C159 1/6.3V

R153

0

C160 1/6.3V

C161

TP165

1/6.3V

VBAT

Q103

0.47

C162

CPH6311

4

5

6

R147

0

C163

1/6.3V

C164

1/6.3V

0.1

C165

1

1/6.3V

C155

***

C156

C205

3

***

2

TP123

1

2.85V

VINT

R158

0

NC

47P

VABB

VSIM

2.85V

VMEM

2.8V

VCORE

1.8V

VT

2.75V

3

1

VUSB

TP166

TP167

VRTC

VBACK

TP168

VSIM

C167

4.7/6.3V

C168

0.1

C169

0.1

C171

R159

3.3K 1000P

R161

0

R160

470K

0.1

C170

USC[0]

USC[1]

USC[2]

USC[4]

USC[5]

USC[6]

TP169

TP170

TP171

VAPP

TP172

2

C206

10/6.3V

13MHZ_CLK_TYPHOON

(***) 0

R289

BS3

BS4

BS1

BS2

SYNTHEN

SYNTHDATA

SYNTHCLK

TCXOEN

BT_POWER_ON

USB_D+

USB_D-

MODESEL3

BASE BAND (MAIN)

VBAT

SP1-1

TP126

G

SP2-1

D

TP111

TP112

KEYPADCOL[0-4],KEYPADROW[0-4],POWONKEY

G

MODESEL2

G

MODESEL3

G

USB_D+

G

USB_D-

G

USB_DET

G

USB_PU

G

USC[0]

G

USC[1]

G

USC[2]

G

USC[4]

G

USC[5]

G

USC[6]

G

USB_CURRENT_CTL

G

USB_CHG_EN

G

TP103 TP104 TP105 TP118 TP107 TP108

C

TP109

TCXOEN

G

BS1

BS2

G

BS3

BS4

G

SYNTHCLK

SYNTHDATA

G

SYNTHEN

IP

G

IN

QP

G

QN

PA

G

AFCDAC

RECIVER_OUTP

G

RECIVER_OUTN

VINT

Q106

EC4301C

PS

PD

2

PG

1

B

Microphone

PD

C101

TP119

TP101

47P

L101

TP102

L102

ZD101

RSB6R8S

JK101 MA001

16345

2

TOP VIEW

7

AUDIO_IN

G

AUDIO_OUT

G

TEMP1

VBAT

A

TP174

G

2.2K(NU)

2.2K

560

2.2K

R105

R104

R106

R103

LED105

LED106

LED104

LED103

FR1105C

FR1105C(NU)

YPY1105C

GREEN LED

From RF Circuit

USB_CURRENT_CTL

G

3

4

R280

HM102

ZD103

REFOUT

620(NU)

R107

LED107

U-GM1BC35370(NU)

TCXOOUT

G

MODESEL2

MODESEL3

USB_D+

USB_D-

USB_DET

USB_PU

USC[0]

USC[1]

USC[2]

USC[4]

USC[5]

USC[6]

470K

TP160

TP161

TP162

RSB6R8S(Not)

6

5

2

V104

3

4

1

7

ZD104

RSB6R8S

G

620(NU)

R108

LED108

U-GM1BC35370(NU)

MODESEL2

G

R292

R294

150K

120K

R293

R295

150K

120K

USC[0]

USC[1]

USC[2]

USC[4]

USC[5]

USC[6]

TCXOEN

BS1 BS2 BS3 BS4

SYNTHCLK

TP114

SYNTHDATA

TP115

SYNTHEN

TP116

IP

IN QP QN PA

AFCDAC

RECIVER_OUTP

Q107

EC4401C

NS

ND

3

C232 47P

10080MAB

2

1

C233

47P

620

R109

LED109

BLUE LEDRED LED

L104

00

GM1BC35370

NG

1KR244

1KR245

1KR246

C234

47P

620

LED110

L103

Z0315

L105

Z0315

ZD105

RSB6R8S(Not)

R110

U-GM1BC35370

V101

1.8V

VCORE

R132

100K

TP163

620

R111

LED111

U-GM1BC35370

4

ND

C228

10080MBB

2.5V

VMIC

R266

470K

R267

68K

620(NU)

R113

LED112

U-GM1BC35370(NU)

R112

2.2

2.75VVT2.75V

R191

C221

620

R114

LED113

U-GM1BC35370

470K

0

VT

0.1

C104

R192

C103

C105

R268

120K

C219

620

R117

LED114

U-GM1BC35370

TP121

R277 C107 22uF/4V

22uF/4V

C110

47P

470K

0.1

REMOTE_SW

STEREO_SW

HEDSET_DET

C124

C114

***

10080MAB

C106

10080MAB

C109

10080MAB

VMIC

C220

0.1

IC114

0.1

C222

IXA007

1

5

IN(+)

Vdd

Vss

2

4

IN(-)

Out

3

0.1

620(NU)

620

R176

R119

R118

R178

LED117

LED115

LED116

LED118

U-GM1BC35370

U-GM1BC35370(NU)

U-GM1BC35370

0

R264

C125

10080MAB

C108

TP120

RECIVER_OUTN

0

10/6.3V

R129

R262

620

R281 0

C235

2.2K

6.8K

IC110 TC7S66FU(Not)

1

2

3

GND

R190

LED119

U-GM1BC35370

R282

1.8K

R283

2.2K

1

BATTYPE

TP176

R265 ***

R122

C211

0.1

Not mount

620

LED120

5.2V

CHGIN

1

2

G

2.2K

R130

R263

TP177

TP179

Vcc

Not mount

620

R211

LED121

Not mount

U-GM1BC35370

C229

1000P

C230 1000P

IC116 RW5RW45,

GND

2.2K

6.8K

5

4

R230

Not mount

U-GM1BC35370

TP180

2.75V

VOUTVDD

R115

100

R125

2.2K

VT

Not mount

620

R232

LED122

U-GM1BC35370

XC61CN27

CE

Not mount

R128

IC115

؀έςȜا

4

3

C236

91K

VABB

D106

RB521S30

1/6.3V

VMIC

C112

C113

R148

2 Vin

NC

3

NC

(VHIQ5RW45BF-1L)

***

C111

R116

R120

47P

C115

C121

47P

1000P

10K

103KT1005T

TH101

IP

IN

QP

QN

PA

AFCDAC

R284

27K

1 Vout

GND

4

R131

D103

270

RB160M

1/6.3V

L107 HM102

L108 HM102

VBAT

C120

47P

0

R248

C122

47P

C126

R299

0.1

0

C116

47P

C127

R300

0.1

0

C117

1000P

R127

470K

***

C119

C224

TP178

C223

G

0.1

C139

TP113

***

C136

Q108

@P_COD

1

S

8

D1

2

7

GDD

G1

D1

3

S

D

D2

S2

4

56

G

D

G2S1D2

K3019

Q101

R286

470K

12

IP

13

IN

15

QP

14

QN

28

PA

30

AFCDAC

93

AIN3L

94

AIN3R

59

AOUT1P

63

AOUT1N

C132 47P

106

SPWR

90

SPWR

91

AOUT2P

107

AOUT2P

NC

89

AOUT2N

R124

105

AOUT2N

0

60

AOUT3L

R126

64

AOUT3R

0

76

VMIC

C133 47P

80

AIN1P

96

AIN1N

C134

79

AIN2P

47P

95

AIN2N

68

LIGHT1

71

LIGHT2

72

LIGHT3

75

LGND

0.1

26

AUXADC1

C118

9

AUXADC2

27

REFOUT

25

TEMP1

39

REFCHG TEMP2

8

***

C135

113

AGND0

0.1

114

AGND0

115

AGND0

116

AGND0

117

AGND0

118

AGND0

119

AGND0

120

AGND0

121

AGND0

1/6.3V

122

AGND0

123

AGND0

124

AGND0

125

AGND0

126

AGND0

127

AGND0

128

AGND0

129

AGND0

130

AGND0 AGND0

131

AGND0

132

00R135

TP127

IC109

VBAT

NJ287130

1

VIN

CONT

5

GND

2

C143

4

NB

VOUT

3

L113 HM102

D105

C142

1SS388

R285

470K

R133

0.18

C140

***

C141 4700P

R134 100

567

VCHG(VCHGIN)

AGND0

133

NC

21

222324

92

ISENSE

NC_R12

CHGOSC

BATTYPE

GATEDRIVE

VBATSENSE

CHGDACREF

IC103

AD6535

3

4

2

1

41 3

3

A

17

19

20

18

B

34

33

C

38

37

D

41

42

E

45

46

F

50

49

G

54

53

H

58

57

J

62

61

K

65 68

66 67

L

69 70

M

N

777178

P

R

T

AGND0

134

135

136

137

138

139

140

141

00R136

0.1

1

VBAT

R256

NC

52

35

VBAT1

NC_G16

5

7

51

6

2422

21

23

113 114 115

119 120 121

125 126 127

131

132

133

139

138

137

145143

144

101

1021009794989299

TOP View

3

AGND0

142

143

144

TCXOOUT

0

C144

51

VBAT2

8

9

8

9

25

8983 84

AGND0

145

C213

1/6.3V

C145

0.1

10/6.3V

3

55

19

VBAT3

VBAT2

VBAT3

10

11 12 13 14 15 16

11

107

12

27

26

116

117

118

123

124

122

130128

129

134

135

136

142

141

140

148146

147

90888582 86808781

107 108103 112109106 110104 111105

AGND0

146

147

148

85

VBAT4

AGND0

29

DATA[7]

DATA[6]

DATA[5]

DATA[4]

DATA[3]

DATA[2]

IC111 R1160N301B

1

VddCEVout

2

GND

3

ECO

5.0V

VBUS_IN

R137

0

C146

0.1

74

78

828384

VBAT5

VMEMIN

VCOREIN

16

142

15

32

30628

29

31

35

36

39

40

43

44

48

47

51

52

56

55

59

60

63

64

72

7674

7573

79

95 9691

93

DBBON(PWRON)

AGND3

AGND2

AGND4

AGND1

11

32

67

112

87 65 4

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 5

3

21

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 6

RF PART (MAIN)

CONFIDENTIAL

12345678

D

C

D

C

B

A

87 65 4

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 7

3

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 8

21

B

A

CONFIDENTIAL

12345678

IC505 XC620930

Vin

Vss

CE

R547

1/6.3V

VINT

R553

***

R527 0

5

Vout

1

C516

NC

4

NC

100K

***

100K

R548

R550

R552

***

R549

R551

100K

C517

***

IC507 TC7SET00FU

5

Vcc

4

GND

Bottom_View

C518

0.1

IC506 ZA005

6

UARTTX

7

UARTRX

12

PCMOUT

PCMCLK

PCMSYNC

PCMIN

USBP

USBN

UARTCTS

UARTRTS

XTAL IN

XTAL OUT

RESET

100K

R519

100K

ABCDEF

1

2

1713192531

3

2814202632

4

3915212733

5

4 1016222834

6

5 11172329

18

13

19

1

NC

2

NC

8

3

14

NC

15

NC

16

R518

1

2

3

10

17

11

VCC

VDD18V

VCC IO

6 12182430

GND

23

5

30

4

Q505 EC4401C

NS ND

NG ND

1234

3.0V

VINT

R522

10K

GND

C522

R520

RT1N144U

TP514

47K

Q503

2.2/25V

SPIMOSI

SPICLK

SPIMISO

SPICSB

PIO5

PIO4

PIO8

PIO6

PIO7

PIO2

PIO3

PIO1

PIO0

RF IO

5.0V

VBUS_IN

D

0

R543

24

R544

0

25

R545

31

3.3K

R546

32

***

20

26

9

21

27

33

22

28

34

29

5.2V

CHGIN

TP517

TP518

TP519

TP516

TP529

TP530

TP531

TP532

TP533

CN503

R542

W947F

0

IN

OUT

1

2

GND

3

GND

4

GND

5

GND

6

TP515

R540 00

AN501

YCE-5250

NC

1

GNDNCNC

2

Feed point

NC

34

NC

6

NC

5

NC

C

KEY (MAIN)

Side SW FPC

SW_Side_DOWNSW_Side_UP

BT_POWER_ON

NC

USB_PU

C507

BT_RXD

BT_PCMCLK

BT_PCMIN

BT_CTS

BT_RESET

G

R713

NC

G

1/6.3V

G

R507

0

Battery

470K

KEYPADCOL0

SW_Menu

KEYPADROW0

Menu

SW_RIGHT

SW523

KARBON-R0.3

SW514

KARBON-R0.3

SW515

KARBON-R0.3

SW516

KARBON-R0.3

SW517

KARBON-R0.3

KEYPADROW1

KEYPADROW2

KEYPADROW3

KEYPADROW4

RIGHT

SW_UP

UP

SW_DOWN

DOWN

SW_LEFT

LEFT

SW524 KARBON-R0.3

SW518

KARBON-R0.3

SW519

KARBON-R0.3

SW520

KARBON-R0.3

SW521

KARBON-R0.3

D

KEYPADCOL[1] KEYPADCOL[2] KEYPADROW[0]

GGG

SW501

KARBON-R0.3

SW502

KARBON-R0.3

SW503

KARBON-R0.3

SW504

KARBON-R0.3

SW505

KARBON-R0.3

SW506

KARBON-R0.3

SW507

KARBON-R0.3

SW508

KARBON-R0.3

SW509

KARBON-R0.3

SW510

KARBON-R0.3

SW511

KARBON-R0.3

SW512

KARBON-R0.3

SW513

KARBON-R0.3

On the FPC

Side UP

SW_*

*

SW_1

1

SW_4

4

SW_7

7

On the FPC

Side DOWN

SW_0

SW_2

SW_5

SW_8

KEYPADCOL2

KEYPADCOL1

C

KEYPADCOL[0]

V501

TA501 ZA001

10080MBB

TA502 ZA001

TA503 ZA001

KEYPADCOL[1]

TA504 ZA001

TA505 ZA001

KEYPADCOL[2]

TA506 ZA001

TA507 ZA001

KEYPADCOL[3]

V504

10080MBB

KEYPADCOL[4]

V505

SW522

KARBON-R0.3

10080MBB

V506

10080MBB

0

2

5

8

KEYPADCOL4

KEYPADCOL3

SW_CAM SW_ZOOM

CAMERA

ZOOM

SW_#

SW_SOFT2

SOFT2

#

SW_Spe

SW_3

Special

3

SW_SEND

SW_6

SEND

6

SW_SOFT1

SW_9

SOFT1

9

KEYPADROW[0]

V507

10080MBB

KEYPADROW[1]

V508

10080MBB

KEYPADROW[2]

V509

10080MBB

KEYPADROW[3]

V510

10080MBB

KEYPADROW[4]

V511

10080MBB

TP521

(L1)

TP522

POWONKEY

Ghost

Not

SW_POWON

Power on/off

KEYPADCOL[0-4],KEYPADROW[0-4],POWONKEY

G

USB_CHG_EN

G

USB_CURRENT_CTL

G

USB_DET

G

CN501 AA002

BATT

SENSE

TP506

TP534

(L1)

C504

1000P

R501

***

(47K or 22K

TP520

TP501

1

2

3

GND

TP527

TP528

FS501

L252E

FS502

L252E

TP502

(L1)

TP503

C505 22/6.3V

TP504

(L1)

TP505

Battery

BATTYPE

G

BATT

G

VBAT

G

BT_TXD

G

BT_PCMOUT

G

BT_PCMSYNC

G

BT_RTS

G

D503

RB160M

NC

VBAT

9

8

7

C724

0.1/10V

R515

470K

R514

470K

IC503 TK73840B

PC

VOUT

Vfb

Q501 RT1N144U

VBAT

R516

470K

R517

Bottom View

9

8

7

GND

1

2

1

C512

3

R523

470K

TP508

470K

3

6

3

PE

2

5

Vin

2

1

4

ABC

GND

ACL

5

6

4

R508

R509

C510

1

on/off

2.7K

R511

0.01

47K

C511

18K

22 2420 21 2319

13

VBAT

BDATA/CTS

12

GND

UART_CTS

6541

UART_RXD1

TXANAIN

11

BSSEL

RXANAOUT

10

UART_TXD2

BCNT

UART_RXD2

BSYNC

UART_TXD1

UART_RTS

BDATA

TXANAOUT

R702

9

B

8

7

NC

6

5

SCLK

4

3

2

1

***

C723

0.1/10V

C707

0.1/10V

L838

L839

0

3

1

2

3

R813 ***

FL701

USBUF2W6

R814 ***

CN502 W915K

R727

USB UART Hands Free

0

GND USB

1

USB D+

2

USB D-

3

USB VBUS

4

Power Supply

5

Reserved

6

Synchronisation

7

Clock Manufacturer

8

Specific

9

Reserved

GND

10

11

12

13

14

GND UART

RXD

TXD

Not connect

(Power Supply)

(Reserved)

RTS

Manufacturer Specific

CTS

GND

GND UART

RXD

TXD

Not connect

(Power Supply)

(reserve)

Audio-OUT Manufacturer

Specific

Audio-IN

GND (Audio)

A

Not mount

R741 00

R742 00

TP535

TP525

R744

100

R718

100

R719

100

R720

100

V714

TP526

10080MBB

TP536

TP538

TP537

5.2V

CHGIN

R722 00

R723

***

C716

***

C717

00

TP523

6

NC

5 4

TP524

V715

V713

V708

10080MBB

21

16

17

USB_D+

18

B

USC[1]

VUSB

R746

R747

G

USC[4]

G

10K

MODESEL1

G

120K

6

5

4

R752

R745

D109 HN2S01FU

Mirred

0

1

2

R753

3

470K

A

GPIO_09

G

3.0V

VINT

R714

USC[6]

G

10K

D704

RSB6R8S

G

USB_D-

G

MODESEL3

BOOTCTRL1

G

0

R749

G

Not mount

3.0V

VINT

R705

0

Q507

G

BOOTCTRL0

PS PD

PG PD

1234

USC[0]

USC[2]

3.0V

VINT

G

USC[5]

G

R588

470K

Not mount

R750

0

Q508 EC4301C

PS PD

23

PG PD

1

4

R589

470K

VUSB

3.0V

VINT

R751 270K

C706

NC

0.1/10V

1.5K

R706

AUDIO_OUT

AUDIO_IN

19

UARTMD

UARTSEL

CPU_USB_D+

20

REG33

21

NC

22

NC

23

HEMD

24

CPUVDD

25

USBD+/RXD

26

BSYNC\SCLK/RTS

PU15

27

GND

RXANAIN

282930313233343536

G

14

15

NC

PUEA

IC701

BU7880GU

VHIBU7880GU-1L

12323654

A

B

911107128

C

151413 181716

D

E

25 2926 27 28 30

F

31 3532 33 34 36

USBMD

CPU_USB_D-

USBD-/TXD

87 65 4

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 -9

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 10

CONFIDENTIAL

12345678

Sub LCD

SUBD4

SUBWR

17

SUBWR_B

8180797877737675

BSHS_B

33

1718

SUBD5

SUBRS

35

105

D6

D7

14

15

16

SUBD7

SUBLP

SUBD6

SUBLP

SUBFLM

SUBCKS

L711

Z0389

110

136

122

SUBRS

SUBLPIN

SUBFLMIN

10 11 12 10 11 12

82

142141140

BSBLK_B

BSCLK

BSVS_B

79

92

104

FLM

GNDD5LP

SUBCK

SUBFLM

SUBCK

SUBD7

SUBD1

L710

Z0389

78

66 67

123

SUBDB7

SUBDB5

SUBCKS

84

83

107106100 101 102 103 104 105 108 119116

132

131128127121 122 123 124 125 126 129 130

143

144

BSPIXEL7

BSPIXEL6

BSPIXEL5

128

116

CK

CKS

SUBCKS

SUBD3

SUBDB3

SUBDB4

BSPIXEL4

BSPIXEL3

C752

27

137138

CSB

RESB

V4

V0

V1

V2D4V3

LCD

Battery

VBAT

Speaker

C788

TP738

Battery

RECEVER_P

RECEVER_N

C789

***

L704

0

10P

TP739

VBAT_L

3.0V

VINT

TP703 TP704

VBAT_BL

/LCD_CS

TP701 TP702

***

DATA[12] DATA[13] DATA[14] DATA[15]

/RD

LCD_RSP

/LCD_WAIT

/LCD_RESET

LCD_INT

/WE

DATA[5] DATA[4] DATA[3] DATA[2] DATA[1] DATA[0] DATA[6] DATA[7] DATA[8]

DATA[9] DATA[10] DATA[11]

LCDCLK

64

GND

D

63

GND GND

62 61

GND

VBAT

60 59

VBAT

58

VBAT

57

LCDCS

GND

56

GND

55 54

SP+

SP-

53 52

GND GND

51 50

VINT VINT

49 48

CAMCK

47

GND GND

46

D12

45

D13

44

D14

43

D15

42 41

RD WE

40

13M_CLK

LCDCLK

39

VDD3(+15V)

38

VDD3(+15V) VDD3(+15V)

VDD4(-8V) VDD4(-8V)

C

BTRESET

LCDRSP

LCDWAIT

LCDRESET

LCDINT VCORE

TEMP

REFOUT

AGND RECEIVERRECEIVER+

AGND

C743

37 36 35

AF(-) AF(-)

34

AF(-)

33 32 31

D5

30

D4

29

D3

28 27

D2

26

D1 D0

25

D6

24 23

D7 D8

22

D9

21

D10

20

D11

19

GND

18

GND

17 16

GND

15 14 13 12 11 10

9 8 7 6 5 4

VBAT

3

VBAT

2

VBAT

1

CN701

B

F701

3.0V

VLCD_INT

C727

1.25A

0

R701

C701

0.1/6.3V

***

C702

4.7/6.3V C703

4.7/6.3V C704

4.7/6.3V

C705

0.1/6.3V

10K

R703

***

C716

***

TH701

10K

C715

A

TP729

/LCD_CS,/LCD_RESET,/LCD_WAIT,/RD,/WE,LCD_INT,LCD_RSP

CAMCK

C741

1/25

C740

1/16V

TP734

ZD704

RSB6R8S(Not)

C706

0.1/6.3V

1

GNDT1T2GNDT3

BD6020

16 1815 17

24 2827 29 30

31 32 33

TEST

TEST2

13

21

NC

0.47/25V

TP735

TP725

C707

0.1/25V

7

8

23

34

T4

VNEG

CNTOUT

7513 624 1412810 13911

2623 25

VREF

VOUT1

NC9

14

25

NC

C713

4.7/6.3V

C709

0.1/10V

IC705 IX3067

47P

C711

C712

ZD703

RSB6R8S(Not)

5

11

12

3031

37383940

CLK

DATA

STRB

4

VIO

6

RSTB

VIN

SENSP1 SENSP2 VBATP

36

VBAT3

29

VBAT2

17 1819 20

VBAT1

2

4.7 L701

SW 35

D701

D702

RB521S30

RB520S30

REG1CNT

REG2CNT

1234567 A B C D

19 20 2221 E F G

34 35 36 37 38 39 40

VPLUS11

VPLUS12

C708

DC-DC SHIELD

TP722 TP721

TRSW SENSN2 SENSN1

CAMP

VSEL2

GNDP

CURSENS

VOUT2

22

C714

GND3 GND2 GND1

4.7/6.3V

R743

IC701 R1114Q30

VOUT

3

4

VDD

C722

1/6.3V

C718

Reciever

C710

6 VBAT 7NC

0.1/10V

R702

0

10

NC

15 16

24

3233

C719

3

CUR

26 2728

C717

0.1/10V

BD6030

5 VSEL

IC707

NC

4NC

IX3068

3PD 2 GND

NC

1NC

D703

RB551V30

1/25V

3.0V

1.8V

CE

12

GND

C726

10P

NC

8NC 9VOUT

NC

10NC 11VNEG 12VSUB

C720

1/25V

1

D

2

G

3

S

FDG312P

Q701

1/6.3V

C721

0

1/16V

R704

0

R705

6 5

4.7

4

L702

TP728

TP733

C723

C724

1 2 3

1.0/6.3V

R756 0

C725

TP709

(Camera Power supply -8V)

TP726

1/16V

DGND

(Camera Power supply

TP727

DD

SG

FDG311N

Q702

6 5 4

R706

3.0V

VLCD_INT

6.2(1/10W)

-15V

0

3.0V

VINT

R742 ***

)

TP732

IC703 R1114Q18

3

4

VOUT

VDD

12

GND

CE

C728

1/6.3V

Battery

VBAT

L716

C749

C746

C742

Main Backlight

0

1/6.3V

GND

8

AF2

7

AF2

6

VDD2(3V)

5

VDD2(3V)

4

VDD1(1.8V)

3

VDD1(1.8V)

2

GND GND

1

AXK716145 CN702

C729

TP712

GND LEDLEDLED-

LED+ LED+

LED+

TP710

WA011 CN705

1 2 3 4 5 6

R716 0

1/6.3V

/LCD_RESET

R715

3.0V

VLCD_INT

9 10 11 12 13 14 15 16

TP714

1.8V

VLCD

3.0V

R723

0

VLCD_INT

/RD

56

54

NC

42

85

2

15 19

74

84 90

139 143

23 26

43

76 82

97

115 132 135

45

4 5

14

3 16 18 31

44

48 75

83

111 127 142

LED704

EW008BB2

SUB1

MAIN4

SCLK

RESET_B

XIN XOUT

CAMCK

VDDPLL

VDDCORE VDDCORE

VDDCORE VDDCORE VDDCORE VDDCORE VDDCORE

VDDIO VDDIO VDDIO VDDIO VDDIO

VDDIO VDDIO VDDIO VDDIO SCANEN

PLLDIV0 PLLDIV1 PLLDIV2 PLLGND GND GND GND GND GND GND

GND GND GND GND

SUB2

LD#

ENRGB

TP708

BLUE

25

/LCD_CS

HW241

R746

22

1

TP715

LED703

EW008BB2

192021222324

GREEN

SGND

STEPUP

DVCC

R747

34

CS_B

DUMMY4

12

TP716

RED

VIN

CP0

IMS

IRGB

/WE

0

R748

46

WR_B

DUMMY3

133

TP723

17 18 16 15 14 13

3.0V

VLCD_INT

/LCD_WAIT

RD_B

DUMMY2

144

TP724

4.7K(1%)

WAIT_B

DUMMY1

R708

LCD_INT

DATA[15]

24

131

LCDINT

BUFOFF_B

SE_LD3/PORT6

134

130

L703

CHANGE LQW18AN10NJ00D(10nH)

C733

VLCD

***

TP713

3

R717 0

0.01

C791

TP707 TP711

C730

2

4

1/25V

L705 0

FL701 NA004

1

0.1

C732

0.1

C734

FLASH LED

TP705

TP706

C731

C736

C737

C739

IC708 LTC3205

1/25V

0.01

0.1

1

MAIN2

2

MAIN1

3

C2-

4

C1-

56

C1+ C2+

R749 HW601

MAIN3

DIN

78910 11 12

33

C785

***

C786

***

C787

DATA[9]

DATA[14]

DATA[13]

DATA[12]

DATA[11]

DATA[10]

106107108

118119120121

DB10

DB11

DB12

DB13

DB14

DB15

LR38863 IC704

IX3032

123456789 123456789

A

13 141516 17 181920 21 222324

B

25

C D E F

G

H

J

97

109 110 111 112 113 114 117 118 120

K L

M

STKCHK

TESTI

HSCK

SE_LD2/PORT5

11

73

10

32

VBAT_L

F702

1.25A

0.1

C735

1/6.3V

C738 R707

24K(1%)

GND

2829

31

27

30

C744

47p/25V

32

C745

1/16V

DATA[8]

DB9

26

100K

R727

0

R728

R7290R730

C747

1/16V

1/6.3V

C750

1/6.3V

1/16V

C748

100P

C751

SUBCS

/LCD_RESET

DATA[7]

DATA[6]

DATA[5]

DATA[4]

DATA[3]

DATA[2]

81

93

72

949596

DB8

26

69

7071

DB2

DB3

DB4

DB5

DB6

DB7

27 28 29 30 31 32 33 34 35 36 38 4847464544 50 605958575655545349 5251 62 727170696867666561 6463

74

86 969594939291

8985 8887

98 99

135

134133

HSEN

HSWRD

HSD0

HSD1

HSD2

HSD3

HSD4

HSD5

67

49

8

596061

9

1/25V

37

SUBRS

DATA[1]

D2

D0

D3

RD

D1

WR

22232425

20

21

19

SUBD3

SUBD2

SUBD1

SUBD0

SUBWR

LCD_RSP

SUBCS

R732

470K

DATA[0]

21

47

DB0

DB1

RSP

SUBCS_B

43

424137 4039

90

115

139

138137136

HSD6

HSD7

PWM0/PORT3

PWM1/PORT8

PWMLCD/PORT4

68

91

20

13

VOUT

VDDRSCAPA1-

VREG

78910111213

TP717

C755

0.1

C753

0.1

SUBD6

SUBD4

SUBD5

80

57

55

SUBCK

SUBDB1

SUBDB6

BSPIXEL0

BSPIXEL1

BSPIXEL2

113

125126

1/6.3V

C754

SUBD2

1/16V

58

SUBDB0

36

CAPA2-

CAPA1+

3456

C756

SUBD0

L709

Z0389

SUBDB2

SE_DI/PORT7 SE_DO/PORT0 SE_CK/PORT1

SE_LD1/PORT2

MP4 RESET_B

GTDIO_B

25

102

NC

CAPA2+

2

1/6.3V

EXCS_B0 EXCS_B1 EXCS_B2 EXCS_B3

MP4_P0

109

NC

CAPA3+

CAPA3-

1

G0 G1 G2 G3

G4 G5 R4 R2

R0 R1 R3 R5

B5 B4 B3 B2 B1 B0

DCLK HSYNC VSYNC

DCS_B

DA1 DA0

MP4_PLLCK

NC

CN703 WTV33

TA701

TA702

C757

1/6.3V

Z9193

TA703 TA704

Z9193

121

2

D

IC706 TC7SZ08A

1

5

Vcc

2

4

3

GND

C784

TP720

C781

4.7/6.3V C782

2.2 C783

4.7/6.3V

CN704

60

WUB59

T-COM

1

T-COM

2

TFT-COM

3

COMC

4

COMC

5

COMDC

6

C

VCOMH

7

B0

8

B1

9

B2

10

B3

11

B4

12

B5

13

G0

14

G1

15

G2

16

G3

17

G4

18

G5

19

R0

20

R1

21

R2

22

R3

23

R4

24

R5

25

DCLK

26

HSY

27

VSY

28

SO

NC

29

SI

30

SCLK

31

CS

32

RESET

33

VCC

34

GND

35

GND

36

VDC

37

VDC

38

0R741

COM2

39

B

VCL AM

40

VSS2

41

VSS1

42

NC

43

VDD2

44

C5-

45

C5+

46

C4-

47

C4+

48

C3-

NC

49

C3+

50

C2-

51

C2+

52

C1-

53

C1+

54

VDC2

55

VDC2

56

VR

57

VS

58

VS

59

61

A

C770

C769

1/16V

B0 B1 B2 B3 B4 B5 G0 G1 G2 G3 G4 G5 R0 R1 R2 R3 R4 R5

HSYNC VSYNC

0R737

12R738

CHANGE VRS-CZ1JD120J-

D709 RB521S30

C771 1/16V C772

1/6.3V C773 1/16V

SH701

SHIELD

CASE

1

4.7/6.3V

R740 56K

4.7/6.3V

C774

2.2

C775

4.7/6.3V

D710

1SS405

C776 1

C777 1

C779

4.7/6.3V

C780

4.7uF/10V

R734

R714

L714 Z0370

L715

R750

0

470K

Z0389

R735 Z0389

R736 Z0389

R733 Z0389

Z0370

TP718

C760

10P

C758

10P

C759

10P

TP719

C761

10P

3.0V

VLCD_INT

C766

0.01

87 86 77 65

64 63 89 99

101

100

98 88

28 29 30 38 39 40

50 52 51

140 117 129 141

NC

103

NC

41

NC

62

NC

53

114 124 112

87 65 4

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 11

3

21

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 12

CONFIDENTIAL

TP112

CN503

C136

C142

TP117

TP134

TP139

TA504

R175 C207 R165 R255 C182 R172

TA505

J801

SH801

R802

R294

R127

C150

R248

R265

R149

ZD106

C209

R249 C210 R196 C128 R197 R199 R157 C137

L1873

C223

C118

R116

ZD108

IC116

C883

FL905

C1877

L1871

IC801

C832

IC108

C155

C147

R124 R126 R277

R115

C133

R299 R140 C204

R120

R164

R195 R202

C216

C218 R163 R250 R198 R203 R200 R201 R155 C236

TP128

C1876

C833

C163

R881

C884

C886

AT801

L834

C885

C882

C870

C872

C873

C881

L1872

IC803

C1875

L893

FL902

C892

L891

C891

C205 C156

C158

C162

R137 C121 C122 C134 R300 C126 C116 R263 R130

R152R254

C217

C855

C858

L892

C837

Q106

C232

R280

Q107

C856

FL903

C859

L803

L804

C852 C853

C845

C840 R806

R238 C214 R239

C228

C115 L107

R147 C132

C113 C127 C117 R129 R262 C112 R125

ZD107

C871

C857

L805

L806

C844

C843

L802 C842

R805

C841

TA502

TA501

C120

L108

R122

C108

CN104

C212

AN501

FL103

R275 R276

R812

C854

Q704

R1205

Q703

C801

IC804

C802

C803

R804

C834

TCX801

C835

C222

C219

IC114

C221

R266

C111 C211

R128

R148 C135

TH101 C164

C172

C151 C161

C153

R143 C146 C145

R256

R153

C144

V507

C206

IC115

C230

C229

R282

R283

IC507

C510

R518

R540

R208

R204R205R206

IC110

C160

R519

R1206

Q103

R285

R281

Q505

FL104

C806

C861 C862C863

IC802

C864

C867

L823

C850

C807

L801

R811

R295

C220

R138

C166

D103

R520

C865

R810

C836

C811 C812

R293

C213

C141

IC103

C159

R150

Q101

GS

R286

R133

R284

C866

C860

C851

R807

C810

L822 L821 C830

C831

R292

IC111

R134

C119

C140

C165

R264

D

R131

R156

R151

Q108

TA507

CN102

R135

R136

C522

R542

TP111

R546 R545 R544 R543 R515 R516

TP508

D105

L113

V104

C512

IC109

C143

C139

R523

JK101

TP532

IC506

IC505

ZD104

TP505

C516

R244

ZD105

ZD103

L103

TP531

L105

R245 R246

L104

TA503

TP141

TP146

TP140

TP142

TP156

C198

R186

C195

R257

R258

TP110

TP106

TP131

TP133

C192

R179

R180 R181

C173 R289 C185

TP122

C186

IC101

R173

R188

C184

R209

IC106

C190

TP116

C189

C187

C167

TP136

TP115

R279

R174

V504

C188

R158

C157

C152

R146

R139

R278

C226

C168

C149

IC105

C231

R160

R161

C170

TP114

L106

R745

R270

R269

R287

R713

R272

R145

V508

C154

R271

C724

R142 C148

R291

R706

L839

R714

D704

V714

V713

V708

R720

R718

R719

R159

C169

C171

TA506

L110

CN501

TP534

C504

R501

V509

R168

C707

R814

V715

FL102

FL701

R744

C103

C114

R132

TP130

R752

IC701

C723

L838

R742

FL101

TP520

TP522

TP504

R207

R273

R514

C517 R517

C518 R527

R552

R210

R551 R547

C138

R548

R189 R549 R550

TP501

FS502

C105

C109

C124C125

R191R192

V101

C104

C110

R112

C106

C107

C200

C199

R187

TP145

TP132

TP143

TP148

TP137

TP138

C174

R288

R162

R750

R588

R746 R705 C706

R753

R589

R702

Q503

R813

R522

C716

R722

R723

C717

R741

R727

TP533

TP530

TP516

TP519

C505

X101

R167

R169

V501

V505 Q507

R749

Q508

D503

TP529

TP517

C191 R237 R170 C179 C180 C177 C178 C181 R171

C227

R101

R553

R274

TP518

FS501

C234

C233

R268

R267

C224

R141

R166

R144

C208

R177

C176

V510

V511

V506

R751

R747

D109

Q501

C511

R511

C507

R509

R508

R507

IC503

CN502

Q MAIN PWB_FRONT

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 13

TP185 TP186 TP187 TP188

SW521

CONFIDENTIAL

R212

R222

R224

R226

R221

R234

R233

R251

R235

TP135

R223

R227R228

R231

TP184

TP170

TP181

SW503 SW504

CN103

TP514

TP182

TP126 TP127

TP183

SW518

TP113

R109

R176

TP802

TP179

TP164

TP165

R114

TP176

TP521

LED109

LED113

LED117

TP169

TP120

TP119

LED106

SW520

R106

SW523

SW506SW507 SW508 SW509

SW501

SW505

LED103

R103

TP801

R107

LED107

TP527 TP528

LED110

R110

LED114

LED118

TP506

TP171

TP537

TP157

TP177 TP178

R117

TP124

TP172

R178

TP166

SW519

SW511 SW512 SW513

SW510

TP503

R111

R118

R190

TP163

R104

TP161

TP162

TP168

TP105

TP502

TP155

LED111

LED115

LED119

TP121

TP160

TP123

TP167

TP104

TP107

LED104

LED108

SW502

R108

SW515 SW516 SW517

SW514

SW524

SW522

LED112

TP174

LED116

LED120

R105

LED105

TP144

TP147

R113

TP154

R119

TP153

TP158

R211

TP173

TP109

Q MAIN PWB_REAR

TP125

TP149

TP150

TP515

TP151

TP152

TP103

TP108

D106

C235

LED121

R230

L101

ZD101

C101

TP180

L102

TP538

TP101

TP102

TP118

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 14

R232

TP524

TP523

LED122

TP535

TP525

TP526

TP536

C193

C194

R182

IC107

CONFIDENTIAL

C774

C771

D709

C777

C776

R737

C772

C773

R738

C770

C775

TA704

R740

CN704

C729

C728

C781

C783

C782

C780

C779

R716

CN705

C769

IC703

C749

C746

C742

C784

IC706

F702

C735

R741

C711

C738

L703

D710

CN702

ZD703

C733

IC708

R742

C731

R756

R707

R743

C718

ZD704

C739

FL701

C712

L715

L714

R708

R717

C734

C737

TP718

R750

C758

C760

R701

L705

R733R734R735R736

L711

R746

C787

R747

C786

R749

C736

R715

L709 L710

C723

R704

IC707

C721

L702

Q701

C710

R702

C730

LED704

TP719

C761

C759

R714

IC704

C766

LED703

C732

R732

R748

C785

D703

C707

SH701

C720

C706

C703

C701

C727

C702

IC705

C704

L701

D701

C753

R706

C717

D702

C705

C757

C708

Q702

C724

C756

C714

C709

R705

C713

C719

C725

C755

CN703

IC701

C722

F701

L716

C791

C726

F

TA703

R730

TP703

C745

R728

C752

C748

R727

C751

C750

R729

R723

C754

C747

C744

Q LCD PWB_FRONT

TP704

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 15

CONFIDENTIAL

TP715

TP723

TP734TP735

TP721TP722

TP708

TP710

TP705TP706

TA701

TP728

TP725

TP733

TP727

TP732

TP726

TP716

TP724

TP707

TP711

TP720

TA702

Q LCD PWB_REAR

C740

C741

TP717

C743

TH701

C715

CN701

L704

R703

C716

C789

C788

TP713

TP702

TP701

TP738

TP712

TP714

TP729

TP739

TP709

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 16

CONFIDENTIAL

A

BACK LIGHT FPC PWB-C

CN705

5-14 (8-B)

TO MAIN PWB-A (REAR SIDE)

B

5-14 (9-G)

TO MAIN PWB-A (REAR SIDE)

A

SOLDER

5-14 (12-G)

C

SOLDER

TO MAIN PWB-A

B

(REAR SIDE)

CA1001

CAMERA

CAMERA RELAY FPC

PWB-F

5-13 (3-G)

CN701

E

5-14 (12-G)

TO MAIN (REAR

SOLDER

MAIN PWB-A (FRONT SIDE)

PWB-A

SIDE)

SD/SIM FPC PWB-G

CAMERA

D

GROUND FPC

[SIDE]

PWB-D

CN103

TO KEY PWB-B

(FRONTSIDE)

5-28 (11-A)

E

SOLDER

TO KEY PWB-B

C

(REAR SIDE)

5-27 (4-A)

CN102

TO KEY PWB-B (REAR SIDE)

5-28 (9-A)

SIM CARD

CONNECTOR

BACK-UP BATTERY HOLDER

BAT100 BACK-UP BATTERY

CN104

MEMORY CARD

SLOT CONNECTOR

CN704

F

GROUND FPC PWB-E

TO MAIN PWB-A (REAR SIDE)

5-14 (8-D)

TO KEY PWB-B (REAR SIDE)

5-28 (11-G)

LCD001 EXTERNAL DISPLAY

G

LCD1000

MAIN DISPLAY

SOLDER

H

5-27 (4-A)

TO KEY PWB-B

D

(FRONT SIDE)

5-14 (11-E)

CN703

TO MAIN PWB-A (REAR SIDE)

123

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 17

45

6

CONFIDENTIAL

Conditions: SIM card inserted, power on (battery=3.7V), in stand-by mode (opened) Measuring instrument: Digital multimeter

A

B

C

D

E

F

G

: Unmeasurable

IC105

PIN NO. VOLTAGE

1

1.41V

2

0V

3

2.98V

4

2.98V

5

----------

6

0V

7

2.98V

8

0V

9

0V

10

1.13V

11

0.27V

12

----------

13

0V

14

0V

15

3.69V

16

0V

17

0V

18

0V

19

0V

20

0.49V

21

0.7V

22

0.91V

23

0.95V

24

1.01V

25

1.08V

26

0.73V

27

1.36V

28

2.39V

29

2.97V

30

1.79V

31

2.07V

32

2.98V

IC107

PIN NO. VOLTAGE

1

2.98V

2

0V

3

2.98V

IC108

PIN NO. VOLTAGE

1

----------

2

----------

3

----------

4

----------

IC109

PIN NO. VOLTAGE

1

0V

2

0V

3

0V

4

0V

5

3.69V

IC111

PIN NO. VOLTAGE

1

----------

2

----------

3

----------

4

----------

5

----------

IC114

PIN NO. VOLTAGE

1

----------

2

----------

3

----------

4

----------

5

----------

IC115

PIN NO. VOLTAGE

1

0V

2

0V

3

Not used

4

0V

IC116

PIN NO. VOLTAGE

1

0V

2

0.14V

3

0V

4

0.14V

IC503

PIN NO. VOLTAGE

1

0V

2

0.03V

3

0.03V

4

0V

5

0V

6

0V

7

Not used

8

3.68V

9

2.25V

IC505

PIN NO. VOLTAGE

1

3.69V

2

0V

3

0V

4

Not used

5

----------

IC506

PIN NO. VOLTAGE

1

Not used

2

Not used

3

0V

4

0V

5

0V

6

0.01V

7

0V

8

0.01V

9

0V

10

0V

11

0V

12

0.01V

13

0V

14

Not used

15

Not used

16

0V

17

0V

18

0V

19

0V

20

1.87V

21

0V

22

1.8V

23

0V

24

0V

25

0V

26

1.8V

27

0V

28

2.78V

29

0V

30

0V

31

0V

32

1.7V

33

7.75V

34

1.75V

IC507

PIN NO. VOLTAGE

1

0V

2

0V

3

0V

4

0V

5

0V

IC701

PIN NO. VOLTAGE

1

1.8V

2

0V

3

3.0V

4

3.69V

IC703

PIN NO. VOLTAGE

1

3.0V

2

0V

3

1.8V

4

3.69V

IC706

PIN NO. VOLTAGE

1

3.58V

2

1.82V

3

0V

4

1.78V

5

3.58V

IC801

PIN NO. VOLTAGE

1

2.89V

2

0V

3

0V

4

0V

5

0V

6

0V

7

0V

8

0V

9

0V

10

0V

11

0V

12

0V

13

2.89V

14

2.89V

15

0V

16

0V

17

0V

18

0V

19

0V

20

0V

21

0V

22

2.89V

23

0.21V

24

0.21V

25

0.21V

26

0.21V

27

2.89V

28

0.27V

29

0V

30

0V

31

1.14V

32

0V

33

0V

34

0V

35

1.82V

36

2.89V

37

2.89V

38

0.26V

39

0V

40

2.89V

41

2.89V

42

2.89V

43

2.89V

44

2.87V

45

2.87V

46

2.87V

47

2.87V

48

2.89V

49

0V

IC802

PIN NO. VOLTAGE

1

0V

2

0V

3

3.70V

4

0V

5

0V

6

3.70V

7

0V

8

0V

9

0V

10

0V

11

0V

12

2.44V

13

3.70V

14

0V

15

0V

16

0V

17

0V

18

0V

19

0V

20

0V

21

0V

22

0V

23

0V

24

0V

25

0V

26

0V

27

0V

28

0V

29

0V

30

0V

31

0V

32

0V

33

0V

34

0V

35

0V

36

0V

IC804

PIN NO. VOLTAGE

1

2.96V

2

3.80V

3

2.96V

4

2.89V

5

0V

6

2.89V

H

NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.

123

TM200 CIRCUIT DIAGRAM AND PWB LAYOUT

5 - 18

45

6

CHAPTER 6. OTHERS

[1] FUNCTION TABLE OF IC

CONFIDENTIAL

Q IC101 (LRS1B27): 5-LEVEL STACK MEMORY

Terminal

No.

name

1NC

*

2 A20 Input Address input

3 A11 Input Address input

4 A15 Input Address input

5 A14 Input Address input

6 A13 Input Address input

7 A12 Input Address input

8GND 9NC

*

10 NC

*

11 NC

*

12 NC

*

13 SF-RY/BY Output Ready busy output

14 A16 Input Address input

15 A8 Input Address input

16 A10 Input Address input

17 A9 Input Address input

18 DQ15 Input/Output D ata input/output

19 S/SC-/WE Input Write enable input

20 DQ14 Input/Output Data input/output

21 DQ7 Input/Output D ata input/output

22 NC

*

23 NC

*

24 SF-/RE Input Read enable input

25 F-/WE Input Write enable input (NOR Flash)

*

26 F-RY/-BY Output Ready busy output (NOR Flash)

27 A21 Input Address input

Input/Output Description of terminal

-

Not used

(NOR Flash, Smartcombo RAM)

(NOR Flash, Smartcombo RAM, SRAM)

-

Ground Not used (VCC IO/NC) Not used Not used Not used

(Smartcombo Flash)

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

(SRAM, Smartcombo RAM)

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

-

Not used Not used

(Smartcombo Flash)

When deleting/writing: VOL When interrupting block delete/

write: High-Z (High impedance)

(NOR Flash, Smartcombo RAM 2)

Pin No.

Terminal

name

Input/Output Description of terminal

28 SC2-CE2 Input Sleep state input

(Smartcombo RAM 2)

29 DQ13 Input/Output Data input/output

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

30 DQ6 Input/Output Data input/output

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

31 DQ4 Input/Output Data input/output

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

32 DQ5 Input/Output Data input/output

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

*

33 NC 34 SF/F/SC-VCC

-

Not used Power (NOR Flash ,Smartcombo

Flash, Smartcombo RAM)

35 GND

-

Ground

36 /RST Input Reset input (NOR Flash) (F-/RST)

When deleting block/writing: VIH When reading : VIH

Reset : VIL 37 A22 Input Address input (NOR Flash) 38 SC2-/CE1/NC

(F2-/CE)

Input Chip enable input

(Smartcombo RAM 2) 39 DQ12 Input/Output Data input/output

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data

input/output (Smartcombo Flash) 40 S/SC1-CE2 Input Chip enable input (SRAM), sleep

state input (Smartcombo RAM 1) 41 S-VCC 42 SF/F/SC-VCC

-

Power (SRAM)

Power (NOR Flash ,Smartcombo

Flash, Smartcombo RAM) 43 NC

*

44 CLE Input Command latch enable input

-

Not used

(Smartcombo Flash) 45 /WP (F-/WP) Input Write protect input (NOR Flash) 46 VPP (F-VP P) Input/- Power voltage detect terminal

(NOR Flash)

When deleting/writing: VPP = VPPH

When deleting/writing is prohibited:

VPP < VPPLK 47 A19 Input Address input

(NOR Flash, Smartcombo RAM, SRAM)

48 DQ11 Input/Output Data input/output

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data

input/output (Smartcombo Flash) 49 SF/F/SC-VCC

-

Power (Flash, Smartcombo RAM)

TM200 OTHERS

6 - 1

CONFIDENTIAL

Terminal

No.

name

50 DQ10 Input/Output Data input/output

51 DQ2 Input/Output Data input/output

52 DQ3 Input/Output Data input/output

*

53 NC 54 ALE Input Address latch enable input

55 /LB Input Byte enable input (DQ0-DQ7)

*

56 /UB Input B yte enable input (DQ8-DQ15)

57 NC

*

58 NC 59 DQ9 Input/Output Data input/output

60 DQ8 Input/Output Data input/output

61 DQ0 Input/Output Data input/output

62 DQ1 Input/Output Data input/output

*

63 NC

*

64 NC 65 SF-/WE Input Write enable input

66 A18 Input Address input

67 A17 Input Address input

68 A7 Input Address input

69 A6 Input Address input

70 A3 Input Address input

71 A2 Input Address input

72 A1 Input Address input

73 SC1-/CE1 Input Chip enable input

*

74 NC

*

75 NC

*

76 NC

Input/Output Description of terminal

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

-

Not used

(Smartcombo Flash)

(Smartcombo RAM, SRAM)

-

Not used Not used

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

(NOR Flash, Smartcombo RAM, SRAM)

Command, Address, and Data input/output (Smartcombo Flash)

-

Not used Not used

(Smartcombo Flash)

(NOR Flash, Smartcombo RAM)

(NOR Flash, Smartcombo RAM, SRAM)

(Smartcombo RAM 1)

-

Not used Not used Not used

Pin No.

Terminal

name

Input/Output Description of terminal

77 SF-/WP Input Write protect input

(Smartcombo Flash)

78 SF-/CE Input Chip enable input

(Smartcombo Flash)

79 A5 Input Address input

(NOR Flash, Smartcombo RAM, SRAM)

80 A4 Input Address input

(NOR Flash, Smartcombo RAM, SRAM)

81 A0 Input Address input

(NOR Flash, Smartcombo RAM, SRAM)

82

F-/CE (F1-/CE)

83 GND

Input Chip enable input (NOR Flash)

-

Ground

84 /OE Input Output enable input

(NOR Flash, Smartcombo RAM, SRAM)

85 S-/CE1 Input Chip enable input (SRAM)

*

86 NC

*

87 NC

-

Not used Not used

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

(TOPVIEW)

1

A

NC

12

B

NC

SF-RY/BY

64

NC

76

NC

A0~A17

A18~A20

F-/CE

24

SF-/RE

34

F/SF/SC-VCC

44

CLE

54

ALE

65

SF-/WE

77

SF-/WP

A22 A21

/OE

C

D

E

F

G

H

F-/WE,/WP,/RST

SF-/WE,SF-/WP

ALE,CLE,SF-/RE

SF-/CE

S/SC-/WE,/LB,/UB

SC1-/CE1

S/SC1-CE2

SC2-/CE1

SC2-CE2

S-/CE1

3

2

A11

A20

15

14

13

A16

25

F-/WE

35

GND

45

/WP

55

/LB

66

A18

78

SF-/CE

A8

26

F-RY/-BY

36

/RST

46

VPP

56

/UB

67

A17

79A580A481

5

4

A14

A15

17

16

A9

A10

28

27

SC2-CE2

A21

37

38

SC2-/CE1/NC

A22

47

48

A19

DQ11

57

58

NC

69A670

68 A7

A0

128M (x16) bit

NOR Flash memory

128M (x16) bit

Smartcombo

Flash memory

SC1: 32M (x16) bit

Smartcombo RAM

SC2: 64M (x16) bit Smartcombo RAM

4M (x16) bit

SRAM

6

A13

18

S/SC-/WE

DQ15

29

DQ13

39

S/SC1-CE2

DQ12

49

SF/F/SC-VCC

59

DQ9

A3

82

F-/CE

7

A12

19

30

DQ6

40

50

DQ10

60

DQ8

71 A2

83

GND

8

GND

20

DQ14

31

DQ4

41

S-VCC

51

DQ2

61

DQ0

72 A1

84

/OE

9

NC

21

DQ7

32

DQ5

42

F/SF/SC-VCC

52

DQ3

62

DQ1

73

SC1-/CE1

85

S-/CE1

12119710862435

10

11

NC

23

22

NC

33

NC

43

NC

53 NC

63 NC

75

74

NC

87

86

NC

SF/F/SC-VCC

VPP F-RY/-BY

SF-RY/BY

DQ0~DQ15

GND S-VCC

TM200 OTHERS

6 - 2

CONFIDENTIAL

Q IC103 (AD6535): ANALOG BASEBAND

Terminal

No.

1 TDI Input Not used

name

*

2 VCXO EN Input VCXO supply 3 VB AT3 Input External interface regulator input

*

4 VEXT Output Not used 5 VCHG Input Charge supply 6 G ATEDRI VE Output Charge DAC (FET) output control 7 ISENS E Input Charge current sense input 8 TEMP 2 Input Temp sensor input for battery

*

9 AUXADC2 Input Not used

10 REFBB Output Baseband transmit & receive

11 AGND2 12 IP Input/ Output I-channel positive input/output 13 IN Input/Output I-channel negative input/output 14 QN Input/Output Q-channel positive input/output 15 QP Input/Output Q-channel negative input/output

*

16 RSVD_A16

*

17 TMS Inpu t Not used

*

18 TCK Input Not used 19 VBAT3 Input External interface regulator input

*

20 VEXT Output Not used 21 CHGOSC Input Charge oscillator capacitor 22 BATTYPE Input Battery type identification input

CHGDACREF

23 24

VBATSENSE 25 TEMP1 Inpsut Temp sensor input for camera 26 AUXADC1 Input Auxiliary ADC input for temp.

27 REFOUT Output Voltage reference output 28 PA Output Power amplifier control output 29 AGND0 30 AFCDAC Output

31 REF Output Voltage reference 32 AGND1

*

33 TDO Output Not used

*

34 GPI Input Not used 35 VBAT1 Input Voltage controlled crystal

*

36 RSVD_C16 37 INT Output Digital BB interrupt 38 ASDO Output Audio serial port data output 39 REFCHG Output Voltage reference output 40 VVCXO Output Voltage co ntr olle d cr yst al os cill ato r

41 ASDI Input Audio serial port data input 42 BSDO Output Baseband serial port data output 43 VUSB Output USB interface supply 3.0 - 3.6 V 44 VAPPGATE O utput Applicat ion regulator pass device

45 BSIFS Input 46 ASFS Output Audio serial port framing signal 47 VUSBIN Input USB interface regulator input 48 VAPP Output Application supply 2.75 - 3.3 V 49 BSOFS Output Baseband serial port output

Input/

Output

Description of terminal

voltage reference

-

Analog baseband ground

Not used

Output Charge DAC reference

Input Battery voltage sense input

sensor adjustment

-

Analog ground

Automatic frequency control DAC output

Analog ground

oscillator regulator input

-

Not used

supply 2.71 - 2.79 V (VT)

gate control

Baseband serial port input framing signal

framing signal

TM200 OTHERS

6 - 3

Pin No.

Terminal

name

Input/

Output

Description of terminal

50 BSDI Input Baseband serial port data input 51 VBAT2 Input Analog baseband regulator input

*

52 NC_G16

-

Not used 53 CSDO Output Control serial port data output 54 CSDI Input Control serial port data input 55 VBAT2 Input Analog baseband regulator input 56 VABB Output Analog baseband supply 57 ASM Input Advanced state machine 58 MCLKEN Output Master clock enable 59 AOUT1P Output Rec eiver audio positive output 60 AOUT3L Output Hea dset r eceiv er audi o L-ch annel

output 61 RXON Input Baseband receive section control 62 TXON Input Baseba n d t r ansmit s e c t i o n c o ntrol 63 AOUT1N Output Receiver audio negative output 64 AOUT3R Output Hea dset receiver audio R-channel

output 65 MCLK Input Master clock 66 CSFS Input Control serial port framing signal 67 AGND3

-

Analog audio ground 68 LIGHT1 Output Charge LED control 69 ABBRESET Input Reset input 70 DGND

-

Digital ground 71 LIGHT2 Output USB charge enable 72 LIGHT3 Output Key-pad LED control 73 VCORE Output Digital core supply 1.72 - 1.9 V 74 VCOREIN Input Digital core regulator input 75 LGND

-

Light driver ground 76 VMIC Output Microphone supply 2.4 - 2.6 V 77 VCORE Output Digital core supply 1.72 - 1.9 V 78 VMEMIN Input Memory interface regulator input 79 AIN2P Input Headset mic audio positive input 80 AIN1P Input Mic audio positive input 81 CRST Output Power-on reset capacitor 82 VMEMIN Input Memory interface regulator input 83 VMEMSEL Input Memory supply voltage selection 84 VBAT5 Input Back-up battery regulator input 85 VBAT4 Input SIM interface regulator input 86 VRTCIN Input Real-time clock regulator input 87 DBBON Input 88 SGND

*

89 AOUT2N Output Not used

*

90 SPWR Input Not used

*

91 AOUT2P Output Not used

*

92 NC_R12

-

Digital BB supply regulator on signal

AOUT2P/N ground

Not used 93 AIN3L Input Sound IC audio L-channel input 94 AIN3R Input Sound IC audio R-channel input 95 AIN2N Input Headset mic audio negative input 96 AIN1N Input Mic audio negative input 97 RESET Output Reset output 98 VMEM Output 99 VMEM Output

100 VBACK Output

Memory interface sup ply 2.75 - 3.05 V

Backup battery sup ply 2.7 2 - 3. 05 V

101 VBACKSEL Input Backup battery supply voltage

selection

CONFIDENTIAL

/

Pin No.

Terminal

name

Input/

Output

Description of terminal

102 VSIM O utput SIM interface supply 2.75 - 2.95 V 103 VRTC Output Real-time clock supply 1.6 - 2.0 V 104 SGND

*

105

AOUT2N O utput Not used

*

106

SPWR Input Not used

*

107

AOUT2P Output Not used

-

AOUT2P/N ground

108 LDOEN Output Regulator enable output 109 KEYOUT Output Power-on key output 110 KEYON Input Power-on key input 111 IBIAS Output Regulator bias current reference 112 AGND4 113 AGND0 114 AGND0 115 AGND0 116 AGND0 117 AGND0 118 AGND0 119 AGND0 120 AGND0 121 AGND0 122 AGND0 123 AGND0 124 AGND0 125 AGND0 126 AGND0 127 AGND0 128 AGND0 129 AGND0 130 AGND0 131 AGND0 132 AGND0 133 AGND0 134 AGND0 135 AGND0 136 AGND0 137 AGND0 138 AGND0 139 AGND0 140 AGND0 141 AGND0 142 AGND0 143 AGND0 144 AGND0 145 AGND0 146 AGND0 147 AGND0 148 AGND0

In this unit, the terminal with asterisk mark (*) is (open) terminal which

-

Power management analog ground Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply Thermal ground for power supply

is not connected to the outside.

Q IC105 VHIYMU762C+-1L (YMU762C): SOUND

No.

In this unit, the terminal withasterisk mark (*) is (open) terminal which is not connected to the outside.

RST

/CS

/WR

/RD

20

D0~D7

/IRQ LED

MTR

Terminal

name

CLKI Input Clock input terminal

1

LED Output External LED control terminal

2

/IRQ Output Interrupt output terminal

3

/RST Input Hardware reset input terminal

4

*

NC

5

PLLC

6

VDD

7

VSS

8

VREF

9

HPOUT-L/MONO

10

HPOUT-R Output Headphone output R-ch

11

EQ1

12

EQ2

13

EQ3

14

SPVDD

15

Input/Output

-

Description of terminal

Not used Built-in PLL capacitor terminal Power supply (Typ + 3.0 V) Ground Analog reference voltage termin al

Output Headphone output L-ch

-

Equalizer terminal 1 Equalizer terminal 2 Equalizer terminal 3 Analog power supply for speaker

amplifier (Typ + 3.6 V)

SPVSS

16

SPOUT1 Output Speaker terminal 1

17

SPOUT2 Output Speaker terminal 2

18

MTR Output External motor control terminal

19

D7 Input/Output CPU I/F data bus 7

20

D6 Input/Output CPU I/F data bus 6

21

D5 Input/Output CPU I/F data bus 5

22

D4 Input/Output CPU I/F data bus 4

23

D3 Input/Output CPU I/F data bus 3

24

D2 Input/Output CPU I/F data bus 2

25

D1 Input/Output CPU I/F data bus 1

26

D0 Input/Output CPU I/F data bus 0

27

/WR Input CP U I/F write enable

28

/CS Input CPU I/F chip select input

29

A0 Input CPU I/F address signal

30

/RD Input CPU I/F read enable

31

IOVDD

32

PLLC

VSS

VDD

IOVDD

32

4

29

A0

30 28 31 27

3

2

19

5

NC

6

1

87

PLL

CPU interface

Interface register

LED control

Vibrator control

CLKI

Timing Generator

Intermediate register

FiFO

512 byte

TIMER

FiFO 64byte

-

Sequencer

Buffer

Soft IRQ

Analog ground for speaker amplifier

Power supply for terminal

11

HP

VolR

FM + Wave Table

R-ch

Vol

L-ch

Vol

VREF

9

VREF

R-ch

16-bit

DAC

L-ch

VREF

Analog power supply for speaker amplifier

Synthesizer

PCM/ADPCM Playback

Control register SRAM/ROM

HPOUT-R

HPOUT-L/MONO

10

HP

VolL

Select

SP Vol

Mono

16 15

EQ Vol

SPVSS

SPVDD

12

EQ1

13

EQ2

EQ3

14

17

SPOUT1

18

SPOUT2

TM200 OTHERS

6 - 4

CONFIDENTIAL

Q IC106 (AD6529B): DIGITAL BASEBAND

Pin No.

1 ASDO Output Audio serial port data output to ana-

2 BSDI Input

3 BSOFS Output Baseband serial port output framing

4 GPIO_48 Input Hook switch of hands free kit

5 VINT Input Analog BB interface power supply

6 GPO_29 Output 7 GPO_5 Output 8 VDDRTC Input RTC power supply 1.0 - 1.9 V

9 VSSRTC

10

11 GPIO_22 Output RSP for main LCD controller 12 GPIO_56 Input Boot control 2

13 KEYPADCOL[4] Output KEYIN signal output 4 14 KEYPADCOL[1] Output KEYIN signal output 1 15 16 17 GPIO_38 Input Interrupt input from sound

18 GPIO_36 Output Mode select 2 for interface IC/

19 ASDI Input Audio serial port data input from

20 GPIO_35 Input SD card interface write protect 21 ADD[0] Output Write protect control for flash

22 ASFS

23 BSIFS

24 BSDO

25 CSDI

26 GPO_6 Output Not used 27 GPO_0

28 OSCOUT Output 32.768 kHz crystal oscillator output 29 MC_DAT[2] Input/

30 VMC

31 VCC

32 KEYPADCOL[3] Output KEYIN signal output 3 33 KEYPADCOL[2] Output KEYIN signal output 2 34 GPIO_39 Output USB PU control for interface IC 35 GPIO_37 Input Interrupt input from analog BB

Terminal

name

MC_DAT[0]

KEYPADROW[4] KEYPADROW[2]

*

Input/

Output

-

Input/

Output

Input KEYIN signal input 4 Input KEYIN signal input 2

Input

Output

Input

Output

Input

Description of terminal

log BB Baseband serial port data input from

analog BB

signal output to analog BB

(earphone) detection

1.7 - 3.3 V (VCORE) Analog BB reset output (ABBRESET) Advanced state machine of analog BB

(VRTC) RTC ground SD interface data bus 0

(Hardware version select)

generator IC

AOUT3 bias control

analog BB

memory 2 Audio serial port fr aming signal

input from analog BB Baseband serial port input framing

signal input from analog BB Baseband serial port data out put to

analog BB Control serial port data input from

analog BB

Analog baseband receiv e section control (RXON)

SD interface data bus 2

SD card interface power supply

1.7 - 3.3 V (VAPP) Core power supply 1.7 - 1.9 V

(VCORE)

No.

36 GPIO_34 Output UART_TXD for Bluetooth module 37 ADD[4] Output Processor address bus 4 38 ADD[2] Output Processor address bus 2 39 GND 40 KEYPADROW[0] Input KEYIN signal input 0 41 VEXT

42 GPO_23 Output SLEEP control for SRAM 2 43 ADD[7] Output Processor address bus 7 44 VMEM

45 ADD[1] Output Processor address bus 1 46 CSDO

47

48 GPO_1

49 OSCIN Input 32.768 kHz crystal oscillator input 50 MC_CMD Input/

51 GPIO_55

52 GND 53 54 55 GPIO_33 Input UART_RXD for Bluetooth module 56 GPIO_17

57 ADD[11] Output Processor address bus 11 58 ADD[9] Output Processor address bus 9 59 ADD[5] Output Processor address bus 5 60 ADD[3] Output Processor address bus 3 61 GND 62 VCC

63 PWRON

64

65 GND 66 VEXT

67 68 VEXT

69 GPIO_15

70 GPIO_16

71 ADD[13] Output Processor address bus 13 72 ADD[12] Output Processor address bus 12 73 ADD[8] Output Processor address bus 8 74 ADD[6] Output Processor address bus 6

Terminal

name

CLKOUT_GATE

KEYPADROW[3] KEYPADROW[1]

MC_DAT[1]

KEYPADCOL[0]

Input/

Output

-

Input

Output

Input

Output

Input

-

Input KEYIN signal input 3 Input KEYIN signal input 1

Output

-

Input

Output

Input/

Output

-

Input

Output KEYIN signal output 0

Input

Output

Description of terminal

Ground

System interface power supply

2.4 - 3.3 V (VINT)

Memory power supply 2.7 - 3.3 V (VMEM)

Control serial port data output to analog BB

Master clock enable from analog BB (MCLKEN)

Analog baseband transmit section control (TXON)

SD interface CMD (SD_CMD)

Boot control 1 (Hardware version select)

Ground

PCM data output for Bluetooth module

Ground Core power supply 1.7 - 1.9 V

(VCORE) System power control for analog

BB SD interface data bus 1

Ground SIM power supply 2.4 - 3.3 V

(VINT)

SIM power supply 2.4 - 3.3 V (VINT)

PCM data input for Bluetooth module

PCM SYNC output for Bluetooth module

TM200 OTHERS

6 - 5

CONFIDENTIAL

Pin No.

75 GPO_22 Output VPP control for flash memory 1 76 GPIO_14

77 GPIO_10 Input USB detection 78 GPIO_12

79 VMEM

80 ADD[14] Output Processor address bus 14 81 GND 82 VCC

83 ADD[10] Output Processor address bus 10 84 CLKOUT

85 MC_DAT[3] Input/

86 GND 87 GND 88 GPIO_13 Input Interrupt input from camera module 89 GPIO_7 Input Hands free kit (earphone) detection 90 GPIO_9

91 ADD[19] Output Processor address bus 19 92 ADD[17] Output Processor address bus 17 93 ADD[18] Output Processor address bus 18 94 ADD[15] Output Processor address bus 15 95 ADD[16] Output Processor address bus 16 96 CSFS

97 MC_CLK Input SD interface clock (SD_CLK) 98 VCC

99 GPIO_11 Input Flip switch detection

100 GPIO_8

101 GPIO_5 Input SD card detection 102 GPIO_6

103 ADD[22] Output Processor address bus 22 104 ADD[21] Output Processor address bus 21 105 GPIO_40

106 ADD[20] Output Processor address bus 20 107 GND 108 ADD[23] Output Processor address bus 23 109 GND 110 VEXT

111 GND 112 GPIO_4 Output UART_CTS for Bluetooth module 113 GPIO_2 Output USB charge current control 114 GPIO_3 Input UART_RTS for Bluetooth module

Terminal

name

Input/

Output

Input

-

Input

Output

-

Input

Output

Input

Output

-

Input

-

Description of terminal

PCM clock output for Bluetooth module

Reset output for main LCD controll er/ Sub LCD driver/Power management IC

Memory power supply 2.7 - 3.3 V (VMEM)

Ground Core power supply 1.7 - 1.9 V

(VCORE)

13 MHz clock output for analog BB (CLKOUT)

SD interface data bus 3

Ground Ground

Manufacturer specific input from I/O connector

Control serial port framing signal output to analog BB

Core power supply 1.7 - 1.9 V (VCORE)

Stereo/monaural detection for hands free kit (earphone)

Interrupt input from main LCD controller

13 MHz clock output for main LCD controller & Sound generator IC

Ground

Ground SIM power supply 2.4 - 3.3 V

(VINT) Ground

No. 115 DATA[2] Input/

116 DATA[0] Input/

117 DATA[5] Input/

118 DATA[1] Input/

119 DATA[3] Input/

120 VCC

121 DMINUS Input USB D122 GP IO_18 Output JTAG TCK 123 GND 124 GP IO_1 Input IrDA receive data 125 USC[5] Input USC pin (CTS/Ginie_TX) 126 GP IO_0 Output IrDA transmit data 127 DATA[4] Input/

128 VMEM

129 GND 130 VCC

131 USC[6] Input USC pin (GPIO_31/Ginie_RX) 132 VCC

133 USC[2] Input USC pin (TXD) 134 USC[4] Input USC pin (RTS/Ginie_RX) 135 DATA[7] Input/

136 DATA[6] Input/

137 GND 138 DATA[9] Input/

139 DATA[13] Input/

140 NROMCS1 Output Chip select for flash memory 1 141 GPIO_42 Output Chip select for main LCD controller 142 CL KIN Input 13 MHz clock input 143 VSIM

144 GND 145 USC[3] Input Pull up to VINT 146 USC[1] Input USC pin (RXD) 147 GND 148 USC[0] Input USC pin (Ginie_TX) 149 DATA[10] Input/

150 DATA[8] Input/

151 NRD Output Processor read strobe 152 DATA[14] Input/

Terminal

name

Input/

Output

Input

-

Output

Input

-

Input

Output

-

Output

Input

-

Output

Description of terminal

Processor data bus 2

Processor data bus 0

Processor data bus 5

Processor data bus 1

Processor data bus 3

Core power supply 1.7 - 1.9 V (VCORE)

Ground

Processor data bus 4

SIM power supply 2.7 - 3.3 V (VMEM)

Ground Core power supply 1.7 - 1.9 V

(VCORE)

Core power supply 1.7 - 1.9 V (VCORE)

Processor data bus 7

Processor data bus 6

Ground Processor data bus 9

Processor data bus 13

SIM power supply 1.7 - 3.3 V (VSIM)

Ground

Processor data bus 10

Processor data bus 8

Processor data bus 14

TM200 OTHERS

6 - 6

CONFIDENTIAL

Pin No.

153 GND

Terminal

name

Input/

Output

-

Description of terminal

Ground 154 NRAMCS2 Output Chip select for SRAM 2 155 GPIO_44 Input Wakeup mode select 156 VSSUSB

-

USB ground 157 GPIO_47 Output Camera module reset 158 GPIO_20 Output JTAG TDI 159 CLKON

160 VCC

Output

Input

13 MHz oscillator power control

signal (VCXOEN)

Core power supply 1.7-1.9V

(VCORE) 161 GPO_18 Output SYNTH enable for RF (SYNTHEN) 162 GPO_21

Output

163 DATA[12] Input/

SYNTH clock output for RF

(SYNTHCLK)

Processor data bus 12

Output

164 DATA[11] Input/

Processor data bus 11

Output 165 NWE Output Processor write strobe 166 VEXT

Input

SIM power supply 2.4 - 3.3 V

(VINT) 167 GPO_11 Output Band select 4 for RF (BS4) 168 GPO_20

Output

169 DATA[15] Input/

SYNTH data output for RF

(SYNTHDATA)

Processor data bus 15

Output

170 VM EM

171 NADV

Input

Output

Memory power supply 2.7 - 3.3 V

(VMEM)

Address latch enable for

flash memory 2 172 NGPCS 1 Output Chip select for flash memory 2 173 VM EM

Input

Memory power supply 2.7 - 3.3 V

(VMEM) 174 GPIO_45 Output Chip select for 4M SRAM 175 GPIO_46 Output Chip select for sound generator IC 176 DPLUS Input USB D+ 177 SIMCLK Output System interface clock output 178 JTAG EN Input JTAG enable 179 VEXT

Input

SIM power supply 2.4 - 3.3 V

(VINT) 180 GPO_3 Output Incoming LED OFF control 181 GPO_4 Output Mode select 1 for interface IC 182 GPO_7 Output

Bluetooth module power ON/OFF control

183 GPO_16 Output Band select 1 for RF (BS1) 184 GPO_17 Output Band select 2 for RF (BS2) 185 NHWR/NUSB Output Processor high write strobe 186 GPO_19 Output Mode select 3 for interface IC 187 NLWR/NLSB Output Processor low write strobe 188 NWAIT Input Processor wait input 189 NRESET Input System reset input

*

190

BURSTCLK Output Not used 191 NRAMCS1 Output Chip select for SRAM 1 192 NAUXCS1

Output

Command latch enable for flash memory 2

193 GPIO_43 Output Chip select for Camera module

No. 194 VDDUS B Input

Terminal

name

Input/

Output

Description of terminal

USB power supply 2.8 - 3.3 V (VUSB) 195 GP IO_23 Output SIM interface reset 196 SIMDATAIO Input/

SIM interface data input/output

Output 197 GP IO_24 Output Sound generator IC reset 198 GP IO_19 Output JTAG TMS 199 GP IO_21 Output JTAG TDO 200 GPO_2 Output 201 GND

Write protect control for flash memory1

-

Ground 202 GP O _8 Output IrDA power ON/OFF control 203 GPO_9 Output Band select 3 for RF (BS3) 204 GP O_10 Output BUF OFF for main LCD controller

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Q IC107 VHIEW6671++-1R (EW6671): HALL

Pin No.

1 VDD Input Input 2GND 3 OUT Output Output

VDD

Q

IC108 VHIR3112Q26-1L (R3112Q261A): VOLTAGE DETECTOR

Pin No.

1VDD 2GND 3 CD Input External condenser

4 OUT Output Output terminal (L: when output is

VDD

1

Pulse Regulator

Reg.

Hall cell

Terminal

1

Terminal

name

Input/Output Description of terminal

-

Amplifier

Schmitt trigger & Latch

Input/

Output

-

Ground

Output stage

Description of terminal

Power supply Ground

3 OUTPUT

2

GND

connection terminal for delay

detected, H: when output is canceled)

RD

3

1

2

4

OUT

+

-

VREF

2

GND

3

CD

TM200 OTHERS

6 - 7

CONFIDENTIAL

Q IC109 VHINJ287130-1L (NJM2871F03): 3.0 V REGULATOR

Terminal

No.

name 1 CONT Input Control 2GND 3NB 4 VOUT Output Output 5 VIN Input Input

Input/

Output

-

Description of terminal

Ground Noise bypass

Q IC114 RH-IXA007AFZZL (HA1631S03CME): COMPARATOR

Terminal

No.

name 1 IN+ Input Input 2VSS 3 IN- Input Input 4 VOUT Out put Output 5VDD

Input/

Output

-

Description of terminal

Ground

Power supply

VIN

5

4

VOUT

Thermal Protection

CONT

1

3

NB

Bandgap Reference

2

GND

Q IC111 VHIR116030B-1L (R1160N301B): REGULATOR Q IC703 VHIR116018B-1L (R116018B): 1.8 V REGULATOR

Terminal

No.

name 1 VDD Input Input 2GND 3 CE Input Chip enable 4 ECO Input 5 VOUT Output Output

VDD

CE GND

Q

IC113, 706 VHITC7SZ08A -1L (TC7 SZ08A ): AN D GA TE/LO GIC

Terminal

No.

name 1 A Input Signal input 2 B Input Signal input 3GND 4 Y Output Logic value output 5 VCC Input Power supply

Input/

Output

-

Ground

Description of terminal

High speed/low consumption selector switch

ECO

4

1

-

+

VREF

-

CURRENT LIMIT

Description of terminal

Ground

3

Input/

Output

5

2

VOUT

VDD VOUT

5

1

IN+ VSS IN-

4

23

Q IC115 VHIXC61CN27-1L (XC61CN27): REGULATOR

Pin No.

Terminal

name

Input/

Output

Description of terminal

1 VOUT Output Output 2 VIN Input Supply voltage input

*

3NC 4GND

Not used

-

Ground

-

In this unit, the terminal withasterisk mark (*) is (open) terminal which is not connected to the outside.

2

VIN

1

VOUT

+

-

VREF

4

VSS

3

NC

Q IC116 VHIRQ5RW45B-1L (RQ5RW45B): 4.5 V REGULATOR

Terminal

No.

name 1GND 2VDD 3 VOUT Output Output 4 CE Input Chip enable

2

VDD

Input/

Output

-

Description of terminal

Ground Power supply

3

VOUT

5

VCC

(TOPVIEW)

A B GND 1

23

VREF

+

-

CURRENT LIMIT

1

GND

4

Y

4

CE

TM200 OTHERS

6 - 8

CONFIDENTIAL

Q IC502 VHIBU7870KN-1L (BU7870KN): USB CONTROLLER

Terminal

No.

name 1 MODESEL1 Input Operation mode switching 1 2 MODESEL2 Input Operation mode switching 2 3 UART_R XD Output UART_RXD output 4 UART_TXD Input UART_TXD input 5CPUVDD 6 UART_RTS Input UART_RTS input 7 BSYNC Input BSYNC input 8 UART_CTS Output UART_CTS output 9 BD ATA Input BDATA in put

10 BCNT Input BDATA input control 11 MODESEL3 Input Operation mode switching 3 12 TXANAOUT Output Hands free sending external output 13 RXANAIN Input Hands free receiving external input 14 GND1 15 RXANAOUT Output Hands free receiving output 16 TXANAIN Input Hands free sending input

*

17 NC 18

BDATA/CTS

BSYNC/RTS

19 20 USBD-/TXD Input/

21 GND2

USBD+/RXD

22

CPU_USB_D+

23

CPU_USB_D-

24

25 RE G33 26 PU15 Output PMOS open drain output 27 PUEA Input PU15 control input 28 GND3

In this unit, the terminal withasterisk mark (*) is (open) terminal which is not connected to the outside.

MODE0,2,3:OFF

USBD+/RXD

CPU_USB_D+

CPU_USB_D-

REG33

PU15

PUEA

GND3

MODE1,5: ON

22

23

24

25

26

H:ON L: OFF

27

28

Input/

Output

-

Input/

Output

Description of terminal

Digital power supply

Ground

Not used BDATA/CTS switching external

input/output

Output BSYNC/RTS switching external output

USBD-/TXD switching external

Output

Input/

Output

Input/

input/output Ground

-

USBD+/RXD switching external input/output

CPU_USB_D+ input/output

Output

Input/

CPU_USB_D- input/output

Output

Power supply voltage for USB

-

Ground

-

USBD-/TXD

BSYNC/RTS

BDATA/CTS

NC

TXANAIN

MODE 2: ON

CPUVDD

MODE 0,2,3,5: L

UART_RTS

MODE 0,1,2: OFF MODE 3,5: ON

CPUVDD

MODE 1: H

RXANAOUT

MODE 0,1,2: ON MODE 3,5: OFF

76421 3 5

GND2

10K

CPUVDD

DEC

MODESEL1

2021

MODE0,1,5:OFF

MODE2,3:ON

MODE 0,1,5:H

CPUVDD

MODESEL2

19 151617

MODE 0,2,3,5: OFF MODE 1: ON

CPUVDD

MODE 2,3: L

CPUVDD

MODE 0,1,5:H

MODE 2,3: L

UART_RXD

18

MODE 0,1,3,5: H

MODE 2: L

MODE 0,1,2: ON MODE 3,5: OFF

CPUVDD

MODE 0,2,3,5: L

MODE 1: H

CPUVDD

UART_TXD

CPUVDD

10K

MODE 0,1,3,5: H

CPUVDD

MODE 0,1,3,5: OFF

MODE 2: L

MODE 0,2,3,5: L MODE 1: H

BSYNC

14 GND1

13

RXANAIN

12

TXANAOUT

MODESEL3

11

BCNT

10

BDATA

9

UART_CTS

8

Q IC505 VHIXC620930-1L (XC620930): REGULATOR

Pin No.

Terminal

name

Input/

Output

Description of terminal

1 VIN Input Input 2VSS

Ground

-

3 CE Input ON/OFF Control 4NC

Not used

-

5 VOUT Output Output

In this unit, the terminal withasterisk mark (*) is (open) terminal which is not connected to the outside.

1

VIN

CE

3

ON/OFF

Control

+

Current

Limit

Voltage

Reference

Each ciruit

5

2

VOUT

VSS

Q IC506 RUNTZA005AFZZL (UGNZ2): BLUETOOTH MODULE

Terminal

No.

1 USBP Input/

2 USBN Input/

name

*

3 UART_RTS Output UART/Ready to send to DTE 4GND 5GND 6 UART_TxD Output UART/TxD to DTE 7 UART_RxD Input UA RT/RxD from DTE 8 UART_CTS Input UART/Clear to send from DTE 9 PIO8 Input/

10 VCC_IO Input Positive supply voltage for IO voltage

11 VCC Input Main supply voltage input 1 Regulated

12 PCM_OUT Output PCM data stream output 13 PCM_SYNC Input/

*

14 XTAL_IN Input Ext clock in (Not used)

*

15 XTAL_OUT Input Ext clock out (Not used) 16 RESETB Input System reset 17 VDD18V Output VDD_CORE decupling capacitor 18 PCMCLK Input/

19 PCM_IN Input PC M data stream input 20 PIO5 Input/

Input/

Output

-

Output

Description of terminal

USB DATA+ (Not used)

USB DATA- (Not used)

Ground Ground

General purpose I/O

Connect the VCC, if IO voltage is same as VCC

DC source recommended

Connection to PCM frame sync Input/ output of 8 kHz

Connction to PCM reference Clock input/output of 256 kHz

General purpose I/O

TM200 OTHERS

6 - 9

CONFIDENTIAL

Terminal

No.

name

21 PIO6 Input/

22 PIO3 Input/

23 GND 24 SPIMOSI Input/

25 SPICLK I nput/

26 PIO4 Input/

27 PIO7 Input/

28 PIO1 Input/

29 RF_IO Input/

30 GND 31 SPIMISO Input/

*

32 SPICSB Input/

33 PIO2 Input/

34 PIO0 Input/

In this unit, the terminal withasterisk mark (*) is (open) terminal which is not connected to the outside.

Q IC507 VHITC7SET00FU- (TC7SET00FU): LOGIC

Terminal

No.

name 1 INB Input Input B 2 INA Input Input A 3GND 4 OUT Y Output Output Y 5VCC

Input/

Output

General purpose I/O

Output

General purpose I/O

Output

Ground

-

For factory use only

Output

For factory use only

Output

General purpose I/O

Output

General purpose I/O

Output

General purpose I/O

Output

RF input/output

Output

Ground

-

For factory use only

Output

For factory use only (Not used)

Output

General purpose I/O

Output

General purpose I/O

Output

Input/

Output

-

Ground

Power supply

Description of terminal

VCC OUT Y

5

1

23

4

IN B IN A GND

Description of terminal

(TOPVIEW)

Q IC508 VHI817A30NB-1R (817A30NB): 3.0V REGULATOR

Terminal

No.

name

1VSS

Input/

Output

-

Description of terminal

Ground (GND) 2 VIN Input Input voltage (VDD) 3 VOUT Output Output voltage

Not used (CE)

4NC

2

VIN

-

VOUT

3

+

-

VSS

Reference voltage

1

Short-circuit protection circuit

4

NC

Q IC509 VHILVC2G34P-1R (LVC2G34P): BUFFER

Pin No.

Terminal

name

Input/

Output

Description of terminal

1 1A Input Input

Ground

2GND

-

3 2A Input Input 4 2Y Output Output

Power supply

5VCC

-

6 1Y Output Output

1A

1

3

2A

2

GND VCC

1Y

6

4

2Y

5

Q IC701 VHIR116025B-1L (R116025B): 2.5V REGULATOR

Terminal

No.

name 1 VDD Input Input 2GND 3 CE Input Chip enable 4 ECO Input 5 VOUT O utput Output

Input/

Output

-

Description of terminal

Ground

High speed/low consumption selector switch

ECO

4

TM200 OTHERS

6 - 10

VDD

1

5

-

+

VREF

CURRENT LIMIT

3

CE GND

2

VOUT

Q IC702 VHITK11131C-1R (TK11131C): REGULATOR

Terminal

No.

name 1 CONT Input Control 2GND 3 NP Input Capacitor (Vref) 4 VOUT O ut put Output 5 VIN I nput Input

VIN

Input/

Output

-

Description of terminal

Ground

VOUT

5

Control

Circuit

Over Heat &

Over Current

Protection

-+

320K

Bandgap

500K

1

CONT

Reference

2

GND

Q IC704 (LR38863): DISPLAY CONTROLLER

Pin No.

1 DUMMY4 2 VDDPLL 3 PLLGND 4 PLLDIV0 Input PLL multiply switching signal 5 PLLDIV1 Input PLL multiply switching signal 6 HSD0 Input/

7 HSD1 Input/

8 HSD2 Input/

9 HSWRD Input/

10 HSEN Input/

11 HSCK Input/

12 DUMMY3 13 PWM1/PORT8 Output PWM output 1 General-purpose

14 PLLDIV2 Input PLL multiply switching signal 15 VDDCORE

16 GND 17 SUBWR_B Input/

Terminal

name

Input/

Output

-

Output

-

Output

Description of terminal

Dummy 4 PLL Power supply 1.8 V (1.6 V~ 2.0 V) PLL Ground

Data bus for high-speed serial transfer

Read/Write determination signal for high-speed serial transfer

High-speed serial data effective signal High is active

Standard clock for high-speed serial transfer (5 to 33 MHz)

Dummy 3

PORT output (default) (Not used)

CORE Power supply 1.8 V (1.6 V~ 2.0 V)

Logic ground Light signal for External display

CONFIDENTIAL

Pin No.

18 GND 19 VDDCORE

20 PWM0/PORT3 Output PWM output 0 General-purpose

21 SUBCS_B Input/

22 CS_B Input/

4

3

NP

23 VDDIO 24 LCDINT Output External interrupt signal (Starting

25 GTDIO_B Output MPEG4ASIC internal core power-

26 VDDIO 27 SUBDB1 Input/

28 BDATA[5] (B5) Output Display panel B output signa 29 BDATA[5] (B4) Output Display panel B output signa 30 BDATA[5] (B3) Output Display panel B output signa 31 GND 32 TESTI Input Test terminal (Connected to GND

33 BSHS_B Input/

34 WR_B Input/

35 SUBRS Input/

36 MP4 RESET_B O utput MPEG4ASIC reset control signal

37 HSD6 Input/

38 BDATA[2] (B2) Output Display panel B output signal 39 BDATA[2] (B1) Output Display panel B output signal 40 BDATA[2] (B0) Output Display panel B output signal

*

41 EXCS_B1 Input/

*

42 XOUT Output Oscillation circuit output (Not used) 43 VDDIO 44 GND 45 SCANEN Input Ful l s c an e f f ec t iv e s i gnal "High" is

46 RD_B Input/

47 RSP Input/

48 GND 49 HSD3 Input/

50 DCLK Input/

Terminal

name

Input/

Output

-

Output

-

Output

-

Output

-

Output

-

Output

Description of terminal

Logic ground CORE Power supply 1.8 V

(1.6 V~ 2.0 V)

PORT output (default) Chip select signal f or Ext ernal di spl ay

Device select signal (Display is active when CS_B is "Low")

IO Power supply 3.0 V (2.7 V~ 3.3 V)

varies when interruption occurs.)

cut signal ("Low" is active.) IO Power supply 3.0 V (2.7 V~ 3.3 V) Data bus for External display

Logic ground

normally) External Bit Stream horizontal

synchronization signal ("Low" is active) Host write strobe signal

Data determination signal for External display

("Low" is active) Data bus for high-speed serial transfer

Chip select output 1 (internal decode output) (Not used)

IO Power supply 3.0 V (2.7 V~ 3.3 V) Logic ground

active (Connected to GND normally) Host read strobe signal

Register selection signal HOST_IF section : RSP =Low...Display access RSP = High...Control access Hyper_Serial section : RSP = Low...Control acces RSP = High...Display access

Logic ground Data bus for high-speed serial transfer

Data sampling clock (display clock)

TM200 OTHERS

6 - 11

CONFIDENTIAL

Pin No.

51 VSYNC Input/

Terminal

name

Input/

Output

Description of terminal

Vertical synchronization signal

Output

52 HSYNC Input/

Horizontal synchronization signal

Output

*

53 EXCS_B3 Input/

Output

Chip select output 3 (internal decode output) (Not used)

54 XIN Input Oscillation circuit input/External

clock input signal Clock input for full scan

55 SUBDB6 Input/

Data bus for External display

Output

56 RESET_B Input Master reset (All registers are

initialized when Low is activated)

57 SUBDB0 Input/

Data bus for External display

Output

58 SUBDB2 Input/

Data bus for External display

Output

59 HSD5 Input/

Data bus for high-speed serial transfer

Output

60 DB0 Input/

Data bus

Output

61 HSD4 Input/

Data bus for high-speed serial transfer

Output

*

62 EXCS_B2 Input/

Output

Chip select output 2 (internal

decode output) (Not used) 63 GDATA[5] (G5) Output Display panel G output signal 64 GDATA[4] (G4) Output Display panel G output signal 65 GDATA[3] (G3) Output Display panel G output signal 66 SUBDB3 Input/

Data bus for External display

Output

67 SUBDB4 Input/

Data bus for External display

Output

68 HSD7 Input/

Data bus for high-speed serial transfer

Output

69 DB1 Input/

Data bus

Output

70 DB2 Input/

Data bus

Output

71 DB3 Input/

Data bus

Output

72 DB4 Input/

Data bus

Output

73 STKCHK Input Setting BS-related output terminal to

Hi-z when a stack is installed (Con-

nected to GND normally) 74 VDDCORE 75 GND 76 VDDIO

CORE Power supply 1.8 V (1.6 V~ 2.0 V)

-

Logic ground

-

IO Power supply 3.0 V (2.7 V~ 3.3 V)

-

77 GDATA[2] (G2) Output Display panel G output signal 78 SUBDB5 Input/

Data bus for External display

Output

79 BSCLK Input/

External Bit Stream data clock

Output 80 SUBCK Output Clock for External display 81 DB5 Input/

Data bus

Output 82 VDDIO 83 GND

IO Power supply 3.0 V (2.7 V~ 3.3 V)

-

Logic ground

-

Pin No.

84 VDDCORE

Terminal

name

Input/

Output

-

Description of terminal

CORE Power supply 1.8 V (1.6 V~ 2.0 V)

85 CAMCK Output Clock for camera operation 86 GDATA[1] (G1) Output Display panel G output signal 87 GDATA[0] (G0) Output Display panel G output signal 88 RDATA[5] (R5) Output Display panel R output signal 89 RDATA[4] (R4) Output Display panel R output signal 90 VDDCORE

*

91 PWMLCD/

Output PWM LCD output General-pu rpos e

PORT4

92 BSBLK_B Input/

Output

CORE Power supply 1.8 V (1.6 V~ 2.0 V)

-

PORT output (default) (Not used) External Bit Stream data effective

signal ("High" is active when transferring the data)

93 DB6 Input/

Data bus

Output

94 DB7 Input/

Data bus

Output

95 DB8 Input/

Data bus

Output

96 DB9 Input/

Data bus

Output

97 VDDIO

IO Power supply 3.0 V (2.7 V~ 3.3 V)

-

98 RDATA[3] (R3) Output Display panel R output signal

99 RDATA[2] (R2) Output Display panel R output signal 100 RDATA[1] (R1) Output Display panel R output signal 101 RDATA[0] (R0) Output Display panel R output signal

*

102 MP4_P0 Output MPEG4 control

*

103 EXCS_B0 Input/

Output

104 BSPIXEL7 Input/

Chip select output 0 (internal decode output) (Not used)

External Bit Stream data bus

Output

105 BSVS_B Input/

Output

106 DB10 Input/

External Bit Stream vertical synchronization signal ("Low" is active)

Data bus

Output

107 DB11 Input/

Data bus

Output

108 DB12 Input/

Data bus

Output

*

109 MP4_PLLCK Output MPEG4ASIC clock 15.36 MHz/CP U

supply XIN clock (Not used)

110 SUBDB7 Input/

Data bus for External display

Output 111 GND 112 DA0 Input/

Output 113 BSPIXEL0 Input/

Logic ground

-

Address input for chip select decode

External Bit Stream data bus

Output 114 DCS_B Input Chip select input dedicated for chip

select decode IO Power supply 3.0 V (2.7 V~ 3.3 V)

115 VDDIO 116 BSPIXEL6 Input/

-

External Bit Stream data bus

Output 117 SE_DO/PORT0 Output

Data output for 4-wire serial IF (default) General-purpose PORT output

118 DB13 Input/

Data bus

Output

TM200 OTHERS

6 - 12

CONFIDENTIAL

Pin No.

119 DB14 Input/

120 DB15 Input/

121 WAIT_B Output External wait signal ("Low" is active) 122 SUBFLMIN Input Dri ve r F L M s i g n a l i nput fo r E x ternal

123 SUBCKS Output Clock switching signal for External

124 DA1 Input/

125 BSPIXEL1 Input/

126 BSPIXEL4 Input/

127 GND 128 BSPIXEL5 Input/

129 SE_CK/PORT1 Output Control clock for 4-wire serial IF

130 SE_LD2/PORT5 Output Load signal 2 for 4-wire serial IF

131 BUFOFF_B Input Buffer Gated switching signal for I/O

132 VDDIO 133 DUMMY2

134

135 VDDIO 136 SUBLPIN Input Driver LP input External display 137 BSPIXEL2 Input/

138 BSPIXEL3 Input/

139 VDDCORE

140 SE_DI/PORT7 Input/

141

142 GND 143 VDDCORE 144 DUMMY1

Terminal

name

*

SE_LD3/PORT6 Output Load signal 3 for 4-wire serial IF

SE_LD1/PORT2

Input/

Output

-

Output

-

Output

-

Output Output

-

Description of terminal

Data bus

display

display Address input for chip select decode

External Bit Stream data bus

Logic ground External Bit Stream data bus

(default) General-purpose PORT output

General-purpose PORT output (default)

through current prevention (High when Host_IF signal is activated)

IO Power supply 3.0 V (2.7 V~ 3.3 V) Dummy 2

General-purpose PORT output (default) (Not used)

IO Power supply 3.0 V (2.7 V~ 3.3 V)

External Bit Stream data bus

CORE Power supply 1.8 V (1.6 V~ 2.0 V)

4-wire serial input (default ) G ener alpurpose PORT output

Load signal 1 for 4-wire serial IF (default) General-purpose PORT output

Logic ground

CORE Power supply 1.8 V (1.6 V~ 2.0 V)

Dummy 1Dummy 4

In this unit, the terminal with asteriskmark (*) is (open) terminal which is not connected to the outside.

TM200 OTHERS

6 - 13

CONFIDENTIAL

RESET_B

PLLDIV[2:0]

XOUT

XIN/

SCANCK

Current consumption is decreased in a standby mode.

BUFOFF_B

DB[15:0]

RSP

RD_B WR_B CS_B

WAIT_B LCDINT

HSWRD HSEN HSCK

HSD[7:0]

DCS_B

DA[1:0]

EXCS_B[3:0]

For BS magnification function/

STKCHK

Reset

Halt Ctrl

Oscillation circuit

Oscillation ON/OFF

VideoDisplay IF

ReadDATA

WriteDATA

CPU system buffer

SEL

MCLK system

buffer

HOST Interface

Conversion from YUV to RGB (Availablefor highspeed pipelines)

Pallet gamma circuit

ADDRESS

DECODE

RAM for BS mag/sol

3D data sort function

LINE_Buffer (160 pixels x 48 x 4)

Buffer RAM for 1 line Buffer RAM for 1 line Buffer RAM for 1 line Buffer RAM for 1 line

Bit Stream circuit A

BS_CLK

MCLK phase conversion

Buffer control creation

UV determination and latch control signal creation

H/V effective signal creation

PLL

Some MHz to 68 MHz

PLL

Dividing

VDRD

Read Buffer

6bitx4

Format conversion circuit

PalletRAM

Pallet RAM(R) 8bitx256

RAM(G)

RAM(B)

BS circuit

Magnify

Magnification

circuit

Buffer section

BUF_ DATA0

RGB

32bit

UV determination and latch circuit

Conversion from 8-bit to 16-bit

Clock

Generator

RAM for mag/dif/sol

LINE_Buffer (160 pixels x 36 x 1)

For magnification function/

LINE_Buffer (160

VideoSignalProcessor

SEL

Solidify

3D

circuit

BUF_ DATA1

32bit

RGBOUT0,2

Conversion fromYUV to RGB

YUVIN0,2

MasterClock (MCLK)

Some MHz to 33 MHz

LCDTimingClock (TCLK)

SUBLCDTimingClock

(STCK) XIN

LowSpeedClock (LCLK)

100 kHz~200 kHz

PWMClock (PCLK)

MPEGClock (MPCLK)

15.36MHz or XIN

CameraClock (CAMCK)

Approx.16.128 MHz

For error diffusion

Buffer RAM for 1 line

3D data sort function

pixelsx48x4) Buffer RAM for 1 line Buffer RAM for 1 line Buffer RAM for 1 line Buffer RAM for 1 line

Magnify

Magnification

circuit

Diffusion

Error diffusion

SELSEL

circuit

Solidify

3D

circuit

72bit BS_DATA[71:0]

Buffer 18bitx4

MaskBit Memory

Availablefor MPEG4

Commonly used for sub-LCD VRAM

PIO for MPEG4ASIC control

5MHz~10MHz

clock

XIN

SEL

Buffer 18bitx4

320x240 Pixcel (2bit)

External clock output

·····VRAM/HOST/HS/BS/

VDIF/VSPetc

·····TG/Pallet/LCD IF

/CDE/BS

·····SUB

·····SIO

·····PWM

·····External MPEG4_ASIC

·····External

Bus

Controller

ReadDATA (72bit)

RACK RACK

Memory Interface

·18 bit x 4

·Vertical and horizontal

WACK WREQ

72

Display Memory

access

(No limitation for the

·Availablefor mask bit

320x240 Pixcel

(18bitx4

=72bit)

Availablefor sub-LCD 130,000 colors Equivalent to LR38840

I/F Timing Control

CAMERA_DSP

Registor

Availablefor magnification function

start address)

ColorDepthExpand

R[4:0],B[4:0]

6bit

17bit

6bit

17 8bit

4SCAN FRC

TEST

RED Pallet

BLUE Pallet

TESTI

CDE

R[5:0] B[5:0]

CPU_DataBus

DB[7:0]

SCANEN

FULL Scan

Address

Generator

Display size 320 x 240 Pixel 260,000 colors

Availablefor 260,000 colors

Palette I/F

Red Palette

Green Palette

RW Command function (Transmission)

Blue Palette

Selector

PWM/

LCD I/F

LCD Panel Interface

SE_LD2/PORT5

PO

SE_LD3/PORT6

PWM0/PORT3 PWMLCD/PORT4

PWM1/PORT8

PO

SE_DO/PORT0

SE_CK/PORT1

SE_LD1/PORT2 SE_DI/PORT7

4-wire SO/PO

DCLK

HSYNC

VSYNC

LCD Output Timing Generator

RDATA[5:0]

GDATA[5:0]

BDATA[5:0]

BSVS_B

BSHS_B

BSBLK_B

BSCLK

5~20MHzmax

BSPIXEL[7:0]

MP4_P0

MP4RESET_B

GTDIO_B

CAMCK

MP4_PLLCK

SUBCKS

SUBCK

SUBRS

SUBCS_B

SUBWR_B

TM200 OTHERS

6 - 14

SUBFLMIN

SUBLPIN

SUBDB[7:0]

CONFIDENTIAL

Q IC708 VHITK11130C-1R (TK11130C): REGULATOR

Terminal

No.

name 1 VCONT Input Control 2GND 3NP 4 VOUT Output Output 5 VIN I nput Input

VIN

5

Control

Circuit

320K

500K

1

VCONT

Q IC801 VHIHD155155-1L(HD155155NP): RF

No.

1 VCCLNA Input VCC for LNA transistor and LNA Bias 2PCSGND

3 PCSLNAI Input 4 PCSLNAIB Input 5 PCSDCSGND

6 DCSLNAI Input 7 DCSLNAIB Input 8 DCSGSMGND

9 GSMLNAI Input 10 G SMLNAIB Input 11 G SM G ND 12 PLLO UT

13 VCCOPLL Input VCC fo r OP LL and Ph a s e c o m p a r a t o r 14 VCCTXVCO VCC for TXVCO 15 GNDTXVCOD

16 GNDTXVCODB 17 T XOUT G Output Tx output for GSM 18 COMMONGND GND for common 19 T XOUT D Output T x output for DCS/PCS 20 T XVC OGB Input Nega tive TxVCO output for GSM 21 T XVC OG Input Positive TxVCO output for GSM 22 VCCIQ Input VCC for IQ modulator 23 IOUT/ IIN Input/

Terminal

name

Input/

Output

-

Groun Capacitor (Vref)

Over Heat &

Over Current

Protection

Bandgap

Reference

2

GND

Input/

Output

GND for Emitter of LNA transistor (PCS)

-

Positive input for LNA transistor (PCS) Negative input for LNA transistor (PCS) GND for Emitter of LNA transistor

-

(PCS,DCS) Positive input for LNA transistor (DCS) Negative input for LNA transistor (DCS) GND for Emitter of LNA transistor

-

(DCS,GSM) Positive input for LNA transistor (GSM) Negative input for LNA transistor (GSM)

GND for Emitter of LNA transi stor ( GSM )

-

Output

Current output to control a nd mo dulate TXVCO

GND for DCS/PCS TxVCO

-

GND for DCS/PCS TxVCO

-

Positive output/input of I channel/modulator

Description of terminal

VOUT

4

+

3

NP

Description of terminal

No.

24 IOUTB/IINB Input/

25 Q OU T/QIN Input/

26 Q OU TB/QIN Input/

27 VCCIFSYN

28 CPIFSYN Output Charge Pump output of

29 LE Input Load enable for serial data 30 CLK Input Clock for serial data 31 VCX O OU T O utpu t Output for VCXO 32 SDA TA Input Serial Data 33 GNDVCXO 34 VCXOE 35 VCX O B Input B ase of VCXO transistor 36 VCCVCXO Input VCC for VCXO 37 VCCRFSYN Input VCC for RF Synthesiser 38 CPRFSYN Output Charge Pump output of RF Synthesise 39 FLOCK Output FLOCK,Output,Fast Lock control for

40 VCCB B Input VCC for Base band and State Logic 41 VCCR FVCO Input VCC for RF VCO 42 DIVON Output VCXOOUT divider control input 43 VCCRFLO Input VCC for RF Local Buffer and Divider 44 CAP Q B O utpu t Capacitor for Q channel LPF

45 CAP Q Output Capac itor for Q channel LPF

46 CAP IB Output Capacitor for I channel LPF

47 CAP I Output Capacitor for I channel LPF

48 VCCMIX Input VCC for Direct conversion Mixer 49 GNDLNA

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

*

Terminal

name

Input/

Output

Input

-

Description of terminal

Negative output/input of I channel/modulator

Positive o u tput/inp u t o f Q channel/modulator

Negative output/input of Q channel/modulator

VCC for IFVCO Buffer and Divider, and IF Synthesiser

IF Synthesiser

GND for VCXO (Not used) Emitter of VCXO transistor (Not used)

RF Synthesiser

(Negative output)

(Positive output)

(Negative output)

(Positive output)

GND for LNA Bias

TM200 OTHERS

6 - 15

CONFIDENTIAL

Q IC802 RF3146

Teminal name Description of terminal

No.

1 NC Internal circuit node. Do not externally connect. 2 VCC2 GSM

3 NC Internal circuit node. Do not externally connect. 4 GND I nterna lly connected to the package base. 5 GND I nterna lly connected to the package base. 6 GSM900 OUT RF output for the GSM bands. This is a 50Ω

7 GND I nterna lly connected to the package base. 8 NC Internal circuit node. Do not externally connect.

9 NC Internal circuit node. Do not externally connect. 10 NC Internal circuit node. Do not externa lly conne ct . 11 NC Internal circuit node. Do not externa lly conne ct . 12 NC Internal circuit node. Do not externa lly conne ct . 13 NC No internal or external connect ion. 14 NC Internal circuit node. Do not externa lly conne ct . 15 NC Internal circuit node. Do not externa lly conne ct . 16 NC Internal circuit node. Do not externa lly conne ct . 17 NC Internal circuit node. Do not externa lly conne ct . 18 VCC3 GSM C ontrolled voltage i nput to the GSM o utput

19 VCC OUT Controlled voltage output to feed VCC2 and

20 VCC OUT Controlled voltage output to feed VCC2 and

21 VCC3 DCS/PCS Contr olled volt age in pu t to the D CS/ PCS ou t-

22 NC Internal circuit node. Do not externa lly conne ct . 23 NC Internal circuit node. Do not externa lly conne ct . 24 NC No internal or external connect ion. 25 NC Internal circuit node. Do not externa lly conne ct . 26 NC Internal circuit node. Do not externa lly conne ct . 27 NC Internal circuit node. Do not externa lly conne ct . 28 NC Internal circuit node. Do not externa lly conne ct . 29 NC Internal circuit node. Do not externa lly conne ct . 30 GND Internally connected to the package base. 31 DCS/PCS OUT RF output for the DCS/PCS bands. This is a

32 GND Internally connected to the package base. 33 NC Internal circuit node. Do not externa lly conne ct . 34 GND Internally connected to the package base. 35 VCC2 DCS/PCS Controlled voltage input to the DCS/PCS

Contorolled voltage input to the GSM driver stage. This voltage is part of the power cont rol fun ction

for the module. This n ode must be c onnected to VCC OUT. This pin should be externally decoupled.

output. The output matching circuit and DC-block are internal to the package.

stage. This voltage is part of the power control function for the module. T his node m ust be connected to VCC OUT. This pin should be externally decoupled.

VCC3. This voltage is part of the pow er co nt r ol function for the module. It cannot be connected to any pins other than VCC2 and VCC3.

put stage. This voltage is part of the power control function for the module. This node must be connected to VCC OUT. This pi n should be externally decoupled.

50Ω output.The output matching circuit and DC-block are internal to the package.

driver stage. This voltage is part of the power control function for the module. This node must be connected to VCC OUT. This pi n should be externally decoupled.

Teminal name Description of terminal

No.

36 NC No internal connection. Connect to gro und

plane close to the package pi n.

37 DCS/PCS IN RF input for the DCS/PCS band.

This is a 50Ω output.

38 NC No internal connection. Connect to gro und

plane close to the package pi n.

39 VCC1 DCS/PCS Controlled voltage input to the DCS/PCS

driver stage. This voltage is applied internal to the package. This pin should be externally decoupled.

40 BAND SEL A llows externa l control to select the G SM or

DSC/PCS bands with a logic high or low. A logic low enables the GSM bands, whereas a logic high enables the DCS/PCS bands.

41 TX ENABLE This signal enables the PA module for opera-

tion with a logic high. Both bands are disabled with a logic low.

42 VBATT

43 VBATT

Power supply for the module. This p in should be externally decoupled and connected to the batt ery.

44 NC Internal circuit node. Do not extern all y conn ect. 45 VRAMP Ramping signal from DAC. A simple RC filter

may be required depending on the selected baseband.

46 VCC1 GSM Internally connected to VCC1 (pin39).

No external connection required.

47 GND1 GSM

Ground connection for the GSM preamplifier stage.

Connect to ground plane close to the package pin.

48 GSM900 IN RF input to the GSM band. This is a 50Ω input .

Pkg

GND Connect to groung plane with mulitiple via

base

DCS/PCS IN

BAND SELECT

TX ENABLE

VBATT

VBATT VRAMP GSM IN

37 40 41 42 43 45 48

holes. See revommended footprint.

31

Fully Integrated

Power Control Circuit

6

DCS/PCS OUT

GSM OUT

Q IC804 VHIR5322N29-1L(R5322N002B): POWER SUPPLY

Terminal

No.

name 1 CE1 Input Chip Enable1 2 VDD Input Power supply 3 CE2 Input Chip Enable2 4 VOUT2 Output VCC for VRF 5GND 6 VOUT1 Output VCC for VTCXO

Input/

Output

Ground

-

1

CE1

VDD

2

3 4

CE2

Description of terminal

VOUT

6

GND

5

VOUT2

TM200 OTHERS

6 - 16

CONFIDENTIAL

[2] FUNCTION TABLE OF DISPLAY

Q LCD1000 RLCUB0048AF03: MAIN DISPLAY

Terminal

No.

name 1 T-COM Input COM electric potential input for CS 2 T-COM Input COM electric potential input for CS 3 TFT-COM Input COM voltage input 4 COMC Output COM signal output 5 COMC Output COM signal output 6 COMDC Output COM center voltage output 7 VCOMH Output COM amplitude voltage output 8 B0 Input Blue data signal (LSB) 9 B1 Input Blue data signal

10 B2 Input Blue data signal 11 B3 Input Blue data signal 12 B4 Input Blue data signal 13 B5 Input Blue data signal (MSB) 14 G0 Input Green data signal (LSB) 15 G1 Input Green data signal 16 G2 Input Green data signal 17 G3 Input Green data signal 18 G4 Input Green data signal 19 G5 Input Green data signal (MSB) 20 R0 Input Red data signal (LSB) 21 R1 Input Red data signal 22 R2 Input Red data signal 23 R3 Input Red data signal 24 R4 Input Red data signal 25 R5 Input Red data signal (MSB) 26 DCLK Input Data sampling clock 27 HSY Input Horizontal sync signal 28 VSY Input Vertical sync signal 29 SO Output serial data output 30 SI Input serial data input 31 SCLK Input serial clock input 32 CS Input serial interface chip select 33 RESET Input Hardware reset 34 VCC 35 GND 36 GND 37 VDC 38 VDC 39 COM2 40 VCLAM P Output Voltage for CS output 41 VSS2 Output DC/DC converter output 42 VSS1 Output DC/DC converter output

*

43 NC 44 VDD2 Output DC/DC converter output 45 C546 C5+

Input/

Output

-

Description of terminal

Logic power Ground Ground Analog power Analog power COM control for CS

Not used

Booster capacitor connection terminal Booster capacitor connection terminal

Terminal

No.

name 47 C448 C4+ 49 C350 C3+ 51 C252 C2+ 53 C154 C1+ 55 VDC2 Output DC/DC converter output 56 VDC2 Output DC/DC converter output 57 VR O utput Reference power supply output 58 VS Output Source power supply output 59 VS Output Source power supply output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Input/

Output

-

Description of terminal

Booster capacitor connection terminal Booster capacitor connection terminal Booster capacitor connection terminal Booster capacitor connection terminal Booster capacitor connection terminal Booster capacitor connection terminal Booster capacitor connection terminal Booster capacitor connection terminal

MAIN DISPLAY

1

To InputTerminal

59

Q LCD001 RLCUB0049AFZZ : EXTERNAL DISPLAY

Terminal

No.

name

1V0

2V1

3V2

4V3

5V4

6GND 7 RESB Input Reset signal 8 CSB Input Chip select signal 9 RS Input Register select signal "0": Display RAM data

10 WRB Input Write signal "L": Activated 11 RDB Input Read signal "L": Activated

Input/

Output

-

Description of

terminal

Display drive power supply terminal

Ground

Notes

-

"1": Command data

TM200 OTHERS

6 - 17

Terminal

No.

name

12 D0 Input/

13 D1 Input/

14 D2 Input/

15 D3 Input/

16 D4 Input/

17 D5 Input/

18 D6 Input/

19 D7 Input/

20 LP Input/

21 FLM Output Display sync signal 22 GND

(VSS)

23 CK Input Master clock

24 CKS Input M a s t e r c lo c k i n pu t

25 VDD/VEE

26 VREG O utput O u t p u t t e r m in a l f o r

27 VOUT Output Built-in step-up circuit

28 CAP1

29 CAP1+ Output Booster capacitor con-

30 CAP2

31 CAP2+ Output Booster capacitor con-

32 CAP3

33 CAP3+ Output Booster capacitor con-

Input/

Output

-

Output Booster capacitor con-

-

Output Booster capacitor con-

-

Output Booster capacitor con-

-

Description of

terminal

Data signal

Latch signal

Ground

external input terminal

selection terminal Logic system power

supply terminal

generating constant voltage

output terminal

nection terminal (

nection terminal (+)

nection terminal (

nection terminal (+)

nection terminal (

nection terminal (+)

-

Notes

"L": Built-in oscillation

)

CONFIDENTIAL

-

EXTERNAL

DISPLAY

1

To Input Terminal

33

TM200 OTHERS

6 - 18

q

Printed in Japan.

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted.

In any form or by any means,

electronic, mechanical, photocopying, recording, or otherwise,

without prior written permission of the publisher.

SHARP CORPORATION

Information and Communication Systems Group

Products Quality As surance De partment Yamatokoriyama, Nara 639-1186, Japan

2004 December Printed in Japan

t
