ELECTRIC REFRIGERATOR OPERATION MANUAL
Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the maximum benefit from it.
WOzU dN W ö
qOGA « qO œ
U? ? ?M? p?z«d?A? dJA « q e pO « ÂbI
Æ»—U
q‡O œ …¡«d ¡U d « ¨»—U W ö ‰ULF « q p? œU?H? ? « ÊU?L?C p b 5 Íc « qOGA « ÆsJ2 b vB « v « …b b'« p ö s
SJ-47L SJ-43L
-C2 -D2 -E2 -F2 -U2
CONTENTS |
|
|
|
U u ;« |
|
• DESCRIPTION .......................................................... |
1 |
± ЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖ n u « |
• |
||
• WARNING ................................................................. |
2 |
µ ЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖ d c% |
• |
||
• CAUTION .................................................................. |
2 |
µ ЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖ UNO M |
• |
||
• INSTALLATION.......................................................... |
3 |
ЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖ VO d « |
• |
||
• OPERATION .............................................................. |
3 |
ЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖ qOGA « |
• |
||

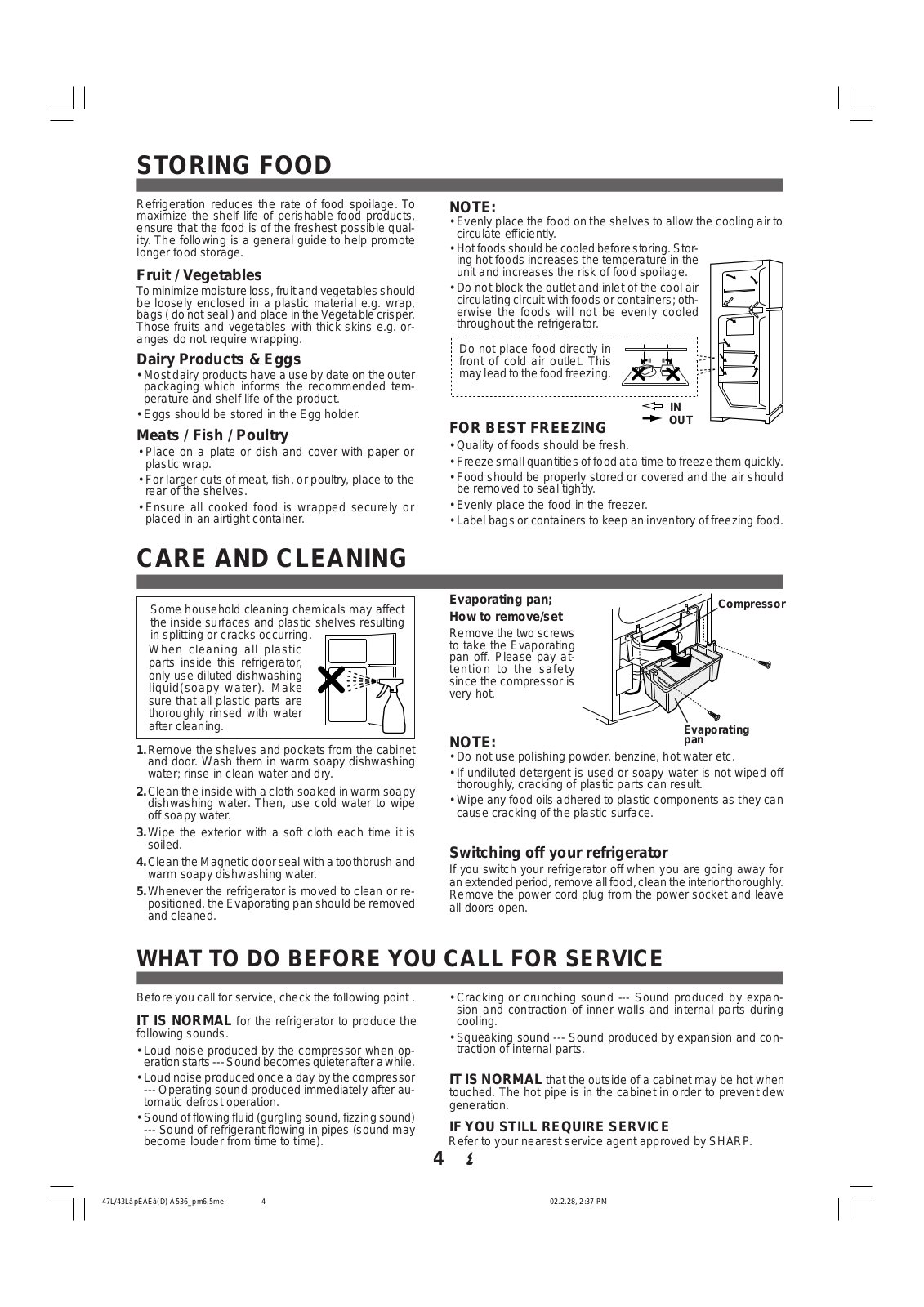

• STORING FOOD ....................................................... |
4 |
ЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖ WLF ф« s e |
• |
||
• CARE AND CLEANING ............................................. |
4 |
ЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖ nOEM «Л W UMF « |
• |
||
• WHAT TO DO BEFORE YOU CALL FOR SERVICE .. |
4 |
ЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖ W UOB « wM ¡U b « q tKL wG M U |
• |
||
• SPECIFICATION ....................................................... |
8 |
ЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖ UH «u*« |
• |
||
• WIRING DIAGRAM ................................................... |
8 |
ЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖЖ „ц _« цO u jD |
• |
||
DESCRIPTION |
|
|
± |
± |
|
± |
||
|
||
|
||
|
|
|
¥ |
||
µ |
± |
|
|
||
|
|
|
µ |
||
|
|
|
|
||
¥ |
||
± |
µ |
|
±± |
|
|
± |
||
± |
|
|
±¥ |
|
|
±µ |
||
± |
± |
|
± |
|
|
6 |
|
± 10
Lever
Ÿ«—c «
1.Freezer temp. control knob
2.Freezer shelf
3.Ice cube maker
4.Ice cube box
5.Deodorizing unit
6.Fresh case
The cover of the Fresh case opens as the case is pulled.
7.Refrigerator temp. control knob
8.Light
Replacing the lamp bulb
Replace the lamp bulb with same type : base E12, MAX 15W, T-20. Make sure that the rated voltage and wattage of the lamp bulb are correct when replacing. (Check the label near the bulb.) When replacing the lamp bulb, unplug the refrigerator to prevent electric shock.
9.Refrigerator shelf
10.Lever
The airflow to the Vegetable crisper can be controlled by moving the vent hole lever to the right or left.
11.Shelf
12.Vegetable crisper
13.Separator plate
14.Evaporating pan(rear side)
15.Casters
16.Ventilating grille
17.Adjustable feet
18.Fan switch
19.Fan & light switch
20.Utility pocket
21.Magnetic door seal
22.Egg holder
23.Egg pocket
24.Small pocket
Small foods can be stored in these pockets. Tall foods like a bottle of juice may fall down from the pocket when the door is opened or closed.
25.Bottle guard
26.Bottle pocket
n u «
—e dH « …—«d W —œ j { ÕU H Ʊ
—e dH « ·— Æ
ZK « U FJ qL r Æ
ZK « U FJ ‚ËbM Æ¥
W z«d « W «“ …b Ë Æµ
ÓUD « ‚ËbM Æ
bM ÓUD « ‚ËbM ¡UD ` r
Æ‚ËbMB « V
W ö « …—«d W —œ j { ÕU H Æ
¡uC « Æ
ÕU B*« U * ‰«b «
ŸuM « fHM ÕU B*« U * ‰b « ÆT-20 ¨vB « b «Ë ±µ ¨E12 …b U
«u‡‡ «Ë WOD uH « …d UF W‡‡ s b Q Ɖ«b ôU ÂU‡OI « bM ÕU B*« U LK s »œdI U …œu u*« W UD « s oI%® ¨ÕU B*« W * ‰«b « bM ©Æ U LK « ÀËb lM* ôËÎ W ö « f U qB « ÆWOzU dN W b
W ö « ·— Æ
Ÿ«—c « Ʊ
r v « ¡«uN « o b w rJ « sJ1 s W “UD « —UC)«Ë t «uH « kH v « fOHM « VI Ÿ«—– p d% o d Æ—U O « Ë« 5LO «
·— Ʊ±
«ËdC)« kH r Ʊ q U Õu Ʊ
©wHK)« V U'«® dO « ÷u Ʊ¥
ö Ʊµ
W uN WJ Ʊ j CK WK U «b « Ʊ
W Ëd*« ÕU H Ʊ
¡uC « Ë W Ëd*« ÕU H Ʊ
œ«u VO Æ
»U K w O UMG*« X *« Ʊ iO « WE U Æ iO « VO Æ dOG VO Æ ¥
w …dOGB « WLF _« s e ÊUJ ùU
q WK uD « WLF ô« Æ»uO'« Ác
VO'« s jI b dOBF « U U “
Æ»U « ‚ö Ë ` bM
w UM w «Ë Æ µ
U U e « VO Æ
1 ±

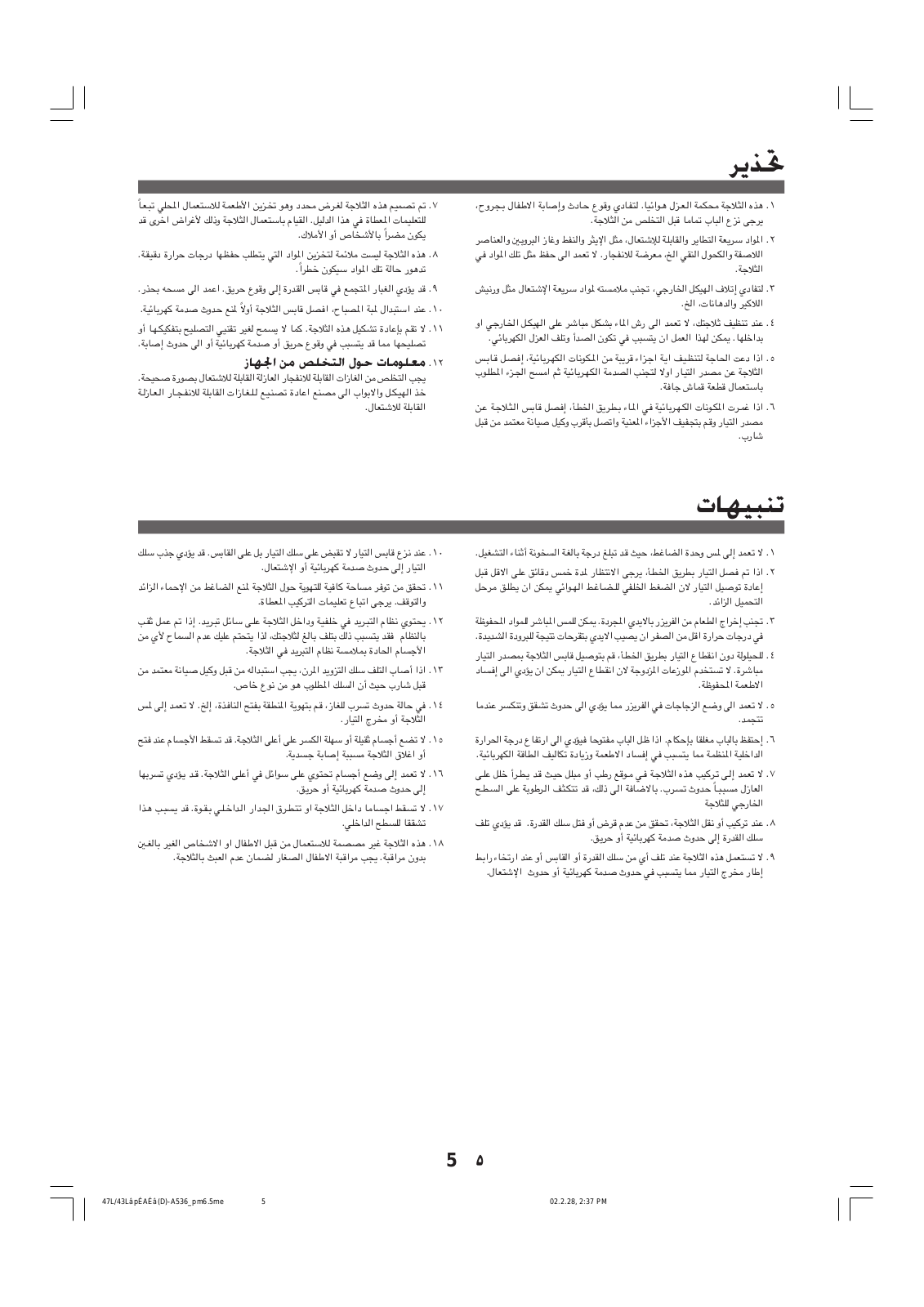

WARNING
1.This refrigerator is airtight. TO PREVENT FATAL ACCIDENTS TO CHILDREN, please completely remove the door prior to discarding the refrigerator.
2.Highly volatile and inflammable materials such as ether, petrol, propane gas, adhesive agents and pure alcohol etc. are liable to explode. Do not store these materials in the refrigerator.
3.To prevent damage to the outer cabinet, avoid contact with lacquer, and paint, etc.
4.When cleaning your refrigerator, do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation.
5.If any areas adjacent to electrical components have to be cleaned, unplug the refrigerator first to prevent electric shock, then wipe the area with a dry cloth.
6.Should electrical components be accidentally immersed in water, unplug the refrigerator, dry the parts and contact your nearest service agent approved by SHARP.
7.This refrigerator is designed solely for the purpose of storing foodstuff for domestic use in accordance with the instructions given in this manual. Using the refrigerator for other purposes might be harmful to persons or property.
8.This refrigerator is not suitable for the storage of materials requiring precise temperatures. Deterioration of these materials will be dangerous.
9.Dust deposited on the power plug may cause fire. Wipe it off carefully.
10.When replacing the lamp bulb, unplug the refrigerator first to prevent electric shock.
11.Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.
12.Information regarding disposal of the appliance
Flammable insulation blowing gases should be disposed appropriately. Take the cabinet and doors to a recycling plant for flammable insulation blowing gases.
CAUTION
1.Do not touch the compressor unit, as it can become extremely hot during operation.
2.If the power supply is accidentally disconnected, please wait for at least 5 minutes before re-connecting the power, as back pressure in the compressor may trip the overload relay.
3.Avoid removing food from the freezer with your bare hands. Directly touching products stored at sub-zero temperatures can result in frostbite.
4.To prevent accidental power disconnection, plug the refrigerator directly to the source. Do not use a double adaptor as loss of power could lead to the spoiling of the stored food.
5.Do not place bottles in the freezer as they may crack when frozen.
6.Keep the door securely closed. If the door is left ajar, the controlled inner temperature will rise, resulting in food spoilage and increase in electricity costs.
7.Do not install the refrigerator in a damp or wet location as this may cause damage to the insulation and a leak. Condensation may also build on the outer cabinet and cause rust.
8.When installing or moving the refrigerator, make sure that you do not nip or kink the power cord. Damage of the power cord may cause electric shock or fire.
9.Do not use this refrigerator when the power cord or plug is damaged, or the outlet attachment is loose, as they may cause electric shock or fire.
10.Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.
11.Make sure that you leave adequate ventilation space around the refrigerator to prevent the compressor from overheating and stopping. Please follow the instructions given for installation.
12.The refrigeration system behind and inside the refrigerator contains refrigerant. If this system is punctured it could result in serious damage to your refrigerator, therefore do not allow any sharp objects to come into contact with the refrigeration system.
13.Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required.
14.In case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet.
15.Do not place heavy or easily broken objects on top of the refrigerator. Objects may fall when opening or closing the refrigerator, causing injury.
16.Do not place objects containing liquid on top of the refrigerator. Spillage may cause electric shock or fire.
17.Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack.
18.This refrigerator is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the refrigerator.
2
INSTALLATION
1.To ensure adequate ventilation for your refrigerator, it is recommended to provide space of 6cm on both sides and at the back, and space of 9cm above the refrigerator. Insufficient spacing will decrease the cooling efficiency, resulting in unnecessary consumption of electricity.
2.Using the two front Adjustable feet, ensure that the refrigerator is positioned firmly and level on the floor.
NOTE: • Keep your refrigerator out of direct sunlight.
•Do not place next to heat generating appliance.
•Do not place directly on the ground. Provide suitable stand.
|
9cm |
6cm |
6cm |
|
Ventilating |
|
grille |
When transporting
1.Before transporting, wipe dry any water in the Evaporating pan located on the rear.
2.Carry the refrigerator by holding the handles located on the rear and bottom.
6cm
132 cm
121 cm
Adjustable foot
OPERATION
CONTROLLING TEMPERATURES
The refrigerator controls its temperature automatically. However, if needed, adjust the temperature as follows.
Freezer |
Refrigerator |
compartment |
compartment |
7(MAX)
For making ice rapidly or fast freezing.
4(MED)
For normal freezing.
1(MIN)
When frozen food or ice cream is not stored.
•If the refrigerator is operated for a long time with FREEZER TEMP. CONTROL set at 7 (MAX), foods stored in the refrigerator compartment may also freeze.
7(Coldest)
For keeping foods fresher tasting.
When the refrigerator does not provide sufficient cooling.
4(MED)
For normal operation.
1(MIN)
When the refrigerator provides excessive cooling.
•If the refrigerator is operated for a long time with REFRIGERATOR TEMP. CONTROL set at 7 (Coldest), foods stored in the refrigerator compartment may also freeze.
•Low ambient temperature may cause placed foods to freeze even if REFRIGERATOR TEMP. CONTROL is set to 1 (MIN).
HINTS WHEN MAKING ICE
1.Do not over fill the Ice cube trays; otherwise the ice cubes will be joined together when frozen.
2.When the ice cubes are made, turn the lever clockwise to empty the ice into Ice cube box.
NOTE: To prevent damage to the Ice cube box, do not make ice in the Ice cube box or pour oil into it.
Lever
Ice cube box
DEFROSTING
Defrosting is fully automatic due to a unique energy saving system. Whereby the defrost cycle start time is proportional to the running time of your refrigerator compressor, i. e., the less time the refrigerator compressor operates (during the winter season or you’re away on holidays), the longer the time between each defrost cycle.
DEODORIZING UNIT
A built-in unit which requires no manual operation because it automatically starts operating when the refrigerator is powered on.
3
