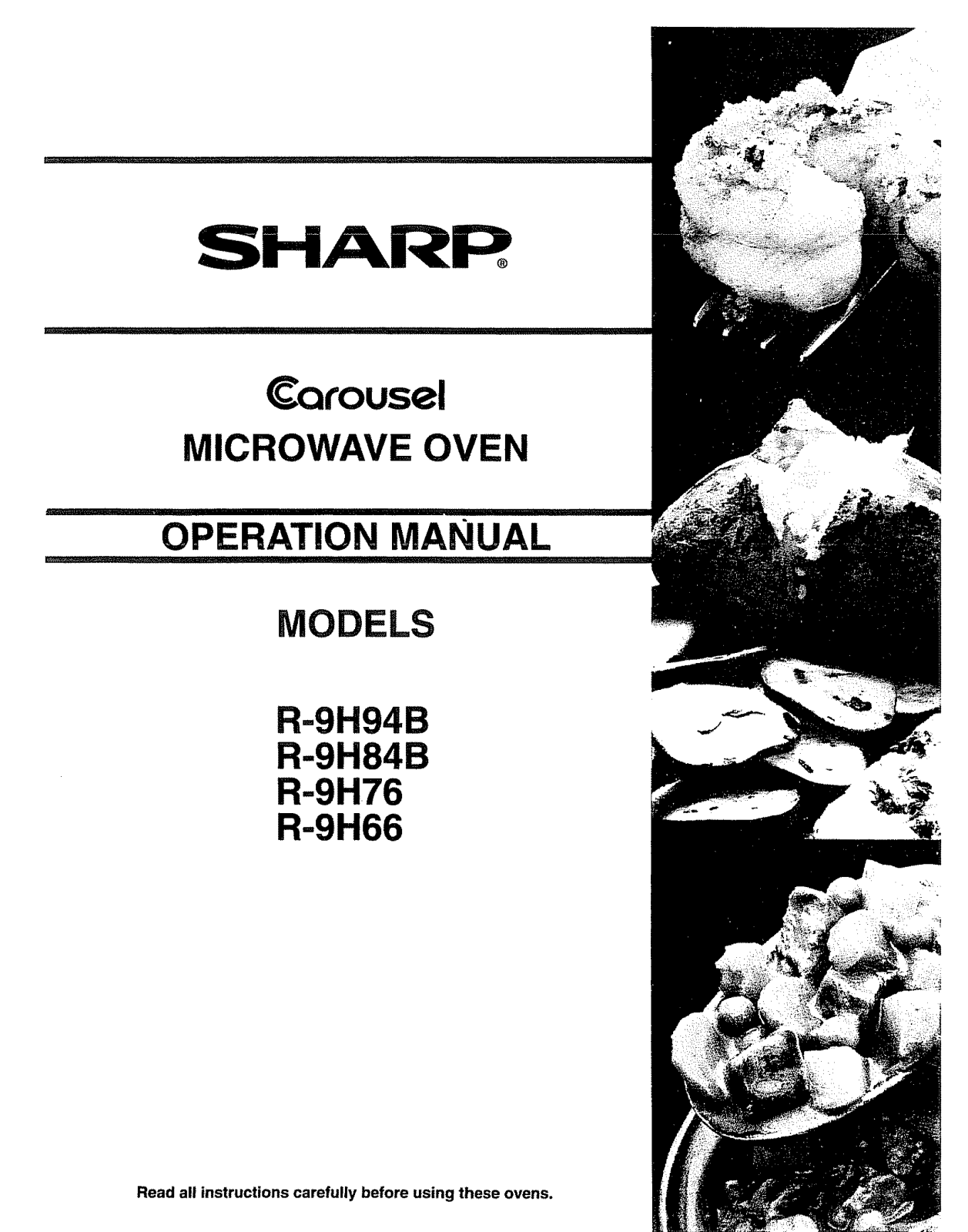

Carousel
®
MICROWAVE OVEN
OPERATION MANUAL
MODELS
R-9H94B
R-9H84B
R-9H76
R-9H66
¸¸¸•%
Read all instructions carefully before using these ovens.

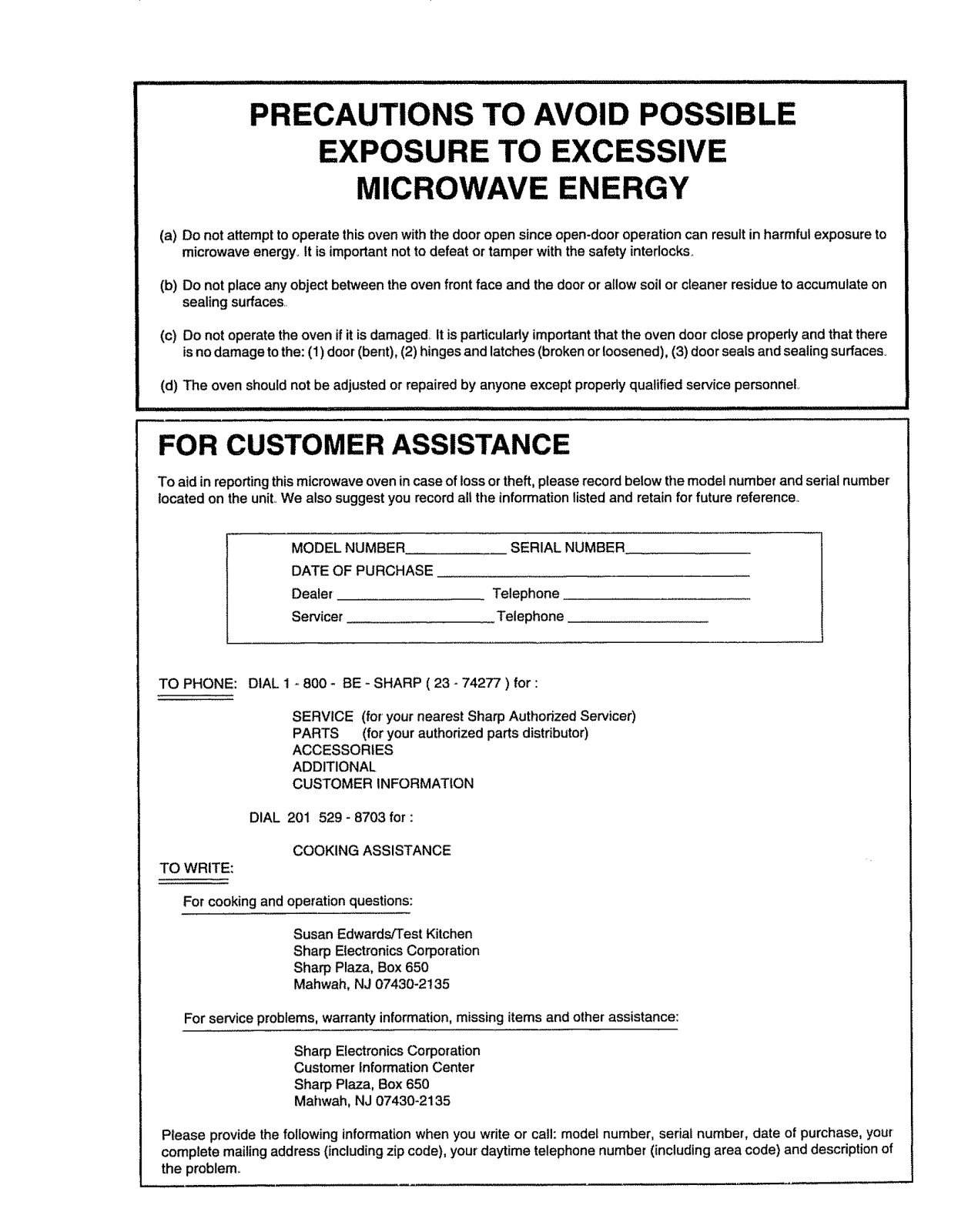

PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate thisoven with the door open since open-door operation can result in harmful exposure to
microwave energy, tt isimportant notto defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on
sealing surfaces..
(c) Do notoperate the oven ifit is damaged. It is particularly important that the oven door close propedy and that there
isno damage tothe: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel,.
i, i iii ......................
FOR CUSTOMER ASSISTANCE
To aid in reporting this microwave oven incase of loss or theft, please record below the model number and serial number
located on the uniL We also suggest you record all tt_e information listed and retain for future reference..
MODEL NUMBER. SERIAL NUMBER
DATE OF PURCHASE
Dealer Telephone ..........
Servicer Telephone
TO PHONE: DIAL t - 800 - BE - SHARP ( 23 - 74277 ) for :
SERVICE (for' your nearest Sharp Authorized Servicer)
PARTS (for your authorized parts distributor)
ACCESSORIES
ADDITIONAL
CUSTOMER INFORMATION
DIAL 201 529 - 8703 for :
COOKING ASSISTANCE
TO WRITE:
For cooking and operation questions:
Susan Edwards/rest Kitchen
Sharp Electronics Corporation
Sharp Plaza, Box 650
Mahwah, NJ 07430-2t35
For service problems, warranty information, missing items and other assistance:
Sharp Electronics Corporation
Customer Information Center
Sharp Plaza, Box 650
Mahwah, NJ 07430-2135
Please provide the following information when you write or call: model number, serial number, date of purchase, your
complete mailing address (including zip code), your daytime telephone number (including area code) and description of
the problem.,
Precautions to Avoid Possible
Exposure to Excessive
Microwave Energy .................. Inside front cover
For Customer Assistance ..........Inside front cover

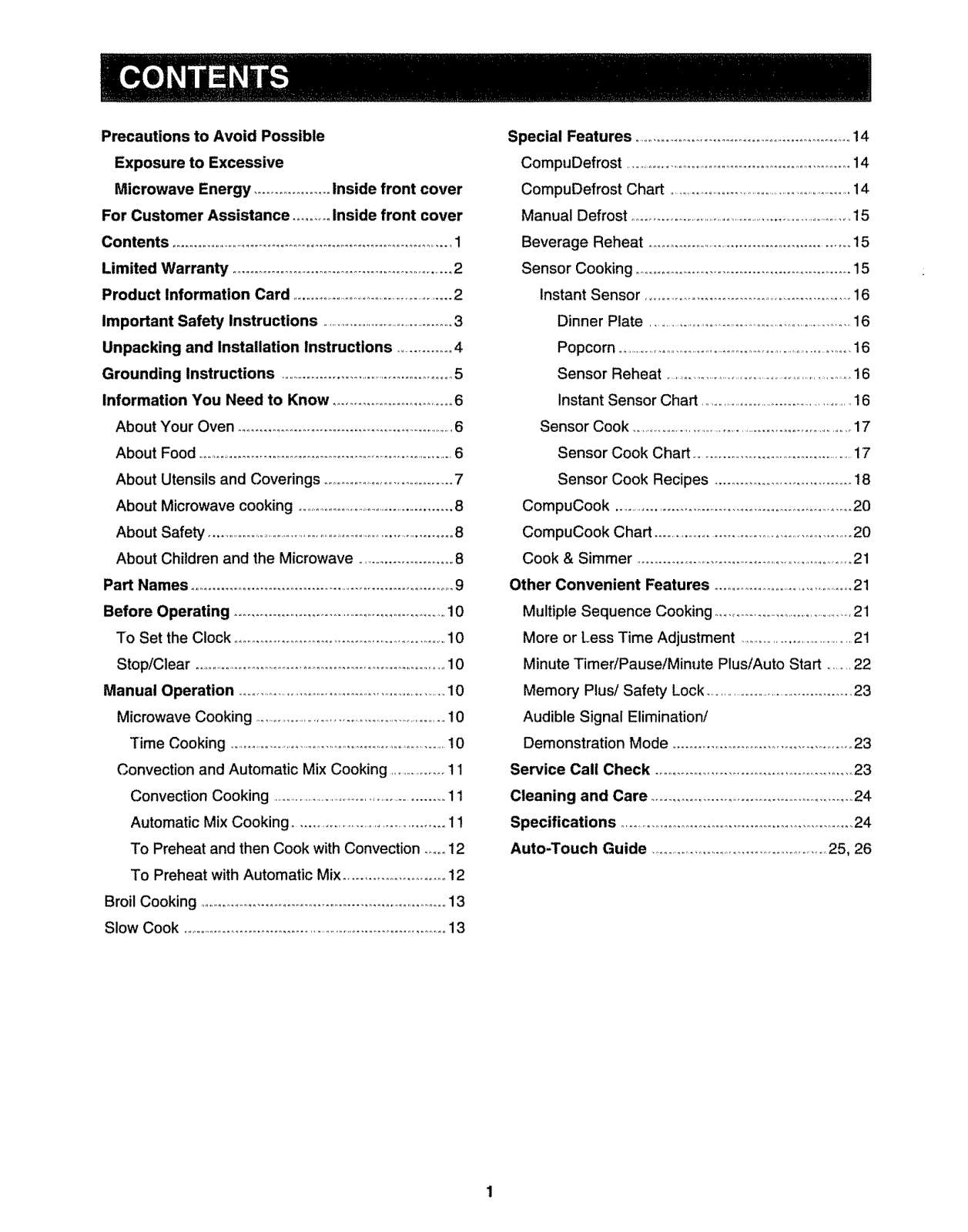

Contents ...................................................................................1
Limited Warranty .................................................................2
Product Information Card .........................................................2
Important Safety Instructions ...............................................3
Unpacking and Installation Instructions ...............4

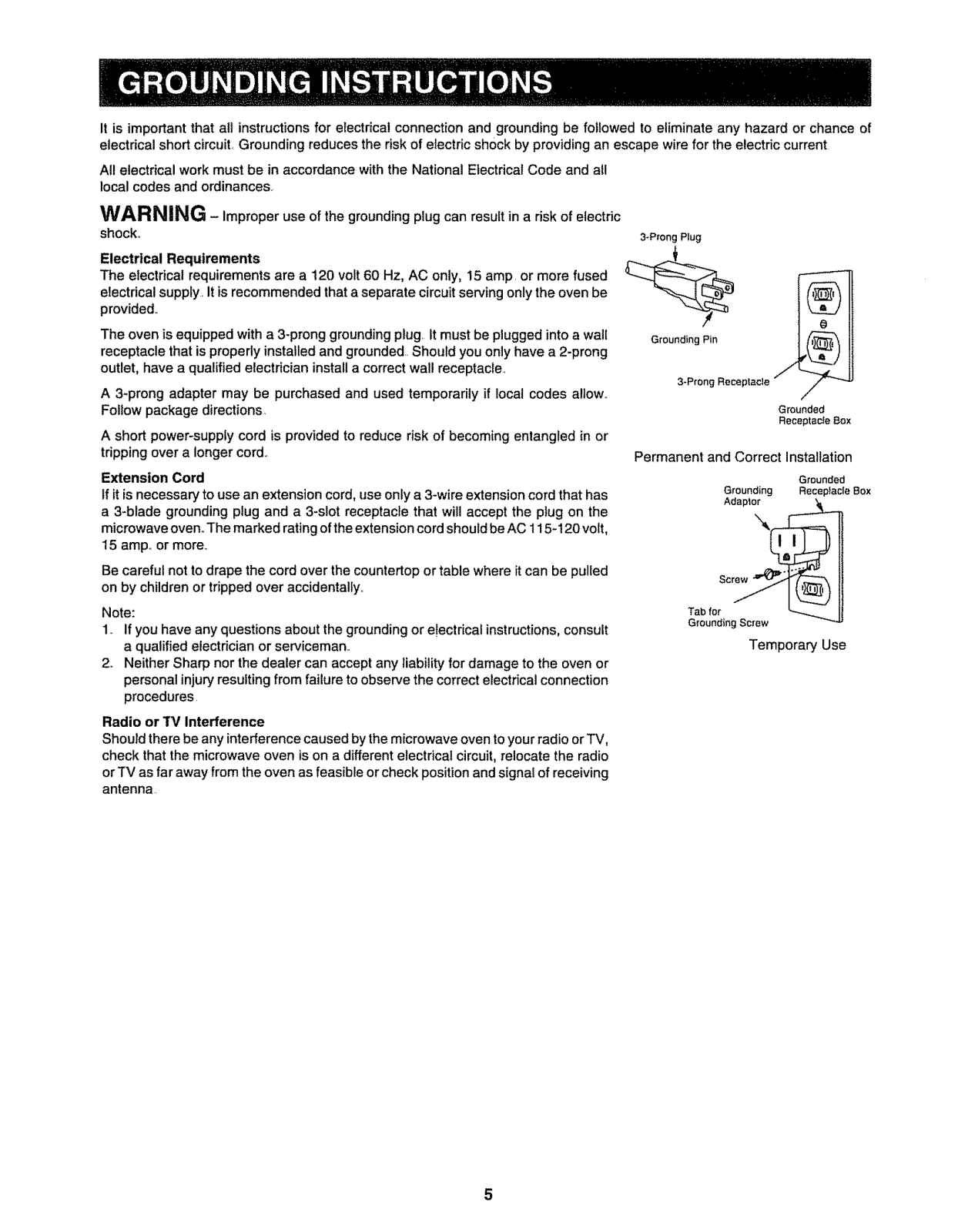

Grounding Instructions .....................................................5

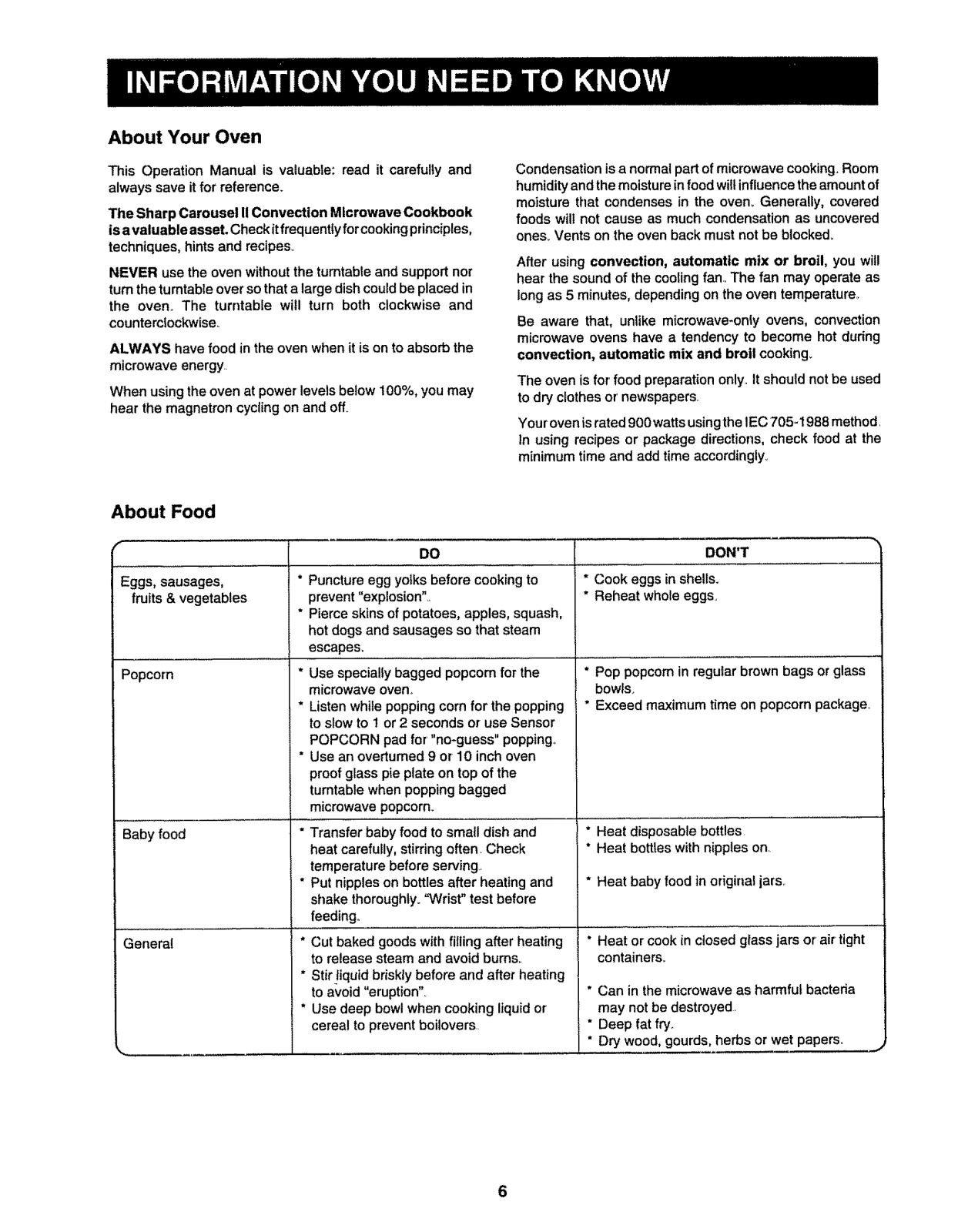

information You Need to Know .................................6
About Your Oven .........................................................6
Special Features ...........................................................14

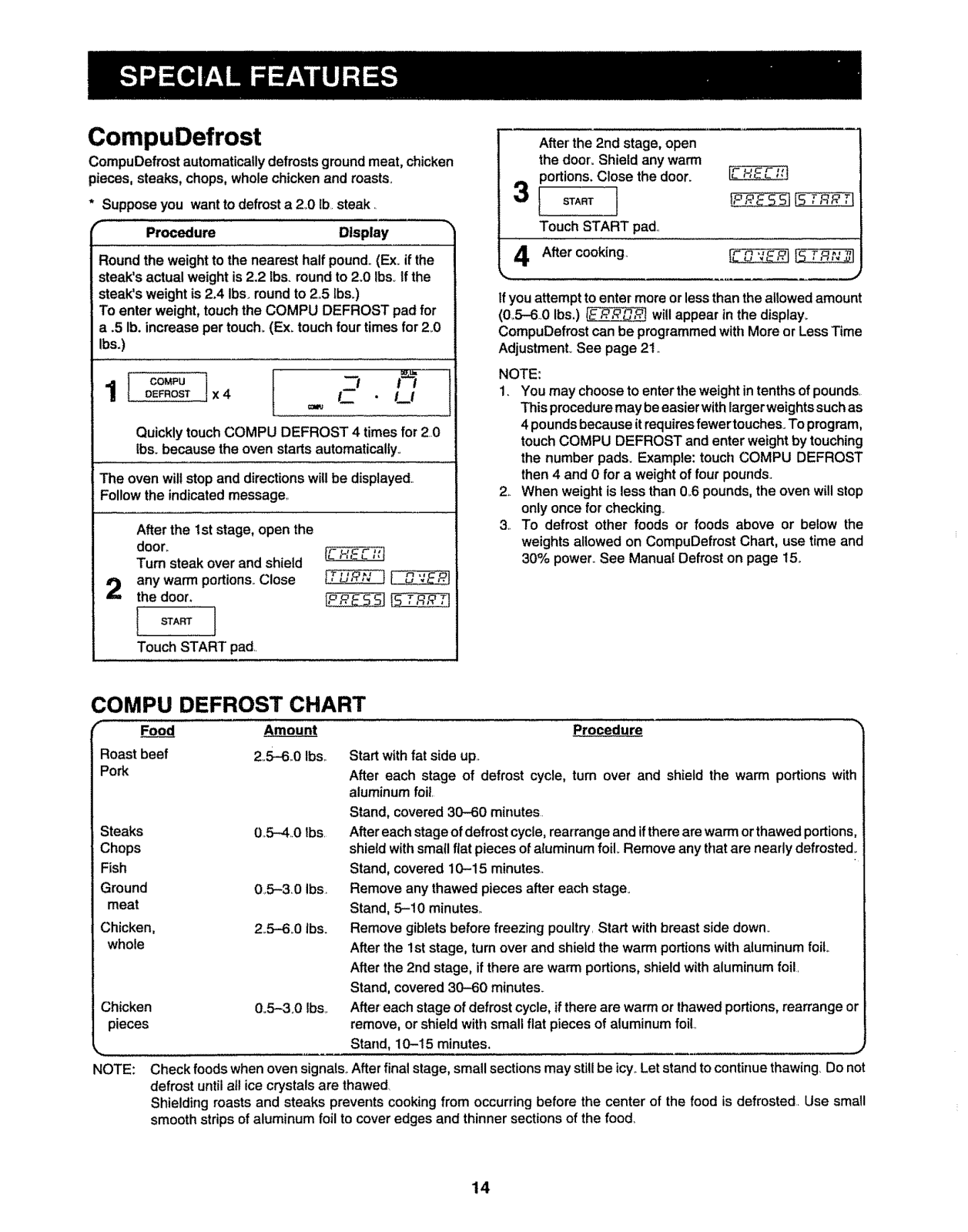

CompuDefrost ...............................................................14
CompuDefrost Chart .................................................................14

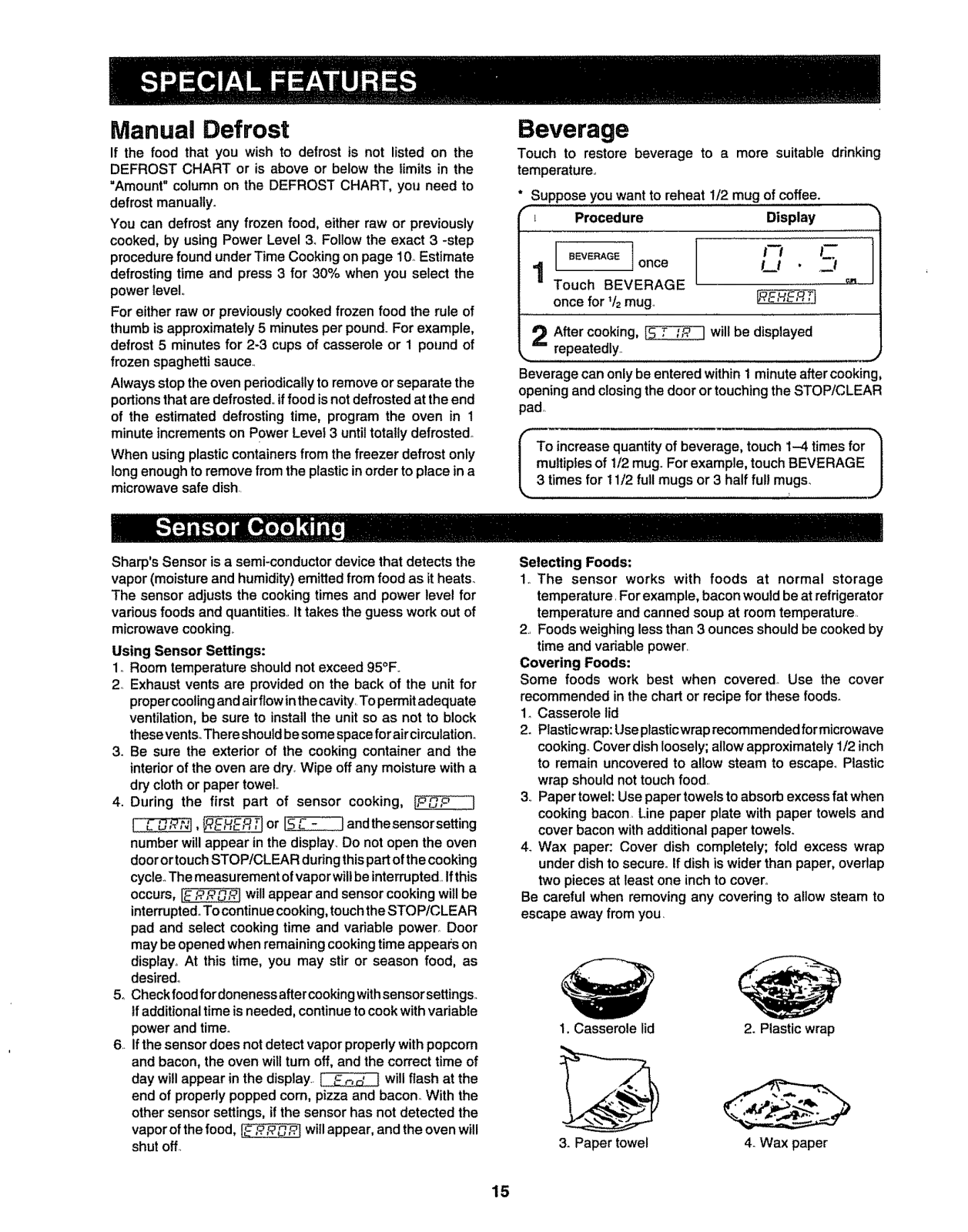

Manual Defrost ...............................................................................15
Beverage Reheat .....................................................t 5
Sensor Cooking ...................................................... 15

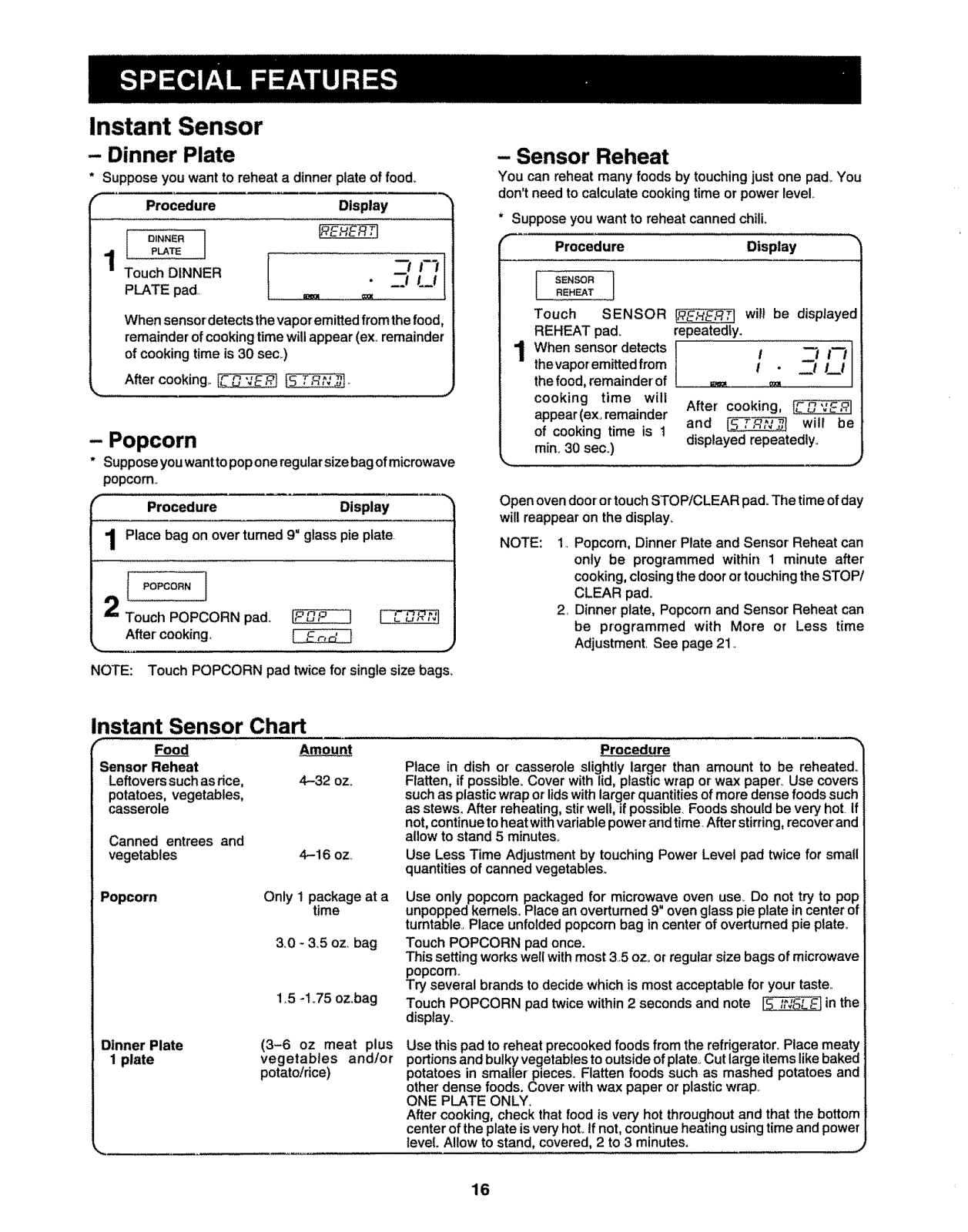

Instant Sensor ..........................................................16
Dinner Plate .....................................................................16
Popcorn ..............................................................................t6
Sensor Reheat ...................................................................16
Instant Sensor Chart .........................................................16
Sensor Cook .........................................................................17
About Food .............................................................................6

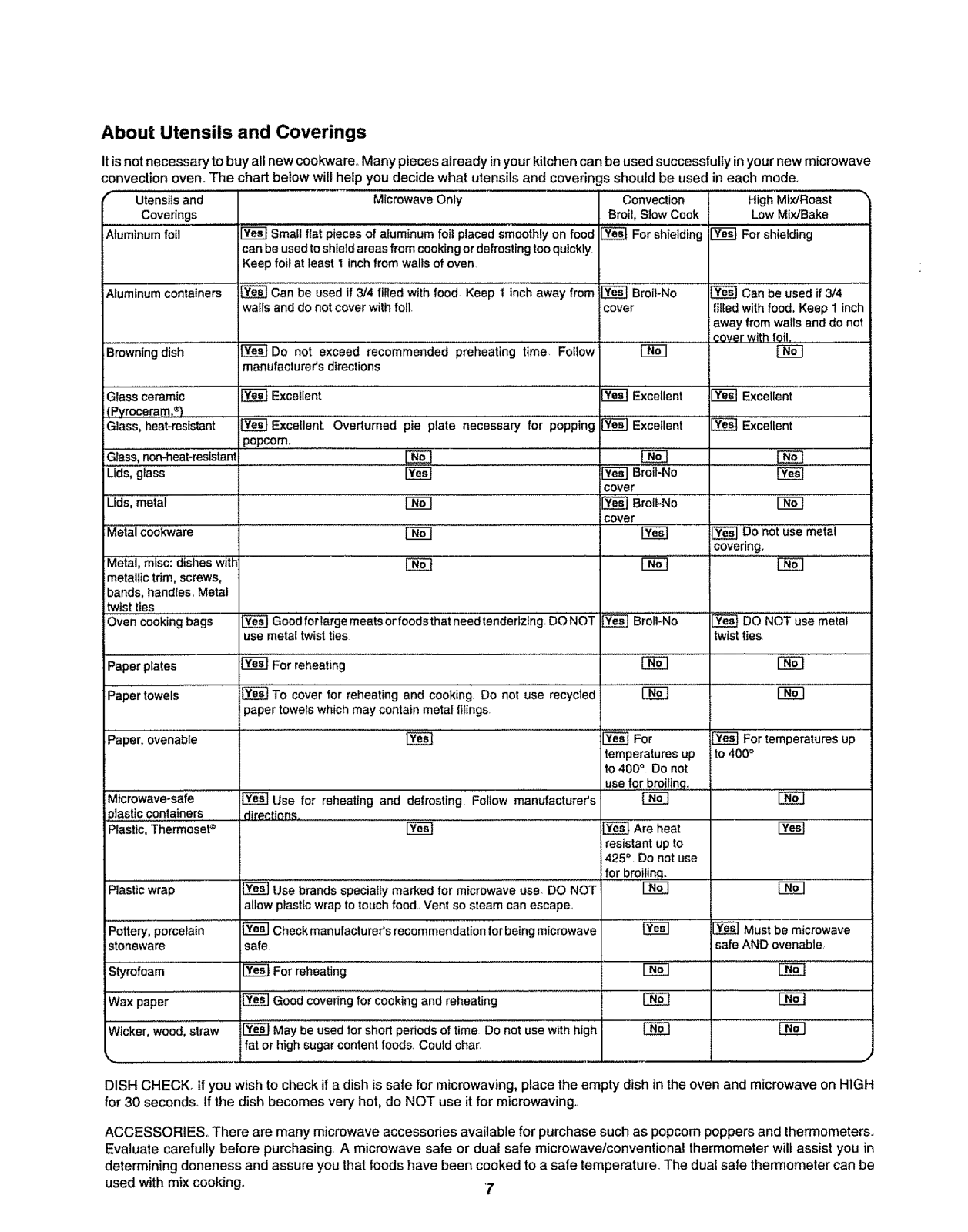

About Utensils and Coverings ............................................7

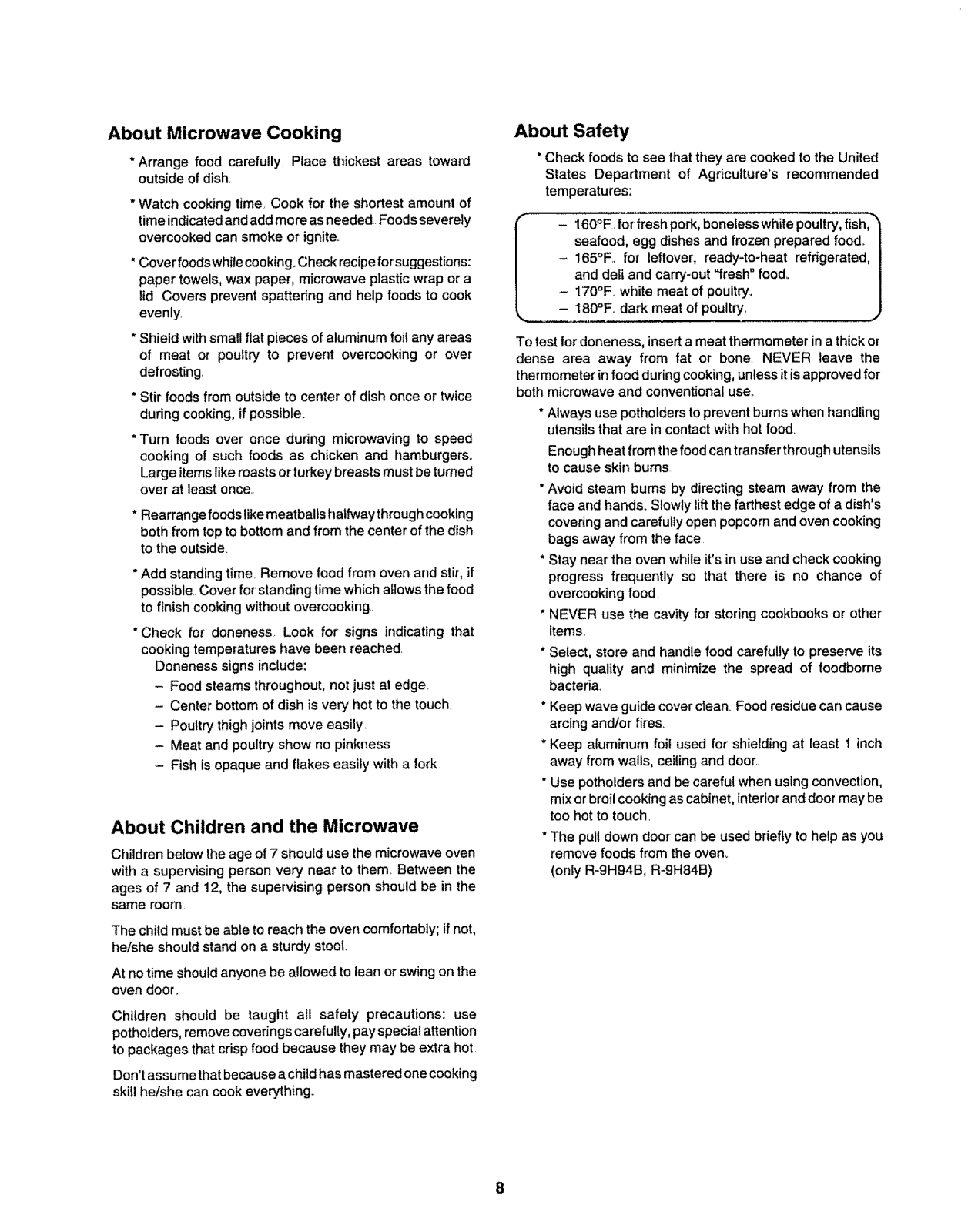

About Microwave cooking .....................................................8
About Safety ..........................................................................................8
About Children and the Microwave ..........................8

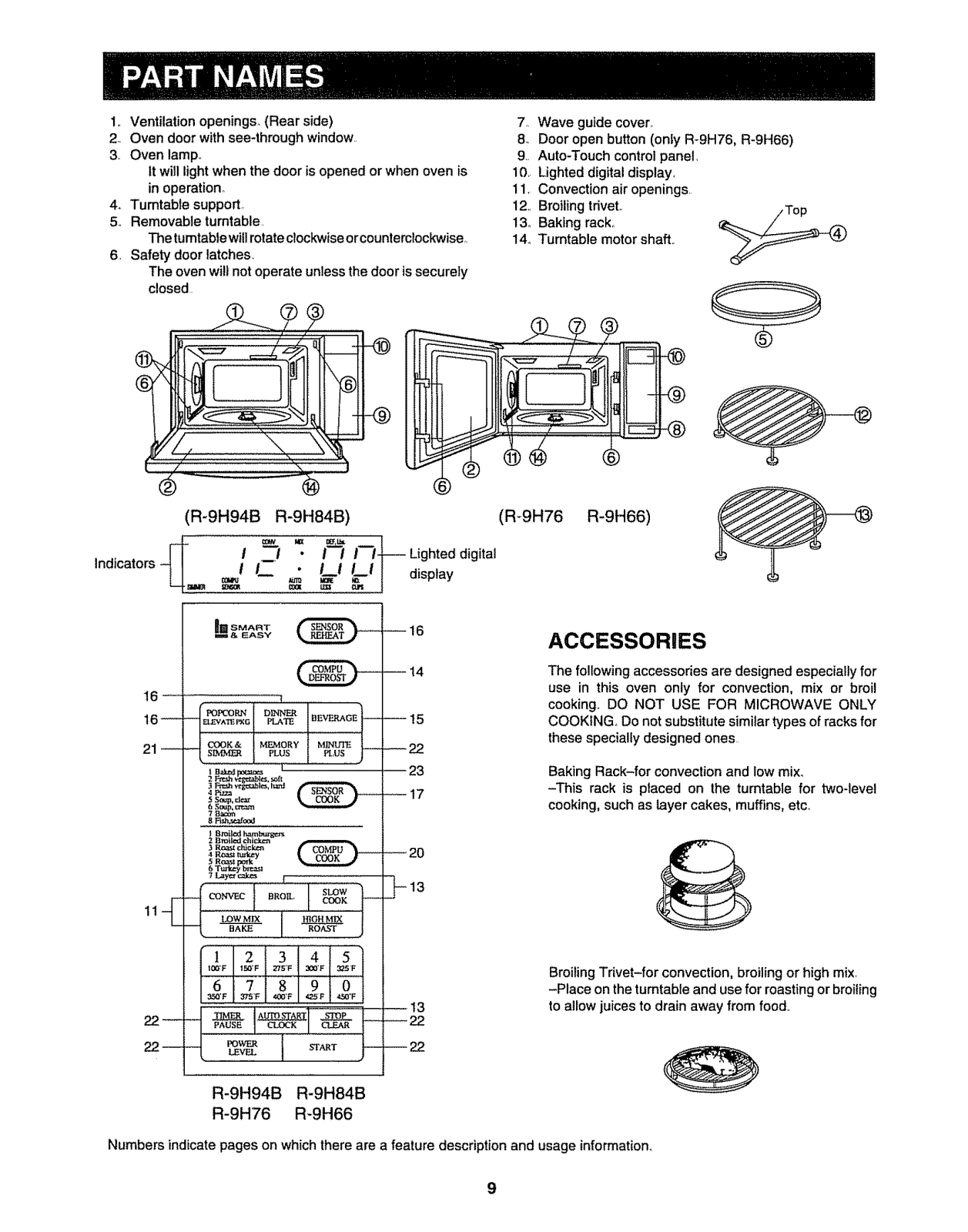

Part Names ................................................................... 9

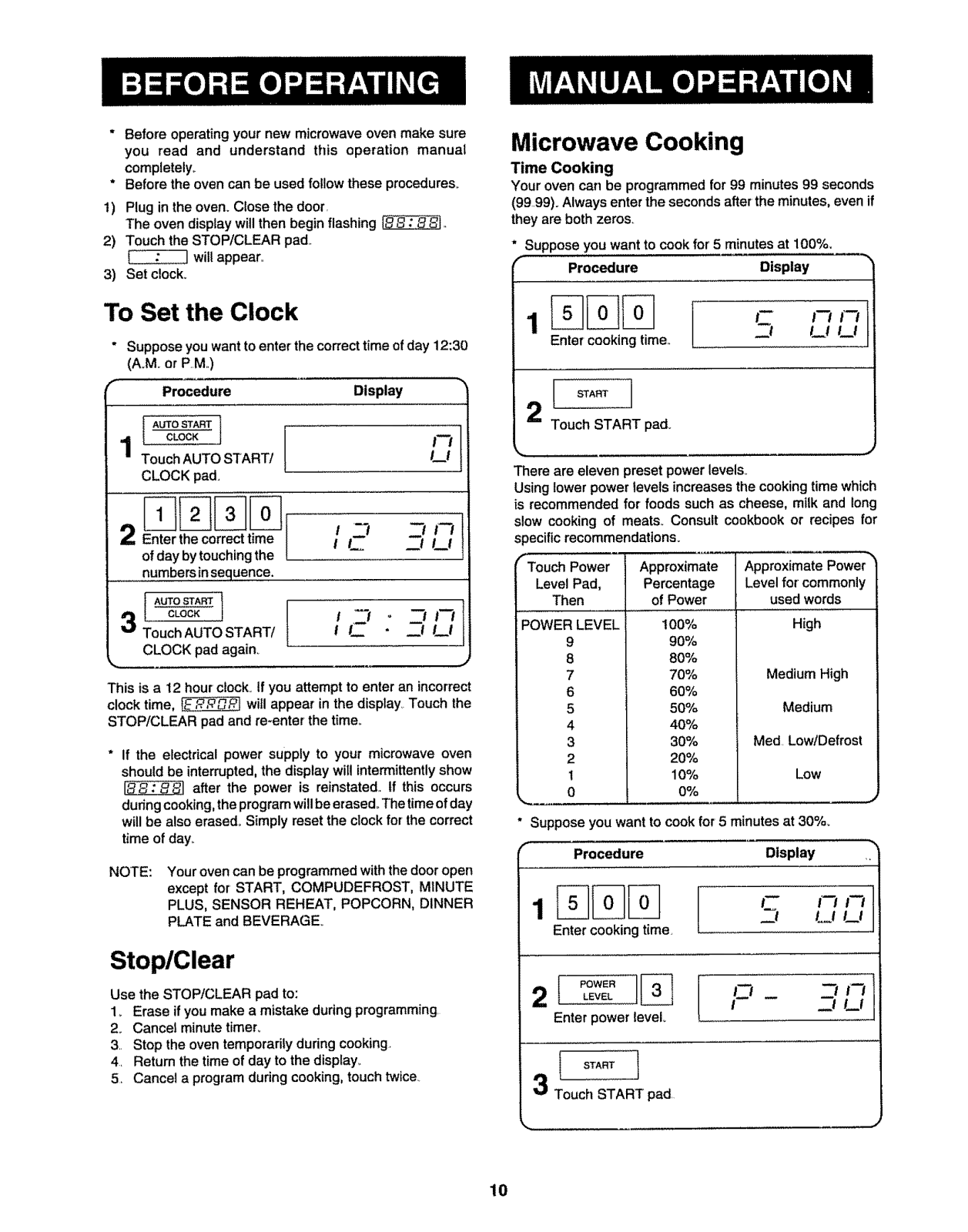

Before Operating .......................................................10
To Set the Clock ...........................................................10
Stop/Clear ....................................................................................10
Manual Operation .................................................................10
Microwave Cooking ................................................................10
Time Cooking ...........................................................................I0

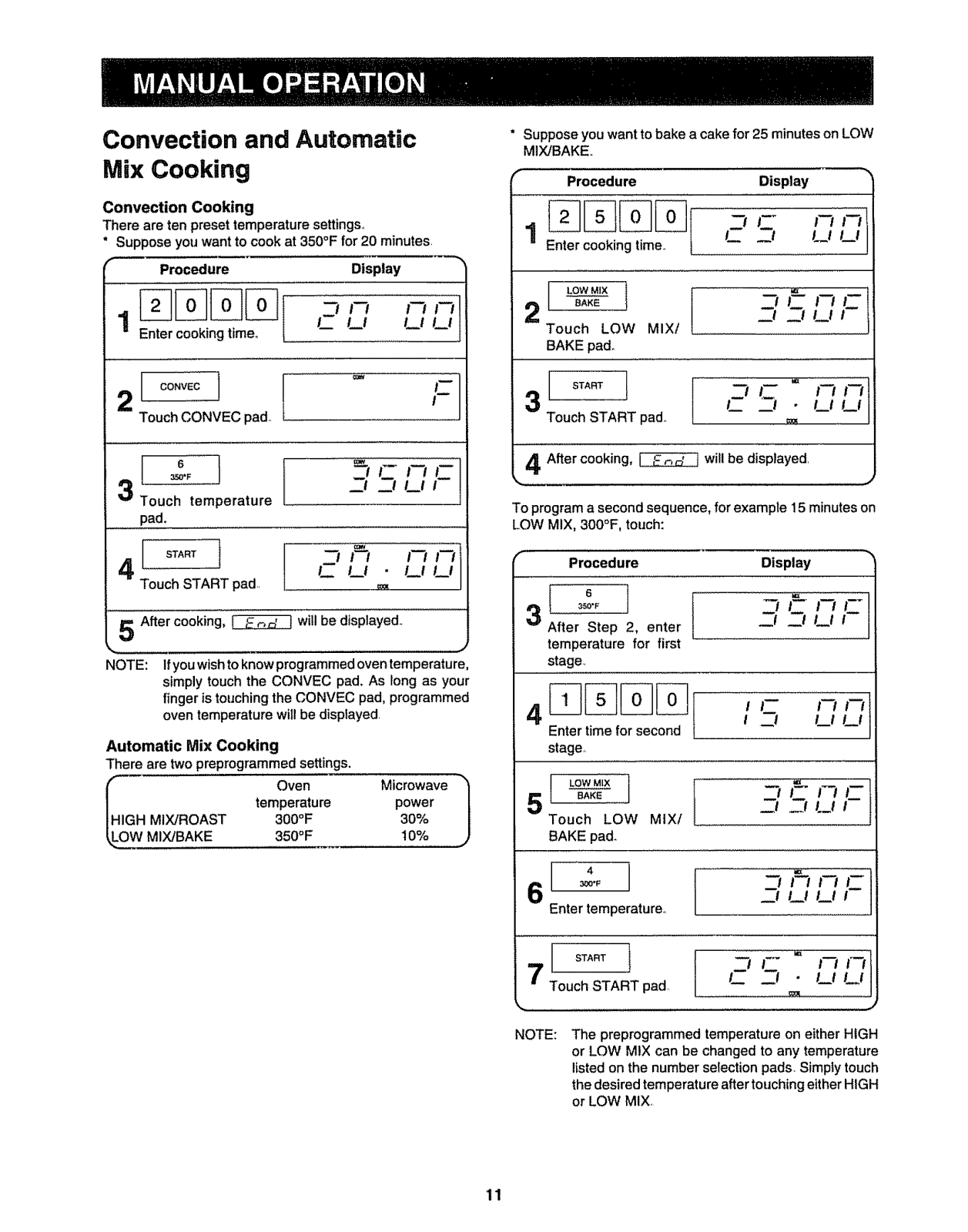

Convection and Automatic Mix Cooking ....................11
Convection Cooking ...........................................................11
Automatic Mix Cooking .............................................11

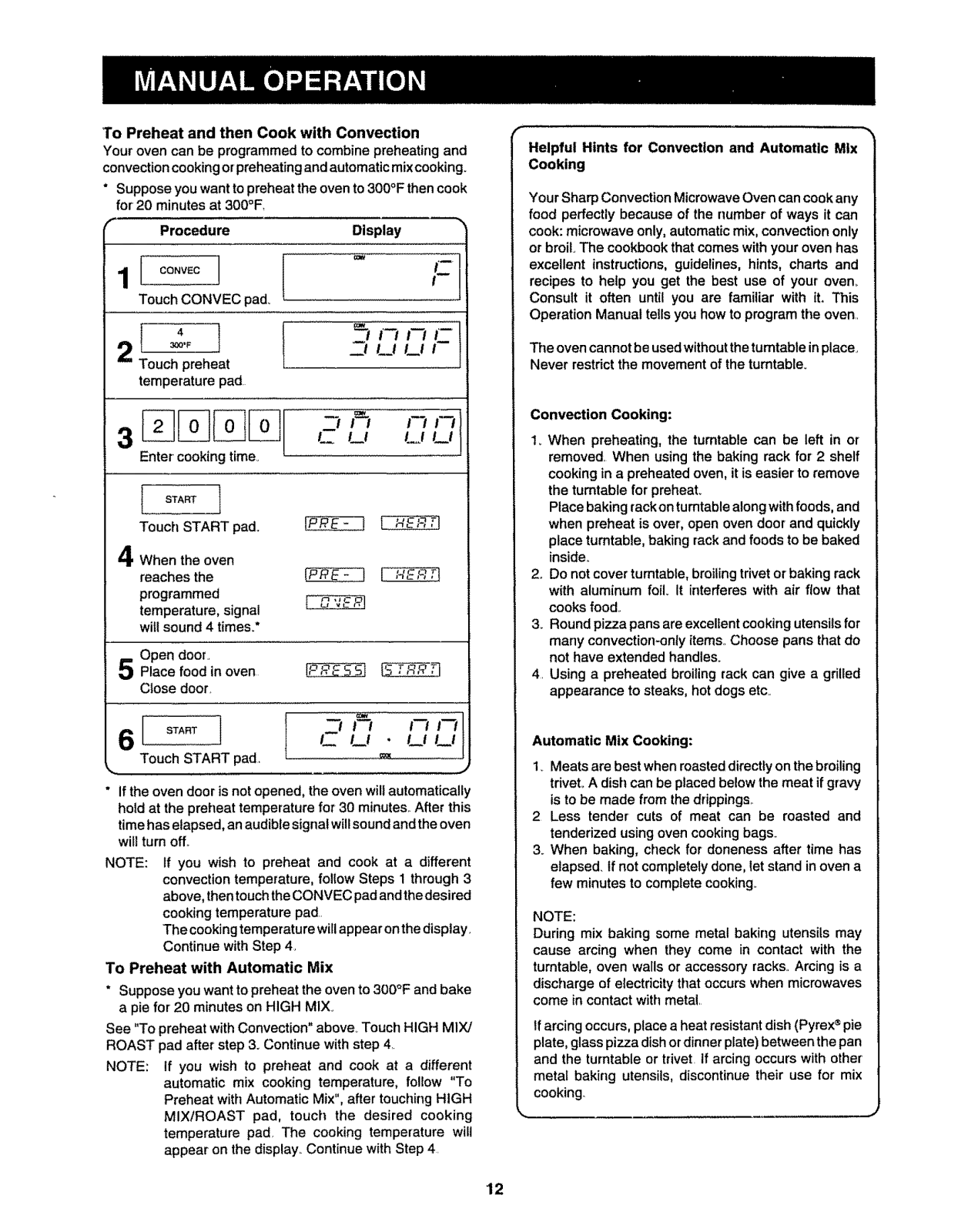

To Preheat and then Cook with Convection ..... 12
To Preheat with Automatic Mix ......................... 12

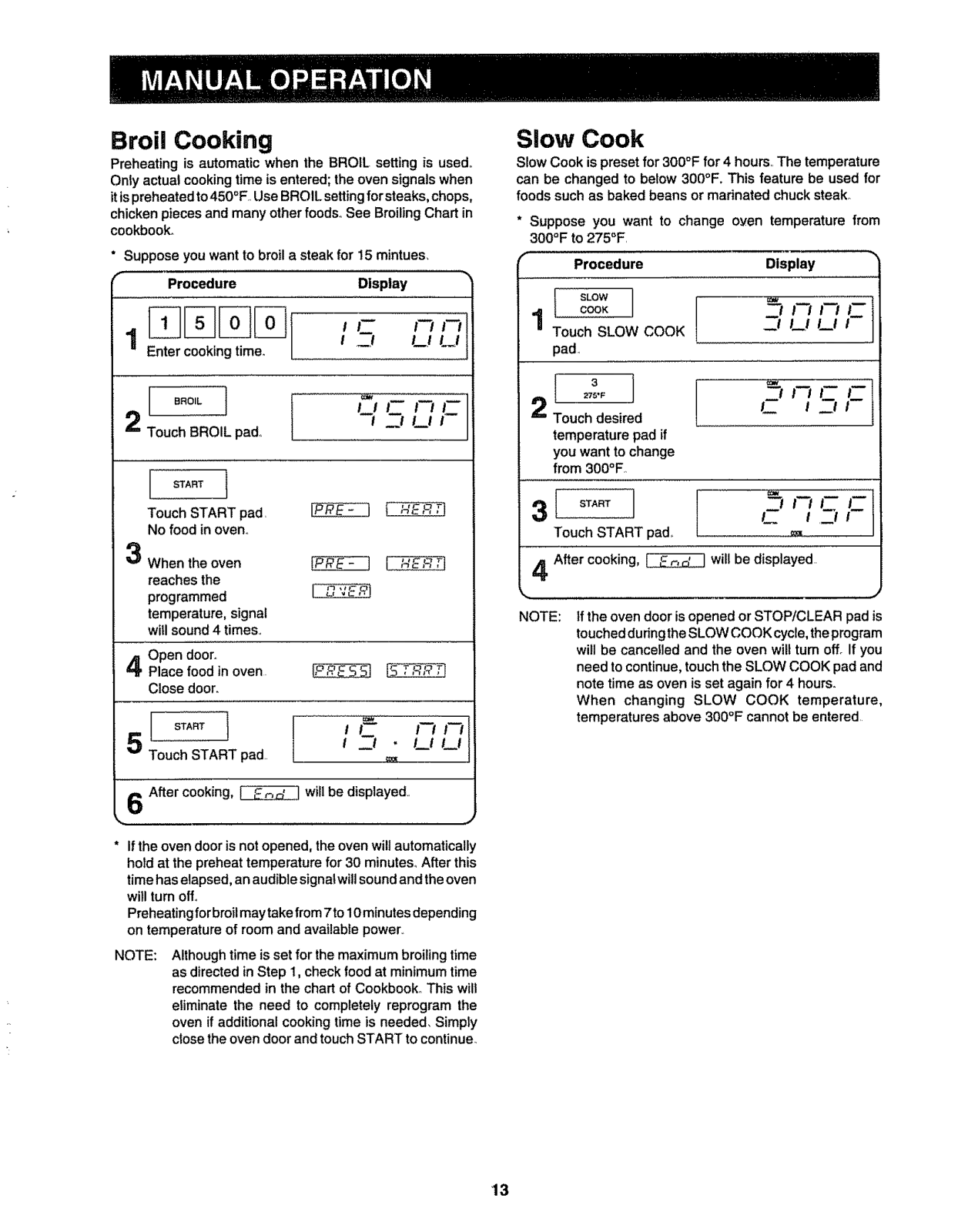

Broil Cooking ..................................................................13
Slow Cook ............................................................................13

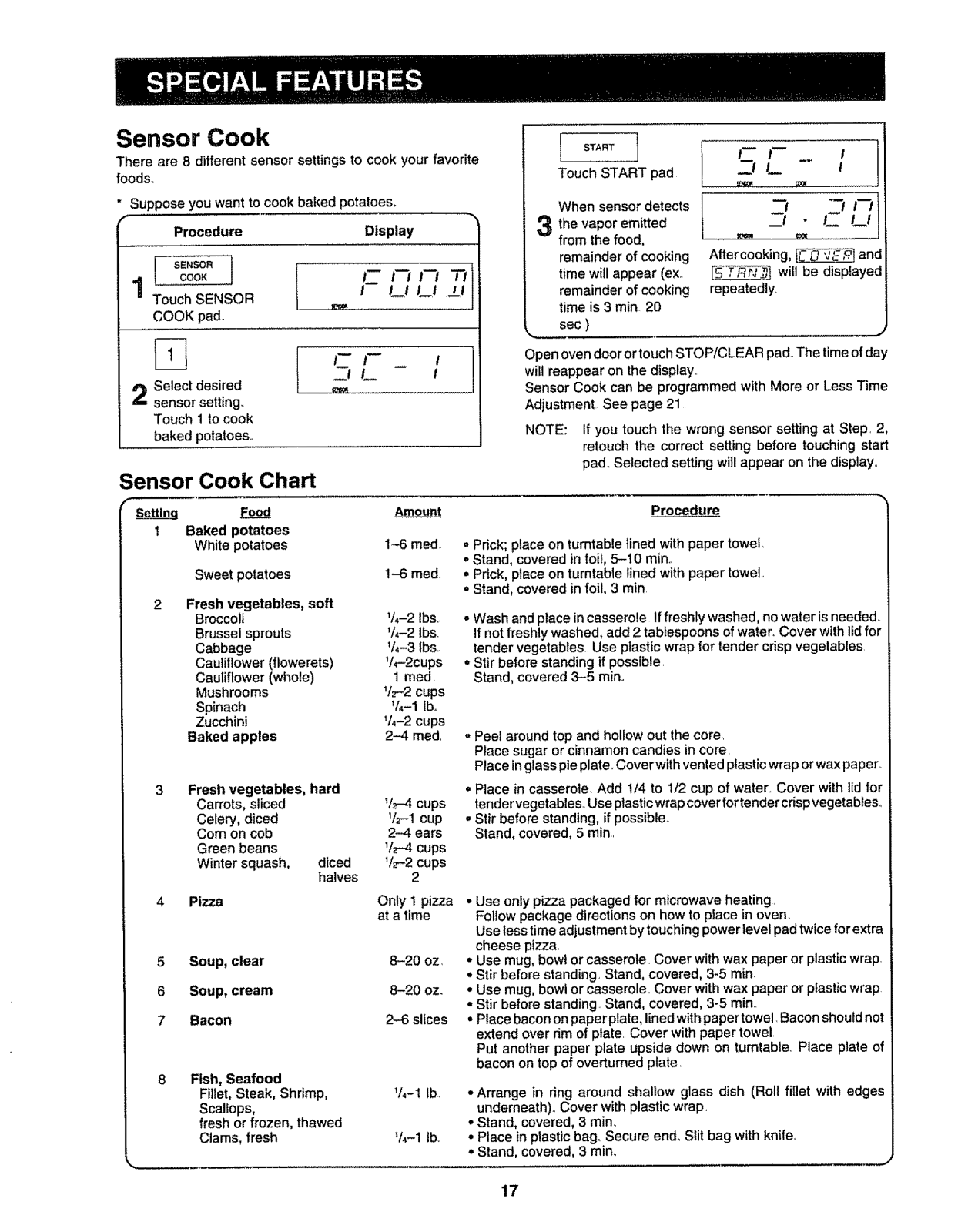

Sensor Cook Chart .............................................17

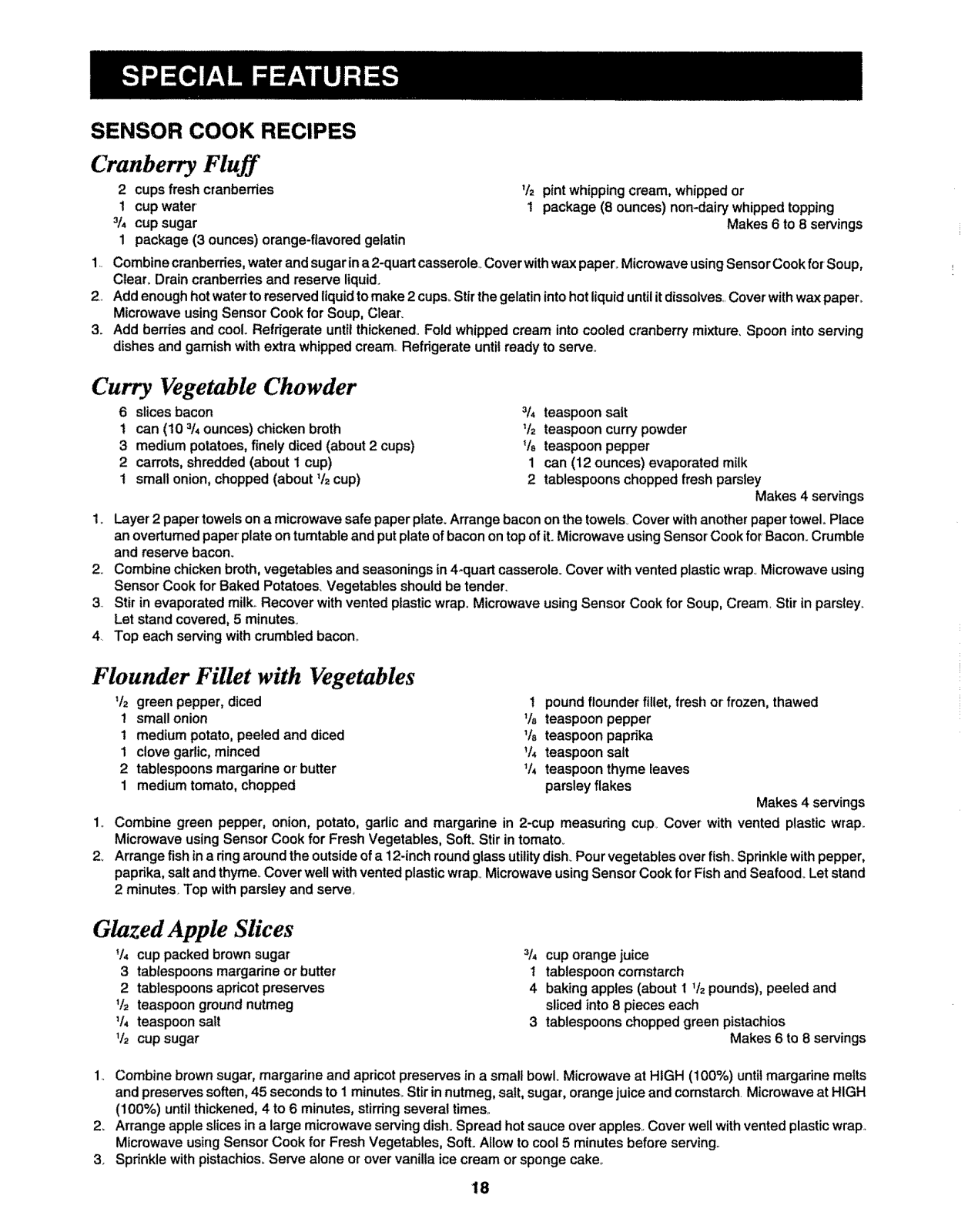

Sensor Cook Recipes ................................... 18

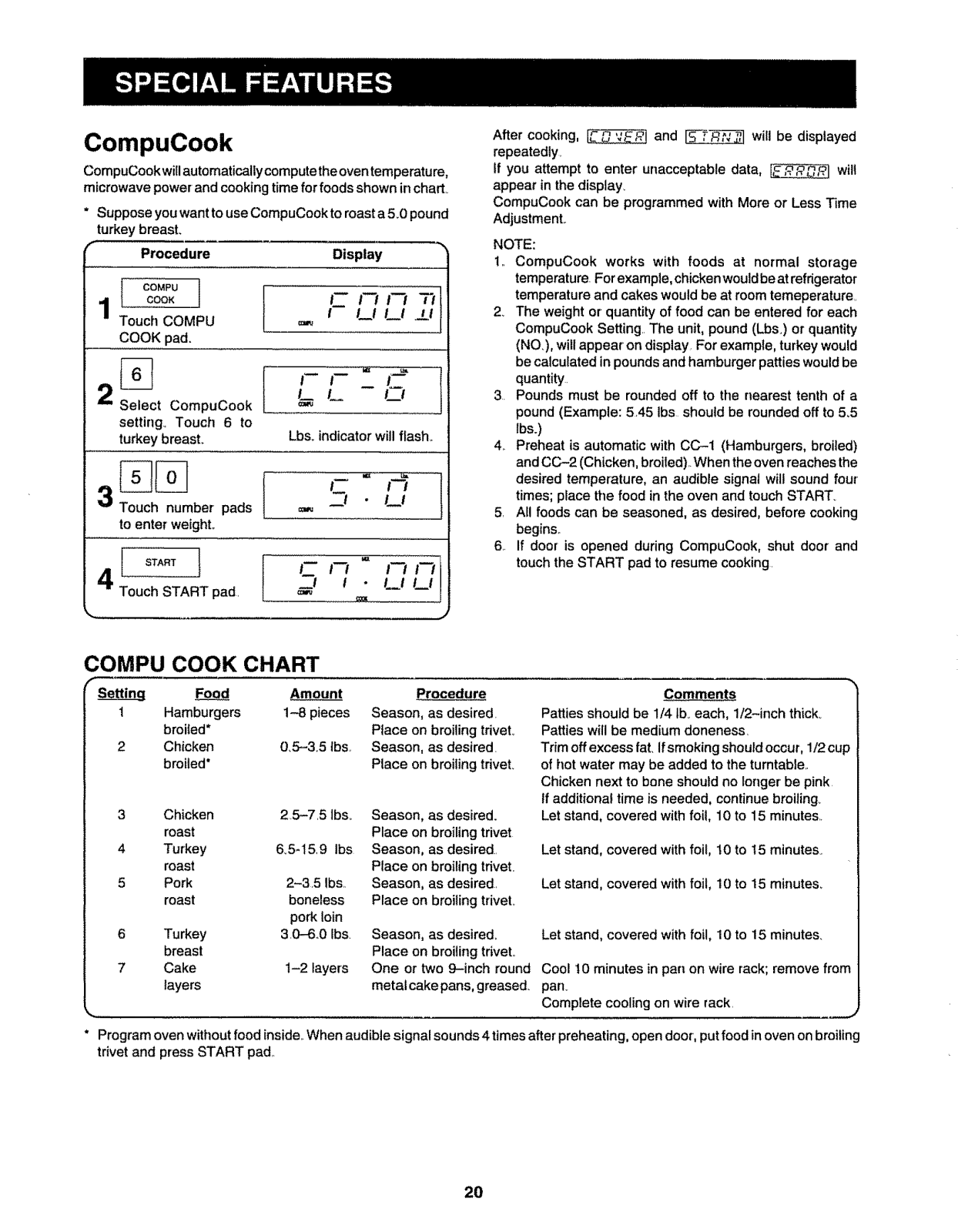

CompuCook .............................................................20
CompuCook Chart ........................................................20

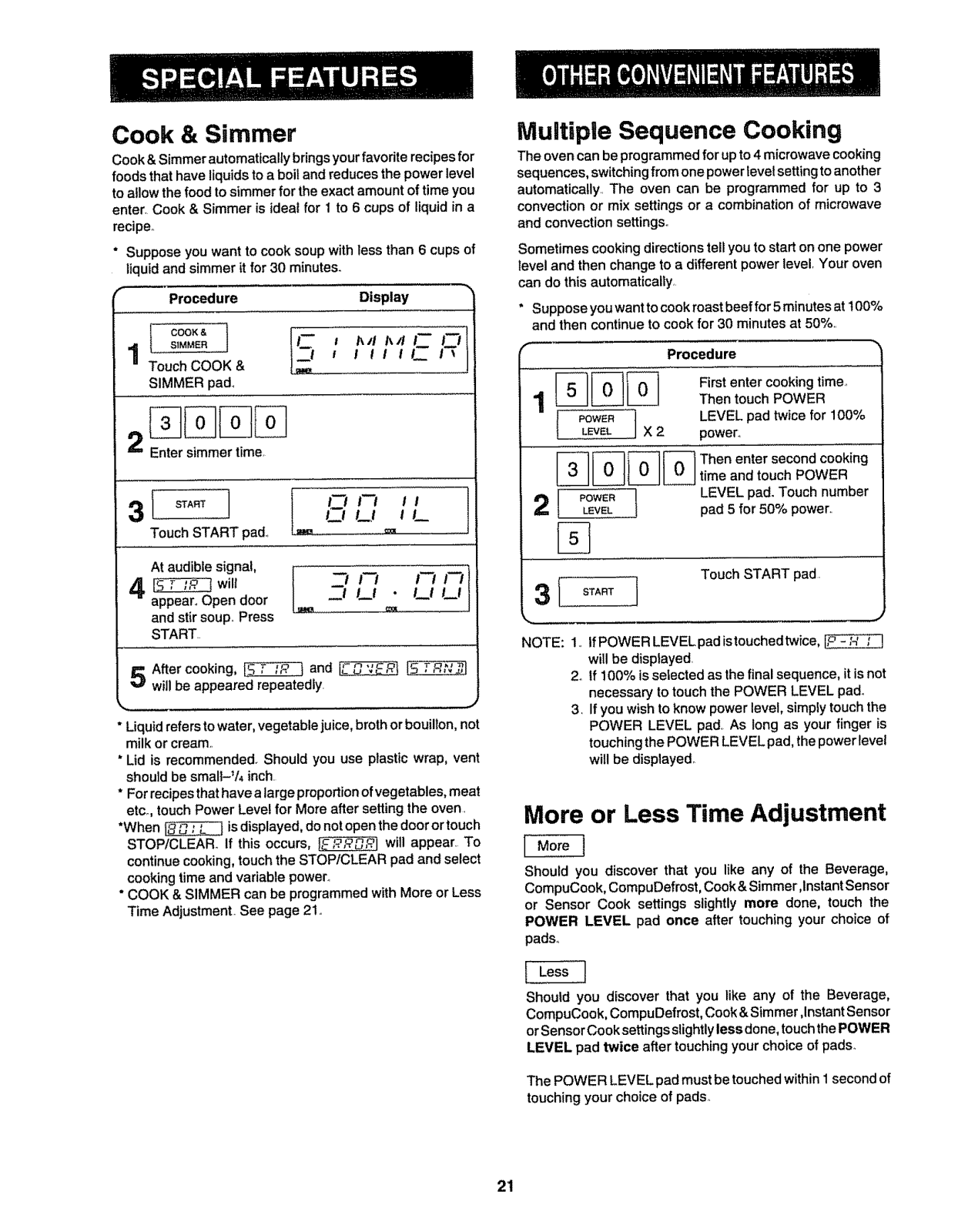

Cook & Simmer ........................................................21

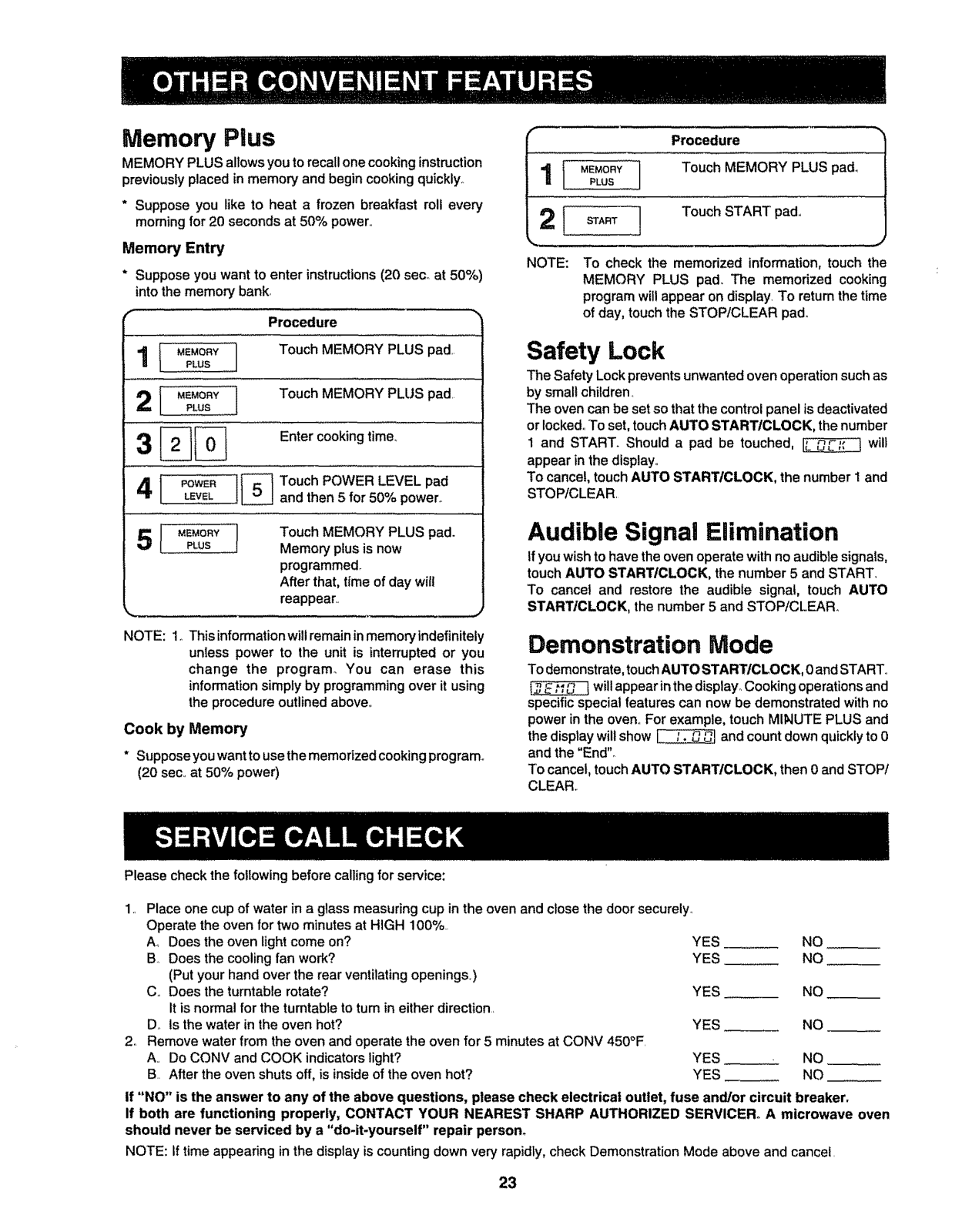

Other Convenient Features .........................................21
Multiple Sequence Cooking ..............................................21
More or Less Time Adjustment .....................................21

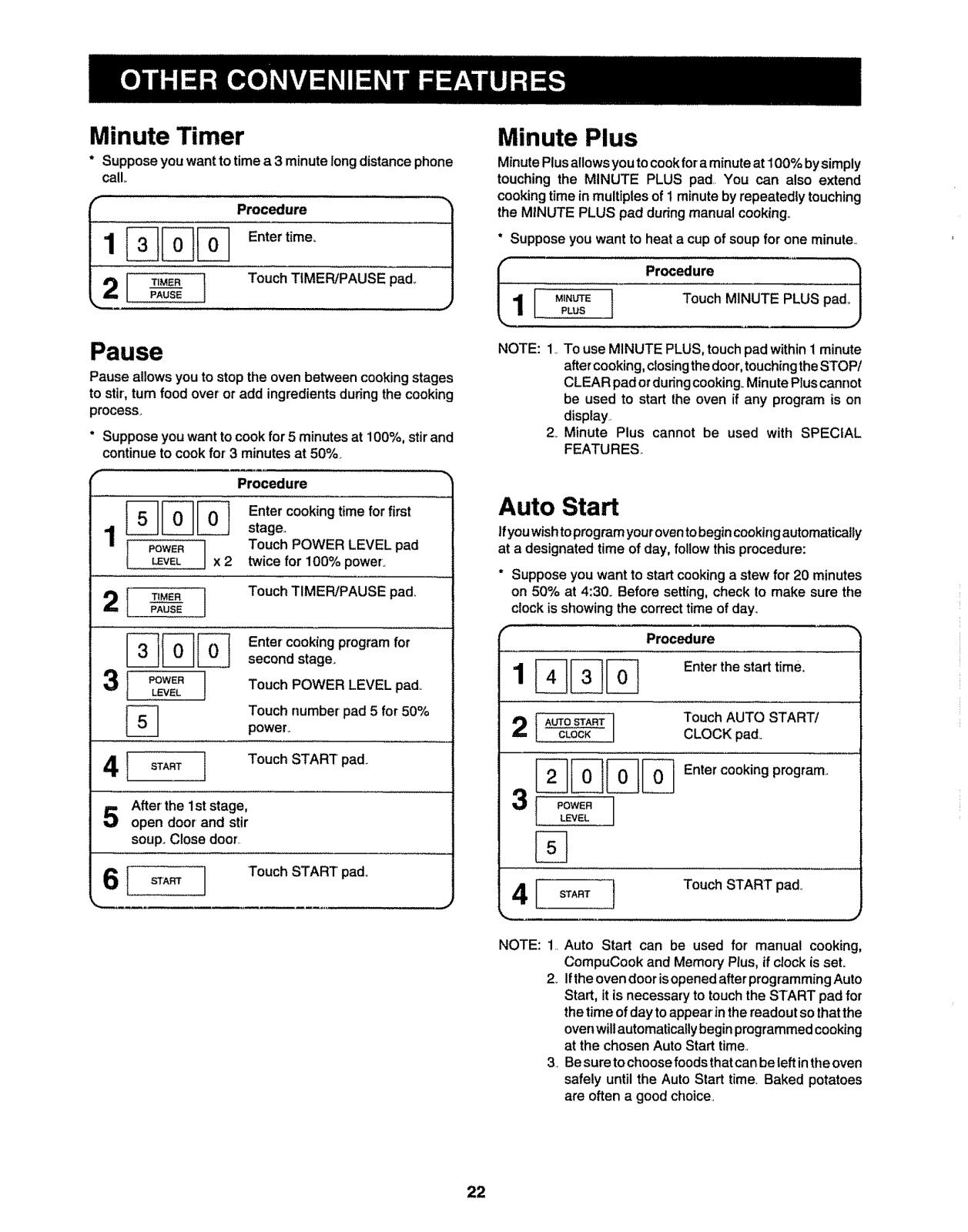

Minute Timer/Pause/Minute Plus/Auto Start ........22
Memory Plus/Safety Lock ................................................23
Audible Signal Elimination/
Demonstration Mode ............................................ 23
Service Call Check ................................................ 23

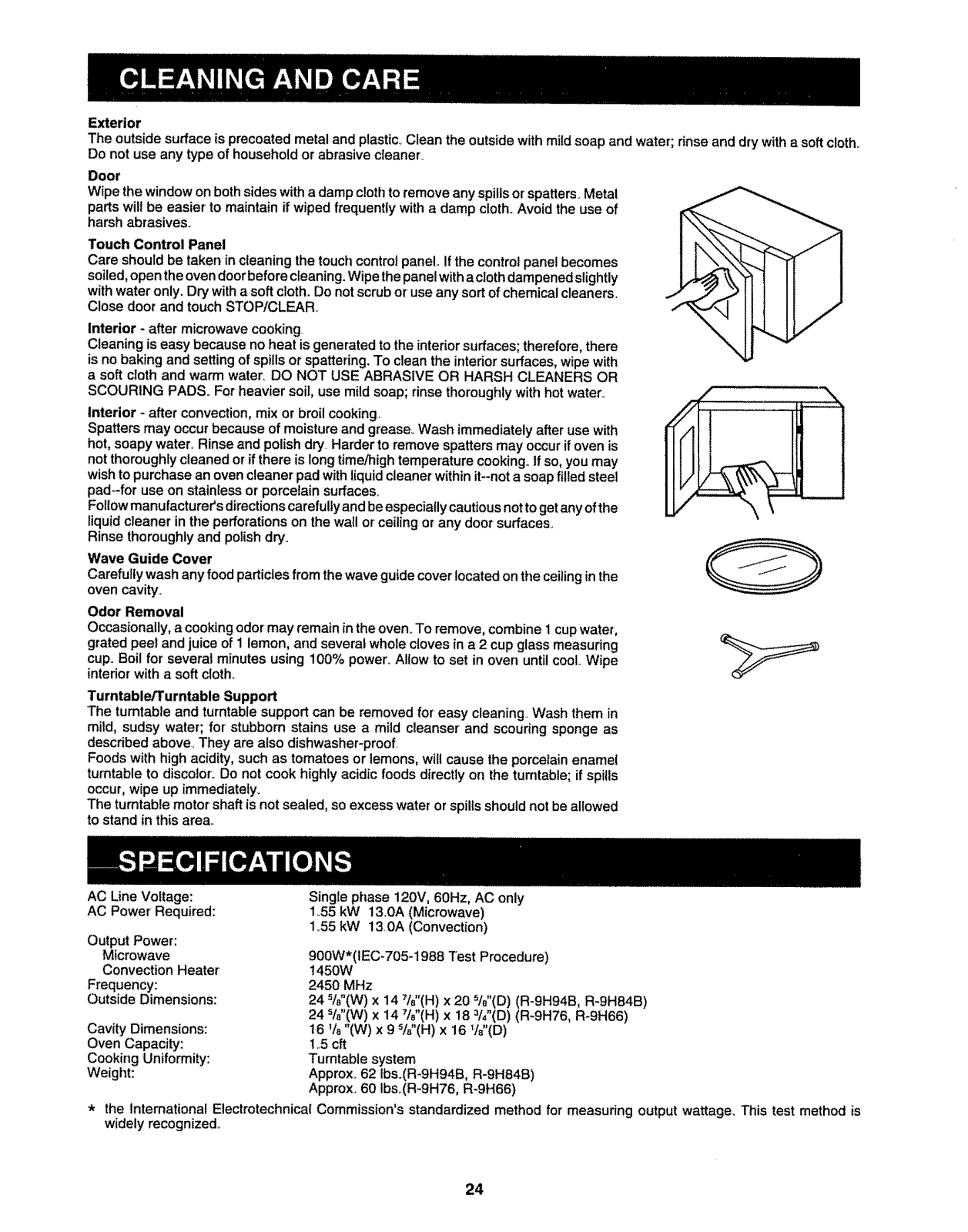

Cleaning and Care ................................................. 24
Specifications .............................................................24

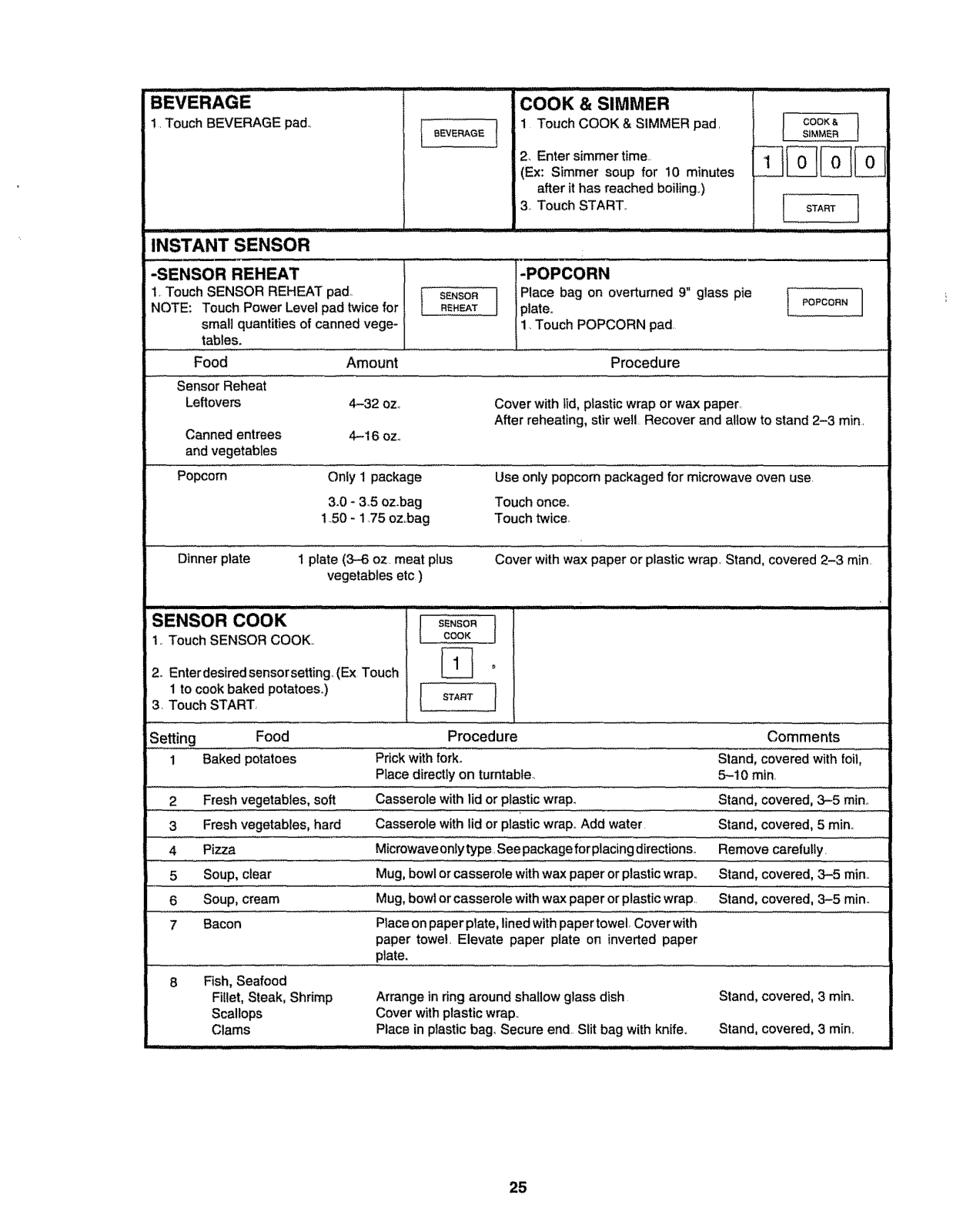

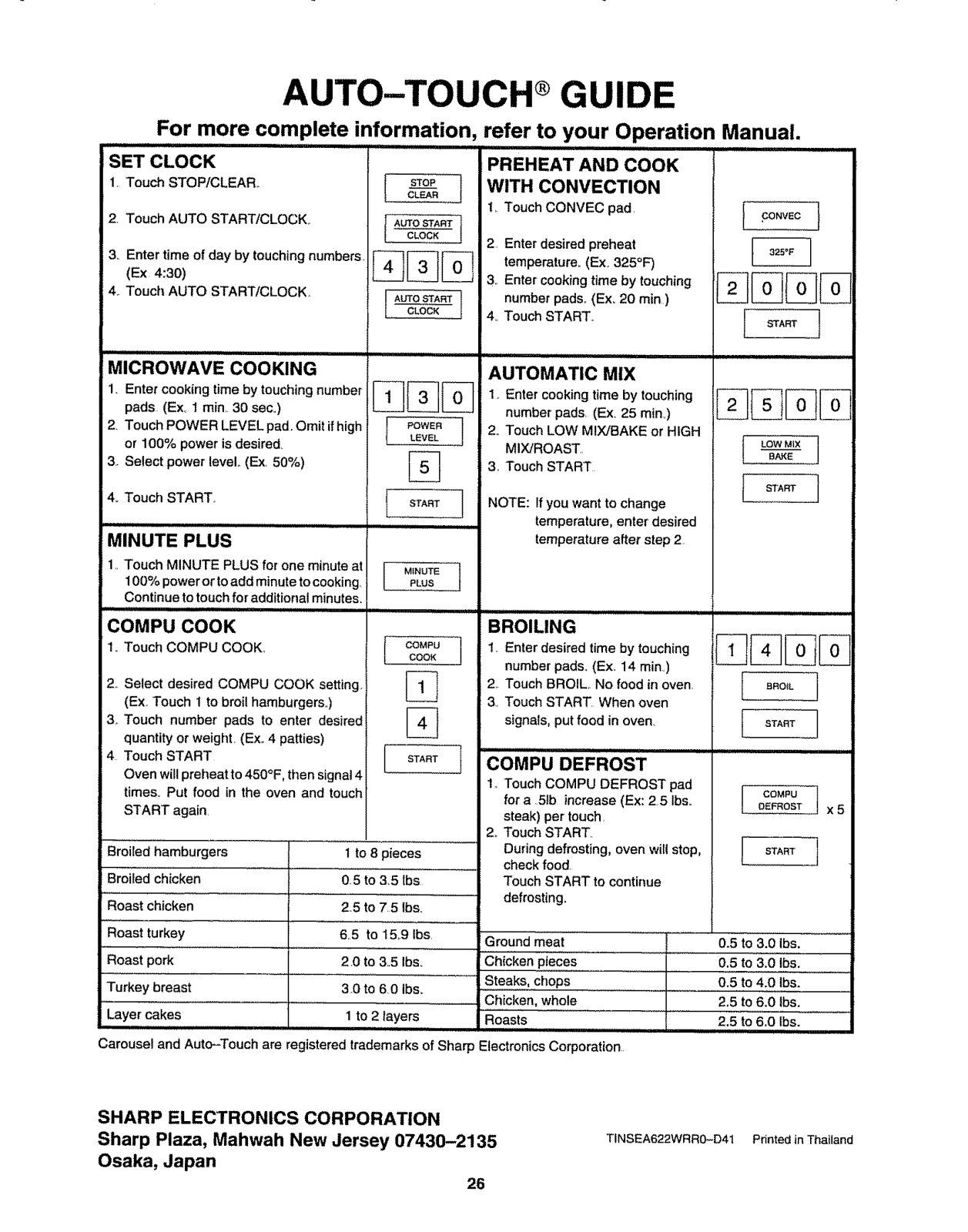

Auto-Touch Guide ....................................................25, 26

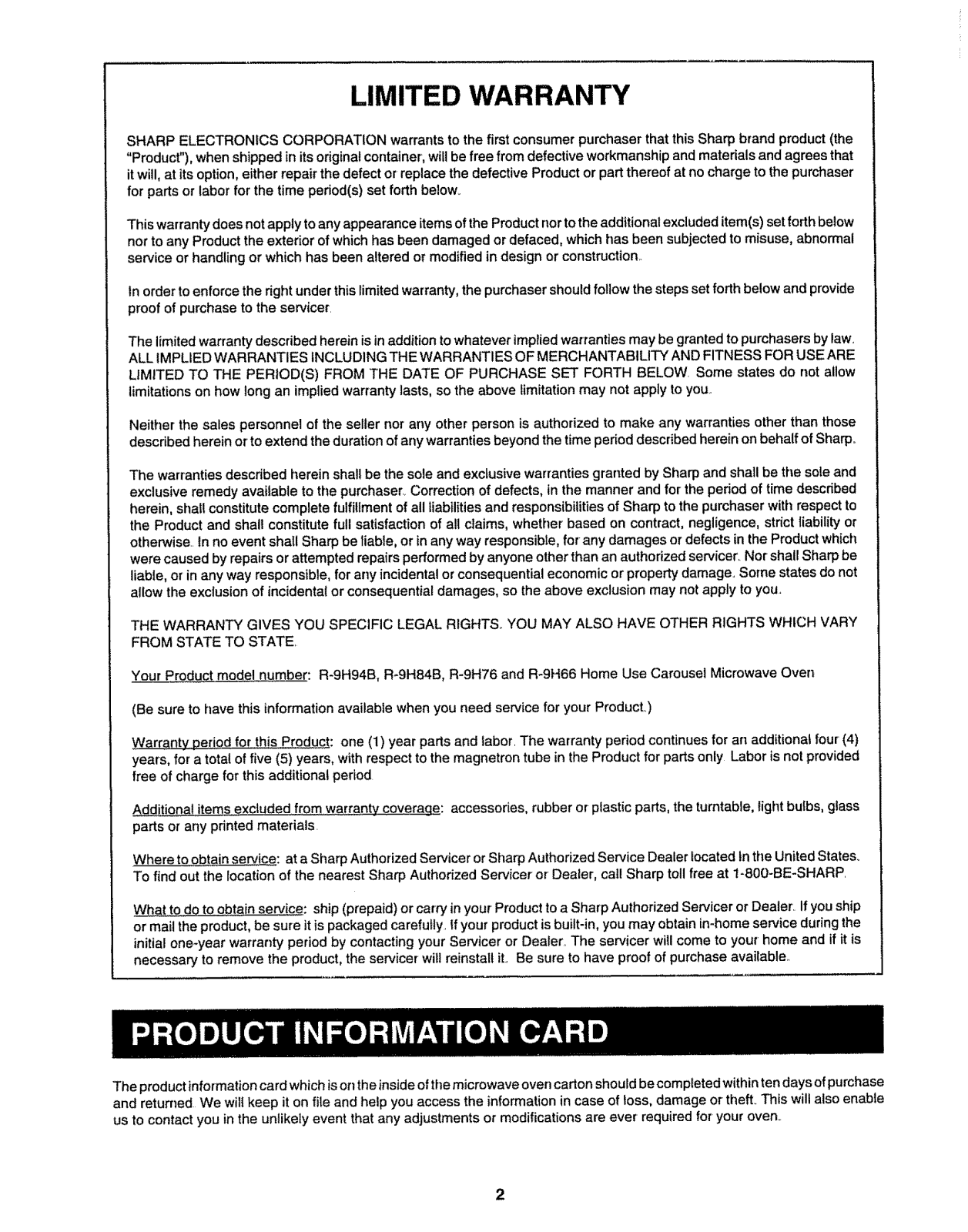

LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the
"Product"), when shipped in its original container, wifl be free from defective workmanship and materials and agrees that
it will, at its option, either repair the defect or replace the defective Product or part thereof at no charge to the purchaser
for parts or labor for the time period(s) set forth below_
This warranty does not apply to any appearance itemsof the Product nor to the additional excluded item(s) set forth below
nor to any Product the exterior of which has been damaged or defaced, which has been subjected to misuse, abnormal
service or handling or which has been altered or modified in design or construction..
In order to enforce the right under this limited warranty, the purchaser should follow the steps set forth below and provide
proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted topurchasers by law,
ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE
LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW, Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply to you,,
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those
described herein or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and
exclusive remedy available to the purchaser,, Correction of defects, in the manner and for the period of time described
herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to
the Product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or
otherwise.. In no event shall Sharp be 1table,or inany way responsible, for-any damages or defects in the Product which
were caused by repairs or attempted repairs performed by anyone other than an authorized servicer, Nor shall Sharp be
liable, or in any way responsible, for any incidental or consequential economic or property damage,, Some states do not
allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you,
THE WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS.. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
_YourProduct model number: R-9H94B, R-9H84B, R-9H76 and R-9H66 Home Use Carousel Microwave Oven
(Be sure to have this information available when you need service for your Product.)
Warranty pedod for this Product: one (1) year parts and labor. The warranty period continues for an additional four' (4)
years, for a total of five (5) years, with respect to the magnetron tube in the Product for parts only Labor is not provided
free of charge for this additional period
Additional items excluded from warranty coveraq.e.: accessories, rubber or plastic parts, the turntable, light bulbs, glass
parts or any printed materials.
Where to obtain service: at a Sharp Authorized Servicer or Sharp Authorized Service Dealer located tntile United States_
To find out the location of the nearest Sharp Authorized Servicer or' Dealer, call Sharp toll free at 1-800-BE-SHARP.
What to do to obtain service: ship (prepaid) or carry in your Product to a Sharp Authorized Servicer or Dealer, If you ship
or mail the product, be sure it is packaged carefully, tf your product isbuilt-in, you may obtain in-home service during the
initial one-year warranty period by contacting your Servicer or Dealer, The servicer will come to your home and if it is
necessary to remove the product, the servicer will reinstall it., Be sure to have proof of purchase available,,
The product information card which is on the inside of the microwave oven carton should be completed within ten days of purchase
and returned We will keep it on file and help you access the information in case of toss, damage or theft. This will also enable
us to contact you in the unlikely event that any adjustments or modifications are ever required for your oven.

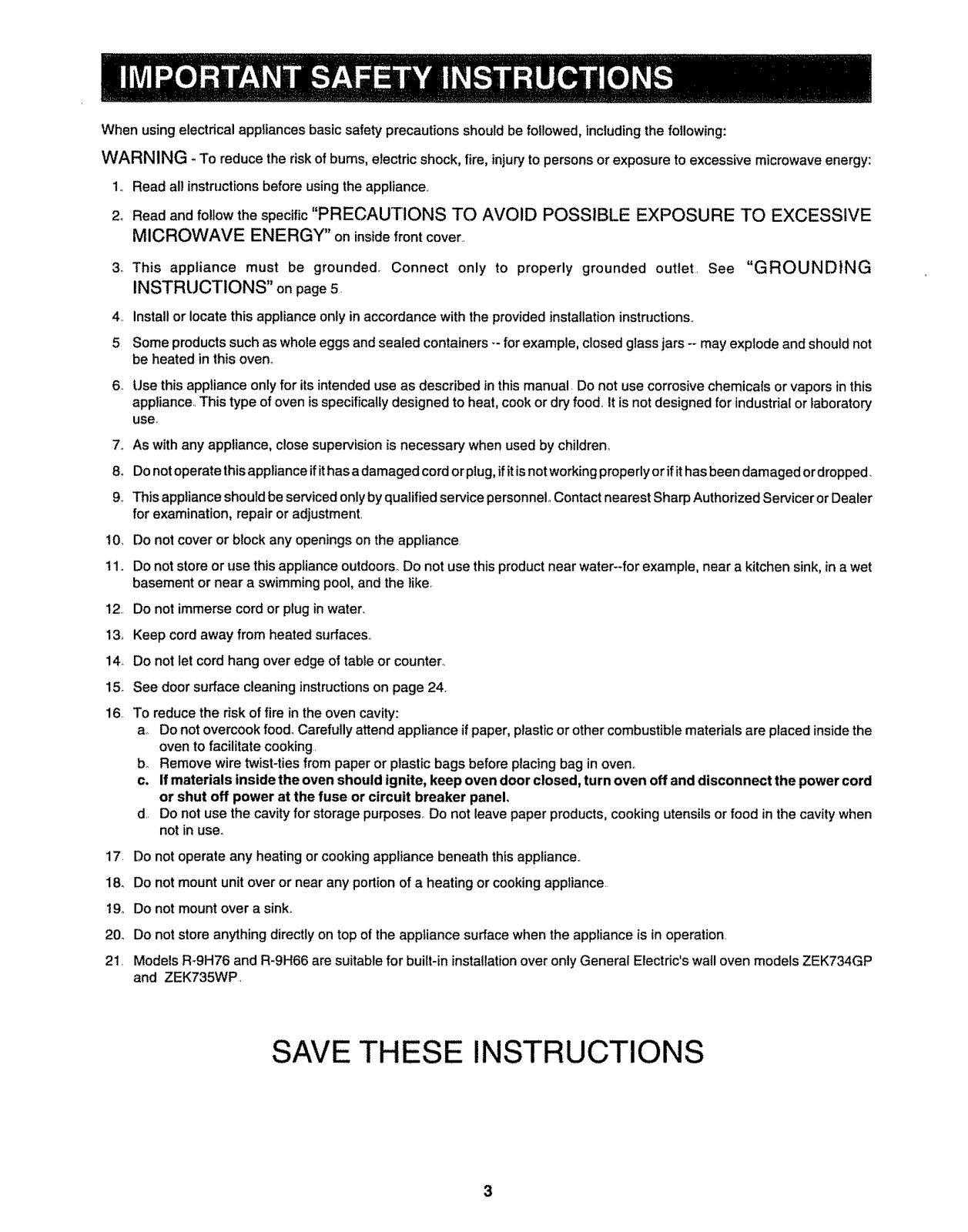

Whenusingelectricalappliancesbasicsafetyprecautionsshouldbefollowed,includingthefollowing:
WARNING - To reduce the risk of bums, electric shock, fire, injury to persons or exposure to excessive microwave energy:
1o Read all instructions before using the appliance,
2o Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY" on inside front cover.,
3_ This appliance must be grounded, Connect only to properly grounded outlet. See "GROUNDING
INSTRUCTIONS" onpage 5.
4. Install or locate this appliance only in accordance with the provided installation instructions,.
5 Some products such as whole eggs and sealed containers -- for example, closed glass jars -* may explode and should not
be heated in this oven.
6 Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this
appliance. This type of oven is specifically designed to heat, cook or dry food.. It is not designed for industrial or laboratory
use.
7,. As with any appliance, close supervision is necessary when used by children_
8. Do not operate this appliance if ithas a damaged cord or plug, if itis not working property orif it has been damaged or dropped.
9.. This appliance should be serviced only by qualified service personnel Contact nearest Sharp Authorized Servicer or Dealer
for examination, repair or adjustment.
t07 Do not cover or block any openings on the appliance.
tlo Do not store or use this appliance outdoors_ Do not use this product near water--for example, near a kitchen sink, in a wet
basement or near a swimming pool, and the like.
12, Do not immerse cord or plug in water,
13., Keep cord away from heated surfaces.
14_ Do not let cord hang over edge of table or counter..
15o See door surface cleaning instructions on page 24,
16. To reduce the dsk of fire in the oven cavity:
a Do not overcook food. Carefully attend appliance if paper, plastic or other combustible materials are placed inside the
oven to facilitate cooking.
bo Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If materials inside the oven should ignite, keep oven door closed, turn oven off and disconnect the power cord
or shut off power at the fuse or circuit breaker panel.
d Do not use the cavity for storage purposes_ Do not leave paper products, cooking utensils or food in the cavity when
not in use,
17. Do not operate any heating or cooking appliance beneath this appliance..
18o Do not mount unit over or near any portion of a heating or cooking appliance.
19,. Do not mount over a sink.
20. Do not store anything directly on top of the appliance surface when the appliance is in operation.
21. Models R-9H76 and R-9H66 are suitable for built-in installation over only General Electric's wall oven models ZEK734GP
and ZEK735WP.
SAVE THESE INSTRUCTIONS

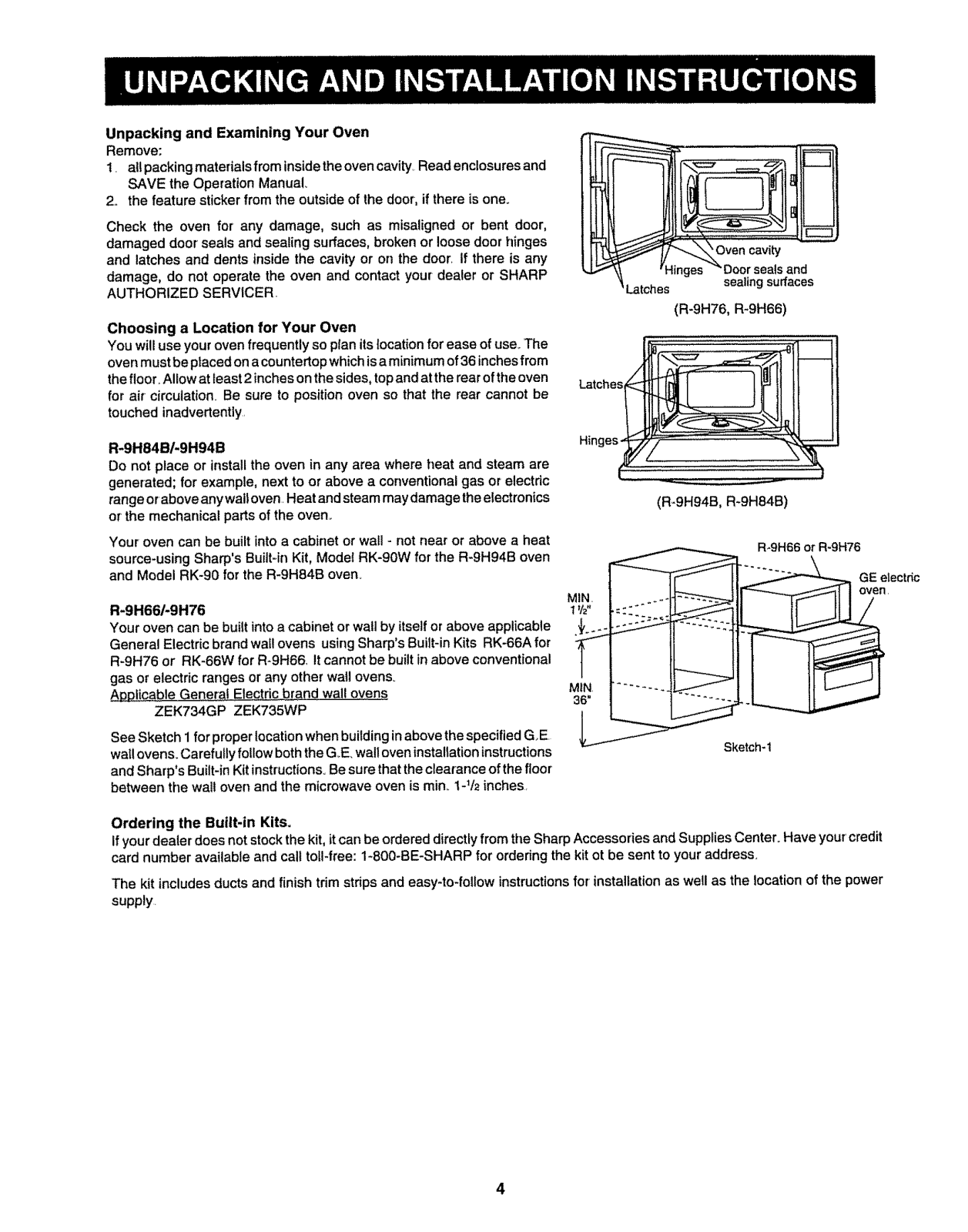

Unpacking and Examining Your Oven
Remove:
t. all packing materials from inside the oven cavity, Read enclosures and
SAVE the Operation Manual
2.. the feature sticker from the outside of the door, if there is one.
Check the oven forr any damage, such as misaligned or bent door,
damaged door seals and sealing surfaces, broken or loose door hinges
and latches and dents inside the cavity or on the door, if there is any
damage, do not operate the oven and contact your dealer or SHARP
AUTHORIZED SERVICER.
Choosing a Location for Your Oven
You will use your oven frequently so plan its location for ease of use.,The
oven must be placed on acountertopwhich isa minimum 0f36 inches from
the floor, Allow at least 2 inches on the sides, top andat the rear of the oven
for air circulation, Be sure to position oven so that the rear cannot be
touched inadvertently,
R-9H84BI-9H94B
Do not place or install the oven in any area where heat and steam are
generated; for example, next to or above a conventional gas or electdc
range or above anywai! oven. Heat and steam maydamage the electronics
or the mechanical parts of the oven.,
Your oven can be built into a cabinet or wall - not near or above a heat
source-using Sharp's Builtqn Kit, Model RK-90W for the R-9H94B oven
and Model RK-90 for the R-9H84B oven.
Latches
(R-griT6, R-gH66)
Hinges_ ....... "
(R-9H94B, R-gH84B)
sealing surfaces
R-gH66 or R-gH76
R-9H66h9H76
Your oven can be built intoa cabinet or watl by itselfor above applicable
General Electric brand wai! ovens using Sharp's Built-in Kits RK-66A for
R*9H76 or RK-66W for R-9H66 It cannot be built in above conventional
gas or electric ranges or any other wail ovens.
Applicable Genera! Electric brand wail ovens
ZEK734GP ZEK735WP
See Sketch 1for proper location when building in above the specified GeE
wall ovens. Carefully follow both the G..E,wall oven installation instructions
Sketch-1
and Sharp's Built-in Kit instructions. Be sure that the clearance of the floor
between the wall oven and the microwave oven is min. 1-112inches.
Ordering the Built-in Kits.
Ifyour dealer does not stock the kit, itcan be ordered directly from the Sharp Accessories and Supplies Center° Have your'credit
card number available and call tofl4ree: 1-800-BE-SHARP for ordering the kit ot be sent to your address.
The kit includes ducts and finish trim strips and easy-to-feUow instructionsfor installation as well as the location of the power
supply.
4
it is important that all instructions for electrical connection and grounding be followed to eliminate any hazard or chance of
electrical short circuit., Grounding reduces the risk of electric shock by providing an escape wire for the electric current
All electrical work must be in accordance with the National Electrical Code and all
local codes and ordinances,
WARNING - Improper use of the grounding plug can result in a risk of electric
shock_
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp or more fused
electrical supply, It is recommended that a separate circuit serving only the oven be
provided..
The oven is equipped with a 3-prong grounding plug. It must be plugged into a wail
receptacle that is properly installed and grounded.. Should you only have a 2-prong
outlet, have a qualified electrician install a correct wail receptacle..
A 3-prong adapter may be purchased and used temporarily if local codes allow.
Follow package directions,
A short power-supply cord is provided to reduce risk of becoming entangled in or
tripping over a longer cord..
Extension Cord
If it is necessary to use an extension cord, use only a 3-wire extension cord that has
a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the
microwave oven° The marked rating of the extension cord should be AC 115-120 volt,
15 amp° or more,.
Be careful not to drape the cord over the countertop or table where itcan be pulled
on by children or tripped over accidentally..
Note:
1.. If you have any questions about the grounding or e!ectricat instructions, consult
a qualified electrician or serviceman..
2o Neither Sharp nor the dealer can accept any liability for damage to the oven or
personal injury resulting from failure to observe the correct electrical connection
procedures
Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio or TV,
check that the microwave oven is on a different electrical circuit, relocate the radio
or TV as far away from the oven as feasible or check position and signal of receiving
antenna.
3-Prong Plug
Grounding Pin
3-Pr0ng Recep|acle
/
Grounded
Receptacle Box
Permanent and Correct Installation
Grounding Receptacle Box
Adaptor
Tab for
Grounding Screw
Temporary Use
Grounded
About Your Oven
This Operation Manual is valuable: read it carefully and
always save it for reference.
The Sharp Carousel I1Convection Microwave Cookbook
isa valuable asset, Check it frequentlyforcookingprinciples,
techniques, hints and recipes°
NEVER use the oven without the turntable and support nor
turn the turntable over so that a large dish could be placed in
the oven.. The turntable will turn both clockwise and
counterclockwise.
ALWAYS have food in the oven when it is on to absorb the
microwave energy..
When using the oven at power levels below 100%, you may
hear the magnetron cycling on and off.
About Food
f J'" ,,,
fruits & vegetables
Popcorn
Baby food
General
* Puncture egg yolks before cooking to
prevent "explosion"..
* Pierce skins of potatoes, apples, squash,
hot dogs and sausages so that steam
escapes.
* Use specially bagged popcorn for the
microwave oven.
* Listen while popping corn for the popping
to s_owto 1 or 2 seconds or use Sensor
POPCORN pad for "no-guess" popping,
* Use an overturned 9 or 10 inch oven
proof glass pie plate on top of the
turntable when popping bagged
microwave popcorn_
* Transfer baby food to small dish and
heat carefully, stirring often, Check
temperature before serving
* Put nipples on bottles after heating and
shake thoroughly. "Wrist" test before
feeding,
* Cut baked goods with filling after heating
to release steam and avoid bums,.
* Stir liquid briskly before and after heating
to a;¢oid"eruption"_
* Use deep bowl when cooking liquid or
cereal to prevent boilovers.
DO
Condensation is a normal part of microwave cooking. Room
humidity and the moisture in food will influence the amount of
moisture that condenses in the oven, Generally, covered
foods will not cause as much condensation as uncovered
ones. Vents on the oven back must not be blocked.
After using convection, automatic mix or broil, you will
hear the sound of the cooling fan,,The fan may operate as
long as 5 minutes, depending on the oven temperature_
Be aware that, unlike microwave-oniy ovens, convection
microwave ovens have a tendency to become hot during
convection, automatic mix and broil cooking_
The oven is for' food preparation only.. It should not be used
to dry clothes or' newspapers.
Your oven is rated 900 watts using the IEC 705-1988 method.
In using recipes or package directions, check food at the
minimum time and add time accordingly,
DON'T
* Cook eggs in shells.
" Reheat whole eggs.
* Pop popcom in regular brown bags or glass
bowls..
* Exceed maximum time on popcorn package..
* Heat disposable bottles
* Heat bottles with nipples on,
* Heat baby food in original jars..
" Heat or cook in ctosed glass jars or' air tight
containers..
* Can in the microwave as harmful bacteria
may not be destroyed_
* Deep fat fry..
* Dry wood, gourds, herbs or wet papers.
6
About Utensils and Coverings
it isnot necessary to buy all new cookwareo Many pieces already in your kitchen can be used successfully in your new microwave
convection oven.. The chart below will help you decide what utensils and coverings should be used in each mode,.
"_ Utensiis and Microwave Only Convection High M_xiRoast "_
Coverings Broil, Slow Cook Low Mix/Bake
Aluminum foil _ SmaB flat pieces of aluminum foil placed smooihly 'on"ioocl '_' For shielding _ For shielding ................
can be used to shield areas from cooking or defrosting too quickly.
Keep foil at least 1 inch from wails of oven.
Aluminum containers _Canbe_Usedii3/4fiiied with food. KeeP 1'inch away from _ Broil-No '_"_] Can be used if 3/4 .............
wails and do not cover with foil. cover filled with food, Keep 1 inch
Browning dish _ Do not exceed recommended preheating time. Follow _
manufacturers directions
Glass Ceramic...... _ Excellent ....................._ Excellent _ Excellent
(Pvroceram.®}
Glass, heat-resistant i_ Exceiientl _Evertumed Pie plate necessary for popping _ Excellent _ ExcelLent
jpopcom. ::
Glass, non-heat-resistant ...............
Lids, glass
Lids, metal
Metal cookware [-_
Metal, misc: dishes witl-
metallic trim, screws,
bands, handles, Metal
twist ties
Oven cooking bags [_ Good forlarge meatsorfoodsthat needtendedzing_ DONOT
use metal twist ties
................... cover with foil .......
| Broil-No
cover
Broit-No
I cover
Broil:NO
away from walls and do not
Do not use metal
covedng.
DO NoT use metai ....
twist ties
Paper plates _ For reheating
PaPertowels _"To 'cover for reheating and cooking. Do not'""use recycled i
paper towels which may contain metal filings.
Paper, ovenable [_
iMicrowave-safe
iplastic containers
Plastic, Thermoset ®
Plastic wrap
..... i ......
Pottery, porcelain _ Checkmanufacturer's recommendation for being microwave
stoneware safe. safe AND ovenable
Styrofoam _ For reheating ....... NL_N__J .......
Wax paper ............... _ Go0dCoVering ior Cooking and reheating _
Wicker, wood, straw _ May be used for short periods of time' Do not use W_thhigh _ ........................................._ ....................
Use for reheating and defrosting Follow
directions.
Use brands speciai_y marked for microwave use DO NOT
allow plastic wrap to touch food.. Vent so steam can escape..
fat or high sugar content foods. Could char
_] For
temperatures up
to 400°. Do not
use .for..br0.!.!!n,q.
_ Are heat
resistant up to
425_ Do not use
for broilin.q.
For temperatures up
to 400_
Must be microwave
................
DISH CHECK_ If you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave on HIGH
for 30 seconds.. If the dish becomes very hot, do NOT use it for microwaving.
ACCESSORIES,. There are many microwave accessories available for purchase such as popcorn poppers and thermometers..
Evaluate carefully before purchasing. A microwave safe or dual safe microwave/conventionaL thermometer will assist you in
determining doneness and assure you that foods have been cooked to a safe temperature_ The dual safe thermometer can be
used with mix cooking.. 7
Loading...
