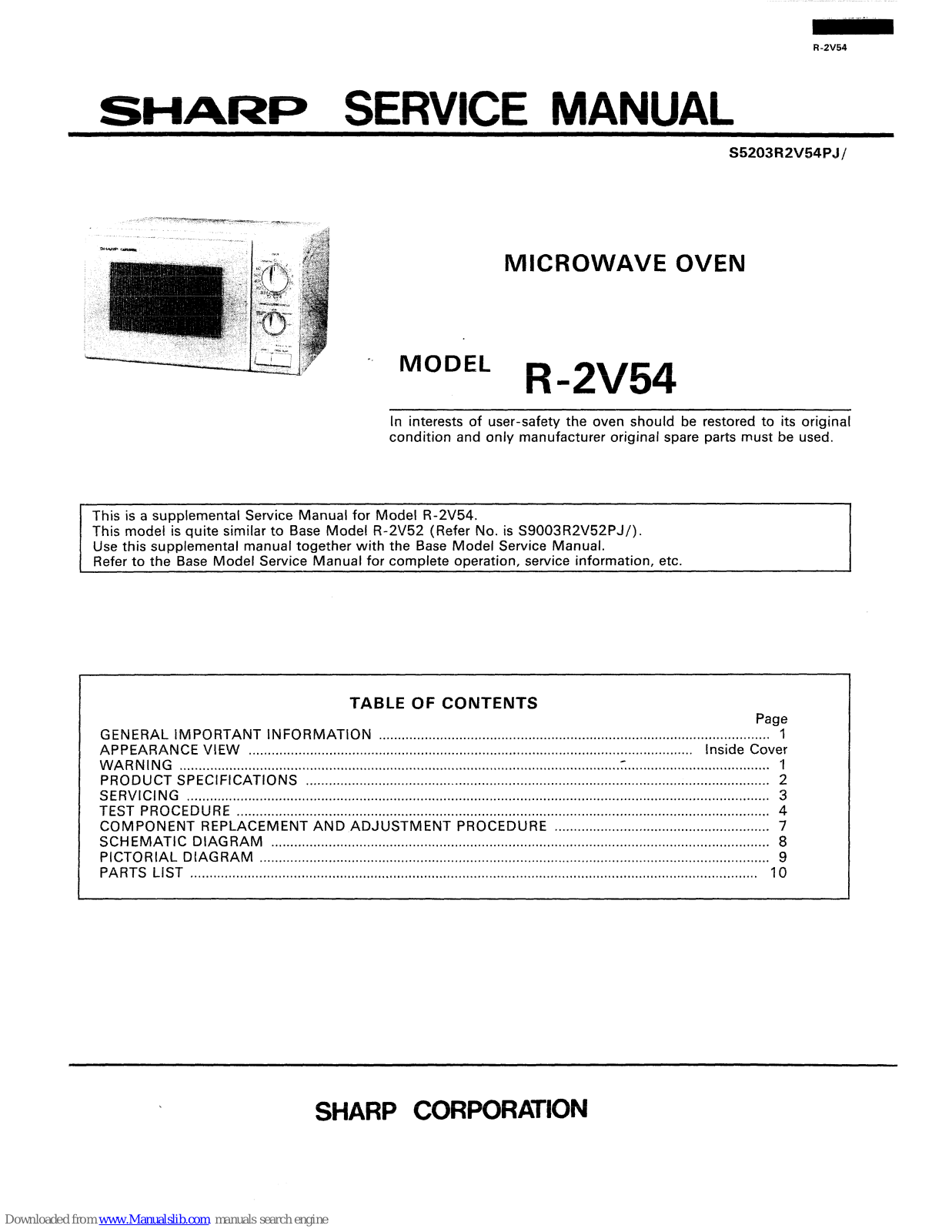

Sharp R-2V54 Service Manual

SHARP SERVICE MANUAL

MICROWAVE OVEN

-- MODEL

R-2V54

In interests of user-safety the oven should be restored to its original

condition and only manufacturer original spare parts must be used.

This is a supplemental Service Manual for Model R-2V54. This model is quite similar to Base Model R-2V52 (Refer No. is S9003R2V52PJ/).

Use this supplemental manual together with the Base Model Service Manual. Refer to the Base Model Service Manual for complete operation, service information, etc.

TABLE OF CONTENTS

Page

GENERAL IMPORTANT INFORMATION ..,...........,.........,.........,..............................................,....,............... 1

APPEARANCE VIEW

,....,,........................,..................,...........,...............,.............,.............,.........

Inside Cover

WARNING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..‘.....................................................................................~.............

I

PRODUCT SPECIFICATIONS ..,.......................,..................................................,..................,........................ 2

SERVICING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ............~................... 3

TEST PROCEDURE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ........~..........

4

COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE . . . . . . ..*...............................................

SCHEMATIC DIAGRAM .,,....,....~..............................,....,..............,.......,....,,...........................,...,,............,......

;

PICTORIAL DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .............

9

PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..*............*.....................*...............................................................................

10

.

SHARP CORPORATION

R-2V54

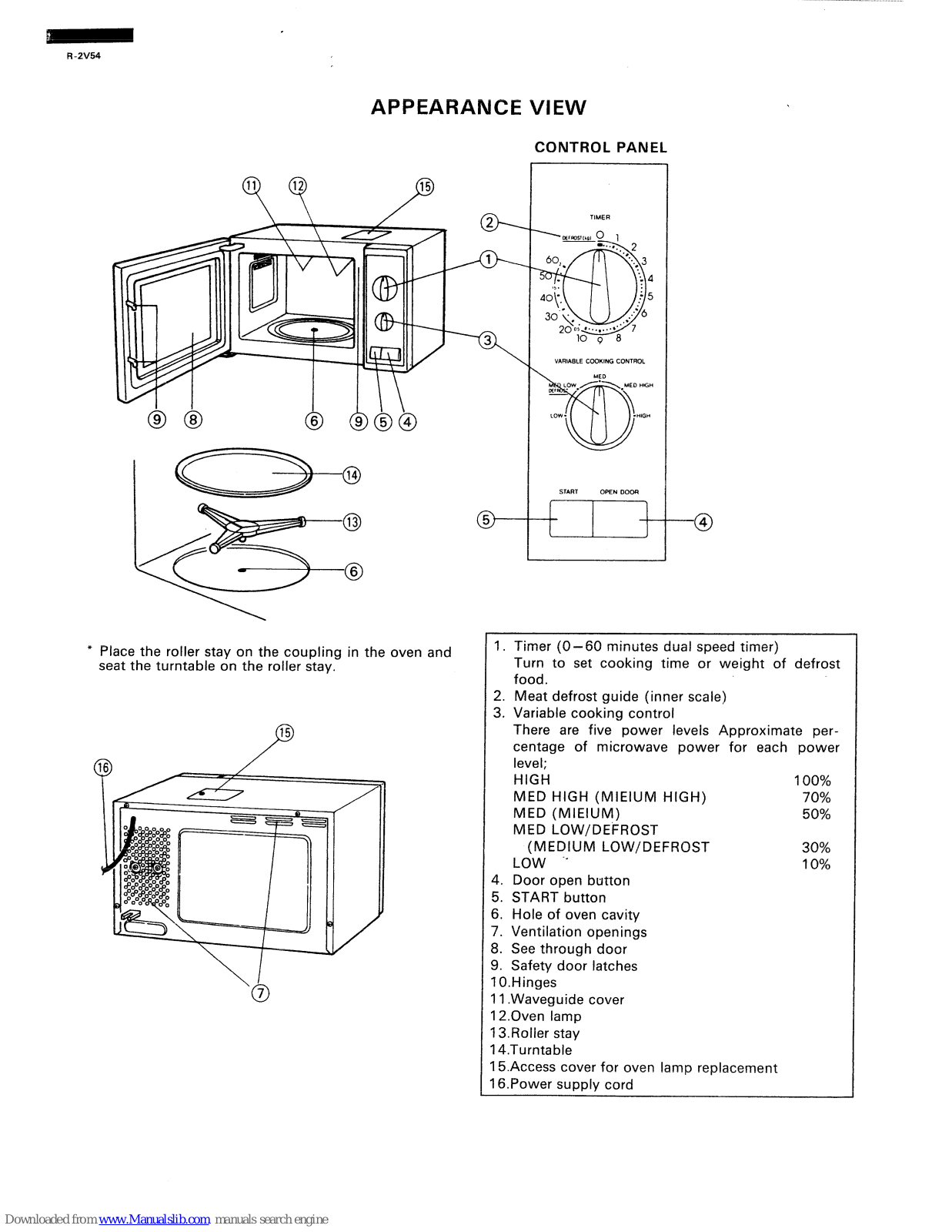

APPEARANCE VIEW

CONTROL PANEL

+ Place the roller stay on the coupling in the oven and

seat the turntable on the roller stay.

\

VARIABLE COOKING CONTROL

START

OPEN DOOR

c

,

0

4

,

J

1. Timer (O-60 minutes dual speed timer) Turn to set cooking time or weight of defrost food.

2. Meat defrost guide (inner scale}

3. Variable cooking control There are five power levels Approximate percentage of microwave power for each power level; HIGH

100%

MED HIGH (MIEIUM HIGH)

70%

MED (MIEIUM)

50%

MED LOW/DEFROST

(MEDIUM LOW/DEFROST

30%

LOW -.

10%

4. Door open button

5. START button

6. Hole of oven cavity

7. Ventilation openings

8. See through door

9. Safety door latches 1 O.Hinges 11 .Waveguide cover

12.0ven lamp

13.Roller stay

14.Turntable

15.Access cover for oven lamp replacement

16.Power supply cord

R-2V54

SERVICE MANUAL

SHARP

MICROWAVE OVEN

R-2V54

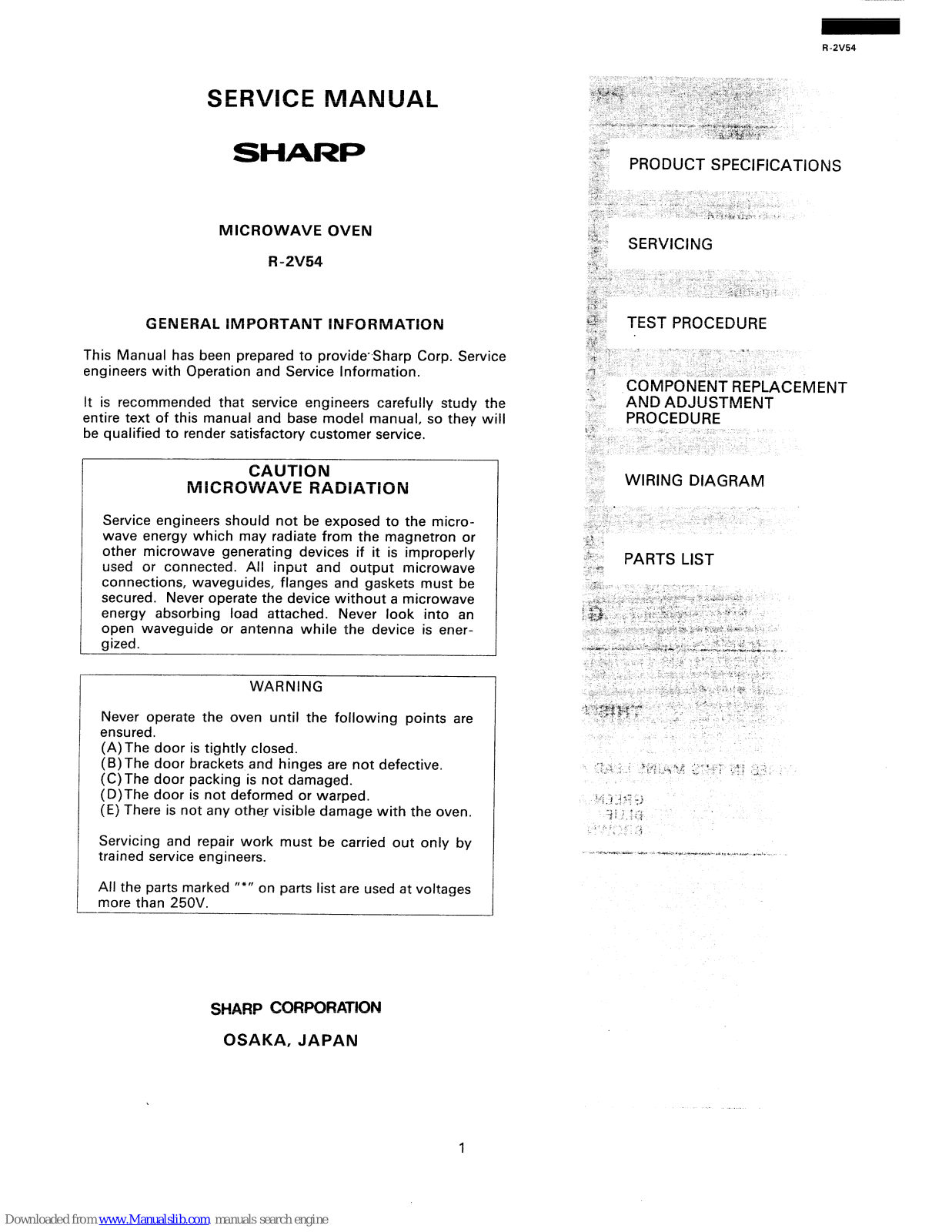

GENERAL IMPORTANT INFORMATION

This Manual has been prepared to provideSharp Corp. Service engineers with Operation and Service Information.

It is recommended that service engineers carefully study the entire text of this manual and base model manual, so they will be qualified to render satisfactory customer service.

CAUTION

MICROWAVE RADIATION

Service engineers should not be exposed to the microwave energy which may radiate from the magnetron or other microwave generating devices if it is improperly

used or connected. All input and output microwave connections, waveguides, flanges and gaskets must be secured. Never operate the device without a microwave energy absorbing load attached. Never look into an open waveguide or antenna while the device is energized.

WARNING

Never operate the oven until the following points are

ensured.

(A)The door is tightly closed. (B) The door brackets and hinges are not defective.

(C)The door packing is not damaged. (D)The door is not deformed or warped. (E) There is not any other visible damage with the oven.

Servicing and repair work must be carried out only by

trained service engineers.

All the parts marked ‘I*” on parts list are used at voltages more than 250V.

‘ “w.

J> ”

%

PRODUCT SPECIFICATIONS

: ~

1

e-1

” ,

J

> ’

,^ “M

-. ,“x,

** -_ f”

-81. “.j, ; /

b ”

i

%-4s\$*p;f? i .,

7 8s

$3

*-‘r _ “4..

SERVICING

.-”

,s;

*’ ”

~ i

“w-t ” “_ ,* .*.

/ *

Y ^

;, ~~ h .

.i:! ’

‘* *

i 0 ,*

+$i I”*

TEST PROCEDURE

A *

,- “v

*, *

_ .?

**

it

-3 s

. - COMPONEiJT REPLACEMENT

I

AND ADJUSTMENT

:

a a>

PROCEDURE

”

a‘ *

.>

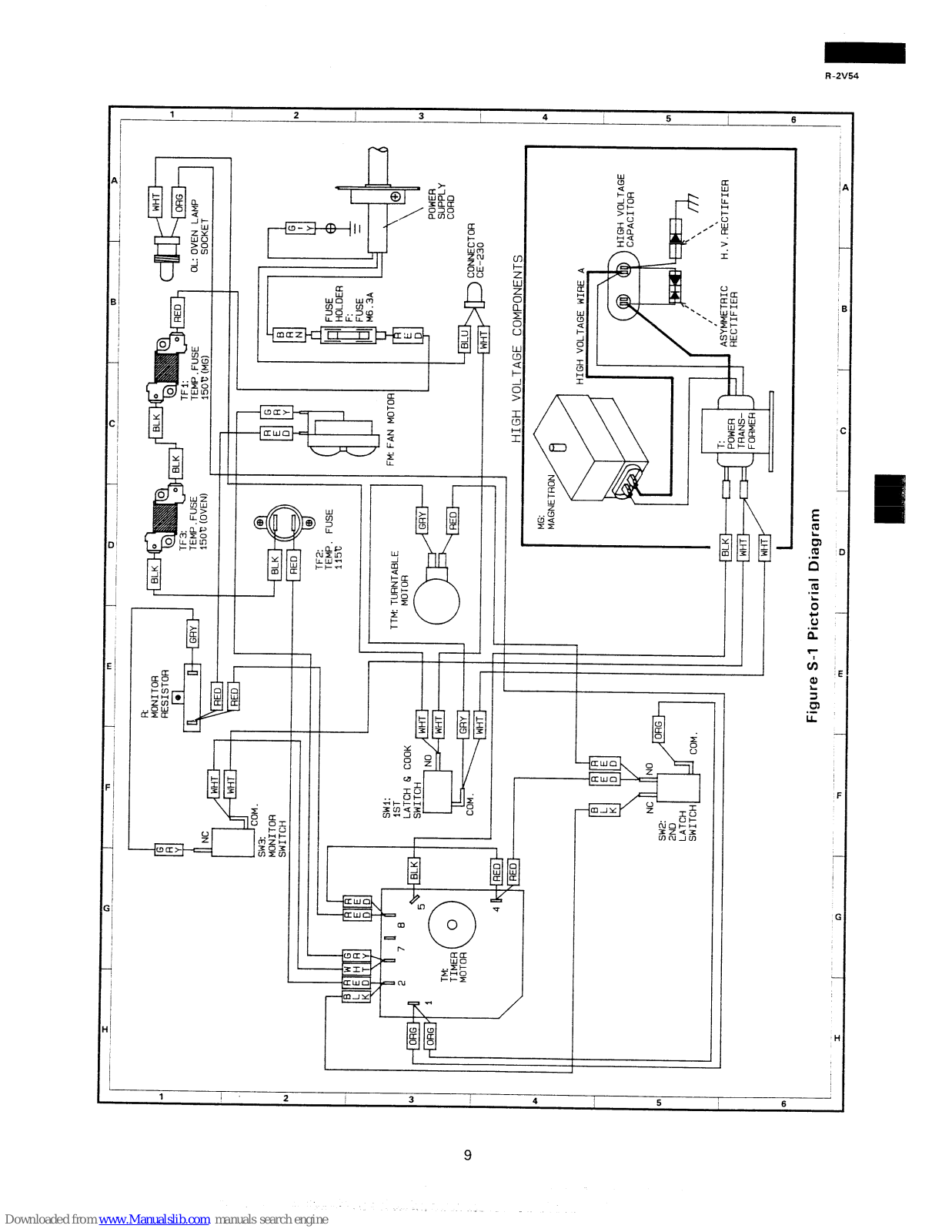

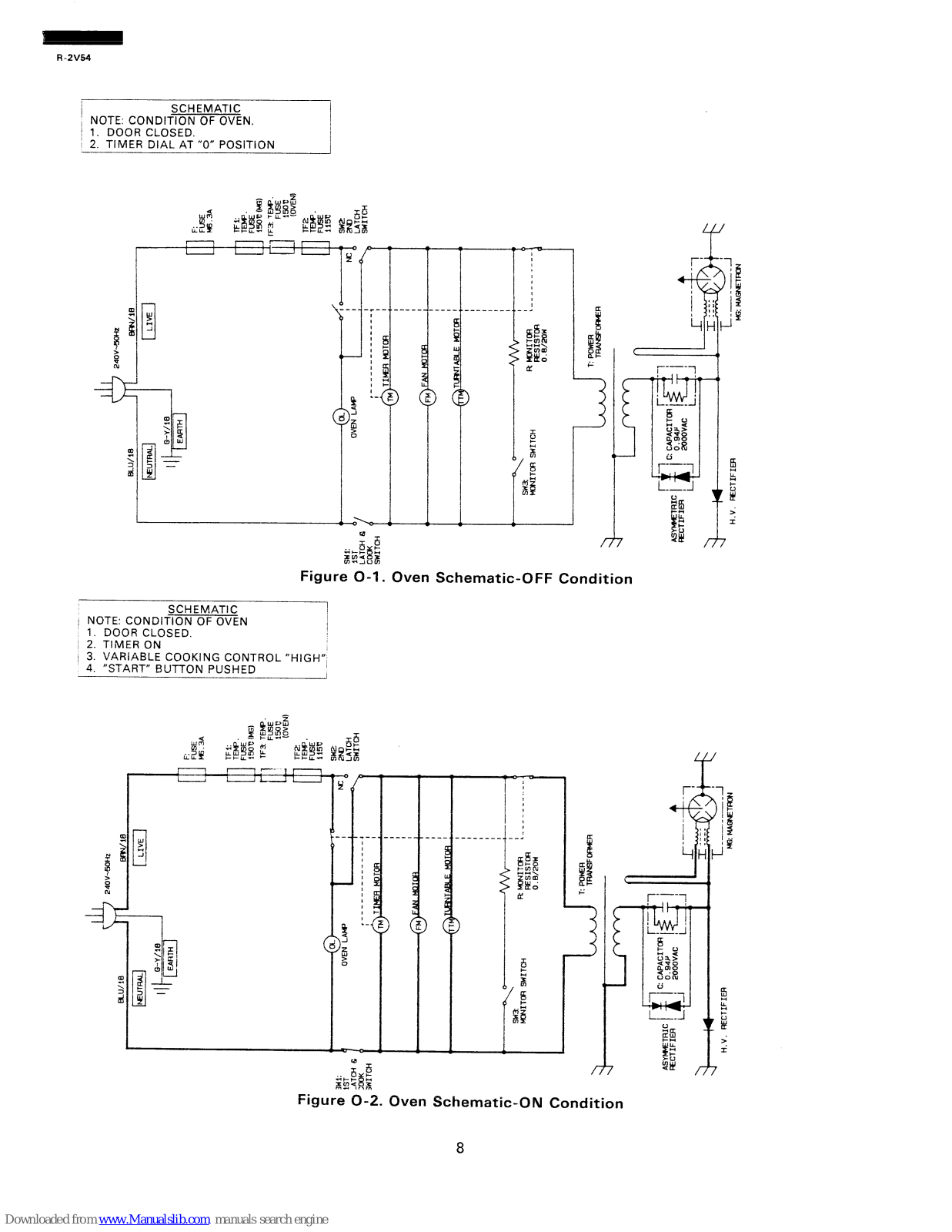

WIRING DIAGRAM

1 .

x1.

*? L.L I

‘:c

^=*~ PARTS LIST

? ;’ _

L” : ’

, i; I /” 2

*” ..w,reI .: “i”, * ” c “v+“* -‘*

t pgj * (

-

: ‘q&p <_

J * ;~ y; cs <“; _ . fL *$ : .f.:

.( 2 r ” 1 .y. ““-

” ” ‘i , ^ s , ‘,;

i” ,“‘“:-imb,..?. 9 JCT &.+ 1.;

2 ‘. .

. wy+* -+ec*< 1 I.(

c ,:~a* ‘ =,s,

‘* ,.

,: SL 1

*--@Tir* ..“.-.-I “r,“*r w~~‘&,,~,,&. .L ,

s >

,: I , ;

* .I

“

“,E^ ‘- _/,

,“,

; 3 ‘.

5

< -

-,, ^ * ‘,‘,:.’ -,

1 I*

‘,

I”

;> - -

“2 -

~’ ,.”

/ .I?%

~ -0

r * ij

:, 3

$ “pj%&F

*.

’ L 2. s I ^” j”‘

* .*,

7

. .>

.I IS, i

.a 1 <-. .

2.4 :

$ *iL ’

‘.CT “3

t : ) .‘a*, *r 8: .*, - ;

5; 7’

. 1 1 “+‘ “- /

“‘i ,“t v4 ‘9 ;;I

, , :i ; 1, y ;-j

j.’ I

* i

.1 -*c “ir +&“I eat -4a.i I a. XI*Mt”*r* w If L *LL,,I..

+.a.11 .

SHARP CORPORATION

OSAKA, JAPAN

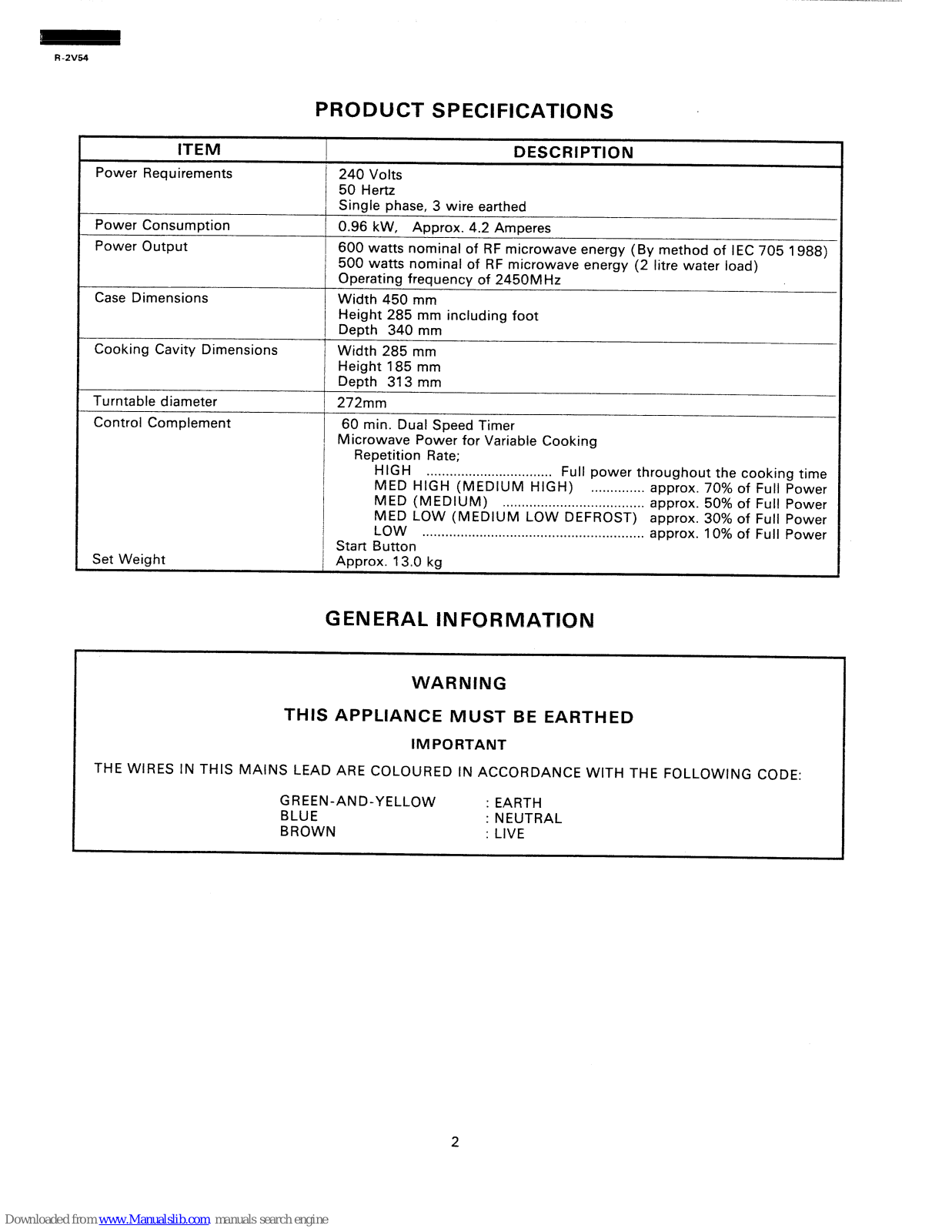

PRODUCT SPECIFICATIONS

ITEM

Power Requirements

j 240 Volts

50 Hertz

DESCRIPTION

Power Consumption Power Output

Case Dimensions

Cooking Cavity Dimensions

Turntable diameter Control Complement

Set Weight

Single phase, 3 wire earthed

0.96 kW, Approx. 4.2 Amperes

I 600 watts nominal of RF microwave energy (By method of IEC 705 1988)

500 watts nominal of RF microwave energy (2 litre water load) Operating frequency of 2450M Hz

Width 450 mm

Height 285 mm including foot Depth 340 mm

Width 285 mm Height 185 mm Depth 313 mm

272mm

60 min. Dual Speed Timer

Microwave Power for Variable Cooking

Repetition Rate;

HIGH

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Full power throughout the cooking time MED HIGH (MEDIUM HIGH) MED

. . . . . . . . . . . . . . approx. 70% of Full Power

(MEDIUM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

approx. 50% of Full Power

MED LOW (MEDIUM LOW DEFROST) approx. 30% of Full Power LOW

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

approx.

10% of Full Power Start Button Approx. 13.0 kg

GENERAL INFORMATION

WARNING

THIS APPLIANCE MUST BE EARTHED

IMPORTANT

THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

GREEN-AND-YELLOW

: EARTH

BLUE

: NEUTRAL

BROWN

: LIVE

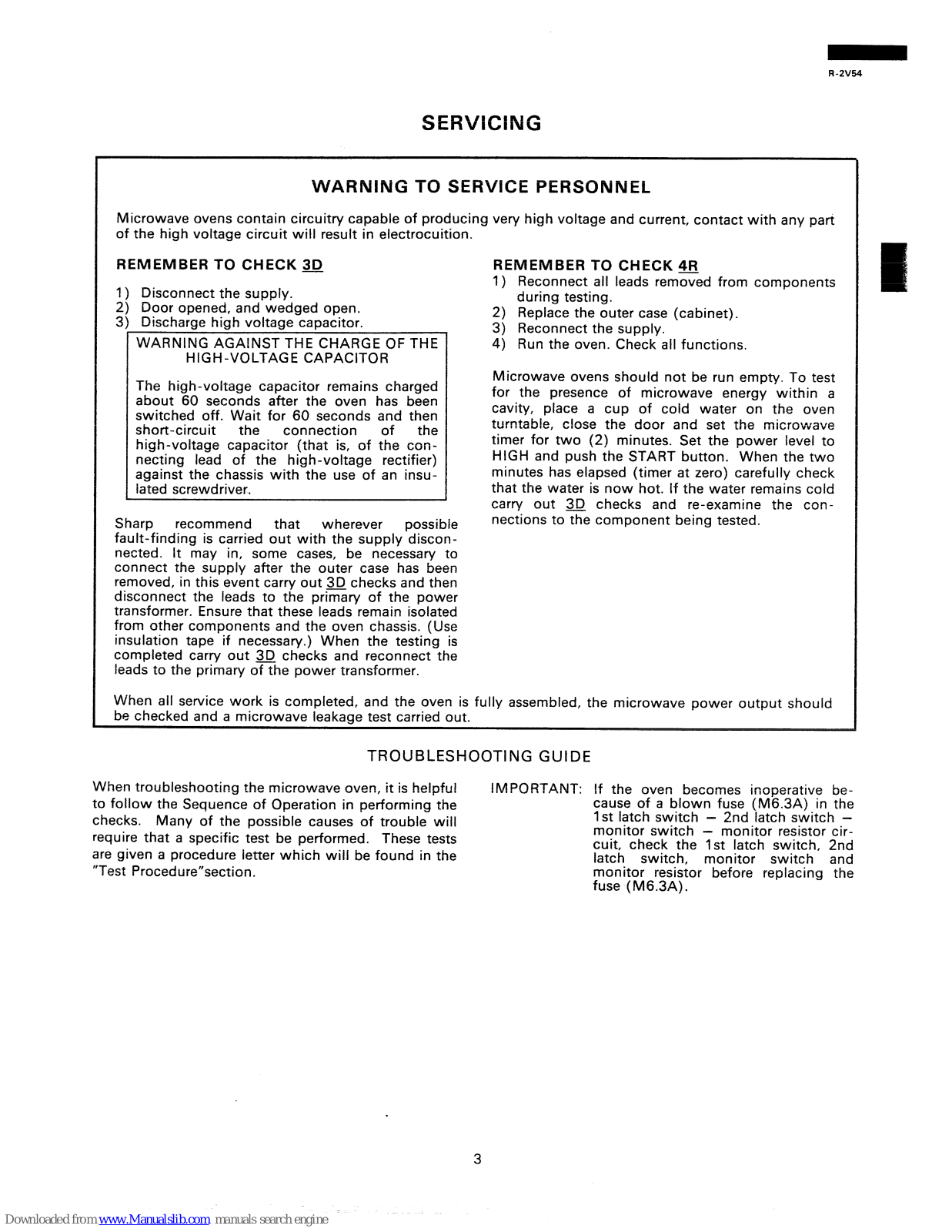

SERVICING

WARNING TO SERVICE PERSONNEL

Microwave ovens contain circuitry capable of producing very high voltage and current, contact with any part

of the high voltage circuit will result in electrocuition.

REMEMBER TO CHECK 3D

1) Disconnect the supply.

2) Door opened, and wedged open.

3) Discharge high voltage capacitor. WARNING AGAINST THE CHARGE OF THE

HIGH-VOLTAGE CAPACITOR

The high-voltage capacitor remains charged about 60 seconds after the oven has been switched off. Wait for 60 seconds and then short-circuit

the

connection of

the high-voltage capacitor (that is, of the connecting lead of the high-voltage rectifier) against the chassis with the use of an insulated screwdriver.

Sharp

recommend that

wherever possible fault-finding is carried out with the supply disconnected. It may in, some cases, be necessary to connect the supply after the outer case has been removed, in this event carry out 3D checks and then disconnect the leads to the primary of the power

transformer. Ensure that these leads remain isolated from other components and the oven chassis. (Use

insulation tape if necessary.) When the testing is

completed carry out 3D checks and reconnect the leads to the primary oEhe power transformer.

REMEMBER TO CHECK 4R

1) Reconnect all leads removed from components during testing.

2) Replace the outer case (cabinet).

3) Reconnect the supply.

4) Run the oven. Check all functions.

Microwave ovens should not be run empty. To test for the presence of microwave energy within a cavity, place a cup of cold water on the oven turntable, close the door and set the microwave timer for two (2) minutes. Set the power level to HIGH and push the START button. When the two minutes has elapsed (timer at zero) carefully check that the water is now hot. If the water remains cold carry out 3D checks and re-examine the connections tothe component being tested.

When all service work is completed, and the oven is fully assembled, the microwave power output should be checked and a microwave leakaqe test carried out.

TROUBLESHOOTING GUIDE

When troubleshooting the microwave oven, it is helpful to follow the Sequence of Operation in performing the checks. Many of the possible causes of trouble will require that a specific test be performed. These tests are given a procedure letter which will be found in the “Test Procedure”section.

IMPORTANT: If the oven becomes inoperative be-

cause of a blown fuse (M6.3A) in the

1 st latch switch - 2nd latch switch monitor switch

- monitor resistor cir-

cuit, check the 1st latch switch, 2nd

latch switch,

monitor switch and monitor resistor before replacing the fuse (M6.3A).

TEST PROCEDURES

PROCEDURE

LETTER

COMPONENT TEST

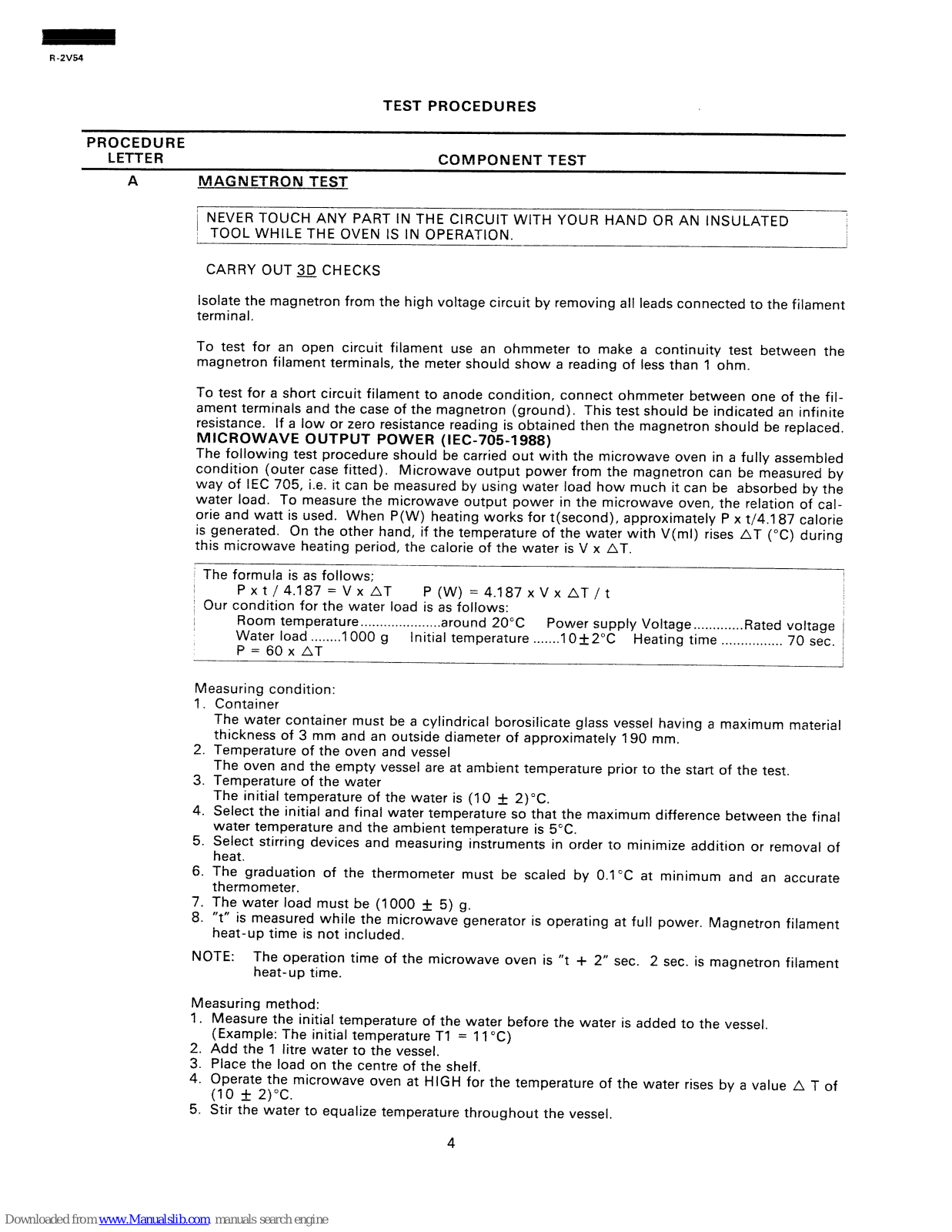

MAGNETRON TEST

/ NEVER TOUCH ANY PART IN THE CIRCUIT WITH YOUR HAND OR AN INSULATED i : TOOL WHILE THE OVEN IS IN OPERATION.

1

CARRY OUT 3D CHECKS

Isolate the magnetron from the high voltage circuit by removing all leads connected to the filament

terminal.

To test for an open circuit filament use an ohmmeter to make a continuity test between the magnetron filament terminals, the meter should show a reading of less than 1 ohm.

To test for a short circuit filament to anode condition, connect ohmmeter between one of the filament terminals and the case of the magnetron (ground). This test should be indicated an infinite resistance. If a low or zero resistance reading is obtained then the magnetron should be replaced.

MICROWAVE OUTPUT POWER (IEC-7054988)

The following test procedure should be carried out with the microwave oven in a fully assembled

condition (outer case fitted). Microwave output power from the magnetron can be measured by way of IEC 705, i.e. it can be measured by using water load how much it can be absorbed by the water load. To measure the microwave output power in the microwave oven, the relation of calorie and watt is used. When P(W) heating works for t(second), approximately P x t/4.1 87 calorie is generated. On the other hand, if the temperature of the water with V(ml) rises AT (“C) during this microwave heating period, the calorie of the water is V x AT.

The formula is as follows;

/

Pxt/4.187=VxAT P(W)=4.187xVxAT/t

; Our condition for the water load is as follows: /

Room temperature . . . . . . . . . . . . . . . . . . . . . around

20°C

Water load . . . . . . . . 1000

Power supply Voltage . . . . . . . . . . . . . Rated voltage

g

Initial temperature

. . . . . . . 10+2”C

P = 60 x AT

Heating time . . . . . . . . . . . . . . . . 70 sec.

Measuring condition:

1. Container The water container must be a cylindrical borosilicate glass vessel having a maximum material thickness of 3 mm and an outside diameter of approximately 190 mm.

2. Temperature of the oven and vessel The oven and the empty vessel are at ambient temperature prior to the start of the test.

3. Temperature of the water The initial temperature of the water is (10 + 2)X.

4. Select the initial and final water temperature so that the maximum difference between the final water temperature and the ambient temperature is 5°C.

5. Select stirring devices and measuring instruments in order to minimize addition or removal of heat.

6. The graduation of the thermometer must be scaled by 0.1 “C at minimum and an accurate

thermometer.

7. The water load must be (1000 f 5) g.

8. “t” is measured while the microwave generator is operating at full power. Magnetron filament heat-up time is not included.

NOTE: The operation time of the microwave oven is “t + 2” sec. 2 sec. is magnetron filament

heat-up time.

Measuring method:

1. Measure the initial temperature of the water before the water is added to the vessel. (Example: The initial temperature Tl = 11 “C)

2. Add the 1 litre water to the vessel.

3. Place the load on the centre of the shelf.

4. Operate the microwave oven at HIGH for the temperature of the water rises by a value A T of (10 + 2)“C.

5. Stir the water to equalize temperature throughout the vessel.

4

R-2V54

TEST PROCEDURES (CONT’D)

,

rl PROCEDURE

LETTER

COMPONENT TEST

6. Measure the final water temperature. (Example: The final temperature T2 = 21 “C)

7. Calculate the microwave power output e in watts from above formula.

Initial temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tl =

Temperature after (72 + 2)= 74 sec.

1 1 “C /

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

T2 =

Temperature difference Cold-Warm

21 “C

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Measured output power

AT1

= 10°C

/

The equation is “P= 60 x AT”

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

P= 60 x 10°C = 600 Watts /

JUDGMENT: The measured output power should be at least +15 % of the rated

output power.

CAUTION: 1°C CORRESPONDS TO 60 WATTS. REPEAT MEASUREMENT IF THE POWER IS

INSUFFIClENT.

1 ooog

Heat up for 74 sec.

1 ooog

d5

3-w.

T2”C

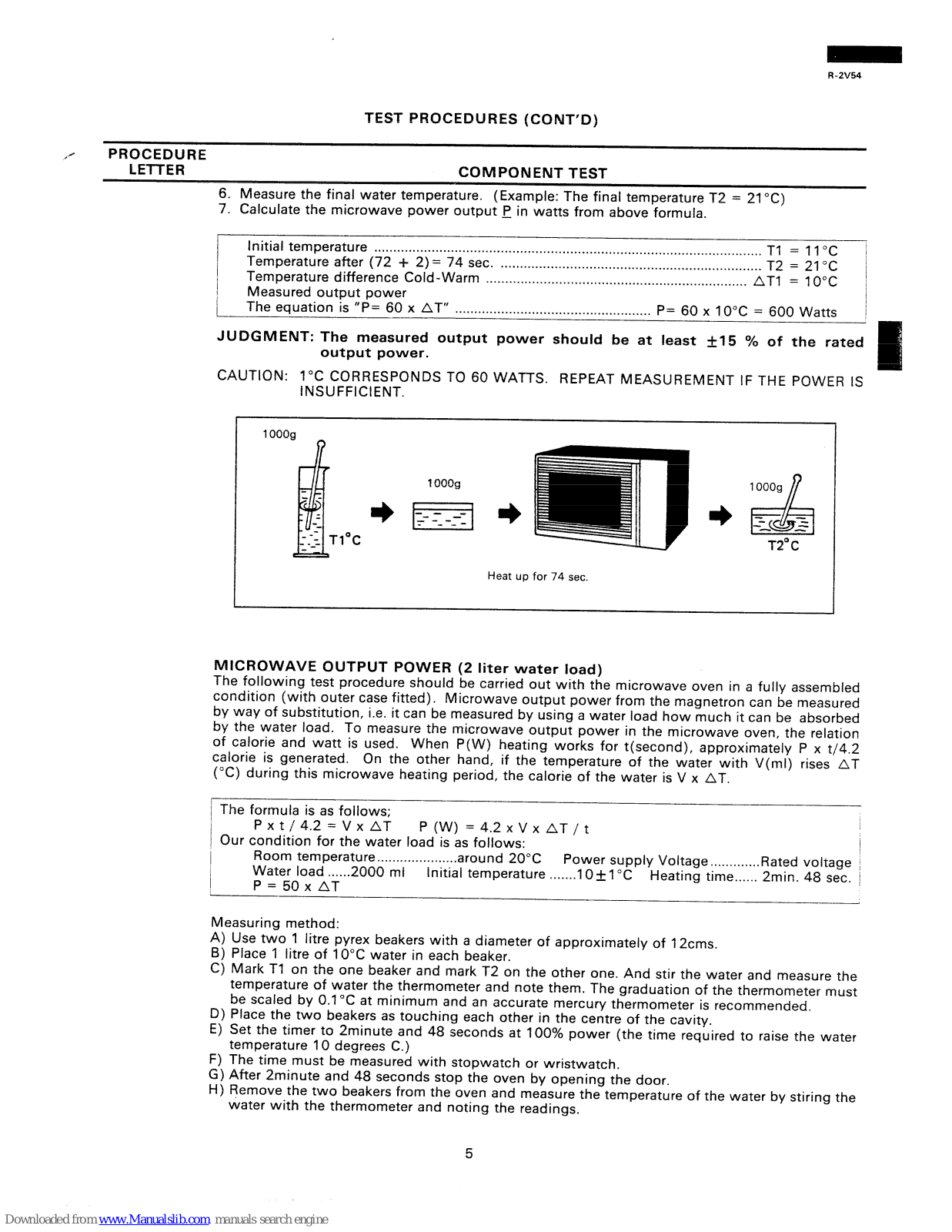

MICROWAVE OUTPUT POWER (2 liter water load)

The following test procedure should be carried out with the microwave oven in a fully assembled condition (with outer case fitted). Microwave output power from the magnetron can be measured

by way of substitution, i.e. it can be measured by using a water load how much it can be absorbed by the water load. To measure the microwave output power in the microwave oven, the relation of calorie and watt is used. When P(W) heating works for t(second), approximately P x t/4.2 calorie is generated.

On the other hand, if the temperature of the water with V(ml) rises AT

(“C) during this microwave heating period, the calorie of the water is V x AT.

I

/ The formula is as follows;

Pxt/4.2=VxAT

P (W) = 4.2 x V x AT / t

I

Our condition for the water load is as follows:

I

Room

temperature . . . . . . . . . . . . . . . . . . . . . around

20°C

I

Water load . . . ...2000 ml

Initial temperature

Power supply Voltage

. . . . . . . . . . . . . Rated

. . . . . . . 1 O&l “C

voltage

Heating time . . . . . . 2min. 48 sec.

/

P=50xAT

1

Measuring method:

A) Use two 1 litre Pyrex beakers with a diameter of approximately of 12cms.

B) Place 1 litre of 10°C water in each beaker.

C) Mark Tl on the one beaker and mark 12 on the other one. And stir the water and measure the

temperature of water the thermometer and note them. The graduation of the thermometer must

be scaled by O.l”C at minimum and an accurate mercury thermometer is recommended. D) Place the two beakers as touching each other in the centre of the cavity. E) Set the timer to 2minute and 48 seconds at 100% power (the time required to raise the water

temperature 10 degrees C.) F) The time must be measured with stopwatch or wristwatch. G) After 2minute and 48 seconds stop the oven by opening the door. H) Remove the two beakers from the oven and measure the temperature of the water by stiring the

water with the thermometer and noting the readings.

5

TEST PROCEDURES (CONT’D)

PROCEDURE

LETTER

COMPONENT TEST

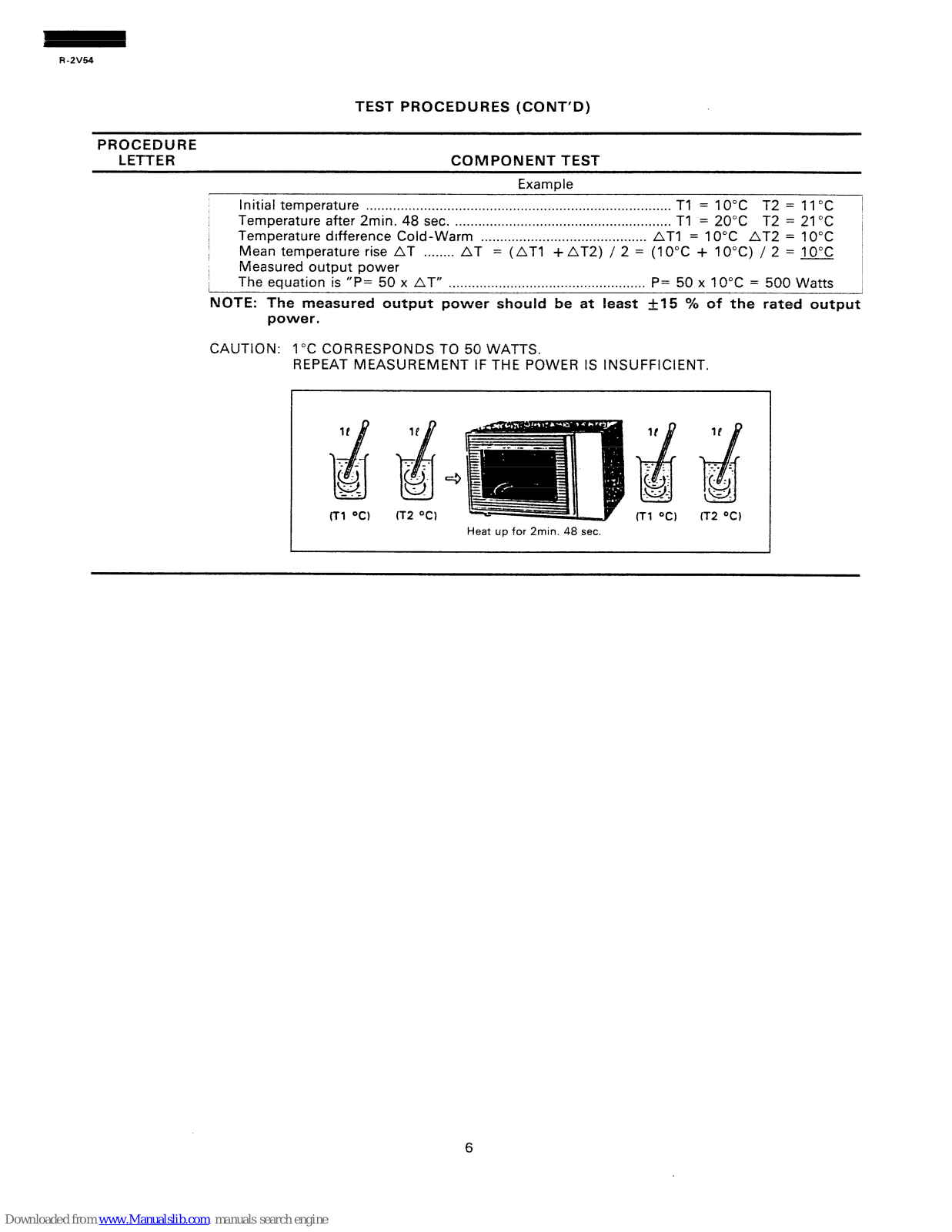

Example

Initial / temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tl

= 10°C T2 = 11 “C

I

Temperature after 2min.

48 sec.

Tl = 20°C T2 = . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 “C

Temperature difference

Cold-Warm

AT1 = =

I

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10°C AT2 10°C

/ /

Mean temperature rise AT . . . . . . . . AT = (AT1 +AT2) / 2 = (10°C + IOOC) / 2 = 10°C

Measured output power

The equation is “P= 50 x

AT”

= . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P= 50 x I 10°C 500 Watts

NOTE: The measured output power should be at least +I5 % of the rated output

power.

CAUTION: 1 “C CORRESPONDS TO 50 WATTS.

REPEAT MEASUREMENT IF THE POWER IS INSUFFICIENT.

(Tl OC)

(T2 OC) (T2 OC)

Heat up !or 2min. 48 sec.

6

R -2V54

COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE

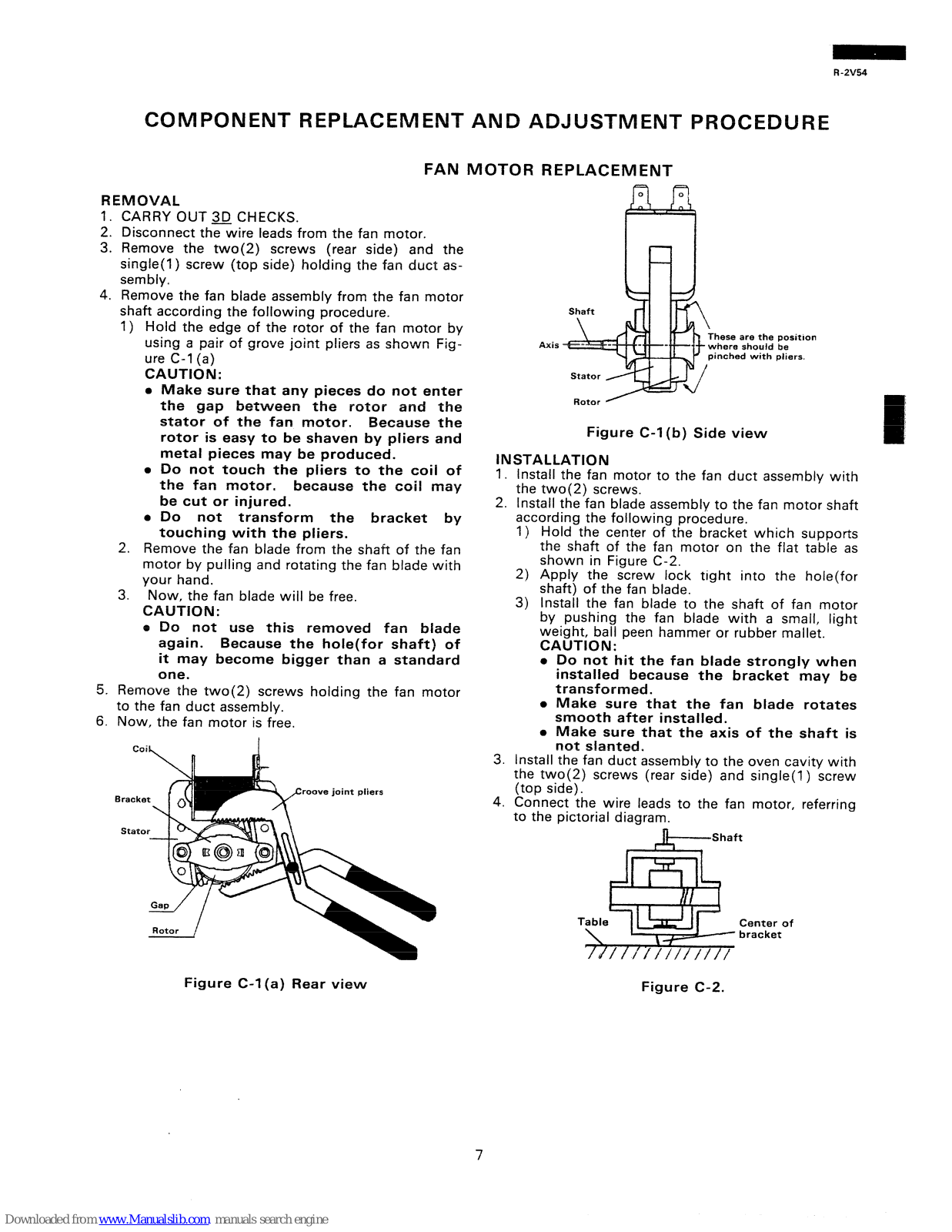

FAN MOTOR REPLACEMENT

REMOVAL

1.

3’:

4.

5.

6.

CARRY OUT 3D CHECKS. Disconnect the wire leads from the fan motor.

Remove the two(2) screws (rear side) and the single(l) screw (top side) holding the fan duct assem bly.

Remove the fan blade assembly from the fan motor shaft according the following procedure.

I>

Hold the edge of the rotor of the fan motor by using a pair of grove joint pliers as shown Figure C-l (a)

CAUTION:

2.

3.

Make sure that any pieces do not enter

the gap between the rotor and the stator of the fan motor. Because the rotor is easy to be shaven by pliers and metal pieces may be produced. Do not touch the pliers to the coil of the fan motor. because the coil may be cut or injured.

Do not transform the bracket by

touching with the pliers.

Remove the fan blade from the shaft of the fan

motor by pulling and rotating the fan blade with your hand.

Now, the fan blade will be free.

CAUTION: a Do not use this removed fan blade

again.

Because the hole(for shaft) of it may become bigger than a standard one.

Remove the two(2) screws holding the fan motor

to the fan duct assembly.

Now, the fan motor is free.

Coil,

I

St

Axis

hese are the

where should

positIon be

pliers.

Figure C-l (b) Side view

INSTALLATION

1.

2.

3.

4.

Install the fan motor to the fan duct assembly with

the two(2) screws.

Install the fan blade assembly to the fan motor shaft

according the following procedure.

1) Hold the center of the bracket which supports the shaft of the fan motor on the flat table as shown in Figure C-2.

2) Apply the screw lock tight into the hoie(for shaft) of the fan blade.

3) Install the fan blade to the shaft of fan motor by pushing the fan blade with a small, light

weight, ball peen hammer or rubber mallet.

CAUTION:

l Do not hit the fan blade strongly when

installed because the bracket may be transformed.

l Make sure that the fan blade rotates

smooth after installed.

l Make sure that the axis of the shaft is

not slanted.

Install the fan duct assembly to the oven cavity with

the two(2) screws (rear side) and single(l) screw

(top side). Connect the wire leads to the fan motor, referring to the pictorial diagram.

&---Shaft

Figure C-l (a) Rear view

Figure C-2.

R -2V54

?. 2

4 _1

B

0

z

ZJ

-

;g

DW

2

d

>L---

F

d $ -

Figure O-l. Oven Schematic-OFF Condition

SCHEMATIC

NOTE: CONDITION OF OVEN

1. DOOR CLOSED.

/

2. TIMER ON

3. VARIABLE COOKING CONTROL “HIGH*‘;

4. “START” BUTTON PUSHED

‘38

%

“68

4’

,.

r-U--1

3

+-&& 5

8

mv4 nr,m

Figure O-2. Oven Schc

T 6 IVL

i-77

zmatic-ON Condition

8

R-2V54

i

1

I

: 63

.- ii 75

.-

i - u a r

CA

2

z

.-

LA

i

1 I

2

I

3

I

4

5

/

6

9

I? -2V54

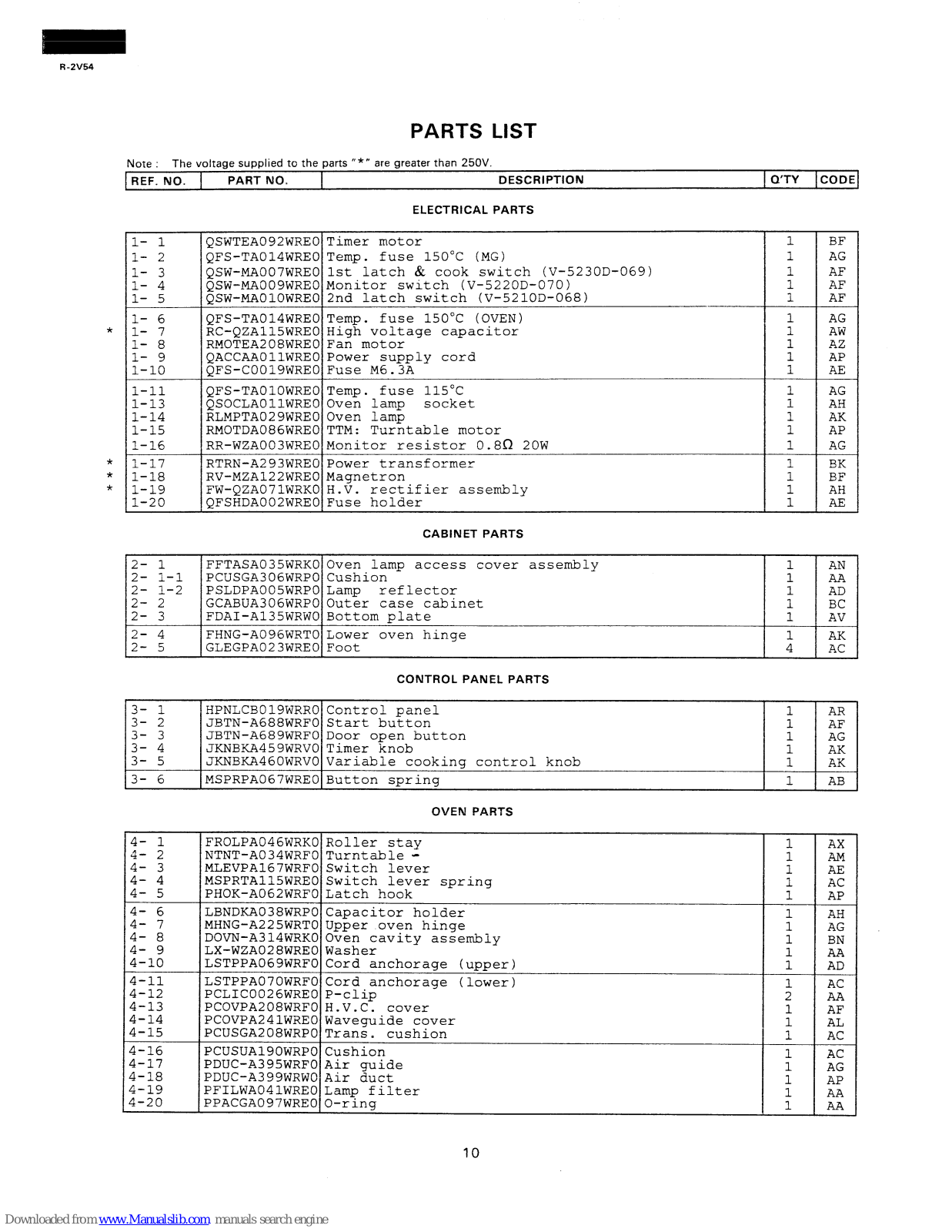

PARTS LIST

Note :

The voltage supplied to the parts I’** are greater than 250V.

REF. NO. 1

PART NO.

I

DESCRIPTION

1 my ICODE

ELECTRICAL PARTS

l- 1

QSWTEA092WREO Timer motor

I- 2

QFS-TA014WREO Temp. fuse 150°C (MG)

l- 3

QSW-MA007WREO 1st latch & cook switch (V-5230D-069)

l- 4

QSW-MA009WREO Monitor switch (V-5220D-070)

l- 5

QSW-MAOlOWREO 2nd latch switch (V-521OD-068)

l- 6

QFS-TA014WREO Temp. fuse 150°C (OVEN)

-7

i- 8

RC-QZA115WREO High voltage capacitor RMOTEA208WREO Fan motor

:r,,"

QACCAAOllWREO Power supply cord QFS-C0019WREO Fuse M6.3A

l-11

QFS-TAOlOWREO Temp. fuse 115°C

l-13

QSOCLAOllWREO Oven lamp socket

1-14

RLMPTA029WREO Oven lamp

l-15

RMOTDA086WREO TTM: Turntable motor

l-16

RR-WZA003WREO Monitor resistor 0.8n 20W

l-17

RTRN-A293WREO Power transformer

l-18

RV-MZA122WREO Magnetron

l-19

FW-QZAO71WRKO H.V. rectifier assembly

l-20

QFSHDA002WREO Fuse holder

CABINET PARTS

1 BF 1 AG 1 AF

1 AF 1 AF

1 AG 1 AW 1 AZ

AP

i AE 1 AG

1 AH 1 AK 1 AP

1 AG 1 BK

1 BF 1 AH 1 AE

2- 1 FFTASA035WRKO Oven lamp access cover assembly 2- 1-l PCUSGA306WRPO Cushion 2 - 2 l-2 PSLDPA005WRPO Lamp reflector

GCABUA306WRPO Outer case cabinet

2- 3 FDAI-A135WRWO Bottom plate 2- 4 FHNG-A096WRTO Lower oven hinge

2- 5 GLEGPA023WREO Foot

CONTROL PANEL PARTS

HPNLCB019WRRO Control panel

1

AR

JBTN-A688WRFO Start button

1 AF

;I ;

JBTN-A689WRFO Door open button

1 AG

JKNBKA459WRVO Timer knob

1

AK

3- 5 JKNBKA460WRVO Variable cooking control knob

1

AK

I

3- 6

MSPRPA067WREO Button spring

111

AB

OVEN PARTS

4- 1 FROLPA046WRKO Roller stay 1

AX

4- 2

NTNT-AO34WRFO

Turntable -

1 AM

4- 3

MLEVPA167WRFO

Switch lever

1 AE

;I fj

MSPRTA115WREO Switch lever spring

1

AC

PHOK-A062WRFO Latch hook

1

AP

;r F

LBNDKA038WRPO Capacitor holder

1

AH

MHNG-A225WRTO Upper oven hinge

1

AG

4- 8

DOVN-A314WRKO

Oven cavity assembly

1 BN

:11: LX-WZA028WREO Washer 1 AA

LSTPPA069WRFO Cord anchorage (upper)

1

AD

4-11

LSTPPA070WRFO Cord anchorage (lower)

1 AC

4-12

PCLIC0026WREO

P-clip

2

4-13

PCOVPA208WRFO

H.V.C. cover

1 AF

4-14

PCOVPA241WREO Waveguide cover

1 AL

4-15

PCUSGA208WRPO

Trans. cushion

1 AC

4-16 PCUSUA190WRPO

Cushion

1 AC

4-17

PDUC-A395WRFO Air guide

AG

4-18 PDUC-A399WRWO Air duct

1' AP

4-19 PFILWA041WREO

Lamp filter

1 AA

4-20 PPACGA097WREO

O-ring

1

IO

*

R -2V54

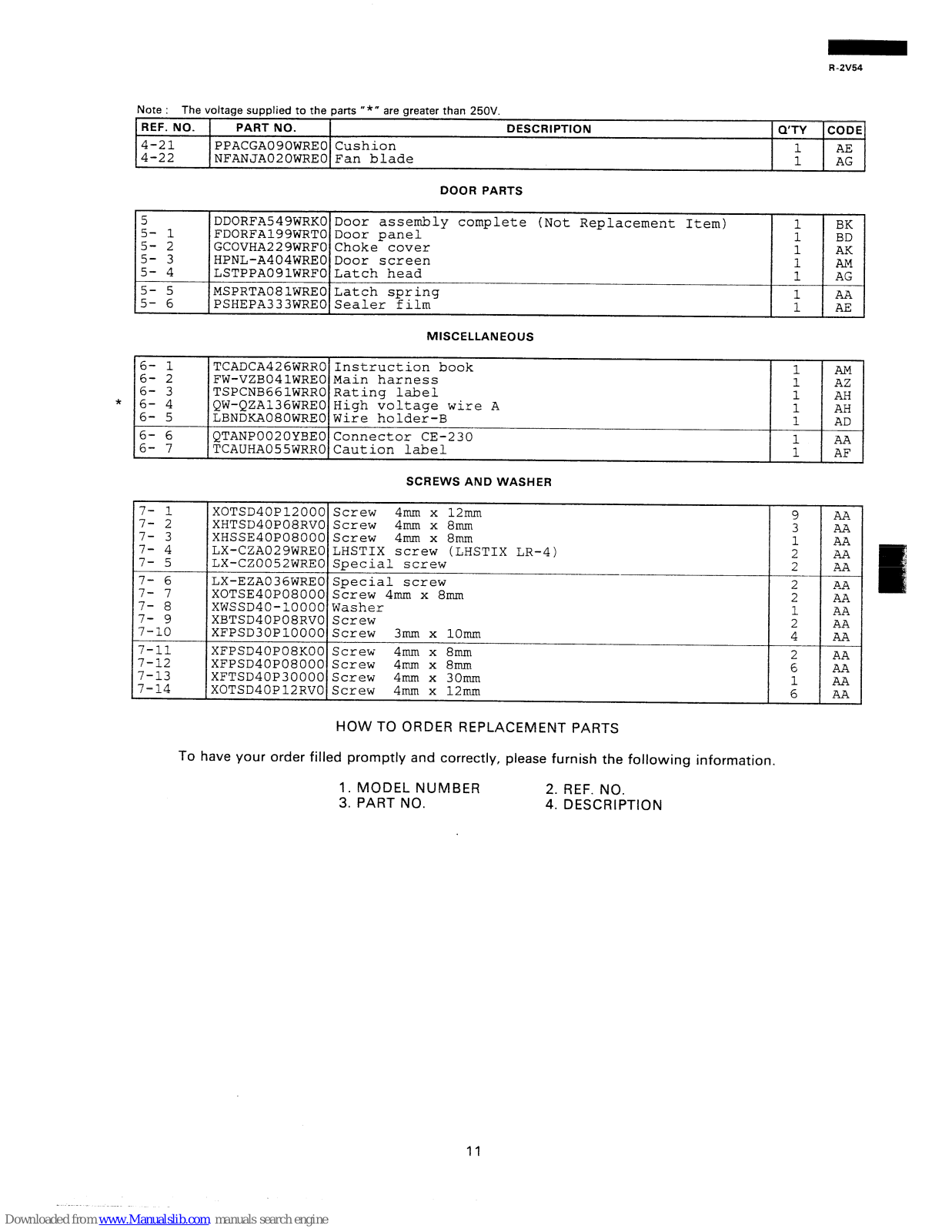

Note : The voltage supplied to the parts “*” are greater than 250V.

REF. NO.

PART NO.

DESCRIPTION

Cm-Y

CODE

4-21 PPACGA090WREO Cushion

AE

4-22 NFANJA020WREO Fan blade

i AG

DOOR PARTS

DDORFA549WRKO FDORFA199WRTO GCOVHA229WRFO HPNL-A404WREO LSTPPA091WRFO

PSHEPA333WREO

Door assembly complete (Not Replacement Item) Door panel Choke cover Door screen Latch head

Latch spring Sealer film

BK BD AK AM AG

AE

6- 1 6- 2

:I ; 6- 5

MISCELLANEOUS

1 1 1

4

1 1

t

AZ AH AH AD

AA AF

7- 1 7- 2

;r ; 7- 5

7- 6 ;I ;

7- 9 7-10

7-11 7-12 7-13 7-14

SCREWS AND WASHER

XOTSD40P12000 Screw 4mm x 12mm XHTSD40P08RVO Screw 4mm x 8mm XHSSE40P08000 Screw

4mm x 8mm LX-CZA029WREO LHSTIX screw (LHSTIX LR-4) LX-CZ0052WREO Special screw

LX-EZA036WREO Special screw XOTSE40P08000 Screw 4mm x 8mm XWSSD40-10000 Washer XBTSD40P08RVO Screw XFPSD30PlOOOO Screw

3mm x 1omm XFPSD40P08KOO Screw

4mm x 8mm

XFPSD40P08000 Screw

4mm x 8mm

XFTSD40P30000 Screw

4mm x 3omm

XOTSD40P12RVO Screw

4mm x12mm

HOW TO ORDER REPLACEMENT PARTS

To have your order filled promptly and correctly, please furnish the following information.

2 6 1 6

AA AA AA AA AA

AA AA

1. MODEL NUMBER

2. REF. NO.

3. PART NO.

4. DESCRIPTION

11

1 2 3 4

5

I

6

r-

Ai

I

1

1 /

I

B/

1

Cl

y

/

Di

I

E’

I

F’

/

I

G.

I I

/

I I

I

Hi

/

I

-

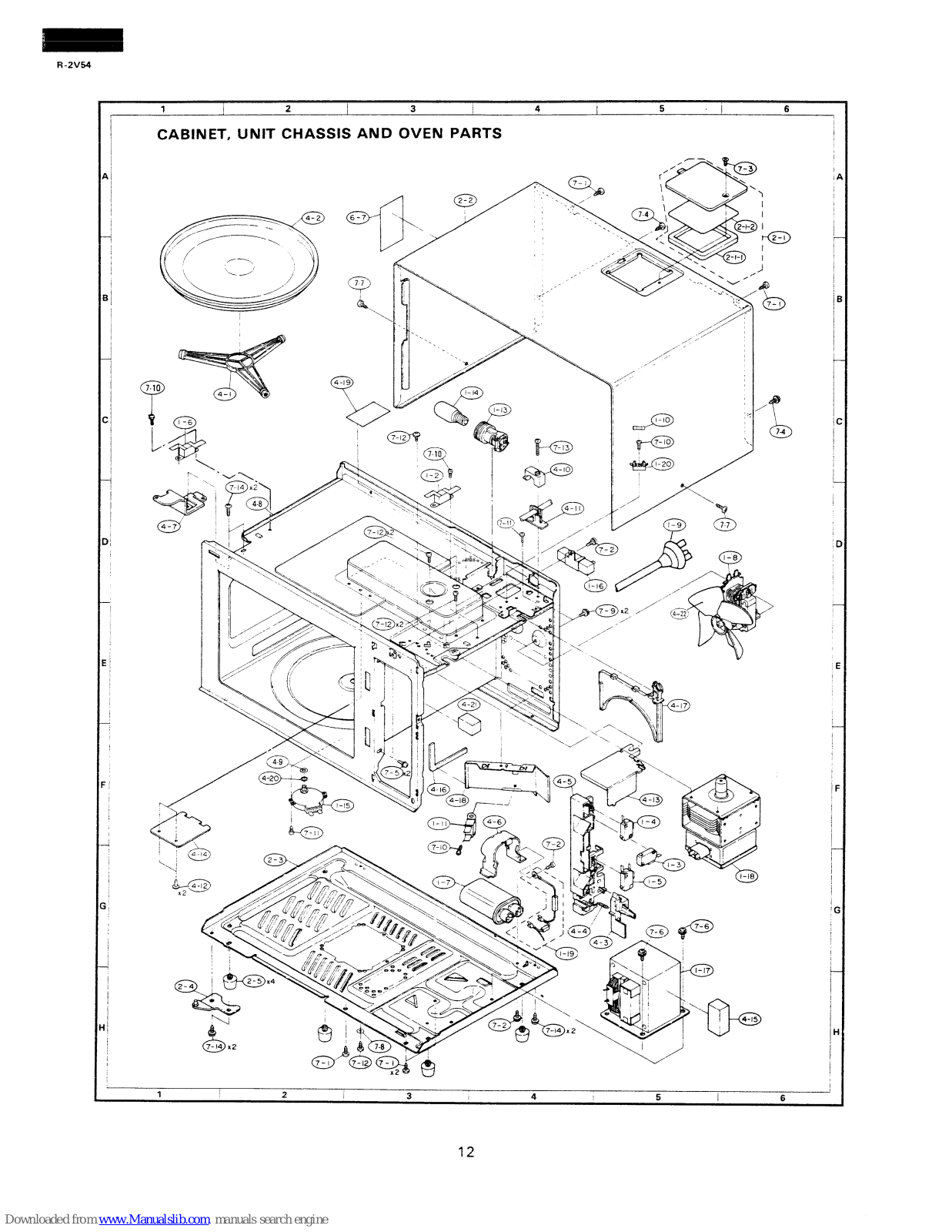

CABINET, UNIT CHASSIS AND OVEN PARTS

I I

I IA

I

I /

I

c

I

it

c

I( I

I

i

I

,c

E

I

/

I I I

, ,

I ;

I I

I /

,

I /

/ 1

I /

1 2 3

I 4 / 5 I 6

12

R-2V54

1

2 3 I 4 5 6

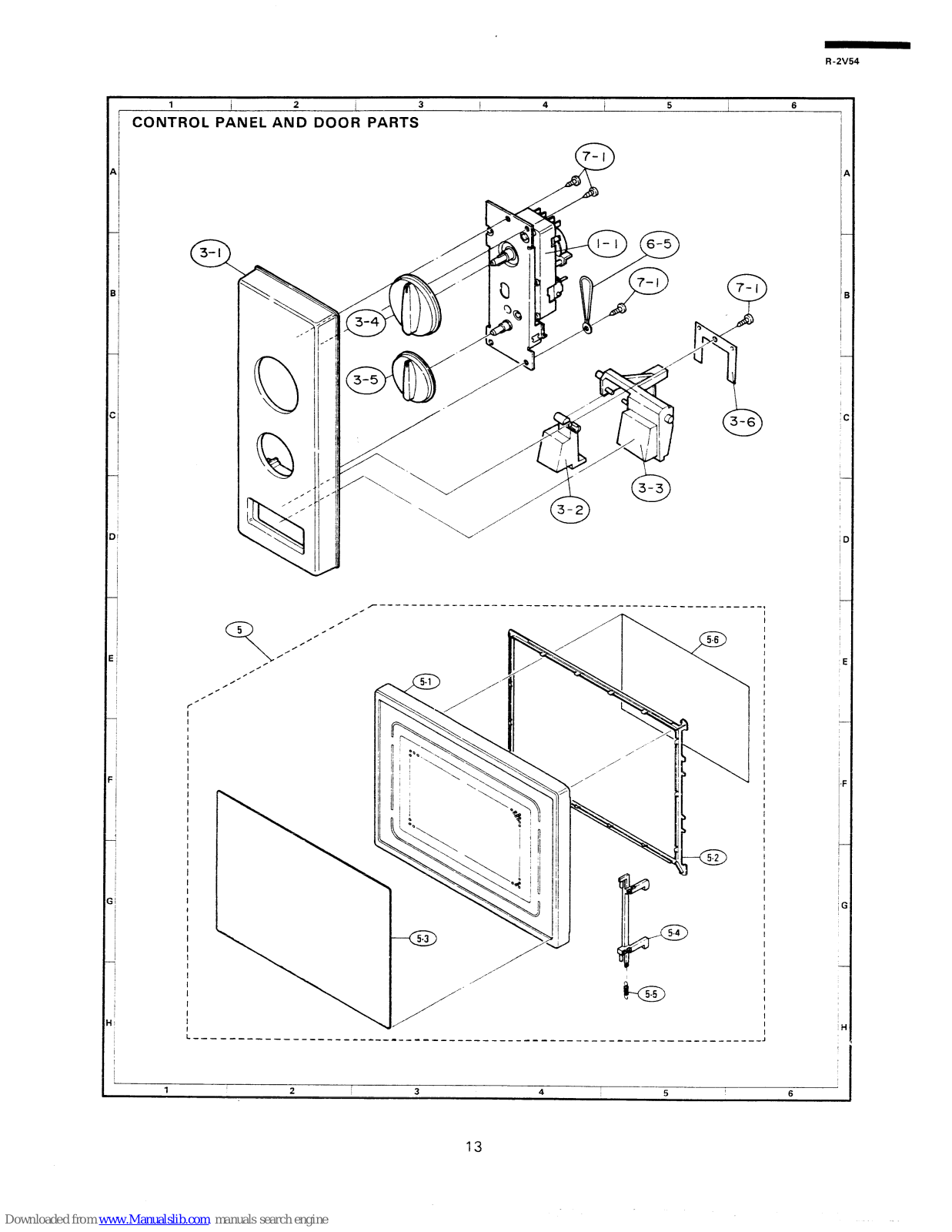

CONTROL PANEL AND DOOR PARTS

c?

3-l

b

3-6

L--,

---------- ---- ------1------ ----- ----------------- ---- ---- ----- -s-J

E

H

1

2

3 4

5

/

6

13

R -2V54

Bl

cl

/

I

Ei

/ I

1

1 I

F/

,

1 / 2 3

/

4 5 6

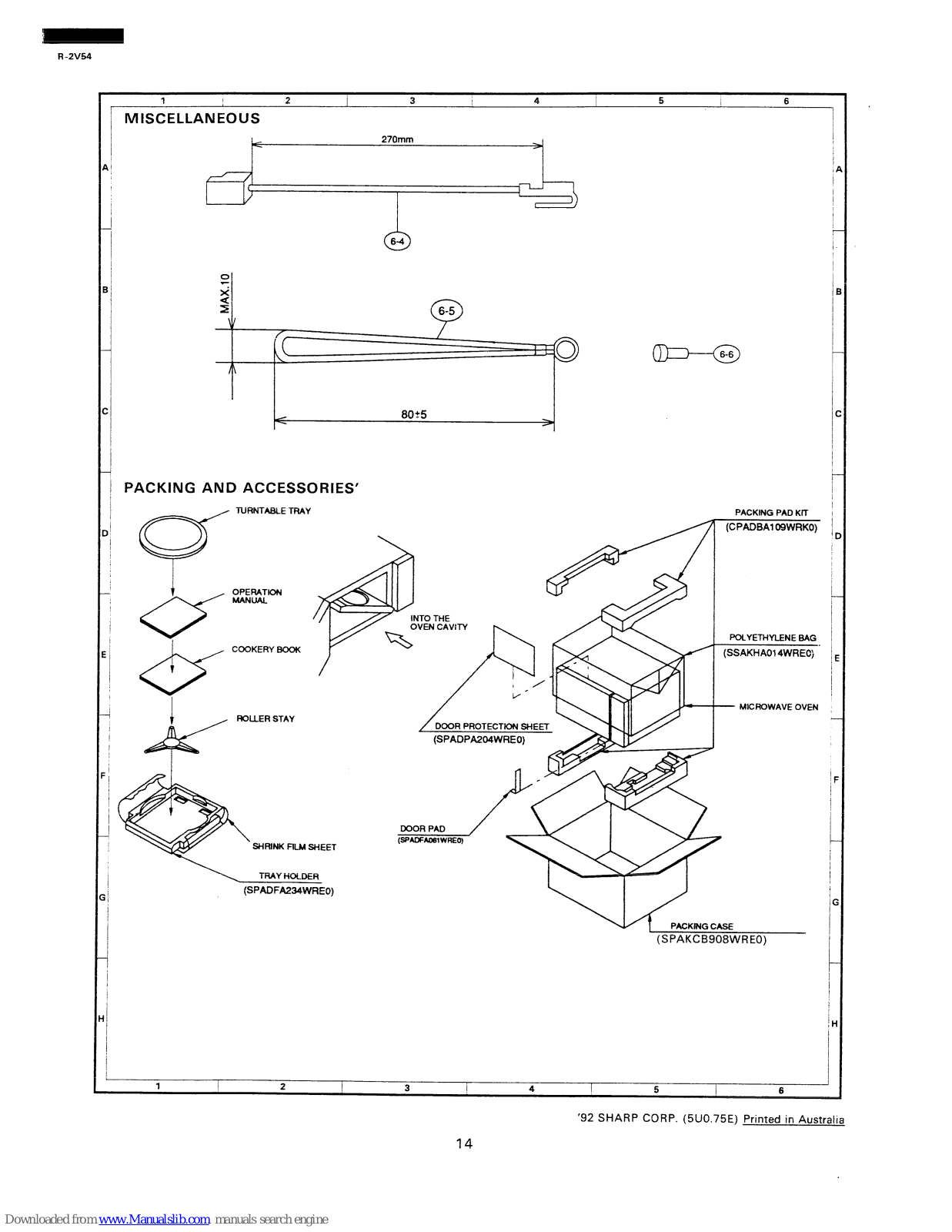

MISCELLANEOUS

/

270mm

>

c-3

6-4 /

0

2

I

\I

/

I

&

: (ZJ

I\

80?5

QI--@

I

it

PACKING AND ACCESSORIES’

1

/

I

TURKTABLE TRAY

COOKERY E3OOK

ROLLER STAY

DOOR PROTECTION SHEET

(SPADPA204WREO)

MICROWAVE OVEN

SHRINK FILM SHEET

(SPAKCB908WREO)

1

/

2 I

3 I 4

5 6

‘92 SHARP CORP. (5U0.75E) Printed in Australia

14
