Front view

2345

6 7 8 9

The rear buttons if seen from the front

When the PN-ZB02 (optional) is attached

28272625 29

21 23

2018

3130 3433

9876 54 32

Part Names

1. LCD panel

2. INPUT button

3. MENU button

4. VOL -/Cursor control (

5. VOL +/Cursor control (

6. BRIGHT -/Cursor control (

7. BRIGHT +/Cursor control (

8. Power button

9. Power LED

) button

Rear view

10. Fan

11. Vents

12. Handles

13. Expansion terminal cover

Additional input/output terminals are available by attaching the PN-ZB02 expansion board (optional).

14. Optional attachment section

This section is used to connect optional hardware for function expansion. Offering this attachment location is not a guarantee that future compatible hardware attachments will be released.

15. AC input terminal

16. Main power switch

17. PC/AV HDMI input terminal

18. PC D-sub input terminal

19. Audio input terminal

20. Audio output terminals

21. RS-232C output terminal

22. RS-232C input terminal

23. Optional terminal

This terminal is provided for possible future (optional) function expansion. Offering of this terminal is not a guarantee that future expanded functionality will be provided.

24. Control kit terminal

Caution

• Consult your SHARP dealer for attachment/detachment of

optional parts.

• Do not open the expansion terminal cover by yourself.

There are high voltage parts inside the cover which may cause an electric shock.

When the PN-ZB02 (optional) is attached

25. PC/AV DVI-D input terminal

26. PC/AV DVI-D output terminal

27. LAN terminal

28. External speaker terminals

29. Audio 1 input terminals

30. Audio 2 input terminals

31. PC RGB input terminals

32. AV component input terminals

33. AV video input terminal

34. AV S-video input terminal

Part Names

Remote control unit

n

(Supplied with the PN-ZR01 (optional))

1. Signal transmitter

2. POWER button

3. MUTE button

4. VOL +/Cursor control (

5. BRIGHT -/Cursor control (

6. DISPLAY button

7. MODE button

8. INPUT button

9. MENU button

10. BRIGHT +/Cursor control (

11. VOL -/Cursor control (

12. SIZE button

) button

Remote control sensor box

n

(Supplied with the PN-ZR01 (optional))

1. Brightness sensor

2. Remote control sensor

3. Connection cable

4. Mounting bracket

Basic Operation

Rear side buttons

Remote control unit buttons

V OLUME 15

BRIGHT 15

LAN

When performing operation of multiple monitors with the

remote control unit, rst set the remote control unit to the

appropriate remote control mode (see page 7).

TIPS

• You can perform operation of the monitor with the rear

buttons. Utilize the buttons belonging to the monitor that you would like to operate.

• Operation by using the buttons on the rear side of the

product will perform the same functions.

2. MUTE

Turns off the volume temporarily. Press the MUTE button again to turn the sound back to the previous level.

If using the monitor buttons, either hold both

and at the

same time or select MUTE AUDIO from the OPTION menu.

3. MENU

Displays and turns off the menu screen (see page 8).

4. VOL +/- (Volume adjustment)

Pressing

or displays the VOLUME menu when the

menu screen is not displayed.

Press or to adjust the volume of the sound.

* If you do not press any buttons for about 4 seconds, the

VOLUME menu automatically disappears.

5. BRIGHT +/- (Backlight adjustment)

Pressing

or displays the BRIGHT menu when the

menu screen is not displayed.

This manual assumes that this product will be used with

the remote control unit buttons, except where specically

noted.

1. INPUT (Input mode selection)

The menu is displayed. Press mode, and press

Input mode Video Audio

PC D-SUB PC D-sub input terminal PC HDMI AV HDMI

When the PN-ZB02 (optional) is attached

Input mode Video Audio

PC DVI-D PC HDMI PC D-SUB PC RGB AV DVI-D AV HDMI AV COMPONENT AV S-VIDEO AV S-video input terminal AV VIDEO AV video input terminal

*1 Select the terminal to be used in HDMI of INPUT SELECT.

(See page 11.)

*2 Select the terminal for AUDIO SELECT which is used for

audio input. (See page 11.)

*3 Select the terminal to be used in DVI of INPUT SELECT.

(See page 11.)

*4 Select the terminal to be used in BNC of INPUT SELECT.

(See page 11.)

or to select the input

to enter.

PC/AV HDMI input terminal PC/AV HDMI input terminal

PC/AV DVI-D input terminal PC/AV HDMI input terminal PC D-sub input terminal PC RGB input terminals PC/AV DVI-D input terminal PC/AV HDMI input terminal AV COMPONENT input terminals

Audio input terminal

Press or to adjust the brightness.

* If you do not press any buttons for about 4 seconds, the

BRIGHT menu automatically disappears.

* When BRIGHTNESS SENSOR is ON or ON: DISPLAY,

when the brightness is adjusted BRIGHTNESS SENSOR will become OFF.

6. SIZE (Screen size selection)

The menu is displayed. Press

or to select the screen size. (See page 6.)

If using the monitor buttons, select SIZE from the OPTION menu.

7. DISPLAY

Displays monitor information. When you press this button again, the display disappears. When the PN-ZB02 (optional) is attached, the display changes

from INFORMATION1 → INFORMATION2 → clear display,

and so on every time you press this button.

• The display disappears automatically after about 15

seconds.

is displayed during LAN communication.

•

• If

If using the monitor buttons, press

is displayed in red, there is a duplicate IP address.

under INFORMATION in

the OPTION menu.

8. MODE (Color mode selection)

Each time you press this button, the color mode changes in the following order:

STD (Standard) → VIVID → sRGB → STD...

• sRGB applies to PC input only.

sRGB is international standard of color representation

specied by IEC (International Electrotechnical

Commission). Color conversion is made in taking account of liquid crystal’s characteristics and represents color tone

close to its original image. If using the monitor buttons, select COLOR MODE from the PICTURE menu.

Basic Operation

Switching the screen size

Even when the screen size is changed, the display may remain the same depending on the input signal.

WIDE PC input Displays image so it lls the entire screen.

AV input An image with a 4:3 aspect ratio is stretched to ll the entire

screen.

ZOOM 1

ZOOM 2

NORMAL

Dot by Dot

TIPS

• Using this monitor’s screen-size switching or dual-screen display functions to compress or expand the screen for commercial

or public viewing in establishments like cafes or hotels may infringe on the rights of the creators, as protected by Copyright Law, so please be careful.

• When “Enlarge” is set, the screen size is xed to “WIDE” mode.

• When dual-screen display is selected, the screen size cannot be changed.

• The appearance of the original video may change if you select a screen size with a different aspect ratio than the original

image (e.g. TV broadcast or video input from external equipment).

• When an ordinary non-wide image (4:3) is viewed with the whole screen using the screen-size switching function of this

monitor, the edge of the image may be lost or appear distorted. If you wish to respect the creator’s intentions, set the screen

size to “NORMAL”.

• When playing commercial software, parts of the image (like subtitles) may be cropped. In this case select the optimal screen

size using the screen-size switching function of this monitor. With some software, there may be noise or distortion at the edges of the screen. This is due to the characteristics of the software, and is not a malfunction.

• Depending on the original image size, black bands may remain at the edges of the screen.

PC input An image with a 4:3 aspect ratio is enlarged to ll the entire screen

without changing the aspect ratio. The edges of the image may be

AV input

PC input Use this size if ZOOM 1 cuts off the subtitles.

AV input

PC input Displays image so it lls the screen without changing the aspect

AV input Displays the entire image of the aspect ratio of 4:3 without

PC input Displays the dots of the signals input from the connected PC as

AV input Displays the dots of the input signals as the corresponding dots on

cut off.

ratio of the input signals.

changing the aspect ratio.

the corresponding dots on the screen.

the screen.

Remote Control Mode

MODE

▲

THIS MONITOR ONLY

REMOTE CONTROL MODE

MODE

OK CANCEL

Operate this monitor.

Secondary

ID No.: 2

Secondary

ID No.: 3

Primary

ID No.: 1

Secondary

ID No.: 4

VOLUME 10

Press to lower the volume

Secondary

ID No.: 2

Secondary

ID No.: 3

Primary

ID No.: 1

Secondary

ID No.: 4

VOLUME 10

Press to lower the volume

ALL

Secondary

ID No.: 2

Secondary

ID No.: 3

Primary

ID No.: 1

Secondary

ID No.: 4

Power ON Power ON

Power ON

Press to turn the power ON

POWER

ALL [EXPAND ITEM]

Secondary

ID No.: 2

Secondary

ID No.: 3

Primary

ID No.: 1

Secondary

ID No.: 4

Secondary

ID No.: 2

Secondary

ID No.: 3

Primary

ID No.: 1

Secondary

ID No.: 4

VOLUME 12 VOLUME 11

VOLUME 10

VOLUME 9

VOLUME 10 VOLUME 10

VOLUME 10

Press to lower the volume

With the remote control unit it’s possible to perform operation of...

• The primary monitor

• Monitors with a specied ID No.

• All primary/secondary monitors

It’s necessary to specify which type of operation will be performed in advance.

1. If using the remote control unit, press

for approx 5 seconds. If using the monitor buttons, hold both

and at

the same time on the primary.

2. Press

, select the mode, then perform

settings.

THIS MONITOR ONLY

Performs operation of only the primary using the remote control unit. [Example] If the volume is lowered, the volume of the primary

will lower.

ALL MONITORS

Performs operation of all primary/secondary monitors. *

will be displayed on the menu of the primary.

* When it receives signals from the remote control unit,

“Operating all monitors.” will be displayed on the secondary

screen. (Excluding power and input mode selection operation)

* Settings may not be reected depending on the state of the

connected monitors.

[Example] If the power for the primary is turned ON, the power

for all the monitors will be turned ON.

Press or to select EXPAND ITEM, and press or

to select to perform this action or not.

OFF ...........For all monitors, only power, input mode

selection, and product information display operations will be recognized.

ON .............For all monitors, all operations will be

recognized. After returning to the normal screen with procedure 3, when 5 minutes have passed from the end of operation, it will automatically return to OFF.

will be displayed on the menu of the primary. *

Even when REMOTE CONTROL MODE is set

to ALL MONITORS, certain settings such as LAN settings and ID No. settings will not be

reected on the other monitors.

SPECIFIED MONITOR

Performs operation of a monitor with a specied ID No. using

the remote control unit. Press

or to select ID No., then press or to

select the ID No. of the monitor that you will operate. * When it receives signals from the remote control unit,

“Operating specied monitor.” will be displayed on the

primary screen.

[Example.] If ID No. is set to 3 and the volume is lowered,

the volume of the monitor for ID No.: 3 will lower.

When you would like to conrm the ID No. that is set to the

monitor, press press

. The ID No. will be displayed on the screen.

or to select ID No. DISPLAY, then

3. Press

or to select OK, then press

and

return to the normal screen.

4. Perform operation.

Caution

• When the remote control mode is set to ALL MONITORS

and EXPAND ITEM is set to ON, performing remote control operations that change adjustment values will result in the secondary adjustment values being the same as the primary adjustment values.

Be careful of this when adjusting individual displays.

TIPS

• You can copy the setting values of the primary to other

monitors with COPY SETTING VALUE. (See page 11.)

• The buttons on the monitor itself (primary) are also effective

in remote control mode.

• When monitors connected in a daisy chain are in standby

mode for LOW POWER, operation cannot be performed for subsequent monitors.

Menu Items

1366x768

V: 60 Hz H: 47.7 kHz

AUTO CLOCK PHASE H-POS V-POS H-SIZE V-SIZE H-RESOLUTION V-RESOLUTION RESET

SCREEN


AUDIO

SETUP

OPTION

MULTI

PIP/PbyP

600

610

37 50 50

1366

768

SCREEN 1/1

END···[MENU]

PC D-SUB

AUTO

CONTRAST

BLACK LEVEL

TINT

COLORS

SHARPNESS

1/2


SCREEN


AUDIO

SETUP

OPTION

MULTI

PIP/PbyP

OK···[MENU]

1366x768

V: 60 Hz H: 47.7 kHz

PC D-SUB

AUTO

CONTRAST

BLACK LEVEL

TINT

COLORS

SHARPNESS

1/2


SCREEN


AUDIO

SETUP

OPTION

MULTI

PIP/PbyP

OK···[MENU]

V: 60 Hz H: 47.7 kHz

1366x768

PC D-SUB

AUTO

CONTRAST

BLACK LEVEL

TINT

COLORS

SHARPNESS

1/2


SCREEN


AUDIO

SETUP

OPTION

MULTI

PIP/PbyP

OK···[MENU]

V: 60 Hz H: 47.7 kHz

1366x768

PC D-SUB

1 3 2

Displaying the menu screen

Video and audio adjustment and settings of various functions are enabled. This section describes how to use the menu items. See pages 9 to 12 for details of each menu items.

Caution

• Do not turn the main power switch off while the menu items

are being displayed. Doing so may initialize the settings.

Example of operation

(Adjusting CONTRAST in the PICTURE menu)

1. Press

2. Press

PICTURE menu is displayed.

3. Press

to display the menu screen.

or to select PICTURE, and press

or to select CONTRAST.

TIPS

• The menu will differ depending on the input mode.

• The menu screen will close automatically if no operation is

performed for about 15 seconds. (DATE/TIME SETTING, SCHEDULE and LAN SETUP screens will close in about 4 minutes.)

Menu screen display

1 Name of the menu 2 Input mode 3 An item being selected (highlighted) 4 Screen resolution of input signal, and other data.

TIPS

• Items that cannot be selected appear in gray.

(e.g. Function not supported by the current input signal)

4. Press or to adjust the setting.

For items that have , press , make settings and then press

5. Press

twice to close the menu screen.

Menu Items

The displayed menu items vary depending on whether or not the PN-ZB02 (optional) is attached. The following menus will be displayed only when the PN-ZB02 (optional) is attached.

Menu Item

PICTURE ADVANCED 3D-Y/C SETUP HOT PLUG CONTROL DVI

RS-232C/LAN SELECT LAN SETUP

OPTION INPUT SELECT DVI

BNC

AUDIO SELECT PC DVI-D

PC D-SUB PC RGB AV DVI-D AV COMPONENT AV S-VIDEO AV VIDEO

COLOR SYSTEM

PIP/PbyP PIP SOURCE

TIPS

• Some items may not be displayed depending on the input

mode.

Menu item details

The menu will differ depending on the input mode.

SCREEN

AUTO (PC D-SUB/PC RGB)

The CLOCK, PHASE, H-POS, and V-POS are automatically adjusted. Pressing Use this automatic adjustment when you use the PC D-sub input terminal or PC RGB input terminals to display a PC

screen for the rst time or when you change the setting of

the PC. (See page 15.)

CLOCK (PC D-SUB/PC RGB)

Adjusts frequency for sampling clock for applicable video.

Adjust when there is ickering in the form of vertical stripes.

When using the adjustment pattern (see page 15), make adjustments so that no vertical stripe noise appears in it.

PHASE (PC D-SUB/PC RGB)

Adjusts sampling clock phase for applicable video. Useful when small characters appear with low contrast and/

or there are ickers at corners.

When using the adjustment pattern (see page 15), make adjustments so that no horizontal stripe noise appears in it.

* Adjustments to PHASE should be made only after CLOCK

has been correctly set.

H-POS

Adjust the horizontal position of the image.

V-POS

Adjust the vertical position of the image.

H-SIZE

Adjust the horizontal size of the image.

V-SIZE

Adjust the vertical size of the image.

H-RESOLUTION (PC D-SUB/PC RGB)

Sets proper horizontal resolution when the resolution of input signals is not recognized properly. (Adjustment may be impossible with some signals.)

V-RESOLUTION (PC D-SUB/PC RGB)

Sets proper vertical resolution when the resolution of input signals is not recognized properly. (Adjustment may be impossible with some signals.)

RESET

Resets the values of the SCREEN menu items to the factory preset values.

Select “ON” and then press

performs adjustment.

Menu Items


AUTO (PC D-SUB/PC RGB)

The CONTRAST and BLACK LEVEL are automatically adjusted. Pressing

CONTRAST

Adjusts the brightness of the image.

BLACK LEVEL

Adjusts the entire brightness of the video signals.

TINT

Adjusts the hue. Selecting + changes the color towards green, and selecting - changes it towards magenta.

COLORS

Adjusts the color intensity.

SHARPNESS

Adjusts the sharpness of the image.

ADVANCED (AV input)

You can adjust more specically. (See page 15.)

COLOR MODE

Changes the color mode on the screen. The color mode on the screen can also be changed using a remote control unit. (See page 5.) * sRGB is PC input only. See page 5 for details.

WHITE BALANCE

THRU .............. Displays the input signal level as is. (for PC

PRESET ......... Selects the color temperature using PRESET.

USER .............. Used for adjusting R-/G-/B-CONTRAST and

PRESET

Selects the color temperature when the WHITE BALANCE is set to PRESET. The setting values are shown for reference. The color temperature of the screen varies over time. This function is not intended to keep the color temperature constant.

USER

Adjusts each item when the WHITE BALANCE is set to USER.

R-CONTRAST ....Adjusts bright-toned red component.

G-CONTRAST .... Adjusts bright-toned green component.

B-CONTRAST .... Adjusts bright-toned blue component.

R-OFFSET ..........Adjusts dark-toned red component.

G-OFFSET .........Adjusts dark-toned green component.

B-OFFSET .......... Adjusts dark-toned blue component.

COPY TO USER

Copies the value set for PRESET to the USER setting.

Select “ON” and then press

GAMMA

Select a gamma value. USER sets the gamma value transferred by the user. (See page 20.)

RESET

Resets the values of the PICTURE menu items to the factory preset values.

Select “ON” and then press

performs adjustment.

DVI-D/PC HDMI only)

R-/G-/B-OFFSET respectively.

PATTERN1 PATTERN2

PATTERN4PATTERN3

Menu Items

AUDIO

TREBLE

Adjusts the volume of treble-level sound.

BASS

Adjusts the volume of bass-level sound.

BALANCE

Adjusts the balance of the audio sound between right and left.

RESET

Resets the values of the AUDIO menu items to the factory preset values.

Select “ON” and then press

SETUP

OSD H-POSITION

Adjusts the horizontal display position of menu screen.

OSD V-POSITION

Adjusts the vertical display position of menu screen.

SCREEN MOTION

Residual images are reduced by moving the screen.

PATTERN1 ..... The whole screen moves vertically and

PATTERN2 ..... A black screen spreads from the bottom of

PATTERN3 ..... A black bar moves from the left end to the

PATTERN4 ..... Black screens appear from both the top and

MOTION TIME 1

Specify a time period (operating interval) until SCREEN MOTION starts.

MOTION TIME 2

Specify a time period during which SCREEN MOTION operates (time period during which the screen will move).

MONITOR

Select the installation direction of the monitor.

LANDSCAPE ............Horizontal orientation

PORTRAIT ...............Vertical orientation

LANGUAGE

Sets the display language for the menu screen.

horizontally.

the screen and then shrinks to the bottom of the screen. If the monitor is installed in the vertical orientation, a black screen spreads from the left end of the screen and then shrinks to the left end of the screen.

right end of the screen. If the monitor is installed in the vertical orientation, a black bar moves from the top to the bottom of the screen.

bottom of the screen, and the displayed image is compressed into the central eld. If the monitor is installed in the vertical orientation, the screen is compressed from the left and right ends.

POWER ON DELAY

You can delay the screen display after the monitor is turned on. The period can be set up to 60 seconds in units of one second. When this function is activated, the power LED

ashes (at approx. 1 second interval) in orange. This function is disabled when 0 is specied.

STANDBY MODE

When STANDARD is selected, startup time from standby mode is reduced. Note, however that, more power will be consumed in standby mode. When LOW POWER is selected, current consumption

is reduced while the monitor is in standby mode. Note, however, that the startup time from standby mode becomes longer. If set to LOW POWER, certain RS-232C commands cannot be used in standby mode, and control via LAN will be disabled.

OFF IF NO OPERATION

Determines whether or not to set the monitor to go into standby mode when there is no operation from the remote control unit, RS-232C commands, or LAN for over 4 hours.

HDMI SETTING

HDMI AUTO VIEW

......................... When ON is selected, the screen size is

HDMI RGB INPUT RANGE

......................... Sets the type of HDMI signals when using

HOT PLUG CONTROL

Sets whether to use hot plug control for the PC/AV HDMI and PC/AV DVI-D input terminals.

RS-232C/LAN SELECT

Selects the method with which to control the monitor from the computer.

ID No. SET

Assigns ID numbers to monitors connected in a daisy chain (see page 18), using the remote control unit or RS-232 cables. The numbers 1 to 255 are available for ID numbers.

If “0” is set, the system regards this as the state where no ID

number is set.

AUTO ASSIGN ID No.

ID No. to be used will be automatically assigned when multiple monitors are connected with RS-232C. Select ON, then press primary monitor.

BAUD RATE

Selects the communication speed used for RS-232C communication.

LAN SETUP

Congures the settings to control the monitor from the

computer via LAN. (See page 28.)

adjusted automatically according to the screen size control signal included in the video signal input from the AV HDMI input terminal.

the AV HDMI input mode. When AUTO is selected, the type is set automatically.

. Perform operations with the

Menu Items

BRIGHTNESS SENSOR (When connected to the PN-ZR01 only)

When set to ON or ON: DISPLAY, the brightness will automatically change according to the lighting and surrounding brightness. Performs operation with the primary monitor. If set to ON: DISPLAY, the effect will be displayed

with a If connecting to multiple monitors, the brightness of all the

monitors will change. The

BRIGHTNESS SENSOR SETTING (When connected to the PN-ZR01 only)

Performs adjustments to the brightness sensor. Performs operation with the primary monitor. Set the surrounding brightness and the current screen luminance to AMBIENT BRIGHTNESS and SCREEN BRIGHTNESS. Individually set WHEN LIGHT: and WHEN DARK:. Even if brighter or darker than the set AMBIENT BRIGHTNESS, the screen brightness will not change. CURRENT AMBIENT BRIGHTNESS is shown for reference.

COPY SETTING VALUE

When the monitor has been connected to multiple monitors with RS-232C, you can copy the primary setting details to the secondary. Perform operations with the primary monitor. Select the ID No. of the monitor that you would like copy to

with COPY TO ID No., then select COPY and press If you select ALL, settings will be copied to all monitors.

When you would like to conrm the ID No. that is set to the

monitor, select ID No. and press displayed on the screen.

OPTION

DATE/TIME SETTING

Set the date and time. Press and time, and press values.

Set the date in “Year/Month/Day” order.

Set the time on a 24-hour basis.

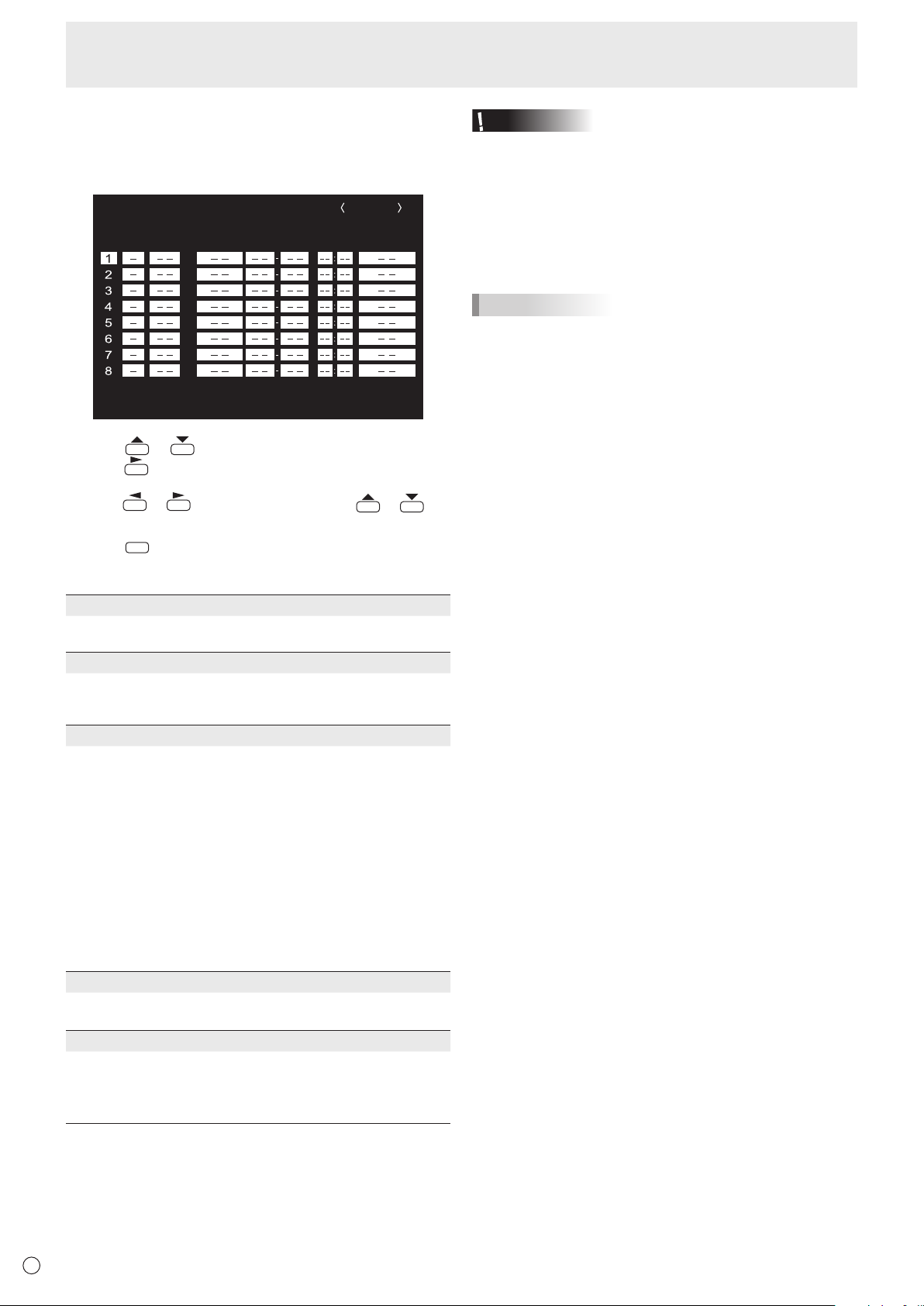

SCHEDULE (See page 14.)

You can set the time to switch the monitor on and off.

INPUT SELECT

Select the input mode to be used in PC/AV DVI-D input terminal, PC/AV HDMI input terminal and PC RGB/AV component input terminals.

AUDIO SELECT

Selects the terminal used to input audio signals in each input mode.

INPUT SIGNAL (PC D-SUB/PC RGB)

If a computer connected to the PC D-sub/PC RGB input terminal outputs any of the following resolutions, make a selection from the following options.

480 LINES .......... AUTO, 640x480 or 848x480

768 LINES .......... AUTO, 1024x768, 1280x768, 1360x768 or

1050 LINES ........ 1400x1050 or 1680x1050

ZOOM2 SPECIAL SETTING (See page 13.)

SCAN MODE (AV input)

Sets the scan mode used for AV mode input.

MODE1 ............... Over-scan display

MODE2 ............... Under-scan display

MODE3 ............... Under-scan display when the input signal

Even when MODE1 is selected, under-scan display is used

when the input signal is 1080i/p and the screen size is Dot by Dot.

will be displayed on the primary only.

. The ID No. will be

to change the numerical

1366x768

is 1080i/p. Otherwise, over-scan display

to select the date

POWER MANAGEMENT

POWER MANAGEMENT determines whether or not to switch modes from no signal to the input signal standby mode.

COLOR SYSTEM (AV S-VIDEO/AV VIDEO)

Select the color system of the AV equipment which is connected to AV S-video and AV video input terminal. (AUTO / PAL / PAL-60 / SECAM / NTSC3.58 / NTSC4.43) When AUTO is selected, the color system is automatically set according to the input signal.

AUDIO OUTPUT(RCA)

Sets the volume of sound output from the audio output terminals. When set to VARIABLE2, audio is not output from the external speaker terminals.

VARIABLE .......... You can adjust the volume using VOLUME.

FIXED ................. Disables volume adjustment and xes the

When the PN-ZB02 (optional) is attached:

VARIABLE1 ........ You can adjust the volume using VOLUME.

VARIABLE2 ........ You can adjust the volume using VOLUME,

FIXED ................. Disables volume adjustment and xes the

AUDIO LEVEL(STEREO MINI)

Selects the maximum audio input level of the audio input terminal.

SELF ADJUST

On a PC D-SUB/PC RGB screen, specify whether to perform screen adjustment automatically or not. When ON is selected, the screen is automatically adjusted when its resolution is 800 x 600 or higher and the timing of input

signals changes. “ADJUSTING” appears on the screen

during the adjustment. For images with black edges, etc., depending on the signal, adjustment may not be possible. In this case select OFF. (Perform manual adjustment of the screen.)

AUTO INPUT CHANGE

Specify whether to change inputs automatically. When ON is selected and no signal is present in the selected input mode, AUTO INPUT CHANGE automatically changes the selected mode to another mode where a video signal is present. When video signals exist in multiple input modes, the switching priority is as follows: PC D-SUB, PC HDMI and AV HDMI When the PN-ZB02 (optional) is attached: PC DVI-D, PC HDMI, PC D-SUB, PC RGB, AV DVI-D, AV HDMI, AV COMPONENT, AV S-VIDEO and AV VIDEO (Input mode switching may take 15 seconds or more, depending on the connected equipment. Input signals may not be detected properly and a priority may change, depending on the connected equipment or video signals.)

FAN SPEED

Sets the rotation speed of the fan. As this number increases, the rotation speed becomes faster. When set to AUTO, the rotation speed of the fan will change depending on the internal temperature.

SIZE

Selects screen size. (See page 6.)

MUTE AUDIO

Can temporarily turn off the volume.

INFORMATION

If you press

sounds.

but audio is not output from the external speaker terminals.

sounds.

, monitor information can be checked.

Menu Items

Main screen

Sub

screen

Main

screen

Sub

screen

Main screen

Sub

screen

MULTI

ENLARGE (See page 13.)

Sets whether or not to use the enlarge function. ADVANCED (ENLARGE) ENLARGE H / ENLARGE V

......... Sets the number of screen splits (number of

monitors) in the horizontal/vertical direction used for the enlargement.

ENLARGE-POS

......... Specify the split screen to be displayed when the

enlargement function is used.

H-POS / V-POS

......... Adjust the horizontal/vertical position of the enlarged

screen.

BEZEL ADJUST

Sets whether or not to use the frame correction function.

ADVANCED (BEZEL ADJUST) BEZEL ADJUST (TOP) / BEZEL ADJUST (BOTTOM) /

BEZEL ADJUST (RIGHT) / BEZEL ADJUST (LEFT)

......... Adjusts so that the top/bottom/left/right connecting

joints of grouped units will be displayed smoothly when a group of monitors are aligned in multiples to

BEZEL H / BEZEL V

PIP MODES

Sets the display method.

OFF .........Displays one screen.

PIP ...........Displays a sub screen inside a main screen.

PbyP ........Displays a main screen and a sub screen in a line.

PbyP2 ......

PIP SIZE

Sets the size of the sub screen in PIP mode.

PIP H-POS

Adjusts the horizontal position of the sub screen in PIP mode.

PIP V-POS

Adjusts the vertical position of the sub screen in PIP mode.

PIP BLEND

In PIP mode, use this menu item to display the sub screen transparently.

PIP SOURCE

Selects the input signal of the sub screen in PIP, PbyP, or PbyP2 mode.

SOUND CHANGE

Sets the sound which is output in PIP, PbyP, or PbyP2 mode. If the main screen is displayed as a full screen by the AUTO OFF function, the sound for the main screen is output even

when the sound for the sub screen is specied.

MAIN POS

Sets the position of the main screen in PbyP or PbyP2 mode.

PbyP2 POS

Sets the position of the sub screen in PbyP2 mode.

AUTO OFF

Sets the display method when no signals for the sub screen are input in PIP, PbyP, or PbyP2 mode.

MANUAL .......

AUTO ............ Displays the main screen as a full screen.

display a single image.

......... Sets the frame width of the display.

PIP/PbyP

Displays a main screen which measures 1024 pixels in the longest direction and a sub screen in a line.

Displays a main screen and a black sub screen.

TIPS

• When WHITE BALANCE is set to THRU, BLACK LEVEL,

CONTRAST, TINT, COLORS and GAMMA cannot be set.

• If COLOR MODE is set to sRGB, the following items cannot

be set. WHITE BALANCE, PRESET, USER, COPY TO USER, and GAMMA

• When the COLOR MODE is set to VIVID, GAMMA can not

be adjusted.

• If GAMMA is set to USER, the following items cannot be

set. WHITE BALANCE, PRESET, USER, and COPY TO USER

• STANDBY MODE cannot be set to LOW POWER when

SCHEDULE is effective or when OFF is selected for LED in FUNCTION.

Dual screen display

You can display the screens of the PC input signal and AV input signal simultaneously.

Set this function with “PIP MODES” in the PIP/PbyP menu.

PIP

PbyP

PbyP2

* The currently selected input signal is displayed on the main

screen.

* You cannot simultaneously display the screens of signals

of the same type, such as two types of PC input signals or two types of AV input signals.

* The dual screen display cannot be used with the

combination of PC DVI-D and AV HDMI or of AV DVI-D and PC HDMI.

TIPS

• You might infringe on a copyright of the author which is

protected by copyright law when you display the images of the computer screen and television/VCR simultaneously for

prot-making or to show the image to the public.

• The screen size for dual-screen display is the same as

the screen size for single-screen display. The Dot by Dot screen is displayed in NORMAL size except when it is set as the PIP main screen.

• When dual-screen display is selected, the SCREEN

MOTION function is disabled.

• When dual-screen display is selected, the AUTO INPUT

CHANGE function is disabled.

• When dual-screen display is selected, the screen cannot

be enlarged.

• When dual-screen display is selected, the INPUT SELECT

options cannot be set.

A sub screen is displayed inside a main screen.

A main screen and a sub screen are displayed in a line.

Displays a main screen which measures 1024 pixels in the longest direction and a sub screen in a line.

Menu Items

(Example) Horizontal direction: 2 monitors Vertical direction: 2 monitors

Horizontal direction: 3 monitors Vertical direction: 2 monitors

Enlarge

• You can align several monitors and integrate them into a

single large screen to display.

• Up to ve monitors can be aligned in both the horizontal

and vertical directions.

• Each monitor displays enlarged views of separated images.

Setting procedure

Set using the MULTI menu.

1. Set ENLARGE to ON.

2. Select ADVANCED (ENLARGE).

3. Set the number of monitors aligned in the horizontal direction in ENLARGE H.

4. Set the number of monitors aligned in the vertical direction in ENLARGE V.

5. Set the section of the separated image to be displayed on each monitor in ENLARGE-POS.

1) Press

2) Press

press

. , , or to select position, then

ZOOM2 SPECIAL SETTING

If you connect a laptop computer with any of the following screen resolutions and black bands appear around the screen, set ZOOM2 SPECIAL SETTING of INPUT SIGNAL on the OPTION menu to ON and then select ZOOM2 in the SIZE setting. This displays the area inside the black band.

Laptop computer resolution

1280x800 1280x1024, 1280x960, 1400x1050*

1280x600 1280x720

1024x600 1024x768

*1: This setting is effective only when the screen resolution,

including the black band, is one of the resolutions listed above.

*2: Use the automatic screen adjustment.

Corresponding signal*

TIPS

• When Enlarge is used, the SCREEN MOTION function is

disabled.

• When Enlarge is used, the AUTO INPUT CHANGE function

is disabled.

• When Enlarge is used, the HDMI AUTO VIEW function is

disabled.

+ 29 hidden pages
