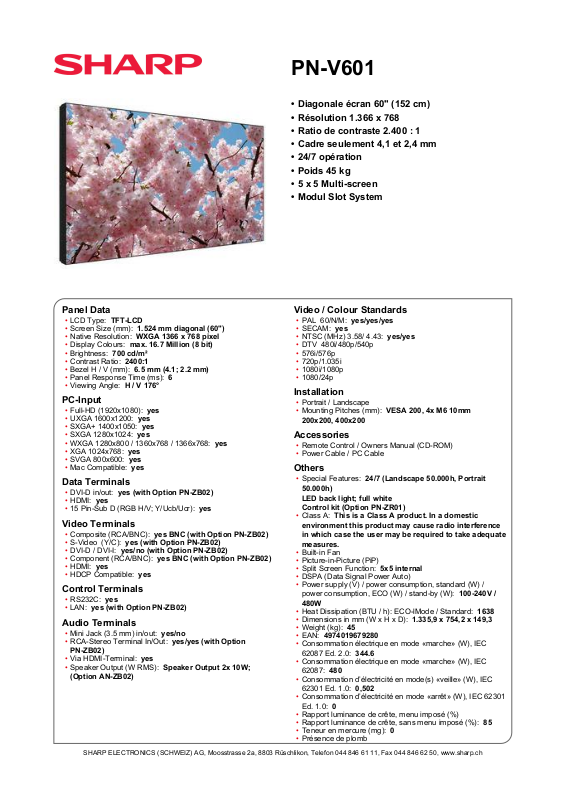

PN-V601
• Diagonale écran 60" (152 cm)
• Résolution 1.366 x 768
• Ratio de contraste 2.400 : 1
• Cadre seulement 4,1 et 2,4 mm
• 24/7 opération
• Poids 45 kg
• 5 x 5 Multi-screen
• Modul Slot System
Panel Data
• LCD Type: TFT-LCD
• Screen Size (mm): 1.524 mm diagonal (60")
• Native Resolution: WXGA 1366 x 768 pixel
• Display Colours: max. 16.7 Million (8 bit)
• Brightness: 700 cd/m²
• Contrast Ratio: 2400:1
• Bezel H / V (mm): 6.5 mm (4.1; 2.2 mm)
• Panel Response Time (ms): 6
• Viewing Angle: H / V 176°
PC-Input
• Full-HD (1920x1080): yes
• UXGA 1600x1200: yes
• SXGA+ 1400x1050: yes
• SXGA 1280x1024: yes
• WXGA 1280x800 / 1360x768 / 1366x768: yes
• XGA 1024x768: yes
• SVGA 800x600: yes
• Mac Compatible: yes
Data Terminals
• DVI-D in/out: yes (with Option PN-ZB02)
• HDMI: yes
• 15 Pin-Sub D (RGB H/V; Y/Ucb/Ucr): yes
Video Terminals
• Composite (RCA/BNC): yes BNC (with Option PN-ZB02)
• S-Video (Y/C): yes (with Option PN-ZB02)
• DVI-D / DVI-I: yes/no (with Option PN-ZB02)
• Component (RCA/BNC): yes BNC (with Option PN-ZB02)
• HDMI: yes
• HDCP Compatible: yes
Control Terminals
• RS232C: yes
• LAN: yes (with Option PN-ZB02)
Audio Terminals
• Mini Jack (3.5 mm) in/out: yes/no
• RCA-Stereo Terminal In/Out: yes/yes (with Option
PN-ZB02)
• Via HDMI-Terminal: yes
• Speaker Output (W RMS): Speaker Output 2x 10W;
(Option AN-ZB02)
SHARP ELECTRONICS (SCHWEIZ) AG, Moosstrasse 2a, 8803 Rüschlikon, Telefon 044 846 61 11, Fax 044 846 62 50, www.sharp.ch
Video / Colour Standards
• PAL 60/N/M: yes/yes/yes
• SECAM: yes
• NTSC (MHz) 3.58/ 4.43: yes/yes
• DTV 480i/480p/540p
• 576i/576p
• 720p/1.035i
• 1080i/1080p
• 1080/24p
Installation
• Portrait / Landscape
• Mounting Pitches (mm): VESA 200, 4x M6 10mm
200x200, 400x200
Accessories
• Remote Control / Owners Manual (CD-ROM)
• Power Cable / PC Cable
Others
• Special Features: 24/7 (Landscape 50.000h, Portrait
50.000h)
LED back light; full white
Control kit (Option PN-ZR01)
• Class A: This is a Class A product. In a domestic
environment this product may cause radio interference
in which case the user may be required to take adequate
measures.
• Built-in Fan
• Picture-in-Picture (PiP)
• Split Screen Function: 5x5 internal
• DSPA (Data Signal Power Auto)
• Power supply (V) / power consumption, standard (W) /
power consumption, ECO (W) / stand-by (W): 100-240V /
480W
• Heat Dissipation (BTU / h): ECO-lMode / Standard: 1638
• Dimensions in mm (W x H x D): 1.335,9 x 754,2 x 149,3
• Weight (kg): 45
• EAN: 4974019679280
• Consommation électrique en mode «marche» (W), IEC
62087 Ed. 2.0: 344.6
• Consommation électrique en mode «marche» (W), IEC
62087: 480
• Consommation d’électricité en mode(s) «veille» (W), IEC
62301 Ed. 1.0: 0,502
• Consommation d’électricité en mode «arrêt» (W), IEC 62301
Ed. 1.0: 0
• Rapport luminance de crête, menu imposé (%)
• Rapport luminance de crête, sans menu imposé (%): 85
• Teneur en mercure (mg): 0
• Présence de plomb
