Sharp PNL703W Specifications

PN-L703W
PN-L603W

AQUOS BOARD®
Interactive Display Systems

Easy Wireless Functionality

for Seamless and Lively Meetings

This software is especially effective for communications with large audiences. By allowing the AQUOS BOARD interactive display to share
its onscreen content with up to 50 devices*, and by enabling the exchange of les between those devices, SHARP Display Connect
facilitates lively discussions and paperless meetings in both business and educational settings.

SHARP Display Connect

* The number of connectable mobile devices depends on the host OS and the accompanying Windows End-User License Agreement: Windows 7: Max. 20; Windows 8/8.1,

Windows 10: Max. 50. OS requirements (as of November 2015): Host: Windows 7, Windows 8/8.1, Windows 10; Client: Windows 7, Windows 8/8.1, Windows 10,
OS X v10.7–10.10, Android 2.3–5.0, iOS 6.0–8.0. Connecting 26 or more mobile devices requires at least two LAN access points.

The PN-L703W/603W interactive displays let you capture ideas at
the moment of creation. Recognizing up to 10 touch points, they
allow up to four people to write at the same time with a nger or
touch pen.

Simultaneous Writing for Up to 4 People

The easy-to-launch SHARP Pen Software user interface incorporates
a menu comprising smartly arranged icons that provide easy access
to pen settings and functions. Settings such as color and line
thickness can be established for each touch pen. The menus for
each pen can be displayed in a oating format that allows them to be
moved to any convenient location on the screen.

User-Friendly SHARP Pen Software Interface

SHARP Touch Viewer software is a touch-operated onscreen user
interface that lets you easily view, manipulate, and write annotations on
different types of les, including Microsoft
and Web pages. Being able to organize a variety of le types in one
work area allows you to have more active discussions.

Revolutionize Discussions with SHARP Touch Viewer Software

The PN-L703W/603W interactive displays feature a pen digitizer function that automatically distinguishes pen and nger input, allowing you to
perform pen and touch operations without having to switch modes. The bundled touch pen employs a pressure sensor that faithfully renders your
writing style. The pen digitizer function is compatible with Microsoft Ofce* (Excel, Word, PowerPoint and OneNote
Illustrator

®

and SHARP Touch Viewer software.

* Not certified by Microsoft.

Pen Digitizer Functionality Boosts Communicative Potential

View various types of files in one work area

Various kinds of les*—including Microsoft Ofce les, PDFs, Web pages, and
image and video les—can be displayed on the screen as “sheets.” There’s no
need to open the respective applications, and you can view all the different les
simultaneously in the same work area.

* Viewable files: Microsoft Office (Excel

WMV/AVI/MP4/FLV.

Edit original data

Original Microsoft Ofce les displayed as “sheets” can be easily opened with
compatible applications and edited.

Store onscreen layouts

Onscreen layouts of “sheets” can be stored for later retrieval, so you can easily
restart a discussion where you left off.

The AQUOS BOARD® Interactive Display That Lets

Note: Download SHARP Touch Viewer software from the bundled CD-ROM.

You Bring Your Own Device (BYOD) to Unleash Creativity

PN-L703W/603W touchscreen LCD monitors boast

wireless connectivity, enabling a range of different

devices to connect to them. Information from the 70"

Class (69.5" diagonal) and 60" Class (60.5" diagonal)

devices can be displayed in a 2 x 2 split screen,

allowing for highly productive interactions. Using

TM

SHARP Touch Viewer

software, you can manipulate

various le types in the same work area. The pen

digitizer function, meanwhile, distinguishes between

pen and nger input and supports natural and

seamless operation. These and other superb AQUOS

BOARD interactive display features are sure to boost

creativity and participation levels in presentations and

small-scale meetings, while fullling the growing

demand for cable-free connection of BYO devices.

Flexible Communications with a Variety of Devices

Wireless Connectivity

Now there’s no need to mess with tangled wires or conversion
adaptors when you want to share your ideas. The PN-L703W/603W
interactive displays have a built-in wireless controller that enables
multiple devices—including Mac
smartphones, and tablets—to connect wirelessly via dedicated
connection software. Mac and Windows users also have a handy
option for quick, temporary connection: they can launch the wireless
connection software on the bundled token without pre-installing
anything. Thanks to wireless connectivity on the PN-L703W/603W
interactive displays, meeting participants can enjoy BYOD freedom
as well as speedy and active communications.

Note: Connection software is downloadable from the App Store® online store (iOS® platform)
or Google Play

Wireless Connection System Requirements

Windows® CPU Intel® Core™ 2 Duo 2.8 GHz or higher (Intel® Core™ i5 or higher recommended)
Mac

Windows
Mac OS X v10.9, Mac OS X v10.10

Memory 2 GB or more (4 GB or more recommended)
Hard disk 200 MB capacity or more
iOS iPhone, iPad operating on Apple iOS 7.0 or later
Android
Chrome OS™ *

*Coming Q1 2016

TM

store (AndroidTM platform). Additional terms may apply.

OS Windows

™

Smartphone or tablet operating on Android™ 4.0 or later

®

®

Chromebook operating on Chrome OS™ with 2GB or more

2 x 2 Split-Screen Display

The PN-L703W/603W interactive displays can connect wirelessly with
multiple mobile devices and simultaneously display the onscreen
contents of those devices in a 2 x 2 split screen. Alternatively, any one
of the individual screens can be enlarged to full-screen size. The screen
can be switched either from the AQUOS BOARD interactive display or
from a connected device.

®

or Windows® computers,

7 (32 bit/64 bit), Windows® 8 (32 bit/64 bit)

8.1 (32 bit/64 bit), Windows® 10 (32 bit/64 bit)

Enhanced Security

Because data is not stored during wireless connection, there’s no
need to worry about any leakage of condential information from a
discussion or presentation.

Overlay Function

In overlay mode, you can write annotations on a transparent screen
that overlays the visible onscreen content. Text and graphics written
on the AQUOS BOARD interactive display can be captured—along
with the contents on the screen—and saved as JPEG les on a
connected USB memory device or on a wirelessly connected Mac or
Windows computer. The overlay function is a major boon when you
want to share meeting notes with participants and others.

Note: Original files or content shown on the screen cannot be accessed directly during
overlay mode.

Direct Drawing Function

The PN-L703W/603W interactive displays can be quickly switched to
enable use of Direct Drawing, a user-friendly function that’s just like
using a whiteboard. Even for rst-time users, this simple
write-and-erase function is easy and intuitive to operate. Screen
captures can be saved as JPEG les on a USB memory device.

1

Windows

3

Android

®

1

2

2

Mac

3

™

4

4

iOS

Touch “Direct Drawing” on the onscreen menu

Flexible, Natural Work Environment

Revolutionize Discussions with SHARP Touch Viewer Software

SHARP Touch Viewer software is a touch-operated onscreen user
interface that lets you easily view, manipulate, and write annotations on

View Web browsers Play back video content

different types of les, including Microsoft® Ofce applications, videos,
and Web pages. Being able to organize a variety of le types in one
work area allows you to have more active discussions.

View various types of files in one work area

Various kinds of les*—including Microsoft Ofce les, PDFs, Web pages, and
image and video les—can be displayed on the screen as “sheets.” There’s no
need to open the respective applications, and you can view all the different les
simultaneously in the same work area.

* Viewable files: Microsoft Office (Excel®, Word, PowerPoint®), PDF, JPEG/PNG/BMP/TIFF, and

WMV/AVI/MP4/FLV.

Edit original data

Original Microsoft Ofce les displayed as “sheets” can be easily opened with
compatible applications and edited.

Store onscreen layouts

Onscreen layouts of “sheets” can be stored for later retrieval, so you can easily
restart a discussion where you left off.

Note: Download SHARP Touch Viewer software from the bundled CD-ROM.

Write onscreen

annotations

Retrieve files from

“drawers”*

* Drawers can be linked to PC folders or network folders.

Manipulate various

file types

Pen Digitizer Functionality Boosts Communicative Potential

The PN-L703W/603W interactive displays feature a pen digitizer function that automatically distinguishes pen and nger input, allowing you to
perform pen and touch operations without having to switch modes. The bundled touch pen employs a pressure sensor that faithfully renders your
writing style. The pen digitizer function is compatible with Microsoft Ofce* (Excel, Word, PowerPoint and OneNote®), Adobe Photoshop®, Adobe
Illustrator

* Not certified by Microsoft.

®

and SHARP Touch Viewer software.

Smooth Operation and Comfortable Writing

Simultaneous Writing for Up to 4 People

The PN-L703W/603W interactive displays let you capture ideas at
the moment of creation. Recognizing up to 10 touch points, they
allow up to four people to write at the same time with a nger or
touch pen.

User-Friendly SHARP Pen Software Interface

The easy-to-launch SHARP Pen Software user interface incorporates
a menu comprising smartly arranged icons that provide easy access
to pen settings and functions. Settings such as color and line
thickness can be established for each touch pen. The menus for
each pen can be displayed in a oating format that allows them to be
moved to any convenient location on the screen.

Touch-operated onscreen menu

Pressing the Touch Menu button on the PN-L703W/603W interactive
displays instantly displays an onscreen menu that lets you easily
switch input sources, change volume level, or turn the touchscreen
function on and off without using a remote controller.

Handwriting Recognition

A handwriting recognition* function converts selected onscreen
handwriting into standard text. This convenient function allows you to
utilize onscreen content to make neat and legible minutes of your
meetings.

*Works with languages supported by SHARP Pen Software. Please see the SHARP Pen

Software manual for supported languages.

Minimize glare and fingerprints

Protecting the screen is an anti-glare lm that works to help reduce
glare and reections and minimize ngerprint soiling on the glass.

Front-mounted speakers

Two speakers (10 W + 10 W) are mounted low on the front of the LCD
monitor to deliver clearer sound.

SHARP Display Connect

This software is especially effective for communications with large audiences. By allowing the AQUOS BOARD interactive display to share
its onscreen content with up to 50 devices*, and by enabling the exchange of les between those devices, SHARP Display Connect
facilitates lively discussions and paperless meetings in both business and educational settings.

* The number of connectable mobile devices depends on the host OS and the accompanying Windows End-User License Agreement: Windows 7: Max. 20; Windows 8/8.1,

Windows 10: Max. 50. OS requirements (as of November 2015): Host: Windows 7, Windows 8/8.1, Windows 10; Client: Windows 7, Windows 8/8.1, Windows 10,
OS X v10.7–10.10, Android 2.3–5.0, iOS 6.0–8.0. Connecting 26 or more mobile devices requires at least two LAN access points.

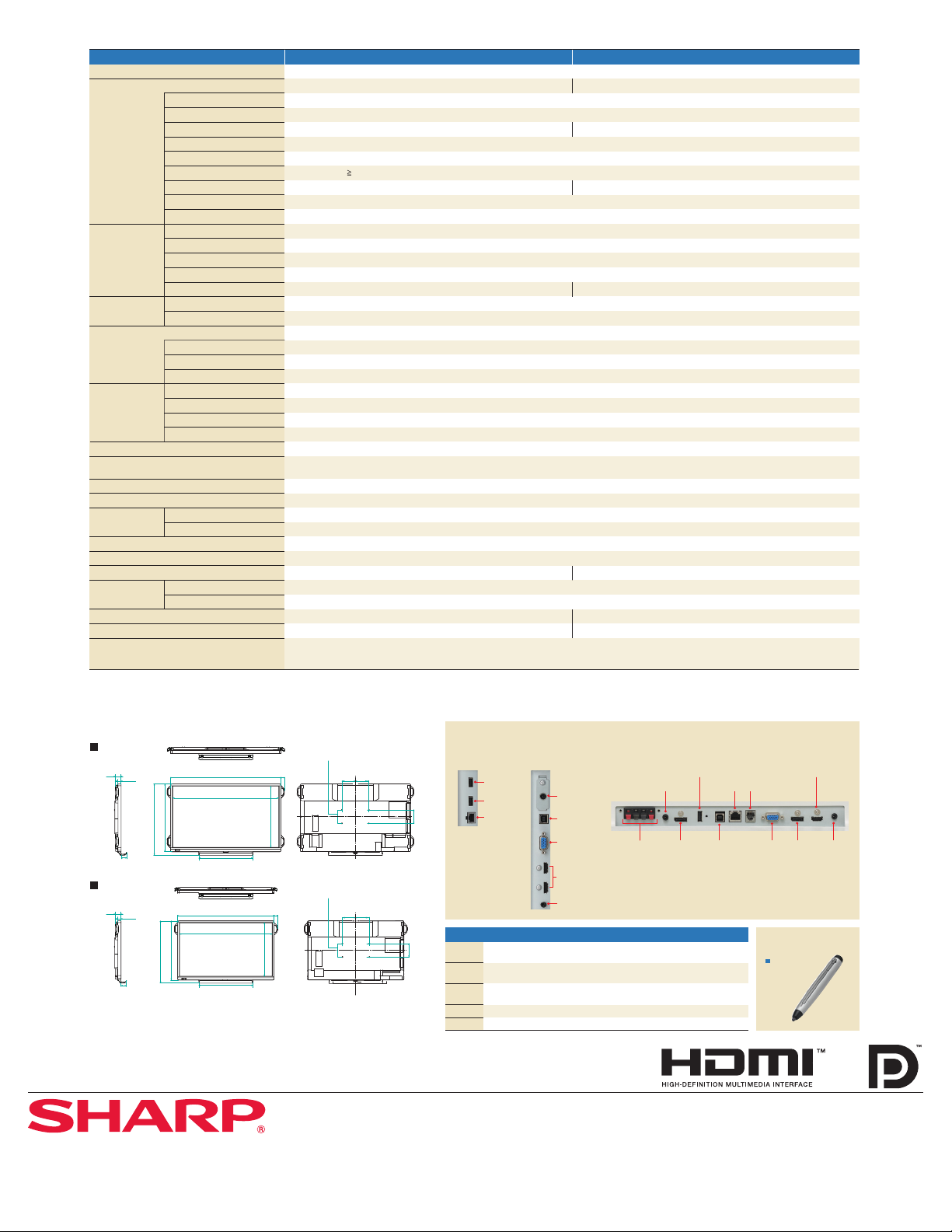

Specifications

Installation

LCD Panel

Max. Resolution

Max. Display Colors (approx.)

Pixel Pitch (H x V)

Max. Brightness (average)*

Contrast Ratio

Viewing Angle (H/V)

Active Screen Area (W x H) (approx.)

Response Time

Backlight

Touchscreen Touch Technology

PC Connection Port

Power Supply

Multi Touch

Protection Glass

Touch Pen Communication

Function Button

Wireless Controller

LAN Terminal

USB Port

Wireless Adapter Port

Computer Input Video

Synchronization

Plug & Play

Power Management

Video Color System

Input Terminals*

Output Terminals*

Input/Output Terminals*

6

6

6

Speaker Output Built-in

External

Mounting

Power Supply

Power Consumption

Environmental Operating Temperature
Conditions

Operating Humidity

Dimensions (W x D x H) (approx.) (display only)

Weight (approx.)

Main Accessories

2

A stands for Ultraviolet-induced Multi-domain Vertical Alignment, a photo-alignment technology that ensures uniform alignment of liquid crystal molecules. *2 Brightness depends on input mode and other picture settings. Brightness level will decrease

*1 UV

slightly over the lifetime of the product. Due to the physical limitations of the equipment, it is not possible to maintain a precisely constant level of brightness. *3 Including AG film on the front and AR film on the back. *4 Approximate distance at which the glass
panel can withstand the impact of a 500-gram iron ball dropped on its center. *5 D-sub input terminal only. *6 Use a commercially available connection cable for PC and other video connections. *7 Analog PC, video, and component video are switchable (on
bottom interface); use the menu to select. Video and component video connections require conversion cable via mini D-sub 15-pin jack. *8 Requires the bundled RS-232C conversion cable. For command control only.

Dimensions

PN-L703W

3 11/

16

15

1

/16

(94)

(49)

(1,062)

16

/

13

41

1

3

/4 (82)

PN-L603W

11

3

/

16

15

/16

1

(94)

(49)

1

/4 (82)

3

Units: inch (mm)

* Screen dimensions ** When inserted, the wireless adapter protrudes slightly.

* To use the VESA-standard mounting bracket, use M6 screws that are 8 to 10 mm plus the thickness of the bracket.

(942)

16

/

1

37

3

(1,010)

4

/

39

(890)

16

/

1

35

64 13/16 (1,647)

62 3/16 (1,580)*

11

31

/16 (805)

9

56

/16 (1,437)**

53 15/16 (1,370)*

31 11/16 (805)

Landscape

70" Class (69.5" diagonal) UV

2A*1

LCD 60" Class (60.1” diagonal) UV2A*1 LCD

1,920 x 1,080 pixels

1.06 billion colors

0.802 x 0.802 mm 0.692 x 0.692 mm

2

300 cd/m

2

3,000 : 1

160°/160° (CR 10)

9

/16" x 34 1/16" 52

60

5

/16" x 29 7/16"

6 ms (grey to grey, avg.)

LED, edge lit

IR (infrared blocking detection method)

USB (2.0 compliant) (Type B) x 2

Supplied from main unit

10 points

Thickness: Approx. 3.4 mm*

3

Shock resistance: 130 cm*4 Thickness: Approx. 3.0 mm*

3

Shock resistance: 130 cm*

Wireless communication method

Yes

Wireless communication method (2.4 GHz, IEEE802.11 b/g/n) (5 GHz, IEEE802.11 a/n)

10Base-T/100Base-TX

USB (2.0 compliant) (Type A) x 1

USB (2.0 compliant) (Type A) x 1

Analog RGB (0.7 Vp-p) [75Ω], DisplayPort

Horizontal/vertical separation (TTL: positive/negative), Sync on green*

TM

1.1a

5

, Composite sync (TTL: positive/negative)*5

VESA DDC2B

VESA DPMS

NTSC (3.58 MHz, 4.43 MHz), PAL, PAL60, SECAM

PC analogue: Mini D-sub 15-pin x 2*

7

, Component video x 1*7, DisplayPort (HDCP compatible, PC signal compatible) x 1, RS-232C x 1*8

1*

7

, HDMITM (HDCP and 1080p compatible, PC/AV signal compatible) x 3, 3.5 mm-diameter mini stereo jack x 2, Video x

3.5 mm-diameter mini stereo jack x 1, DisplayPort (HDCP compatible) x 1

LAN port (10Base-T/100Base-TX) x 1

10 W + 10 W

10 W + 10 W (6Ω)

VESA (4 points), 400 x 200 mm pitch, M6 screw

100V – 240V AC, 50/60 Hz

235 W 190 W

5˚C to 35˚C

20% to 80% RH (no condensation)

13

/16" x 3 11/16" x 39 3/4" 56

64

9

/16" x 3 11/16" x 35 1/16"

134.5 lbs 105.9 lbs

AC power cord, remote control unit, battery (AA size x 2), set-up manual, blank sticker, cable clamps x 5, camera mount, USB cable (3.0 m), eraser, pen tray,
touch pen (with function button), pen adapter, touch pen battery (AAA size), SHARP Display Connect software CD-ROM, wireless token, wireless adapter,
wireless adapter cover, RS-232C conversion cable (3.5 mm-diameter mini stereo jack) x 1

Input/Output Terminals

VESA holes*

15

/16

1

(49)

(910)*

16

/

13

35

15

1

/16

(49)

(790)*

8

/

1

31

VESA holes*

7 7/
(200)

7 7/
(200)

7 7/

8

8

(200)

7 7/

8

8

(200)

(Side)

USB
(for wireless
adapter)

USB*

LAN port

Windows® PC System Requirements

PC

PC/AT compatible machine with USB 2.0 port and screen resolution of 1,920 x 1,080
(CD-ROM drive required for installation)

CPU

OS

Memory

Hard disk

®

Intel

Celeron® 1.6 GHz, or AMD Sempron™ 1.6 GHz or higher

(Intel Core™ 2 Duo 2.8 GHz, or AMD Athlon™ II x 2 2.8 GHz or higher recommended)

Windows 7 (32-bit/64-bit), Windows 8 (32-bit/64-bit), Windows 8.1 (32-bit/64-bit),
Windows 10 (32-bit/64-bit)

2 GB or more

200 MB or more free space (additional space required for saving data)

(200)

8

/

7

7

(200)

8

/

7

7

RS-232C
input

USB (for PC)

PC analogue
input RGB
(D-sub)

PC/AV input
(HDMI)

Audio input

(Bottom)

Audio output

External
speakers

USB (for pen adapter)

LAN port Option terminal

output

USB

(for PC)

DisplayPort

PC analogue
input (D-sub)

Option

* For USB ash driver

PN-ZL02 :
Touch Pen

4

PC/AV input (HDMI)

DisplayPort

Audio

input

input

PN-L603WModel Name PN-L703W

SHARP ELECTRONICS CORPORATION
100 Paragon Drive, Montvale, NJ 07645
1-800-BE-SHARP • www.sharpusa.com

© 2017 Sharp Electronics Corporation. All rights reserved.

05/17

Printed in the U.S.

PDD-16-003

Product specications are subject to change without notice. Sharp, Sharp Touch Viewer and AQUOS BOARD are trademarks or registered trademarks of
Sharp Corporation and/or its afliated entities. Microsoft PowerPoint, Excel, Windows, OneNote, and Outlook are either registered trademarks or trademarks
of Microsoft Corporation in the US and/or other countries. DisplayPort and the DisplayPort Compliance Logo are trademarks owned by the Video Electronics
Standards Association in the US and other countries. The terms HDMI and High-Denition Multimedia Interface and the HDMI logo are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc. in the US and other countries. Chrome OS and Chromebook are trademarks of Google Inc. Intel, Intel Core,
and Celeron are trademarks of Intel Corporation in the US and/or other countries. Sempron and Athlon are trademarks of Advanced Micro Devices, Inc. Adobe,
Illustrator, and Photoshop are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. Apple,
iPhone, iPad, Mac, and OS X are trademarks of Apple Inc., registered in the US and other countries. Android and Google Play are trademarks of Google Inc. App
Store is a service mark of Apple Inc. iOS is a trademark or registered trademark of Cisco in the US and other countries and is used under license. All other brand
names and product names may be trademarks or registered trademarks of their respective owners. All screen images appearing in this brochure are simulated.
