OPERATION MANUAL

MODEL

PG-MB60X

Introduction

Quick Start

Setup

Connections

MULTIMEDIA PROJECTOR

Basic Operation

Useful Features

Appendix

IMPORTANT

For your assistance in reporting the loss or theft of your Projector, please record the Serial Number located on the bottom of the projector and retain this information. Before recycling the packaging, please ensure that you have checked the contents of the carton thoroughly against the list of “Supplied accessories” on page

10.

Model No.: PG-MB60X

Serial No.:

SPECIAL NOTE FOR USERS IN THE U.K.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 5A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked above, which is also indicated on the pin face of the plug, must be used. Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner. Under no circumstances should the cut-off plug be inserted elsewhere into a 5A socket outlet, as a serious electric shock may occur. To fit an appropriate plug to the mains lead, follow the instructions below:

WARNING:

THIS APPARATUS MUST BE EARTHED.

IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow : Earth Blue : Neutral

Brown : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

or and of the same rating as

• The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by

the letter E or by the safety earth symbol

or coloured green or green-and-yellow.

• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured

black.

• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured

red.

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

The supplied CD-ROM contains operation instructions in English, German, French, Swedish, Spanish, Italian, Dutch, Portuguese, Chinese (Traditional Chinese and Simplified Chinese) and Korean. Carefully read through the operation instructions before operating the projector.

Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Schwedisch, Spanisch, Italienisch, Niederländisch, Portugiesisch, Chinesisch (Traditionelles Chinesisch und einfaches Chinesisch) und Koreanisch. Bitte lesen Sie die Bedienungsanleitung vor der Verwendung des Projektors sorgfältig durch.

Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, suédois, espagnol, italien, néerlandais, portugais, chinois (chinois traditionnel et chinois simplifié) et coréen. Veuillez lire attentivement ces instructions avant de faire fonctionner le projecteur.

Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska, svenska, spanska, italienska, holländska, portugisiska, kinesiska (traditionell kinesiska och förenklad kinesiska) och koreanska. Läs noga igenom bruksanvisningen innan projektorn tas i bruk.

El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, sueco, español, italiano, holandés, portugués, chino (chino tradicional y chino simplificado) y coreano. Lea cuidadosamente las instrucciones de operación antes de utilizar el proyector.

Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese, svedese, spagnolo, italiano, olandese, portoghese, cinese (cinese tradizionale e cinese semplificato) e coreano. Leggere attentamente le istruzioni per l’uso prima di usare il proiettore.

De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Zweeds, Spaans, Italiaans, Nederlands, Portugees, Chinees (Traditioneel Chinees en Vereenvoudigd Chinees) en Koreaans. Lees de handleiding zorgvuldig door voor u de projector in gebruik neemt.

O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Sueco, Espanhol, Italiano, Holandês, Português, Chinês, (Chinês Tradicional e Chinês Simplificado) e Coreano. Leia cuidadosamente todas as instruções de operação antes de operar o projetor.

Before using the projector, please read this operation manual carefully.

Introduction

ENGLISH

There are two important reasons for prompt warranty registration of your new SHARP Projector, using the REGISTRATION CARD packed with the projector.

1. WARRANTY

This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase.

2. CONSUMER PRODUCT SAFETY ACT

To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.

U.S.A. ONLY

WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially

careful that children do not stare directly into the beam of light.

WARNING: To reduce the risk of fire or electric shock, do not expose this product to

rain or moisture.

See bottom of projector.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT REMOVE SCREWS

EXCEPT SPECIFIED USER

SERVICE SCREW.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.

WARNING:

DO NOT REMOVE COVER.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

U.S.A. ONLY

INFORMATION

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

The enclosed computer cable must be used with the device. The cable is provided to ensure that the device complies with FCC Class A verification.

U.S.A. ONLY

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

-1

WARNING:

The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode. During normal operation, when putting the projector into standby mode always use the STANDBY button on the projector or on the remote control. Ensure the cooling fan has stopped before disconnecting the power cord. DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.

PRODUCT DISPOSAL

This projector utilizes tin-lead solder, and a pressurized lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or, if you are located in the United States of America, the Electronic Industries Alliance: www.eiae.org .

Caution Concerning Lamp Replacement

See “Replacing the Lamp” on page 64.

LAMP REPLACEMENT WARNING :

TURN OFF THE LAMP AND DISCONNECT POWER CORD BEFORE OPENING THIS COVER. HOT SURFACE INSIDE. ALLOW 1 HOUR TO COOL BEFORE REPLACING THE LAMP. REPLACE WITH SAME SHARP LAMP UNIT MODEL AN-MB60LP ONLY.

HIGH PRESSURE LAMP :

POTENTIAL HAZARD OF GLASS PARTICLES IF LAMP HAS RUPTURED. HANDLE WITH CARE. SEE OPERATION MANUAL.

SERVICEMAN-WARNING :

SKIN PROTECTION DURING SERVICING.

AVERTISSEMENT CONCERNANT LE REMPLACEMENT DE LA LAMPE :

ETEINDRE LA LAMPE ET DEBRANCHER LE CORDON D’ALIMENTATION AVANT D’OUVRIR LE COUVERCLE. L’INTERIEUR DU BOITIER ETANT EXTREMEMENT CHAUD, ATTENDRE 1 HEURE AVANT DE PROCEDER AU REMPLACEMENT DE LA LAMPE. NE REMPLACER QUE PAR UNE LAMPE SHARP DE MODÈLE AN-MB60LP.

LAMPE A HAUTE PRESSION :

D’EXPLOSION. DANGER POTENTIEL DE PARTICULES DE VERRE EN CAS D’ECLATEMENT DE LA LAMPE. A MANIPULER AVEC PRECAUTION. SE REPORTER AU MODE D’EMPLOI.

AVERTISSEMENT – REPARATEUR :

YEUX ET LA PEAU DES RADIATIONS LORS DES REPARATIONS.

RISK OF EXPLOSION.

USE RADIATION EYE AND

RISQUE

SE PROTEGER LES

This SHARP projector uses a DMD panel. This very sophisticated panel contains 786,432 pixels micromirrors. As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to. This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit.

• DLPTM (Digital Light Processing) and DMDTM (Digital Micromirror Device) are trademarks of Texas Instru-

ments, Inc.

• Microsoft

and Windows® are registered trademarks of Microsoft Corporation in the United States and/or

other countries.

• PC/AT is a registered trademark of International Business Machines Corporation in the United States.

• Adobe

• Macintosh

Reader® is a trademark of Adobe Systems Incorporated.

is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.

• All other company or product names are trademarks or registered trademarks of their respective compa-

nies.

• Some IC chips in this product include confidential and/or trade secret property belonging to Texas Instru-

ments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble or discompile the contents thereof.

-2

How to Read this Operation Manual

••

• In this operation manual, the illustrations and on-screen displays are simplified for explana-

••

tion. This may differ from the actual on-screen display.

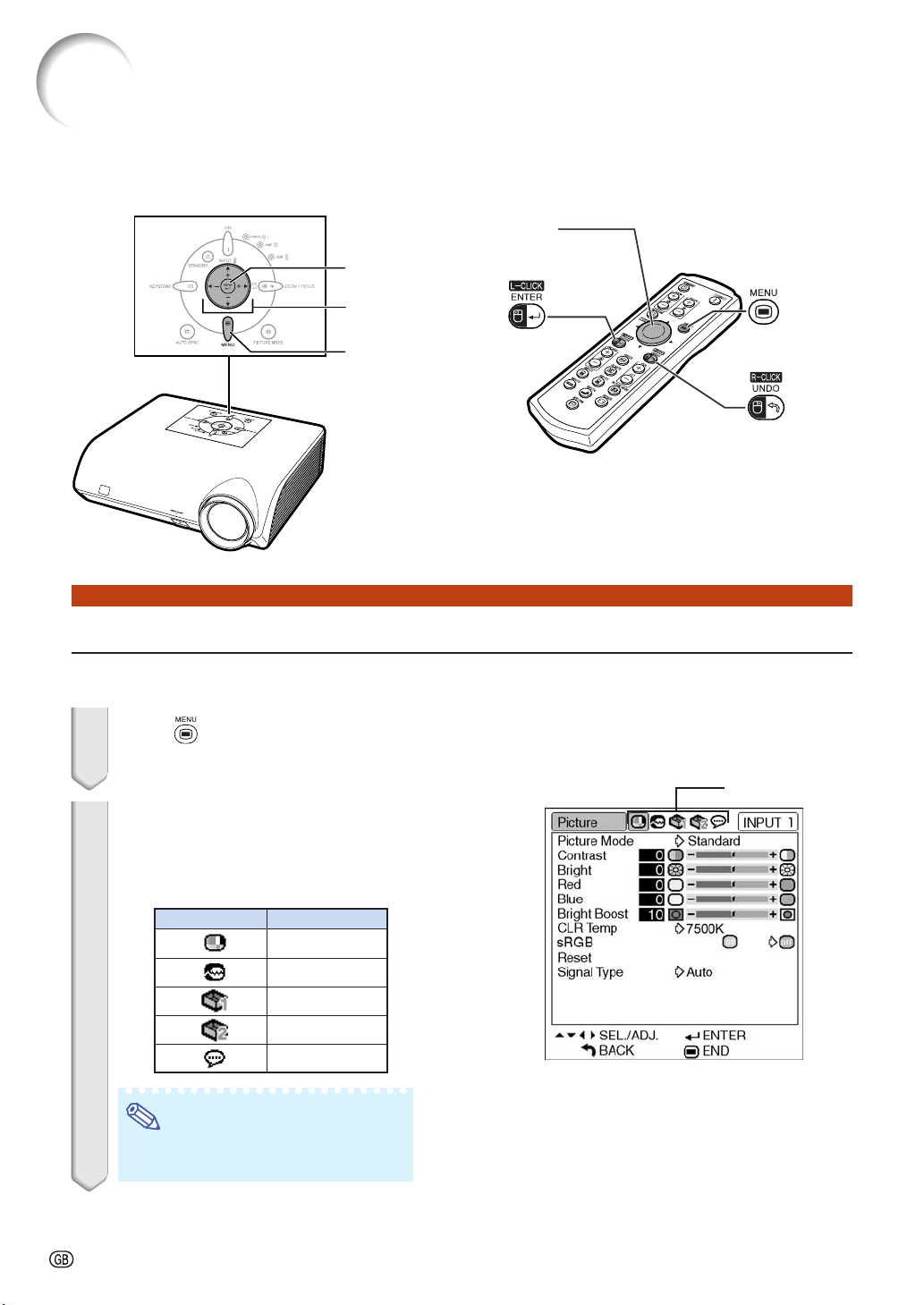

Using the Menu Screen

The menu can be operated to achieve two functions, adjustments and settings. (For setting the menu items, see pages 42 and 43. )

MOUSE/ Adjustment

Buttons used in this operation

Button used in this step

ENTER button

Adjustment buttons ('/"/\/|)

MENU button

Menu Selections (Adjustments)

Example: Adjusting “Bright”

• This operation can also be performed by using the buttons on the projector.

Press .

• The “Picture” menu screen for the selected input mode is displayed.

Press

| or

\ to display the other

menu screens.

• The menu icon for the selected menu screen is highlighted.

Menu icon Menu screen


Fine Sync

Options1

Options2

Language

Note

• The “Fine Sync” menu is not available

for selecting INPUT 3 or INPUT 4.

button ('/"/\/|)

ENTER button

Example: “Picture” screen menu for

INPUT 1 (RGB) mode

Menu icons

MENU button

UNDO button

Buttons used in this operation

On-screen display

Introduction

-40

Info

............Indicates safeguards when using the projector.

........Indicates additional information for setting up and operating the projector.

Note

For Future Reference

Maintenance Troubleshooting Index

Page 61

Pages 68 and 69

Page 73

-3

Preparing

Introduction

How to Read this Operation Manual ............. 3

Contents.......................................................... 4

IMPORTANT SAFEGUARDS .......................... 6

How to Access the PDF Operation Manuals

Accessories .................................................. 10

Part Names and Functions .......................... 11

Using the Remote Control ........................... 15

Usable Range .................................................... 15

Inserting the Batteries ....................................... 15

Quick Start

Quick Start .................................................... 16

Setup

Storing the Projector ................................... 18

How to Use the Storage Case ........................... 18

Using

Basic Operation

Turning the Projector On/Off....................... 29

Image Projection .......................................... 30

Using the Adjustment Feet ................................ 30

Correcting Trapezoidal Distortion ...................... 31

Adjusting the Focus ........................................... 32

Adjusting the Projected Image Size .................. 32

Switching the INPUT Mode ............................... 33

Adjusting the Volume......................................... 33

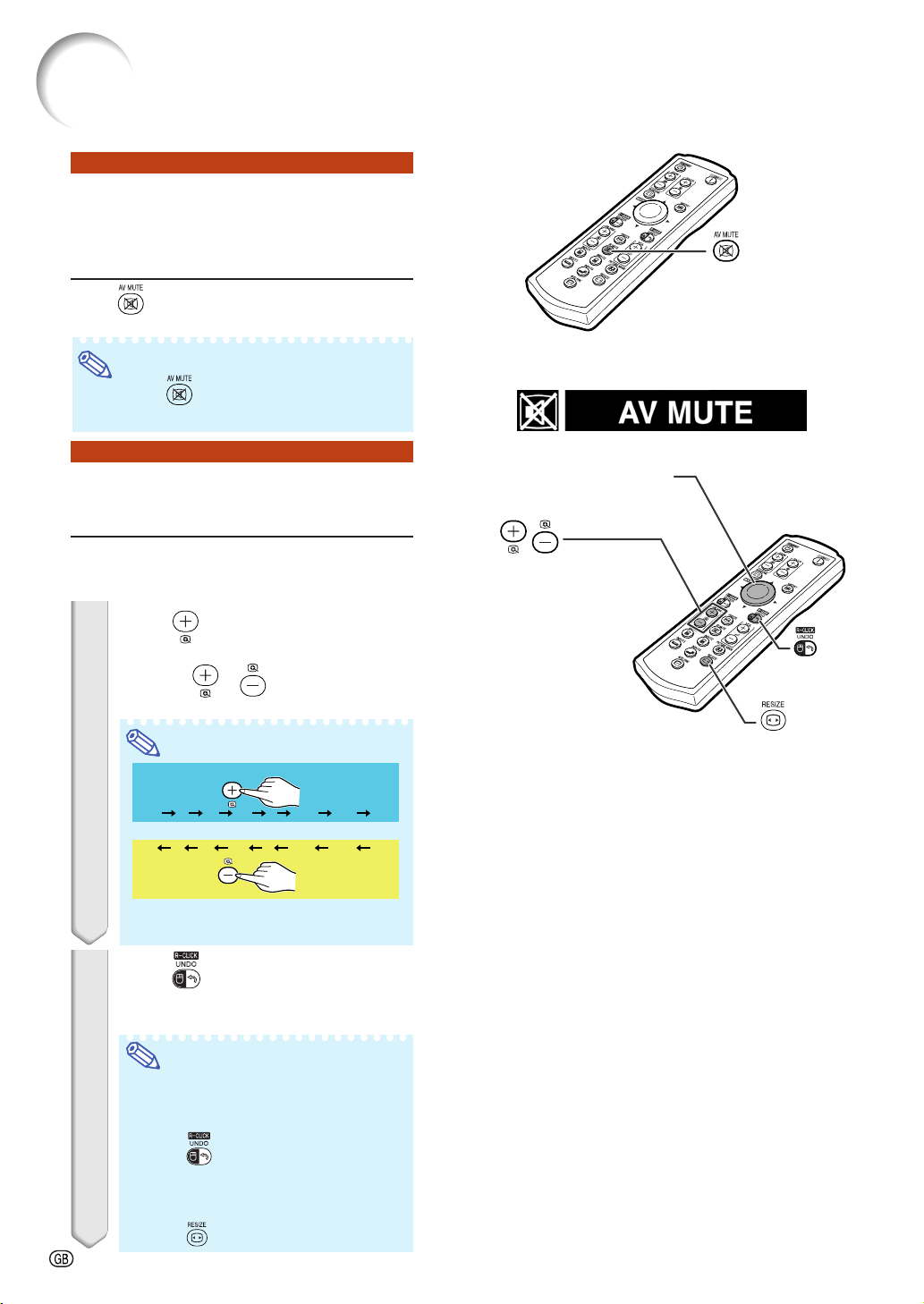

Displaying the Black Screen and Turning

off the Sound Temporarily ........................... 34

Displaying an Enlarged Portion of an Image

Freezing a Moving Image .................................. 35

Selecting the Picture Mode ............................... 35

Resize Mode ...................................................... 36

Useful Features

Menu Items ................................................... 38

Using the Menu Screen ............................... 40

Menu Selections (Adjustments) ......................... 40

Menu Selections (Settings) ................................ 42

Picture Adjustment (“Picture” menu)......... 44

Selecting the Picture Mode ............................... 44

Adjusting the Image .......................................... 44

Emphasizing the Contrast ................................. 45

Adjusting the Color Temperature ....................... 45

sRGB Setting ..................................................... 46

Signal Type Setting ............................................ 46

... 9

....... 34

Setting up the Projector .............................. 19

Setting up the Projector ..................................... 19

Projecting a Reversed Image ............................ 20

Connections

Connections ................................................. 21

INPUT/OUTPUT Terminals and Connectable

Main Equipment .......................................... 21

Samples of Cables for Connection ............. 22

Connecting to a Computer .......................... 23

Using the Remote Control as the Wireless

Computer Mouse ........................................ 24

Connecting to Video Equipment ................. 25

Controlling the Projector by a Computer ... 27 Connecting to a Monitor with RGB

Input Terminal ......................................... 28

Connecting to an Amplifier or Other

Audio Equipment .................................... 28

Computer Image Adjustment

(“Fine Sync” menu) ................................ 47

Adjusting the Computer Image ......................... 47

Special Modes Setting ...................................... 47

Auto Sync Adjustment ....................................... 48

Checking the Input Signal ................................. 48

Using the “Options1” Menu ......................... 49

Checking the Lamp Life Status ......................... 49

Setting the Resize Mode ................................... 49

Setting On-screen Display................................. 50

Setting the Video System................................... 50

Selecting a Startup and Background Image

Eco Mode .......................................................... 51

Auto Power Off Function .................................... 52

Selecting the Menu Screen Position .................. 52

System Lock Function ....................................... 53

Keylock Function ............................................... 54

Helpful Functions Set during Installation

(“Options2” menu) .................................. 55

Setting a Password ............................................ 55

If You Forget Your Password.............................. 55

Auto Keystone Setting ....................................... 56

Speaker Setting ................................................. 56

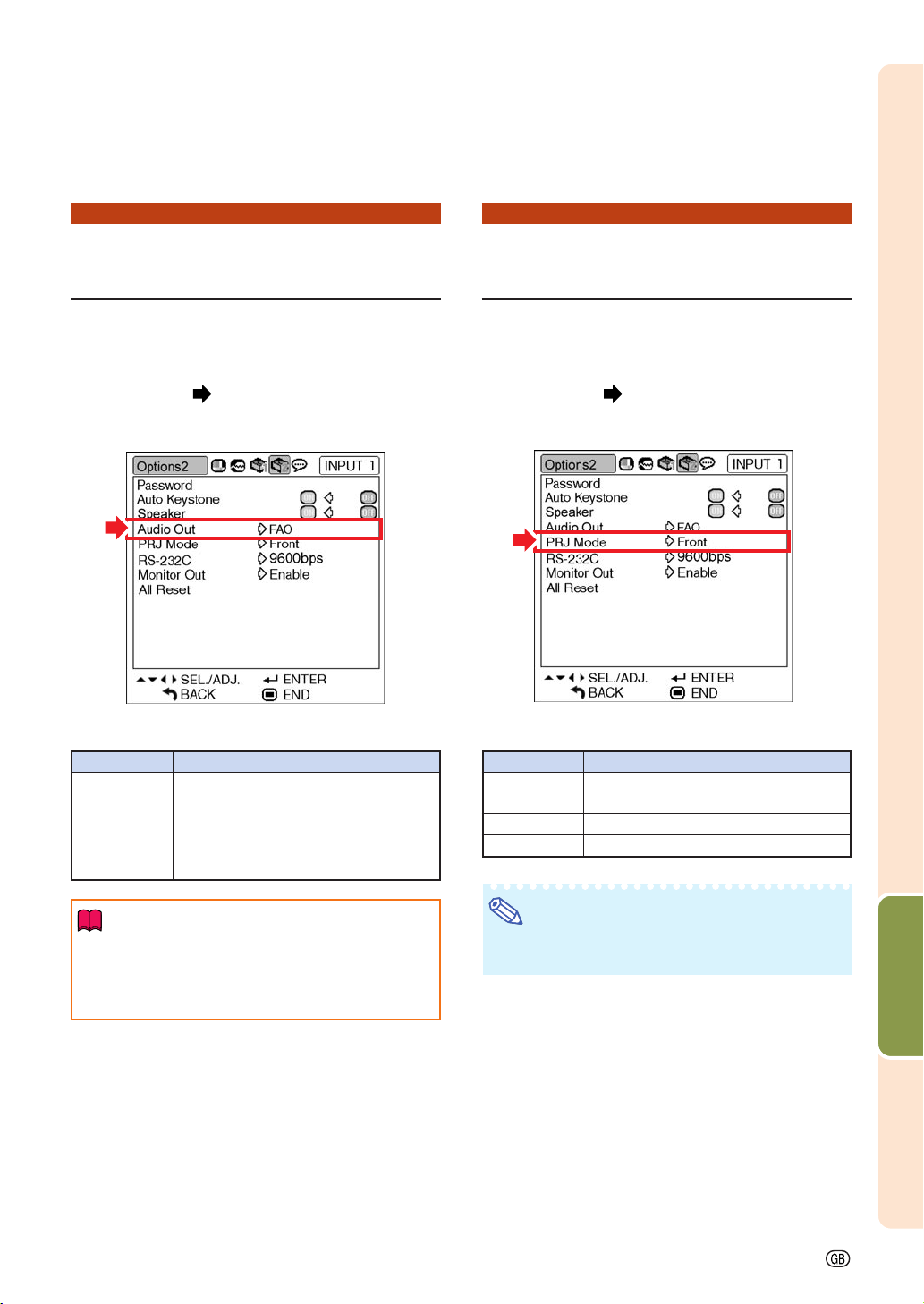

Setting the Audio Output Type .......................... 57

Reversing/Inverting Projected Images .............. 57

Selecting the Transmission Speed (RS-232C)

Monitor Output Settings ..................................... 58

Returning to the Default Settings ....................... 59

Using the “Language” Menu ....................... 60

Selecting the On-screen Display Language ....... 60

....... 51

....... 58

-4

Reference

Appendix

Maintenance ................................................. 61

Maintenance Indicators ............................... 62

Regarding the Lamp .................................... 64

Lamp ................................................................. 64

Caution Concerning the Lamp .......................... 64

Replacing the Lamp .......................................... 64

Removing and Installing the Lamp Unit ............ 65

Resetting the Lamp Timer ................................. 66

Computer Compatibility Chart .................... 67

Troubleshooting ........................................... 68

For SHARP Assistance ................................ 70

Specifications ............................................... 71

Glossary ........................................................ 72

Index .............................................................. 73

Introduction

-5

IMPORTANT SAFEGUARDS

CAUTION: Please read all of these instructions before you operate this product and save these

instructions for later use.

Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water–for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is provided with one of the following types of plugs. If the plug should fail to fit into the power outlet, please contact your electrician. Do not defeat the safety purpose of the plug.

a. Two-wire type (mains) plug. b. Three-wire grounding type (mains) plug with a

grounding terminal. This plug will only fit into a grounding type power outlet.

-6

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power-line surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into

the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by following

the operating instructions. Adjust only those controls

that are covered by the operating instructions, as an

improper adjustment of other controls may result in

damage and will often require extensive work by a

qualified technician to restore the product to normal

operation. e. If the product has been dropped or damaged in any

way. f. When the product exhibits a distinct change in

performance, this indicates a need for service.

19. Replacement Parts

When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21.Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Ensure that you read the following safeguards when setting up your projector.

Introduction

Caution concerning the lamp unit

■ Potential hazard of glass particles if lamp ruptures. In case of lamp rupture, contact your nearest Sharp Authorized Projector Dealer or Service Center for a replacement.

CAUTION PRECAUCION PRECAUTION

AN-MB60LP

See “Replacing the Lamp” on page 64.

Caution concerning the setup of the projector

■ For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the vents and lens must be cleaned more often. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by a Sharp Authorized Projector Dealer or Service Center.

Do not set up the projector in places exposed to direct sunlight or bright light.

■ Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.

The projector may be safely tilted to a maximum angle of 12 degrees.

■ Placement should be within ±12 degrees of horizontal.

Warning about placing the projector in a high position

■ When placing the projector in a high position, ensure to secure it carefully to avoid personal injury caused by the projector falling down.

Do not subject the projector to hard impact and/or vibration.

■ Take care with the lens so as not to hit or damage the surface of the lens.

Rest your eyes occasionally.

■ Continuously watching the screen for long hours will cause eye strain. Ensure to occasionally rest your eyes.

Avoid locations with extremes of temperature.

■ The operating temperature of the projector is from 41°F to 104°F (+5°C to +40°C).

■ The storage temperature of the projector is from –4°F to 140°F (–20°C to +60°C).

Do not block the intake and exhaust vents.

■ Allow at least 7 7/8 inches (20 cm) of space between the exhaust vent and the nearest wall or obstruction.

■ Ensure that the intake vent and the exhaust vent are not obstructed.

■ If the cooling fan becomes obstructed, a protection circuit will automatically put the projector into standby mode to prevent overheat damage. This does not indicate a malfunction (See pages 62 and 63.). Remove the pro- jector power cord from the wall outlet and wait at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power cord back in and turn on the projector. This will return the projector to the normal operating condition.

-7

IMPORTANT SAFEGUARDS

Caution regarding usage of the projector

■ When using the projector, ensure not to subject it to hard impact and/or vibration, as this can result in damage. Take extra care with the lens. If you are not to use the projector for a long time, ensure to unplug the power cord from the wall outlet, and disconnect any other cables connected to it.

■ Do not use the projector by holding the lens.

■ When storing the projector, ensure to attach

the lens cap to the projector. (See page 11.)

■ Do not expose the storage case or projector to direct sunlight or near heat sources. The storage case or projector may change color or become deformed.

Other connected equipment

■ When connecting a computer or other audiovisual equipment to the projector, make the connections AFTER unplugging the power cord of the projector from the AC outlet and turning off the equipment to be connected.

■ Please read the operation manuals of the projector and the equipment to be connected for instructions on how to make the connections.

Info

• The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction.

• Do not unplug the power cord during projection or cooling fan operation. This can cause damage due to rise in internal temperature, as the cooling fan also stops.

Using the projector in other countries

■ The power supply voltage and the shape of the plug may vary depending on the region or country you are using the projector in. When using the projector overseas, ensure to use an appropriate power cord for the country you are in.

Temperature monitor function

■

If the projector starts to overheat due to setup problems or blockage of the air vents, “ ” and “ ” will illuminate in the lower left corner of the picture. If the temperature continues to rise, the lamp will turn off, the temperature warning indicator on the projector will blink, and after a 90-second cooling-off period the projector will enter the standby mode. Refer to “Maintenance Indicators” on page 62 for details.

-8

How to Access the PDF Operation Manuals

PDF operation manuals in several languages are included in the CD-ROM, so that you can work with the projector. To utilize these manuals, you need to install Adobe® Reader® on your computer (Windows® or Macintosh®).

Please download Adobe® Reader® from the Internet (http://www.adobe.com).

Accessing the PDF Manuals

For Windows®:

1 Insert the CD-ROM in the CD-ROM drive. 2 Double click the “My Computer” icon. 3 Double click the “CD-ROM” drive. 4

When you want to view the operation manual

1) Double click the “MANUALS” folder.

2) Double click the language (name of the folder) that you want to view.

3) Double click the “MB60” pdf file to access the projector manuals.

When you want to view the setup guide

1) Double click the “SETUP” folder.

2) Double click the language (name of the folder) that you want to view.

3) Double click the “SE_MB6” pdf file to access the setup guide.

For Macintosh

1 Insert the CD-ROM in the CD-ROM drive. 2 Double click the “CD-ROM” icon. 3

When you want to view the operation manual

1) Double click the “MANUALS” folder.

2) Double click the language (name of the

3) Double click the “MB60” pdf file to access

When you want to view the setup guide

1) Double click the “SETUP” folder.

2) Double click the language (name of the

3) Double click the “SE_MB6” pdf file to access

folder) that you want to view.

the projector manuals.

folder) that you want to view.

the setup guide.

Introduction

Info

• If the desired pdf file cannot be opened by double clicking the mouse, start Adobe® Reader® first, then specify the desired file using the “File”, “Open” menu.

SETUP GUIDE

Refer to the “SETUP GUIDE” contained on the supplied CD-ROM for details.

Screen Size and Projection Distance ........... 2

Connecting Pin Assignments ....................... 3

RS-232C Specifications and Commands ..... 4

Dimensions ..................................................... 6

-9

Accessories

Supplied accessories

Some accessories (Remote control and Power cord etc.) are placed in the pocket of the storage case when shipped from the factory.

Remote control RRMCGA342WJSA

Two R-03 batteries (“AAA” size, UM/SUM-4, HP-16 or similar)

Power cord

(1)

For U.S., Canada, etc. (12' (3.6 m)) QACCDA010WJPZ

(2) (3)

For Europe, except U.K. (6' (1.8 m)) QACCVA011WJPZ

For U.K., Hong Kong and Singapore (6' (1.8 m)) QACCBA036WJPZ

*Use the power cord that corresponds to the wall outlet in your country.

RGB cable (9'10" (3.0 m)) QCNWGA045WJPZ

USB cable (9'10" (3.0 m)) QCNWGA014WJPZ

Projector manual and technical reference CD-ROM UDSKAA053WJZZ

Storage case GCASNA014WJSA

“QUICK GUIDE” label TLABZA793WJZZ

(4)

For Australia, New Zealand and Oceania (6' (1.8 m)) QACCLA018WJPZ

Lens cap (attached) RCAPHA021WJSA

Operation manual (this manual)

TINS-B526WJZZ

Optional accessories

■ 3 RCA to 15-pin D-sub cable (9'10'' (3.0 m)) AN-C3CP

■ DIN-D-sub RS-232C adaptor (5 57/64'' (15 cm)) AN-A1RS

■ Lamp unit AN-MB60LP

Note

• Some of the optional accessories may not be available depending on the region. Please check with your nearest Sharp Authorized Projector Dealer or Service Center.

-10

Part Names and Functions

Numbers in refer to the main pages in this operation manual where the topic is explained.

Projector

Top View

For turning the power on.

ON button

STANDBY button

For putting the projector into

standby mode.

KEYSTONE button

For entering the Keystone

Correction mode.

ENTER button

For setting items selected

or adjusted on the menu.

AUTO SYNC button

For automatically

adjusting images when

connected to a computer.

MENU button

For displaying adjustment

and setting screens.

Front View

Power indicator

12·62

Lamp indicator

Temperature warning indicator

Volume buttons

For adjusting the speaker sound level.

ZOOM/FOCUS button

For adjusting the projected image size or adjusting the focus.

INPUT buttons

For switching the input mode 1, 2, 3 or 4.

PICTURE MODE button

For switching the picture mode.

Adjustment buttons ('/"/\/|)

For selecting menu items and other settings.

Introduction

Remote control sensor

Front adjustment foot

(on the bottom of

the projector)

HEIGHT ADJUST button

• Attaching the lens cap

Push the lens cap on until it clicks into position.

• Removing the lens cap

Pull the lens cap directly outward.

Speaker

-11

Part Names and Functions

About the Indicators on the Projector

Power indicator

Red on Green on

Lamp indicator

Green on Green blinks Red on

Temperature warning indicator

Off Red on

...

Normal (Standby) ...

Normal (Power on)

...

Normal

...

The lamp is warming up or shutting down.

The lamp has been shut down abnormally or

needs to be changed. (See page 62.)

The internal temperature is abnormally high. (See page 62.)

...

Normal

...

When Attaching the “QUICK GUIDE” Label

Attaching the “QUICK GUIDE” Label (supplied) on the projector will help you check the setup procedure. Ensure to attach the “QUICK GUIDE” Label on the top cabinet of the projector as shown in the drawing on the right. Do not attach the “QUICK GUIDE” label anywhere else to avoid blocking an air intake or exhaust vent.

-12

“QUICK GUIDE”

Label

Numbers in refer to the main pages in this operation manual where the topic is explained.

Projector (Rear View)

Terminals Refer to “INPUT/OUTPUT Terminals and Connectable Main Equipment” on

page 21.

INPUT 3 terminal

AUDIO OUTPUT terminal

Audio output terminal of

equipment connected to the

AUDIO INPUT terminal.

OUTPUT (INPUT 1, 2) terminal

Shared computer RGB and component signals output terminal for INPUT 1 and 2.

· Terminal for connecting a monitor.

AUDIO INPUT 1, 2 terminal

Shared audio input terminal

for INPUT 1 and 2.

INPUT 2 terminal

Terminal for computer RGB

and component signals.

INPUT 1 terminal

Terminal for computer RGB

and component signals.

23·25

Terminal for connecting video equipment.

INPUT 4 terminal

Terminal for connecting video equipment with an S-video terminal.

AUDIO INPUT 3, 4 terminal

Shared audio input terminal for INPUT 3 and 4.

USB terminal

RS-232C terminal

Terminal for controlling the projector using a computer.

Introduction

Exhaust vent

The speed and pitch of the cooling fan may change during operation in response to internal temperature changes. This is normal operation and does not indicate a malfunction.

Remote control sensor

Intake vent

Rear adjustment feet

Kensington Security

Standard connector

AC socket

Connect the supplied Power cord.

Using the Kensington Lock

• This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

-13

Part Names and Functions

Numbers in refer to the main pages in this operation manual where the topic is explained.

Remote Control

STANDBY button

For putting the projector into

For adjusting the projected

For entering the Keystone

L-CLICK/ENTER button

• For the Left click when connecting the projector USB terminal to the computer with USB cable.

• For setting items selected or adjusted on the menu.

ENLARGE (Enlarge/Reduce)

For enlarging/reducing part of the

standby mode.

ZOOM buttons

image size.

KEYSTONE button

Correction mode.

24·40

FREEZE button

For freezing images.

buttons

image.

ON button

For turning the power on.

FOCUS buttons

For bringing the projected image into focus.

MENU button

For displaying adjustment and setting screens.

24·40

MOUSE/Adjustment button ('/"/\/|)

• For moving the computer cursor when connecting the projector USB terminal to the computer with USB cable.

• For selecting menu items.

R-CLICK/UNDO button

• For the Right click when connecting the projector USB terminal to the computer with USB cable.

• For undoing an operation or returning to the previous display.

AV MUTE button

For temporarily displaying the black screen and turning off the sound.

Volume buttons

INPUT 1, 2, 3 and 4 buttons

For switching to the respective

input modes.

AUTO SYNC button

For automatically adjusting images

when connected to a computer.

For adjusting the speaker sound level.

PICTURE MODE button

For switching the picture mode.

RESIZE button

For switching the screen size (NORMAL, BORDER, etc.).

Note

• All the buttons on the remote control, except the MOUSE/Adjustment button, are made of luminous material that is visible in the dark. Visibility will diminish over time. Exposure to light will recharge the luminous buttons.

-14

Using the Remote Control

Introduction

Usable Range

The remote control can be used to control the projector within the ranges shown in the illustration.

Note

• The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance of the signal may differ depending on the screen material.

When using the remote control:

• Ensure not to drop, expose to moisture or high temperature.

• The remote control may malfunction under a fluorescent lamp. In this case, move the projector away from the fluorescent lamp.

Inserting the Batteries

The batteries (two R-03 batteries (“AAA” size, UM/SUM-4, HP-16 or similar)) are supplied in the package.

Front View

Remote control signal transmitters

Rear View

Remote control sensor

30°

23' (7 m)

Remote control

Remote control sensor

30°

23' (7 m)

30°

Remote control signal transmitters

30°

Remote control

Press the ▲ mark on the cover and slide it in the direction of the arrow.

2 Insert the batteries.

• Insert the batteries making sure the polarities correctly match the and marks inside the battery compartment.

3 Attach the cover and slide it un-

til it clicks into place.

Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.

Caution

• Insert the batteries making sure the polarities correctly match the and marks inside the battery compart- ment.

• Batteries of different types have different properties, therefore do not mix batteries of different types.

• Do not mix new and old batteries.

This may shorten the life of new batteries or may cause old batteries to leak.

• Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak. Battery fluid from leaked batteries is harmful to skin, therefore ensure to first wipe them and then remove them using a cloth.

• The batteries included with this projector may run down in a short period, depending on how they are kept. Ensure to replace them as soon as possible with new batteries.

• Remove the batteries from the remote control if you will not be using the remote control for a long time.

-15

Quick Start

This section shows the basic operation (projector connecting with the computer). For details, see the page described below for each step.

Setup and Projection

In this section, connection of the projector and the computer is explained using one example.

3 ON button 7 STNADBY button

6 INPUT buttons 5 ZOOM/FOCUS button

Adjustment buttons

('/"/\/|)

7 STANDBY

button

5 ZOOM buttons

3 ON button

5 FOCUS buttons

6 INPUT1 button

4 HEIGHT ADJUST button

1. Place the projector facing a screen

Page 19

2. Connect the projector to the computer and plug the power

cord into the AC socket of the projector

When connecting equipment other than the computer, see pages 25 and 26.

Pages 23, 29

3. Remove the lens cap and turn the projector on

On the remote controlOn the projector

-16

Page 29

4. Adjust the angle

1 Press .

2 Adjust by pressing ' or ".

Adjust the projector angle

••

•

Adjust the projector angle using the HEIGHT

••

ADJUST button.

HEIGHT ADJUST button

5. Adjust the focus and the zoom

1 1

1 Bring the projected image into focus

1 1

••

Bring the projected image into focus by

•

••

adjusting the focus.

On the projector

1 Press .

2 Adjust by pressing \ or |.

••

•

This projector is equipped with an “Auto Keystone

••

Correction” function that automatically corrects any trapezoidal distortion within the projected image. The correction is made automatically provided the vertical incline or decline is within 12 degrees.

Page 30

2 2

2 Adjust the projected image size

2 2

••

•

Adjust the projected image size by adjusting

••

zoom.

On the projector

Quick Start

On the remote control

Adjust by pressing the

FOCUS buttons.

On the remote control

Adjust by pressing the

ZOOM buttons.

Page 32

6. Select the INPUT mode

Select the “INPUT 1” using the INPUT buttons on the projector or the INPUT1 button on the remote control.

On the

projector

On the remote

control

••

• When pressing

••

INPUT 1 INPUT 2 INPUT 3 INPUT 4

••

• When using the remote control, press / / / to switch the INPUT mode.

••

" On-screen Display (RGB)

" on the projector, input mode switches in order of :

Page 33

7. Turn the Power off

Press the STANDBY button, then press that button again while the confirmation message is displayed, to put the projector into standby mode.

On the remote controlOn the projector

" On-screen Display

••

• Unplug the power cord from the AC outlet after the cooling fan stops.

••

Page 29

-17

Storing the Projector

How to Use the Storage Case

When storing the projector, attach the lens cap to the lens, and place it in the supplied storage case.

1 Open the cover of the storage

case.

2 Place the projector into the stor-

age case.

Info

• Ensure the projector has cooled down sufficiently before placing it in the case.

• Ensure the lens cap is attached to the lens for protection.

• Place the projector into the storage case with the lens facing the handle.

• Ensure the projector is held in place by using the fixing band.

Lens cap

Fixing band

3 Close the cover of the storage

case.

4 Place the accessories in the front

pocket of the storage case.

Info

• This storage case is only for storing the projector.

-18

Setting up the Projector

Position the projector perpendicular to the screen with the projector’s feet flat and level to achieve an optimal image.

Note

• The projector lens should be centered in the middle of the screen. If the horizontal line passing through the lens center is not perpendicular to the screen, the image will be distorted, making viewing difficult.

• For an optimal image, position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the projector in a sunny or bright room.

Standard Setup (Front Projection)

■ Place the projector at the required distance from the screen according to the desired picture size. (For details, refer to page 2 of the “SETUP GUIDE” contained on the supplied CD-ROM.)

Setup

Indication of the Projection Image Size and Projection Distance

For details, refer to page 2 of the “SETUP GUIDE” contained on the supplied CD-ROM. Example : NORMAL Mode (4:3)

Picture Size

300"

200"

100"

84" 60"

48"

67"

80"

50"

36"

5'11

(1.8 m – 2.7 m)

"–

60"

160"

8'11

"–

8'4

(2.5 m

120"

12'6

240"

3.8 m)

–

9'11

(3.0 m

180"

14'11

"–

4.6 m)

–

19'10

(6.0 m

29'10

"–

9.1 m)

–

29'9

(9.1 m – 13.7 m)

–

44'9

Projection Distance

-19

Setting up the Projector

Projecting a Reversed Image

Projection from behind the Screen

■ Place a translucent screen between the projector and the audience.

■ Reverse the image by setting “Rear” in the “PRJ Mode” menu. (See page 57.)

Translucent screen

Audience

Projection Using a Mirror

■ Place a mirror (normal flat type) in front of the lens.

■ When the translucent screen is placed between the mirror and audience, set to “Front” in the “PRJ Mode”

menu. (See page 57.)

■ When the mirror is placed on the audience side, set to “Rear” in the “PRJ Mode” menu. (See page

Set to “Front”

Mirror

Set to “Rear”

57.)

Translucent screen

Audience

Info

• When using a mirror, ensure that both the projector and the mirror are carefully placed so the projected light does not shine into the eyes of the audience.

Audience

Mirror

Ceiling-mount Setup

■ It is recommended that you use the optional Sharp ceiling-mount bracket for this installation. Before mounting the projector, contact your nearest Sharp Authorized Projector Dealer or Service Center to obtain the recommended ceiling-mount bracket (sold separately).

• AN-MBCM10 ceiling-mount bracket, its AN-EP101B extension

tube and AN-JT200 universal bracket, adaptor for non-level ceiling installation (for U.S.A.).

• AN-60KT ceiling-mount bracket, its AN-TK201 and AN-TK202

extension tubes (for countries other than the U.S.A.).

■ Invert the image by setting “Ceiling + Front” in “PRJ Mode”. See

57 for use of this function.

page

-20

Connections

INPUT/OUTPUT Terminals and Connectable Main Equipment

OUTPUT (INPUT 1, 2) terminal

INPUT 1, 2 terminal

Connecting the computer. (See page 23.) Connecting video equipment with component output terminal (DVD player, DTV decoder, DVD recorder with hard disc, etc.). (See page 25.)

AUDIO INPUT 1, 2 terminal

Connecting an audio cable. (Shared audio input terminal for INPUT 1 and

2.) (See pages 23 and 25.)

Connecting the monitor when you want to simultaneously watch the projection image on the monitor. (See page 28.)

AUDIO OUTPUT terminal

Connecting an audio cable. (Shared audio output terminal for INPUT 1, 2 , 3 and 4.) (See pages 28.)

Connections

INPUT 4 terminal

Connecting video equipment with S-video output terminal (VCR, DVD player, etc.). (See page 26.)

INPUT 3 terminal

Connecting video equipment without S-video output terminal. (See page 26.)

AUDIO INPUT 3, 4 terminal

Connecting an audio cable. (Shared audio input terminal for INPUT 3 and

4.) (See page 26.)

RS-232C terminal

Connecting the computer to control the projector. (See page 27.)

USB terminal

Connecting the computer using a USB cable. (See page 23.)

-21

Samples of Cables for Connection

•For more details of connection and cables, refer to the operation manual of the connecting equipment.

•You may need other cables or connectors not listed below.

Equipment

Computer

Audio-visual equipment

Terminal on

connected equipment

RGB cable (supplied)

RGB

output terminal

ø3.5 mm stereo audio cable (commercially available)

Audio

output terminal

Component

video

output terminal

Terminal

for using

the

dedicated

cable

Video

output terminal

3 RCA (Component) to 15-pin D-sub cable (optional: AN-C3CP)

Connect with the cable adaptor, etc.

Dedicated cable

Video cable (commercially available)

S-video cable (commercially available)

Cable

3 RCA (Component) to 15-pin D-sub cable (optional: AN-C3CP)

Cable adaptor (commercially available)

Terminal on the

projector

INPUT 1, 2

AUDIO INPUT

INPUT 1, 2

INPUT 3

INPUT 4

Amplifier

Monitor

-22

S-video

output terminal

Audio

output terminal

Terminal

for using

the

dedicated

cable

Audio

input terminal

RGB input

terminal

ø3.5 mm minijack to RCA audio cable (commercially available)

Connect with the cable adaptor, etc.

Cable adaptor (commercially available)

Dedicated cable

ø3.5 mm minijack to RCA audio cable (commercially available)

RGB cable (commercially available)

AUDIO INPUT

AUDIO OUTPUT

OUTPUT

Connecting to a Computer

Before connecting, ensure the power cord of the projector from the AC outlet is unplugged, and that the devices to be connected are turned off. After making all connections, turn on the projector and then the other devices. When connecting a computer, ensure that it is the last device to be turned on after all the connections are made.

Ensure the operation manuals of the devices to be connected have been read before making connections.

Supplied

RGB cable

accessories

USB cable

Computer

To USB terminal

To audio output terminal

To RGB output terminal

To INPUT 1 terminal

To AUDIO INPUT 1, 2 terminal

To USB terminal

Connections

RGB cable

USB cable

ø3.5 mm stereo or mono audio cable

(commercially available or available as Sharp service part QCNWGA038WJPZ)

When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm stereo audio cable.

Note

• When connecting with a USB cable, you can use the remote control as a mouse for controlling the cursor. See page 24.

• See page 67 “Computer Compatibility Chart” for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions to not work.

• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Macintosh Dealer.

• Depending on the computer you are using, an image may not be projected unless the signal output setting of the computer is switched to the external output. Refer to the computer operation

manual for switching the computer signal output settings.

Connect to use the remote control as a wireless computer mouse.

“Plug and Play” function (when connecting to a 15-pin terminal)

■ This projector is compatible with VESA-standard DDC 1/DDC 2B. The projector and a VESA DDC compatible computer will communicate their setting requirements, allowing for quick and easy setup.

■ Before using the “Plug and Play” function, ensure to turn on the projector first and the connected computer last.

Note

• The DDC “Plug and Play” function of this projector operates only when used in conjunction with a VESA

DDC compatible computer.

-23

Connecting to a Computer

Using the Remote Control as the Wireless Computer Mouse

When connecting the projector and the computer with the supplied RGB cable and USB cable (see page 23), you can use the remote control as the computer mouse.

The mouse pointer can be operated in the following way after it is connected.

■ When moving the cursor

Press MOUSE/Adjustment button ('/"/ \/|).

■ When left-clicking

Press

■ When right-clicking

Press .

MOUSE/Adjustment button ('/"/\/|)

■ When your computer supports only a one-click mouse (such as Macintosh)

Press

L-CLICK and R-CLICK have common func-

tion.

• You cannot use this function when displaying the menu screen.

• Confirm that the computer recognizes the USB connection.

• If “Resize” is displayed when signals having a higher resolution than XGA are being input and you have set “Dot By Dot” as the screen size, you cannot operate the mouse function.

or .

Note

R-CLICK button

L-CLICK button

-24

Connecting to Video Equipment

The projector has a COMPUTER-RGB/COMPONENT terminal, an S-VIDEO terminal and VIDEO terminal for video input. Refer to the listed illustrations on how to connect audio-visual equipment. The image quality is highest in order of the component signal, the RGB signal, the S-video signal and the video signal. If your audio-visual equipment has a component output terminal or RGB output terminal, use the COMPUTER-RGB/COMPONENT terminal (INPUT 1 or INPUT 2) on the projector for video connection.

When connecting video equipment with component video output terminal

(When connecting to INPUT 1)

To audio output terminal

To component video output terminal

ø3.5 mm minijack to RCA audio cable (commercially available)

To INPUT 1 terminal

Video Equipment

3 RCA (Component) to 15-pin D-sub cable (optional: AN-C3CP)

To AUDIO

INPUT 1, 2 terminal

Note

• ø3.5 mm minijack to RCA audio cable (commercially available) is required for audio input.

• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a com-

mercially available cable that fits in the projector terminal you want to connect.

Connections

-25

Connecting to Video Equipment

When connecting video equipment with video output terminal

To audio output terminal

To video output terminal

Video Equipment

ø3.5 mm minijack to RCA audio cable (commercially available)

Composite video cable (commercially available)

When connecting video equipment with S-video output terminal

To audio output terminal

To S-video output terminal

To INPUT 3 terminal

To AUDIO INPUT 3, 4 terminal

To INPUT 4 terminal

To AUDIO INPUT 3, 4 terminal

Video Equipment

ø3.5 mm minijack to RCA audio cable (commercially available)

S-video cable (commercially available)

Note

• ø3.5 mm minijack to RCA audio cable (commercially available) is required for audio input.

• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a com-

mercially available cable that fits in the projector terminal you want to connect.

-26

Controlling the Projector by a Computer

When the RS-232C terminal on the projector is connected to a computer with a DIN-D-sub RS-232C adaptor (optional: AN-A1RS) and an RS-232C serial control cable (cross type, commercially available), the computer can be used to control the projector and check the status of the projector. Refer to the “SETUP GUIDE” contained on the supplied CD-ROM for details.

When connecting to a computer using an RS-232C serial control cable and a DIN-D-sub RS232C adaptor

Computer

To RS-232C terminal

RS-232C serial control cable (cross type, commercially available)

To RS-232C terminal

DIN-D-sub RS-232C adaptor (optional: AN-A1RS)

Note

• The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the operation manual of the computer for details.

• Refer to page 4 of the “SETUP GUIDE” contained on the supplied CD-ROM for “RS-232C Specifications and Commands”.

Info

• Do not connect the RS-232C cable to a port other than the RS-232C terminal on the computer. This may damage your computer or projector.

• Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on. This may damage your computer.

Connections

-27

Connecting to a Monitor with RGB Input Terminal

You can display computer images on both the projector and a separate monitor using two sets of RGB cables.

Monitor

To RGB input terminal

RGB cable (commercially available)

Computer

To RGB output terminal

Supplied

accessory

To INPUT 1 terminal

RGB cable

Note

• RGB signals and Component signals can be output to the monitor.

• For this connection, another RGB cable (commercially available) is required.

RGB cable

To OUTPUT(INPUT 1, 2) terminal

Connecting to an Amplifier or Other Audio Equipment

Audio signals input from equipment connected to each audio input terminal of the projector can be output to audio equipment.

Amplifier

To AUDIO OUTPUT terminal

To audio input terminal

ø3.5 mm minijack to RCA audio cable (commercially available)

Note

• ø3.5 mm minijack to RCA audio cable (commercially available) is required for audio input.

• Turn off the power of both the projector and audio equipment when connecting.

• When turning off the power in the case of connecting an amplifier or other audio equipment, first turn off

the power of the amplifier and then turn off the power of the projector.

• By using external audio components, the volume can be amplified for better sound.

• For details on Variable Audio Output (VAO) and Fixed Audio Output (FAO), see page 57.

-28

Turning the Projector On/Off

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the rear of the projector.

Turning the Projector on

Before performing the steps in this section, connect any equipment that you use with the projector. (See pages 23-28.)

Remove the lens cap and press on the

projector or on the remote control.

• The power indicator illuminates green.

• After the lamp indicator illuminates, the projec-

tor is ready to start operation.

• When System Lock is set, the keycode input screen appears. Enter the right keycode to start projection. See page 53 for details.

Note

• The lamp indicator illuminates or blinks, in-

dicating the status of the lamp.

Green: The lamp is ready. Blinking green: The lamp is warming up

Red:

The lamp is shut down abnormally or the lamp should be

•

• If the projector is put into standby mode and

replaced.

When switching on the projector, a slight flickering of the image may be experienced within the first minute after the lamp has been illuminated. This is normal operation as the lamp's control circuitry is stabilizing the lamp output characteristics. This does not indicate malfunction.

immediately turned on again, the lamp may take some time to illuminate.

or shutting down.

ON button

STANDBY button

Supplied accessory

Info

• English is the factory preset language. If you want to change the on-screen display to another language, change the language according to the procedure on page 60.

ON button

STANDBY button

Power cord

Power indicator

Lamp indicator

Basic Operation

Turning the Power off

the Projector into Standby Mode)

(Putting

1 Press on the projector or

on the remote control, then press that button again while the confirmation message is displayed, to put the projector into standby mode.

Unplug the power cord from the AC outlet after the cooling fan stops.

▼On-screen Display

Info

•

Do not unplug the power cord during projection or cooling fan operation. The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode. This can cause damage due to rise in internal temperature, as the cooling fan also stops.

-29

Image Projection

Using the Adjustment Feet

The height of the projector can be adjusted using the adjustment feet at the front and rear of the projector when the screen is located higher than the projector, the screen is inclined or when the installation site is slightly inclined. Install the projector so that it is as perpendicular to the screen as possible.

Press the HEIGHT ADJUST button.

• The front adjustment foot comes out.

2 Lift the projector to adjust its

height while pressing the HEIGHT ADJUST button.

• The projector is adjustable up to approximately 12 degrees (6 steps).

• When lowering the projector, it may be difficult to move the front adjustment foot because the installation surface is difficult to slide. In this case, pull the projector back slightly and adjust its height.

Side View

Lens center

HEIGHT ADJUST button

Top View

Front adjustment foot

3 Remove your hand from the

HEIGHT ADJUST button of the projector after its height has been finely adjusted.

4 Finely adjust the height and in-

clination by turning the rear adjustment feet.

• When adjusting the height of the projector, trapezoidal distortion occurs. When “Auto Keystone” of the “Options2” menu is set to “ keystone correction functions automatically to correct trapezoidal distortion. When you want to adjust the automatically corrected image, use the manual keystone correction. (See page 31.)

Info

• Do not press the HEIGHT ADJUST button when the front adjustment foot comes out without firmly holding the projector.

• Do not hold the lens when lifting or lowering the projector.

• When lowering the projector, be careful not to get your fingers caught in the area between the adjustment foot and the projector.

” (ON) (see page 56),

Rear adjustment feet

-30

Note

Correcting Trapezoidal Distortion

Auto Keystone Correction

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction. This projector is equipped with an “Auto Keystone Correction” function that automatically corrects any trapezoidal distortion within the projected image. The correction is made automatically provided the vertical incline or decline is within 12 degrees.

Note

• When not using the Auto Keystone Correction function, set “Auto Keystone” on the “Options2” menu to “

Manual Keystone Correction

When you want to make fine adjustments after the Auto Keystone Correction function has been activated, or when you want to make corrections without using the Auto Keystone Correction function, you can make corrections manually using the following procedure.

” (OFF).

KEYSTONE button

MOUSE/Adjustment button ('/"/\/|)

UNDO button

"On-screen Display (Keystone Correction mode)

Compresses upper side.

Basic Operation

Press

on the remote control to

enter the Keystone Correction mode.

• You can also use on the projector.

2 Press ', | or ", \ on the re-

mote control to adjust the Keystone Correction.

• You can also adjust the Keystone Correction using the on the projector.

Note

•

Press to return to the default setting.

•

Straight lines or the edges of images may appear jagged while adjusting the image.

| or

\ buttons

3 Press .

• The on-screen display of the Keystone Correction mode will disappear.

• You can also use projector.

on the

Compresses lower side.

• The Manual Keystone Correction can be adjusted up to an angle of approximately ±35 degrees and the screen can also be set up to an angle of approximately ±35 degrees (when the resize mode is set to “NORMAL” (see page 36)). The screen can also be installed by inclining to that angle.

• The Keystone Correction cannot be adjusted in the lateral direction.

• You can use the same settings used in NORMAL mode 4:3 for 16:9.

-31

Image Projection

Adjusting the Focus

When adjusting the focus using the buttons

on the projector on the remote control

1 Press .

2 Adjust by pressing

\ or |.

Adjust by pressing the FOCUS buttons.

Adjusting the Projected Image Size

When adjusting zoom using the buttons

on the projector on the remote control

1 Press .

2 Adjust by pressing

' or ".

Adjust by pressing the ZOOM buttons.

ZOOM buttons

ZOOM/FOCUS button

Adjustment buttons ('/"/\/|)

FOCUS buttons

Note

• After you have pressed the FOCUS buttons or ZOOM buttons on the remote control, or after you have pressed the ZOOM/FOCUS button on the projector, you can display the test pattern by pressing the ENTER button. The test pattern is useful for making more accurate adjustments.

-32

Switching the INPUT Mode

Select the appropriate input mode for the connected equipment.

Press , , or on the remote control to select the input mode.

••

• When pressing

••

mode switches in order of :

INPUT 1 INPUT 2 INPUT 3 INPUT 4

Note

• When no signal is received, “NO SIGNAL” will be displayed. When a signal that the projector is not preset to receive is received, “NOT REG.” will be displayed.

• The INPUT mode is not displayed when “OSD Display” of the “Options1” menu is set to “

About the INPUT mode

INPUT 1/ INPUT 2 (RGB/ Component)

INPUT 3 (Video)

INPUT 4 (S-Video)

' or

" on the projector, input

” (OFF). (See page 50.)

Used for projecting images from equipment that sends RGB signals or component signals connected to the RGB input terminal.

Used for projecting images from equipment connected to the VIDEO input terminal.

Used for projecting images from equipment connected to the S-VIDEO input terminal.

/ / / INPUT buttons

"On-screen Display of INPUT Mode (Example)

INPUT 1/2 mode

Using RGB

Using Component

➝

INPUT 3 mode

Using Video

➝

INPUT 4 mode

Using S-Video

➝

Basic Operation

Adjusting the Volume

Press

/ on the remote control to ad-

just the volume.

• Pressing or \ will lower the volume. Pressing or | will raise the volume.

| on the projector or VOL

Note

Volume buttons

"On-screen Display

-33

Image Projection

Displaying the Black Screen and Turning off

the Sound Temporarily

Press on the remote control to temporarily display a black screen and turn off the sound.

Note

• Pressing again will turn the projected image and sound back on.

Displaying an Enlarged Portion of an Image

Graphs, tables and other portions of projected images can be enlarged. This is helpful when providing more detailed explanations.

1 Press on the remote control.

• Enlarges the image.

• Pressing

the projected image.

Note

or enlarges or reduces

AV MUTE button

"On-screen Display

MOUSE/Adjustment button ('/"/\/|)

ENLARGE (Enlarge/Reduce) buttons

UNDO button

RESIZE button

×1 ×4 ×9 ×16 ×36 ×64×2 ×3

• You can change the location of the en-

larged image using ', ", \ and |.

2 Press on the remote control

to cancel the operation.

• The magnification then returns to ×1.

Note

In the following cases, the image will return to the normal size (×1).

• When switching the INPUT mode.

-34

• When

• When the input signal is changed.

When the input signal resolution and re-

•

fresh rate (vertical frequency) change.

• When has been pressed.

has been pressed.

Freezing a Moving Image

1 Press on the remote control.

• The projected image is frozen.

2 Press again to return to the

moving image from the currently connected equipment.

Selecting the Picture

Mode

You can select the suitable picture mode for the projected image, such as movie or video game.

Press on the remote control.

• When pressing , the picture mode changes in order of

STANDARD PRESENTATION CINEMA GAME

Note

• You can also use on the projector.

• Press to return to the “STANDARD”

mode.

• This function can also be accessed from the OSD menu (see page 44).

FREEZE button

UNDO button

Basic Operation

PICTURE MODE button

-35

Image Projection

This function allows you to modify or customize the resize mode to enhance the input image. Depending on the input signal, you can choose “NORMAL”, “DOT BY DOT”, “BORDER” or “STRETCH” image.

Resize Mode

Press on the remote control.

• Pressing changes the display as shown on

pages 36 and 37.

• To return to the standard image, press while “RESIZE” is displayed on the screen.

• This function can also be accessed from the OSD menu (see page 49).

COMPUTER

NORMAL DOT BY DOT BORDER STRETCH

SVGA (800 × 600)

4:3 aspect ratio

Other aspect ratios

Computer

Resolution lower than

XGA

XGA (1024 × 768)

SXGA (1280 × 960)

SXGA+ (1400 × 1050)

SXGA (1280 × 1024)

1280 × 720

Input Signal

Image type

4:3 aspect ratio

1024 × 768

960 × 768

—

NORMAL DOT BY DOT BORDER

***

MOUSE/Adjustment button ('/"/\/|)

800 × 600

—

1280 × 960

1400 × 1050

1280 × 1024

—

Output screen image

768 × 576

720 × 576

—

UNDO button

RESIZE button

1024 × 576

960 × 576

1024 × 576

STRETCH

XGA

4:3 aspect ratio

Resolution

higher than

XGA

4:3 aspect ratio

SXGA (1280 × 1024)

5:4 aspect ratio

1280 × 720

16:9 aspect ratio

Mode for projecting an image with the original aspect ratio without cutting any portions.

Note

•

If “RESIZE” is displayed when you have set “DOT BY DOT” and signals having a higher resolution than XGA are being input, you can move the image so that it appears entirely within the panel by using the adjustment buttons (

'/"/\/|

) on the remote control. (However, this does not apply when you have set “Resize” from the OSD menu.)

-36

: Cutout area on which images cannot be projected. : Area where the signals are off screen.

VIDEO

• “STRETCH” is fixed when 540P, 720P or 1080I signals are entered.

Input Signal

480I, 480P,

NTSC, PAL, SECAM

540P, 720P,

1080I (16:9)

Image typeDVD / Video

4:3 aspect ratio

Letter box

Squeezed 16:9 image

Squeezed 4:3 image

16:9 aspect ratio

Output screen image

NORMAL

BORDER STRETCH

Basic Operation

16:9 aspect ratio

(4:3 aspect ratio in

Mode for projecting an image with the original aspect ratio without cutting any portions.

: Cutout area on which images cannot be projected. : Area on which the image is not included in the original signals.

16:9 screen)

-37

Menu Items

The following shows the items that can be set in the projector.

“Picture” menu

INPUT 1 (RGB) / INPUT 2 (RGB)

INPUT 1 (Component) / INPUT 2 (Component) INPUT 3 / INPUT 4

Main Menu Sub Menu


Page 44

Picture Mode

Page 44

Contrast

Bright

Color

Tint

Sharp

Red

Blue

Standard Presentation Cinema Game

+30-30

Page 44

Bright Boost

+100

Page 45

CLR Temp

Page 45

sRGB [ON/OFF]

5500K 6500K 7500K 8500K 9300K 10500K

Page 46

Reset

Page 44

Signal Type

Page 46

*1 Items when inputting component signal through INPUT 1 or INPUT 2, or

when selecting INPUT 3 or INPUT 4 *2 Item when inputting RGB signal through INPUT 1 or INPUT 2 *3 Item when selecting INPUT 1 or INPUT 2

Auto RGB Component

“Fine Sync” menu

INPUT 1 / INPUT 2

Main Menu

Fine Sync

Page 47

Clock

Phase

H-Pos

V-Pos

Reset

+30-30

+15-15

+30-30

Page 47

Special Modes

Page 47

Auto Sync [ON/OFF]

Page 48

Signal Info

Page 48

*4 Item when inputting RGB signal through INPUT 1 or INPUT 2

Note

When using the INPUT 1 or INPUT 2 mode:

• “Fine Sync” menu is only displayed when the projector input is INPUT 1 or INPUT 2.

-38

“Options1” menu

Example: INPUT 3/INPUT 4

“Options2” menu

Main Menu Sub Menu

Options1

Page 49

*1 Item when inputting RGB signal through INPUT 1 or INPUT 2 *2 Item when selecting INPUT 3 or INPUT 4

Lamp Timer(Life)

Page 49

Resize

Page 49

OSD Display [ON/OFF]

Page 50

Video System

Page 50

Background

Page 51

Eco Mode [Eco/Standard]

Page 51

Auto Power Off [ON/OFF]

Page 52

Menu Position

Page 52

System Lock

Pages 53 and 54

Normal Border Dot By Dot Stretch

Auto PAL NTSC3.58 SECAM NTSC4.43 PAL-M PAL-N PAL-60

Logo Blue None

Center Upper Right Lower Right Upper Left Lower Left

Main Menu Sub Menu

Options2

Page 55

Password

Page 55

Auto Keystone [ON/OFF]

Old Password New Password Reconfirm

Page 56

Speaker [ON/OFF]

Page 56

Audio Out

Page 57

PRJ Mode

Page 57

RS-232C

Page 58

Monitor Out

Page 58

All Reset

FAO VAO

Front Ceiling + Front Rear Ceiling + Rear

9600 bps 115200 bps

Enable Disable

Page 59

“Language” menu

Main Menu

Language

Page 60

English Deutsch Español Nederlands Français Italiano Svenska Português

Useful Features

-39

Using the Menu Screen

The menu can be operated to achieve two functions, adjustments and settings. (For setting the menu items, see pages 42 and 43. )

MOUSE/ Adjustment

ENTER button

Adjustment buttons ('/"/\/|)

MENU button

button ('/"/\/|)

ENTER button

MENU button

UNDO button

Menu Selections (Adjustments)

Example: Adjusting “Bright”

• This operation can also be performed by using the buttons on the projector.

1 Press .

• The “Picture” menu screen for the selected input mode is displayed.

2 Press

menu screens.

• The menu icon for the selected menu screen is highlighted.

• The “Fine Sync” menu is not available for selecting INPUT 3 or INPUT 4.

| or

\ to display the other

Menu icon Menu screen


Fine Sync

Options1

Options2

Language

Note

Example: “Picture” screen menu for

INPUT 1 (RGB) mode

Menu icons

-40

3 Press

' or

" to select the item

you want to adjust.

• The selected item is highlighted.

To adjust the projected image while viewing it

Press .

• The selected single adjustment item (e.g. “Bright”) appears instead of the menu.

• When pressing item (“Red” after “Bright”) will be displayed.

Note

• Press to return to the previous screen.

4 Press

\ or

| to adjust the item

selected.

• The adjustment is stored.

' or

", the following

Single adjustment items

5 Press .

• The menu screen will disappear.

Useful Features

-41

Using the Menu Screen

The menu can be operated to achieve two functions, adjustments and settings. (For adjusting the menu items, see pages 40 and 41.)

MOUSE/ Adjustment button ('/"/\/|)

ENTER button

Menu Selections (Settings)

Example: Setting “Menu Position”

• This operation can also be performed by using the buttons on the projector.

1 Press .

• The “Picture” menu screen for the selected input mode is displayed.

Example: “Picture” screen menu for

INPUT 1 (RGB) mode

MENU button

UNDO button

Menu icons

2 Press

| or

\ to display the other

menu screens.

• The menu icon for the selected menu screen is highlighted.

Menu icon Menu screen


Fine Sync

Options1

Options2

Language

Note

• The “Fine Sync” menu is not available for selecting INPUT 3 or INPUT 4.

-42

Example: “Options1” screen menu

3 Press

' or

" to select the

item you want to set, and then press

4 Press

| to display the sub menu.

• The selected item is highlighted.

• When you select “System Lock” on the

“Options1” menu or “Password” on the

“Options2” menu, press

Note

• Press or \ to return to the previ- ous screen.

• For some items, press \ or | to se- lect the icon using “

' or

" to select the set-

”.

ting of the item displayed in the sub menu.

Sub menu

5 Press .

• The selected item is set.

6 Press .

• The menu screen will disappear.

Useful Features

-43

Picture Adjustment (“Picture” menu)

You can adjust the projector’s picture to your preferences using the “Picture” menu.

Selecting the Picture Mode

This function allows you to select the picture mode in accordance with brightness of the room or content of the image to be projected. In all picture modes, items on the “Picture” menu can be adjusted and saved.

Menu operation Page 42

Example: “Picture” screen menu for IN-

PUT 1 (RGB) mode

Description of Picture Modes

Selectable items Standard Presentation

Cinema

Game

For standard image Brightens darker portions of image for more enhanced presentations. Gives greater depth to darker portions of image for a more exciting theater experience. For natural color gradation for playing a game, etc.

Note

• You can also press on the projector or on the remote control to select the picture mode. (See page 35.)

Description

Adjusting the Image

Select a picture mode before adjusting the image.

Menu operation Page 40

Example: “Picture” screen menu for IN-

PUT 1 (RGB) mode

Description of Adjustment Items

Selectable items Contrast Bright

Color

Tint

Sharp

Red

Blue

“Color”, “Tint” and “Sharp” are not displayed when selecting INPUT 1/INPUT 2 and setting the “Signal Type” to “RGB” or setting the “Signal Type” to “Auto” and the input signal is recognized as an RGB signal.

“Red” and “Blue” cannot be adjusted when “sRGB” is set to “ ” (ON).

Note

• “Sharp” can be adjusted when 480I, 480P, 540P, 576I, 576P, 720P, 1035I or 1080I signals are detected while “Signal Type” for INPUT 1 or INPUT 2 is set to “Component” or set to “Auto” and the input signal is recognized as a component signal.

• To reset all adjustment items, select “Reset” and

press

Press

For less contrast For less brightness For less color intensity For making skin tones purplish For less sharpness For weaker red For weaker blue

Press

For more contrast For more brightness For more color intensity For making skin tones greenish For more sharpness For stronger red For stronger blue

-44

Emphasizing the Contrast

Adjusting the Color Temperature

This function emphasizes the bright portions of images to obtain a higher contrast image.

Menu operation

Page 40

Example: “Picture” screen menu for IN-

PUT 1 (RGB) mode

Description of Bright Boost Setting

Description

Menu operation

Page 42

Example: “Picture” screen menu for IN-

PUT 1 (RGB) mode

Description of Color Temperature Settings

Selectable items 5500K 6500K 7500K 8500K 9300K 10500K

For lower color temperature for warmer, reddish incandescent-like images.

For higher color temperature for cooler, bluish, fluorescent-like images.

Description

To improve color reproduction, lower bright boost setting.

To increase brightness, increase bright boost setting.

Note

• “Bright Boost” cannot be set when “sRGB” is set to “

” (ON).

Note

• Values on “CLR Temp” are only for general standard purposes.

• “CLR Temp” cannot be set when “sRGB” is set

” (ON).

to “

Useful Features

-45

Picture Adjustment (“Picture” menu)

sRGB Setting

When you want to display the image in a natural tint based on an original image from the computer, select “sRGB” and set it to “

Menu operation

Page 42

Example: “Picture” screen menu for IN-

PUT 1 (RGB) mode

Note

•

An international standard of color reproduction regulated by the IEC (International Electrotechnical Commission). As the fixed color area has been decided by the IEC, the images are displayed in a natural tint based on an original image, when “sRGB” is set to “

• You cannot set the items, “Red”, “Blue”, “CLR Temp” and “Bright Boost” on the “Picture” menu, when “sRGB” is set to “ ” (ON).

• For additional information about the sRGB function, visit “http://www.srgb.com/”.

” (ON).

Signal Type Setting

This function allows you to select the input signal type RGB or Component for INPUT 1 or INPUT 2.

Menu operation

Example: “Picture” screen menu for IN-

Description of Signal Type Settings

Selectable items Auto

RGB Component

Page 42

PUT 1 (RGB) mode

Description Input signals are automatically recognized as RGB or Component. Set when RGB signals are received. Set when Component signals are received.

Info

• When “sRGB” is set to “ ” (ON), the projected image may become dark, but this does not indicate a malfunction.

-46

Computer Image Adjustment (“Fine Sync” menu)

You can adjust the computer image, match the computer display mode, and confirm the input signal using the “Fine Sync” menu.

Adjusting the Computer Image

Use the Fine Sync function in case of irregularities such as vertical stripes or flickering in portions of the screen.

Menu operation

Example: “Fine Sync” screen menu for

Description of Adjustment Items

Selectable items

Clock Phase

H-Pos

V-Po s

Page 40

INPUT 1 (RGB) mode

Description Adjusts vertical noise. Adjusts horizontal noise (similar to tracking on your VCR). Centers the on-screen image by moving it to the left or right. Centers the on-screen image by moving it up or down.

Special Modes Setting

Ordinarily, the type of input signal is detected and the correct resolution mode is automatically selected. However, for some signals, the optimal resolution mode in “Special Modes” on the “Fine Sync” menu may need to be selected to match the computer display mode.

Menu operation

Example: “Fine Sync” screen menu for

Note

• If your computer displays patterns which repeat every other line (horizontal stripes), flickering may occur which makes the image hard to see.

• See “Checking the Input Signal” on the next page for information on the currently selected input signal.

Page 42

INPUT 1 (RGB) mode

Useful Features

Note

• You can automatically adjust the computer image by setting “Auto Sync” on the “Fine Sync”

menu to “ ” (ON) or pressing on the pro-

jector or page for details.

• To reset all adjustment items, select “Reset” and

press

on the remote control. See next

-47

Computer Image Adjustment (“Fine Sync” menu)

Auto Sync Adjustment

Used to automatically adjust a computer image.

Menu operation

Example: “Fine Sync” screen menu for

Description of Auto Sync Adjustment

Selectable items

(ON)

(OFF)

Page 42

INPUT 1 (RGB) mode

Description Auto Sync adjustment will occur when the projector is turned on or when the input signals are switched, when connected to a computer. Auto Sync adjustment is not automatically performed.

Checking the Input Signal

Menu operation

Example: “Fine Sync” screen menu for

Note

• The projector will display the number of scanned lines available from audio-visual equipment such as a DVD player or Digital Video.

• The projector will display the resolution when connecting the computer.

Page 42

INPUT 1 (RGB) mode

Note

• Auto Sync adjustment is also performed by

pressing mote control.

• The Auto Sync adjustment may take some time to complete, depending on the image of the computer connected to the projector.

• When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments. (See page 47.)

-48

on the projector or on the re-

Using the “Options1” Menu

You can use the “Options1” menu to enhance the usage for the projector.

Checking the Lamp Life Status

You can confirm the cumulative lamp usage time and the remaining lamp life (percentage).

Menu operation Page 42

Example: “Options1” screen menu for

INPUT 1 (RGB) mode

Description of Lamp Timer (Life)

Lamp usage condition

“Life” Operated exclusively in Eco mode ( ) Operated exclusively in Standard mode ( )

Remaining lamp life

100% 5%

Approx. Approx. 3,000 hours 150 hours

Approx. Approx. 2,000 hours 100 hours

Setting the Resize Mode

Depending on the input signal, you can select the screen image.

Menu operation Page 42

Example: “Options1” screen menu for

INPUT 1 (RGB) mode

Selectable items of Resize Modes

• Normal

• Border

• Dot By Dot*

• Stretch

Item when inputting RGB signal through INPUT 1 or

INPUT 2

Note

• It is recommended that the lamp be changed when the remaining lamp life becomes 5%.

• The table above indicates rough estimates in the case of using only in each mode shown.

• Remaining lamp life changes within the range of the values shown depending on the frequency at which “Eco Mode” is switched to “ mode) and “ ” (Standard mode). (See page

51.)

• The lamp life may vary depending on the usage condition.

” (Eco

Note

• For details of the Resize mode, see pages 36 and 37.

• You can also press on the remote control to set the resize mode. (See page 36.)

Useful Features

-49

Using the “Options1” Menu

Setting On-screen Display

This function allows you to turn the on-screen messages on or off.

Menu operation Page 42

Example: “Options1” screen menu for

INPUT 1 (RGB) mode

Description of OSD Display Settings

Selectable items

All On-screen Displays are displayed.

(ON)

• INPUT/VOLUME/AV MUTE/FREEZE/ AUTO SYNC/ENLARGE/ “An invalid button has been pressed.” are not

(OFF)

displayed.

• “All buttons on Projector are locked.” is displayed when the STANDBY button is pressed while the Keylock function is active.

Description

Setting the Video System

The video input system mode is factory preset to “Auto”; however, a clear picture from the connected audio-visual equipment may not be received, depending on the video signal difference. In that case, switch the video signal.

Menu operation Page 42

Example: “Options1” screen menu for

INPUT 3 (Video) mode

Description of Video Systems

Selectable items PA L SECAM NTSC4.43

NTSC3.58

When connected to PAL video equipment. When connected to SECAM video equipment. When reproducing NTSC signals in PAL video equipment. When connected to NTSC video equipment.

Description

-50

Note

• The video signal can only be set in INPUT 3 or INPUT 4 mode.

• When “Video System” is set to “Auto”, you may not receive a clear picture due to signal differences. Should this occur, switch to video system of the source signal.

Selecting a Startup and

Background Image

Eco Mode

Menu operation

Page 42

Menu operation

Page 42

Example: “Options1” screen menu for

INPUT 1 (RGB) mode

Description of Background Images

Selectable items

Logo

Blue None

SHARP default image

Blue screen

Black screen*

Description

Note

* If the input signal has interference, the screen

will be displayed during interference.

Example: “Options1” screen menu for

INPUT 1 (RGB) mode

Description of Eco Mode

Selectable items

(Eco mode)

(Standard mode)

Brightness

80%

100%

Power consumption

(When using AC 100V)

220 W

270 W

Approx. 3,000 hours

Approx. 2,000 hours

Lamp life

Note

• When “Eco Mode” is set to “ ” (Eco mode), the power consumption will decrease and the

lamp life will extend. (Projection brightness decreases 20%.)

Useful Features

-51

Using the “Options1” Menu

Auto Power Off Function

Menu operation Page 42

Example: “Options1” screen menu for

INPUT 1 (RGB) mode

Description of Auto Power Off

Selectable items

(OFF)

The projector automatically enters the

(ON)

standby mode when no input signal is detected for 15 minutes or longer. The Auto Power Off function will be disabled.

Note

• When the Auto Power Off function is set to “ ” (ON), 5 minutes before the projector enters the

standby mode, the message “Enter STANDBY mode in X min.” will appear on the screen to indicate the remaining minutes.

Description

Selecting the Menu Screen Position

Select “Menu Position” on the “Options1” menu and the desired position for the menu screen.

Menu operation Page 42

Example: “Options1” screen menu for

INPUT 1 (RGB) mode

Description of Menu Positions

Selectable items Center Upper Right Lower Right Upper Left Lower Left

Displayed on the center of the image. Displayed on the upper right of the image. Displayed on the lower right of the image. Displayed on the upper left of the image. Displayed on the lower left of the image.

Description

-52

System Lock Function

This function prevents unauthorized use of the projector. Once this function is activated, users must enter the correct keycode each time the projector is turned on. We suggest you record the keycode in a safe place where only authorized users have access.

Note

• If you input a wrong keycode, the cursor returns to the first point of the “Old Code”.

• The preset keycode is 4 " buttons on the projec- tor. If this keycode is set, the keycode input screen does not appear when turning the power on.

Info

• If you lose or forget your keycode, contact your nearest Sharp Authorized Projector Dealer or Service Center (see page 70). Even if the product warranty is valid, the keycode reset will incur a charge.

Menu operation

Page 42

Example: “Options1” screen menu for

INPUT 1 (RGB) mode

Setting the keycode

1 Select “System Lock” on the “Op-

tions1” menu, then press

• A message is displayed.

• Read this message, and press

2 Press the 4 buttons on the remote

control or on the projector to enter the preset keycode in “Old Code”.

• When setting the keycode for the first time,

press " on the projector for four times.

" On-screen Display

3 Press the 4 buttons on the remote

control or on the projector to enter the new keycode in “New Code”.

Note

• You cannot use the following buttons for keycode:

• ON button

• STANDBY button

• L-CLICK/ENTER button

• R-CLICK/UNDO button

• MENU button

• ZOOM/FOCUS button

• ZOOM buttons

• FOCUS buttons

• System Lock function recognizes each but-

ton on the remote control or on the projector as an individual button, even if they share the same button name. If you set the keycode with the buttons on the projector, use only those buttons on the projector. If you set the keycode with the buttons on the remote control, use only those buttons on the remote control.

Useful Features

4 Enter the same keycode in

“Reconfirm”.

Note

Not displaying the keycode input screen when turning the projector on

• Press " on the projector for four times in steps 2 and 3 above.

When the System Lock is set

• When System Lock is set, the keycode input screen appears after the power is turned on. When it appears, enter the right keycode to start projection. Failure to enter the keycode will cause images not to be projected even when signals are entered to the projector.

-53

Using the “Options1” Menu

Changing the keycode

1 Press the buttons on the remote

control or on the projector to enter the preset keycode in “Old Code”.

Press the 4 buttons on the remote control or on the projector to enter the new keycode in “New Code”.

3 Enter the same keycode in “Recon-

firm”.

When System Lock is set

If you have set the system lock, enter the keycode and follow the procedure below to release the system lock.

▼Input screen for keycode

Note

• When System Lock is set, the keycode input screen appears after the power is turned on.

• If no keycode is entered, the image will not be displayed, even if the projector receives the input signal.

1 Press on the remote control or

on the projector to turn on the

projector.

2 When the keycode input screen ap-

pears, enter the right keycode to start projection.

•

Keylock Function

Use this function to lock the operation buttons on the projector.

■ Locking the Operation Buttons

Hold down

projector is being turned on.

"On-screen Display

• The keylock function does not affect the operation with the remote control buttons.

•

You cannot use the keylock function while the projector is warming up.

-54

on the projector for about 3 seconds while the

■ Taking the Keylock off

Hold down

"On-screen Display

• When the projector is in standby mode, you can release the keylock by holding down

onds.

Note

System Lock function recognizes each button on the remote control or on the projector as an individual button, even if they share the same button name. If you set the keycode with the buttons on the projector, use only those buttons on the projector. If you set the keycode with the buttons on the remote control, use only those buttons on the remote control.

on the projector for about 3 seconds.

on the projector for about 3 sec-

Helpful Functions Set during Installation (“Options2” menu)

Changing the Password

Setting a Password

••

• There is no factory preset for the password, so

••

the “Options2” menu is enabled.

••

• If you do not want others to operate the “Op-

••

tions2” menu, set a password.

Menu operation

Example: “Options2” screen menu

Page 42

1 Press

" and

| to enter the

password in “Old Password” and

press

2 Press

" and

| to set the new

password in “New Password” and

press

1 Select “Password” from the “Op-

tions2” menu, and press

•

The screen for entering the password is displayed.

2 Press

' or

" to set the first digit in

“New Password” and then press

3 Enter the remaining 3 digits and

press

4 Enter the same password in “Re-

confirm” and press

Note

• The password must be entered to use the “Options2” menu when a password has been set.

3 Enter the same 4-digit password in

“Reconfirm” and press

Note

• If you do not want to set a password, leave the

fields blank in steps 2 and 3 and press

• To cancel the password settings, press .

If You Forget Your Password

If you forget the password, delete it using the following procedure and set a new password.

Press

Note

•

If is held down for more than 3 seconds, the op-

eration buttons on the projector will be locked. (See page 54.)

•

You can only use the buttons on the projector to delete the password.

-55

Useful Features

Helpful Functions Set during Installation (“Options2” menu)

Auto Keystone Setting

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. This trapezoidal distortion is corrected automatically.

Menu operation Page 42

Example: “Options2” screen menu

Description of Auto Keystone

Selectable items

(ON)

(OFF)

The projected image is corrected trapezoidal distortion automatically. The projected image is not corrected trapezoidal distortion automatically.

Description

Speaker Setting

This function allows you to set the audio output of the internal speaker to “ such as when the projector is connected to an external amplifier.

Menu operation Page 42

Example: “Options2” screen menu

Description of Speaker Settings

Selectable items

(ON)

(OFF)

The audio signal is output from the internal speaker. The audio signal is not output from the internal speaker.

” (ON) or “ ” (OFF)

Description

Note

• Trapezoidal distortion can be corrected with the Auto Keystone Correction function for angles up to about 12 degrees vertically with respect to the screen.

• When the screen is slanting or the image is

deteriorated, set “Auto Keystone” to “ ” (OFF).

• You can make corrections manually when you want to make fine adjustments after the Auto Keystone Correction function has been activated. (See page 31.)

-56

Setting the Audio Output Type

Reversing/Inverting Projected Images

This function determines whether the audio level output from the AUDIO OUTPUT terminal is fixed or variable by linking with VOLUME.

Menu operation Page 42

Example: “Options2” screen menu

Description of Audio Out Settings

Selectable items FAO (Fixed Audio Output) VAO (Variable Audio Output)

Audio output that does not vary in strength with the volume level of the source projector. Audio output that varies in strength with the volume level of the source projector.

Description

Info

• When “Audio Out” has been set to “VAO”, first make sure to lower the volume of the projector before turning the power on or off and when switching the input.

This projector is equipped with a reverse/invert image function that allows you to reverse or invert the projected image for various applications.

Menu operation Page 42

Example: “Options2” screen menu

Description of PRJ Modes

Selectable items Front

Ceiling + Front

Rear

Ceiling + Rear

Normal image

Inverted image

Reversed image

Reversed and inverted image

Description

Note

• This function is used for the reversed image and ceiling-mount setups. (See page 20.)

Useful Features

-57

Helpful Functions Set during Installation (“Options2” menu)

Selecting the Transmission Speed (RS-232C)

Make sure that both the projector and computer are set for the same baud rate.

Menu operation Page 42

Example: “Options2” screen menu

Description of RS-232C

Selectable items

9600 bps

115200 bps

Transmission speed is slow.

Transmission speed is rapid.

Note

• Refer to the “SETUP GUIDE” contained on the supplied CD-ROM for RS-232C Specifications and Command Settings.

• Refer to the computer’s operation manual for instructions for setting the computer’s baud rate.

Description

Monitor Output Settings

When the Monitor Out has been set to “Enable”, the monitor output is activated and power is consumed even in the standby mode. It is recommended that the Monitor Out be set to “Disable” when it is not connected. This reduces power consumption when the projector is in the standby mode.

Menu operation Page 42

Example: “Options2” screen menu

Description of Monitor Out

Selectable items

Enable

Disable

The monitor output function is activated even if the projector is in standby mode. The monitor output function is switched off when the projector is in standby mode.

Description

-58

Returning to the Default Settings

This function allows you to initialize the settings you have made in the projector.

Menu operation Page 42

Example: “Options2” screen menu

Note

The following items or menu cannot be initialized.

• “Fine Sync” menu Special Modes

• “Options1” menu Lamp Timer (Life) System Lock

• “Language” menu

Useful Features

-59

Using the “Language” Menu

Selecting the On-screen Display Language

The projector can switch the on-screen display language among 11 languages: English, German, Spanish, Dutch, French, Italian, Swedish, Portuguese, Chinese, Korean or Japanese.

Example: “Language” screen menu for

INPUT 1 (RGB) mode

ENTER button

MENU button

MOUSE/Adjustment button ('/"/\/|)

Press on the remote control.

• The “Picture” menu will be displayed.

2 Press \ or | to select the “Lan-

guage” menu icon (

• The “Language” menu will be displayed.

Press ' or " to select the desired

language, and then press

• The language you selected will be set as the on-screen display.

4 Press .

• The “Language” menu will disappear.

Note

• This procedure can also be performed by using the buttons on the projector.

-60

Maintenance

Cleaning the projector

■ Ensure the power cord is unplugged before cleaning the projector.

■ The cabinet as well as the operation panel is made of plastic. Avoid using benzene or thinner, as these can damage the finish on the cabinet.

■ Do not use volatile agents such as insecticides on the projector. Do not attach rubber or plastic items to the projector for long periods. The effects of some of the agents in the plastic may cause damage to the quality or finish of the projector.

Mild detergent

diluted with water

Thinner

Wax

Cleaning the lens

■ Use a commercially available blower or lens cleaning paper (for glasses and camera lenses) for cleaning the lens. Do not use any liquid type cleaning agents, as they may wear off the coating film on the surface of the lens.

■ As the surface of the lens can easily get damaged, ensure not to scrape or hit the lens.

Cleaning

Paper

Cleaning the exhaust and intake vents

■ Use a vacuum cleaner to clean dust from the exhaust vent and the intake vent.

■ Wipe off dirt gently with a soft flannel cloth.

■ When the dirt is hard to remove, soak a cloth in a

mild detergent diluted with water, wring the cloth well and then wipe the projector. Strong cleaning detergents may discolor, warp or damage the coating on the projector. Make sure to test on a small, inconspicuous area on the projector before use.

Info

• If you want to clean the air vents during projector operation, ensure to press

on the projector or on the remote control and put the projector into standby mode. After the cooling fan has stopped, unplug the power cord from the AC socket and clean the vents.

Appendix

-61

Maintenance Indicators

■ The warning lights on the projector indicate problems inside the projector.

■ If a problem occurs, either the temperature indicator or the lamp indicator will illuminate red, and

the projector will enter the standby mode. After the projector has entered the standby mode, follow the procedures given below.

Maintenance Indicators

Power indicator Lamp indicator Temperature warning indicator

About the temperature warning indicator

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location,

“ ” will illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will

turn off and the temperature warning indicator will blink, the cooling fan will run for a further 90 seconds, and

then the projector will enter the standby mode. After “

described on page 63.

” appears, ensure to perform the measures

About the lamp indicator

■ When the remaining lamp life becomes 5% or less, “ ” (yellow) and “Change The Lamp.” will be

displayed on the screen. When the percentage becomes 0%, it will change to “

automatically turn off and then the projector will automatically enter the standby mode. At this time, the lamp indicator will illuminate in red.

■

If you try to turn on the projector a fourth time without replacing the lamp, the projector will not turn on.

” (red), the lamp will

-62

Maintenance indicator

Temperature

warning

indicator

Lamp

indicator

Normal

Off

Green on

Green blinks

when the lamp

is warming up

or shutting

down.

Abnormal

Red on (Standby)

Red on

Red on (Standby)

Problem

The internal temperature is abnormally high.

The lamp does not illuminate.

Time to change the lamp.

The lamp does not illuminate.

Cause Possible solution

• Relocate the projector to an area

• Blocked air intake

• Cooling fan break-

down

• Internal circuit failure

• Clogged air intake

• The lamp is shut

down abnormally.

• Remaining lamp life becomes 5% or less.

• Burnt-out lamp

• Lamp circuit failure

with proper ventilation (see page

7).

• Ta ke the projector to your nearest Sharp Authorized Projector Dealer or Service Center (see page 70) for repair.

• Clean the exhaust and intake vents. (See page 61.)

• Disconnect the power cord from the AC outlet, and then connect it again.

• Carefully replace the lamp. (See page 65.)

• Ta ke the projector to your nearest Sharp Authorized Projector Dealer or Service Center (see page 70) for repair.

• Please exercise care when replacing the lamp.

Info

• If the temperature warning indicator illuminates and the projector enters the standby mode, check whether any of the ventilation holes are blocked (see page 7) and then try turning the power back on. Wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 10 minutes.)

• If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.

• Do not unplug the power cord after the projector has entered the standby mode and while the cooling fan is running. The cooling fan runs for about 90 seconds.

-63

Appendix

Regarding the Lamp

Lamp

■ It is recommended that the lamp unit (optional: AN-MB60LP) be replaced when the remaining lamp life becomes 5% or less, or when you notice a significant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display. See page 49.

■ Purchase a replacement lamp unit of type AN-MB60LP from your place of purchase, nearest Sharp Authorized Projector Dealer or Service Center.

IMPORTANT NOTE TO U.S. CUSTOMERS:

The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this projector under warranty, including lamp replacement, must be obtained through a Sharp Authorized Projector Dealer or Service Center. For the name of the nearest Sharp Authorized Projector Dealer or Service Center, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).

Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information www.lamprecycle.org or 1-800-BE-SHARP

Caution Concerning the Lamp

■ This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking.

■ When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.

■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.

■ Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector Dealer or Service Center to assure safe operation.

U.S.A. ONLY

Replacing the Lamp

Caution

• Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn

or injury.

• Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool

before removing the lamp unit.

■ Carefully change the lamp by following the instructions described in this section. *If you wish, you

may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center.

* If the new lamp does not illuminate after replacement, take your projector to the nearest Sharp Authorized

Projector Dealer or Service Center for repair.

-64

Removing and Installing the Lamp Unit

Info

• Ensure the lamp unit is removed using the handle. Ensure the glass surface of the lamp unit or the inside of the projector are not touched.

• To avoid injury to yourself and damage to the lamp, ensure to carefully follow the steps below.

• Do not loosen other screws except for the lamp unit cover and lamp unit.

1 Press on the projector or

on the remote control to put

the projector into standby mode.

• Wait until the cooling fan stops.

Warning!

• Do not remove the lamp unit from the projector right after use. The lamp and parts around the lamp will be very hot and may cause burn or injury.

Optional

accessory

STANDBY button

Lamp unit AN-MB60LP

2 Disconnect the power cord.

• Unplug the power cord from the AC socket.

• Leave the lamp until it has fully cooled down (about 1 hour).

3 Remove the lamp unit cover.

• Tu rn the projector over. Loosen the user service screw (1) that secures the lamp unit cover. Pressing the tab, remove the lamp unit cover (2).

Tab

AC socket

Appendix

Tab

User service screw (for lamp unit cover)

-65

Regarding the Lamp

4 Remove the lamp unit.

• Loosen the securing screws from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

Handle

5 Insert the new lamp unit.

• Press the lamp unit firmly into the lamp unit compartment. Fasten the securing screws.

6 Replace the lamp unit cover.

• Align the lamp unit cover and slide it to close. Then tighten the user service screw to secure the lamp unit cover.

Info

• If the lamp unit and lamp unit cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector.

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.

Info

• Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.

Securing screws

User service screw (for lamp unit cover)

AC socket

1 Connect the power cord.

• Plug the power cord into the AC socket of the projector.

2 Reset the lamp timer.

•

While simultaneously

and on the projector, press on

the projector.

• “LAMP 0000H” is displayed, indicating that the lamp timer is reset.

-66

holding down ",

ON button

ENTER button " button

MENU button

Computer Compatibility Chart

The table below lists signal codes that are compatible with the projector. When the images are distorted or cannot be projected, adjust the output signal of your computer and so forth while referring to the table below.

Computer

• Multiple signal support Horizontal Frequency: 15–70 kHz Ver tical Frequency: 43–85 Hz Pixel Clock: 12–108 MHz Sync signal: Compatible with TTL level

The following is a list of modes that conform to VESA. However, this projector supports other signals that are not VESA standards.

PC/MAC/WS Resolution VESA Standard

640 × 350

640 × 400

720 × 350

VGA

720 × 400

640 × 480

800 × 600

SVGA

1,024 × 768

XGA

1,152 × 864

SXGA

1,280 × 1,024 1,400 × 1,050

MAC 13"

MAC 16"

MAC 19" MAC 21"

SXGA+

VGA

SVGA

XGA

SXGA

640 × 480 800 × 600

832 × 624 1,024 × 768 1,152 × 870

Horizontal Frequency

(kHz)

27.0

31.5

37.5

27.0

31.5

37.9

27.0

31.5

27.0

31.5

37.9

26.2

31.5

34.7

37.9

37.5

43.3

31.4

35.1

37.9

46.6

48.1

46.9

53.7

35.5

40.3

48.4

56.5

60.0

68.7

55.0

66.2

67.5

64.0

34.9

37.8

49.7

60.2

68.7

• Compatible with sync on green signal

• SXGA+ and SXGA compatible in intelligent com-

pression

• Intelligent Compression and Expansion System resizing technology

Vertical Frequency

(Hz)

60 70 85 60 70 85 60 70 60 70 85 50 60 70 72 75 85 50 56 60 70 72 75 85 43 50 60 70 75 85 60 70 75 60 60 67 60 75 75

✔

✔ ✔ ✔

✔ ✔

✔ ✔ ✔

✔ ✔ ✔ ✔

✔ ✔

Display

Upscale

True

Intelligent Compression

Upscale

True

Intelligent Compression

Note

• This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD) mode. Should this occur, turn off the LCD display on the notebook computer and output the display data in “CRT only” mode. Details on how to change display modes can be found in your notebook computer’s operation manual.

• When this projector receives 640 × 350 VESA format VGA signals, “640 × 400” appears on the screen.

• When projecting the RGB interlace signal using INPUT 1/2 with “Signal Type” set to “Auto” or “RGB”, the

image may not be projected as desired. In this case, select either INPUT 3 (Video) or INPUT 4 (S-Video).

DTV

Signal Vertical Frequency (Hz)Horizontal Frequency (kHz)

480 480P 540P 576 576P

720P 1035 1035 1080 1080

I I I I

15.7

31.5

33.8

15.6

31.3

45.0

28.1

33.8

28.1

33.8

60 60 60 50 50 60 50 60 50 60

Appendix

-67

Troubleshooting

Problem

No picture and no sound

or projector does not start.

Sound is heard but no

picture appears.

Color is faded or poor.

Picture is blurred;

noise appears.

Check

• Projector power cord is not plugged into the wall outlet.

• Power to the external connected devices is off.

• The selected input mode is wrong.

• The AV MUTE function is working.

• Cables incorrectly connected to rear panel of the projector.

• Remote control batteries have run out.

•

External output has not been set when connecting notebook computer.

• The lamp unit cover is not installed correctly.

• Cables incorrectly connected to the rear panel of the projector.

• “Bright” is set to minimum position.

• Image adjustments are incorrectly set.

(Video Input only)

• Video input system is incorrectly set. (INPUT 1, INPUT 2 only)

• Input signal type (RGB/Component) is incorrectly set.

• Adjust the focus.

• The projection distance exceeds the focus range.

(Computer Input only)

• Perform “Fine Sync” Adjustments. (“Clock” Adjustment)

• Perform “Fine Sync” Adjustments. (“Phase” Adjustment)

• Noise may appear depending on the computer.

• Cables incorrectly connected to rear panel of the projector.

• Volume is set to minimum.

Page

—

33 34

23, 25-28

15 67

65, 66

23, 25-28

32 19

47 47

—

23, 25-28

Picture appears but no

sound is heard.

An unusual sound is

occasionally heard

from the cabinet.

Maintenance

indicator illuminates or

blinks in red.

The projector cannot be turned on or put into the standby mode using the ON or STANDBY button

on the projector.

-68

• If the picture is normal, the sound is due to cabinet shrinkage caused by room temperature changes. This will not affect operation or performance.

• See “Maintenance Indicators”.

• The keylock is set.

If the keylock is set to ON, all the buttons are locked.

—

CheckProblem Page

Picture is green on INPUT 1 (COMPONENT)/ INPUT 2 (COMPONENT).

Picture is pink (no green)

on INPUT 1 (RGB)/

INPUT 2 (RGB).

Picture is too bright and

whitish.

The cooling fan becomes noisy.

The lamp does not light

up even after the

projector turns on.

The lamp suddenly turns

off during projection.

The image sometimes

flickers.

The lamp takes a long

time to turn on. Picture is dark.

• Change the input signal type setting.

• Image adjustments are incorrectly set.

• When temperature inside the projector increases, the cooling

fan runs faster.

• The lamp indicator is illuminating in red. Replace the lamp.

• Cables incorrectly connected to the projector or the connected equipment works improperly.

• If this happens frequently, replace the lamp.

• The lamp will eventually need to be changed.

The lamp has reached the end of its life. Replace the lamp.

—

23, 25-28

65 65

This projector is equipped with a microprocessor. Its performance could be adversely affected by incorrect operation or interference. If this should happen, unplug the projector and plug it in again after more than 5 minutes.

-69

Appendix

For SHARP Assistance

If you encounter any problems during setup or operation of this projector, first refer to the “Troubleshooting” section on pages 68 and 69. If this operation manual does not answer your question, please contact the SHARP Service departments listed below.

U.S.A. Sharp Electronics Corporation

1-888-GO-SHARP (1-888-467-4277) lcdsupport@sharpsec.com http://www.sharplcd.com

Canada Sharp Electronics of Canada Ltd.

(905) 568-7140 http://www.sharp.ca

Mexico Sharp Electronics Corporation Mexico

Branch

(525) 716-9000 http://www.sharp.com.mx

Latin America Sharp Electronics Corp. Latin American

Group

(305) 264-2277 www.servicio@sharpsec.com http://www.siempresharp.com

Germany Sharp Electronics (Europe) GMBH

01805-234675 http://www.sharp.de

U.K. Sharp Electronics (U.K.) Ltd.

0161-205-2333 cic@sharp-uk.co.uk http://www.sharp.co.uk

Italy Sharp Electronics (Italy) S.P.A.

(39) 02-89595-1 http://www.sharp.it

France Sharp Electronics France

01 49 90 35 40 hotlineced@sef.sharp-eu.com http://www.sharp.fr

Benelux SHARP Electronics Benelux BV

0900-SHARPCE (0900-7427723) Nederland 9900-0159 Belgium http://www.sharp.nl http://www.sharp.be http://www.sharp.lu

Australia Sharp Corporation of Australia

Pty. Ltd.

1300-135-022 http://www.sharp.net.au

New Zealand Sharp Corporation of New Zealand

(09) 634-2059, (09) 636-6972 http://www.sharpnz.co.nz

Singapore Sharp-Roxy Sales (S) Pte. Ltd.

65-226-6556 ckng@srs.global.sharp.co.jp http://www.sharp.com.sg

Hong Kong Sharp-Roxy (HK) Ltd.

(852) 2410-2623 dcmktg@srh.global.sharp.co.jp http://www.sharp.com.hk

Taiwan Sharp Corporation (Taiwan)

0800-025111 http://www.sharp-scot.com.tw

Malaysia Sharp-Roxy Sales & Service Co.

(60) 3-5125678

U.A.E. Sharp Middle East Fze

971-4-81-5311 helpdesk@smef.global.sharp.co.jp

Spain Sharp Electronica Espana, S.A.

93 5819700 sharplcd@sees.sharp-eu.com http://www.sharp.es

Switzerland Sharp Electronics (Schweiz) AG

0041 1 846 63 11 cattaneo@sez.sharp-eu.com http://www.sharp.ch

Sweden Sharp Electronics ( Nordic ) AB

(46) 8 6343600 vision.support@sen.sharp-eu.com http://www.sharp.se

Austria Sharp Electronics (Europe) GMBH

Branch Office Austria

0043 1 727 19 123 pogats@sea.sharp-eu.com http://www.sharp.at

-70

Thailand Sharp Thebnakorn Co. Ltd.

02-236-0170 svc@stcl.global.sharp.co.jp http://www.sharp-th.com

Korea Sharp Electronics Incorporated of

Korea

(82) 2-3660-2002 lcd@sharp-korea.co.kr http://www.sharpkorea.co.kr

India Sharp Business Systems (India)

Limited

(91) 11- 6431313 service@sharp-oa.com

Specifications

Product type

Video system

Display method

DMD panel

Projection lamp

Component input (INPUT 1/2)/

output (OUTPUT) signal

Horizontal resolution

Computer RGB input (INPUT 1/2)/

output (OUTPUT) signal

Video input signal

(INPUT 3)

S-video input signal

(INPUT 4)

Audio input signal

USB terminal

RS-232C ter mina l

Pixel clock

Vertical frequency

Horizontal frequency

Audio output

Speaker system

Rated voltage

Input current

Rated frequency

Power consumption

Power consumption (standby)

Heat dissipation

Operating temperature

Storage temperature

Cabinet

I/R carrier frequency

Dimensions (approx.)

Weight (approx.)

Replacement parts

Multimedia Projector PG-MB60X

Model

NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL-60/SECAM/ DTV480I/DTV480P/DTV540P/DTV576I/DTV576P/DTV720P/DTV1035I/DTV1080I Single Chip Digital Micromirror Device Panel size: 0.7" No. of dots: 786,432 dots (1,024 [H] × 768 [V])

1.5 × electric zoom/focus lens, F2.0–2.5, f = 21.3–31.6 mm

Lens

200 W DC lamp 15-pin mini D-sub connector Y: 1.0 Vp-p, sync negative, 75 Ω terminated P PR: 0.7 Vp-p, 75 Ω terminated 750 TV lines (DTV720P) 15-pin mini D-sub connector RGB separate/sync on green type analog input: 0–0.7 Vp-p, positive, 75 Ω terminated HORIZONTAL SYNC. SIGNAL: TTL level (positive/negative) VERTICAL SYNC. SIGNAL: Same as above RCA connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ω terminated 4-pin mini DIN connector Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated ø3.5 mm minijack: AUDIO, 0.5 Vrms, more than 22 kΩ (stereo) 4-pin B-type USB female connector 9-pin mini DIN connector 12–108 MHz 43–85 Hz 15–70 kHz

2.0 W (monaural)

4.0 cm × 2.85 cm oval × 1 AC 100–240 V

2.7 A 50/60 Hz 270 W (Standard mode)/220 W (Eco mode) with AC 100 V 255 W (Standard mode)/210 W (Eco mode) with AC 240 V 5 W (AC 100 V) – 6 W (AC 240 V) 1,015 BTU/hour (Standard mode)/960 BTU/hour (Eco mode) with AC 100 V 960 BTU/hour (Standard mode)/760 BTU/hour (Eco mode) with AC 240 V 41°F to 104°F (+5°C to +40°C) –4°F to 140°F (–20°C to +60°C) Plastic 38 kHz 12 7/32" × 3 33/64" × 11 7/64" (310 (W) × 89 (H) × 282 (D) mm) (main body only) 12 7/32 and projecting parts)

8.8 lbs. (4.0 kg) Lamp unit (Lamp/cage module) (AN-MB60LP), Remote control (RRMCGA342WJSA), Power cord for U.S., Canada, etc. (QACCDA010WJPZ), Power cord for Europe, except U.K. (QACCVA011WJPZ), Power cord for U.K., Hong Kong and Singapore (QACCBA036WJPZ), Power cord for Australia, New Zealand and Oceania (QACCLA018WJPZ), RGB cable (QCNWGA045WJPZ), USB cable (QCNWGA014WJPZ), Storage case (GCASNA014WJSA), Lens cap (RCAPHA021WJSA), Projector manual and technical reference CD-ROM (UDSKAA053WJZZ), “QUICK GUIDE” label (TLABZA793WJZZ), Operation manual (TINSB526WJZZ)

(DMDTM) by Texas Instruments

: 0.7 Vp-p, 75 Ω terminated

" × 4 7/64" × 11 5/16" (310 (W) × 104 (H) × 287 (D) mm) (including adjustment foot

As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Appendix

-71

Glossary

Aspect Ratio

Width and height ratio of an image. The normal aspect ratio of a computer and video image is 4:3. There are also wide images with an aspect ratio of 16:9 and 21:9.

Auto Sync

Optimizes projected computer images by automatically adjusting certain characteristics.

Background

Initial setting image projected when no signal is being output.

Border

Projects a 4:3 image fully within a 16:9 screen by keeping the aspect ratio at 4:3.

Clock

Clock adjustment is used to adjust vertical noise when clock level is incorrect.

CLR Temp (Color temperature)

Function that can be used to adjust the color temperature to suit the type of image input to the projector. Decrease the color temperature to create warmer, reddish images for natural flesh tones, or increase to create cooler, bluish images for a brighter picture.

Dot by Dot

Mode that projects images in their native resolution.

Intelligent compression

High quality resizing of lower and higher resolution images to fit the projector’s native resolution.

Keylock

Mode that can lock the operation of projector buttons to prevent unauthorized adjustment.

Keystone Correction

Function to digitally correct a distorted image when the projector is set up at an angle, smoothens out jaggies on keystone images and compresses the image not only horizontally but vertically keeping the 4:3 aspect ratio.

Phase

Phase shift is a timing shift between isomorphic signals with the same resolution. When phase level is incorrect, the projected image typically displays horizontal flicker.

Picture Mode

Image quality enhancement function that offers a richer image by brightening the darker portions of the image without altering the brightness of the brighter portions. You can select four different modes: STANDARD, PRESENTATION, CINEMA and GAME.

Resize

Allows you to modify or customize the picture display mode to enhance the input image. You can select four different modes: NORMAL, DOT BY DOT, BORDER and STRETCH.

sRGB

An international standard of color reproduction regulated by the IEC (International Electrotechnical Commission). As the fixed color area has been decided by the IEC, the color changes according to DLP features, so that the images are displayed in a natural tint based on an original image, when “sRGB” is set to “ON”.

Stretch

Mode that stretches the 4:3 image horizontally to display it fully on a 16:9 screen.

System Lock

If the “Keycode” set in the projector is not correctly entered, the projector will not operate even if signals are entered.

Password

A password is set so that changes cannot be made in the “Options2” setting.

-72

Index

AC socket ............................................................. 29

Adjustment buttons .............................................. 40

Aspect ratio ..................................................... 36,37

AUDIO INPUT terminal........................................ 23

AUDIO OUTPUT terminal.................................... 28

Auto Keystone ...................................................... 56

Auto Power Off ..................................................... 52

Auto Sync (Auto Sync adjustment)...................... 48

AUTO SYNC button ............................................. 48

AV MUTE button .................................................. 34

Background .......................................................... 51

Blue ...................................................................... 44

Border ............................................................. 36,49

Bright .................................................................... 44

Bright Boost ......................................................... 45

Cinema................................................................. 44

Clock .................................................................... 47

CLR Temp (Color Temperature) ........................... 45

Color .................................................................... 44

Contrast ............................................................... 44

DIN-D-sub RS-232C adaptor .............................. 27

Dot By Dot ...................................................... 36,49

Eco Mode ............................................................. 51

ENLARGE buttons ............................................... 34

ENTER button ...................................................... 40

Exhaust vent ................................................7,13,61

Fine Sync ........................................................ 38,47

FOCUS buttons ................................................... 32

FREEZE button .................................................... 35

Front adjustment foot ........................................... 30

Game ................................................................... 44

HEIGHT ADJUST button ..................................... 30

H-Pos ................................................................... 47

INPUT 1 terminal ............................................ 23,25

INPUT 1 – 4 modes ............................................. 33

INPUT 2 terminal ............................................ 23,25

INPUT 3 terminal ................................................. 26

INPUT 4 terminal ................................................. 26

INPUT buttons ..................................................... 33

Intake vent ........................................................ 7,61

Kensington Security Standard connector ............ 13

Keycode ...............................................................53

Keylock ................................................................. 54

KEYSTONE button .............................................. 31

Keystone Correction ............................................ 31

Lamp .................................................................... 64

Lamp indicator ..................................................... 62

Lamp Timer (Life) ................................................. 49

Language (on-screen display language) ........ 39,60

L-CLICK/ENTER button .................................. 24,40

Lens cap .............................................................. 11

MENU button ....................................................... 40

Menu Position ...................................................... 52

MOUSE/Adjustment button ............................ 24,40

Normal ............................................................ 36,49

ON button ............................................................. 29

Optional accessories ........................................... 10

Options1 .......................................................... 39,49

Options2 .......................................................... 39,55

OSD Display ........................................................ 50

OUTPUT (INPUT 1, 2) terminal .......................... 28

Password ............................................................. 55

PDF ........................................................................ 9

Phase ................................................................... 47

Picture .............................................................38,44

Picture Mode ........................................................ 44

PICTURE MODE button ...................................... 35

Power cord ........................................................... 29

Power indicator .................................................... 12

Presentation ......................................................... 44

PRJ mode ............................................................ 57

R-CLICK/UNDO button ................................... 24,40

Rear adjustment feet ........................................... 30

Red ...................................................................... 44

Remote control .................................................... 14

Remote control sensor ........................................ 15

Replacing the lamp .............................................. 64

RESIZE button ..................................................... 36

RGB cable............................................................ 23

RS-232C terminal ................................................ 27

Sharp ................................................................... 44

Signal Info ............................................................48

Signal Type .......................................................... 46

Special Modes ..................................................... 47

sRGB ................................................................... 46

Standard .............................................................. 44

STANDBY button ................................................. 29

Storage case ........................................................ 18

Stretch............................................................. 36,49

Supplied accessories ........................................... 10

System Lock ........................................................ 53

Temperature warning indicator ............................ 62

Tint ....................................................................... 44

USB terminal ........................................................ 23

Video System ....................................................... 50

Volume buttons .................................................... 33

V-Pos .................................................................... 47

Zoom buttons ....................................................... 32

ZOOM/FOCUS button ......................................... 32

Appendix

-73

SHARP CORPORATION

Sharp PG-MB60X Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

How to Read this Operation Manual

Contents

IMPORTANT SAFEGUARDS

How to Access the PDF Operation Manuals

Accessories

Part Names and Functions

Using the Remote Control

Usable Range

Inserting the Batteries

Quick Start

Storing the Projector

How to Use the Storage Case

Setting up the Projector

Setting up the Projector

Projecting a Reversed Image

Connections

INPUT/OUTPUT Terminals and Connectable Main Equipment

Connections

Samples of Cables for Connection

Connecting to a Computer

Using the Remote Control as the Wireless Computer Mouse

Connecting to Video Equipment

Controlling the Projector by a Computer

Connecting to a Monitor with RGB Input Terminal

Connecting to an Amplifier or Other Audio Equipment

Turning the Projector On/Off

Basic Operation

Image Projection

Using the Adjustment Feet

Correcting Trapezoidal Distortion

Adjusting the Focus

Adjusting the Projected Image Size

Switching the INPUT Mode

Adjusting the Volume

Displaying an Enlarged Portion of an Image

Freezing a Moving Image

Resize Mode

Menu Items

Using the Menu Screen

Menu Selections (Adjustments)

Menu Selections (Settings)

Picture Adjustment (“Picture” menu)

Selecting the Picture Mode

Adjusting the Image

Emphasizing the Contrast

Adjusting the Color Temperature

sRGB Setting

Signal Type Setting

Computer Image Adjustment (“Fine Sync” menu)

Adjusting the Computer Image

Special Modes Setting

Auto Sync Adjustment

Checking the Input Signal

Using the “Options1” Menu

Checking the Lamp Life Status

Setting the Resize Mode

Setting On-screen Display

Setting the Video System

Eco Mode

Auto Power Off Function

Selecting the Menu Screen Position

System Lock Function

Keylock Function

Helpful Functions Set during Installation (“Options2” menu)

Setting a Password

If You Forget Your Password

Auto Keystone Setting

Speaker Setting

Setting the Audio Output Type

Monitor Output Settings

Returning to the Default Settings

Using the “Language” Menu

Selecting the On-screen Display Language

Maintenance

Appendix
