OPERATION MANUAL
MODEL
PG-A10X
PG-A10S
Introduction
Connections and Setup
Basic Operation
LCD PROJECTOR
Easy to Use Functions
Appendix
IMPORTANT
For your assistance in reporting the loss or theft of your
Projector, please record the Model and Serial Number
located on the bottom of the projector and retain this
information. Before recycling the packaging, please be
sure that you have checked the contents of the carton
thoroughly against the list of “Supplied accessories”
on page 14.
This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/
EEC.
Dieses Gerät entspricht den Anforderungen der EG-Richtlinien 89/336/EWG und 73/23/EWG mit Änderung 93/
68/EWG.
Ce matériel répond aux exigences contenues dans les directives 89/336/CEE et 73/23/CEE modifiées par la
directive 93/68/CEE.
Dit apparaat voldoet aan de eisen van de richtlijnen 89/336/EEG en 73/23/EEG, gewijzigd door 93/68/EEG.
Dette udstyr overholder kravene i direktiv nr. 89/336/EEC og 73/23/EEC med tillæg nr. 93/68/EEC.
Quest’ apparecchio è conforme ai requisiti delle direttive 89/336/EEC e 73/23/EEC, come emendata dalla
direttiva 93/68/EEC.
Model No.:
Serial No.:
Este equipamento obedece às exigências das directivas 89/336/CEE e 73/23/CEE, na sua versão corrigida
pela directiva 93/68/CEE.
Este aparato satisface las exigencias de las Directivas 89/336/CEE y 73/23/CEE, modificadas por medio de la
93/68/CEE.
Denna utrustning uppfyller kraven enligt riktlinjerna 89/336/EEC och 73/23/EEC så som kompletteras av 93/68/
EEC.
Dette produktet oppfyller betingelsene i direktivene 89/336/EEC og 73/23/EEC i endringen 93/68/EEC.
Tämä laite täyttää direktiivien 89/336/EEC ja 73/23/EEC vaatimukset, joita on muutettu direktiivillä 93/68/EEC.
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 5A fuse. Should
the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked
above, which is also indicated on the pin face of the plug, must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the
mains plug and fit an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of
in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 5A socket outlet, as a serious
electric shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:
IMPORTANT:
The wires in the mains lead are coloured in accordance with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this product may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
• The wire which is coloured blue must be connected to the plug terminal which is marked N or coloured black.
• The wire which is coloured brown must be connected to the plug terminal which is marked L or coloured red.
Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three-pin plug.
Before replacing the plug cover make sure that:
• If the new fitted plug contains a fuse, its value is the same as that removed from the cut-off plug.
• The cord grip is clamped over the sheath of the mains lead, and not simply over the lead wires.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
or and of the same rating as
The supplied CD-ROM contains operation instructions in English, German, French, Swedish, Spanish, Italian,
Dutch, Portuguese, Chinese (Traditional Chinese and Simplified Chinese) and Korean. Carefully read through
the operation instructions before operating the projector.
Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Schwedisch, Spanisch,
Italienisch, Niederländisch, Portugiesisch, Chinesisch (Traditionelles Chinesisch und einfaches Chinesisch) und
Koreanisch. Bitte lesen Sie die Bedienungsanleitung vor der Verwendung des Projektors sorgfältig durch.
Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, suédois,
espagnol, italien, néerlandais, portugais, chinois (chinois traditionnel et chinois simplifié) et coréen. Veuillez lire
attentivement ces instructions avant de faire fonctionner le projecteur.
Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska, svenska, spanska,
italienska, holländska, portugisiska, kinesiska (traditionell kinesiska och förenklad kinesiska) och koreanska. Läs
noga igenom bruksanvisningen innan projektorn tas i bruk.
El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, sueco, español,
italiano, holandés, portugués, chino (chino tradicional y chino simplificado) y coreano. Lea cuidadosamente las
instrucciones de operación antes de utilizar el proyector.
Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese, svedese, spagnolo, italiano,
olandese, portoghese, cinese (cinese tradizionale e cinese semplificato) e coreano. Leggere attentamente le
istruzioni per l’uso prima di usare il proiettore.
De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Zweeds, Spaans, Italiaans,
Nederlands, Portugees, Chinees (Traditioneel Chinees en Vereenvoudigd Chinees) en Koreaans. Lees de
handleiding zorgvuldig door voor u de projector in gebruik neemt.
O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Sueco, Espanhol, Italiano,
Holandês, Português, Chinês, (Chinês Tradicional e Chinês Simplificado) e Coreano. Leia cuidadosamente
todas as instruções de operação antes de operar o projetor.
Before using the projector, please read this operation manual carefully.
Introduction
ENGLISH
There are two important reasons for prompt warranty registration of your new SHARP Projector, using
the REGISTRATION CARD packed with the projector.
1. WARRANTY
This is to assure that you immediately receive the full benefit of the parts, service and labor
warranty applicable to your purchase.
2. CONSUMER PRODUCT SAFETY ACT
To ensure that you will promptly receive any safety notification of inspection, modification, or
recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE
READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.
U.S.A. ONLY
WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially
careful that children do not stare directly into the beam of light.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to
rain or moisture.
See bottom of projector.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT SPECIFIED USER
SERVICE SCREW.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk or electric shock to
persons.
Introduction
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
WARNING:
DO NOT REMOVE COVER.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this equip-
ment.
The exclamation point within a triangle is
intended to alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
U.S.A. ONLY
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the operation manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
The enclosed computer cable must be used with the device. The cable is provided to ensure that the device
complies with FCC Class A verification.
U.S.A. ONLY
U.S.A. ONLY
WARNING:
This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
-1
WARNING:
The cooling fan in this projector continues to run for about 90 seconds after the projector is turned off. During
normal operation, when turning the power off always use the POWER OFF button on the projector or on the remote
control. Ensure the cooling fan has stopped before disconnecting the power cord.
DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD.
FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.
PRODUCT DISPOSAL
This projector utilizes tin-lead solder, and a pressurized lamp containing a small amount of mercury. Disposal of
these materials may be regulated due to environmental considerations. For disposal or recycling information,
please contact your local authorities or, if you are located in the United States of America, the Electronic Industries
Alliance: www.eiae.org .
Caution Concerning Lamp Replacement
See “Replacing the Lamp” on page 57.
LAMP REPLACEMENT CAUTION
BEFORE REMOVING THE SCREW, DISCONNECT POWER CORD.
HOT SURFACE INSIDE. ALLOW 1 HOUR TO COOL BEFORE
REPLACING THE LAMP. REPLACE WITH SAME SHARP LAMP UNIT
TYPE BQC-PGA10X//1 ONLY.
UV RADIATION : CAN CAUSE EYE DAMAGE. TURN OFF LAMP
BEFORE SERVICING.
HIGH PRESSURE LAMP : RISK OF EXPLOSION. POTENTIAL
HAZARD OF GLASS PARTICLES IF LAMP HAS RUPTURED.
HANDLE WITH CARE. SEE OPERATION MANUAL.
PRECAUTIONS A OBSERVER LORS
DU REMPLACEMENT DE LA LAMPE.
DEBRANCHER LE CORDON D’ALIMENTATION AVANT DE RETIRER
LA VIS. L’INTERIEUR DU BOITIER ETANT EXTREMEMENT CHAUD,
ATTENDRE 1 HEURE AVANT DE PROCEDER AU REMPLACEMENT
DE LA LAMPE. NE REMPLACER QUE PAR UNE LAMPE SHARP DE
TYPE BQC-PGA10X//1.
RAYONS ULTRAVIOLETS : PEUVENT ENDOMMAGER LES YEUX.
ETEINDRE LA LAMPE AVANT DE PROCEDER A L’ENTRETIEN.
LAMPE A HAUTE PRESSION : RISQUE D’EXPLOSION. DANGER
POTENTIEL DE PARTICULES DE VERRE EN CAS D’ECLATEMENT
DE LA LAMPE. A MANIPULER AVEC PRECAUTION, SE REPORTER
AU MODE D’EMPLOI.
When Attaching the “QUICK GUIDE” Label
Attaching the “QUICK GUIDE” Label (supplied) on the
projector will help you check the setup procedure. When
you attach the “QUICK GUIDE” Label on the projector,
be sure to align the label bottom and the upper part of
the “Notevision” logo on the top cabinet of the projector
as shown in the drawing on the right. Do not attach the
“QUICK GUIDE” Label anywhere else.
“QUICK GUIDE” Label
-2
Outstanding Features
1. Light and Compact Design
• A4 / letter size projector weighing only 2.9 kg / 6.4 lbs can be easily
transported from room to room or location to location.
2. Comfortable Operation, Classroom and Meeting Room Friendly
• Low fan noise and front directed exhaust outlet insure minimal distur-
bance to your audience seated adjacent to the projector.
• Short throw lens allows for image size of 100" at just 3.2 meters (10' 6").
3. Simply and Easy Operation
• Color-coded connections allows for hassle-free set-up.
• Frequently used buttons, lens placement are positioned for easy
operation.
4. High Brightness Despite Compact Size
• Use of 165 W SHP lamp achieves excellent color uniformity and high
brightness.
• The Eco mode function reduces noise levels and power consumption
while also extending lamp life.
Introduction
5. Wide Input Signal Compatibility
• Video systems compatible (NTSC3.58, PAL, SECAM,
PAL-N, PAL-M, PAL-60 and NTSC4.43)
• HD input compatible (1080I, 720P and 480P)
• Computer input compatible (VGA, SVGA, XGA, SXGA and SXGA+)

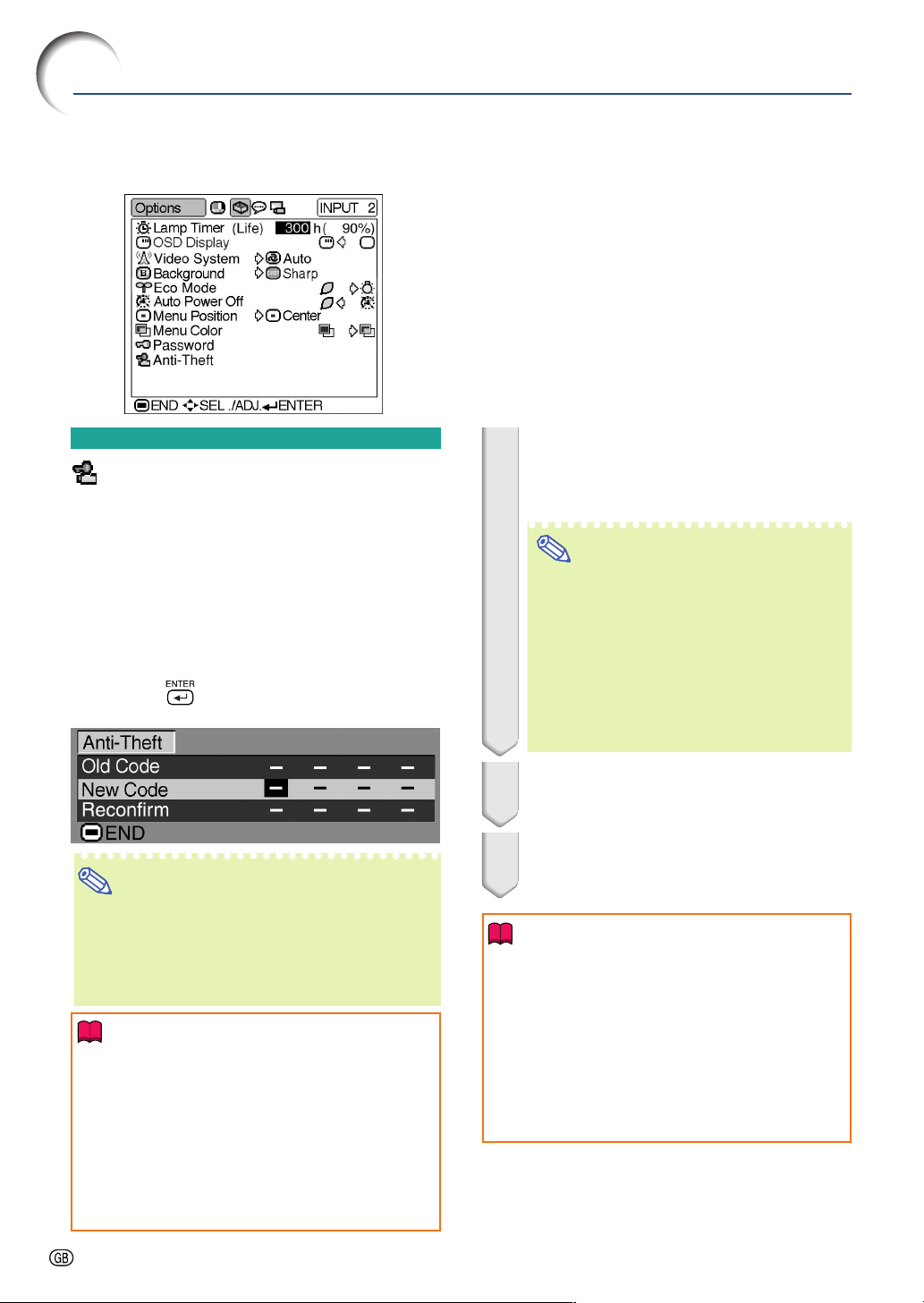

6. Anti-Theft and Keylock
• The Anti-Theft function renders the pro-
jector useless to prevent unauthorized
use until a keycode is entered.
• The Keylock function allows you to eas-
ily lock the operation buttons on the projector to prevent unauthorized adjustment.
-3
Contents
Introduction
Outstanding Features ......................................... 3
Contents............................................................... 4
IMPORTANT SAFEGUARDS ............................... 6
How to Access the PDF Operation Manuals..... 9
Part Names ........................................................ 10
Projector (Front and Top View) ................................ 10
Projector (Rear View) .............................................. 11
Remote Control (Front View) ................................... 12
Using the Remote Control ................................ 13
Usable Range ......................................................... 13
Inserting the Batteries ............................................. 13
Accessories ....................................................... 14
Connections and Setup
Connecting the Projector to Other Devices.... 15
Before Connecting.................................................. 15
This projector can be connected to: ....................... 15
Connecting the Power Cord ................................... 15
Connecting the Projector to a Computer ............. 16
Connecting to Video Equipment.......................... 18
Controlling the Projector Using a Computer........ 20
Setup .................................................................. 21
Using the Adjustment Feet ..................................... 21
Adjusting the Lens .................................................. 22
Setting up the Screen ..............................................23
Screen Size and Projection Distance ...................... 24

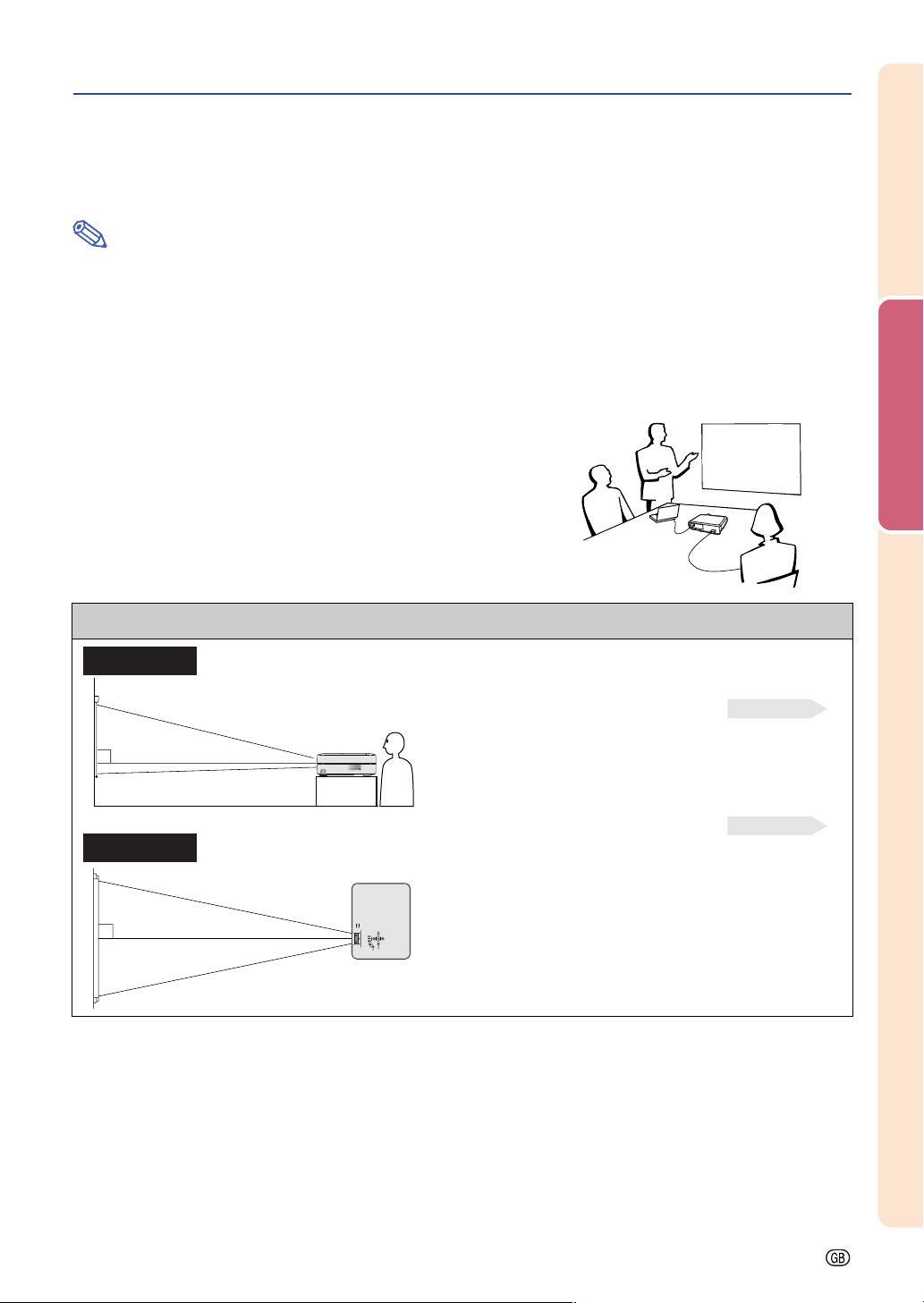

Projecting a Reversed/Inverted Image ................... 25
Easy to Use Functions
Picture Display Mode ........................................ 40
Switching the Picture Display Mode ........................40
Still and Zoom Image ........................................ 42
Freezing a Moving Image ....................................... 42
Displaying an Enlarged Portion of an Image ...........42
Keylock Function .............................................. 43
Locking the operation Buttons ................................ 43
Taking the Keylock off .............................................. 43

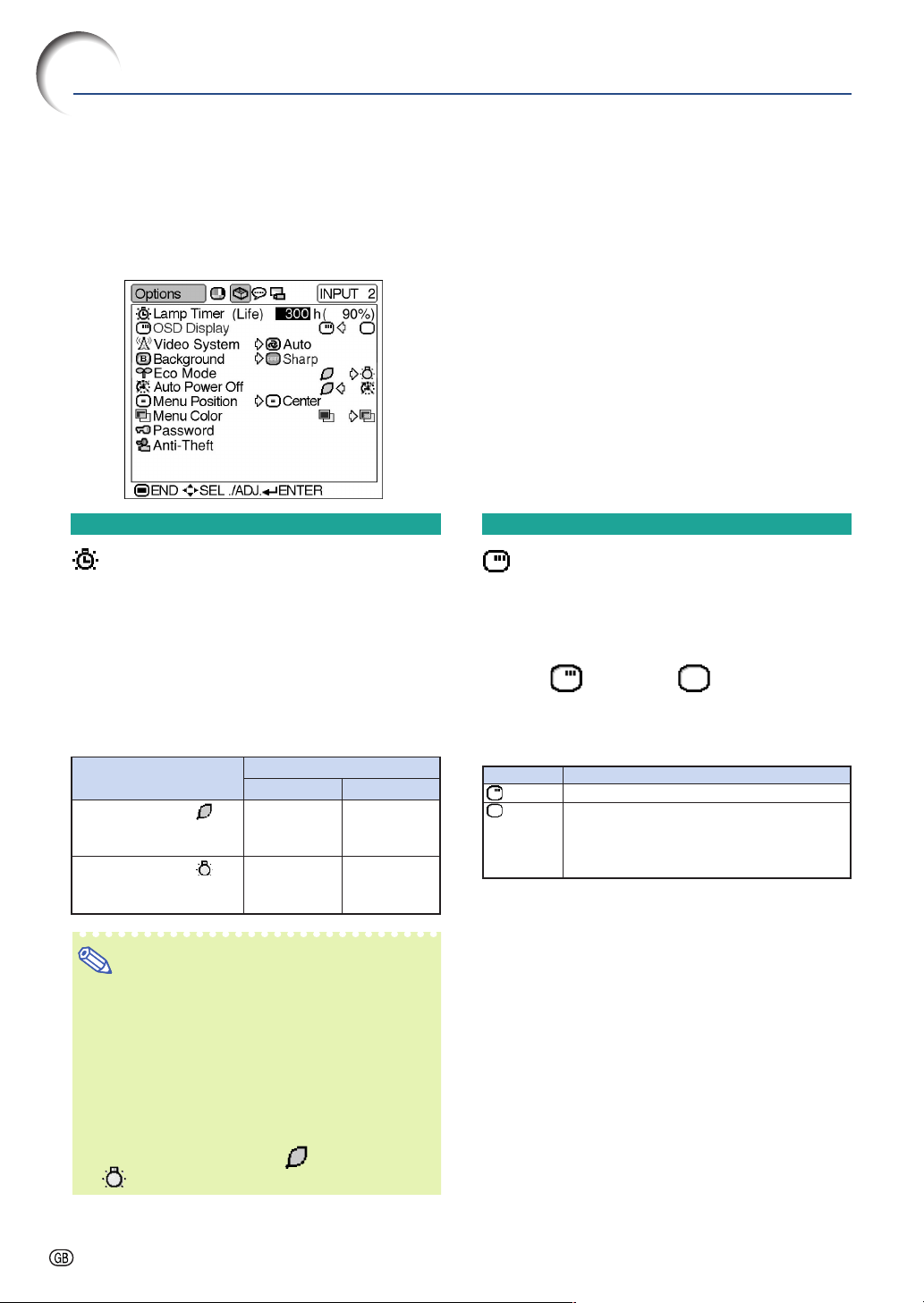

Using the “Options” Menu ............................... 44
Lamp Timer (Life) (Checking the Lamp Life
Status) .................................................................... 44
OSD Display (Setting On-screen Display) ............... 44
Video System (Setting the Video System) ............... 45
Background (Selecting a Startup and
Background Image) ................................................ 45
Eco Mode (Setting the Eco Mode) .......................... 45
Auto Power Off (Auto Power Off Function) ............. 46

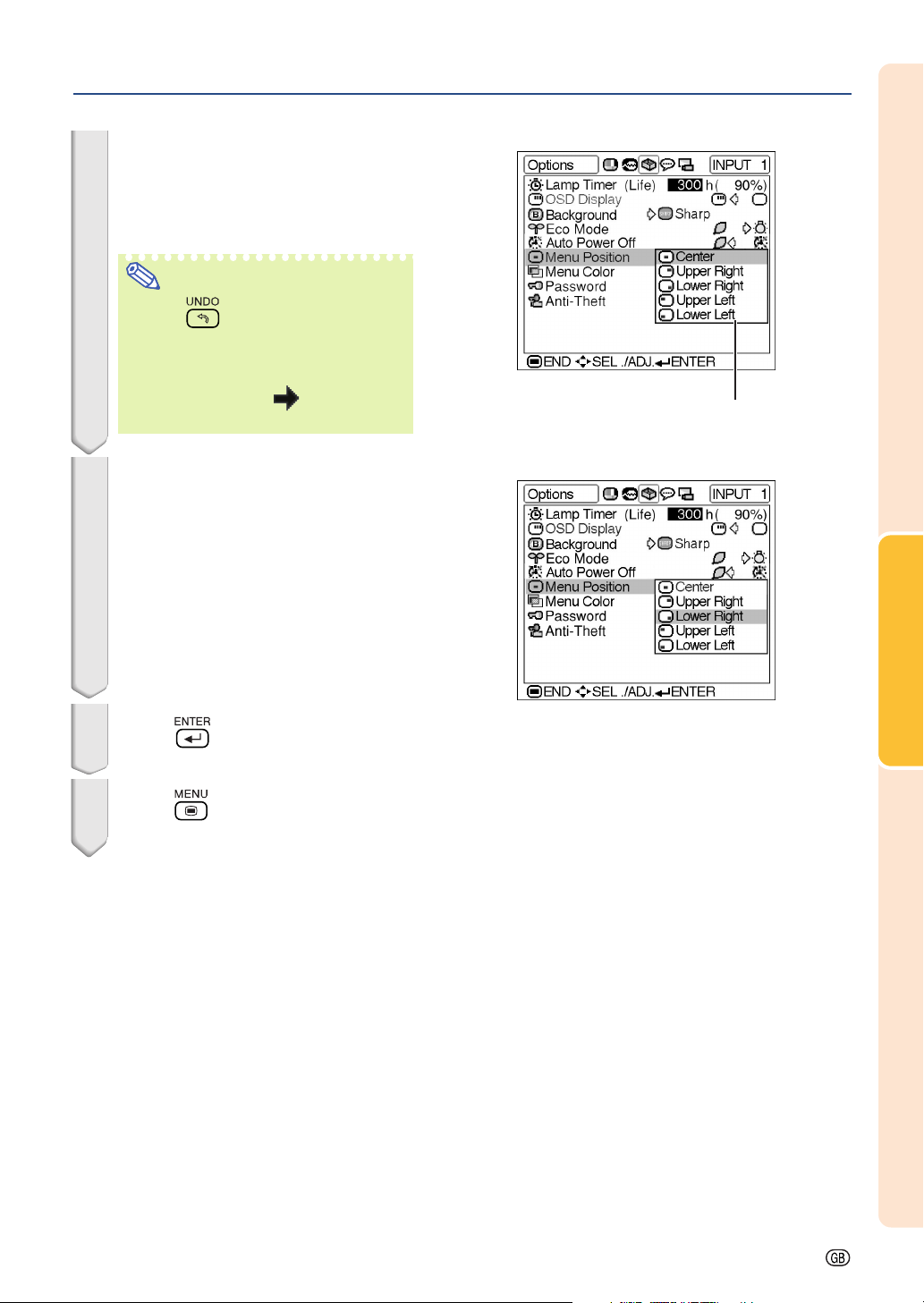

Menu Position (Selecting the Menu Screen
Position) .................................................................. 46
Menu Color (Selecting the Menu Color) ................. 46
Password (Setting a Password).............................. 47
If You Forget Your Password ................................... 47
Anti-Theft (Setting the Anti-Theft) ............................ 48
Reversing /Inverting Projected Images ........... 50
Setting the Projection Mode ................................... 50
Basic Operation
Image Projection ............................................... 26
Basic Procedure ......................................................26
Selecting the On-screen Display Language ........... 28
Keystone Correction
(Correcting Trapezoidal Distortion) ........... 29
Menu Items ........................................................ 30
Using the Menu Screen .................................... 32
Menu Selections (Adjustments) .............................. 32
Menu Selections (Settings) ..................................... 34
Picture Adjustment ........................................... 36
Adjusting the Image ................................................ 36
CLR Temp (Adjusting the Color Temperature)........ 36
Gamma (Gamma Correction) ..................................37
sRGB (sRGB Setting) .............................................. 37
Signal Type (Signal Type Setting) ............................37
Memory (Storing and Selecting the Adjustment
Settings) .................................................................. 37
Computer Image Adjustment ........................... 38
Adjusting the Computer Image .............................. 38
Special Modes (Special Mode Settings) ................. 38
Signal Info (Checking the Input Signal) ................... 39
-4
Appendix
Carrying the Projector ...................................... 51

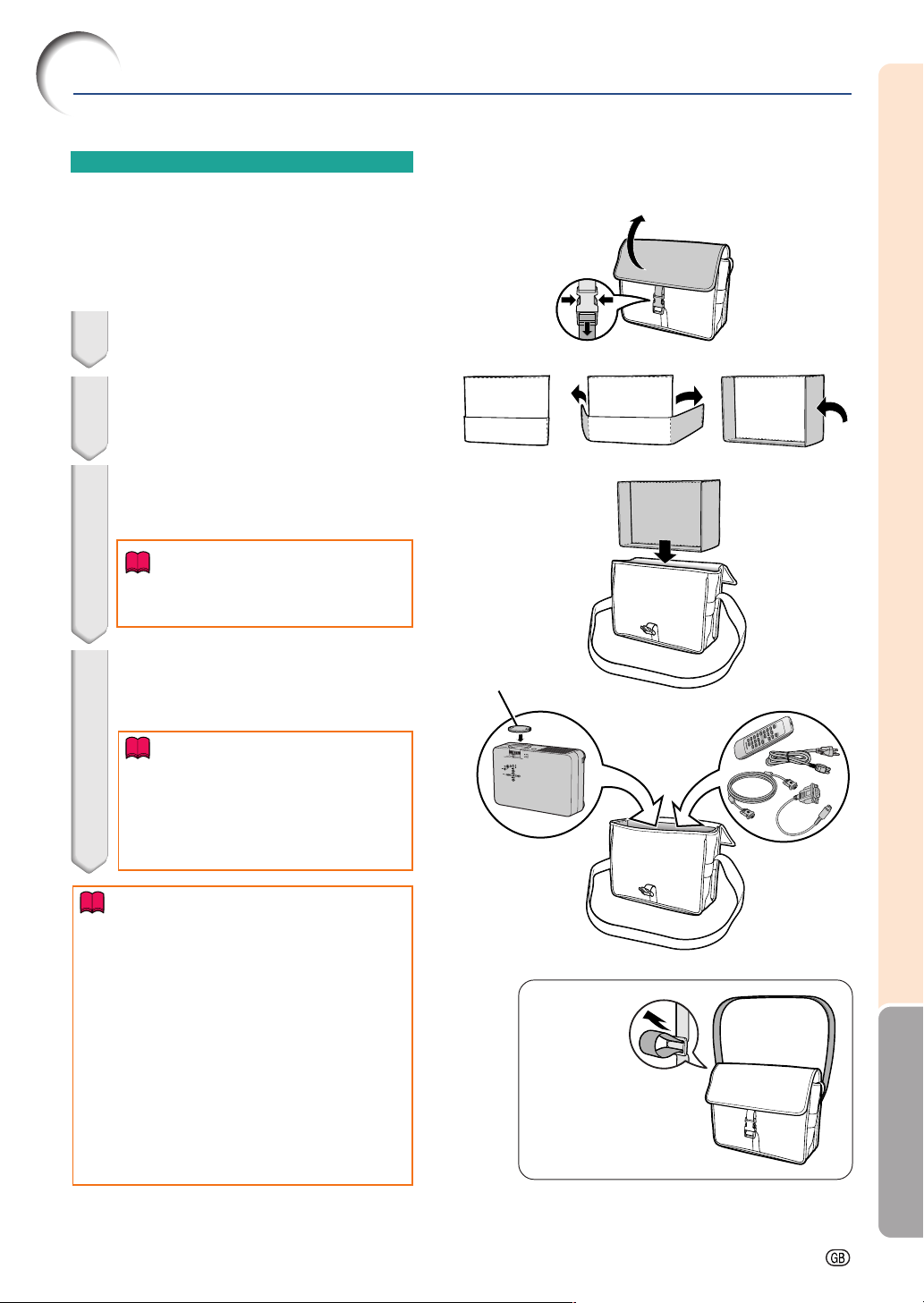

How to Use the Carrying Case ................................51
Maintenance ...................................................... 52
Replacing the Air Filter ..................................... 53
Cleaning and Replacing the Air Filter ..................... 53
Maintenance Indicators .................................... 55
Regarding the Lamp ......................................... 57
Lamp ...................................................................... 57
Caution Concerning the Lamp ................................ 57
Replacing the Lamp ................................................ 57
Removing and Installing the Lamp Unit ................. 58
Resetting the Lamp Timer ....................................... 59
Connecting Pin Assignments .......................... 60
RS-232C Specifications and
Command Settings ...................................... 61
Computer Compatibility Chart ......................... 62
Troubleshooting ................................................ 63
For SHARP Assistance ..................................... 65
Specifications .................................................... 66
Dimensions ........................................................ 67
Glossary ............................................................. 68
Index ................................................................... 69
Introduction
-5
IMPORTANT SAFEGUARDS
CAUTION: Please read all of these instructions before you operate this product and save these
instructions for later use.
Electrical energy can perform many useful functions. This product has been engineered and manufactured to
assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR
FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic
rules for its installation, use and servicing.
1. Read Instructions
All the safety and operating instructions should be read
before the product is operated.
2. Retain Instructions
The safety and operating instructions should be
retained for future reference.
3. Heed Warnings
All warnings on the product and in the operating
instructions should be adhered to.
4. Follow Instructions
All operating and use instructions should be followed.
5. Cleaning
Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
6. Attachments
Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water–for example, near
a bath tub, wash bowl, kitchen sink, or laundry tub; in a
wet basement; or near a swimming pool; and the like.
8. Accessories
Do not place this product on an unstable cart, stand,
tripod, bracket, or table. The product may fall, causing
serious injury to a child or adult, and serious damage
to the product. Use only with a cart, stand, tripod,
bracket, or table recommended by the manufacturer,
or sold with the product. Any mounting of the product
should follow the manufacturer’s instructions, and
should use a mounting accessory recommended by
the manufacturer.
9. Transportation
A product and cart combination
should be moved with care. Quick
stops, excessive force, and
uneven surfaces may cause the
product and cart combination to
overturn.
10.Ventilation
Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the product
and to protect it from overheating, and these openings
must not be blocked or covered. The openings should
never be blocked by placing the product on a bed,
sofa, rug, or other similar surface. This product should
not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or
the manufacturer’s instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of
power source indicated on the marking label. If you
are not sure of the type of power supply to your home,
consult your product dealer or local power company.
For products intended to operate from battery power,
or other sources, refer to the operating instructions.
12. Grounding or Polarization
This product is provided with one of the following types
of plugs. If the plug should fail to fit into the power outlet,
please contact your electrician.
Do not defeat the safety purpose of the plug.
a. Two-wire type (mains) plug.
b. Three-wire grounding type (mains) plug with a
grounding terminal.
This plug will only fit into a grounding type power
outlet.
13. Power-Cord Protection
Power-supply cords should be routed so that they are
not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to
cords at plugs, convenience receptacles, and the point
where they exit from the product.
14. Lightning
For added protection for this product during a lightning
storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and
disconnect the cable system. This will prevent damage
to the product due to lightning and power-line surges.
15. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of
fire or electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points
or short-out parts that could result in a fire or electric
shock. Never spill liquid of any kind on the product.
17. Servicing
Do not attempt to service this product yourself as
opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
-6
Introduction
18. Damage Requiring Service
Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen
into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions, as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the product to normal operation.
e. If the product has been dropped or damaged in
any way.
f. When the product exhibits a distinct change in
performance, this indicates a need for service.
19. Replacement Parts
When replacement parts are required, be sure the
service technician has used replacement parts
specified by the manufacturer or have the same
characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other
hazards.
20. Safety Check
Upon completion of any service or repairs to this
product, ask the service technician to perform safety
checks to determine that the product is in proper
operating condition.
21. Wall or Ceiling Mounting
This product should be mounted to a wall or ceiling
only as recommended by the manufacturer.
22. Heat
This product should be situated away from heat sources
such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.
• Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or
other countries.
• PC/AT is a registered trademark of International Business Machines Corporation in the United States.
• Adobe Acrobat is a trademark of Adobe Systems Incorporated.
• Macintosh is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.
• All other company or product names are trademarks or registered trademarks of their respective compa-
nies.
-7
IMPORTANT SAFEGUARDS
Be sure to read the following safeguards when setting up
your projector.
Caution concerning the lamp unit
■ Potential hazard of glass particles if
lamp ruptures. In case of lamp rupture,
contact your nearest Sharp Authorized
Projector Dealer or Service Center for
a replacement.
See “Replacing the Lamp” on page 57.
Caution concerning the setup of the projector
■ For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed
in an area free from humidity, dust and cigarette smoke.
When the projector is subjected to these environments,
the lens must be cleaned more often. As long as the
projector is regularly cleaned, use in these environments will not reduce the overall operation life of the
unit. Internal cleaning should only be performed by a
Sharp Authorized Projector Dealer or Service Center.
Do not set up the projector in places exposed to
direct sunlight or bright light.
■ Position the screen so that it is not in direct sunlight or
room light. Light falling directly on the screen washes
out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a
sunny or bright room.
The projector may be safely tilted to a maximum
angle of 12 degrees.
■ Placement should be within ±12 degrees of horizontal.
■ Be sure that the intake vent and the exhaust vent are
not obstructed.
■ If the cooling fan becomes obstructed, a protection circuit will automatically turn off the projector. This does
not indicate a malfunction. Remove the projector power
cord from the wall outlet and wait at least 10 minutes.
Place the projector where the intake and exhaust vents
are not blocked, plug the power cord back in and turn
on the projector. This will return the projector to the
normal operating condition.
Caution regarding transportation of the projector
■ When transporting the projector, be sure not to subject
it to hard impact and/or vibration, as this can result in
damage. Take extra care with the lens. Before moving
the projector, be sure to unplug the power cord from
the wall outlet, and disconnect any other cables connected to it.
Other connected equipment
■ When connecting a computer or other audio-visual
equipment to the projector, make the connections AFTER turning off the projector and the equipment to be
connected.
■ Please read the operation manuals of the projector and
the equipment to be connected for instructions on how
to make the connections.
Using the projector in other countries
■ The power supply voltage and the shape of the plug
may vary depending on the region or country you are
using the projector in. When using the projector overseas, be sure to use an appropriate power cord for the
country you are in.
Do not subject the projector to hard impact and/
or vibration.
■ Take care with the lens so as not to hit or damage the
surface of the lens.
Rest your eyes occasionally.
■ Continuously watching the screen for long hours will
cause eye strain. Be sure to occasionally rest your eyes.
Avoid locations with extremes of temperature.
■ The operating temperature of the projector is from 41°F
to 95°F (+5°C to +35°C).
■ The storage temperature of the projector is from
–4°F to 140°F (–20°C to +60°C).
Do not block the exhaust and intake vents.
■ Allow at least 7 7/8 inches (20 cm) of space between
the exhaust vent and the nearest wall or obstruction.
-8
Temperature monitor function
■ If the projector starts to overheat
due to setup problems or blockage of the air vents, “ ” and
“ ” will illuminate in the lower left corner of the
picture. If the temperature continues to rise, the lamp
will turn off, the temperature warning indicator on the
projector will blink, and after a 90-second cooling-off
period the power will be shut off. Refer to “Maintenance
Indicators” on page 55 for details.
Info
• The cooling fan regulates the internal temperature, and
its performance is automatically controlled. The sound
of the fan may change during projector operation due
to changes in the fan speed. This does not indicate
malfunction.
• Do not unplug the power cord during projection or cooling fan operation. This can cause damage due to rise
in internal temperature, as the cooling fan also stops.
How to Access the PDF Operation Manuals
PDF operation manuals in several languages are included in the CD-ROM, so that you can
work with the projector, even if you do not have this manual. To utilize these manuals, you
need to install Adobe Acrobat Reader on your PC (Windows or Macintosh). If you have not
installed Acrobat Reader yet, you can install it from the CD-ROM.
To install Acrobat Reader from the CD-ROM
For Windows:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “My Computer” icon.
3 Double click the “CD-ROM” drive.
4 Double click the “ACROBAT” folder.
5 Double click the language (name of the folder)
that you want to view.
6 Double click the installation program and
follow the instructions on the screen.
For other operating systems:
Please download Acrobat Reader from the Internet (http://www.adobe.com).
For other languages:
If you prefer using Acrobat Reader for languages other than those included in the CD-ROM, please
download the appropriate version from the Internet.
For Macintosh:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “CD-ROM” icon.
3 Double click the “ACROBAT” folder.
4 Double click the language (name of the folder)
that you want to view.
5 Double click the installation program and
follow the instructions on the screen.
Introduction
Accessing the PDF Manuals
For Windows:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “My Computer” icon.
3 Double click the “CD-ROM” drive.
4 Double click the “MANUALS” folder.
5 Double click the language (name of the
folder) that you want to view.
6 Double click the “A10” pdf file to access the
projector manuals.
For Macintosh:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “CD-ROM” icon.
3 Double click the “MANUALS” folder.
4 Double click the language (name of the
folder) that you want to view.
5 Double click the “A10” pdf file to access the
projector manuals.
Note
• If the desired pdf file cannot be opened by double clicking the mouse, start Acrobat Reader first, then
specify the desired file using the “File”, “Open” menu.
• See the “readme.txt” file on the CD-ROM for important information not included in this operation manual.
-9
Part Names
Numbers in refer to the main pages in this operation manual where the topic is explained.
Projector (Front and Top View)
Lamp replacement
Power indicator
Illuminates red when the
projector is in standby.
When the power is turned
on, this indicator will
illuminate green.
Power ON/OFF
buttons
For turning the power on or off.
KEYSTONE button
For entering the Keystone
Correction mode.
26
26
29
55
indicator
Illuminates green indicating
normal function. Replace
the lamp when the indicator
illuminates red.
Temperature warning
55
indicator
When the internal
temperature rises, this
indicator will illuminate red.
INPUT button
27
For switching input mode
1, 2 or 3.
AUTO SYNC button
For automatically
adjusting images when
connected to a computer.
Remote control
sensor
Exhaust vent
Foot release
(on the side of
the projector)
Front adjustment foot
Attaching and removing the lens cap
• Press on the two buttons of the lens cap
and attach it to the lens, then release the
buttons to lock it in place.
• Press on the two buttons of the lens cap
and remove it from the lens.
13
52
21
21
38
27
Volume buttons
For adjusting the speaker
sound level or the
Keystone Correction.
Zoom knob
22
Focus ring
22
Speaker
Foot release
21
Front adjustment
21
foot
Air filter/cooling
53
fan (Intake vent)
(on the bottom of
the projector)
-10
Projector (Rear View)
INPUT 1 terminal
Terminal for
computer RGB and
component signals.
RS-232C terminal
For controlling
the projector using a
computer.
Kensington Security
Standard connector
Using the Kensington Lock
• This projector has a
Kensington Security Standard connector for use with
a Kensington MicroSaver
Security System. Refer to
the information that came
with the system for instructions on how to use it to secure the projector.
16
20
INPUT 2 terminal
18
Terminal for
connecting video
equipment with an
S-video terminal.
INPUT 3 terminal
18
Terminal for
connecting video
equipment.
AUDIO INPUT
16
terminal
Shared audio input
terminal for INPUT
1, 2 and 3.
52
Introduction
Intake vent
AC socket
15
Rear adjustment
21
foot
(on the bottom of
the projector)
-11
Part Names
Numbers in refer to the main pages in this operation manual where the topic is explained.
Remote Control (Front View)
Power ON/OFF buttons
For turning the power on or off.
KEYSTONE button
For entering the Keystone
Correction mode.
UNDO button
For undoing an operation or
returning to the previous display.
FORWARD/BACK buttons
Same function as the [Page Down]
and [Page Up] keys on a computer
keyboard when using the Remote
Receiver (optional).
ENLARGE (Enlarge/Reduce)
buttons
For enlarging or reducing part of
the image.
AUTO SYNC button
For automatically adjusting images
when connected to a computer.
INPUT buttons
For switching to the respective
input modes.
26
MENU button
32
For displaying adjustment and
setting screens.
29
Adjustment buttons
32
(', ", \, |)
For selecting menu items.
29
42
38
27
ENTER button
35
For setting items selected or
adjusted on the menu.
FREEZE button
42
For freezing images.
AV MUTE button
27
For temporarily displaying the
black screen and turning off the
sound.
RESIZE button
40
For switching the screen size
(NORMAL, BORDER, etc).
Volume buttons
27
For adjusting the speaker sound
level.
-12
Using the Remote Control
Usable Range
■ The remote control can be used to control
the projector within the ranges shown in
the illustration.
Note
• The signal from the remote control can be re-
flected off a screen for easy operation. However, the effective distance of the signal may
differ depending on the screen material.
When using the remote control:
• Be sure not to drop, expose to moisture or high
temperature.
• The remote control may malfunction under a
fluorescent lamp. In this case, move the projector away from the fluorescent lamp.
Inserting the Batteries
The batteries (two R-6 batteries (“AA” size, UM/
SUM-3, HP-7 or similar)) are supplied in the
package.
Remote
control
signal
transmitters
30°
Remote control
30°
Introduction
Remote control sensor
45°
23' (7 m)
1 Press the ▲ mark on the cover
and slide it in the direction of the
arrow.
2 Insert the batteries.
• Insert the batteries making sure the polarities correctly match the
marks inside the battery compartment.
and
3 Attach the cover and slide it un-
til it clicks into place.
Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.
Caution
• Insert the batteries making sure the polarities correctly match the and marks inside the battery compart-
ment.
• Batteries of different types have different properties, therefore do not mix batteries of different types.
• Do not mix new and old batteries.
This may shorten the life of new batteries or may cause old batteries to leak.
• Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak.
Battery fluid from leaked batteries is harmful to skin, therefore be sure to first wipe them and then remove them
using a cloth.
• The batteries included with this projector may run down in a short period, depending on how they are kept. Be
sure to replace them as soon as possible with new batteries.
• Remove the batteries from the remote control if you will not be using the remote control for a long time.
-13
Accessories
Supplied accessories
Remote control
RRMCGA138WJSA
Two R-6 batteries
(“AA” size, UM/SUM-3, HP-7 or similar)
Power cord
(1)
For U.S., Canada, etc.
(6' (1.8 m))
QACCDA016WJPZ
*
(2) (3)
For Europe, except U.K.
(6' (1.8 m))
QACCVA006WJPZ
For U.K., Hong Kong and
Singapore
(6' (1.8 m))
QACCBA015WJPZ
*Use the power cord that corresponds to the wall outlet in your country.
RGB cable
(9'10" (3.0 m))
QCNWGA012WJPZ
Extra air filter
PFILDA008WJZZ
DIN-D-sub RS-232C
adaptor (5
QCNWGA015WJPZ
Projector manual and
technical reference
CD-ROM
UDSKAA022WJN1
57
/64'' (15 cm))
Carrying case
GCASNA006WJSA
“QUICK GUIDE” label
TLABZA191WJZZ
(4)
For Australia, New
Zealand and Oceania
(6' (1.8 m))
QACCLA005WJPZ
Lens cap (attached)
CCAPHA007WJ01
Operation manual
(this manual)
Optional accessories
■ 3 RCA to 15-pin D-sub cable (9'10'' (3.0 m)) AN-C3CP
■ Computer RGB cable (32'10'' (10.0 m)) AN-C10BM
(15-pin mini D-sub male connector)
AN-C10MC
(15-pin mini D-sub male connector for Macintosh
series)
AN-C10PC
(for NEC PC-98 series (Except NEC PC-9821 and
PC-98NX series))
■ 5 BNC to 15-pin D-sub cable (9'10'' (3.0 m)) AN-C3BN
■ RS-232C serial control cable (32'10" (10.0 m)) AN-C10RS
■ Remote receiver AN-MR1EL
Note
• Some of the cables may not be available depending on the region. Please check with your nearest Sharp
Authorized Projector Dealer or Service Center.
-14
Connecting the Projector to Other Devices
Before Connecting
Note
• Before connecting, be sure to turn off both the projector and the devices to be connected. After making all
connections, turn on the projector and then the other devices.
When connecting a computer, be sure that it is the last device to be turned on after all the connections are
made.
• Be sure to read the operation manuals of the devices to be connected before making connections.
This projector can be connected to:
A computer using:
■ An RGB cable and a ø3.5 mm audio cable (commercially
available) (See page 16.)
■ A DIN-D-sub RS-232C adaptor and an RS-232C
serial control cable (AN-C10RS) (sold separately)
(See page 20.)
Connections and Setup
Component video or audio-visual equipment:
■ A VCR, Laser disc player or other audio-visual
equipment (See page 18.)
■ A DVD player or DTV
* decoder (See page 19.)
*DTV is the umbrella term used to describe the new
digital television system in the United States.
Connecting the Power Cord
Plug the supplied power cord into
the AC socket on the rear of the projector.
Supplied
accessory
Power cord
-15
Connecting the Projector to Other Devices
Connecting the Projector to a Computer
Connecting to a Computer
Using the RGB Cable
1 Connect the projector to the
computer using the supplied
RGB cable.
• Secure the connectors by tightening the
thumbscrews.
2
To input an audio signal, connect
the projector to the computer using
a ø3.5 mm audio cable (commercially available or available as Sharp
service part QCNWGA013WJPZ).
Note
•
When connecting the projector to a computer in this way, select “RGB” for “Signal
37
Type” in the “Picture” menu. See page
• See page 62 “Computer Compatibility
Chart” for a list of computer signals compatible with the projector. Use with computer
signals other than those listed may cause
some of the functions to not work.
• A Macintosh adaptor may be required for
use with some Macintosh computers. Contact your nearest Sharp Authorized Projector Dealer or Service Center.
• Depending on the computer you are using,
an image may not be projected unless the
signal output setting of the computer is
switched to the external output. Refer to the
computer operation manual for switching the
computer signal output settings.
.
Supplied
accessories
Computer
RGB cable
1
ø3.5 mm audio cable
2
(commercially available or
available as Sharp service part
QCNWGA013WJPZ)
RGB cable
To RGB output terminal
To audio output terminal
Connecting the thumbscrew cables
■ Connect the thumbscrew cable making sure that it
fits correctly into the terminal. Then, firmly secure
the connectors by tightening the screws on both
sides of the plug.
■ Do not remove ferrite cores attached to the RGB
cable.
-16
Ferrite core
“Plug and Play” function (when connecting to a 15-pin terminal)
■ This projector is compatible with VESA-standard DDC 1/DDC 2B. The projector and a VESA DDC
compatible computer will communicate their setting requirements, allowing for quick and easy setup.
■ Before using the “Plug and Play” function, be sure to turn on the projector first and the connected
computer last.
Connections and Setup
Note
• The DDC “Plug and Play” function of this projector operates only when used in conjunction with a VESA
DDC compatible computer.
-17
Connecting the Projector to Other Devices
Connecting to Video Equipment
Connecting to Video
Equipment Using an
VCR or other audio-visual equipment
S-video, a Composite
Video or an Audio Cable
Using an S-video, video, or audio cable, a VCR,
laser disc player or other audio-visual equipment
can be connected to INPUT 2, INPUT 3 and AUDIO input terminals.
1 Connect the projector to the
video equipment using an Svideo cable or a composite video
cable (both commercially available).
ø3.5 mm minijack to RCA audio cable
2
2 Connect the projector to the
video equipment using a ø3.5
mm minijack to RCA audio cable
(commercially available).
(commercially available)
Composite video cable
1
(commercially available)
S-video cable
1
(commercially available)
To S-video output terminal
To video output terminal
To audio output terminal
Note
• The INPUT 2 (S-VIDEO) terminal uses a
video signal system in which the picture is
separated into color and luminance signals
to realize a higher-quality image. To view a
higher-quality image, use a commercially
available S-video cable to connect the INPUT 2 terminal on the projector and the Svideo output terminal on the video equipment.
• A ø3.5 mm minijack to RCA audio cable
(commercially available) is required for audio input.
-18
-18
-18
Connecting to
Component Video Equipment
Use a 3 RCA to 15-pin D-sub cable when connecting to the INPUT 1 terminal, component
video equipment such as DVD players and DTV
decoders.
*DTV is the umbrella term used to describe the
new digital television system in the United
States.
1 Connect the projector to the
video equipment using the 3
RCA to 15-pin D-sub cable.
2 Connect the projector to the
video equipment using a ø3.5
mm minijack to RCA audio cable
(commercially available).
Note
• When connecting the projector to the
video equipment in this way, select
“Component” for “Signal Type” in the
“Picture” menu. See page 37.
• A ø3.5 mm minijack to RCA audio cable
(commercially available) is required for audio input.
Optional
cable
To analog component output terminal
3RCA to 15-pin D-sub cable
Type: AN-C3CP
(9'10" (3.0 m))
Connections and Setup
*
DVD player or
DTV
* decoder
3 RCA to 15-pin D-sub cable
1
(sold separately)
ø3.5 mm minijack to RCA audio cable
2
(commercially available)
To audio output terminal
-19
Connecting the Projector to Other Devices
Controlling the Projector Using a Computer
Connecting to a
Computer Using a DIN-Dsub RS-232C Adaptor
and an RS-232C Serial
Control Cable
When the RS-232C terminal on the projector is
connected to a computer with a DIN-D-sub RS232C adaptor and an RS-232C serial control
cable (cross type, sold separately), the computer can be used to control the projector and
check the status of the projector. See page 61
for details.
1 Connect the supplied DIN-D-sub
RS-232C adaptor to an RS-232C
serial control cable (sold separately).
2 Use the above cables to connect
the projector and the computer.
Note
• Do not connect or disconnect an RS-232C
serial control cable to or from the computer
while it is on. This may damage your computer.
• The RS-232C function may not operate if
your computer terminal is not correctly set
up. Refer to the operation manual of the
computer for details.
• See page 60 for connection of an RS-232C
serial control cable.
Supplied
accessory
Optional
cable
To RS-232C terminal
RS-232C serial control cable
Type: AN-C10RS (32'10" (10.0 m))
Computer
DIN-D-sub
RS-232C adaptor
DIN-D-sub
RS-232C
adaptor
RS-232C serial
control cable
(sold separately)
-20
-20
Setup
Using the Adjustment Feet
The height of the projector can be adjusted using the adjustment feet at the front and rear of
the projector when the surface the projector is
placed on is uneven or when the screen is
slanted.
The projection of the image can be made higher
by adjusting the projector when it is in a lower
place than the screen.
1 While pressing the foot releases
on both sides, lift the projector
to adjust its height and then remove your fingers from the foot
releases.
2 Rotate the adjustment feet at the
front of the projector for fine
adjustment.
• You can adjust the projection by using
the rear adjustment foot on the bottom
of the projector when the projector is positioned at the higher place than the
screen.
Rear adjustment foot
(on the bottom)
Foot release
(on the other side of
the projector as well)
Front adjustment feet
Connections and Setup
Note
• When returning the projector to its original
position, hold the projector firmly, press the
foot releases and then gently lower it.
• The projector is adjustable up to approximately 12 degrees at the front and 3 degrees at the back from the standard position.
Info
• Do not press the foot releases when the adjustment feet are extended without firmly
holding the projector.
• Do not hold the lens when lifting or lowering the projector.
• When lowering the projector, be careful not
to get your fingers caught in the area between the adjustment foot and the projector.
-21
Setup
Zoom
in
Z
o
o
m
o
u
t
Adjusting the Lens
The image is focused and adjusted to the desired size using the focus ring or zoom knob
on the projector.
1 Adjust the focus by rotating the
focus ring.
2 Adjust zooming by moving the
zoom knob.
Focus ring
Zoom knob
Zoom knobFocus ring
-22
-22
Setting up the Screen
Position the projector perpendicular to the screen with all feet flat and level to achieve an optimal image.
Note
• The projector lens should be centered in the middle of the screen. If the horizontal line passing through the
lens center is not perpendicular to the screen, the image will be distorted, making viewing difficult.
• For an optimal image, position the screen so that it is not in direct sunlight or room light. Light falling directly
on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when
setting up the screen in a sunny or bright room.
• A polarizing screen cannot be used with this projector.
Standard Setup (Front Projection)
■ Place the projector at the required distance from
the screen according to the desired picture size.
(See page 24.)
Example of standard setup
Connections and Setup
Side View
90°
Top View
90°
Audience
• The distance from the screen to the projector
may vary depending on the size of the screen.
P.24
• The default setting can be used, when placing the
projector in front of the screen. If the projected image is reversed or inverted, readjust the setting to
“Front” in the “PRJ Mode” menu. P.50
• Place the projector so that an imaginary horizontal
line that passes through the center of the lens is
perpendicular to the screen.
-23
Setup
Screen Size and Projection Distance
Screen
Horizontal line passing through the lens center
Lens center
H
Base line:
L:Projection distance
NORMAL Mode (4:3)
Picture (Screen) size Projection distance (L)
Diag. (χ) Width Height Maximum (L1) Minimum (L2)
300" (762 cm) 240" (610 cm) 180" (457 cm)
250" (635 cm) 200" (508 cm) 150" (381 cm)
200" (508 cm) 160" (406 cm) 120" (305 cm)
150" (381 cm) 120" (305 cm) 90" (229 cm)
100" (254 cm) 80" (203 cm) 60" (152 cm)
84" (213 cm) 67" (170 cm) 50" (128 cm)
72" (183 cm) 58" (147 cm) 43" (110 cm)
60" (152 cm) 48" (122 cm) 36" (91 cm)
40" (102 cm) 32" (81 cm) 24" (61 cm)
38' 9" (11.8 m) 32' 2" (9.8 m) 183/16" (46.2 cm)
32' 2" (9.8 m) 26'11" (8.2 m) 155/32" (38.5 cm)
25'11" (7.9 m) 21' 4" (6.5 m) 121/8" (30.8 cm)
19' 4" (5.9 m) 16' 1" (4.9 m) 93/32" (23.1 cm)
12'10" (3.9 m) 10' 6" (3.2 m) 61/16" (15.4 cm)
10'10" (3.3 m) 8'10" (2.7 m) 53/32" (12.9 cm)
9' 2" (2.8 m) 7' 7" (2.3 m) 423/64" (11.1 cm)
7' 7" (2.3 m) 6' 3" (1.9 m) 341/64" (9.2 cm)
4'11" (1.5 m) 4' 3" (1.3 m) 227/64" (6.2 cm)
Distance from the lens center
to the bottom of the image (H)
The formula for picture size and
projection distance
χ
: Picture size (diag.) (in)
[Feet/inches]
L1 (ft) =
L2 (ft) =
H (in) =
[m/cm]
L1 (m) =
L2 (m) =
H (cm) =
(0.0396χ – 0.0546) / 0.3048
(0.0330χ – 0.0546) / 0.3048
χ
0.0606
0.0396χ – 0.0546
0.0330χ – 0.0546
0.0606χ
× 2.54
STRETCH Mode (16:9)
Picture (Screen) size Projection distance (L)
Diag. (χ) Width Height Maximum (L1) Minimum (L2)
250" (635 cm) 218" (553 cm) 123" (311 cm)
225" (572 cm) 196" (498 cm) 110" (280 cm)
200" (508 cm) 174" (443 cm) 98" (249 cm)
150" (381 cm) 131" (332 cm) 74" (187 cm)
133" (338 cm) 116" (294 cm) 65" (166 cm)
106" (269 cm) 92" (235 cm) 52" (132 cm)
100" (254 cm) 87" (221cm) 49" (125 cm)
92" (234 cm) 80" (204 cm) 45" (115 cm)
84" (213 cm) 73" (186 cm) 41" (105 cm)
72" (183 cm) 63" (159 cm) 35" (90 cm)
60" (152 cm) 52" (133 cm) 29" (75 cm)
40" (102 cm) 35" (89 cm) 20" (50 cm)
35' 1" (10.7 m) 29' 2" (8.9 m) –433/64"(–11.5 cm)
31'10" (9.7 m) 26' 3" (8.0 m) –41/16"(–10.3 cm)
28' 3" (8.6 m) 23' 3" (7.1 m) –339/64"(–9.2 cm)
21' (6.4 m) 17' 5" (5.3 m) –245/64"(–6.9 cm)
18' 8" (5.7 m) 15' 5" (4.7 m) –213/32"(–6.1 cm)
14' 9" (4.5 m) 12' 6" (3.8 m) –159/64"(–4.9 cm)
14' 1" (4.3 m) 11' 6" (3.5 m) –113/16"(–4.6 cm)
12'10" (3.9 m) 10'10" (3.3 m) –121/32"(–4.2 cm)
11'10" (3.6 m) 9'10" (3.0 m) –133/64"(–3.9 cm)
10' 2" (3.1 m) 8' 2" (2.5 m) –119/64"(–3.3 cm)
8' 2" (2.5 m) 6'11" (2.1 m) –15/64"(–2.8 cm)
5' 7" (1.7 m) 4' 7" (1.4 m) –23/32"(–1.8 cm)
Distance from the lens center
to the bottom of the image (H)
The formula for picture size and
projection distance
χ
: Picture size (diag.) (in)
[Feet/inches]
L1 (ft) =
L2 (ft) =
H (in) =
[m/cm]
L1 (m) =
L2 (m) =
H (cm) =
(0.04314χ – 0.0546) / 0.3048
(0.03595χ – 0.0546) / 0.3048
– 0.01807
χ
0.04314χ – 0.0546
0.03595χ – 0.0546
– 0.01807χ × 2.54
Note
• There may be an error of ± 3% in the above values.
• Values with a minus (–) sign indicate the distance from the lens center below the bottom of the image.
-24
Projecting a Reversed/Inverted Image
Projection from behind the Screen
■ Place a translucent screen between the projector and the
audience.
■ Reverse the image by setting “Rear” in the “PRJ Mode” menu.
See page 50 for use of this function.
When using the default setting.
▼On-screen Display
Connections and Setup
Projection Using a Mirror
■ Place a mirror (normal flat type) in front of the lens.
Info
• When using a mirror, be sure to carefully position both the
projector and the mirror so the light does not shine into the
eyes of the audience.
Ceiling-mount Setup
■ It is recommended that you use the optional Sharp ceilingmount bracket for this installation.
Before mounting the projector, contact your nearest Sharp
Authorized Projector Dealer or Service Center to obtain the
recommended ceiling-mount bracket (sold separately.)
• AN-PGCM95 ceiling-mount bracket, its AN-EP101B
extension tube and AN-JT299 universal bracket, adaptor
for non-level ceiling installation (for U.S.A.).
• BB-A10T ceiling adaptor, its BB-NVHOLDER280, BB-
NVHOLDER550, BB-NVHOLDER900 ceiling mount
systems (for GERMANY).
• AN-A10T ceiling-mount bracket, its AN-TK201 and AN-
TK202 extension tubes (for countries other than the U.S.A.
and GERMANY).
■ Be sure to adjust the position of the
projector to match the distance (H)
from the lens center position (see page
24) to the lower edge of the image,
when mounting the projector on the
ceiling.
■ Invert the image by setting
“Ceiling+Front” in the
“PRJ Mode” menu. See
page 50 for use of this
function.
The image is reversed.
When using the default setting.
▼On-screen Display
The image is inverted.
-25
Image Projection
Basic Procedure
Connect the required external equipment to the projector before carrying out the following procedures.
Info
•
The language preset at the factory is English.
If you want to change the on-screen display to
another language, reset the language according to the procedure on page
28
.
1 Plug the power cord into the wall
outlet.
• The power indicator illuminates red, and
the projector enters standby mode.
2 Press on the projector or
on the remote control.
• The power indicator illuminates green.
After the lamp replacement indicator illuminates and the warming up message
on the display disappears, the projector
is ready to start operation.
Note
•
The lamp replacement indicator illuminates, indicating the status of the lamp.
Green: The lamp is ready.
Blinking in green: The lamp is warming
Red:
• If the power is turned off and immedi-
• When controlling the projector using
• The projector cannot be operated while
• When “Anti-Theft” (see page
the keycode input box will appear. Enter
the keycode.
• When entering the keycode, press the
• For details about the Anti-Theft func-
The lamp should be replaced.
ately switched on again, the lamp replacement indicator may take some
time to illuminate.
RS-232C commands from a computer, wait for at least 30 seconds after the power has been turned on, and
then transmit the commands.
the warming up message is displayed.
Note
buttons previously set on the projector or the remote control.
tion, refer to “Anti-Theft (Setting the
Anti-Theft)” on page 48.
up and shutting down.
48
) is set,
Power ON
button
Power OFF
button
▼Warming up message
Volume
buttons
▼Keycode input box
▼Keycode input box
Power
indicator
Lamp
replacement
indicator
INPUT
button
Volume
buttons
Power ON
button
AV MUTE button
INPUT buttons
-26
3 Press , or on the
remote control to select the INPUT mode.
•
After pressing once on the projector,
use to select the desired input mode.
"On-screen Display (Example)
INPUT 1 mode
Using RGB
➝
Note
• When no signal is received, “NO SIG-
NAL” will be displayed. When a signal
that the projector is not preset to receive is received, “NOT REG.” will be
displayed.
• The INPUT mode is not displayed
when “OSD Display” is set to “OFF”.
(See page 44.)
About the INPUT mode
INPUT 1
(RGB/
Component)
INPUT 2
(S-Video)
INPUT 3
(Video)
Used for projecting images from equipment that
sends RGB signals or
component signals connected to the RGB input
terminal.
Used for projecting images from equipment
connected to the SVIDEO input terminal.
Used for
ages
connected to the VIDEO
input terminal.
projecting
from equipment
im-
Using
Component
➝
INPUT 2 mode
Using S-Video
➝
INPUT 3 mode
Using Video
Basic Operation
4 Press or on the remote
control to adjust the volume.
Note
• Pressing will lower the volume.
Pressing
• On the projector, the volume can be
adjusted by pressing
will raise the volume.
or .
5 Press on the remote con-
trol to temporarily display a
black screen and turn off the
sound.
Note
• Pressing again will turn the pro-
jected image and sound back on.
-27
Image Projection
6 Press on the projector or
on the remote control, then
press that button again while the
confirmation message is displayed, to turn off the projector.
Note
• If you accidentally pressed or
and do not want to turn off the
power, wait until the confirmation
message disappears.
• The projector cannot be operated
while a message “Shutting down.
Please wait.” is displayed.
Info
• Do not unplug the power cord during
projection or cooling fan operation.
This can cause damage due to rise
in internal temperature, as the cooling fan also stops.
Power OFF
button
ENTER
button
MENU button
', ", \, |
buttons
Selecting the On-screen Display Language
The on-screen display language of the projector can be set to English, German, Spanish,
Dutch, French, Italian, Swedish, Portuguese,
Chinese, Korean or Japanese. For operating the
menu screen, see pages 32 to 35.
1 Press on the remote con-
trol.
• The “Picture” menu will be displayed.
2 Press \ or | to select the “Lan-
guage” menu icon.
• The “Language” menu will be displayed.
3 Press ' or " to select the de-
sired language, and then press
.
4 Press .
• The desired language will be set as the
on-screen display.
“Language” menu icon
-28
-28
Keystone Correction (Correcting Trapezoidal Distortion)
Correcting Trapezoidal
Distortion
This function allows for Keystone (On-screen
Trapezoidal Distortion) Correction.
Note
• When the image is projected either from the
top or from the bottom towards the screen
at an angle, the image becomes distorted
trapezoidally.
The function for correcting trapezoidal distortion is called Keystone Correction.
• The Keystone Correction can be adjusted up
to an angle of approximately ±35 degrees
(when the picture display mode is set to
40
“NORMAL” (see page
)).
1 Press .
• You can also use on the projector.
2 Press ', ", \ and | to adjust
the Keystone correction.
• You can also adjust the Keystone correction using the or but-
tons on the projector.
KEYSTONE
button
UNDO
button
', ", \, |
buttons
Basic Operation
Compresses
upper side.
Note
• Since the trapezoidal distortion of the
image can be corrected up to an angle
of approximately ±35 degrees (when
the picture display mode is set to
40
“NORMAL” (see page
screen can be diagonally set up to
that angle as well.
• Press
ting.
• Straight lines or the edges of images
may appear jagged while adjusting
the image.
to make the default set-
)), the actual
3 Press .
• You can also use on the projector.
Note
• You can use the same settings used
in NORMAL mode 4:3 for 16:9.
Compresses
lower side.
-29
Menu Items
This list shows the items that can be set in the projector.
■ INPUT 1 Mode
Main menu Sub menu
Page 36
Fine Sync
Page 38
Contrast
Bright
Color
Tint
Sharp
Red
Blue
Reset
CLR Temp
Gamma
sRGB [ON/OFF]
Signal Type
Memory
Clock
Phase
H-Pos
V-Pos
Reset
Special Modes
Signal Info
+30−30
+30−30
+30−30
+30−30
+30−30
+30−30
+30−30
5500 K
6500 K
7500 K
8500 K
9300 K
10500 K
Standard
Presentation
Cinema
Game
RGB
Component
Memory 1
Memory OFF
+30−30
+15−15
+30−30
+30−30
Memory 5
Main menu Sub menu
Options
Page 44
Language
Page 28
PRJ Mode Front
Page 50
Lamp Timer (Life)
OSD Display [ON/OFF]
Background
Eco Mode [Eco/Standard]
Auto Power Off
Menu Position
Menu Color
[Opaque/Translucent]
Password
Anti-Theft
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
Ceiling+Front
Rear
Ceiling+Rear
[ON/OFF]
Sharp
Blue
None
Center
Upper Right
Lower Right
Upper Left
Lower Left
Old Password
New Password
Reconfirm
Old Code
New Code
Reconfirm
Note
• In the “Picture” menu of INPUT 1, “Color”, “Tint” and “Sharp” are only displayed when “Signal Type” is set
to “Component”.
• In the “Picture” menu of INPUT 1, “sRGB” is only displayed when “Signal Type” is set to “RGB”.
-30
■ INPUT 2 / 3 Mode
Main menu Sub menu
Page 36
Options
Page 44
Contrast
Bright
Color
Tint
Sharp
Red
Blue
Reset
CLR Temp
Gamma
Memory
Lamp Timer (Life)
OSD Display [ON/OFF]
Video System
Background
Eco Mode [Eco/Standard]
Auto Power Off
Menu Position
Menu Color
[Opaque/Translucent]
Password
Anti-Theft
+30−30
+30−30
+30−30
+30−30
+30−30
+30−30
+30−30
[ON/OFF]
5500 K
6500 K
7500 K
8500 K
9300 K
10500 K
Standard
Presentation
Cinema
Game
Memory 1
Memory OFF
Auto
PAL
NTSC3.58
SECAM
NTSC4.43
PAL-M
PAL-N
PAL-60
Sharp
Blue
None
Center
Upper Right
Lower Right
Upper Left
Lower Left
Old Password
New Password
Reconfirm
Old Code
New Code
Reconfirm
Memory 5
Main menu
Language
Page 28
PRJ Mode Front
Page 50
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
Ceiling+Front
Rear
Ceiling+Rear
Basic Operation
-31
Using the Menu Screen
The menu screens allow you to adjust the image and various projector settings.
You can operate the menus from the remote control using the following procedure.
Example: “Picture” menu screen for
INPUT 1 (RGB) mode
Menu Selections
(Adjustments)
1 Press .
• The “Picture” menu screen for the se-
lected input mode is displayed.
Note
• The on-screen display shown on the
right is displayed when the INPUT 1
(RGB) mode is selected.
\\
2 Press
menu screens.
• The menu icon for the selected menu
screen is highlighted.
||
\ or
| to display the other
\\
||
Menu icon Menu screen
Fine Sync
Options
Language
PRJ Mode
ENTER
button
UNDO
button
MENU button
', ", \, |
buttons
Menu icons
Note
• The “Fine Sync” menu is not available
for INPUT 2 or 3.
• For details on the menus, see the tree
charts on pages 30 and 31.
-32
-32
''
3 Press
""
' or
" to select the item
''
""
you want to adjust.
• The selected item is highlighted.
Note
• To display a single adjustment item,
press
Only the selected adjustment item will
be displayed.
Then if you press ' or ", the following item (“Red” after “Bright”) will be
displayed.
• Press
screen.
after selecting the item.
to return to the previous
\\
4 Press
||
\ or
| to adjust the item
\\
||
selected.
• The adjustment is stored.
5 Press .
• The menu screen will disappear.
Basic Operation
-33
Using the Menu Screen
Menu Selections
(Settings)
1 Press .
• The “Picture” menu screen for the se-
lected input mode is displayed.
Note
• The on-screen display shown on the
right is displayed when INPUT 1 (RGB)
mode is selected.
\\
2 Press
menu screens.
• The menu icon for the selected menu
screen is highlighted.
||
\ or
| to display the other
\\
||
ENTER
button
UNDO
button
MENU button
', ", \, |
buttons
Menu icons
Menu icon Menu screen
Note
• The “Fine Sync” menu is not available
for INPUT 2 or 3.
• For details on the menus, see the tree
charts on pages 30 and 31.
-34
-34
Fine Sync
Options
Language
PRJ Mode
''
3 Press
item you want to set, and then
press
||
| to display the sub menu.
||
• The selected item is highlighted.
Note
• Press or \ to return to the pre-
vious screen.
• For some items, press \ or | to se-
lect the icon using “ ”.
4 Press
ting of the item displayed in the
sub menu.
""
' or
" to select the
''
""
''
""
' or
" to select the set-
''
""
Sub menu
Basic Operation
5 Press .
• The item selected is set.
6 Press .
• The menu screen will disappear.
-35
Picture Adjustment
You can adjust the projector’s picture to your preferences using the “Picture” menu. For
operation of the menu screen, see pages 32 to 35.
Example: “Picture” screen menu for
INPUT 1 (RGB) mode
Adjusting the Image
Select the item on the “Picture” menu and
adjust the image.
Description of Adjustment Items
Selectable items
Contrast
Bright
Color
Tint
Sharp
Red
Blue
Note
• “Color”, “Tint” and “Sharp” are not displayed
when selecting INPUT 1 and setting the “Signal Type” to “RGB”.
• “Sharp” can be adjusted when 480
I, 580P, 720P, 1035I or 1080I signals are
580
detected while “Signal Type” for INPUT 1 is set
to “Component”.
• To reset all adjustment items, select “Reset” and
press .
Press \ Press |
for less contrast.
for less brightness.
for less color intensity.
for making skin tones purplish.
for less sharpness.
for weaker red.
for weaker blue.
for more contrast.
for more brightness.
for more color intensity.
for making skin tones greenish.
for more sharpness.
for stronger red.
for stronger blue.
I, 480P, 540P,
CLR Temp (Adjusting the
Color Temperature)
Select “CLR Temp” on the “Picture” menu
and the desired color temperature setting.
Description of Color Temperature Settings
Selectable settings
5500K
6500K
7500K
8500K
9300K
10500K
For lower color temperature for warmer,
reddish incandescent-like images.
For higher color temperature for cooler, bluish, fluorescent-like images.
Note
• Values for “CLR Temp” are only approximations.
Description
-36
Gamma (Gamma Correction)
Gamma is an image quality enhancement function
that offers a richer image by brightening the darker
portions of the image without altering the brightness of the brighter portions.
When you are displaying images with frequent dark
scenes, such as a film or concert, or when you are
displaying images in a bright room, this feature
makes the dark scenes easier to see and gives the
impression of greater depth in the image.
Select “Gamma” on the “Picture” menu and
the desired gamma mode.
Signal Type (Signal Type
Setting)
Select “Signal Type” on the “Picture” menu
and set it to “RGB” or “Component” for INPUT 1.
Description of Signal Type Settings
Selectable settings
RGB
Component
Set when RGB signals are received.
Set when Component signals are
received.
Description
Description of Gamma Modes
Selectable settings
Standard
Presentation
Cinema
Game
For standard image
Brightens darker portions of image for
more enhanced presentations.
Gives greater depth to darker portions
of image for a more exciting theater
experience.
For natural color gradation for playing
a game, etc.
Description
Note
• Gamma is not available for INPUT 1 when
“sRGB” on the “Picture” menu is set to “ON”.
sRGB (sRGB Setting)
Select “sRGB” on the “Picture” menu and set
it to “ (ON)” when you want to display
the image in a natural tint based on an original image.
Note
• When “sRGB” is set to “ON”;
• Gamma is not available.
• “Red”, “Blue” or “CLR Temp” on the “Picture”
menu cannot be adjusted.
• For additional information about the sRGB function, visit “http://www.srgb.com/”.
Info
• When “sRGB” is set to “ON”, the projected im-
age may become dark, but this does not indicate a malfunction.
Memory
(Storing and Selecting
the Adjustment Settings)
Use this function to store the adjustment settings
on the “Picture” menu. No matter which input mode
or signal type is selected, you can select and apply
the settings you have stored in a memory location.
Select “Memory” on the “Picture” menu and
the memory location where you want to store
the settings. Then adjust the setting items
on the “Picture” menu.
Description of Memory Positions
Selectable
settings
Memory 1
Memory 2
Memory 3
Memory 4
Memory 5
Memory OFF
Settings of all items on the “Picture”
menu can be stored in memory location.
The stored settings can be selected in
any input mode.
Besides “Memory 1” to “Memory 5”, other
settings on the “Picture” menu can be
stored for each input mode. The settings
stored in “Memory OFF” cannot be applied
when another input mode is selected.
Description
If you want to apply the stored settings on
the “Picture” menu, select “Memory” on the
“Picture” menu and the memory location
where you have stored the settings.
Note
• You can change the stored settings after selecting the memory location for those settings.
Basic Operation
-37
Computer Image Adjustment
Using the “Fine Sync” menu, you can adjust the computer image, match the computer display mode, and check the input signal. For operation of the menu screen, see pages 32 to 35.
Example: “Fine Sync” menu screen for
INPUT 1 mode
Adjusting the Computer Image
In case of irregularities such as vertical stripes or
flickering in portions of the screen, adjust “Clock”,
“Phase”, “H-Pos” or “V-Pos” to obtain an optimal
computer image.
Select the item on the “Fine Sync” menu
and adjust the computer image.
Description of Adjustment Items
Selectable items
Clock
Phase
H-Pos
V-Pos
adjust vertical noise.
adjust horizontal noise (similar to tracking
on your VCR).
center the on-screen image by moving it to
the left or right.
center the on-screen image by moving it up
or down.
Note
• You can automatically adjust the computer image by pressing
on the remote control.
• To reset all adjustment items, select “Reset” and
press .
Use \ and | to
on the projector or
Special Modes (Special
Mode Settings)
Ordinarily, the type of input signal is detected and
the correct resolution mode is automatically selected.
However, for some signals, the optimal resolution
mode in “Special Modes” on the “Fine Sync” menu
may need to be selected to match the computer display mode.
Select “Special Modes” on the “Fine Sync”
menu and the appropriate resolution.
Note
• Avoid displaying computer patterns which repeat
every other line (horizontal stripes).
(Flickering may occur, making the image hard to
see.)
• When a DVD player or Digital Video is connected,
select 480P as the input signal.
• See “Signal Info (Checking the Input Signal)” on
the next page for information on the currently selected input signal.
-38
Signal Info (Checking the
Input Signal)
Select “Signal Info” on the “Fine Sync” menu
to check the current input signal information.
Note
• The projector will display the number of
scanned lines available from audio-visual
equipment such as a DVD player or Digital
Video.
Basic Operation
-39
Picture Display Mode
This function allows you to modify or customize the picture display mode to enhance the
input image. Depending on the input signal, you can choose “NORMAL”, “DOT BY DOT”,
“BORDER” or “STRETCH” image.
Switching the Picture Display Mode
Press .
• Pressing changes the display as shown on
pages 40 and 41.
• To return to the standard image, press
“RESIZE” is displayed on the screen.
COMPUTER
SVGA (800 × 600)
4:3 aspect ratio
Other aspect ratios
XGA (1024 × 768)
SXGA (1280 × 960)
SXGA+ (1400 × 1050)
SXGA (1280 × 1024)
1280 × 720
NORMAL
PG-A10X
1024 × 768
960 × 768
—
while
PG-A10S
800 × 600
750 × 600
PG-A10X
800 × 600
1280 × 960
1400 × 1050
1280 × 1024
—
UNDO
button
DOT BY DOT
—
1024 × 768
1280 × 960
1400 × 1050
1280 × 1024
—
PG-A10S
—
—
BORDER
PG-A10X
768 × 576
720 × 576
—
PG-A10S
600 × 450
562 × 450
—
RESIZE
button
STRETCH
PG-A10X
1024 × 576
960 × 576
1024 × 576
PG-A10S
800 × 450
750 × 450
800 × 450
Input Signal
Computer
PG-A10X PG-A10S
Resolution
lower than
XGA
Resolution
lower than
SVGA
Image type
4:3 aspect ratio
NORMAL
Projects a full screen
image while maintaining
the aspect ratio.
***
**
XGA SVGA
4:3 aspect ratio
Resolution
higher than
XGA
Resolution
higher than
SVGA
4:3 aspect ratio
**
**
SXGA (1280 × 1024)
5:4 aspect ratio
1280 × 720
16:9 aspect ratio
Mode for projecting an image with the original aspect ratio without cutting any portions.
*
Output screen image
DOT BY DOT
Projects the original
resolution signal
of the image.
BORDER
Projects 4:3 image fully
in STRETCH (the following
column) image.
STRETCH
Projects 16:9 image
evenly over entire screen
(top/bottom blank bands).
*
: Cutout area on which images cannot be projected.
: Area where the signals are off screen.
-40
VIDEO
NORMAL
480I, 480P,
NTSC, PAL, SECAM
540P, 720P, 1080I
4:3 aspect ratio.
Letter box, squeeze
16:9 aspect ratio
PG-A10X
1024 × 768
PG-A10S
800 × 600
—
—
• “STRETCH” is fixed when 540P, 720P or 1080I signals are entered.
Input Signal
Image typeDVD / Video
NORMAL
Projects a full screen image.
**
4:3 aspect ratio
BORDER
PG-A10X
768 × 576
PG-A10S
600 × 450
—
—
Output screen image
BORDER
Projects 4:3 image fully in
STRETCH (the following
column) image.
STRETCH
PG-A10X
1024 × 576
Projects 16:9 image evenly
(top/bottom black bands).
PG-A10S
800 × 450
STRETCH
over entire screen
*
480I, 480P,
NTSC, PAL, SECAM
540P, 720P,
1080I (16:9)
Mode for projecting an image with the original aspect ratio without cutting any portions.
*
: Cutout area on which images cannot be projected.
: Area on which the image is not included in the original signals.
Letter box
Squeezed 16:9 image
Squeezed 4:3 image
16:9 aspect ratio
16:9 aspect ratio
(4:3 aspect ratio in
16:9 screen)
*
*
*
*
Easy to Use Functions
*
-41
×1 ×4 ×9 ×16 ×36 ×64×2 ×3
Still and Zoom Image
You can instantly freeze a moving image and enlarge a specific portion of an image with the
remote control. Using these functions, you can explain the image to the audience more effectively.
UNDO
button
', ", \, |
buttons
ENLARGE
(Enlarge/
Reduce)
buttons
FREEZE
button
Freezing a Moving Image
1 Press .
• The projected image is frozen.
2 Press again to return to the
moving image from the currently
connected device.
Displaying an Enlarged Portion of an Image
1 Press .
• Pressing or enlarges or reduces
the projected image.
Note
• You can change the location of the enlarged image using ', ", \ and |.
2 Press to cancel the operation.
• The magnification then returns to ×1.
-42
Note
In the following cases, the image will return to the normal size (×1).
• When switching the INPUT mode.
• When
• When the input signal is changed.
• When the input signal resolution and re-
fresh rate (vertical frequency) change.
has been pressed.
Keylock Function
Use this function to lock the operation buttons on the projector.
Power ON button
Locking the Operation Buttons
Hold down on the projector for
about 3 seconds while the projector is
being turned on.
Note
• The keylock function does not affect the operation with the remote control buttons.
• You cannot use the keylock function while the
projector is warming up.
Taking the Keylock off
Hold down on the projector for
about 3 seconds while the projector is
being turned on.
• You can take the keylock off by holding down
on the projector for about 3 seconds while the projector is in standby mode.
Easy to Use Functions
-43
Using the “Options” Menu
You can use the “Options” menu to enhance the usage for the projector. For operation of the
menu screen, see pages 32 to 35.
Example: “Options” menu screen for
INPUT 2 (S-Video) mode
Lamp Timer (Life) (Check-
ing the Lamp Life Status)
You can confirm the cumulative lamp usage time
and the remaining lamp life (percentage).
Display the “Options” menu to check the
lamp life status.
Description of Lamp Life
Lamp usage condition
Used with only “ ”
(Eco mode) in “Eco
Mode”
Used with only “ ”
(Standard mode) in
“Eco Mode”
Note
• It is recommended that the lamp be changed
when the remaining lamp life becomes 5%.
For lamp replacement, contact your nearest
Sharp Authorized Projector Dealer or Service
Center.
• The table above indicates rough estimates in the
case of using only in each mode shown. Remaining lamp life changes within the range of the values shown depending on the frequency at which
“Eco Mode” is switched to “
” (Standard mode) (see page 45).
“
Remaining lamp life
100% 5%
about
4,500 hours 225 hours
about
3,000 hours 150 hours
” (Eco mode) and
OSD Display (Setting On-
screen Display)
This function allows you to turn the on-screen messages on or off.
Select “ ” (ON) or “ ” (OFF) in “OSD
Display” on the “Options” menu.
Description of “OSD Display” Settings
Selectable settings
ON
OFF
All On-screen Displays are displayed.
INPUT/VOLUME/AV MUTE/FREEZE/
AUTO SYNC/ENLARGE/ “An invalid
button has been pressed.” / “All buttons on
Projector are locked.” are not displayed.
Description
-44
Video System (Setting the
Video System)
Background (Selecting a
Startup and Background Image)
The video input system mode is preset to “Auto”;
however, a clear picture from the connected audiovisual equipment may not be received, depending
on the video signal difference. In that case, switch
the video signal.
Select “Video System” on the “Options” menu
and the appropriate video system.
Description of Video Systems
Selectable settings
PAL
SECAM
NTSC4.43
NTSC3.58
When connected to PAL video
equipment.
When connected to SECAM video
equipment.
When reproducing NTSC signals in
PAL video equipment.
When connected to NTSC video
equipment.
Description
Note
• The video signal can only be set in INPUT 2 or
INPUT 3 mode.
• In “Auto”, images are displayed in PAL even if
PAL-N or PAL-M input signals are received.
Select “Background” on the “Options” menu
and the image displayed upon the projector’s
startup and when no signal is being sent to
the projector.
Sharp
Blue
None
Description of Background Images
Selectable settings
Sharp
Blue
None
SHARP default image
Blue screen
Black screen
Description
Note
• If the input signal has interference, the screen
will be displayed during interference.
Eco Mode (Setting the Eco
Mode)
Select “ ” (Eco Mode) or “ ” (Standard
Mode) in “Eco Mode” on the “Options”
menu.
Description of Eco Mode
Selectable settings
(Eco mode)
Brightness
80%
Power consumption
(When using AC 100V)
190 W
Lamp life
4,500 hours
Easy to Use Functions
(Standard mode)
100%
240 W
3,000 hours
Note
• Although lamp life and noise are improved when
“Eco Mode” is set to “ ” (Eco mode), brightness decreases by 20%.
• “Eco Mode” mode is factory preset to “
dard mode).
” (Stan-
-45
Using the “Options” Menu
Example: “Options” menu screen for
INPUT 2 (S-Video) mode
Auto Power Off (Auto
Power Off Function)
When no input signal is detected for more than 15
minutes, the projector will automatically power off
if set to “ON”.
The Auto Power Off function will be disabled if it
has been set to “OFF”.
Select “ ” (ON) or “ ” (OFF) in “Auto
Power Off” on the “Options” menu.
Note
• When the Auto Power Off function is set to “ON”,
5 minutes before the power turns off, the message “Power OFF in X min.” will appear on the
screen to indicate the remaining minutes before power off.
Menu Position (Selecting
the Menu Screen Position)
Select “Menu Position” on the “Options”
menu and the desired position for the menu
screen.
Description of Menu Positions
Selectable settings
Center
Upper Right
Lower Right
Upper Left
Lower Left
Displayed on the center of the image.
Displayed on the upper right of the image.
Displayed on the lower right of the image.
Displayed on the upper left of the image.
Displayed on the lower left of the image.
Description
Menu Color (Selecting the
Menu Color)
-46
Select “ ” (Opaque) or “ ” (Translucent)
in “Menu Color” on the “Options” menu.
Description of Menu Colors
Selectable settings
Opaque
Translucent
The menu is displayed opaquely.
The menu is displayed translucently.
The part of the menu on the image
becomes transparent.
Description
Password (Setting a Pass-
word)
A password must be set to activate the “Anti-Theft”
function (Page 48).
There is no factory preset for the password or the
“Anti-Theft” settings. In this way, anyone can freely
set a new password and “Anti-Theft” settings. It is
therefore recommended that even if you do not want
to use the “Anti-Theft” function, you at least set a
password to prevent others from setting the “AntiTheft” function.
A password can only be set by using the remote
control.
Select “Password” on the “Options” menu,
then press and follow the procedure below to enter the password.
1 Press
',
''
""
" and
""
||
| to enter the pass-
||
''
word in “Old Password” and press
.
''
2 Press
',
''
""
" and
""
password and press
||
| to set the new
||
.
3 Enter the new 4-digit password
again in “Reconfirm” and press
.
Note
• If you do not want to set a password, leave the
fields in steps 2 and 3 blank and press
.
''
1 Press
number and then press
""
' or
" to select the desired
''
""
||
|.
||
2 Enter the 3 remaining digits and
press
.
3 Enter the password again in “Recon-
firm” and press
Note
• When a password is set, you need to enter the
password to change the “Anti-Theft” setting.
If you want to change the password, follow
the procedure below.
.
• To cancel the password settings, press
.
If You Forget Your Password
If you forget the password, delete it using the following procedure and set a new password.
Press
Note
• You can only use the buttons on the projector
to delete the password.
• The password cannot be deleted using the
above described procedures while the “Anti-
Theft” function is set. If you forget your password while the “Anti-Theft” function is activated,
you will need to contact your nearest Sharp Authorized Projector Dealer or Service Center (see
page 65). You may need to bring your projector
to them to restore the projector to original factory condition (password and keycode reset).
Easy to Use Functions
-47
Using the “Options” Menu
Example: “Options” menu screen for
INPUT 2 (S-Video) mode
Anti-Theft
The anti-theft function prevents unauthorized use
of the projector. You can choose to use this function or not. If you do not want to use this function,
just do not enter the keycode. Once the anti-theft
function is activated, users will need to enter the
correct keycode each time the projector is turned
on. Failure to enter the correct keycode will cause
images to not be projected. The following procedures explain how to use this function.
Select “Anti-Theft” on the “Options” menu,
then press and follow the procedure below to enter the keycode.
(Setting the Anti-Theft)
1 Press any button you like on the re-
mote control or projector to set the
first digit in “New Code”.
Note
• The following buttons on the remote control and projector cannot be set as
keycodes:
• POWER ON/OFF buttons
• ENTER button
• UNDO button
• MENU button
• FORWARD button
• BACK button
Note
• “Anti-Theft” cannot be selected unless
“Password” is set. (See page 47.)
• When “Anti-Theft” is selected, the password
input box will appear. Enter the keycode after
the right password is entered.
Info
• Once the function is activated, you must remember the correct keycode. We suggest you record
the keycode in a safe place where only authorized
users have access. If you lose or forget your
keycode, you will need to contact your nearest
Sharp Authorized Projector Dealer or Service Center (see page 65). You may need to bring your projector to them to restore the projector to original
factory condition (password and keycode reset).
-48
2 Enter the remaining 3 digits by
pressing any buttons you like.
3 Enter the same keycode once more
in “Reconfirm”.
Info
When “Anti-Theft” is set, the keycode inputting box appears after the power is
turned on. When it appears, enter the right
keycode.
• Press the buttons on the remote control if the
buttons on the remote control are used for setting the keycode. In the same manner, press
the buttons on the projector if the buttons on
the projector are used for setting the keycode.
If you want to change the keycode, follow
the procedure below.
Note
• When “Anti-Theft” is selected, the password in-
put box will appear. After the password has been
entered, you can change the keycode.
1 Press the buttons on the remote
control or the projector to enter the
preset 4-digit keycode in “Old
Code”.
2
Press any button you like on the remote control or the projector to enter the new keycode.
3 Enter the same 4-digit keycode in
“Reconfirm”.
Note
• If you do not want to set a keycode, leave the
keycode field blank in steps 2 and 3 and press
.
Easy to Use Functions
-49
Reversing/Inverting Projected Images
You can reverse or invert the projected image for various applications using the “PRJ Mode”
menu. For operation of the menu screen, see pages 32 to 35.
Example: “PRJ Mode” menu screen for
INPUT 1 (RGB) mode
Setting the Projection Mode
Display the “PRJ Mode” menu and select the
desired projection mode.
Description of Projection Modes
Selectable settings
Front
Ceiling+Front
Rear
Ceiling+Rear
Note
• This function is used for the reversed image and
ceiling-mount setups. See page 25 for these setups.
Normal image
Inverted image
Reversed image
Reversed and inverted image
Description
-50
Carrying the Projector
How to Use the Carrying Case
When carrying the projector, attach the lens cap
to the lens, and place it in the supplied carrying
case.
1 Open the cover of the carrying
case.
2 Remove the inner padding from
the carrying case, and fold it in
the direction of the arrows.
3 Reinsert the inner padding into
the carrying case.
Info
• Be sure to insert the inner padding to
protect the lens and the projector.
4 Place the projector and the ac-
cessories in the carrying case.
Info
• Be sure to attach the lens cap to protect the lens.
• Be sure the projector has cooled
down sufficiently before placing it in
the case.
Info
• This carrying case is only for storing and
carrying the projector.
• Sending the projector in the carrying case
as a parcel may cause damage to the projector. If you send the projector in the carrying case as a parcel, be sure to place it
in a sturdy case and with enough shock
absorbing material to avoid any damage.
• Do not expose the carrying case or projector to direct sunlight, near heat sources, or
leave them in a car. The carrying case or
projector may change color or become deformed.
Lens cap
Adjust the
shoulder
strap.
Appendix
-51
Maintenance
Cleaning the projector
■ Be sure to unplug the power cord before cleaning the projector.
■ The cabinet as well as the operation panel is
made of plastic. Avoid using benzene or thinner,
as these can damage the finish on the cabinet.
■ Do not use volatile agents such as insecticides
on the projector.
Do not attach rubber or plastic items to the projector for a long time.
The effects of some of the agents in the plastic
may cause damage to the quality or finish of the
projector.
Thinner
Wax
■ Wipe off dirt gently with a soft flannel cloth.
Mild detergent
Cleaning the lens
■ Use a commercially available blower or lens
cleaning paper (for glasses and camera lenses)
for cleaning the lens. Do not use any liquid type
cleaning agents, as they may wear off the coating film on the surface of the lens.
■ As the surface of the lens can easily get damaged, be sure not to scrape or hit the lens.
Cleaning
Paper
Cleaning the exhaust and intake vents
■ Use a vacuum cleaner to clean dust from the
exhaust vent and the intake vent.
Mild detergent
diluted with water
■ When the dirt is hard to remove, soak a cloth in a
mild detergent diluted with water, wring the cloth
well and then wipe the projector.
Strong cleaning detergents may discolor, warp
or damage the coating on the projector.
Make sure to test on a small, inconspicuous area
on the projector before use.
-52
Replacing the Air Filter
• This projector is equipped with air fil-
ters to ensure the optimal operating
condition of the projector.
• The air filters should be cleaned every
100 hours of use. Clean the filters more
often when the projector is used in a
dusty or smoky location.
• Ask your nearest Sharp Authorized Pro-
jector Dealer or Service Center to exchange the filter (PFILDA008WJZZ)
when it is no longer possible to clean.
Cleaning and Replacing the Air Filter
1 Turn off the power and discon-
nect the power cord.
• Press on the projector or
on the remote control. Wait until the cooling fan stops.
""
" Bottom view
""
Air filter
Air filter
(not removable)
Power OFF button
""
" Rear view
""
Air filter
(not removable)
Power
OFF
button
2 Remove the filter/lamp unit
cover.
• Turn the projector over. Loosen the user
service screw (1) that secures the filter/lamp unit cover. Pressing the tab
(2), remove the filter/lamp unit cover
(3).
3 Remove the air filter.
• Pick the air filter up with your fingers and
lift it out of the filter/lamp unit cover.
1
3
User service screw
2
Tab
Appendix
-53
Replacing the Air Filter
4 Clean the air filter.
• Clean the dust off the air filter and cover
with a vacuum cleaner extension hose.
5 Replace the air filter.
• Place the air filter underneath the tabs
on the filter/lamp unit cover.
6 Replace the filter/lamp unit
cover.
• Align the tab on the filter/lamp unit cover
(1) and place it while pressing the tab
(2) to close it. Then tighten the user
service screw (3) to secure the filter/
lamp unit cover.
Note
• Be sure the filter/lamp unit cover is securely
installed. The power will not turn on unless
it is correctly installed.
• If dust or dirt has collected inside the rear
and bottom air filters (not removable), clean
the filter with a vacuum cleaner extension
hose.
1
2
Tab
3
User service screw
-54
Maintenance Indicators
■ The warning lights on the projector indicate problems inside the projector.
■ If a problem occurs, either the temperature warning indicator or the lamp replacement indicator will
illuminate red, and the power will turn off. After the power has been turned off, follow the procedures given below.
Power indicator
Lamp replacement indicator
Temperature warning indicator
About the temperature warning indicator
If the temperature inside the projector increases, due to blockage
of the air vents, or the setting lo-
cation, “
the lower left corner of the picture.
If the temperature keeps on rising,
the lamp will turn off and the temperature warning indicator will
blink, the cooling fan will run for a
further 90 seconds, and then the
power will be shut off. After
“
” appears, be sure to per-
form the following measures.
” will illuminate in
About the lamp
replacement indicator
■ The lamp life becomes 0%, when used
for approximately 4,500 hours with “Eco
Mode” or when used for approximately
3,000 hours with “Standard Mode” (see
page 45).
■ When the remaining lamp life becomes
5% or less, “
on the screen. When the percentage becomes 0%, “
the lamp will automatically turn off and
then the projector as well. At this time,
the lamp replacement indicator will illuminate in red.
■ If you try to turn on the projector a fourth
time without replacing the lamp, the projector will not turn on.
” (yellow) will be displayed
” will change to “ ” (red),
Maintenance indicator
Temperature
warning
indicator
Lamp
replacement
indicator
Power
indicator
Normal
Off
Green on
Green
blinks
when the
lamp is
active.
Green on/
Red on
Abnormal
Abnormal
Red on/
Power off
Red on
Red on/
Power off
Red blinks
Condition Problem Possible Solution
• Relocate the projector to an area
with proper ventilation.
• Take the projector to your nearest
Sharp Authorized Projector Dealer
or Service Center (see page 65)
for repair.
• Carefully replace the lamp. (See
page 58)
• Take the projector to your nearest
Sharp Authorized Projector Dealer
or Service Center (see page 65)
for repair.
• Please exercise care when
replacing the lamp.
• Securely install the cover.
• If the power indicator blinks even
when the filter/lamp unit cover is
securely installed, contact your
nearest Sharp Authorized Projector Dealer or Service Center for
advice.
The internal
temperature is
abnormally high.
Time to change
the lamp
The lamp does
not illuminate.
The power
indicator blinks
in red when the
projector is on.
• Blocked air intake
• Cooling fan break-
down
• Internal circuit failure
• Clogged air intake
• Remaining lamp life
becomes 5% or less.
• Burnt-out lamp
• Lamp circuit failure
• The filter/lamp unit
cover is open.
Appendix
-55
Maintenance Indicators
Info
• If the temperature warning indicator illuminates, and the power turns off, follow the above possible solutions
and then wait until the projector has cooled down completely before plugging in the power cord and turning
the power back on. (At least 5 minutes.)
• If the power is turned off and then turned on again, as during a brief test, the lamp replacement indicator may
be triggered, preventing the power from going on. Should this occur, disconnect the power cord from the wall
outlet and plug it back in again.
• If you want to clean the air vents during projector operation, be sure to first press
on the remote control and after the power has turned off and the cooling fan has stopped, then clean the
vents.
• Do not unplug the power cord after the power has been turned off and while the cooling fan is running. The
cooling fan runs for about 90 seconds.
on the projector or
-56
Regarding the Lamp
Lamp
■ It is recommended that the lamp (sold separately) be replaced when the remaining lamp life be-
comes 5% or less, or when you notice a significant deterioration in the picture and color quality. The
lamp life (percentage) can be checked with the on-screen display. See page 44.
■ For lamp replacement, please consult your nearest Sharp Authorized Projector Dealer or Service
Center.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service
of this projector under warranty, including lamp replacement, must be obtained through a Sharp Authorized Projector Dealer or Service Center. For the name of the nearest Sharp Authorized Projector Dealer
or Service Center, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).
Caution Concerning the Lamp
■ This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp
failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface
scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure
largely varies depending on the individual lamp and/or the condition and the frequency of use. It is
important to note that failure can often result in the bulb cracking.
■ When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended
that the lamp be replaced with a new one immediately, even if the lamp appears to be operating
normally.
■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the
lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes
mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In
case of exposure to the gas, consult a doctor as soon as possible.
■ Should the lamp break, there is also a possibility that glass particles may spread inside of the
projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector
Dealer or Service Center to remove the damaged lamp and assure safe operation.
U.S.A. ONLY
Replacing the Lamp
Caution
• Do not remove the lamp unit immediately after operation of the projector. The lamp will be hot and touching
it can lead to burn or injury.
• Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool
before removing the lamp unit.
■ If the new lamp does not light after replacement, take your projector to the nearest Sharp Autho-
rized Projector Dealer or Service Center for repair. Purchase a replacement lamp unit of type BQCPGA10X//1 from your nearest Sharp Authorized Projector Dealer or Service Center. Then carefully
change the lamp by following the instructions described in this section. If you wish, you may have
the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service Center.
Appendix
-57
Regarding the Lamp
Removing and Installing the Lamp Unit
Info
• Be sure to remove the lamp unit using the
handle. Be sure not to touch the glass surface of the lamp unit or the inside of the
projector.
• To avoid injury to yourself and damage to
the lamp, be sure to carefully follow the
steps below.
• Do not loosen other screws except for the
filter/lamp unit cover and lamp unit.
• Please refer to the installation manual included with the lamp unit.
1 Press on the projector to
turn off the power.
• Wait until the cooling fan stops.
Warning!
• Do not remove the lamp unit from the
projector right after use. The lamp will
be very hot and may cause burn or injury.
Lamp
unit
BQC-PGA10X//1
Power OFF button
2 Disconnect the power cord.
• Unplug the power cord from the AC
socket.
• Leave the lamp until it has fully cooled
down (about 1 hour).
3 Change the air filter.
• Change the air filter whenever you install the lamp unit (see pages 53 and
54).
4 Remove the filter/lamp unit
cover.
• Turn the projector over. Loosen the user
service screw (1) that secures the filter/lamp unit cover. Pressing the tab
(2), remove the filter/lamp unit cover
(3).
-58
AC socket
3
1
User
service
2
screw
Tab
5 Remove the lamp unit.
• Loosen the securing screws from the
lamp unit. Hold the lamp unit by the
handle and pull it in the direction of the
arrow. At this time, keep the lamp unit
horizontal and do not tilt it.
6 Insert the new lamp unit.
• Press the lamp unit firmly into the lamp
unit compartment. Fasten the securing
screws.
7 Replace the filter/lamp unit
cover.
• Align the tab on the filter/lamp unit cover
(1) and place it while pressing the tab
(2) to close it. Then tighten the user
service screw (3) to secure the filter/
lamp unit cover.
Info
• If the lamp unit and filter/lamp unit cover
are not correctly installed, the power will
not turn on, even if the power cord is connected to the projector.
Handle
Securing screws
3
1
2
User service screw
Resetting the Lamp Timer
Reset the lamp timer after replacing the lamp.
1 Connect the power cord.
• Plug the power cord into the AC socket
of the projector.
2 Reset the lamp timer.
•
While simultaneously
and on the projector, press
and on the projector.
• “LAMP 0000H” is displayed, indicating
that the lamp timer is reset.
Info
• Make sure to reset the lamp timer only
when replacing the lamp. If you reset the
lamp timer and continue to use the same
lamp, this may cause the lamp to become
damaged or explode.
holding down
AC socket
Power ON button
Volume
buttons
AUTO SYNC
button
Appendix
-59
Connecting Pin Assignments
INPUT 1 RGB Signal Terminal: 15-pin Mini D-sub female connector
RGB Input
1. Video input (red)
2. Video input (green/sync on green)
3. Video input (blue)
4. Not connected
5. Not connected
6. Earth (red)
7. Earth (green/sync on green)
8. Earth (blue)
9. Not connected
10. GND
11. Not connected
12. Bi-directional data
13. Horizontal sync signal
14. Vertical sync signal
15. Data clock
10
15
5
1
6
11
RS-232C Terminal: 9-pin Mini DIN female connector
8
9
6
5
7
3
4
21
Pin No. Signal Name I/O Reference
1 Not connected
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 Not connected
5 SG Signal Ground Connected to internal circuit
6 Not connected
7 Not connected
8 Not connected
9 Not connected
9-pin D-sub male connector of the DIN-D-sub RS-232C adaptor
15
69
Pin No. Signal Name I/O Reference
1 Not connected
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 Not connected
5 SG Signal Ground Connected to internal circuit
6 Not connected
7 Not connected
8 Not connected
9 Not connected
Component Input
1. PR (CR)
2. Y
3. P
B (CB)
4. Not connected
5. Not connected
6. Earth (P
7. Earth (Y)
8. Earth (P
9. Not connected
10. Not connected
11. Not connected
12. Not connected
13. Not connected
14. Not connected
15. Not connected
)
R
)
B
RS-232C Cable recommended connection: 9-pin D-sub female connector
51
96
Pin No. Signal Pin No. Signal
1CD 1 CD
2RD 2 RD
3SD 3 SD
4ER 4 ER
5SG 5 SG
6DR 6 DR
7RS 7 RS
8CS 8 CS
9CI 9 CI
Note
• Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the controlling
device (e.g. PC).
Projector
Pin No.
4
5
6
PC
Pin No.
4
5
6
-60
RS-232C Specifications and Command Settings
PC control
A computer can be used to control the projector by connecting an RS-232C serial control cable (cross type,
sold separately) to the projector. (See page 20 for connection.)
Communication conditions
Set the serial port settings of the computer to match that of the table.
Signal format: Conforms to RS-232C standard.
Baud rate: 9,600 bps
Data length: 8 bits
Parity bit: None
Stop bit: 1 bit
Flow control: None
Basic format
Commands from the computer are sent in the following order: command, parameter, and return code. After
the projector processes the command from the computer, it sends a response code to the computer.
Command format
C1 C2 C3 C4 P1 P2 P3 P4
Response code format
Normal response
O K E R R
Command 4-digit Parameter 4-digit
Problem response (communication error or incorrect command)
Return code (0DH)
Return code (0DH)
Return code (
0DH)
Info
• When more than one code is being sent, send each command only after the response code for the previous
command from the projector is verified.
Commands
Example: When turning on the projector, make the following setting.
POWR _ 1__ OK
CONTROL CONTENTS
Power Off (Standby)
Power On
INPUT1
INPUT2
INPUT3
Lamp Usage Time (hour)
Remaining Lamp Life (Percentage)
Lamp Status
Unit Status
BUTTONS & REMOTE CONTROL KEY
Model Name Check
AV Mute Off
AV Mute On
Auto Sync Start
COMMAND
P
O
W
P
O
W
I
R
G
I
V
E
I
V
E
T
L
T
T
L
T
T
L
P
T
A
B
T
N
A
I
M
B
I
M
B
A
D
J
PARAMETER
R
_
R
_
B
_
D
_
D
_
T
_
L
_
S
_
N
_
M
_
K
_
K
_
S
_
OK or ERR
_
_
0
OK or ERR
_
_
1
OK or ERR
_
_
1
OK or ERR
_
_
1
OK or ERR
_
_
2
0~9999
_
_
1
_
_
1
0~100
_
_
1
0:Off, 1:On, 2:Retry, 3:Waiting, 4:Lamp Error
_
_
1
0:Normal, 1:Temp High, 2:Fan Err,
4:Filter Cover Err, 8:Lamp Life 5% or less,
16:Lamp Burnt-out, 32:Lamp Not Lit,
64:Temp Abnormally High
PROJECTOR NAME
_
_
1
OK or ERR
_
_
0
OK or ERR
_
_
1
OK or ERR
_
_
1
→
←
RETURN
ProjectorComputer
Appendix
Note
• If an underbar (_) appears in the parameter column, enter a space. If an asterisk (*) appears, enter a
value in the range indicated in brackets under CONTROL CONTENTS.
-61
Computer Compatibility Chart
Computer
• Multiple signal support
Horizontal Frequency: 15–70 kHz, Vertical Frequency: 43–85 Hz, Pixel Clock: 12–108 MHz
• Compatible with sync on green signal
• [PG-A10X] SXGA+ and SXGA compatible in intelligent compression
[PG-A10S] SXGA+, SXGA and XGA compatible in intelligent compression
• Intelligent Compression and Expansion System resizing technology
The following is a list of modes that conform to VESA. However, this projector supports other signals
that are not VESA standards.
Upscale
Upscale
True
Intelligent
Upscale
True
Display
Upscale
True
Intelligent
Compression
Upscale
Intelligent
Compression
PC/MAC/WS Resolution VESA Standard
640 × 350
640 × 400
720 × 350
VGA
720 × 400
640 × 480
PC
800 × 600
SVGA
1,024 × 768
XGA
1,152 × 864
SXGA
1,280 × 1,024
1,400 × 1,050
MAC 13"
MAC 16"
MAC 19"
MAC 21"
SXGA+
VGA
SVGA
XGA
SXGA
640 × 480
832 × 624
1,024 × 768
1,152 × 870
Horizontal Frequency
(kHz)
27.0
31.5
37.5
27.0
31.5
37.9
27.0
31.5
27.0
31.5
37.9
26.2
31.5
34.7
37.9
37.5
43.3
31.4
35.1
37.9
46.6
48.1
46.9
53.7
35.5
40.3
48.4
56.5
60.0
68.7
55.0
66.2
67.5
64.0
64.0
34.9
49.7
60.2
68.7
Vertical Frequency
(Hz)
60
70
85
60
70
85
60
70
60
70
85
50
60
70
72
75
85
50
56
60
70
72
75
85
43
50
60
70
75
85
60
70
75
60
60
67
75
75
75
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
PG-A10X PG-A10S
Compression
Intelligent Compression
Note
• This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD)
mode. Should this occur, turn off the LCD display on the notebook computer and output the display data in
“CRT only” mode. Details on how to change display modes can be found in your notebook computer’s
operation manual.
• When this projector receives 640 × 350 VESA format VGA signals, “640 × 400” appears on the screen.
DTV
Signal Vertical Frequency (Hz)Horizontal Frequency (kHz)
480I
480P
540P
580I
580P
720P
1035I
1035I
1080I
1080I
15.7
31.5
33.8
15.6
31.3
45.0
28.1
33.8
28.1
33.8
-62
60
60
60
50
50
60
50
60
50
60
Troubleshooting
Problem
No picture and no sound
or projector does not start.
Sound is heard but no
picture appears.
Color is faded or poor.
Picture is blurred;
noise appears.
Check
• Projector power cord is not plugged into the wall outlet.
• Power to the external connected devices is off.
• The selected input mode is wrong.
• The AV MUTE function is working.
• Cables incorrectly connected to rear panel of the projector.
• Remote control batteries have run out.
•
External output has not been set when connecting notebook computer.
• The filter/lamp unit cover is not installed correctly.
• Cables incorrectly connected to the rear panel of the projector.
• “Bright” is set to minimum position.
• Picture adjustments are incorrectly set.
(Video Input only)
• Video input system is incorrectly set.
(INPUT 1 only)
• Input signal type (RGB/Component) is incorrectly set.
• Adjust the focus.
• The projection distance exceeds the focus range.
(Computer Input only)
• Perform “Fine Sync” Adjustments (“Clock” Adjustment)
• Perform “Fine Sync” Adjustments (“Phase” Adjustment)
• Noise may appear depending on the computer.
• Cables incorrectly connected to rear panel of projector.
• Volume is set to minimum.
Page
15
—
27
27
16-20
13
16
54,59
16-20
36
36
45
37
22
24
38
38
—
16-20
27
Picture appears but no
sound is heard.
An unusual sound is
occasionally heard
from the cabinet.
Maintenance
indicator illuminates.
Power cannot be turned
on or off using the power
buttons on the projector.
• If the picture is normal, the sound is due to cabinet shrinkage
caused by room temperature changes. This will not affect
operation or performance.
• See “Maintenance Indicators”.
• The keylock is set.
If the keylock is set to ON, all the buttons are locked.
—
55
Appendix
43
-63
Troubleshooting
Picture is green on
INPUT 1 COMPONENT.
Picture is pink (no green)
on INPUT 1 RGB.
Picture is dark.
Picture is too bright and
whitish.
CheckProblem Page
• Change the input signal type setting.
• The lamp replacement indicator is illuminating in red. Replace
the lamp.
• Picture adjustments are incorrectly set.
37
55
36
-64
For SHARP Assistance
If you encounter any problems during setup or operation of this projector, first refer to the
“Troubleshooting” section on pages 63 and 64. If this operation manual does not answer
your question, please contact the SHARP Service departments listed below.
U.S.A. Sharp Electronics Corporation
1-888-GO-SHARP (1-888-467-4277)
lcdsupport@sharpsec.com
http://www.sharplcd.com
Canada Sharp Electronics of Canada Ltd.
(905) 568-7140
http://www.sharp.ca
Mexico Sharp Electronics Corporation Mexico
Branch
(525) 716-9000
http://www.sharp.com.mx
Latin America Sharp Electronics Corp. Latin American
Group
(305) 264-2277
www.servicio@sharpsec.com
http://www.siempresharp.com
Germany Sharp Electronics (Europe) GMBH
01805-234675
http://www.sharp.de
U.K. Sharp Electronics (U.K.) Ltd.
0161-205-2333
custinfo@sharp-uk.co.uk
http://www.sharp.co.uk
Italy Sharp Electronics (Italy) S.P.A.
(39) 02-89595-1
http://www.sharp.it
France Sharp Electronics France
01 49 90 35 40
hotlineced@sef.sharp-eu.com
http://www.sharp.fr
Benelux SHARP Electronics Benelux BV
0900-SHARPCE (0900-7427723)
Nederland
9900-0159 Belgium
http://www.sharp.nl
http://www.sharp.be
http://www.sharp.lu
Australia Sharp Corporation of Australia
Pty. Ltd.
1300-135-022
http://www.sharp.net.au
New Zealand Sharp Corporation of New Zealand
(09) 634-2059, (09) 636-6972
http://www.sharpnz.co.nz
Singapore Sharp-Roxy Sales (S) Pte. Ltd.
65-226-6556
ckng@srs.global.sharp.co.jp
http://www.sharp.com.sg
Hong Kong Sharp-Roxy (HK) Ltd.
(852) 2410-2623
dcmktg@srh.global.sharp.co.jp
http://www.sharp.com.hk
Taiwan Sharp Corporation (Taiwan)
0800-025111
http://www.sharp-scot.com.tw
Malaysia Sharp-Roxy Sales & Service Co.
(60) 3-5125678
U.A.E. Sharp Middle East Fze
971-4-81-5311
helpdesk@smef.global.sharp.co.jp
Spain Sharp Electronica Espana, S.A.
93 5819700
sharplcd@sees.sharp-eu.com
http://www.sharp.es
Switzerland Sharp Electronics (Schweiz) AG
0041 1 846 63 11
cattaneo@sez.sharp-eu.com
http://www.sharp.ch
Sweden Sharp Electronics ( Nordic ) AB
(46) 8 6343600
vision.support@sen.sharp-eu.com
http://www.sharp.se
Austria Sharp Electronics Austria (Ges.m.b.H.)
0043 1 727 19 123
pogats@sea.sharp-eu.com
http://www.sharp.at
Thailand Sharp Thebnakorn Co. Ltd.
02-236-0170
svc@stcl.global.sharp.co.jp
http://www.sharp-th.com
Korea Sharp Electronics Incorporated of
Korea
(82) 2-3660-2002
lcd@sharp-korea.co.kr
http://www.sharpkorea.co.kr
India Sharp Business Systems (India)
Limited
(91) 11- 6431313
service@sharp-oa.com
Appendix
-65
Specifications
Product type
Video system
Display method
LCD panel
Standard lens
Projection lamp
Component input signal
(INPUT1)
Horizontal resolution
Computer RGB input signal
(INPUT 1)
S-video input signal
(INPUT 2)
Video input signal
(INPUT 3)
Computer control signal (RS-232C)
Pixel clock
Vertical frequency
Horizontal frequency
Audio input signal
Audio output
Speaker system
Rated voltage
Input current
Rated frequency
Power consumption
Power consumption (standby)
Heat dissipation
Operating temperature
Storage temperature
Cabinet
I/R carrier frequency
Dimensions (approx.)
Weight (approx.)
Supplied accessories
Replacement parts
This SHARP projector uses an LCD (Liquid Crystal Display) panel. This very sophisticated panel contains 786,432
(PG-A10X) / 480,000 (PG-A10S) pixels (× RGB) TFTs (Thin
Film Transistors). As with any high technology electronic
equipment such as large screen TVs, video systems and
video cameras, there are certain acceptable tolerances that
the equipment must conform to.
LCD Projector
PG-A10X / PG-A10S
Model
NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL-60/SECAM/
DTV480I/DTV480P/DTV540P/DTV580I/DTV580P/DTV720P/DTV1035I/DTV1080I
LCD panel × 3, RGB optical shutter method
Panel size: 0.79" (20.0 mm) (12 [H] × 16 [W] mm)
No. of dots: [PG-A10X] 786,432 dots (1,024 [H] × 768 [V])
1–1.2 × zoom lens, F1.9–2.2, f = 26–31 mm
SHP 165 W lamp
15-pin mini D-sub connector
Y: 1.0 Vp-p, sync negative, 75 Ω terminated
PB: 0.7 Vp-p, 75 Ω terminated
PR: 0.7 Vp-p, 75 Ω terminated
[PG-A10X] 700 TV lines (DTV720P)
[PG-A10S] 520 TV lines (DTV720P)
15-pin mini D-sub connector
RGB separate/sync on green type analog input: 0–0.7 Vp-p, positive, 75 Ω terminated
HORIZONTAL SYNC. SIGNAL: TTL level (positive/negative)
VERTICAL SYNC. SIGNAL: Same as above
4-pin mini DIN connector
Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated
C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated
RCA connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ω
terminated
9-pin mini DIN connector
12–108 MHz
43–85 Hz
15–70 kHz
ø3.5 mm minijack: AUDIO, 0.5 Vrms, more than 47 kΩ (stereo)
1.0 W (monaural)
2.8 cm round × 1
AC 100–240 V
2.4 A
50/60 Hz
240 W (Standard mode)/190 W (Eco mode) with AC 100 V
226 W (Standard mode)/182 W (Eco mode) with AC 240 V
5 W (AC 100 V) – 8 W (AC 240 V)
900 BTU/hour (Standard mode)/710 BTU/hour (Eco mode) with AC 100 V
850 BTU/hour (Standard mode)/680 BTU/hour (Eco mode) with AC 240 V
41°F to 95°F (+5°C to +35°C)
–4°F to 140°F (–20°C to +60°C)
Plastic
38 kHz
11 45/64" × 3 13/64" × 9 1/32" (297 (W) × 81 (H) × 229 (D) mm) (main body only)
11 45/64" × 3 33/64" × 9 1/32" (297 (W) × 89 (H) × 229 (D) mm) (including adjustment foot
and projecting parts)
6.4 lbs. (2.9 kg)
Remote control, Two R-6 batteries, Power cord for U.S., Canada etc. (6', 1.8 m), Power cord
for Europe, except U.K. (6', 1.8 m), Power cord for U.K., Hong Kong and Singapore (6', 1.8
m), Power cord for Australia, New Zealand and Oceania (6', 1.8 m), RGB cable (9'10",
3.0 m), DIN-D-sub RS-232C adaptor (5
Extra air filter, Projector manual and technical reference CD-ROM, “QUICK GUIDE” label,
Operation manual
Lamp unit (Lamp/cage module) (BQC-PGA10X//1), Remote control (RRMCGA138WJSA),
Two R-6 batteries (“AA” size, UM/SUM-3, HP-7, or similar), Power cord for U.S., Canada etc.
(QACCDA016WJPZ), Power cord for Europe, except U.K. (QACCVA006WJPZ), Power cord
for U.K., Hong Kong and Singapore (QACCBA015WJPZ), Power cord for Australia, New
Zealand and Oceania (QACCLA005WJPZ), RGB cable (QCNWGA012WJPZ), DIN-D-sub
RS-232C adaptor (QCNWGA015WJPZ), Carrying case (GCASNA006WJSA), Lens cap
(CCAPHA007WJ01), Air filter (PFILDA008WJZZ), Projector manual and technical reference
CD-ROM (UDSKAA022WJN1), “QUICK GUIDE” label (TLABZA191WJZZ), Operation manual
(TINS-A505WJN1)
[PG-A10S] 480,000 dots (800 [H] × 600 [V])
Specifications are subject to change without notice.
-66
57/64"
, 15 cm), Carrying case, Lens cap (attached),
This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen.
This will not affect the picture quality or the life expectancy
of the unit.
Dimensions
Units: inches (mm)
Side View Side View
(229)
32
/
1
9
Rear View
Top View
45
/64 (297)
11
ø 66
9
/64 (79.5)
3
Front View
Bottom View
(198.5)
64
/
53
7
(19.5)
32
/
25
(180)
32
/
3
7
1 59/64 (48.5)
(39.2)
64
/
35
(81)
(89)
1
64
64
/
/
13
33
3
3
13
/64 (258.8)
10
21
/32 (169)
6
M4
M4
M4
55
/64 (148.5) 13/64 (5)
5
11
7
/16 (195)
49/64 (19.1)
(180.5)
64
/
7
7
Appendix
-67
Glossary
Anti-Theft
If the “Keycode” set in the projector is not correctly entered, the projector will not operate even
if signals are entered.
Aspect Ratio
Width and height ratio of an image. The normal
aspect ratio of a computer and video image is 4:3.
There are also wide images with an aspect ratio
of 16:9 and 21:9.
Auto Sync
Optimizes projected computer images by automatically adjusting certain characteristics.
Background
Initial setting image projected when no signal is
being output.
Border
Projects a 4:3 image fully within a 16:9 screen by
keeping the aspect ratio at 4:3.
Clock
Clock adjustment is used to adjust vertical noise
when clock level is incorrect.
CLR Temp (Color temperature)
Function that can be used to adjust the color temperature to suit the type of image input to the projector. Decrease the color temperature to create
warmer, reddish images for natural flesh tones,
or increase to create cooler, bluish images for a
brighter picture.
Dot by dot
Mode that projects images in their native resolution.
Gamma
Image quality enhancement function that offers a
richer image by brightening the darker portions of
the image without altering the brightness of the
brighter portions. You can select four different
modes: STANDARD, PRESENTATION, CINEMA
and GAME.
Intelligent compression
High quality resizing of lower and higher resolution images to fit the projector’s native resolution.
Keylock
Mode that can lock the operation of projector buttons to prevent unauthorized adjustment.
Keystone correction
Function to digitally correct a distorted image when
the projector is set up at an angle, smoothens out
jaggies on keystone images and compresses the
image not only horizontally but vertically keeping
the 4:3 aspect ratio.
Password
A password is set so that changes cannot be made
in the “Anti-Theft” setting.
Phase
Phase shift is a timing shift between isomorphic
signals with the same resolution. When phase
level is incorrect, the projected image typically
displays horizontal flicker.
Resize
Allows you to modify or customize the picture display mode to enhance the input image. You can
select four different modes: NORMAL, DOT BY
DOT, BORDER and STRETCH.
sRGB
An international standard of color reproduction
regulated by the IEC (International
Electrotechnical Commission). As the fixed color
area has been decided by the IEC, the color
changes according to LCD features, so that the
images are displayed in a natural tint based on
an original image, when “sRGB” is set to “ON”.
Stretch
Mode that stretches the 4:3 image horizontally to
display it fully on a 16:9 screen.
-68
Index
AC socket ............................................................ 15
Adjusting the Lens ............................................... 22
Adjustment buttons .............................................. 32
Adjustment feet .................................................... 21
Air filter ................................................................. 53
Anti-Theft ............................................................. 48
Aspect ratio .......................................................... 40
AUDIO INPUT terminal ........................................ 16
Auto Power off ..................................................... 46
Auto Sync adjustment.......................................... 38
AUTO SYNC button ............................................. 38
AV MUTE button .................................................. 27
BACK button ........................................................ 12
Background .......................................................... 45
Batteries ............................................................... 13
Blue ......................................................................36
BORDER.............................................................. 40
Bright.................................................................... 36
Carrying case....................................................... 51
Ceiling-mount setup............................................. 25
Clock .................................................................... 38
CLR Temp (Color Temperature) .......................... 36
Color .................................................................... 36
Computer Image Adjustment............................... 38
Contrast ............................................................... 36
DIN-D-sub RS-232C adaptor .............................. 20
DOT BY DOT ....................................................... 40
Eco Mode ............................................................. 45
ENLARGE buttons ............................................... 42
ENTER button...................................................... 35
Exhaust vent ........................................................ 52
Fine Sync ............................................................. 38
Focus ring ............................................................ 22
Foot release ......................................................... 21
FORWARD button ............................................... 12
FREEZE button.................................................... 42
Gamma ................................................................ 37
H-Pos ................................................................... 38
INPUT 1 terminal ................................................. 16
INPUT 1 – 3 modes ............................................. 27
INPUT 2 terminal ................................................. 18
INPUT 3 terminal ................................................. 18
INPUT button ....................................................... 27
Intake vent ........................................................... 52
Kensington Security Standard connector ............ 11
Keylock ................................................................ 43
KEYSTONE button .............................................. 29
Keystone correction ............................................. 29
Lamp .................................................................... 57
Lamp replacement indicator ................................ 55
Lamp Timer (Life) ................................................ 44
Language (on-screen display language) ............. 28
Lens cap .............................................................. 10
Memory ................................................................ 37
MENU button ....................................................... 32
Menu Color .......................................................... 46
Menu Position ......................................................46
NORMAL.............................................................. 40
Optional accessories ........................................... 14
Options ................................................................. 44
OSD Display ........................................................ 44
Password ............................................................. 47
PDF ........................................................................ 9
Phase ................................................................... 38
Picture Adjustment............................................... 36
Power buttons ...................................................... 26
Power cord ........................................................... 15
Power indicator ....................................................26
PRJ mode (Reversing/Inverting Projected Images)
Red ...................................................................... 36
Remote control .................................................... 12
Remote control sensor ........................................ 13
Replacing the lamp .............................................. 57
RESIZE button ..................................................... 40
RGB cable ........................................................... 16
RS-232C terminal ................................................ 20
Sharp ................................................................... 36
Signal Info ............................................................ 39
Signal Type .......................................................... 37
Special Modes ..................................................... 38
sRGB ................................................................... 37
STRETCH ............................................................ 40
Supplied accessories........................................... 14
Temperature warning indicator ............................ 55
Tint ....................................................................... 36
UNDO button ....................................................... 29
Video System....................................................... 45
Volume buttons .................................................... 27
V-Pos ................................................................... 38
Zoom knob ........................................................... 22
... 50
Appendix
-69
SHARP CORPORATION
Loading...
