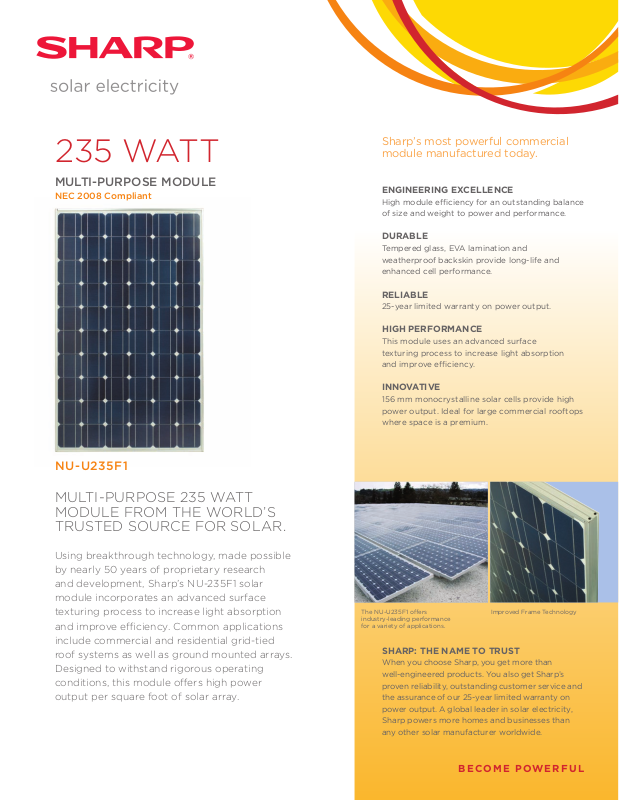

Sharp NU-U235F1 User Manual
235 WATT
Sharp’s most powerful commercial
module manufactured today.
MULTI-PURPOSE MODULE
NEC 2008 Compliant
NU-U235F1
EnginEEring ExcEllEncE
High module eciency for an outstanding balance
of size and weight to power and performance.
DUrABlE
Tempered glass, EVA lamination and
weatherproof backskin provide long-life and
enhanced cell performance.
rEliABlE
25-year limited warranty on power output.
HigH PErformAncE
This module uses an advanced surface
texturing process to increase light absorption
and improve eciency.
innovAtivE
156 mm monocrystalline solar cells provide high
power output. Ideal for large commercial rooftops
where space is a premium.
MULTI-PURPOSE 235 WATT
MODULE FROM THE WORLD’S
TRUSTED SOURCE FOR SOLAR.
Using breakthrough technology, made possible
by nearly 50 years of proprietary research
and development, Sharp’s NU-235F1 solar
module incorporates an advanced surface
texturing process to increase light absorption
and improve eciency. Common applications
include commercial and residential grid-tied
roof systems as well as ground mounted arrays.
Designed to withstand rigorous operating
conditions, this module oers high power
output per square foot of solar array.
The NU-U235F1 oers
industry-leading performance
for a variety of applications.
sHArP: tHE nAmE to trUst
When you choose Sharp, you get more than
well-engineered products. You also get Sharp’s
proven reliability, outstanding customer service and
the assurance of our 25-year limited warranty on
power output. A global leader in solar electricity,
Sharp powers more homes and businesses than
any other solar manufacturer worldwide.
Improved Frame Technology
BE c o mE P owE r fU l
SHARP ELECTRONICS CORPORATION
5901 Bolsa Avenue, Huntington Beach, CA 92647
www.sharpusa.com/solar
© 2009 S harp Elec tronic s Corpo ration. A ll right s reser ved.
235 WATT
Cu
V
oltage
0
2
3
4
5
6
7
9
0 520253035
40
0
40
60
80
0
0
0160
0200
22
0
24
0
0 [
W/m2
]
600
]
800
]
NU-U235F1
NEC 2008 Compliant
Module output cables 12 AWG with locking connectors
ElEctricAl cHArActEristics
Maximum Power (Pmax)* 235 W
Tolerance of Pmax +10%/-5%
Type of Cell Monocrystalline silicon
Cell Confi guration 60 in series
Open Circuit Voltage (Voc) 37.0 V
Maximum Power Voltage (Vpm) 30.0 V
Short Circuit Current (Isc) 8.60 A
Maximum Power Current (Ipm) 7.84 A
Module E ciency (%) 14.4%
Maximum System (DC) Voltage 600 V
Series Fuse Rating 15 A
NOCT 47.5°C
Temperature Coe cient (Pmax) -0.485%/°C
Temperature Coe cient (Voc) -0.351%/°C
Temperature Coe cient (lsc) 0.053%/°C
*Measured at (STC) Standard Test Conditions: 25°C, 1 kW/m2 insolation, AM 1.5
mEcHAnicAl cHArActEristics
Dimensions (A x B x C below) 39.1” x 64.6” x 1.8”/994 x 1640 x 46 mm
Cable Length (I) 43.3”/1100 mm
Output Interconnect Cable**
12 AWG with MC4 Locking Connector
Weight 44.1 lbs / 20.0 kg
Max Load 50 psf (2400 Pascals)
Operating Temperature
** A safety lock clip (Multi Contact part number PV-SSH4) may be required in
readily accessible locations per NEC 2008 690.33 (C)
(cell) -40 to 194°F / -40 to 90°C
iv cUrvEs
DimEnsions
D
E
F
8
B AC K V I E W
20
A
I
S I D E V IE W
G
QUAlificAtions
UL Listed UL 1703
Fire Rating Class C
wArrAntY
25-year limited warranty on power output
Contact Sharp for complete warranty information
Design and spe cifi cations are sub ject to change without noti ce.
Sharp is a registere d trademark of Sharp Co rporation. All othe r trademarks are pro perty of
their respec tive owners. Contac t Sharp to obtain the latest prod uct manuals befo re using
any Sharp device. Cover ph oto: Solar Installati on by SPG Solar.
B
F
E
G
H
A B C D E
39.1”/994 mm 64.6”/1640 mm 1.8”/46 mm 7.9”/200 mm 14.4”/365 mm
F G H I
32.3”/820 mm 3.9”/100 mm 37.7”/958 mm 43.3”/1100 mm
Contact Sharp for tolerance specifi cations
D
C
