Quick Start Guide

MODEL:

DIGITAL MULTIFUNCTIONAL SYSTEMDIGITAL MULTIFUNCTIONAL SYSTEMDIGITAL MULTIFUNCTIONAL SYSTEM

Quick Start Guide

MODEL: MX-M6570

MX-M7570

MX-M6570 MX-M7570

BEFORE USING THE MACHINE

Functions of the machine and procedures for placing originals and loading paper

COPIER

Using the copy function

PRINTER

Using the printer function

FACSIMILE

Using the fax function

SCANNER

Using the scan function

DOCUMENT FILING

Storing jobs as files on the hard drive

SYSTEM SETTINGS

Configuring settings to make the machine easier to use

MANUAL FINISHING

Using the manual finishing function

OPERATION MANUALS AND HOW TO USE THEM

Operation Guide (Displayed on the touch panel)

This manual explains basic procedures for using the machine, cautions for safe use of the machine, and information for the administrator. Read this manual before using the machine. For detailed operating procedures and troubleshooting information, see the manuals in PDF format.

This guide appears when you tap the icon on the machine's touch panel. The guide explains the basic procedures for operating the machine. In addition, the manuals below can be printed. To print a manual, see "HOW TO PRINT A MANUAL

(page 4)".

► OPERATION PANEL (page 14)

Software Setup Guide

This guide explains how to install the software and configure settings to use the machine as a printer or scanner.

This guide is intended to help you get started using the basic and convenient functions of the machine. (It is the same contents as this manual.)

This guide explains the procedures for configuring machine settings from your computer using the web page settings function embedded in the machine.

Like the "User's Manual", these manuals can be downloaded from our website and viewed on your computer.

Quick Start Guide Web Page Settings Guide

Start Guide

User's Manual

This guide explains how to customize the user interface of the touch panel, such as background and icon images.

This guide explains how to use the print release function.

This manual provides answers to frequently asked questions regarding the operation of the machine in each mode.

For detailed

information

Detailed explanations of the functions that can be used on the machine are provided in the "User's Manual". The User's Manual can be downloaded from the machine. Download the User's Manual from the Web pages in the machine. For the downloading procedure, see "DOWNLOADING THE OPERATION GUIDE

(page 6)".

U/I Customize Guide Print Release Settings Guide Troubleshooting

HOW TO PRINT A MANUAL

Settings Total Count LCD Control

Toner Quantity Bk

VolumeOperation

Guide

Enlarge

Display Mode

10:15 AM

Easy Scan

Easy Copy

(4)

(2)

(1)

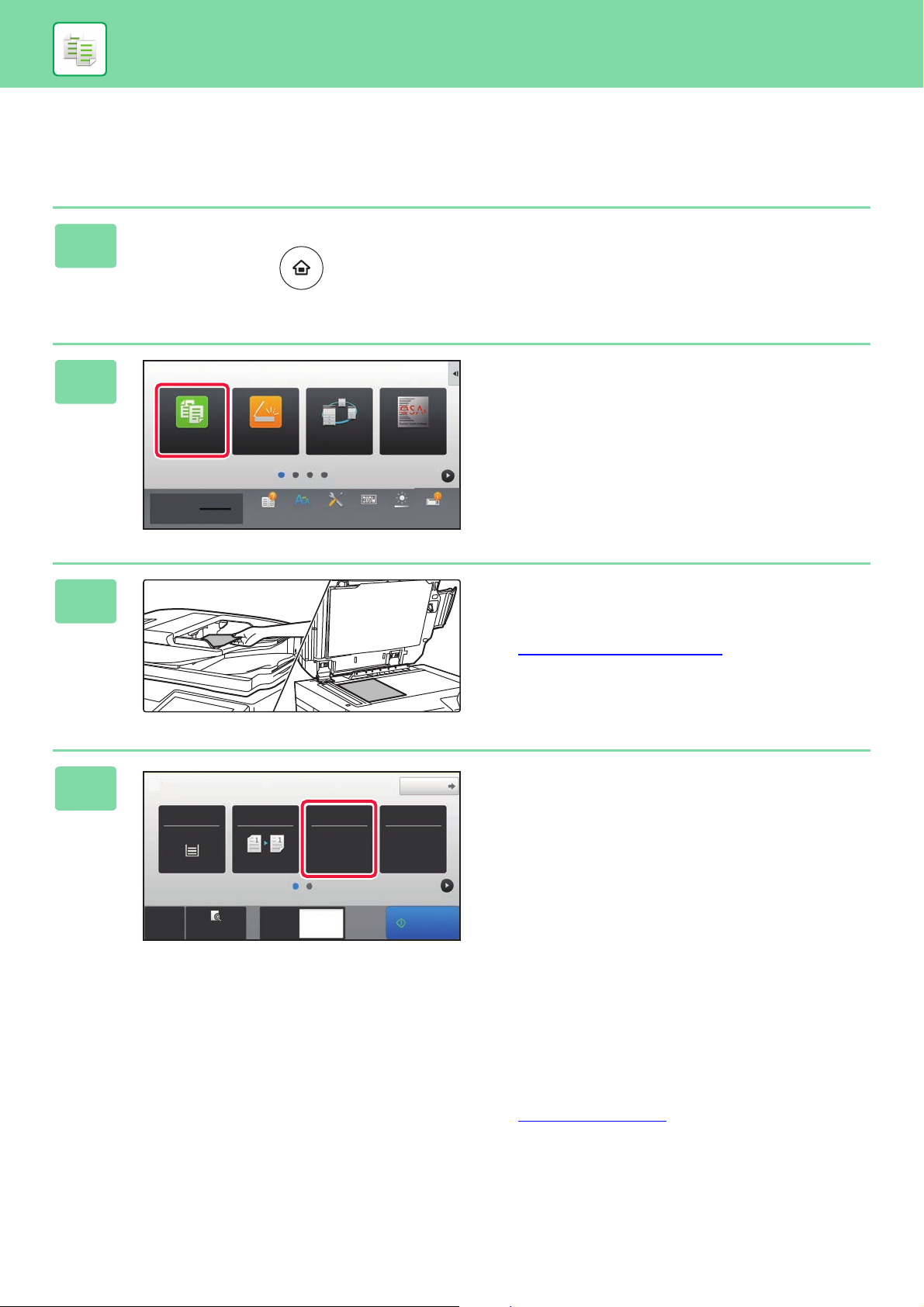

Press the [Home Screen] key.

Home screen appears.

Tap the [Operation Guide] key.

Print Release

Sharp OSA

Job Status

Set in a touch panel.

(1) Tap the [Downloading and printing

manuals] key.

(2) Tap the [Manuals that can be printed] key.

(3) Tap the manual icon.

(4) Tap [Print].

The Print Settings screen appears. Select settings and tap the [Start] key to start printing.

ACCESSING THE WEB SERVER IN THE

Settings Total Count LCD Control

Toner Quantity Bk

VolumeOperation

Guide

Enlarge

Display Mode

10:15 AM

Easy Scan

Easy Copy

Status

Machine Identification

Total Count

Device Status

Network Status

Firmware Version

Power Reset

Data List

List for User

List for Administrator

User Control

TCP/IP

TCP/IP:

IPv4 Settings:

IPv6 Settings:

DHCP:

IPv4 Address:

Subnet Mask:

Default Gateway:

Enable

Administrator Login

Top of Page

Enable

xxx.xxx.xxx.xxx

System Settings

Status > Network Status

MACHINE

When the machine is connected to a network, the machine's built-in Web server can be accessed from a Web browser on your computer.

OPENING THE WEB PAGES

Tap the [Settings] key.

Print Release

Sharp OSA

Job Status

Tap [Status] → [Network Status] from the menu.

Scroll the screen down and check "IPv4 Address" in IPv4 Settings of TCP/IP.

Access the Web server in the machine to open the Web pages.

Start a Web browser on a computer that is connected to the same network as the machine and enter the IP address of the machine.

Recommended Web browsers Internet Explorer: 11 or higher (Windows

Microsoft Edge (Windows

Safari (Mac OS

), Chrome (Windows®):

), Firefox (Windows®),

Latest version or immediately previous major release

The Web page will appear. The machine settings may require that user authentication is performed in order to open the Web page. Please ask the administrator of the machine for the password that is required for user authentication.

DOWNLOADING THE OPERATION GUIDE

(1)

English

(2)

(3)

The Operation Guide, which is a more detailed manual, can be downloaded from the machine's Web pages.

Click [Operation Manual Download] in

the menu of the Web page.

Select the desired language.

Select the manual you want to download, and click the [Download] button.

TABLE OF CONTENTS

OPERATION MANUALS AND HOW TO USE THEM . . . . . . . . . . . . . . . . . . . . . . . . . . 2

HOW TO PRINT A MANUAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ACCESSING THE WEB SERVER IN THE MACHINE . . . . . . . . . . . . . . . . . . . . . . . . . 5

BEFORE USING THE MACHINE

PART NAMES AND FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

TURNING ON/OFF THE POWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

MOTION SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

OPERATION PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

PLACING ORIGINALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

ADJUSTING THE VOLUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

LOADING PAPER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

SAVING CONTACTS IN THE ADDRESS BOOK . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

USER AUTHENTICATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

FUNCTIONS THAT CAN BE USED ON THE MACHINE . . . . . . . . . . . . . . . . . . . . . . 28

COPIER

MAKING COPIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

COPY MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

COPYING ON SPECIAL PAPER (Bypass Copy) . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

PRINTER

PRINTING IN A WINDOWS ENVIRONMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

PRINTING IN A Mac OS ENVIRONMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

DIRECTLY PRINTING A FILE IN USB MEMORY. . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

FACSIMILE

SENDING A FAX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

FAX MODE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

SCANNER

NETWORK SCANNER FUNCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

SCANNING AN ORIGINAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

SCANNER MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

DOCUMENT FILING

USES OF THE DOCUMENT FILING FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

SAVING A DOCUMENT ONLY (Scan to HDD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

PRINTING A SAVED FILE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

MANUAL FINISHING

MANUAL FINISHING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

USING MANUAL FINISHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

SYSTEM SETTINGS

SETTING MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

BEFORE USING THE MACHINE

This section provides general information about the machine, including the names and functions of the parts of the machine and its peripheral devices, and the procedures for placing originals and loading paper.

► PART NAMES AND FUNCTIONS ....................................................10

► TURNING ON/OFF THE POWER.....................................................13

► MOTION SENSOR ............................................................................13

► OPERATION PANEL ........................................................................14

► PLACING ORIGINALS .....................................................................16

► ADJUSTING THE VOLUME .............................................................17

► LOADING PAPER.............................................................................17

► SAVING CONTACTS IN THE ADDRESS BOOK............................. 26

► USER AUTHENTICATION................................................................27

► FUNCTIONS THAT CAN BE USED ON THE MACHINE................. 28

BEFORE USING THE MACHINE

(2) (4)(3)

(13)(12) (14)

(1)

(15) (16)(11)

(5) (6) (7)

(9)(8) (10)

PART NAMES AND FUNCTIONS

(1) Automatic document feeder

It automatically feeds and scans multiple originals. Both sides of 2-sided originals can be automatically scanned at one time.

►

USING THE AUTOMATIC DOCUMENT FEEDER (page 16)

(2) Paper pass unit*

Relay between the machine and the finisher, finisher (large stacker), saddle stitch finisher or saddle stitch finisher (large stacker).

(3) USB port (A type)

This is used to connect a USB device such as a USB memory device to the machine. Supports USB 2.0 (Hi-Speed).

(4) Operation panel

This panel hosts the [Power] button, [Power Save] button/indicator, error indicator, [Home Screen] key, main power indicator, data notification indicator, and touch panel. Use the touch panel to operate each of these functions.

► OPERATION PANEL (page 14)

(5) Main power indicator

This lamp lights up when the machine's main power switch is in the “ ” position.

(6) [Power] button

Use this button to turn the machine's power on and off.

(7) Keyboard

Use this as a substitute for the soft keyboard displayed on the touch panel. When not being used, it can be stored under the operation panel.

(8) Scanning area

Originals placed in the automatic document feeder are scanned here.

(9) Document glass

If you want to scan books or other thick originals that cannot be fed through the automatic document feeder, place them on this glass.

► USING THE DOCUMENT GLASS (page 16)

(10) Original size detector

This unit detects the size of an original placed on the document glass.

(11) Tray 1

Store paper in this tray. A maximum of 1250 sheets (20 lbs. (80

)) of paper can be loaded.

g/m

(12) Tray 3

Store paper in this tray. A maximum of 500 sheets (20 lbs. (80

g/m

)) of paper can be loaded.

(13) Tray 4

Store paper in this tray. A maximum of 500 sheets (20 lbs. (80

g/m

)) of paper can be loaded.

(14) Tray 2

Store paper in this tray. A maximum of 850 sheets (20 lbs. (80

)) of paper can be loaded.

g/m

(15) Tray 5 (MX-LC19)*

Store paper in this tray. A maximum of 3000 sheets (20 lbs. (80

)) of paper can be loaded.

g/m

(16) Tray 5 (MX-LC18)*

Store paper in this tray. A maximum of 3500 sheets (20 lbs. (80

g/m

)) of paper can be loaded.

* Peripheral device. For more information, see the User's Manual.

BEFORE USING THE MACHINE

(3)(2)(1)

(13)

(14)

(4)

(5)

(7)

(6)

(1) Saddle Stitch Finisher (large stacker)*

This staples and folds paper. A punch module can also be installed to punch holes in output paper.

(2) Inserter*

Covers and insertion sheets to be inserted into printed sheets can be loaded. Using the manual finishing function, you can directly feed paper into the finisher (large stacker) or saddle stitch finisher (large stacker) to staple, punch or fold the paper.

(3) Curl correction unit*

This unit corrects curls in printed paper.

(4) Output tray*

Output is delivered to this tray.

(5) Inner finisher*

This staples paper.

(6) Finisher (large stacker)*

This staples paper. A punch module can also be installed to punch holes in output paper.

(7) Saddle Stitch Finisher*

This staples and folds paper. A punch module can also be installed to punch holes in output paper. You can also perform stapling manually.

* Peripheral device. For more information, see the User's Manual.

(8) (9) (10) (11)

(12)

(8) Finisher*

This staples paper. A punch module can also be installed to punch holes in output paper. You can also perform stapling manually.

(9) Trimming module*

This trims the excess of saddle-stitched output.

(10) Punch module*

This is used to punch holes in output. Requires a finisher, finisher (large stacker), saddle stitch finisher or saddle stitch finisher (large stacker).

(11) Folding unit*

This folds and outputs paper.

(12) Front cover

Open this cover to switch the main power switch to "On" or "Off" to replace a toner cartridge.

(13) Main power switch

Use this button to turn the machine's power on and off. When using the fax or Internet fax functions, always keep this switch in the “ ” position.

► TURNING ON/OFF THE POWER (page 13)

(14) Toner cartridge

This cartridge contains toner. When the toner in a cartridge runs out, replace with new one.

BEFORE USING THE MACHINE

(3)(1) (4) (5)

(2)

(7)

(8) (9) (10)

(15) (16)

(6)

(11) (12) (13) (14)

(1) Document feeding area cover

Open this cover to remove an original misfeed.

(2) Motion sensor

This sensor detects the presence of a person that approaches the machine, and automatically wakes the machine from sleep mode (Motion Sensor Mode Only).

(3) Original guides

These guides help ensure that the original is scanned correctly. Adjust the guides to the width of the original.

(4) Document feeder tray

Place the original. Originals must be placed face up.

(5) Original exit tray

The original is discharged to this tray after scanning.

(6) Exit tray unit (right tray)*

Set so that paper is output into this tray as required.

(7) USB connector (B type)

The machine does not use this connector.

(8) USB port (A type)

This is used to connect a USB device such as a USB memory device to the machine. Supports USB 2.0 (Hi-Speed).

*1 Peripheral device. For more information, see the User's Manual.

(9) LAN connector

Connect the LAN cable to this connector when the machine is used on a network. Use a shielded LAN cable.

(10) Service-only connector

(11) Bypass tray

Use this tray to feed paper manually. When loading paper larger than 8-1/2" x 11"R or A4R, pull out the extension guide.

► Bypass tray (page 21)

(12) Cover for waste toner box

Open this cover when you need to replace the waste toner box.

(13) Waste toner box

This container collects excess toner that remains after printing.

(14) Power plug

(15) Telephone line jack (LINE)*

When the fax function of the machine is used, the telephone line is connected to this jack.

(16) Extension phone jack (TEL)*

When the fax function of the machine is used, an extension phone can be connected to this jack.

BEFORE USING THE MACHINE

Main power indicator

[Power] button

Main power switch

Motion sensor

Near

Far

Detection range

Approx. maximum 1.5 m

degrees

TURNING ON/OFF THE POWER

This section describes how to turn on/off the machine's power and how to restart the machine. Operate two power switches: the main power switch inside the front cover, located in the lower left corner, and the [Power] button on the operation panel.

Turning on the power

• Turn the main power switch to the " " position.

• When the main power indicator lights in green, press the [Power] button.

Turning off the power

• Press the [Power] to turn off the power. To turn off the power for an extended time, press the [Power] button to turn off the power, and switch the main power switch to the " " position after the operation panel screen disappears.

Restart the machine

• Turn off the power by pressing the [Power] button and then press it again to turn on the power.

• When turning off the main power switch, press the [Power] button on the operation panel and then turn the main power switch to the " " position. In a sudden case of main power outage, turn the power for the machine back on and then turn it off in the correct order. If the machine is left for a long time with the main power having been turned off prior to the [Power] button being turned off, abnormal noises, degraded image quality or other problems may result.

• Turn off both the [Power] button and the main power switch and unplug the power cord if you suspect a machine failure, if there is a bad thunderstorm nearby, or when you are moving the machine.

• When using the fax or Internet fax function, always keep the main power switch in the " " position.

• In order for some settings to take effect, the machine must be restarted. In some states of the machine, restarting with the [Power] button may not make the settings take effect. In this case, turn off the main power switch and then turn it on again.

MOTION SENSOR

This sensor detects the presence of a person that approaches the machine, and automatically wakes the machine from sleep mode (Motion Sensor Mode Only). Three settings are available for the detection range ( / / ).

• The motion sensor detects the movement of sources of heat.

• The detection range may vary depending on the installation site and environment (ambient temperature, etc.).

BEFORE USING THE MACHINE

10:15 AM10:15 AM

Easy Copy

Easy Scan

Print Release Sharp OSA

LINE PRINTER

Easy Copy

Easy Scan

HDD File retrieve

Sharp OSA

Job Status

Operation

Guide

Enlarge

Display Mode

Settings Total Count LCD Control

Toner Quantity Bk

(1) (2) (3) (4) (5) (9)(8)(6) (7)

(a)

(b)

(d)

(e)

(f)

(c)

(g)

(i)(e)

(h)

(j)

OPERATION PANEL

Pressing the [Home Screen] key on the operation panel displays the home screen on the touch panel. The home screen displays the keys for selecting modes or functions.

(1) Data notification indicator

Blinks during Fax and Internet Fax reception. When printing is finished, the light turns off. When the exit tray unit (right tray) is used for output, this blinks until the output is removed. You can also have the indicator light in some modes when a job is being executed, in the ready state, and when an original is detected in the auto document feeder.

(2) IC card reader holder

Place an IC card reader here when IC cards are used for user authentication.

(3) Error indicator

Lights solidly or blinks to indicate the status of the error.

(4) Touch Panel

Messages and keys appear on the touch panel display. Operate the machine by directly tapping the displayed keys. (a) Tap a mode to change to that mode.

Display the machine's status other than the job using icons.

(b) (c)

Display the job in progress or waiting with text or icon. (d) Select shortcut keys for modes or functions. (e) Switch the pages for displaying shortcut keys. (f) Display Toner Quantity. (g) Display Operation Guide. (h) Use these keys to select functions that make the

machine easier to use.

Select functions that can be utilized in respective modes.

(i)

Tap the tab, and the list of function keys is displayed.

(5) Main power indicator

This lamp lights up when the machine's main power switch is in the “ ” position. While the light is blinking, the power cannot be turned on by pressing the [Power] button. Blinks green while print data is being received.

(6) [Power] button

Use this button to turn the machine's power on and off.

(7) [Power Save] button/indicator

Use this button to set the machine to Sleep Mode for energy saving. [Power Save] button blinks when the machine is in Sleep Mode.

(8) [Home Screen] key

Display the home screen.

(9) NFC touch point area

You can easily connect a mobile device to the machine by touching the mobile device.

To change the angle of the operation panel

You can change the angle of the operation panel. Adjust the angle for ease of viewing.

BEFORE USING THE MACHINE

Scan Fax Internet Fax

Spool

Complete

Job Queue

Check Details of Selected Job

Change Job Priority

Stop/Delete

Enter Multi Selection Mode

Back

Job Job Queue

Progress / Sets

Status

Start Time

Copy

0100/0100

0000/0001

Paper Empty

Waiting

---

Calculating

0000/0001

Job Status

Back

LINE PRINTER

(3) (2)

(5)

(1)

(4)

Start

Preview

Scan

Again

Start

Send and Print

Scan Original Again Without change Settings

Store Data in Folder

File

Store Data Temporarily

Quick File

Easy mode Normal mode

Checking the status of a job / priority / canceling

To display the Job Status screen, tap the [Job Status] key in the home screen, or tap the [Job Status] key that appears in the upper right corner of each mode screen.

Check the job status

(1) Tap the tab of the mode you want to check.

Check copy jobs and print jobs on the [Print] tab.

(2) Tap the [Job Queue] or [Complete] key.

(3) Check the jobs in the list.

Priority Change

If you want to give a job priority or cancel a job, tap that job.

(4) To give the job priority:

Tap [Change Job Priority], and tap a Change Priority key.

To cancel the job:

Tap [Stop/Delete].

(5) Tap the [Back] key to return to the original

screen.

PREVIEW SCREEN

You can tap the [Preview] key to open the Preview screen. In the Preview screen on the touch panel, you can view previews of jobs and images stored in the machine.

Keys used in the preview screen

This rotates the preview image of whole page in the arrow's direction. The printing result is not rotated.

This displays preview images of respective

pages.

*1, *

This changes the mode to edit mode. Pages of the original can be changed, rotated, or deleted.

This reduces the image.

*1, *

This displays the scroll bar for enlargement/reduction operations. Moving the slider to the left reduces the image, and

*1 Can also be used in easy mode. *2 In Easy mode, this appears when you tap .

*1, *

moving the slider to the right enlarges the image.

This enlarges the image. *

This displays thumbnails of preview images.

This displays pages in a 3D view.

BEFORE USING THE MACHINE

Adjust the original guides to the width of the originals.

Place the originals face up with the edges aligned evenly. The indicator line indicates approximately how many originals can be placed. The placed originals must not be higher than this line.

Place the original face down. Align the top left corner of the original with the tip of the mark in the far left corner of the glass.

Place the original face down.

PLACING ORIGINALS

The automatic document feeder can be used to automatically scan many originals at once, and this saves you the trouble of manually feeding each original. For originals that cannot be scanned using the automatic document feeder, such as a book or a document with notes attached, use the document glass.

USING THE AUTOMATIC DOCUMENT FEEDER

When using the automatic document feeder, place the originals in the document feeder tray. Make sure an original has not been placed on the document glass.

USING THE DOCUMENT GLASS

Take care that your fingers are not pinched when closing the automatic document feeder. After placing the original, be sure to close the automatic document feeder. If left open, parts outside of the original will be copied black, causing excessive use of toner.

Set the orientation of the image to ensure that the orientation of the placed original is correctly recognized. For details, see the User's Manual.

BEFORE USING THE MACHINE

(1)

(2) (3) (4)

(6)

(5)

(7)

(1) Tray 1

(2) Tray 2

(3) Tray 3

(4) Tray 4

(5) Bypass tray

(6) Tray 5 (MX-LC18)

(7) Tray 5 (MX-LC19)

ADJUSTING THE VOLUME

You can adjust the volume of sounds generated by the machine. Tap the [Settings] key and configure the following settings from the [System Settings] tab. (Administrator rights are required.)

► Setting mode when an administrator is logged in (page 66)

Easy Copy

Easy

Copy

Easy Scan

HDD File retrieve

Easy Scan

Sharp OSA

Print Release

LINE PRINTER

Sharp OSA

Job Status

10:15 AM

Sitemap

Settings

Status

System SettingsUser Control

System Settings

Home Screen Settings

Image Send Settings

Common Settings

Energy Save

LINE PRINTER

Cancel

Copy Settings Printer

Document Filing Settings

Network Settings

Job Status

Administrator Login

Settings

Sharp OSA Settings

Security Settings

Toner Quantity

Guide

Enlarge

Display Mode

Settings Total Count LCD ControlOperation

Job Status

Setting Settings

Image Send Settings - Common Settings Condition Settings - Scan Complete Sound Setting

Image Send Settings - Fax Settings - Default Settings Speaker Settings

Image Send Settings - Internet Fax Settings Default Settings - Speaker Volume Settings

Document Filing Settings - Condition Settings Scan Complete Sound Setting

Common Settings - Operation Settings - Condition Settings - Key Operation Settings

Configure settings for the sound that is generated at the completion of scanning when using the fax, scan, or other image send function.

For fax, configure settings for the on-hook (speaker) volume, ringing sound, line monitor, reception completed sound, sending completed sound, and send/receive error sound.

Configure settings for sounds generated when an Internet fax is received and when a communication error occurs.

Configure settings for the sound that is generated at the completion of scanning when using the document filing function.

Configure settings for the sound generated when a key is tapped, and whether a sound is generated when the key for a default setting is tapped.

LOADING PAPER

NAMES AND LOCATIONS OF TRAYS

The names of the trays are as follows.

System Control Image Quality

Adjustment

Init. install. Settings

Top of Page

Setting orientation of the print side

The setting orientation varies for the print side of paper, depending on the tray used. For "Letter Head" and "Pre-Printed", set the paper in the reverse orientation. Place with the print side facing the direction indicated below.

Tray In normal status With letter head or pre-printed paper set

Trays 1 - 4 Facing up Facing down

Bypass tray, Tray 5 Facing down Facing up

BEFORE USING THE MACHINE

Indicator line

LOADING PAPER IN THE TRAY 1/2

Pull out the paper tray.

Keep holding the handle until the lock is released.

Gently pull the tray out until it stops.

Fan the paper.

Fan the paper well before loading it. If the paper is not fanned, multiple sheets may feed at once and cause a misfeed.

Lift the feed roller, and place paper into the tray.

Load the paper with the print side facing up. The stack must not be higher than the indicator line (maximum of 1250 sheets for tray 1, or maximum of 850 sheets for tray 2).

Lower the feed roller, and gently push the paper tray into the machine.

Push the tray firmly all the way into the machine slowly. Forcefully inserting the paper may cause skewed feeding and paper misfeeds.

BEFORE USING THE MACHINE

(A)

(B)

LOADING PAPER IN THE TRAY 3/4

Pull out the paper tray.

Keep holding the handle until the lock is released.

Gently pull the tray out until it stops. To load paper, go to step 3. To load a different size of paper, go to the next step.

Adjust guide plates A and B by squeezing their lock levers and sliding them to match the longitudinal and transversal dimensions of the paper to be loaded.

The guide plates A and B are slidable. Slide each guide plate while squeezing its lock lever to adjust to the paper size.

A non-standard size of paper can only be loaded in tray 4. A non-standard size of paper cannot be loaded in tray 3.

Fan the paper.

Fan the paper well before loading it. If the paper is not fanned, multiple sheets may feed at once and cause a misfeed.

BEFORE USING THE MACHINE

Indicator line

Insert the paper into the tray.

Load the paper with the print side facing up. The stack must not be higher than the indicator line (maximum of 500 sheets).

Gently push the paper tray into the machine.

Push the tray firmly all the way into the machine slowly. Forcefully inserting the paper may cause skewed feeding and paper misfeeds.

BEFORE USING THE MACHINE

LOADING PAPER IN OTHER TRAYS

Bypass tray

Open the bypass tray.

When loading paper larger than 8-1/2" x 11"R or A4R, pull out the extension guide. Pull the extension guide all the way out.

Load the paper with the print side facing down.

Insert the paper along the bypass tray guides all the way into the bypass tray until it stops slowly. Inserting the paper with excessive force may cause the leading edge to fold back. Inserting the paper too loosely may cause skewed feeding or misfeeds. The paper must not exceed the maximum number of sheets and must not be higher than the indicator line.

Set the bypass tray guides correctly to the width of the paper.

Adjust the bypass tray guides so that they slightly contact the loaded paper.

BEFORE USING THE MACHINE

Indicator

line

Large capacity tray (MX-LC18)

When changing the paper size, consult the dealer or nearest authorised service representative.

Pull out the paper tray.

Gently pull the tray out until it stops.

Fan the paper.

Fan the paper well before loading it. If the paper is not fanned, multiple sheets may feed at once and cause a misfeed.

Place the paper in the center of the paper table.

Load the paper with the print side facing up. The stack must not be higher than the indicator line (maximum of 3500 sheets).

Gently push the paper tray into the machine.

Push the tray firmly all the way into the machine slowly. Forcefully inserting the paper may cause skewed feeding and paper misfeeds.

Large capacity tray (MX-LC19)

Indicator line

Do not pull out the tray until the light goes off. If you pull out the tray forcibly while the button lights up or blinks, a

machine failure may be resulted.

BEFORE USING THE MACHINE

Press the operation button.

The operation button blinks, and the tray paper table goes down to the paper loading position. Wait until the operation button light goes off.

Pull out the paper tray.

Gently pull the tray out until it stops.

Fan the paper.

Fan the paper well before loading it. If the paper is not fanned, multiple sheets may feed at once and cause a misfeed.

Place the paper in the center of the paper table.

Load the paper with the print side facing up. The stack must not be higher than the indicator line (maximum of 3000 sheets). When a certain volume of paper is loaded, the paper table automatically goes down slightly and stops. Repeat this operation in the same way to load paper.

BEFORE USING THE MACHINE

• Do not insert your hand into the space inside the paper table when you load paper.

• Do not insert spare paper or objects into the space inside the tray.

Gently push the paper tray into the machine.

Push the tray firmly all the way into the machine slowly. Forcefully inserting the paper may cause skewed feeding and paper misfeeds. The paper table goes up after the tray is pushed in. The operation button blinks while the paper table goes up. The button lights up when the paper table has gone up.

BEFORE USING THE MACHINE

Program List

(Image Send)

Address

Control

Tray SettingsHDD

File retrieve

VolumeOperation

Guide

Enlarge

Display Mode

10:15 AM

Tray Settings

Paper Tray

Bypass Tray

Large Capacity Tray

Plain 1

8½x11

Plain 1

8½x11

Plain 1

8½x11

Plain 1

8½x14

Plain 1

11x17

Plain 1

8½x11

3 4

10:15 AM

Operation

Guide

Enlarge

Display Mode

Toner Quantity Bk

Settings Total Count LCD Control Job Status

Program List

(Image Send)

10:15 AM

Operation

Guide

Enlarge

Display Mode

Settings Total Count LCD Control Job Status

Program List

(Image Send)

Tray 3

Feeding Approved Job

Paper Property

Type: Plain 1

Please Select Paper Type.

Size: Auto-Inch

Tray Settings

Plain 1

(60-89g/m

)

Plain 2

(90-105g/m2)

Heavy Paper 1 (106-176g/m

)

Heavy Paper 2

(177-220g/m2)

Recycled

Color

User Type 1

User Type 4 User Type 5 User Type 6

User Type 2 User Type 3

Pre-PunchedLetter Head

Pre-Printed

(1)

(2)

Program List

(Image Send)

10:15 AM

Operation

Guide

Enlarge

Display Mode

Settings Total Count LCD Control Job Status

Tray 3

Feeding Approved Job

Paper Property

Type: Recycled

Size:

Tray Settings

Auto-Inch

Auto-AB

Auto-Inch

Size Set

Auto-AB

Auto-Inch 11x17, 8½ x14,8½ x11, 8½ x11R,7½ x 10½R,

A3,216x330(8½x13),A4, A4R,B4,B5,B5R,

(1)

(2)

(3)

CHANGE THE SETTING OF THE PAPER TRAY

To change the paper loaded in the tray, change the machine's tray settings from the [Tray Settings] key in the home screen. As an example, the steps for changing the paper in tray 3 from 8-1/2" x 11" plain paper to 8-1/2" x 14" recycled paper are explained below.

Press the [Home Screen] key.

Home screen appears.

Tap the [Tray Settings] key and tap the key of the paper tray 3.

Toner Quantity Bk

Settings Total Count LCD Control

Job Status

10:15 AM

Set the paper type.

(1) Tap the tab for the Paper Type.

(2) Tap the [Recycled] key.

Set the paper size.

(1) Tap the tab for the Paper Size.

(2) Set the paper size.

Tap the [Auto-Inch] key

(3) Tap in "Tray Settings".

BEFORE USING THE MACHINE

Program List

(Image Send)

Address

Control

Tray SettingsHDD

File retrieve

Operation

Guide

Enlarge

Display Mode

Settings Total Count LCD Control

Toner Quantity Bk

10:15 AM

Volume

Name

Initial

Category 1

Number of Addresses

Search Number

Name (Required)

Search (Opt.)

Fax Number

E-mail Address

Internet Fax Address

Direct SMTP Address

Add Contacts

Also Register for Frequent Use

Switch to Group Registration

(1)

(2)

123456789

E-mail Address

Internet Fax Address

Detail

Add Contacts

Number of Addresses

Redisplay Basic Info.

Direct SMTP Address

SAVING CONTACTS IN THE ADDRESS BOOK

"Contacts" and "Group" can be stored in the address book. The procedure for adding a new contact to the address book by directly entering the name and address is explained here as an example.

Press the [Home Screen] key.

Job Status

Home screen appears.

Tap the [Address Control] key.

Add

Fax E-mail

Enter the information you want to register in the address book.

(1) Enter basic information.

Be sure to enter [Name] and [Initial]. To specify a category, select one from a category list that appears when the entry box is tapped. To register a contact for frequent use, select the [Also Register for Frequent Use] checkbox .

(2) Tap [Fax Number], [E-mail Address],

[Internet Fax Address], or [Direct SMTP Address], enter the address, and tap .

Tap the [Register] key.

The first address of each address type is set as the default address. If no address has the checkbox next to it selected, a confirmation screen will appear asking you if you want to select a default address.

Internet Fax Direct SMTP

Editing or deleting a contact

Tap the [Address Book] key in the home screen, select the contact to be edited or deleted, tap in the action panel, and tap [Edit] or [Delete].

10:15 AM

Scan to HDDAddress BookNetwork

Settings Total Count LCD Control

Job Status

VolumeOperation

FTP/Desktop

Toner Quantity Bk

Folder

Guide

Enlarge

Display Mode

BEFORE USING THE MACHINE

4 5 6

203

User Authentication

Enter your user number.

Admin Login

7 8 9

User Authentication

Enter login name and password.

Password

Touch to input Log-in Name

Touch to Input Password

Select from List

Auth to

Exposure

Address Book

Auto

Original

Mixed Size Orig.

Resolution

Standard

Job Build

Original Count

Slow Scan Mode

Address Fax Number

Logout

Admin

LINE PRINTER

Job Status

Others

Preview

Speaker

Start

Scan Size

Auto Auto

reception memory

100%

8x11 8x11

100%

Send Size

Sending History

Call Search Number

Call Program

Call Registered settings

Direct TX

Send Same Image as Fax Address

Easy Scan

HDD File retrieve

Store Data Temporarily

Quick File

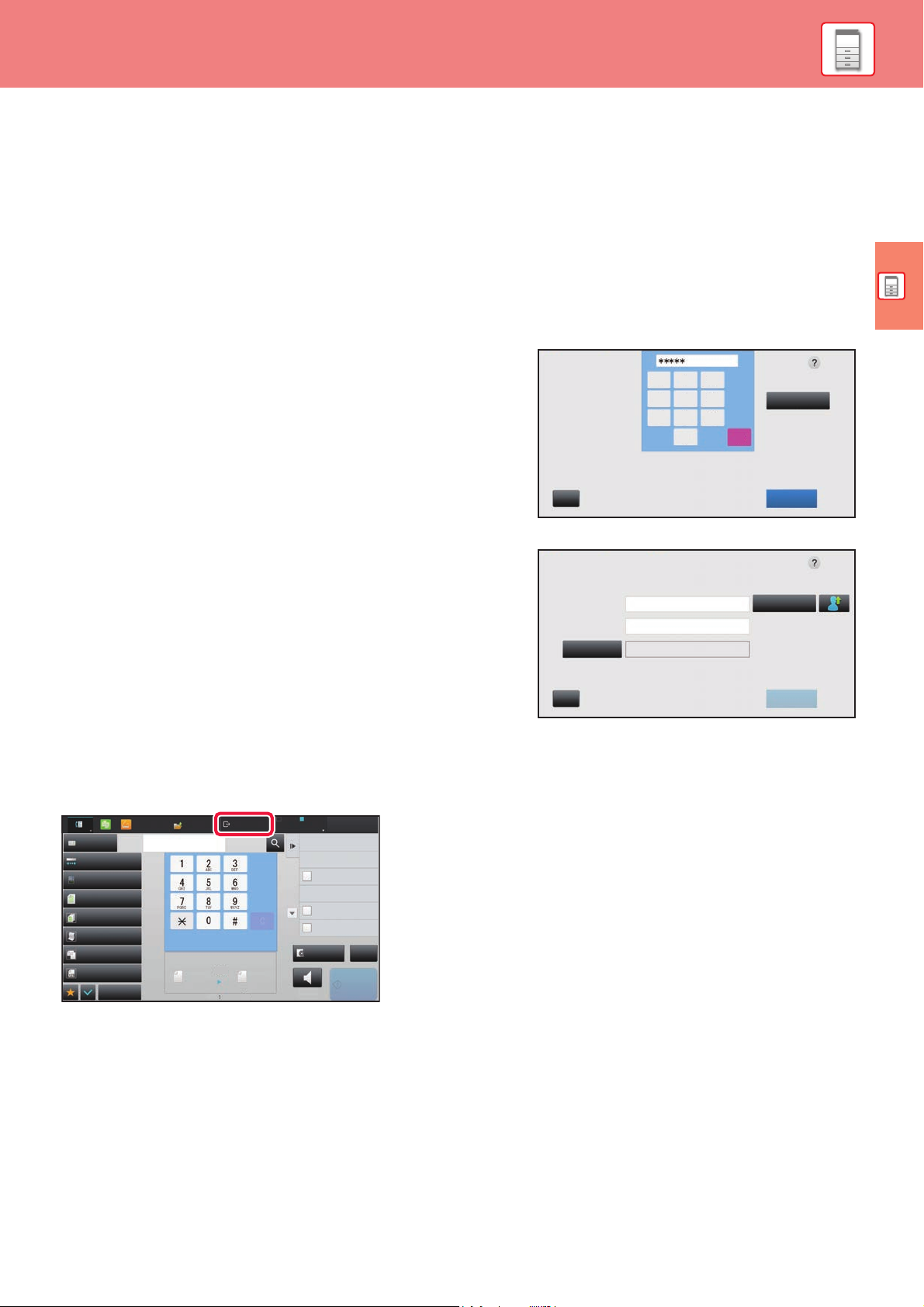

USER AUTHENTICATION

When user authentication is enabled in settings mode, you must log in in order to use the machine. User authentication is disabled in the factory default settings. When you have finished using the machine, log out.

ABOUT AUTHENTICATION METHODS

There are two user authentication methods: authentication by user number, and authentication by login name / password. Ask the system administrator of the machine for the information you need to log in.

AUTHENTICATION BY USER NUMBER

The following procedure is used to log in using a user number received from the administrator of the machine. When starting the machine, the login screen appears.

AUTHENTICATION BY LOGIN NAME/PASSWORD

This method enables users to log in using a login name and password received from the administrator of the machine or the administrator of the LDAP server. When starting the machine, the login screen appears.

Logout

When you have finished using the machine, log out. This helps prevent unauthorized people from using the machine.

BEFORE USING THE MACHINE

4 sheets 4 sheetsCheck

4 sheets

5 sets

Check

5 sets

1 set 4 sets

FUNCTIONS THAT CAN BE USED ON THE MACHINE

The machine has many functions for a variety of purposes. Some convenient functions are described in below. For details, see the User's Manual.

PAPER, AND TIME SAVING FUNCTIONS

N-Up

This function uniformly lays out multiple original pages onto a single sheet of paper. This function is convenient when you wish to present multiple pages in a compact format, or show a view of all pages in a document.

Mixed Size Original

This feature scans originals in different sizes at the same time even when 5-1/2" x 8-1/2" (B5) size originals are mixed with 8-1/2" x 11" (A4) size originals. When copying, you can combine the mixed originals setting and auto ratio setting to change the ratio used for each original and print all pages on the same size of paper.

5-1/2 x 8-1/2

Blank Page Skip

If the scanned original contains blank pages, this function skips them to copy or send only non-blank pages. The machine detects blank pages, enabling you to skip useless blank sheets without checking an original.

Original Count

Counting the number of scanned original sheets and display the count before transmission. Checking the number of scanned original sheets before

transmission helps prevent mistakes.

Proof Copy

This function makes a proof copy before printing the specified number of copies. Check the preview image with a proof copy. If necessary, change the setting. Using this function stores the scanned original in the machine, saving you the trouble of re-scanning the original in the changed setting.

8-1/2 x 11

Tandem Copy

This function shares a copy job half-and-half between two machines connected to the network, enabling the reduction of the copy time.

BEFORE USING THE MACHINE

Multi crop Image Crop

Job Build

This function divides the originals into sets and feeds each set through the automatic document feeder one set at a time when copying or sending a very large number of originals.

Card Shot

This function copies or sends the front and reverse sides of a card on one sheet, not on separate sheets. This function is convenient for making copies for identification purposes and helping save paper.

Multi-crop scan / Image Crop Auto Set

You can place multiple documents such as receipts or photographs on the document glass, and automatically crop and save each document to a separate file during scanning.

To automatically set scan settings appropriate for the original, tap the [Auto Set] key in the base screen of Easy Mode. Image Orientation, Resolution, and Blank Page Skip are set automatically.

Original

Address E-mail Address

8½x11

Original

2-Sided Auto

Resolution File Format

PDF

Detail

Blank Page

Skip

Auto

Preview

Auto Set

SECURITY REINFORCEMENT FUNCTIONS

Hidden Pattern Print

Characters to prevent unauthorized copying such as pre-set or customized text are placed as invisible characters in a background pattern. When an output sheet with a pattern print is copied, the hidden characters will appear.

AB CD

DO’NOT COPY

Tracking Information Print

This function forcibly prints the pre-specified traceable information to prevent an unauthorized copy.

B/W

Color

Start

BEFORE USING THE MACHINE

Without erase With erase

An "O" mark is stamped in fluorescent pink.

SCANNING FUNCTIONS

Background Adjustment Slow Scan Mode

You can adjust the background by making light areas of the original darker or lighter.

Use this function when you wish to scan thin originals using the automatic document feeder. This function helps prevent thin originals from misfeeding.

Dual Page Scan

The left and right sides of an original can be transmitted as two separate pages. This function is useful when you wish to fax the left and right pages of a book or other bound document as separate pages.

Book Divide

This function splits a saddle-stitch original such as a catalogue or a pamphlet page by page, and copies in sequence.

Erase

The erase function is used to erase shadows on images produced when scanning thick originals or books.

Verification Stamp

This function stamps each original that is scanned using the automatic document feeder, allowing you to verify that all originals were correctly scanned.

COPIER

This section explains the basic procedures for using the copier function.

► MAKING COPIES .............................................................................32

► COPY MODE.....................................................................................34

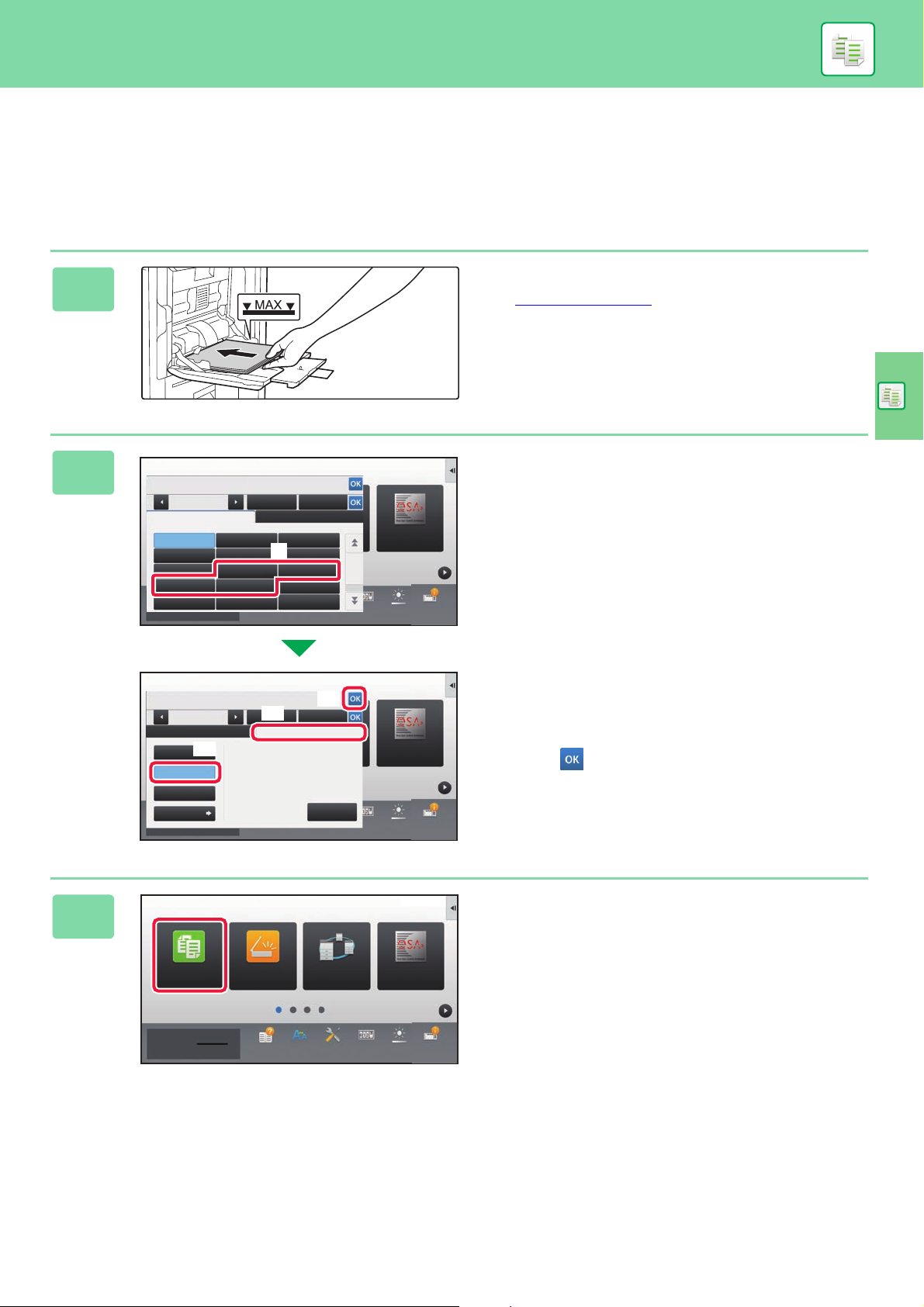

► COPYING ON SPECIAL PAPER (Bypass Copy) ...........................35

COPIER

Settings Total Count LCD Control

Toner Quantity Bk

VolumeOperation

Guide

Enlarge

Display Mode

10:15 AM

Easy Scan

Easy Copy

Original

8½x11

Staple / PunchCopy Ratio2-Sided Copy

8½x11

Tray 1 1 → 1

100% Off

Preview

Copies

Detail

Start

Paper Select

MAKING COPIES

This section explains how to set a Copy Ratio.

Press the [Home Screen] key.

Home screen appears.

Tap the [Easy Copy] mode icon.

Easy Copy mode screen appears.

Sharp OSAPrint Release

Job Status

Place the original.

Place the original in the document feeder tray of the automatic document feeder, or on the document glass.

► PLACING ORIGINALS

(page 16)

Tap the [Copy Ratio] key.

The functions below can be enabled in easy mode.

• Paper Select

• 2-Sided Copy

• Copy Ratio

• Staple*

•Original

• Exposure

•N-Up

• Card Shot

*1 When an inner finisher, finisher, finisher (large stacker),

*2 When a punch module and inner finisher, finisher,

To select more detailed settings, tap the [Detail] key and select settings in normal mode.

► COPY MODE

, Staple / Punch*

saddle stitch finisher or saddle stitch finisher (large stacker) is installed.

finisher (large stacker), saddle stitch finisher or saddle stitch finisher (large stacker) is installed.

(page 34)

COPIER

Original

8½x11

Detail

Staple / PunchCopy Ratio2-Sided Copy

Paper Select

8½x11

Tray 1 1 → 1

100%

Preview

Copies

Off

Start

Cancel copying

Cancel Copy

Copy Ratio

Auto Image

By Paper Size

Original

Paper

100

11x 17 8½x 11

Preview

Copies

( 25~200 )

Slightly Reduce (3% Reduction)

Start

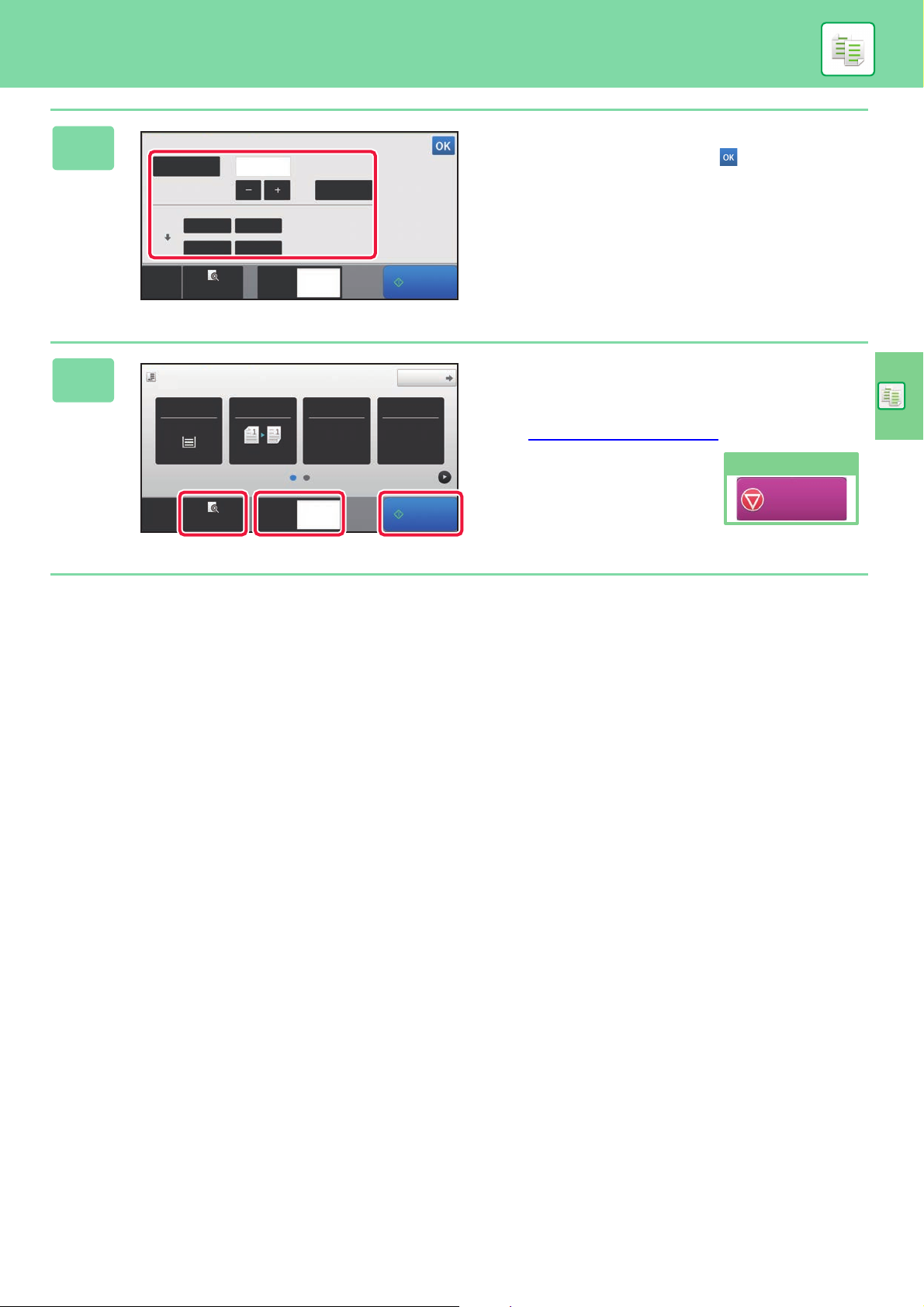

Set the copy ratio.

After the settings are completed, tap .

Set the number of copies and then tap the [Start] key.

• To check a preview of a document, tap the [Preview] key.

► PREVIEW SCREEN

(page 15)

COPIER

Original

Staple / PunchCopy Ratio2-Sided Copy

Paper Select

8½x11

Tray 5 1 → 1

100% Off

Preview

Start

Copies

Easy Copy

Copy

Detail

8½x11

Start

Preview

N-Up

Off

Paper Select

Auto

Exposure

Auto

Original

2-Sided Copy

1-Sided → 1-Sider

Output

Copy Ratio

100%

Others

Send and Print

Call Eco Program

Store Data in Folder

File

Store Data Temporarily

Quick File

No. of copies

Auto8½x11

Plain 1

Proof Copy

8½x11

8½x11 8½x14 11x17

8½x11

4 5 6

203

7 8 9

(1)

(2)

(3)

(4) (5) (6) (14) (6)(10) (11) (12) (13)

(3)

(4)

(5)

(15)

(7)

(9)

(8)

Easy Mode Normal Mode

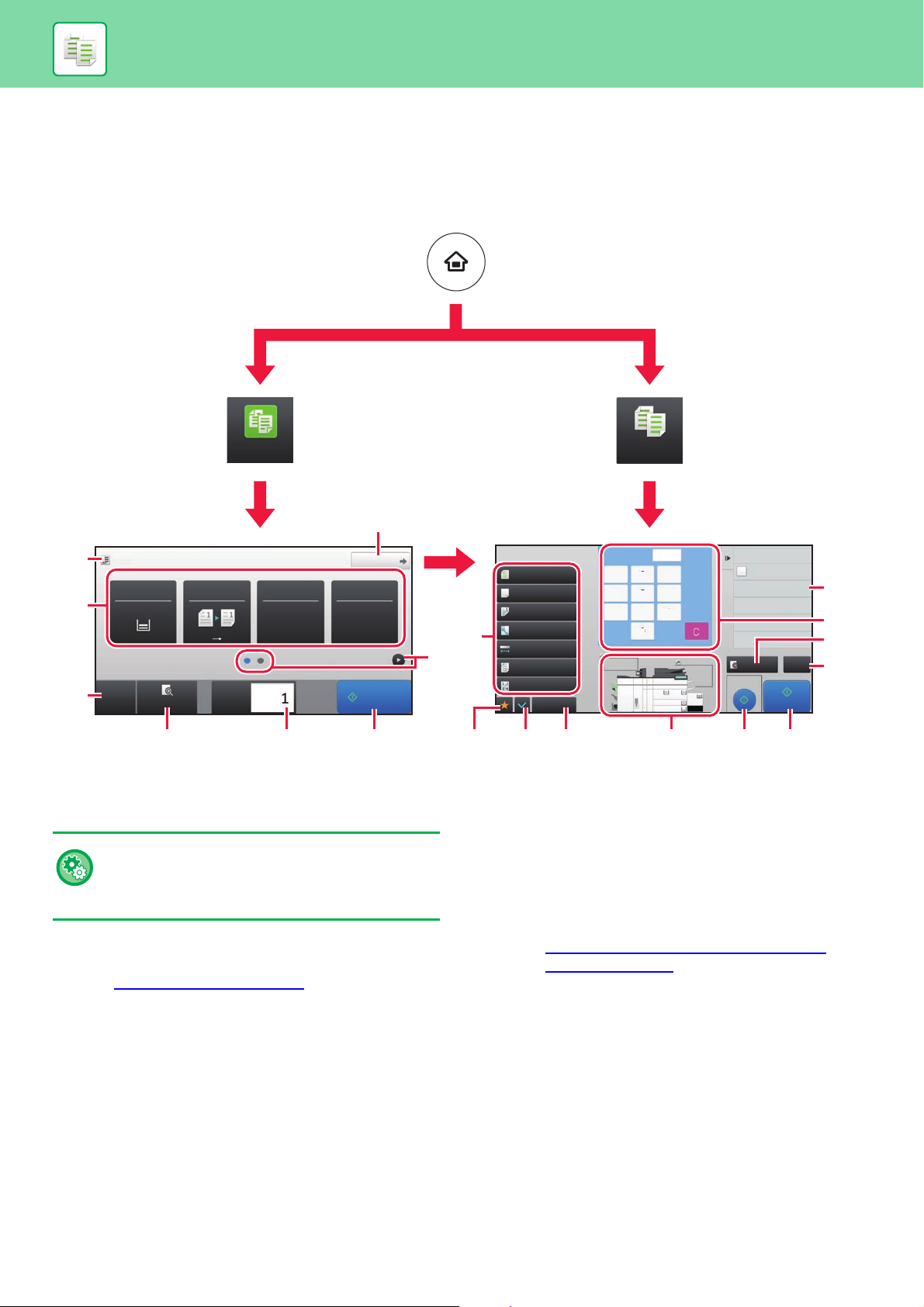

COPY MODE

Copy mode has two modes: easy mode and normal mode. Easy mode is limited to frequently used functions that allow you to smoothly perform most copy jobs. If you need to select detailed settings or special functions, use normal mode. All functions can be used in normal mode.

(1) Show the size of the placed original.

(2) Select the function that you want to use.

(8) Change to normal mode.

(9) Setting keys that can be used to make copies.

(10) Displays the list of function keys. Frequently used

To select a function in easy mode

[Others] can be registered.

In "Settings", select [System Settings] → [Common Settings] → [Operation Settings] → [Easy Mode Settings] → [Easy Copy]

(3) All settings are reset.

(11) Check the current settings.

(12) Displays the list of keys other than the function keys

indicated above.

► FUNCTIONS THAT CAN BE USED ON THE

(4) Scan the original and show a preview image.

► PREVIEW SCREEN

(5) Enter the number of copies.

(page 15)

(13) Indicates the presence or absence of an original and size

(6) Starts copying.

(7) Switch the pages for displaying shortcut keys.

(14) Displays the functions that can be utilized in the Copy

MACHINE (page 28)

of paper loaded in each tray. Tapping this makes the paper select screen opened.

Mode.

COPYING ON SPECIAL PAPER

Type: Size: Auto-Inch

Auto-AB

Auto-Inch

Size Set

Direct Entry

Detection Size Selection

Auto-AB

Auto-Inch

Feeding

Approved Job

Paper Property

Tray Settings

Bypass

A3W(12x18),A3,A4,A4R,A5R,B4,B5,B5R, 11x17,8½ x11

12x18(A3W),11x17, 8½ x14, 8½ x11, 8½ x11R, 5½ x 8½R,7½ x 10½ R,A3,A4, B4,B5

Plain 1

Sharp OSA

(2)

(4)

(3)

Volume

Sharp OSA

(1)

(Bypass Copy)

This section explains how to load 8-1/2" x 11" heavy paper in the bypass tray.

Load paper into the bypass tray.

► Bypass tray (page 21)

COPIER

Tray Settings

Bypass

Type: Plain 1 Size: Auto-Inch

Please Select Paper Type.

Plain 1

)

(60-89g/m

Recycled

Color

Heavy Paper 3

(221-256g/m

)

Labels Transparency Tab Paper

Toner Quantity Bk

Approved Job

Plain 2

(90-105g/m2)

Letter Head

Heavy Paper 1 (106-176g/m

Heavy Paper 4 (257-300g/m2)

Feeding

)

Operation

Guide

Operation

Guide

Pre-Printed

Pre-Punched

Heavy Paper 2

(177-220g/m

Thin Paper

(55-59g/m2)

Enlarge

Display Mode

Enlarge

Display Mode

Paper Property

)

Settings Total Count LCD Control

10:15 AM

Job Status

10:15 AM

Job Status

Volume

10:15 AM

Select settings in the touch panel.

(1)

Tap the [Heavy Paper 1], [Heavy Paper 2], [Heavy Paper 3] or [Heavy Paper 4] key.

Tap the [Heavy Paper 1] key if the paper is 28 lbs. bond to 65 lbs. cover (106 g/m [Heavy Paper 2] key if the paper is 65 lbs. cover to 80 lbs. cover (177 g/m

3] key if the paper is 80 lbs. cover to 140 lbs. index (221 g/m

to 256 g/m2), or the [Heavy Paper 4] key is the paper is 140 lbs. index to 110 lbs. cover (257 g/m to 300 g/m

to 176 g/m2), the

to 220 g/m2), the [Heavy Paper

(2) Tap the [Size: Auto-Inch] tab.

(3) Tap the [Auto-Inch] key.

(4) Tap of "Tray Settings".

Tap the [Easy Copy] mode icon.

Easy Copy mode screen appears.

Easy Copy

Toner Quantity Bk

Easy Scan

Guide

Enlarge

Display Mode

Sharp OSAPrint Release

Settings Total Count LCD Control

Job Status

VolumeOperation

Original

8½x11

Staple / PunchCopy Ratio2-Sided Copy

Paper Select

8½x11

Tray 1 1 → 1

100%

Preview

Start

Copies

Detail

Off

Preview

Copies

Paper Select

Heavy 1

Type and Size

8½x11

8½x11R

8½x11

8½x14

11x17

Start

Original

8½x11

Detail

Staple / PunchCopy Ratio2-Sided Copy

Paper Select

8½x11

Tray 1 1 → 1

100%

Preview

Copies

Off

Start

Cancel scanning

Cancel

Scan

Correct sets

COPIER

Tap the [Paper Select] Key.

Select the Bypass Tray.

Set the number of copies and then tap the [Start] key.

• To check a preview of a document, tap the [Preview] key.

► PREVIEW SCREEN

(page 15)

Cancel copying

Cancel Copy

PRINTER

This section explains the basic procedure for printing using the printer driver of the machine. The explanations of screens and procedures are primarily for Windows

Windows varies depending on the operating system version, the printer driver version, and the application.

► PRINTING IN A WINDOWS ENVIRONMENT ..................................38

► PRINTING IN A Mac OS ENVIRONMENT .......................................40

► DIRECTLY PRINTING A FILE IN USB MEMORY............................42

environments, and Mac OS X v10.12 in Mac OS environments. The window

10 in

PRINTER

PRINTING IN A WINDOWS ENVIRONMENT

The following example explains how to print an A4 size document from "WordPad", which is a standard accessory program in Windows. To install the printer driver and configure settings in a Windows environment, see the Software Setup Guide. For information on the available printer drivers and the requirements for their use, see the User's Manual.

Select [Print] from the [File] menu of

WordPad.

Select the machine's printer driver, and click the [Preferences] button.

If the printer drivers appear as a list, select the name of the printer driver to be used from the list.

PRINTER

(1)

(2)

Click the [Print] button.

Printing begins.

(3)

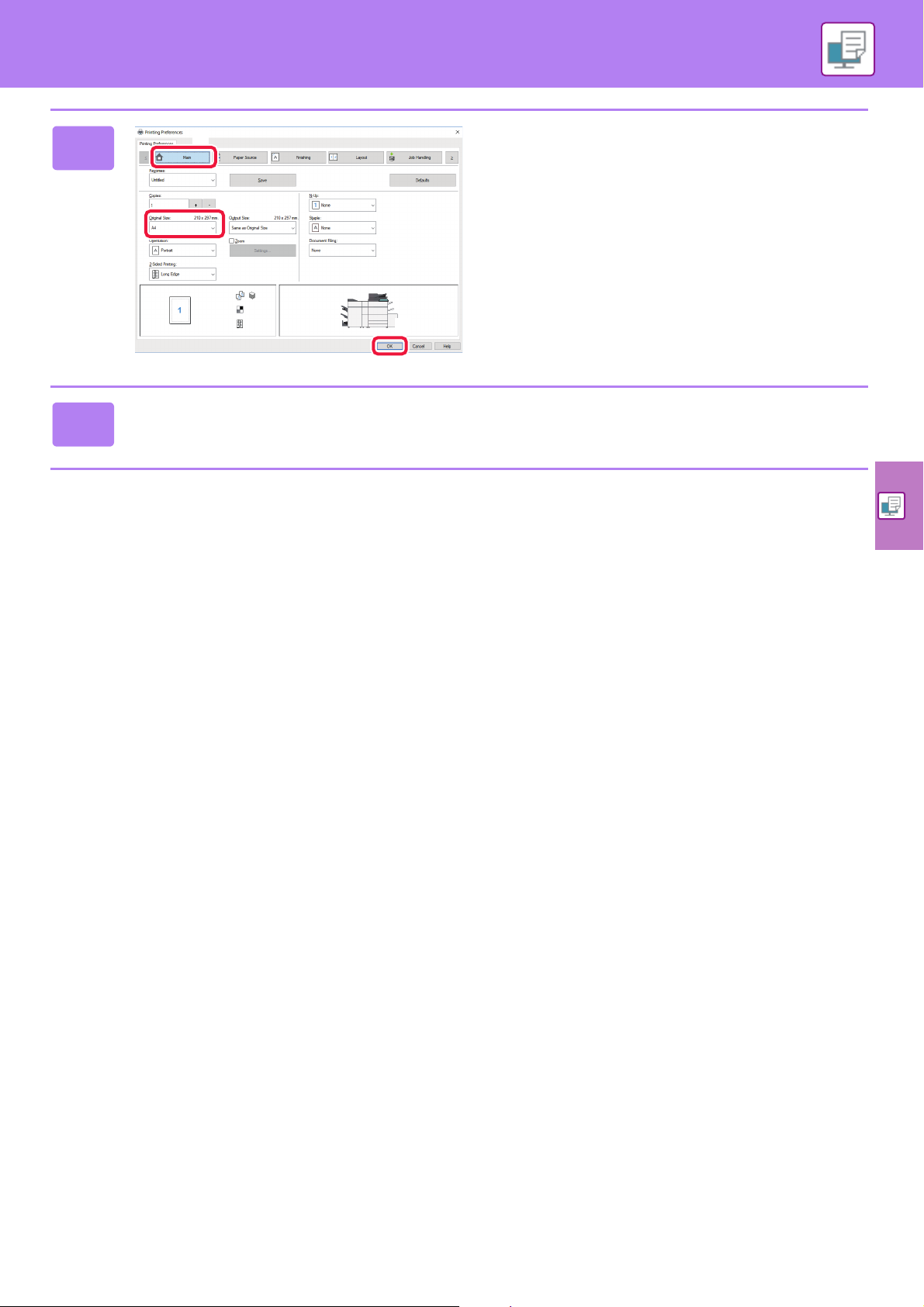

Select print settings.

(1) Click the [Main] tab.

(2) Select the original size.

To select settings on other tabs, click the desired tab and then select the settings.

(3) Click the [OK] button.

• Help can be displayed for a setting by clicking the setting and pressing the [F1] key.

• Click the [Help] button, the Help window will open to let you view explanations of the settings on the tab.

PRINTER

(1)

(2)

(3)

PRINTING IN A Mac OS ENVIRONMENT

The following example explains how to print an A4 size document from "TextEdit", which is a standard accessory program in Mac OS. To install the printer driver and configure settings in a Mac OS environment, see the Software Setup Guide.

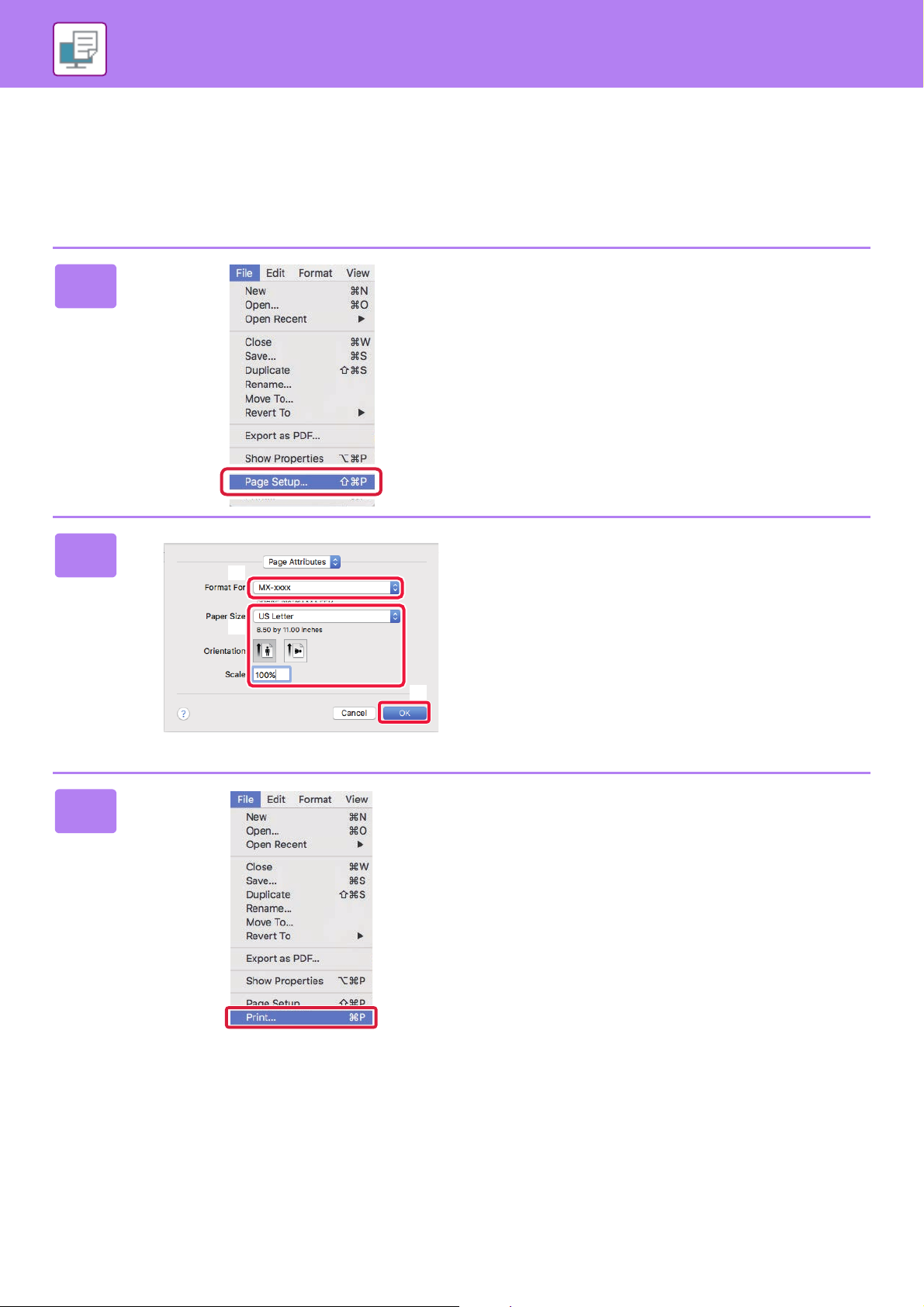

Select [Page Setup] from the [File]

menu.

Select paper settings.

(1) Make sure that the correct printer is

selected.

(2) Select the paper settings.

Set the paper size, paper orientation, and copy ratio.

(3) Click the [OK] button.

Select [Print] from the [File] menu.

(1)

(2)

(3)

PRINTER

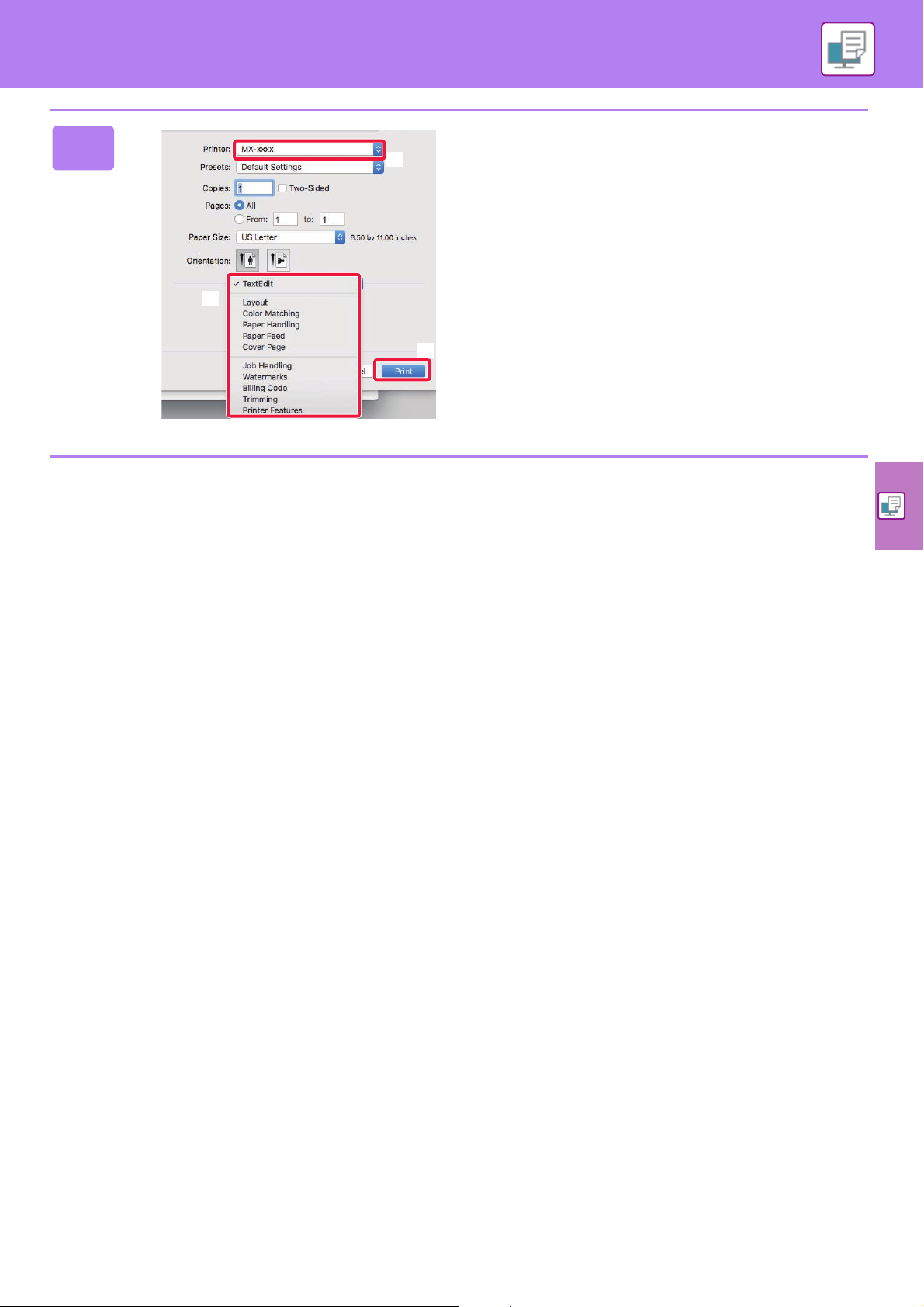

Select print settings.

(1) Make sure that the correct printer is

selected.

(2) Select items from the menu and configure

the settings as needed.

(3) Click the [Print] button.

PRINTER

Choose Print Settings

USB Memory

File or Folder Name

Child_File2.tiff

Child_File4.tiff

Child_File5.tiff

Child_folder3

Child_folder6

Plain 1

Paper Select

2-Sided Print

Others

Auto

Resolution

600dpi (High Quality)

Off

Output

File Name Child_File2.tiff

Copies

Fit to Page

Return to File Selection Screen

Start

3 4

8½x11 8½x11

8½x11

8½x14 11x17

8½x11

DIRECTLY PRINTING A FILE IN USB MEMORY

Files in a USB memory device connected to the machine are printed from the operation panel of the machine without using the printer driver. The file types (and corresponding extensions) that can be printed directly are shown below.

File Type TIFF JPEG PCL

Extension tiff, tif jpeg, jpg, jpe, jfif pcl, prn, txt pdf ps, prn docx, xlsx, pptx png

PDF, EncryptedPDF, Compact

PDF, PDF/A, Compact PDF/A

Connect the USB memory device to the machine.

DOCX, XLSX, PPTX

PNG

Easy Copy

Toner Quantity Bk

External memory device (USB) is connected.

Print from external

memory device (USB)

Scan to External Memory Device

Perform Detail Setting

Operation

Enlarge

Guide

Display Mode

Sharp OSA

Settings Total Count LCD Control

10:15 AM

Job Status

Volume

When a screen for selecting the action appears, tap [Print from external memory device (USB)].

If the screen does not appear, follow these steps:

(1)

Tap the [HDD File retrieve] key.

(2) Tap [Select File from USB Memory to

Print] on the action panel.

Tap the key of the file that you wish to print, and tap [Choose Print Settings] on the action panel.

• When printing multiple files, tap the keys of the files you wish to print, and tap [Print] on the action panel.

• Tap to switch to thumbnails.

Select print settings and tap the [Start] key.

Remove the USB memory device from the machine.

“DirectOffice™ is a product of CSR Imaging US, LP. DirectOffice™ is a trademark of CSR Imaging US, LP, registered in the United States and other countries, used with permission.”

FACSIMILE

This section explains the basic procedures for using the fax function of the machine.

► SENDING A FAX ..............................................................................44

► FAX MODE........................................................................................46

FACSIMILE

Volume

Operation

Guide

Enlarge

Display Mode

10:15 AM

SENDING A FAX

This section explains the basic procedure for sending a fax. In fax mode, color originals are sent as black and white images.

Press the [Home Screen] key.

Home screen appears.

Tap the [Easy Fax] mode icon.

Easy Fax mode screen appears.

Easy

Fax

Toner Quantity Bk

Original

8½x11

Address Book Direct Entry

Copy E-Mail Fax

Address Fax Number

Sending History

Settings Total Count LCD Control

Detail

Job Status

Place the original.

Place the original in the document feeder tray of the automatic document feeder, or on the document glass.

► PLACING ORIGINALS

(page 16)

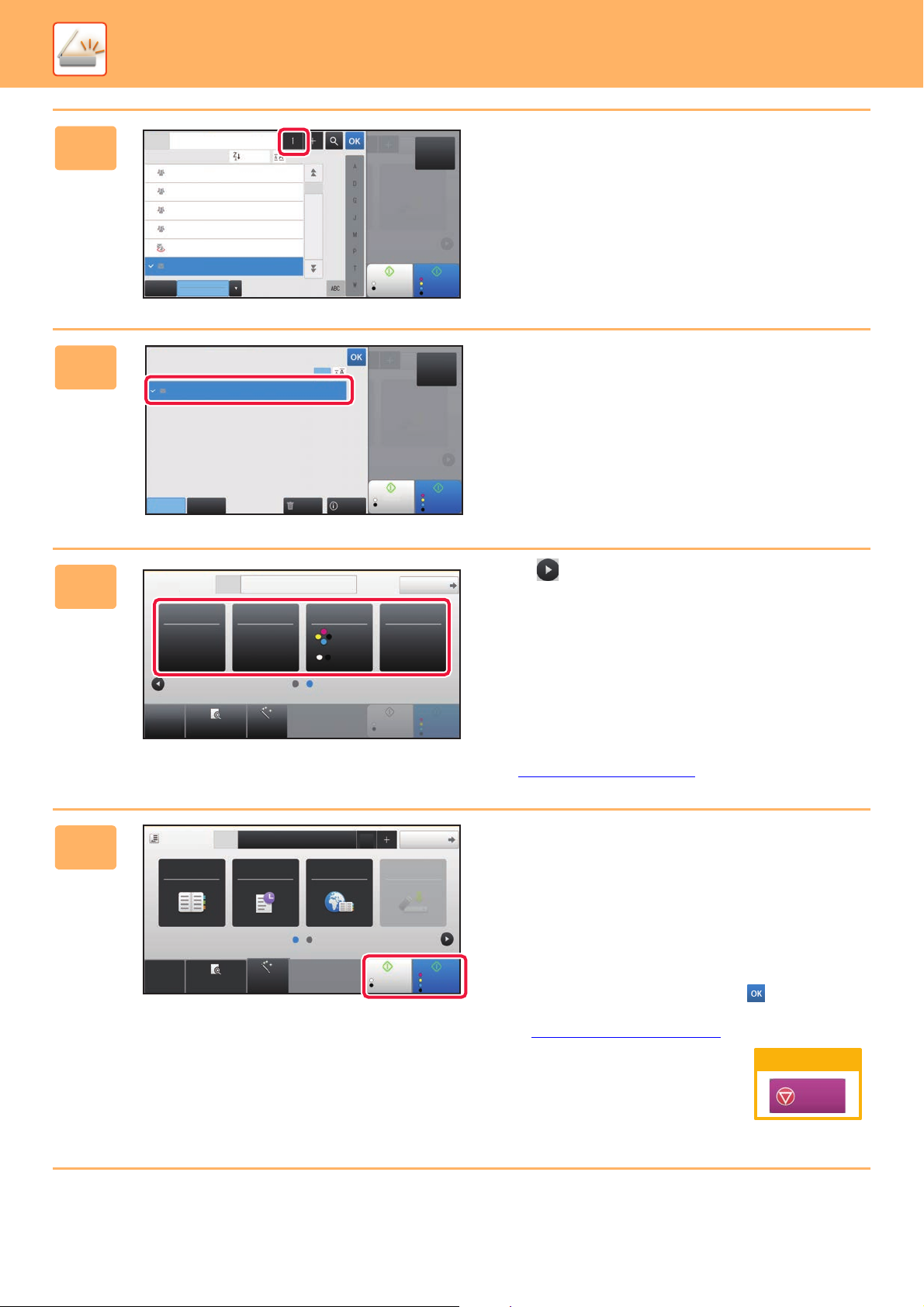

Tap the [Address Book] key.

You can also tap the numeric keys to directly enter a fax number, or select a fax number from the transmission log.

Address

Frequent

Use

AAA AAA

BBB BBB

CCC CCC

DDD DDD

EEE EEE

Category

Preview

All

Start

Sort

Original

Auto

Tap the key of the desired destination.

Addresses of the current mode are selected from addresses whose checkboxes were selected when the tapped destination was registered. If no addresses were registered with the checkbox selected, tap the [Yes] key in the confirmation screen and select the desired addresses. To add another destination, tap the key of the destination.

Start

AAA AAA

Address

Sort

Frequent

Use

Category

All

Original

Auto

Start

AAA AAA

BBB BBB

CCC CCC

DDD DDD

EEE EEE

FFF FFF

AAA AAA 123456789

Original

Auto

Start

All Destinations

Delete Info.

AAA AAA

1234567890

Preview

Start

Original

Address Fax Number

Detail

Original Set Exposure

Resolution

Auto StandardAuto

8½x11

Original

Auto

Start

All Destinations

AAA AAA

1234567890

FACSIMILE

Tap the [All Destinations] key.

A list of the selected destinations appears.

Confirm the destination.

If an incorrect destination appears in the list, tap the destination and then tap the [Delete] key.

Tap to change screens and select settings.

Change settings as needed. The functions below can be enabled in easy mode.

• Original set

• Exposure

• Resolution To select more detailed settings, tap the [Detail] key and select settings in normal mode.

► FAX MODE

(page 46)

Tap the [Start] key.

To check a preview of a document, tap to return to the base screen of Easy Fax and tap the [Preview] key.

► PREVIEW SCREEN

(page 15)

Cancel scanning

Cancel

Scan

FACSIMILE

Easy

Fax

(10) (11) (12) (13) (1)

(3)

(16)

(15)

(4)

(9)

(1)

(2)

(3)

(4) (5)

(6)

(7) (18) (8)(8)

(17)

(14) (5)

Easy Mode Normal Mode

FAX MODE

Fax mode has two modes: easy mode and normal mode. Easy mode is limited to frequently used functions that allow you to smoothly perform most fax jobs. If you need to select detailed settings or special functions, use normal mode.

Original

8½x11

Address Fax Number

Address Book

Preview

Sending History

Detail

Direct Entry

Start

(1) Displays the sizes of the original and the data to send.

(2) Select the address and functions you want to use.

Address Book

Address Fax Number

Exposure

Auto

Resolution

Super Fine

Original

Job Build

Slow Scan Mode

Mixed Size Orig.

Original Count

Others

Scan Size

Auto Auto

8½x11

reception memory

100%

Send Size

(10) Displays the list of function keys. Frequently used

[Others] can be registered.

(11) Check the current settings.

To select a function in easy mode

In "Settings", select [System Settings] → [Common Settings] → [Operation Settings] → [Easy Mode Settings] → [Easy Fax]

(3) Reset settings and addresses.

(4) Scan the original and show a preview image.

► PREVIEW SCREEN

(5) Fax transmission will start immediately.

(page 15)

(6) Switch the pages for displaying shortcut keys.

(7) Change to normal mode.

(8) Shows the destination fax number.

(9) Setting keys that can be used for the fax.

(12) Displays the list of keys other than the function keys

indicated above.

► FUNCTIONS THAT CAN BE USED ON THE

MACHINE (page 28)

(13) Shows the amount of free memory available for fax

reception.

(14) Tap to dial in speaker mode.

(15) Enter the fax number.

(16) Displays the functions that can be utilized in the Fax

Mode.

(17) Searches for the address.

(18) Displays the address book.

100%

8½x11

Sending History

Call Search Number

Direct TX

Verification Stamp

Call Program

Call Registered settings

Send Same Image as Fax Address

Preview

Speaker

Start

SCANNER

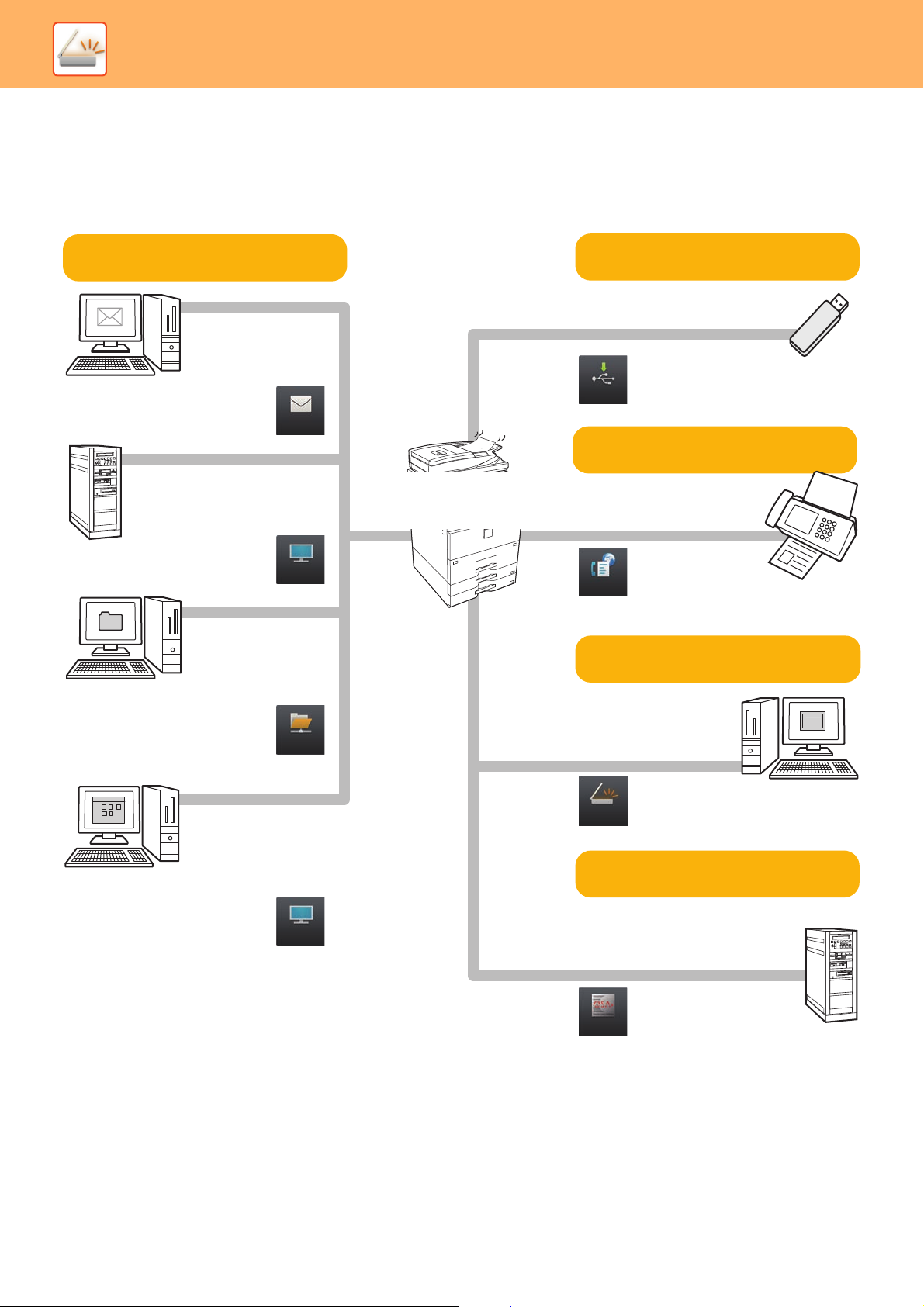

This section explains the uses of the network scanner function and the basic procedure for using scan mode. The Internet fax expansion kit is required to use the Internet fax function.

► NETWORK SCANNER FUNCTION..................................................48

► SCANNING AN ORIGINAL...............................................................49

► SCANNER MODE .............................................................................51

SCANNER

Sharp OSA

PC Scan

Internet Fax

FTP/Desktop

Network Folder

E-mail

Scan to Ext.

Memory

Scan the original,

and then...

To send an image to an e-mail address, use

Scan to E-mail

To upload an image to an FTP server, use

Scan to FTP

To send an image to a shared folder on your computer, use

Scan to Network Folder

To process an image in a specific application, use

Scan to Desktop

Use this mode to save an image to USB memory

Scan modes USB memory mode

Internet fax mode

Use this mode to send a fax via the Internet

The machine supports Direct SMTP.

PC scan mode

Use this mode to scan a photo while making corrections on your computer

A TWAIN-compliant software application can be used.

Internet fax mode

Use this mode to send a fax via the Internet

A TWAIN-compliant software application can be used.

Data entry mode

If you want to use a document solution linked to an application

NETWORK SCANNER FUNCTION

The network scanner function of the machine can be used to transmit scanned images by a variety of methods. The network scanner function has the following modes. To use a mode, tap the button of the mode in the home screen.

SCANNER

Scan to HDD/

USB

Address

Sort

AAA AAA

BBB BBB

CCC CCC

DDD DDD

EEE EEE

FFF FFF

Frequent

Use

Category

All

B/W Start

Color Start

SCANNING AN ORIGINAL

The basic operation for scanning is explained below. The procedure for sending a scanned file by E-mail to a destination stored in the address book is explained here.

Press the [Home Screen] key.

Home screen appears.

Easy Copy

Toner Quantity Bk

Original

8½x11

Address Book History

Easy Scan

Address E-mail Address

Guide

Enlarge

Display Mode

Address Search

Sharp OSAPrint Release

Settings Total Count LCD Control

Global

Scan to HDD/

10:15 AM

Detail

USB

Job Status

VolumeOperation

Tap the [Easy Scan] mode icon.

Easy Scan mode screen appears.

Place the original.

Place the original in the document feeder tray of the automatic document feeder, or on the document glass.

► PLACING ORIGINALS

(page 16)

Tap the [Address Book] key.

Preview Auto Set

B/W Start

Color Start

Tap the key of the desired destination.

SCANNER

Address 123.ne.jp

Sort

AAA AAA

BBB BBB

CCC CCC

DDD DDD

EEE EEE

FFF FFF

Frequent

Use

Category

All

B/W Start

Color Start

FFF FFF

1234.ne.jp

Scan to HDD/

USB

Delete Info.

CcTo

B/W Start

Color Start

FFF FFF

All Destinations

1234.ne.jp

Scan to HDD/

USB

Address Book

Sending History

Global

Address Search

Scan to HDD/

USB

Preview

Original

Address

Detail

B/W Start

Color Start

Auto Set

AAA

8½x11

Cancel scanning

Cancel

Scan

Tap the [All Destinations] key.

A list of the selected destinations appears.

Confirm the destination.

If an incorrect destination appears in the list, tap the destination and then tap the [Delete] key.

Original

8½x11

Address E-mail Address

Original

Auto 200x200dpi

Preview Auto Set

Detail

Resolution File Format Blank Page

PDF

Skip

Off

PDF

B/W Start

Color Start

Tap to change screens and select settings.

Change settings as needed. The functions below can be enabled in easy mode.

•Original

• Resolution

• File Format

• Blank Page Skip To select more detailed settings, tap the [Detail] key and select settings in normal mode.

► SCANNER MODE

(page 51)

Tap the [Color Start] key or [B/W Start] key.

• In the factory default state, the machine detects whether

the original is black & white or full color when you tap the [Color Start] key, and automatically switches between full color and black & white binary scanning. When you tap the [B/W Start] key, the machine scans in black & white binary. For details, see the User's Manual.

• To check a preview of a document, tap to return to the

base screen of Easy Scan and tap the [Preview] key.

► PREVIEW SCREEN

(page 15)

SCANNER

Scan to HDDAddress BookNetwork Folder

LINE PRINTER

Job Status

FTP/Desktop

Easy Copy

Easy Scan

HDD File retrieve

Sharp OSA

10:15 AM

Operation

Guide

Enlarge

Display Mode

Settings

Total Count

LCD Control

Toner Quantity Bk

Job Status

FaxE-MailCopy

LINE PRINTER

Job Status

Easy Copy

Easy Scan

HDD File retrieve

Sharp OSA

10:15 AM

Operation

Guide

Enlarge

Display Mode

Settings

Total Count

LCD Control

Toner Quantity Bk

Job Status

Easy

Fax

LINE PRINTER

10:15 AM

Operation

Guide

Enlarge

Display Mode

Settings Total Count LCD Control

Toner Quantity Bk

Job Status

Sharp OSAPrint Release

Easy Scan

Easy Copy

Easy Scan

HDD File retrieve

Sharp OSA

Job Status

Easy Scan

Scan to E-mail

Scan to Network Folder

Scan to FTP/Desktop

SCANNER MODE

SELECTING SCANNER MODE

In the home screen, tap the icon of the desired scanner mode to display the base screen of scanner mode. If the button you want to use does not appear, tap or to change the screen.

SCANNER

Preview

Start

Scan Size

Auto Auto

Color Mode

Auto/Grayscale

Resolution

200x200dpi

File Format

PDF

Original

Auto

Others

100%

Send Size

Address Book

Subject

File Name

Address Touch to input Address

Options

Exposure

8½x11 8½x11

Specified by System Settings

Global Address Search

Sending History

Call Program

Call Registered settings

Verification Stamp

Send Destination Link

Call Search Number

Easy Scan

E-mail

(13) (14) (15) (1)

(3)

(17)

(4)

(12)

(1)

(2)

(3)

(4) (5) (7)(6)

(8)

(9) (19)

(18)

(10)

(16)

(11)

(10)

Easy Mode Normal Mode

BASE SCREEN OF SCANNER MODE

Scanner mode has two modes: easy mode and normal mode. Easy mode is limited to frequently used functions that allow you to smoothly perform most scan jobs. If you need to select detailed settings or special functions, use normal mode.

Original

8½x11

Address Book History

(1) Displays the sizes of the original and the data to send.

(2) Select the address and functions you want to use.

Address E-mail Address

Preview Auto Set

Global

Address Search

Scan to HDD/

USB

B/W Start

Detail

Color Start

(11) Enter the subject, file name, and other items. The screen

varies depending on the scanning type.

(12) Setting keys that can be used for sending images.

To select a function in easy mode

In "Settings", select [System Settings] → [Common

(13) Displays the list of function keys. Frequently used

[Others] can be registered.

Settings] → [Operation Settings] → [Easy Mode Settings] → [Easy Scan]

(3) Reset settings and addresses.

(4) Scan the original and show a preview image.

► PREVIEW SCREEN

(5) Automatically set the original placement orientation,

resolution, and skipping of blank pages.

(page 15)

(6) Starts blank & white scanning.

(7) Starts color scanning.

(8) Switch the pages for displaying shortcut keys.

(9) Change to normal mode.

(10) Tap this key to display the soft keyboard.

(14) Checking the current settings.

(15) Displays the list of keys other than the function keys

indicated above.

► FUNCTIONS THAT CAN BE USED ON THE

MACHINE (page 28)

(16) Transmission will start.

(17) Displays the functions that can be utilized in the Image

Send mode.

(18) Searches for the address.

(19) Displays the address book.

DOCUMENT FILING

The document filing function is used to store the document or print image on the hard drive when performing a copy, print, or other job. You can print or perform other operations using the saved file at a later time. This section introduces several of the document filing functions.

► USES OF THE DOCUMENT FILING FUNCTION ............................54

► SAVING A DOCUMENT ONLY (Scan to HDD) ............................... 55

► PRINTING A SAVED FILE................................................................ 58

DOCUMENT FILING

Copy

Fax

Scan

Files that you want to store for later use

Store and manage

Quick File File Scan to HDD

Using Quick File, you can easily copy or send a document and store the document data on the hard drive at the same time.

Using File, you can copy or send a document and store the document data on the hard drive at the same time. When File is used, a user name and file name can be appended to the stored file. You can also select which folder the file is stored in, for easy file management.

Use Scan to HDD to store a document on the hard drive without performing printing or transmission. Like File, a user name, file name, and folder can be specified. You can also download a file stored by Scan to HDD from the Web page.

Files saved with Quick File are stored in this folder.

If a folder is not specified when a file is saved with File or Scan to HDD, the file is stored in the main folder. In addition to the main folder, files can be saved in custom folders. Custom folders are created in the system settings.

Quick File Folder

Stored files can be printed or transmitted whenever needed. A file that has been stored by the printer driver cannot be transmitted. (The file can be transmitted if "RIP format" is changed to "RGB" format.)

Main Folder / Custom Folder

Store quickly and easily

USES OF THE DOCUMENT FILING FUNCTION

DOCUMENT FILING

Settings Total Count LCD Control

Toner Quantity Bk

VolumeOperation

Guide

Enlarge

Display Mode

10:15 AM

Easy Scan

Easy Copy

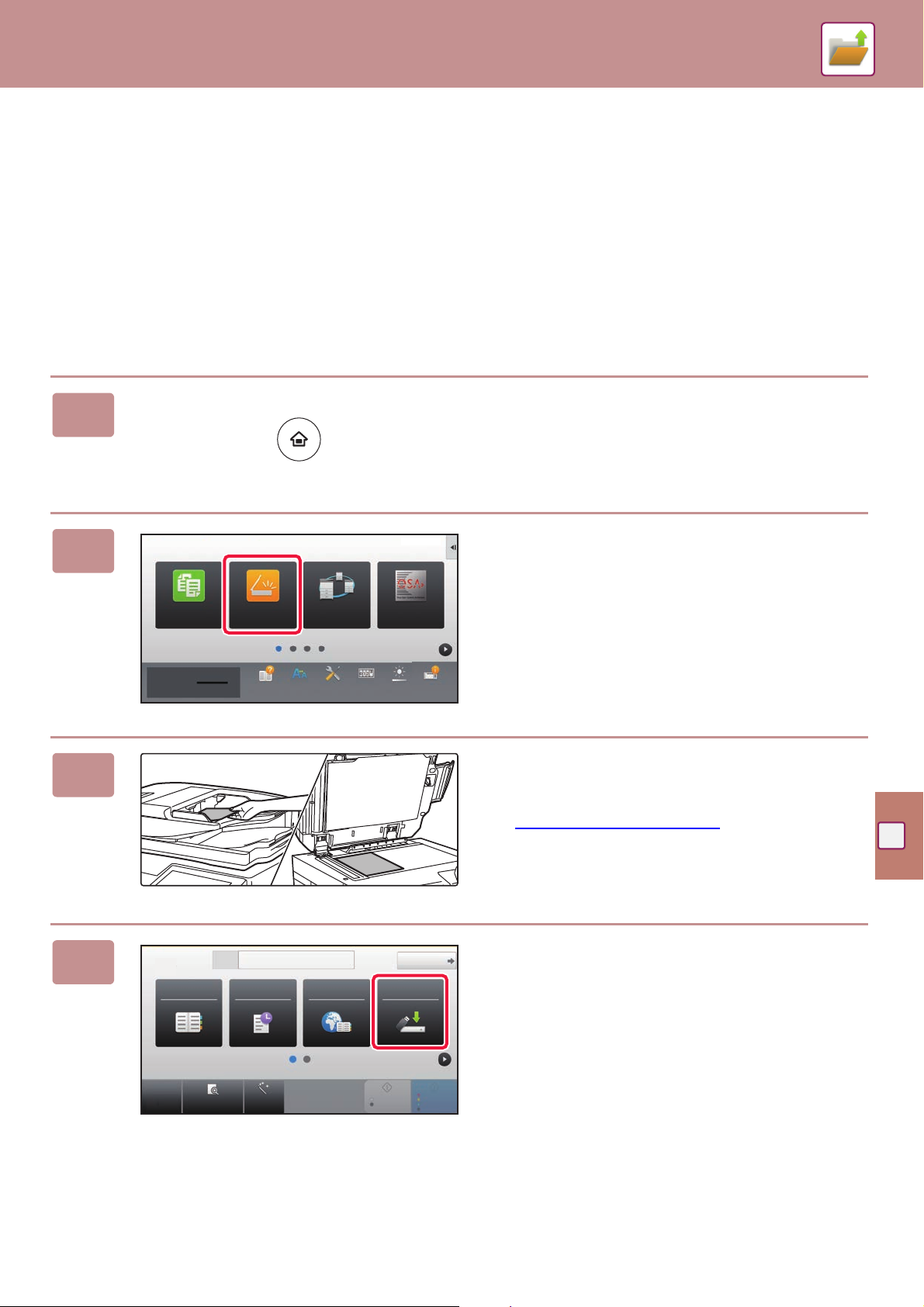

SAVING A DOCUMENT ONLY (Scan to HDD)

Scan to HDD lets you save a scanned document to the main folder or a custom folder. This function is not used to print or send. The procedure for storing a document in the main folder is explained below. To save to a custom folder, tap the [HDD File retrieve] key in the Home screen, tap [Scan to HDD] on the action panel, and select save settings. For more information, see the User's Manual.

Saving by Easy Scan

You can save a file in the main folder or My Folder (when user authentication is enabled).

Press the [Home Screen] key.

The Home screen appears.

Original

8½x11

Address Book History

Address E-mail Address

Global

Address Search

Sharp OSAPrint Release

Job Status

Detail

Scan to HDD/

USB

Tap the [Easy Scan] mode icon.

Place the original.

Place the original in the document feeder tray of the automatic document feeder, or on the document glass.

► PLACING ORIGINALS

(page 16)

Tap the [Scan to HDD/ USB] key.

Preview Auto Set

B/W Start

Color Start

DOCUMENT FILING

Preview Auto Set

B/W Start

Color Start

Scan to

USB

Scan to HDD

Scan to HDD/USB

Preview Auto Set

Original

Address

Detail

B/W Start

Color Start

Address Book History

Global

Address Search

Scan to HDD/

USB

8½x11

Main Folder

Cancel scanning

Cancel

Scan

Tap the [Scan to HDD] key.

Tap the [Color Start] key or [B/W Start] key.

To check a preview of a document, tap the [Preview] key.

► PREVIEW SCREEN

(page 15)

Scan to USB memory device

Preview Auto Set

Original

Address External Memory Device

Detail

B/W Start

Colour Start

Address Book History

Global

Address Search

Scan to HDD/

USB

8½x11

DOCUMENT FILING

Connect the USB memory device to the machine.

Easy Copy

Toner Quantity Bk

Original

8½x11

Address Book

External memory device (USB) is connected.

Print from external

memory device (USB)

Scan to External

Memory Device

Perform Detail Setting

Enlarge

Guide

Display Mode

Place next original. (Pg.No.1) Press [Start]. When finished, press [Read-End].

Change Setting Read-End

Sharp OSA

Settings Total Count LCD Control

Scan to HDD/

10:15 AM

Detail

USB

Job Status

VolumeOperation

When a screen for selecting the action appears, tap [Scan to External Memory Device].

• To select detailed settings in normal mode, select the [Perform Detail Setting] checkbox .

► BASE SCREEN OF SCANNER MODE

(page 52)

• If the machine/device save screen is open, this screen will not appear.

Tap the [Color Start] key or [B/W Start] key.

To check a preview of a document, tap the [Preview] key.

► PREVIEW SCREEN

(page 15)

Cancel scanning

Cancel

Scan

After scanning all originals, tap the [Read-End] key.

When you scan the original using the automatic document feeder, this screen does not appear.

Preview Auto Set

B/W Start

Color Start

Check the [Sending data has been completed.] message, and remove the USB memory device from the machine.

DOCUMENT FILING

Scan to HDD

Scan to External Memory Device

Select File from FTP to Print

Select File from USB Memory to Print

Main Folder

AAA BBB

CCC DDD

EEE FFF

GGG HHH

III JJJ

KKK LLL

Quick File Folder

Folder Select

Select File from Network Folder to Print

PRINTING A SAVED FILE

You can retrieve a file stored by document filing and print or transmit the file. You can also print files saved in a USB memory device or a shared folder. The steps for printing the "Copy_02022018_112030" file saved in the main folder are explained below.

Press the [Home Screen] key.

Home screen appears.

HDD

File retrieve

Toner Quantity Bk

Tray

Settings

Operation

Guide

Enlarge

Display Mode

Address

Program List

Control

Settings Total Count LCD Control

(Image Send)

10:15 AM

Job Status

Volume

Tap the [HDD File retrieve] mode icon.

Select the file and print.

(1) Tap the [Main Folder] key.

File Name

File Name User Name

Copy_02022018_112030

Copy_02022018_165407

Select All Batch Print

User Unknown

User Unknown 02/02/2018

All Files

Date

02/02/2018

Delete

Choose Print Settings

Send

Move

Check Image

See Detail Information

Print and Delete the Data

Print B/W

Print Now

(2) Tap the key of the file that you wish to

print.

In this case, tap the "Copy_02022018_112030" key. To check a preview of the printed image, tap [Check Image] on the action panel. If you want to delete the file after printing, tap [Print and

Delete the Data] on the action panel so that appears.

(3) Tap the [Print Now] key.

MANUAL FINISHING

This section explains the basic procedures for using the manual finishing function.

► MANUAL FINISHING........................................................................60

► USING MANUAL FINISHING ...........................................................60

MANUAL FINISHING

Operation

Guide

Toner Quantity Bk

Enlarge

Display Mode

Settings Total Count LCD Control

Address

Control

Job Status

Manual

Finishing

HDD

File retrieve

10:15 AM

Tray Settings

MANUAL FINISHING

In manual finishing mode, you can set for finish on copied or printed pages. You can select the manual finishing mode if the inserter is installed. When the finisher (large stacker), saddle stitch finisher (large stacker), punch module, or folding unit is installed, finishing operations, such as stapling, punching or folding can be performed.

USING MANUAL FINISHING

The basic operation for manual finishing is explained below.

Press the [Home Screen] key.

The Home screen appears.

Tap the [Manual Finishing] mode icon.

Set the guides to the size of the paper.

Grasp the guide lock lever to adjust the guide. When you have finished the adjustment, release the lock lever.

When loading paper larger than 8-1/2" × 11"R, or A4R, extend the bypass tray all the way out. If it is not pulled all the way out, the size of the loaded paper will not be detected correctly.

8½x11

Upper Tray

Output Tray Inserter

Staple

Off

1 Staple

at Back

Saddle

Fold

Half Fold

C-Fold

1 Staple

at Front

2 Staples

Saddle

Stitch

Off

Accord-

ion Fold

Copies/Pages

Type and Size

Double

Fold

Z-Fold

Detail

Punch Fold

Middle Tray

Lower Tray

Start

Upper Tray

Lower Tray

Plain 1

2 Hole Punch

Upper Tray

Output Tray

Inserter

Staple

Off

1 Staple

at Back

2 Hole

Punch

Saddle

Fold

Half Fold

C-Fold

1 Staple at Front

2 Staples

Saddle

Stitch

Off

Accordion Fold

Copies/Pages

Type and Size

Double

Fold

Z-Fold

Detail

Punch Fold

Middle Tray

Lower Tray

Start

Upper Tray

Lower Tray

Plain 1

8½x11

Shows the selected paper and output trays.

Selects an output tray for finished paper.

Staples each set of output. Selects a staple position.

Staples the center of the booklet and folds the booklet along the center. Trims the excessive parts of booklet folded along the center.

Performs paper folding. Selects the type of folding.

Punches holes in paper.

Starts finishing.

Resets all settings.

Sets the number of copies for output and the number of sheets per set.

Selects a paper tray for finishing. Tap the [Type and Size] key to set the paper type and paper size.

MANUAL FINISHING

Load paper into the upper or lower tray.

The paper orientation varies depending on the manual finishing function.

► PAPER LOADING ORIENTATION

• Up to 200 sheets of paper can be loaded into each of the upper and lower trays.

• Insert the paper along the guides all the way into the tray.

• If the guide width is not correctly adjusted to match the paper width, paper may be jammed, skewed, or crease. Adjust the paper guides to fit the width of the paper.

Select the appropriate finishing method and change the paper tray or output tray as required.

(page 62)

Tap the [Start] key to begin manual finishing.

BASE SCREEN OF MANUAL FINISHING MODE

MANUAL FINISHING

1 Staple

at Back

1 Staple

at Front

2 Staples

Saddle

Stitch

2 Hole Punch

Saddle

Fold

Half Fold

C-Fold

ABC

Accordion Fold

ABC

Double

Fold

ABCD

Z-Fold

ABCD

PAPER LOADING ORIENTATION

When using the staple, punch or the paper folding function, the original must be placed as shown below to enable stapling or punching in the desired position on the paper.

STAPLE

• To use the staple function, you need to mount a finisher (large stacker) or saddle stitch finisher (large stacker).

• To use the saddle stitch function, you need to mount a saddle stitch finisher (large stacker).

Touch panel key Orientation Result

FOLD

• A folding unit is required to be installed in order to use paper folding functions other than saddle folds.

• To use the saddle fold function, you need to mount a saddle stitch finisher (large stacker).

Touch panel key Orientation Result

PUNCH

A punch module is required for paper punch.

Touch panel key Orientation Result

SYSTEM SETTINGS

The setting mode let you adjust the operation of the machine to suit the needs of your workplace. This section briefly introduces several of the setting mode. For detailed explanations of the system settings, see "SYSTEM SETTINGS" in the User's Manual.

► SETTING MODE ...............................................................................64

SYSTEM SETTINGS

(a)

(b)

SETTING MODE

The date and time can be set, fax and scan destinations can be stored, document filing folders can be created, and various other settings related to the operation of the machine can be configured in the setting mode screen. The procedure for opening the setting mode screen and the items in the screen are explained below.

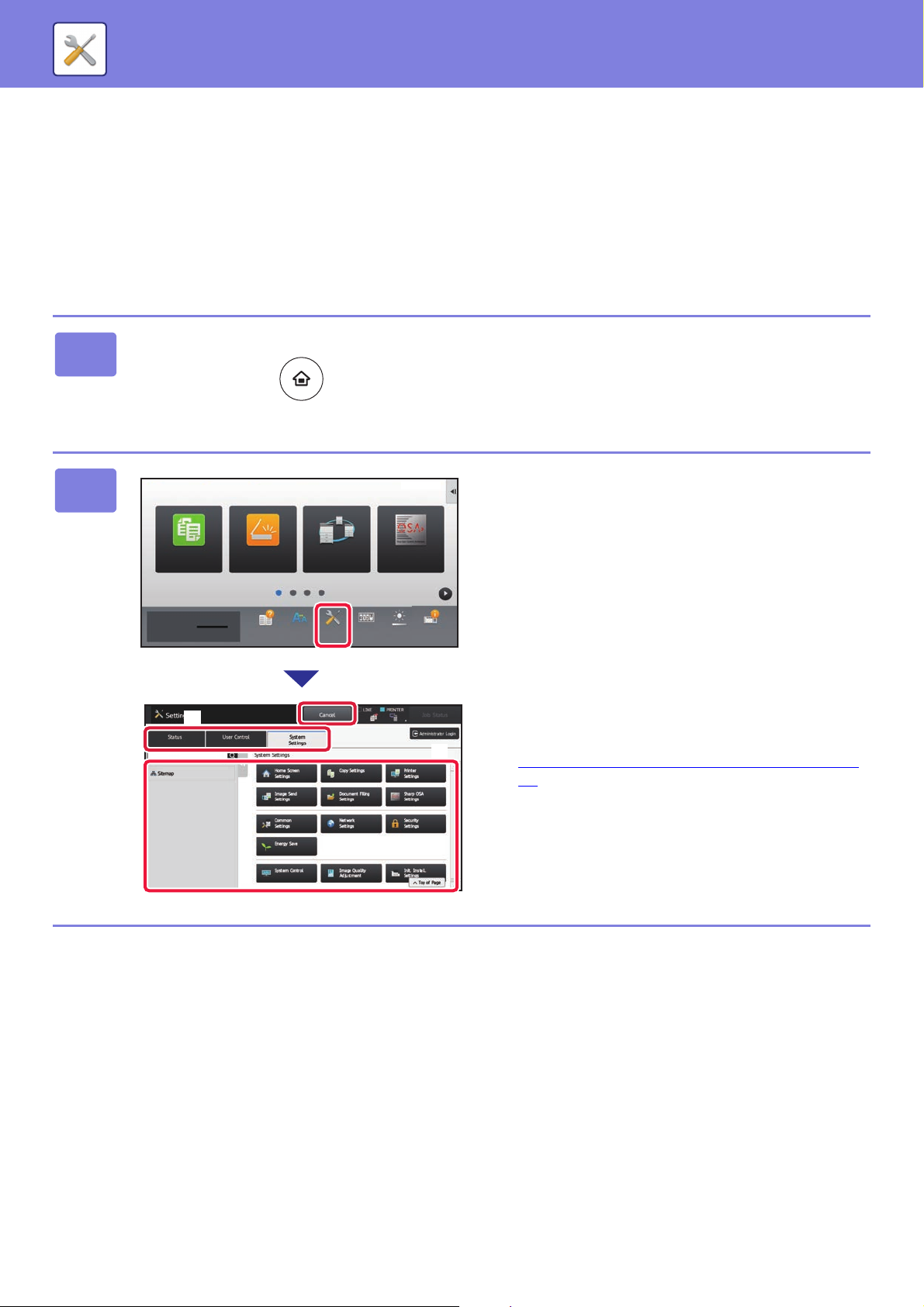

DISPLAYING THE SETTING MODE ON THE MACHINE

Press the [Home Screen] key.

Home screen appears.

Easy Copy

Toner Quantity Bk

Easy Scan

Guide

Enlarge

Display Mode

Sharp OSAPrint Release

Settings Total Count LCD Control

10:15 AM

Job Status

VolumeOperation

Tap the [Settings] key.

The setting mode screen appears.

Tap the item that you want to set on menu tab (a) or setting menu (b). To exit setting mode, tap the [Cancel] key.

► Setting mode when an administrator is logged in

66)

(page

SYSTEM SETTINGS

WHAT YOU CAN DO IN THE SETTING MODE

The following settings can be configured in setting mode. Some settings may not appear on the touch panel of the machine, or in the Web browser on your computer. Some settings may not appear due to the specifications of your machine and the peripheral devices that are installed.

Menu Overview

Status Displays paper tray information and device information.

Address Book Use to edit the address book.

Document Operations Use to perform actions on a file using the Document Filing function.

User Control This is used to store, edit, and delete users when user authentication is enabled. You can also

select IC card settings.

System Settings Configure the main settings for the machine such as date settings and paper tray settings. You

can configure the following settings.

Home Screen Settings You can select settings for the machine's home screen, such

as changing the home screen background.

Copy Settings You can select copy settings.

Printer Settings You can select print settings.

Image Send Settings Configure settings for image send, such as fax and Scan to

E-mail.

Document Filing Settings You can select Document Filing settings.

Sharp OSA Settings You can select Sharp OSA settings.

Common Settings You can configure machine settings such as date settings and

tray settings.

Network Settings You can configure network settings such as network protocol

and NAS settings.

Security Settings You can configure machine security settings such as

authentication and changing the administrator password.

Energy Save The machine's power consumption can be reduced by Eco

Mode setting.

System Control You can configure machine backup and job log settings.

Image Quality Adjustment You can perform image adjustment on the machine.

Initial Installation Settings This is a group of settings that are required when you initially

install the machine.

SYSTEM SETTINGS

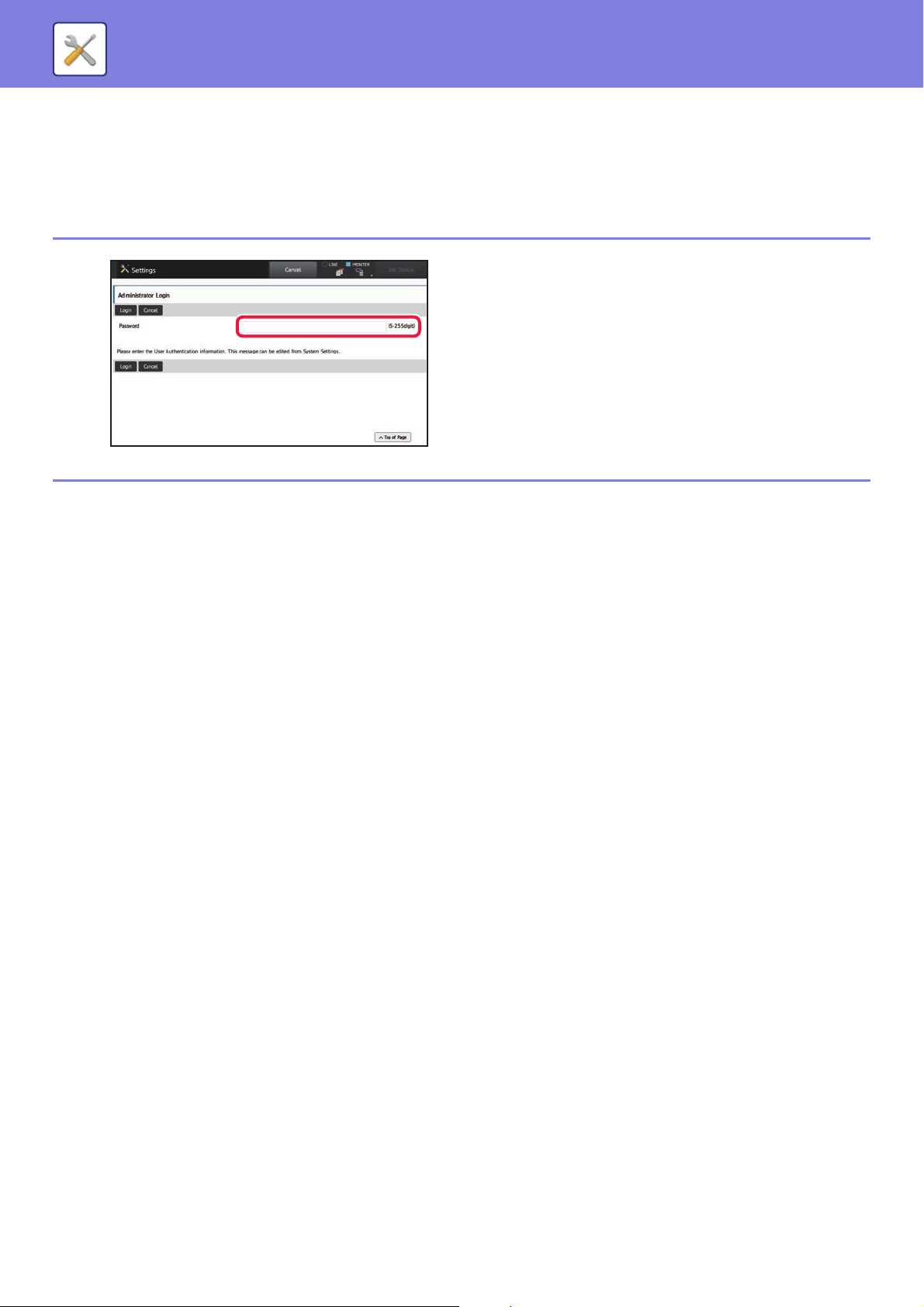

Setting mode when an administrator is logged in

An administrator can configure settings that are more advanced than the settings available to a guest or user. When user authentication is enabled, settings may be allowed without entering the administrator password based on the rights of the logged in user. For the state of the settings, ask the administrator of the machine.

When you select an item in setting mode that requires administrator login, the administrator login screen will appear. For the items available in setting mode when an administrator is logged in, see "SYSTEM SETTINGS" in the User's Manual.

Please note

• For information on your operating system, please refer to your operating system manual or the online Help function.

• The explanations of screens and procedures in a Windows environment are primarily for Windows depending on the version of the operating system or the software application.

• The explanations of screens and procedures in a Mac OS environment are based on Mac OS X v10.12 in the case of Mac OS X. The screens may vary depending on the version of the operating system or the software application.

• Wherever "MX-xxxx" appears in this manual, please substitute your model name for "xxxx".

• Considerable care has been taken in preparing this manual. If you have any comments or concerns about the manual, please contact your dealer or nearest SHARP Service Department.

• This product has undergone strict quality control and inspection procedures. In the unlikely event that a defect or other problem is discovered, please contact your dealer or nearest SHARP Service Department.

• Aside from instances provided for by law, SHARP is not responsible for failures occurring during the use of the product or its options, or failures due to incorrect operation of the product and its options, or other failures, or for any damage that occurs due to use of the product.

10. The screens may vary

Warning

• Reproduction, adaptation or translation of the contents of the manual without prior written permission is prohibited, except as allowed under copyright laws.

• All information in this manual is subject to change without notice.

Illustrations and the operation panel and touch panel shown in this manual

The peripheral devices are generally optional, however, some models include certain peripheral devices as standard equipment. The explanations in this manual assume that a multi bypass tray, large capacity tray, saddle stitch finisher, punch module, and

curl correction unit are installed on the MX-M7570. For some functions and procedures, the explanations assume that devices other than the above are installed.

The display screens, messages, and key names shown in the manual may differ from those on the actual machine due to product improvements and modifications.

2018D-EN1

Sharp MX-M7570, MX-M6570 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

BEFORE USING THE MACHINE

COPIER

PRINTER

FACSIMILE

SCANNER

DOCUMENT FILING

MANUAL FINISHING

SYSTEM SETTINGS
