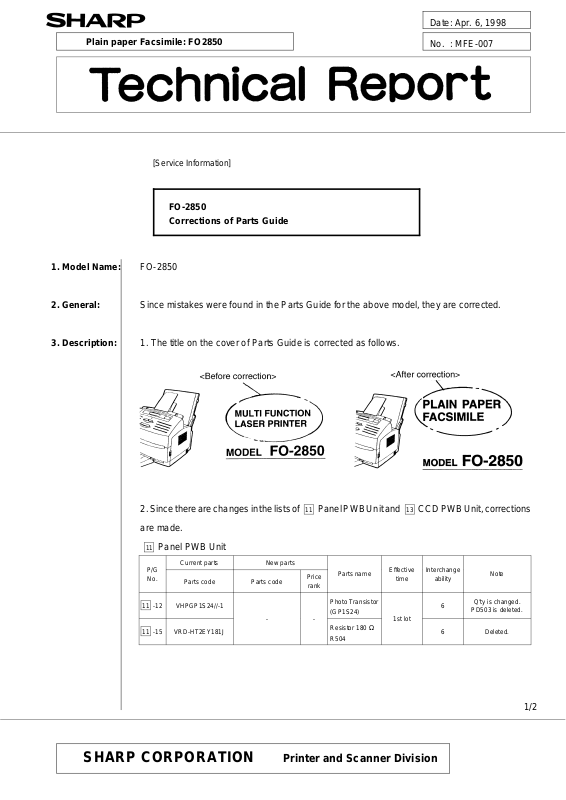

SHARP MFE007 Technical Report

Date: Apr. 6, 1998

Plain paper Facsimile: FO2850

No. : MFE-007

[Service Information]

FO-2850
Corrections of Parts Guide

1. Model Name: FO-2850

2. General: Since mistakes were found in the Parts Guide for the above model, they are corrected.

3. Description: 1. The title on the cover of Parts Guide is corrected as follows.

2. Since there are changes in the lists of 11 Panel PWB Unit and 13 CCD PWB Unit, corrections
are made.
11 Panel PWB Unit

P/G
No.

11 -12 VHPGP1S24//-1

11 -15 VRD-HT2EY181J

Current parts New parts

Parts code Parts code

- -

Price

rank

Parts name

Photo Transistor
(GP1S24)

Resistor 180 Ω
R504

Effective

time

1st lot

Interchange

ability

6

6 Deleted.

Note

Q’ty is changed.

PD503 is deleted.

SHARP CORPORATION Printer and Scanner Division

1/2

13 CCD PWB Unit

P/G
No.

13 -8

13 -17 VRD-HT2EY470J VRD-HT2EY101J

13 -18 VRD-HT2EY121J VRD-HT2EY151J

13 -22 VRD-HT2EY471J VRD-HT2EY102J

13 -25 VRD-HT2EY331J - -

13 -28 VHERD3.9EB2-1 VHERD5.1EB/-1 AD

Current parts New parts

Parts code Parts code

VHIILX112BA-1 VHIILX523A/-1 BC

Price

rank

AA

Parts name

IC (ILX523A)
Resistor

(1/4W 100 Ω ±5%)
Resistor

(1/4W 150 Ω ±5%)
Resistor

(1/4W 1kΩ ±5%)
Resistor

(1/4W 330 Ω ±5%)
Zener diode

(RD 5.1 EB)

Effective

time

1st lot

Interchange

ability

6

Note

Q’ty is changed.

R715 is abolished.

2/2
