Sharp MD-MT888H User Manual

PORTABLE MINIDISC
RECORDER

MODEL

MD-MT888H

OPERATION MANUAL

If you require any advice or assistance regarding
your Sharp product, please visit our web-site
www.sharp.co.uk/support.
Customers without Internet access may telephone
08705 274277 during office hours (or [phone]
if telephoning from Ireland).

Thank you for purchasing this SHARP product.
For the best performance, read this manual carefully.
It will guide you in operating your SHARP product.

0101

MT888H_UK_F 01.8.30, 1:57 PM1

MD-MT888H

-Accessories-

Accessories

Important Introduction

2

Remote control x 1 Earphones x 1 AC adaptor

Battery charger x 1 Connection cable

Notes:

z

Parts and equipment mentioned in this operation manual other than those detailed above are not included.

z

The AC adaptor may be different from the one in the drawing.

(for analogue re­cording) x 1

(RADPA8046AWZZ)
x 1

Connection cable
(for digital record­ing) x 1

Battery carrying
case x 1

Carrying bag x 1 Battery case x 1

Rechargeable nick­el-metal hydride
battery (AD-N55BT)
x 1

01/8/30 1.fm

Contents

MD-MT888H

Important Introduction

„

Special Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Names of Controls and Indicators . . . . . . . . . . . .7 - 9

Preparation

„

Using with the Rechargeable Battery . . . . . . . . 10 - 11

Using with the AC Adaptor . . . . . . . . . . . . . . . . . . . .12

Using with the Alkaline Battery. . . . . . . . . . . . . . . . .13

Inserting a MiniDisc . . . . . . . . . . . . . . . . . . . . . . . . . .13

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 15

Basic Operation

„

Long Time Recording and Group Recording. . . . . .16

Group Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 - 21

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 - 24

Useful Features

„

Advanced Playback . . . . . . . . . . . . . . . . . . . . . . 25 - 27

Advanced Recording . . . . . . . . . . . . . . . . . . . . . 28 - 33

Recording from a Microphone. . . . . . . . . . . . . . 34 - 37

Checking Displays . . . . . . . . . . . . . . . . . . . . . . . 38 - 39

Page

Advanced Features

„

Titling a MiniDisc. . . . . . . . . . . . . . . . . . . . . . . . 40 - 42

Editing a Recorded MiniDisc . . . . . . . . . . . . . . 43 - 50

Hold Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Changing De fa ult Settings . . . . . . . . . . . . . . . . 52 - 53

Listening through Another System . . . . . . . . . . . . . 54

References

„

Other Features and Caution . . . . . . . . . . . . . . . . . . . 55

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 56 - 57

MiniDisc System Limitations . . . . . . . . . . . . . . . . . . 58

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . 59 - 61

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Specificat ions. . . . . . . . . . . . . . . . . . . . . . . . . . . 62 - 63

TERMS OF GUARANTEE . . . . . . . . . . . . . .Back cover

Page

-Contents-

Important Introduction

01/8/30 1.fm

3

MD-MT888H

Important Introduction

Special Notes

-Special Notes-

Warnings

„

z

The supplied AC adaptor contains no user serviceable
parts. Never remove covers unless qualified to do so.
It contains dangerous voltages, always remove mains
plug from the main outlet socket before any service
operation or when not in use for a long period.

z

The AC adaptor supplied with the MD-MT888H must
not be used with other equipment.

z

To prevent fire or shock hazard, do not expose this
appliance to dripping or splashing liquids. No objects
filled with liquids, such as vases, shall be placed on
the apparatus.

z

Never use an AC adaptor other than the one specified.
Otherwise, problems or serious hazards may be cre­ated.

Caution

„

z

When recording important selections, make a prelimi­nary test to ensure that the desired material is prop­erly recorded.

z

SHARP is not liable for damage or loss of your record­ing arising from malfunction of this unit.

4

01/8/30 1.fm

z

At full volume, prolonged listening to a personal stereo
may damage the user's hearing. This model complies
with the law if used with the correct earphones (model
number RPHOH0004AWZZ). If the earphones are
damaged in any way, please order using the model
number given above.

z

This product is classified as a CLASS 1 LASER
PRODUCT.

z

Use the Portable MiniDisc Recorder only in accord­ance with the instructions given in this manual and do
not attempt to interfere with the interlock switch or
make any other adjustment as this may result in expo­sure to hazardous radiation.

Laser Diode Properties

z

Material: GaAIAs

z

Wavelength: 785 nm

z

Pulse time:
Read mode: 0.8 mW Continuous
Write mode: max 10 mW 0.5S
min cycle 1.5S
Repetition

Notes

„

z

Recording and playback of any material may require
consent, which SHARP is unable to give. Please refer
particularly to the provisions of the Copyright Act
1956, the Dramatic and Musical Performers Protection
Act 1958, the Performers Protection Acts 1963 and
1972 and to any subsequent statutory enactments
and orders.

z

This equipment complies with the requirements of
Directives 89/336/EEC and 73/23/EEC as amended
by 93/68/EEC.

z

US and foreign patents licensed from Dolby Laborato­ries.

z

The letters in brackets contained in the model number
indicate the colour of the product only. Operation and
specifications are unaffected.

MD-MT888H

-Special Notes-

Important Introduction

01/8/30 1.fm

5

MD-MT888H

Important Introduction

Precautions

Important

„

z

Do not wear your earphones when you are crossing
streets or near traffic.

z

Do not use your earphones whilst
driving a motor vehicle, it may cre­ate a traffic hazard and may be ille­gal. Remember to obey all of the
safety rules in your area.

z

Do not play the unit at a high volume. Hearing experts
advise against extended listening at high volume lev­els.

z

If you experience ringing in your ears, reduce the vol­ume or discontinue use.

z

No naked flame sources, such as lighted candles,
should be placed on the apparatus.

z

Attention should be drawn to the environmental
aspects of battery disposal.

-Precautions-

z

The apparatus is designed for use in moderate cli­mate.

z

This portable MD should only be used within the range
of 0°C - 40°C (32°F - 104°F).

To avoid accidental electric shock or other possible
problems, observe the precautions listed below.

z

Do not disassemble or modify the unit.

z

Do not drop or subject the unit to shock.

z

Do not use the unit near open flames.

z

Do not spill liquid on the unit.

z

Do not use an external power supply, other than the 2 V
DC supplied with this unit as it may be damaged.

z

SHARP is not responsible for damage due to improper
use. Refer all servicing to a SHARP authorised serv­ice centre.

Storing the unit

„

Avoid using or leaving the unit in the following
places.

z

Places exposed to direct sunlight for many hours
(especially in cars with the doors and windows closed)
or near heaters. (The cabinet may deform, change col­our or the unit may malfunction.)

z

Places exposed to excessive dust.

z

Places exposed to water.

z

Places where temperatures are excessively high or
low.

z

Places (bathrooms) where the humidity is extremely
high.

z

Places with strong magnetic fields such as TVs or
loudspeakers.

z

Places exposed to vibration.

z

Places where sand can easily enter the inside of the
unit (beaches etc.).

z

If the unit is used near radio tuners or TVs, noise and/
or picture interference may result. If you experience
these problems, move the unit away from such
devices.

z

It is not recommendable to put the
MiniDisc into a rear pocket, as this
may damage the product when sit­ting.

6

01/8/30 1.fm

Names of Controls and Indicators

Main unit

„

1.S ynchronised Recording Button . . . . . . . . . . .(28)

2.Mode Button . . . . . . . . . . . . . . . . . . . . . . (19, 26, 29)

3.Volume Buttons . . . . . . . . . . . . . . . . . . . . . . . . . (24)

7

4.Record Button . . . . . . . . . . . . . . . . . . . . . . . (19, 31)

5.P lay/Pause/Stop/Power Off/Hold/Fast Forward/

Fast Reverse Button . . . . .(19 - 21, 23 - 25, 40, 51)

6.Rechargeable Battery Cover . . . . . . . . . . . . . . .(10)

7.2 V DC Input Socket. . . . . . . . . . . . . . . . . . . . . . (12)

8.Optical/Line Inp ut Socket . . . . . . . . . . . . . . (14, 15)

9.Microphone Input S ocke t . . . . . . . . . . . . . . . . .(34)

10.Rem ote Control/Earphones/

Line Output Socket . . . . . . . . . . . . . . . . . . .(18, 22)

11.Open Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . .(13)

12.3-Colour Indicators . . . . . . . . . . . . . . . . . . . (23, 53)

13.Bat tery Indicator

14.Disc Mode Indicator

15.Synchro Recording Indicator

16.Record Indicator

17.TOC Indicator

18.Group Indicator

19.Repeat Indicator

20.Random Indicator

21.Level Meter

22.Recording Mode Indicators

23.Track Number Indicator

6

13

1

8

9

10

15 16 17 18

14

2

3

4

12

11

212022 23

5

19

Reference page

MD-MT888H

Important Introduction

-Names of Controls and Indicators-

01/8/30 1.fm

7

MD-MT888H

Important Introduction

Names of Controls and Indicators (continued)

Remote control unit

„

2

3

1

8

910

12
13

14

-Names of Controls and Indicators-

4

5

11

1918 20

15
16
17

6

1.Earphones Socket . . . . . . . . . . . . . . . . . . . . . . (22)

2.Record Button . . . . . . . . . . . . . . . . . . . . . . . (19, 31)

3.Volume Buttons. . . . . . . . . . . . . . . . . . . . . . . . . (24)

4. Mode/Display Button. . . . . . . . . . . . . . . (19, 26, 38)

5.Group/Clear Button . . . . . . . . . . . . . . . . . . . (16, 21)

7

6.Menu Button. . . . . . . . . . . . (19 - 21, 23 - 25, 27, 40)

7.Hold Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . (51)

8.Disc Mode Indicator

9.Group Name Indicator

10.Disc Name Indicator

11.Group In dicator

12.Total Track Number Indicator

13.Synchro Recording Indicator

14.Record Indicator

15.Random Indicator

16.Repeat Indicator

17.Recording Mode Indicators

18.Track Number Indicator

19.Character/Time Information Indicator

20.Battery Indicator

Reference page

8

01/8/30 1.fm

MD-MT888H

Menu button operation

Various operations are performed by moving the M but­ton on the remote control all around or pressing it.

If you move the M button toward ...

Playback, pause, selecting a character

If you move the M button toward ...

Fast reverse, selecting a track, menu, and setting

item, moving cursor, adjusting recording level, select­ing a character

If you move the M button toward ...

Fast forward, selecting a track, menu, and setting

item, moving cursor, adjusting recording level, select­ing a character

If you move the M button toward ...

Stop, power off

If you press the M button...

Displaying a menu, determining a menu, setting item,

and character

Menu display

When the unit enters the menu mode, the initial letter of
each menu will be displayed in the first line and the con­tents of the selected menu in the second line.

Note:
Display of the initial letter of the menu depends on
the used conditions.

(Whilst stopped, playback, paused, digital-recording,
analogue-recording, microphone recording, or when a
group-recorded MD or non-group MD is loaded)

Important Introduction

-Names of Controls and Indicators-

01/8/30 1.fm

9

MD-MT888H

Preparation

Using with the Rechargeable Battery

„ Charging

When the rechargeable battery is used for the first time
or when you want to use it after a long period of disuse,
be sure to charge it fully.

1

Insert the rechargeable battery.

2

Connect the AC adaptor.

3

Place the unit on the battery charger.

z

When the portable MD is turned on or operating, the
battery will not be charged.

z

No operation can be performed whilst charging. If you
try to operate, "CH" will appear.

z

After the rechargeable battery is charged or used, it
will get slightly warm. This is normal.

Caution:

z

Use the specified battery AD-N55BT only. Do not
charge a battery (nickel-cadmium, alkaline, etc.) other
than that specified.

z

Do not remove the outer cover of the re­chargeable battery. It may cause heat gen­eration, fire, or explosion.

z

-Using with the Rechargeable Battery-

Do not dip the battery in water, do not dis­pose of it in a fire, and do not take it apart.

z

If the rechargeable battery terminal is dirty, charging
may not start. In such a case, wipe off the dirt w ith a
dry cloth.

z

Do not disassemble the battery.

10

01/8/30 2.fm

MD-MT888H

„ Display of remaining amount of battery

When the unit is set on the charger, the remaining
amount of battery is displayed.

Display Conditions

Charging.

Scroll

Charging completed.

When the unit is not set correctly
on the charger, the rechargeable

Turned off

Flashing

terminal is dirty, or foreign mate­rial adheres to it, charging may
not be possible. (Wipe the termi­nal with dry cotton swab.)

Refreshing.

The unit reads the memory effect
of the rechargeable battery and
discharge the battery if neces­sary. After refreshing, it starts
charging automatically.

„ Charging time

Charging is completed in about 3 hours, and the dis­play of remaining amount of battery will go out.

90 % of charging is completed. If you leave it for another
2 hours, the battery will be fully charged.

z

Charge the battery within the range of 5°C - 35°C
(41°F - 95°F).

z

The unit can be left in the charging state after it is
completed.

Refresh

If you charge the battery before it runs out completely, the
operating time may be shortened. To avoid this, the bat­tery is discharged automatically and refreshed.

Preparation

-Using with the Rechargeable Battery-

01/8/30 2.fm

11

MD-MT888H

Preparation

Using with the AC Adaptor

-Using with the AC Adaptor-

1

Take out the lead from the charger.

2

Connect the lead to the main unit (at DC IN
2 V socket).

3

Connect the AC adaptor.

Caution:

z

If the AC adaptor is not used for a long period of time,
be sure to remove the plug from the socket for safety.

z

Insert each plug fully.

Note:

When the power failure occurs whilst playing back music
using the AC adaptor, unplug the unit. If it is left plugged
in, playback may start automatically after the power is
restored.

12

01/8/30 2.fm

Using with the Alkaline Battery

MD-MT888H

2

1

Back of the
portable MD

Inserting a MiniDisc

Use one commercially availabl e alkaline battery (LR6, AA
size).

When using the alkaline battery, be sure to inser t the
rechargeable battery also.

1

Open the battery case cover.

2

Insert an alkaline battery into the battery
case.

3

Attach the battery case to the unit.

Caution:

Do not put a rechargeable battery (nickel-cadmium bat­tery, etc.) in the battery case.

1

Slide the OPEN lever to release the com­partment door.

2

Insert a MiniDisc as shown.

3

Close the compartment door.

Notes:

z

Do not place the MiniDisc under the holder.

z

If any resistance is felt, do not force the MiniDisc into
the unit, as it may cause damage to the unit. If resist­ance is felt, remove the MiniDisc and reload it.

z

The lid cannot be opened if "TOC" is displayed; refer
to the instruction on page 21.

Preparation

-Using with the Alkaline Battery/Inserting a MiniDisc-

01/8/30 2.fm

13

MD-MT888H

-Connections-

Preparation

Connections

You can record your favourite CDs or tapes to MD.

14

01/8/30 2.fm

MD-MT888H

-Connections-

Preparation

01/8/30 2.fm

15

MD-MT888H

Long Time Recording and Group Recording

„ Long time recording

Since this MD portable recorder adopts the 4 times long
recording mode, you can record many tracks on one MD
(supporting MDLP).
Up to 320 minutes of recording is possible on one MD (of
80 minutes).

„ Group recording

You can record tracks by the group of artists or albums,
etc. That MD can be played by selecting the group.

Basic Operation

-Long Time Recording and Group Recording-

When the group mode is selected for recording, tracks
are played by the group, starting with the first track of the
group.

When the group mode is cancelled, tracks will be num­bered sequentially from the beginning.

Setting the group mode

1. Hold down the REC button on the remote control
for 2 seconds or more.

Recording is paused.

2. Hold down the GROUP button on the remote con­trol for 1 second or more so that "GROUP" lights
up.

To cancel the group mode

Hold down the GROUP but ton on the remote control for 1
second or more so that "GROUP" goes out.

Caution:
The group-recorded MD may not be properly
recorded or edited with other equipment.

16

01/8/30 3.fm

Group Playback

MD-MT888H

Using a group-recorded MD, you can play back tracks by
the desired group (albums, artists, etc.).

„ Playback of group-recorded MD

Example of group recording:

Depending on the selection of the group mode, play­back of a group-recorded MD changes as follows.

When the group mode is selected

("GROUP" lights up)
Tracks are play ed b y the gr oup , starting with the first trac k
of the group.
You can select a group to play back.

When the group mode is cancelled

("GROUP" goes out)
Tracks are numbered in the order they are recorded.

Setting the group mode

Inserting a group-recorded MD automatically sets
the unit to the group mode.

(The first group is displayed.)

If you eject the MD, the group mode is cancelled.

To cancel the group mode

Whilst in the stop mode, hold down the GROUP button
for 1 second or more so that "GROUP" goes out.

Note:

If a group-recorded MD is played back with the equip­ment that does not support the group function, the disc
name will not be displayed correctly and the group name
will not be displayed at all. (Example) 0;BEST//1- 10;

-Group Playback-

Basic Operation

01/8/30 3.fm

17

MD-MT888H

Basic Operation

Recording

-Recording-

18

01/8/30 3.fm

MD-MT888H

1

Plug the remote control into the REMOTE
socket on the unit.

2

Hold down the REC button for 2 seconds or
more.

You can perform the same operation by simply press­ing the REC button on the main unit.

3

To perform group record­ing, hold down the

GROUP button for 1 sec­ond or more so that
"GROUP" is lit.

The unit is ready to record a new gro up. (To select

z

a group, refer to page 21.)
When group recording is not performed, hold down

z

the GROUP button for 1 sec ond or more so that
"GROUP" goes out.

Setting for the group recording will not be changed

z

until a new setting is entered.

4

Begin playback on the stereo system con­nected to this portab le MD.

5

Move the M button toward or to adjust
the recording lev el (page 20).

You can perform the same operation by holding down
the or button on the main unit.

6

Press the PAUSE butt on on the stereo sys­tem to enter the playback pause m ode.

Here you can search for the track to rec ord.

7

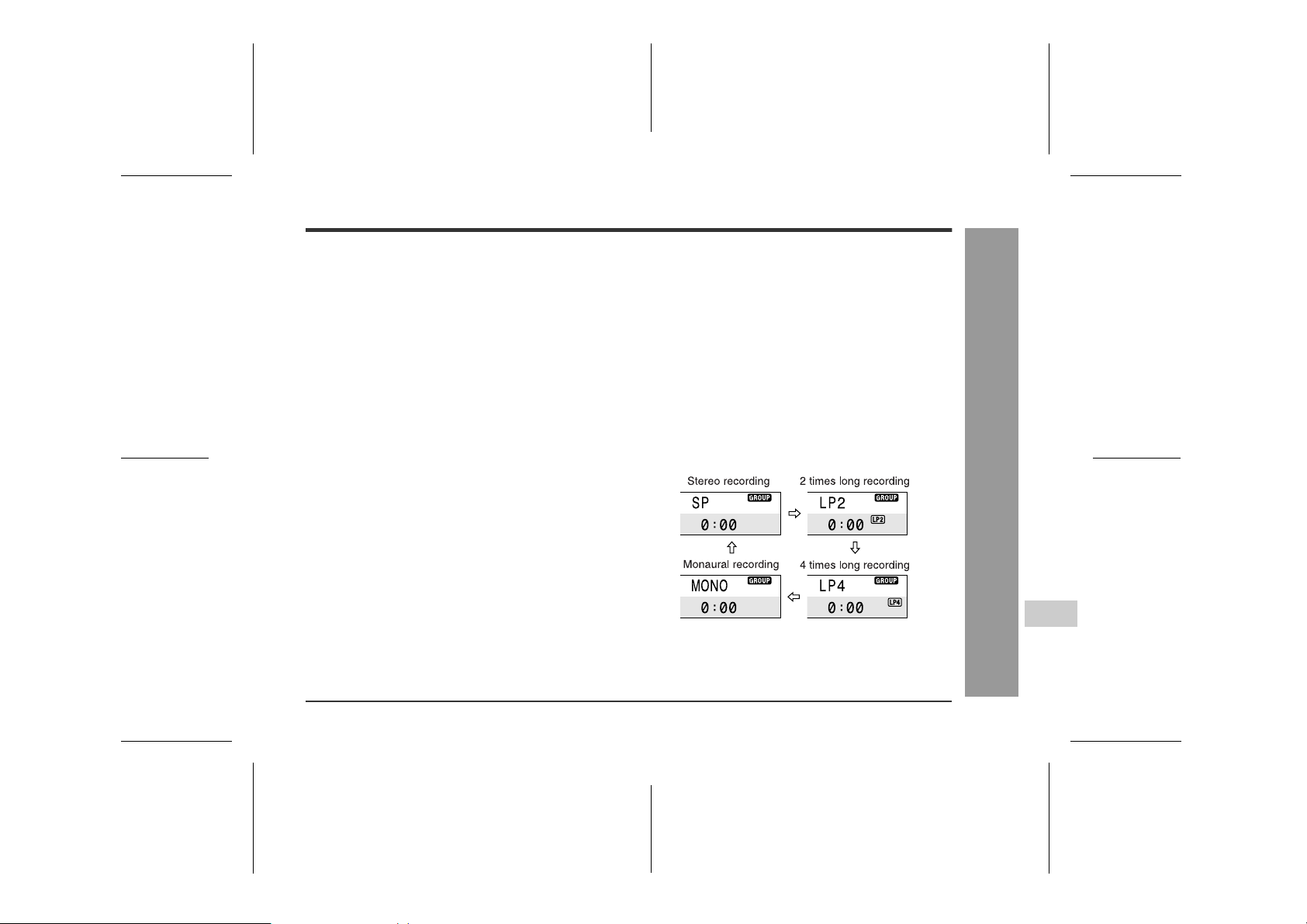

Press the MODE button repeatedly to select
the recording mode (page 30).

You can perform the same operati on by pressing the
MODE button on the main unit.

8

Move the M button toward .

You can perform the same operati on by pressing the

button on the main unit.

9

Begin playback on the stereo system, the
output will be recorded.

Notes:

z

Changing the volume level whilst recording does not
affect the recording.

z

You cannot adjust the bass level whilst recording.

z

After the group recording is performed, non-group
tracks will be moved behind the gr oups and trac k num­bers will be changed.

-Recording-

Basic Operation

19

01/8/30 3.fm

MD-MT888H

Recording (continued)

To interrupt recording

Move the M button toward .

z

Recording starts by moving the M button toward
again.

z

You can perform the same operation by pressing the

button on the main unit.

z

The track number will be increased by one each time
the recording is interrupted.

To stop recording

Move the M button toward .

z

You can perform the same operation by pressing the
button on the main unit.

z

When recording stops, "TOC" appears. Whilst "TOC"
appears, the MiniDisc recorded contents have not yet
been updated.

z

To prevent the new recording from being lost, it is not
possible to remove the MiniDisc whilst "TOC" is dis-

-Recording-

played.

To update the recorded contents of the

Basic Operation

MiniDisc

Whilst in the stop mode, move the M button toward .
You can perform the same operation by pressing the
button on the main unit.

z

The power turns off after recorded contents have been
updated on the MiniDisc.

„ Recording level

Analogue recording

Adjust the recording level so that the maximum sound
volume from the source makes the reading swing some­where between -4 dB and 0 dB.
You can check the level on the LCD of the main unit.

Digital recording

You can adjust the level in 1dB increments within the
range of +12 - -12dB.
You can check the level on the LCD of the remote control.

Once you adjust the digital recording level, the setting is
retained even after the recording stops. (For cancellation
instructions, see page 52.)

20

01/8/30 3.fm
