Sharp MD-MT877W Operation Manual

PORTABLE MINIDISC RECORDER

MODEL

MD-MT877W

OPERATION MANUAL

Thank you for purchasing this SHARP product. For the best performance, read this manual carefully . It will guide you in operating your SHARP product.

Accessories

Remote Control x 1 Earphones x 1 AC Adaptor x 1

Rechargeable

Nickel-Metal Hydride Battery (AD-N55BT) x 1

Battery Charger x 1

Battery Carrying

Case x 1

Notes:

● Parts and equipment mentioned in this operation manual

other than those detailed above are not included.

● The AC adaptor may be different from the one in the

drawing.

Connection Cable Connection Cable

(for analogue (for digital Carrying Bag x 1 Battery Case x 1

recording) x 1 recording) x 1

Contents

Important Introduction

Special Notes................................................ 4-5

Precautions.......................................................6

Names of Controls and Indicators .............. 7-9

Battery Charger .........................................10-11

Power Source

Using with the Rechargeable Battery..... 12-13

Using with the AC Adaptor ............................14

Using with the Alkaline Battery.....................15

Preparation

Hold Function .................................................16

Inserting a MiniDisc .......................................17

Connections.............................................. 18-19

Basic Operation

Recording.................................................. 20-23

Playback.................................................... 24-26

Useful Features

Advanced Playback.................................. 27-29

Advanced Recording ............................... 30-35

Recording from a Microphone ................ 36-38

Checking Displays ................................... 39-40

Changing Default Settings ...................... 41-42

Advanced Features

Titling a MiniDisc...................................... 43-47

Editing a Recorded MiniDisc................... 48-50

Listening to a MiniDisc Through a Stereo

System or a Car Stereo ................................ 51

References

Other Features and Caution ..........................52

MiniDisc System Limitations.........................53

Error Messages ........................................ 54-55

Troubleshooting ....................................... 56-57

Maintenance....................................................57

Specifications ........................................... 58-59

Special Notes

Warnings

● The supplied AC adaptor contains no user serviceable

parts. Never remove covers unless qualified to do so. It contains dangerous voltages, always remove mains plug from the main outlet socket before any service operation or when not in use for a long period.

● The AC adaptor supplied with the MD-MT877W must

not be used with other equipment.

● To prevent fire or shock hazard, do not expose this ap-

pliance to dripping or splashing liquids. No objects filled with liquids, such as vases, shall be

placed on the apparatus.

● The letters in brackets contained in the model number

indicate the colour of the product only. Operation and

– Special Notes –

specifications are unaffected.

Caution

Important Introduction

● SHARP is not liable for damage or loss of your record-

ing arising from malfunction of this unit.

● When recording important selections, be sure to make a

preliminary test to ensure that the desired material is being properly recorded.

● This Portable MiniDisc Recorder is classified as a CLASS

1 LASER product.

● The CLASS 1 LASER PRODUCT label is located on the

bottom.

● Use the Portable MiniDisc Recorder only in accordance

with the instructions given in this manual and do not attempt to interfere with the interlock switch or make any other adjustment as this may result in exposure to hazardous radiation.

Special Notes (continued)

Laser Diode Properties

● Material: GaAIAs

● Wavelength: 785 nm

● Pulse time:

Read mode; 0.8 mW Continuous Write mode; max. 10 mW 0.5S

min. cycle 1.5S

Repetition

Notes

US and foreign patents licensed from Dolby Laboratories.

Note for users in Australia

Copyright may exist in material you wish to record. Copying or broadcasting such material without permission of the relevant licensees or owners of the copyright is prohibited by law. SHARP is not in a position to authorise the copying or broadcasting of copyright materials and nothing in this OPERATION MANUAL should be implied as giving that authority.

For other countries

Audio-visual material may consist of copyrighted works which must not be recorded without the authority of the owner of the copyright. Please refer to the relevant laws in your country.

DEUTSCH

FRANÇAIS

ESPAÑOL

– Special Notes –

SVENSKA

ITALIANO

NEDERLANDS

ENGLISH

Important Introduction

Precautions

Important

● Do not wear your earphones when you are crossing

streets or near traffic.

● Do not use your earphones whilst

driving a motor vehicle, it may create a traffic hazard and may be illegal.

Remember to obey all of the safety rules in your area.

● Do not play the unit at a high volume.

Hearing experts advise against extended listening at high volume levels.

● If you experience ringing in your ears, reduce the vol-

ume or discontinue use.

● No naked flame sources, such as lighted candles, should

be placed on the apparatus.

● Attention should be drawn to the environmental aspects

of battery disposal.

● This portable MD should only be used within the range

– Precautions –

of 0°C - 40°C (32°F - 104°F).

To avoid accidental electric shock or other possible problems, observe the precautions listed below.

● Do not disassemble or modify the unit.

Important Introduction

● Do not drop or subject the unit to shock.

● Do not use the unit near open flames.

● Do not spill liquid on the unit.

● Do not use an external power supply , other than the 5V

DC supplied with this unit, as it may damage it.

●

SHARP is not responsible for damage due to improper use. Refer all servicing to a SHARP authorised service centre.

Storing the unit

Avoid using or leaving the unit in the following places.

● Places exposed to direct sunlight

for many hours (especially in cars with the doors and windows closed) or near heaters.

(The cabinet may deform, change colour or the unit may malfunction.)

● Places exposed to excessive dust.

● Places exposed to water.

● Places where temperatures are ex-

cessively high or low.

● Places (bathrooms) where the hu-

midity is extremely high.

● Places with strong magnetic fields

such as TVs or loudspeakers.

● Places exposed to vibration.

● Places where sand can easily en-

ter the inside of the unit (beaches etc.).

● If the unit is used near radio tuners

or TVs, noise and/or picture interference may result. If you experience these problems, move the unit away from such devices.

● It is not recommendable to put the

MiniDisc into a rear pocket, as this may damage the product when sitting.

Names of Controls and Indicators

Main unit

1. Record/Track Mark Button (20, 34)

2. Mode Button (20, 29, 32, 41)

3. Volume/Cursor/Fast Forward/Fast Reverse/ Recording Level/Name Select Button

(20, 26, 27, 30, 41-45)

4. Stop/Power Off/Hold Button (16, 22, 25, 41)

5. Open Lever (17)

6. Display/Character Select Button (39, 40, 43)

7. Edit/Auto Mark/Time Mark Button (34, 38, 43-50)

8. Play/Pause Button (20, 24)

9. Enter/Fast Play/Synchro Button (29, 43-50)

10. Bass/Delete Button (26, 44)

11. Rechargeable Battery Cover (12)

12. Handstrap Holder

13. Optical/Line Input Socket (18, 19)

14. Microphone Input Socket (36)

15.

Remote Control/Earphones/Line Output Socket (24)

DEUTSCH

FRANÇAIS

ESPAÑOL

SVENSKA

ITALIANO

NEDERLANDS

Important Introduction

– Names of Controls and Indicators –

ENGLISH

Names of Controls and Indicators (continued)

Main unit display panel

1 2 3 4 5 6

Yellow-

Important Introduction

– Names of Controls and Indicators –

green

Blue

Orange

7 8 9 10 11 12

01. Level Meter

02. Record Indicator

03. Synchro Recording Indicator

04. Operation Indicator

05. Long-play/Recording Mode Indicator

6. Character/Time Information Indicator

7. Repeat Indicator

8. Battery Indicator

9. Random Indicator

10. Track Number Indicator

11. TOC Indicator

12. Disc Name Indicator

3-colour LED

Various modes are indicated with three colours of lights.

Charging Light Refresh Extinguishing starting with orange light

Playback Flashing the colour of the activated Recording Flashing the colour of the activated re-

Fast Forward Fast Reverse Flashing starting with orange light. Volume (+) Lighting starting with yellow-green light. Volume (–) Extinguishing instantly starting with or-

TOC Reading: flashing at random.

ing starting with yellow-green light. after all the lights are lit. playback mode. cording mode.

Flashing starting with yellow-green light.

ange light after all the lights are lit.

Names of Controls and Indicators (continued)

Remote control unit

2345

1. Earphones Socket (24)

2. Fast Forward/Fast Reverse Button

3. Display Button

4. Play Mode Button (29)

5. Sound/Track Mark Button (26, 34)

6. Stop/Power Off Button (22, 25)

7. Play/Pause Button

8. Volume Button

9. Hold Switch (16)

DEUTSCH

FRANÇAIS

123

Remote control display panel

01. Record Indicator

02. Track Number Indicator

03. Operation Indicator

04. Character/Time Information Indicator

05. Battery Indicator

06. Random Indicator

07. Synchro Recording Indicator

08. Total Track Number Indicator

09. Long-play/Recording Mode Indicator

10. Repeat Indicator

ESPAÑOL

SVENSKA

ITALIANO

NEDERLANDS

ENGLISH

Important Introduction

– Names of Controls and Indicators –

Battery Charger

There are two different ways to use the battery charger one is to use it as a normal battery charger, the other is to use it with an AC adaptor by attaching the portable MD to the battery charger.

Names Setting

CHARGE

OPERATION

– Battery Charger –

Important Introduction

1. Remote Control Holder (11)

(You can hang the remote control on it.)

2. Lock Detector

3. Hook For Fixing The Main Unit

4. Charge/Operation Switch (11)

5. Stand

6. AC Adaptor Connecting Socket (18, 19)

CHARGE

OPERATION

Charge mode

Face the top toward you.

4 5 6

Caution:

● Before setting the portable MD to the battery charger, make

sure the battery charger is in charge mode (CHARGE). If you insert the portable MD by force whilst in operation mode (OPERATION), the hook for fixing the portable MD may break.

● Operating whilst in charge mode, “CHARGEmode” will appear

and no operation is possible.

Battery Charger (continued)

How to use the Charge / Operation switch

Charge mode (RELEASE)

Operation mode (LOCK)

For charging

Move it to charge mode (see “Using with the Rechargeable Battery” page 12).

For operations

Move it to operation mode when playing back or recording (see “Using with the AC Adaptor” page 14).

Removing

Charge mode (RELEASE)

Move the Charge / Operation switch to charge mode.

Setting the battery charger and hanging the remote control.

When the remote control is not used, hang it on the holder for your convenience.

For use with the AC adaptor.

When using the unit with AC adaptor, use it horizontally. Do not stand the unit.

DEUTSCH

FRANÇAIS

ESPAÑOL

SVENSKA

ITALIANO

NEDERLANDS

ENGLISH

– Battery Charger –

Important Introduction

Using with the Rechargeable Battery

Charging

Do not force the battery cover open too far.

AC 110-240V 50/60Hz

Power Source

Charge mode

– Using with the Rechargeable Battery –

To the DC IN 5V socket

When the rechargeable battery is used for the first time or when you want to use it after a long period of disuse, be sure to charge it fully.

1 Insert the rechargeable battery. 2 Move the Charge/Operation switch to charge

mode.

3 Place the portable MD into the battery charger

and connect the AC adaptor.

● After the rechargeable battery is charged or used, it will get

slightly warm. This is normal.

● When the portable MD is turned on or operating, the battery

will not be charged.

Using with the Rechargeable Battery (continued)

About the liquid crystal display (LCD)

The condition of the portable MD will be shown on the LCD when inserting it into the battery charger.

Display Conditions

Charging.

Scrolling

The charging is complete.

When the portable MD is not inserted correctly to the battery charger, or

Turns off

Rechargeable terminal is dirty, it may not be possible to charge the battery. (Wipe the terminal by cotton swab.)

Refreshing.

The unit checks and, if necessary, discharge the rechargeable battery to recharge it automatically. (At this time battery indicator is flashing.)

About charging time

After about 3.5 hours have passed, “ ” will go out. The battery is charged up to 95% if it is completely discharged.

Notes:

● Charge the battery within the range of 5°C - 35°C (41°F

- 95°F).

● The unit can be left in the charging state after it is com-

pleted.

● If the MiniDisc unit is not to be used for some time,

remove the battery. (The battery drains gradually even when the power is turned off.)

● Carry the battery in the supplied case.

Caution:

● Use the specified battery AD-N55BT only. Do not charge

a battery (nickel-cadmium, alkaline, etc.) other than that specified.

● Do not remove the outer cover of the re-

chargeable battery. It may cause heat generation, fire, or explosion.

● Do not dip the battery in water, do not dis-

pose of it in a fire, and do not take it apart.

● If the rechargeable battery terminal is dirty, charging may

not start. In such a case, wipe off the dirt with a dry cloth.

● Do not disassemble the battery.

DEUTSCH

FRANÇAIS

ESPAÑOL

SVENSKA

ITALIANO

NEDERLANDS

ENGLISH

Power Source

– Using with the Rechargeable Battery –

Using with the AC Adaptor

Operation mode

To the DC IN 5V socket

Power Source

– Using with the AC Adaptor –

AC 110-240V 50/60Hz

1 Place the portable MD to the battery

charger.

2 Move the Charge/Operation switch to

operation mode.

3 Plug the AC adaptor.

Caution:

● If the Charge/Operation switch is not set to operation mode, no operation is possible.

(See “How to use the Charge/Operation switch”, page 1 1)

● When the unit is not in use for extended periods, remove the AC adaptor from the wall socket.

● Insert the plugs firmly.

Note:

When power failure occurs whilst playing back using the AC adaptor, disconnect the adaptor from the wall socket. Otherwise, playback may start automatically when the power returns.

Using with the Alkaline Battery

Use one commercially available alkaline battery (LR6, “AA” size).

Open

When using the alkaline batteries, make sure the rechargeable battery is inserted.

Press

Back of the portable MD

RELEASE LOCK

1 Open the case cover. 2 Insert a alkaline battery into the battery

case.

3 Attach the battery case to the portable MD.

Caution:

Do not use rechargeable batteries (nickel-cadmium battery etc.) in the battery case.

DEUTSCH

FRANÇAIS

ESPAÑOL

SVENSKA

ITALIANO

NEDERLANDS

ENGLISH

Power Source

– Using with the Alkaline Battery –

Hold Function

The present operation condition can be kept even if other buttons are accidentally pressed in a place such as a crowded train.

Main unit

Remote control unit

Press the • ■ / –HOLD button for 2 seconds or more.

Hold Release

– Hold Function –

Preparation

If the battery is inserted or the AC adaptor is connected, you can set this function even when the power is turned off.

To cancel the hold mode

Press and hold down for 2 seconds or more whilst the unit is in the hold mode.

● “HOLD OFF” will be shown

Move the HOLD switch to the safety position (direction indicated by the arrow).

Orange mark

Hold

To cancel the hold mode:

Move the HOLD switch away from the safety position (the opposite direction of the arrow).

If the hold function is active whilst the power is turned off, the power cannot be turned on by mistake and the battery will not be drained.

Inserting a MiniDisc

1 Slide the OPEN lever to release the com-

partment door.

2 Lift it up. 3 Insert a MiniDisc as shown. 4 Close the compartment door.

Recordable Recording

prevented

When you record on a MiniDisc, check that the erase prevention tab is set to the “recordable” position.

Notes:

● Do not place the MiniDisc under the holder.

Preparation

– Inserting a MiniDisc –

● If any resistance is felt, do not force the MiniDisc into the

unit, as it may cause damage to the unit. If resistance is felt, remove the MiniDisc and reload it.

● The lid cannot be opened if “TOC” is displayed refer to

the instruction on page 22.

Connections

You can record your favorite CDs or tapes to an MD.

To connect to a stereo system with “LINE OUT” or “AUDIO OUT” sockets

To the

– Connections –

DC IN 5V

Preparation

socket

Red : To Right

White : To Left

T o the OPTICAL/ LINE IN socket

AC 1 10-240V 50/60Hz

LINE OUT

RIGHT LEFT

To the wall socket

To a stereo system with “LINE OUT” or “AUDIO OUT” sockets. (See left, Analogue connection.) Note:

If the audio system has only one pair of sockets, they are usually for input only and recording via this connection is not possible.

Connections (continued)

To connect to a stereo system with a “DIGITAL OUT” or “OPTICAL OUT” socket

To the OPTICAL/ LINE IN socket

To the DC IN 5V socket

– Connections –

Preparation

AC 1 10-240V 50/60Hz

DIGITAL OUT

T o the wall socket

To a stereo system with a “DIGITAL OUT” socket. (See left, Digital connection.) Compared to analogue connection recording, it allows high-quality recording.

Note:

Some audio systems do not have a DIGITAL OUT socket. Check before connecting.

Recording

– Recording –

Basic Operation

Before Recording

Cancel the hold mode. The portable MD does not work whilst in hold mode.

As for the details, see page 16.

Recording (continued)

1 Press the REC button.

Record pause mode is entered.

2 Begin playback on the stereo system con-

nected to this portable MD.

To enable the record level to be set.

3 Press the

recording level. Analogue recording

Adjust the recording level so that the maximum sound volume from the source makes the reading swing somewhere between –4 dB and 0 dB.

Digital recording

You can adjust the level in 1 dB increments within the range of +12 - –12dB.

Once you adjust the digital recording level, the setting remains even after the recording stops. (For cancellation instructions, see page 41.)

button to adjust the

Level meter indicator

0dB 4dB

+12 - –12dB

4 Press the PAUSE button on the stereo sys-

tem to enter the playback pause mode at the point you wish to start recording.

Here you can select the track to be recorded.

5 Press the MODE button repeatedly to se-

lect recording mode (page 32).

(Stereo recoding) (

2 times long recording)

(

4 times long recording)

(

Monaural recording)

6 Press the

unit recording.

0606

06 button to start the MiniDisc

0606

7 Begin playback on the stereo system, the

output will be recorded.

Notes:

● When recording, it is recommended to use the AC adap-

tor and also install the charged battery. Should the power failure occur, the power source would be automatically switched to the rechargeable battery.

● Changing the volume level whilst recording does not af-

fect the recording.

● You cannot adjust the bass level whilst recording.

– Recording –

Basic Operation

Recording (continued)

To interrupt recording

Press the 06 button.

● To resume recording, press the 06 button again.

● The track number will be increased by one each time

the recording is interrupted.

To stop recording

Press the • ■ / :OFF button.

● When recording stops, “TOC” appears (T able Of Con-

tents). Whilst “TOC” appears the MiniDisc recorded contents have not yet been updated.

● To prevent the new recording from being lost it is not

possible to remove the MiniDisc whilst “TOC” is displayed.

– Recording –

Basic Operation

T o update the recorded contents of the MiniDisc

Press the • ■ / :OFF button whilst in the stop mode.

● The power turns off after recorded contents have been

updated on the MiniDisc.

TOC display

About the TOC

After any recording or editing function “TOC” (Table Of Contents) is displayed. To finalise the recording or editing function, press the • ■ / :OFF button. During this process “TOC” will flash and “TOC EDIT!” will be displayed. During any recording or editing function the MiniDisc unit lid is locked, the MiniDisc cannot be removed until the process is finalised.

Warning:

If the power is removed (Battery/AC adaptor) whilst “TOC” is displayed the MiniDisc unit lid will remain locked until the battery/main power is restored and the unit is turned on. Y our new recordings or edited changes will be lost and your MiniDisc may become unusable.

Caution:

Whilst “TOC” or “TOC EDIT!” is displayed, follow the instructions below.

– Do not jerk or bump the unit. – Do not unplug the AC adaptor. – Do not remove the rechargeable battery or an alkaline

battery. – Do not subject the unit to shock. Otherwise, tracks may not be recorded properly.

Recording (continued)

To prevent recorded MiniDiscs from being erased accidentally

Slide the accidental erase prevention tab, located on the side of the MiniDisc, in the direction indicated by the arrow.

The MiniDisc will then be protected against accidental erasure.

Recording preventedRecordable

To add a recording to such a MiniDisc, slide the accidental erase prevention tab back to its original position.

Helpful tip when attaching a label

When attaching a label to an MiniDisc cartridge, be sure to note the following. If the label is not attached properly, the MiniDisc may jam inside the unit and it may not be possible to remove it.

● If the label peels off or partially lifts

away, replace it with a new one.

● Do not put a new label on top of an

existing one.

● Attach the label only in the specified

location.

About sampling rate converter

This portable MD incorporates a sampling rate converter meaning it can record from digital radios or DAT tape recorders.

Note for digital recording

You can not copy a MiniDisc that you recorded from digital inputs to another MiniDisc or DAT. It is prevented by the SCMS (Serial Copy Management System). Recording from analogue inputs is not affected.

Digital signals

CD player, MiniDisc player, etc.

Digitally recorded MiniDisc

Digital connection

Cannot record

Digital connection

– Recording –

Basic Operation

Playback

Before Playing back

Cancel the hold mode.

The portable MD does not work whilst in hold mode.

Main unit

Remote control unit

Release

As for the details, see page 16.

– Playback –

Basic Operation

To the socket

Right channel

Left channel

Playback (continued)

1 Insert the earphones plug firmly into the

earphones socket on the remote control unit.

2 Plug the remote control into the socket

on the unit.

3 Insert a MiniDisc (page 17). 4 Press the

Playback starts automatically with a playback only MiniDisc or a MiniDisc which is protected against accidental erasure (Auto-play function).

06 06

06 button.

06 06

To interrupt playback

Press the 06 button.

● To resume playback, press the 06 button again.

To stop playback

Press the • ■ / :OFF button.

●

If the unit is not operated for at least 2 minutes whilst in the stop mode, the power will shut off automatically.

To turn off the power

Press the • ■ / :OFF button whilst in the stop mode.

– Playback –

Basic Operation

Playback (continued)

Volume control

Press the VOL+ button to increase the volume and the press the VOL– button to decrease the volume.

Main unit

Remote control unit

Volume (0 - 30)

Bass control

Each time the BASS button is pressed (Remote control: the SOUND button is pressed), the tone will be

– Playback –

switched as follows.

Basic Operation

BASS 1 Emphasised slightly BASS 2 Emphasised more BASS 3 Emphasised fully BASS OFF Cancelled

Notes:

●

If power failure occurs whilst playing a disc using the AC

adaptor, disconnect it from the wall socket. Otherwise, play-

back may start automatically when electricity resumes.

● If you connect the AC adaptor without installing the re-

chargeable battery, playback may start automatically.

Be sure to turn off the power.

●

Reduce the volume before starting to play . MiniDiscs, com-

pared to ordinary cassette tapes, have very little noise.

If the volume is adjusted according to your usual expec-

tations of noise, high volume may damage your hearing.

● The sound escaping from your earphones may annoy

people around you.

In particularly crowded places (such as on trains or

buses), reduce the volume.

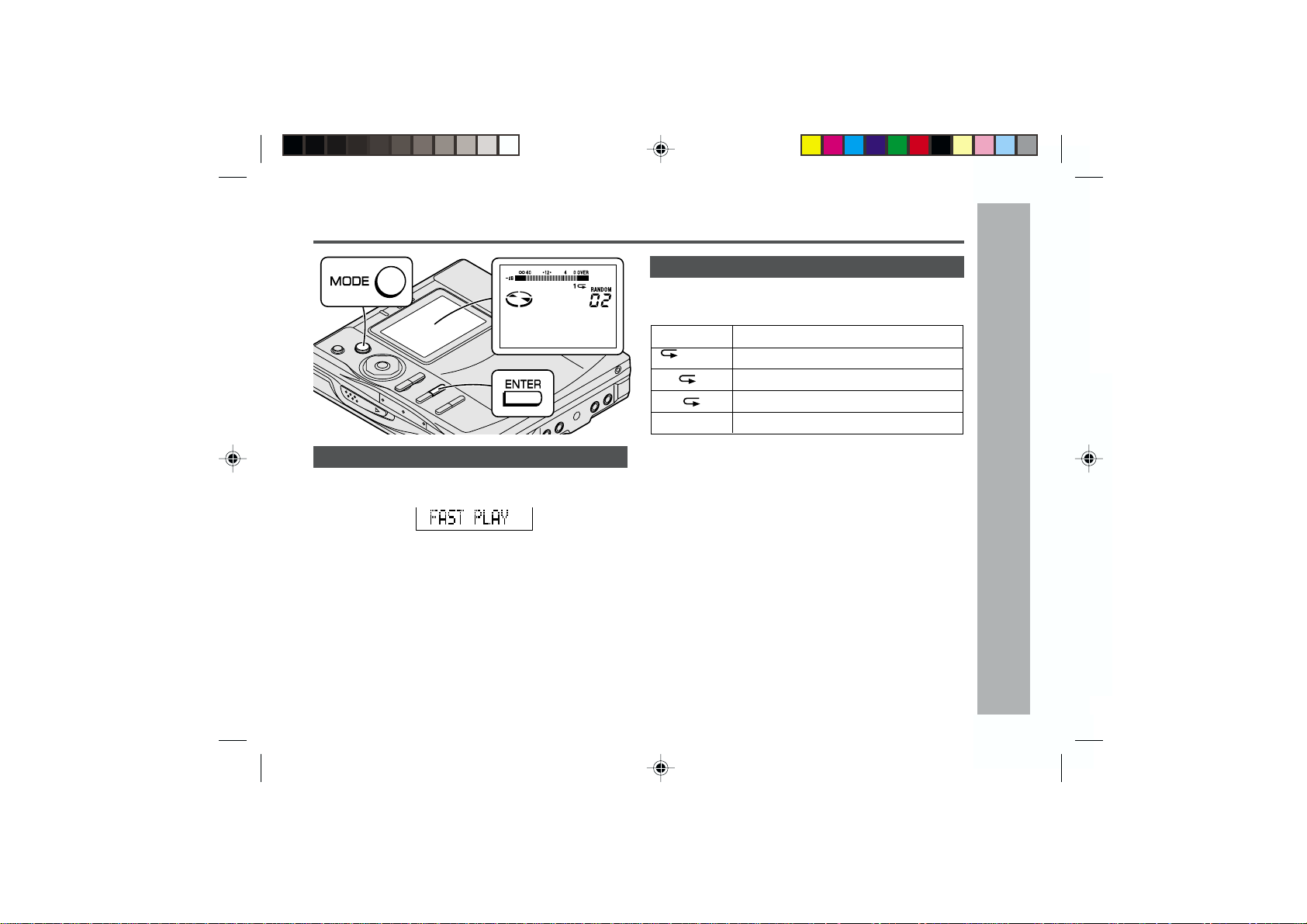

Advanced Playback

To locate the desired portion

For audible fast forward:

Press and hold down the 4 button during playback.

For audible fast reverse:

Press and hold down the 5 button during playback.

● Normal playback will resume when the 5 or 4

button is released.

● When the end of the last track is reached during fast

forward, the unit will enter the pause mode. When the beginning of the first track is reached during fast reverse, the unit will enter the playback mode.

To locate the beginning of a track

To move to the beginning of the next track:

Press the 4 button during playback.

To restart the track being played:

Press the 5 button during playback.

To locate the next track:

Press the 4 button whilst the unit is stopped.

To locate the previous track:

Press the 5 button whilst the unit is stopped.

● T o skip a number of tracks at one time, press the

4 4

4 button repeatedly until the desired track num-

4 4

ber is shown.

● When you press the 06 button, playback starts from

the beginning of the track.

– Advanced Playback –

Useful Features

Advanced playback (continued)

Intro play

Y ou can listen to each track for approximately 5 seconds.

– Advanced Playback –

Useful Features

When stopped or pause, press the for 2 seconds or more.

When the playback mode is set as random playback,

random repeat playback, or one-track repeat playback,

the intro scan is not possible.

In this case, the playback is started in the normal mode.

The duration that “INTRO PLAY” is displayed is not fixed.

To return to normal playback

Press the

0606

06 button.

0606

06 button

Advanced playback (continued)

Random play or repeat play

During playback, press the MODE button repeatedly to select the playback mode.

RANDOM

No display

Random play Repeat play of tracks in random order Repeat play of all of the tracks Repeat play of a single track Normal playback

T o play at double speed (Mono recording only)

Press the ENTER button whilst a MiniDisc recorded in the monaural long-play mode is being played.

● If a track recorded in the stereo mode is reached during

fast playback, the fast playback mode will be cancelled.

● Depending on the contents recorded on a MiniDisc, it

may be difficult to hear them.

To interrupt fast playback

Press the When the fast playback.

To return to normal playback

Press the ENTER button.

0606

06 button during playback.

0606

06 button is pressed again, the unit will resume

0606

Notes:

● If the playback mode is selected whilst stopped, press

the 06 button to start playback.

● When “TOC” is displayed, random play or repeat play

is impossible.

● In random play the unit will select and play tracks auto-

matically. (You cannot select the order of the tracks.) After all of the tracks have been played once each in random order, the unit will stop automatically.

● During random, random repeat, or single track repeat

play, you can forward or reverse the MiniDisc only within the track being played.

● During random play, the unit cannot find the beginning

of any track which has been played.

● Repeat play lasts until you stop the unit.

– Advanced Playback –

Useful Features

Advanced Recording

Playback sound-actuated recording (Synchronised recording)

Recording automatically starts or pauses by detecting sound from the stereo system (Synchronised recording).

– Advanced Recording –

Useful Features

1 Press the REC button. 2 Begin playback on the stereo system con-

nected to this portable MD.

4 4

3 Press the

recording level.

4 4

button to adjust the

4 Press the PAUSE button on the stereo sys-

tem to enter the playback pause mode.

Select the starting point for your recording and press the PAUSE button.

5 Press the MODE button repeatedly to se-

lect recording mode (page 32).

6 Press the ENTER button (Synchro Button).

● “ ” will be displayed.

● To cancel the operation, press the • ■ / :OFF button.

7 Begin playback on the stereo system.

Recording will begin automatically.

To interrupt recording:

● When the stereo system is stopped, the unit will enter

the synchro recording pause mode. When playback is

resumed, the recording will be resumed.

● If a silence lasts for 3 seconds or more, the recording

will be paused (Pause function does not work for

approximately 10 seconds after a recording starts).

● When the unit receives sound again, recording automati-

cally starts.

●

A new track number is created when the recording resumes.

Advanced Recording (continued)

T o start recording from the middle of a track

Y ou can erase a portion of a track and make a new recording.

All of the tracks that follow the newly recorded track will be erased.

During playback, press the point where you want to begin recording.

0606

06 button at the

0606

2 Press the REC button.

T o cancel the operation, press the • ■ / :OFF button.

3 Press the ENTER button.

All of the tracks and track names will be erased, following the point where the playback is paused.

4 Press the MODE button repeatedly to se-

lect recording mode (page 32).

5 Press the

Recording will start.

Note:

To keep a track after the point you want to make a new recording, move the track and then make recording after that point.

(See “Editing a Recorded MiniDisc”, page 50.)

0606

06 button.

0606

– Advanced Recording –

Useful Features

Advanced Recording (continued)

Long-play recording

2 times and 4 times long recording

Double or quadruple time of stereo recording is possible.

Monaural recording

In monaural, you can record twice as long as the stereo recording (SP/STEREO). A track recorded in monaural can be played back in double speed, see page 29.

– Advanced Recording –

Useful Features

1 When a recording is paused, press the

MODE button repeatedly to select the recording mode.

Each time the button is pressed, the display will

change as follows:

Stereo recoding

Monaural recording

2 times long recording

4 times long recording

2 Start recording.

The recording mode remains unchanged until it is changed.

Advanced Recording (continued)

Notes:

● Tracks can be recorded in stereo recording mode, 2 times

long recording mode, and 4 times long recording mode on one MiniDisc.

● In monaural recording, the sound on the right and left

channels is mixed even if the input source is in stereo. Although you can hear the stereo sound from the earphones, the recorded sound is monaural.

● Tracks recorded in 2 times long recording and 4 times

long recording modes cannot be played with the unit that does not support these modes. On such a unit, “LP” is displayed at the beginning of the track and no sound is heard. (The operation and the display may vary depending on the unit.)

● Tracks recorded in monaural cannot be played if equip-

ment does not support the monaural playback.

About the recording mode

You can select the recording mode from stereo recording, 2 times long recording, 4 times long recording, and monaural recording. Recordable time varies depending on the recording mode.

If the tracks are recorded on 80-minute MiniDisc, you can record them in the following 4 modes:

Indication Recording mode Recording time

SP/STEREO Stereo Max. 80 min. LP2 REC 2 times long (stereo) Max. 160 min. LP4 REC 4 times long (stereo) Max. 320 min. SP/MONO Monaural Max. 160 min.

Caution for 4 times long recording (LP4)

Special compressing method allows the 4 times long recording to realize long-time stereo recording. Therefore, some noise is recorded occasionally. If sound quality is the main requirement, stereo recording or 2 times long recording is recommended.

About A TRAC

The ATRAC (Adaptive TRansform Acoustic Coding) system compresses the sound data into 1/5 by cutting out the inaudible sound. Since the sound is selected based on psychoacoustics masking, the sound quality is not impaired. This unit is equipped with the ATRAC3 compressing system that can reduce the sound data to 1/10 or 1/20 of it’s original size. By employing this system, 2 times and 4 times long recording is enabled in stereo mode.

– Advanced Recording –

Useful Features

Advanced Recording (continued)

To create your own track numbers

Y ou can create your own track numbers at any point.

Whilst recording, press the REC button at the point where you want to create track numbers.

The track number will be increased by one.

● One track number will be created every time the REC

button is pressed.

● The SOUND button on the remote control can also be

used to create track numbers.

Numbering restriction

If you try to number more than 10 tracks in certain amount of time, “SORRY” will be displayed and the operation will be disabled. In that case, wait until the next operation can be resumed.

– Advanced Recording –

Useful Features

In stereo recording Within 40 seconds In 2 times long recording Within 80 seconds In 4 times long recording Within 160 seconds In monaural recording Within 80 seconds

Recording tracks as a single track

You can record several pieces of music as a single track by disabling the auto marker function.

When a recording is paused or whilst recording…

Press the EDIT button.

Note:

When making digital recordings using a CD player or an MiniDisc player, track numbers will be created automatically regardless of the setting of the auto marker function.

Advanced Recording (continued)

About track numbers

1. Track numbers are created automatically during re-

cording via the analogue connection when a silence of 1 second or more is detected (Auto marker function). A series of tracks can be recorded as one by disabling the auto marker function see page 34.

About 1 second

Silence

First track

2. When recording from a CD or a MiniDisc using the digital connection, track numbers will be created at the same points as on the CD or MiniDisc (Synchro marker function).

Playback side

Recording side

● Track numbers may not be created in proper places,

depending on the source to be recorded from, such as signals with noise.

● The track numbers on the playback side may not match

the track numbers recorded on the MiniDisc.

First track Second track Third track

Track A Track B T rack C

First track Second track Third track

Track A Track B Track C

Second track

● When recording, if a programmed playback is performed

by the source or playback is performed by selecting tracks manually, the MiniDisc track numbers may not be the same as on the source.

● Track numbers may not be created properly, depending

on the connected stereo system.

– Advanced Recording –

Useful Features

Recording from a Microphone

0dB 4dB

To record from a microphone

Useful Features

Stereo microphone (commercially available)

– Recording from a Microphone –

1 Connect a stereo microphone to the MIC

IN socket.

2 Insert a recordable MiniDisc (page 17).

To the MIC IN socket

3 Press the REC button.

4 4

4 Press the

recording level.

Level meter

Adjust the recording level so that the maximum

sound volume from the source makes the reading swing somewhere between –4 dB and 0 dB.

4 4

button to adjust the

5 Press the MODE button repeatedly to se-

lect recording mode (page 32).

6 Press the

Recording will start.

To interrupt a recording

Press the 06 button whilst recording.

To resume recording, press the 06 button again. The track number will be increased by one each time you interrupt a recording.

To stop recording

Press the • ■ / :OFF button.

To write recorded contents on the MiniDisc

Press the • ■ / :OFF button whilst in the stop mode.

06 06

06 button.

06 06

Recording from a Microphone (continued)

Sound-actuated recording (Mic Synchronised recording)

1 Press the REC button. 2 Press the

recording level.

Level meter indicator

4 4

button to adjust the

0dB 4dB

3 Press the MODE button repeatedly to se-

lect recording mode (page 32).

4 Press the ENTER button to select the re-

cording sensitivity.

MIC SYNC H : Recording starts when the unit

MIC SYNC L : Recording starts when the unit

detects –24 dB or more (The unit can start recording from quiet sounds).

detects –12 dB or more.

5 When a sound, such as person speaking,

is picked up by the microphone, recording will begin automatically.

About pause function

The unit automatically pauses when the microphone does not pick up any sound for 3 seconds or more. (Pause function does not work for approximately 10 seconds after a recording starts.) When the microphone picks up sound again, recording starts automatically.

Notes:

● Whilst making a mic recording, do not connect anything

to the OPTICAL/LINE IN socket on the portable MD.

● To use a microphone, be sure it is a plug-in-power type

microphone.

•

When a plug-in-power type microphone is plugged in, the portable MD will provide power for the microphone’s operation.

•

If a different type of microphone is plugged in, it may not operate properly or it may cause the unit to malfunction.

● Insert the plug firmly . If you don’t, the recording will not

be made properly.

● Use a microphone with a 3.5 mm (1/8") diameter stereo

mini plug.

● If the unit starts recording too often from low unwanted

noises, set the microphone input to “MIC SYNC L”.

● Recording sensitivity can be changed whilst recording.

Useful Features

– Recording from a Microphone –

Recording from a Microphone (continued)

Track intervals

When recording from the microphone, track numbers will be created automatically at regular intervals (default setting: approximately every 5 minutes). During a mic synchro recording, the unit pauses when a silence lasts for 3 seconds or more, and creates a track number.

Changing intervals between tracks

1 When a recording is paused or whilst re-

cording, press the EDIT button repeatedly.

(A new track number is created every 3 minutes.)

(No automatic track numbers are created.)

Useful Features

– Recording from a Microphone –

(A new track number is created every 5 minutes.)

The interval between marks may vary slightly compared with the actual recording time.

(A new track number is created every 10 minutes.)

2 Track numbers will be created automati-

cally at regular intervals.

Example: Set to “5 minutes”.

During a mic manual recording

Timed auto marks will be created every 5 minutes.

Track number 1

5 minutes 5 minutes 5 minutes

Track number 2

Track number 3

Track number 4

During a mic synchro recording

If a silence lasts for 3 seconds or more, a timed auto mark will be created 5 minutes after the previous mark is created.

:Track number which is created by the timed auto mark function. :Track number which is created when a silence lasts for 3 sec-

onds or more during synchro recording.

Track

number 1

number 2

2 minutes 5 minutes 1 minute 5 minutes

Track number 3

Track number 4

Track number 5

Creating track numbers manually

Press the REC button whilst recording.

Checking Displays

T o check the elapsed time and remaining time of the track

During playback, press the DISP button.

Each time the button is pressed, the display will change as follows:

Track name

Elapsed playback time

Remaining playback time

Notes:

● If the disc name or the track name was not originally

recorded on the MiniDisc, “NO NAME” will be displayed.

● Remaining recording time will not be displayed with a

playback only MiniDisc.

● Elapsed playback time and remaining playback time may

be different from the actual time.

To check the remaining recording time and the total playing time

Whilst in the stop mode, press the DISP button.

Each time the button is pressed, the display will change as follows:

< Main unit display > < Remote control

Disc name Total playing time

Remaining recording time

Total playing time

● Remaining time of recording varies depending on the

set recording mode.

● If the remaining time of recording is over 100 minutes,

the last digit of the seconds is not displayed on the remote control.

display >

– Checking Displays –

Useful Features

Checking Displays (continued)

To display the playing time of an individual track

1 Whilst in the stop mode, press the

button to display the track number and

track name.

2 Press the DISP button to display the play-

ing time for that track.

– Checking Displays –

Useful Features

Each time the 5 or 4 button is pressed, the playing time of the previous or next track will be displayed.

Track number

Track name

Playing time

Checking the remaining amount of battery level

The remaining amount of battery level is shown by the battery indicator ( ) during operation.

How to read the battery indicator

When the battery level is high

● When the battery is completely discharged, the battery

indicator will flash. Recharge the battery or replace the alkaline battery with a new one.

● When the battery has run completely out, “BA TT EMPTY

(LoBATT)” will appear. Then, the power will be disconnected automatically.

Notes:

● If you use the battery which you stopped charging half-

way, “ ” may appear. It does not mean that the bat- tery is completely charged.

● The battery indicator will not correctly display the remain-

ing capacity for approximately 20 seconds after the power has been turned on.

● When the AC adaptor or a separately available car adap-

tor is used, the battery indicator will not be shown.

● The number of bars shown in the battery indicator may

increase or decrease, depending on the operation being performed. This is normal.

When the battery level is very low

Changing Default Settings

Whilst in the stop mode ...

1 With a MiniDisc inserted, press the MODE

button for 2 seconds or more. “SET UP” will appear.

When you release the button, “BEEP ON” or “BEEP OFF” will appear.

2 Press the

menu.

Press the MODE button to switch items.

4 Press the •

button to display the

■ / :OFF button.

BEEP ON Confirmation sound

A-PLAY ON Auto play

AUTO Psave Auto power save

D.L MODE 1 Digital recording level

LIGHT NORM 3-colour LED illumination

Backlight on the remote control

Display on the remote control

(*) indicates default setting.

BEEP ON* Beep BEEP OFF Silent

A-PLAY ON* Setting A-PLAY OFF Cancelled

AUTO Psave* Setting Psave OFF Cancelled

D.L MODE 1* D.L MODE 2 Cancelled

LIGHT NORM* See next LIGHT ALL page. LIGHT OPER LIGHT OFF

SETTING ITEM

Setting keep

Useful Features

– Changing Default Settings –

Changing Default Settings (continued)

Beep sound

Y ou can eliminate the confirmation sound that beeps when you press a button.

Auto play

You can make the unit not play automatically when you insert a playback-only MiniDisc or an accidental erasure protected MiniDisc.

Auto power save

When the unit is used in a place exposed to much vibration, sound skipping can be decreased by cancelling the auto power save function. (Battery will drain faster .)

Digital recording level

“D.L MODE 1”

The digital recording level you set will be kept even after canceling recording.

“D.L MODE 2”

Useful Features

Every time you cancel recording, the level will return to [ D.L 0dB ].

– Changing Default Settings –

What is auto power save function?

During playback, maximum 40 seconds (in stereo) of musical information is stored. Auto power save function automatically adjusts the storage time between 5 and 40 seconds to reduce the power consumption. If this function is cancelled, the storage time cannot be adjusted. (It cannot be adjusted even if it is operated on the battery charger.) The storage time varies depending on the playback mode.

Operation indicator, backlight on the remote control and display on the remote control

The illuminating pattern of the 3-colour LED and the remote control can be changed.

LIGHT NORM:

•3-colour LED Indication lamp is flashing.

•Backlight on the

remote control

•Display on the Indicated. remote control

LIGHT ALL:

•3-colour LED Indication lamp is lit.

•Backlight on the

remote control

•Display on the Indicated. remote control

LIGHT OPER:

•

3-colour LED Lit for approx. 10 seconds when operated

•Backlight on the remote control

•Display on the Indicated for approx. 10 seconds when remote control operated.

LIGHT OFF:

•3-colour LED The light is not turned on.

•Backlight on the The light is not turned on.

remote control

•Display on the Indicated for approx. 10 seconds when remote control operated.

Lit for approx. 10 seconds when operated.

Lit for approx. 10 seconds when operated. (Lit when operated on the battery charger .)

during playback or recording. Lit for approx. 10 seconds when operated.

Titling a MiniDisc

Creating disc and track names

Load a MiniDisc to be named. A Playback-only or recording-prevented MiniDisc cannot be edited.

Disc name Track name

Whilst in the pause mode with “DISC” displayed, press the EDIT button repeatedly to select “DISC NAME”.

If “DISC” is not displayed, you cannot select “DISC NAME.” “DISC” is displayed when the • ■ /:OFF is pressed once.

Whilst in the pause mode, press the EDIT button repeatedly to select “TRACK NAME”.

2 Press the ENTER button.

Cursor

● The unit will enter the character input mode.

● To cancel the operation, press the • ■ / :OFF

button.

3 Press the DISP button repeatedly to select

the type of characters.

(Capital letters) (Lower-case letters) (Numbers and symbols)

The first 3 characters in the group of the selected characters will be displayed for about 1 second.

4 Press the

select the letter.

button repeatedly to

5 Press the ENTER button to enter it.

Position where the next letter will be entered

6 To enter more letters, repeat steps 3 - 5.

Continued to the next page

– Titling a MiniDisc –

Advanced Features

Titling a MiniDisc (continued)

7 When the name has been completely en-

tered, press the EDIT button.

“TOC” will be displayed. To write the updated contents to the MiniDisc press the

• ■ / :OFF button.

Y ou cannot remove the MiniDisc whilst “TOC” is displayed. “TOC” will not disappear until the recorded contents have been updated.

Note:

One disc name and up to 255 track names can be created per disc (a maximum of 100 characters for the disc and

– Titling a MiniDisc –

each track name and a total of 1,700 characters can be entered. However, if any tracks are recorded in the 2 times or 4 times long recording mode, the number of characters

Advanced Features

to be entered is decreased, since the information of the recording mode is stored by the track.).

To erase a character

Press the VOL + or VOL – button to move the cursor to the character you want to erase, and then press the BASS button.

To enter a space

Press the VOL + button to move the cursor to the right.

Space

Characters (symbols)

Capital letters

<; =

n o

A C D E F G H

B QP

S U V W X Y ZTR

Lower-case letters

a c d e f g h

s u v w x y ztr

Numbers and symbols

1 3 4 5 6 7 8

(

)

@>?

: indicates a space.

I J K L M

i j k l m

! " #

9 0

–

/.,

Titling a MiniDisc (continued)

To add characters

1 Put the unit in the character input mode.

(Perform steps 1 - 2 on page 43.)

Press the VOL + or VOL – button to move the cursor to the right of the character, where you want to add a new character.

3 Select the character to add.

(Perform steps 3 - 4 on page 43.)

4 Press the ENTER button.

5 Press the EDIT button.

“TOC” will be displayed. To write the updated contents to the MiniDisc press the

• ■ / :OFF button.

Y ou cannot remove the MiniDisc whilst “TOC” is displayed. “TOC” will not disappear until the recorded contents have been updated.

– Titling a MiniDisc –

Advanced Features

Titling a MiniDisc (continued)

Stamping titles from another MiniDisc

Before stamping

When there are 2 MiniDiscs on which the same tracks are recorded, you can transfer the character information (disc and track names) of the Master MiniDisc to another MiniDisc (for stamping).

Master MiniDisc operation

1 Insert a Master MiniDisc.

1. What is a master MiniDisc?

A recordable MiniDisc that contains tracks and character information. (You can not transfer the information from a playback only MiniDisc.)

– Titling a MiniDisc –

Advanced Features

2. What is a MiniDisc for stamping?

A MiniDisc that contains the same tracks in the same order as the master MiniDisc. (Make sure that the total number of tracks of the master MiniDisc and the one for stamping are the same.)

Do not mistake the Master MiniDisc for the target one.

2 Whilst in the stop mode, press the EDIT

button repeatedly to select “NAME STAMP”.

3 Press the ENTER button.

T o cancel the operation, press the • ■ / :OFF button.

Titling a MiniDisc (continued)

4 Press the ENTER button.

5 When the unit displays “CHANGE MD”,

remove the master MiniDisc.

Remove it without turning off the power. Or, the operation will be cancelled.

Operation of the MiniDisc for stamping

6 Load a MiniDisc for stamping.

7 Press the ENTER button.

The unit will finish recording the character information and enter the stop mode.

Note:

If the total number of tracks on the master MiniDisc does not match that on the MiniDisc for stamping, the unit will display “Can't STAMP” and turn off the power.

If this happens, adjust the total number of tracks on the newly recorded MiniDisc using the edit operation.

– Titling a MiniDisc –

Advanced Features

Editing a Recorded MiniDisc

To erase tracks one at a time To erase all of the tracks at once

1Start playing the track to be erased, and

press the

06 06

06 button.

06 06

2Press the EDIT button repeatedly to select

“ERASE”.

3Press the ENTER button.

To cancel the operation, press the • ■ / :OFF button.

Advanced Features

– Editing a Recorded MiniDisc –

4Press the ENTER button again.

The track will be erased.

5To erase other tracks, repeat steps 1 - 4.

1Whilst in the stop mode, press the EDIT but-

ton repeatedly to select “ALL ERASE”.

2Press the ENTER button.

T o cancel the operation, press the • ■ / :OFF button.

3Press the ENTER button again.

All of the tracks will be erased.

Caution:

Once a track has been erased, it cannot be recovered. Check the track number before erasing it.

Editing a recorded MiniDisc (continued)

To divide a track

1Start playing the track to be divided into

two. Press the you want to divide the track.

Press the EDIT button repeatedly to select “DIVIDE”.

0606

06 button at the point where

0606

3Press the ENTER button.

To cancel the operation, press the • ■ / :OFF button.

4Press the ENTER button again.

The track will be divided into two tracks, and the unit will pause at the beginning of the second of the two new tracks.

To combine tracks

1Start playing the last of the two tracks to

be combined, and press the

Press the EDIT button repeatedly to select “COMBINE”.

06 06

06 button.

06 06

3Press the ENTER button.

T o cancel the operation, press the • ■ / :OFF button.

4Press the ENTER button again.

The two tracks will be combined, and the unit will be paused at the beginning of the combined track.

Advanced Features

– Editing a Recorded MiniDisc –

Editing a Recorded MiniDisc (continued)

To move a track

1Play the track to be moved, and press the

0606

06 button.

0606

Press the EDIT button repeatedly to select “MOVE”.

3Press the ENTER button.

To cancel the operation, press the • ■ / :OFF button.

4Press the

– Editing a Recorded MiniDisc –

direction.

Advanced Features

5Press the ENTER button again.

The track will be moved, and the unit will be paused at the beginning of the track.

button to select the

When a track has a name before dividing:

The two new tracks will have the same name. However, in the TOC FULL condition, the second track may not be named.

Total number of tracks that can be divided:

Each disc can hold up to 255 tracks. However, even if the number of assigned tracks has not reached 254, it might not be possible to make any further divisions of tracks.

To combine two non-adjacent tracks:

First, put the two tracks next to each other in the order you want using the MOVE function. Then combine them using the COMBINE function.

When one or both tracks to be combined have a name:

The first track name will be used. However, when the first track does not have a name, the second track name will be used.

In the following cases, tracks may not be combined:

Tracks recorded by different inputs cannot be combined. Example:

- Digital recorded track and analogue recorded track.

- Different recording modes (stereo recording, 2 times long recording, 4 times long recording, monaural recording).

Tracks whose recording time is less than 12 seconds.

Listening to a MiniDisc Through a Stereo System or a Car Stereo

Listening through a stereo system

To the LINE INPUT sockets

Red:

To the right

White:

To the left

Connection cable

Notes:

● It is recommended that the volume level of the MiniDisc

unit be set to maximum when listening through a stereo system.

● When recording with stereo system, eliminate the con-

firmation sound (page 41). Otherwise, it will also be recorded.

● The recording will be made in the analogue mode.

● Character information will not be recorded.

Listening through a car stereo

Separately available cassette adaptor

Separately available car adaptor (AD-CA55X)

Notes:

●

Adjust the volume of both this portable MD and a car stereo.

●

Do not operate this portable MD whilst you drive a car. It may distract your attention and cause a traffic accident.

● Do not use any car adaptor except for the separately

available AD-CA55X.

● Remove the battery when you power the unit from the

car battery.

● Do not leave the unit in the place of high temperature

such as in a car. If the unit gets hot, the LCD display will be darkened and

hard to read. It will return to normal when the temperature cools down.

(AD-CT14)

Separately available plug adaptor (AD-M66PA)

Advanced Features

– Listening to a MiniDisc Through a Stereo System or a Car Stereo –

Other Features and Caution

Resuming auto play

■ When you stop playback and replay the MiniDisc

without removing it, playback starts from the point you stopped it.

Stopping

First track

■ Once you remove the MiniDisc, playback starts from

the first track.

First track

Playing

■ The unit provides the following functions when you

References

use it with the separately available car adaptor (ADCA55X) (when the rechargeable or alkaline battery is removed):

– Other Features and Caution –

When you turn off the engine, the power of this portable MD also turns off. (It may not work with some types of cars.)

2. When you restart the engine, playback starts from the beginning of the stopped track.

First track

Stopped track

Playing

Stopping

Stopped track

Stopping

Stopped track

Playing

Rechargeable battery

●

A rechargeable nickel-metal hydride battery is the only kind that can be used. Even if the battery is not used, you should charge it at least once every three months because of the special quality of this battery.

●

The rechargeable battery can be charged approximately 300 times.

●

When the operating time is reduced to about half the normal amount of time, even after a full charge is performed, replace the battery with a new one (AD-N55BT).

●

When the battery is charged for the first time or is charged after not being used for a long period, the operating time may be shorter than normal. The battery life will recover with normal use i.e. charging and discharging.

●

To avoid shortening the service life of the battery only recharge the battery after it has been completely discharged.

●

If the rechargeable battery is used in a cold environment, the operating time will be reduced.

●

Do not carry the battery in your pocket or a bag together with metal objects (keys, coins, jewelry, etc.). The battery may short out and generate significant amounts of heat.

●

Do not short-circuit the terminals as they will become very hot and will damage the battery.

●

Do not drop or subject the battery to shock.

●

Do not insert objects (metal etc.) into the battery compartment of this product or into the rechargeable battery .

MiniDisc System Limitations

The unit may have the following symptoms whilst recording or editing. The unit is not out of order.

SYMPTOM

“DISC FULL” or “TOC FULL” appears even though the MiniDisc still has recording time left.

More than 255 tracks (maximum) cannot be recorded regardless of the recording time. If the MiniDisc is recorded or edited repeatedly or if it has scratches (recording skips scratched parts), you may not be able to record the maximum tracks above.

LIMITATIONS

The remaining recording time does not increase even though you erased tracks.

The total of the recorded time and the remaining time does not match the maximum recordable time.

Combine function does not work.

Sound skips in fast reverse/forward.

A track number is created in the middle of a track.

The unit does not count non-recorded portions that last 12 or fewer seconds to display the remaining recording time. The time may not increase even if you erase short tracks.

One cluster (approximately 2 seconds) is the minimum unit for recording. For example, a 3-second track uses 2 clusters (approximately 4 seconds). Therefore, the actual recordable time may be shorter than the displayed time.

A MiniDisc on which recording and editing are repeated may not allow the combine function.

One track is divided and recorded in separate places on a repeatedly recorded or edited MiniDisc. Sound may skip.

A track number may be created if there are scratches or dust on the MiniDisc.

References

– MiniDisc System Limitations –

Error Messages

ERROR MESSAGES

BATT EMPTY

(LoBATT)

BLANK MD

(BLANK)

Can’t COPY

(Can’tC)

Can’t EDIT

(Can’tE)

Can’t READ *

(Can’tS) (Can’tT) (Can’tU)

Can’t REC

(Can’tR)

Can’t STAMP Can’t WRITE

(Can’tW)

References

– Error Messages –

CHARGEmode

DEFECT

(DEFECT)

DISC FULL Er-MD **

(ErMD*)

HOLD

(HOLD)

LOCKED

(Can’tLOCK)

MEANING

● The battery is run down.

● Nothing is recorded.

● You tried to record from a copy prohibited

MiniDisc.

● A track cannot be edited.

● The disc data cannot be read because the disc

is damaged.

● Recording cannot be performed correctly due to vibration or shock.

● Stamp function does not work.

● Cannot save the TOC information correctly to a

MiniDisc. (A large portion of the disc has been damaged.)

● The Charge/Operation switch is not set to the operation mode when using this unit with the AC adaptor.

● The disc is scratched.

● The disc is out of recording space.

● The microprocessor has reported a system fault

and the unit is out of order.

● The unit is in the hold mode.

● You removed a MiniDisc whilst recording or

editing.

REMEDY

● Charge the rechargeable battery or replace the alkaline battery (or use the AC adaptor for power).

● Replace the disc with a recorded disc.

● Record using the analogue cable.

● Change the stop position of the track and then edit it.

● Reload the disc.

● Replace it with another recorded disc.

● Re-record or replace it with another recordable disc.

● Check the number of tracks.

● Replace the disc with another recordable disc.

● Set the Charge/Operation switch to the operation mode.

● If the sound you hear is not right, record again.

● Replace the disc with another recordable disc.

● Replace it with another recordable disc.

● T o have it repaired, go to the distributor where you pur-

chased the unit.

● Return the HOLD switch to its original position.

● Turn off the power and remove the MiniDisc.

Error Messages (continued)

ERROR MESSAGES

NO DISC NO SIGNAL

(noSIG.)

PLAY MD

(PLAYmd)

POWER ? PROTECTED

SORRY

(Sorry)

TEMP OVER

(TEMP!)

TOC FORM **

(Tform**)

TOC FULL Tr. Protect

? DISC

(? DISC)

( ) : Error messages seen on the remote control. Number or symbol appears in * position.

● A disc has not been loaded.

● Poor connection of the digital cable.

● No output signal comes out from the connected

unit to playback.

● The input signal has improper sampling frequency.

● You recorded on a playback-only disc.

● The battery charger is defective.

The write protection tab of a MiniDisc is set to

●

the protected position.

●

You tried to record on a playback-only disc.

● Since a track number is currently being located or updated, the unit cannot accept your command.

● The temperature is too high.

● There is an error in the recording signal.

● There is no space left for recording character

information (track names, disc names, etc.).

● The track has been protected from being erased.

● A disc which contains data other than music was

played.

● There is an error in the signal recorded on the disc.

● Stamping is not possible.

MEANING

REMEDY

● Load a disc.

● Connect the digital cable securely.

●

If the portable CD player has a function to prevent sound skips, deactivate it.

● Playback with the connected unit.

●

Replace it with a recordable disc.

● To have it repaired, go to the distributor where you purchased the unit. Move the write protection tab back to its original position.

●

● Replace it with a recordable MiniDisc.

● Wait for a while and try the operation again.

● Turn off the power, and wait for a while.

● Erase all of the tracks, and then record again.

● Replace it with another recordable disc.

● Edit the track with the device on which it was recorded.

● A disc which contains non-music data cannot be played.

● Replace it with another recorded disc.

● Retry.

References

– Error Messages –

Troubleshooting

Many potential “problems” can be resolved by the owner without calling a service technician. If something seems to be wrong with this product, check the following before calling your authorised SHARP dealer or service centre.

PROBLEM CAUSE PROBLEM CAUSE

The unit does not turn on.

No sound is heard from the earphones.

References

– Troubleshooting –

When the operation buttons are pressed, the unit does not respond.

Some sounds are skipped.

● Is the AC adaptor disconnected?

● Is the battery exhausted?

● Is the unit in the hold mode?

● Has condensation formed inside the

unit?

● Is the unit being influenced by me-

chanical shock or by static electricity?

● Is the volume set too low?

● Is the remote control unit or the ear-

phones plugged in?

●

Are you trying to play a MiniDisc with data on it instead of a MiniDisc containing music?

● Is the unit in the hold mode?

● Is the battery exhausted?

● Is the remote control unit plug or the

earphones plug inserted firmly?

● Is the battery exhausted?

● Is the unit being subjected to exces-

sive vibration?

The MiniDisc cannot be ejected.

Recording and editing are impossible.

The battery cannot be charged.

Nothing appears on the remote control display.

● Has the track number or character

information been updated on the disc yet?

● Is the unit in the recording or edit-

ing mode?

● Is the MiniDisc protected against

accidental erasure?

● Is the unit connected properly to the

other equipment?

●

Is the AC adaptor unplugged or did a power failure occur whilst recording or editing?

● Is the unit in the hold mode?

● Is an optical signal being output from

the stereo system? Read the operation manual for the stereo system.

● Is the select switch for charging/

operation set on the charging side?

● Is the socket clean?

● Is the remote control display set to

“LIGHT OFF”?

Troubleshooting (continued)

Maintenance

If trouble occurs

When this product is subjected to strong external interference (mechanical shock, excessive static electricity , abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.

If such a problem occurs, do the following:

1. Unplug the AC adaptor from the wall socket.

2. Remove the battery.

3. Leave the unit completely unpowered for approximately 30 seconds.

4. Plug the AC adaptor back into the wall socket and reoperate the unit.

Moisture condensation

When the unit has condensation inside, the disc signals cannot be read, and the unit may not function properly.

In the following cases, condensation may form inside the unit.

● Shortly after turning on a heater.

● When the unit is placed in a room

where there is excessive steam or moisture.

● When the unit is moved from a

cool place to a warm place.

To remove condensation:

Remove the MiniDisc and leave the unit for approximately 1 hour. The condensation should evaporate and the unit will work properly.

■ Cleaning

When the unit becomes dirty

Clean it with a soft cloth. When the unit is excessively dirty, use a soft cloth dampened in water (external surfaces only).

Clean the plugs and the connecting socket.

If the plugs or sockets are dirty, noise may be heard. Cleaning will prevent noise.

Caution:

● Do not use chemicals for cleaning (petrol, paint thinner,

etc.). It may damage the cabinet finish.

● Do not apply oil to the inside of the unit.

It may cause malfunctions.

– Maintenance –

References

Specifications

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Power source DC 1.2V: Rechargeable Nickel-Metal Hydride battery (AD-N55BT) x 1

Power consumption 0.15A (AC adaptor) Output power RMS; 10 mW (5 mW + 5 mW) (0.2% T.H.D.) Charging time Approx. 3.5 hours Input sensitivity MIC H: reference input level 0.25 mV input impedance 10 k ohms

– Specifications –

References

Output level Earphones:maximum output level 5 mW + 5 mW load impedance 32 ohms

Dimensions Width: 71.9 mm (2-27/32”) Height: 16.8 mm (11/16”) Depth: 78.7 mm (3-1/8”) Weight 131 g (0.29 lbs.) with rechargeable battery

Input socket Line/optical digital, microphone (powered by the main unit) Output socket Earphones (impedance: 32 ohms)/remote control unit Type Portable MiniDisc recorder Signal readout Non-contact, 3-beam semi-conductor laser pick-up Audio channels Stereo 2 channels/monaural (long-play mode) 1 channel Frequency response

DC 5V: AC adaptor (AC 110 - 240V, 50/60 Hz) DC 1.5V: Commercially available, “AA” size (LR6), alkaline battery x 1 DC 1.5V: Separately available car adaptor, AD-CA55X (for cars with a 12-24V DC nega-

tive earth electrical system) (Used with separately available plug adaptor (ADM66PA))

MIC L: reference input level 2.5 mV input impedance 10 k ohms LINE: reference input level 100 mV input impedance 20 k ohms

LINE: specified output 250 mV (-12 dB) load impedance 10 k ohms

20 – 20,000 Hz (± 3 dB)

Specifications (continued)

Rotation speed Approx. 400 – 1,350 rpm Error correction ACIRC (Advanced Cross Interleave Reed-Solomon Code) Coding ATRAC/ATRAC3 (Adaptive Transform Acoustic Coding), 24-bit computed type Recording method Magnetic modulation overwrite method Sampling frequency Wow and flutter Unmeasurable (less than ±0.001% W. peak) Battery life

When using the rechargeable battery (fully charged) included with the unit

When using one, commercially available, high capacity, “AA” size (LR6), alkaline battery (The rechargeable battery is in the unit, discharged.)

When using one, commercially available, high capacity, “AA” size (LR6), alkaline battery with the rechargeable battery (fully charged)

44.1 kHz (32 kHz and 48 kHz signals are converted to 44.1 kHz, and then recorded.)

Stereo 2 times long 4 times long

Continuous Continuous Continuous Continuous Continuous Continuous recording: play: recording: play: recording: play: Approx. Approx. Approx. Approx. Approx. Approx.

6.5 hours 12 hours 9 hours 13.5 hours 11.5 hours 15 hours Continuous Continuous Continuous Continuous Continuous Continuous

recording: play: recording: play: recording: play: Approx. Approx. Approx. Approx. Approx. Approx. 6 hours 16 hours 10 hours 19.5 hours 13 hours 22 hours

Continuous Continuous Continuous Continuous Continuous Continuous recording: play: recording: play: recording: play: Approx. Approx. Approx. Approx. Approx. Approx. 15 hours 29 hours 22 hours 33 hours 30 hours 40 hours

– Specifications –

References

● The above values are the standard values when the unit is operated horizontally and charged at an ambient temperature of 25°C (77°F). (The operable duration with the rechargeable battery will be shorter when the unit is carried around.)

● The volume level is set at “VOL 15”.

● The LED is set at “LIGHT OFF” (see page 41).

● Operable duration with a commercially available battery var-

ies depending on its maker, type, and conditions of use.

● “Fully charged” means that the charging is complete after approximately 3.5 hours since the remaining amount of the battery is reduced to “

” (1 bar).

SHARP CORPORATION

A0012.TOTINSE0342AWZZ

Sharp MD-MT877W Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
