User manual

Models:

LC-32CFE6131K LC-32CHE6131K LC-40CFE6131K LC-43CFE6131K LC-49CFE6031K

Image for illustration purposes only. Actual product may vary.

LC-49CFE6032K LC-50CFE6131K

Manufacturers Guarantee

IMPORTANT GUARANTEE INFORMATIONIMPORTANT GUARANTEE INFORMATION

Congratulations on purchasing this television. We hope you have many years of trouble free

enjoyment from your purchase.

Your product is covered under the manufacturers guarantee for 12 months from the date

of purchase.

If you experience any difﬁ culties with your TV, please refer to the ‘Frequently asked questions’ section

in this user guide.

If you are still unable to remedy the issue, try resetting the TV to factory settings. (Details in the

‘Settings menu’ section of this user guide). Alternatively you can contact the helpline on the

number below.

In the event that a fault is diagnosed, the helpline will arrange to collect the TV from your home

or work address, return it to our service centre, repair the item and then return it to you.

If we believe we cannot offer a permanent repair, we will replace the item.

Technical Support Information

Telephone UK 0871 097 1163, ROI 01443 3940

Web support: www.umc-uk.co.uk

The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.

UK: Calls cost 12p per minute plus your phone company’s access charge.

ROI: Calls are charged at a local rate.

You must retain all packaging materials, in addition to your proof of purchase/receipt,

as you will need these in the event of warranty/service support.

This guarantee is in addition to and does not affect your statutory rights.

If you need to call the helpline, you will need the following information.

1) Model No ______________________________________ (You can ﬁ nd this on the rear of the TV)

2) Date of purchase ______________________________________ (You can ﬁ nd this on your sales receipt)

3) Serial Number ______________________________________ (You can ﬁ nd this on the rear of the TV)

EXAMPLE OF LABEL ON REAR OF TV

Model No

This TV set is for domestic use only

Serial No.

Important safety instruction

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Warnings

• Television sets which weigh 20kg or more must be

lifted and carried by at least 2 people.

• This television does not contain any parts that are

serviceable by the user. In case of a fault, contact the manufacturer or authorised service department. Exposing the internal parts inside the TV may endanger your life. The manufacturers guarantee does not extend to faults caused by repairs carried out by unauthorised third parties.

• To reduce the risk of ﬁ re, electric shock or damage

to the TV, do not expose it to dust, rain or moisture. Never expose the TV to dripping or splashing and do not place objects ﬁ lled with liquids on or near the TV.

• Do not connect any external devices (DVD player,

games console etc) when the TV is switched on. Disconnect both the TV and device from the mains before connecting. Only switch appliances on when the connection process is complete.

• Do not place the television in a conﬁ ned space and

do not obstruct the ventilation openings at the rear of the television.

• When installing on a wall, ensure the TV is at

least 5cm from the wall for ventilation.

• Always ensure that the TV’s ventilation openings

are not covered with items such as newspapers, table-cloths, curtains, etc.

• Dispose of this television and any components

including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.

Safety

• For your safety, this appliance is ﬁ tted with a

fused 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.

• Never try and replace the mains plug unless you have

adequate qualiﬁ cations and are legally authorised to do so. In the event that a replacement mains cable is required, contact the manufacturer for a suitable replacement.

• Never use the television if it is damaged in any way.

• Always place the television on a ﬂ at level surface

avoiding anywhere which may be subject to strong vibration.

• The ideal distance to watch the television is

approximately ﬁ ve times the length of the diagonal measurements of the TV screen.

• Ensure the television is not placed on top of the

power cable as the weight of the television may damage the cable and cause a safety hazard.

• Never place mobile phones, speakers or any

other device which may cause magnetic or radio interference, near the television. If interference is apparent, move the device causing the interference away from the television.

• To disconnect the apparatus from the mains, please

use the mains plug located on the underside/rear of the TV.

• Ensure that the mains plug is always easily accessible.

WARNING: Excessive noise when using earphones and headphones can cause loss of hearing.

Maintenance

• To clean your TV, wipe with a soft, dry cloth. If the

surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.

• Never use alcohol, paint thinner or benzene to clean

this unit.

• Before using a chemically treated cloth, read the

instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel surface, a malfunction may occur.

Packaging

• The safest way to transport your item is in the

original box/packaging - please save your packaging for this.

• You will need the original box/packaging in the

event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package the item correctly.

Important information regarding use of video games, computers, captions or other  xed image displays

The extended use of  xed image program material can cause a permanent “shadow image” on the LCD/LED panel, also known as “screen burn”.

This “shadow image” can appear in the background during normal viewing. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum suitable viewing level.

2. Do not display the  xed image for extended periods of time.

3. Turn the power o when not in use.

Examples of images that are more likely to cause “screen burn” are as follows (this is not an exhaustive list):

• TV channel logos: e.g. shopping channel logos and

pricing displays - especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.

• Time displays.

• Teletext: Do not view a stationary page for a long

period of time

• TV/DVD menus: e.g. listings of DVD disc content.

• Pause mode: Do not leave the TV in pause mode

for long periods of time, e.g. when watching DVDs or videos.

Important: Once ‘shadow image/screen burn’ occurs, it will never disappear and is not repairable under warranty.

How do I dispose of this product?

UK: Waste electrical products should not be

disposed of with household waste. Please dispose of the product at a designated collection point for recycling of WEEE. For your nearest facilities, please see www.recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your local authority or retailer for recycling advice.

Batteries

• Do not expose batteries to high temperatures,

excessive heat, prolonged sunshine or ﬁ re as this may cause leakage, explosion or ignition. Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or

mix old and new batteries.

• Dispose of batteries in an environmentally

friendly way.

• Certain regions may regulate the disposal of

batteries. Please consult your local authority.

Trademarks

HDMI

The terms HDMI and HDMI High-De nition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

HDTV

The “HD TV” Logo is a trademark of DIGITALEUROPE.

HDTV 1080p

The “HD TV 1080p” Logo is a trademark of DIGITALEUROPE.

DVB

The DVB logo is the registered trademark of the Digital Video Broadcasting (DVB) project.

FREEVIEW

The FREEVIEW words and logos are trade marks of DTV Services LTD. © DTV Services Ltd.

SAORVIEW

SAORVIEW is a registered trademark owned by RTÉ.

Dolby

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

YouTube

YouTube and the YouTube logo are trademarks of Google Inc.

Wi-Fi

The Wi-Fi CERTIFIED Logo is a certi cation mark of the Wi-Fi Alliance.

Miracast

Wi-Fi CERTIFIED Miracast and Miracast are trademarks of Wi-Fi Alliance.

Intel WiDi

Intel and the Intel WiDi logo are trademarks of Intel Corporation in the U.S. and/or other countries.

DLNA

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certi cation marks of the Digital Living Network Alliance.

CE Statement:

Hereby, Universal Media Corporation l.t.d. declares that this LED TV is in compliance with the essential requirements and other relevant provisions of Dirrective 1999/5/EC.

http://www.sharp.eu/av/documnts-of-conformity

CONTENTS

Manufacturers guarantee information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

What is included in the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Attaching / detaching the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Securing the TV to a wall / wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

TV buttons and Input Source menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connecting the TV to the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

TV menu operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-33

Picture menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25

Sound menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Channel menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Lock menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Time menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Network conﬁ guration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Settings menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Applications menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-33

7 day TV guide and channel list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

USB record - Freeview / Saorview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36-45

Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36-37

Technical speciﬁ cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-45

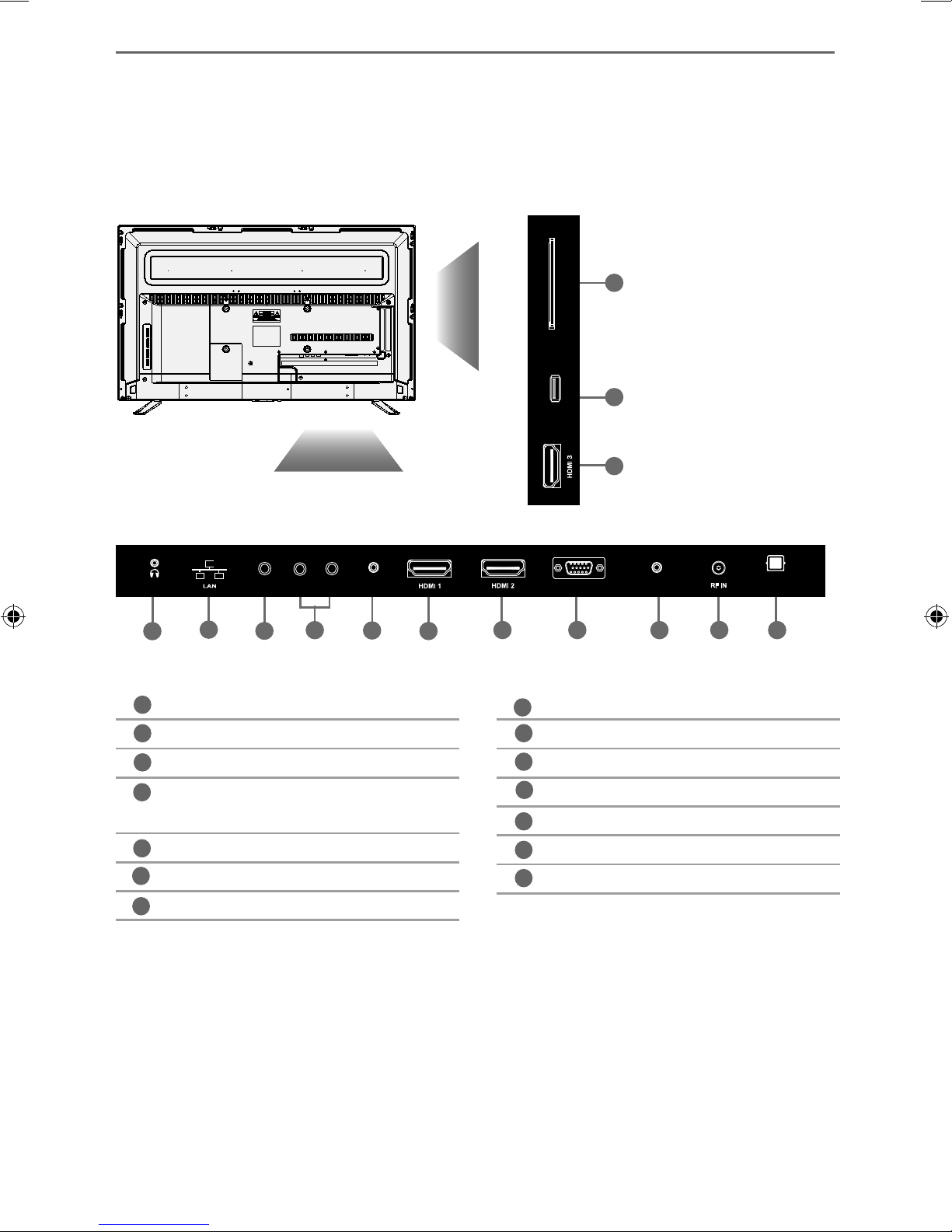

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-21

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

What is included in the box

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories.

1 x User guide

User guide

1 x Quick start guide

Quick start

guide

1 x Remote control and 2 x AAA batteries

1 x SCART to AV adapter cable

(For LC-49CFE6031K, LC-49CFE6032K and LC-50CFE6131K models only)

(For the LC-32CFE6131K model only)

1 x TV

1 x RF cable

1 x Mini composite / AV cable (For LC-32CHE6131K, LC-40CFE6131K, LC-43CFE6131K LC-49CFE6031K, LC-49CFE6032K and LC-50CFE6131K models only)

1 x Mini component / YPbPr cable

1 x Stand installation pack

4 x

1 x L (left)

1 x R (right)

Please save your box/packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in it’s original box/packaging.

Attaching/detaching the stand

ATTACHING THE STAND

Attaching the stand/feet

To complete the stand/feet installation you will require a cross head screw driver.

Screws that are included.

4 x

TV panel must be facing downwards.

(ﬁ g.1) Place the TV set on a ﬂ at and clean surface with the panel facing downwards to avoid damage, then ﬁ x the stand/feet shown. The feet are

marked L (left) and R (right).

(ﬁ g.2) Secure the stand/feet to the underside of the TV set using

the 4 screws provided.

Detaching the stand

Remove the screws highlighted then remove the stand/feet from the underside of the TV set.

4 x

Securing the TV to a wall/wall mounting

SECURING THE TV TO A WALL

Securing the TV to a wall with anti-tip straps

For maximum security in the home, when using a TV with its stand, anti-tip straps should be ﬁ tted. These are available from supermarket websites and other websites and are an easy, inexpensive and effective way of ensuring your TV stays safely upright. Straps are designed to be attached to the rear of the TV and then tethered to the wall or the furniture the TV is stood on, these are ﬁ tted as follows.

A) Using one or both of the top wall-mounting holes and screws fasten one end of the fastening cord/s to the TV. (the screws are already supplied in the wall mounting holes)

B) Secure the other end of the fastening cord/s to your wall. (you will need screws/ﬁ xings suitable for your wall type - available separately from most DIY stores).

Note - Please ensure that children do not climb on the TV set.

The Royal Society for the Prevention of Accidents is urging people to take care with ﬂ at-screen televisions.

RoSPA stated in 2010 that “Toddlers are particularly at risk of pulling ﬂ at-screen televisions on to themselves. They are unsteady on their feet and are attracted by colourful television images.”

The risk is increased as televisions become lighter.

Wall mounting

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electrical wires, water or gas pipes.

1) Remove the four screws located at the back of the TV set.

2) The wall mount can now be easily attached to the mounting holes, located on the back of the TV, using the same four screws removed.

For VESA wall mounting information please refer to the Technical Speciﬁ cation page.

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV’s screen is ‘face on’. See ﬁ g 1 and 2.

ﬁg 1 ﬁg 2

INCORRECT

CORRECT

Viewing angle

Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes located at the back of the TV, using other screws which are longer could cause irreparable damage to internal parts.

Viewing angle

Remote control

REMOTE CONTROL

During the initial set up of your TV you will need to pair the remote control to the TV. To pair the remote control to the TV, ensure the TV is in standby mode, press and hold the green and yellow buttons (highlighted below) on the remote control for a few seconds.

Key

For models with integrated DVD players. For models with PVR Function. For models with USB Playback. For models with 3D functions.

STANDBY - Switch on the TV when in standby or vice versa. MUTE - Mute the sound or vice versa. NET+ - Access the Aquos Net application. DTV - Switch to digital TV source. USB - Switch to USB source. YOUTUBE - Access the Youtube App.

NUMBER BUTTONS - 0–9 to select a TV channel directly. TV GUIDE - Opens the 7 day TV guide (digital TV mode).

- To return to the previous channel viewed.

VOL (+/-) - To increase/decrease the sound level. PICTURE - Scrolls through picture mode options. SOUND - Scrolls through sound mode options. SOURCE - To display the input/source menu. CH (+/-) - To increase or decrease the channel being watched. MENU - To display OSD menu. EXIT - To exit all menus.

- Allows you to navigate the on-screen menus and adjust

the system settings to your preference.

BACK - To go back a previous step. FAV - To display favourites menu.

INFO - Press once for now/next channel information.

- Press twice for information about the current programme.

SLEEP - Press repeatedly to cycle through the sleep options. AUDIO - To change the audio language (if available). SUBTITLE - To switch the dialogue at the bottom of the screen (on/off). TEXT - To enter/exit Text. TEXT HOLD - Teletext mode - Holds current page which is

displayed (Analogue TV).

TEXT/ZOOM - Zoom function for Teletext and DVD. DISPLAY - To switch off the screen when listening to radio. RECORD - Access the USB record function.

- To restart the current chapter

- To advance forward to the next chapter

- To stop the playback/Eject Disc

(To EJECT the disc press/hold the button for 4 seconds)

- To play in fast rewind mode

- To play in fast forward mode

- To play/pause

REC LIST - Opens the list of what has been previously recorded. GOTO - To go to a speciﬁ c chapter. A-B - Press once to set point, press a second time to return to point. ANGLE - Select different angle of DVD. REPEAT - To repeat playback.

Buttons to use when pairing the remote control to the TV.

TV Buttons and Input Source Menu

TV BUTTONS AND INPUT SOURCE MENU

Volume up and menu right

Volume down and menu left

Programme/channel up and menu up

Programme/channel down and menu down

Displays menu/OSD

Displays the ‘Input Source’ menu

Standby power On/Off

Note: The shape of the TV buttons may vary by model.

Choosing Mode Input/Source

Use the source menu to switch between input/connections.

A) Using the buttons on the remote control:

1) Press [SOURCE] - The source menu will appear.

2) Press [\/] or [/\] to select the input you require.

3) Press [OK].

B) Using the buttons on the Television:

1) Press [SOURCE].

2) Scroll up / down using CH+/ CH- buttons to the input/source you require.

3) Press Vol+ to change input/source to the one selected.

For further information on input/connections please view ‘Connections’ pages.

An example of the ‘Input Source’ menu

(will vary by model)

Connections

CONNECTIONS

Input/Outputs for the LC-32CFE6131K.

CI CARD IN

USB

EARPHONE

Earphones Earphone input

LAN* Network connection

Video Video input

YPbPr HD input (Ypbpr)

HDMI 1 HDMI input

HDMI 2 HDMI input (ARC)

R/L

VIDEO

R/L Audio shared for Video/Composite and component/ YPbPr

Y Pb Pr

VGA/PC IN

VGA PC VGA-PC Input

VGA PC audio in 3.5mm PC audio input

RF in RF / TV aerial input

Digital audio Digital optical audio output

HDMI 3 HDMI input

USB USB port

CI card in Common interface module

VGA /PC (Audio in)

*The LAN/Ethernet port is used for Freeview HD services and smart functions.

Digital Audio

Output

Connections

CONNECTIONS

Input/Outputs for the LC-32CHE6131K, LC-40CFE6131K and LC-43CFE6131K.

EARPHONE

CI CARD IN

AV IN Y Pb Pr

VGA/PC IN

LAN* Network connection

HDMI 1 HDMI input

HDMI 2 HDMI input (ARC)

VGA PC VGA-PC input

SCART SCART input

RF in RF / TV aerial input

Digital audio Digital optical audio output

VGA /PC (Audio in)

USB

Digital Audio

Output

HDMI 3 HDMI input

USB x 2 USB port

VGA PC audio in 3.5mm PC audio input

AV in Audio/video input

CI card in Common interface module

YPbPr HD input (Ypbpr)

Earphones Earphone input

The LAN/Ethernet port is used for Freeview HD services and smart functions.

+ 33 hidden pages

Sharp LC-32CFE6131K, LC-43CFE6131K, LC-32CHE6131K, LC-49CFE6031K, LC-49CFE6032K User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
